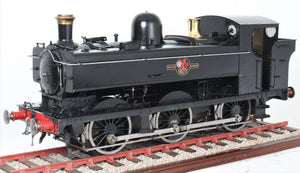

5 inch gauge GWR 0-6-0PT

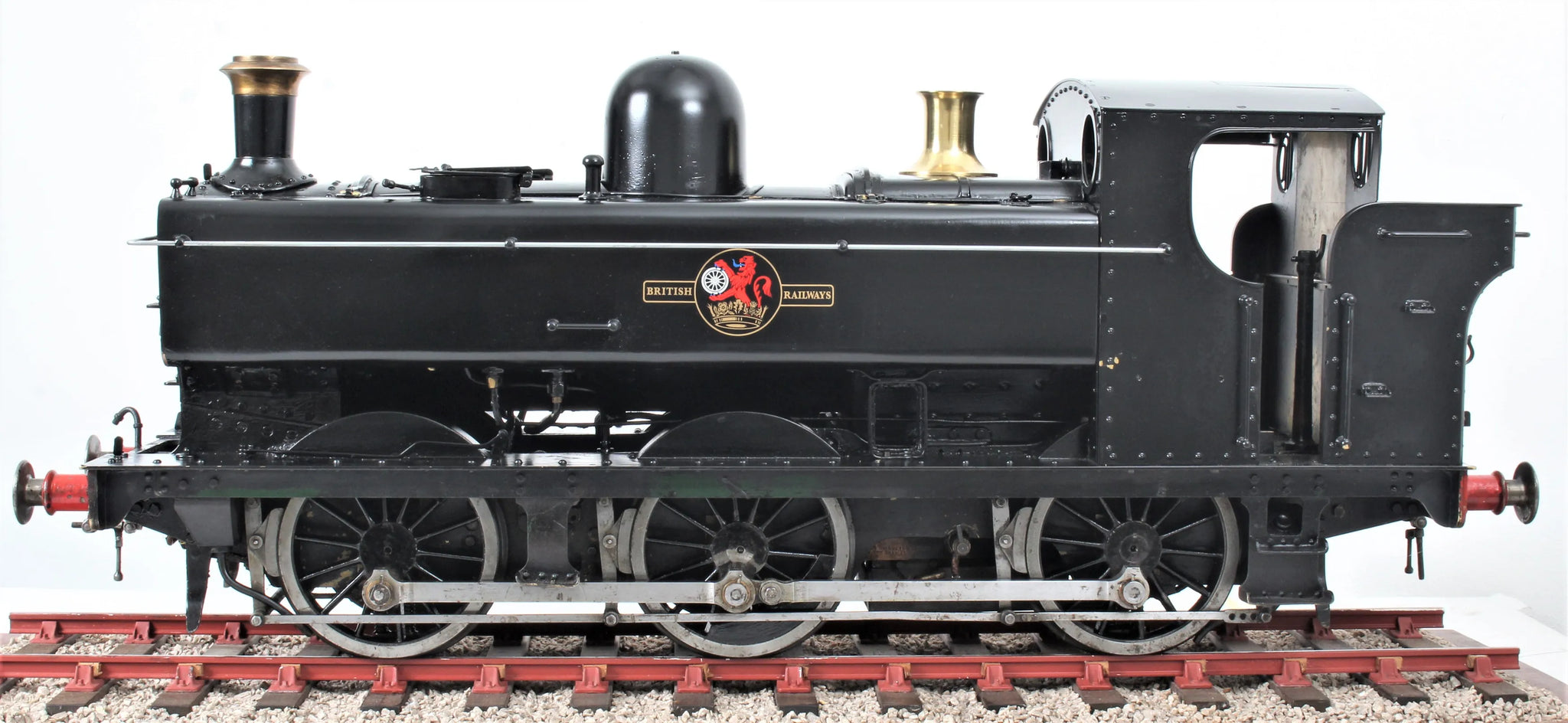

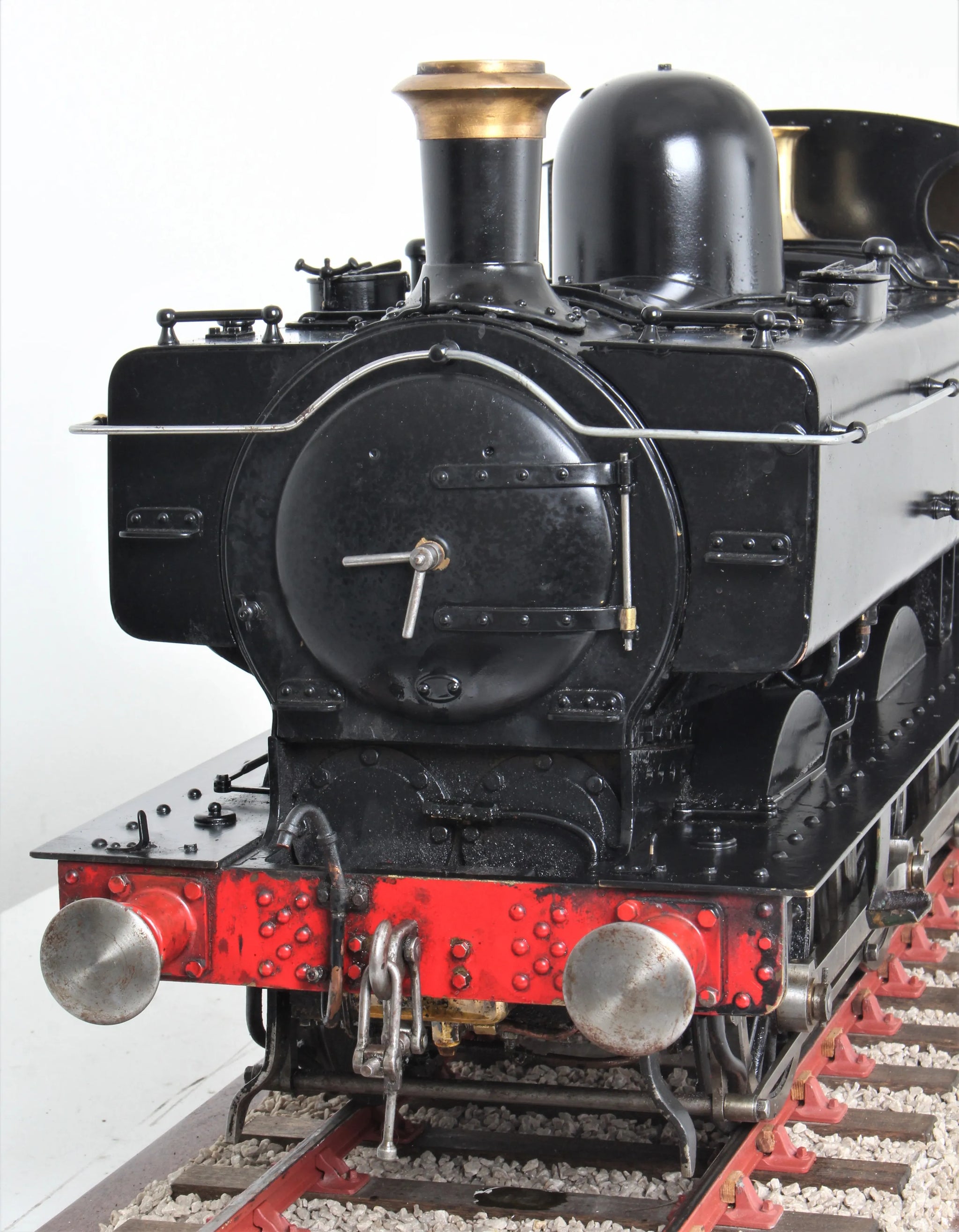

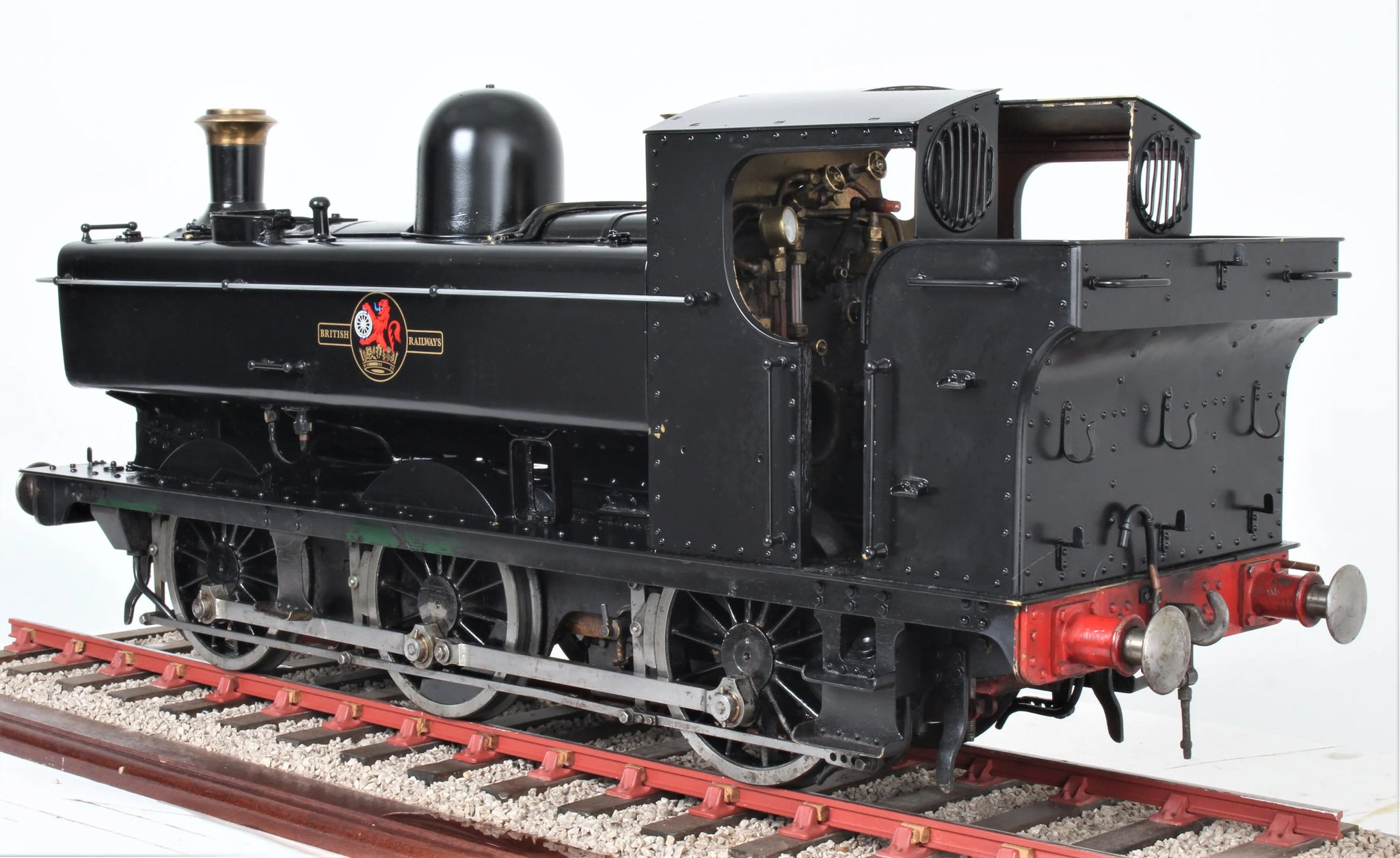

A well-built example of LBSC's "Pansy", his 5 inch gauge version of the ubiquitous GWR Pannier tank.

This one has come to us with a collection of other engines from a friend with wide-ranging interests, from an 8 ton Aveling & Porter steam roller to a vintage Piper Cub aeroplane - he came up to the works last year to retube his 4 inch scale Foster which featured in our blog at the time.

This engine has been in use at a private ground level track in recent times. It's had a boiler test here with new certification issued, the engine runs well on the rolling road - free steaming and notching up in either direction.

Boiler feed is by injector, axle and hand pumps; pumps take water from the pannier tank, the injector is piped up to feed from a separate tank - the previous owner had one fitted to his driving truck.

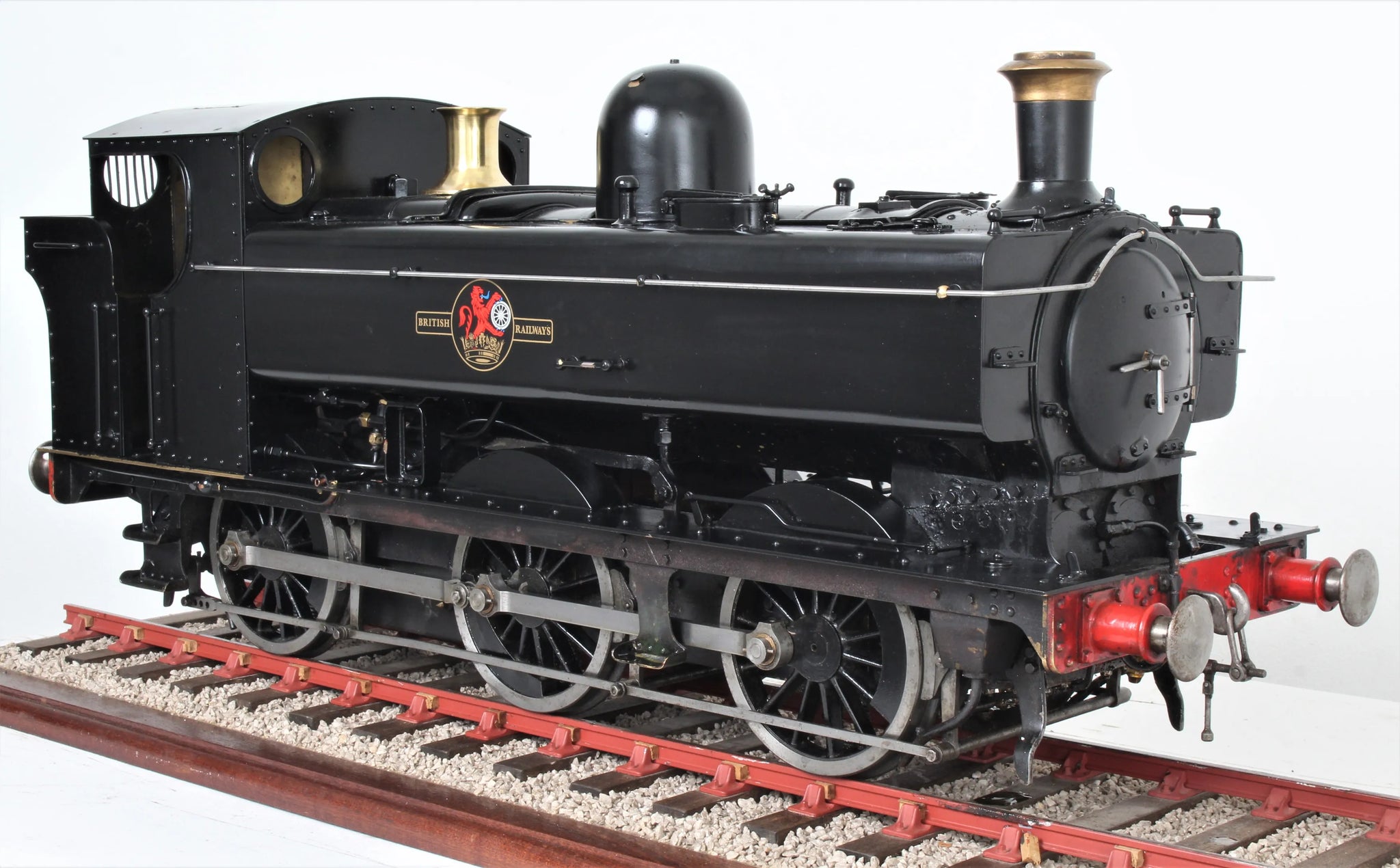

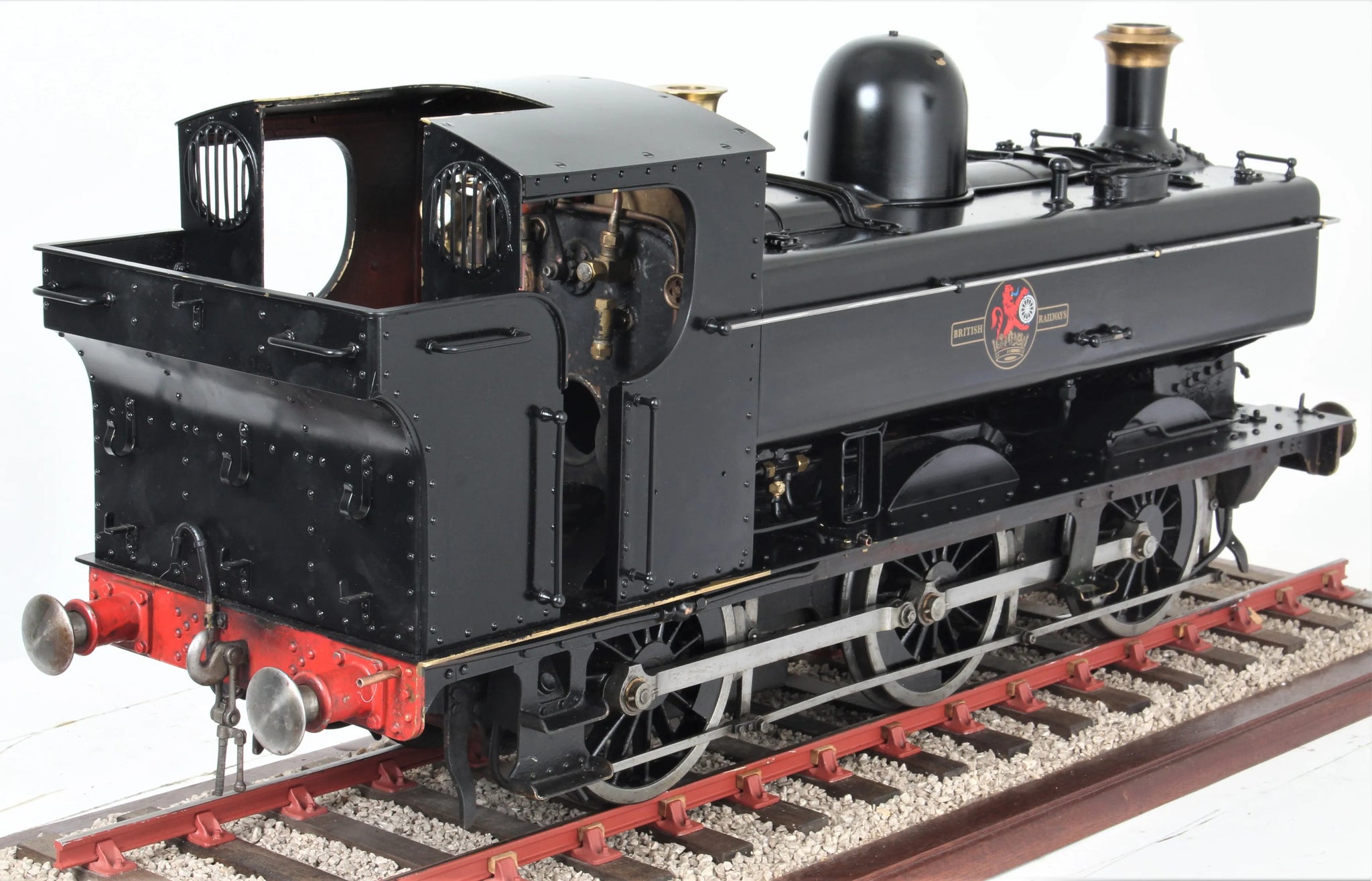

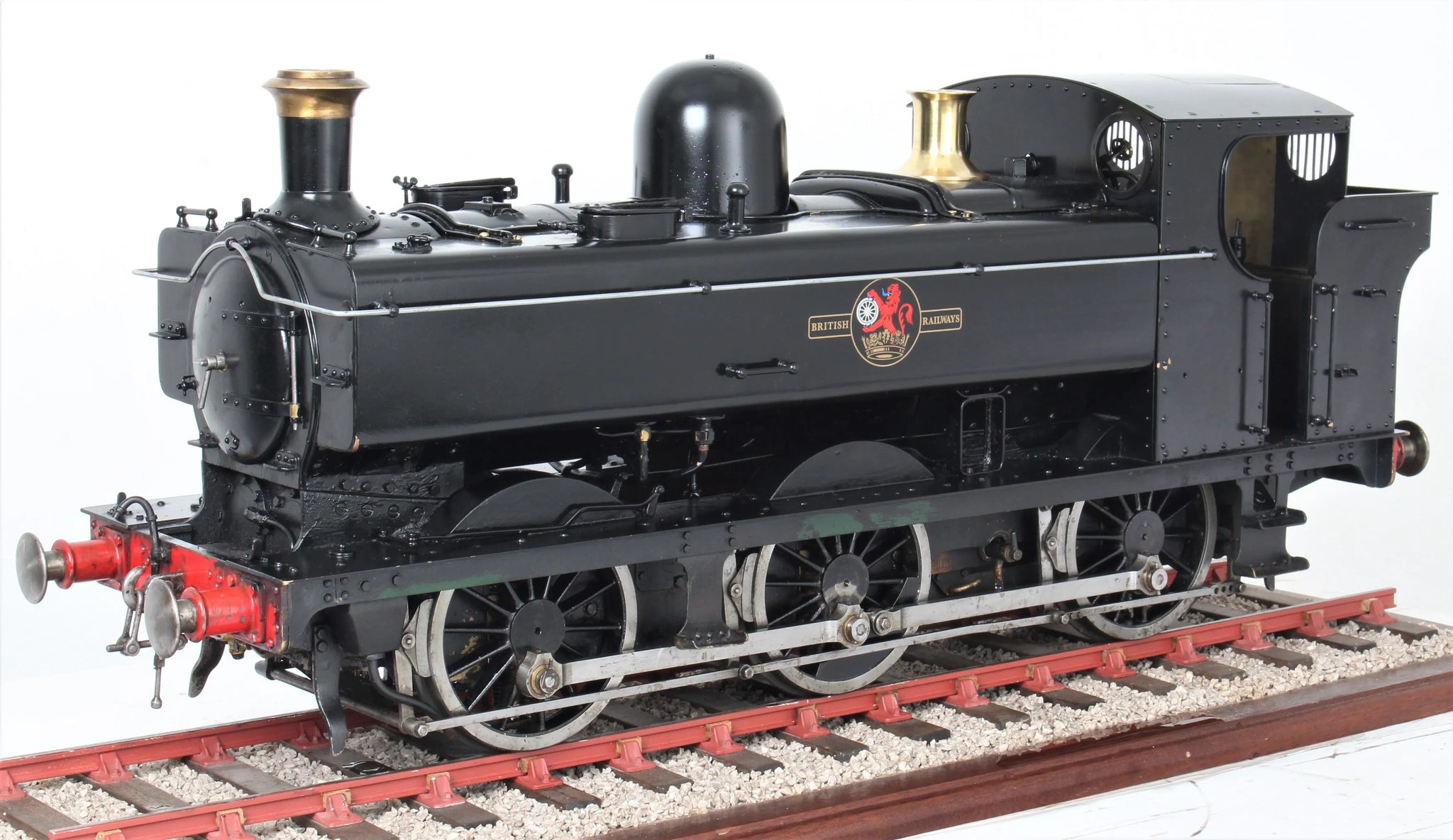

Paintwork has been redone in recent times, from green to black BR livery - there is some wear, with its previous colour showing through on the valances.

Technical information

Stock code

8946

Gauge

5 inch

Length/inches

34

Width/inches

9.5

Height/inches

14

Wheel material

cast iron

Axlebox type

plain bearing

Valve type

slide

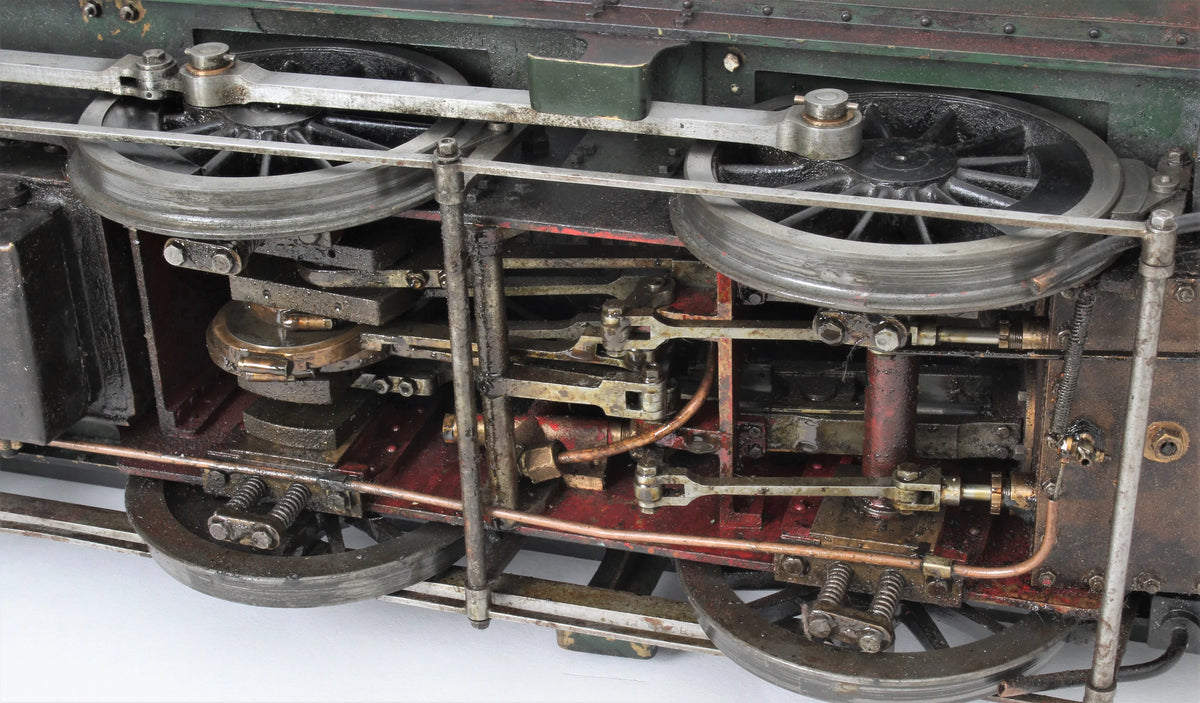

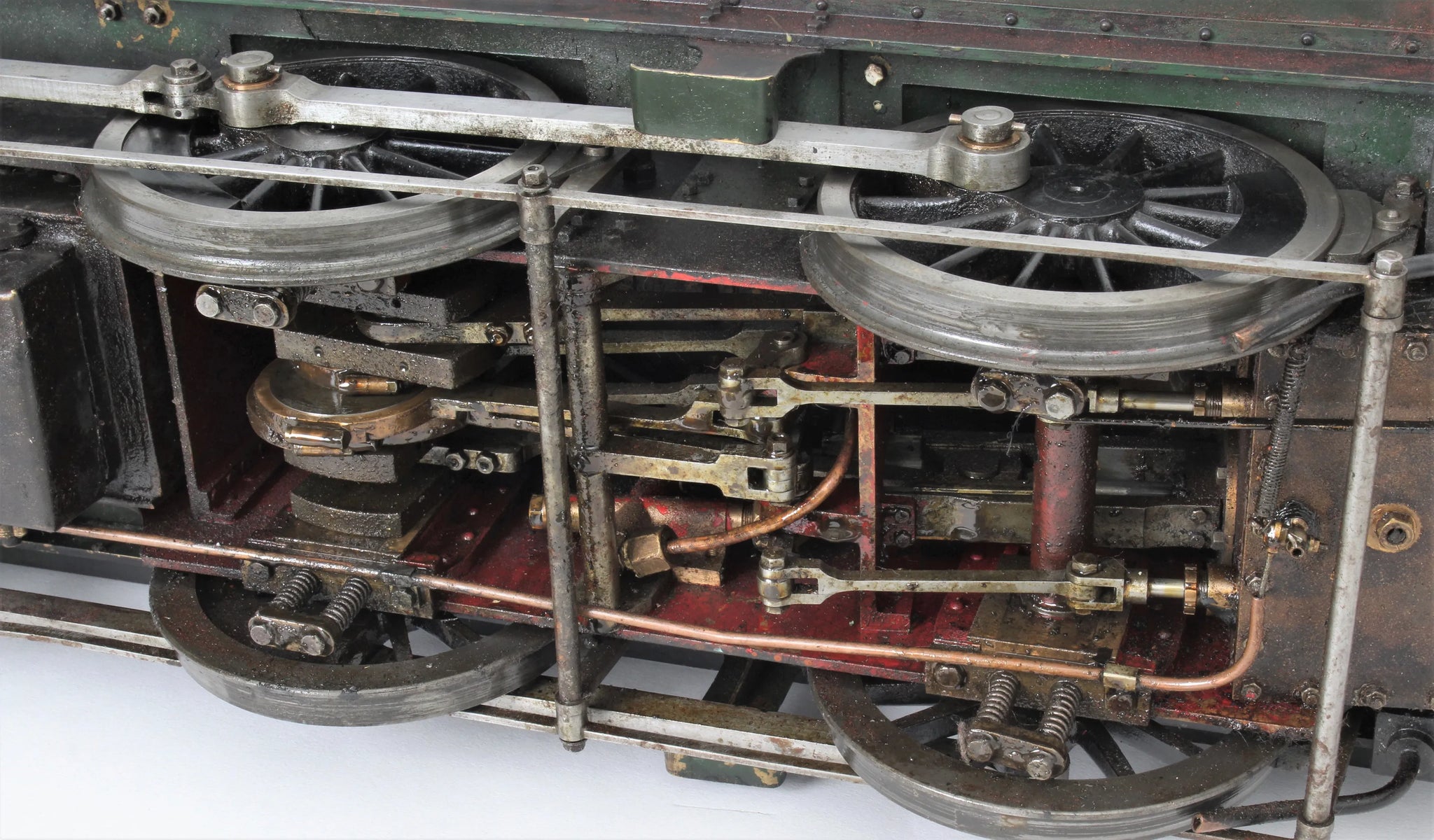

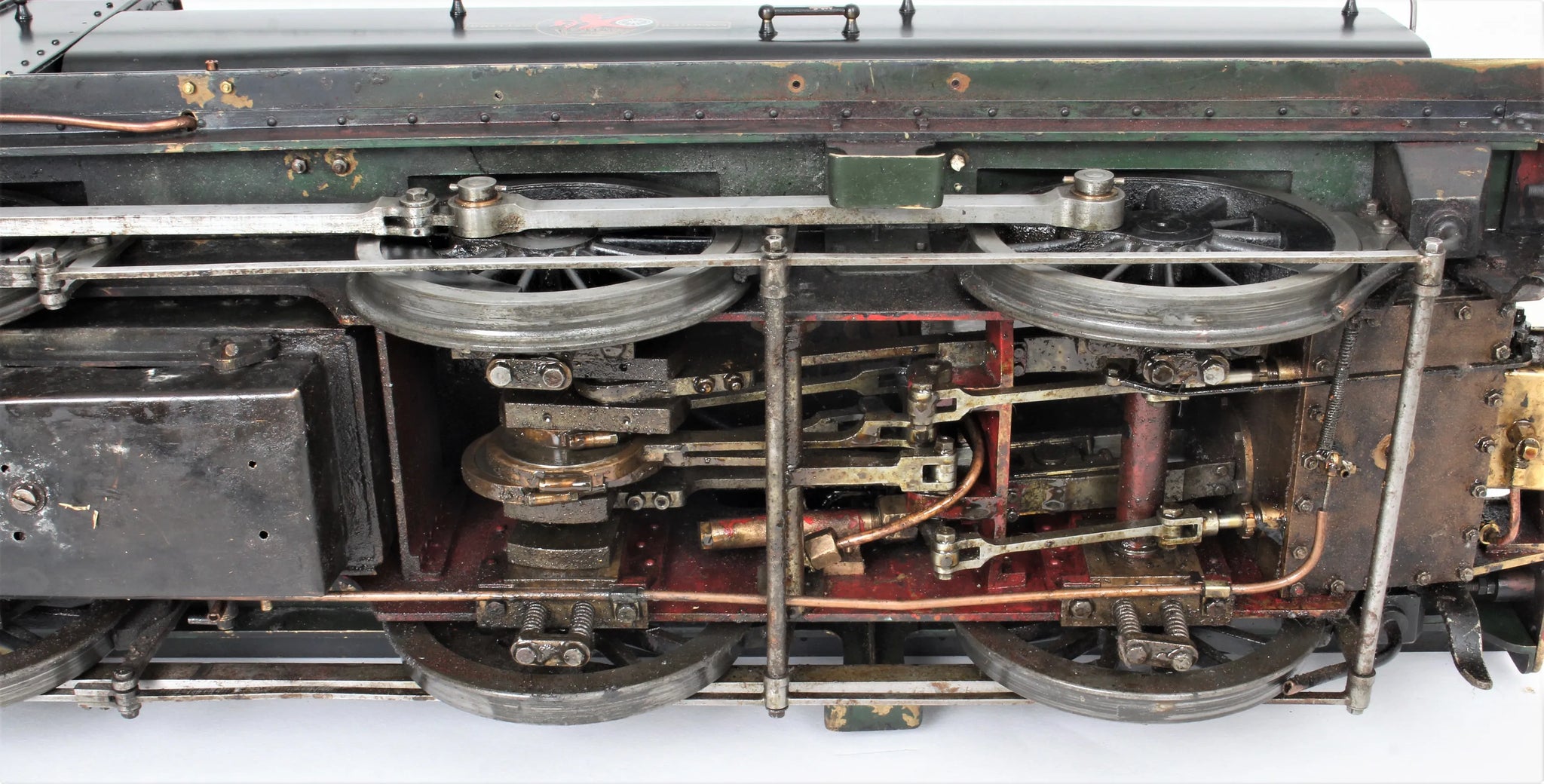

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - pre-2002

Year built

1964

Boiler number

T0361FF

Safety valve type

spring

Safety valve

1

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Mar-20

Hydraulic test valid to

19-Dec-23

Steam test valid to

26-May-21
