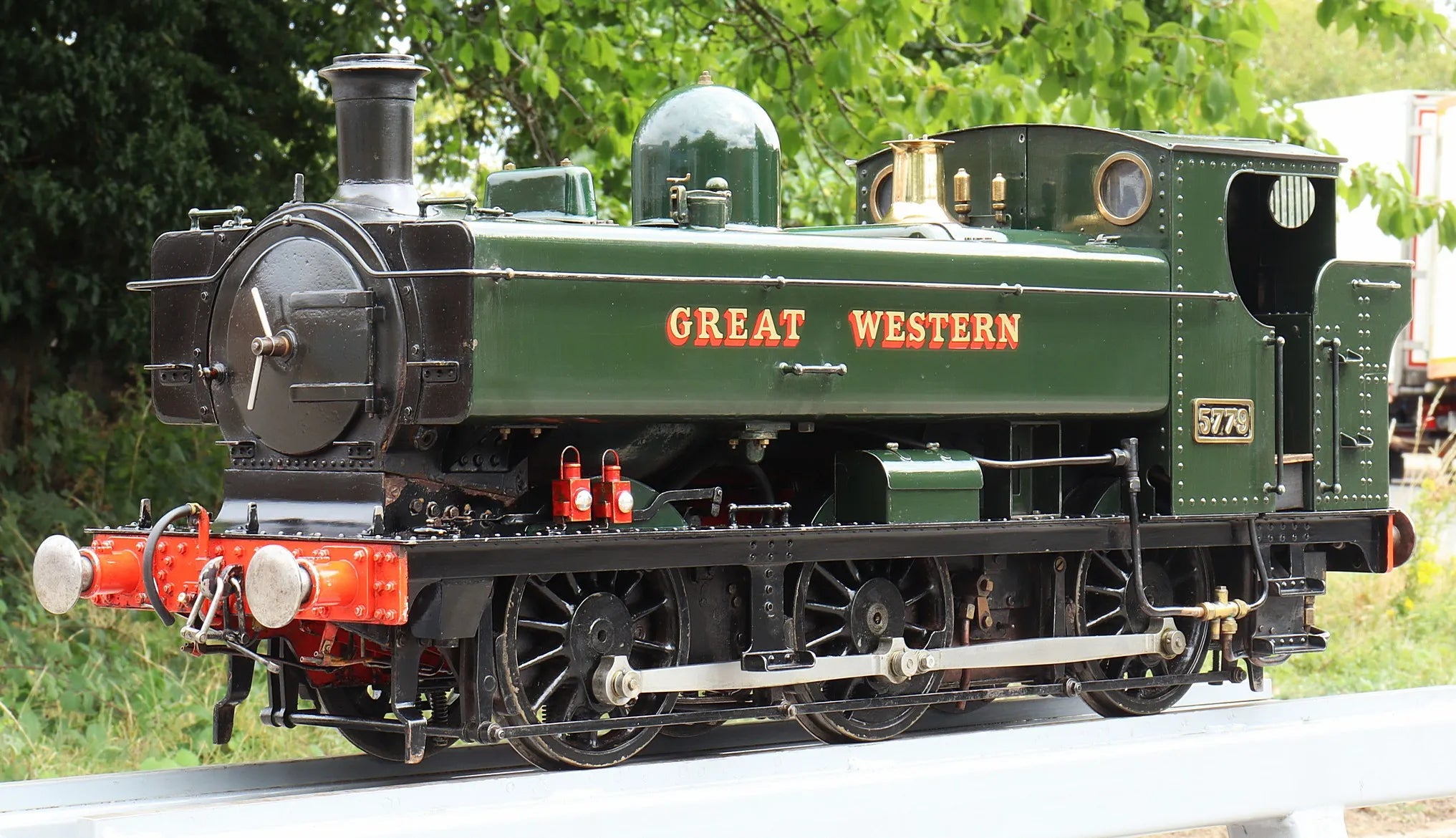

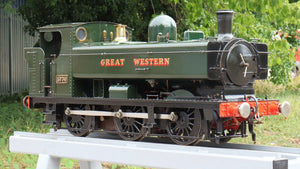

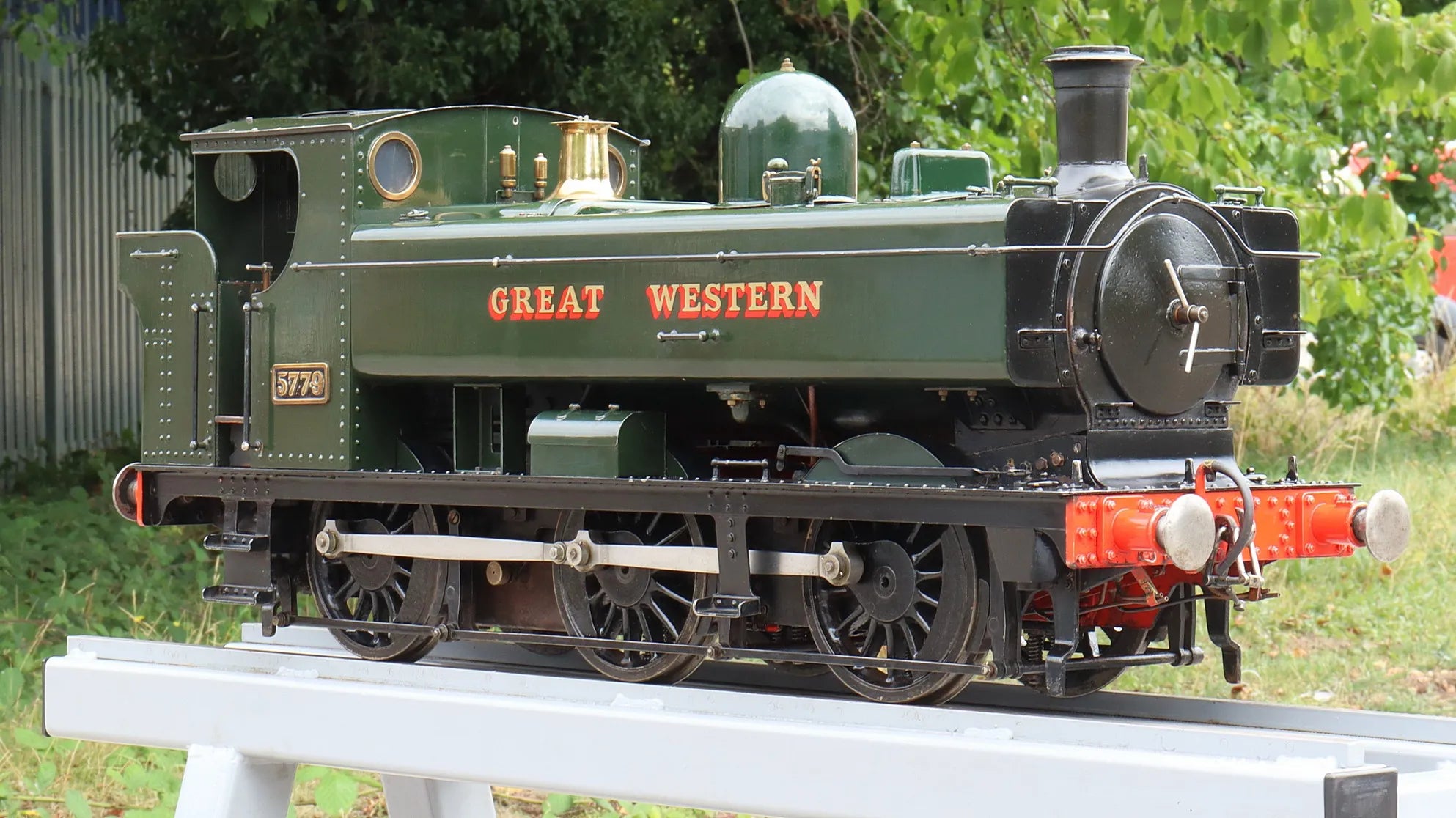

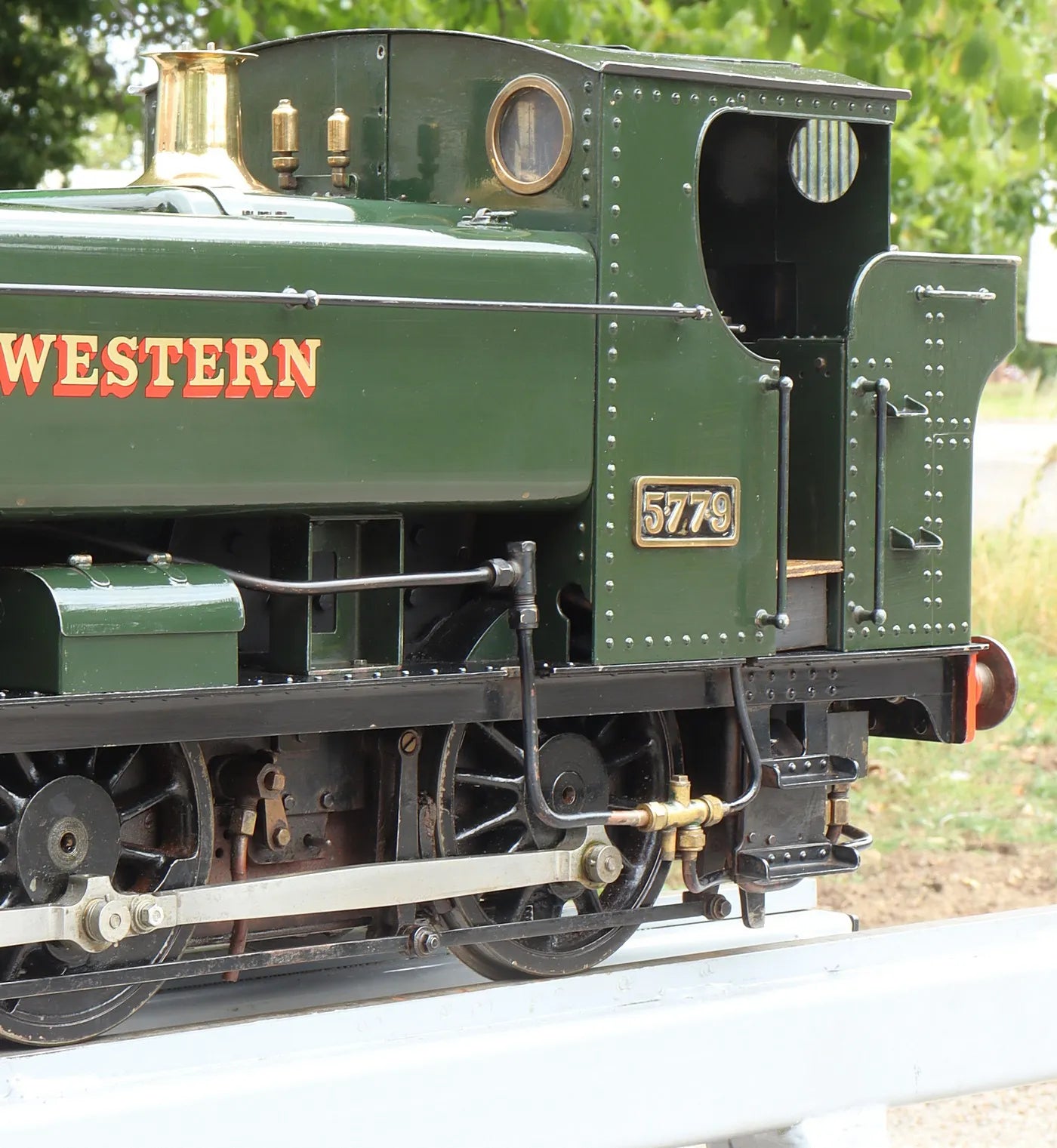

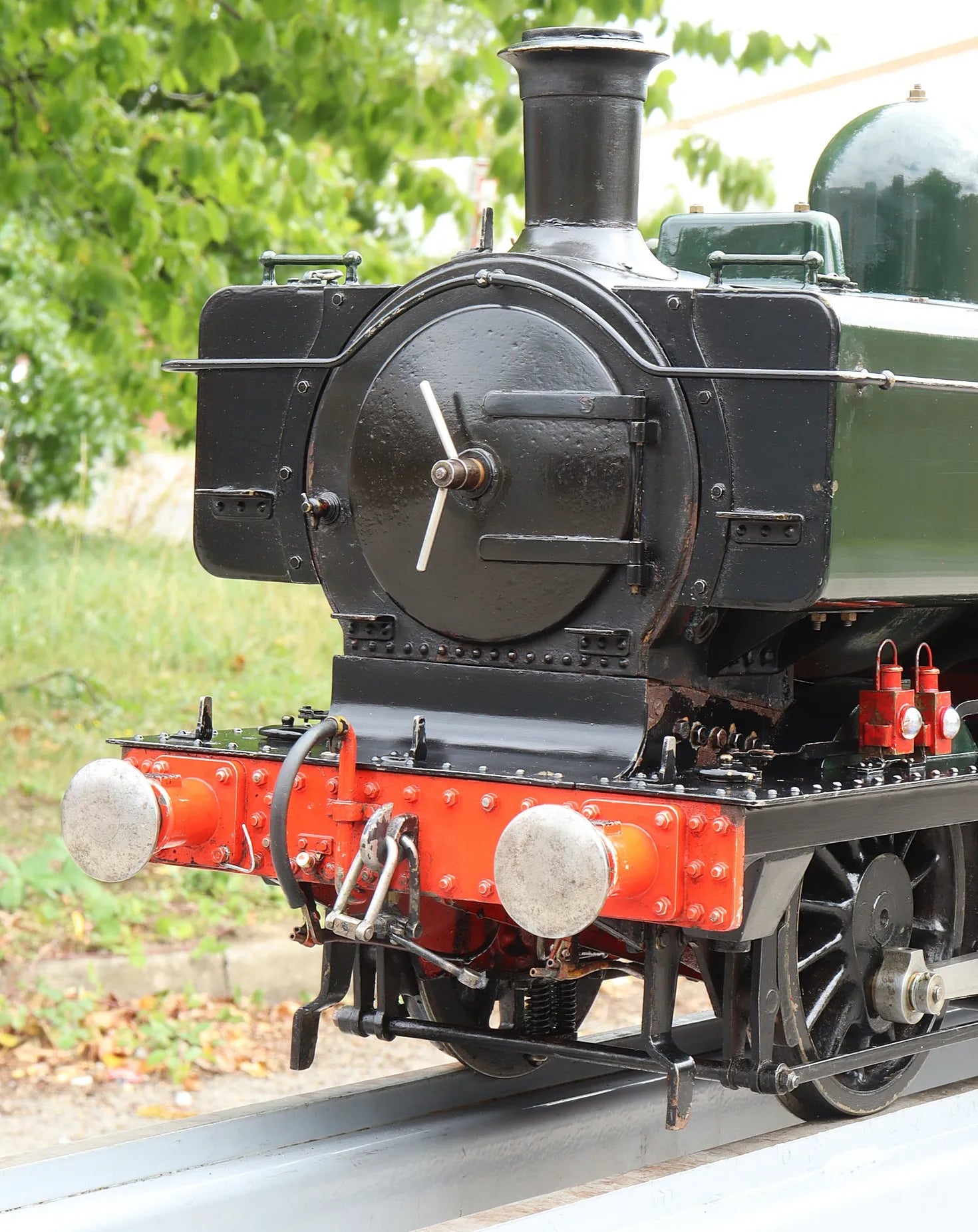

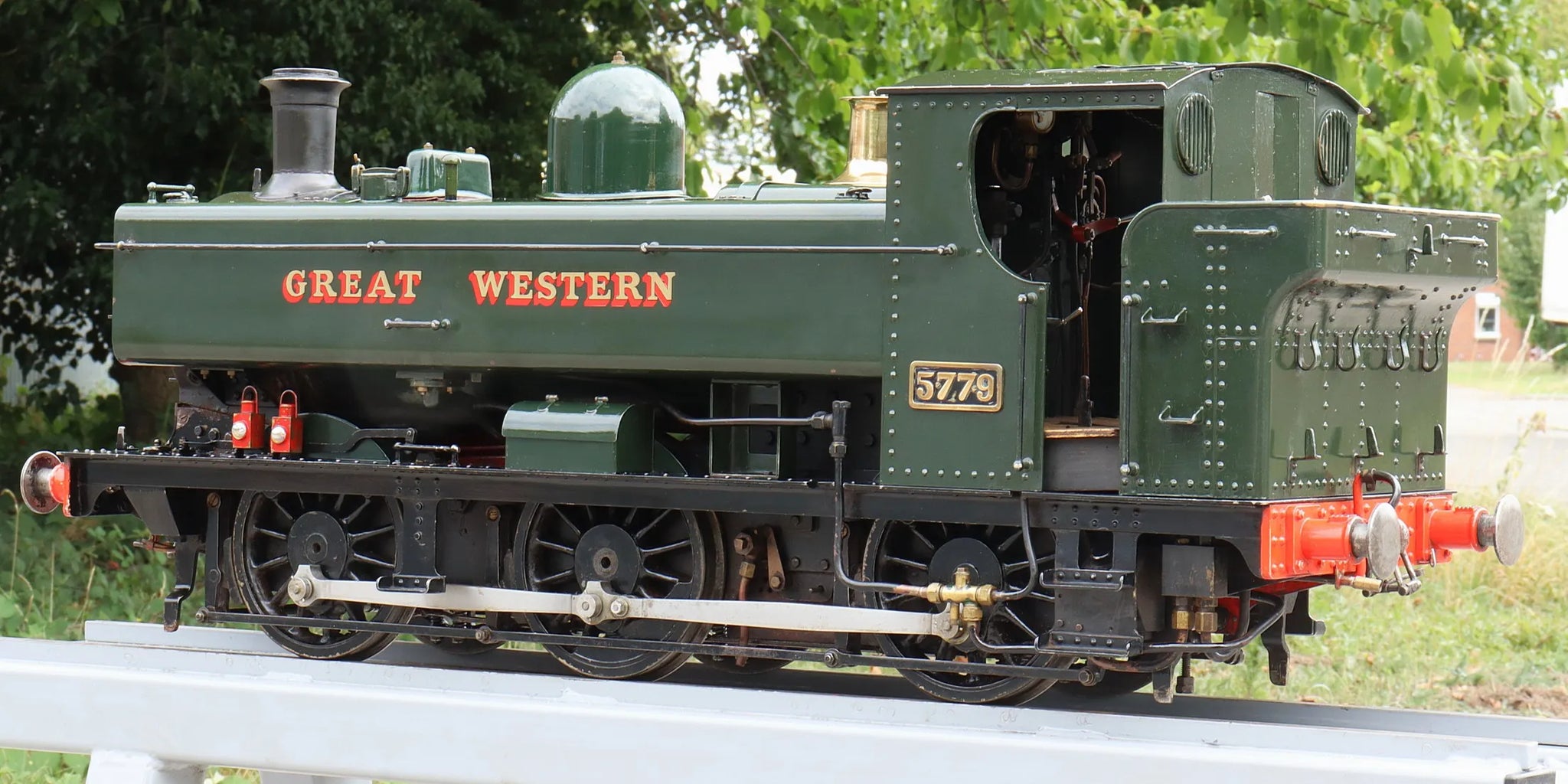

5 inch gauge GWR Pannier Tank Class 57XX 0-6-0

A 5 inch gauge GWR 57XX Pannier tank. We bought this one from the builder in 2014, a man with over thirty engines to his credit - indeed the first time I visited his club I saw him handing over a brand new "City of Truro" to its new owner following a steam test.

The engine has come to us as part of a large collection as the owner downsizes in retirement. We last sold it to him at the end of 2014 - there are pictures and a video of it running in the archive here.

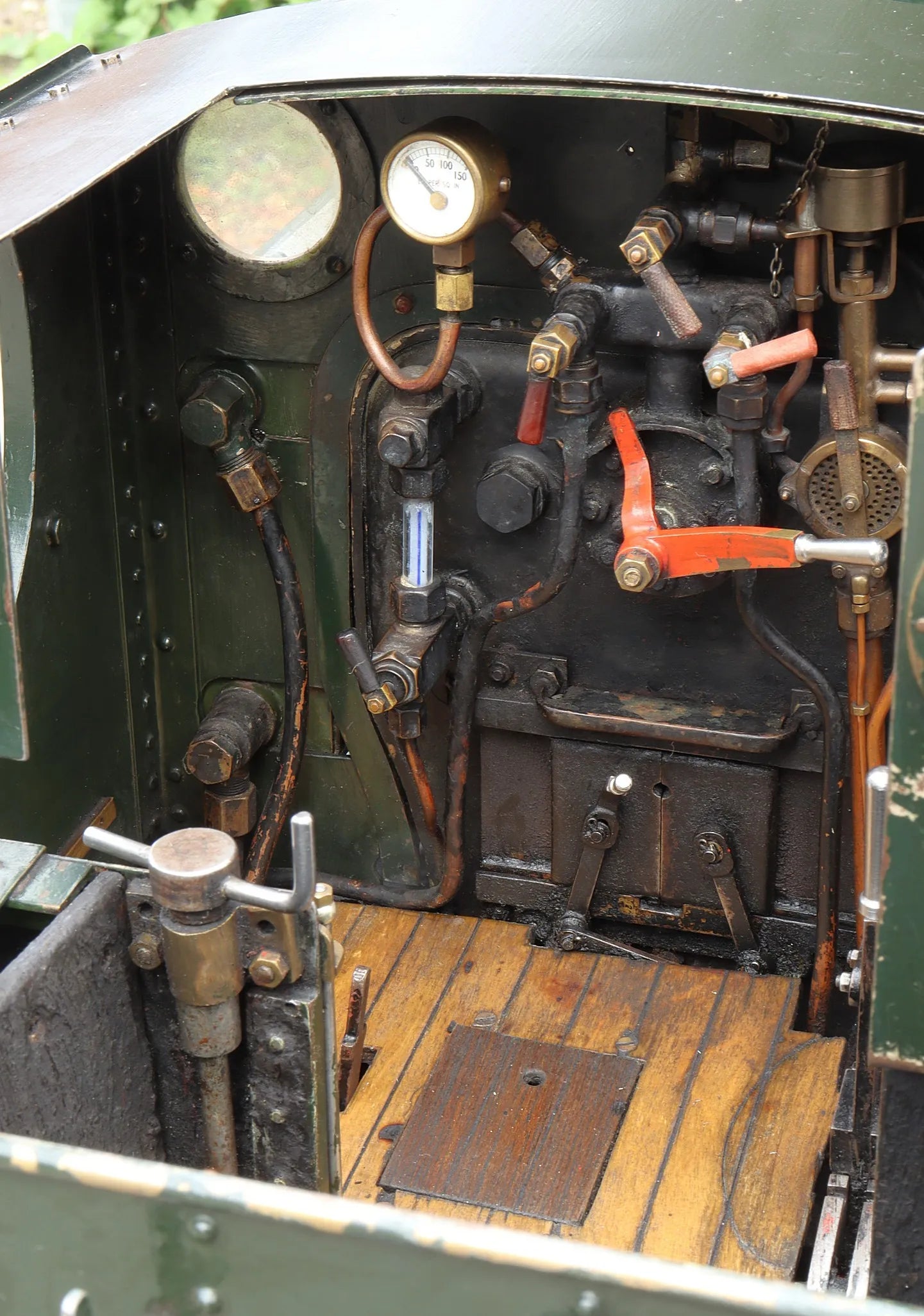

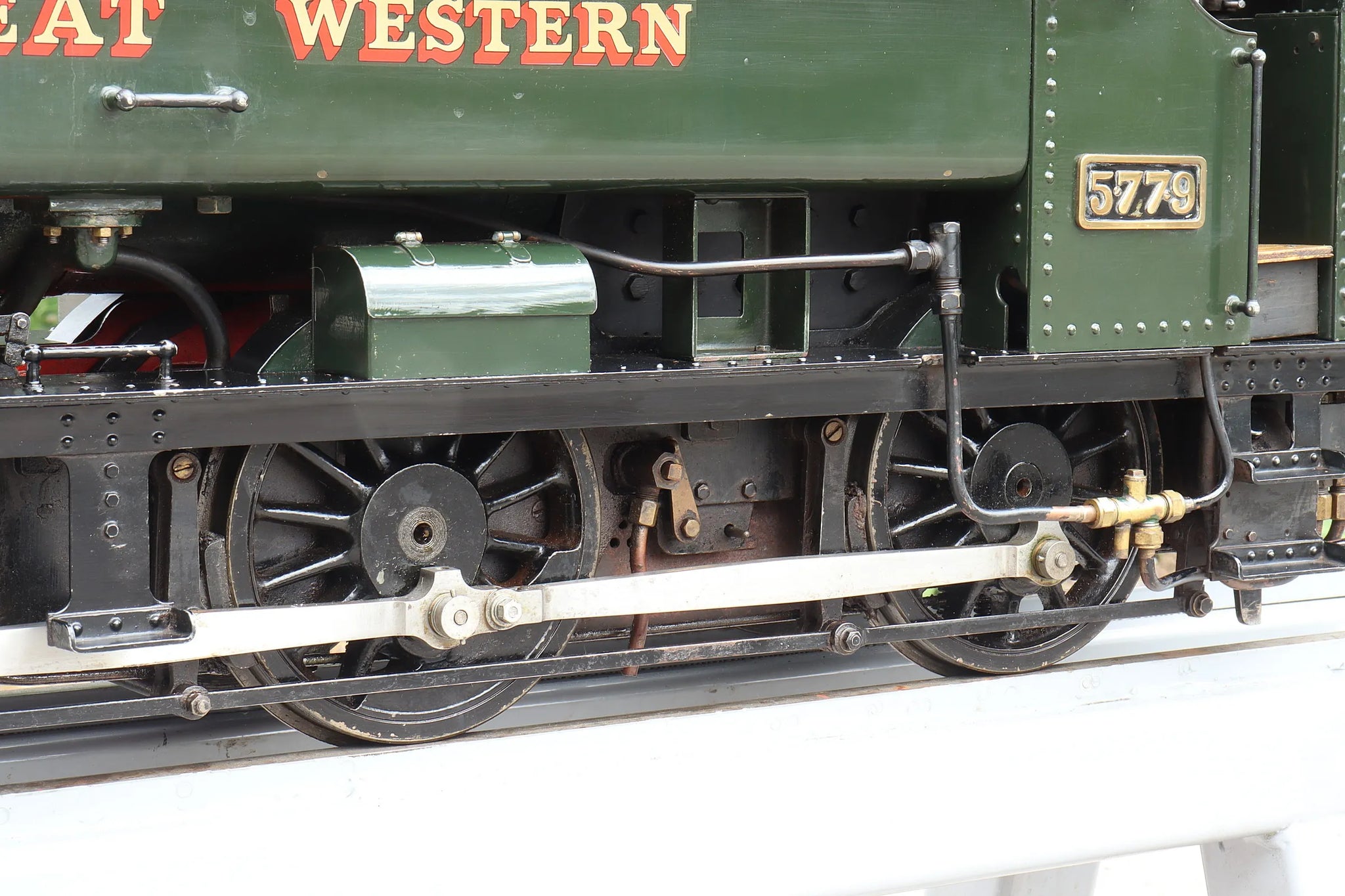

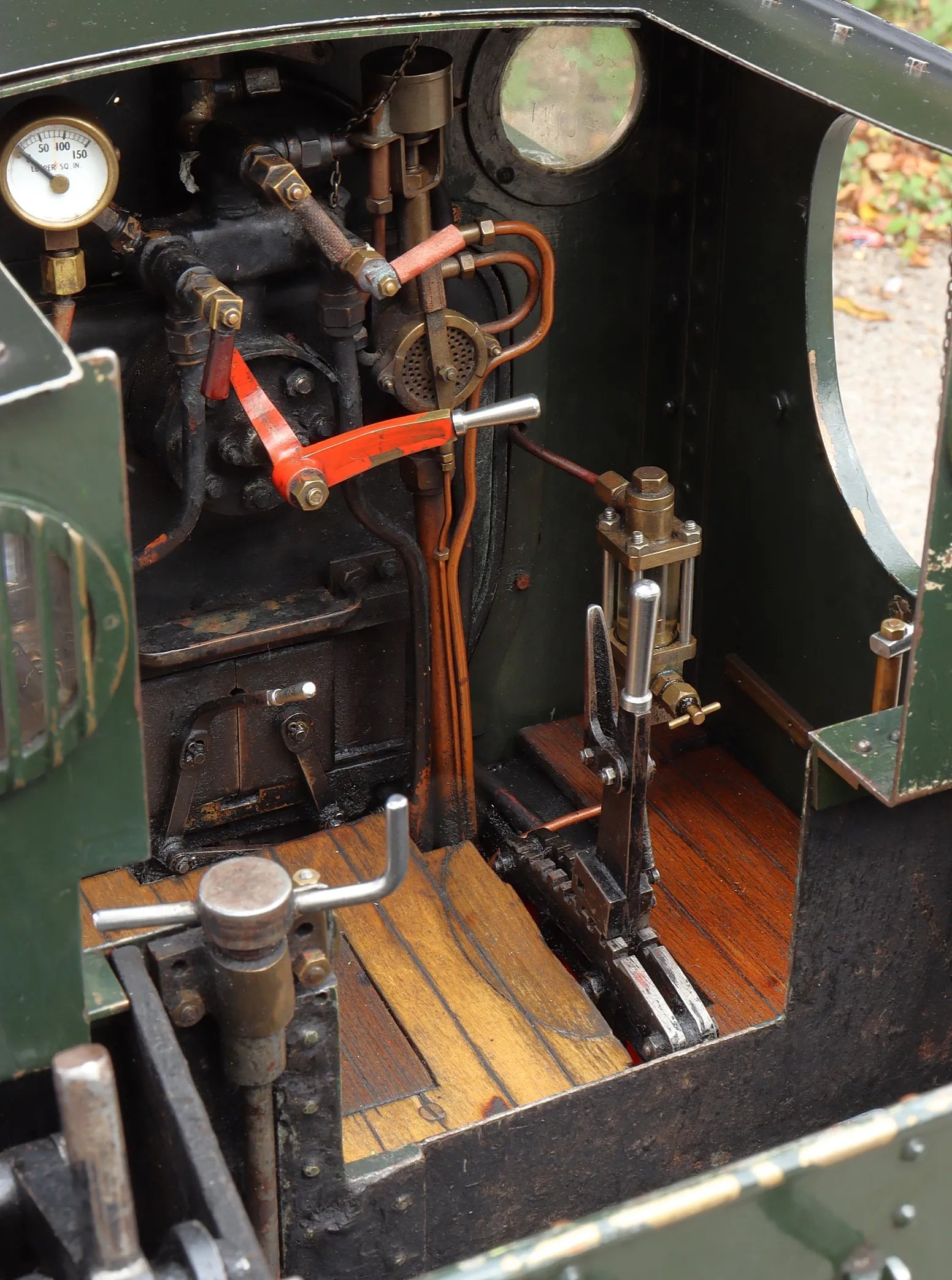

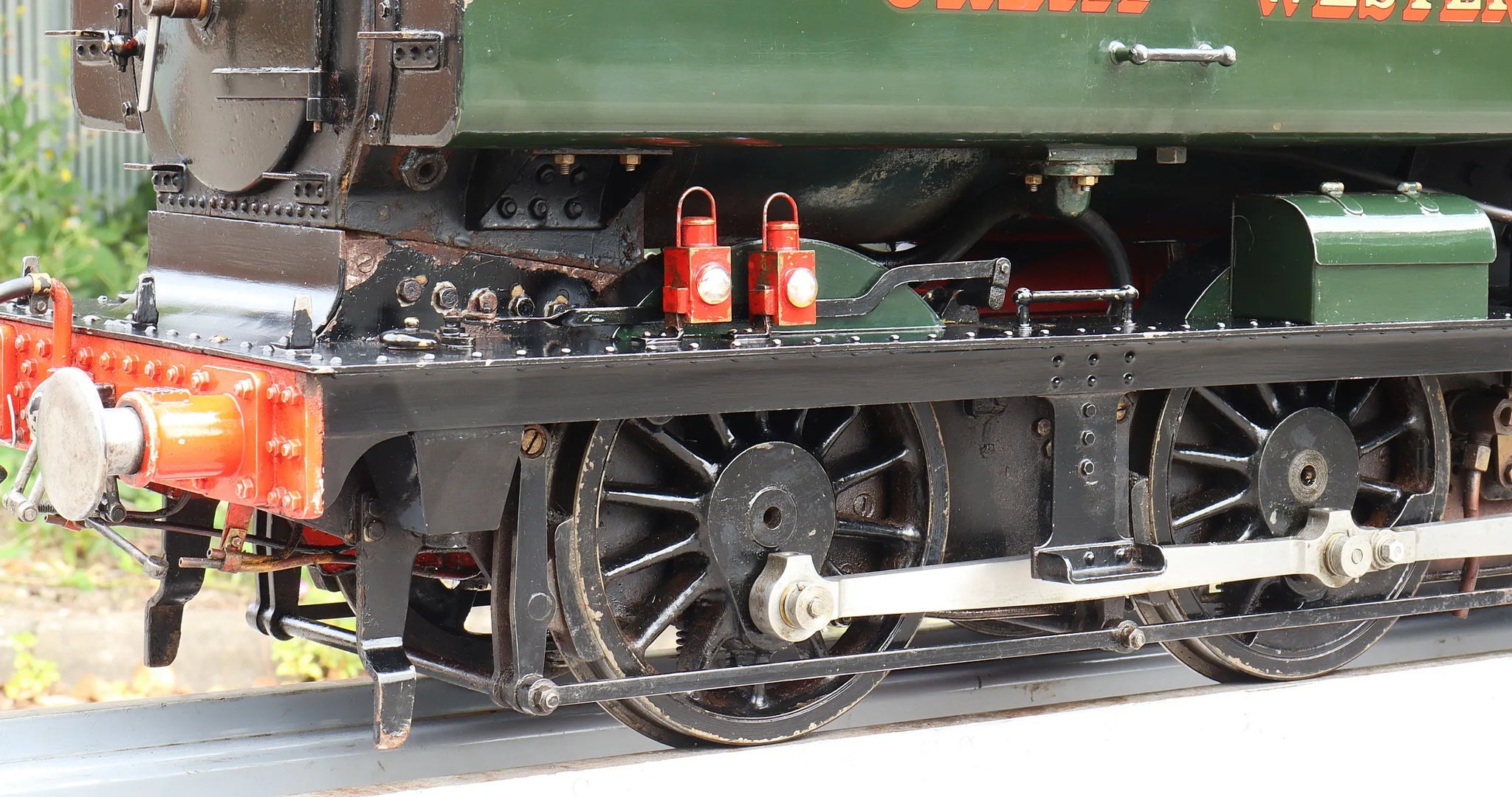

It has seen a good deal of use in the intervening years, with wear apparent from the motionwork, a seized regulator and leak from around the 9 o'clock position on the front tubeplate which will require attention before further use.

A worthwhile project - whilst requiring work, it is a finely built, well detailed engine.

Technical information

Stock code

12998

Length/inches

34

Width/inches

9.5

Height/inches

14

Weight/Kg

43

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered with nutted and calked firebox

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Year built

1998

Boiler number

7250

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Injector

1

Superheater type

radiant

Superheater

1

Date out

Oct-25
