11310

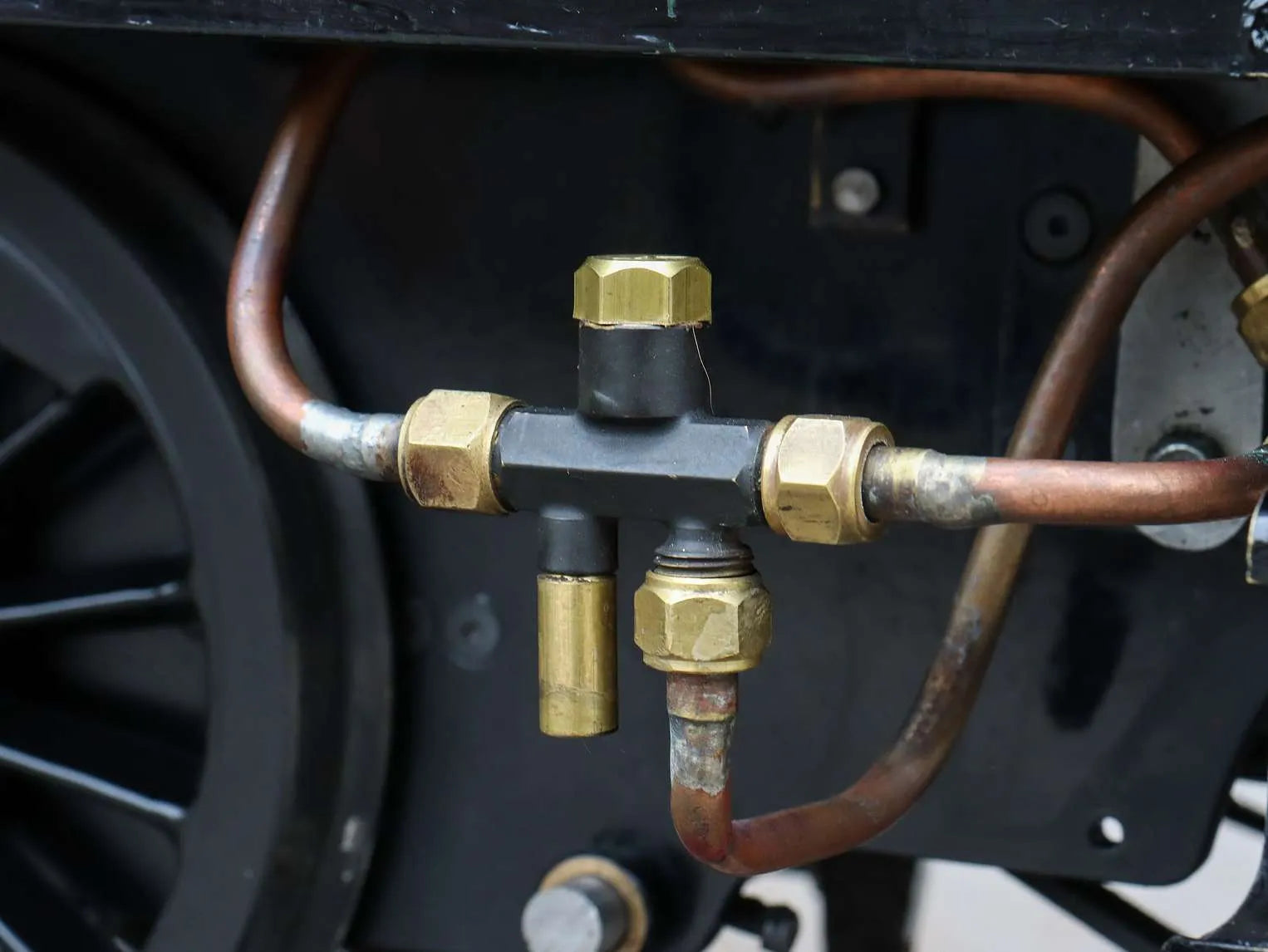

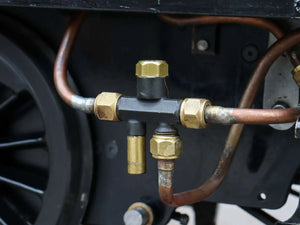

The boiler has had recent hydraulic and steam tests with new certification issued. The drain cocks were unreliable and have been changed for a pair of automatics, the Polly safety valve works - as expected - flawlessly.

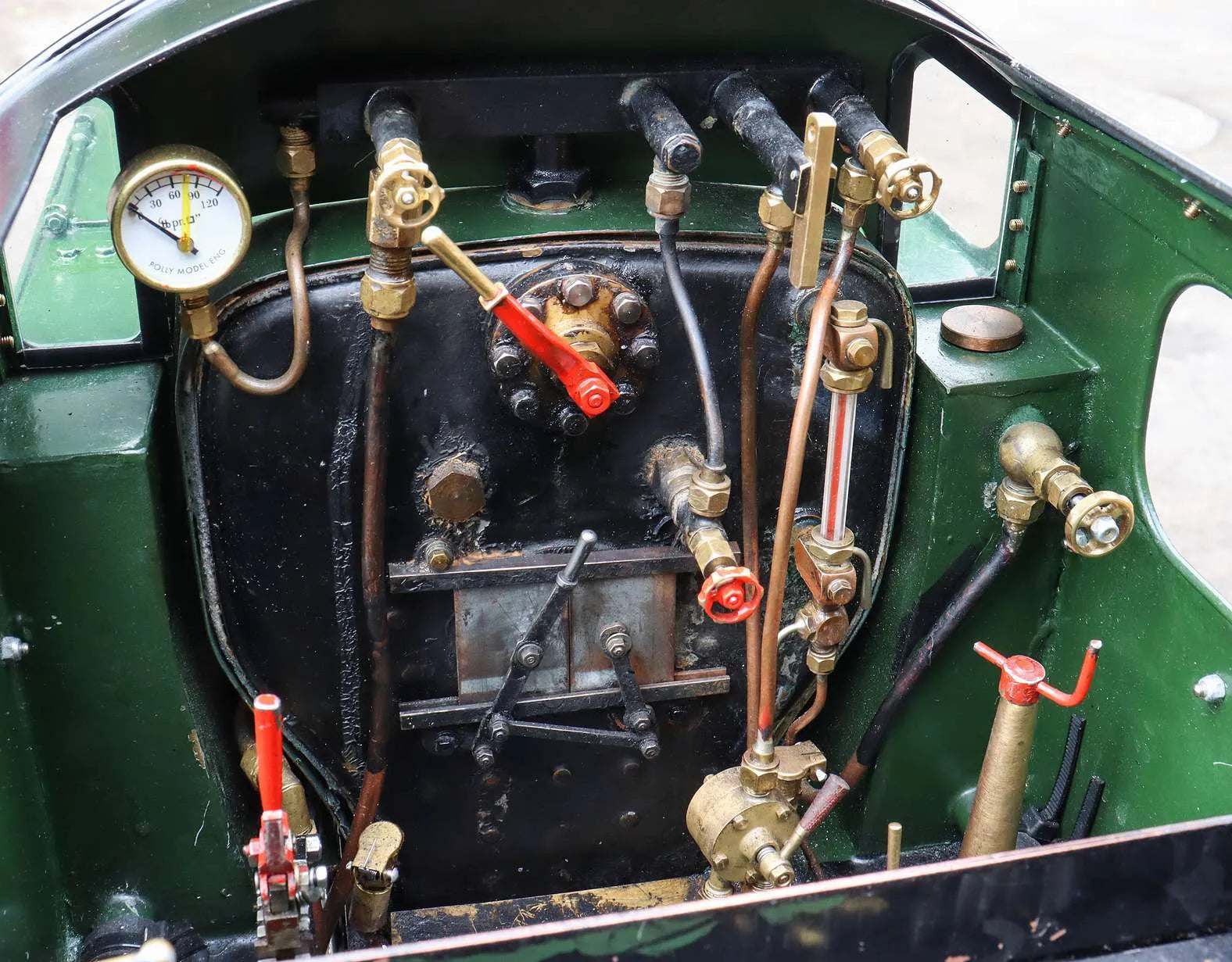

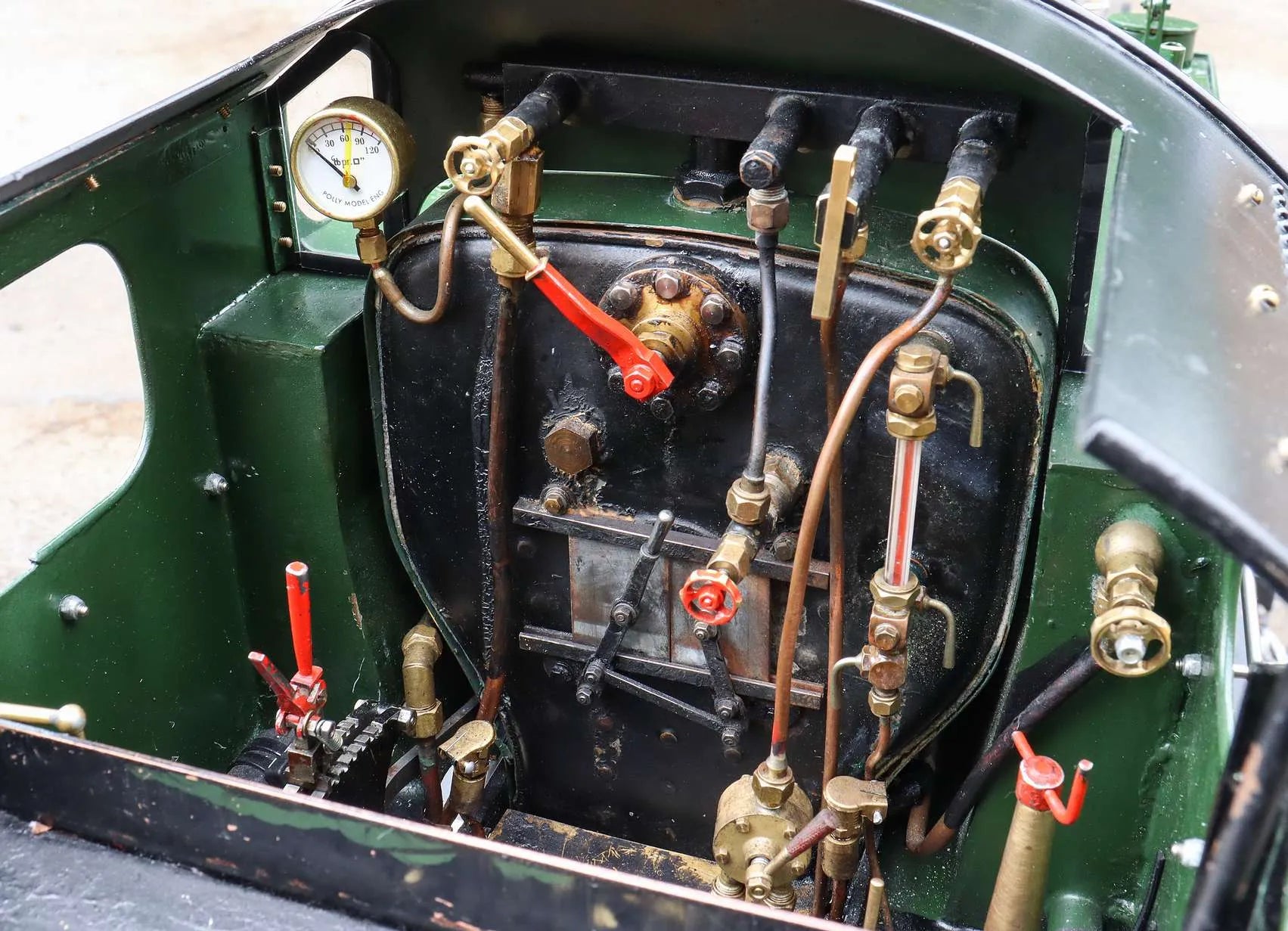

The mechanical and hand pumps both work well; the injector picks up wet, partly as a result of feed water heating up in the fairly narrow tanks fitted to a 45XX.

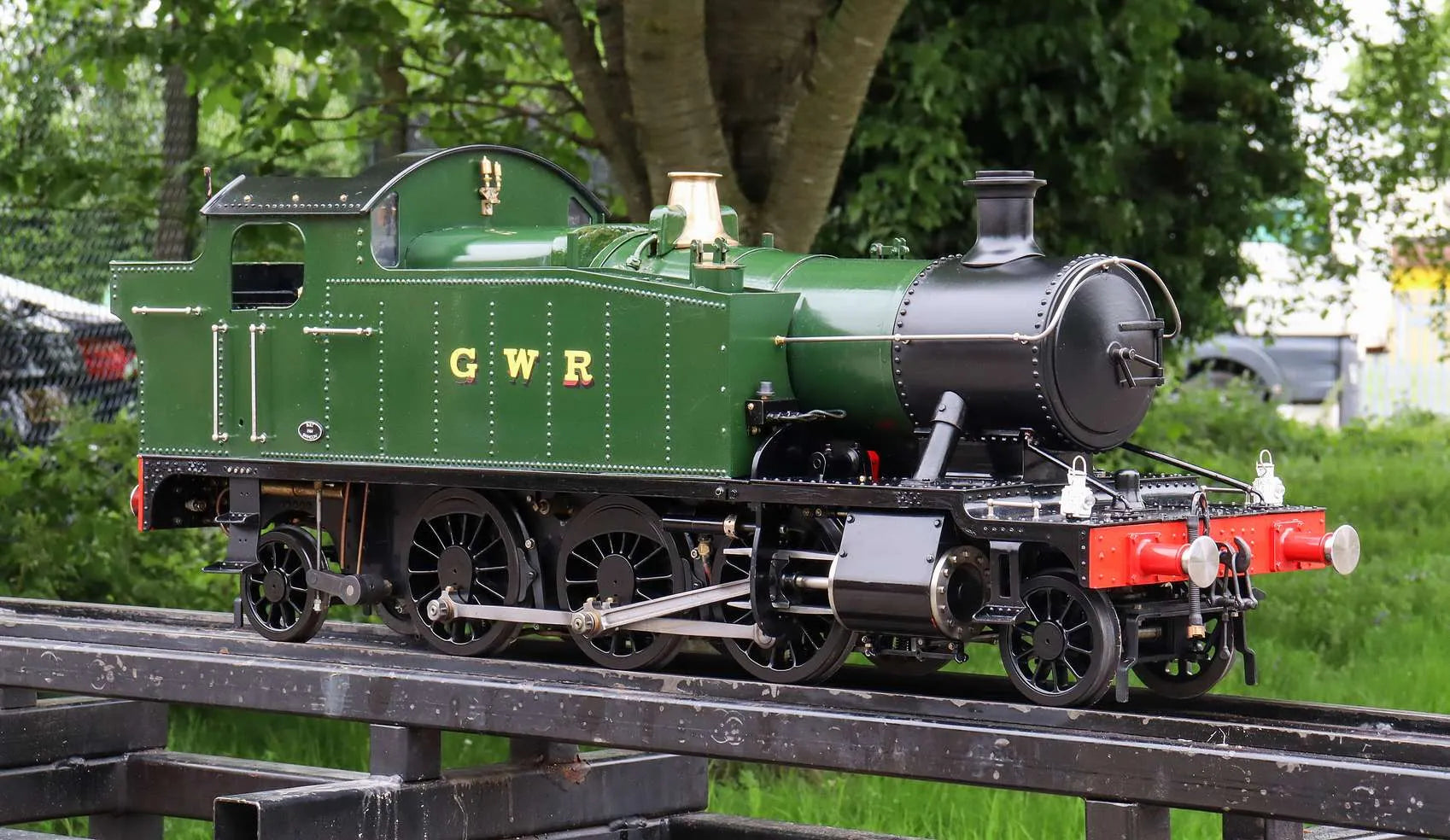

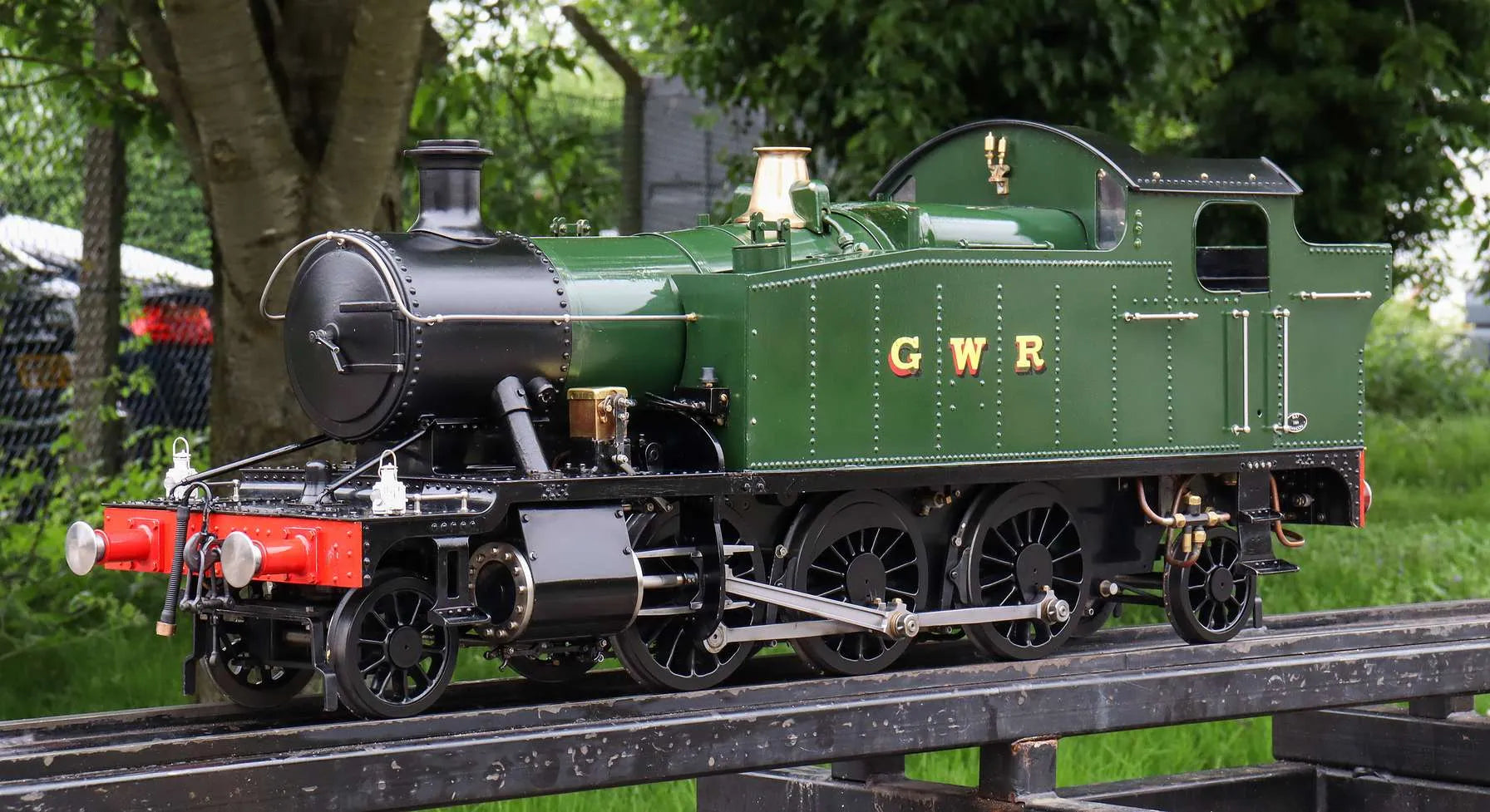

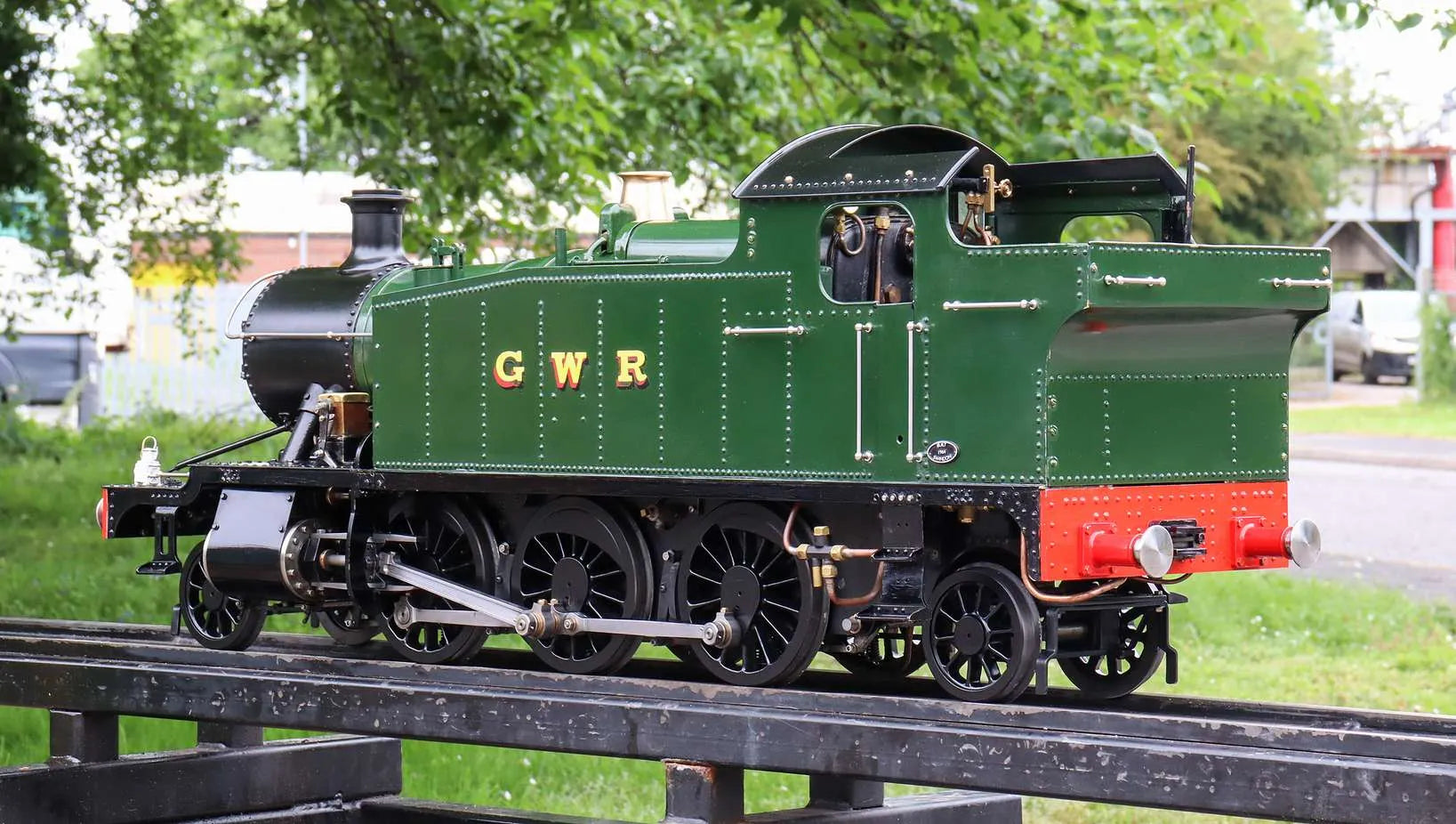

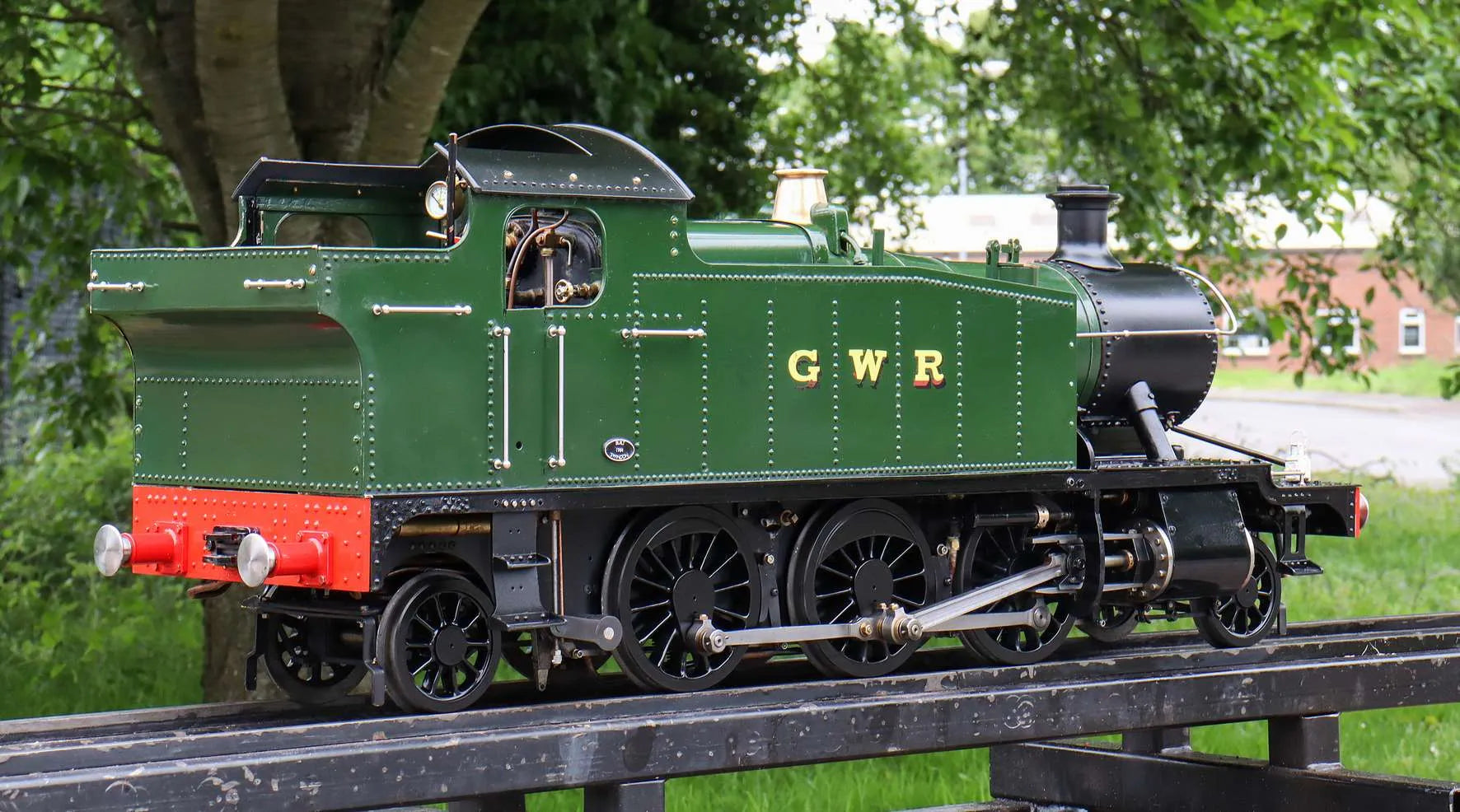

On the rolling road the engine proved free steaming and ran exceptionally well with steady, even exhaust beats - it sounded lovely!

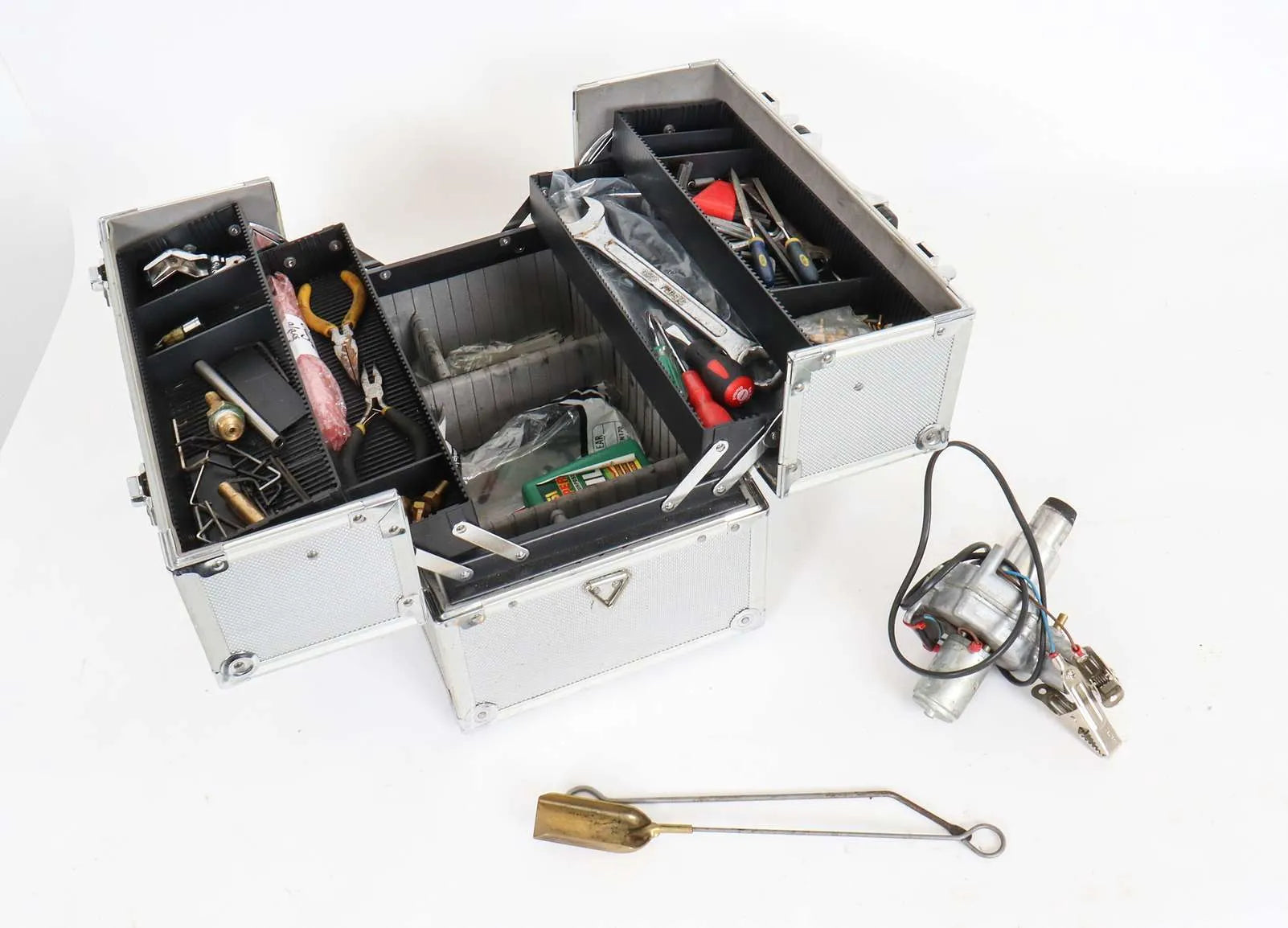

Supplied with a starter kit of coal and oil, a set of firing irons and 12 months warranty. If required, we would be pleased to include a half day's training in the firing, driving and maintenance of the engine.
Stock code |
11310 |
Gauge |
5 inch |
Length/inches |
40 |
Width/inches |
10 |
Height/inches |
15 |
Weight/Kg |
67 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |

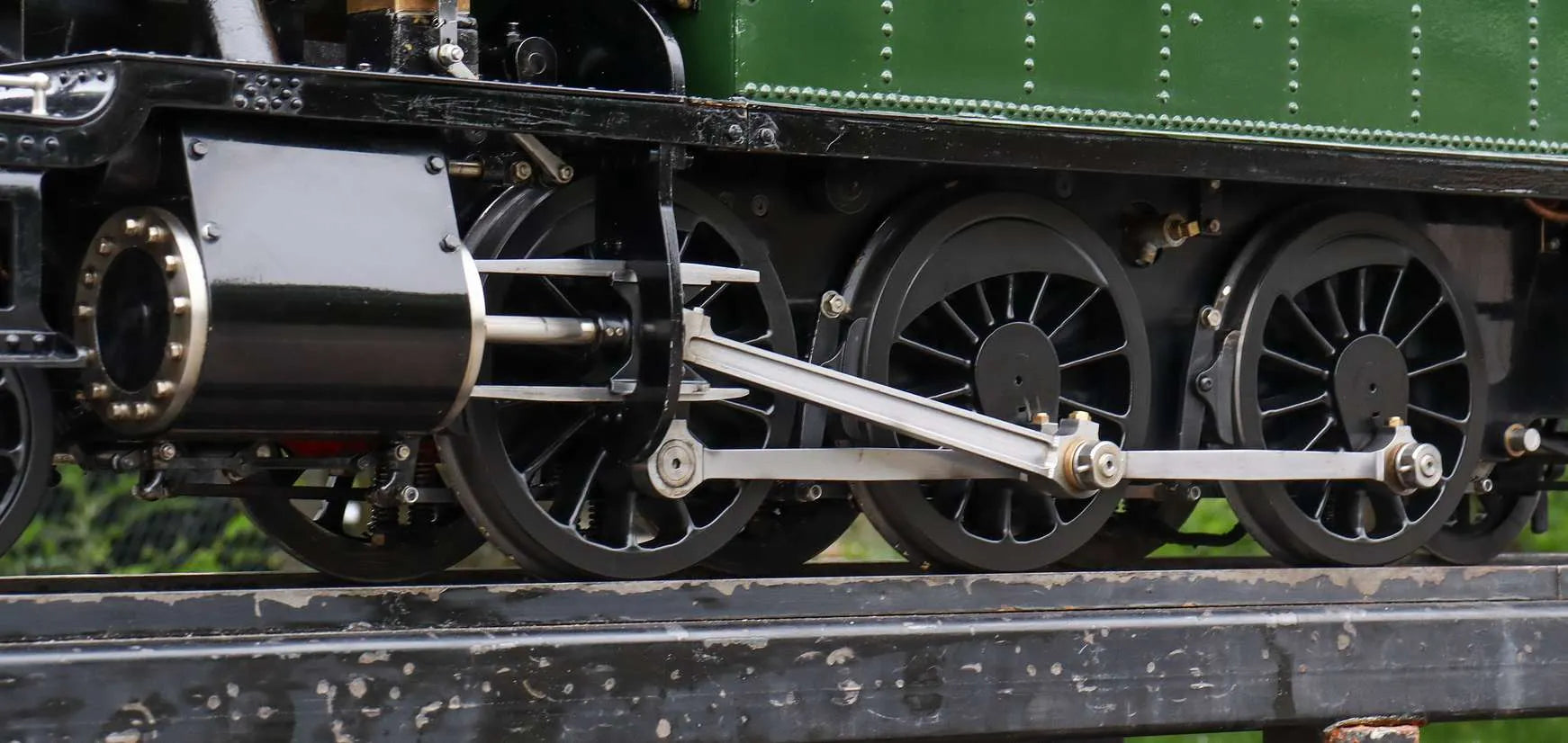

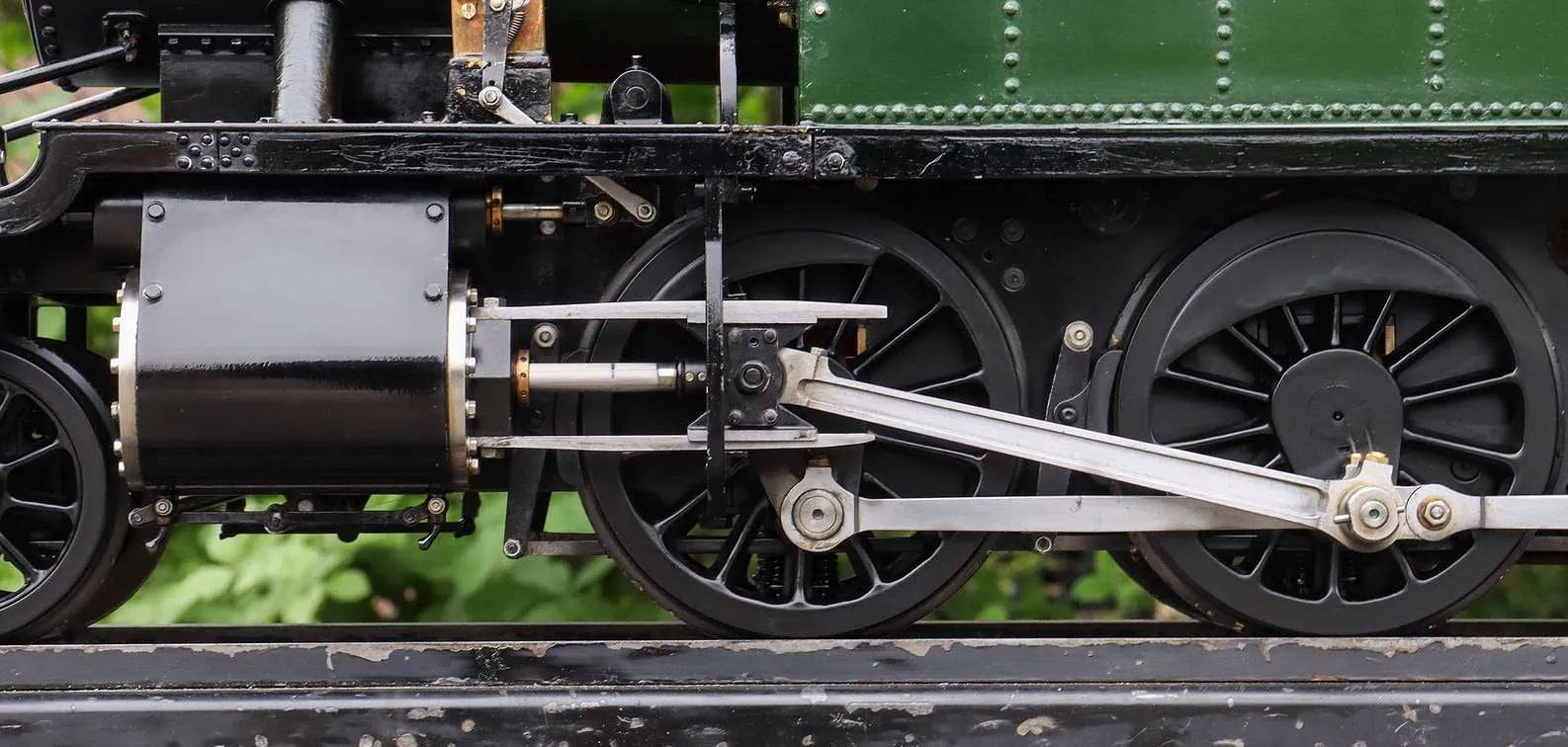

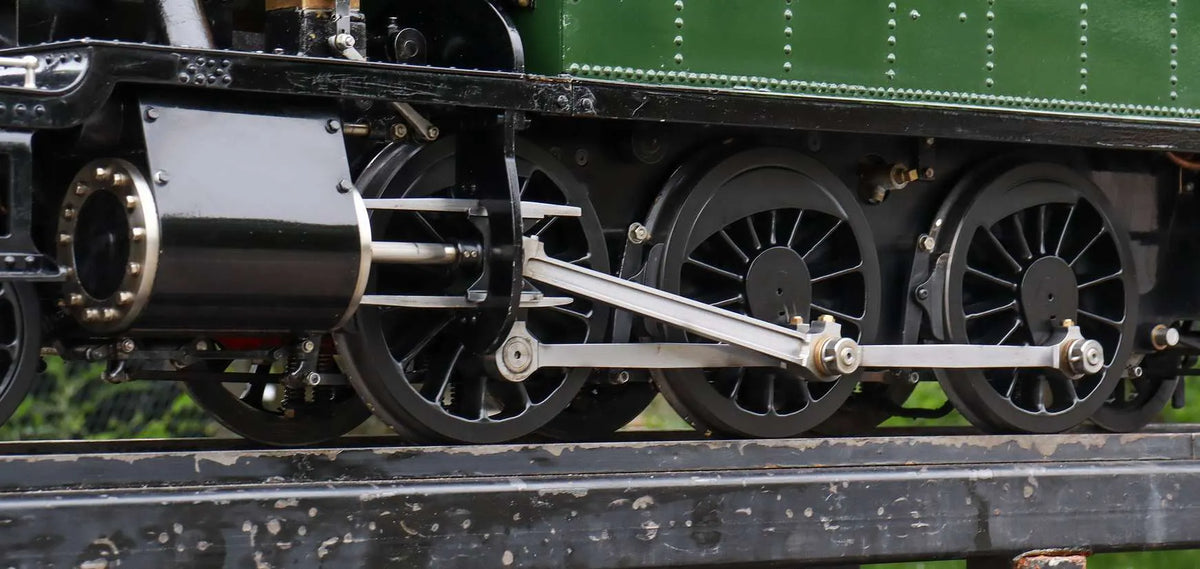

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
Colndrive Tool Co. |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
yes |
Year built |
2016 |
Boiler number |
311 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
yes |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
3 |
Date out |
Jul-23 |
