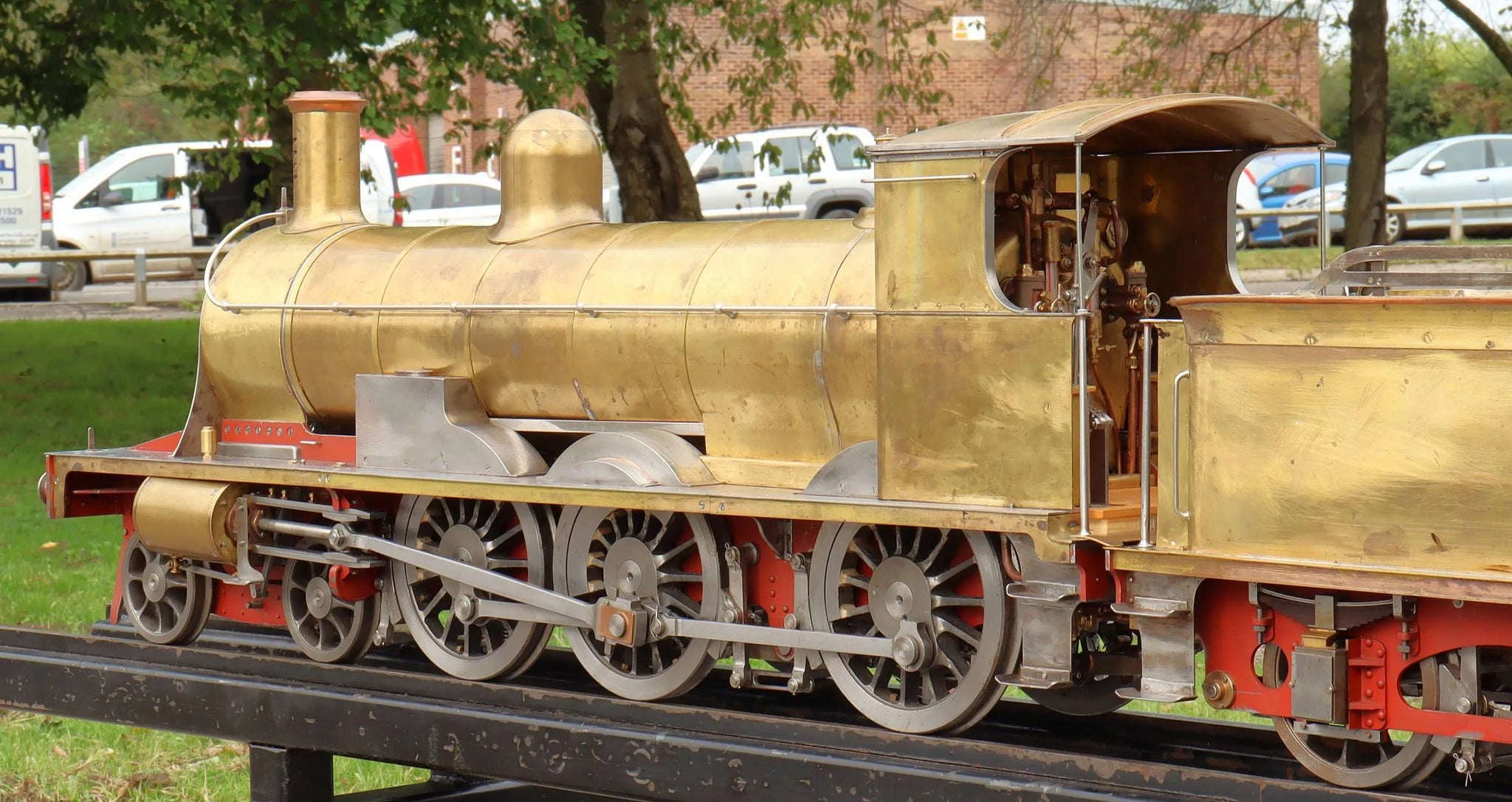

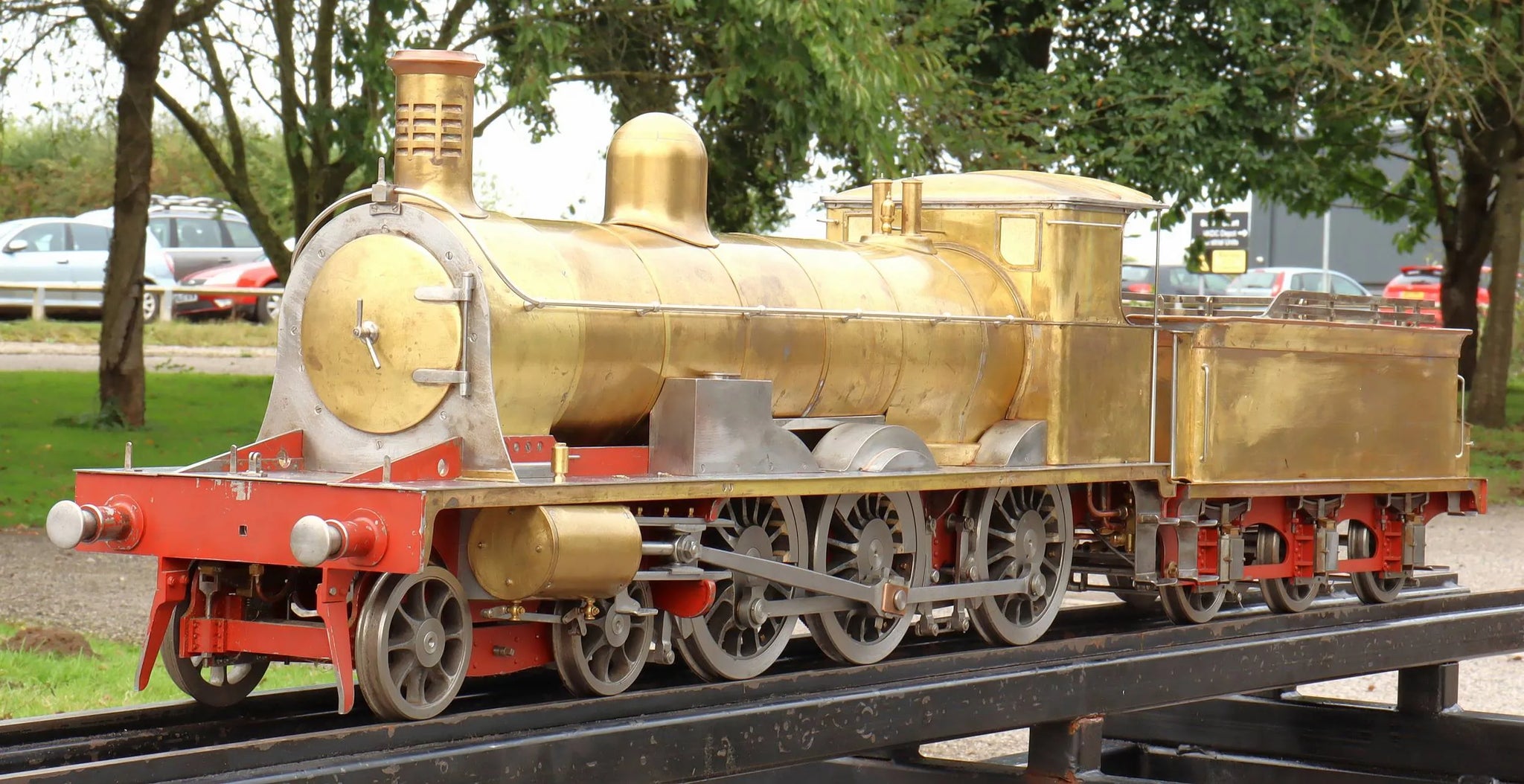

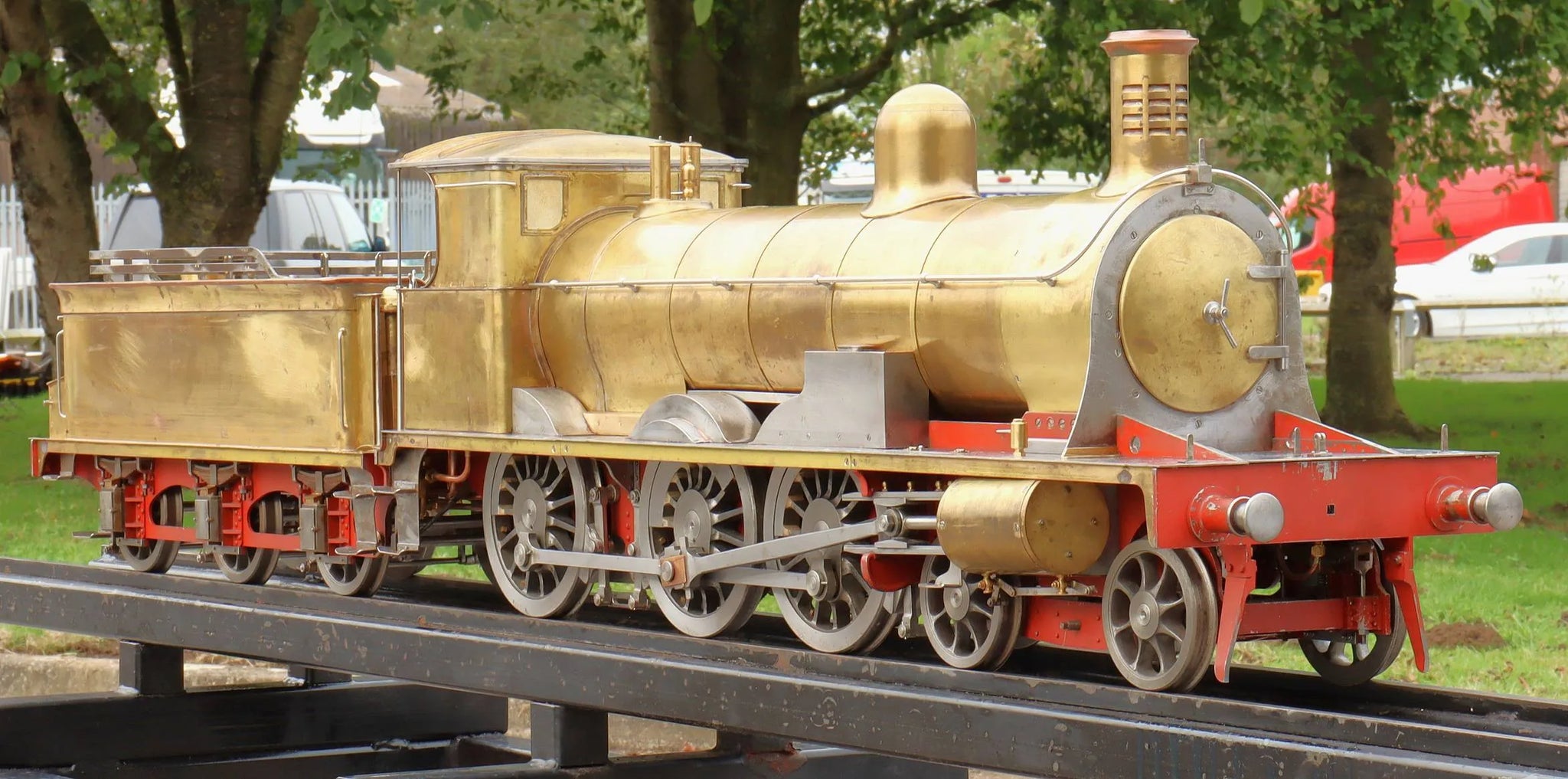

5 inch gauge Highland Railway Jones Goods 4-6-0

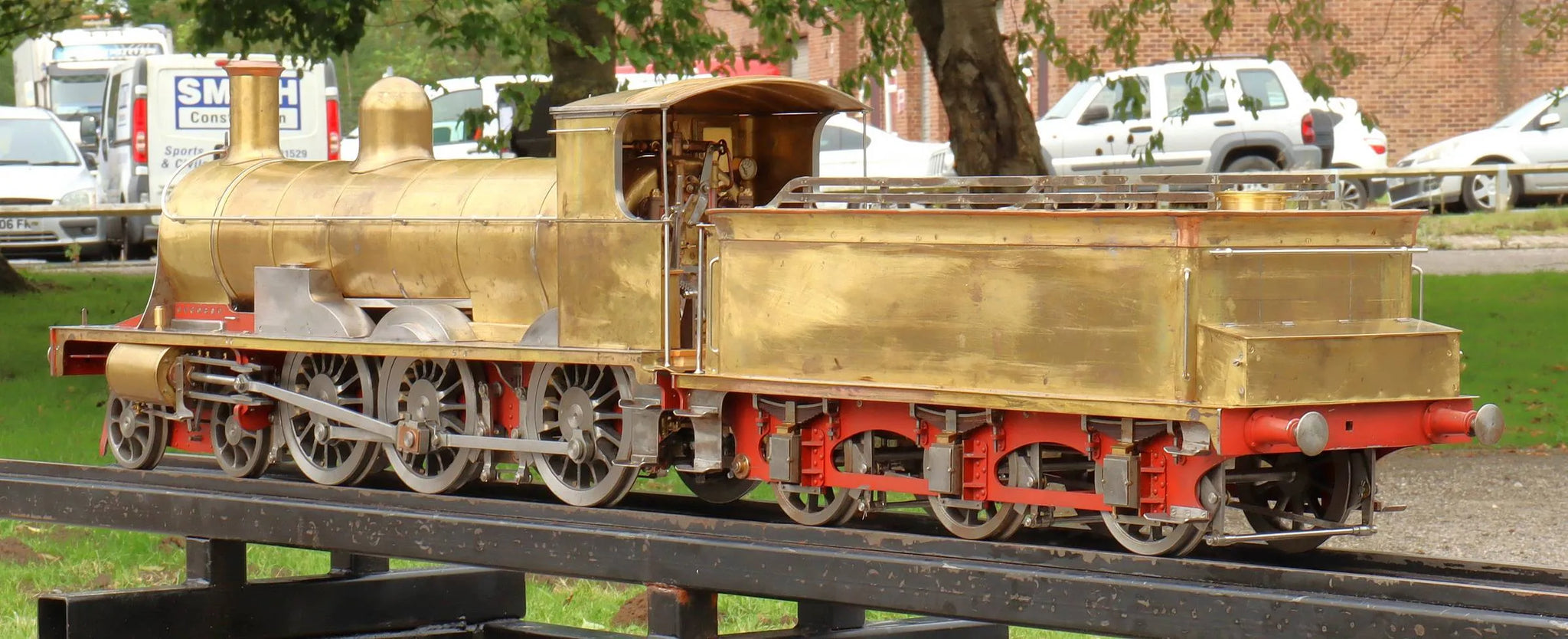

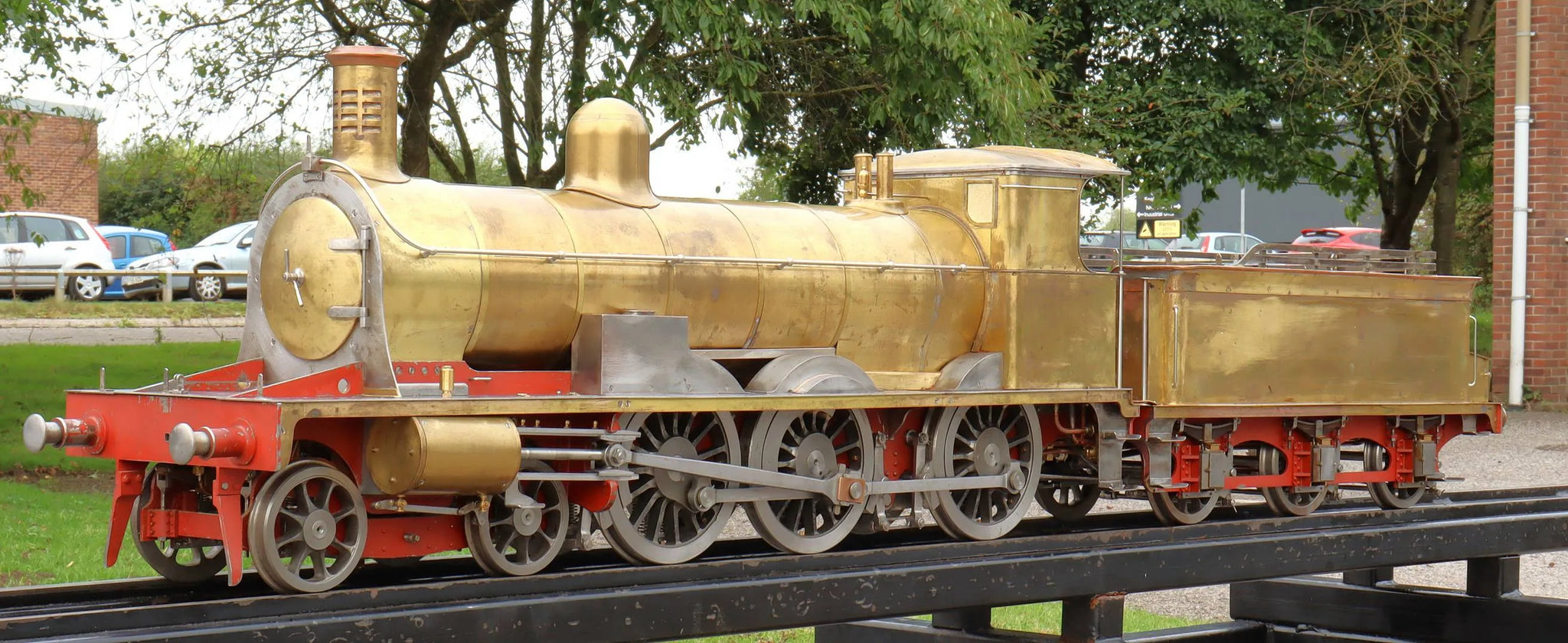

A finely built 5 inch gauge Highland Railway "Jones Goods" - more usually (although still infrequently) seen in 3 1/2 inch gauge to the Clarkson design and using their castings.

Built as a class of 15 locomotives by Sharp, Stewart & Company in 1894 they were notable as the first 4-6-0s - and, for a time, the most powerful locomotives - running in the country.

One example has survived in preservation, on display at the Riverside Museum in Glasgow (which, had we known when we were up there last weekend collecting a locomotive, we would have called in to see - as it was we spent the rest of the day at the fabulous Kelvingrove Art Gallery & Museum. Something for our next visit...)

This one has come to us direct from the builder, a capable model engineer who worked on it for many years before deciding, reluctantly, that - getting too big and heavy to handle - it was time to pass on to a younger pair of hands.

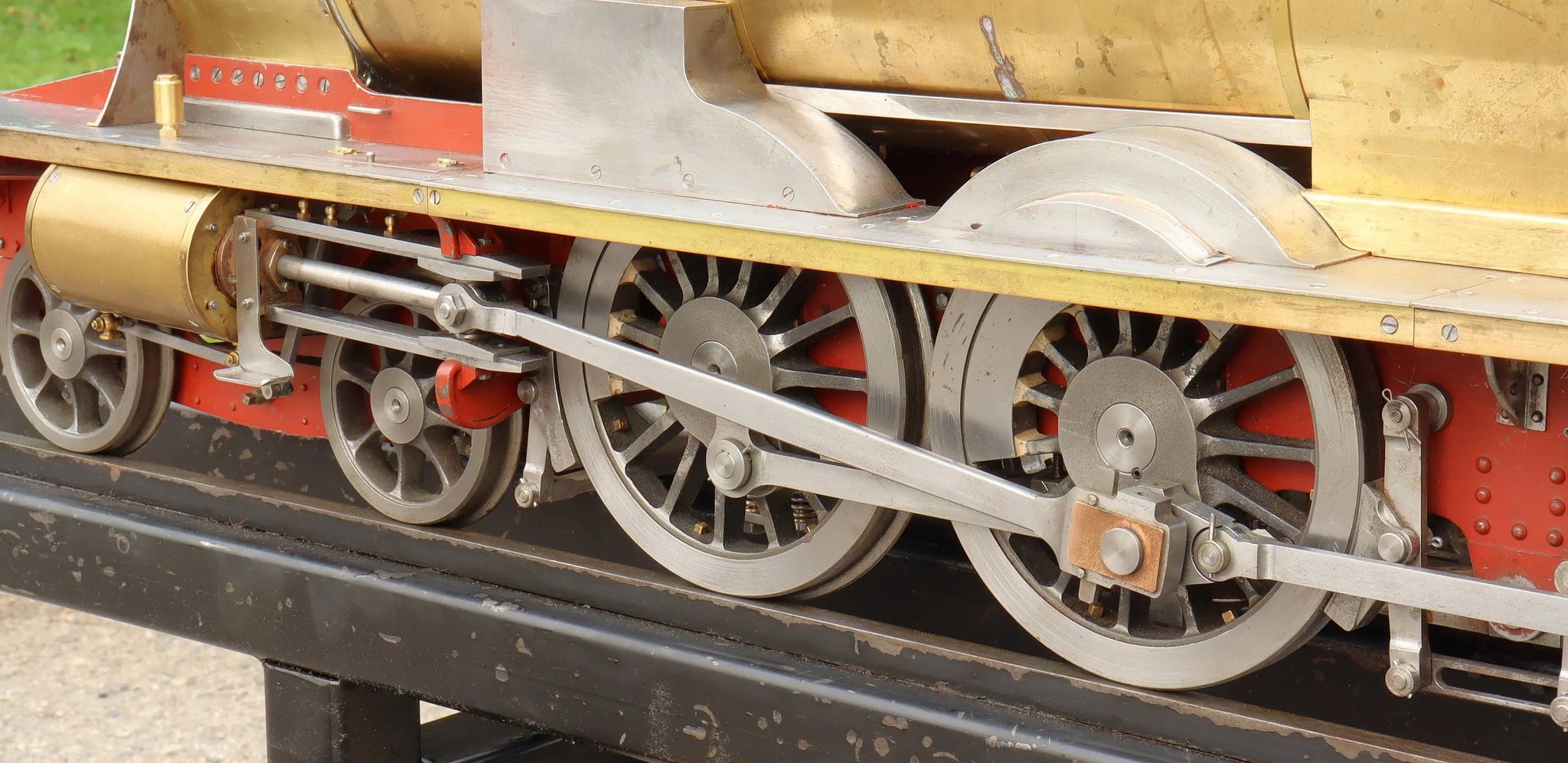

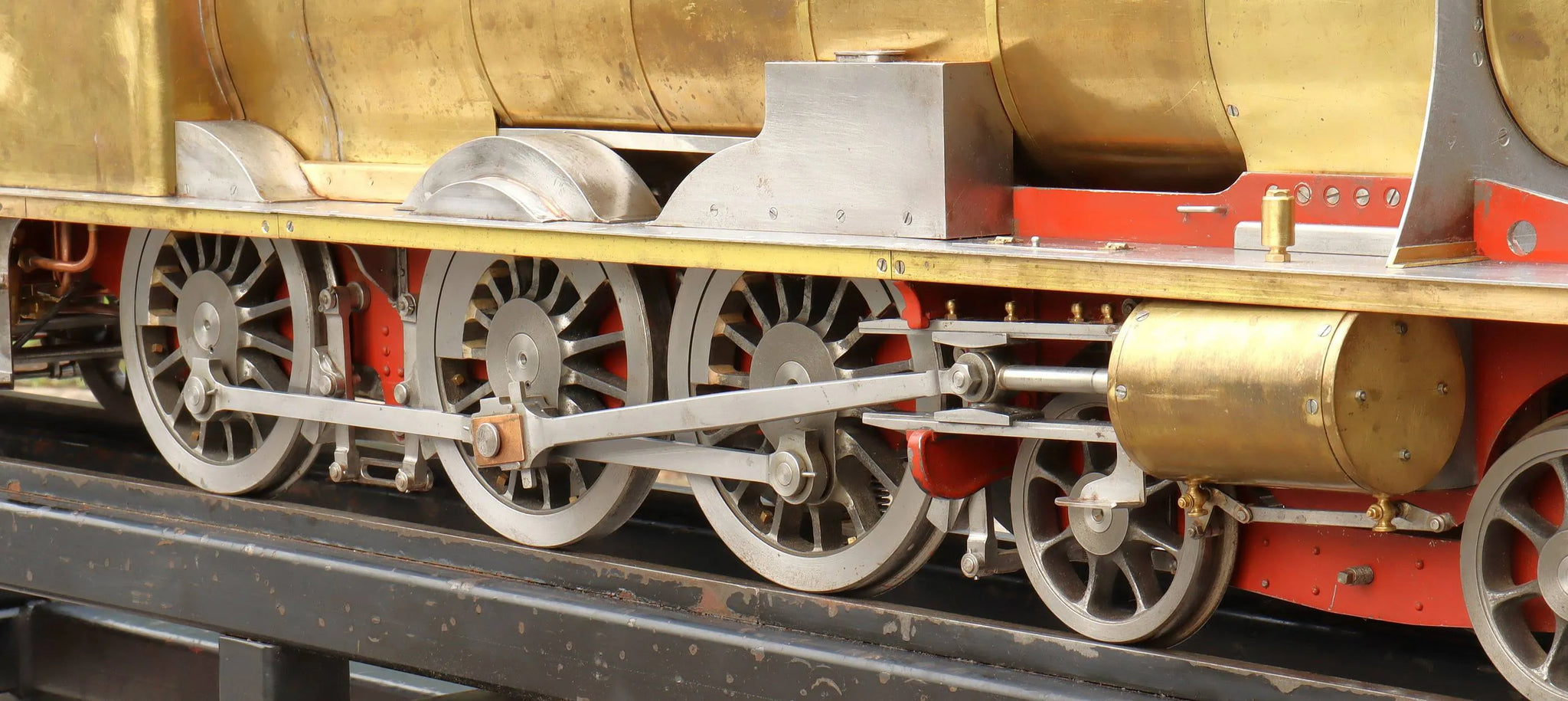

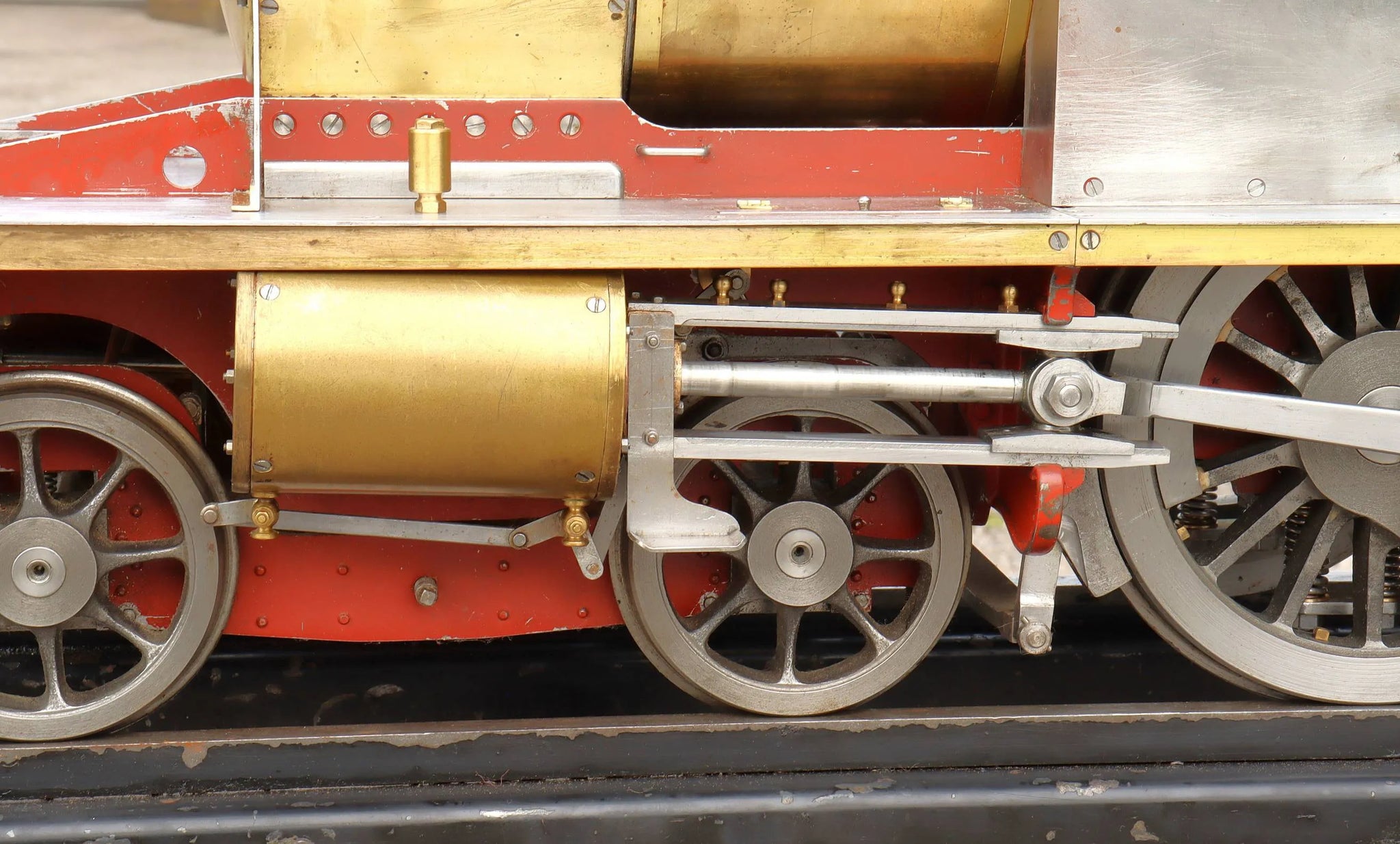

We'd put the engine at better than 90% complete. The boiler has had a club hydraulic test with certification issued, the chassis runs on air in either direction with further improvement in prospect following fine-tuning of the valve settings.

Technical information

Stock code

11527

Gauge

5 inch

Length/inches

37+25

Width/inches

9.5

Height/inches

14

Weight/Kg

56+16

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Boiler maker

R Curtis

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

2012

Boiler number

RH37ER63

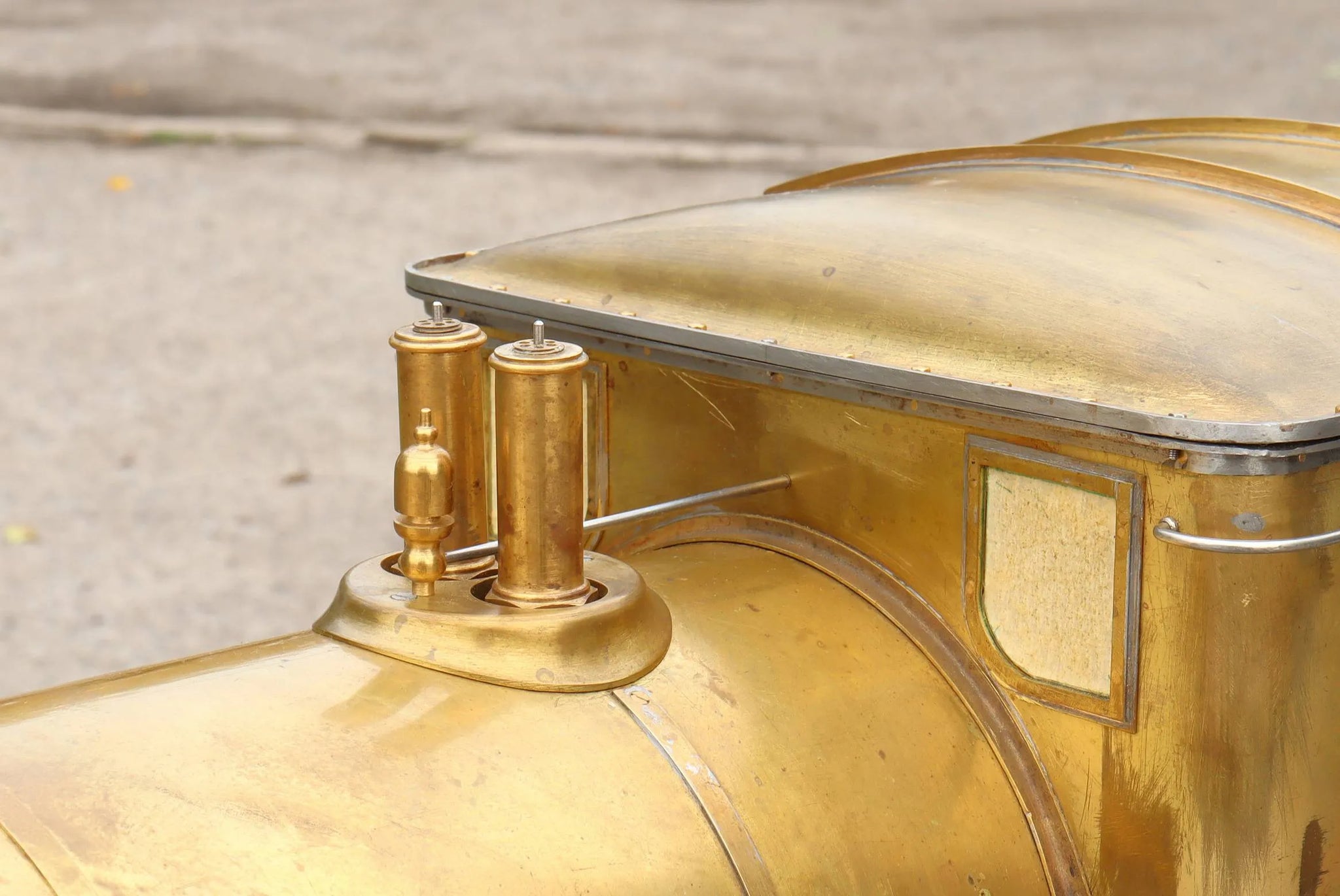

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Injector

2

Superheater type

radiant

Superheater

2

Date out

Oct-23

Hydraulic test valid to

19-Sep-26
