8408

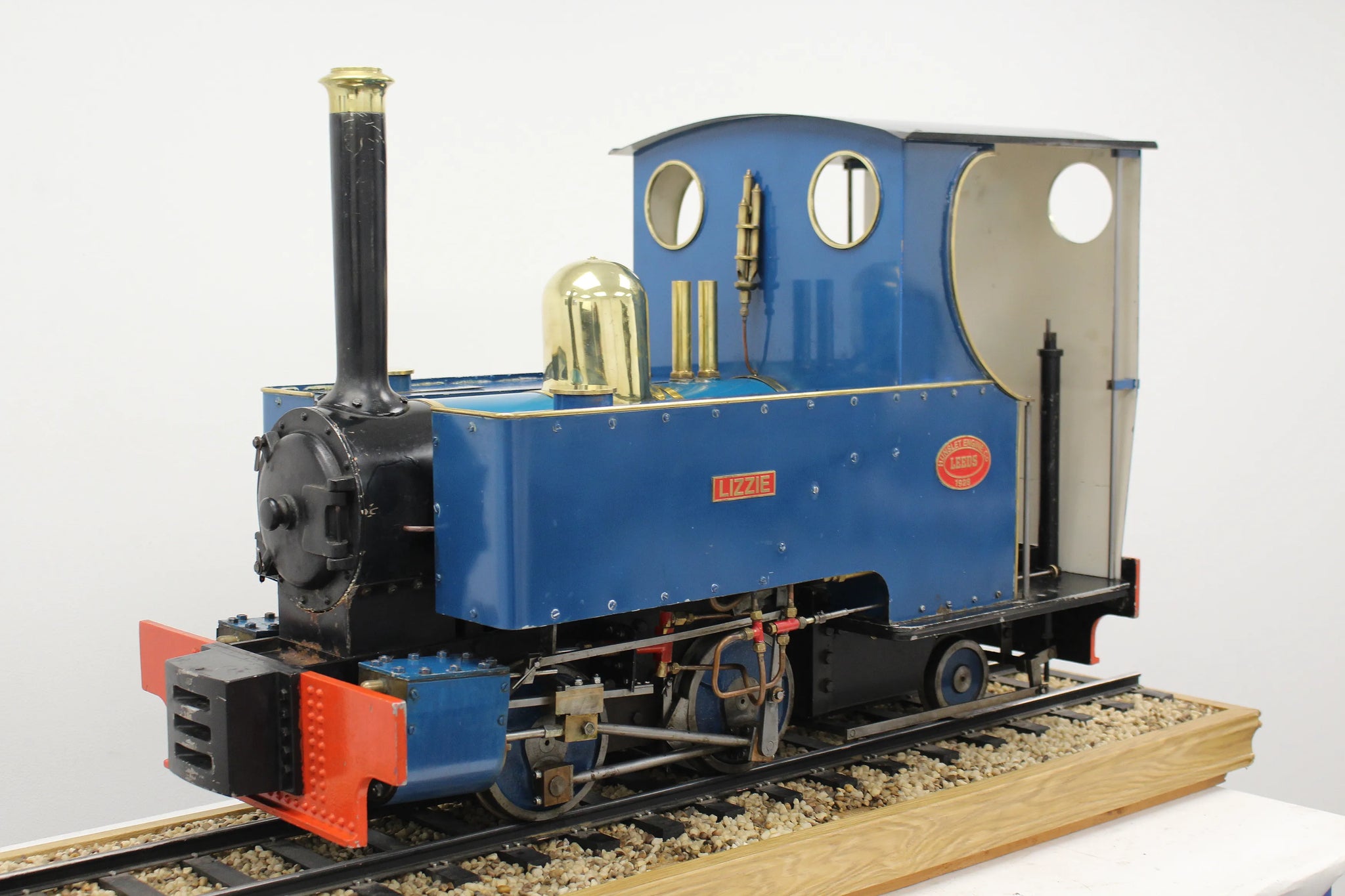

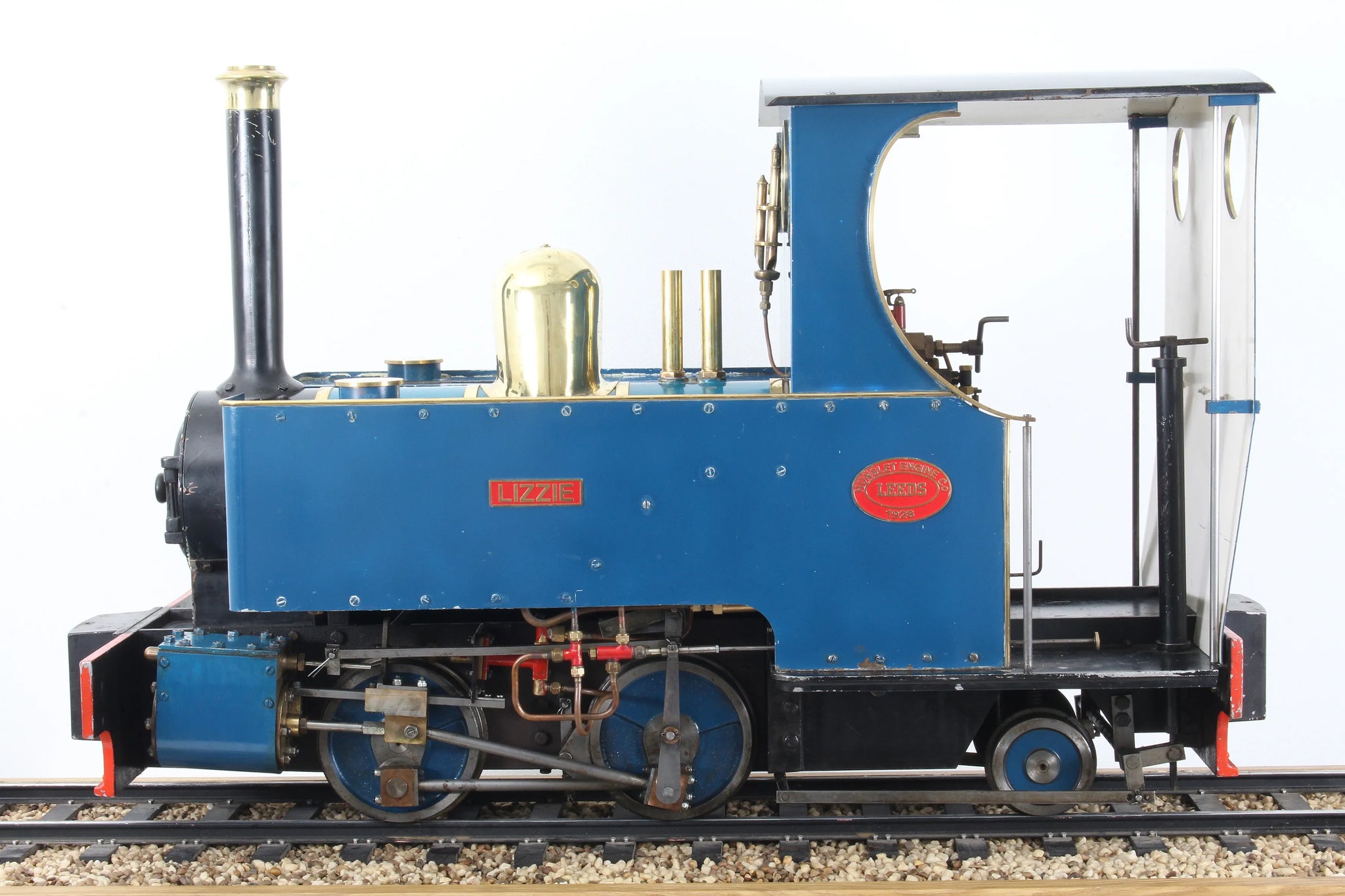

An older engine, paintwork worn in places, it needs a variety of "tidy up" jobs done. That said, it runs and boiler is warrantied sound, with recent hydraulic test and certification for same.

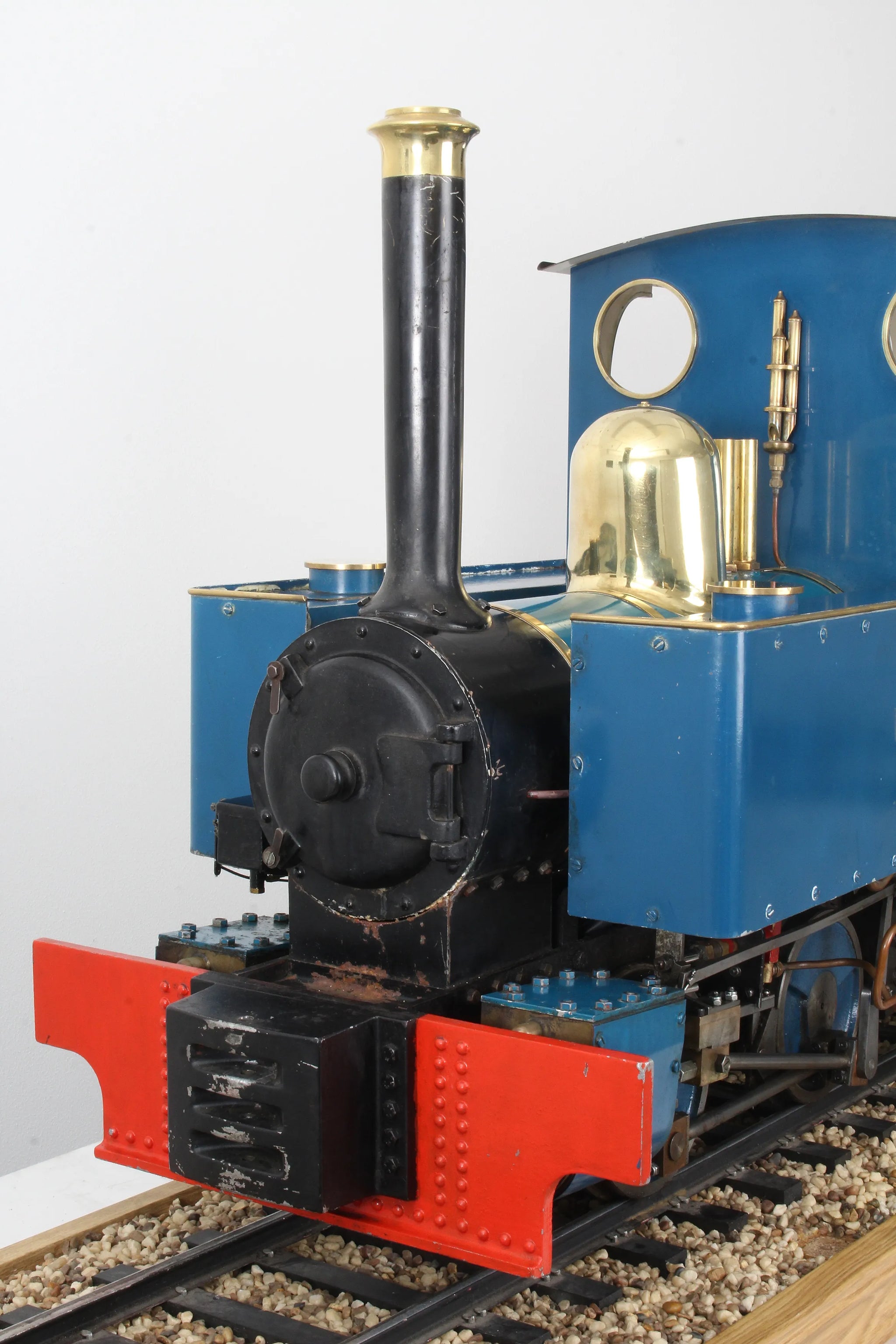

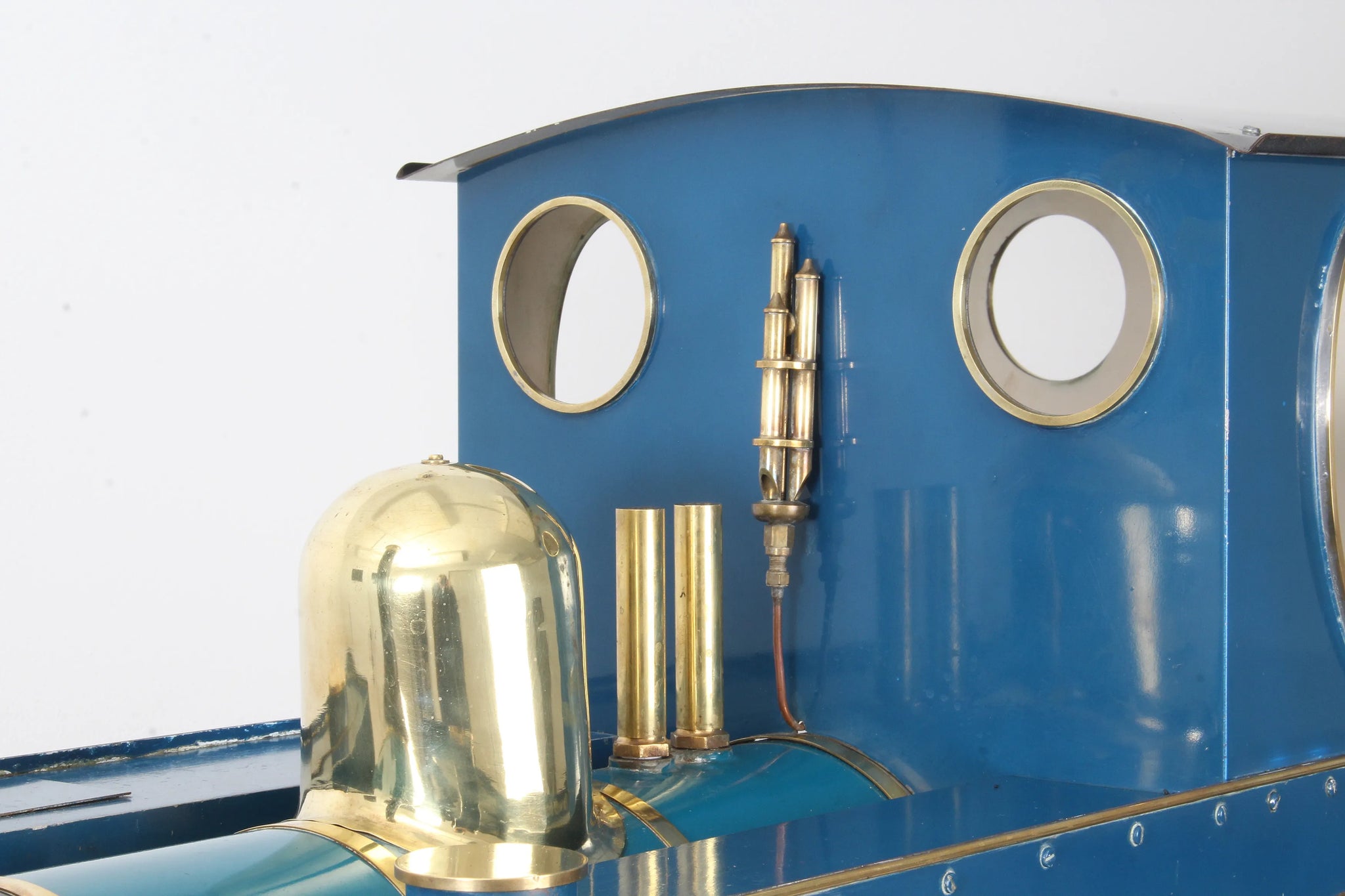

Fitted with the optional brass dome and chimney cap, which look very well on the engine, along with a chime whistle.
Stock code |
8408 |
Gauge |
5 inch |
Length/inches |
38 |
Width/inches |
15 |
Height/inches |
24 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |

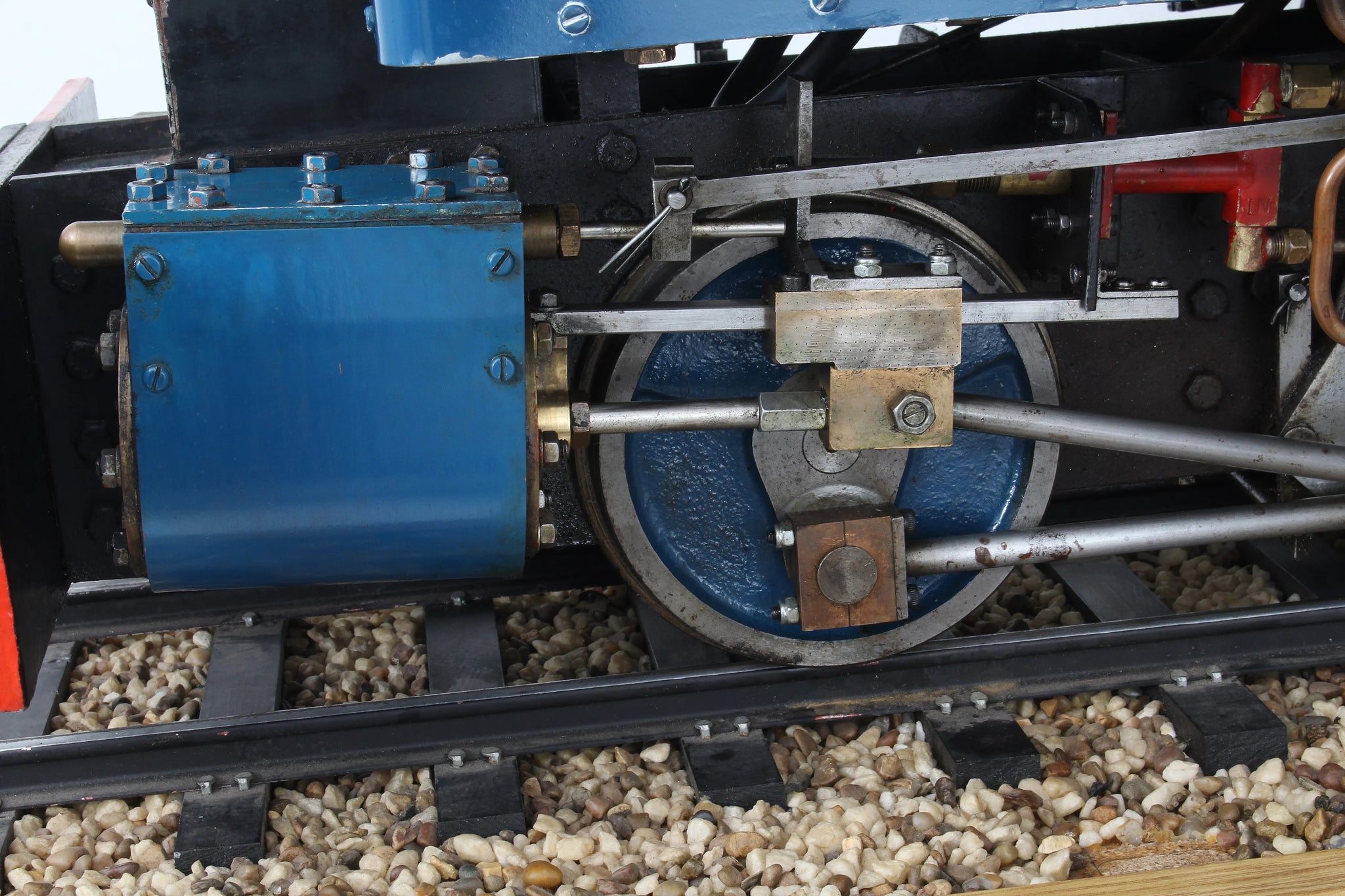

Cylinder material |
gunmetal |
Valve type |
slide |

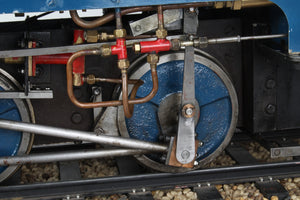

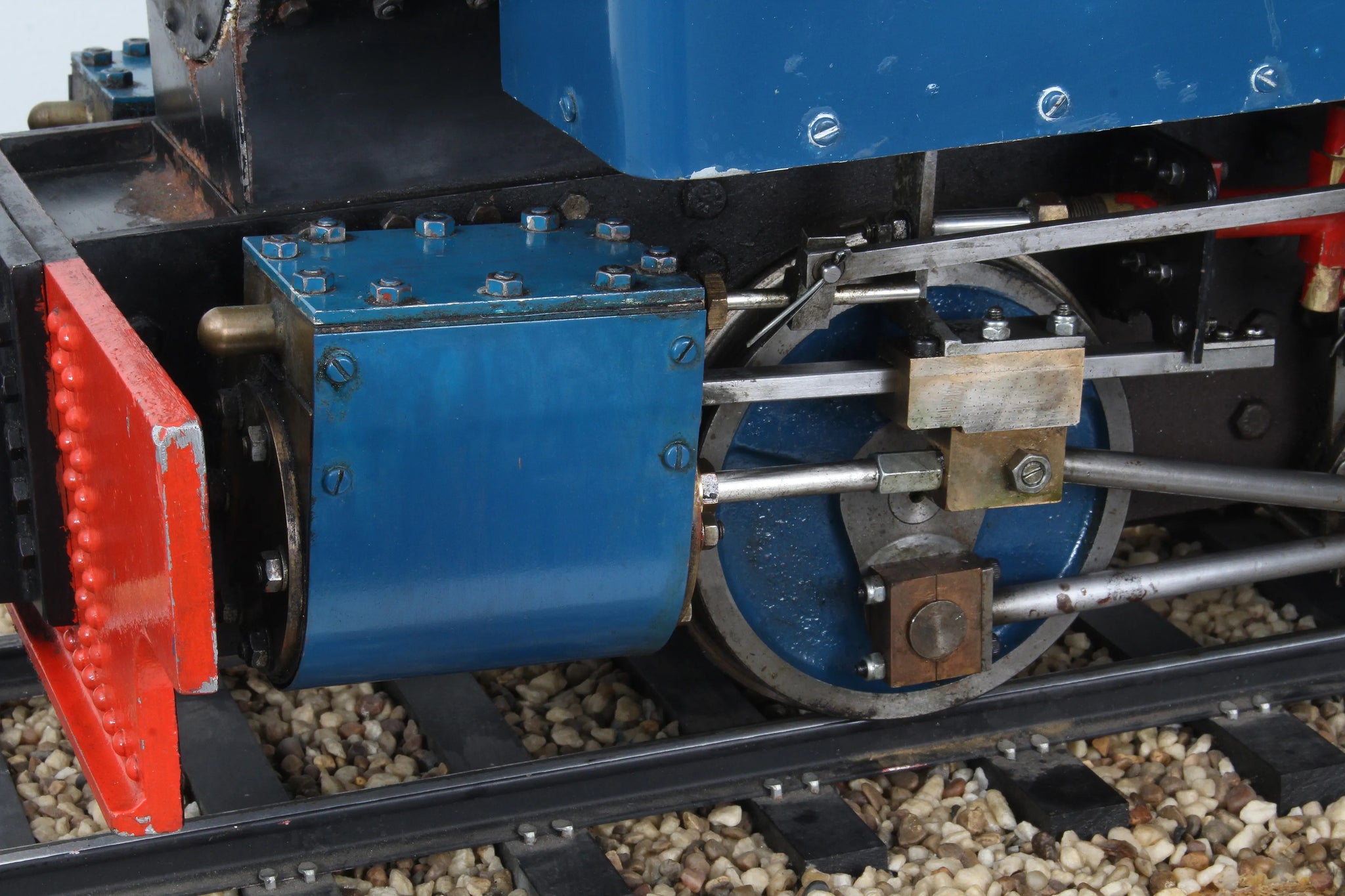

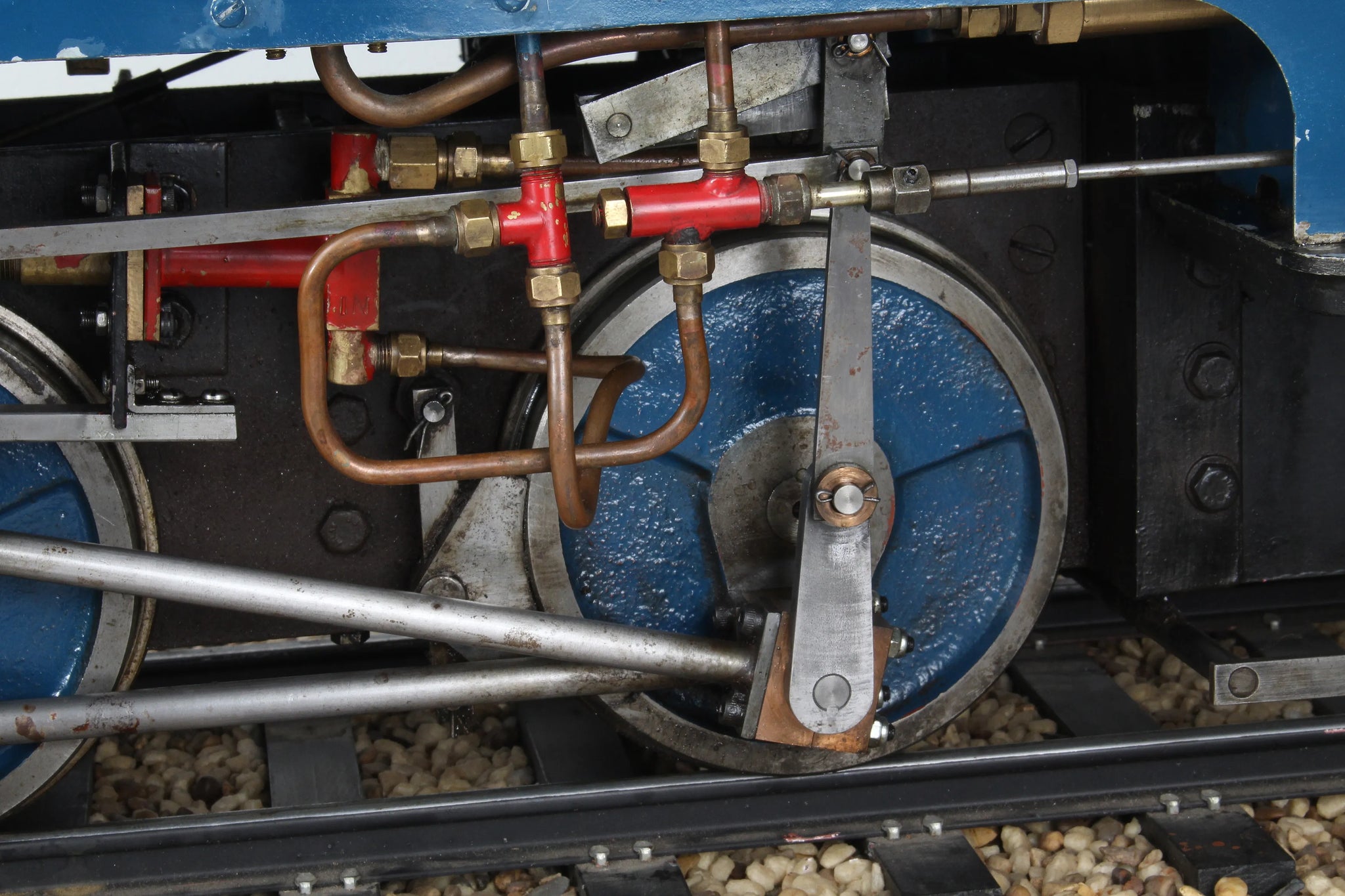

Valve gear |
Hackworth |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
Cheddar Boilers |

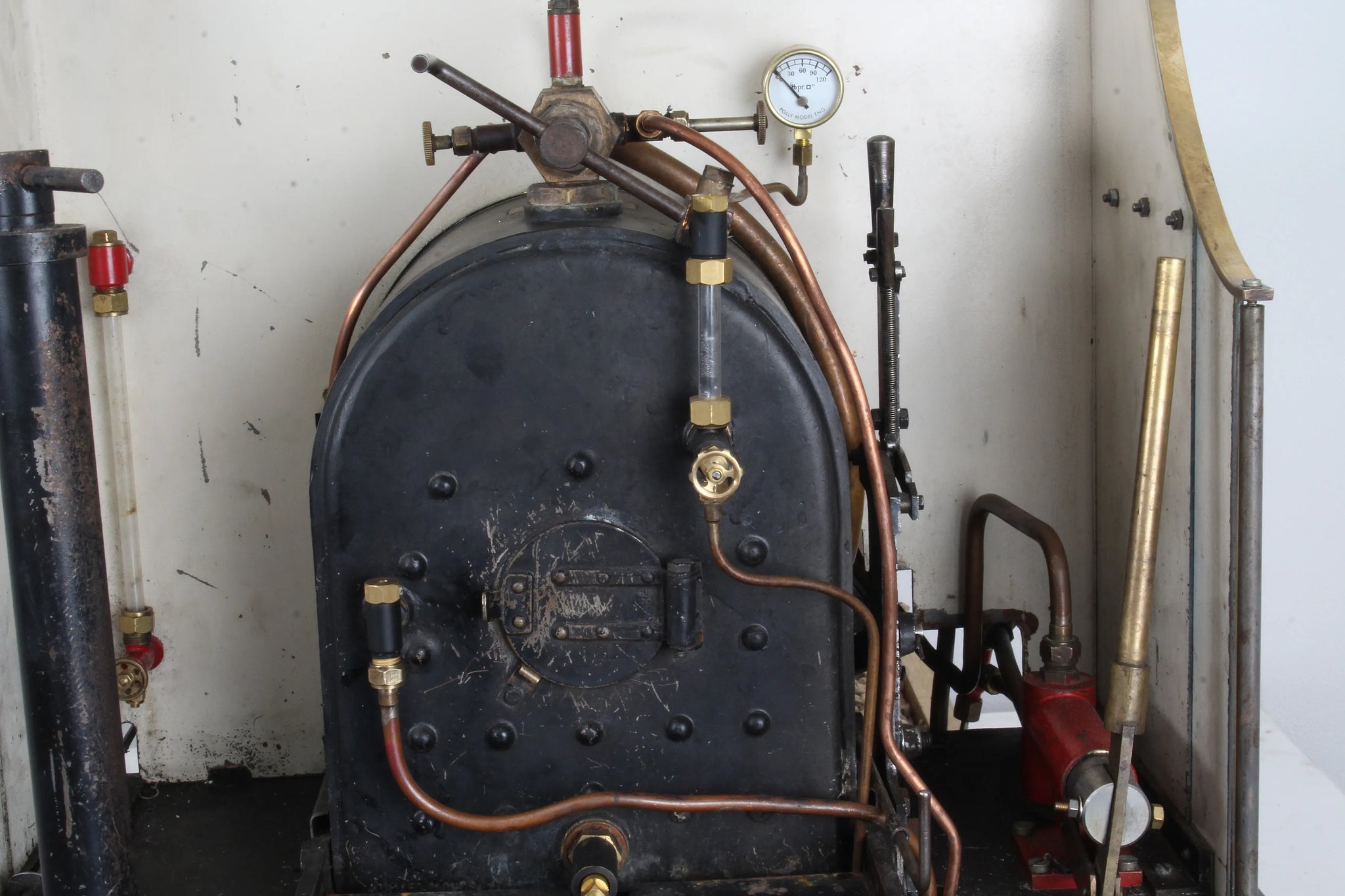

Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a - pre-2002 |
Year built |
2001 |
Boiler number |
CM1150 01.01 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
no |
Whistle |
yes |

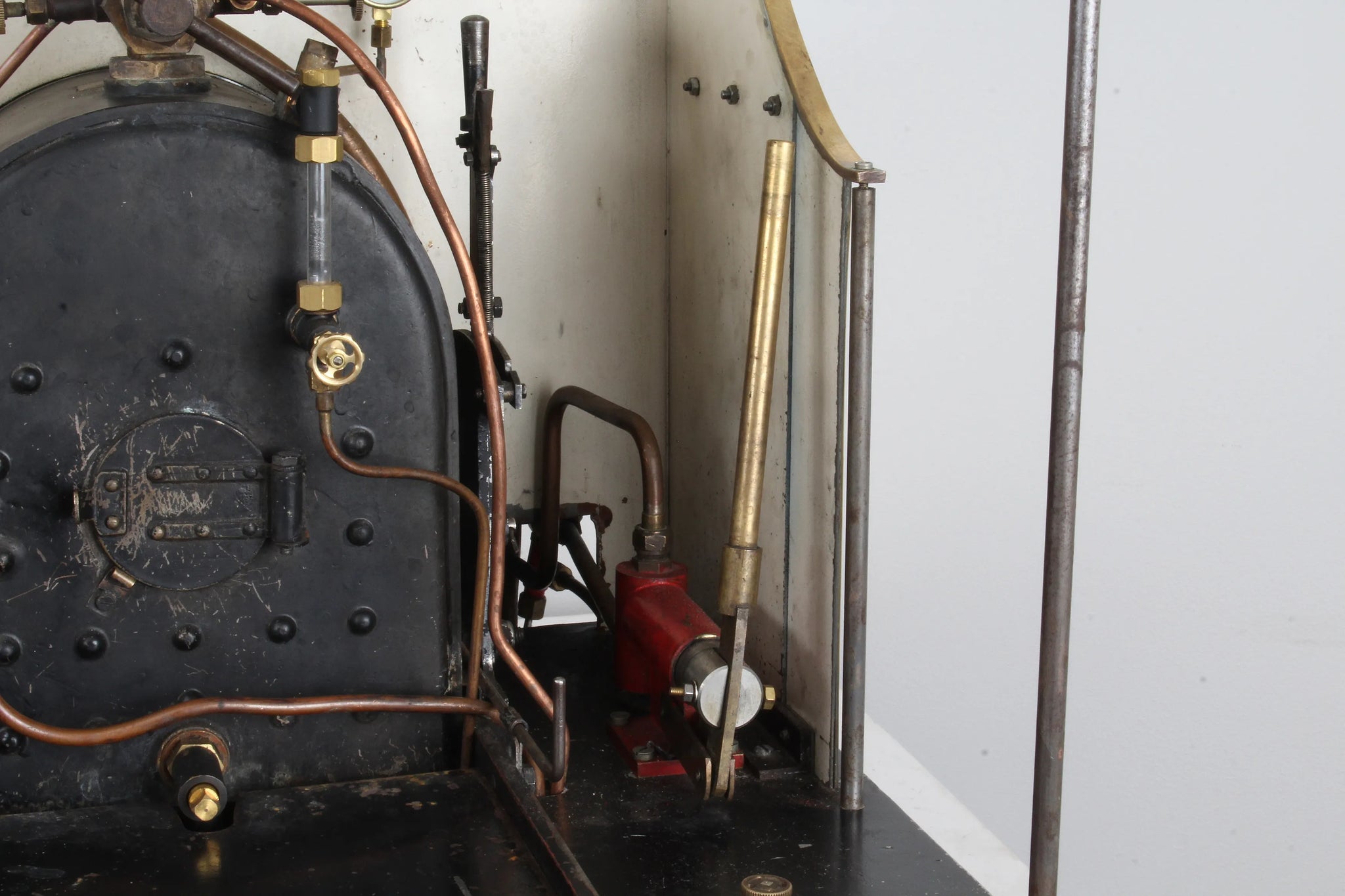

Hand pump |
1 |
Mechanical pump |
1 x crosshead |
Injector |
1 |
Date out |
Aug-19 |
Hydraulic test valid to |
10-Feb-23 |
