Sold

8246

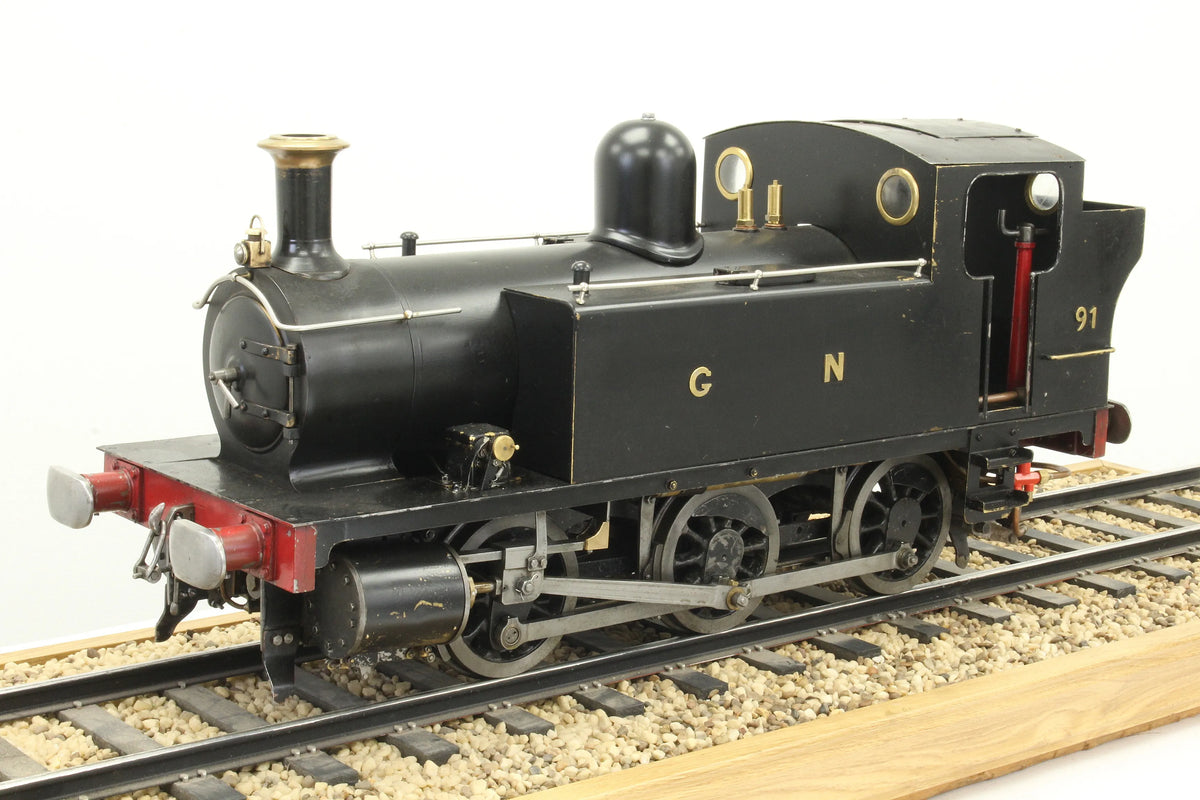

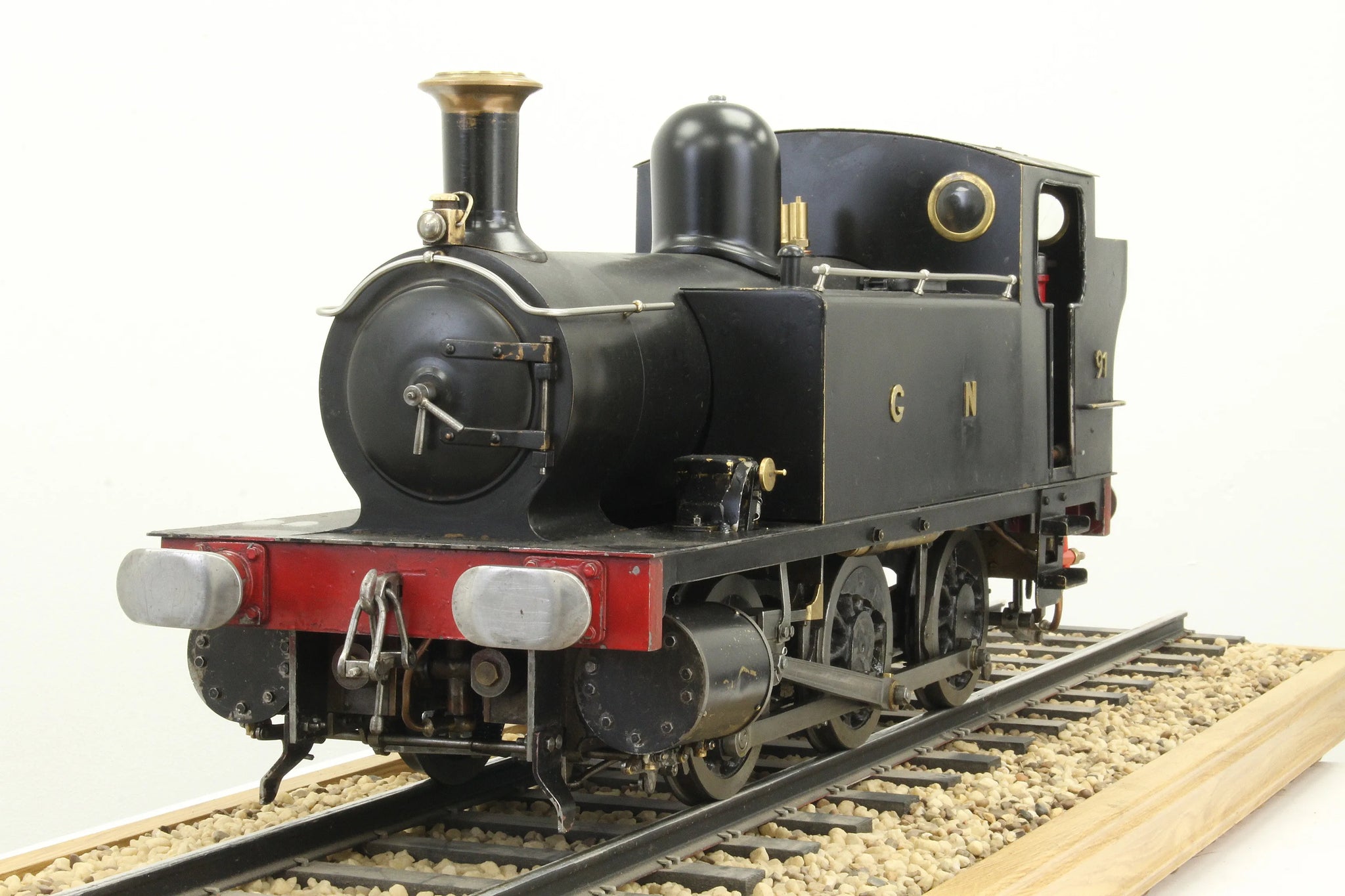

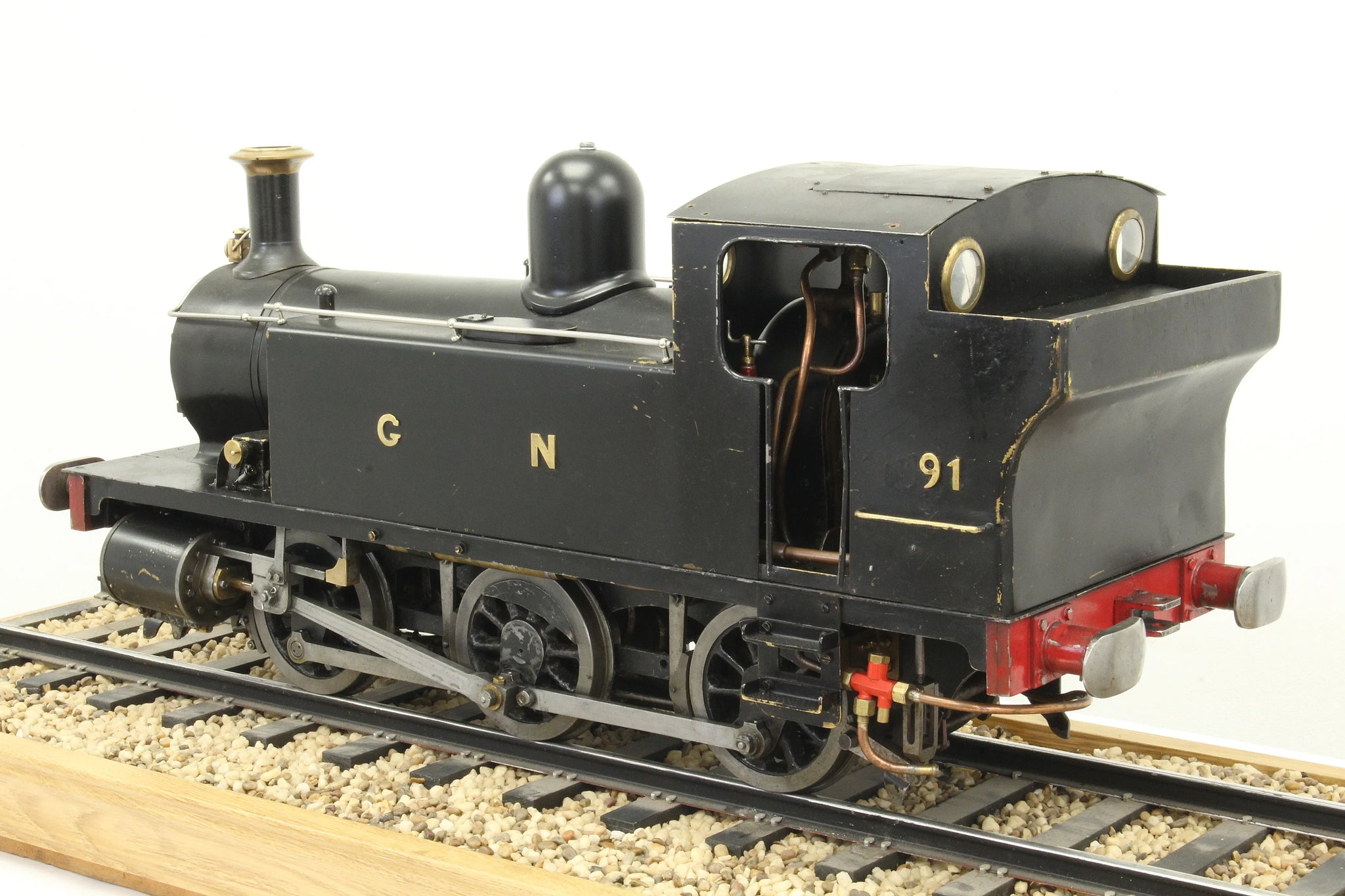

5 inch gauge J88 0-6-0T

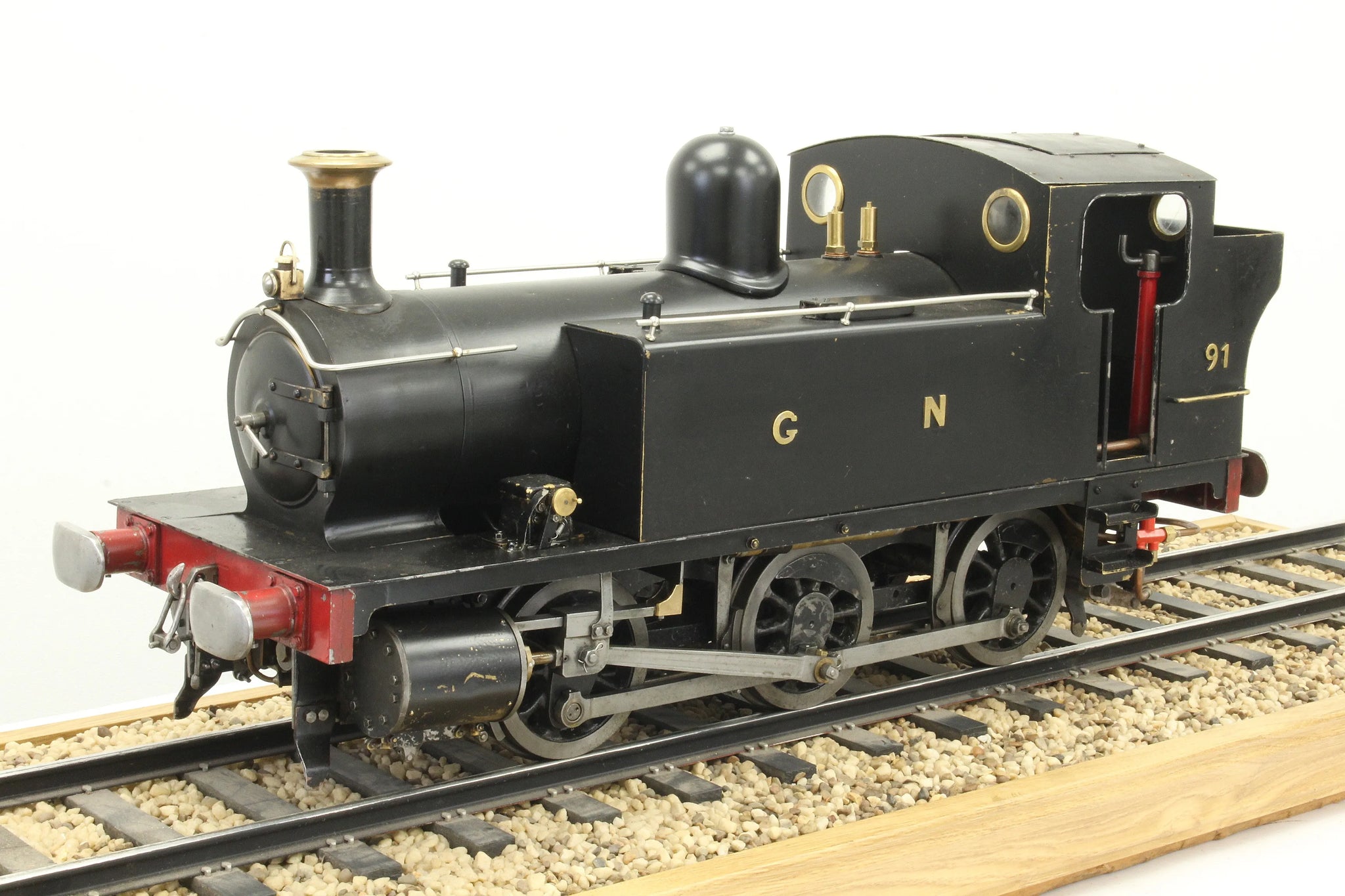

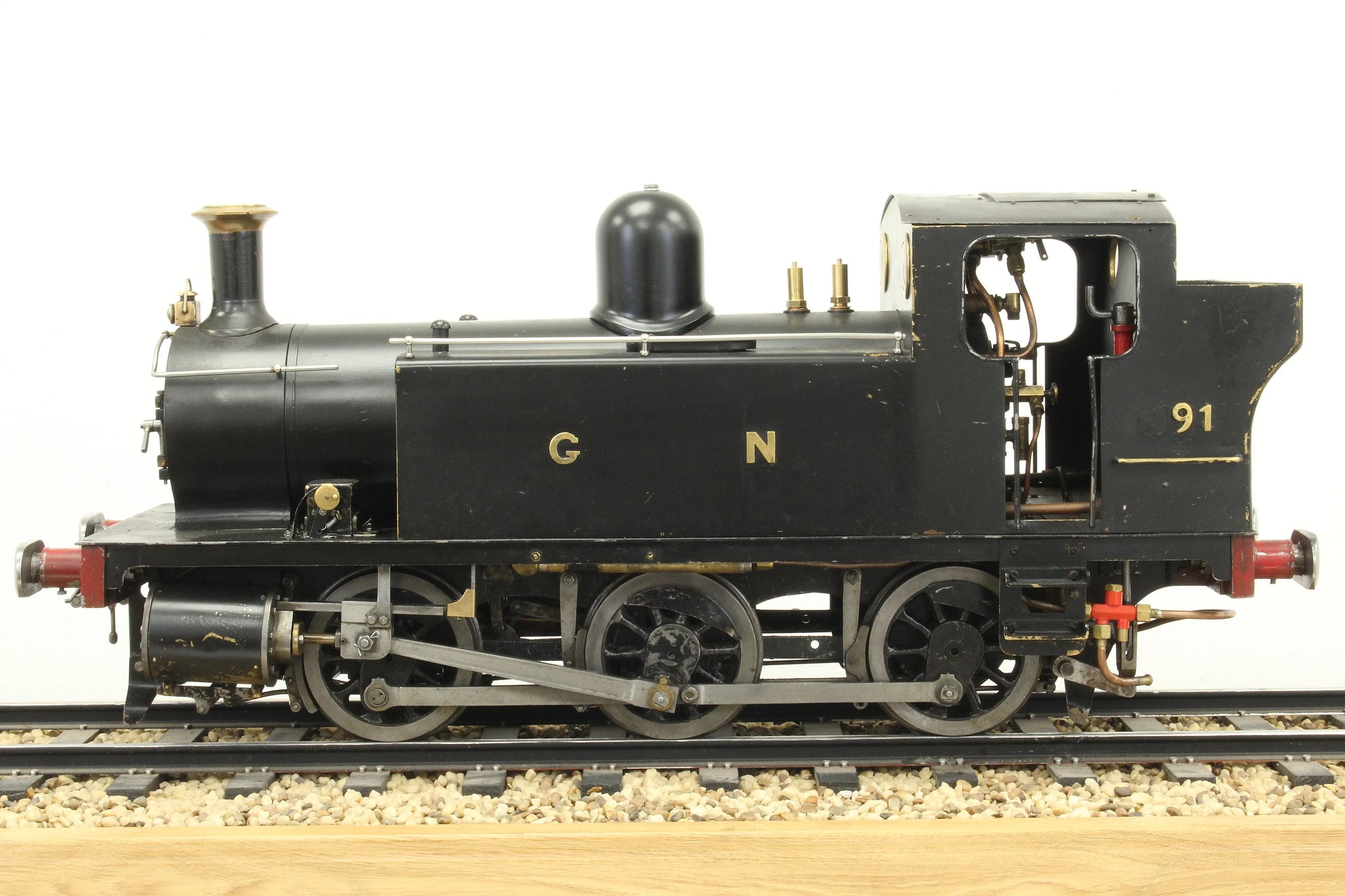

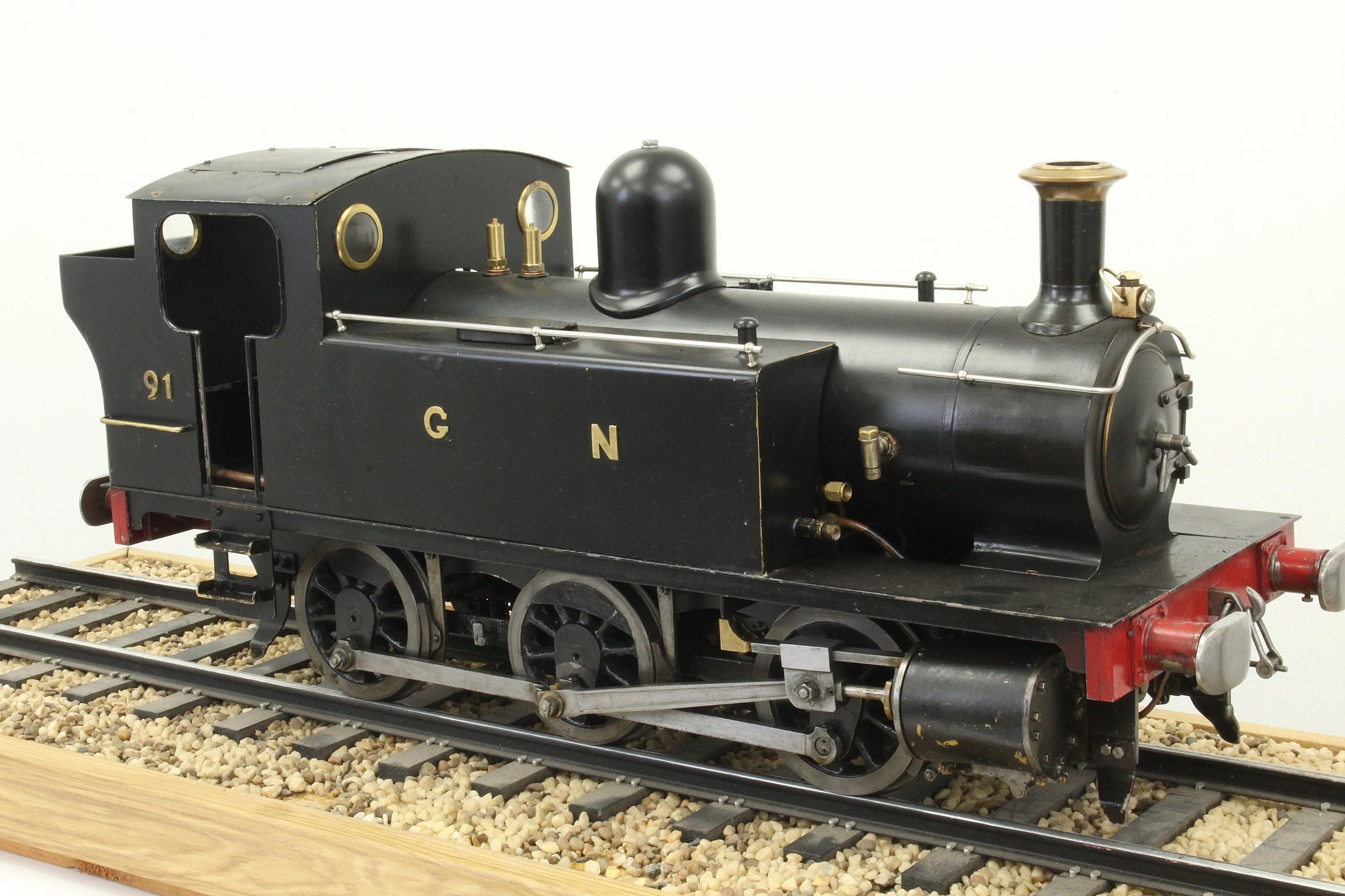

A 5 inch gauge 0-6-0T locomotive - based loosely on an LNER J88 0-6-0T - which came in recently in part exchange against a Great Western Mogul.

We have some boiler history for this one by way of club certification, the boiler has had a recent hydraulic test in the workshop here with certificate issued for same.

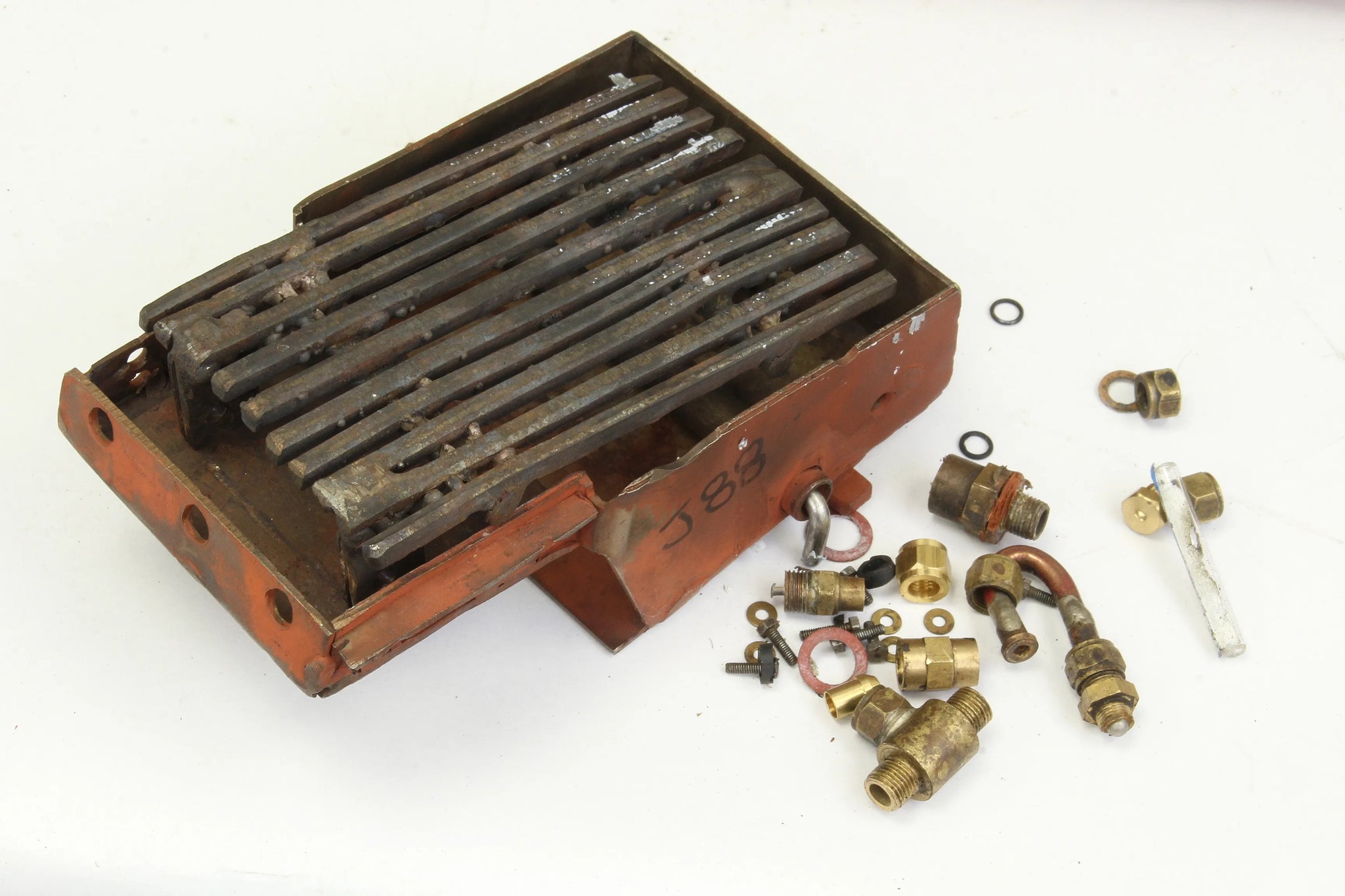

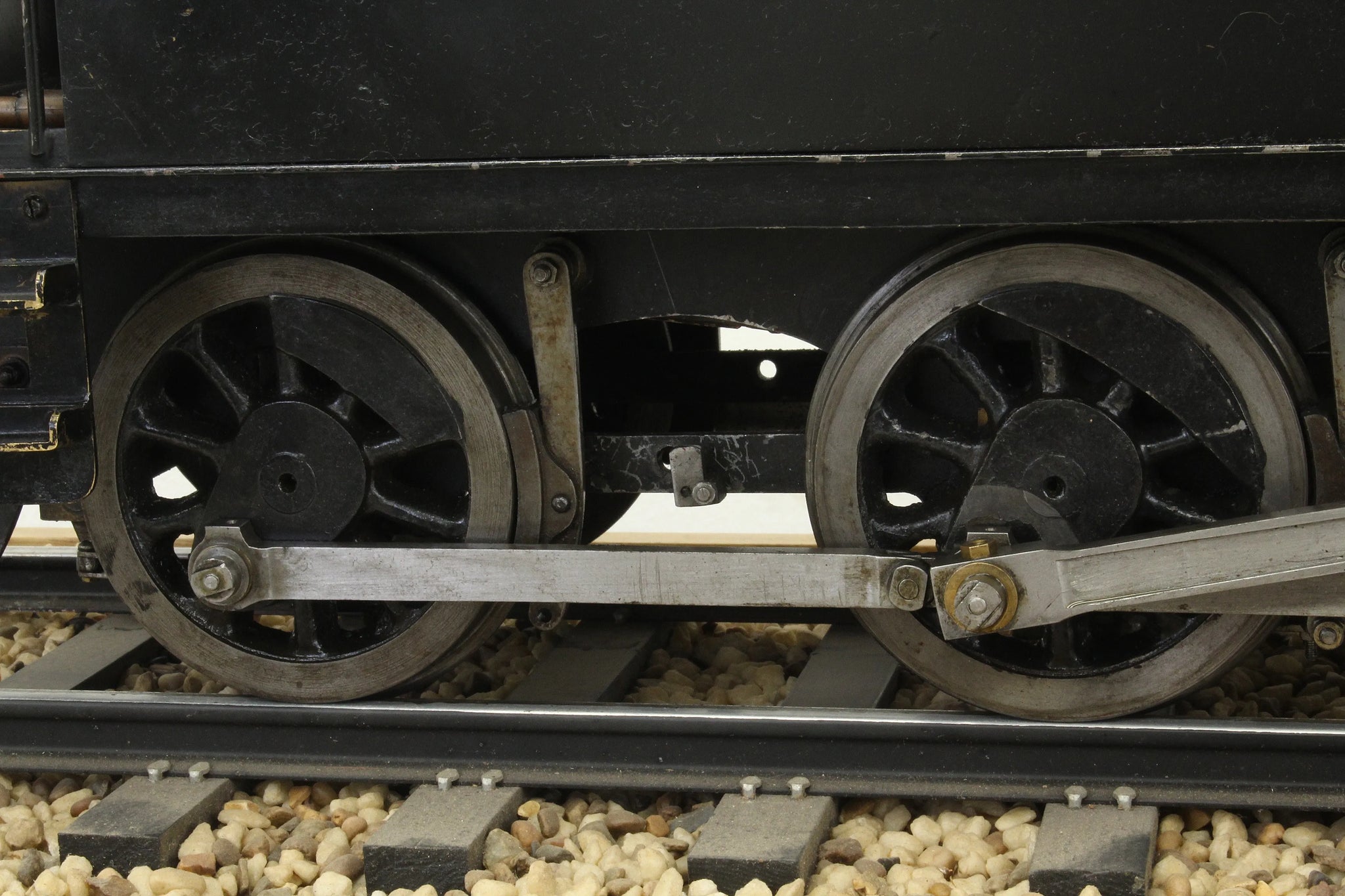

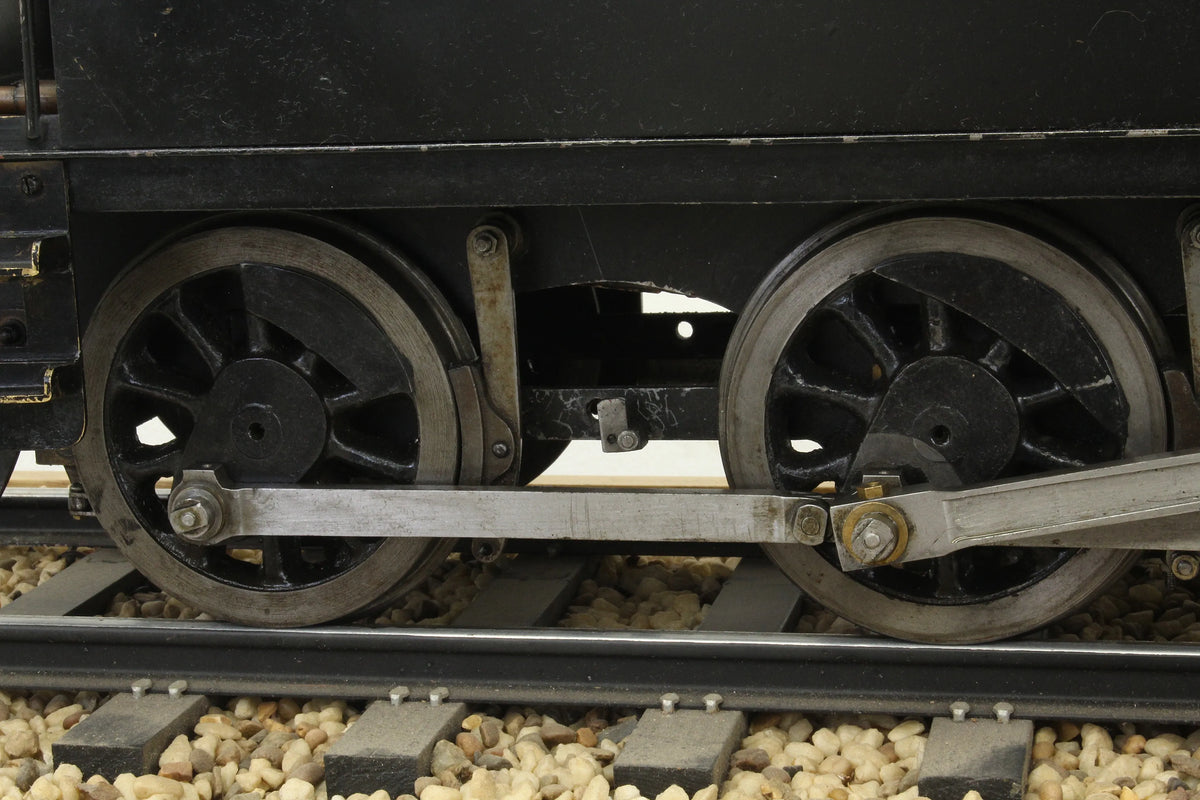

The chassis rolls along freely, there has been some minor dismantling of fittings and pipework - the parts removed are included, as shown in the pictures opposite.

A good looking, well-proportioned locomotive, it makes a slightly smaller and lighter alternative to the ubiquitous "Simplex".

Technical information

Stock code

8246

Gauge

5 inch

Length/inches

29

Width/inches

9

Height/inches

13

Weight/Kg

40

Wheel material

cast iron

Axlebox type

plain bearing

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Boiler number

VH5

Safety valve type

spring

Safety valve

2

Fusible plug

no

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Mar-19

Hydraulic test valid to

11-Nov-22
