Sold

8191

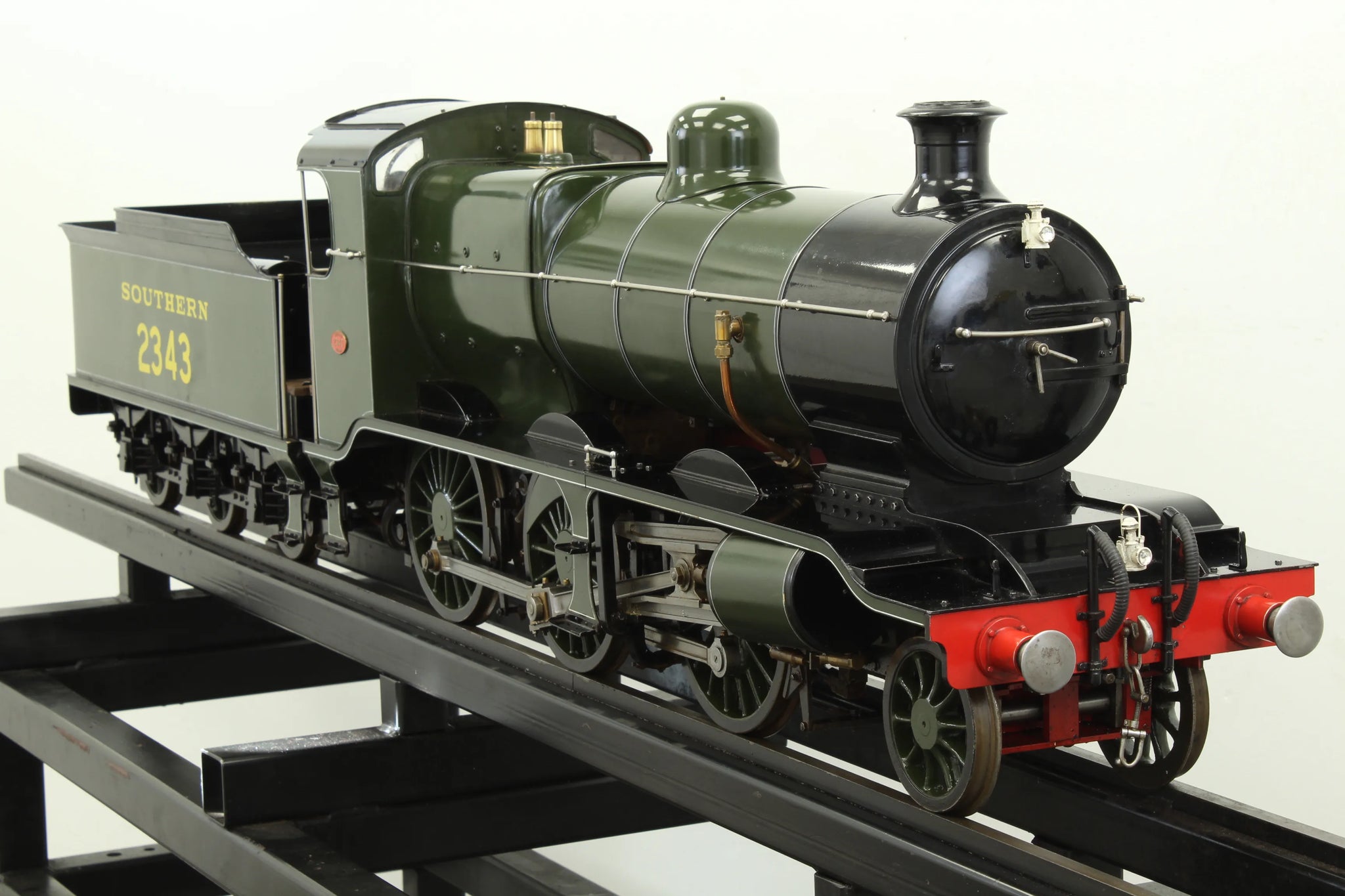

5 inch gauge LB&SCR K Class Mogul

A fine example of a rarely modelled prototype - Billinton's K-class Mogul, designed for the LB&SCR.

A total of 17 locomotives were built between 1914 and 1921, they gained a reputation for hard work, regularly pulling 1000 ton trains before a 900 ton limit was introduced after the war.

Billinton rated the engine as his finest design, building a 9 1/2 inch gauge replica in retirement for use on his garden railway. For many years it was displayed at Oakhill Manor, I bought the engine in 2012 and and kept it in our garden room at home for several years - an inspiring thing to contemplate over breakfast every morning, there are pictures in the archive if you want to compare the two.

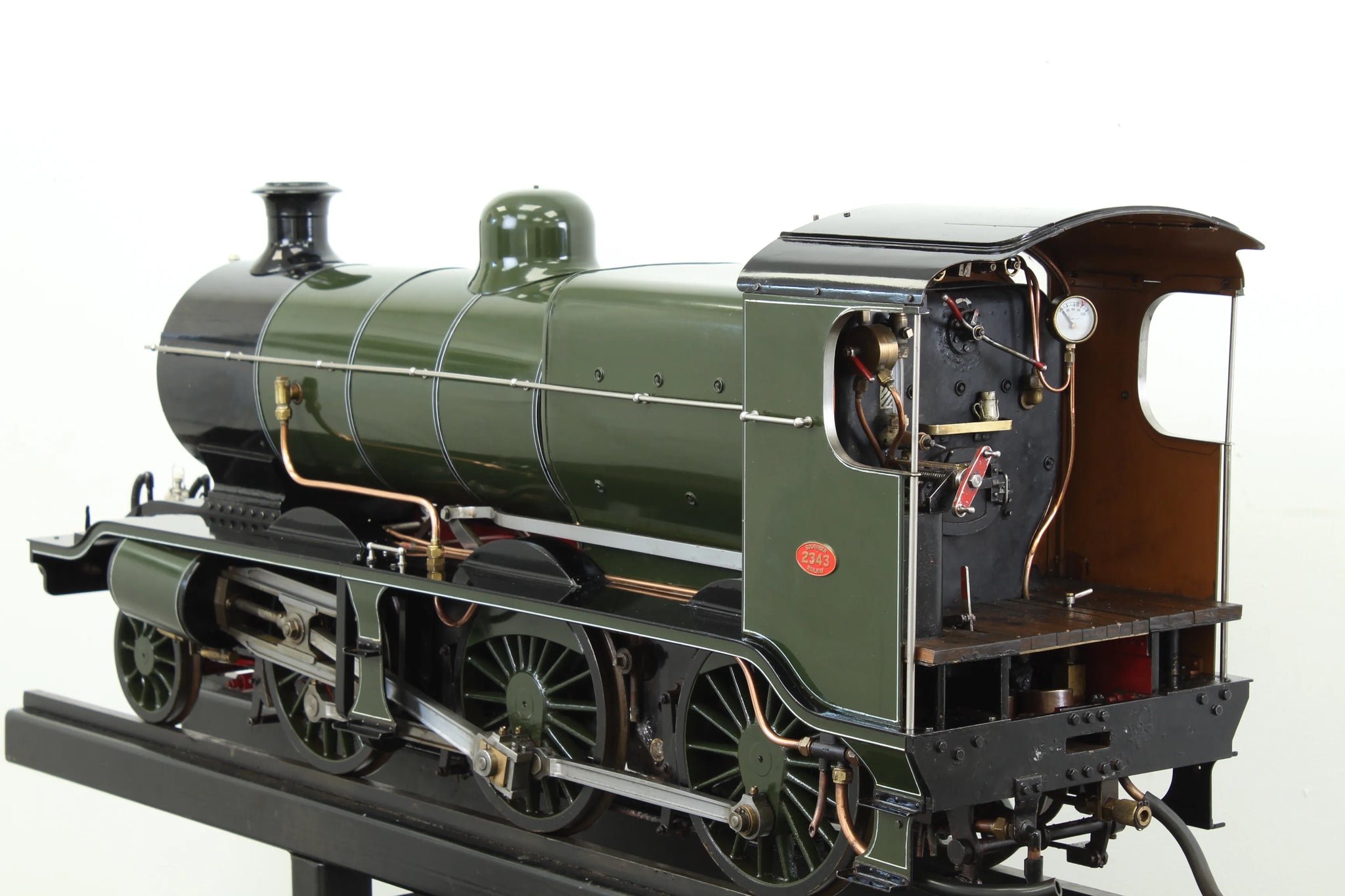

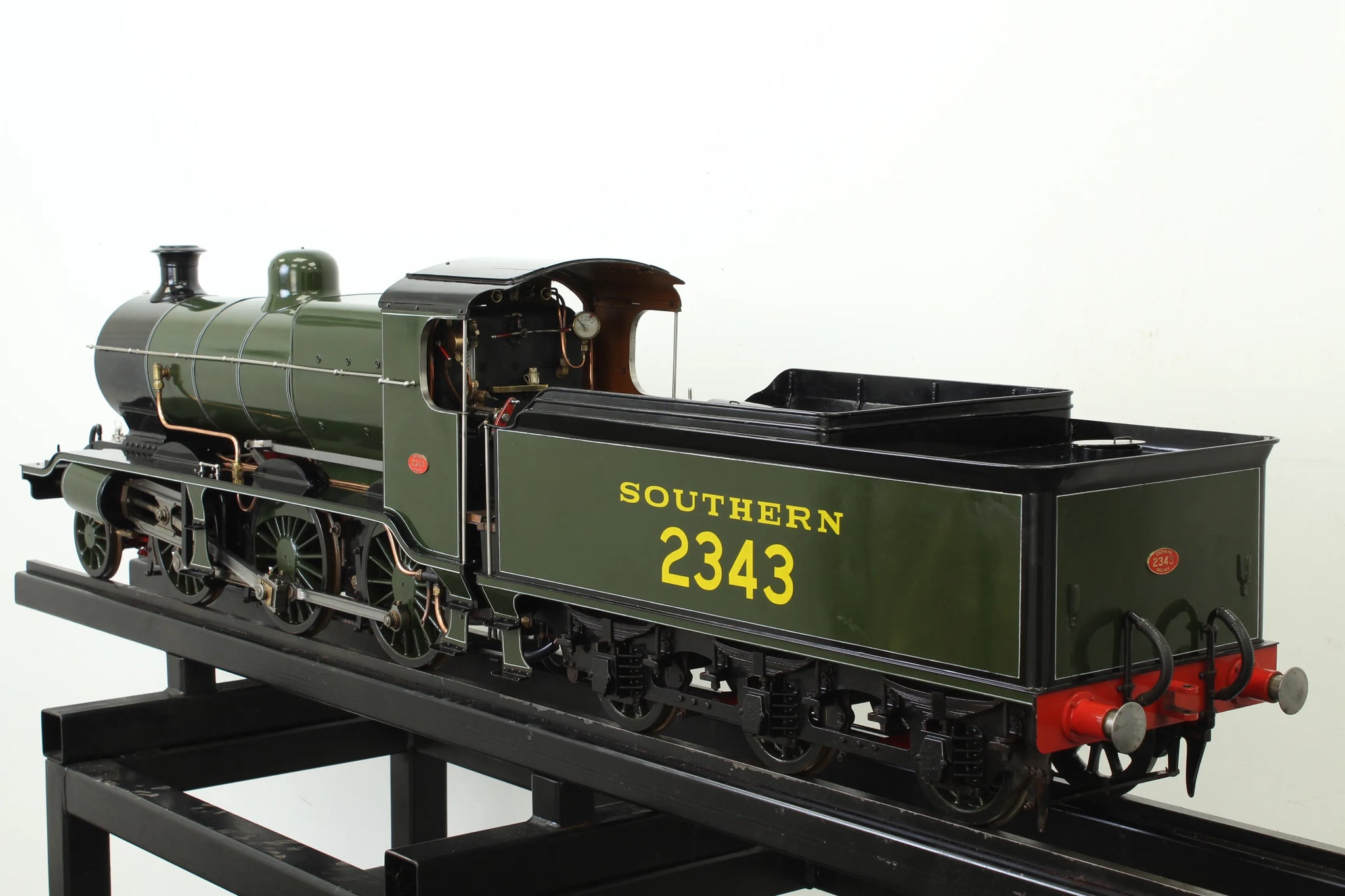

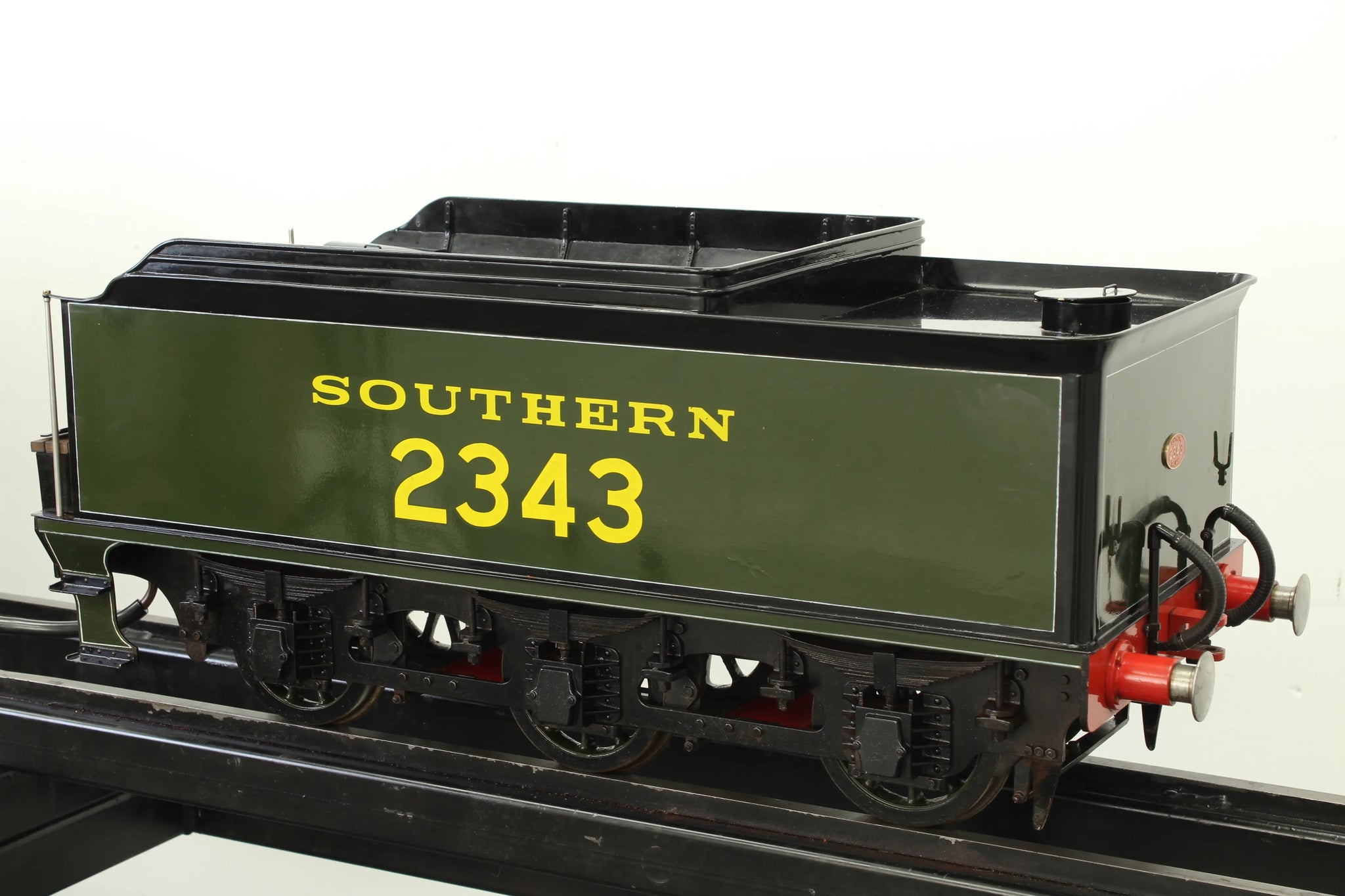

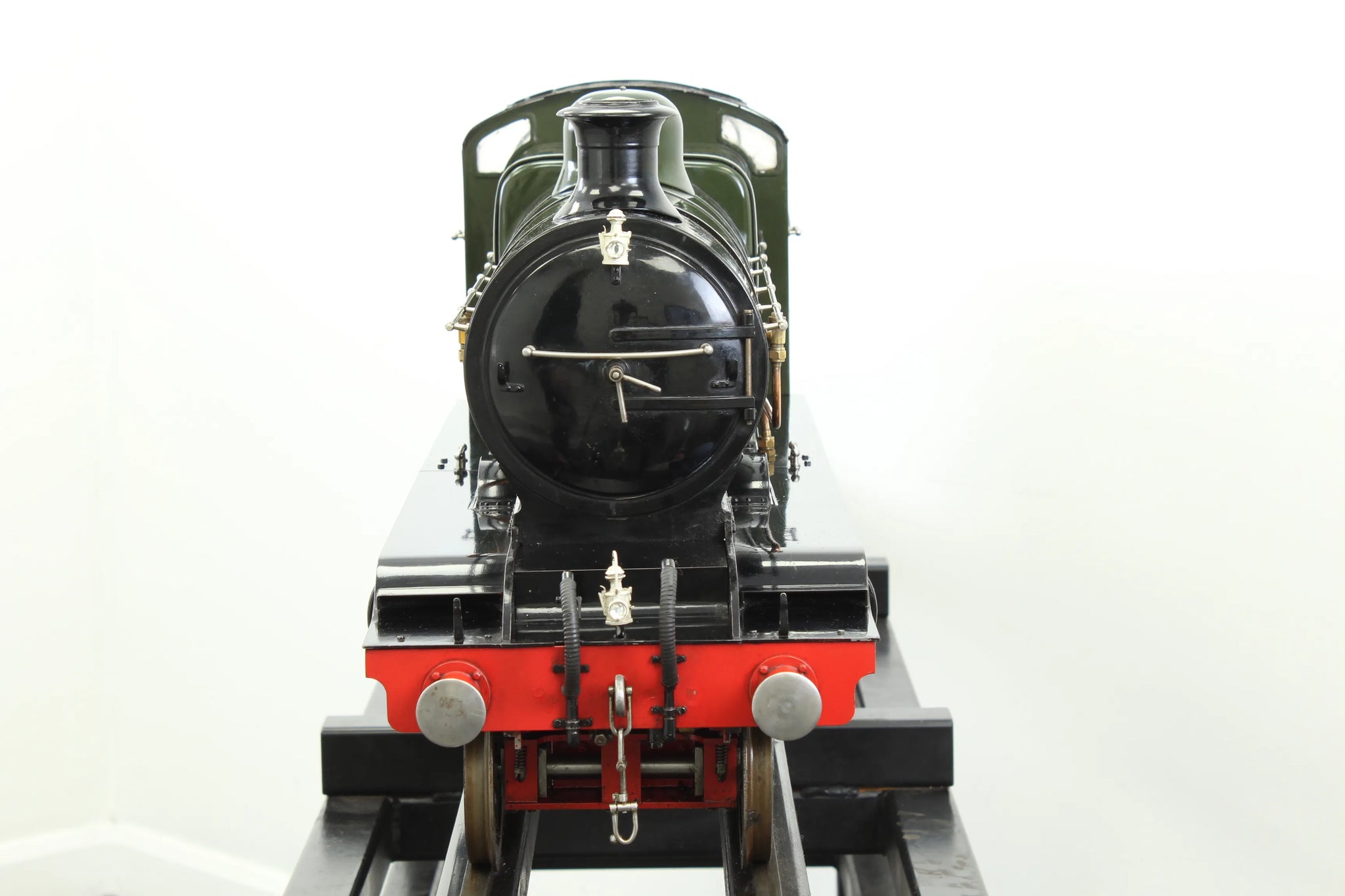

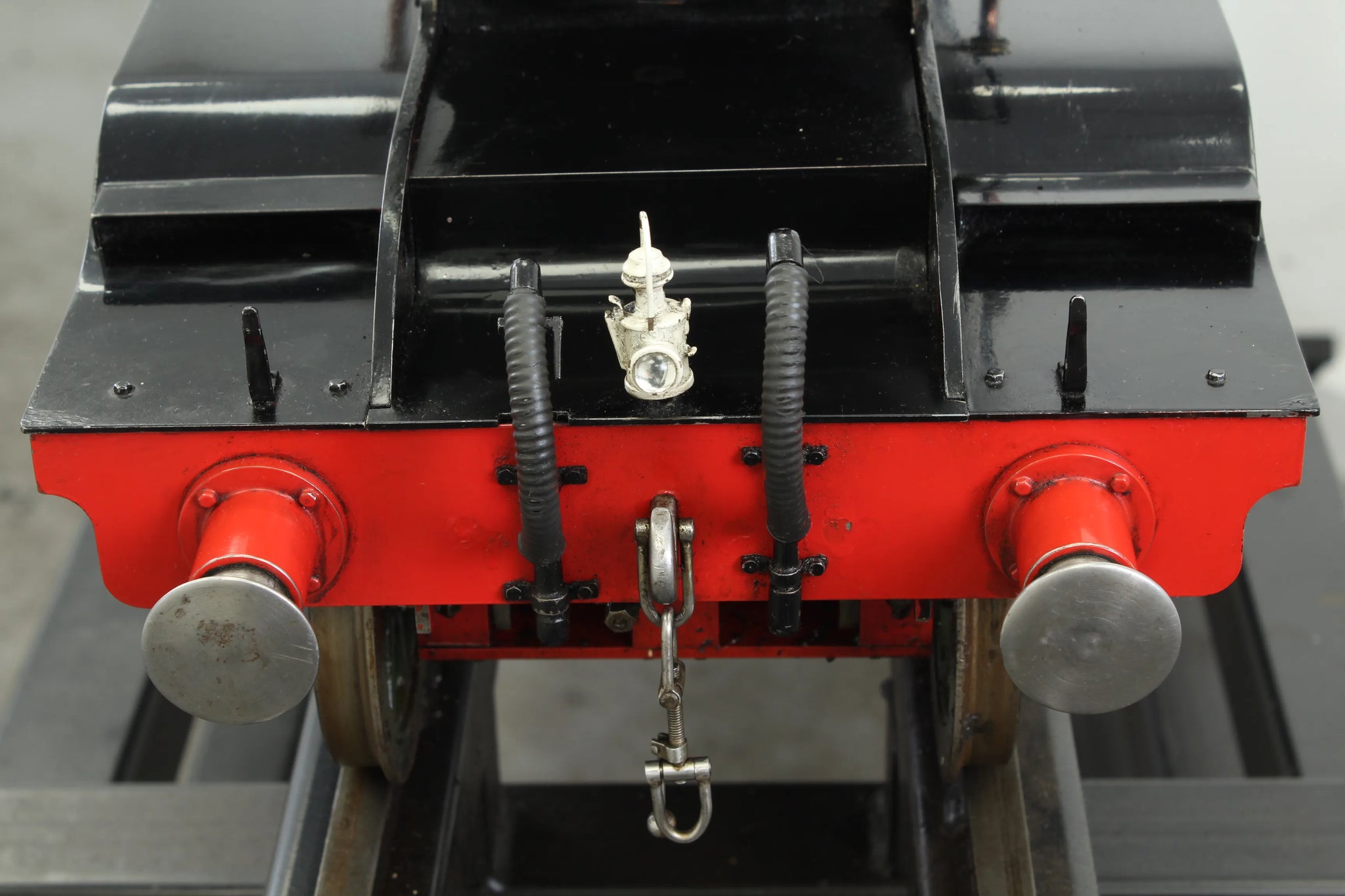

This 5 inch gauge model is in excellent condition - fit and finish of machined parts is very good, paintwork finely applied and remaining in good order.

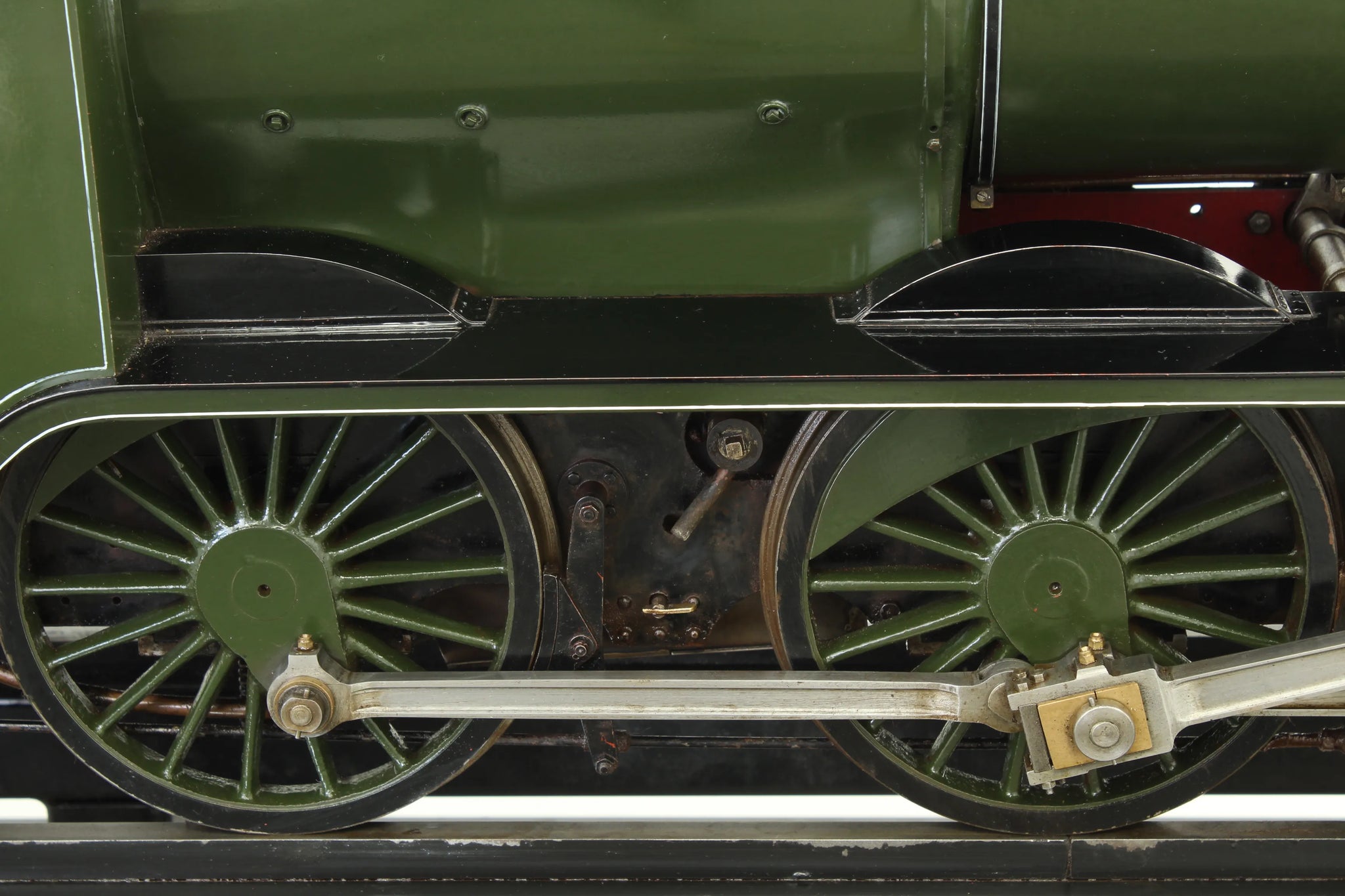

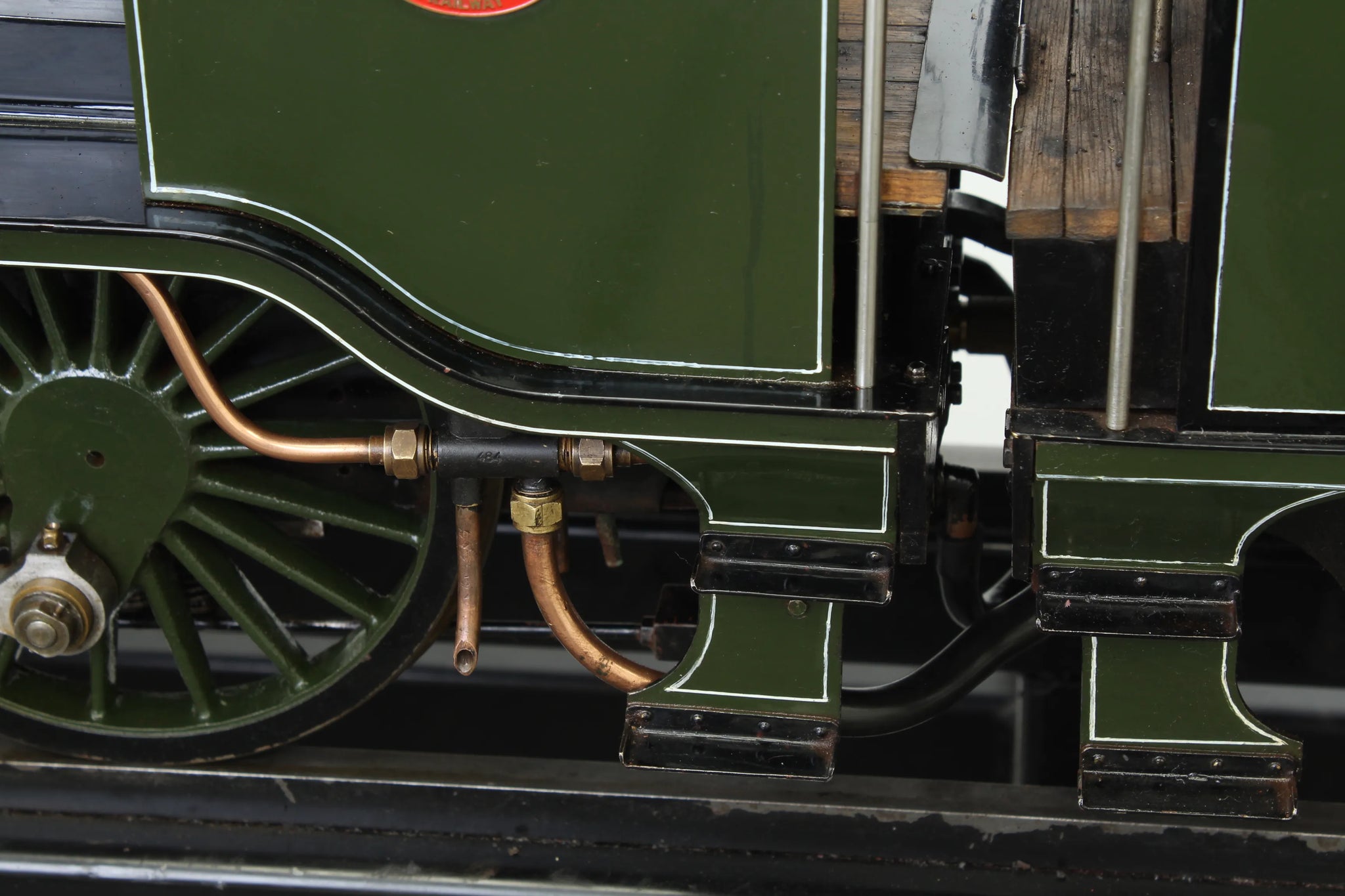

Nicely detailed, with double-nutted eccentric straps, taper-pinned collars on the motionwork and finely turned lubricators on the main rod brasses.

A previous winner of the Welsh IMLEC competition, it runs exceptionally well.

Technical information

Stock code

8191

Gauge

5 inch

Length/inches

37 1/2 + 26

Width/inches

10

Height/inches

16.5

Wheel material

cast iron

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler maker

J Coleman

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

2004

Boiler number

JC10

Safety valve type

spring

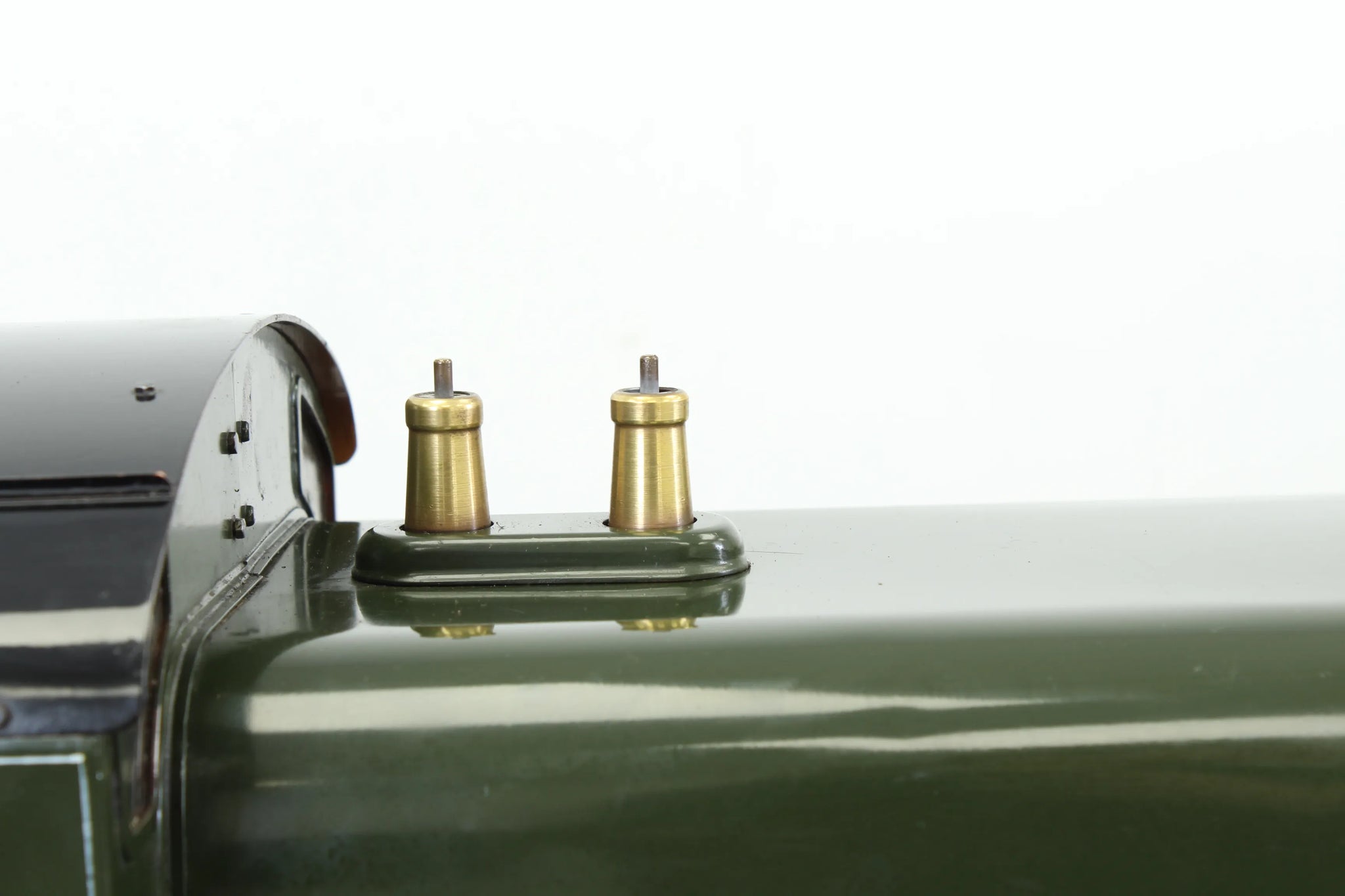

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

radiant

Superheater

2

Pack

Single half pallet

Date out

Nov-18

Hydraulic test valid to

08-Oct-22

Steam test valid to

08-Dec-19
