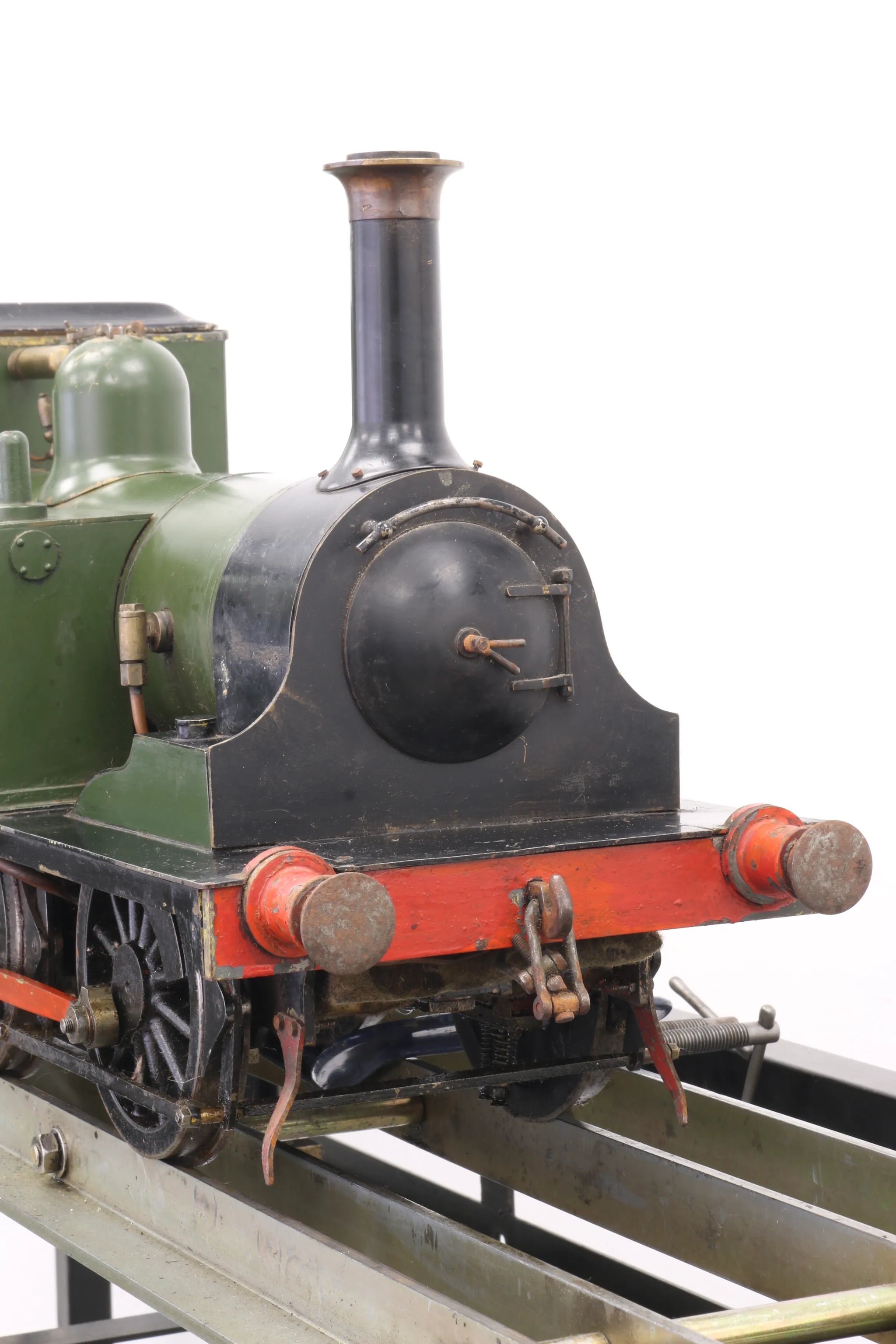

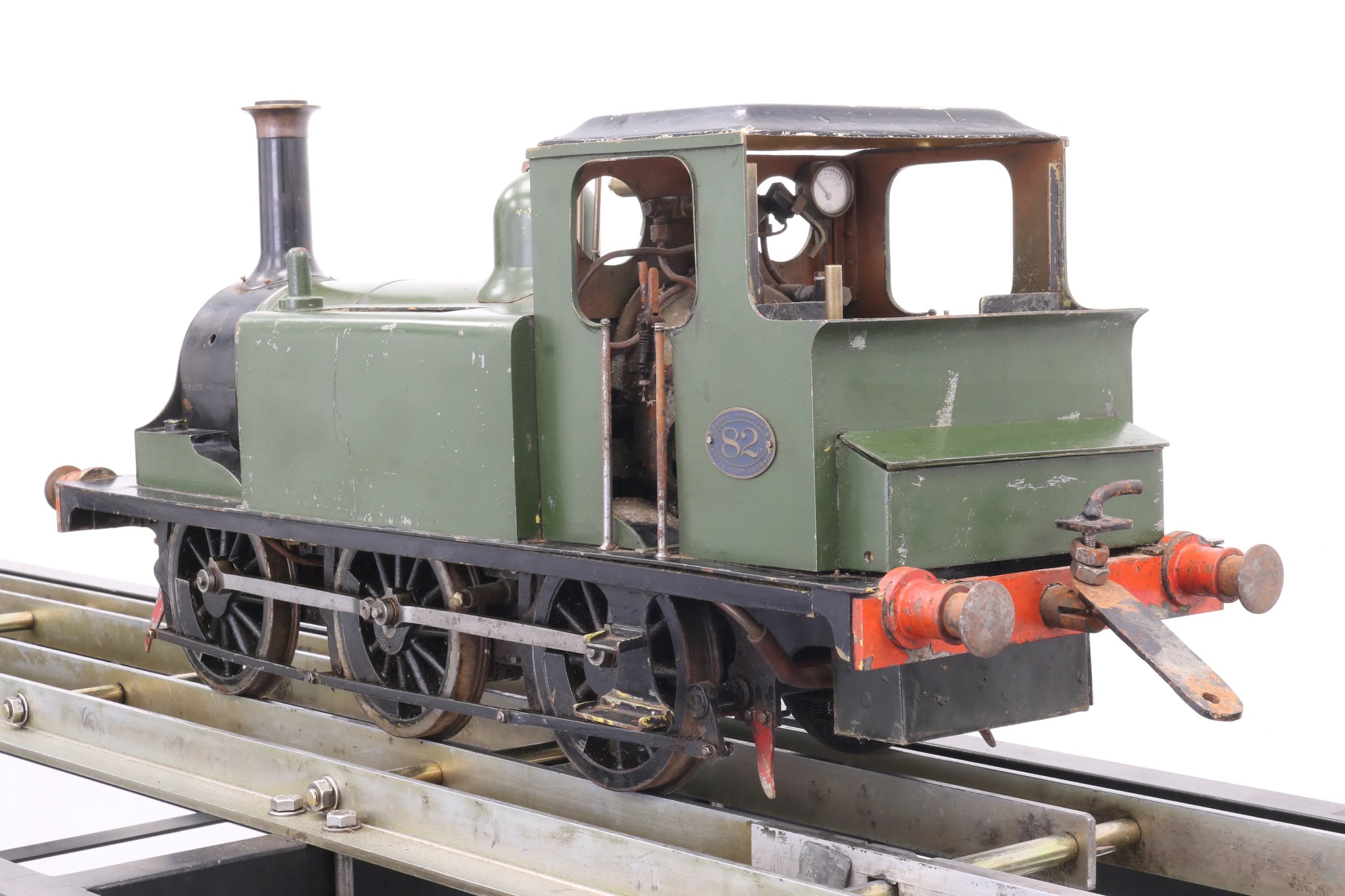

5 inch gauge LB&SCR "Terrier" 0-6-0T

Name: 5 inch gauge LB&SCR "Terrier" 0-6-0T
Brand: Station Road Steam
SKU: 7929
Price: 2350.0 GBP
Availability: OutOfStock

Sold

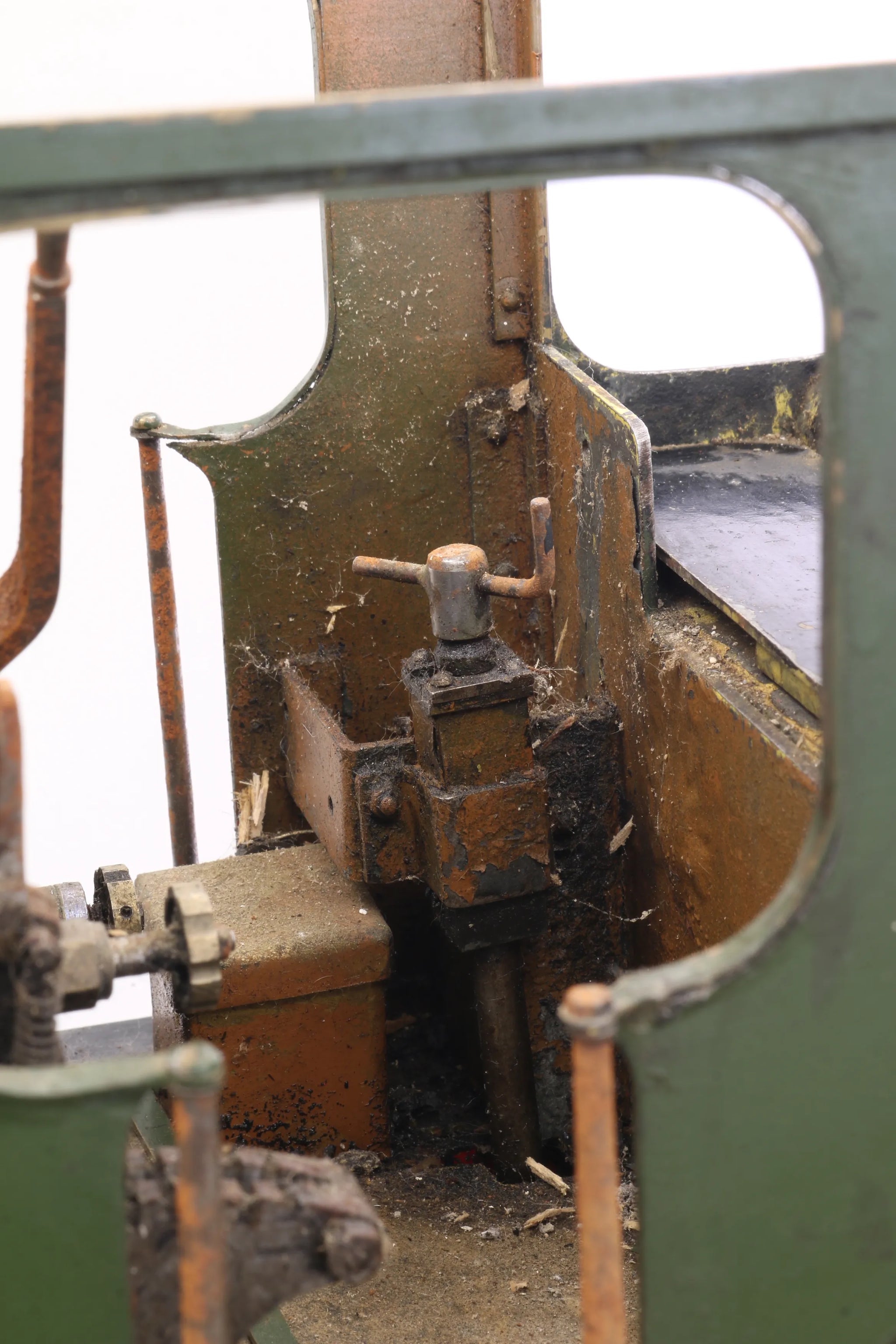

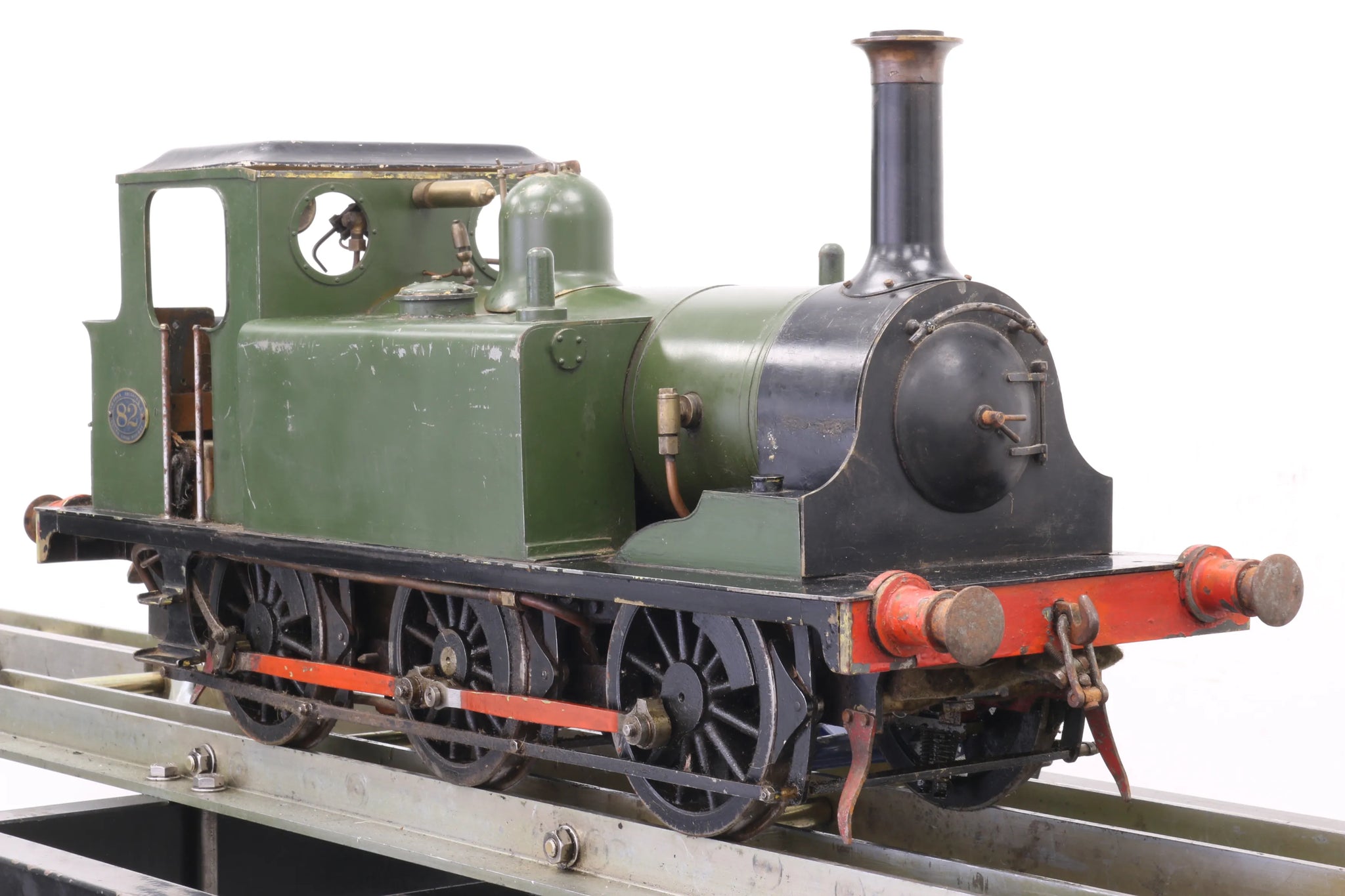

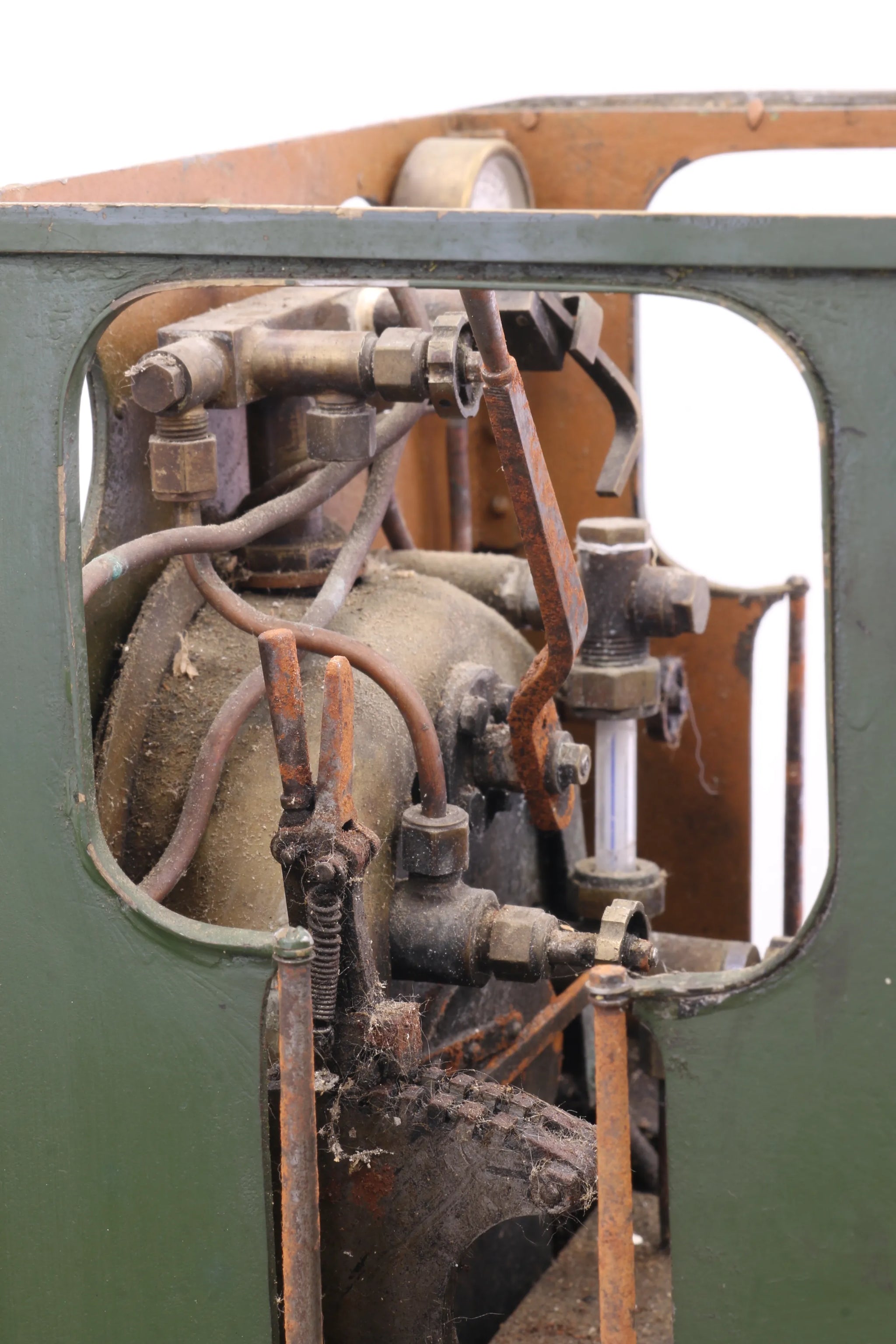

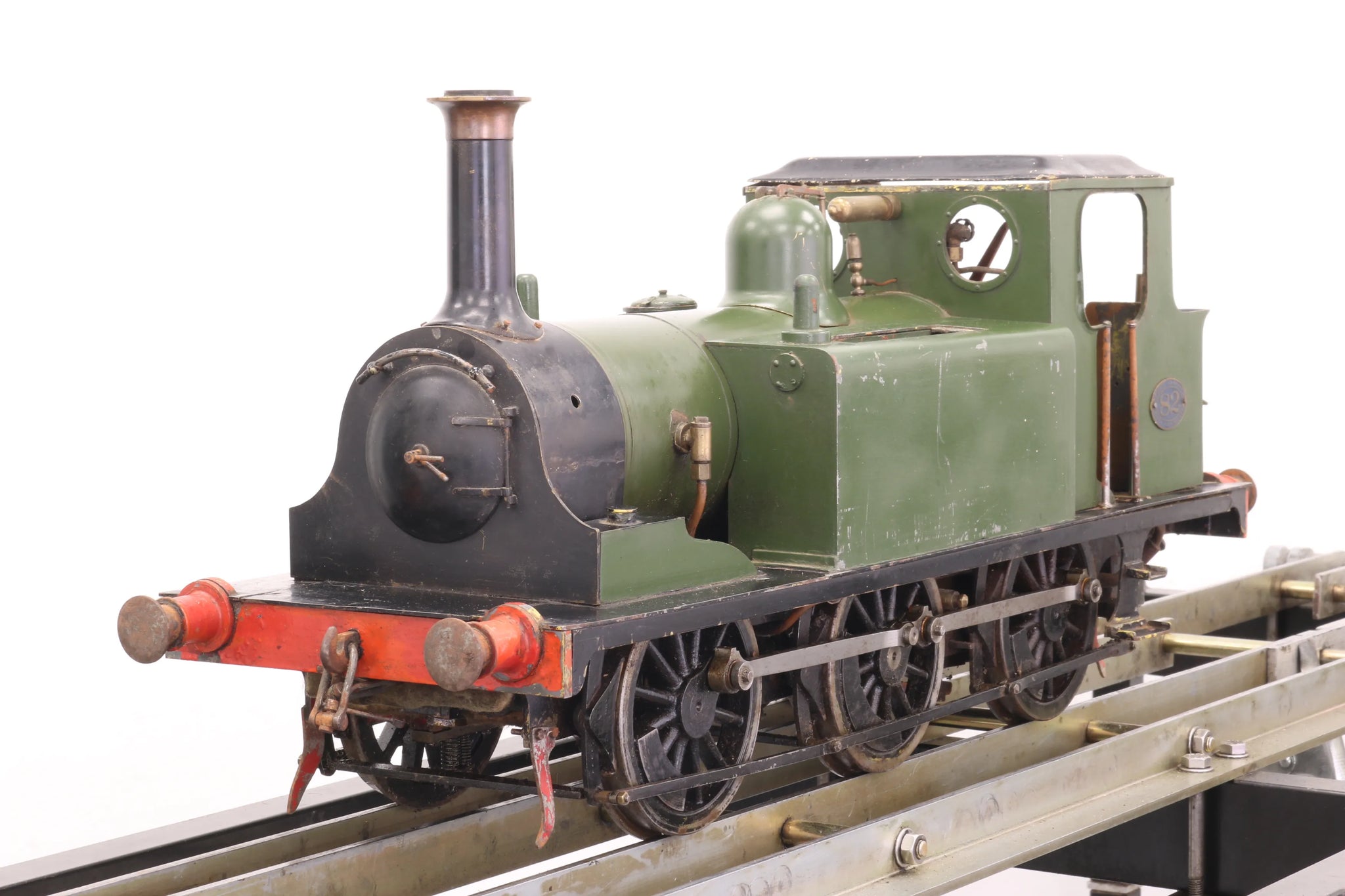

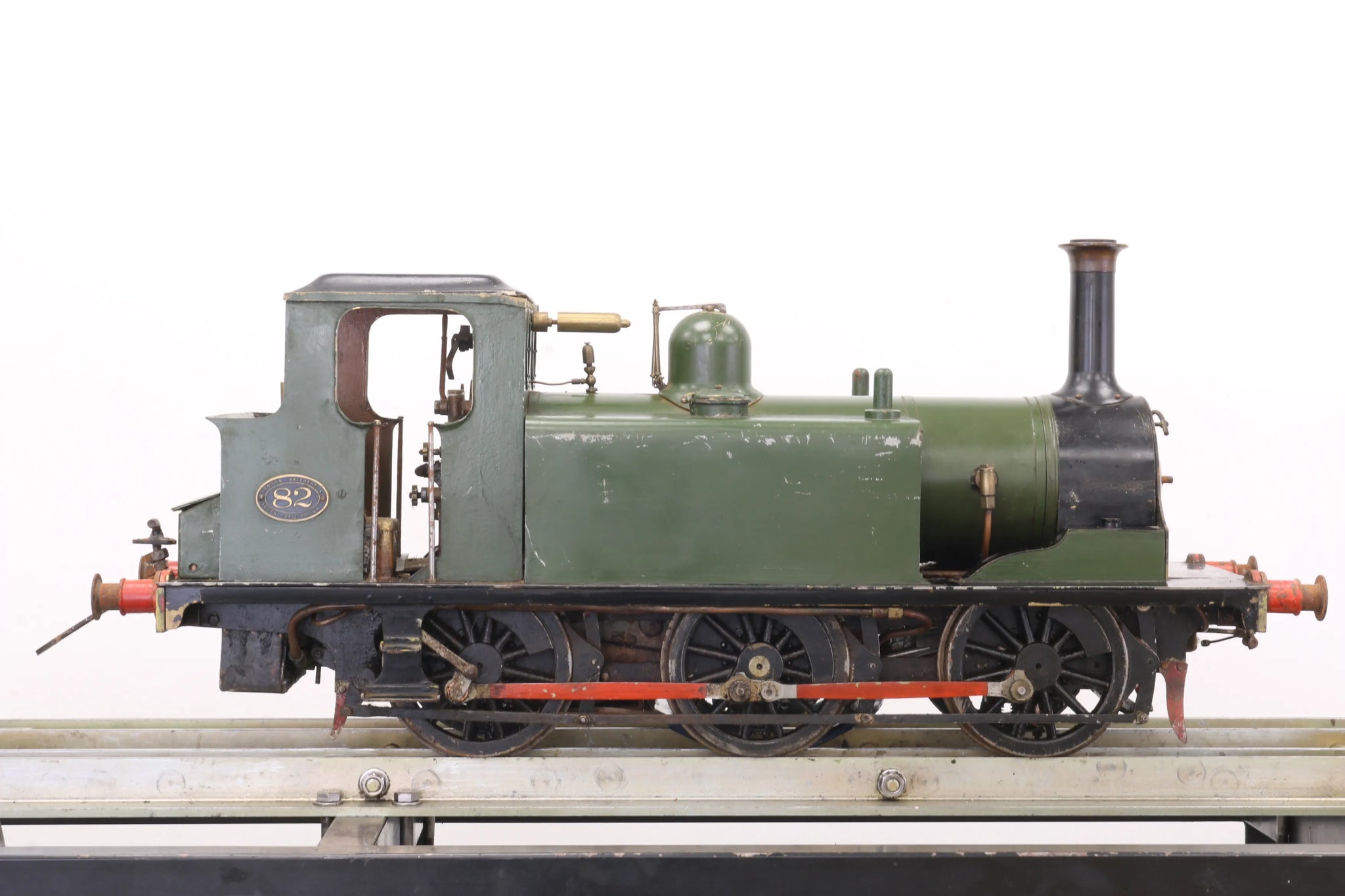

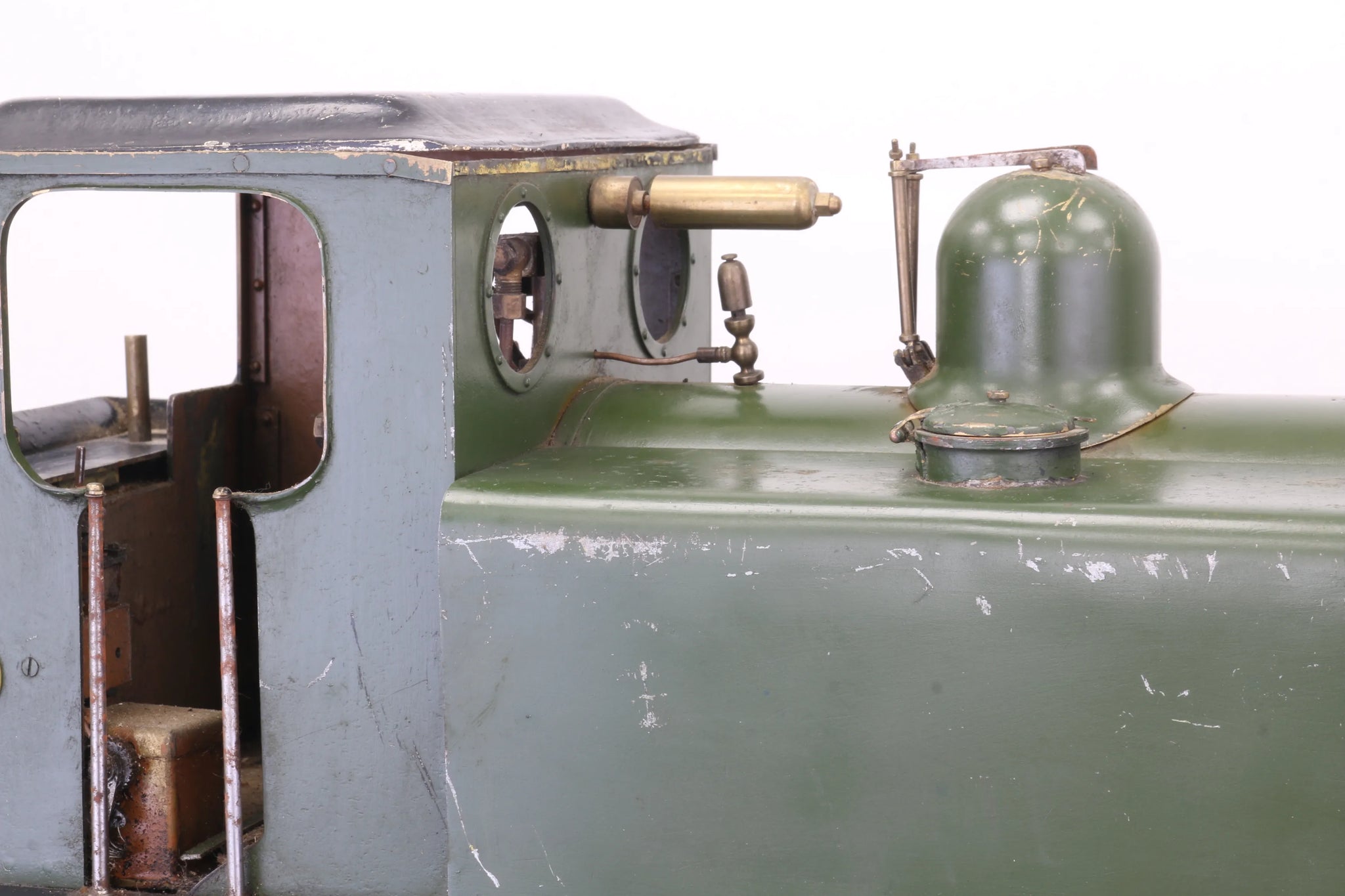

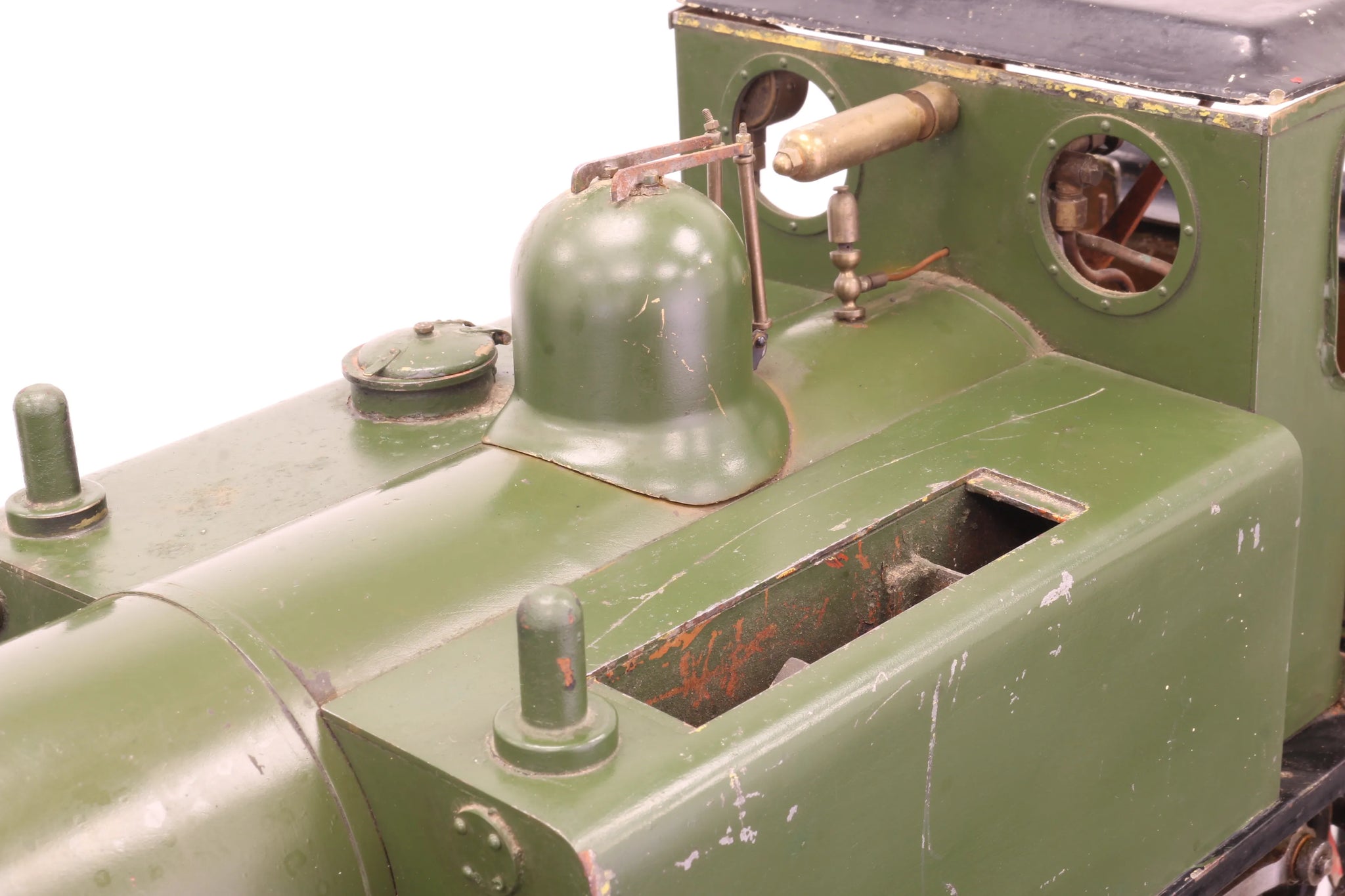

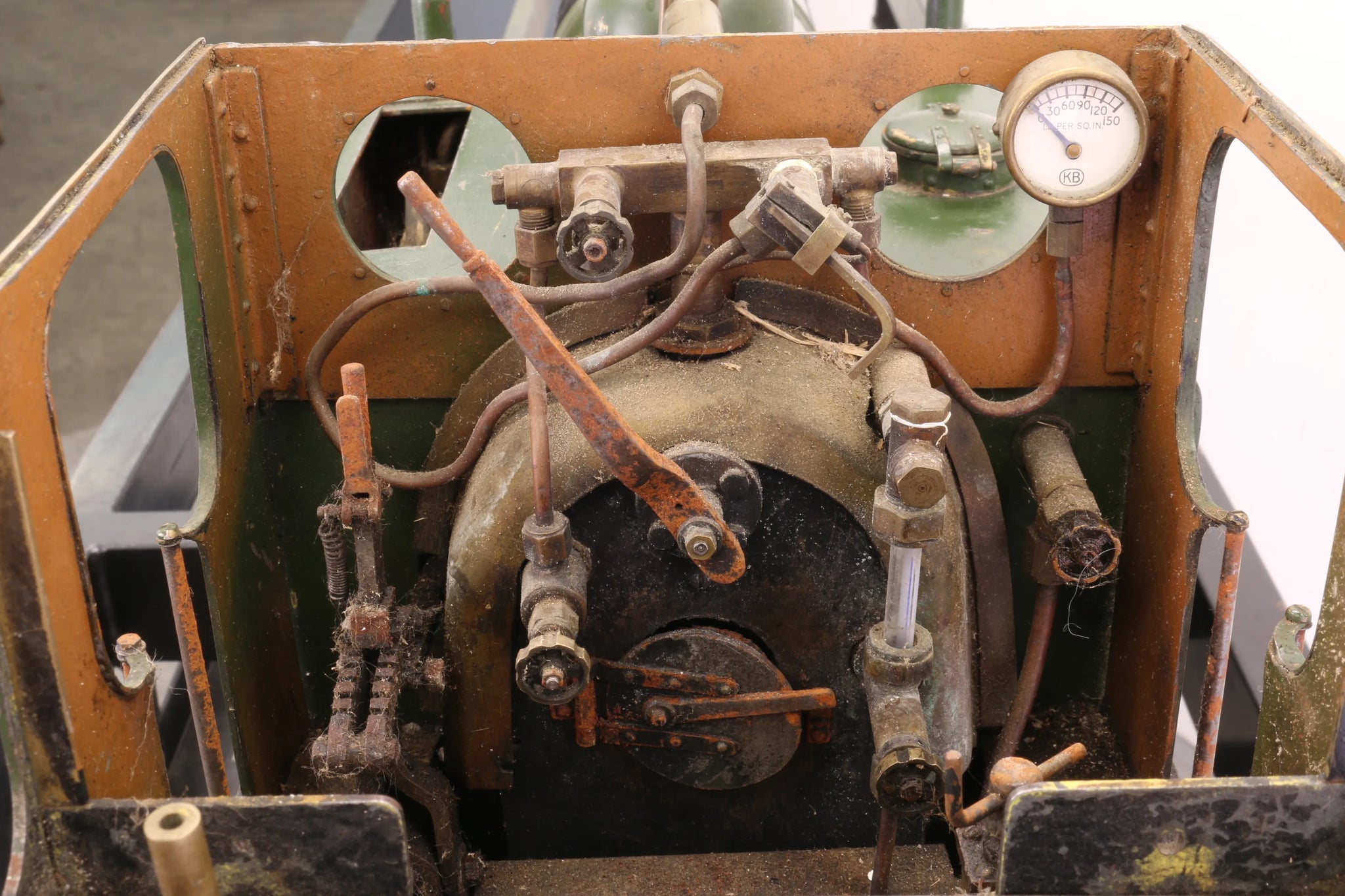

An ancient "barn find" 5 inch gauge LB&SCR "Terrier" to Martin Evans' "Boxhill" design. Complete, although liberally coated with surface rust on the upper surfaces, with firehole door, reverser and most of the fittings seized.

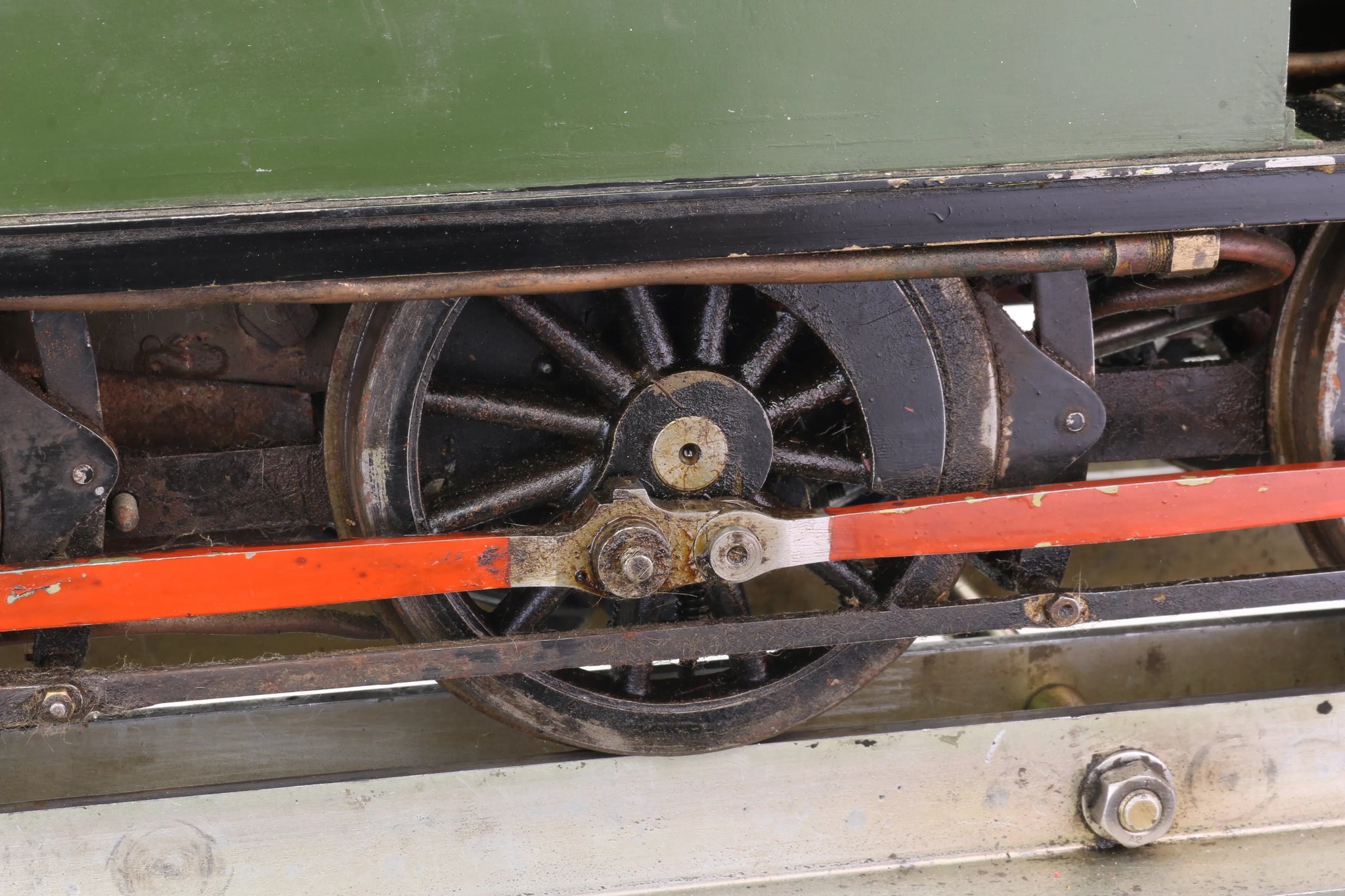

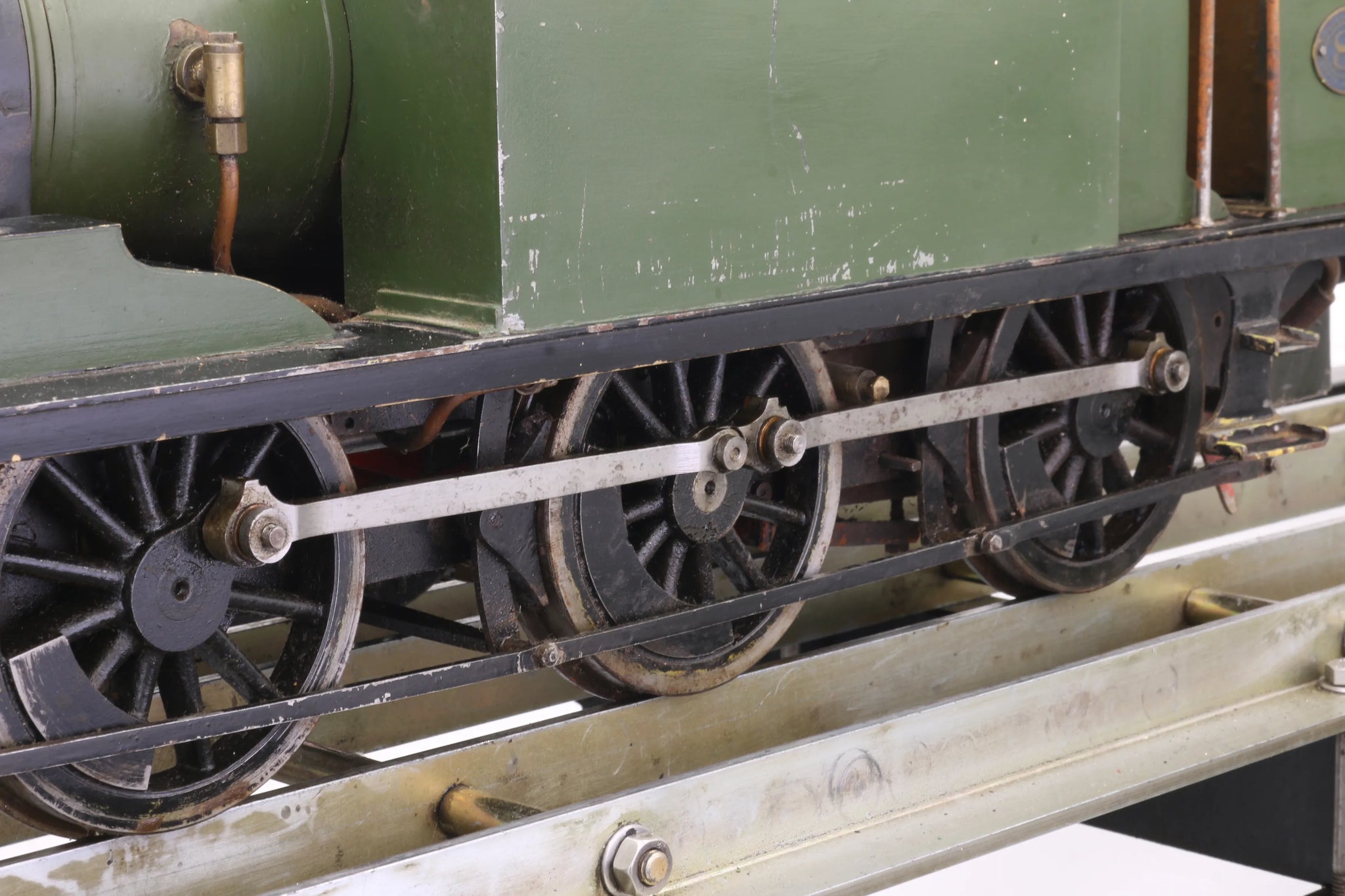

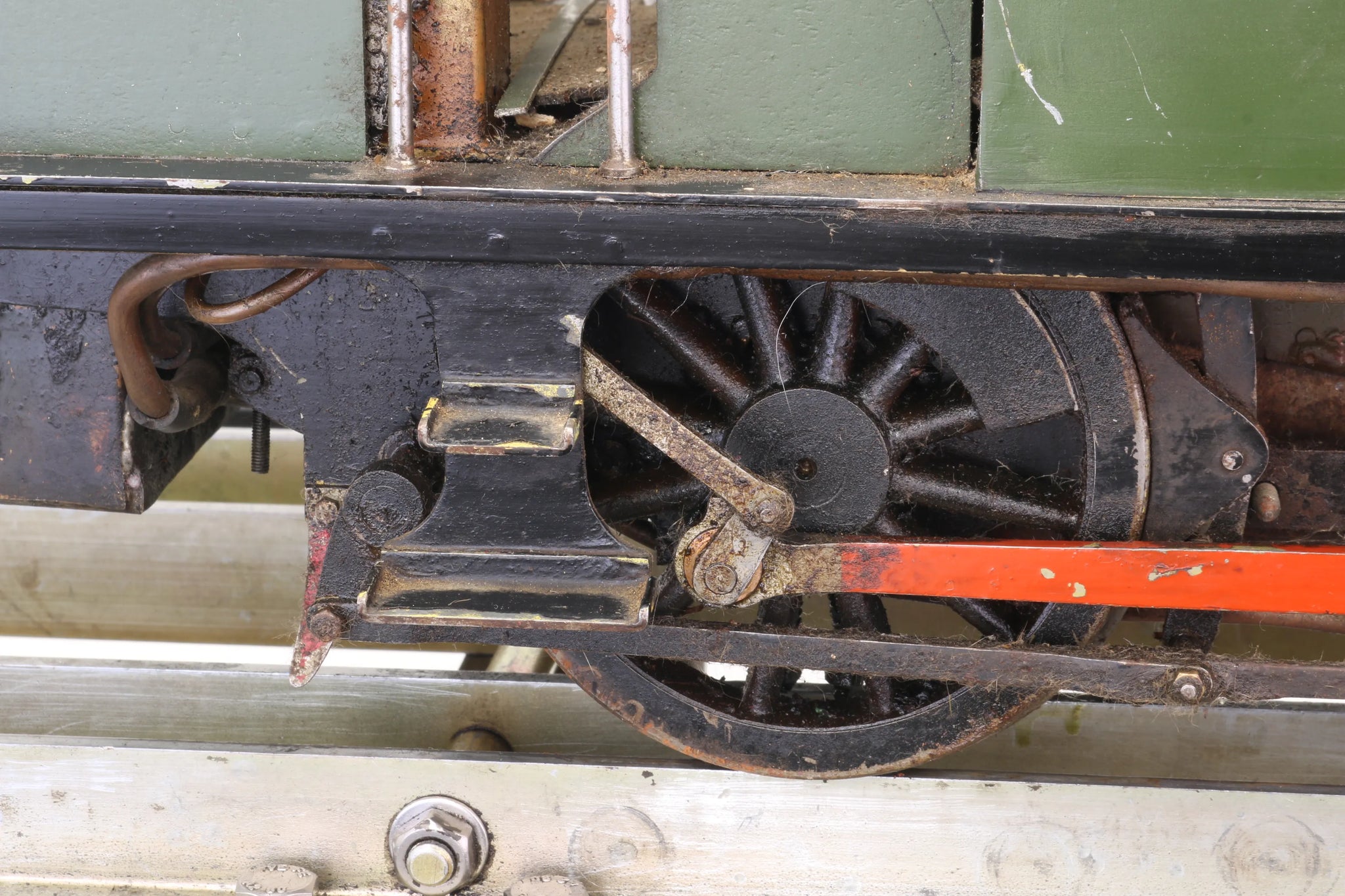

Down below it's a happier story - the chassis was well-oiled before storage, the engine pushes along. Boiler still has the remains of a fire on the grate, it looks like it was simply put away after its last outing.

Type: Second hand

Tags: Projects

Technical information

Stock code	7929
Gauge	5 inch
Length/inches	26
Width/inches	9
Height/inches	12
Wheel material	cast iron
Axlebox type	plain bearing
Valve type	slide
Valve gear	Stephensons
Reverser type	pole
Lubricator type	mechanical
Boiler type	locomotive
Boiler construction	silver soldered
Boiler material	copper
Working pressure	100
Safety valve type	spring
Safety valve	1
Whistle	yes
Hand pump	1
Mechanical pump	1
Superheater type	flue tube
Superheater	1
Date out	Sep-18
