5 inch gauge LB&SCR "Terrier" 0-6-0T

Name: 5 inch gauge LB&SCR "Terrier" 0-6-0T
Brand: Station Road Steam
SKU: 8156
Price: 2950.0 GBP
Availability: OutOfStock

Sold

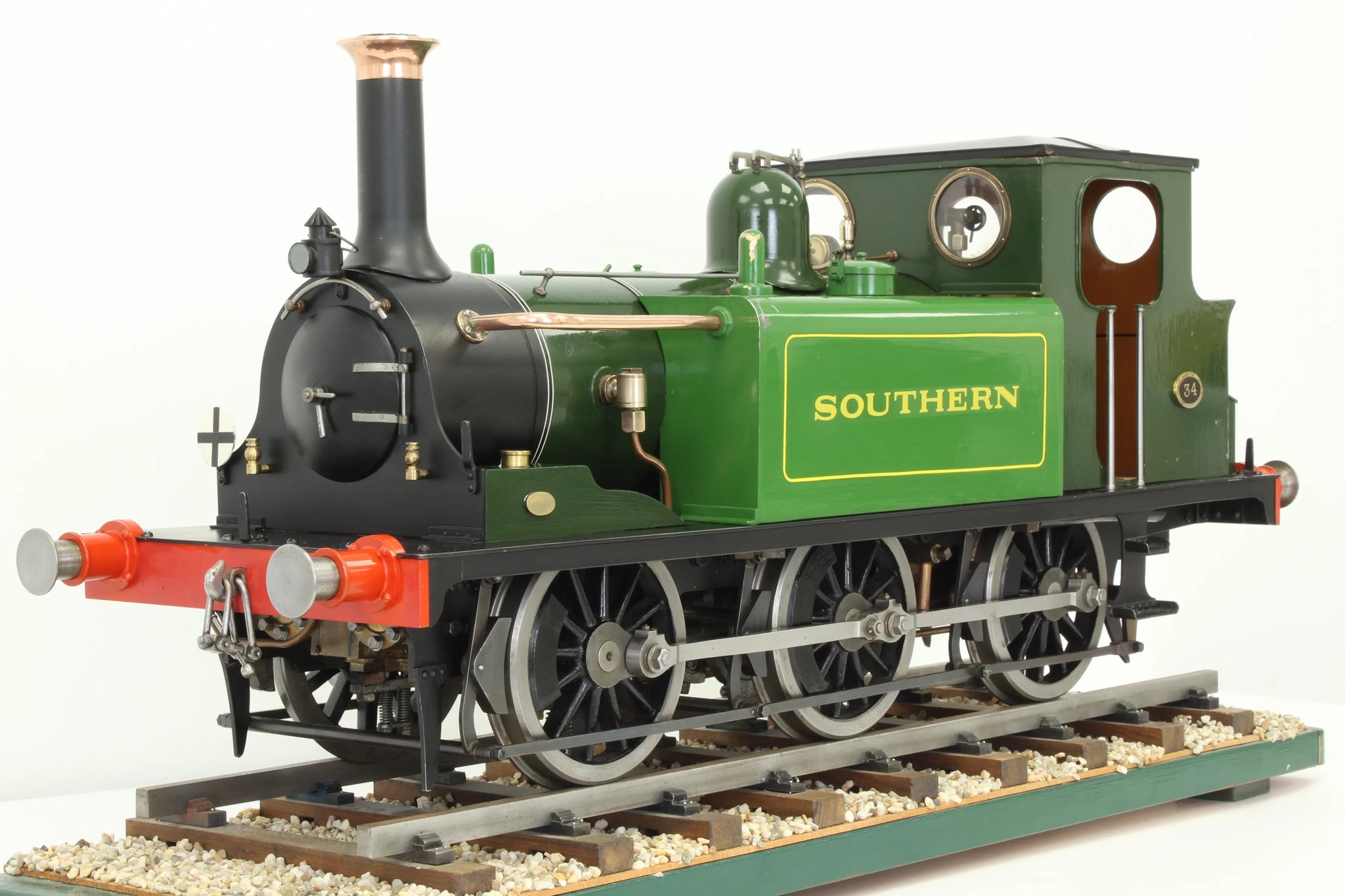

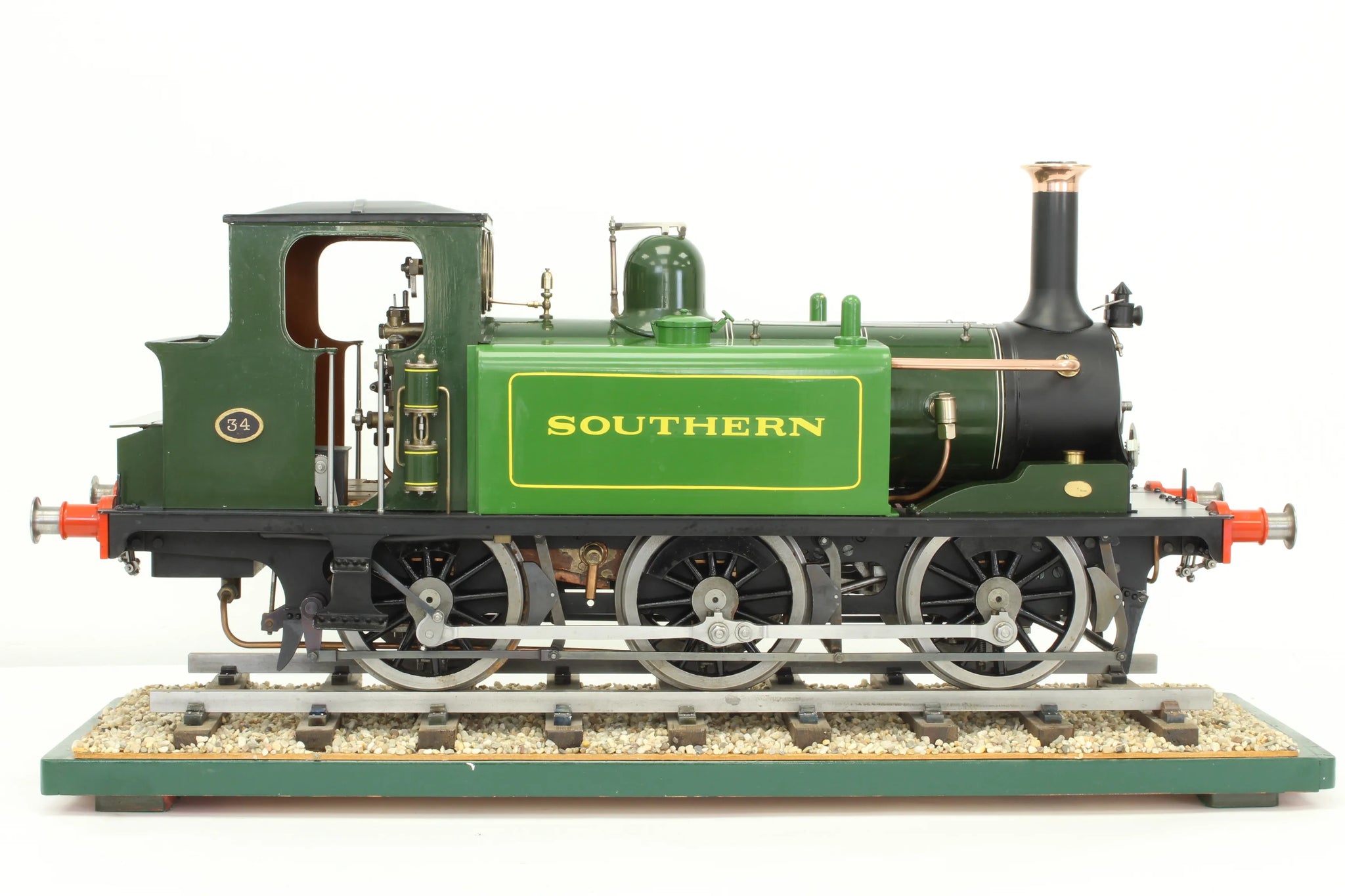

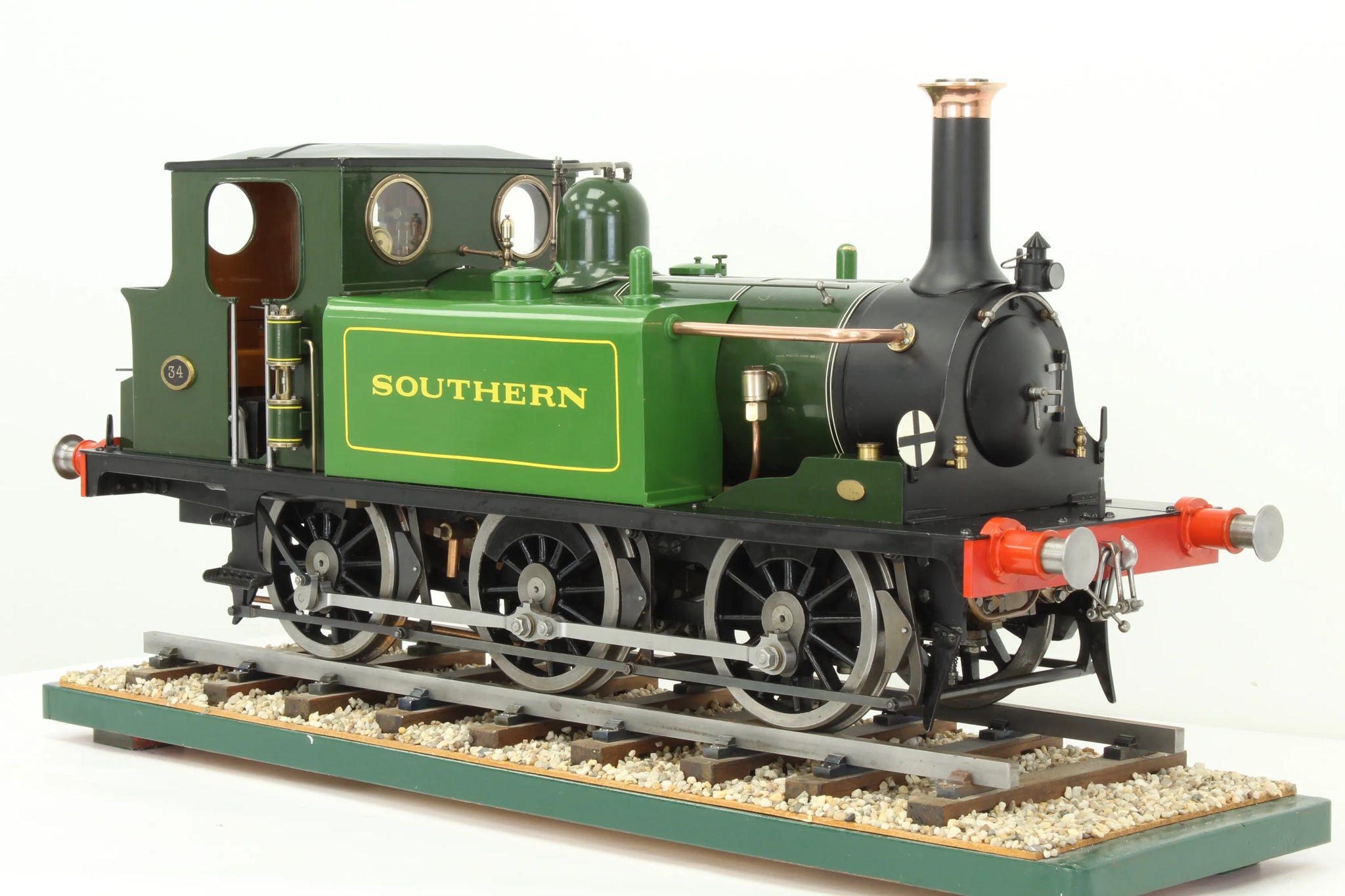

A new, unsteamed LB&SCR "Terrier", built to Martin Evans' "Boxhill" design - same builder as the GWR County we currently have in, a retired toolmaker.

Machining is very crisp throughout, fit and finish good. Platework is well done, the engine is nicely detailed. Paintwork is an unusual choice of livery, brush applied to a reasonable standard.

Commercially-built silver soldered copper boiler by Kellett of Manchester - we have its original paperwork, it's had a hydraulic test in recent days.

Runs on air, it will undoubtedly need work to commission for steaming, including sealing most of the fittings and attention to a leaky regulator.

Complete with a length of display track.

Type: Second hand

Tags: Projects

Technical information

Stock code	8156
Gauge	5 inch
Length/inches	26
Width/inches	9
Height/inches	12
Wheel material	cast iron
Axlebox type	plain bearing
Cylinder material	gunmetal
Valve type	slide
Valve gear	Stephensons
Reverser type	pole
Lubricator type	mechanical
Boiler maker	A Kellett
Boiler type	locomotive
Boiler construction	silver soldered
Boiler material	copper
Working pressure	100
CE/UKCA mark	n/a - pre-2002
Year built	1986
Safety valve type	spring
Safety valve	1
Whistle	yes
Hand pump	1
Mechanical pump	1
Superheater type	flue tube
Superheater	1
Pack	Single half pallet
Date out	Oct-18
