Sold

7313

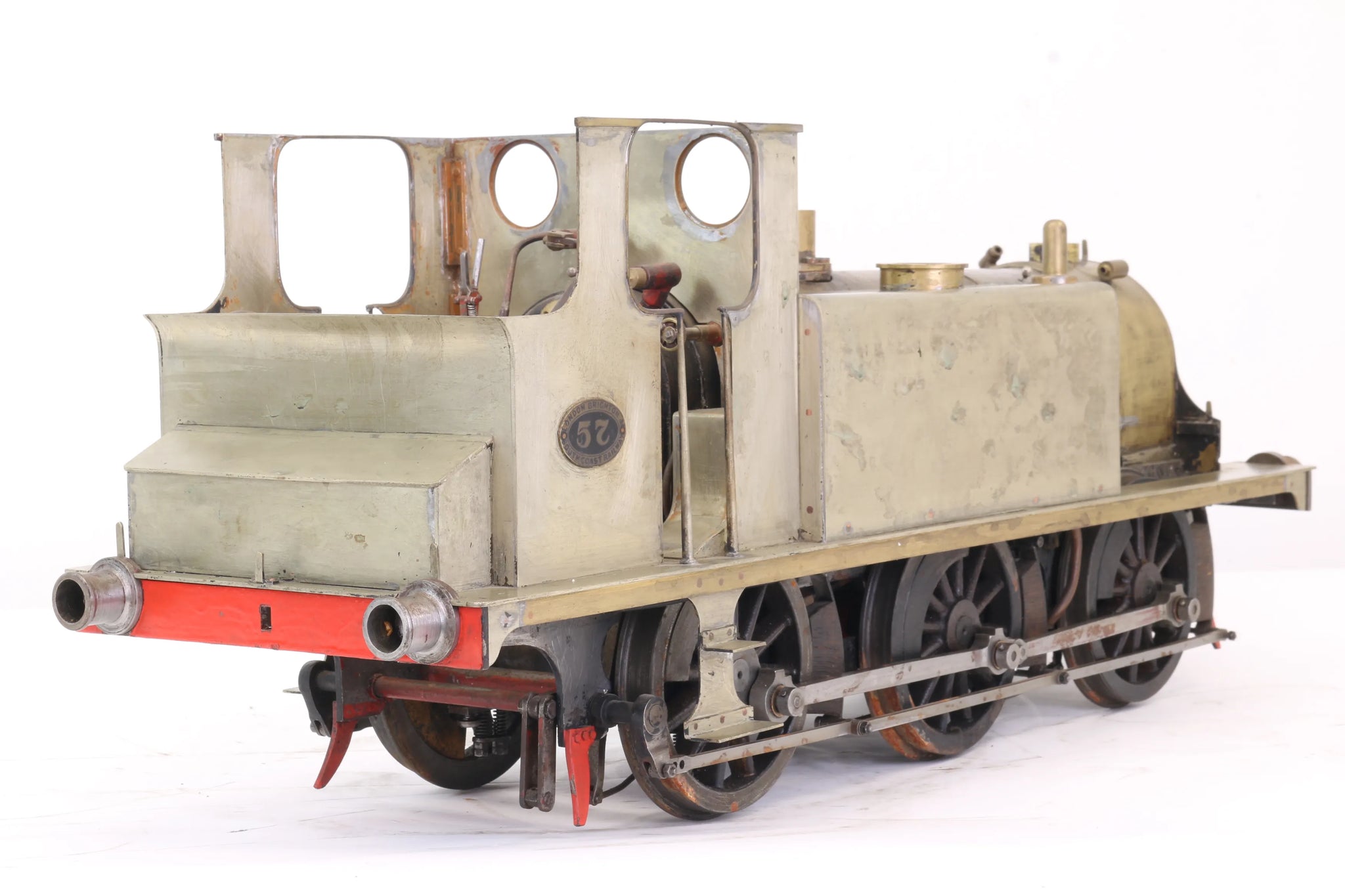

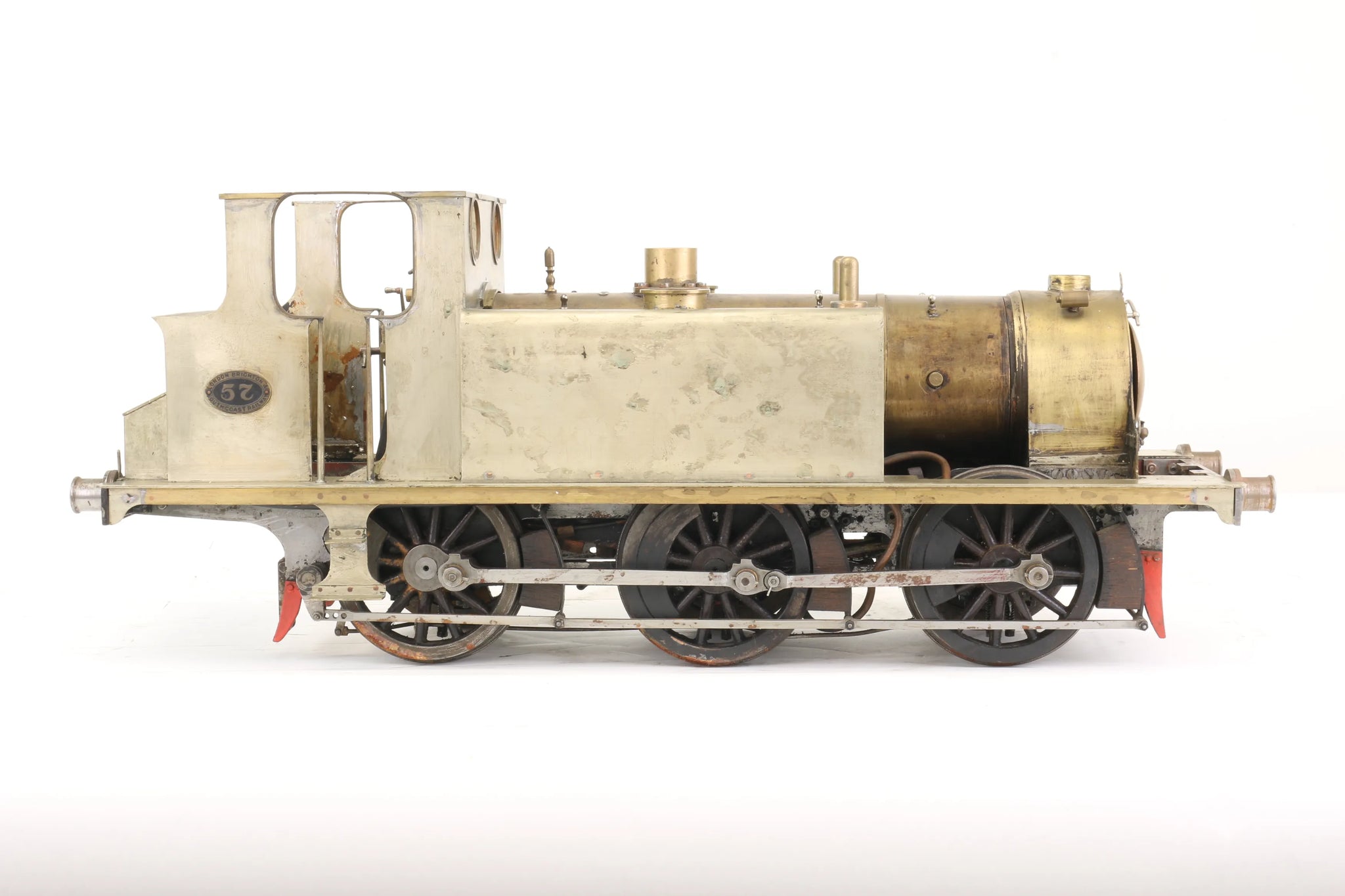

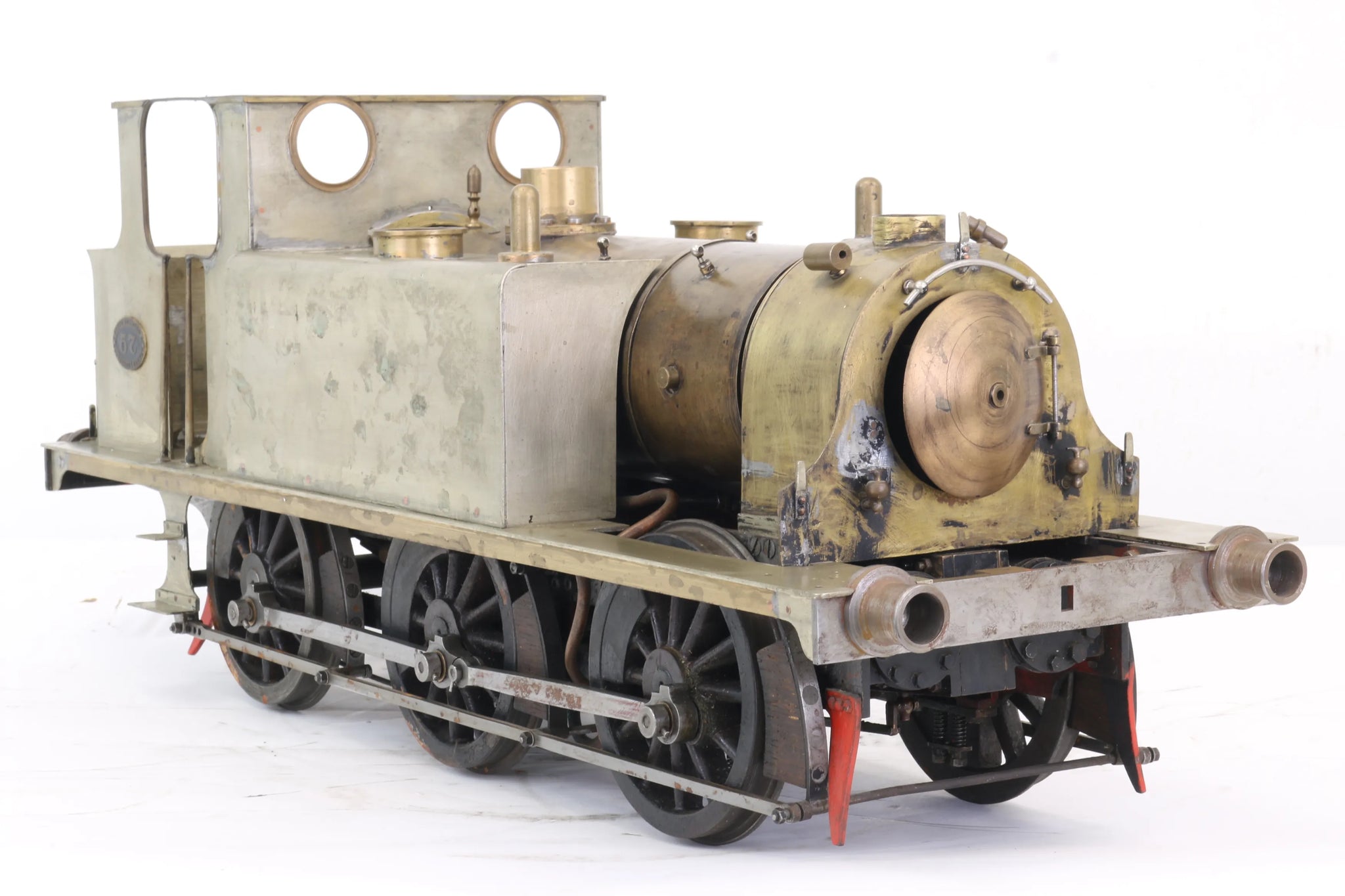

5 inch gauge LB&SCR "Terrier" for restoration

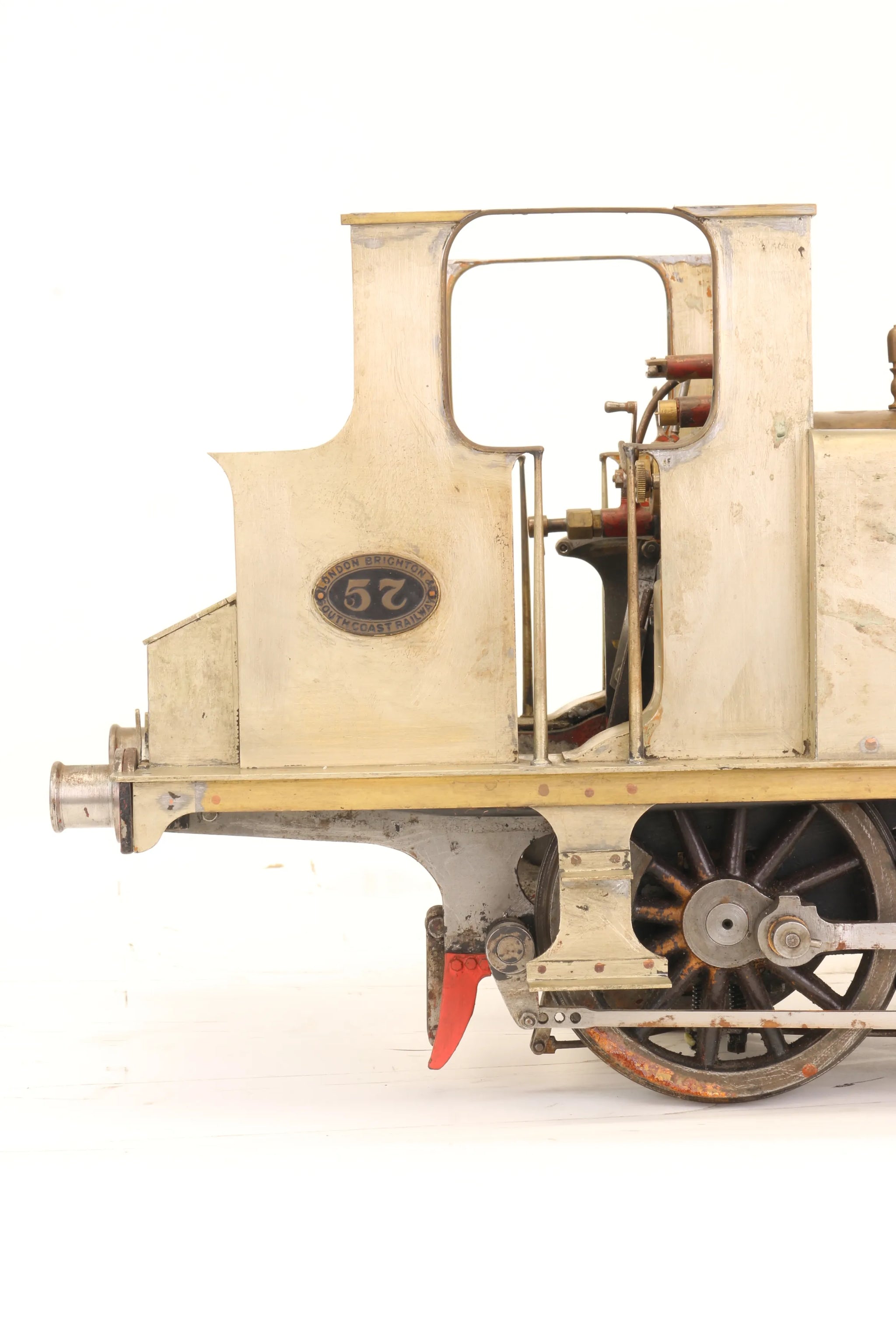

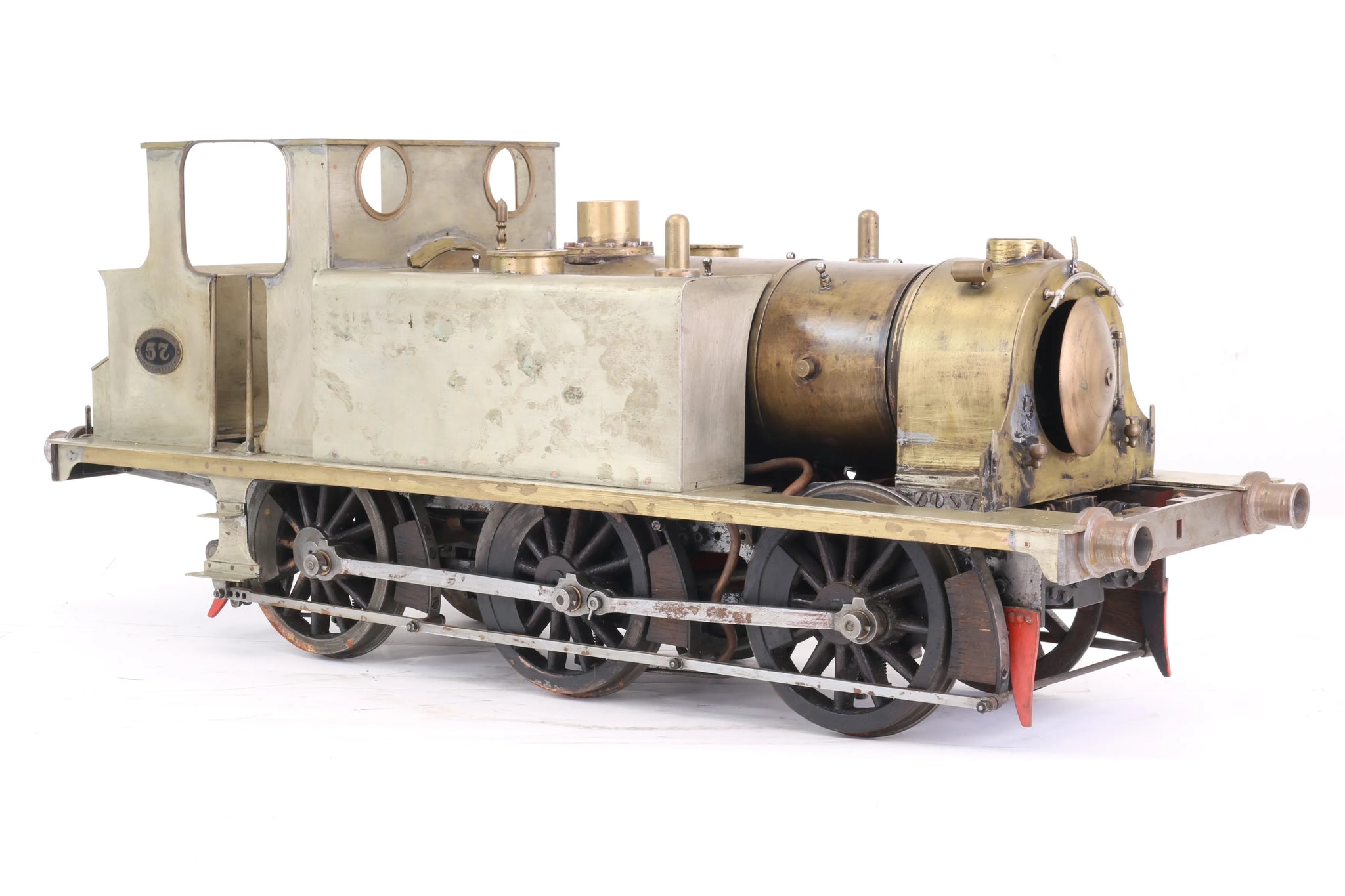

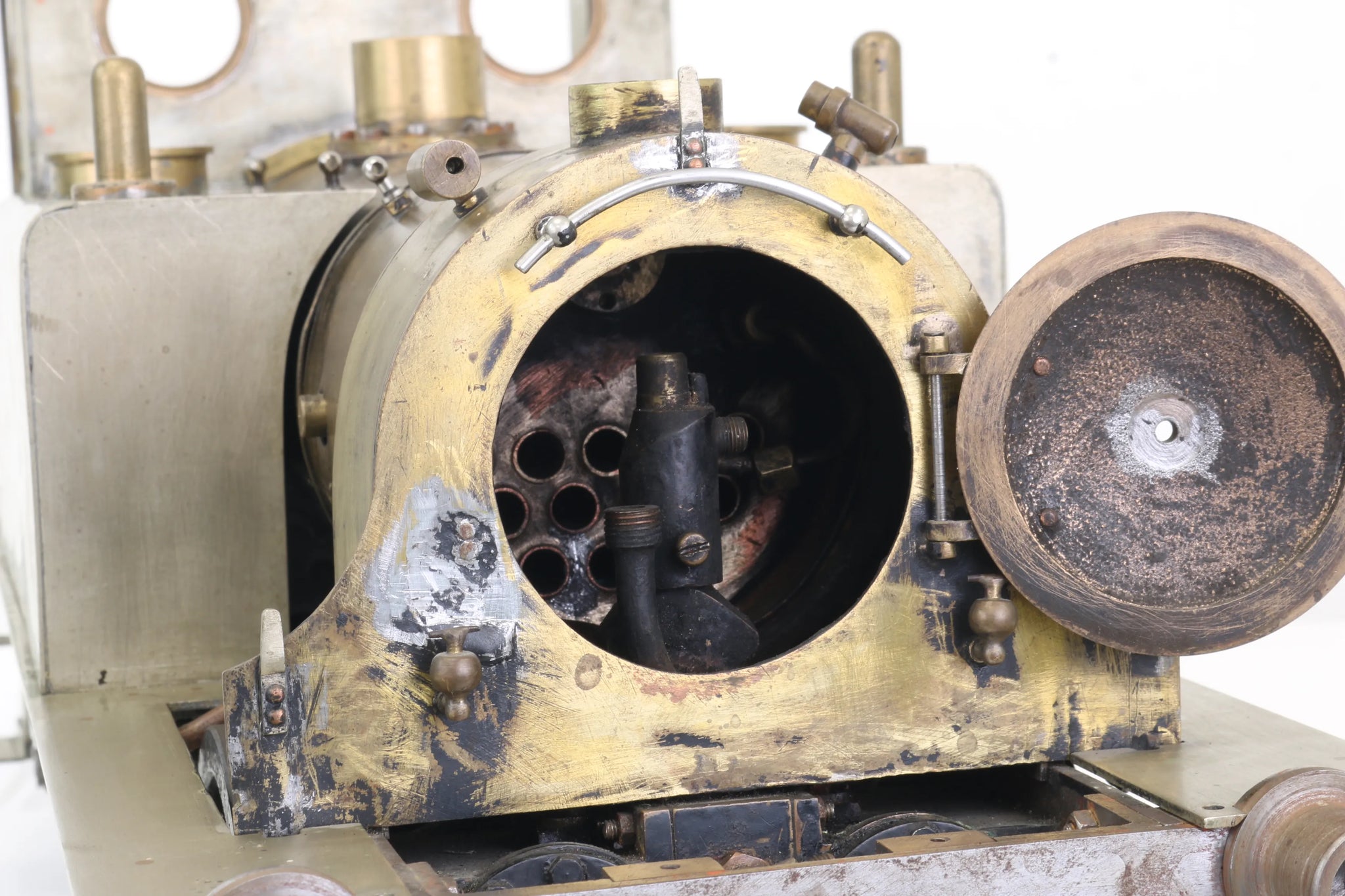

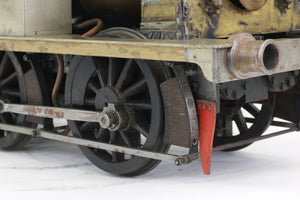

We sold this one back in 2011, pretty much exactly the same condition as it is now. Pictures opposite were taken in the last few days.

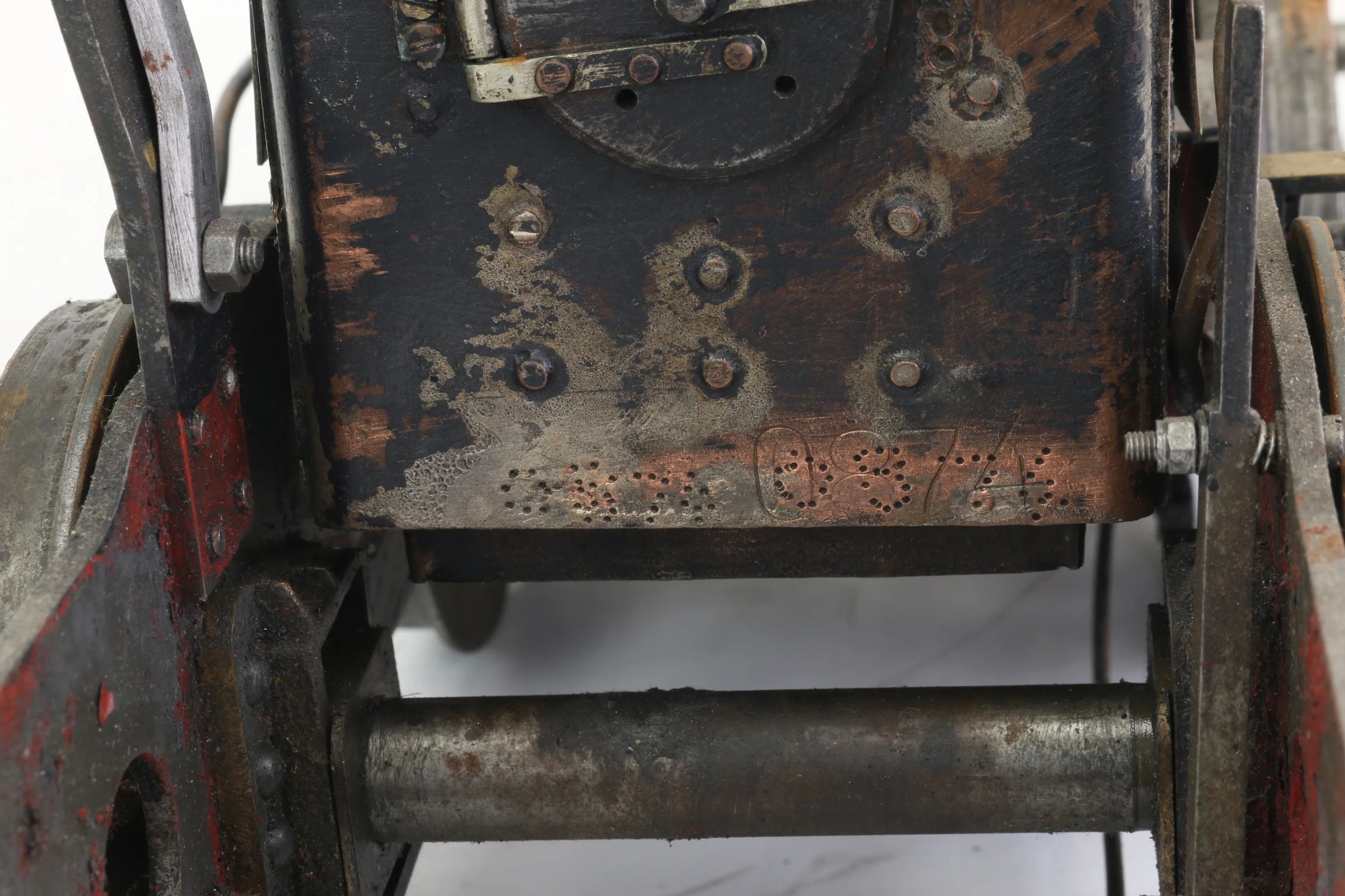

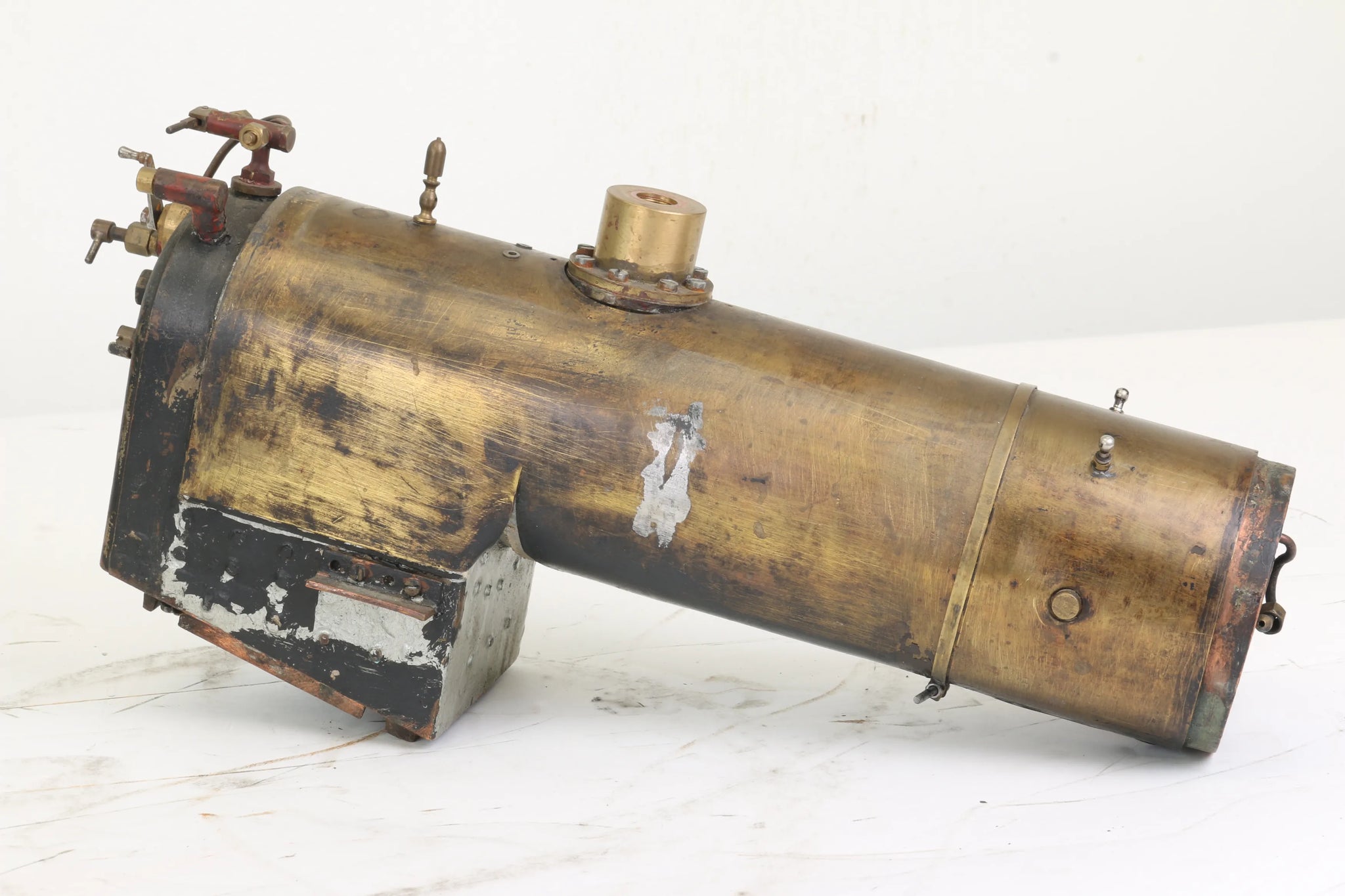

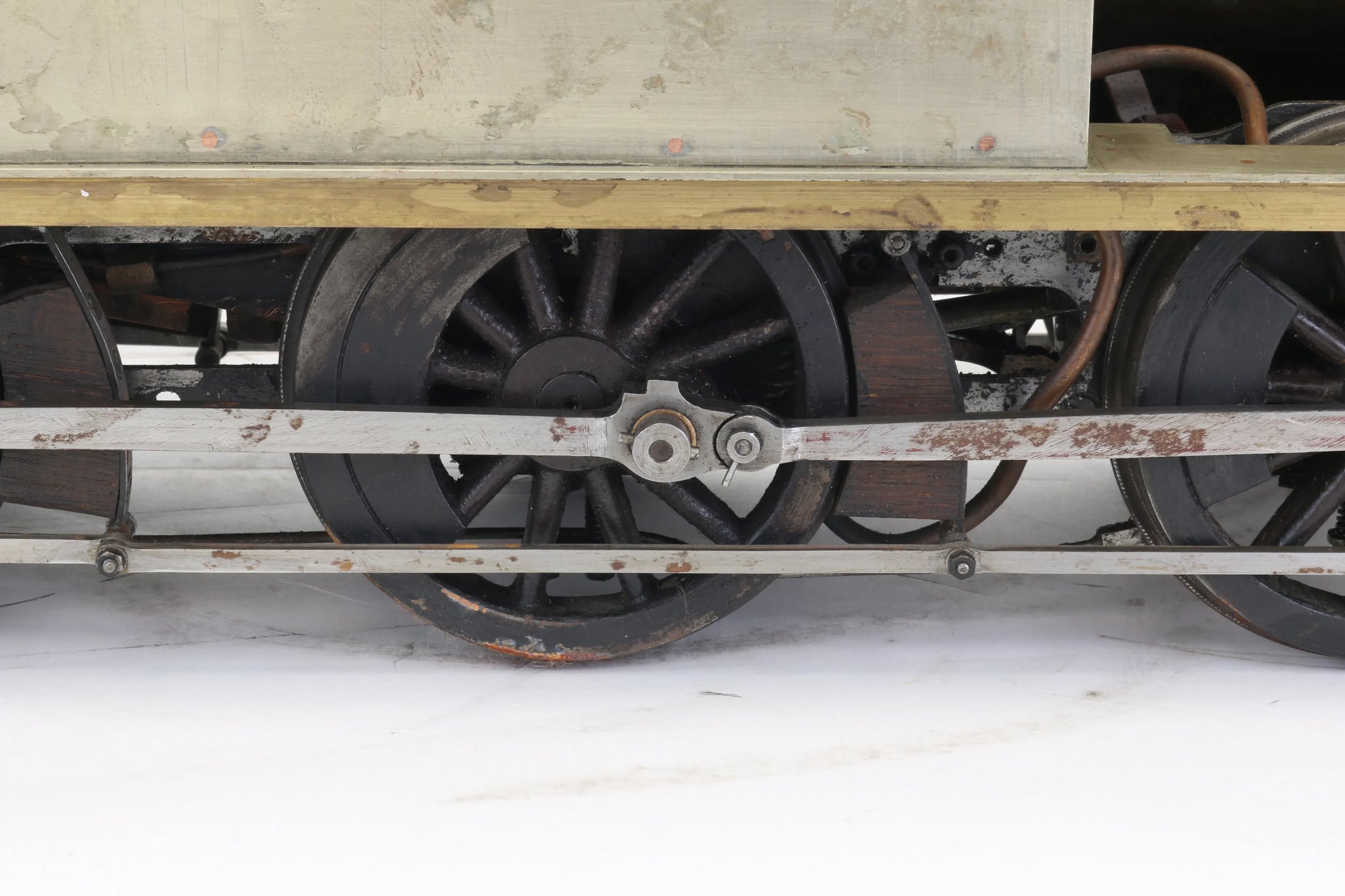

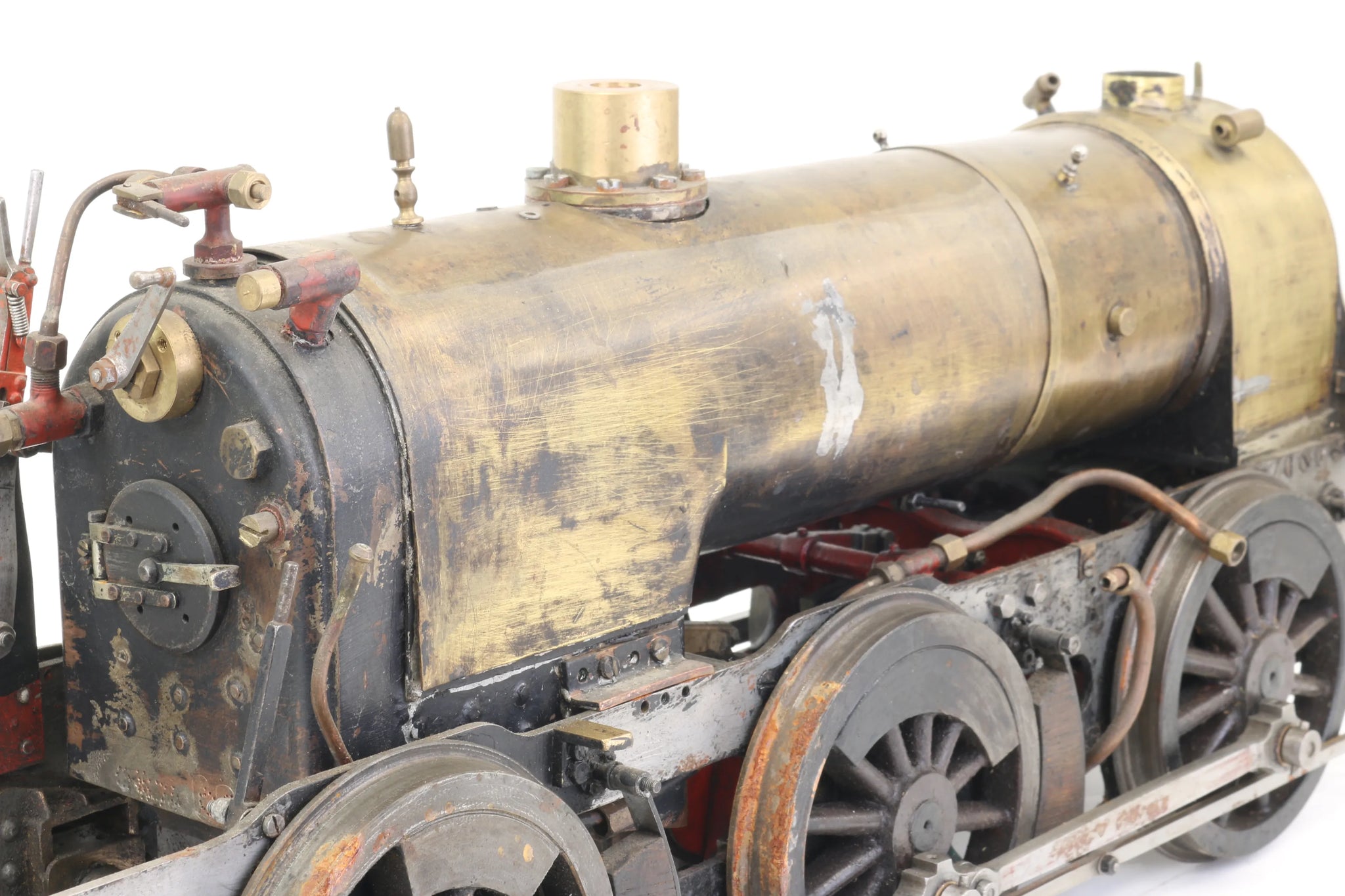

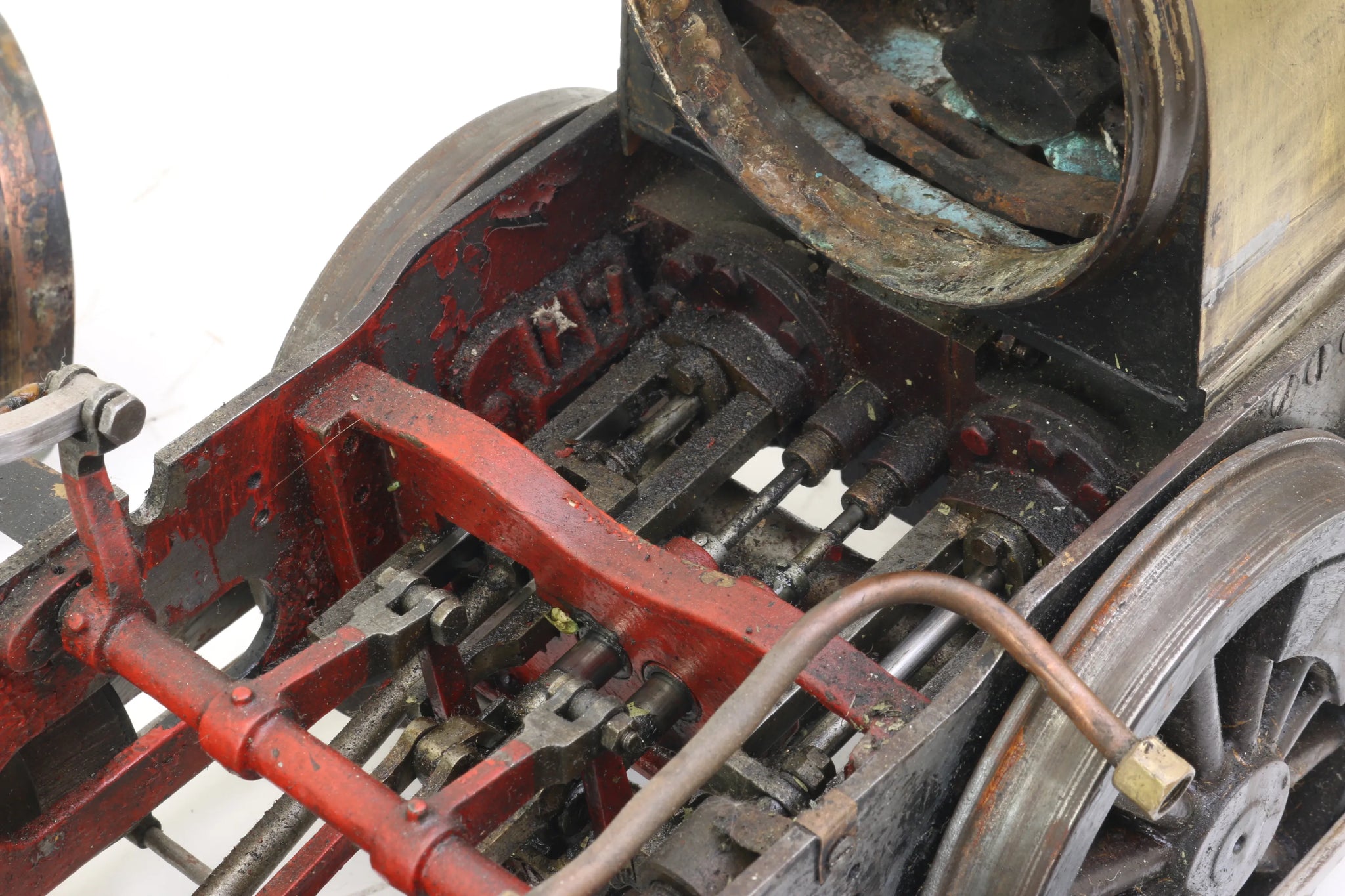

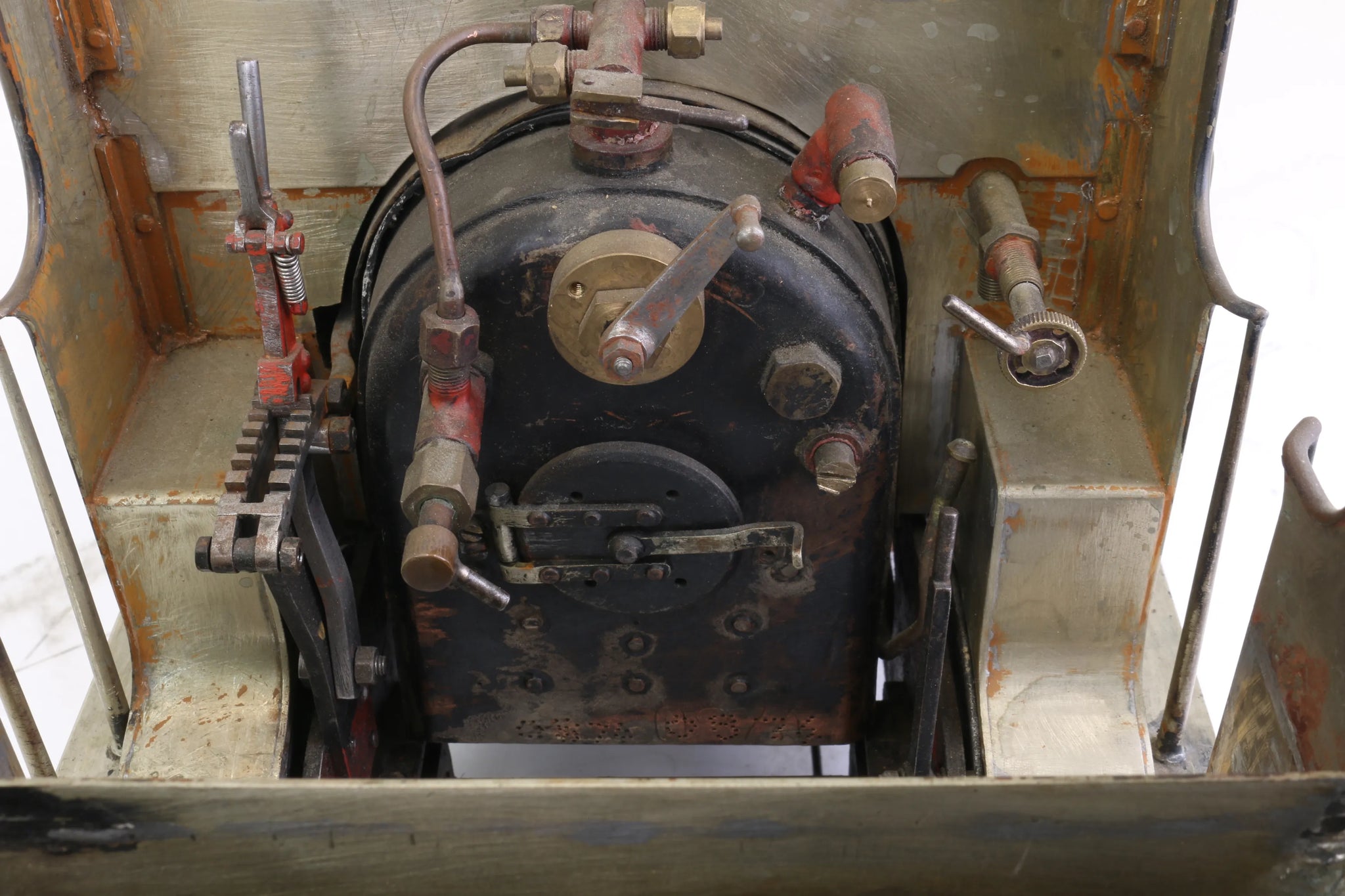

A classic stalled restoration project, it appears the engine was taken apart years ago for an overhaul and repaint - so it is that many engines end up in a number of boxes... Chassis rolls along freely, back in 2011 we did a twice working pressure hydraulic test on the boiler and reported it ok - doesn't look like it's done a lot of steaming since.

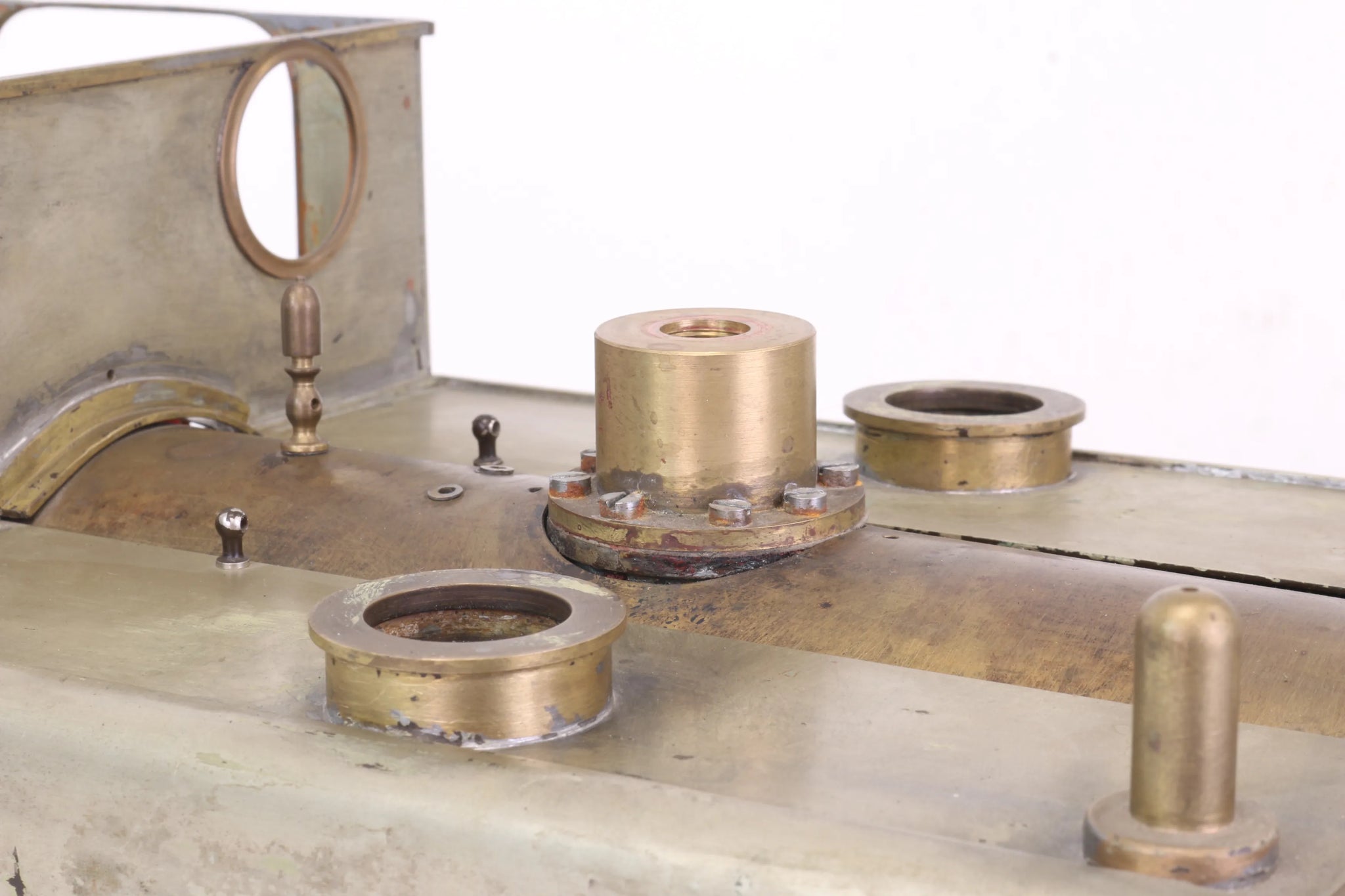

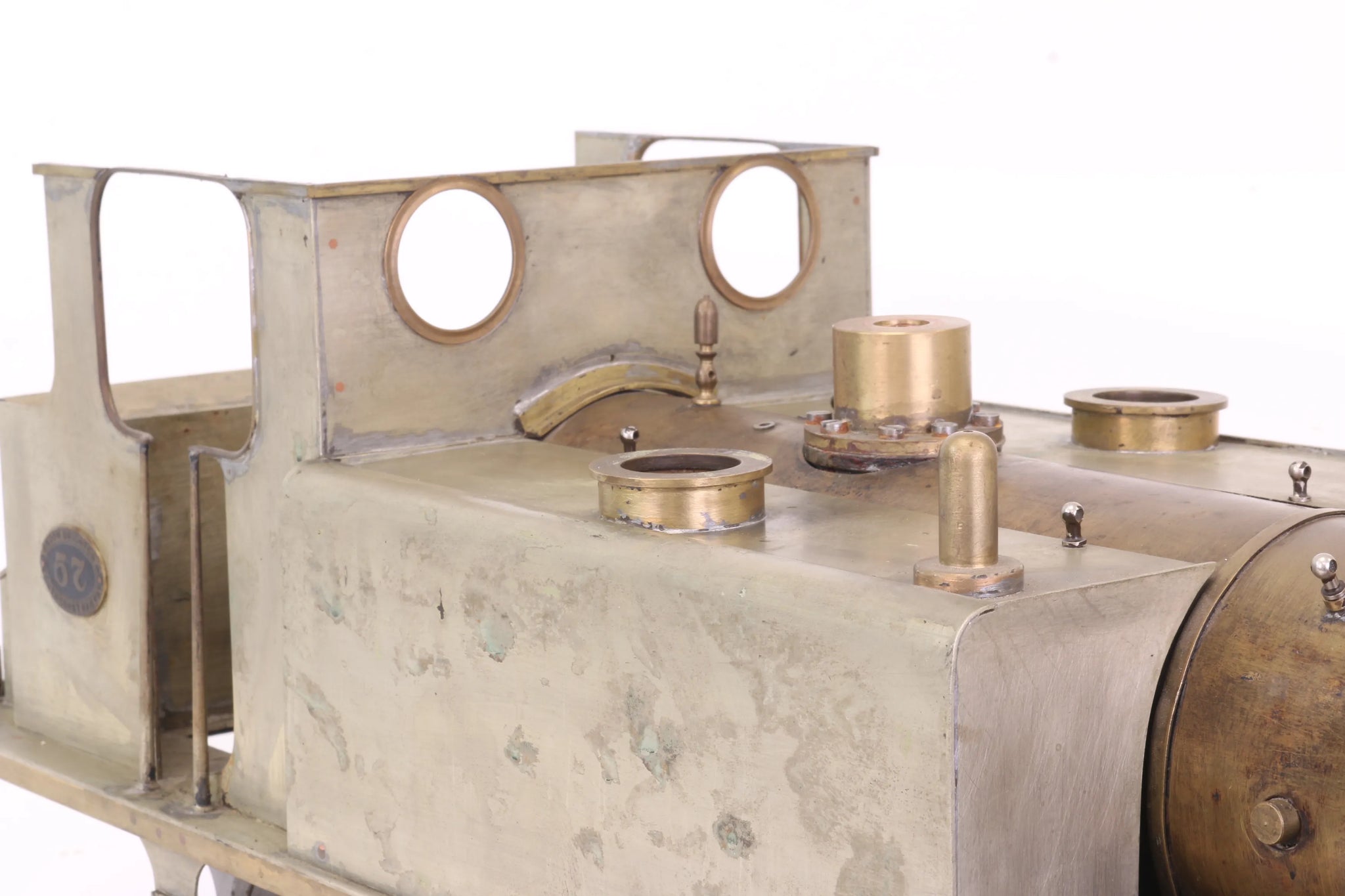

Missing some parts, including cab roof, lubricator, dome, chimney and grate.


Technical information

Stock code

7313

Gauge

5 inch

Length/inches

26

Width/inches

9

Height/inches

12

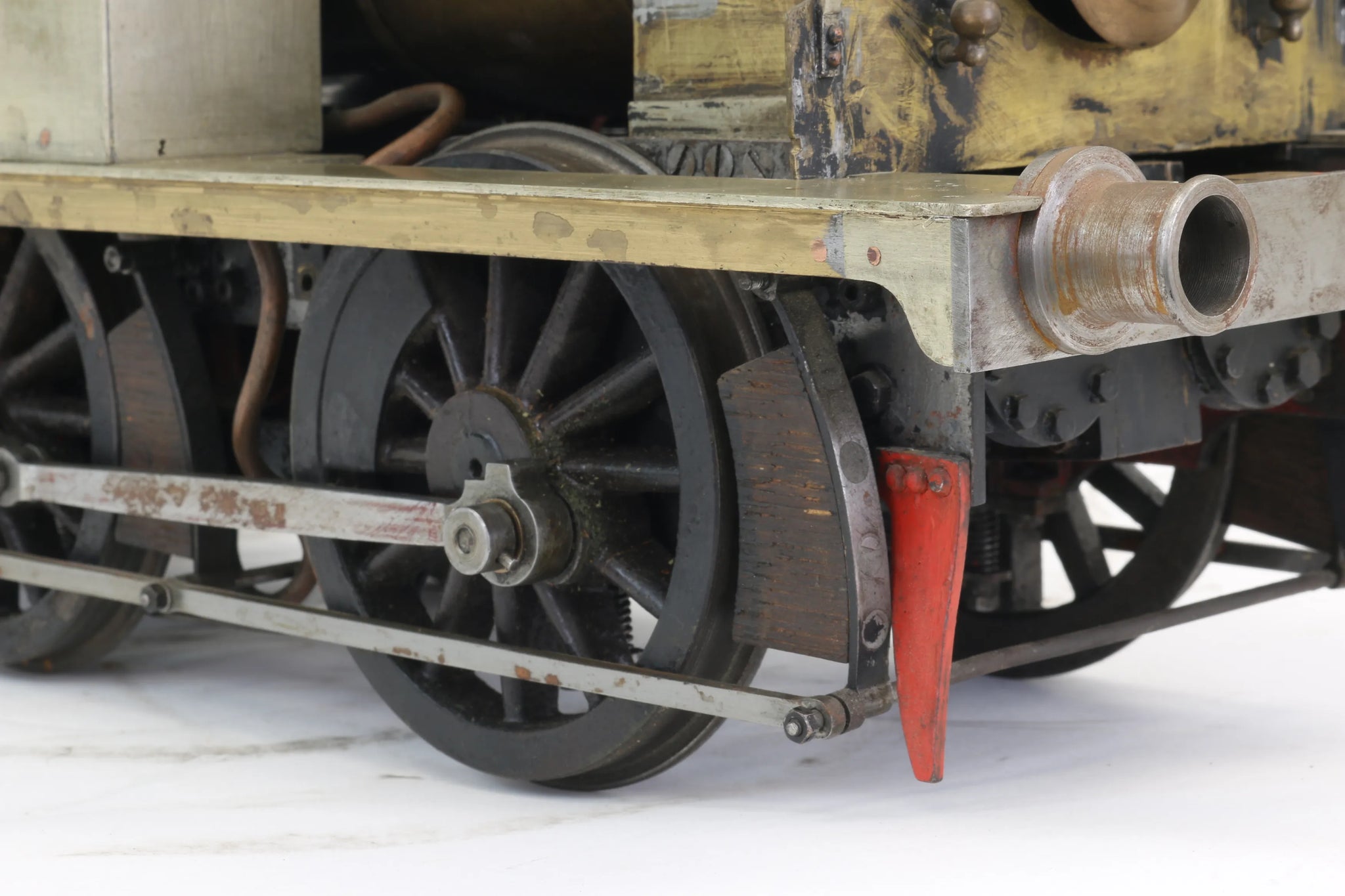

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

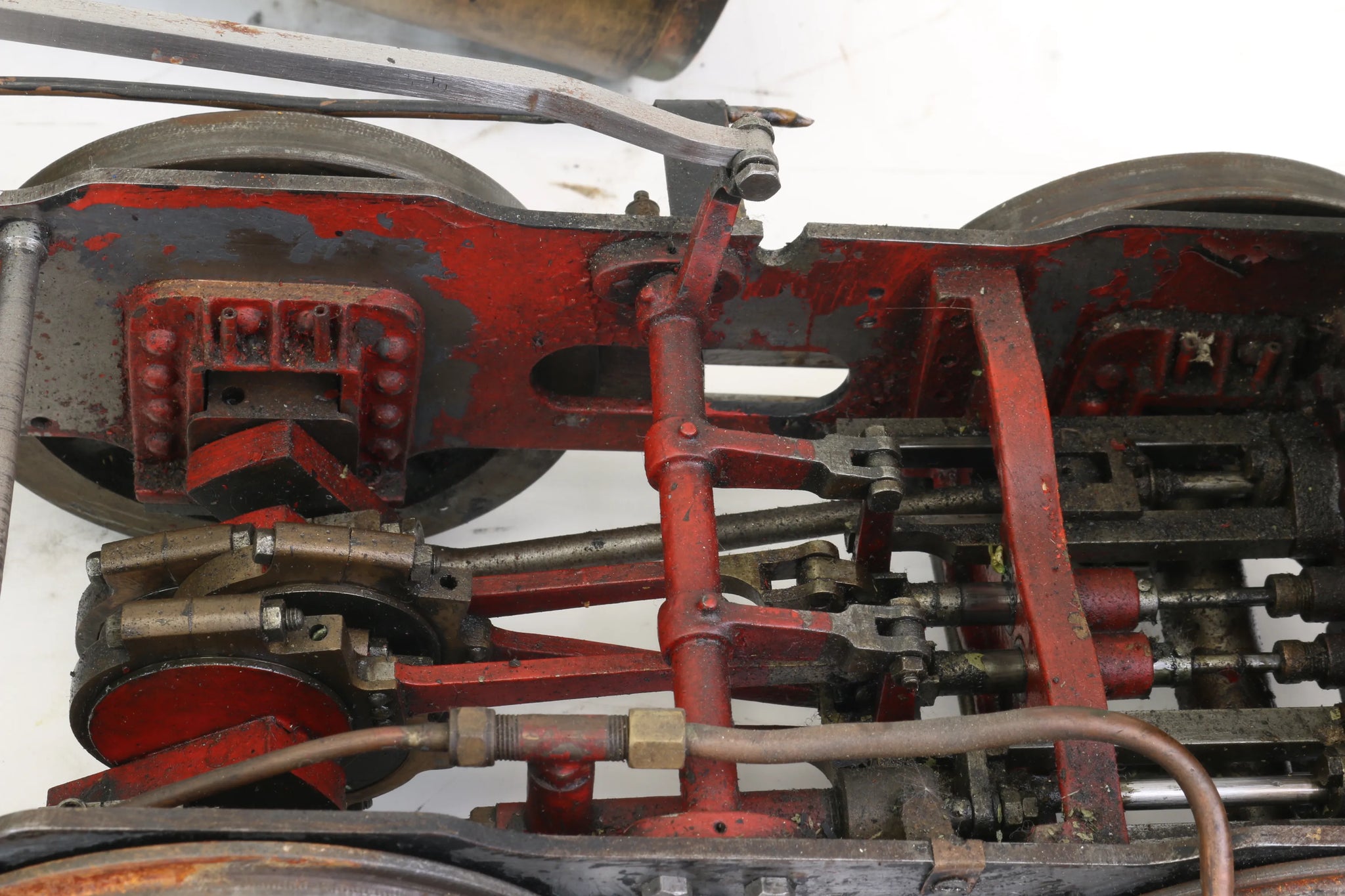

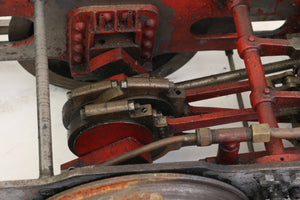

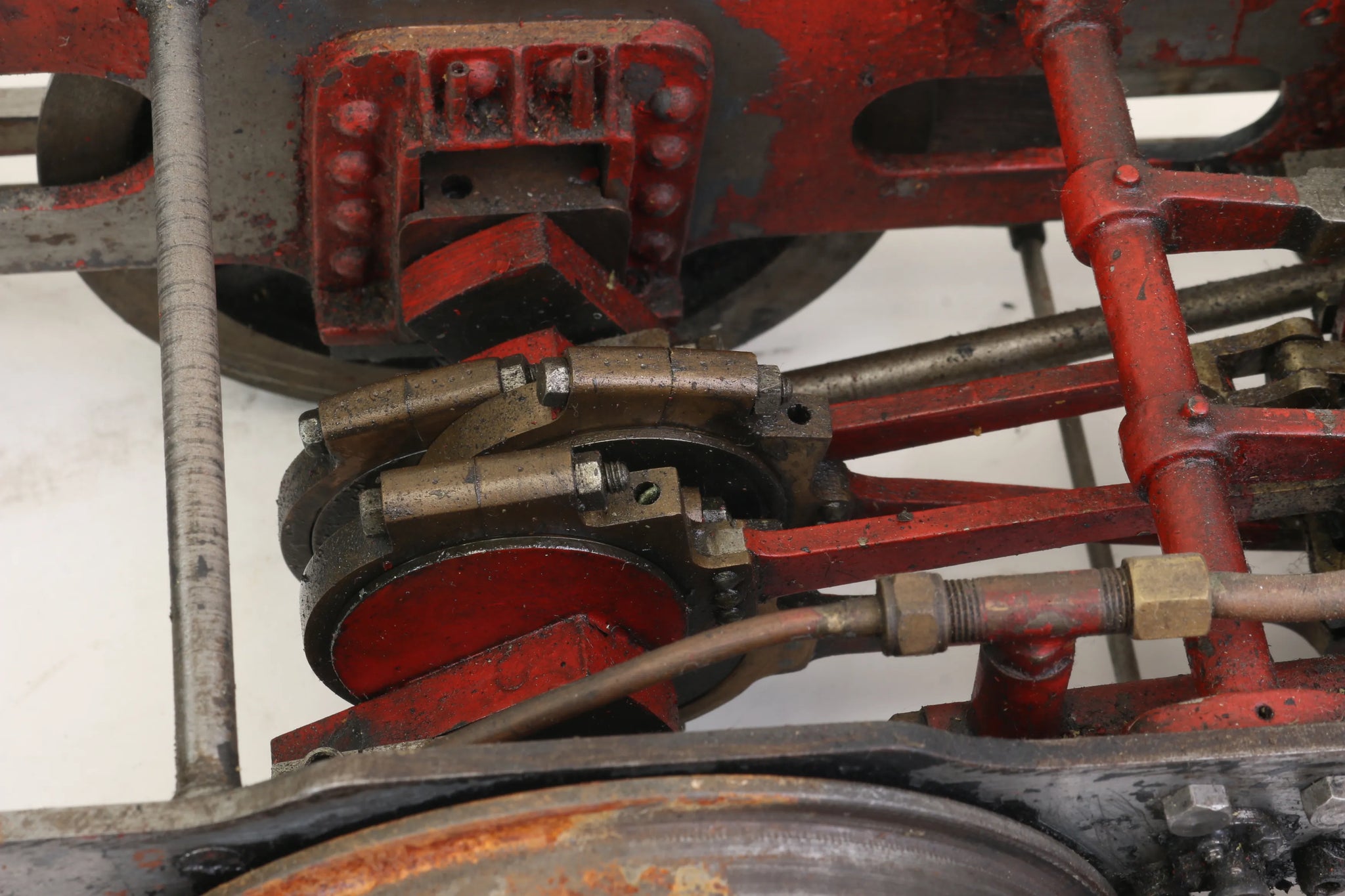

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

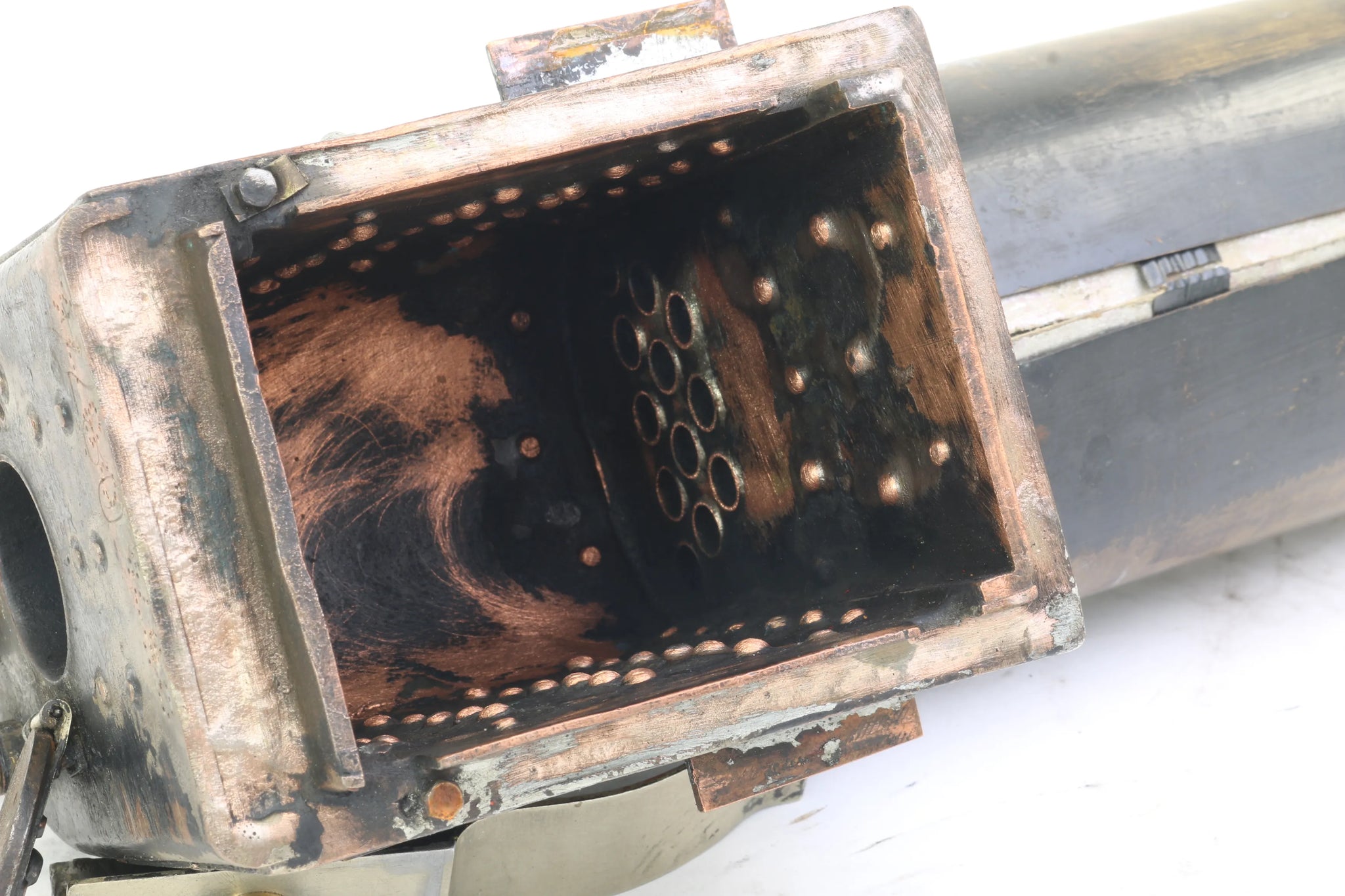

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Mechanical pump

1 x crosshead

Pack

Single half pallet

Date out

Dec-18
