5 inch gauge LB&SCR "Terrier"

Name: 5 inch gauge LB&SCR "Terrier"
Brand: Station Road Steam
SKU: 7678
Price: 3450.0 GBP
Availability: OutOfStock

Sold

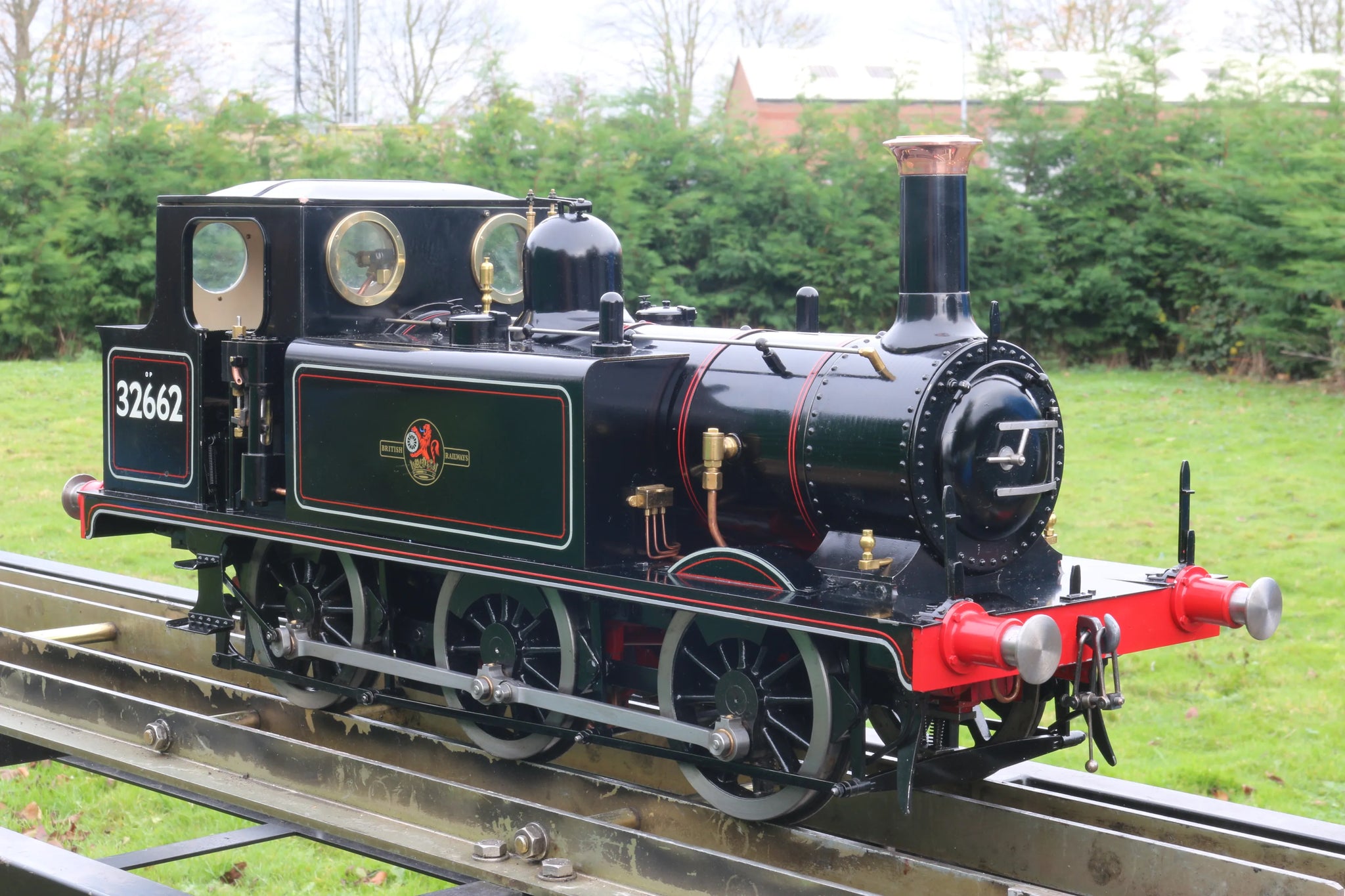

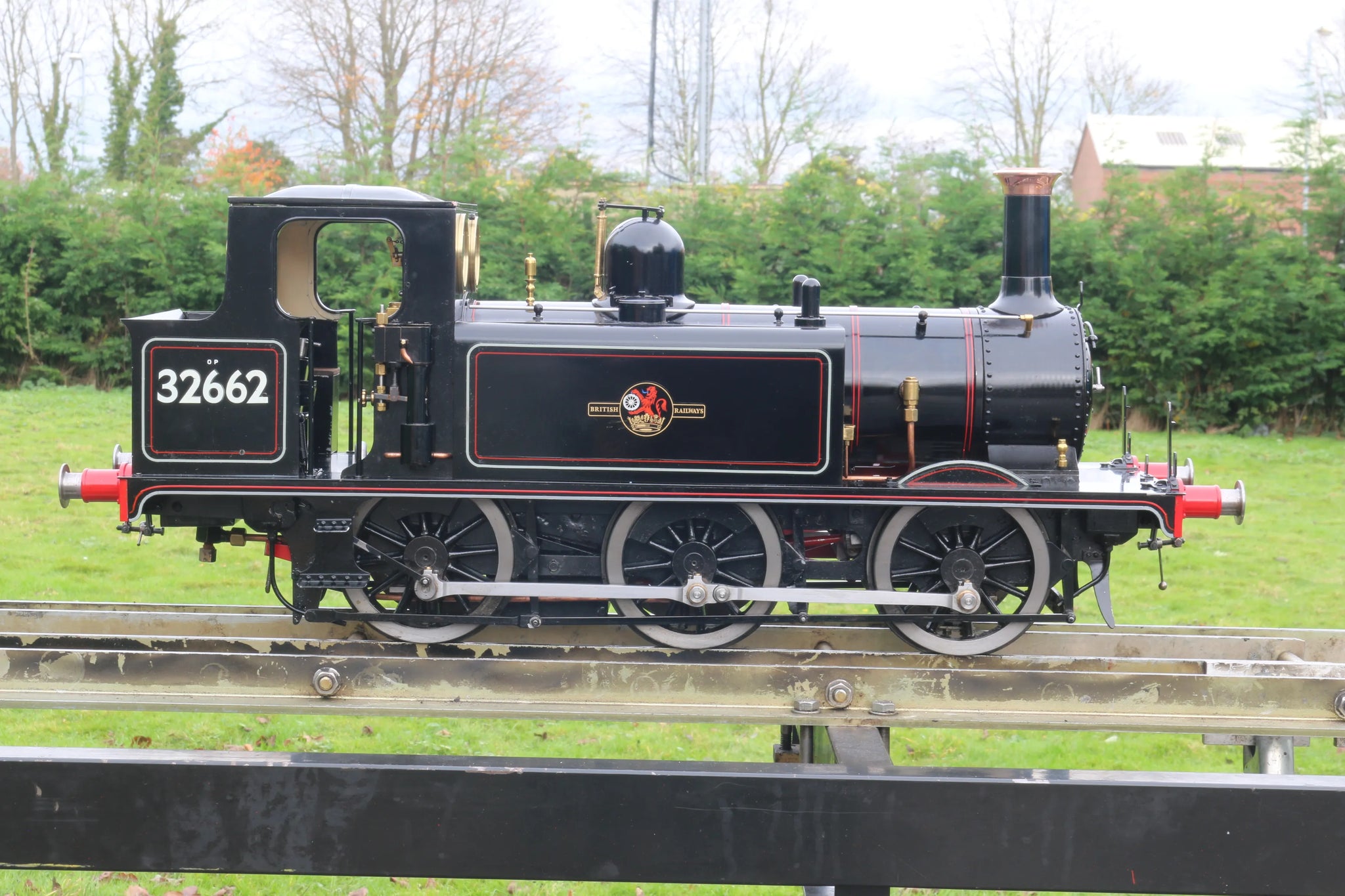

A 5 inch gauge LB&SCR "Terrier", based on the preserved example "Martello" at Bressingham Steam Museum which the builder had access to.

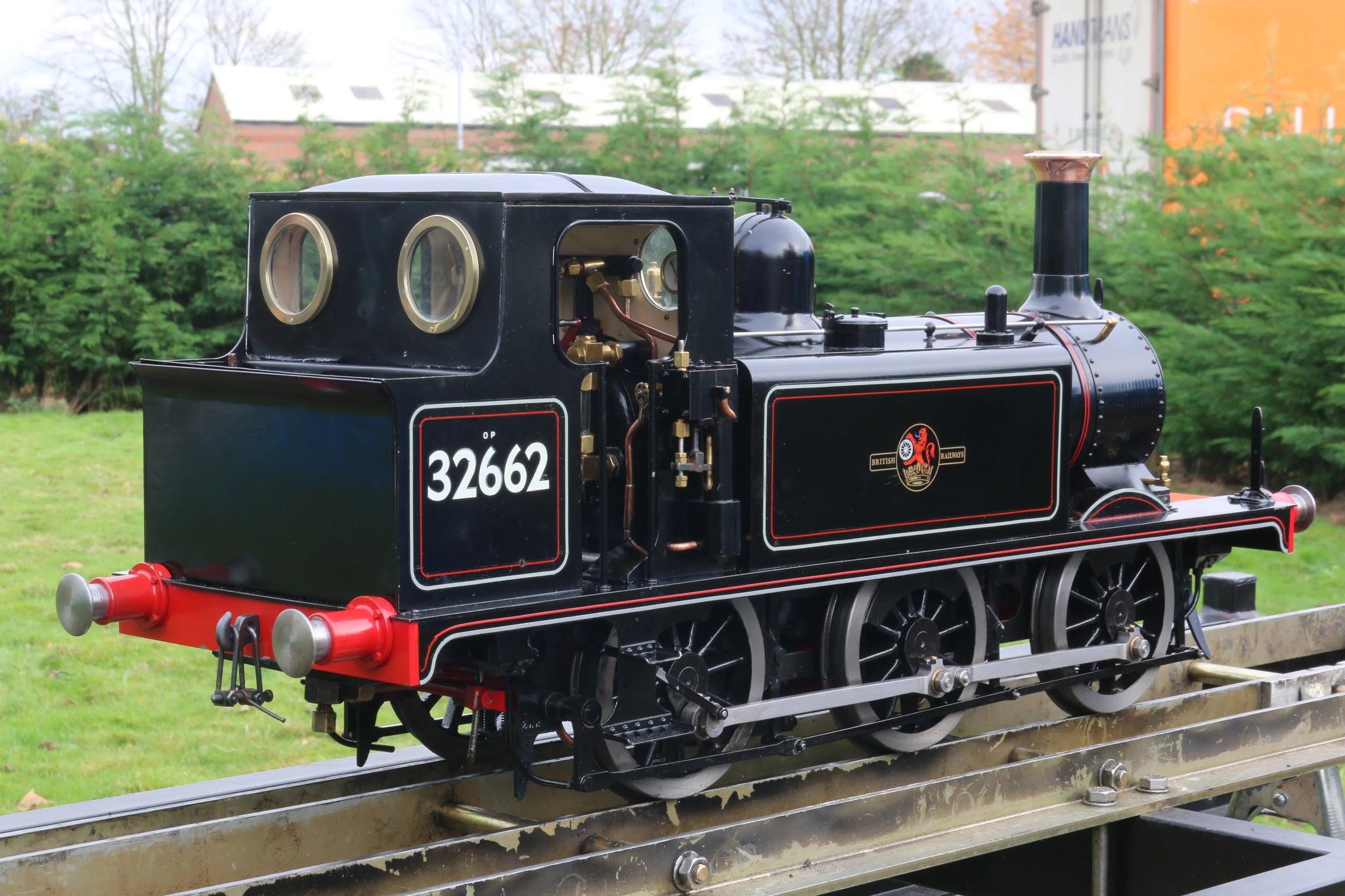

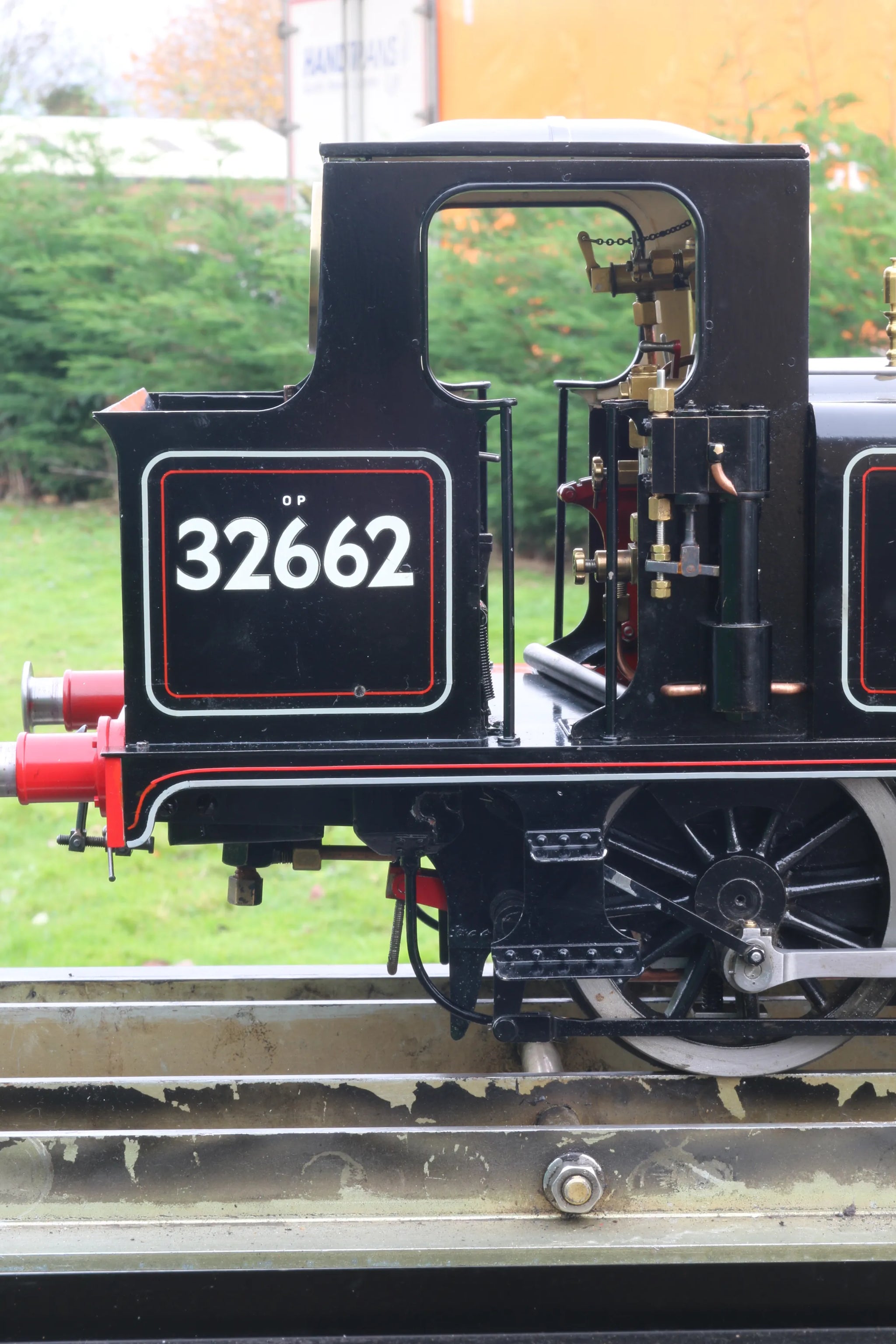

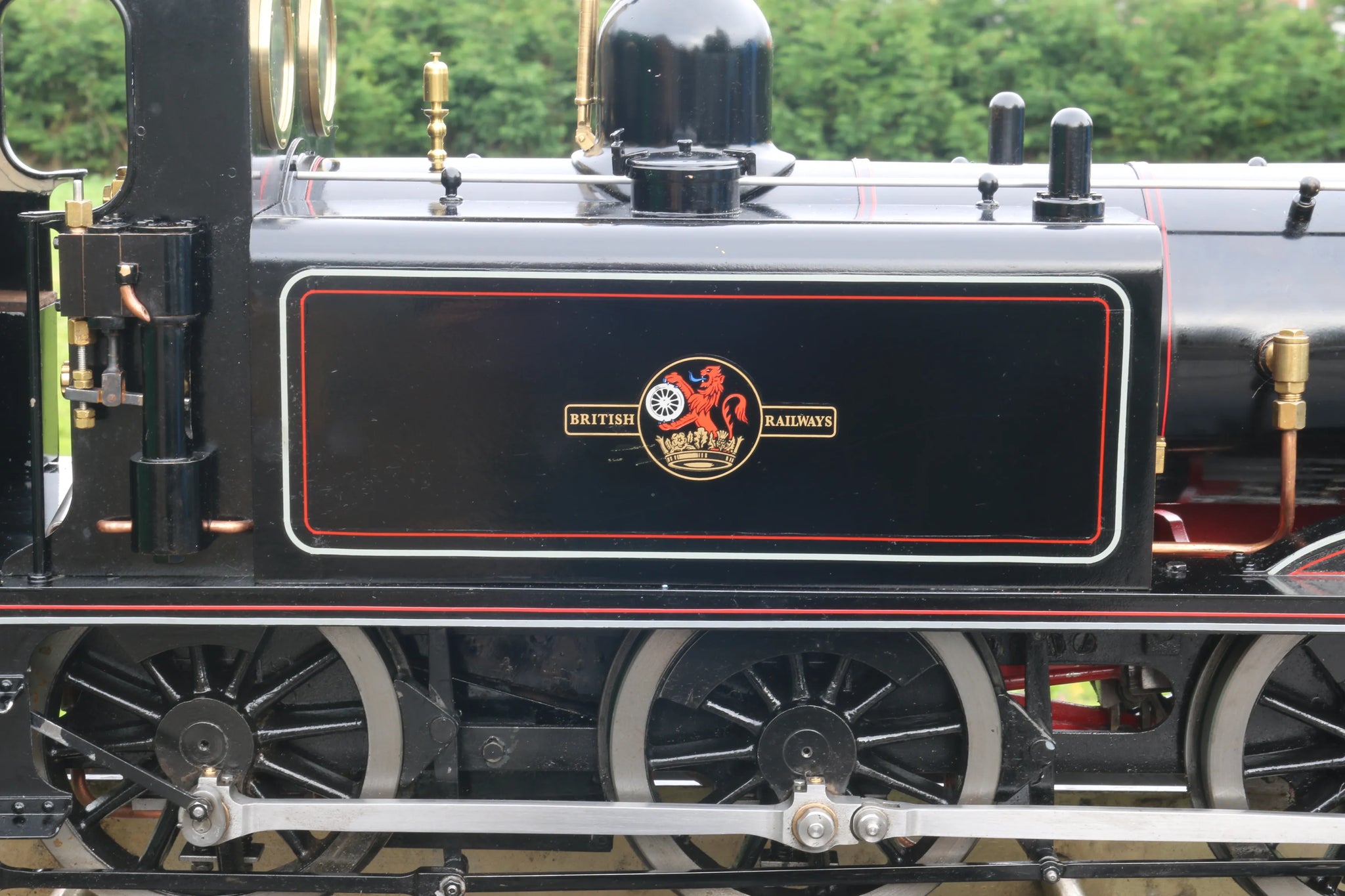

Completed in 2014, the engine was steamed on four occasions to check valve setting and sort out any initial teething problems before being stripped and painted in lined BR black livery. Since then it appears to have had little, if any use. It came to us from its second owner, in part exchange for a 7 1/4 inch narow gauge project.

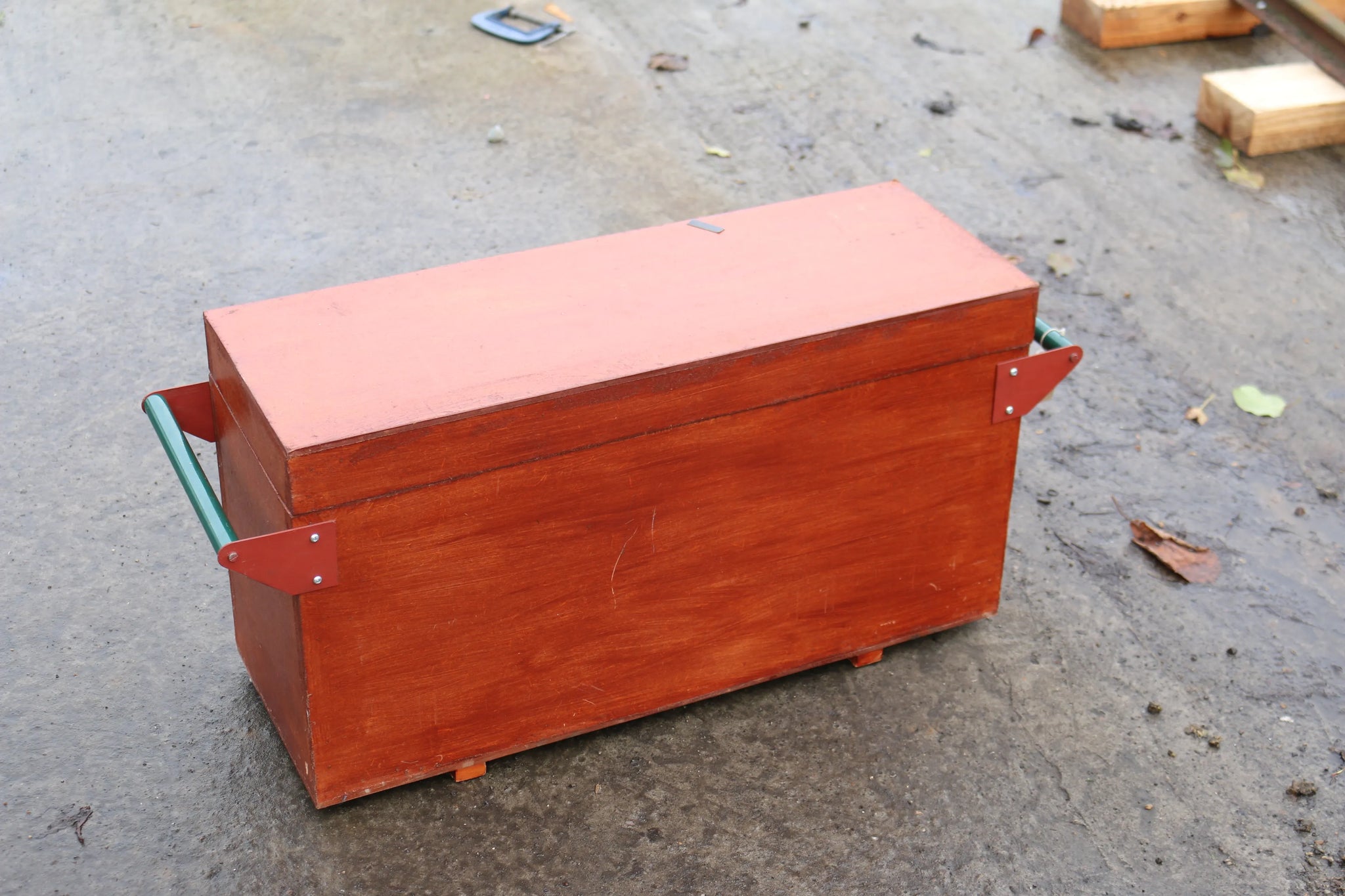

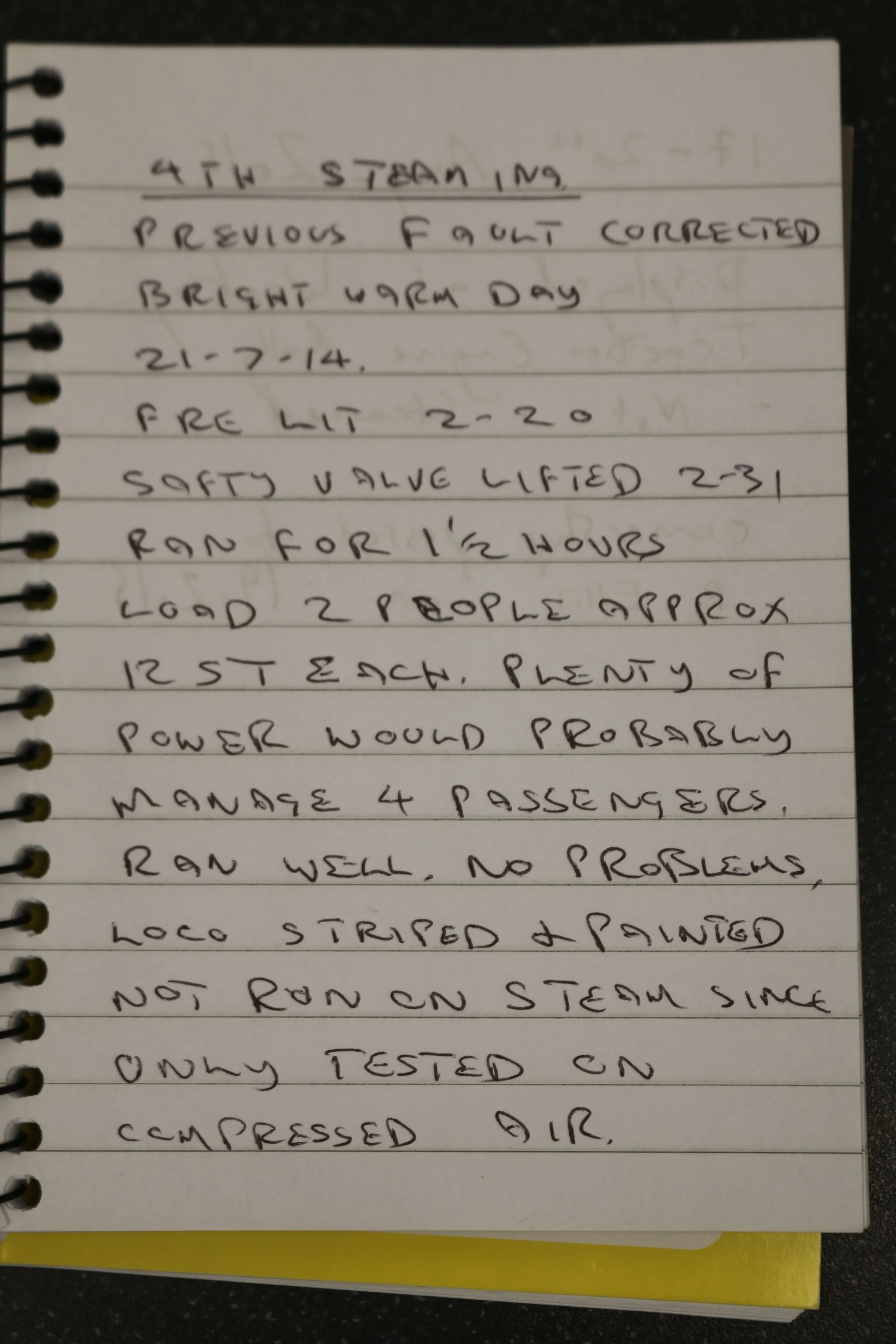

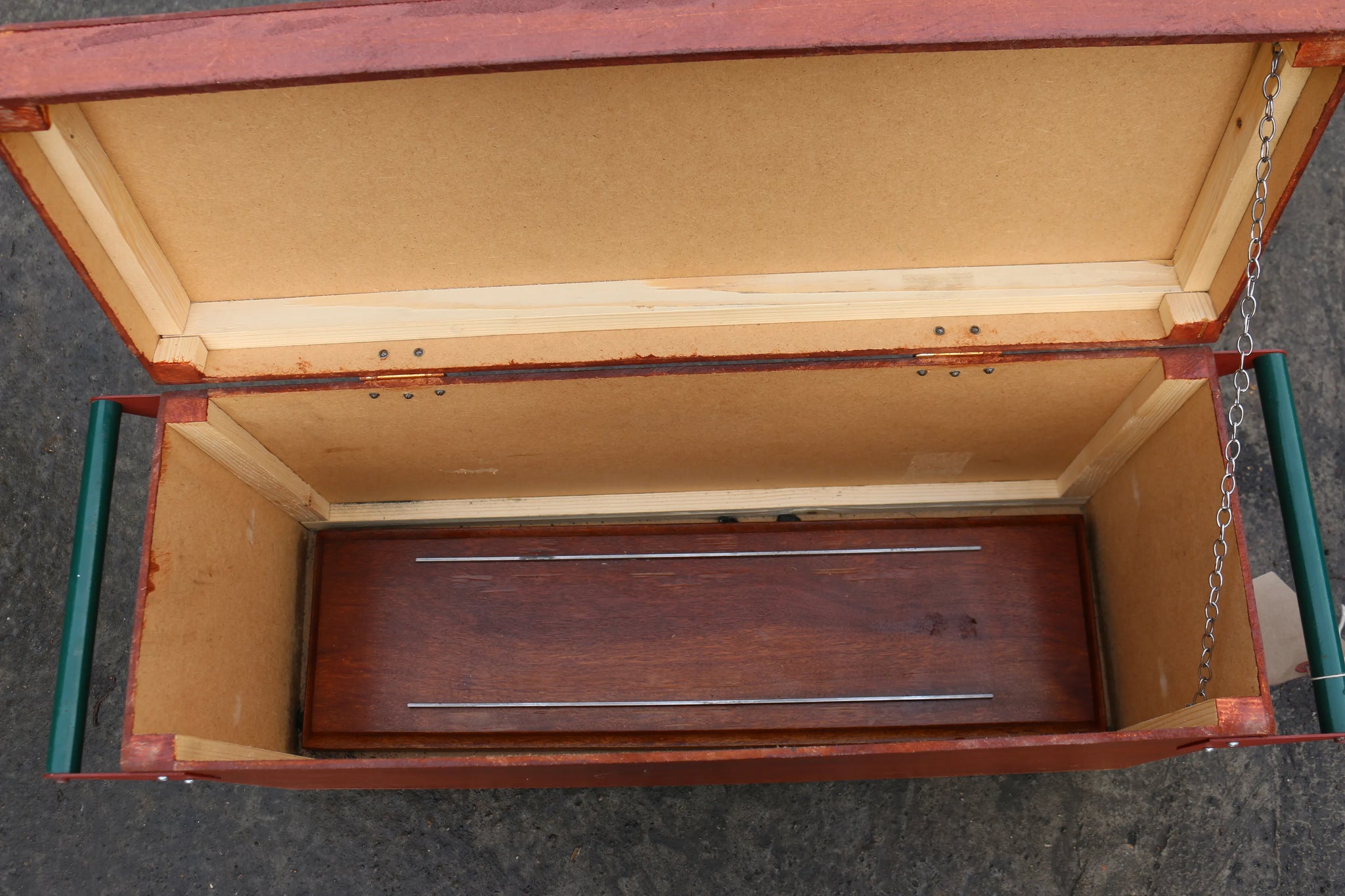

The engine is complete with photographs of the build, along with the builder's log book detailing the four steamings, and a purpose-built carrying crate.

Type: Second hand

Tags: Locomotives

Technical information

Stock code	7678
Gauge	5 inch
Length/inches	28
Width/inches	8
Height/inches	12

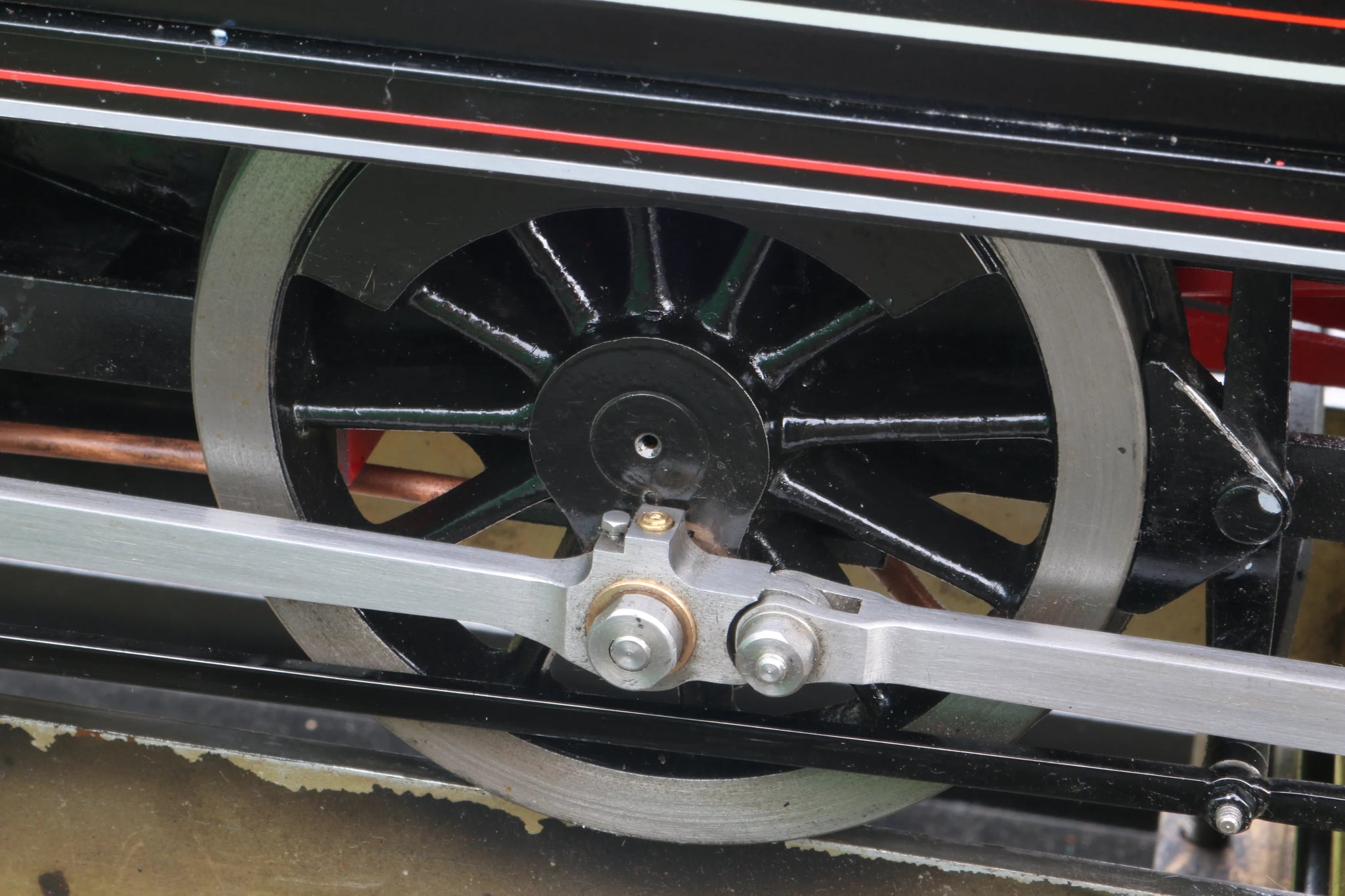

Wheel material	cast iron
Axlebox type	plain
Cylinder material	cast iron
Valve type	slide

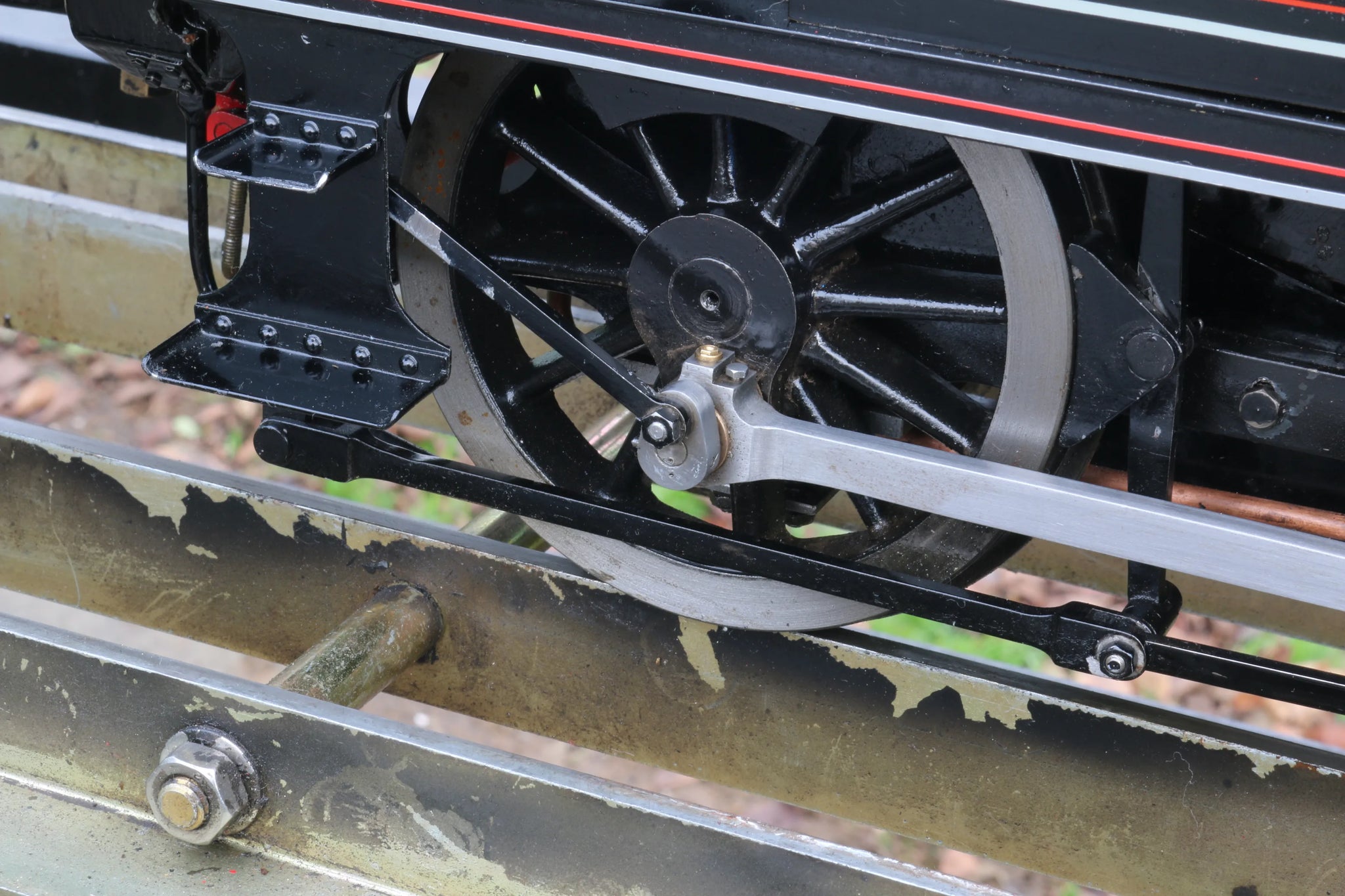

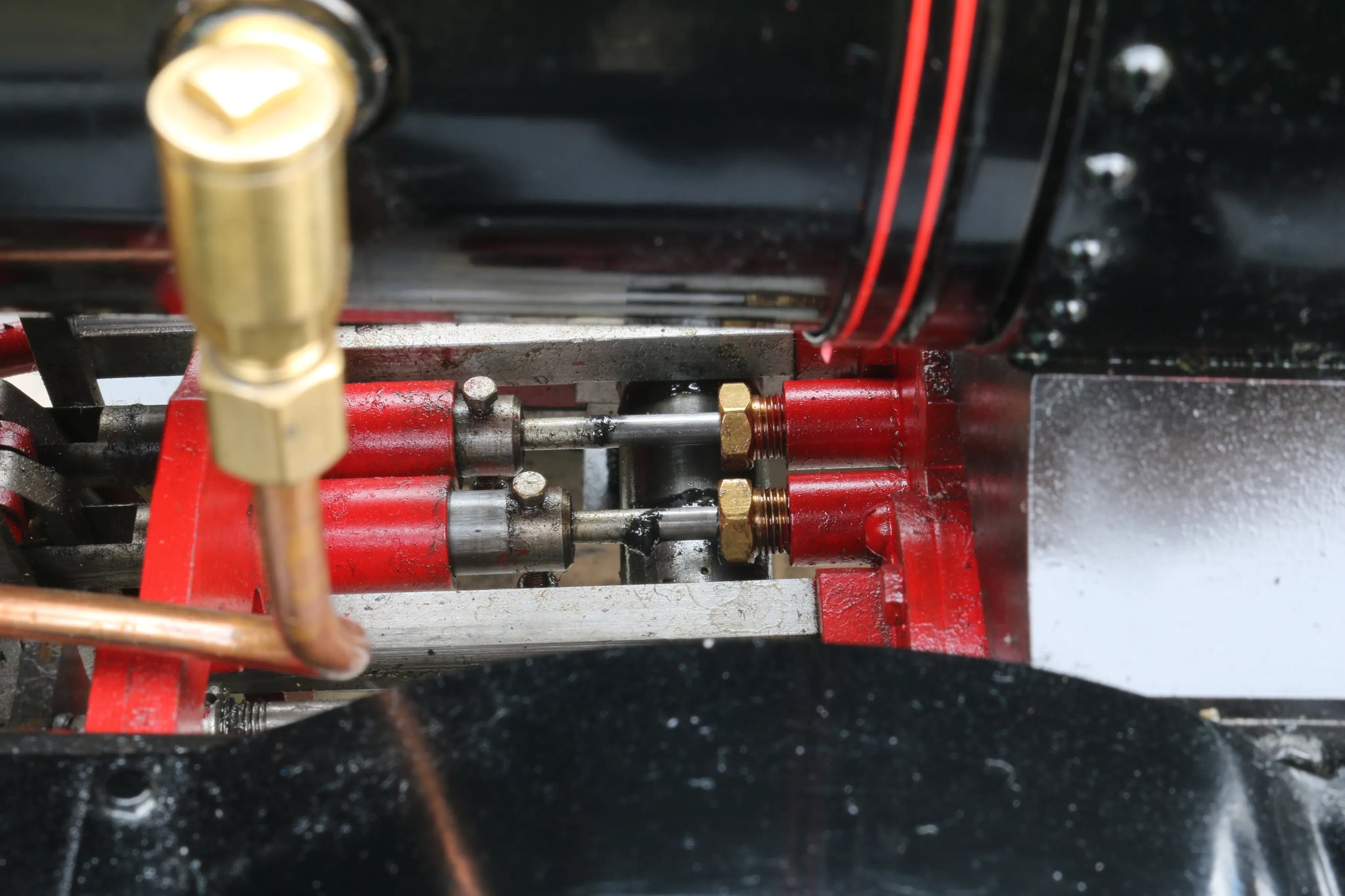

Valve gear	Stephensons

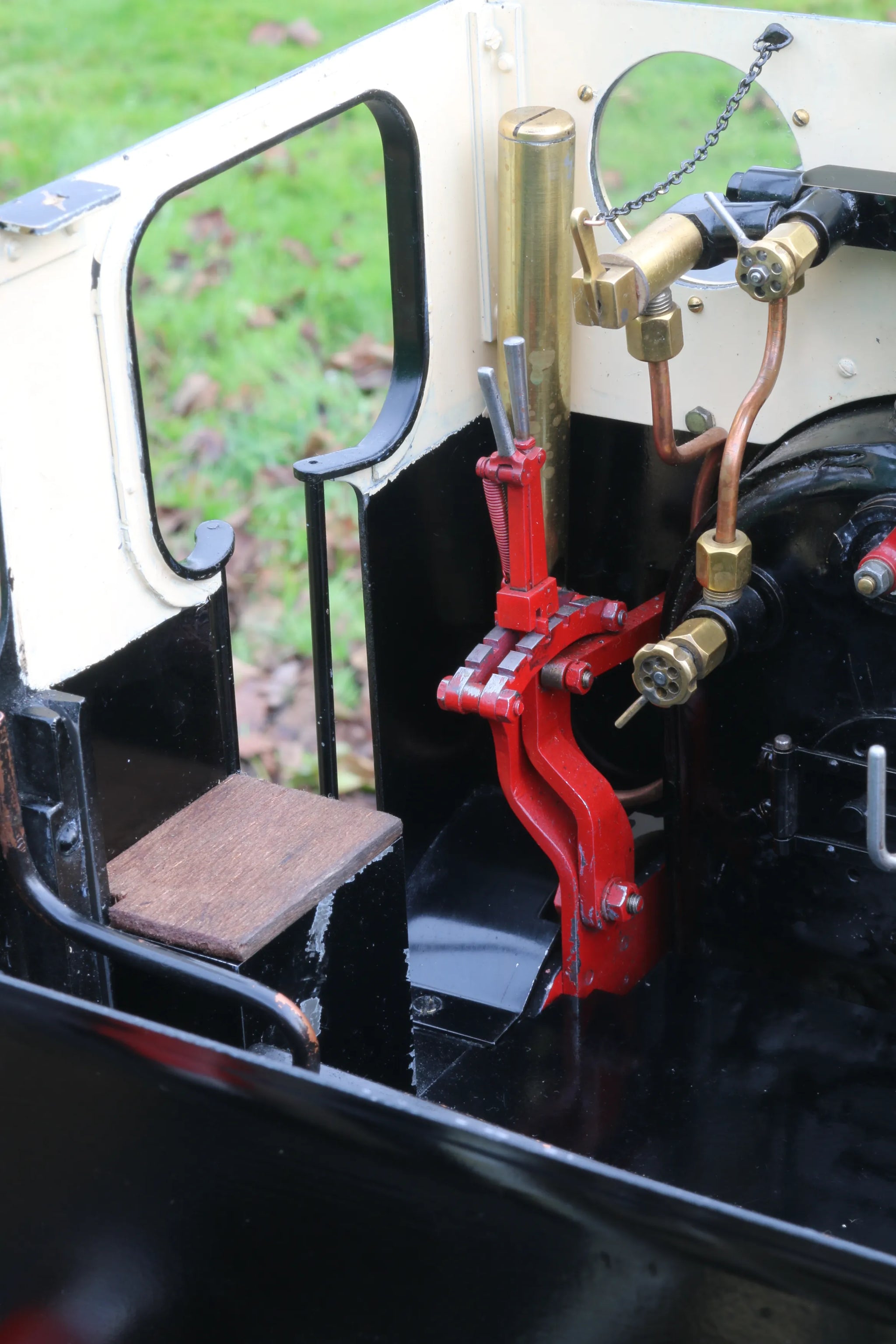

Reverser type	pole
Lubricator type	mechanical
Boiler type	locomotive
Boiler construction	silver soldered
Boiler material	copper
Working pressure	90
CE/UKCA mark	no - non-commercial
Year built	2014
Boiler number	GB12
Safety valve type	spring
Safety valve	1
Fusible plug	no
Whistle	yes

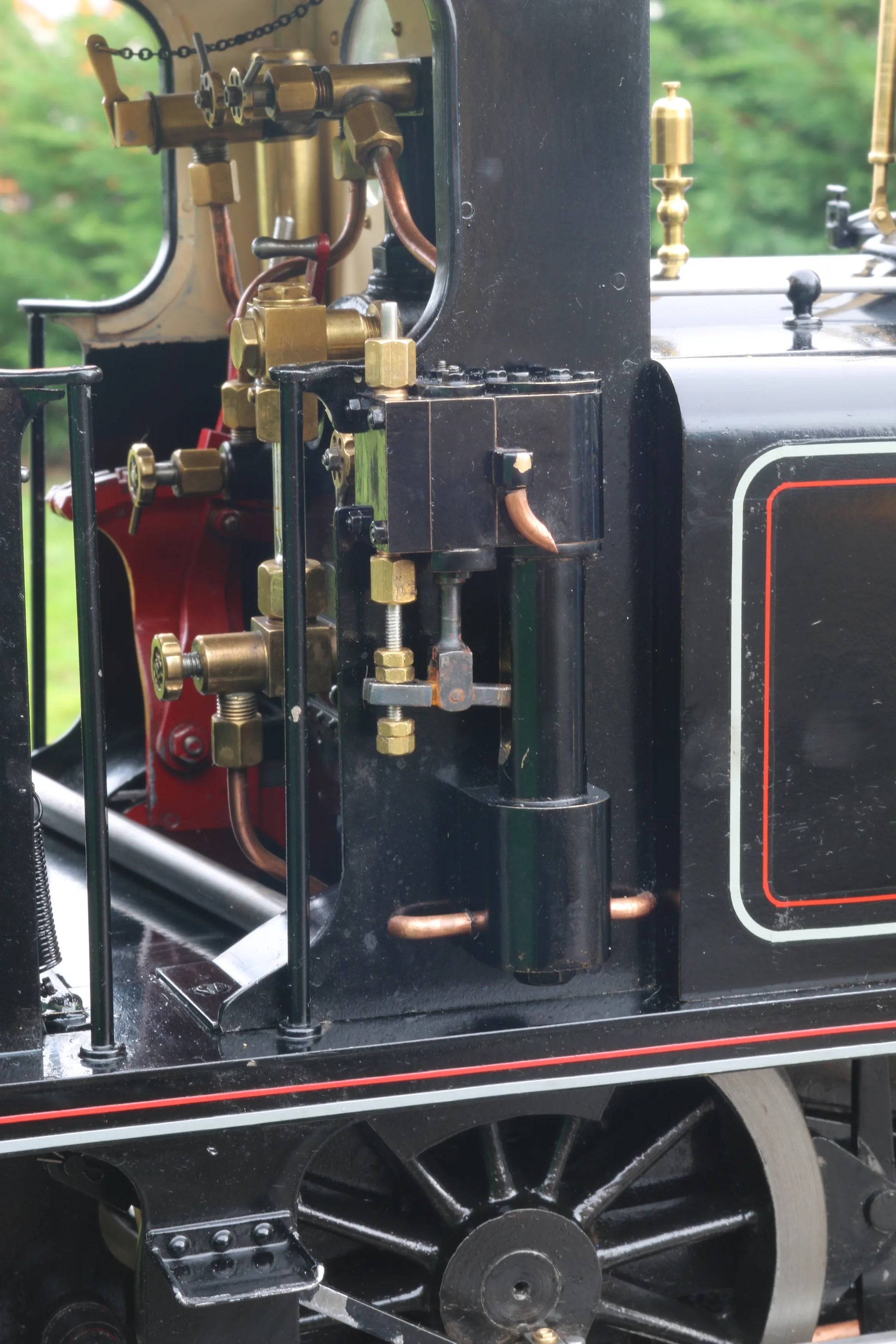

Hand pump	1
Mechanical pump	1 x crosshead type
Superheater type	flue tube
Superheater	2
Pack	Single half pallet
Date out	Jan-18
Hydraulic test valid to	30-Oct-21
Steam test valid to	08-Jan-19
