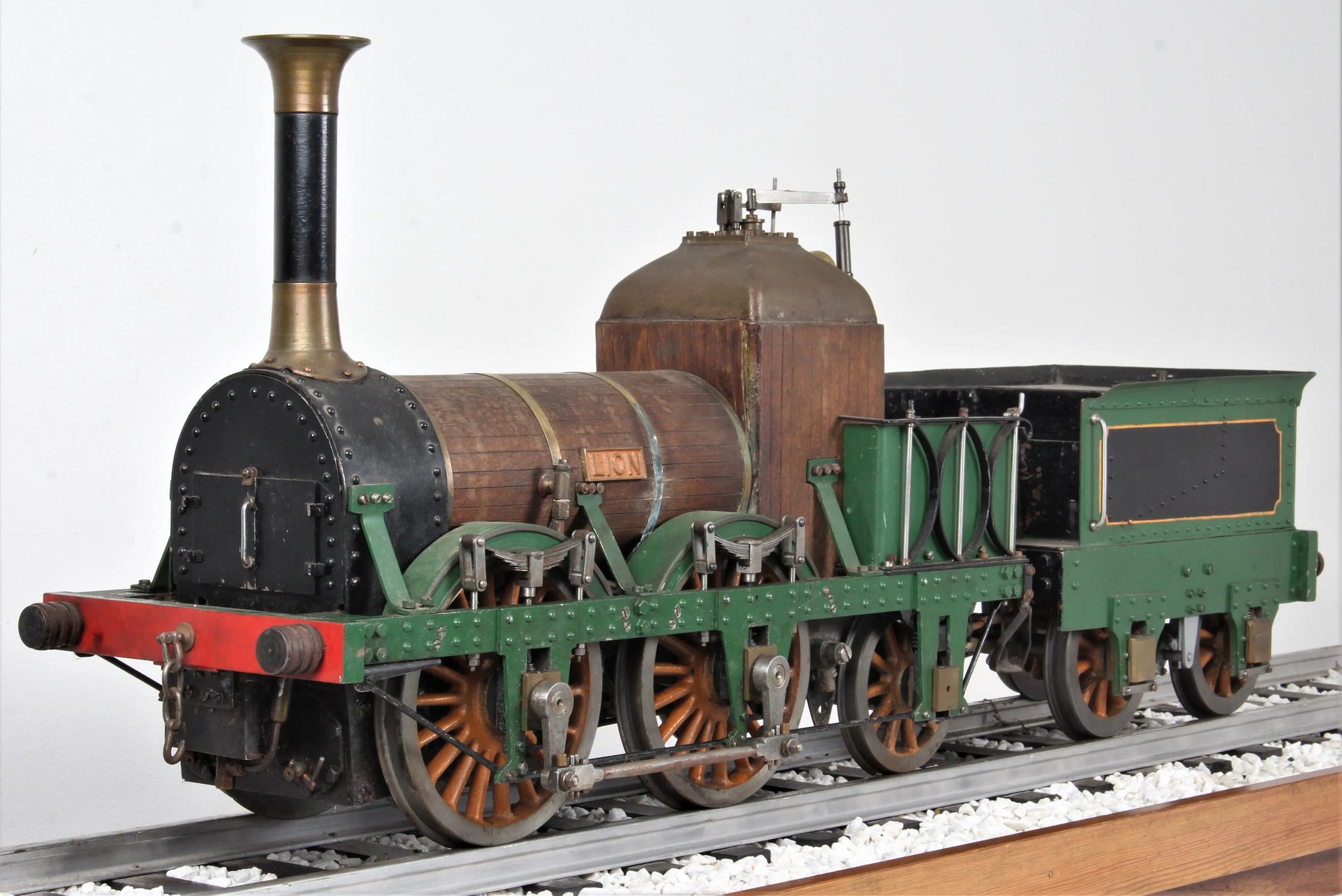

5 inch gauge Liverpool & Manchester Railway 0-4-2 "Lion"

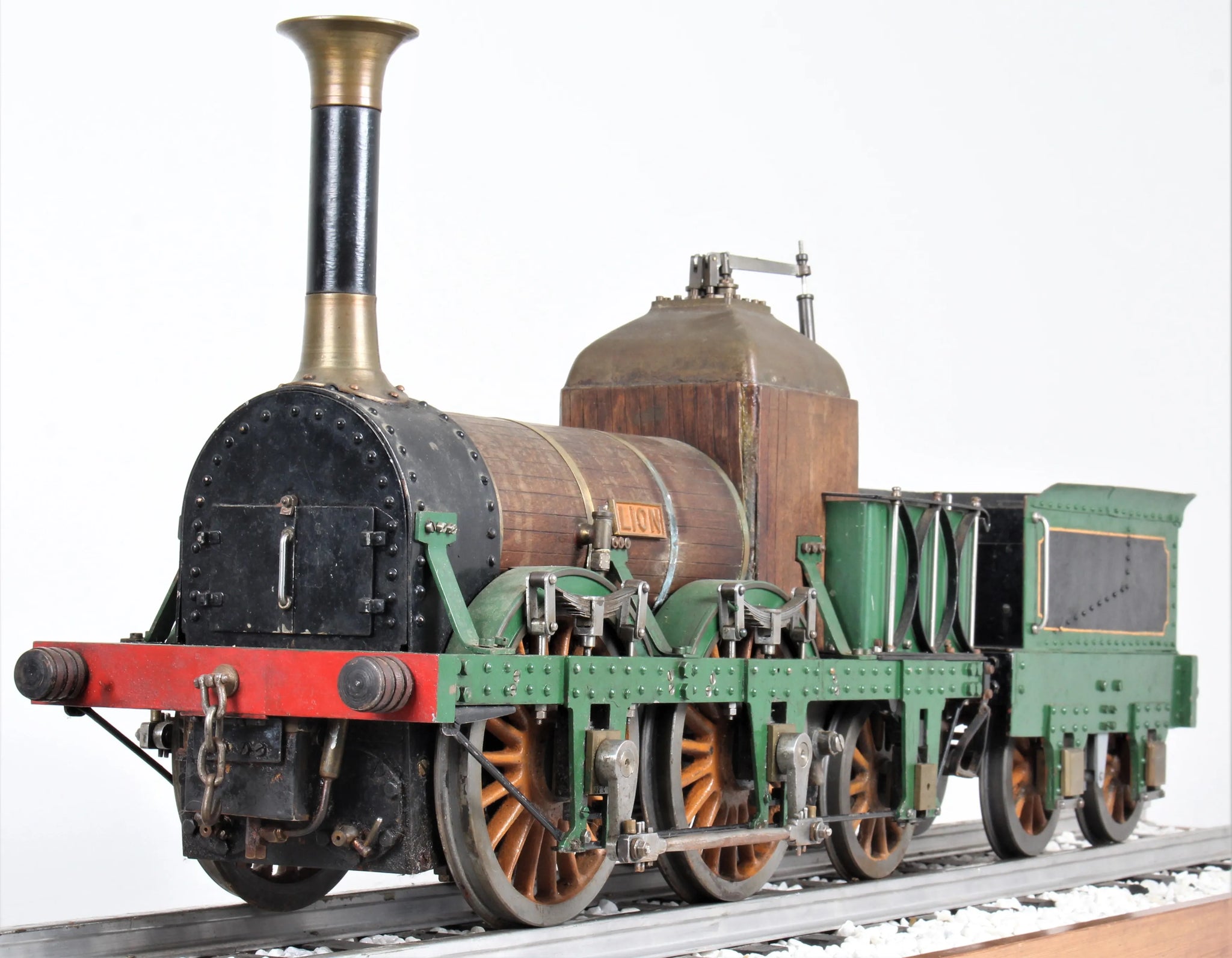

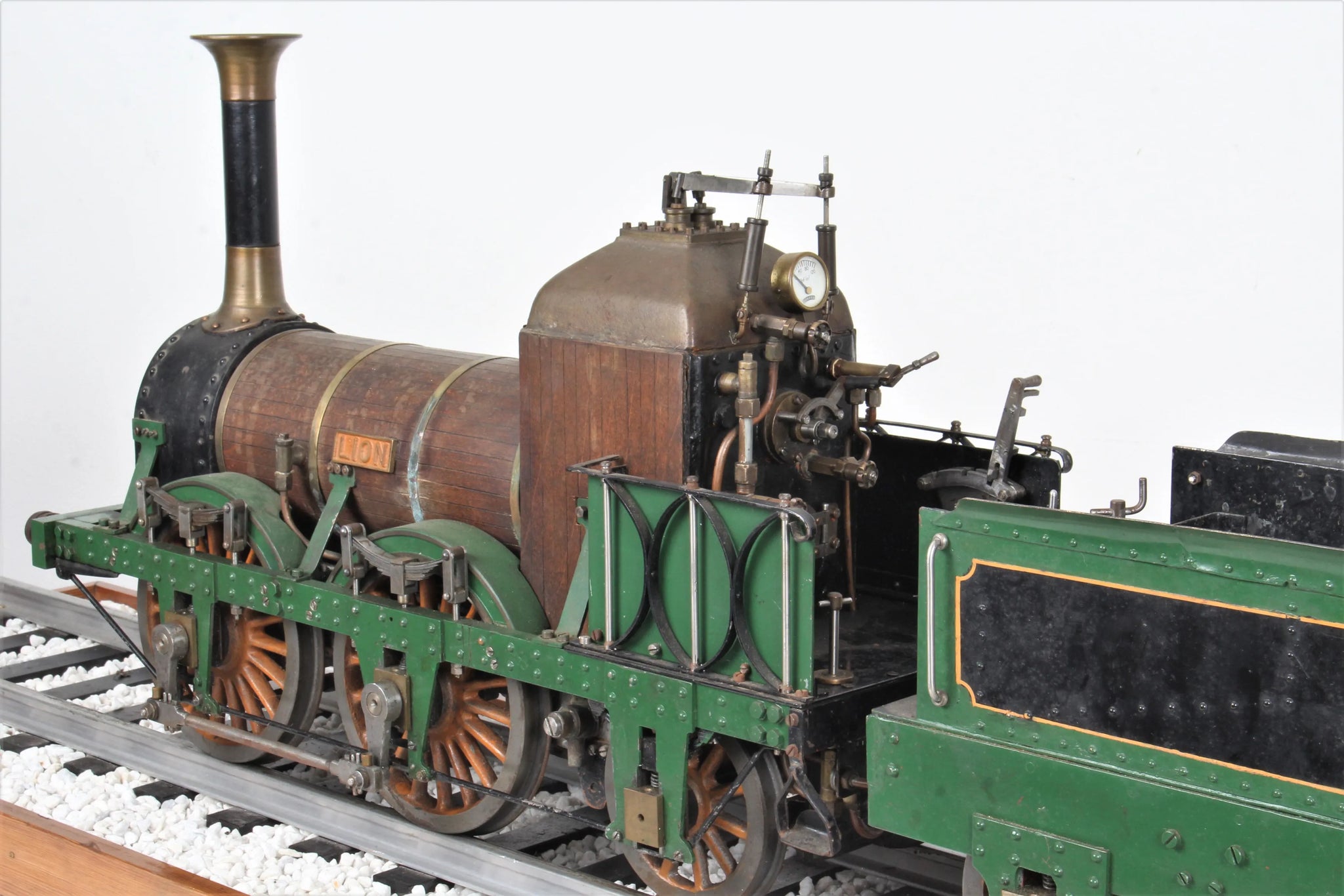

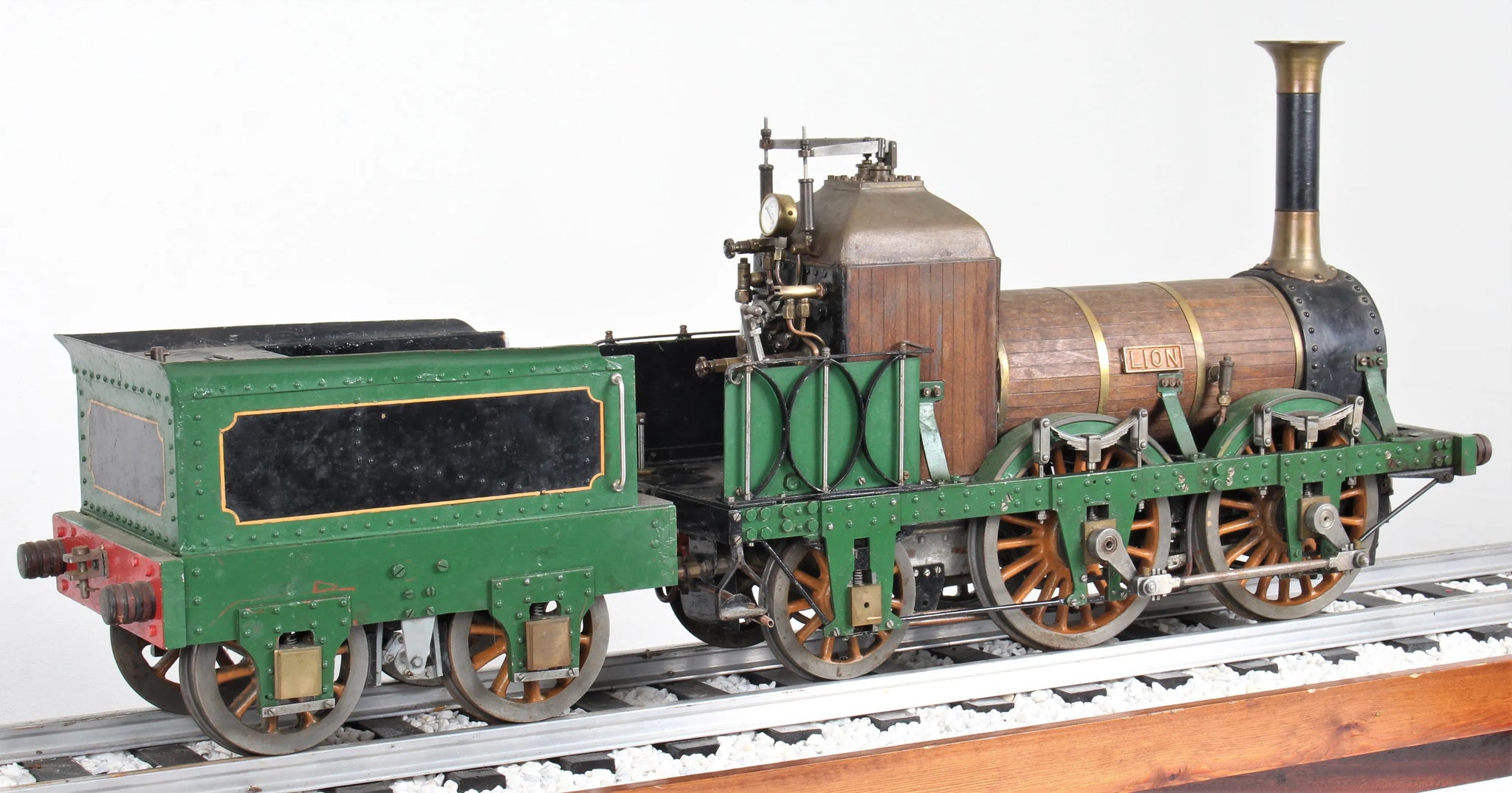

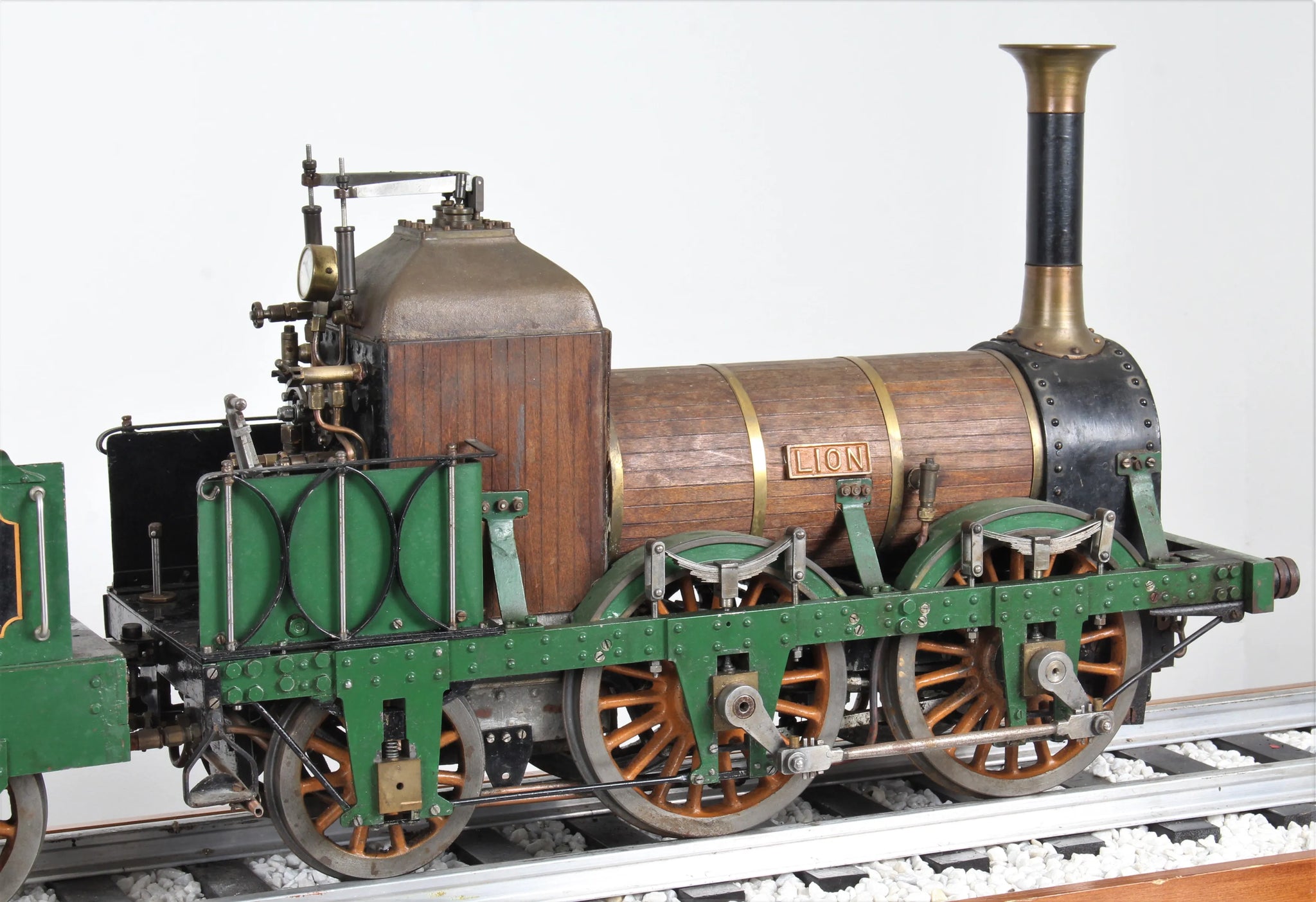

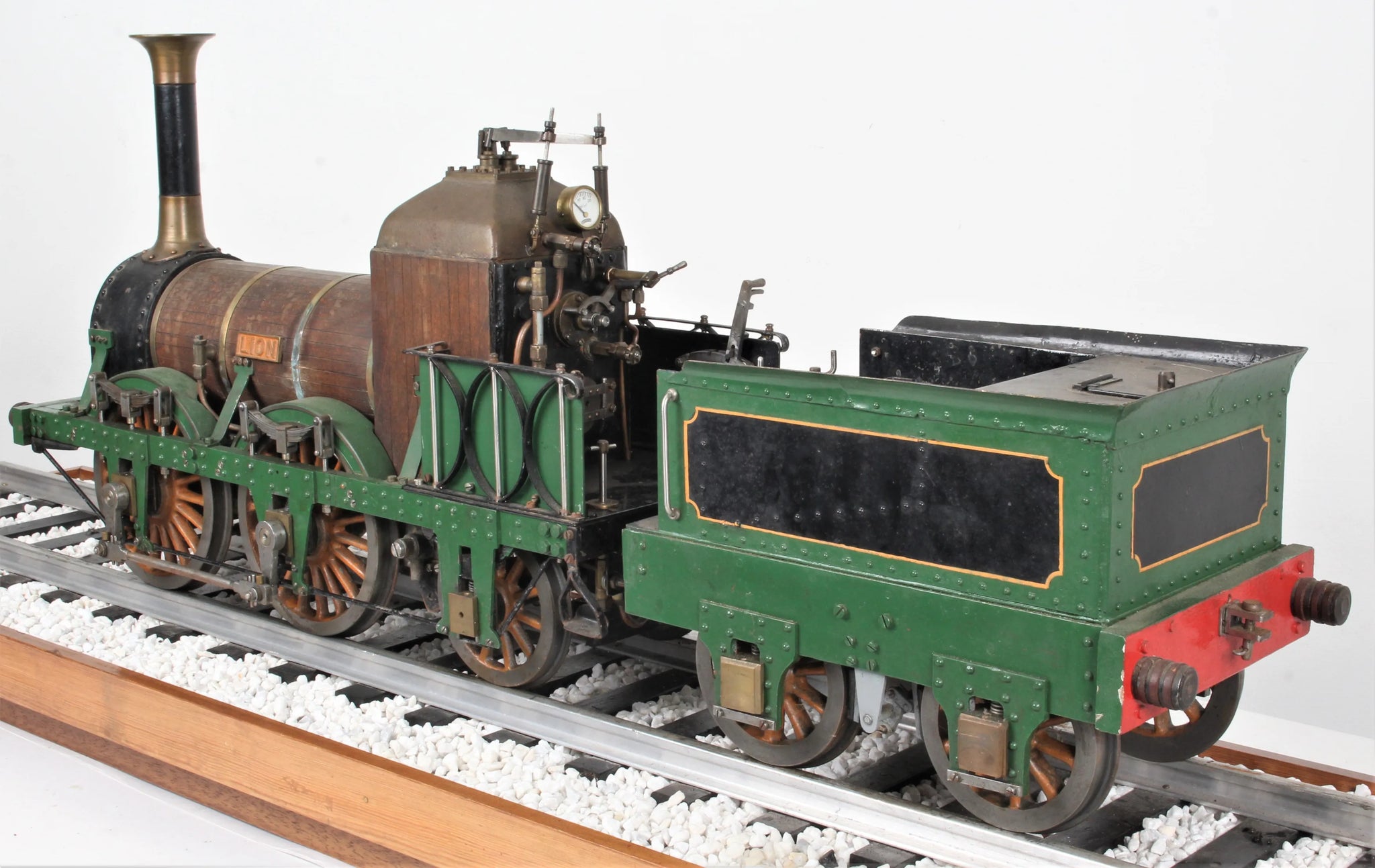

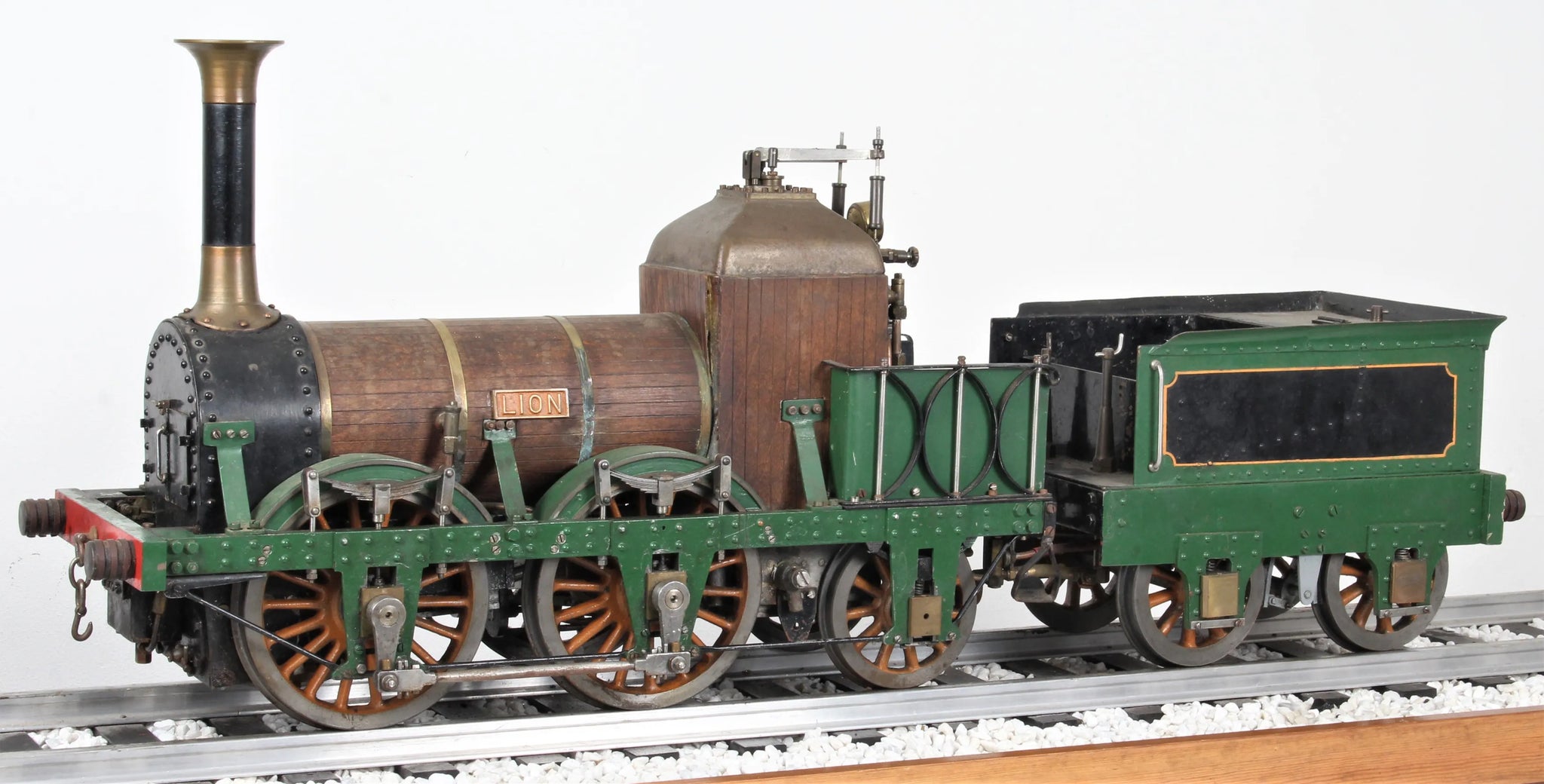

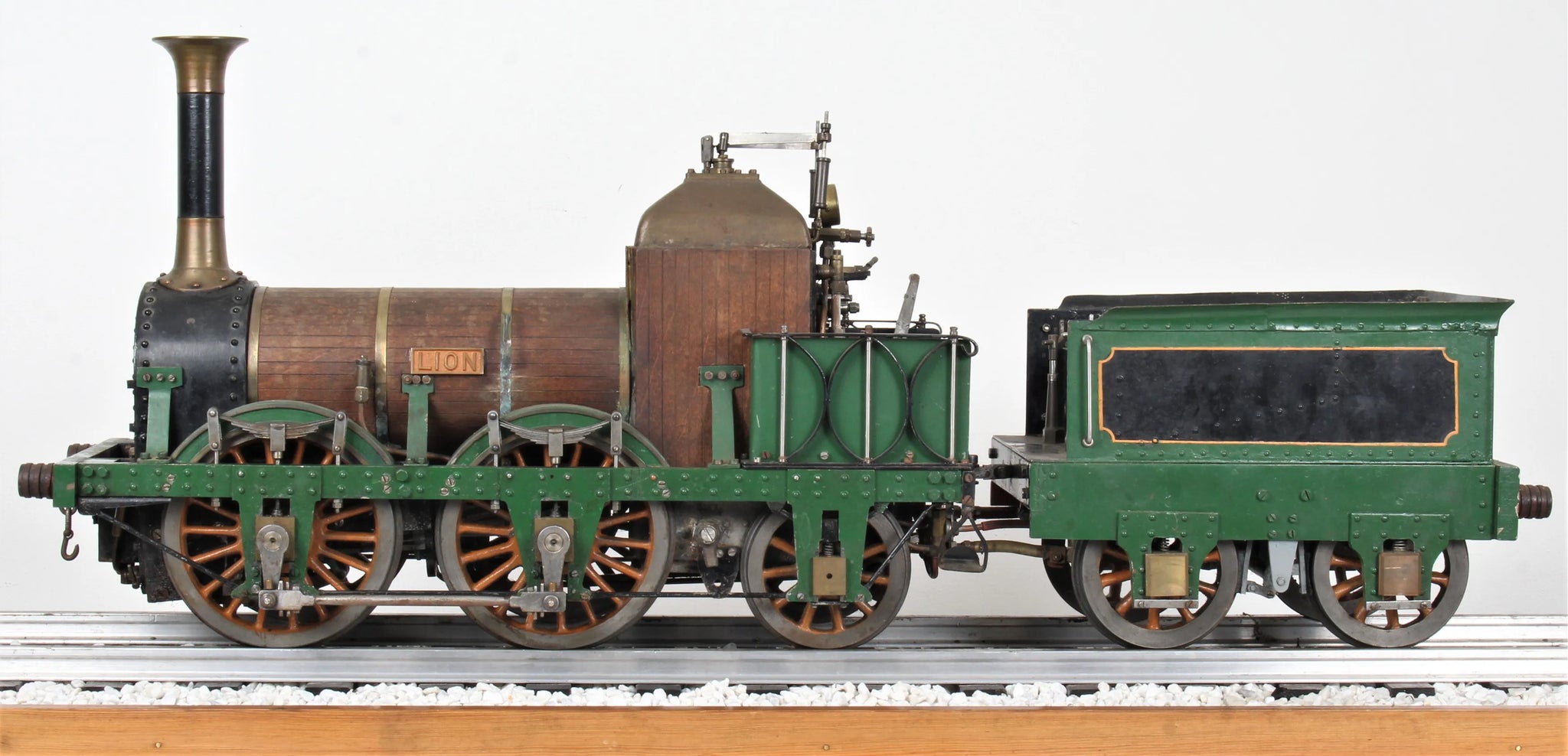

An older 5 inch gauge Liverpool & Manchester Railway "Lion" to LBSC's "Titfield Thunderbolt" design, it came in recently as part of a larger collection of locomotives and traction engines.

The previous owner had kept it for display - it appears not to have been run in years, very grubby with light surface rust on the brightwork. There's a new grate with it but the ashpan and pin has long since disappeared.

Boiler has had a twice working pressure hydraulic test and appears sound. The chassis runs on air in both directions - it's fitted with Stephensons gear which, whilst anachronistic, provides considerably more reliable and robust control of the valves compared to the original Gab gear.

Technical information

Stock code

9091

Gauge

5 inch

Length/inches

23 + 12

Width/inches

8

Height/inches

14.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler material

copper

Safety valve type

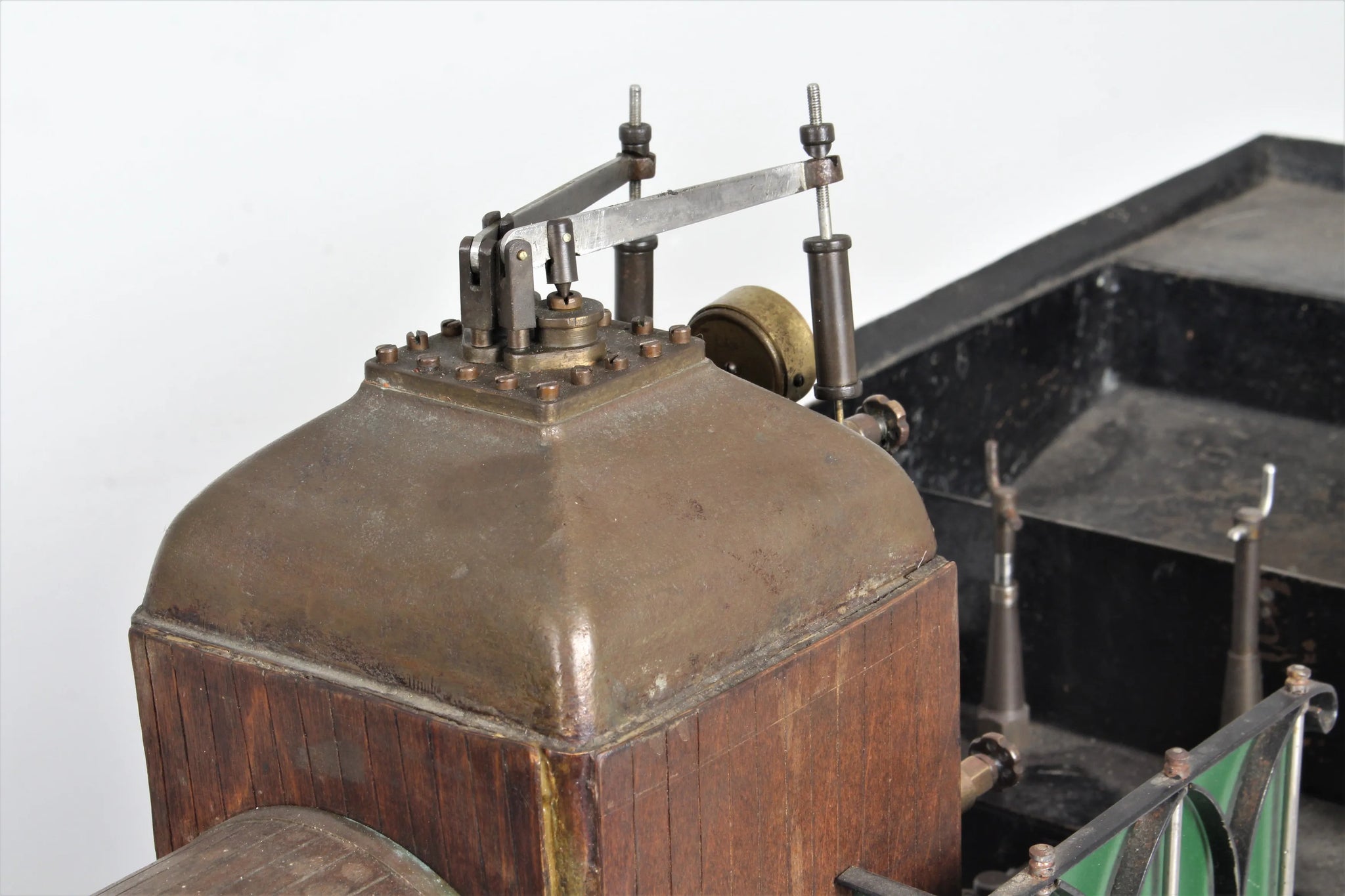

Salter

Safety valve

2

Hand pump

1

Mechanical pump

crosshead

Injector

1

Date out

Apr-20
