12251
We've reissued fresh hydraulic and steam certificates, we also have current club documentation for the same.
In steam we found the injector to be ornamental and the right-hand water gauge indecisive as to where it thought the water level might be; that aside, it made steam and ran well, with the mechanical and hand pumps both entirely satisfactory.

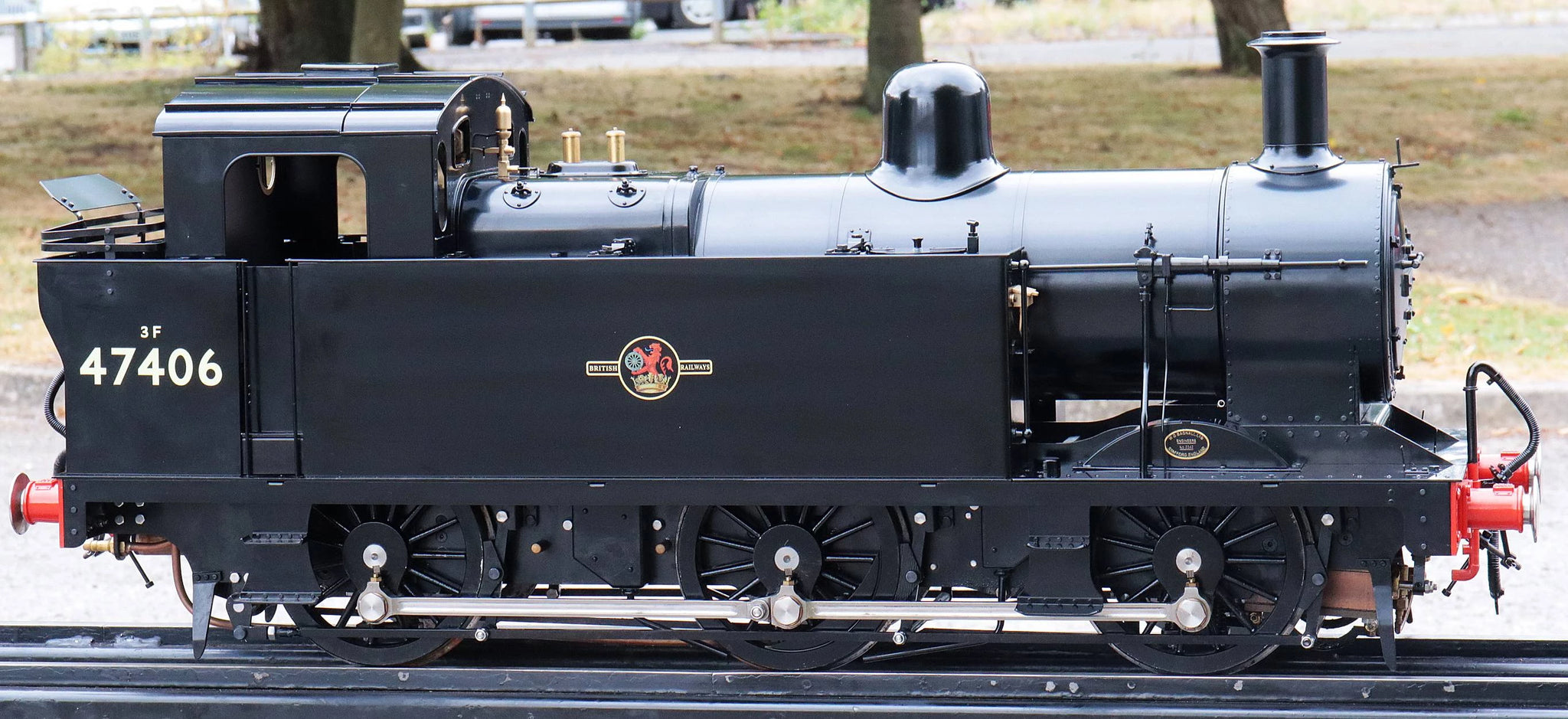

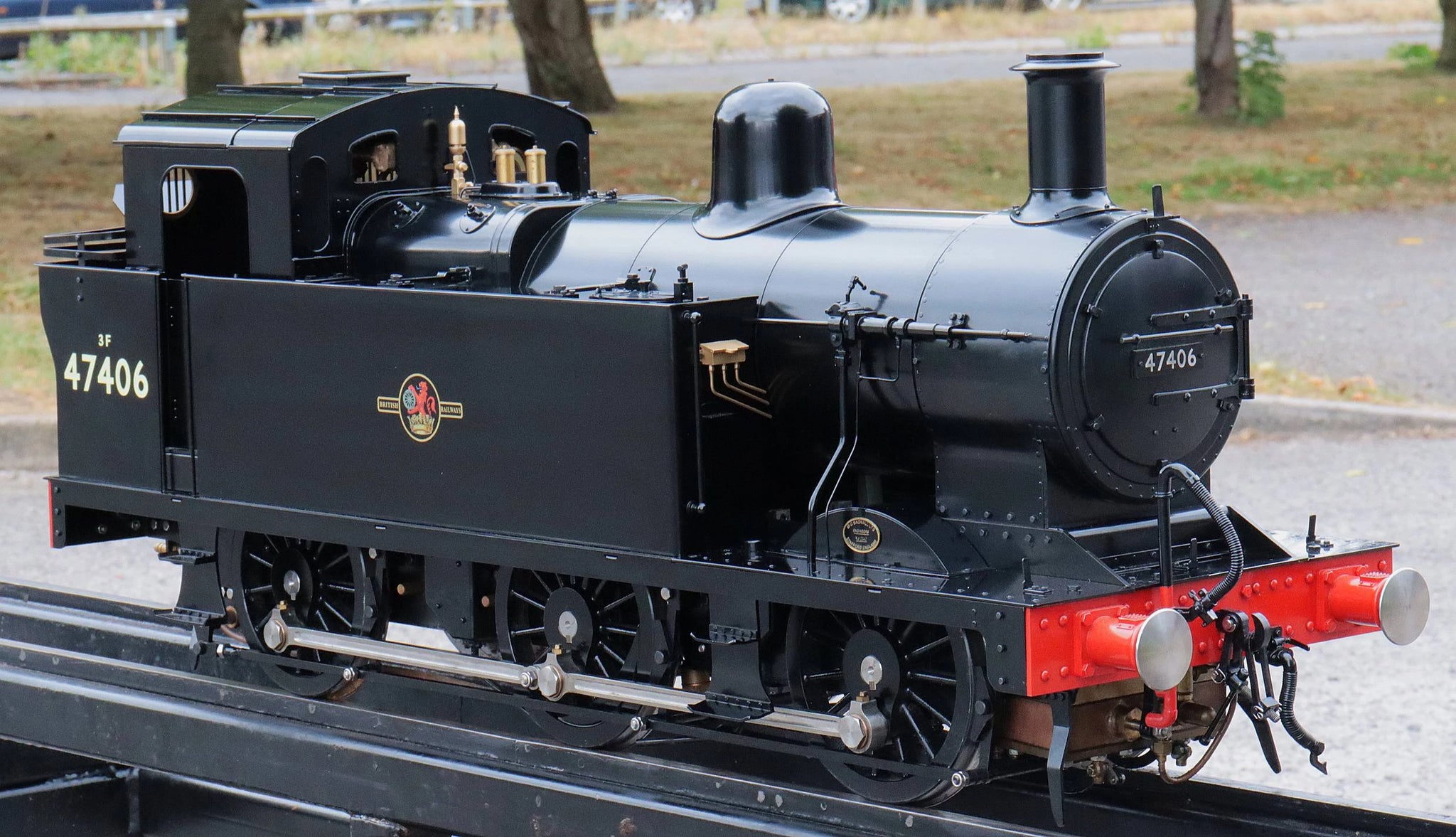

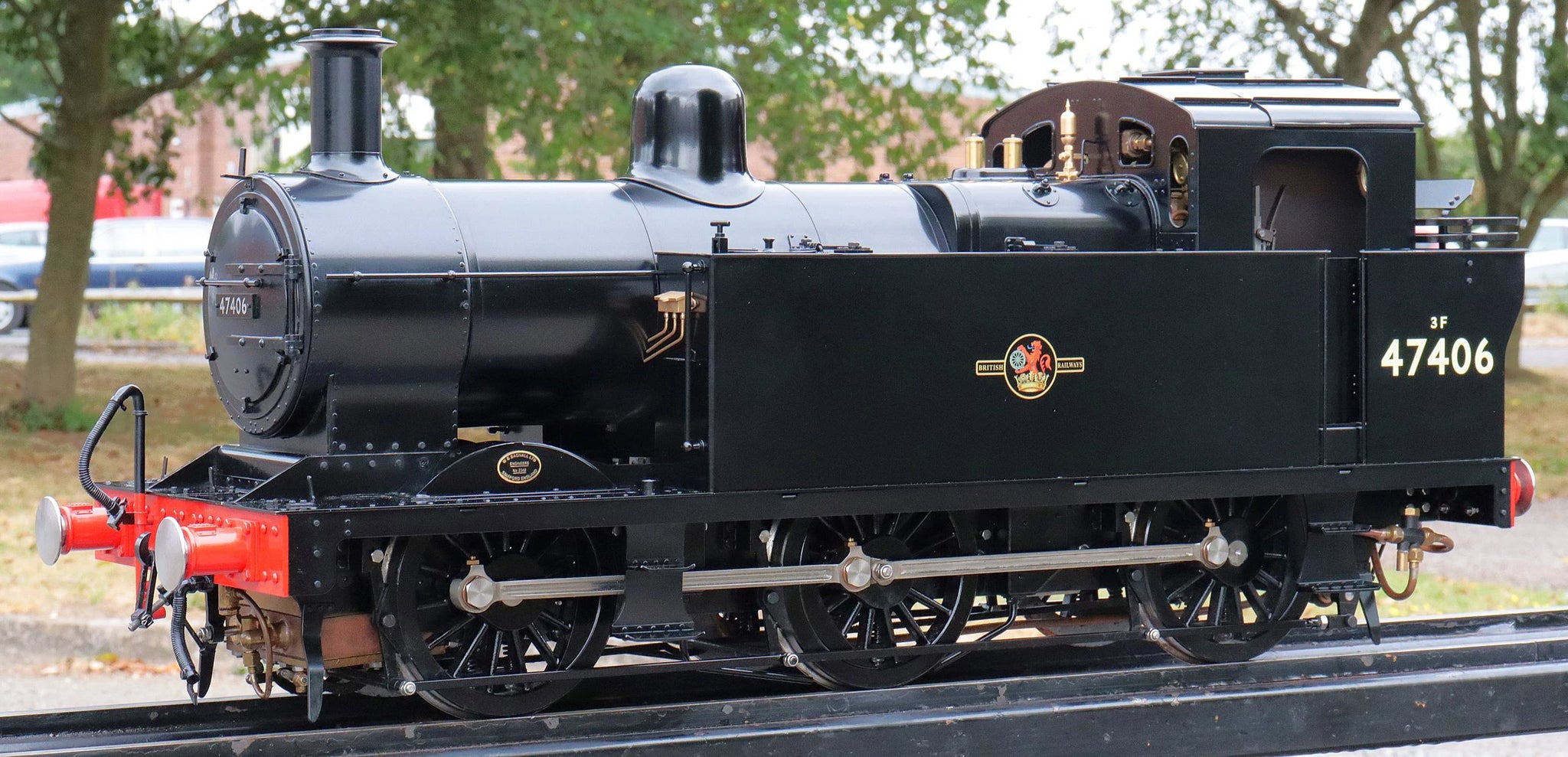

A 5 inch gauge LMS 3F "Jinty" 0-6-0T, a two year old engine in excellent condition having been steamed on a handful of occasions from new.
Factory built and painted, the locomotive has a CE-marked silver-soldered copper boiler pressed to 90psi, complete with manufacturer's documentation; the chassis has gunmetal slide valve cylinders with mechanical lubricator and stainless steel motionwork, the bodywork is in etched brass.
Stock code |
12251 |
Gauge |
5 inch |
Length/inches |
32 |
Width/inches |
9 |
Height/inches |
14 |
Weight/Kg |
43 |
Wheel material |
cast iron |
Axlebox type |
roller bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Boiler maker |
Silver Crest Models |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
yes |
Year built |
2022 |

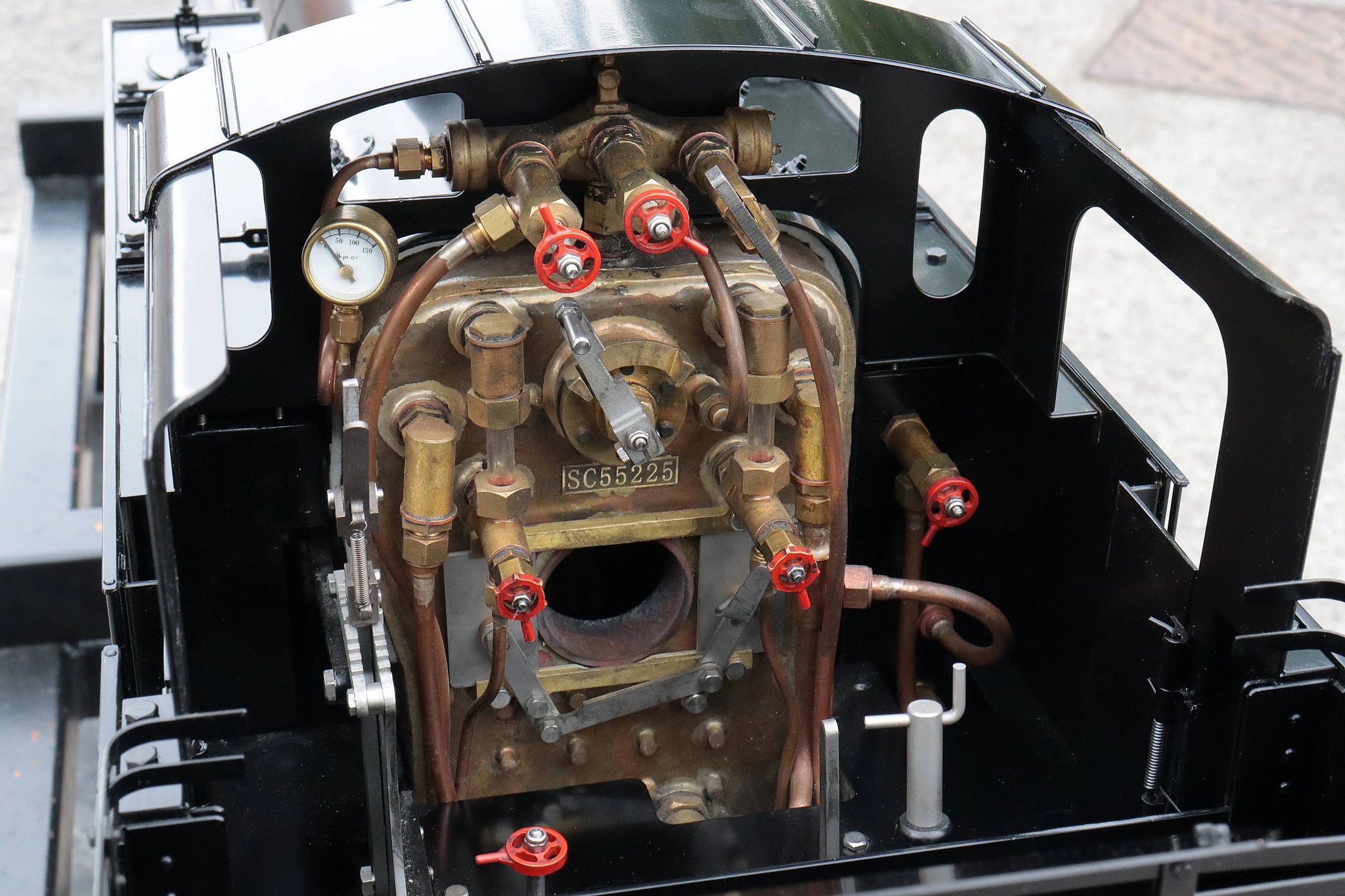

Boiler number |
SC55225 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
1 |
Hydraulic test valid to |
21-May-30 |
Steam test valid to |
21-Jul-27 |
