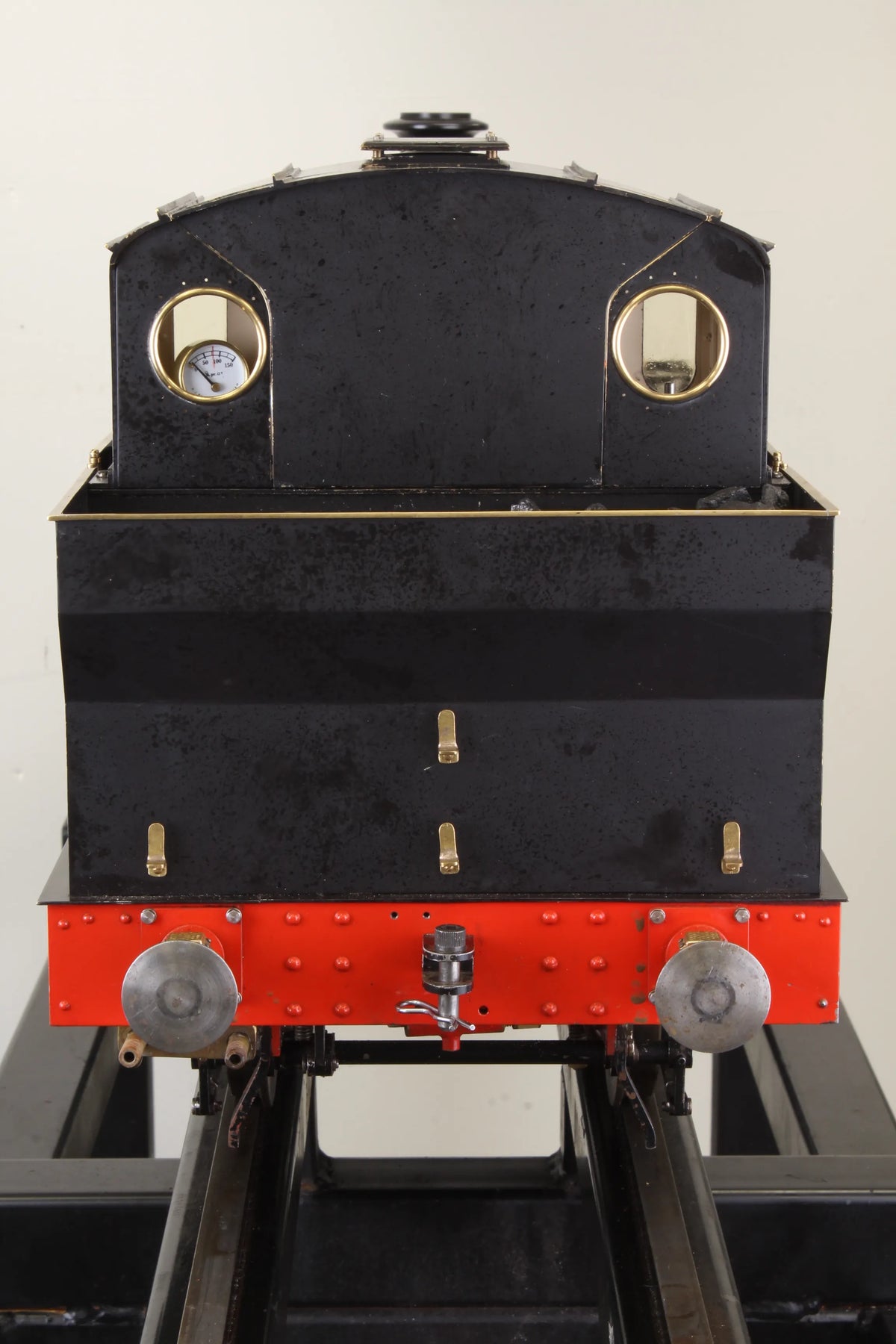

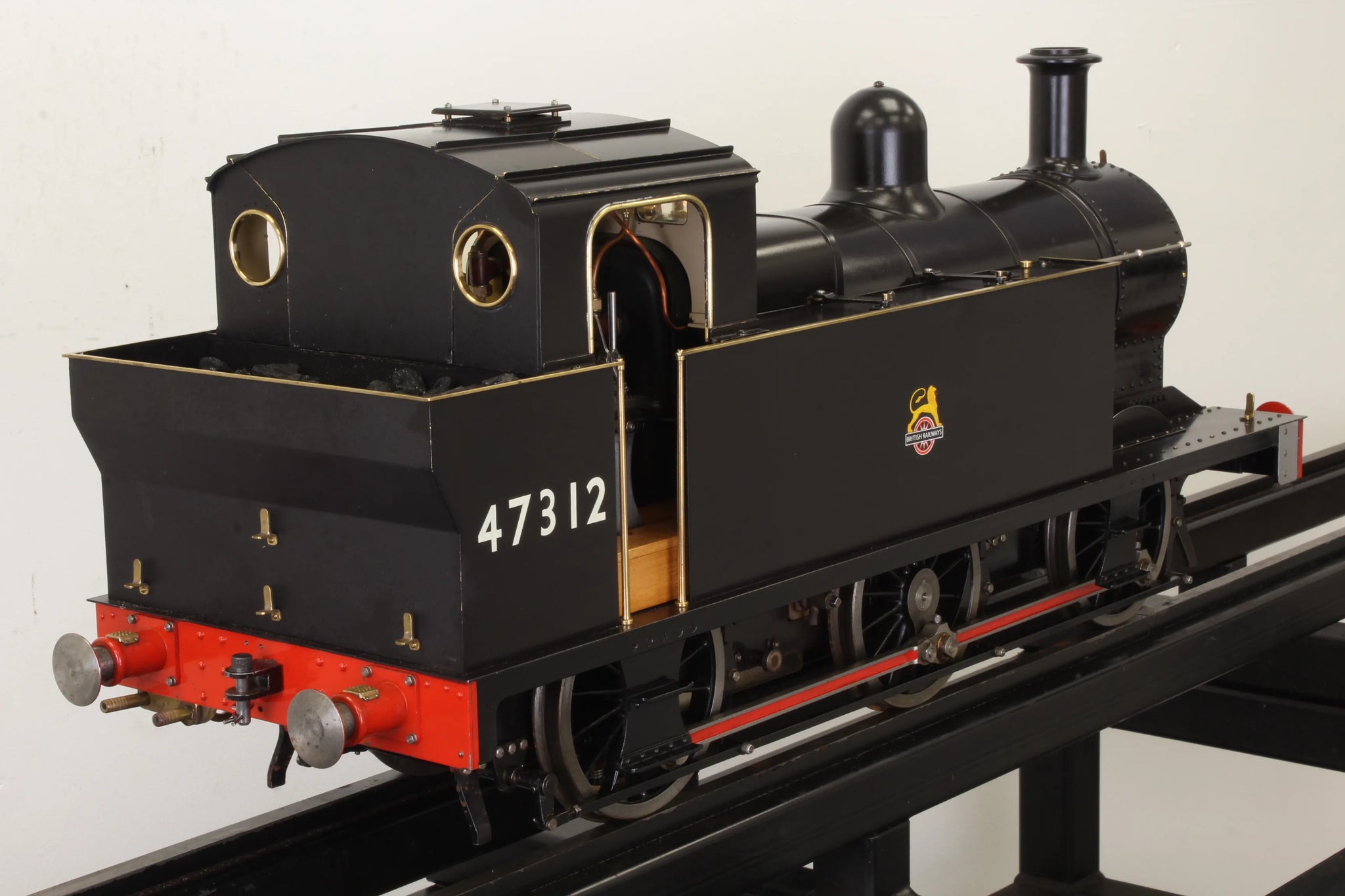

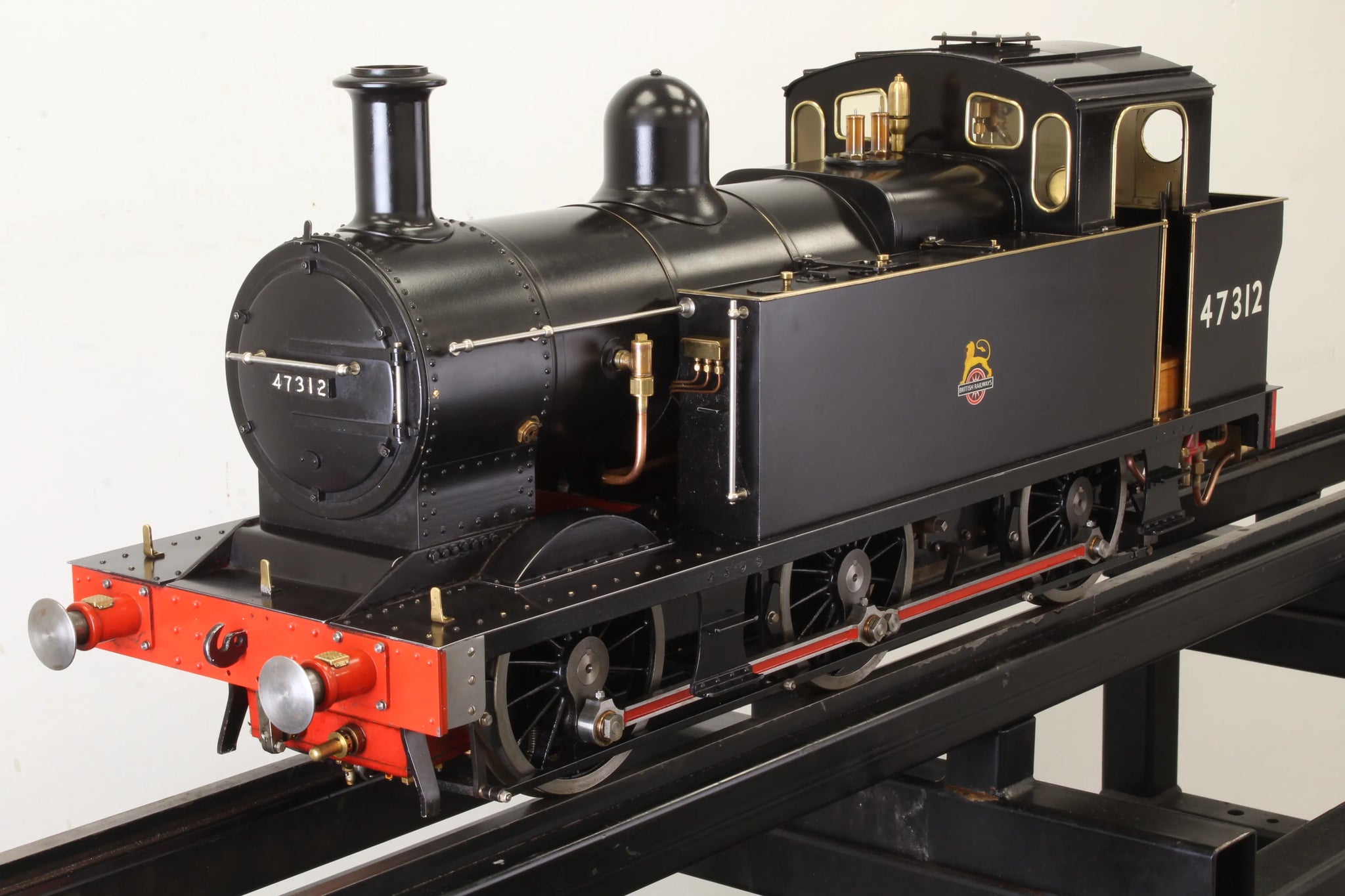

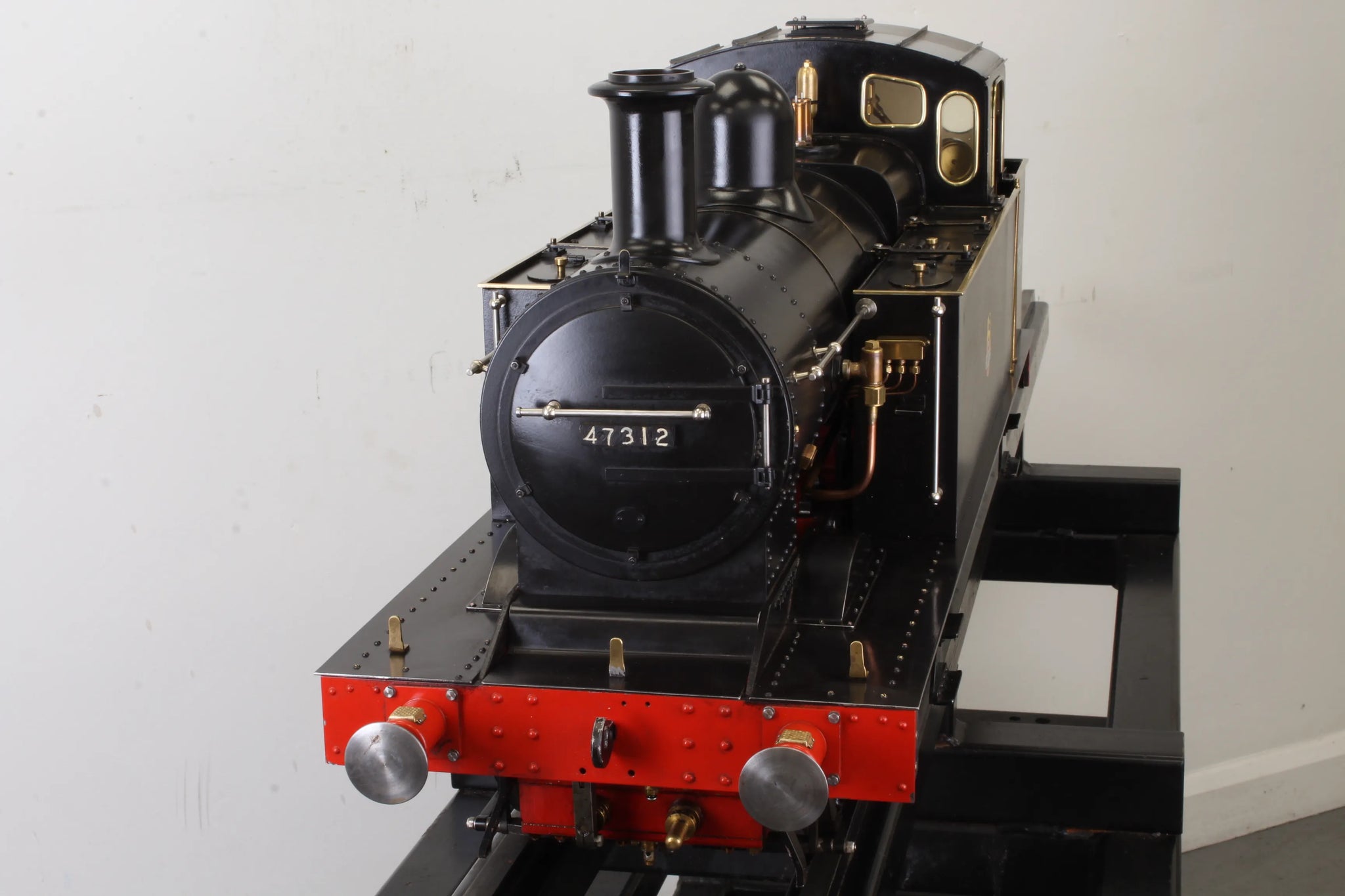

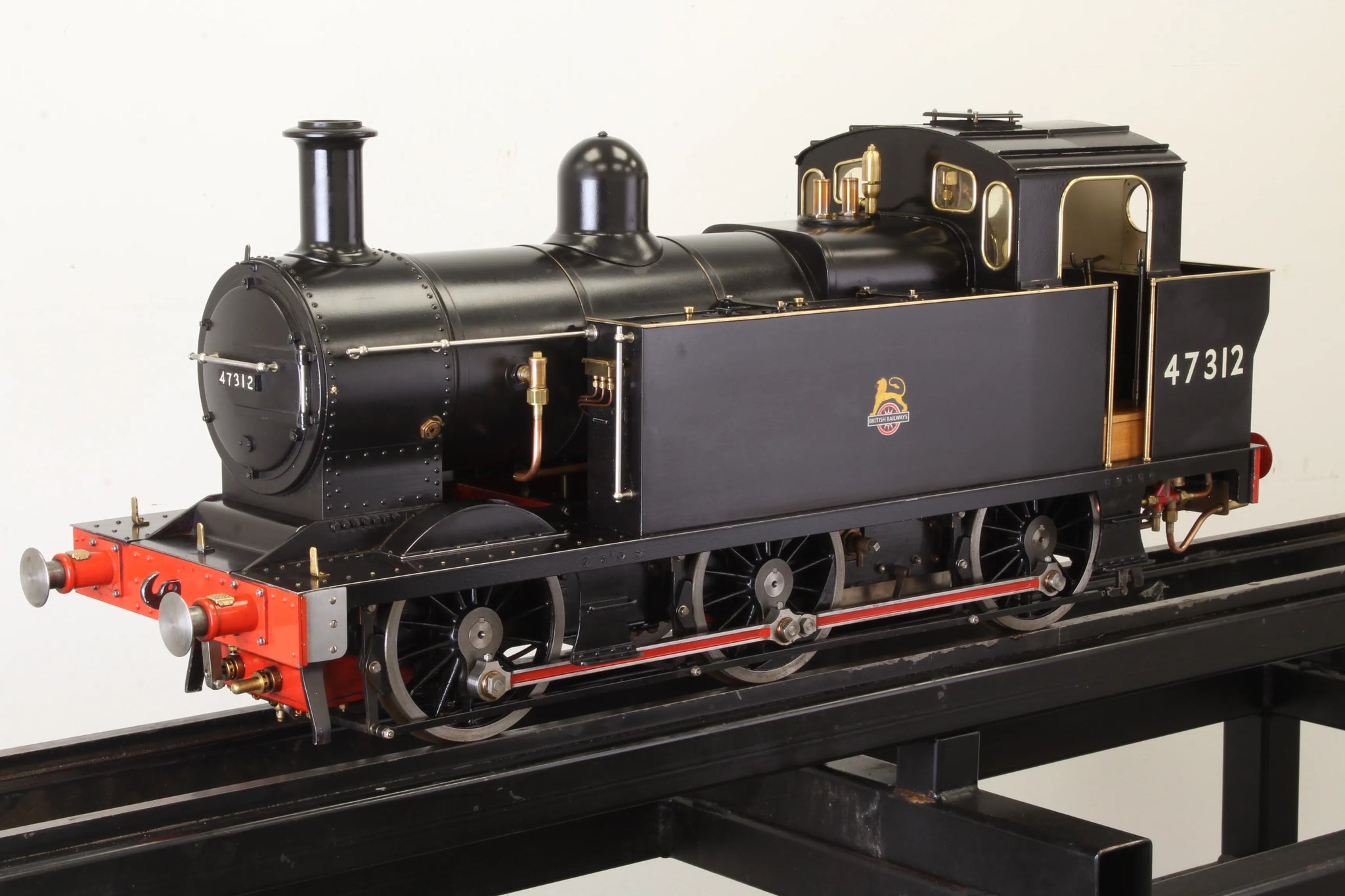

5 inch gauge LMS "Jinty" 0-6-0T with driving truck

An exceptionally well-built 5 inch gauge LMS "Jinty" 0-6-0T, it's come to us direct from the builder. In excellent condition throughout, fit and finish of all parts is very good. It runs particularly well, running notched back almost to mid gear in either direction - there's some video of it running outside the workshop here.

The work of a retired maintenance engineer, he had previously built a 2 inch scale Clayton wagon and is currently well on with a 1 1/2 inch scale Allchin.

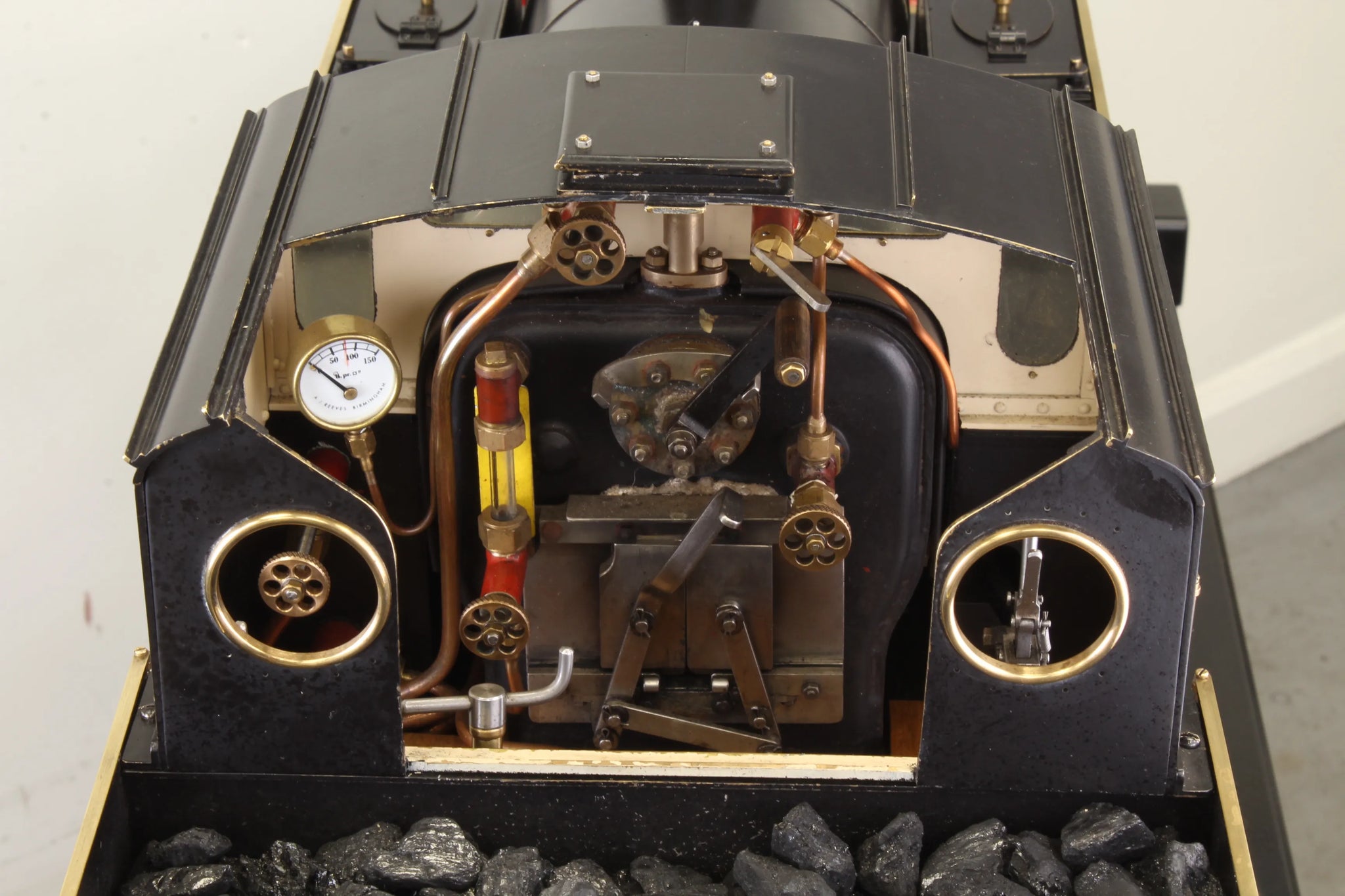

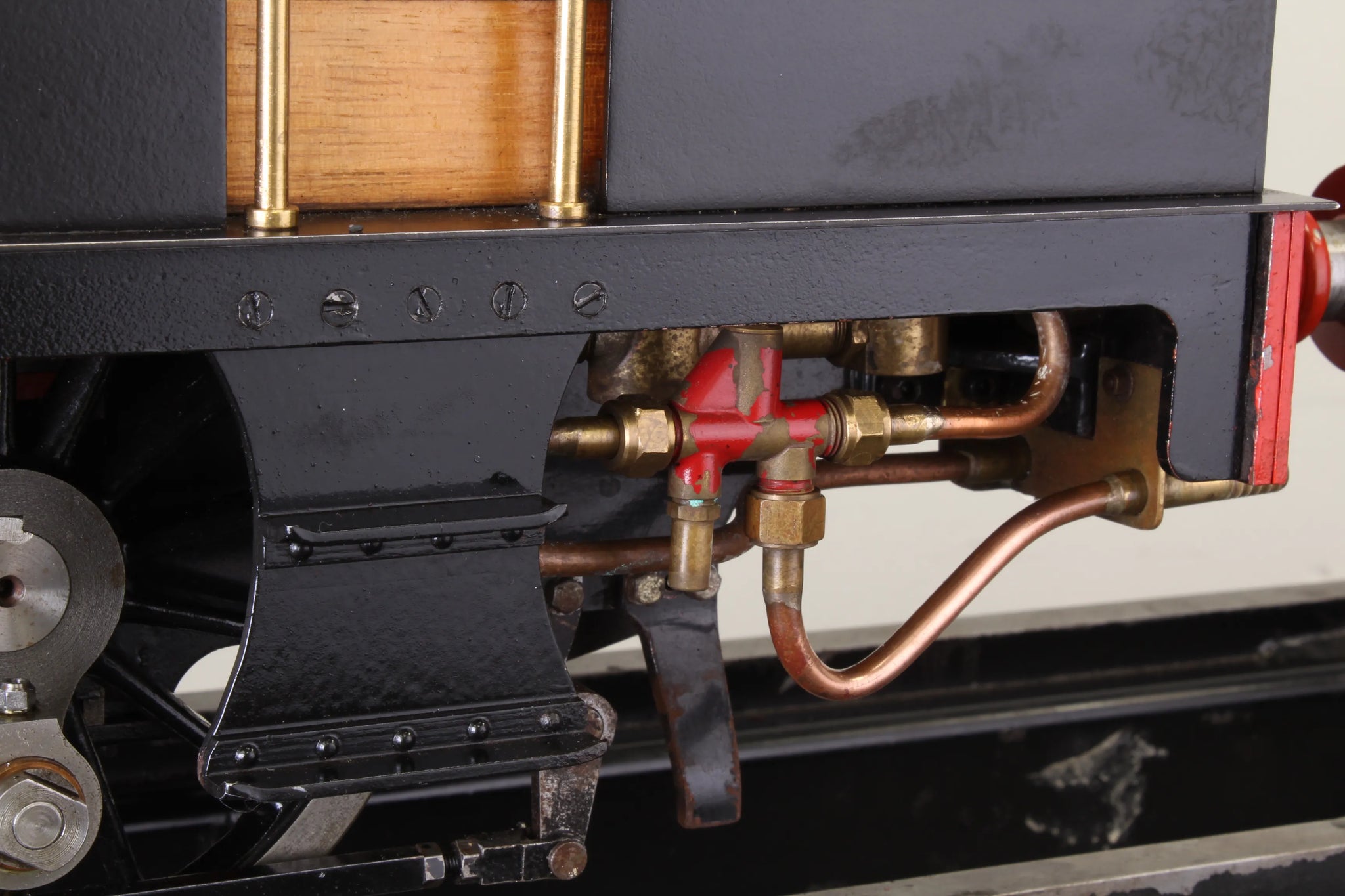

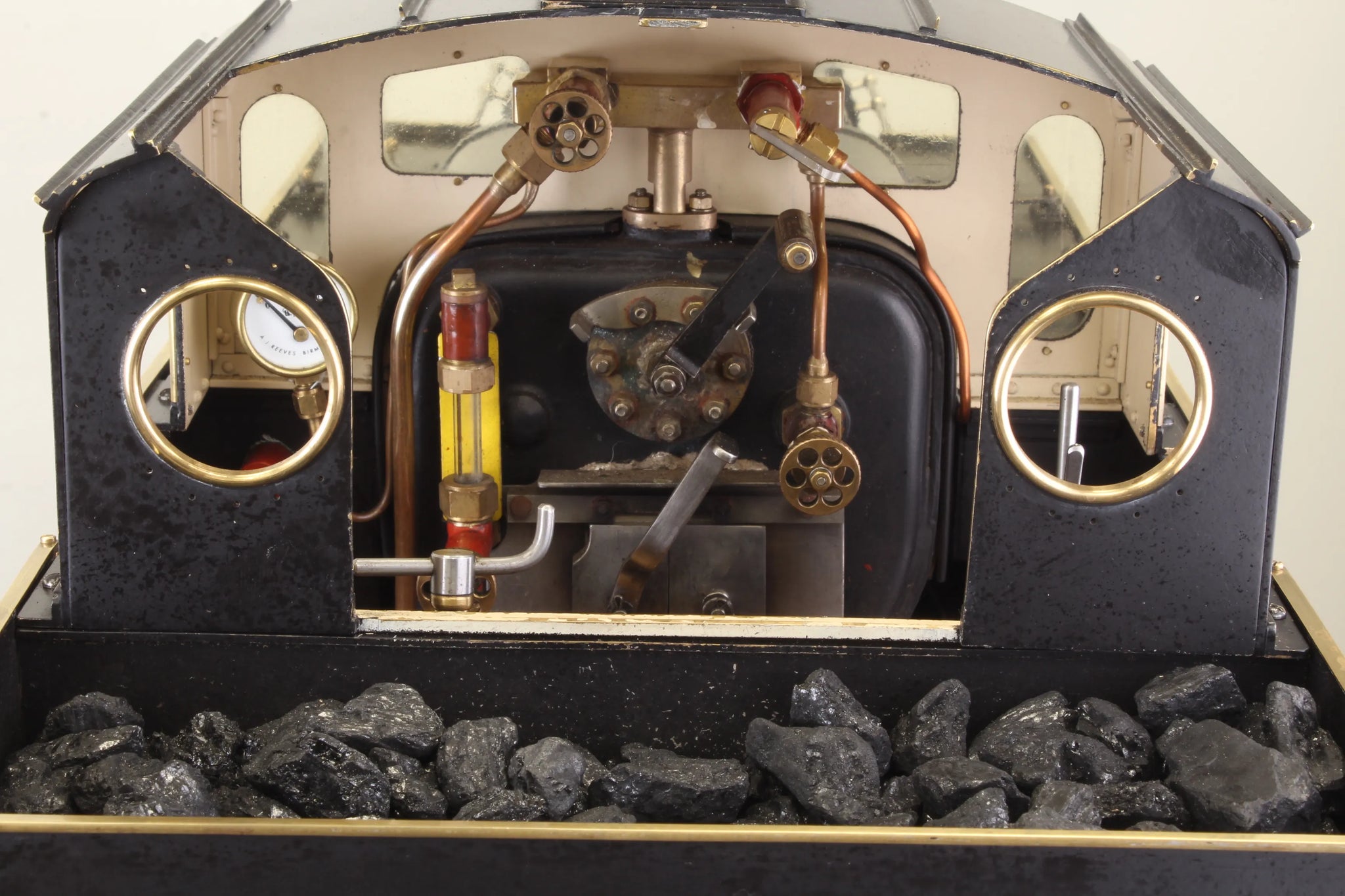

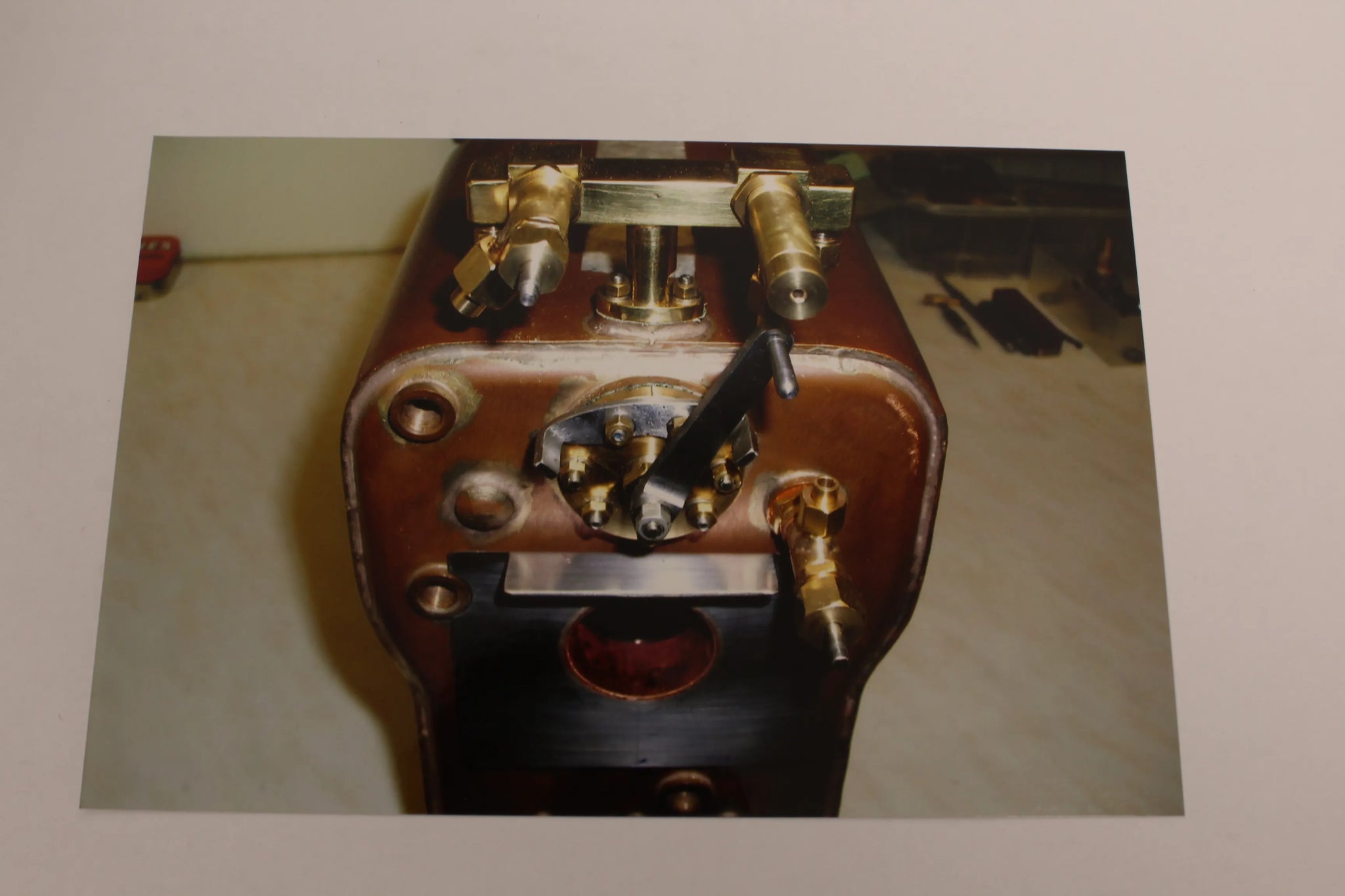

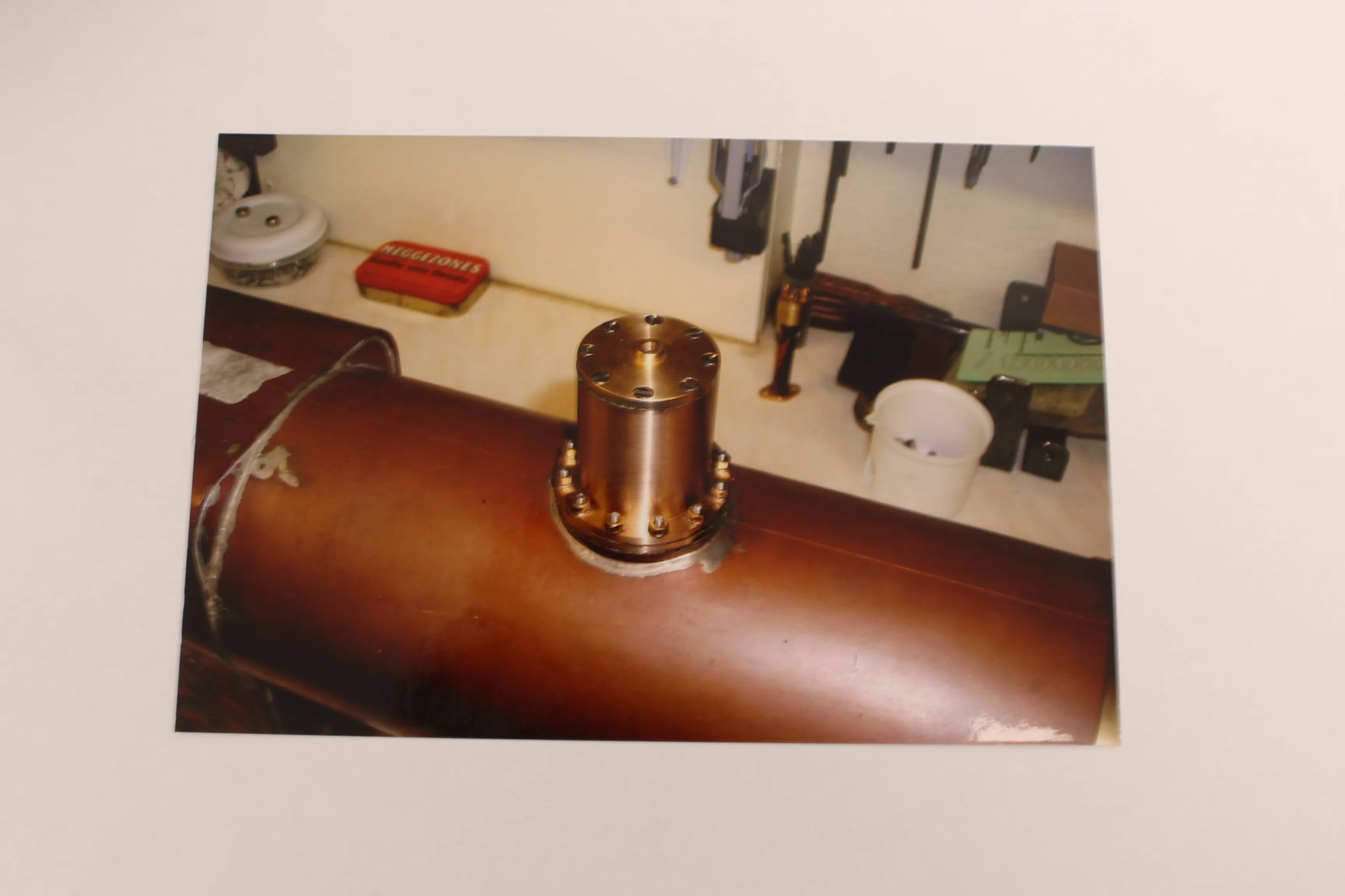

His previous occupation shows through in the well thought out modifications - including a neatly fitted ball valve regulator, quite a feat in a boiler this size - and attention to detail, including filters in all water feeds and taper pinned valve gear.

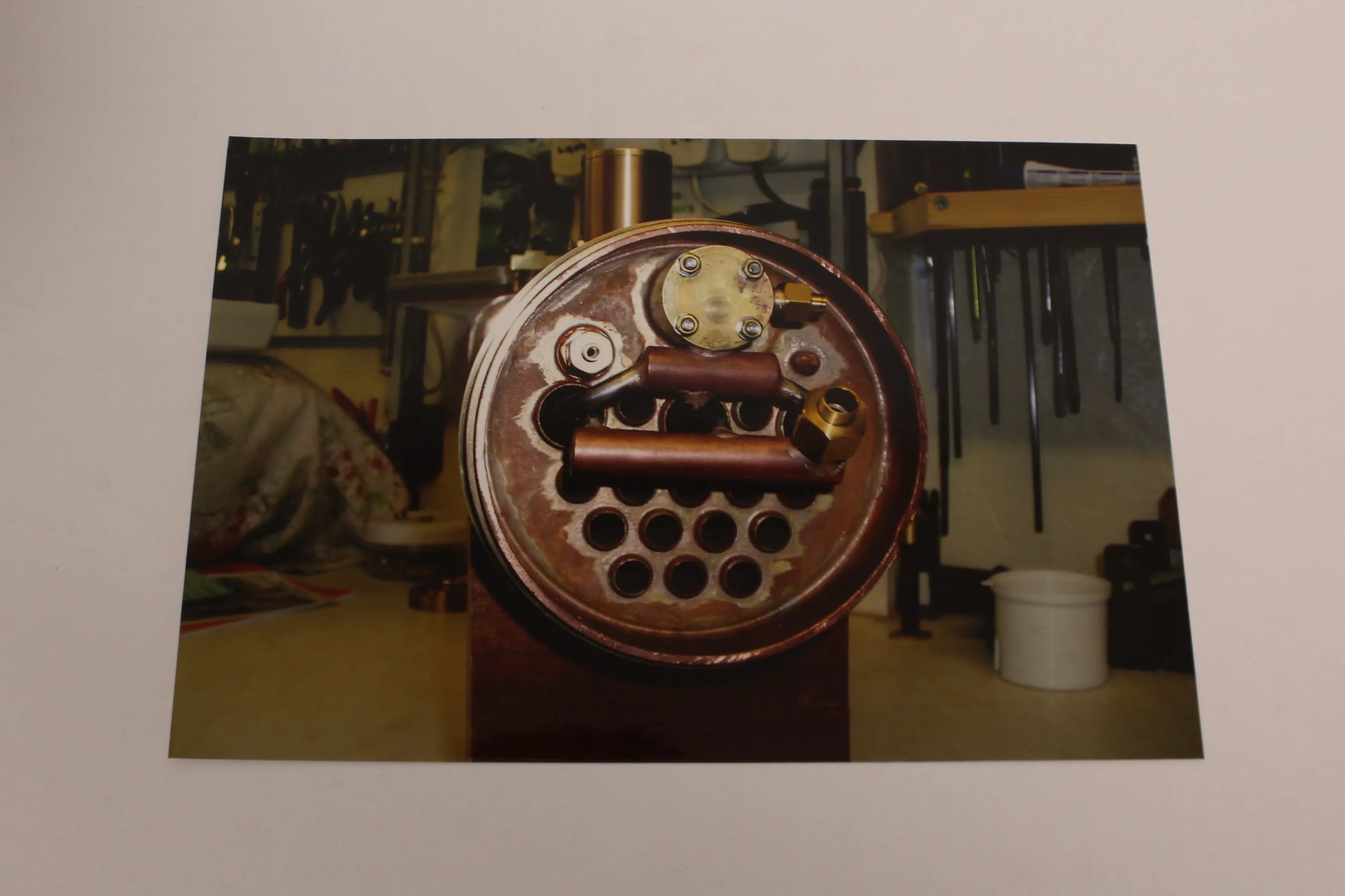

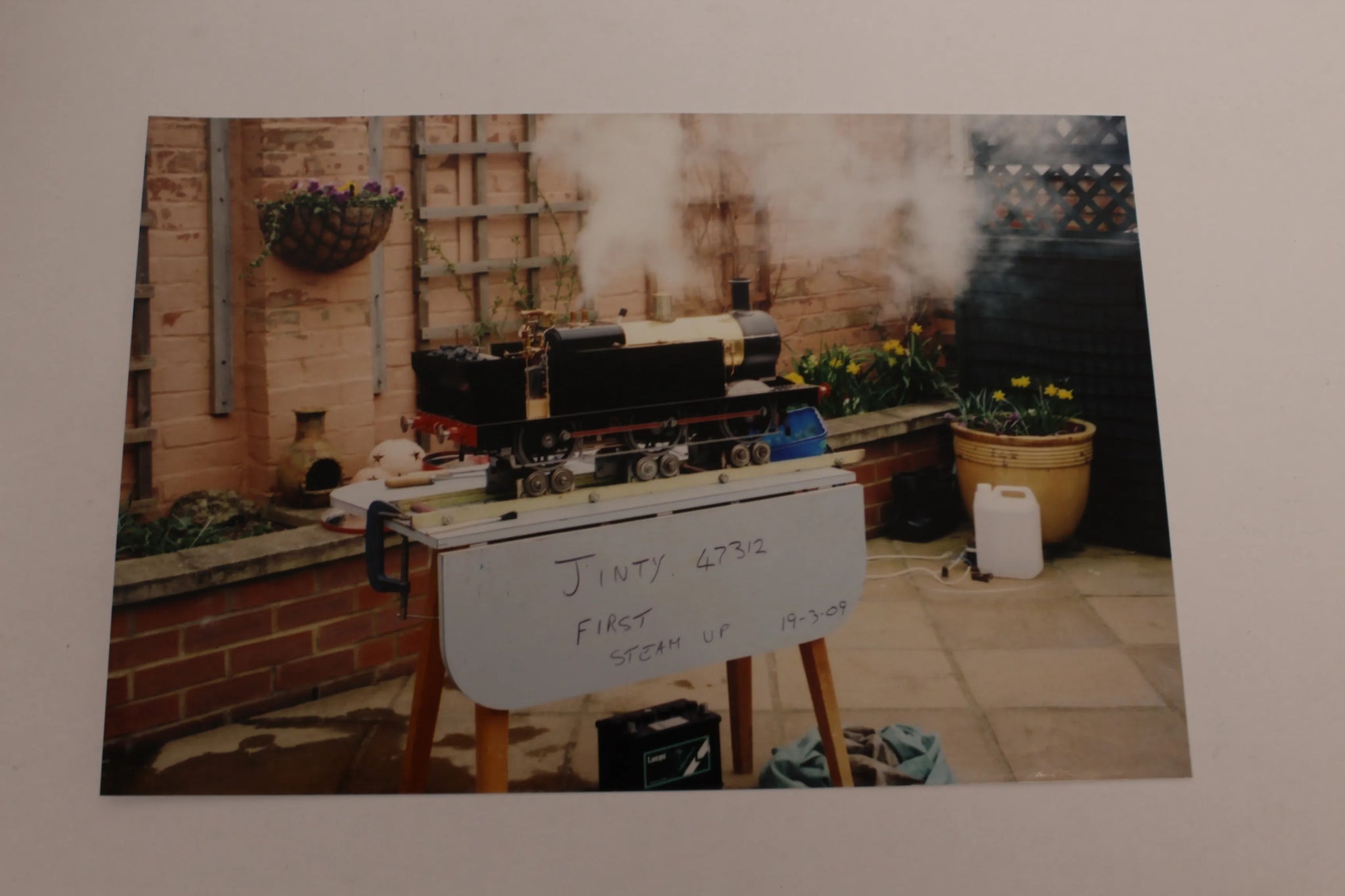

  Commercially built boiler by Chambers was supplied new in 1989, the engine was completed and first steamed in 2009.

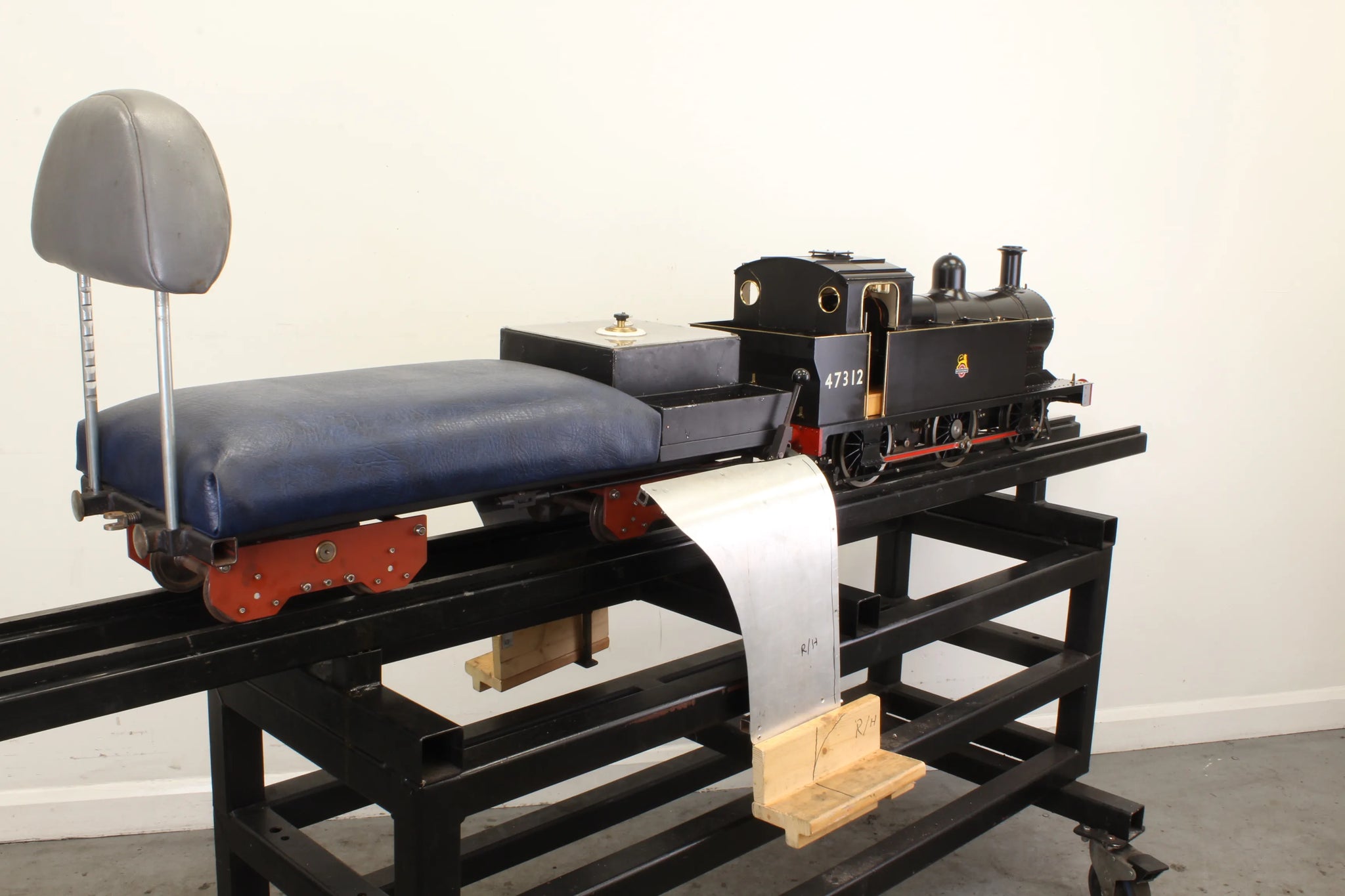

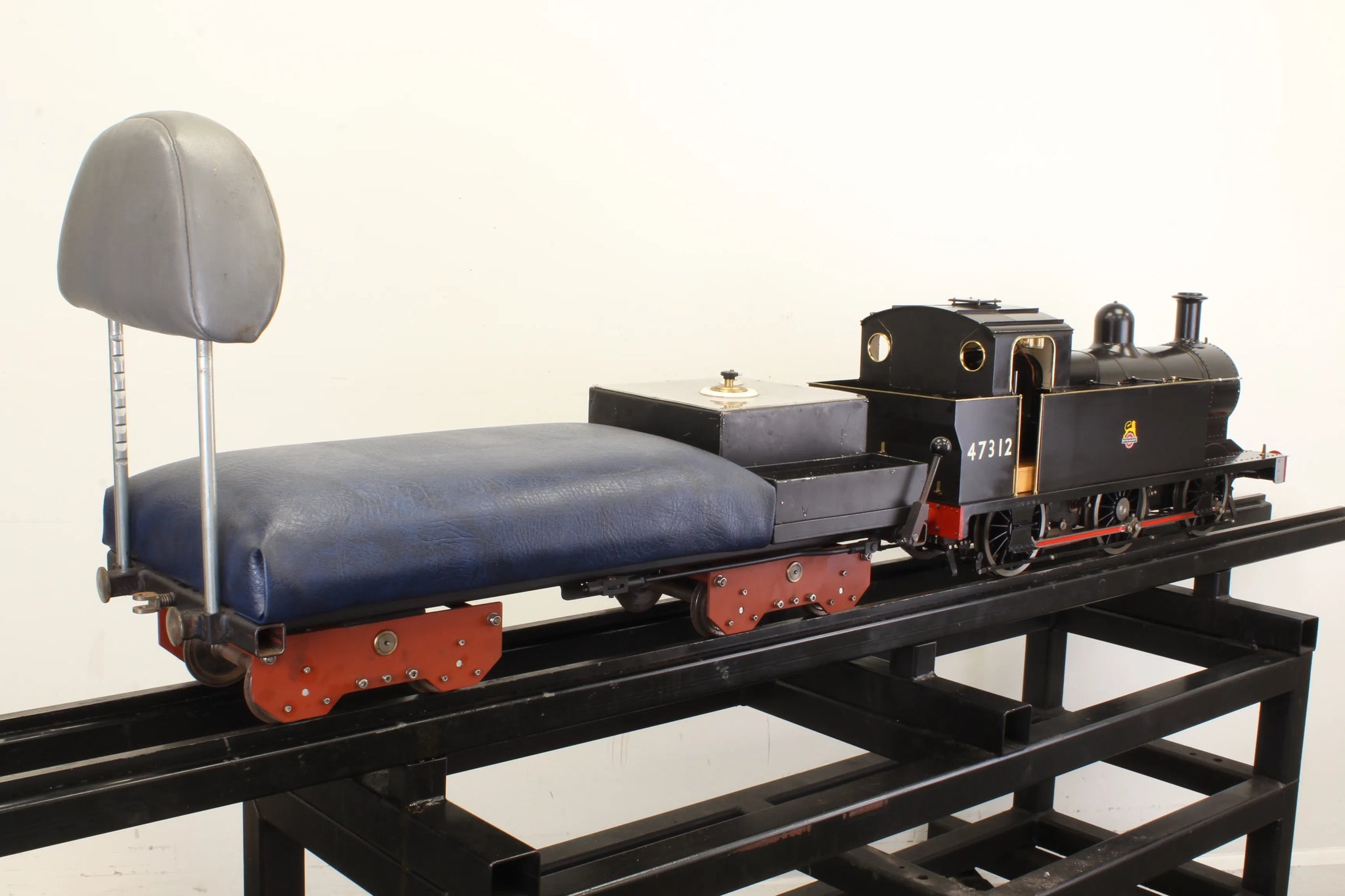

Complete with driving truck including a water tank piped through to the injector.

Technical information

Stock code

8241

Gauge

5 inch

Length/inches

34

Width/inches

10

Height/inches

14

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

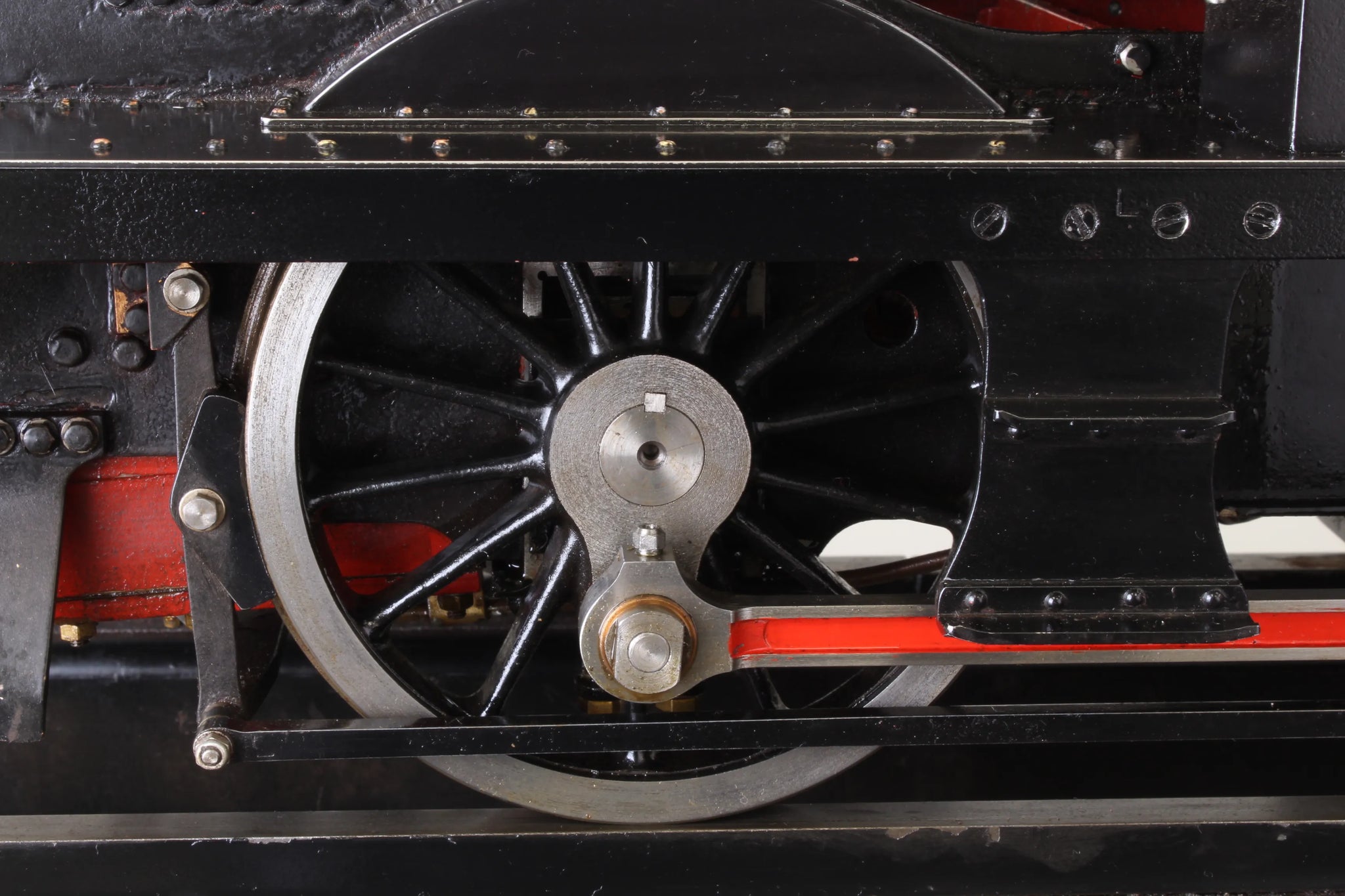

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

R Chambers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - pre-2002

Year built

1989

Boiler number

RC882A

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

radiant

Superheater

3

Pack

Single half pallet

Date out

Nov-18
