Sold

12756

5 inch gauge LMS rebuilt Royal Scot

We sold this to a local customer in 2019. A talented modeller and keen collector of ocean liners and cruise ships, it's been on display in his home museum for the last six years.

With an ever-expanding collection - bordering on an armada - the locomotive has come back to us. Photographs opposite were taken in March 2025, words below written in 2019.

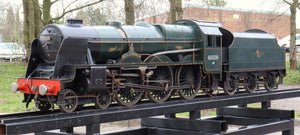

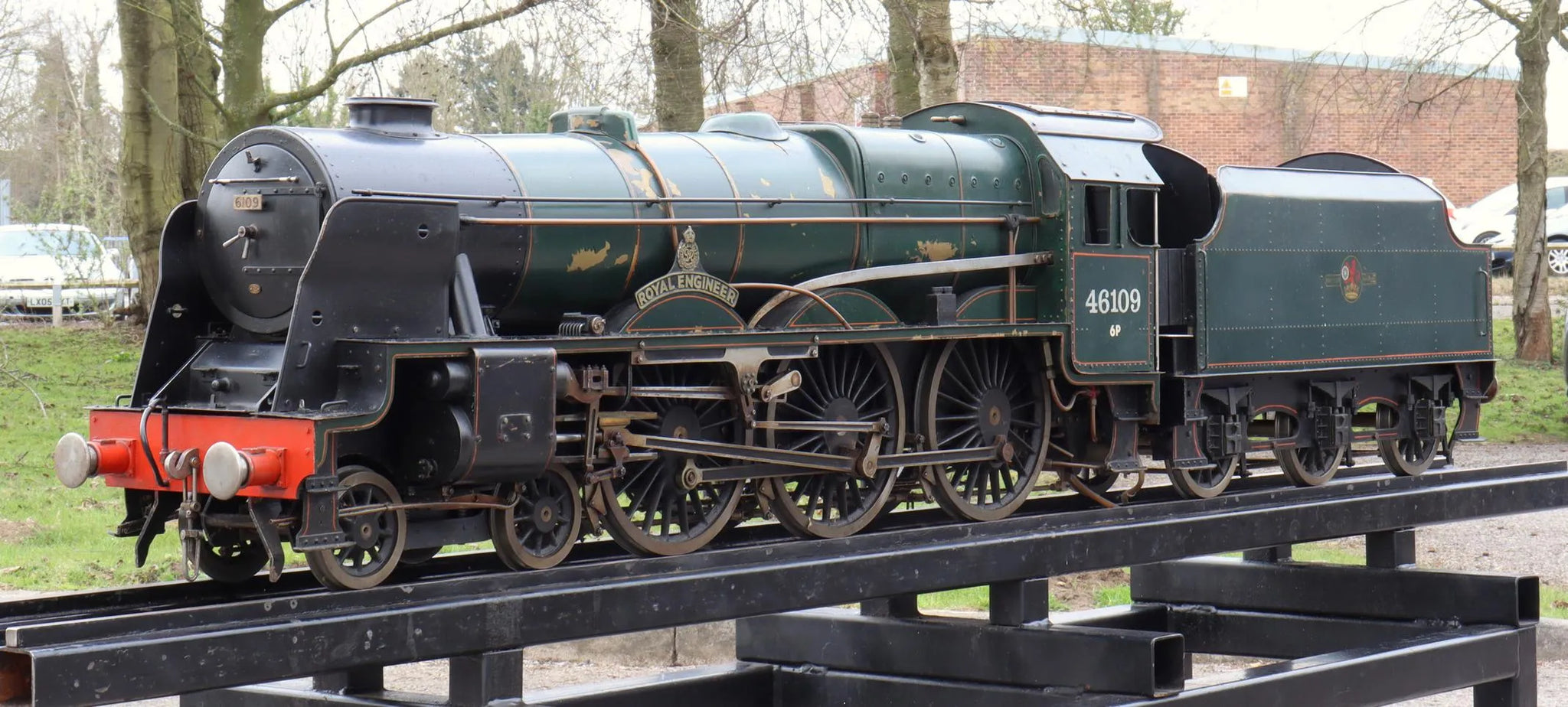

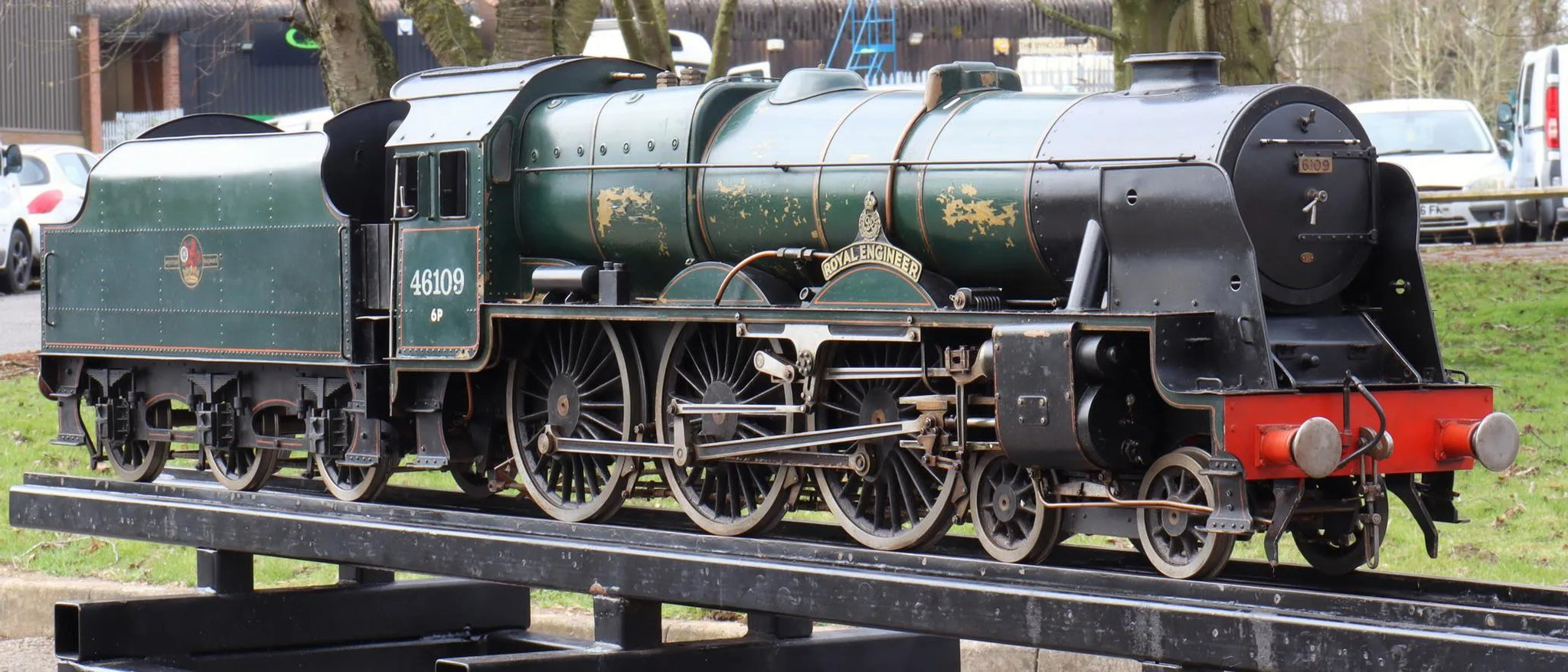

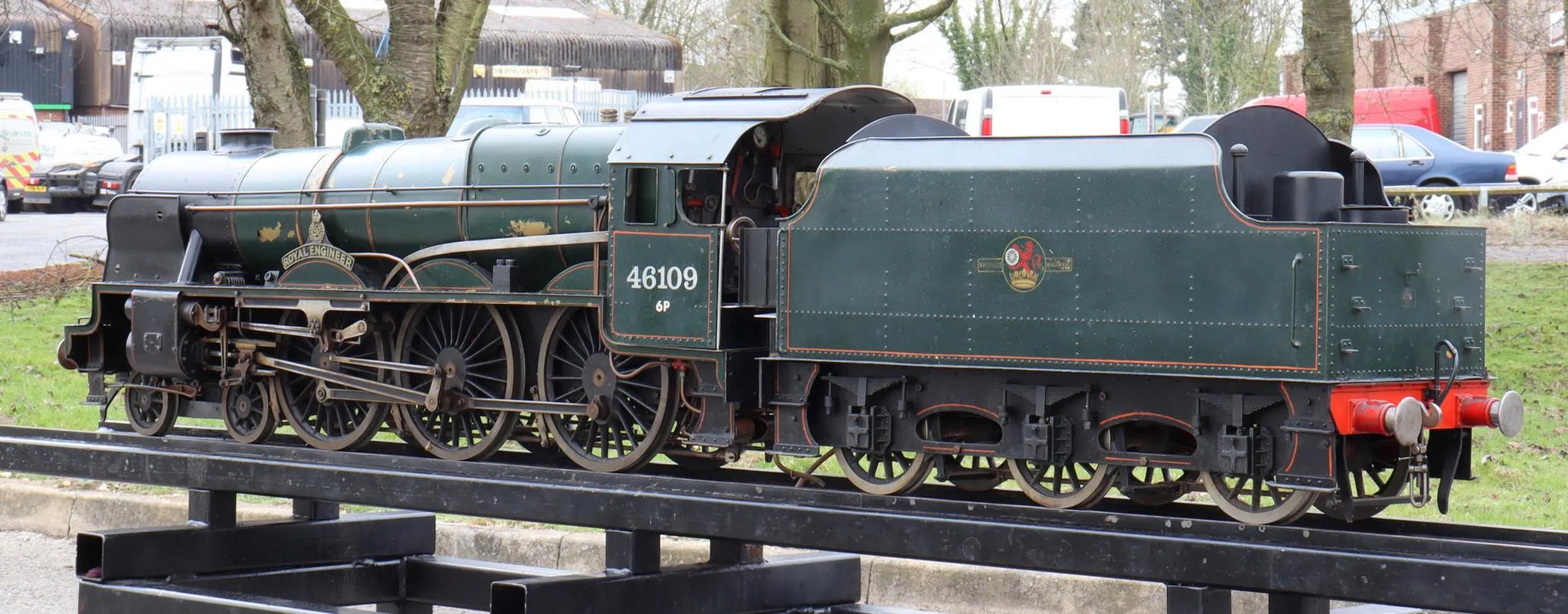

A 5 inch gauge rebuilt Royal Scot, turned out as 46109 "Royal Engineer".

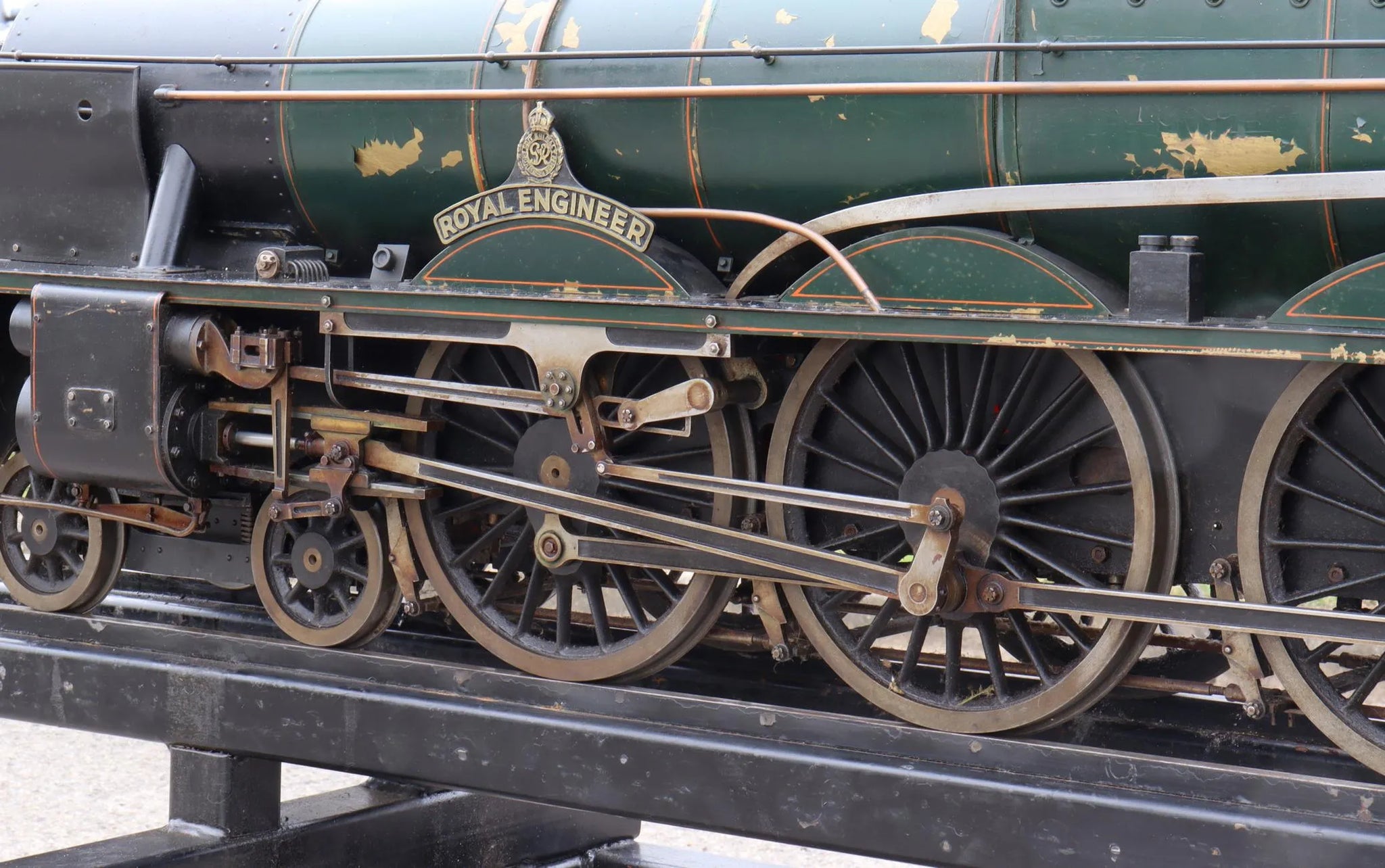

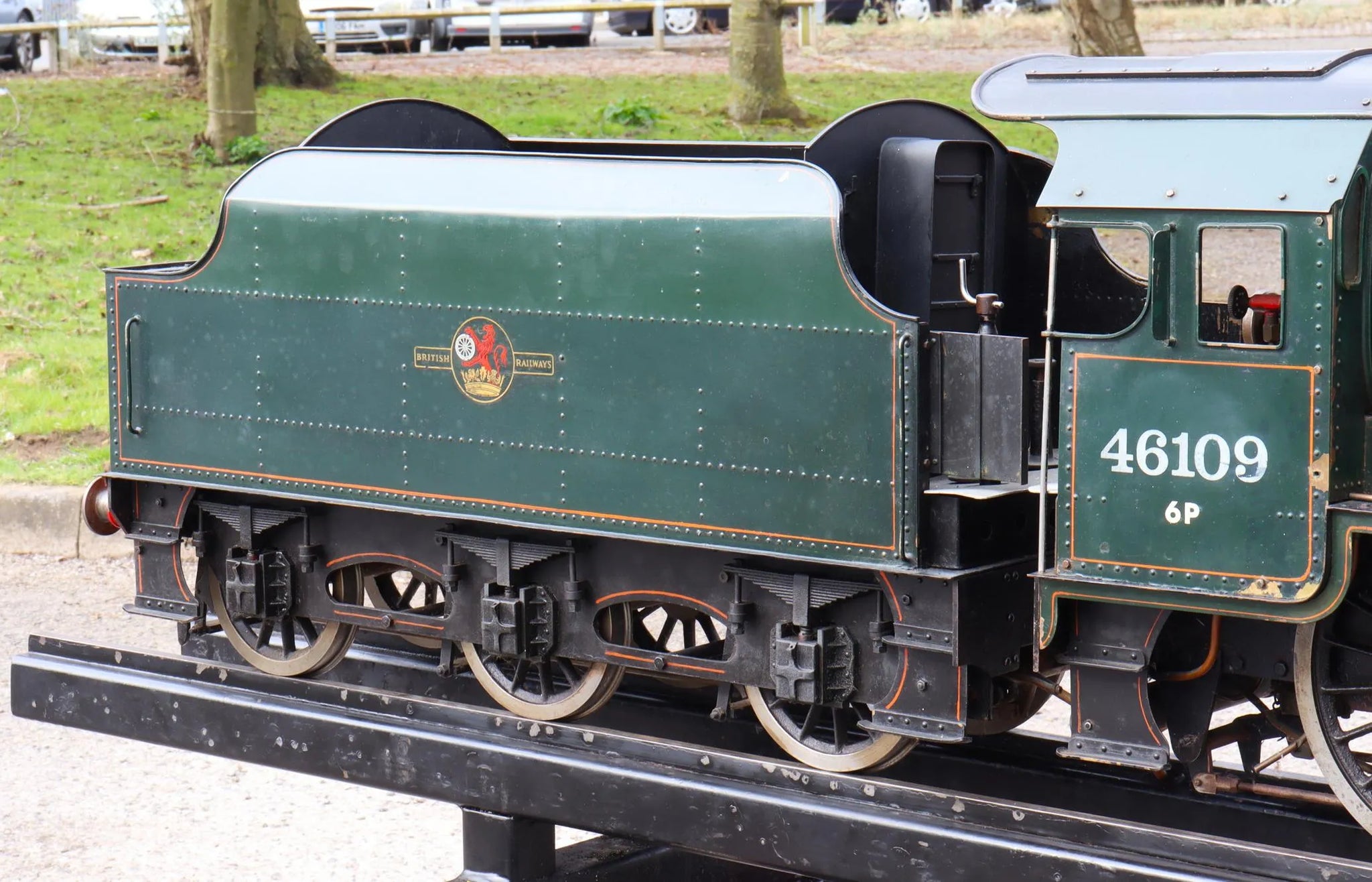

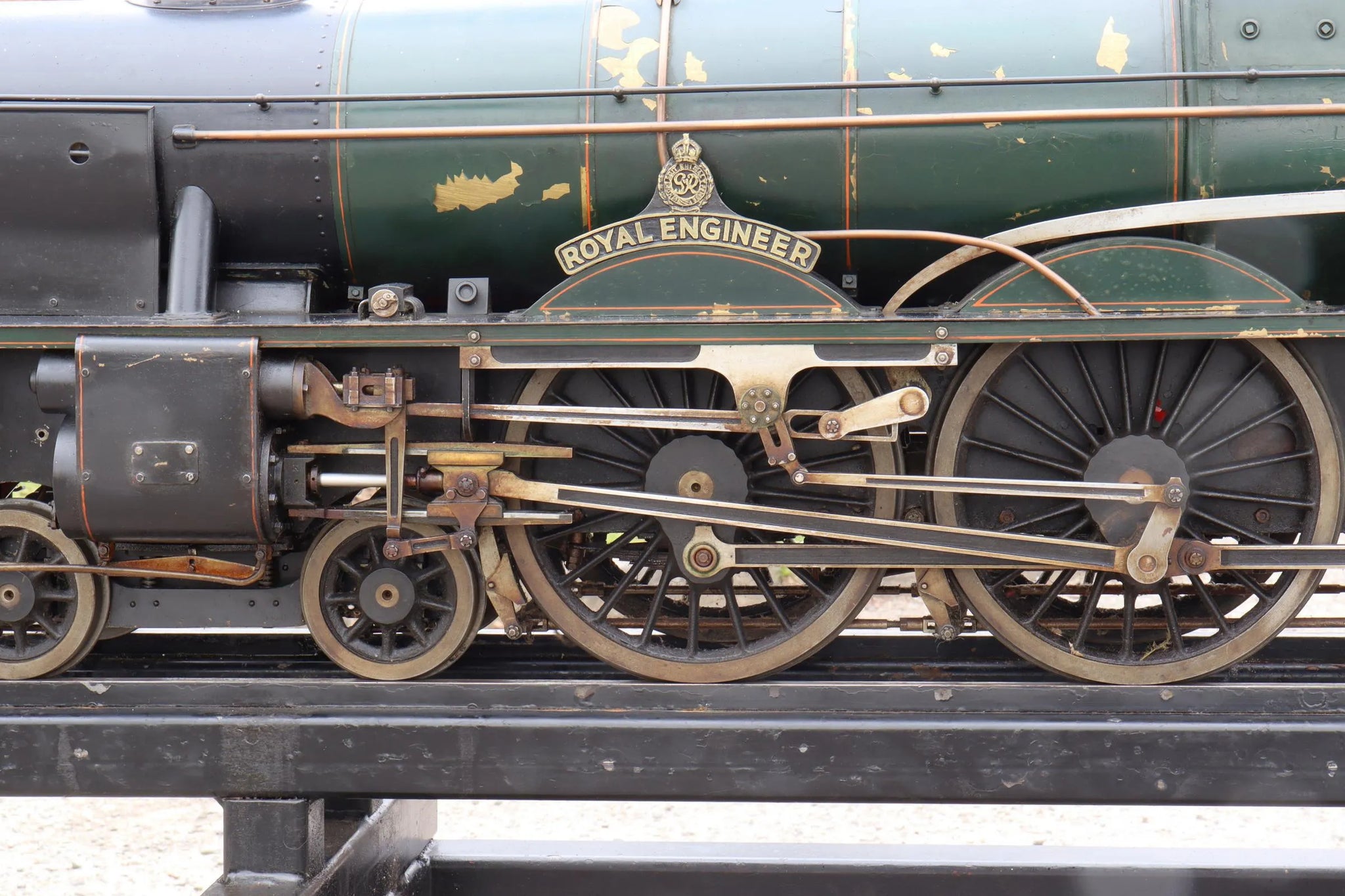

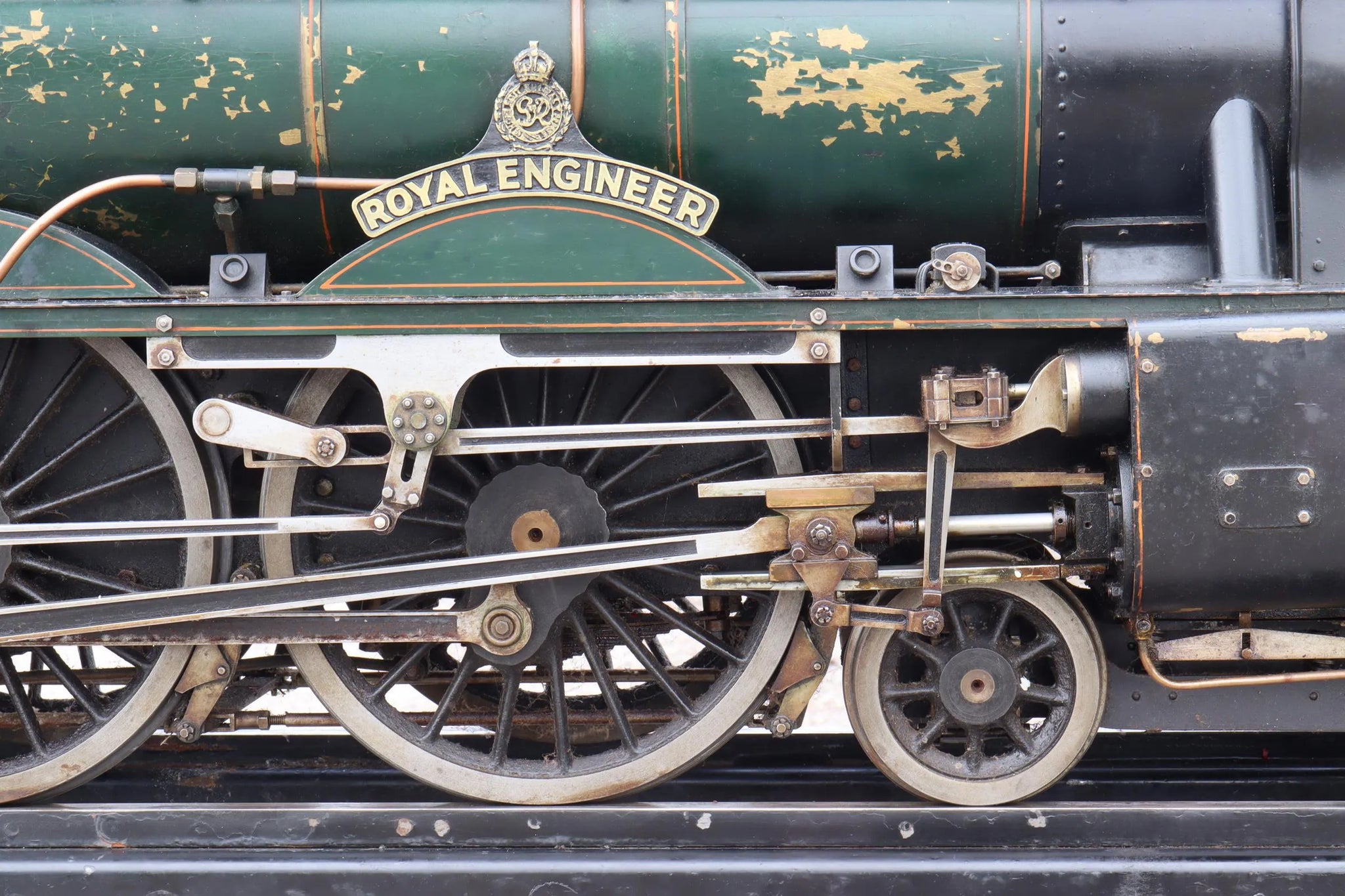

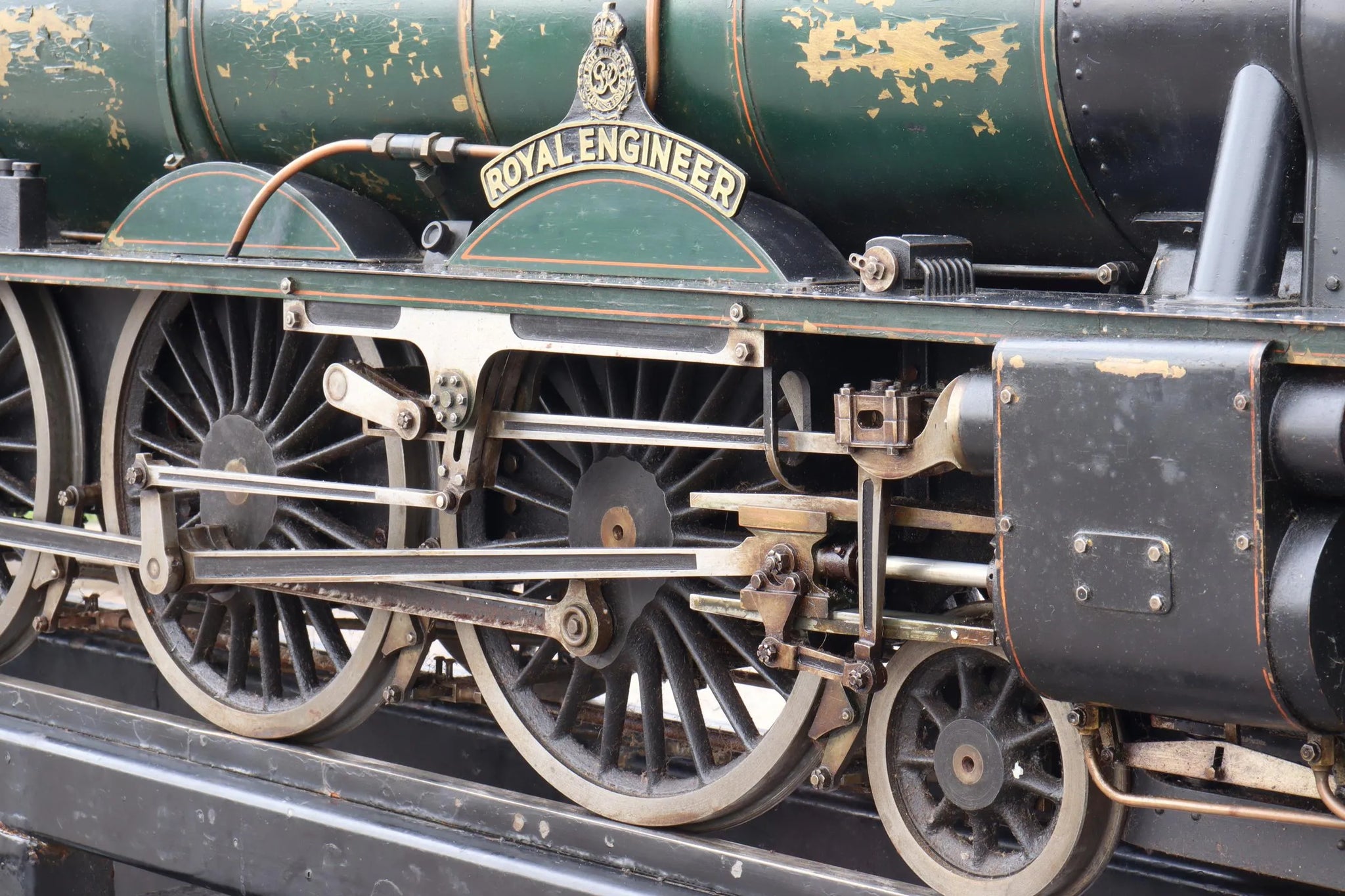

Built as a two cylinder engine, the standard of machining is good, chassis is well executed and nicely detailed including dummy Wakefield lubricators, working leaf springs on the driving wheels and tender and castellated nuts fitted throughout the motionwork.

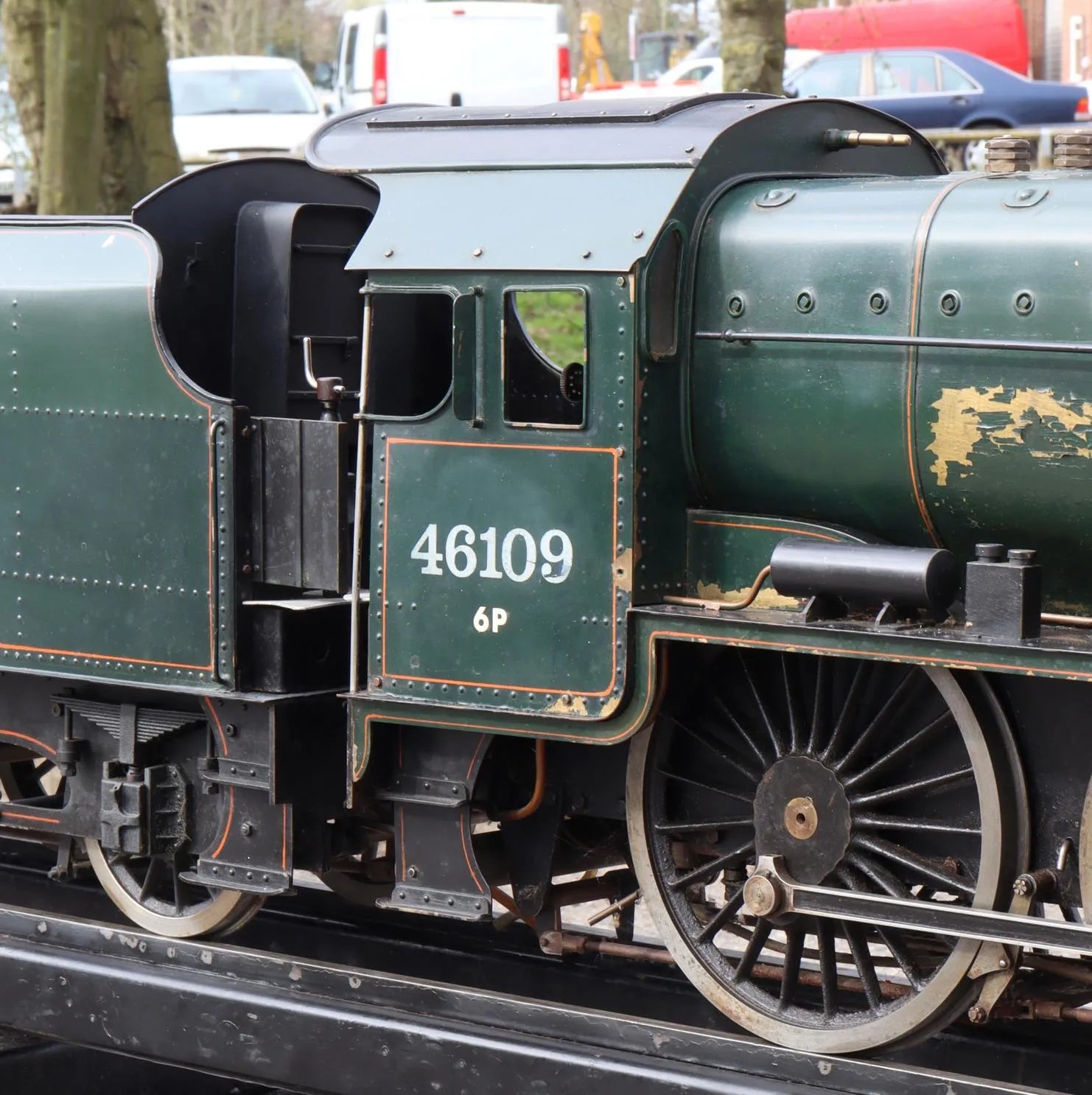

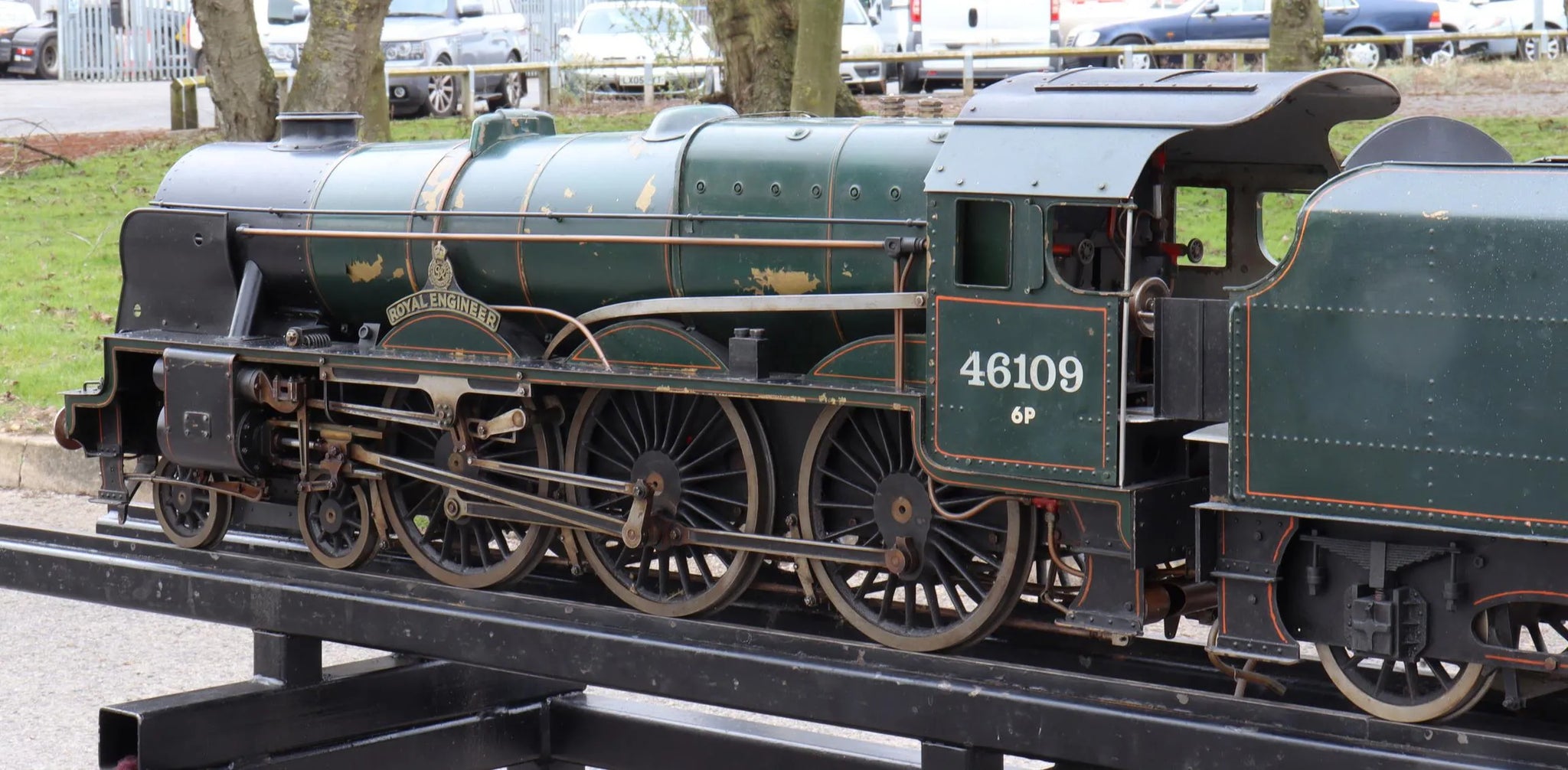

Paintwork is poor, the green has been applied over brass cladding sheets without etch primer, so has taken to falling off in large flakes.

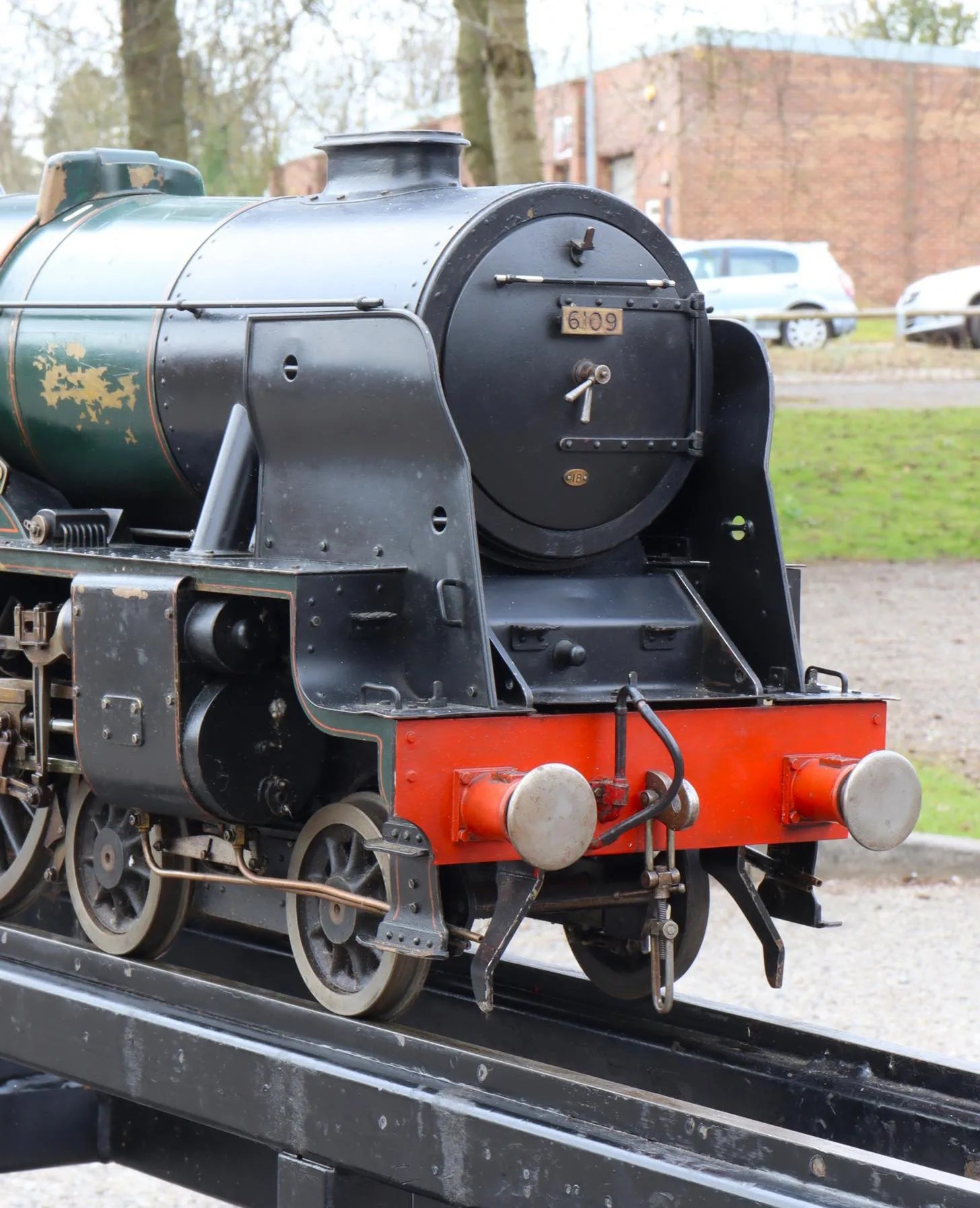

The engine came to us without paperwork - although the firebox and smokebox evidence past use, it hasn't been steamed for some time. On visual inspection the boiler is a gauge thinner than we'd expect for something of this size - a pity, as it's otherwise well made.

Technical information

Stock code

12756

Length/inches

43 + 28

Width/inches

9

Height/inches

14.5

Weight/Kg

117

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

piston

Valve gear

Walschaerts

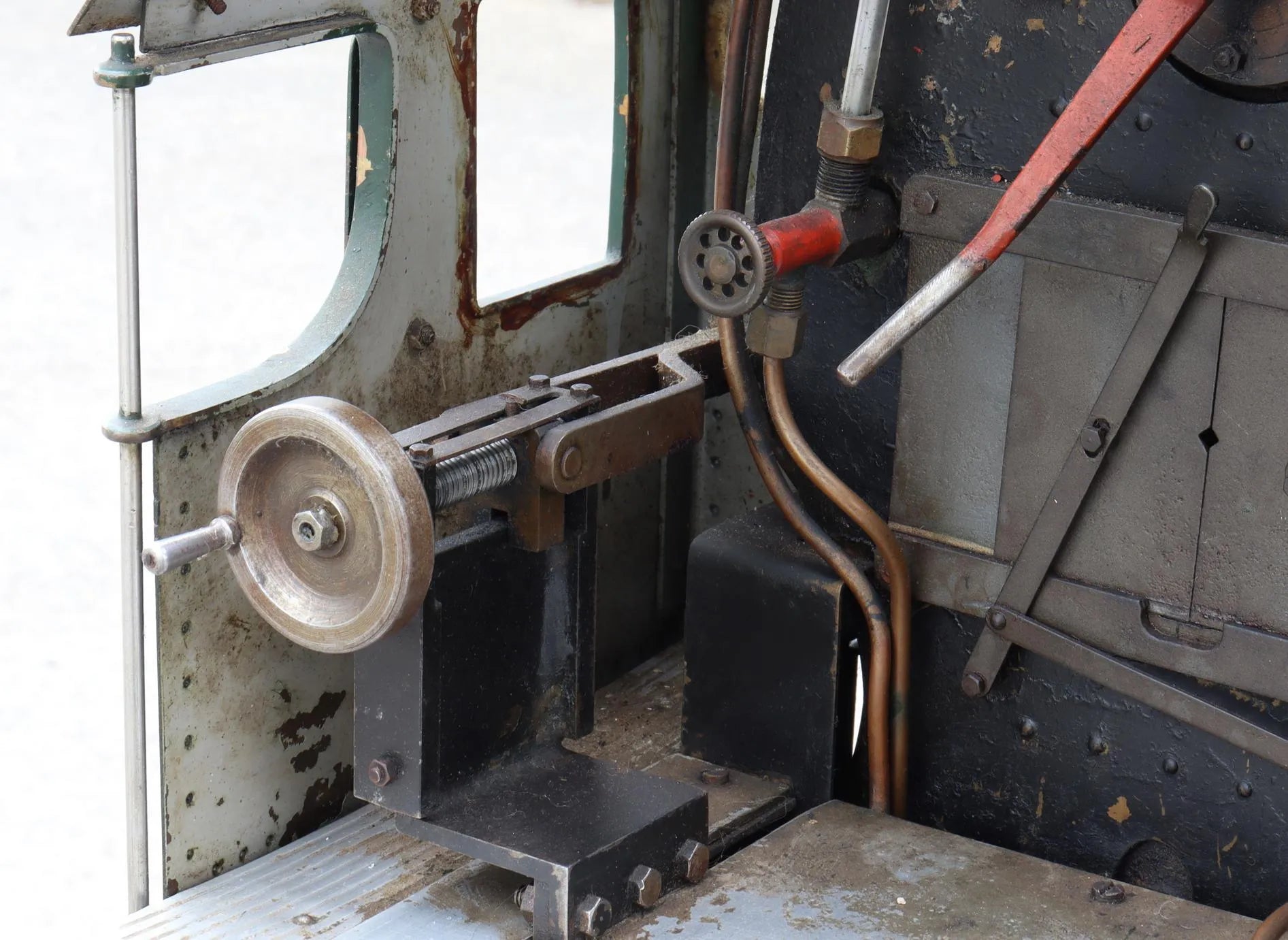

Reverser type

screw

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

2 x axle

Injector

1

Superheater type

flue tube

Superheater

3

Date out

Jan-26
