5 inch gauge LMS "Royal Scot" 4-6-0 with commercial boiler

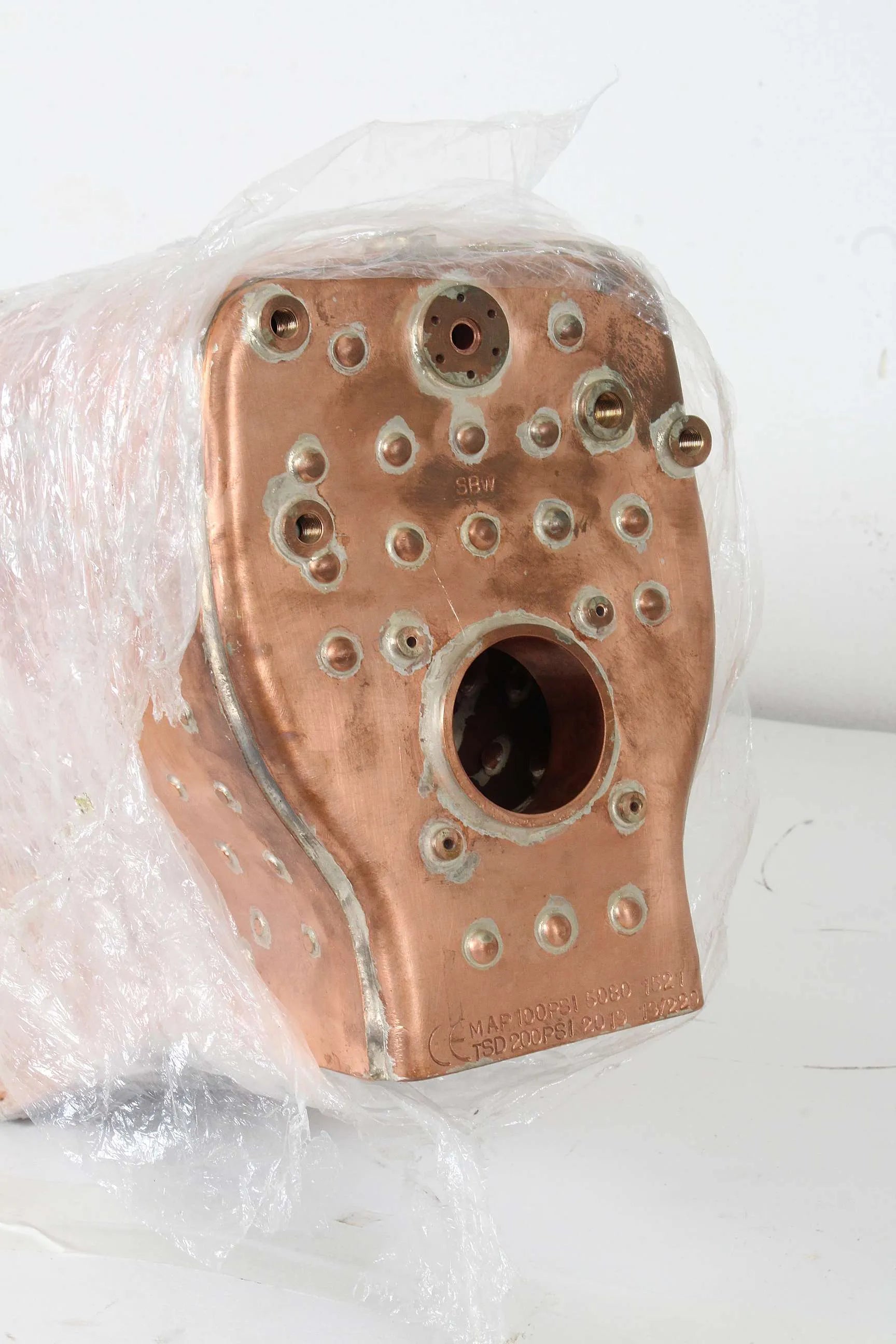

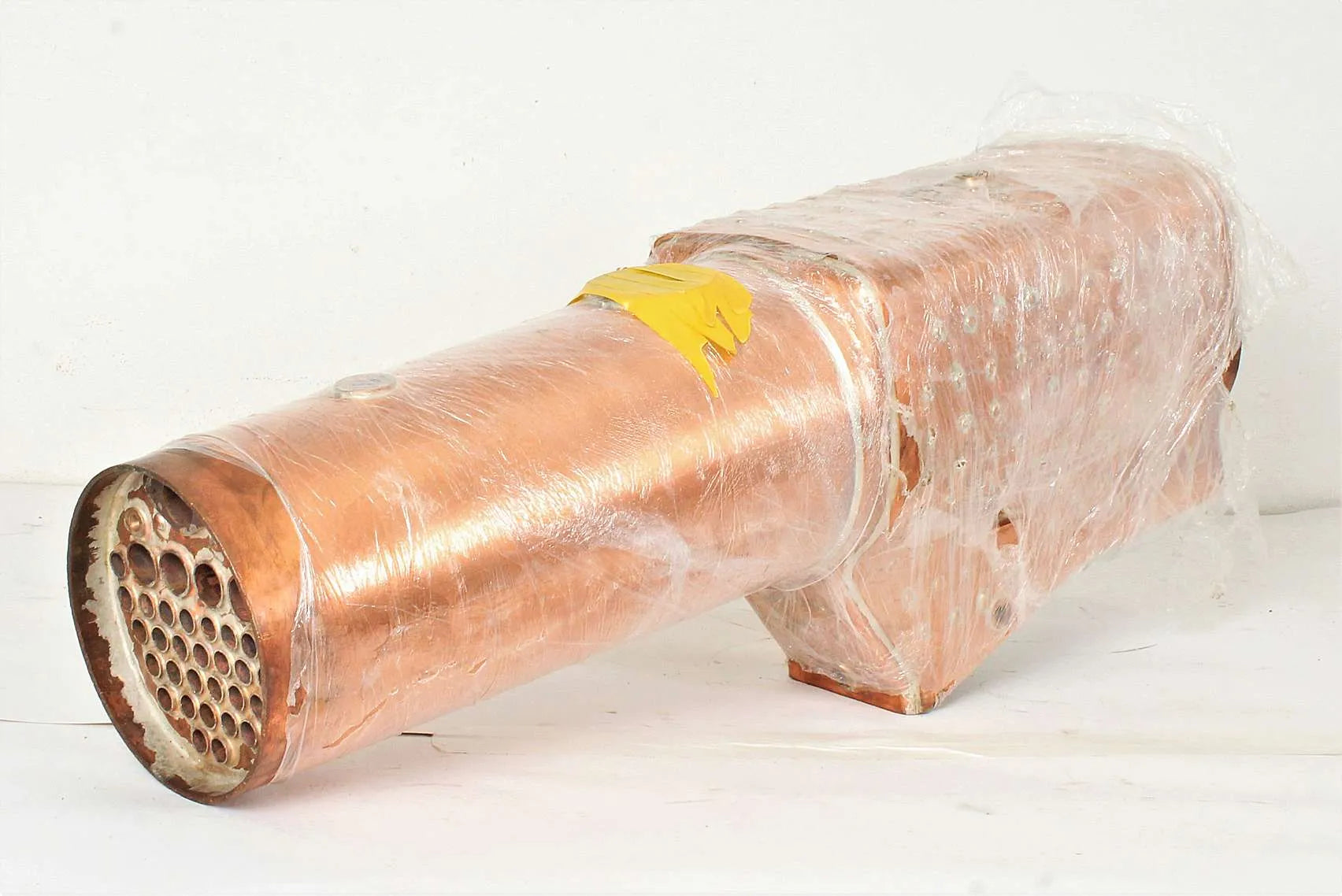

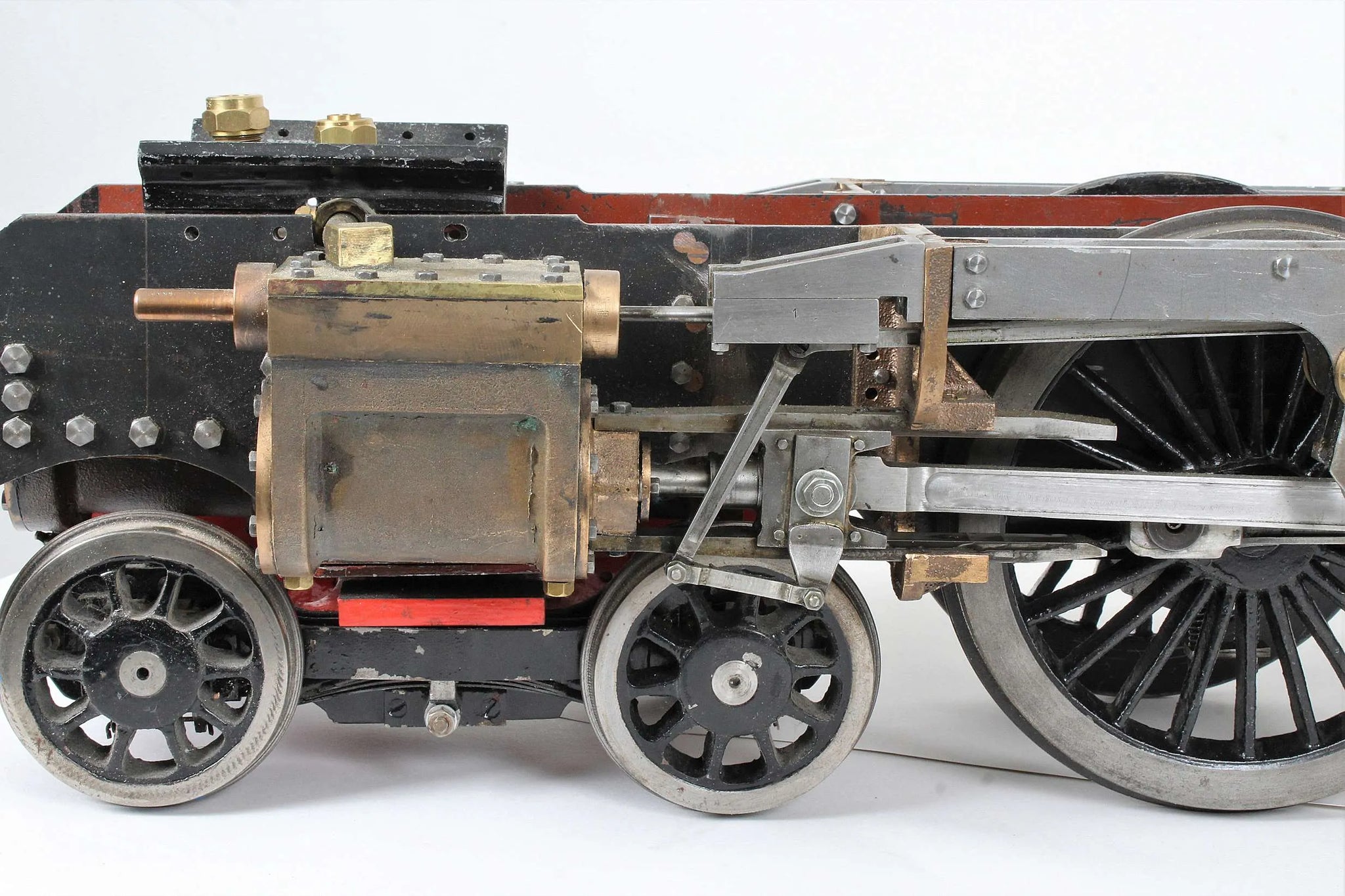

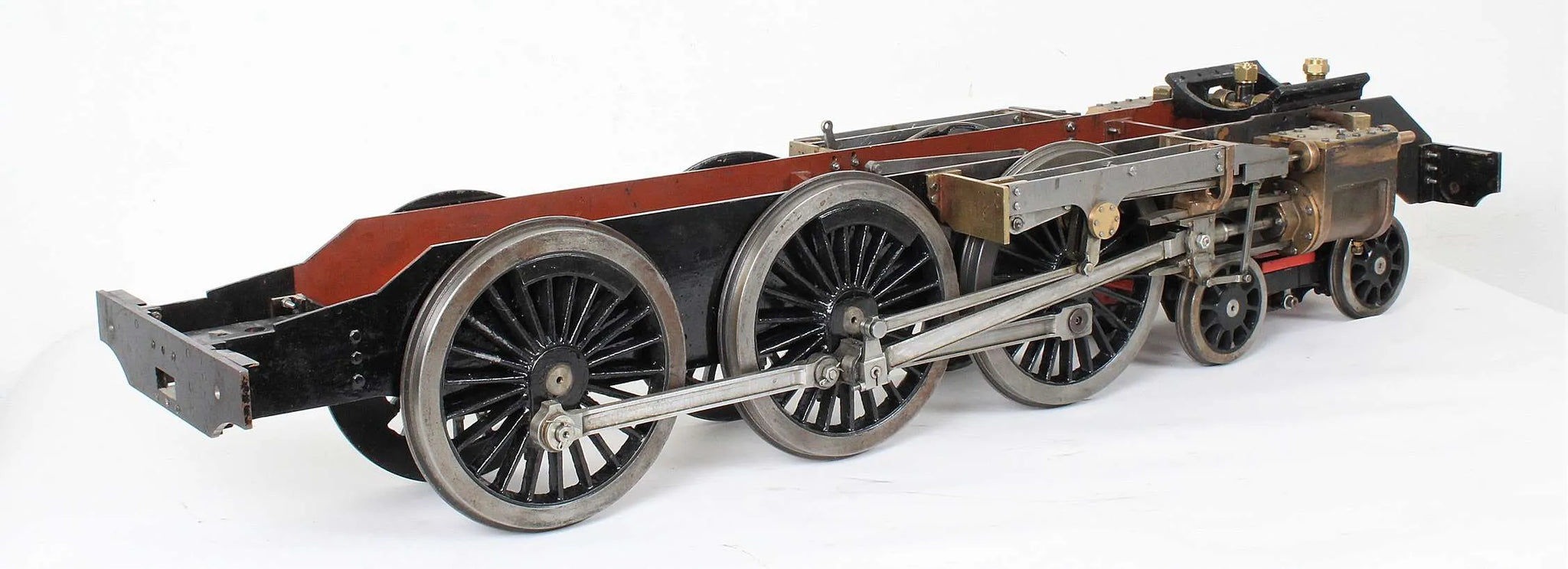

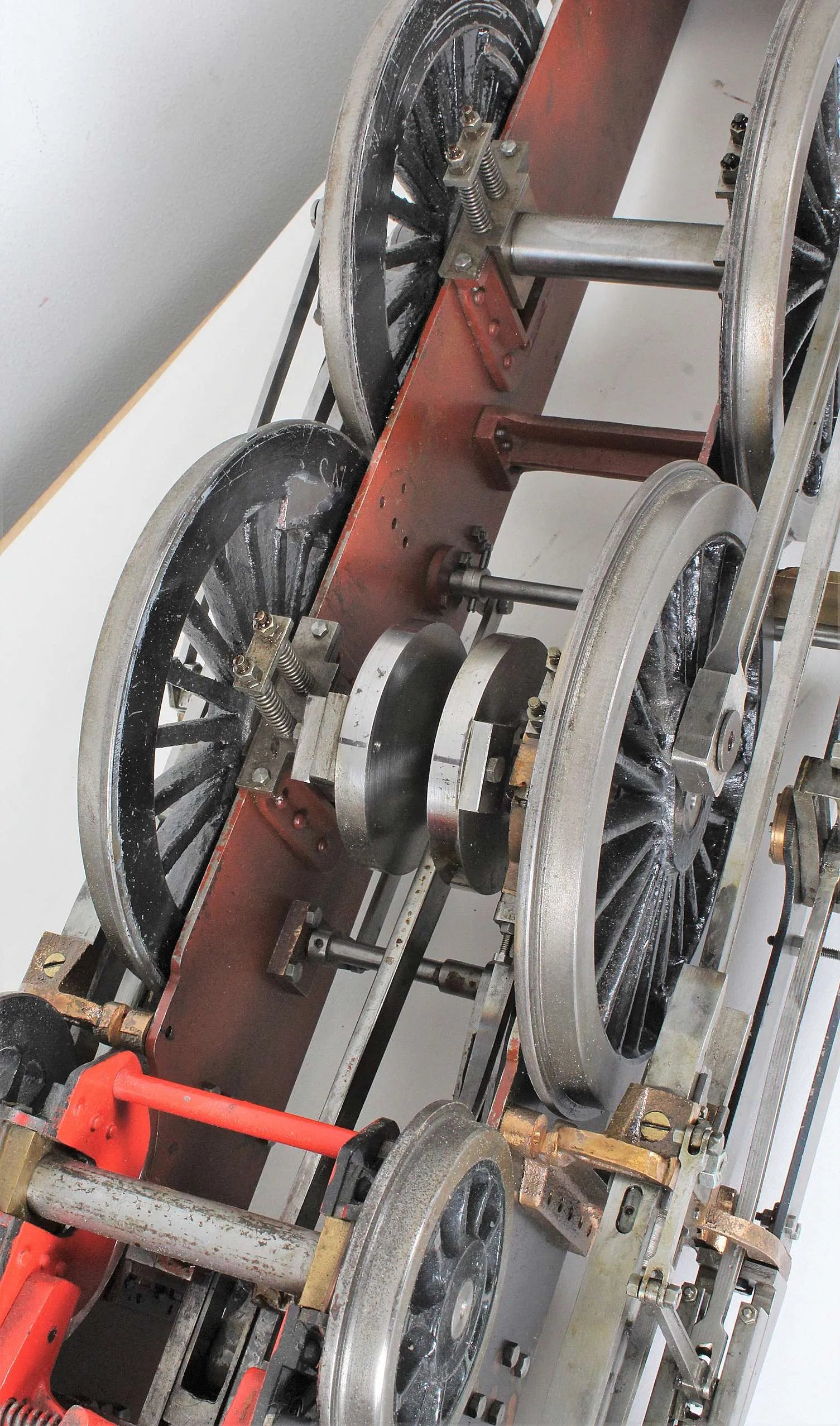

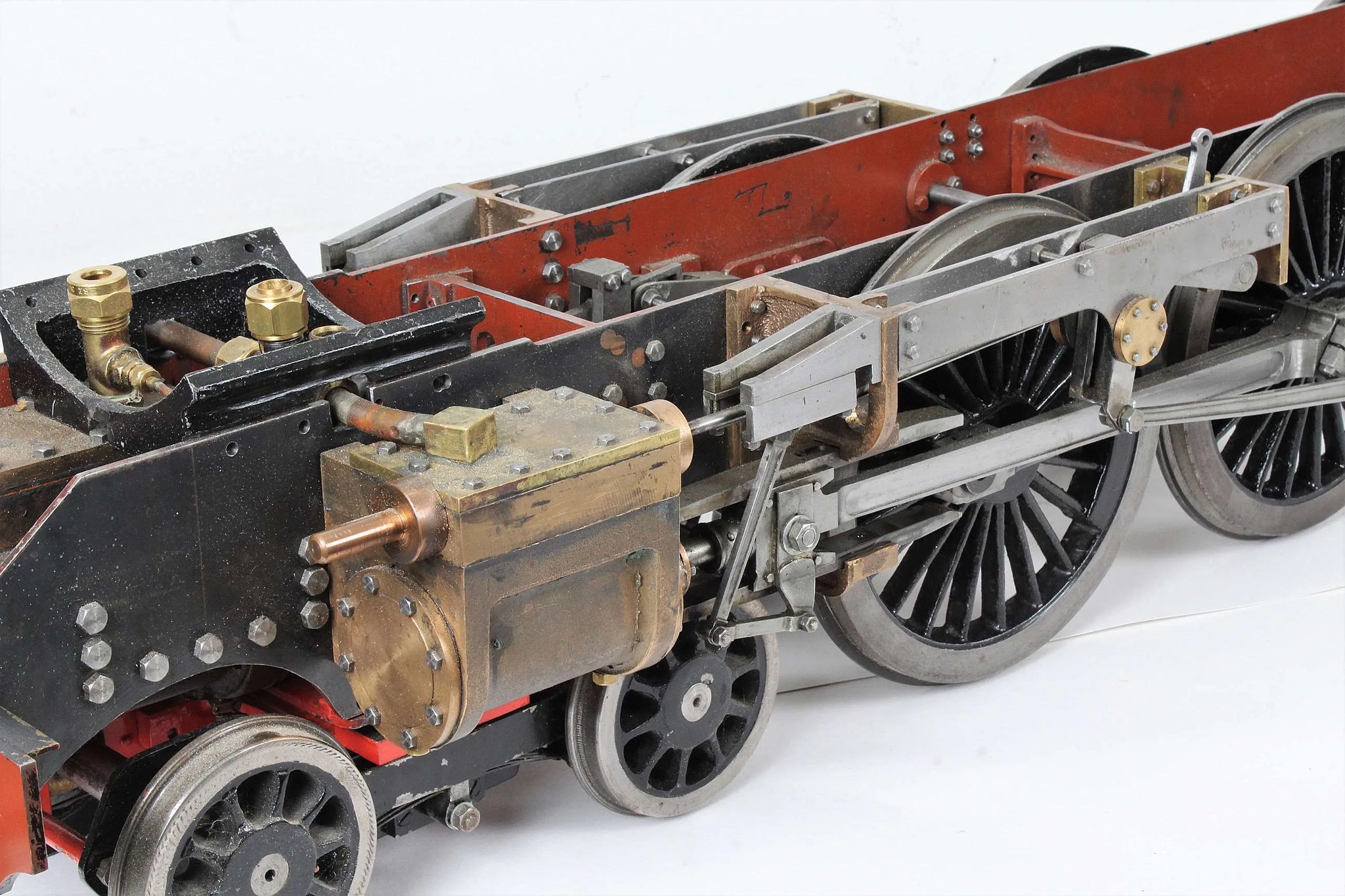

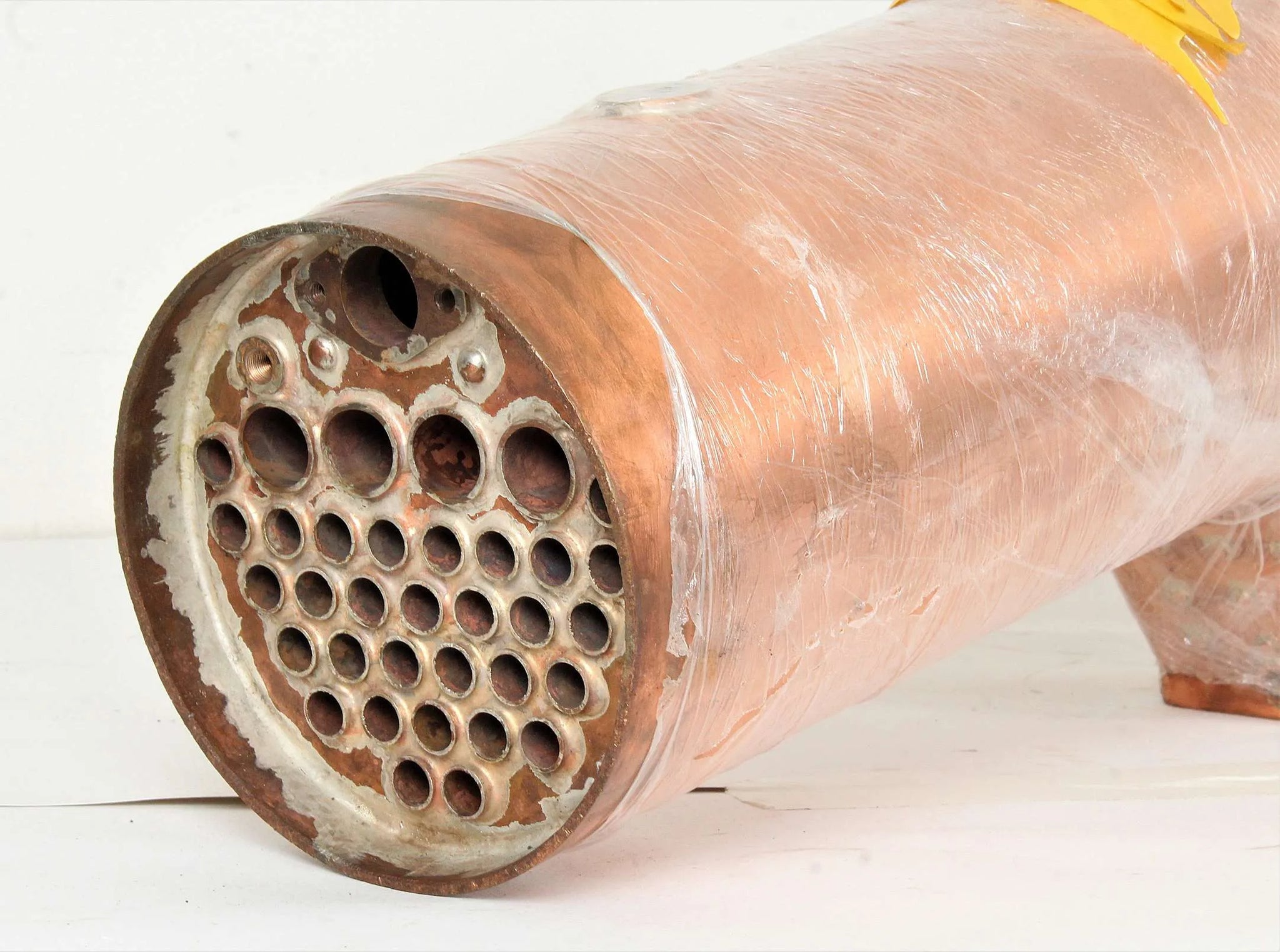

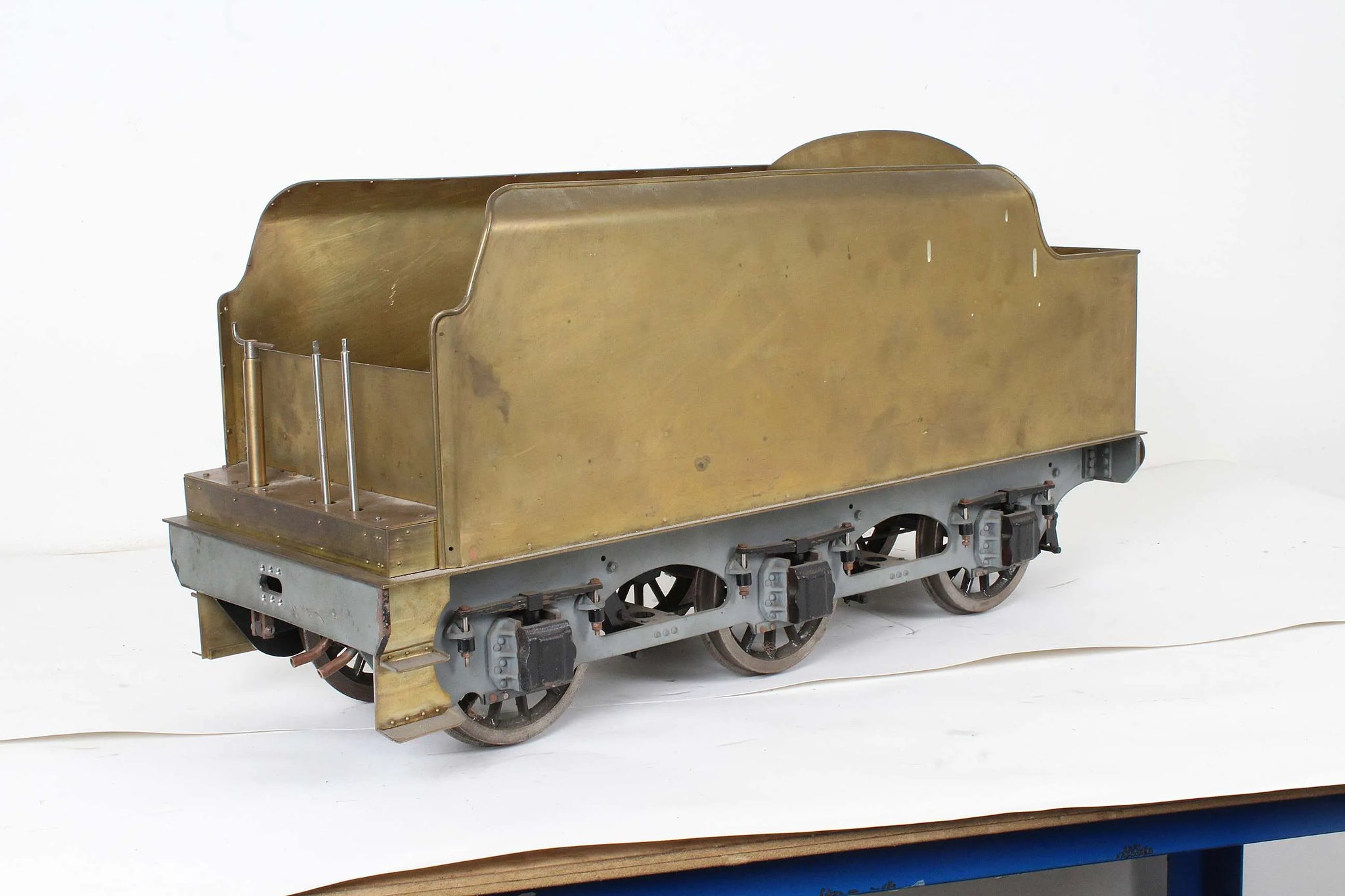

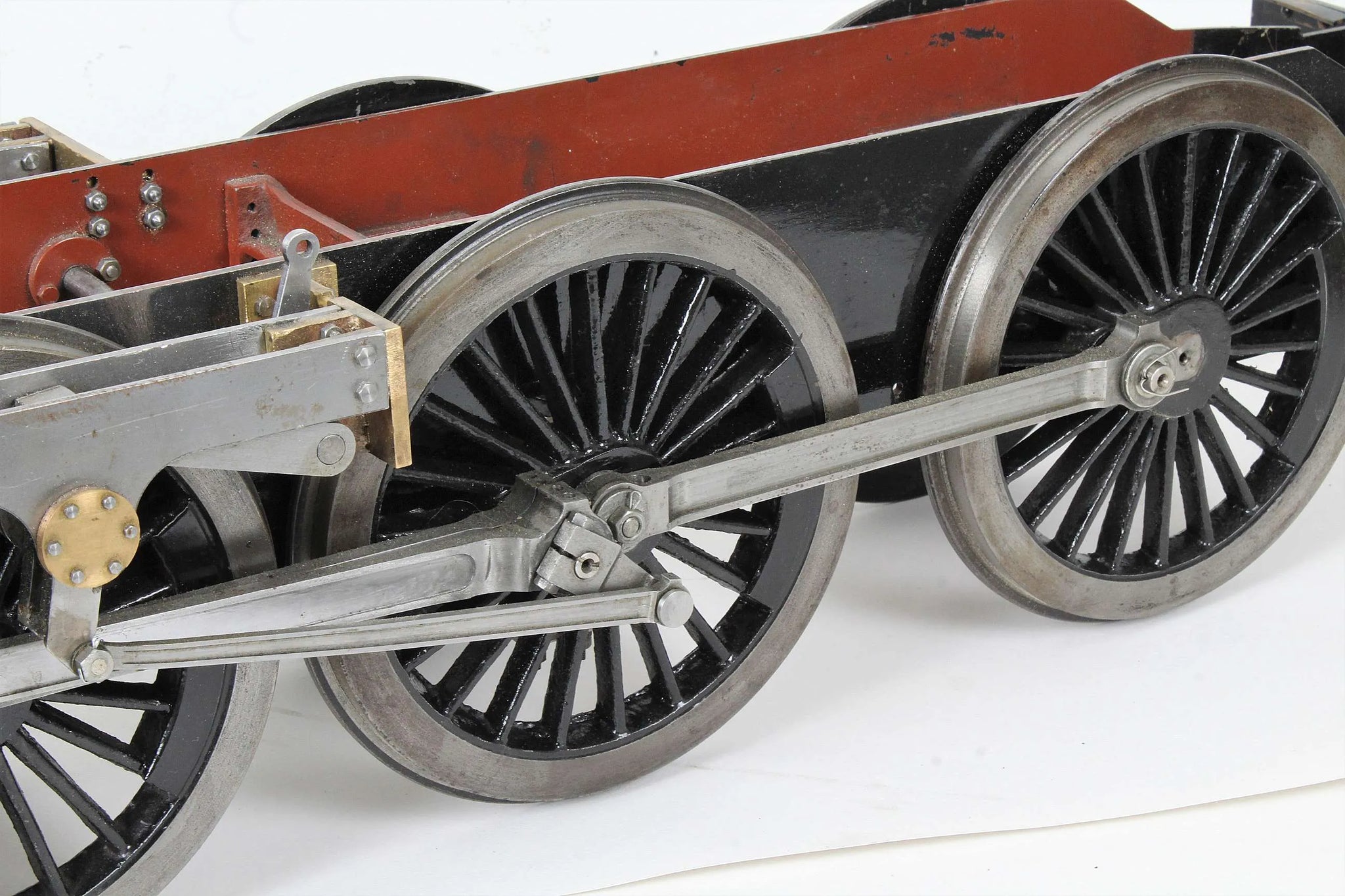

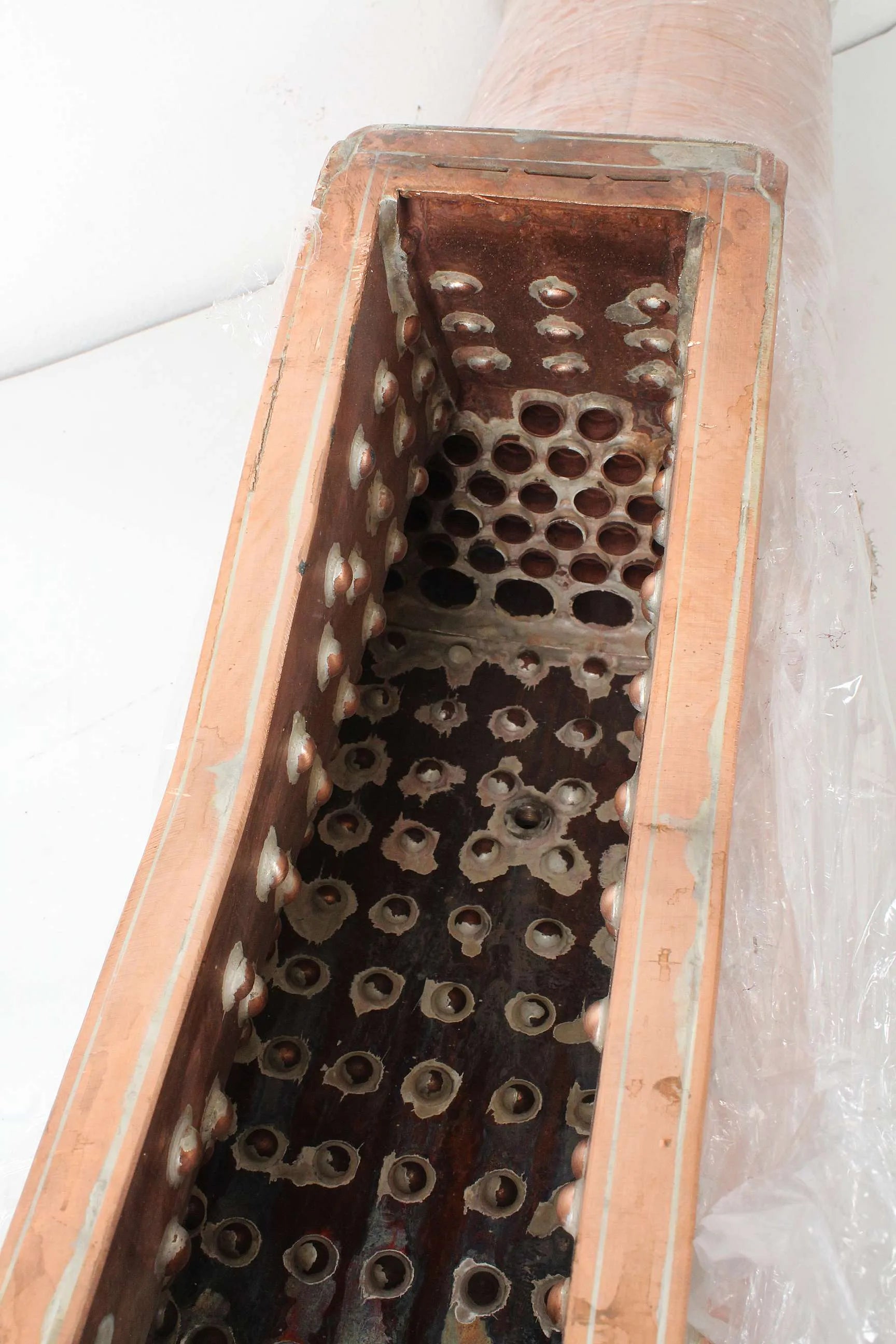

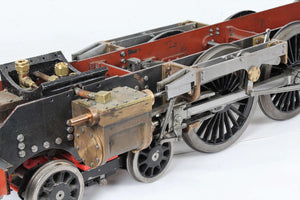

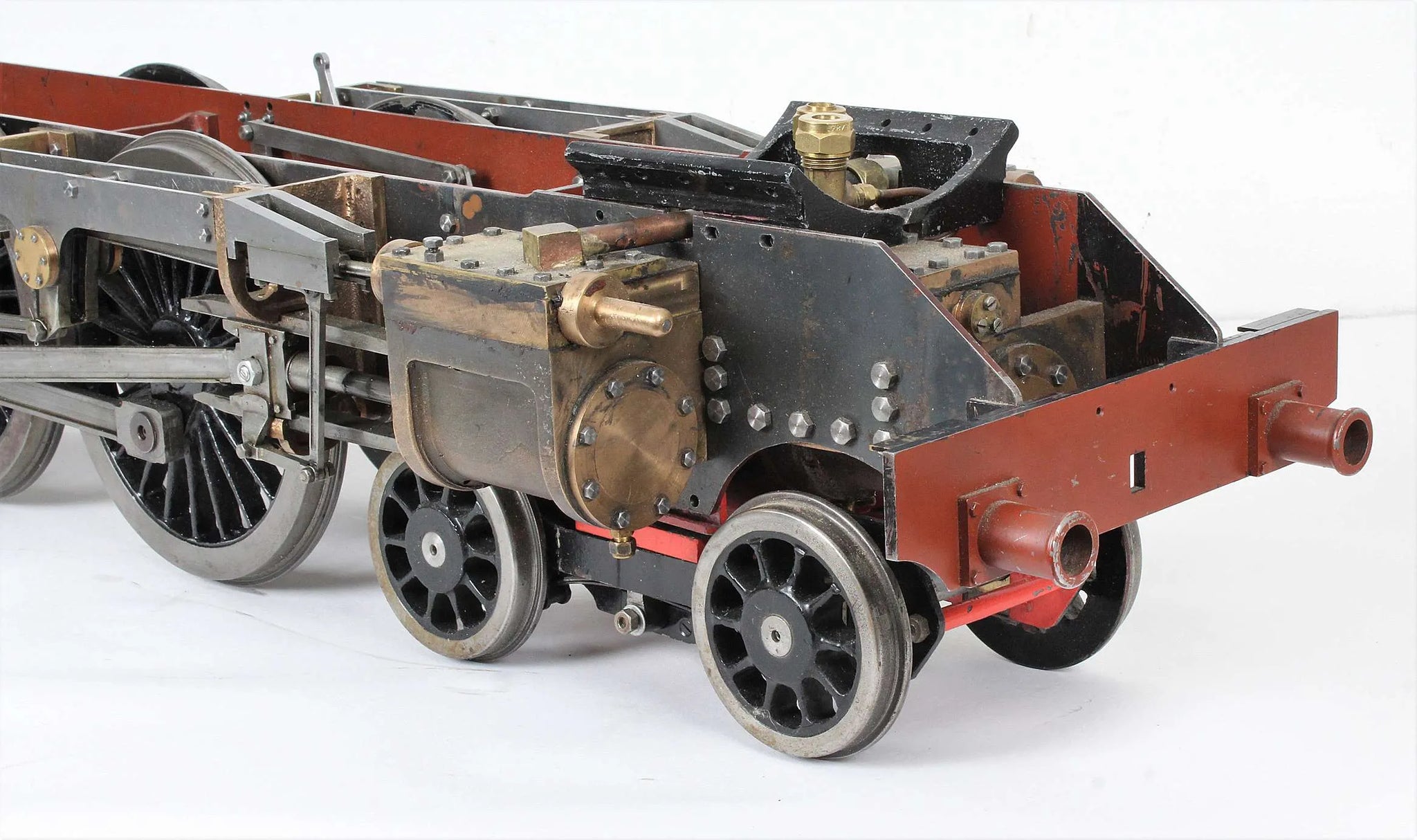

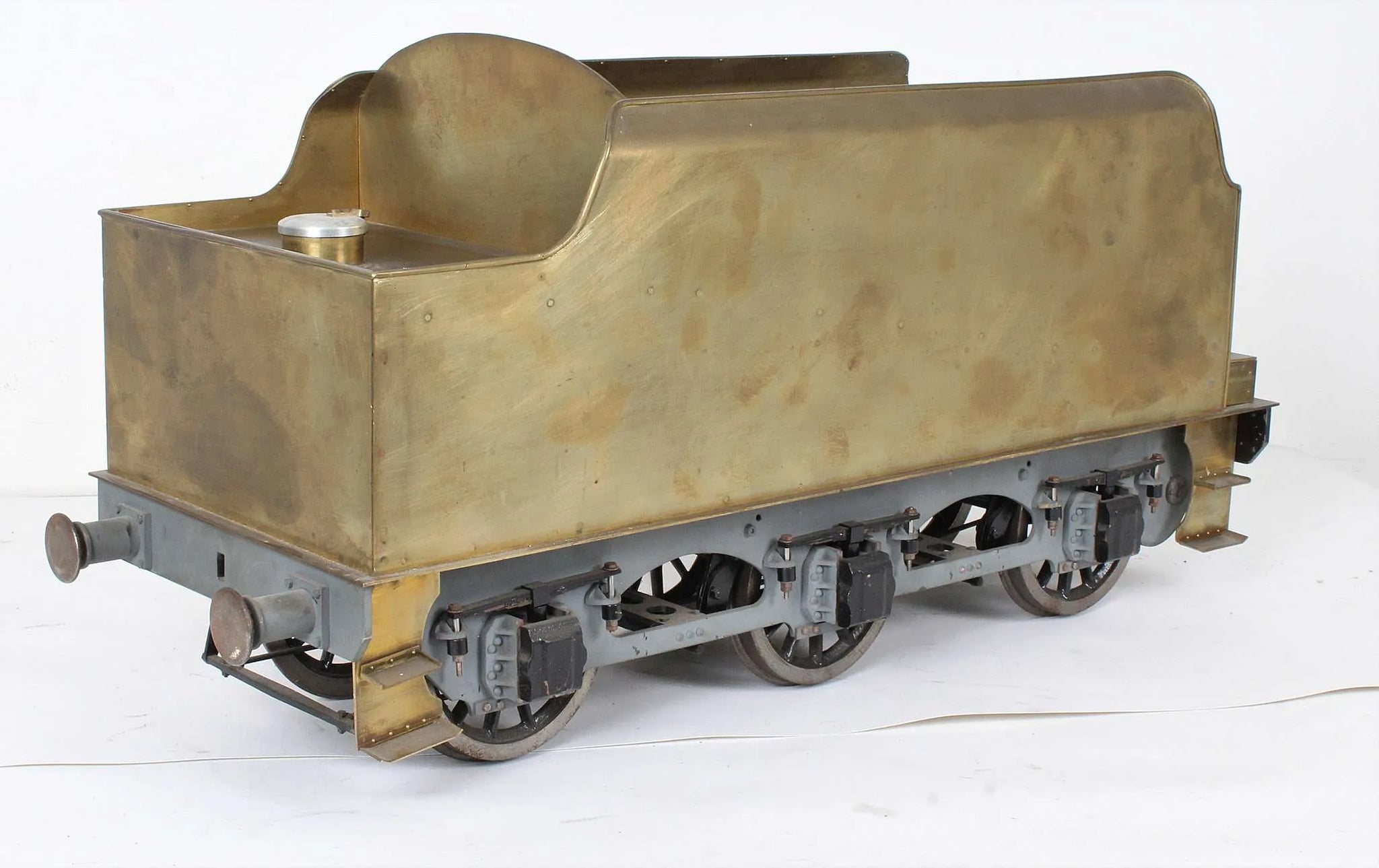

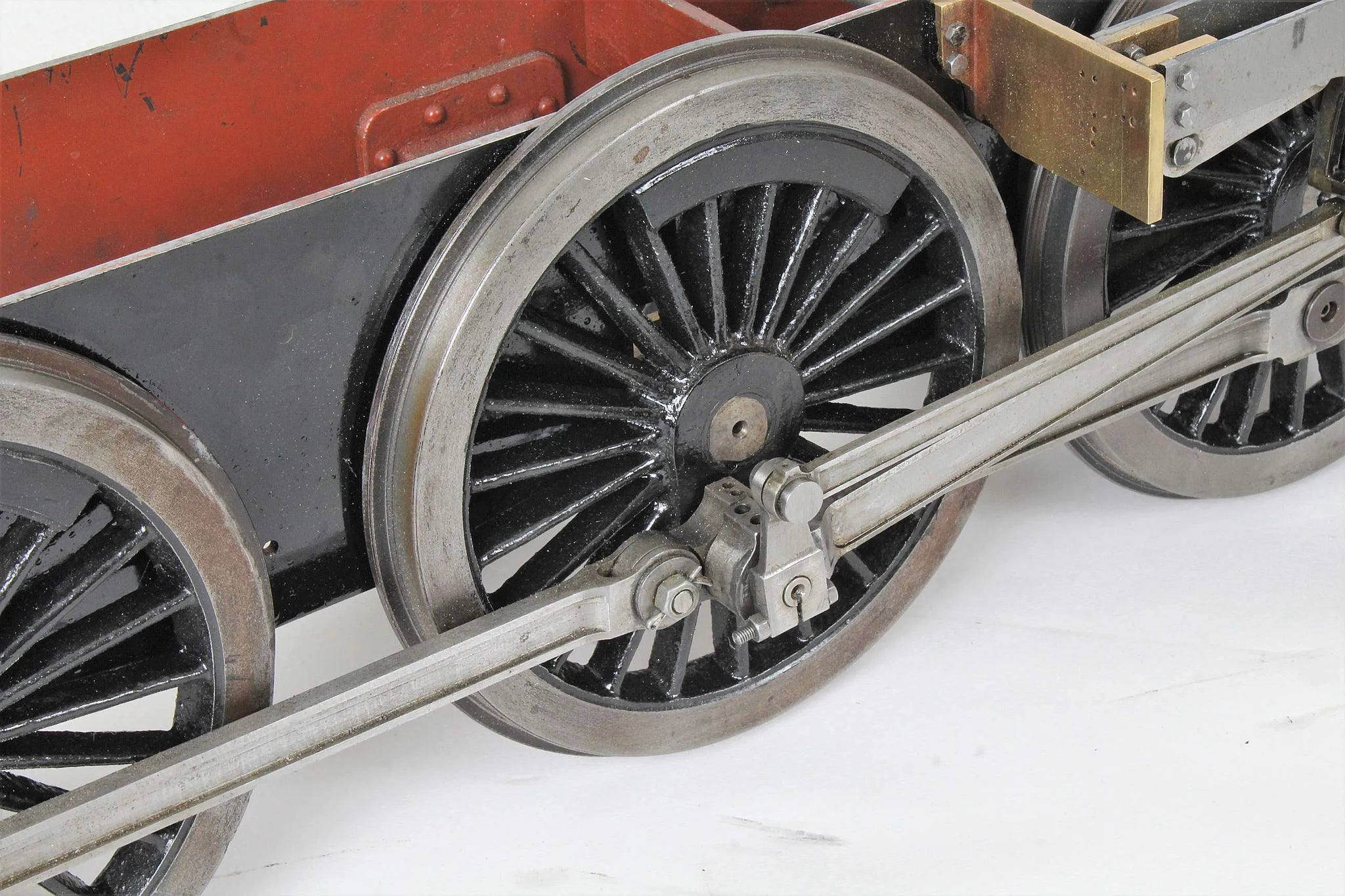

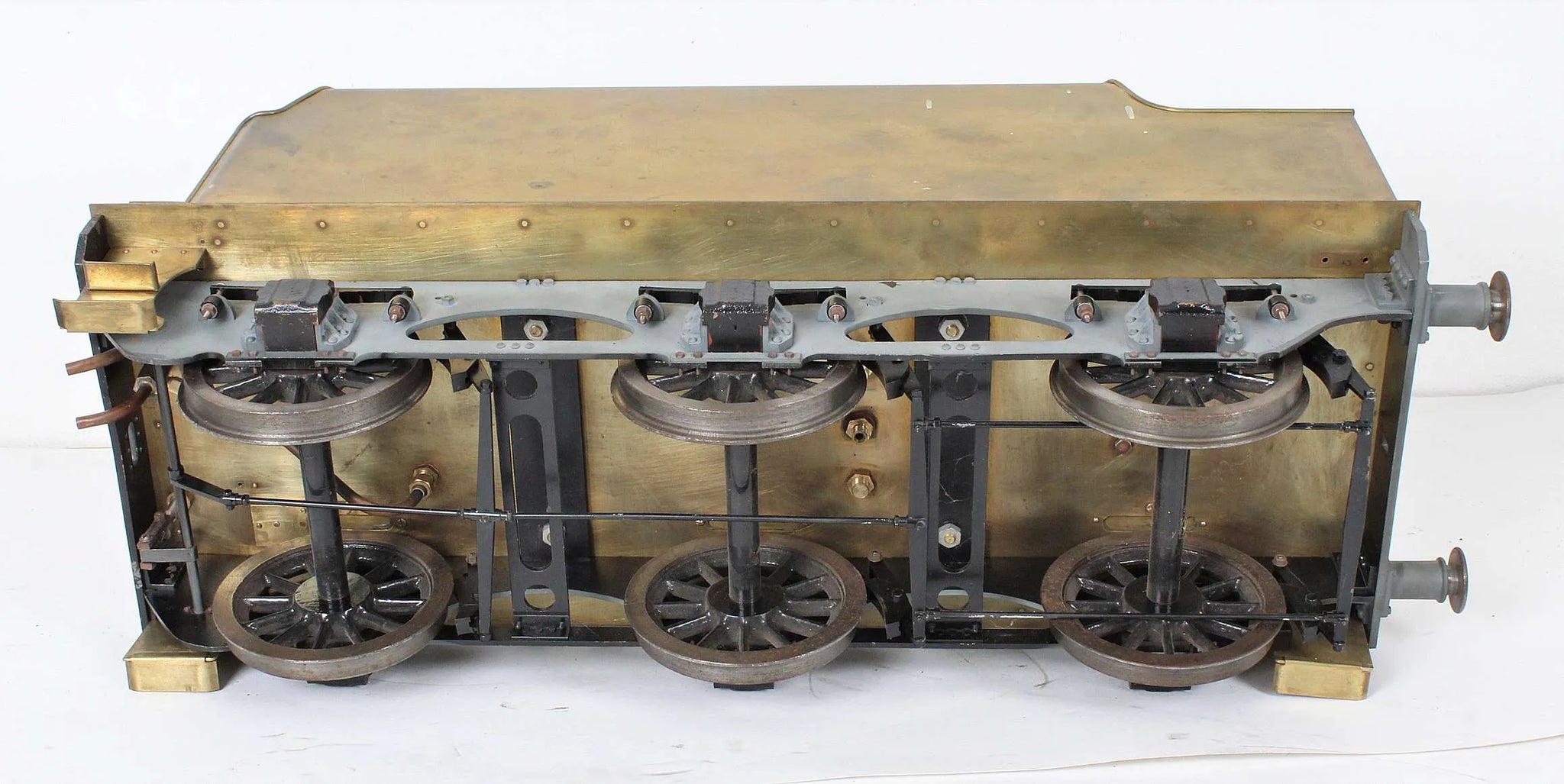

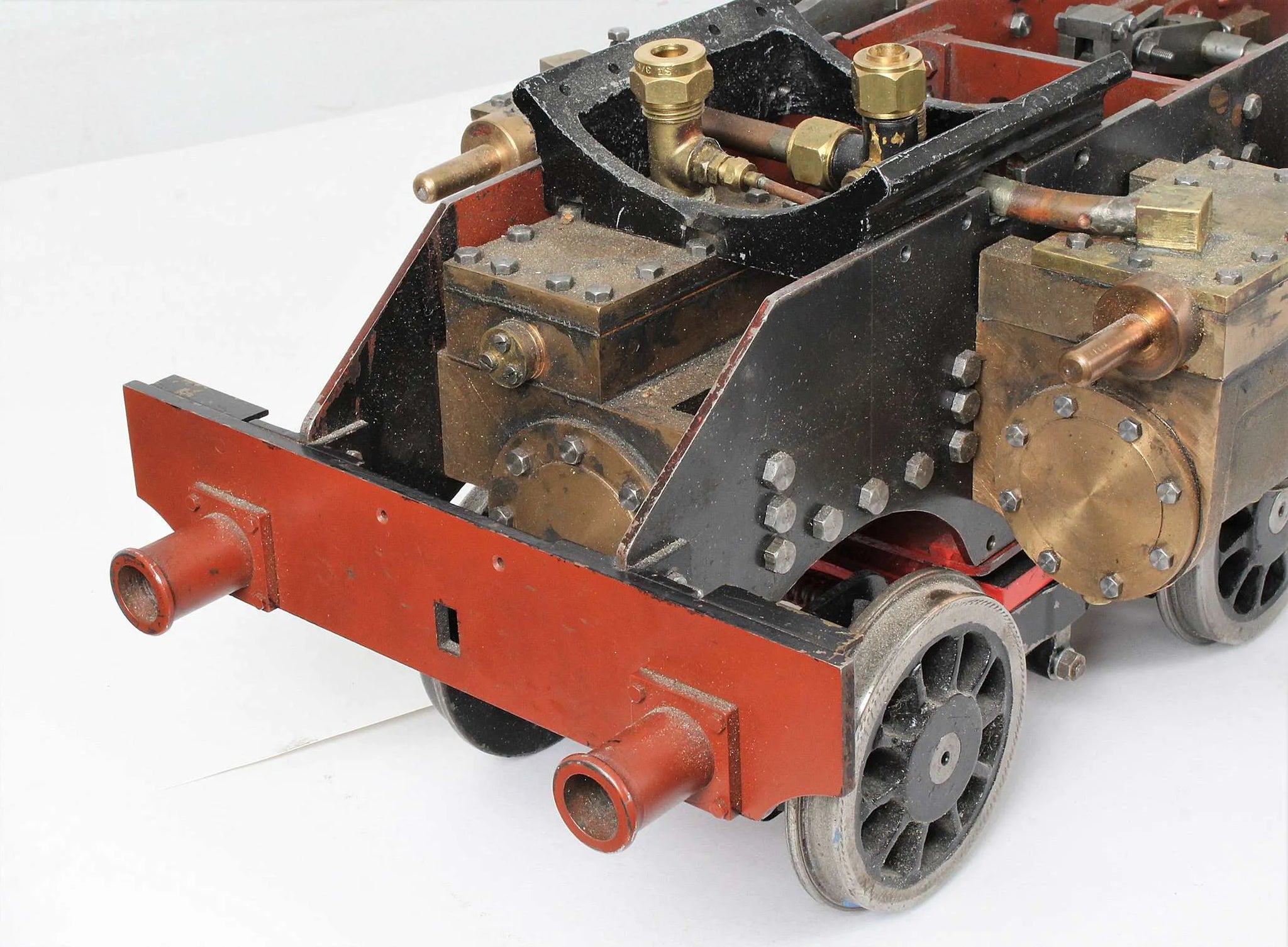

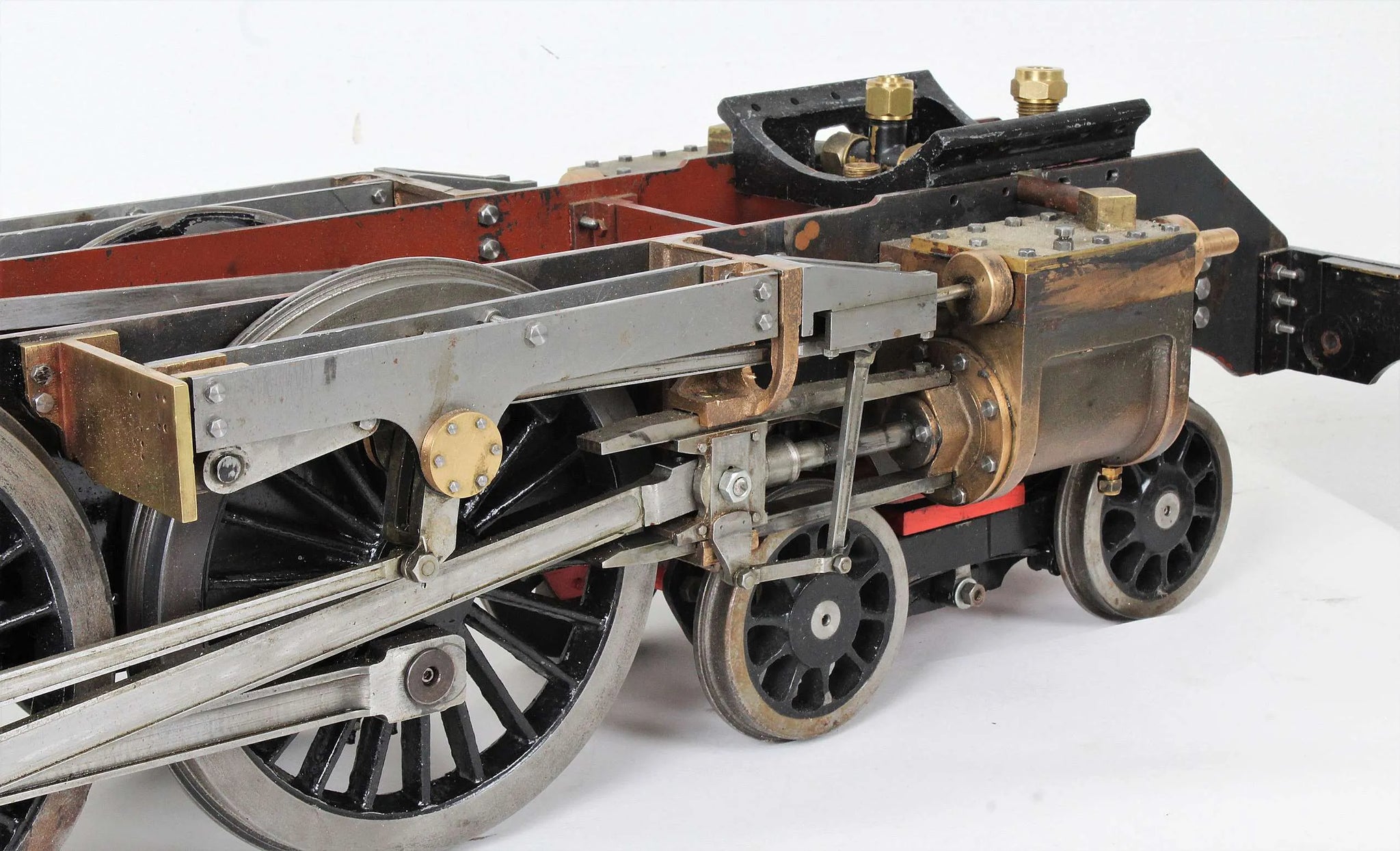

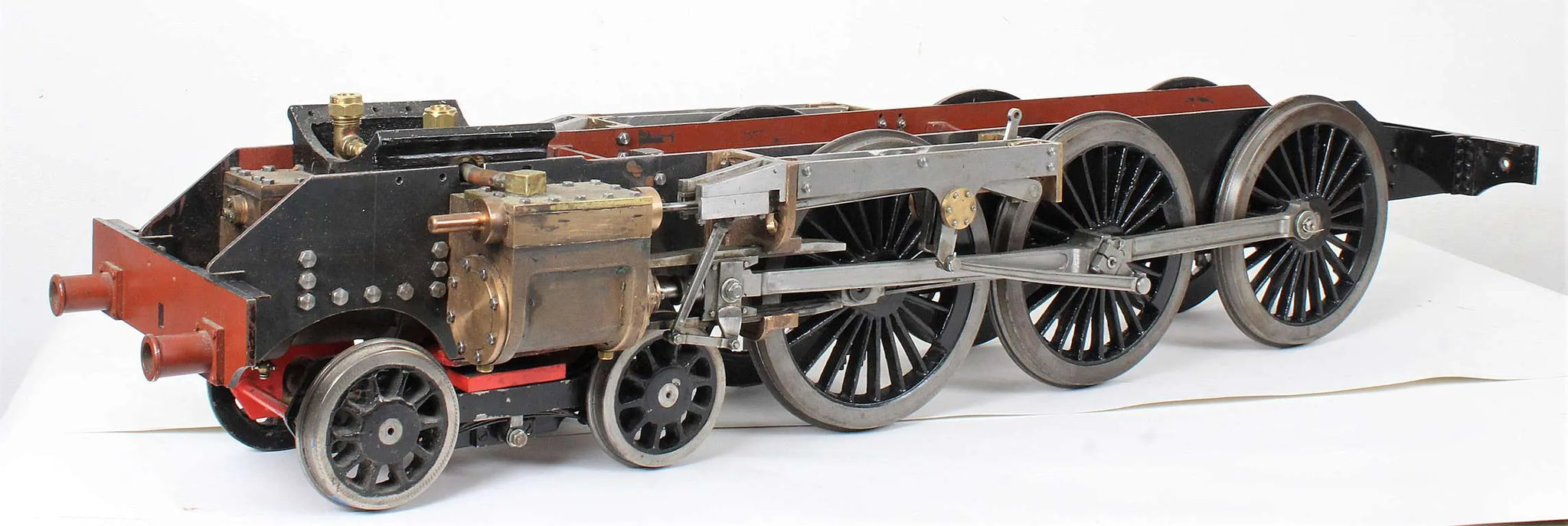

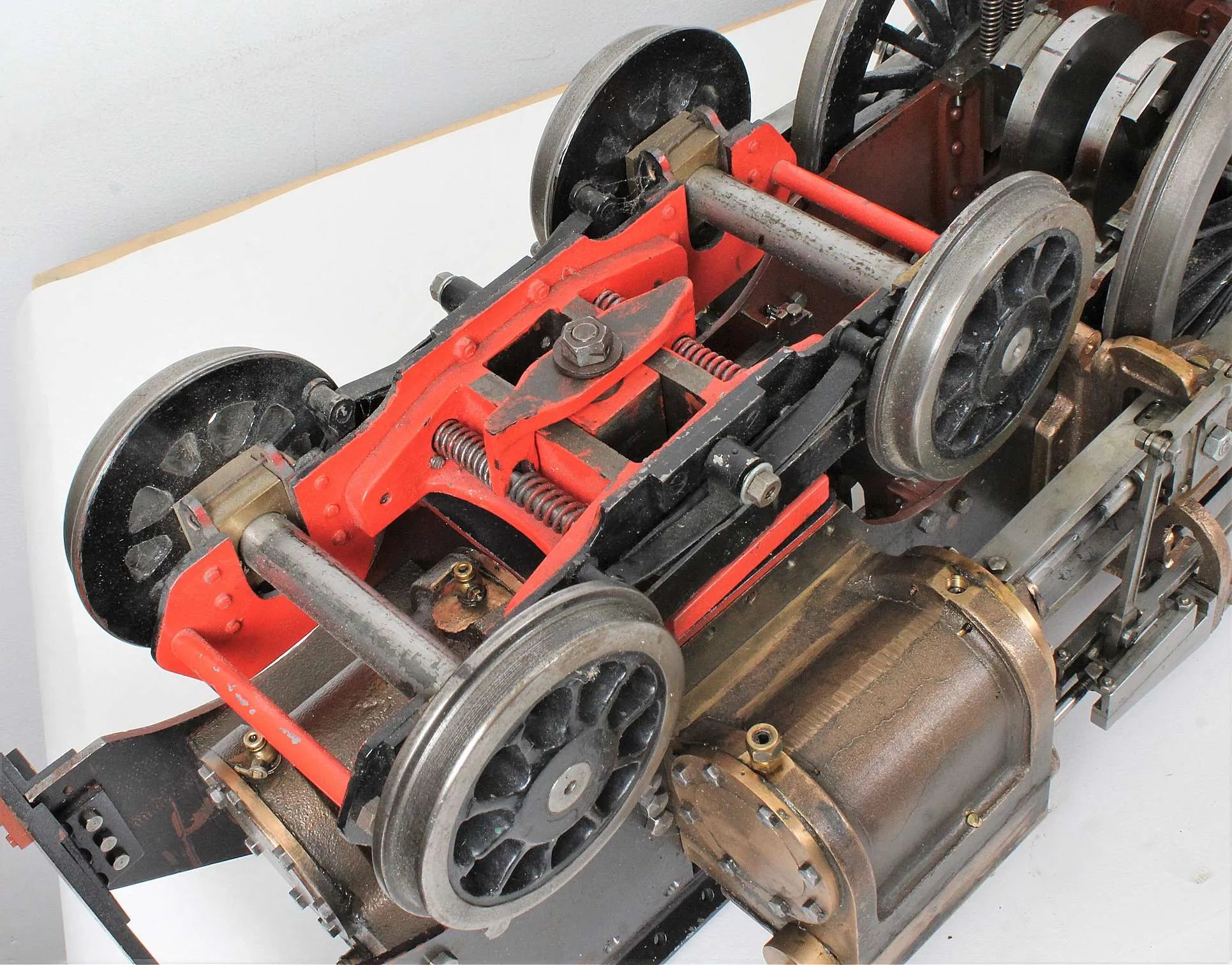

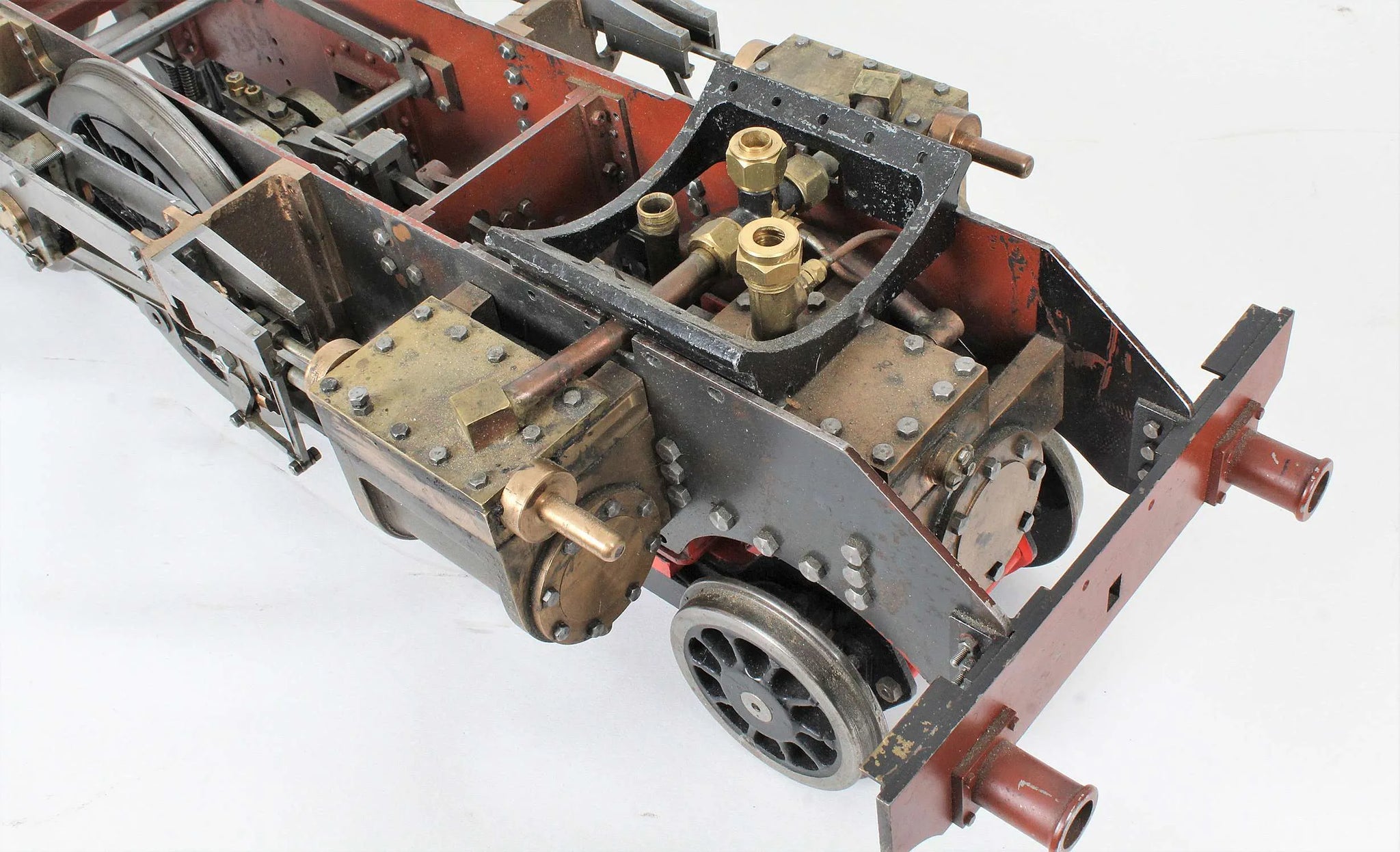

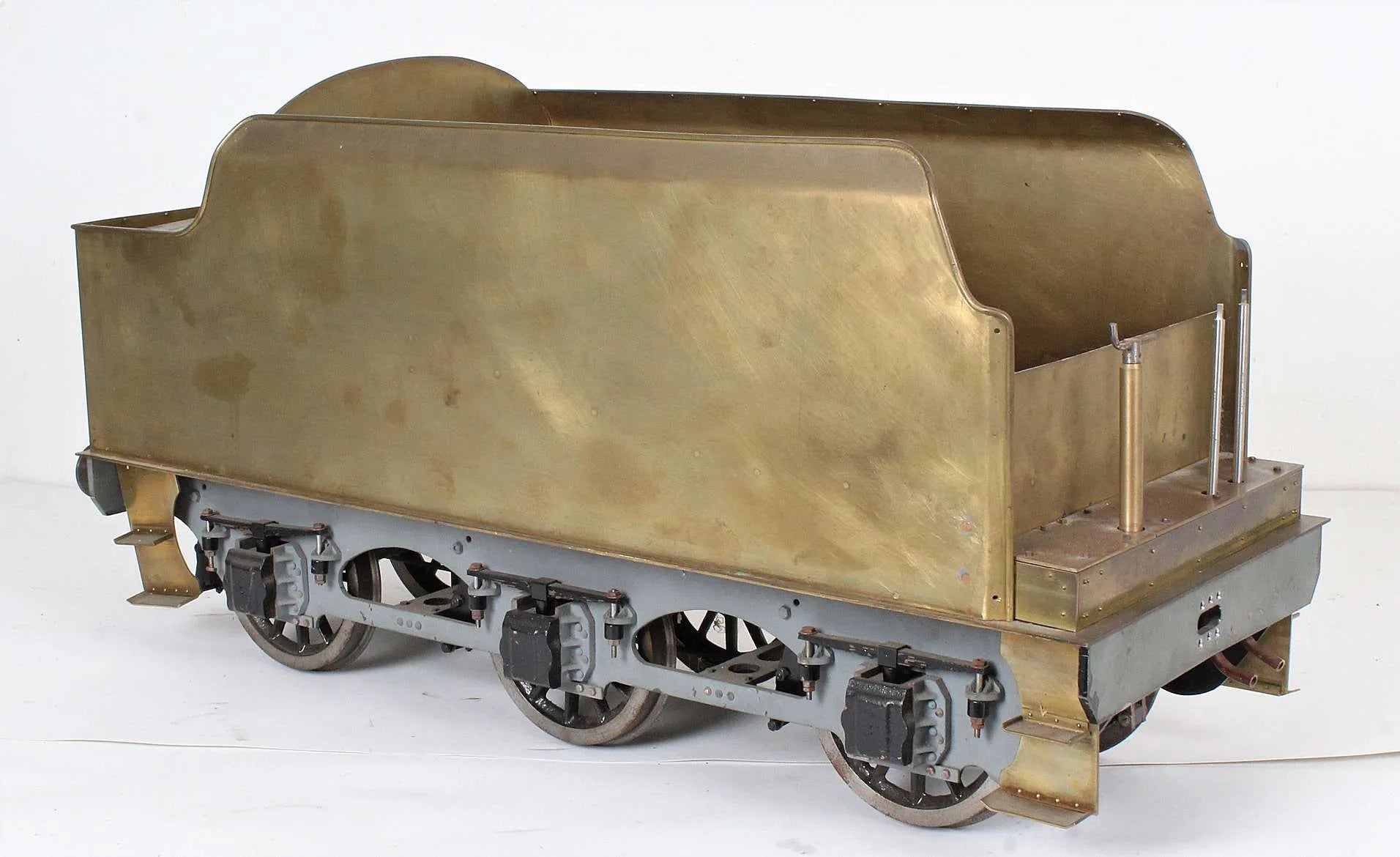

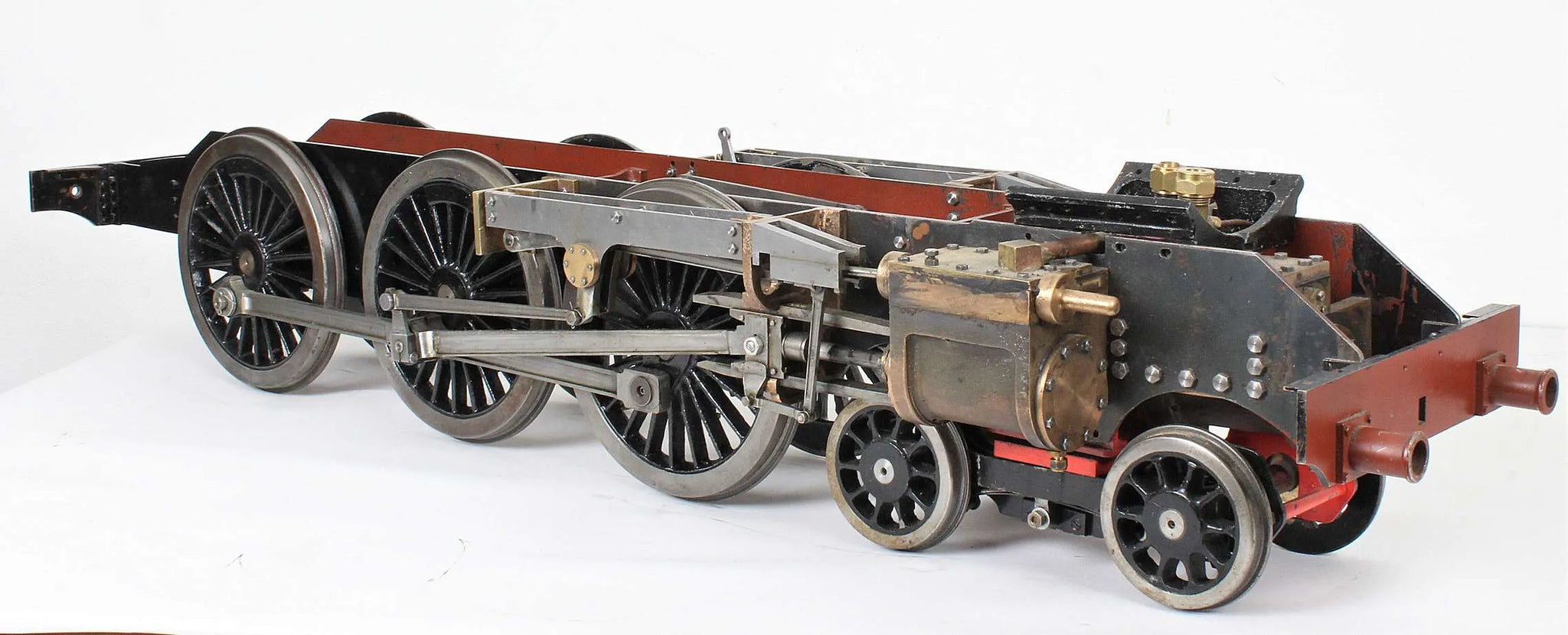

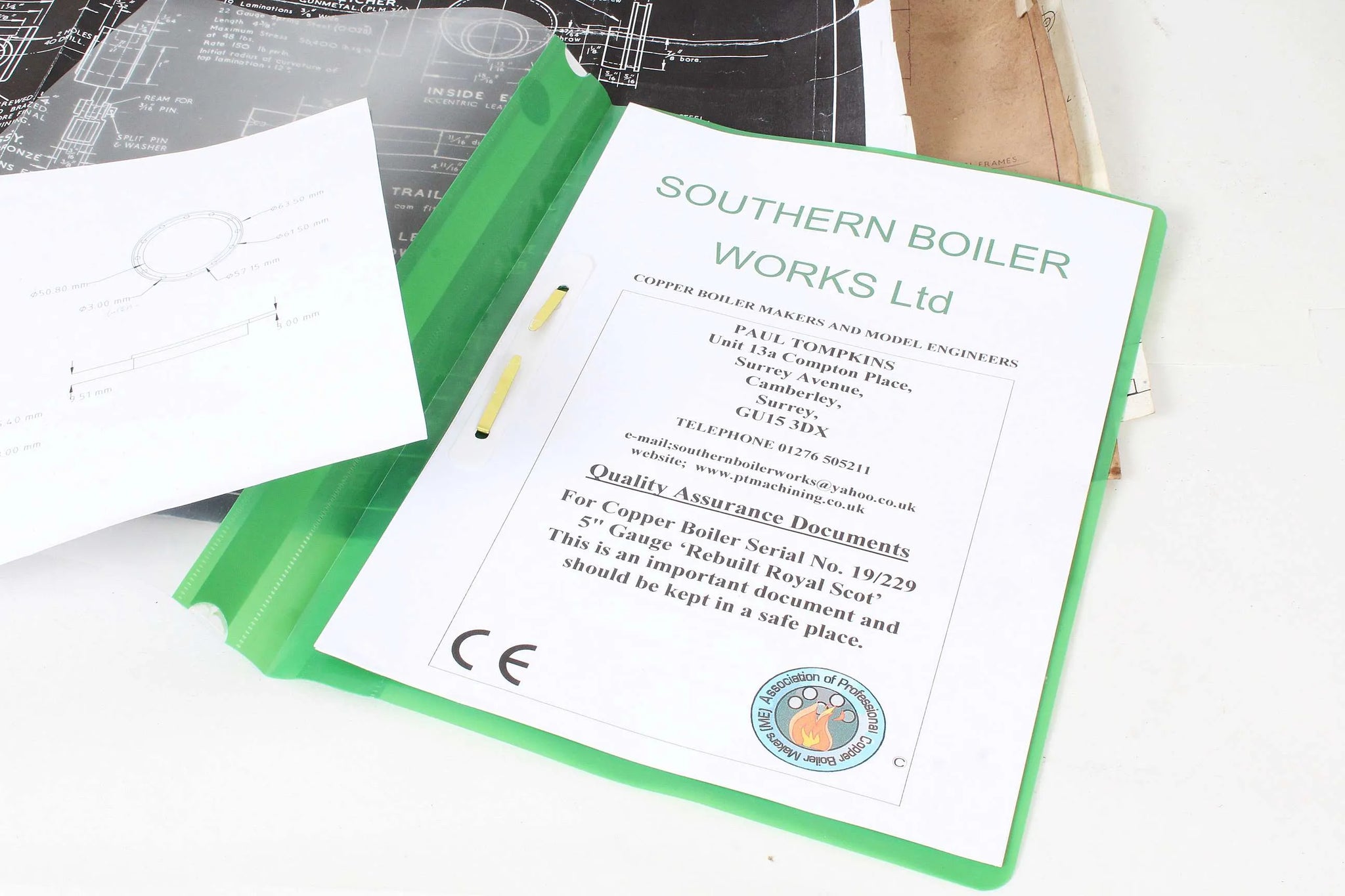

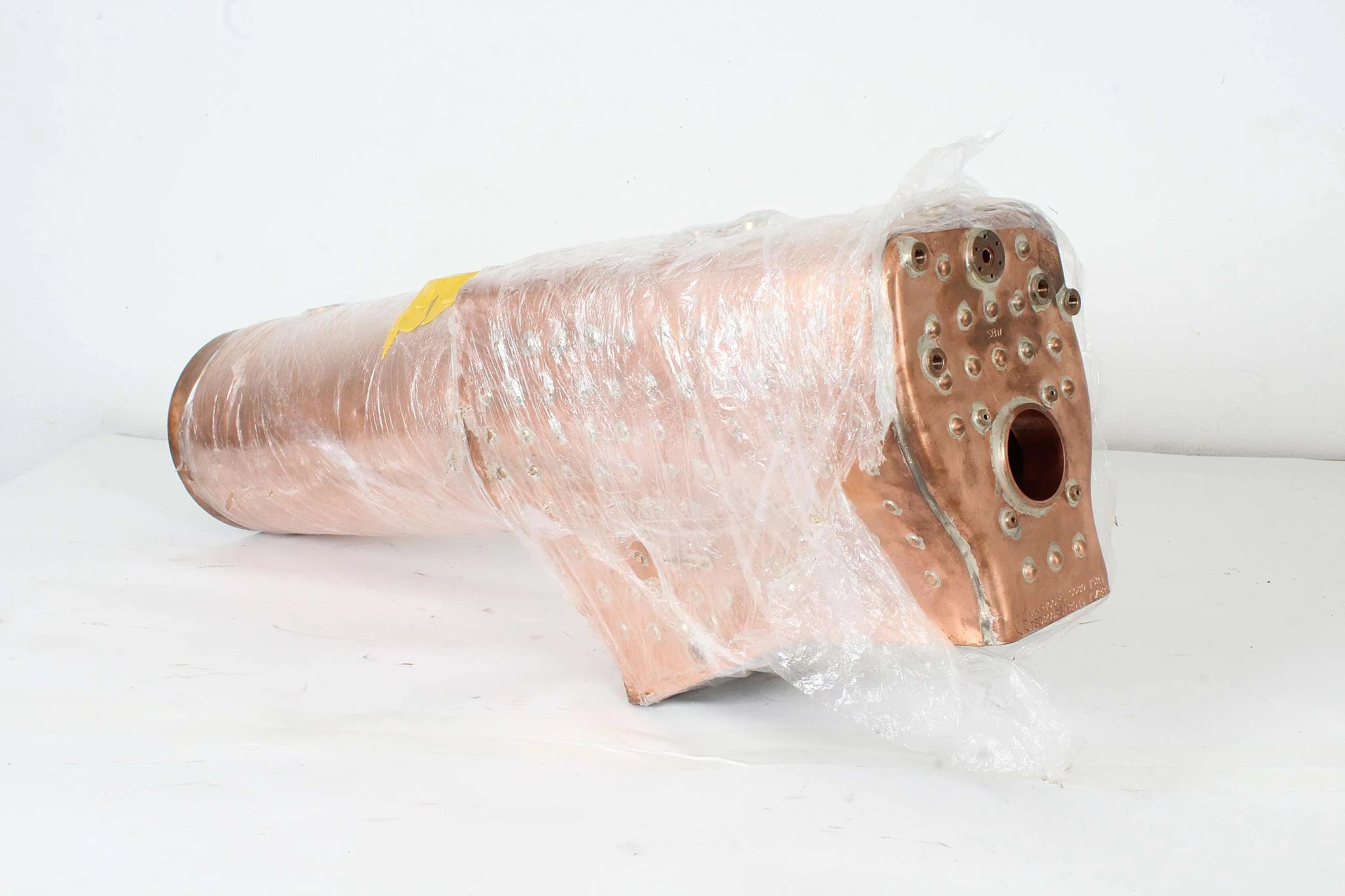

A well-advanced 5 inch gauge LMS "Royal Scot" comprising air-running chassis, a beautifully made CE-marked copper boiler by the estimable Paul Tompkins of Southern Boiler Works and a largely complete tender.

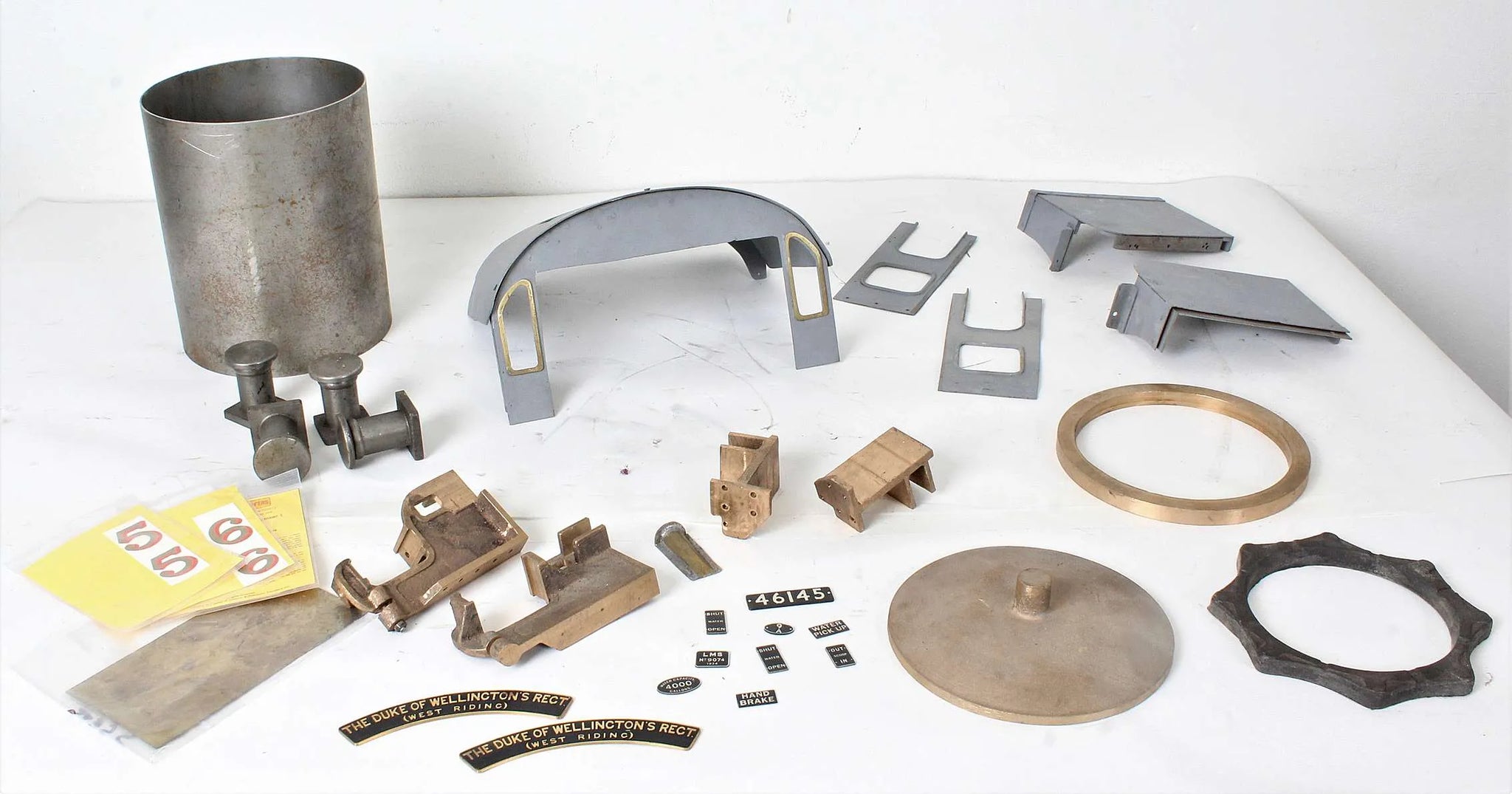

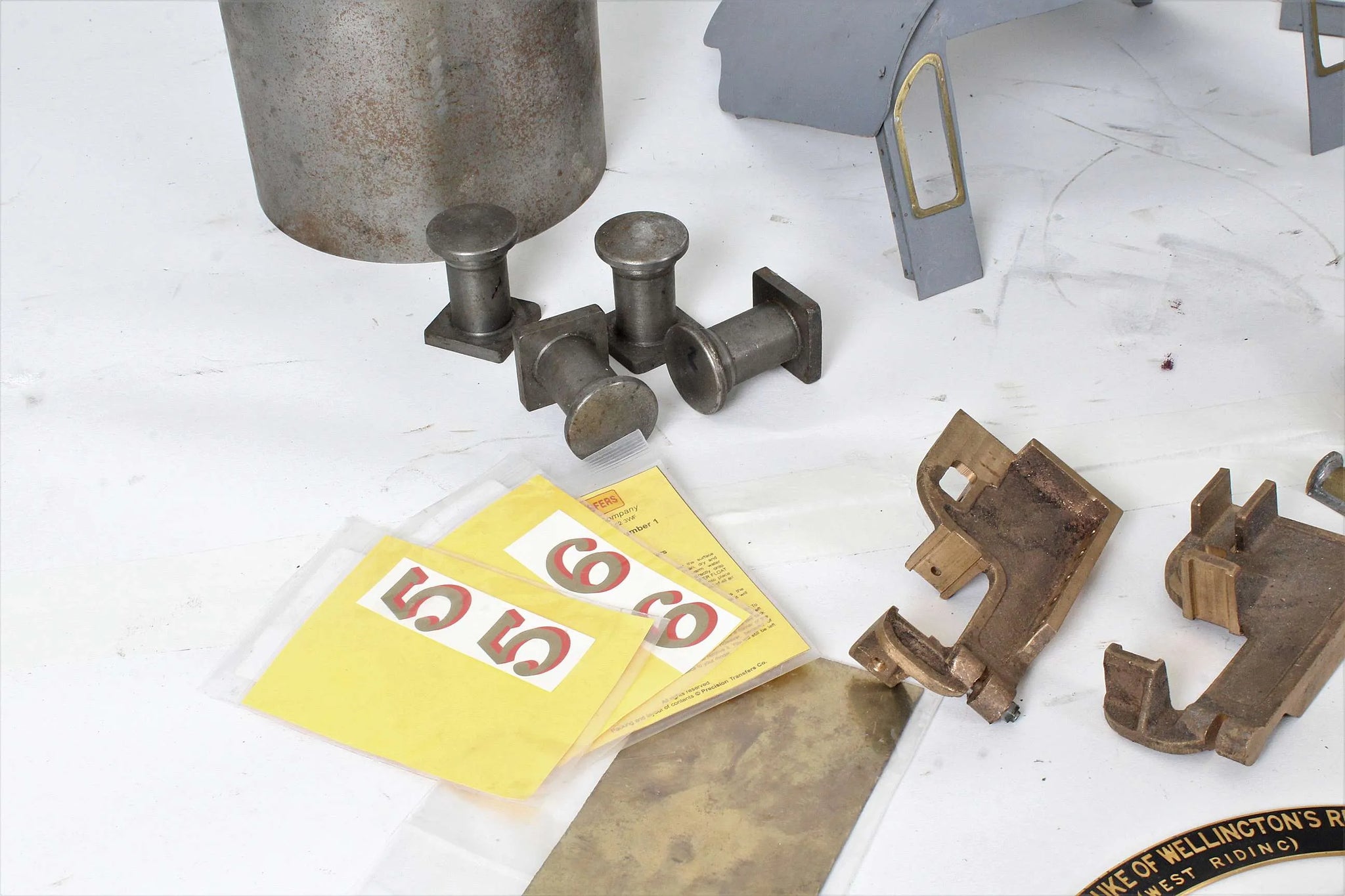

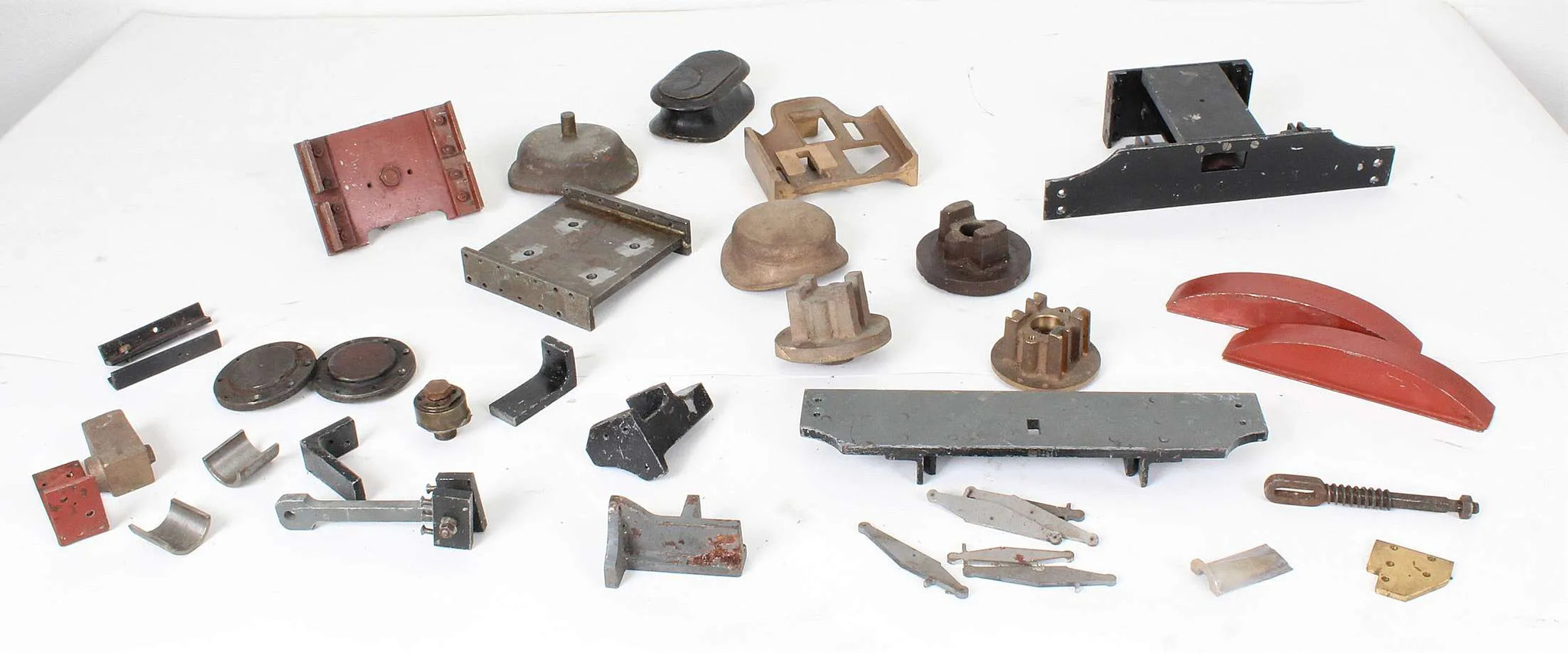

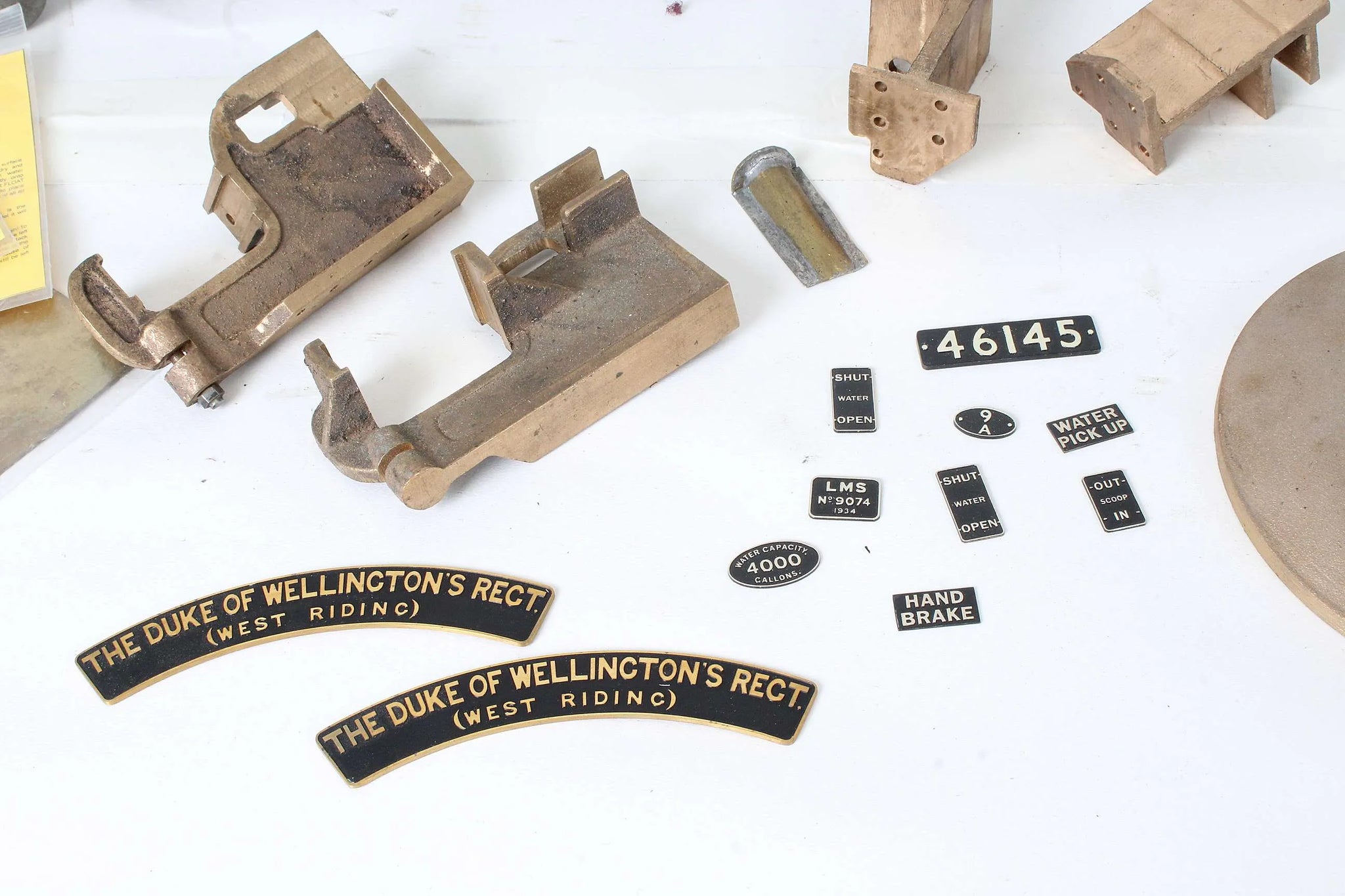

There is a box of loose parts including machined and unmachined castings, rolled tube for smokebox and some cab platework.

There are a set of etched locomotive and tender plates, including name and number plates for 46145 "The Duke of Wellington's Regiment", an engine built in 1927, originally "Condor" before being rebuilt in 1944.

Technical information

Stock code

10109

Gauge

5 inch

Length/inches

43 + 28

Width/inches

10

Height/inches

8.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

3 x gunmetal

Valve type

slide

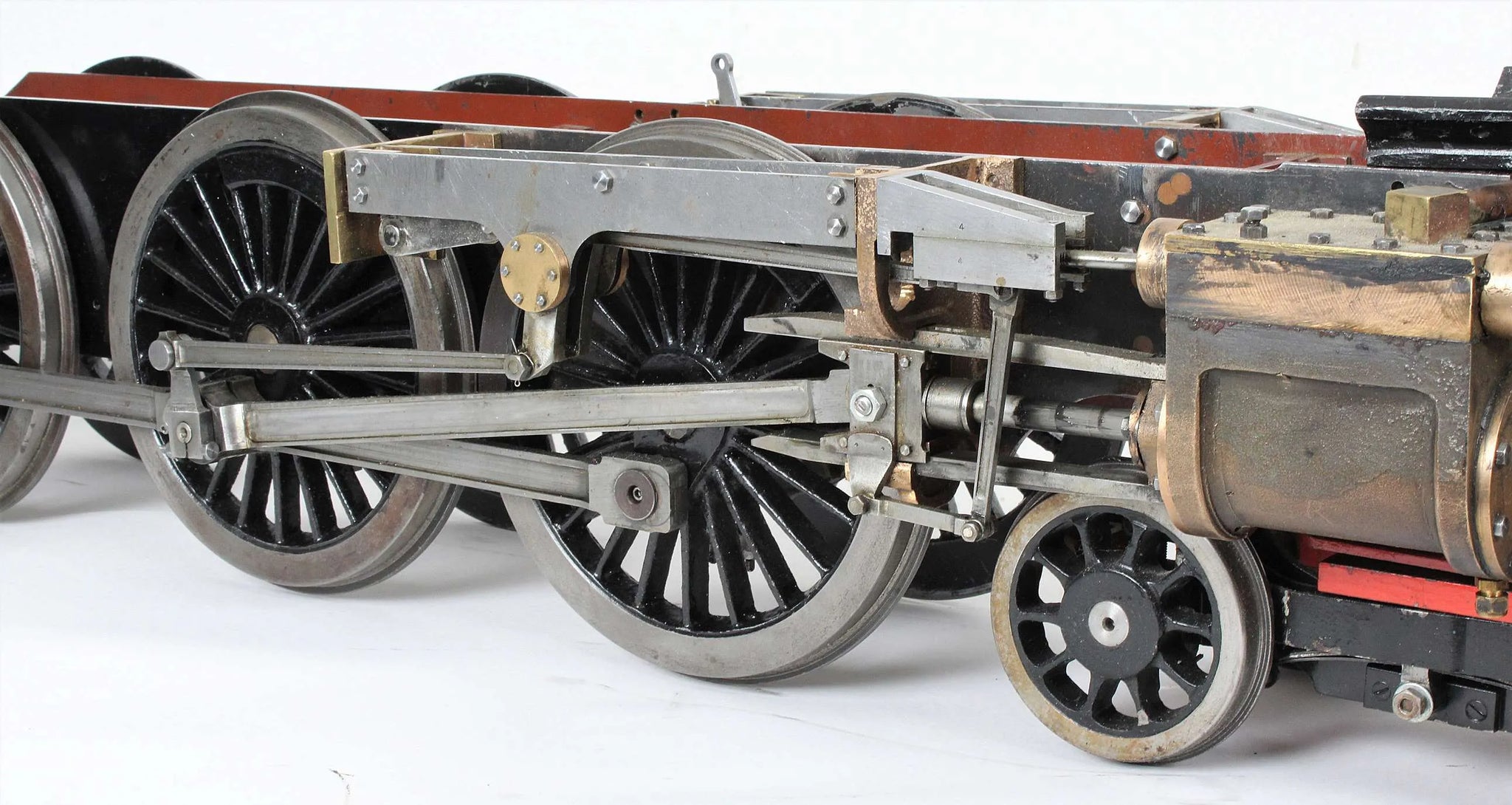

Valve gear

Walschaerts

Boiler maker

Southern Boiler Works

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

yes

Year built

2019

Boiler number

19/229

Superheater

4

Date out

Jan-22
