Now, with the effects of anno domini making themselves felt, it has returned to us in the condition shown.

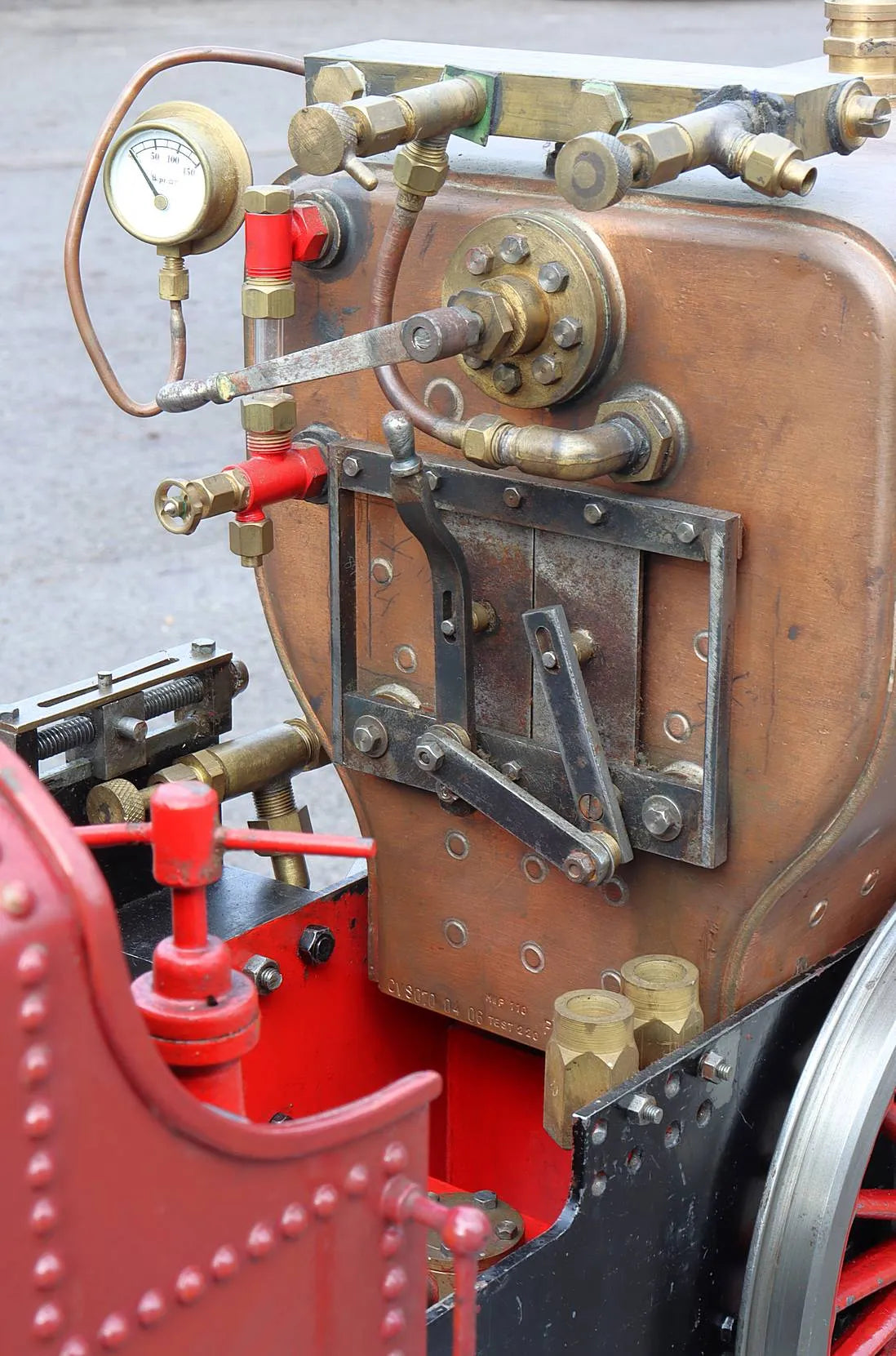

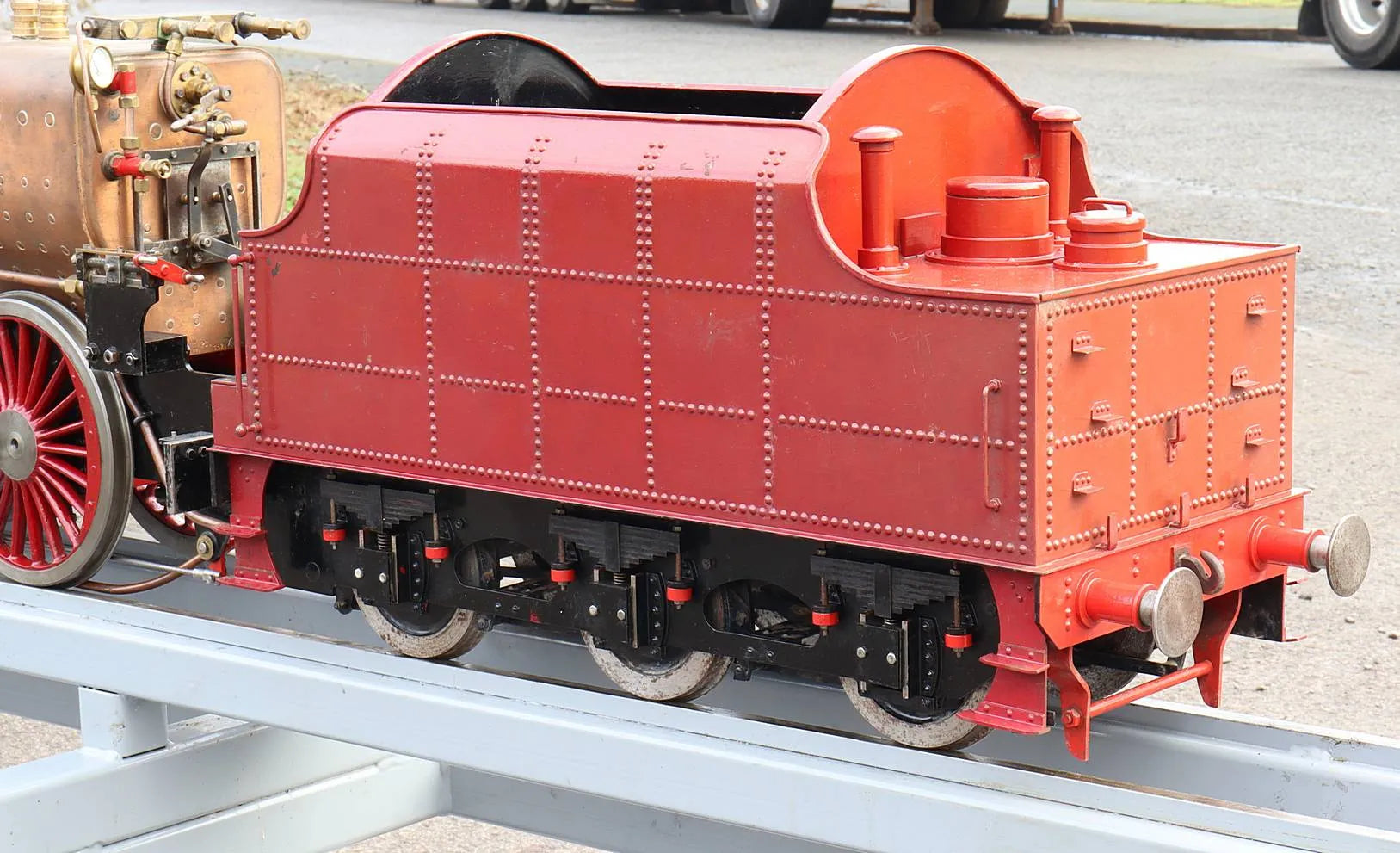

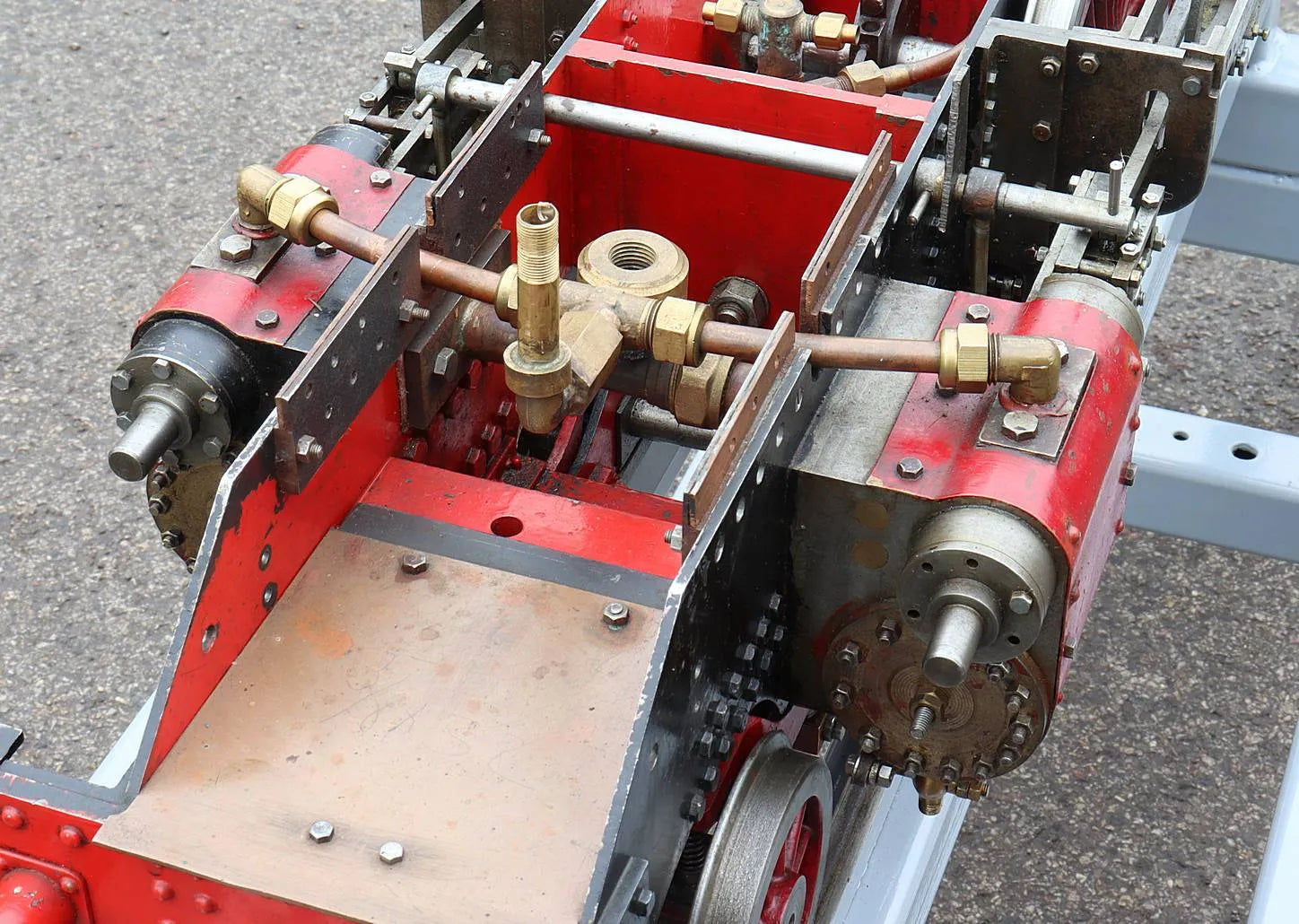

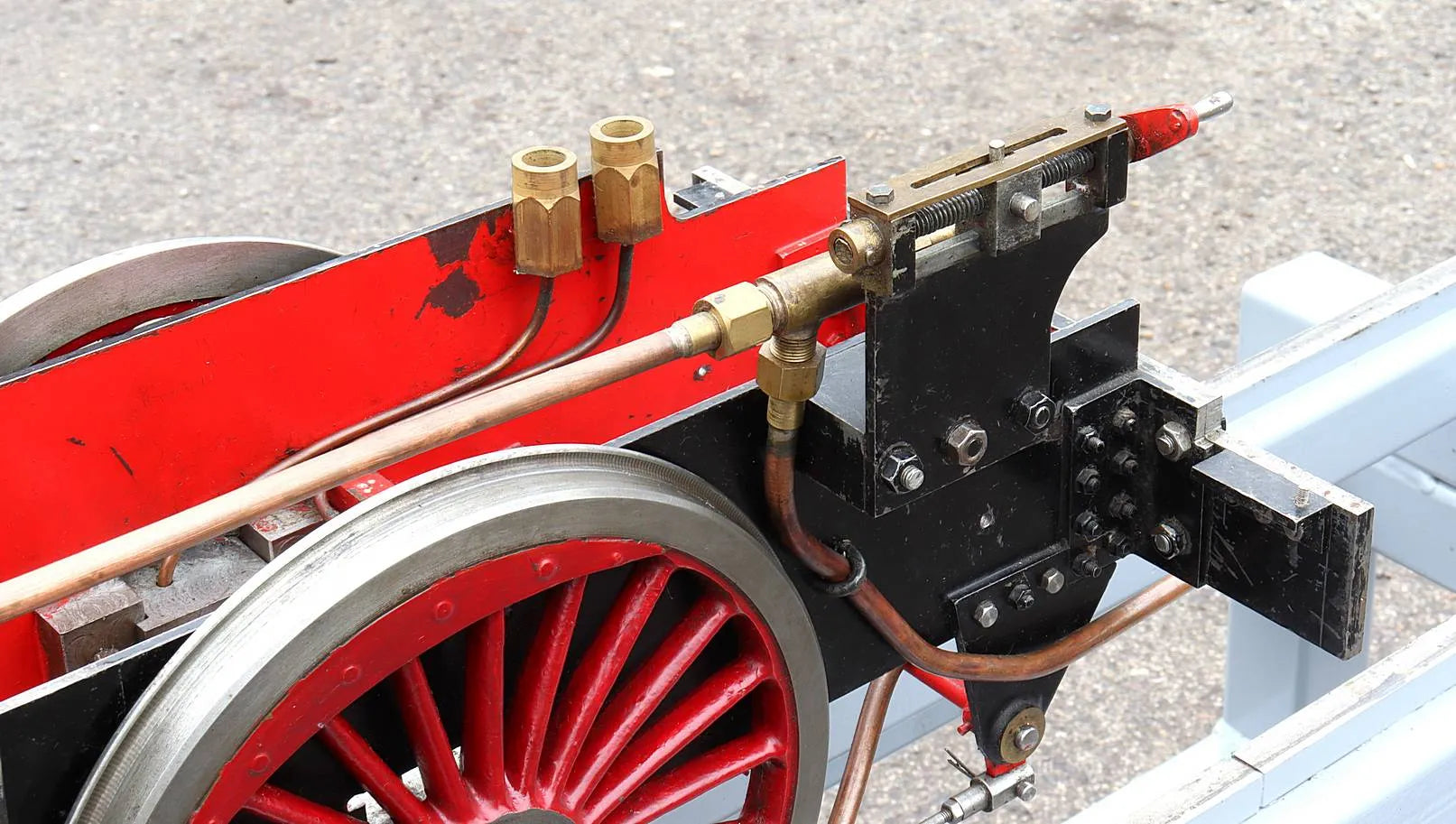

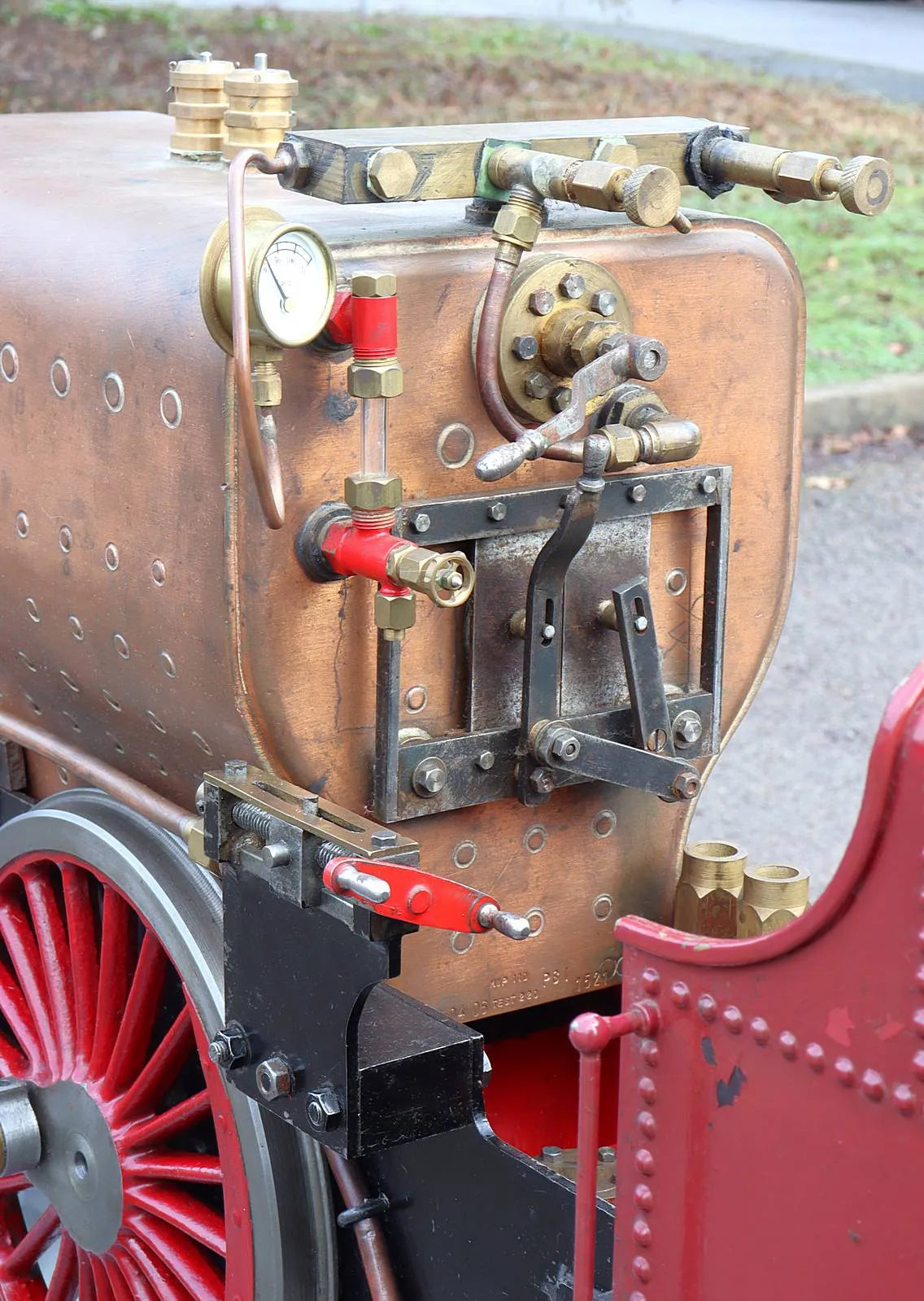

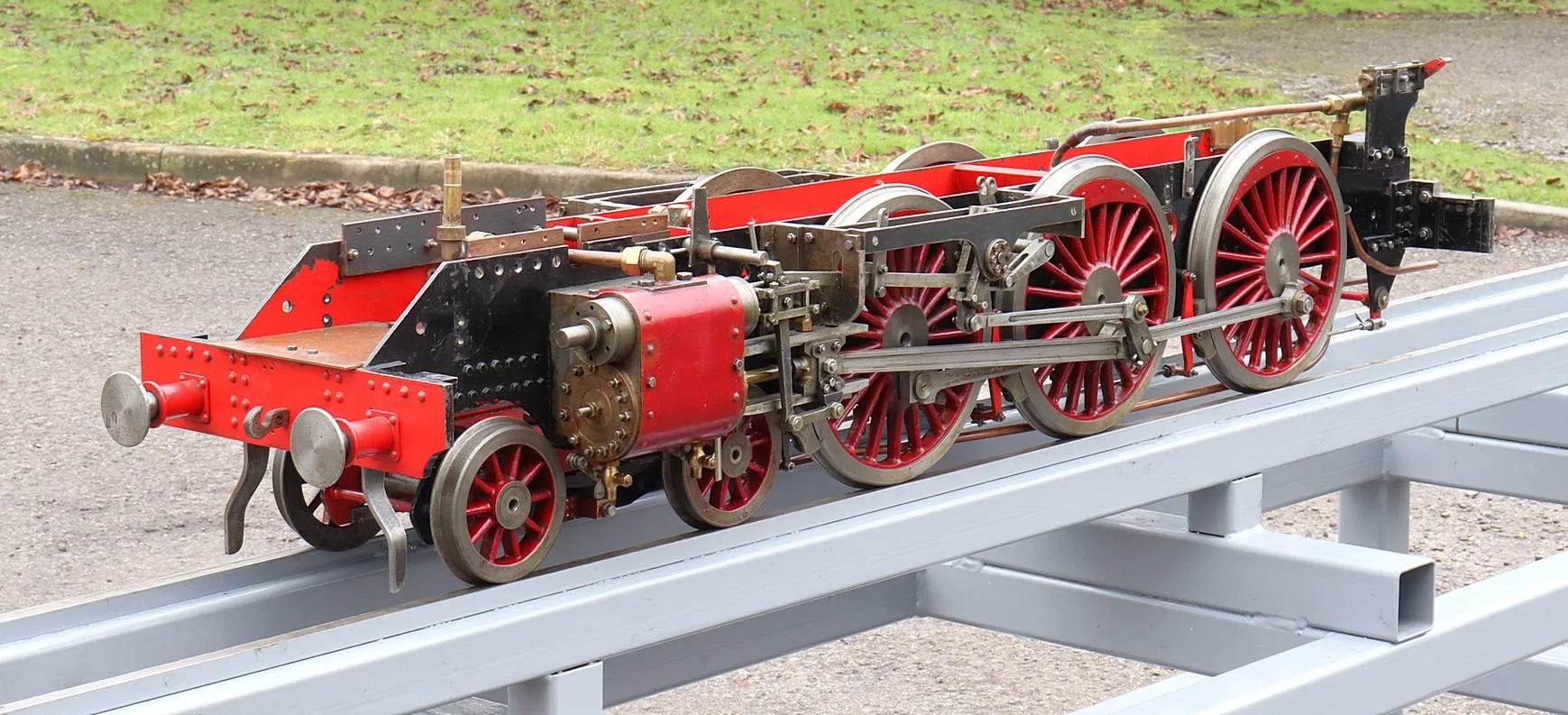

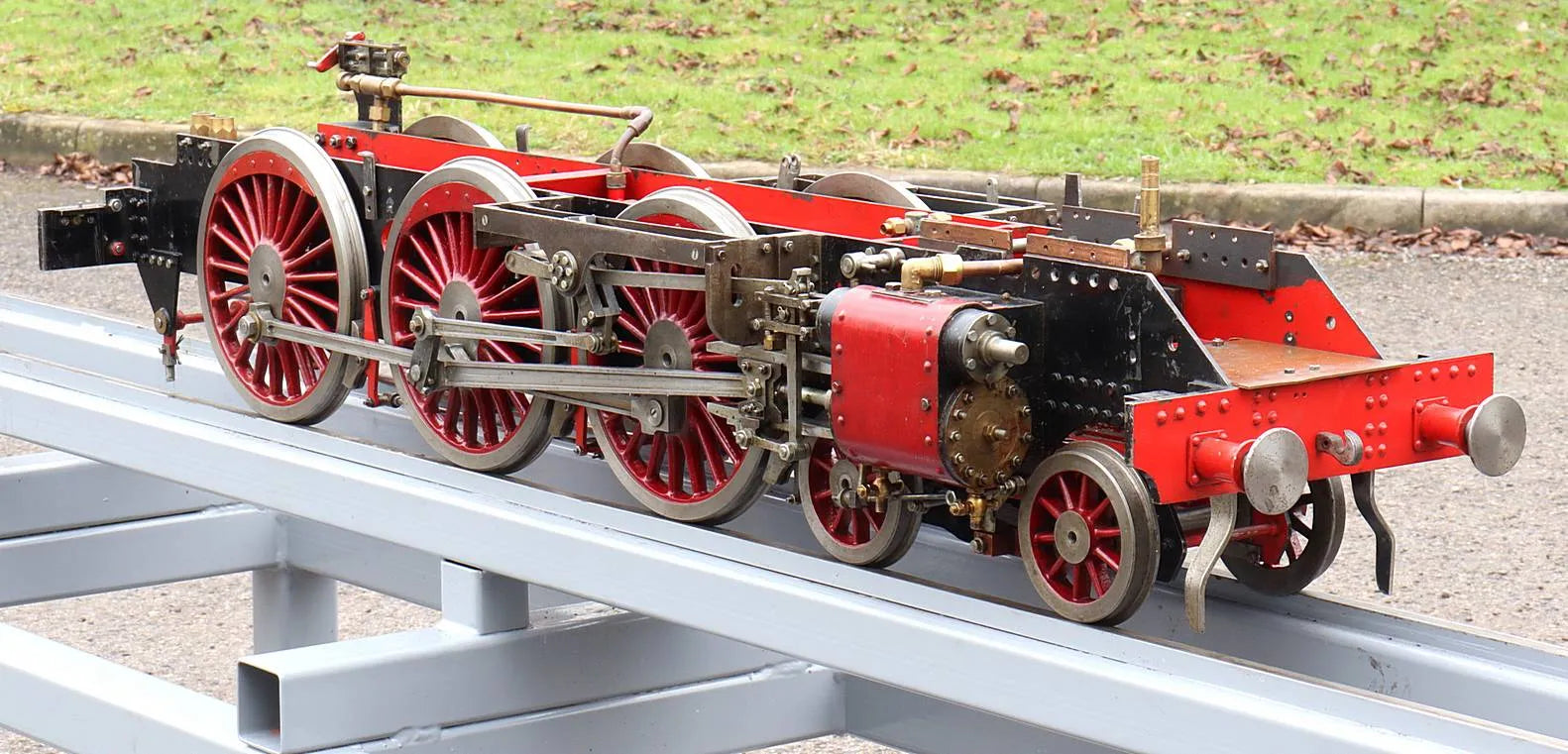

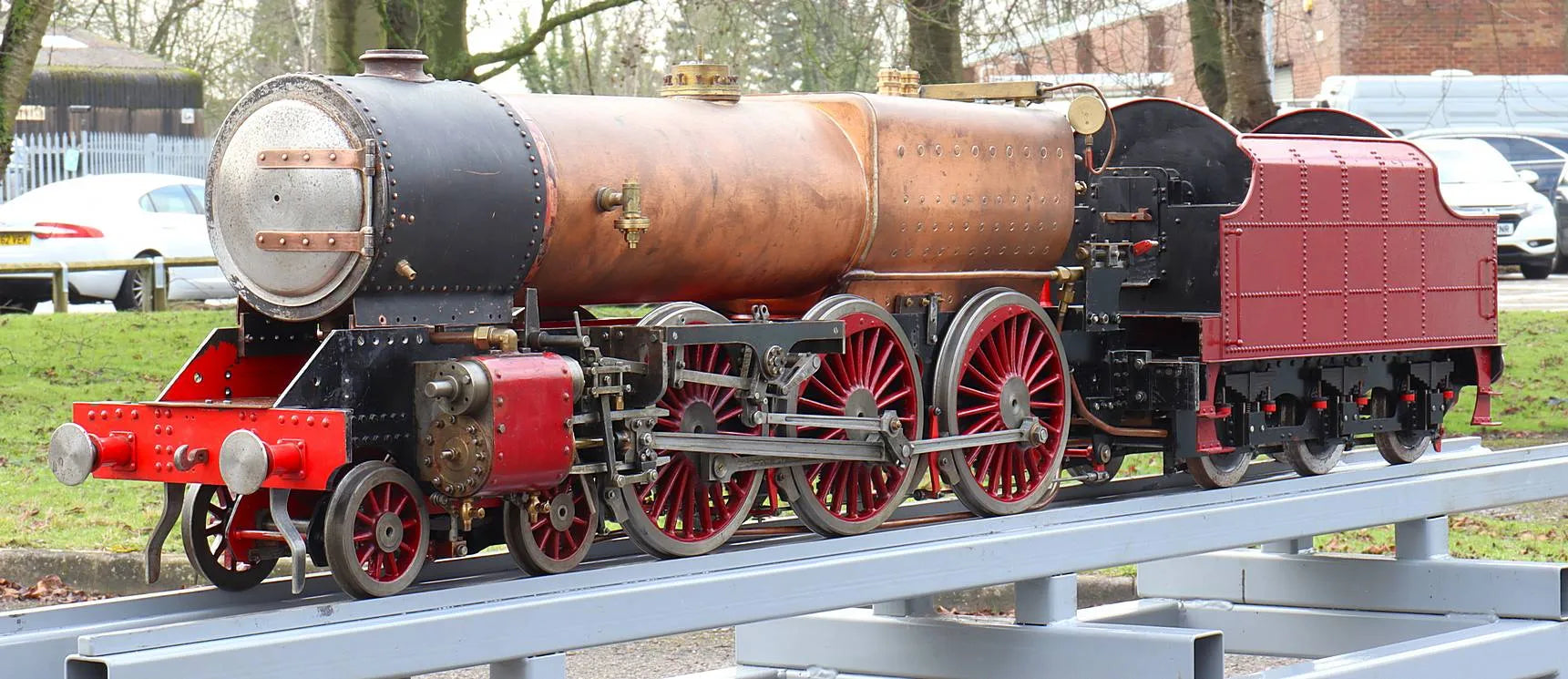

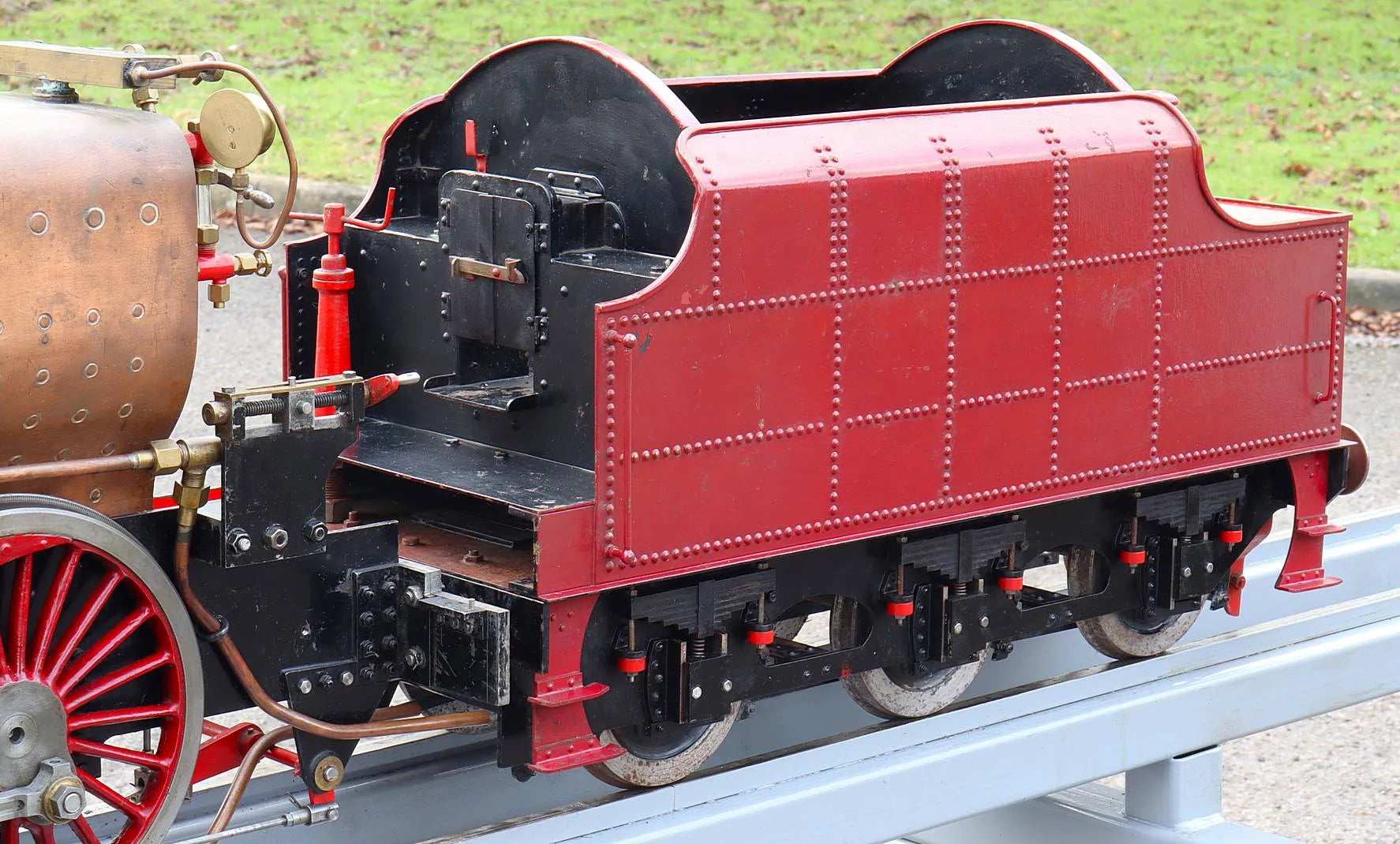

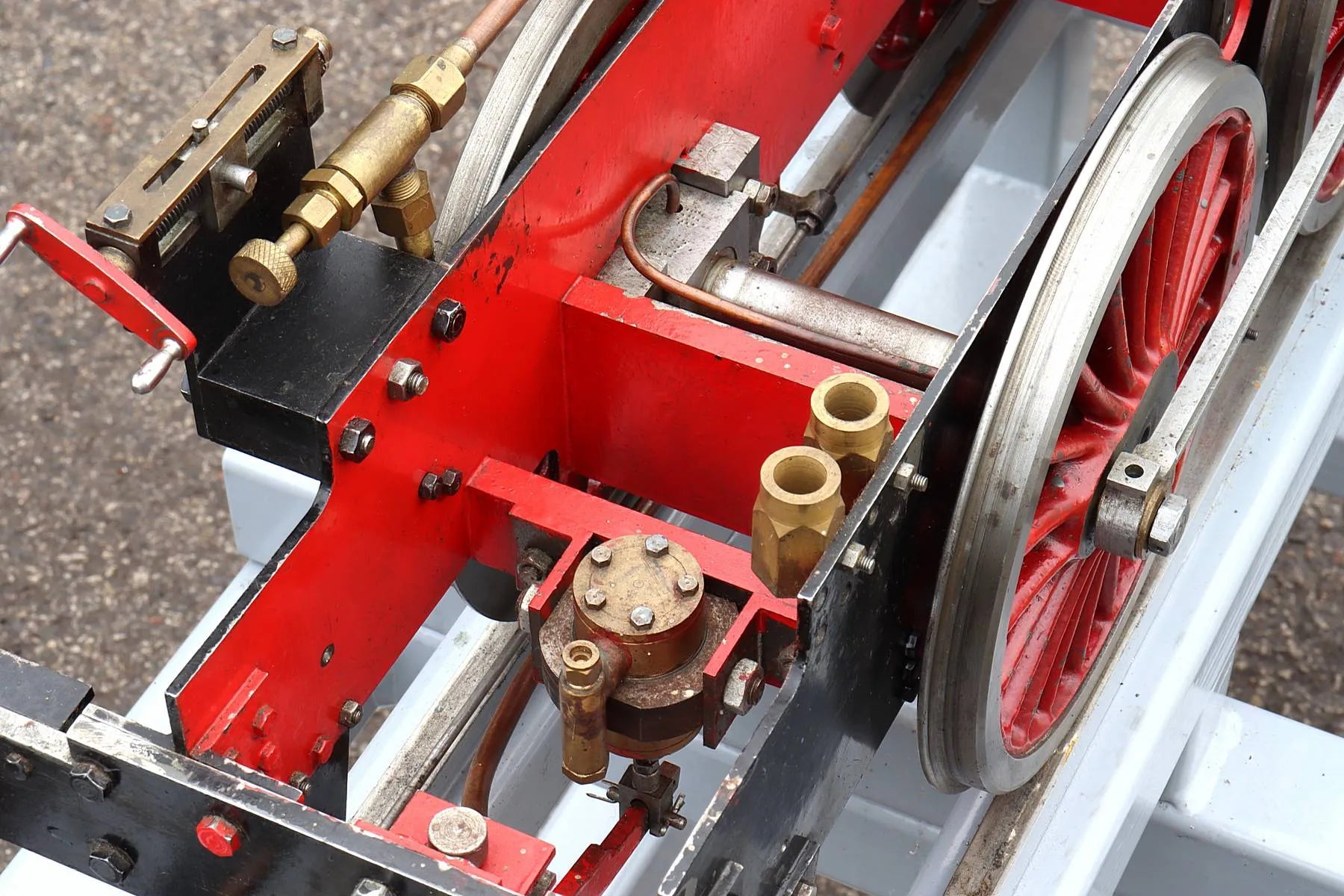

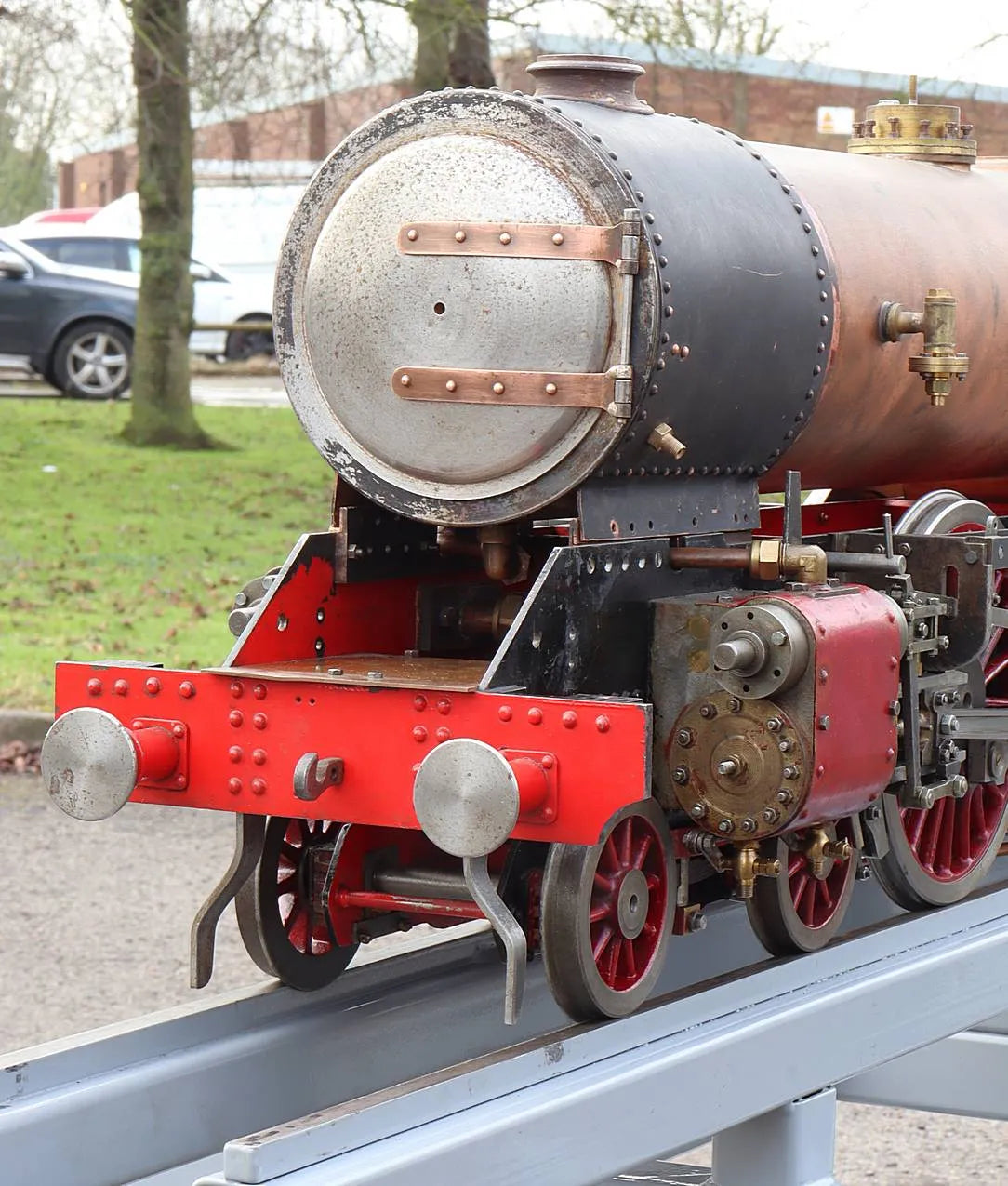

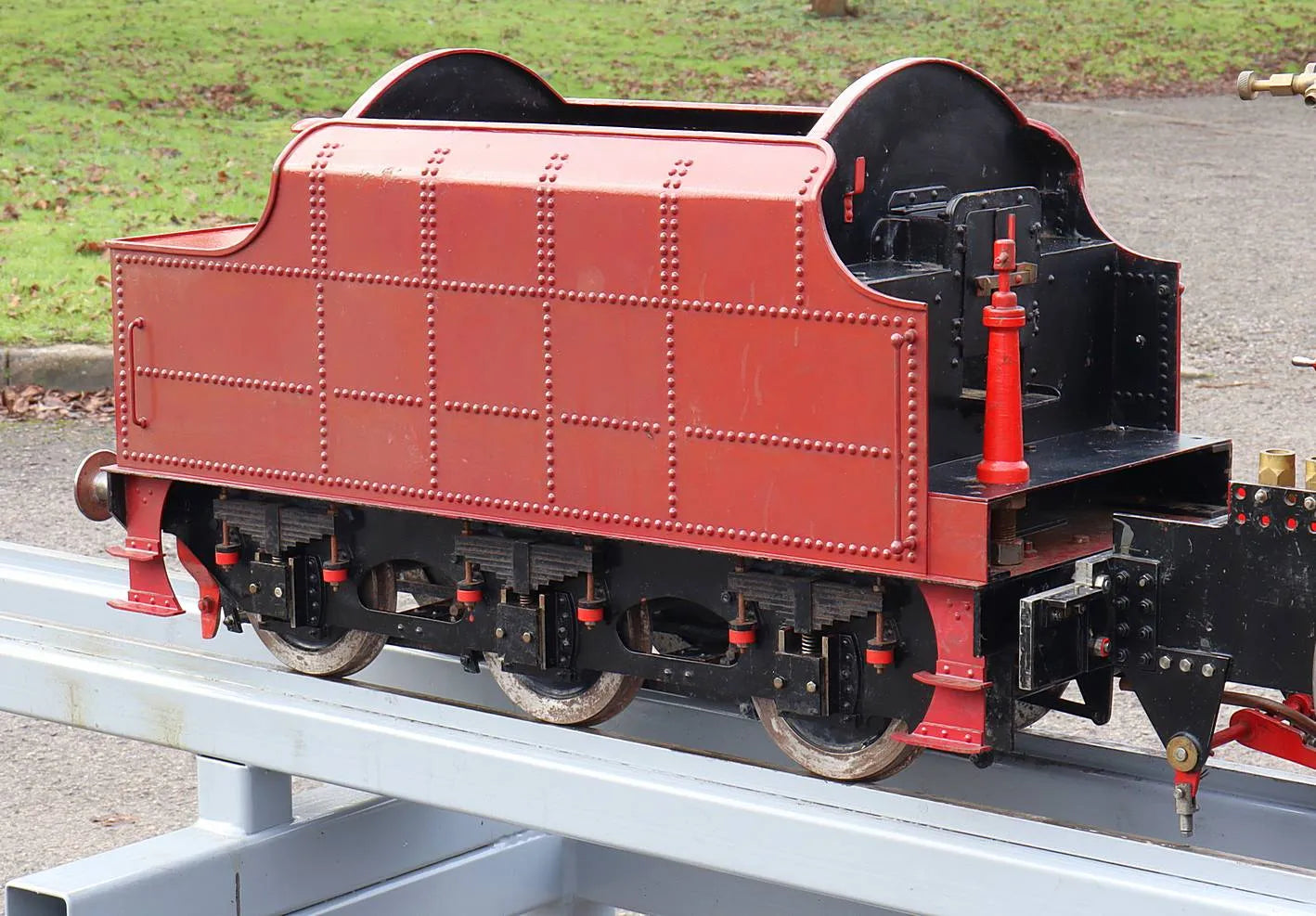

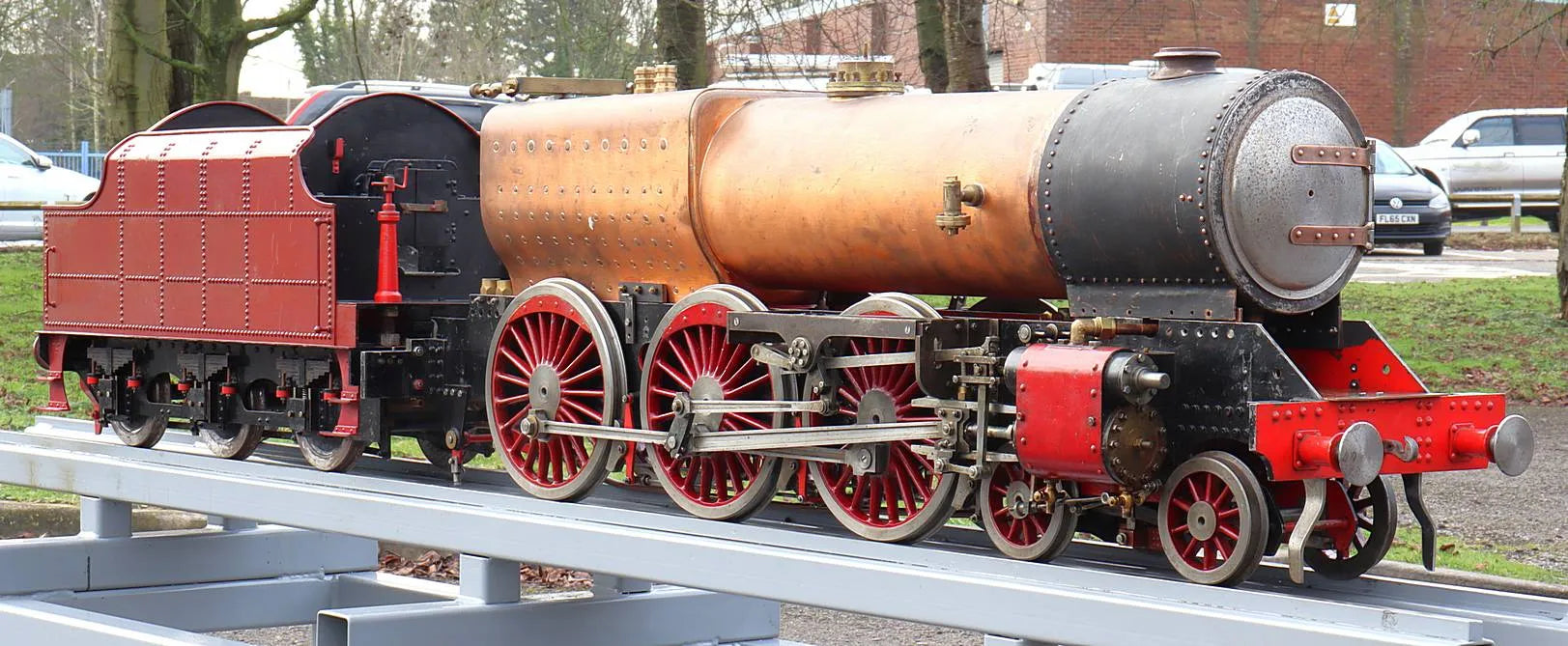

A well-advanced LMS "Royal Scot" to Martin Evans' "Royal Engineer" design.Work to date comprises a complete chassis which turns over freely, complete tender and a new CE-marked silver-soldered copper boiler by Cheddar, complete with documentation and hydraulic test certificate for 110psi working pressure.
There are some loose parts including grate, ashpan and running boards, along with a box of smaller bits.
Complete with a set of drawings.
Stock code |
13301 |
Length/inches |
43 + 26 |
Width/inches |
11 |
Height/inches |
15 |
Weight/Kg |
103 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |

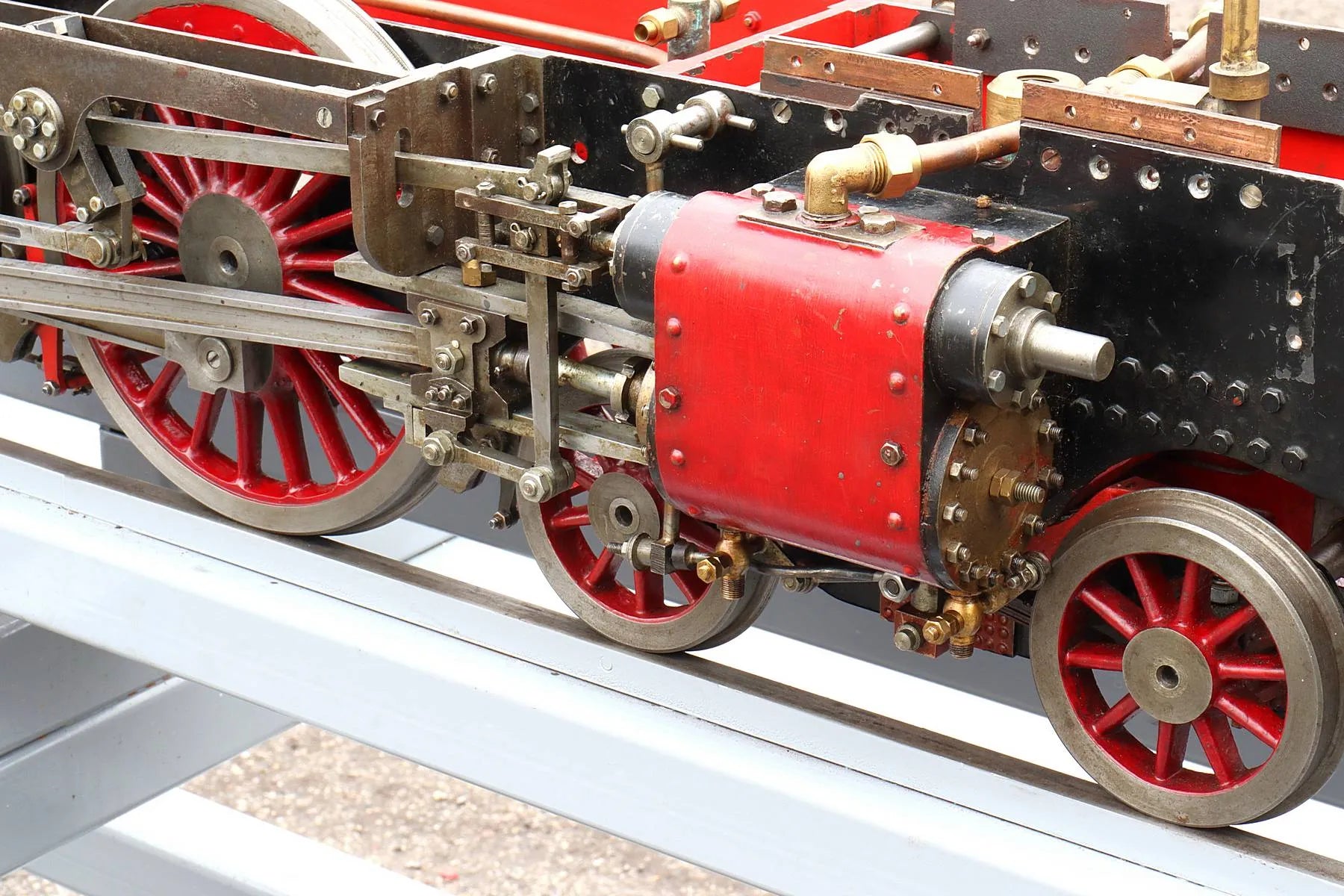

cast iron |
Valve type |
slide |
Valve gear |

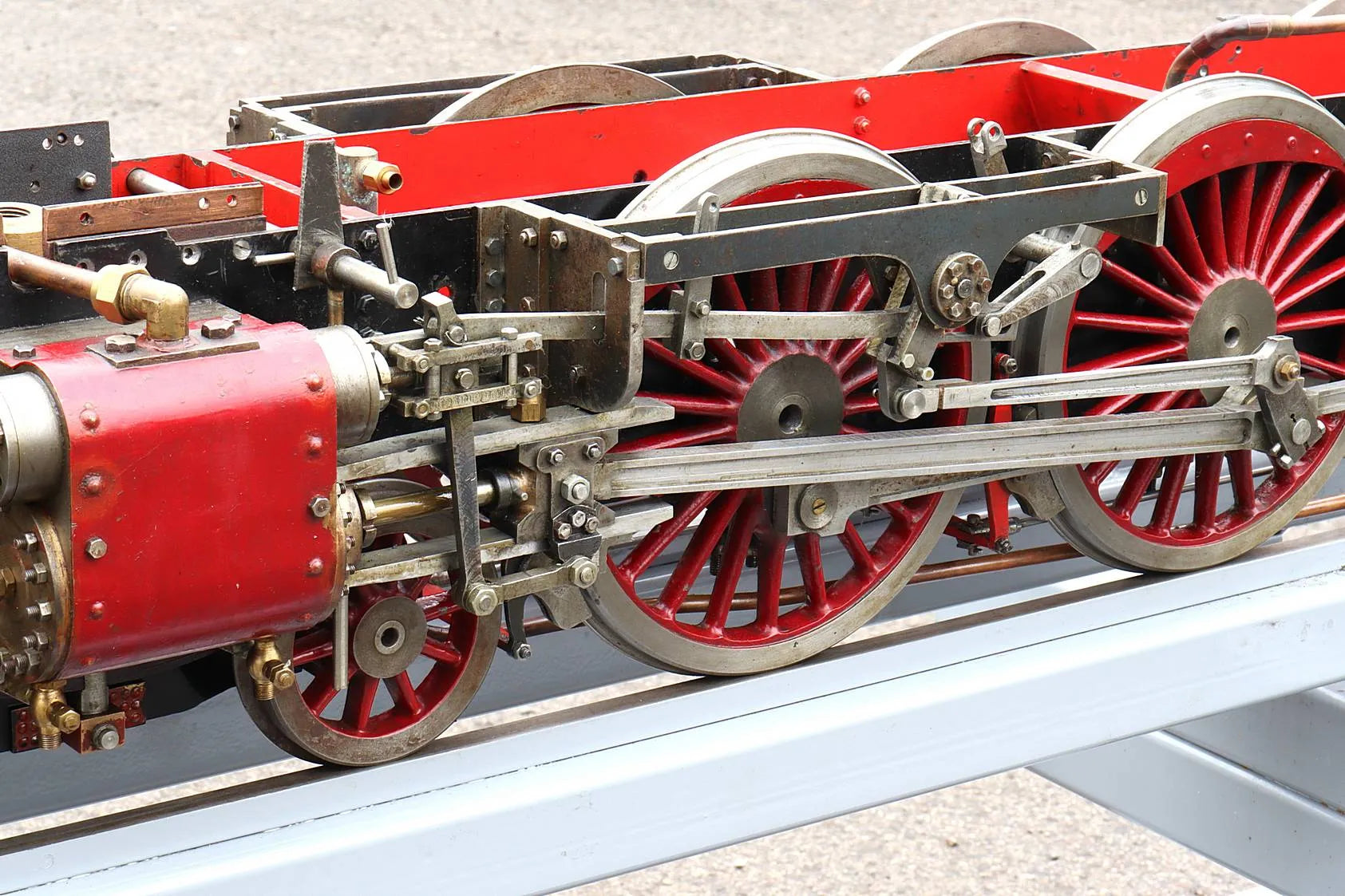

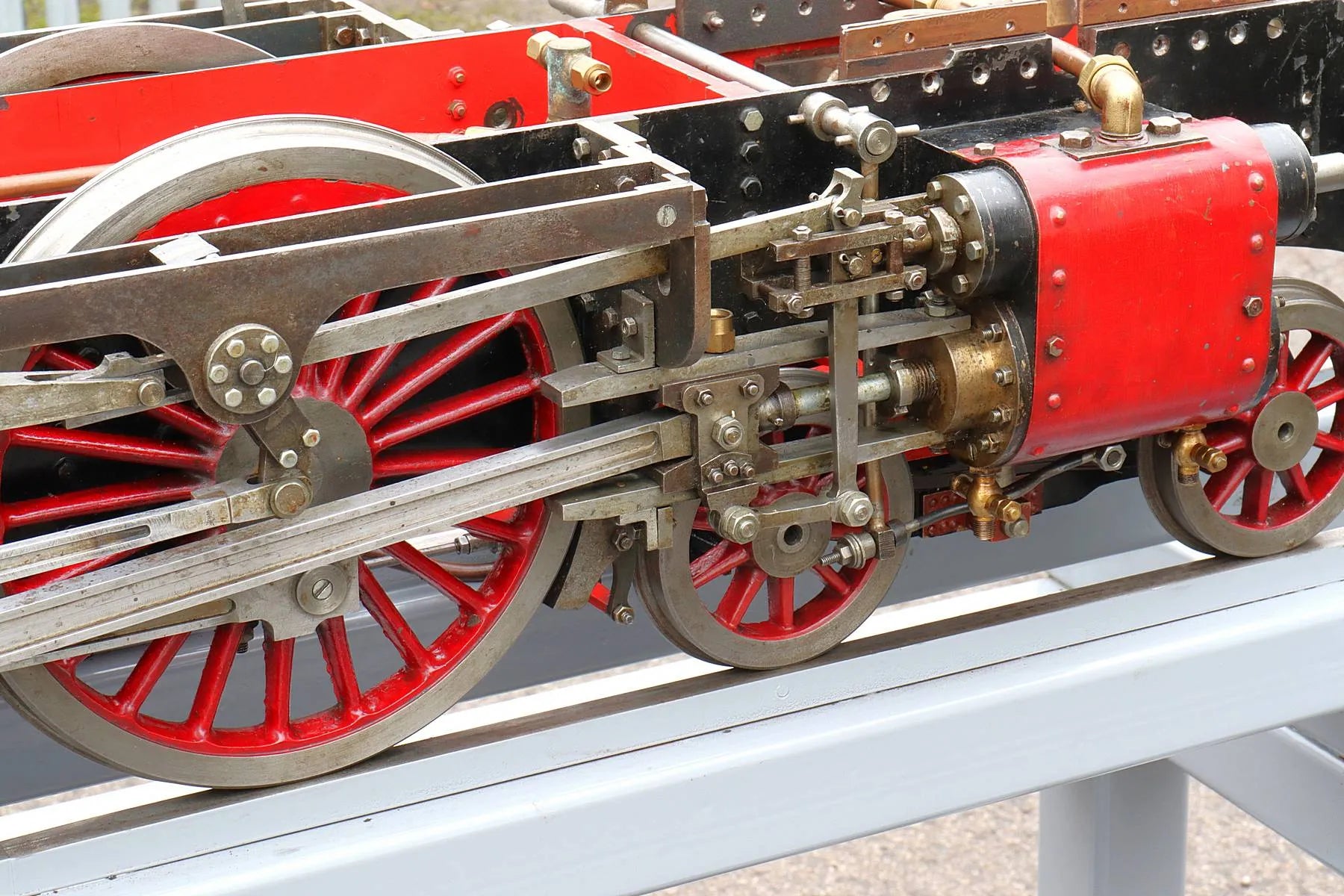

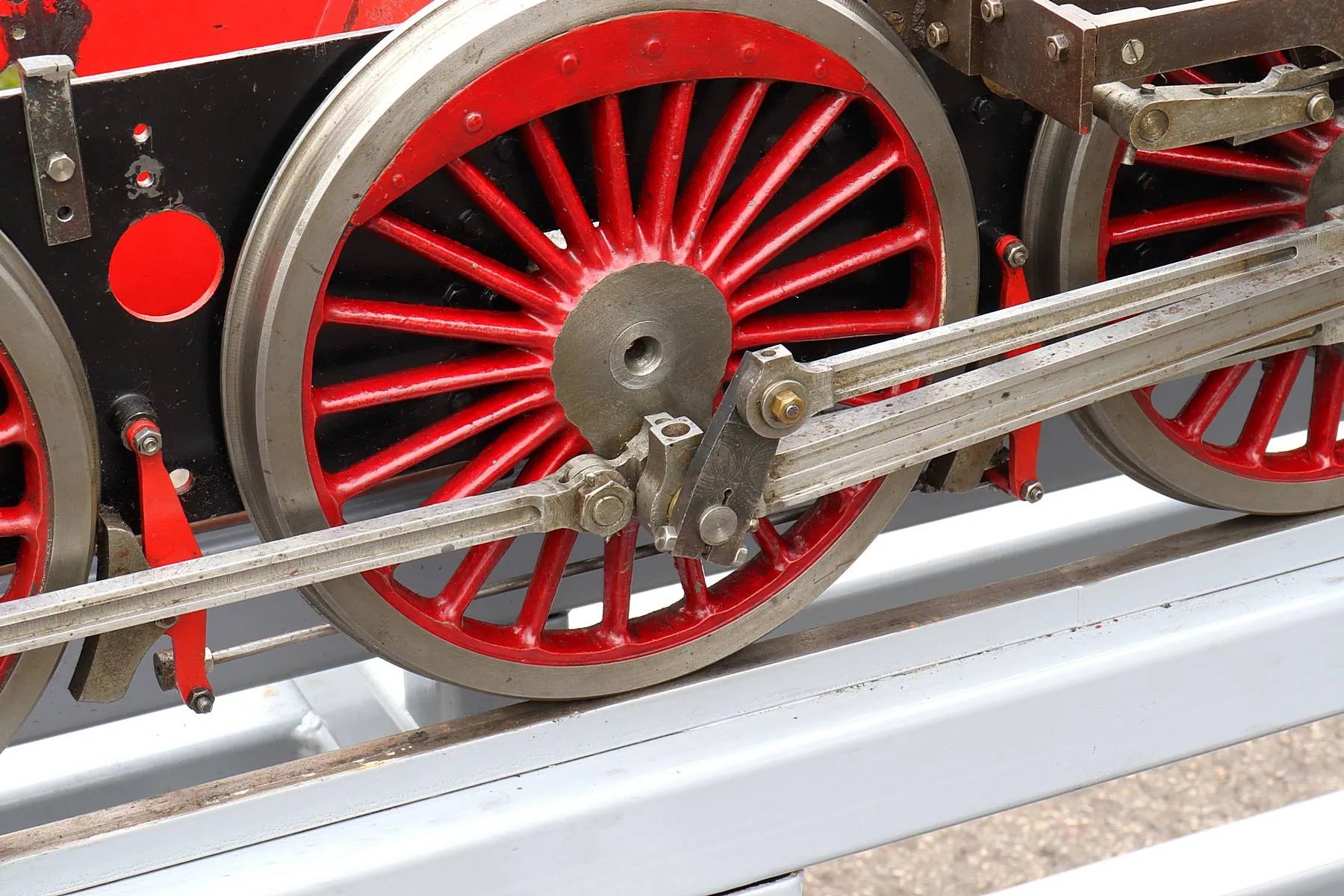

Walschaerts |
Reverser type |
screw |
Boiler maker |
Cheddar Valley Steam |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
110 |
CE/UKCA mark |
yes |
Year built |
2006 |
Boiler number |
CVS070 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Hand pump |
1 |

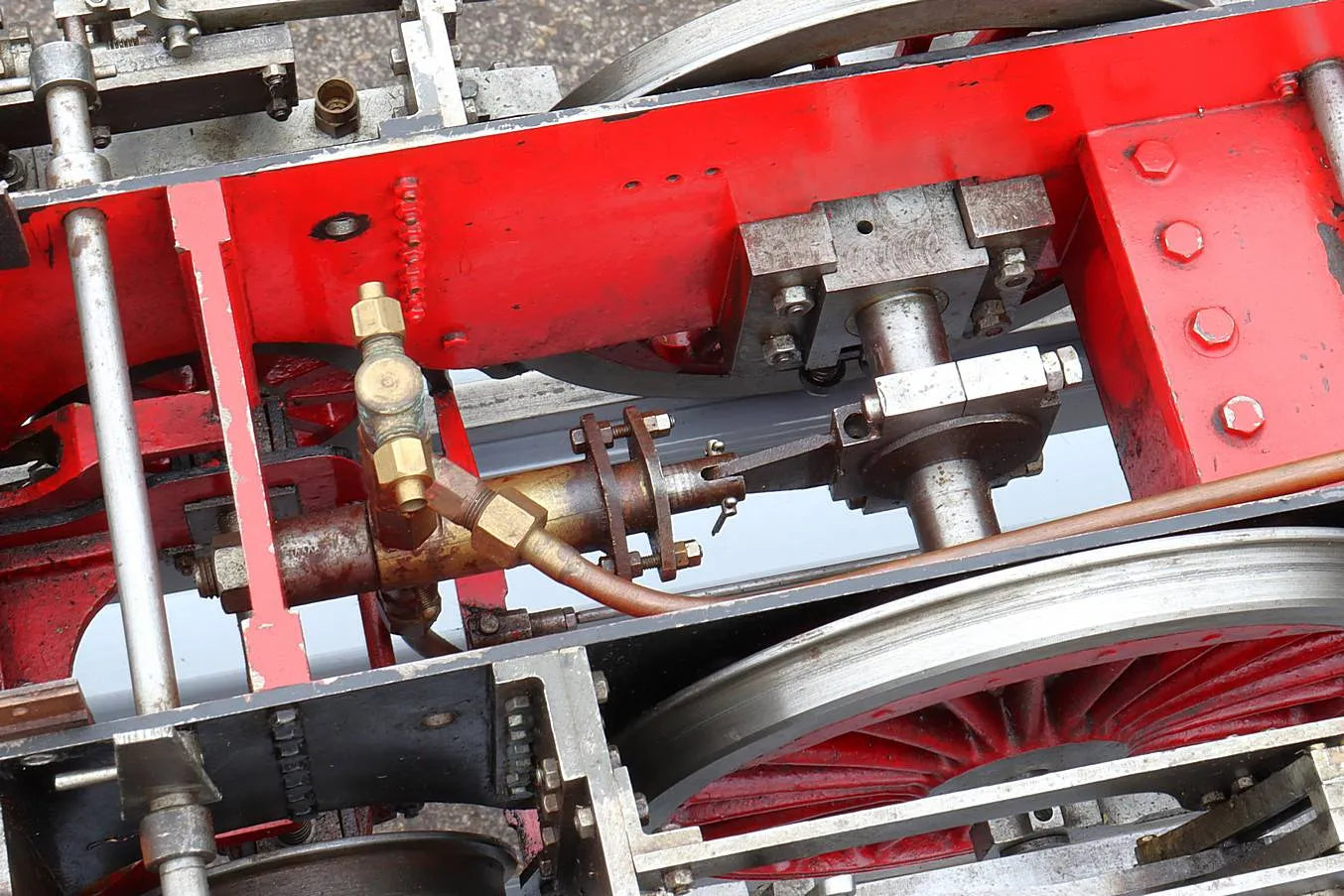

Mechanical pump |
1 |
Superheater type |
flue tube |
Superheater |
3 |
