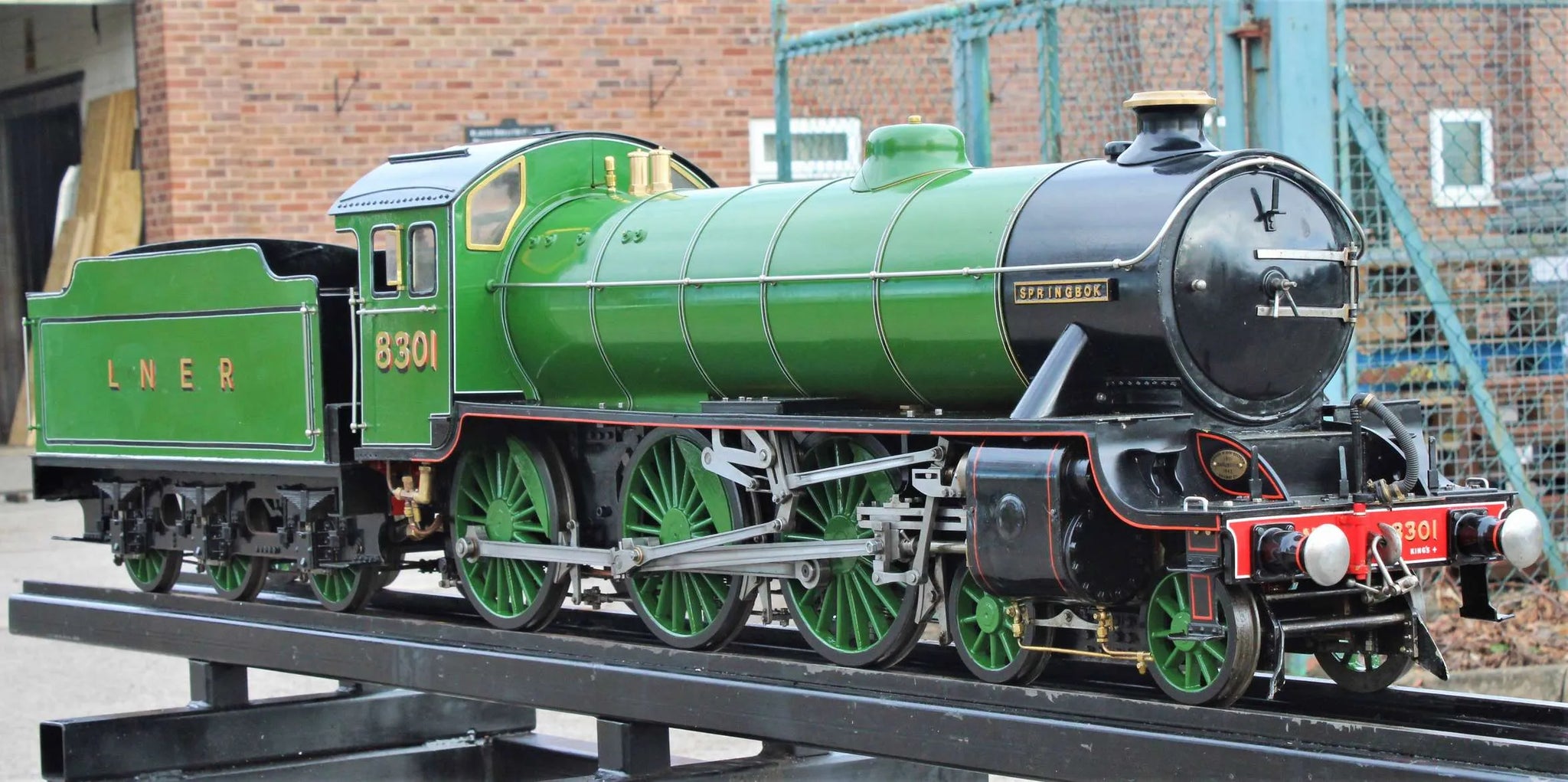

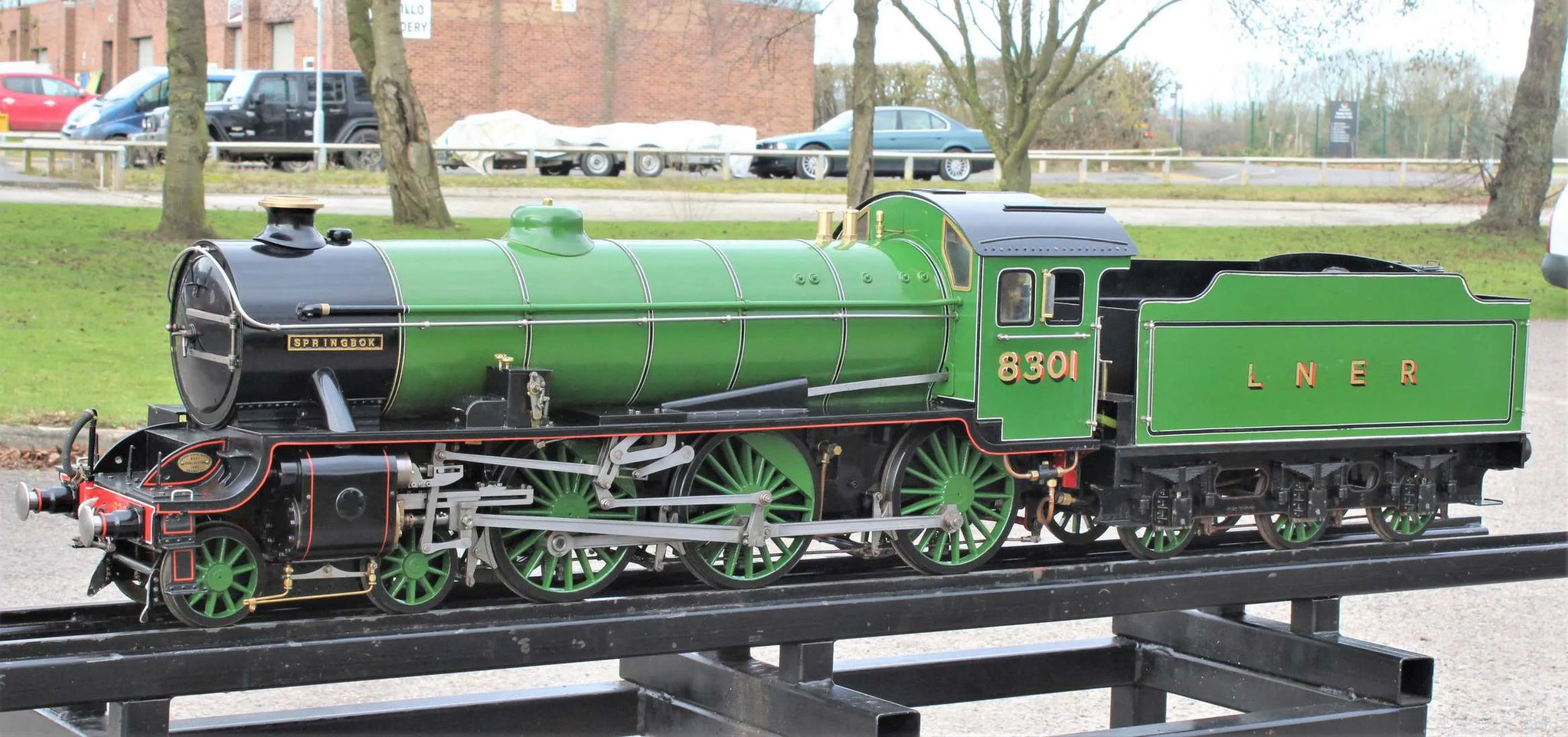

5 inch gauge LNER B1 4-6-0 "Springbok"

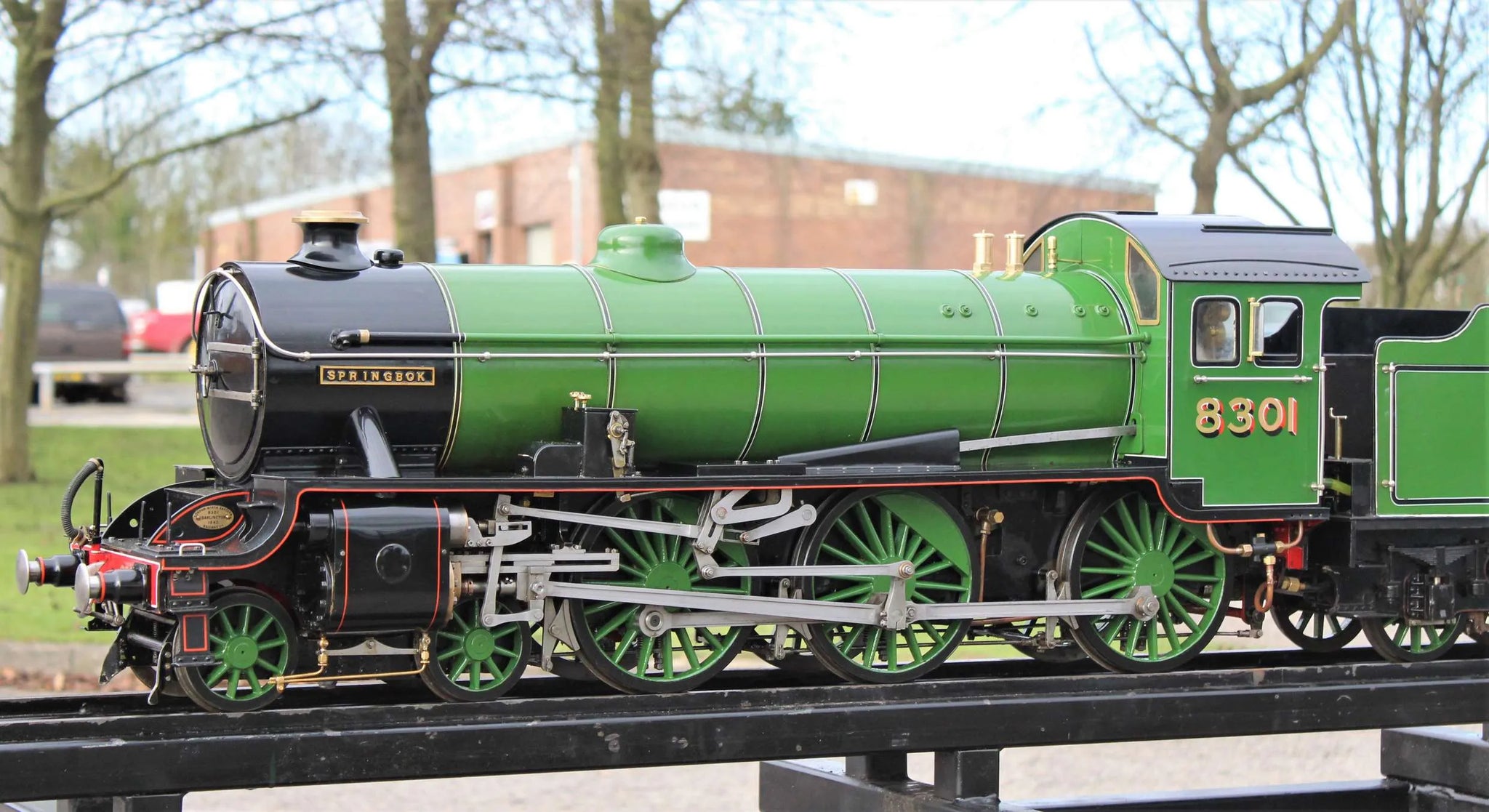

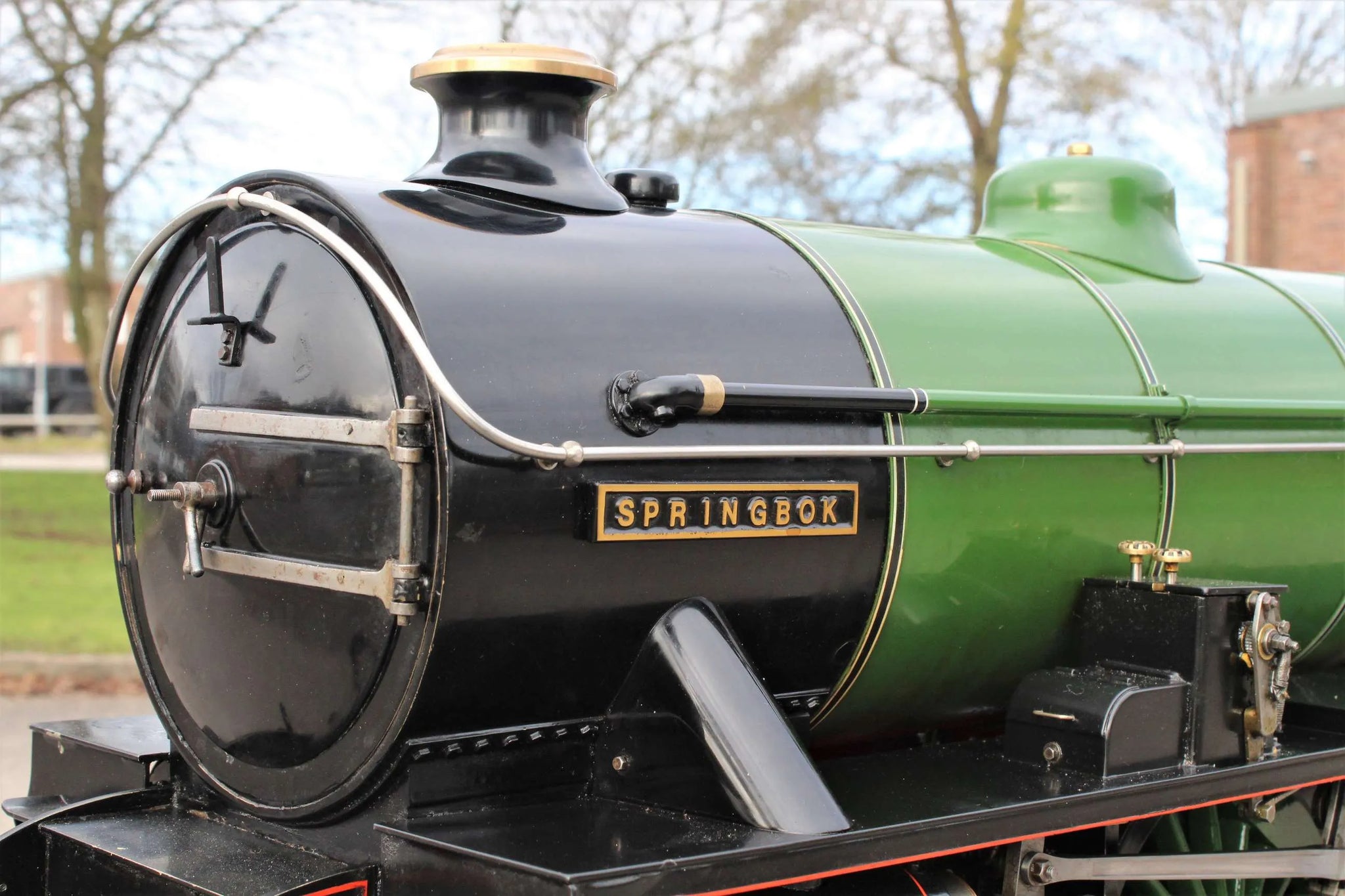

A 5 inch gauge LNER B1 to Martin Evans' "Springbok" design.

A well built engine in good order, it came to us recently as a part exchange, along with an LNER O1 2-8-0. In regular club use pre-lockdown, it steams freely and runs well - there's some video of it taken outside the workshop here.

Boiler has had recent hydraulic and steam tests with certification issued for same, in addition to older club documentation.

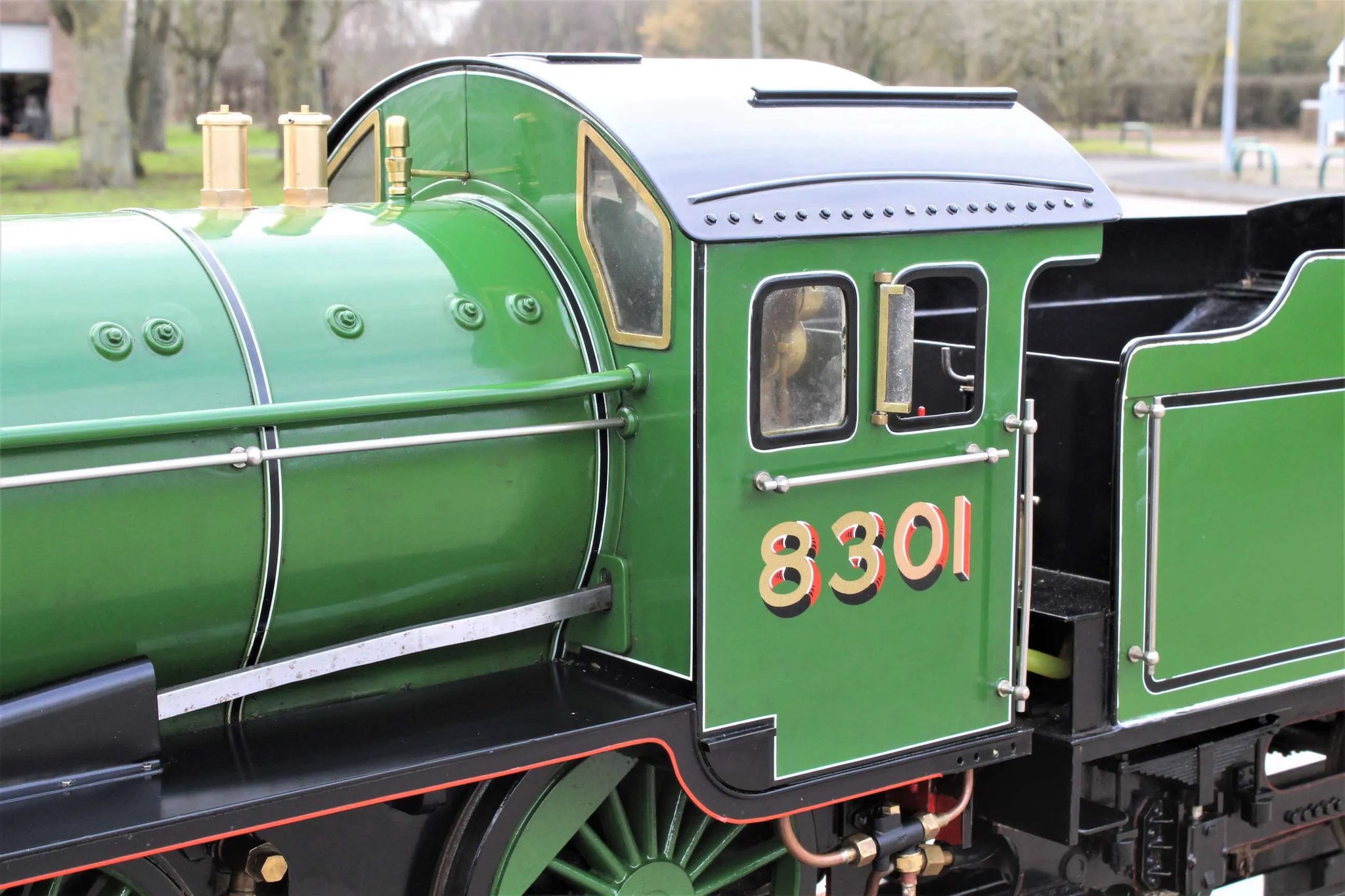

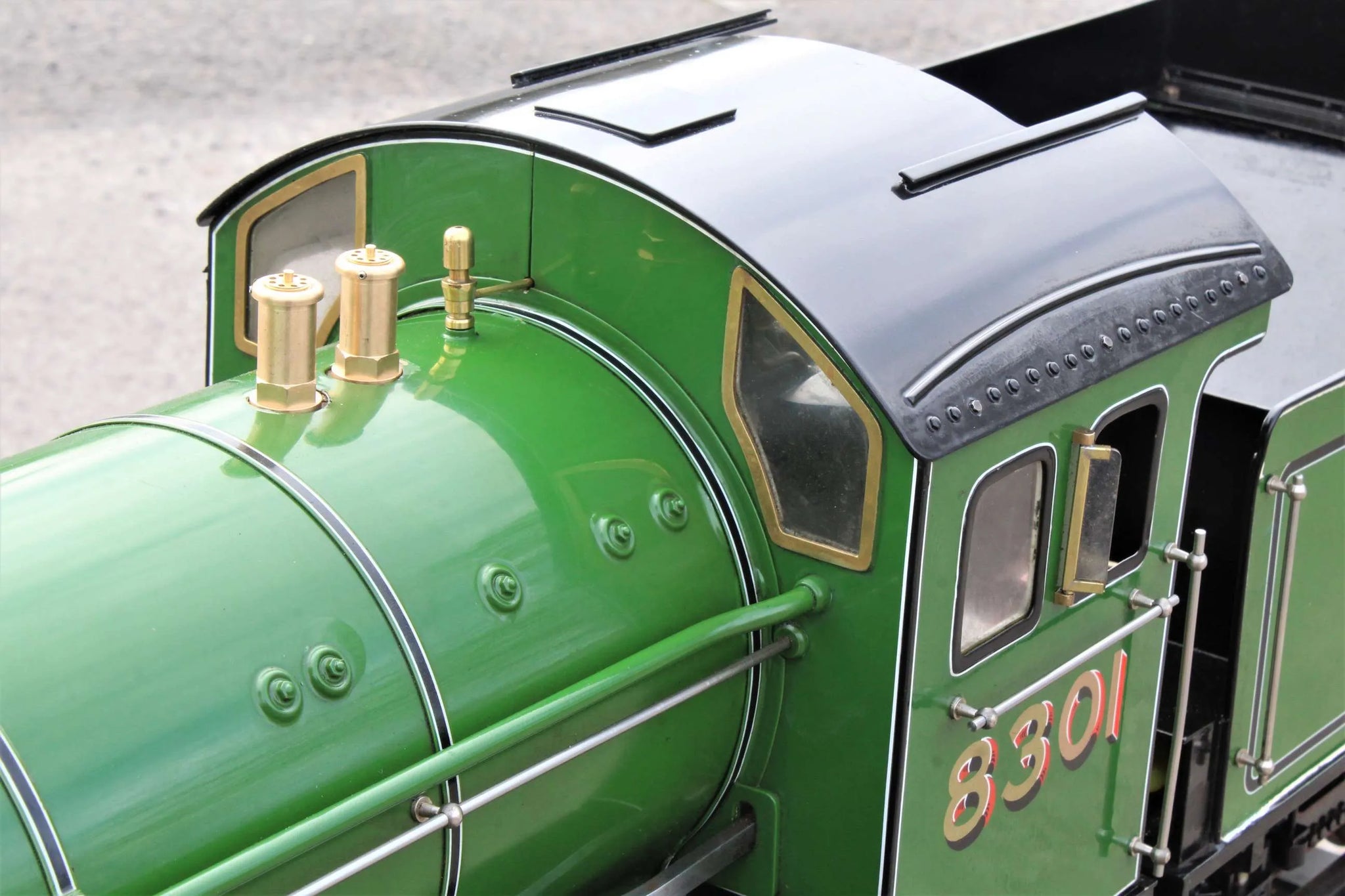

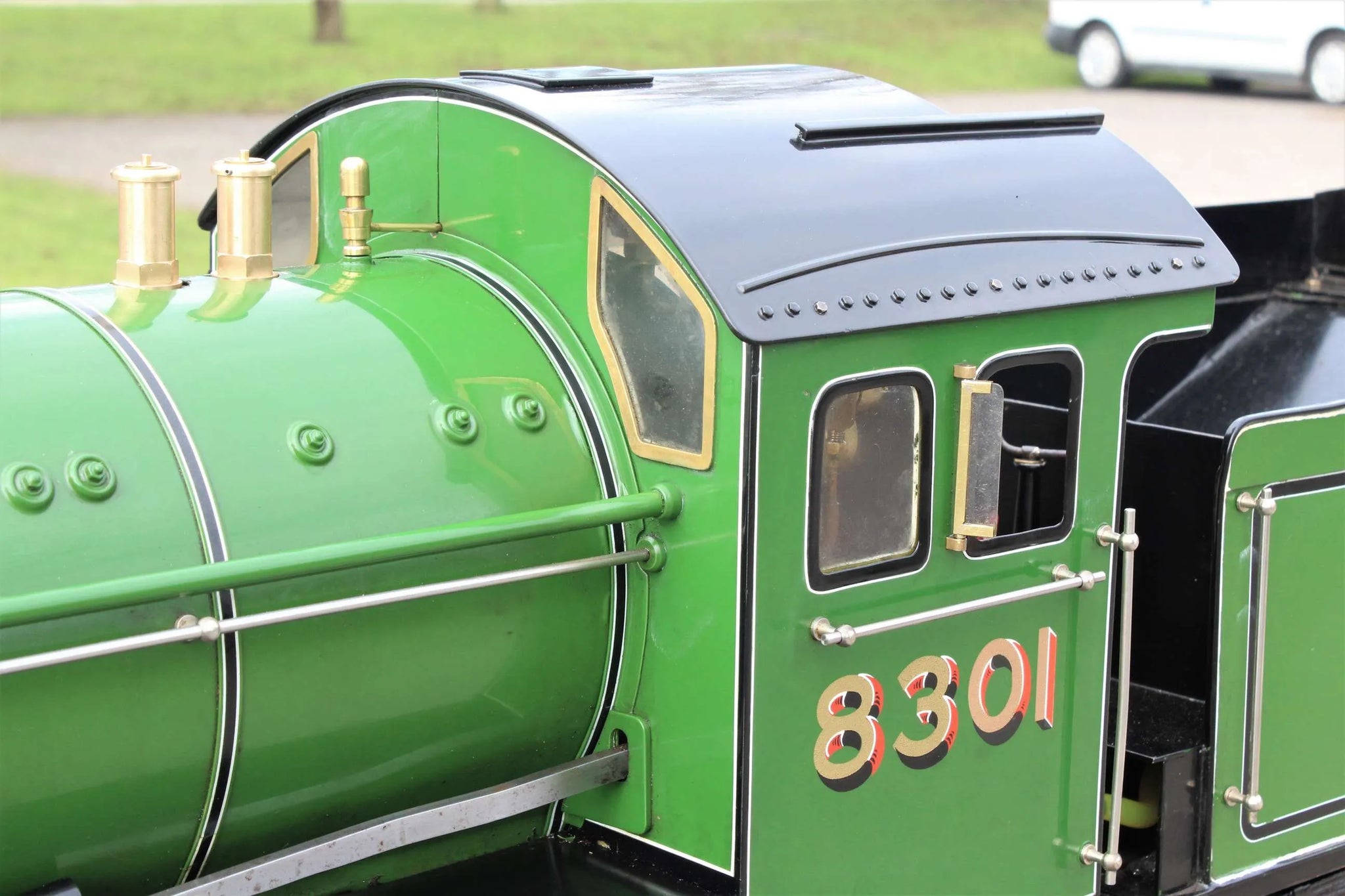

Paintwork has typical wear associated with a running engine but remains in good, bright condition - it's one of the nicest turned out B1s we've had in the last year or two.

Technical information

Stock code

9422

Gauge

5 inch

Length/inches

40 + 25

Width/inches

10

Height/inches

14

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

piston

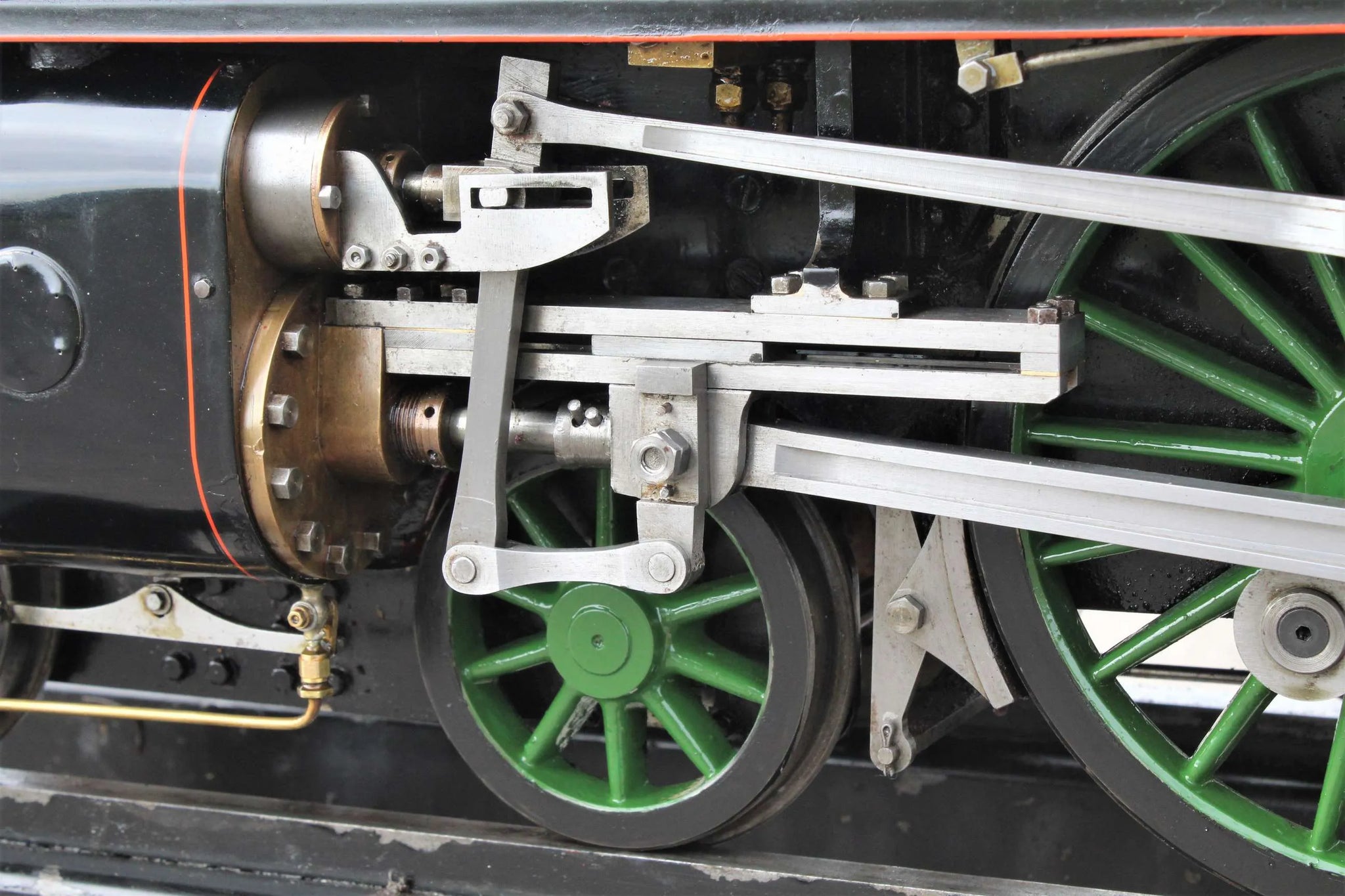

Valve gear

Walschaerts

Reverser type

screw

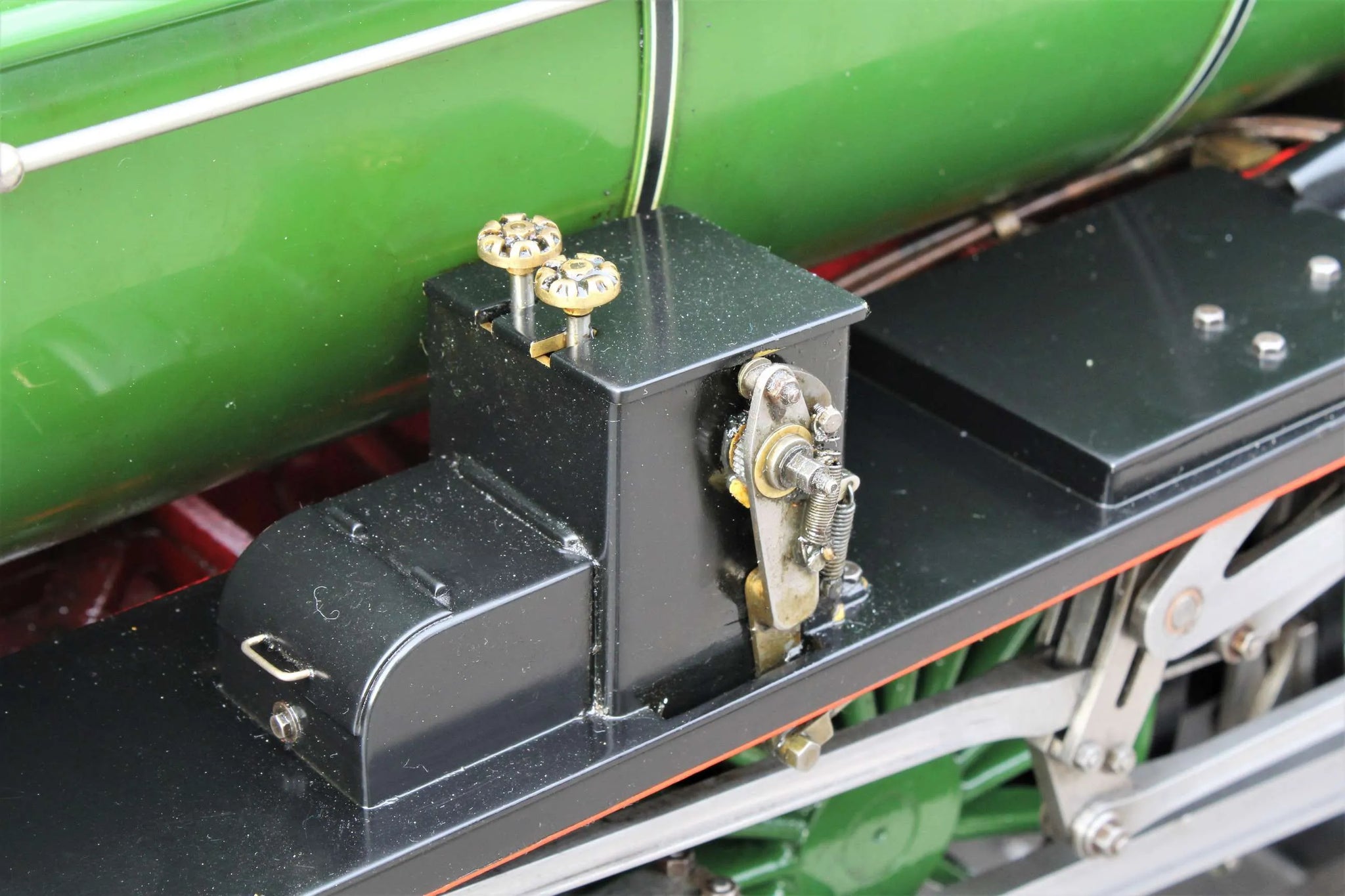

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a pre-2002

Year built

1980

Boiler number

2212J

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

twin ram

Injector

2

Superheater type

flue tube

Superheater

4

Date out

Mar-21

Hydraulic test valid to

17-Dec-24

Steam test valid to

24-Apr-22
