10356

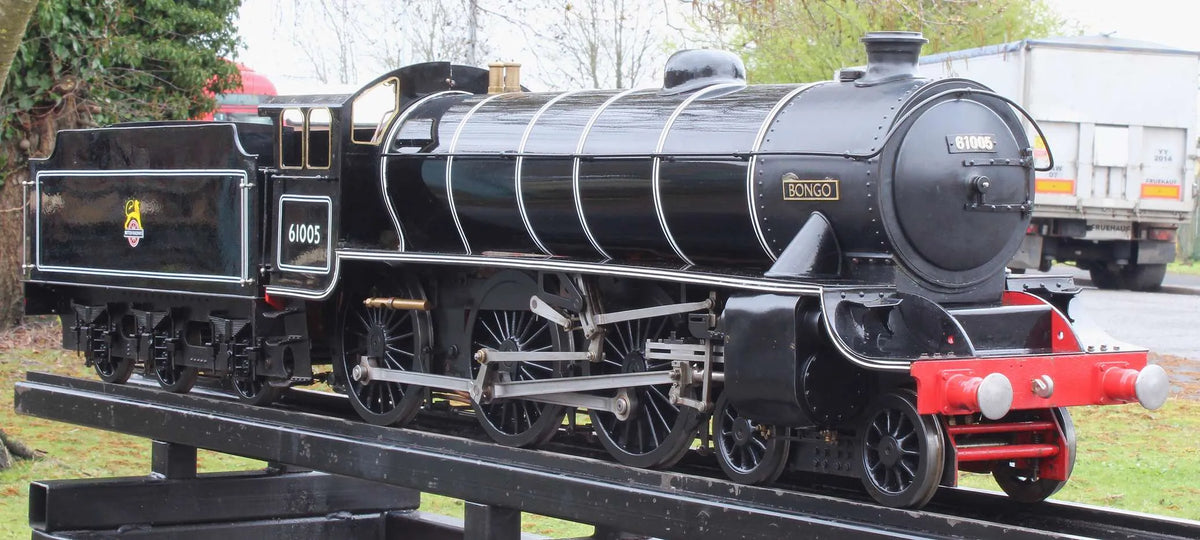

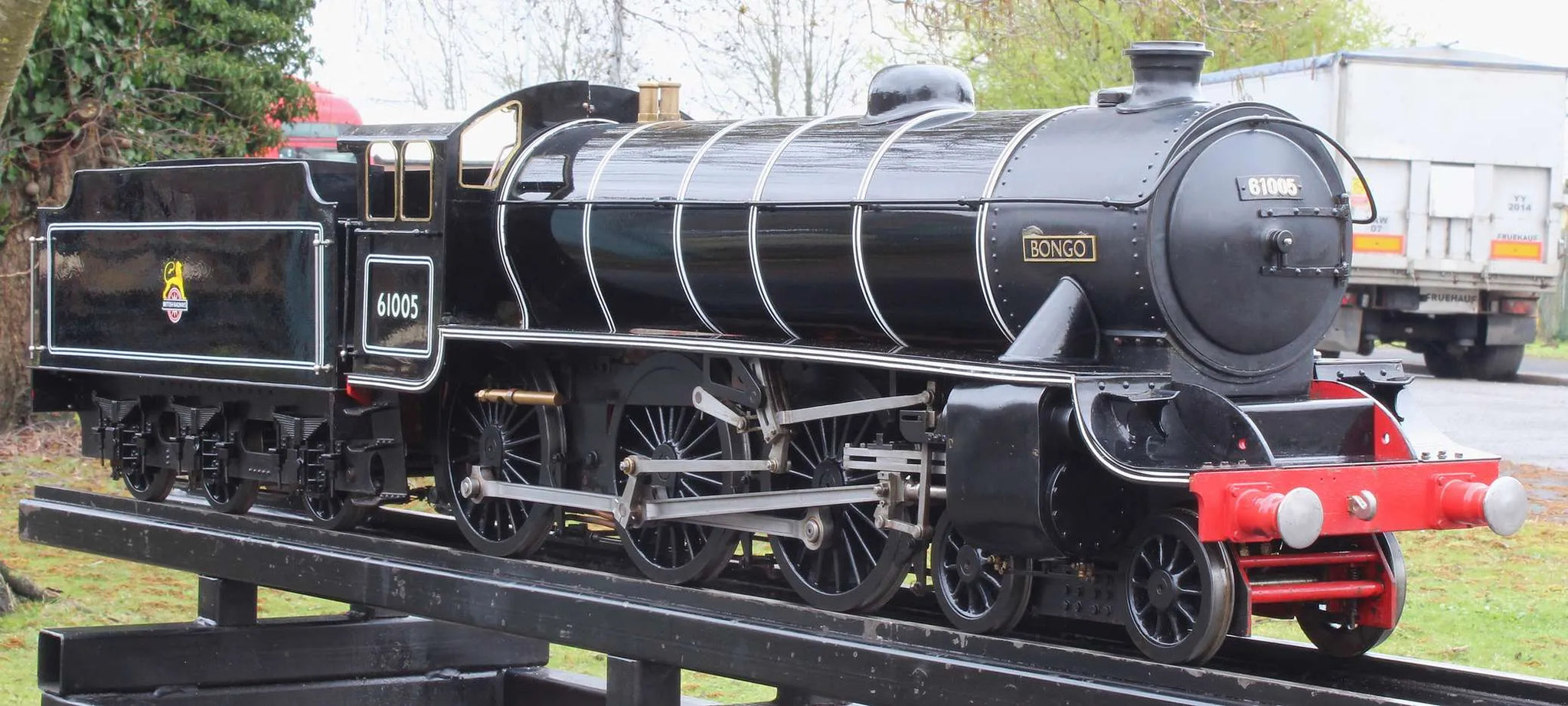

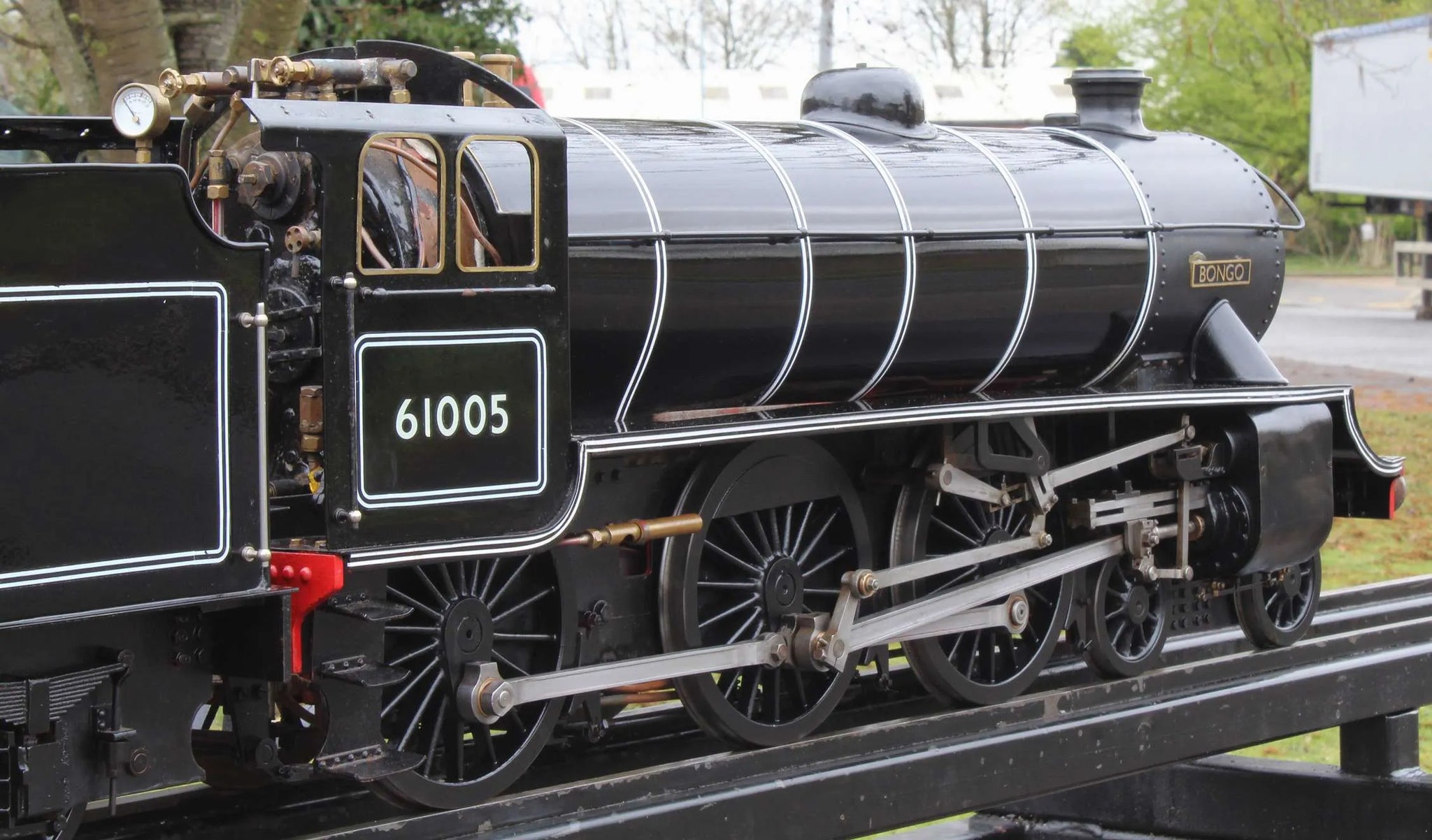

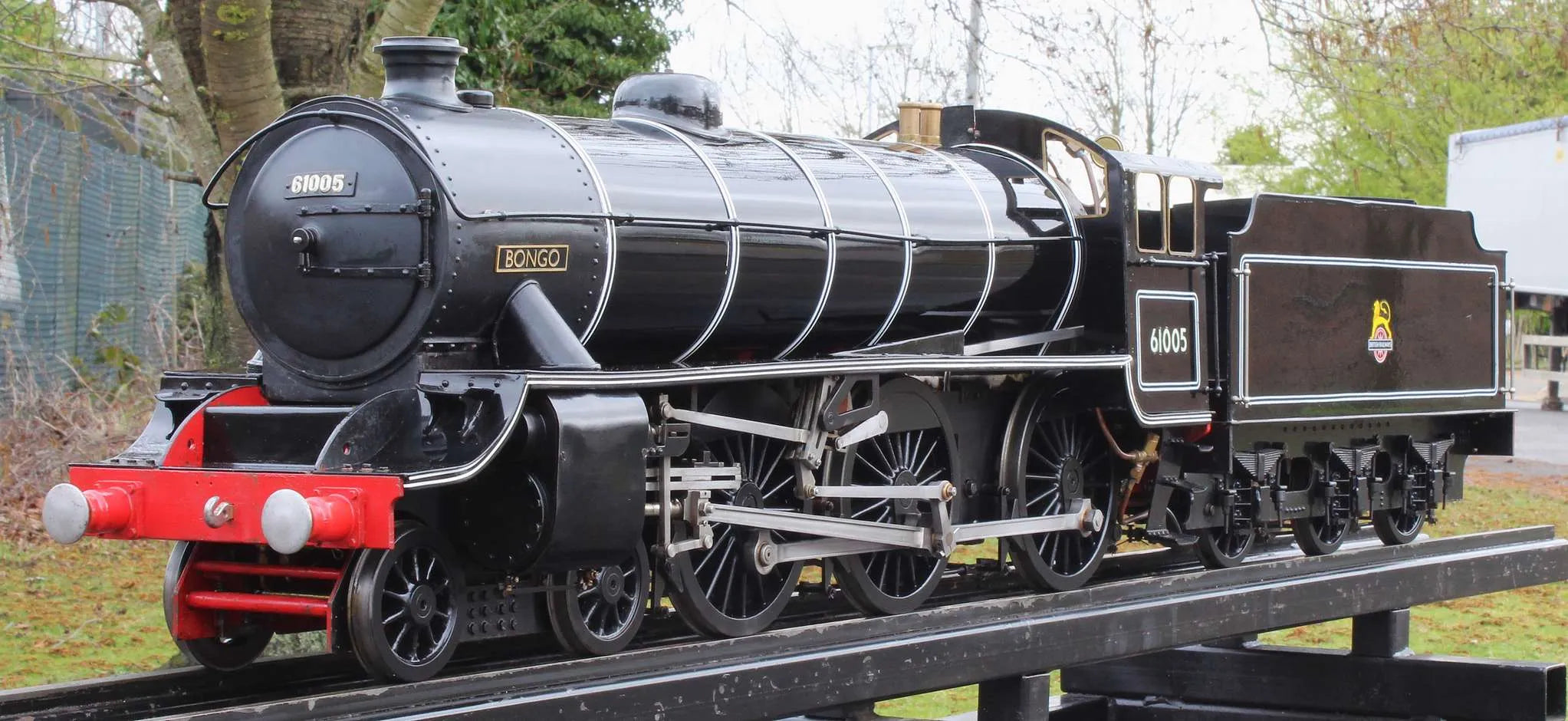

This one has come to us from the family of the late builder, an experienced engineer with a "Simplex" 0-6-0T and well-advanced Standard Class 2 in the same gauge to his credit.

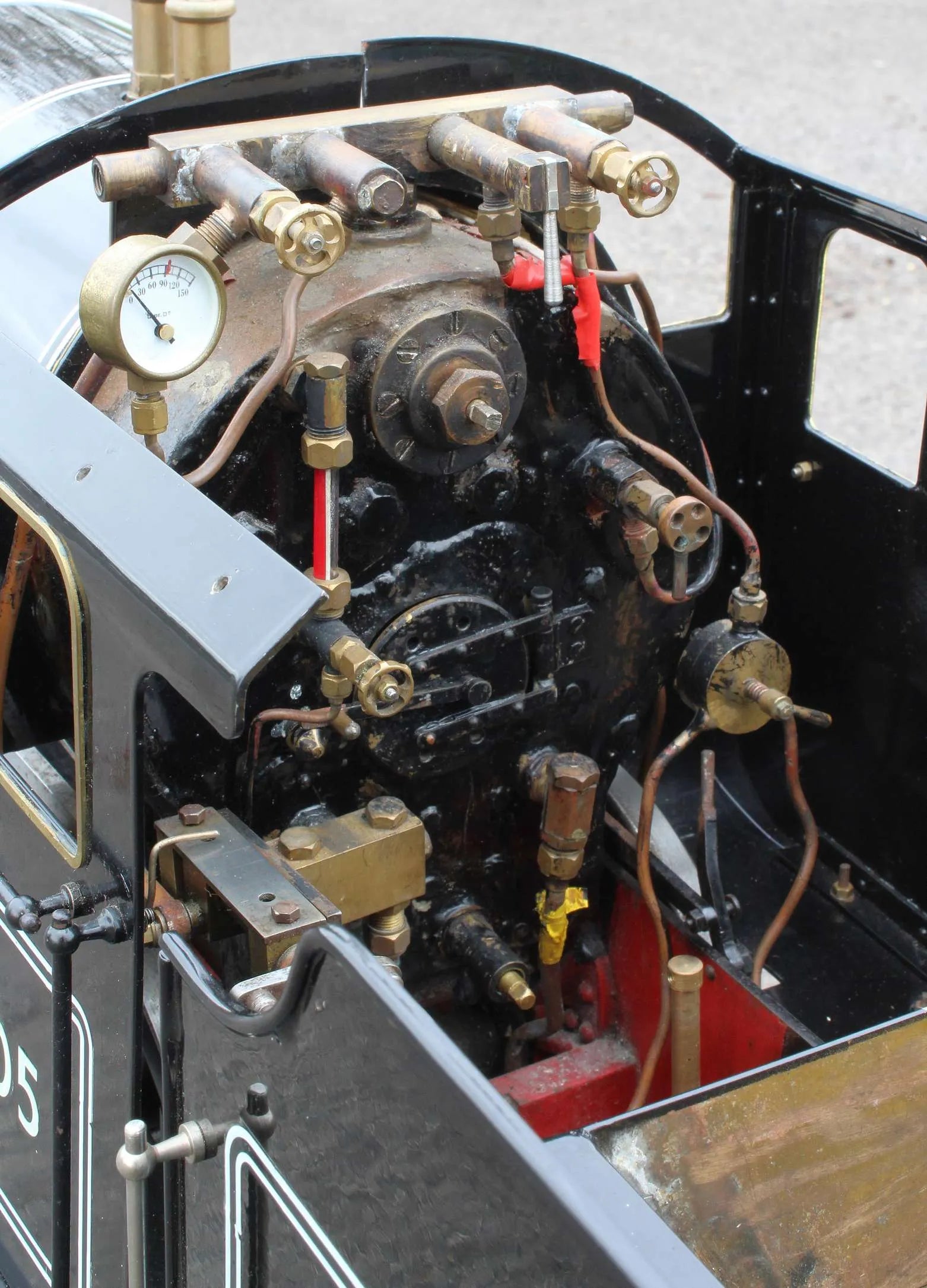

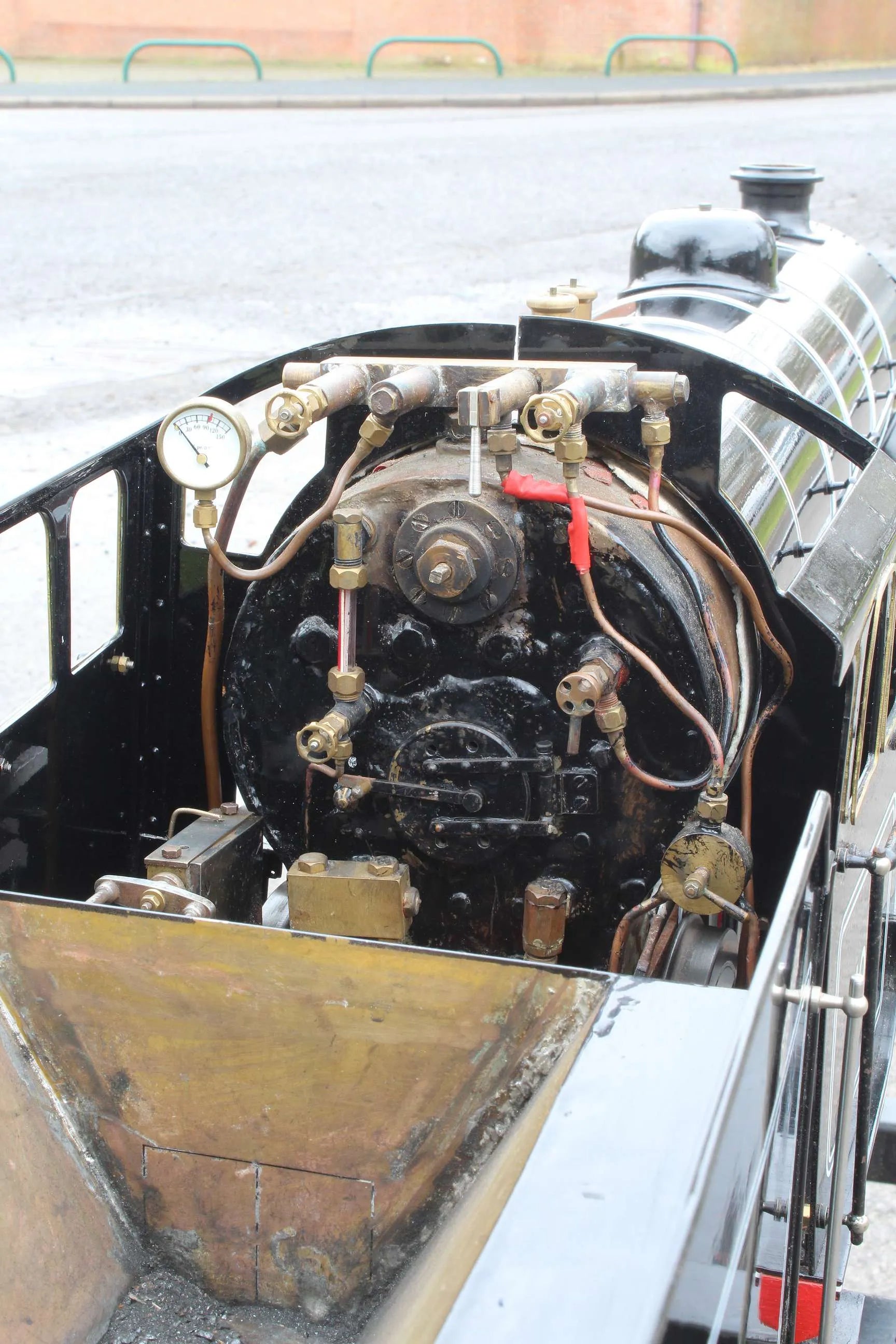

The engine is in running order - there's some video of it in steam on the rolling road here - although requires a variety of jobs attending to. Pistons and/or valves leak, axle pump is ineffective (although injector and hand pump both work), the cab roof is missing.
The boiler has had hydraulic and steam test, with new certification issued.
Stock code |
10356 |
Gauge |
5 inch |
Length/inches |
41 + 25 |
Width/inches |
11 |
Height/inches |
17 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
piston |

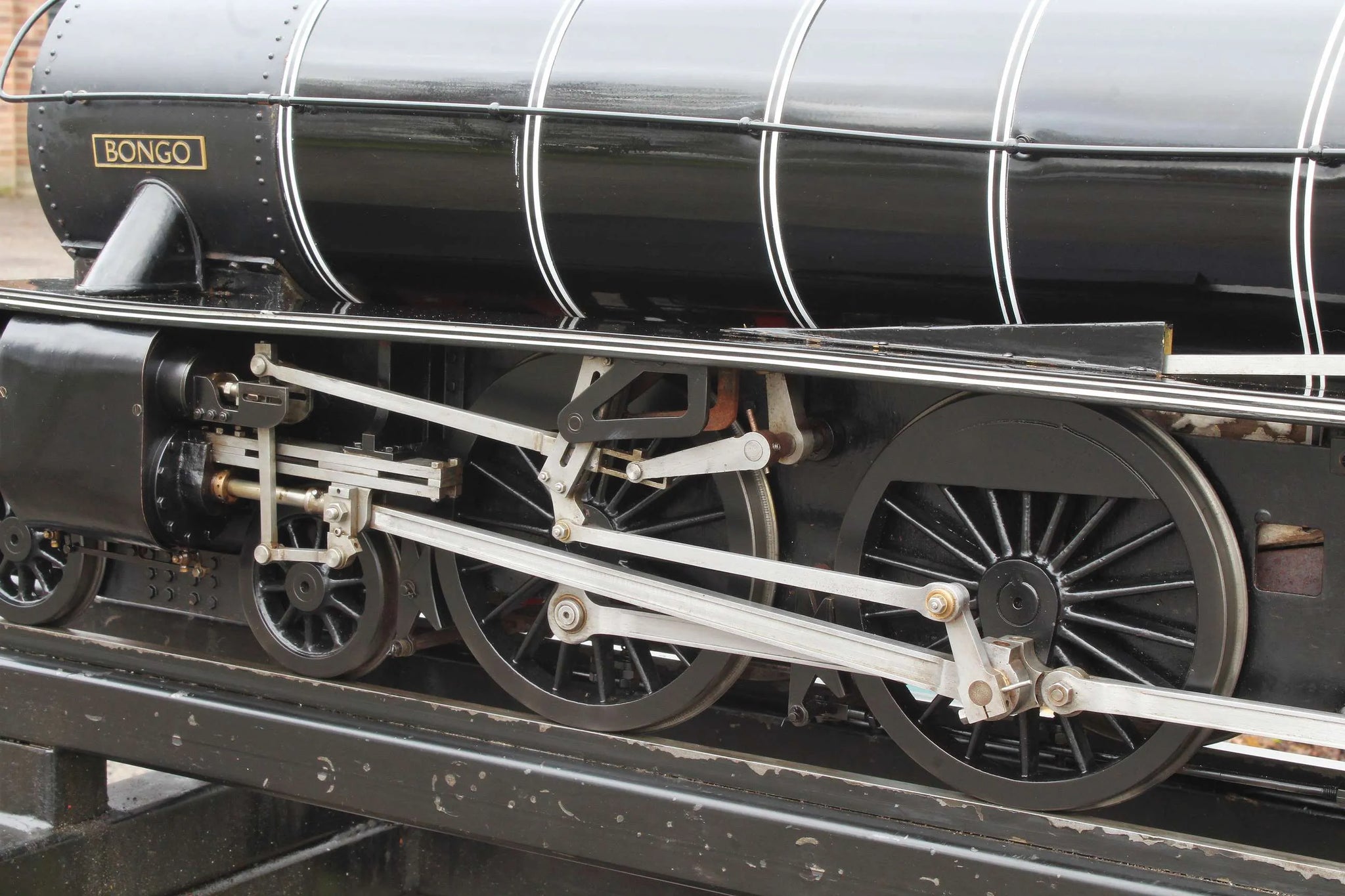

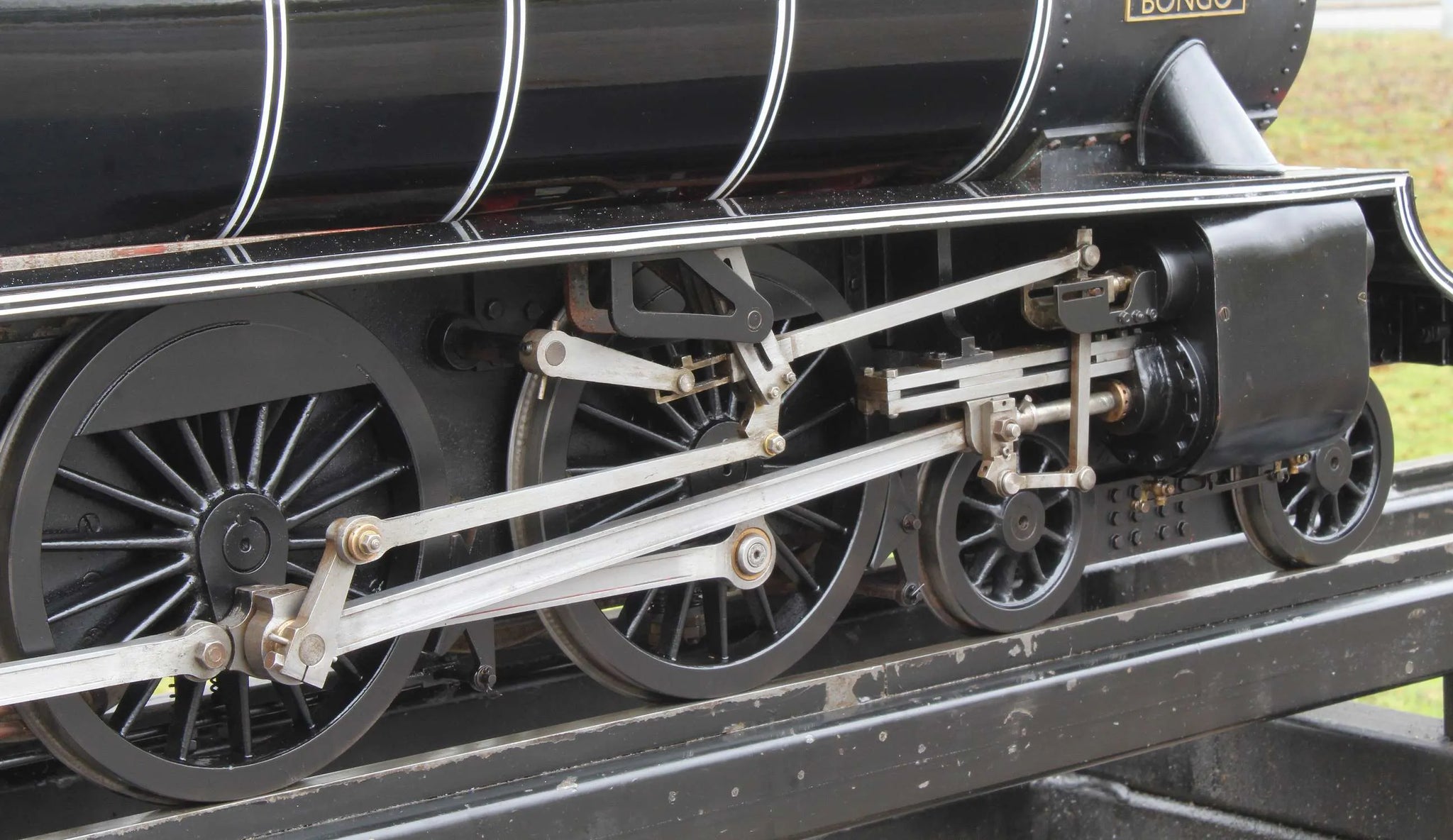

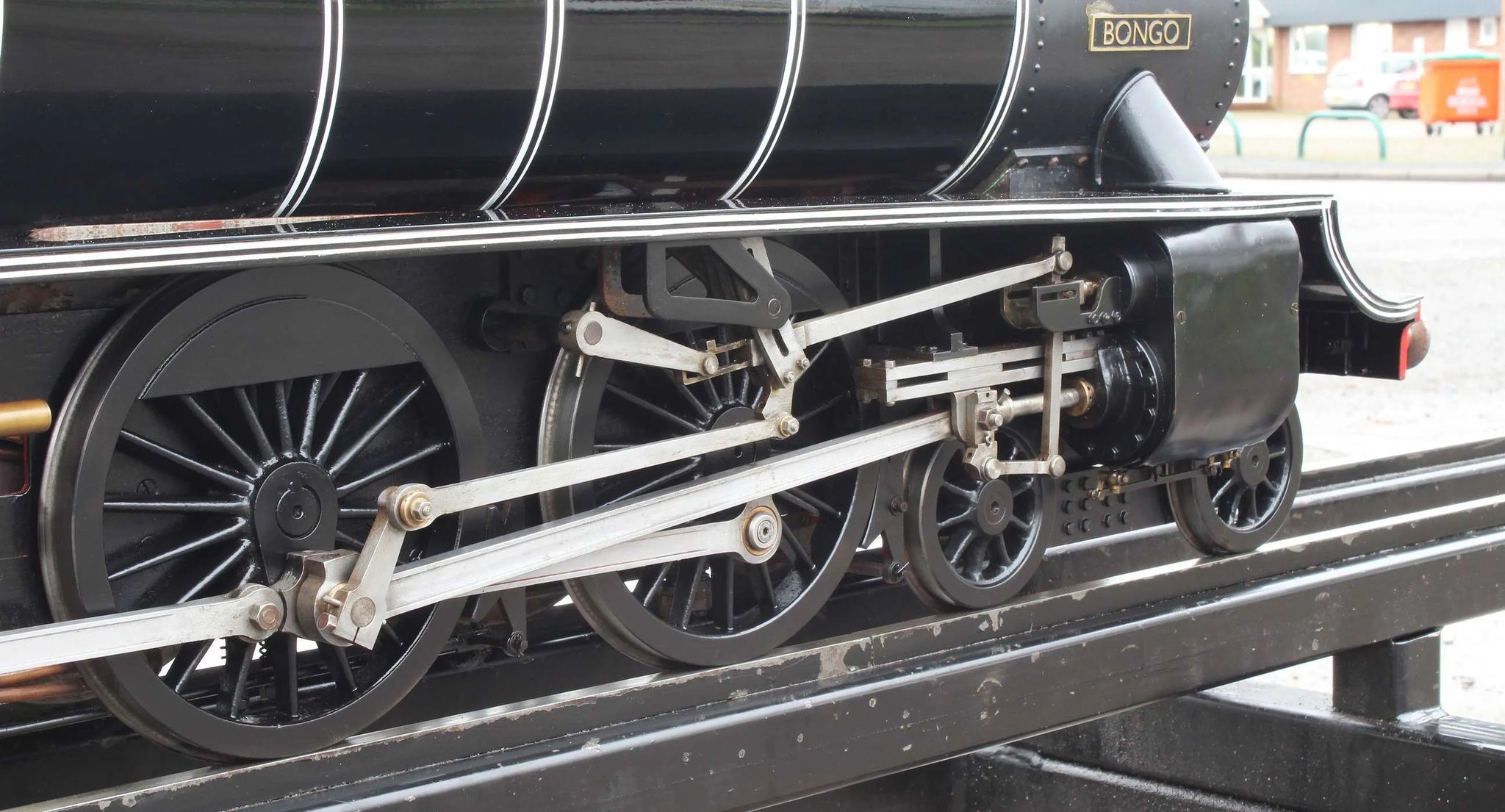

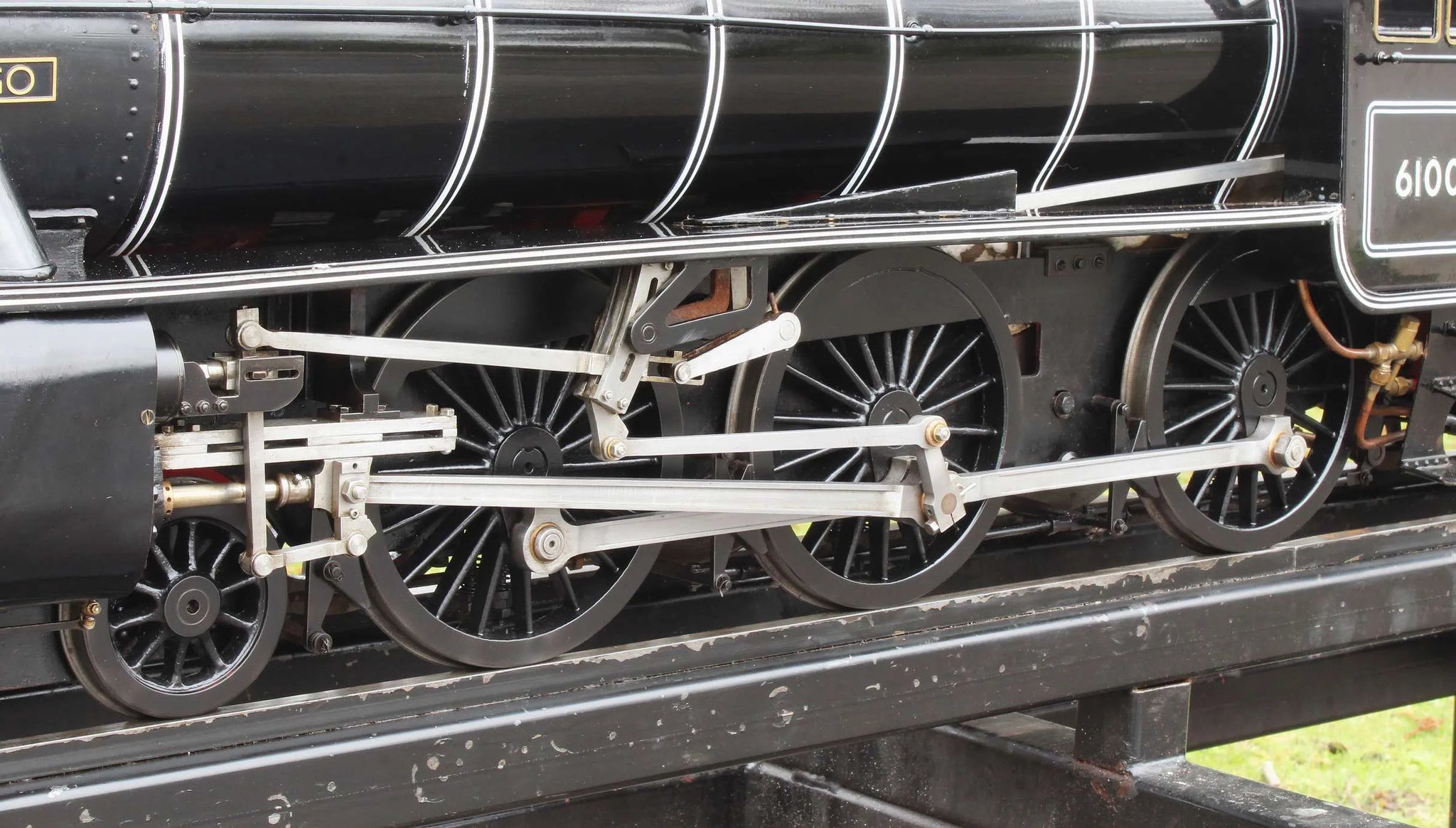

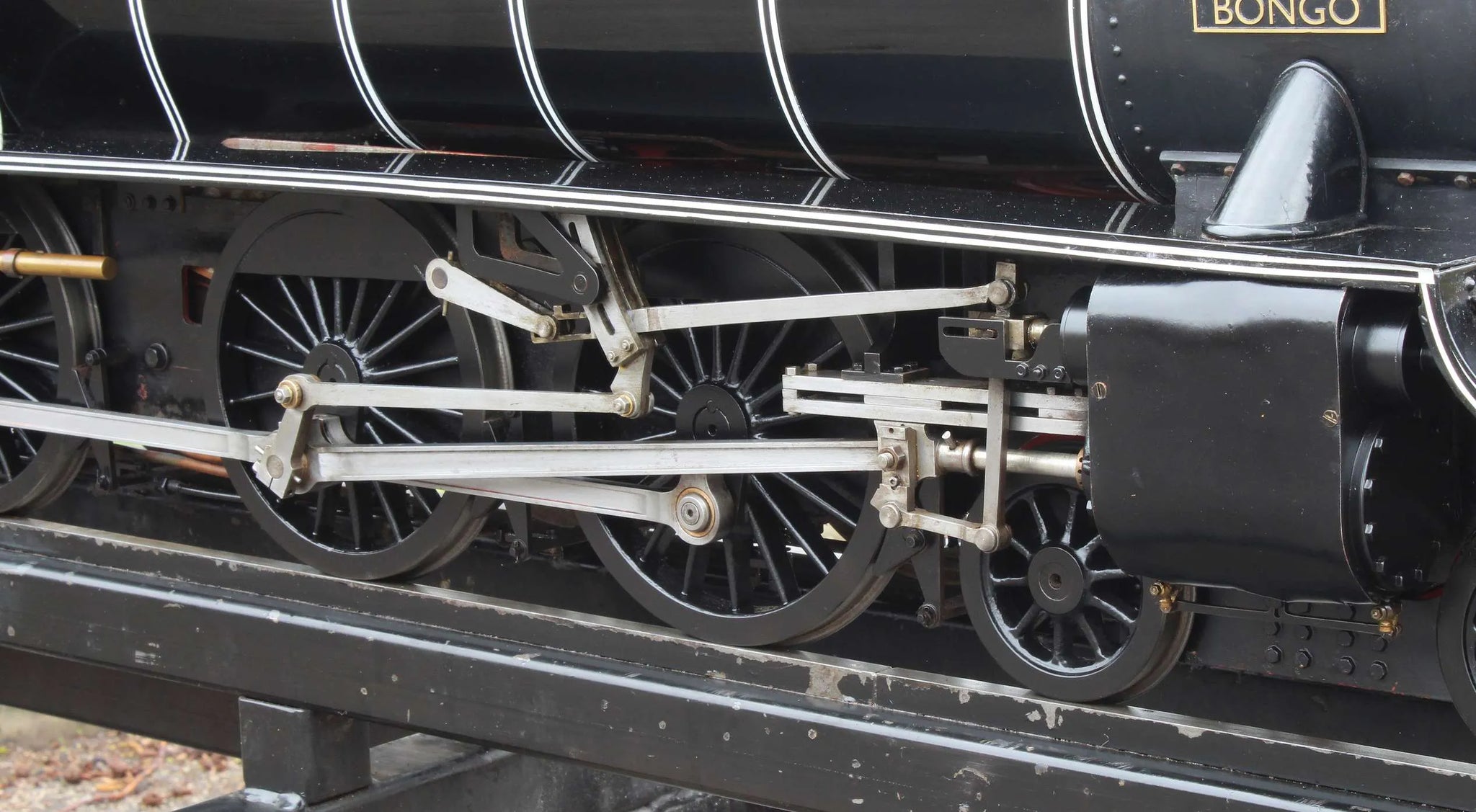

Valve gear |
Walschaerts |
Reverser type |
screw |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
100 |
CE/UKCA mark |
n/a - non-commercial |
Year built |
2011 |
Boiler number |
N30-100-818 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
radiant |
Superheater |
4 |
Date out |
Oct-22 |
Hydraulic test valid to |
20-Mar-26 |
Steam test valid to |
04-Jun-23 |
