8460

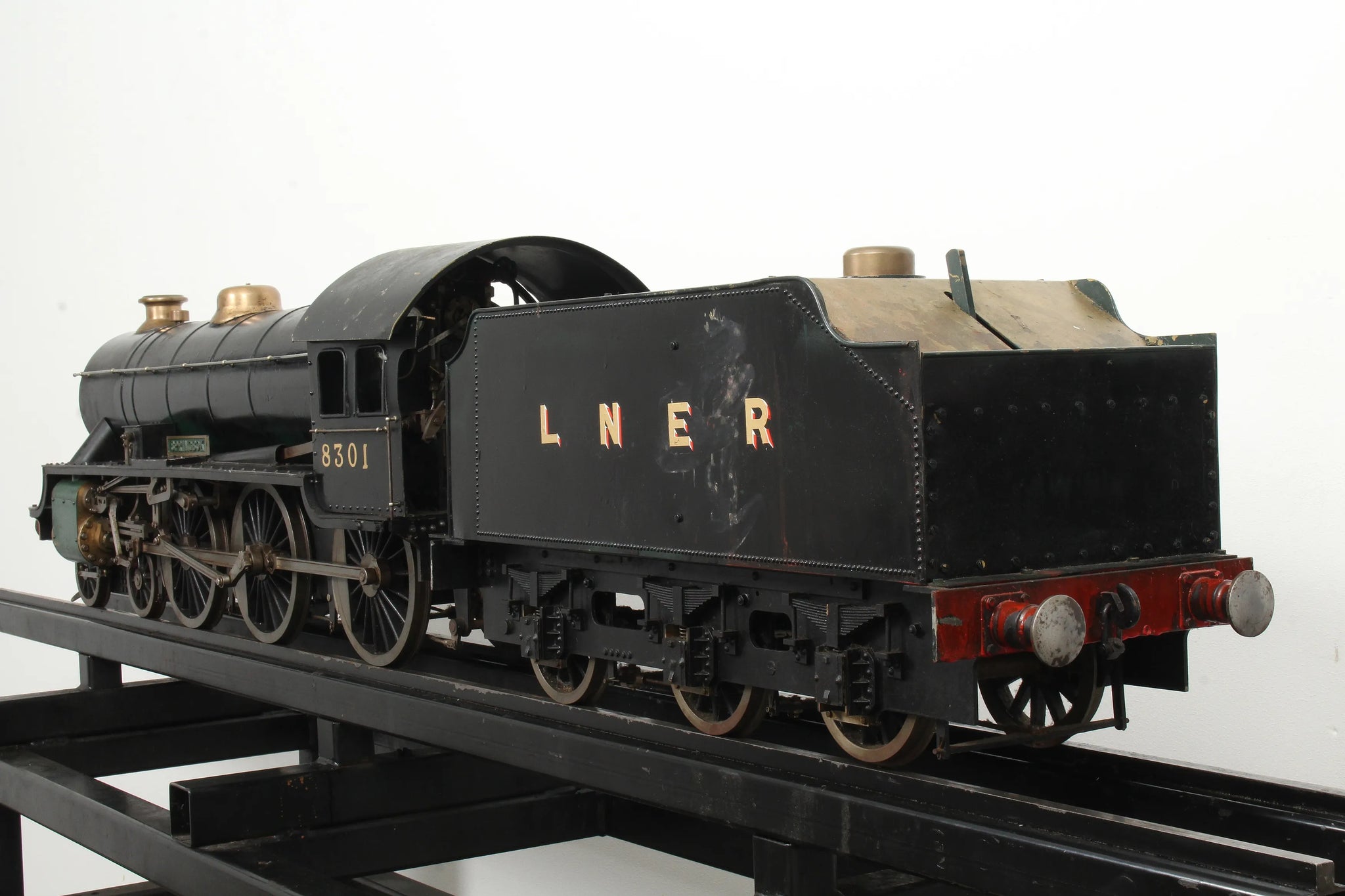

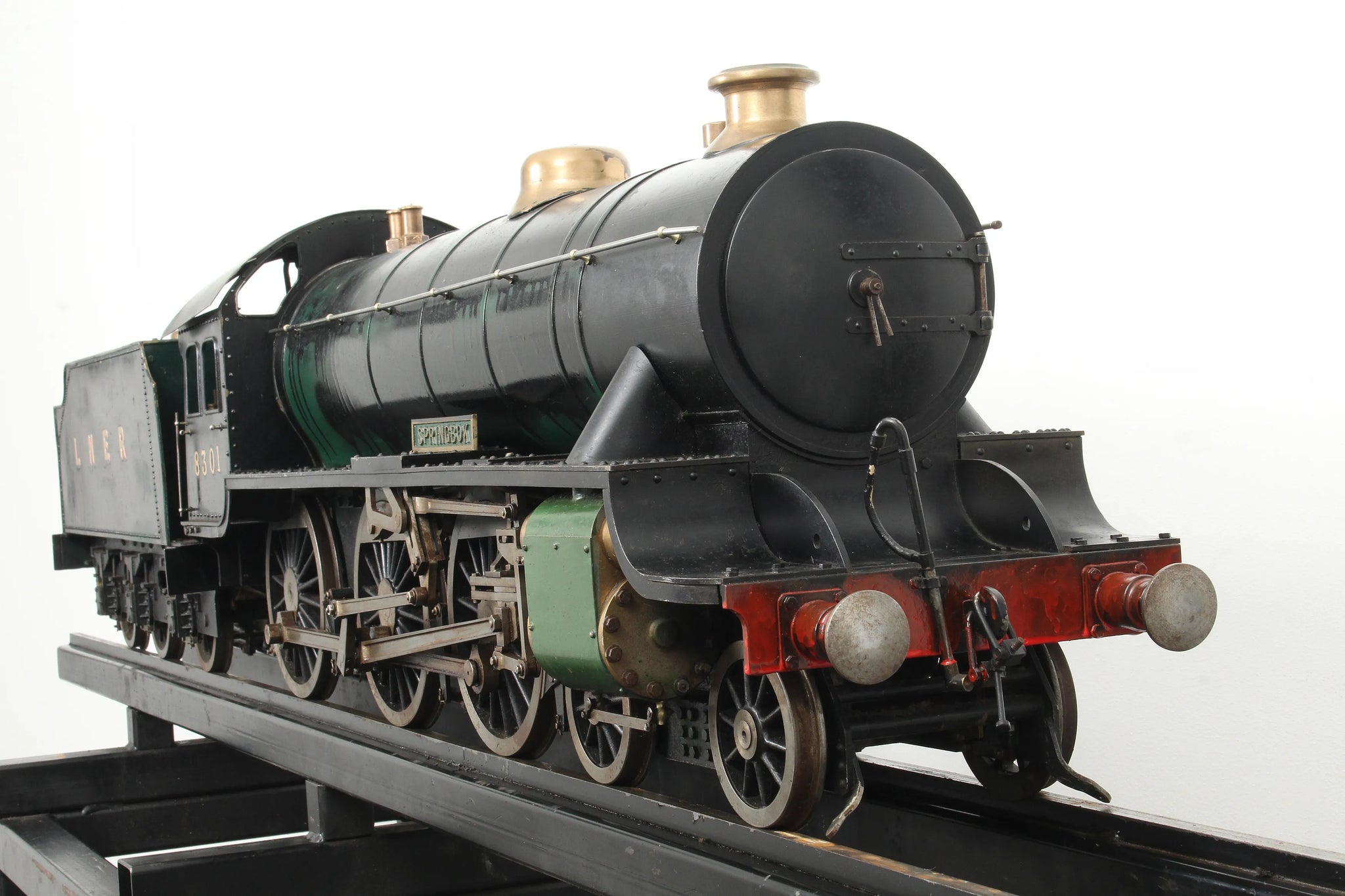

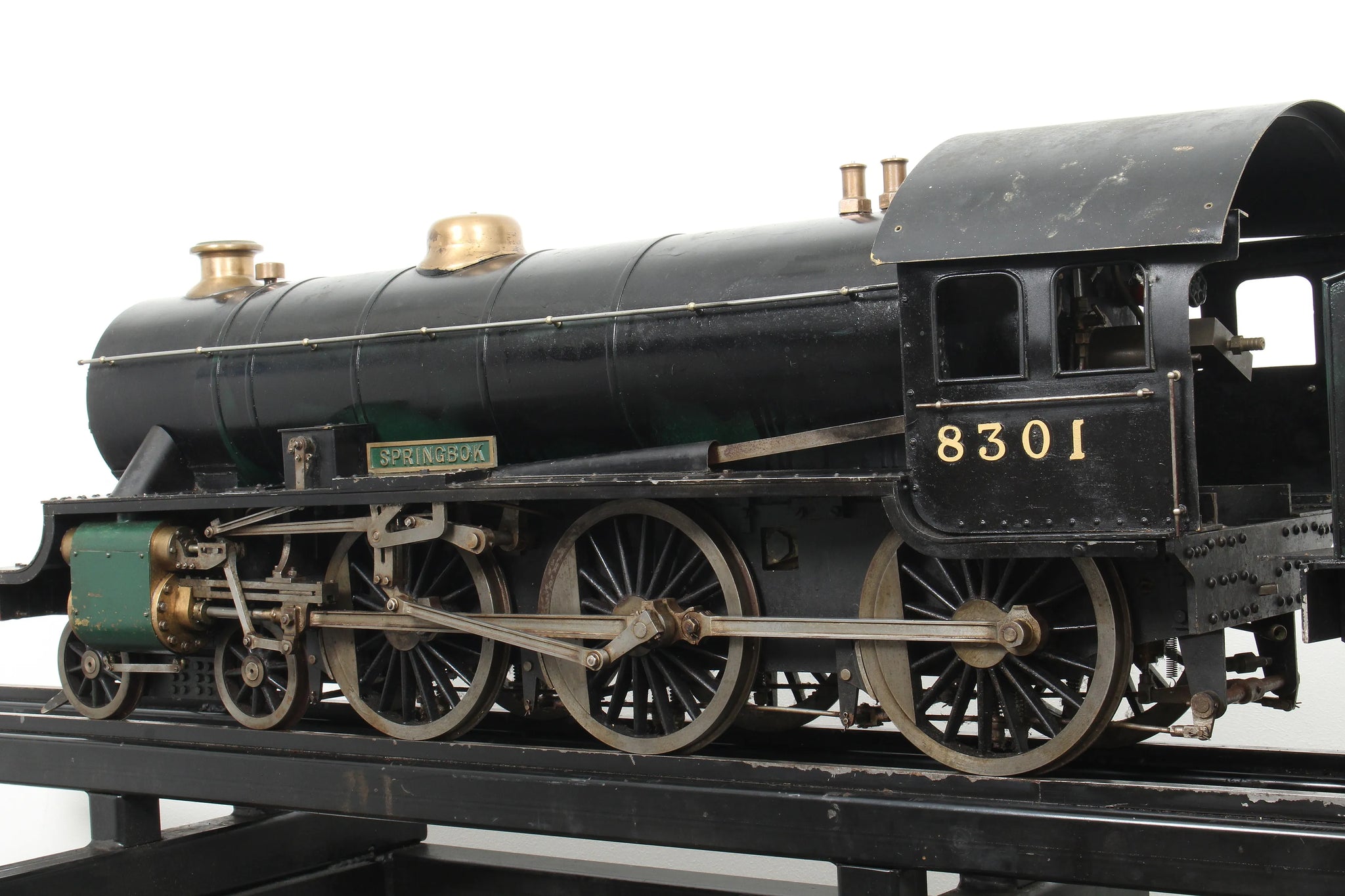

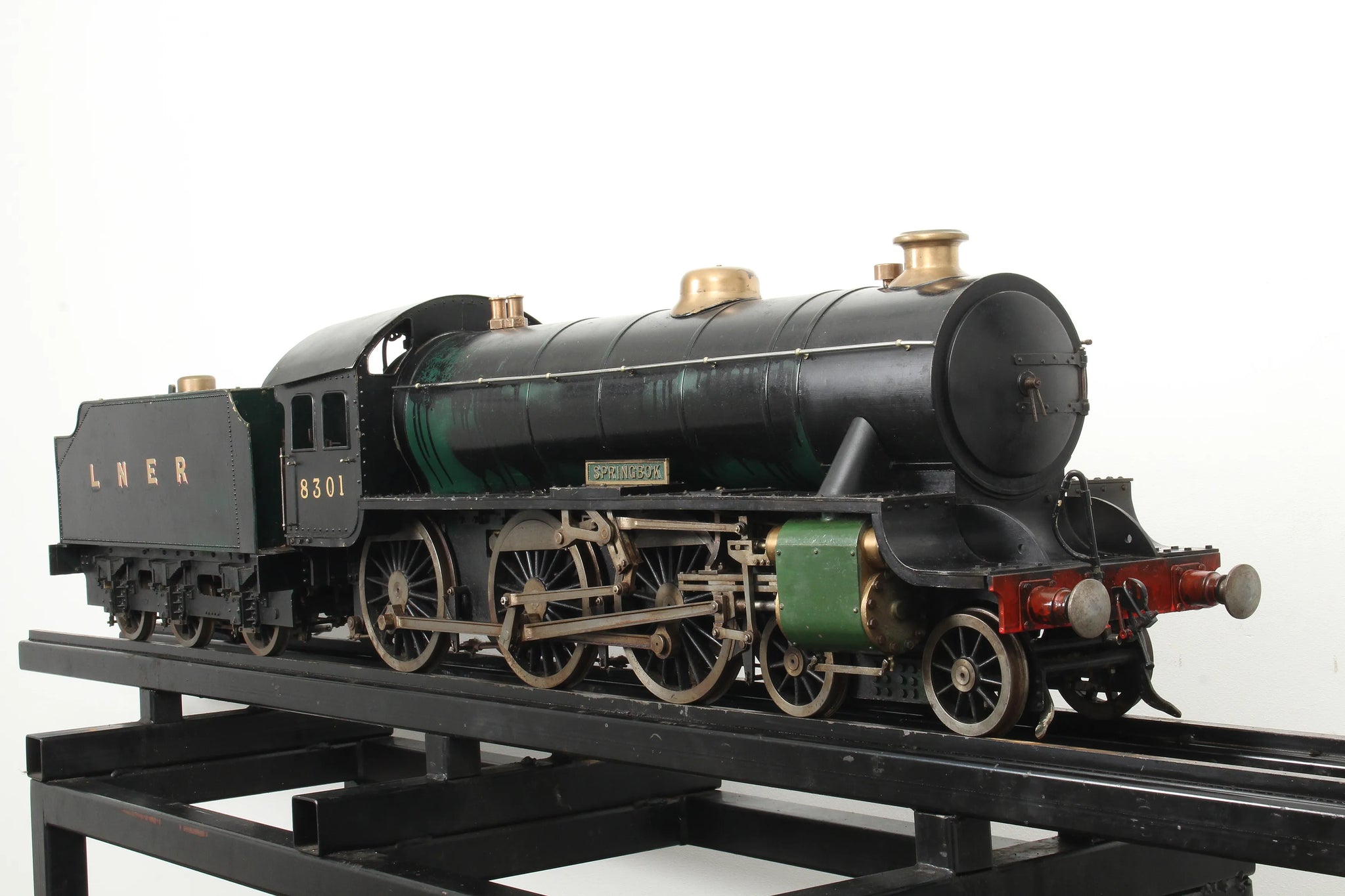

5 inch gauge LNER B1 4-6-0

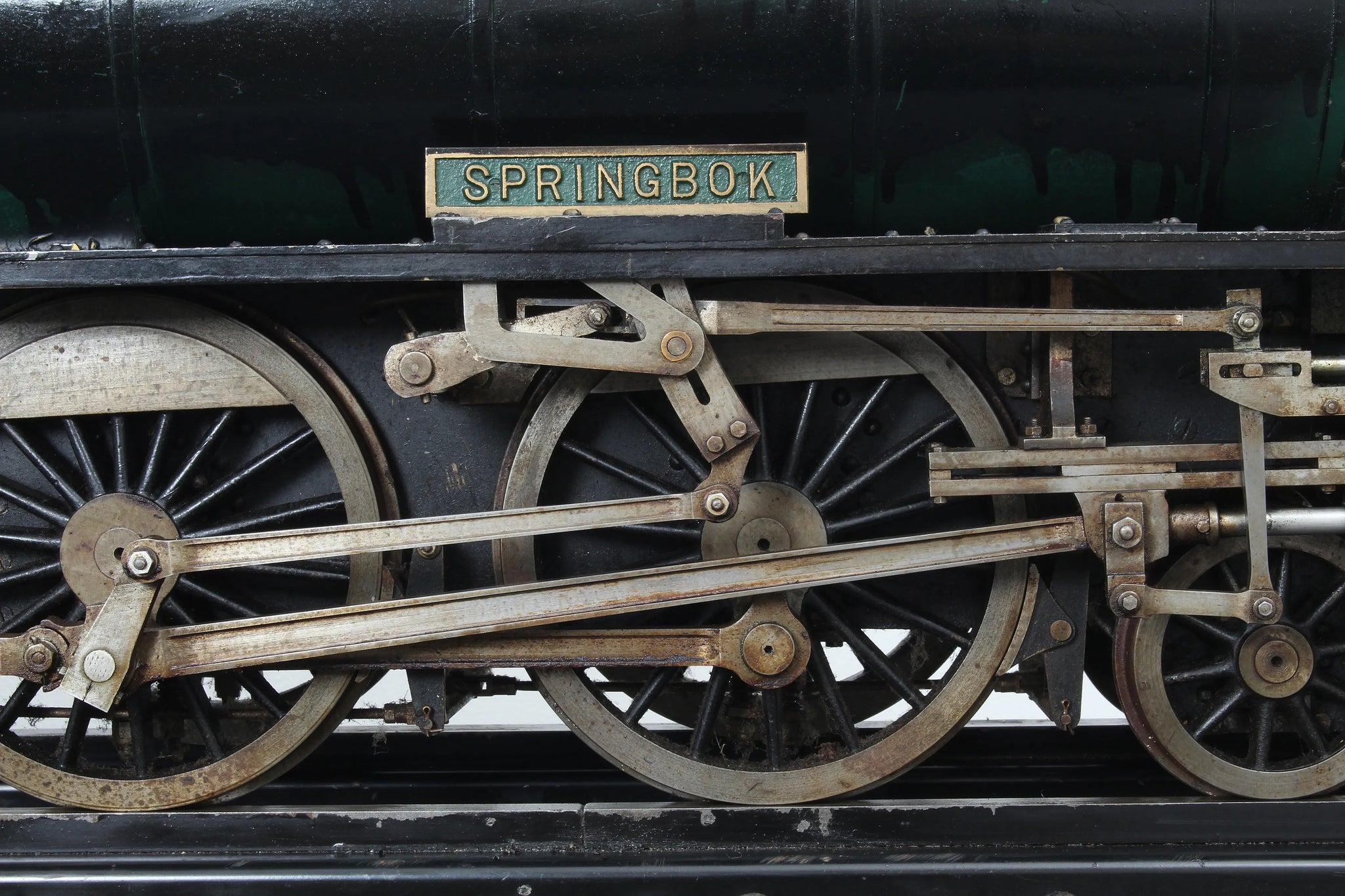

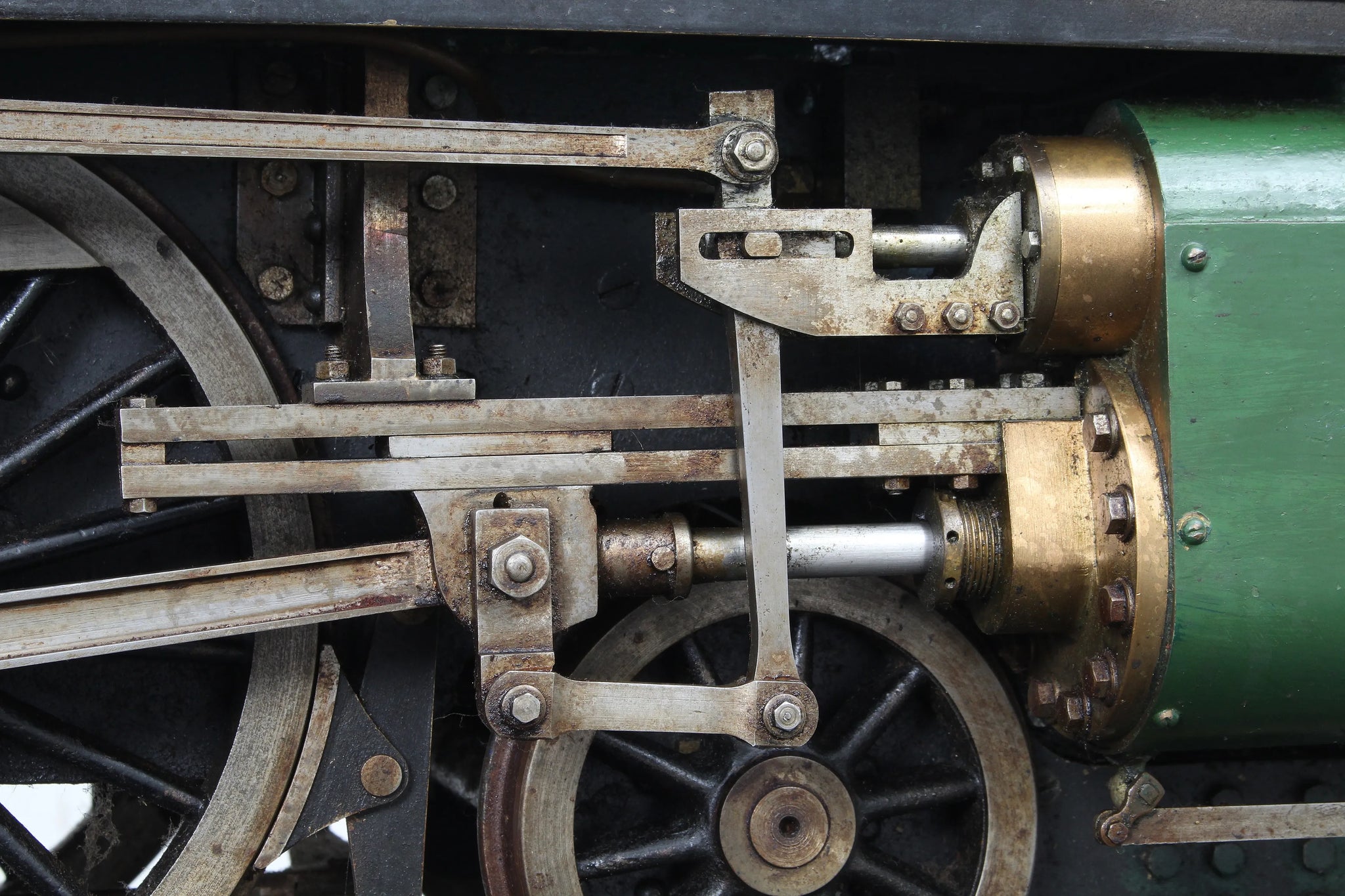

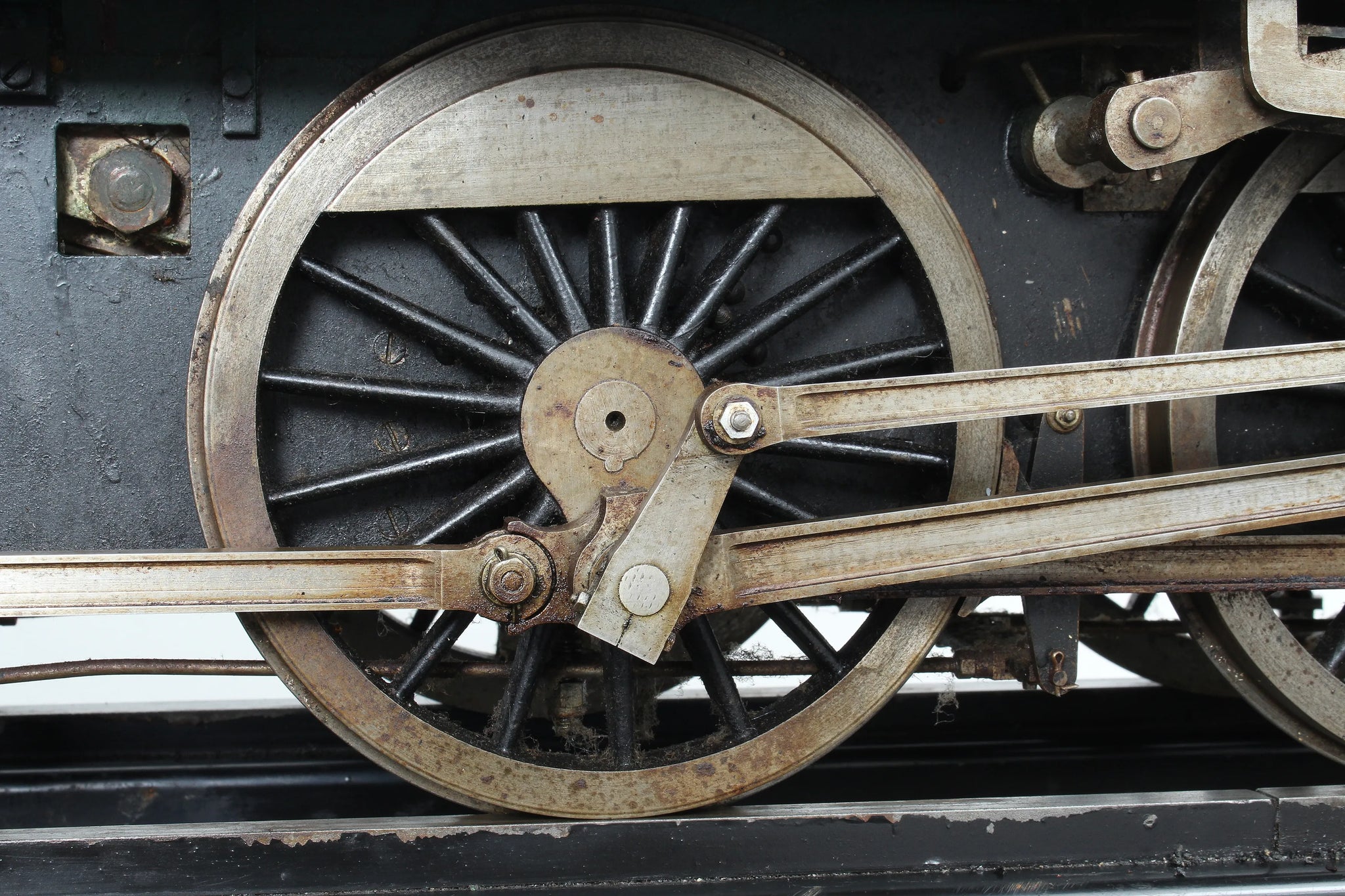

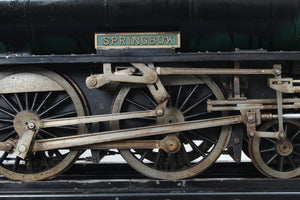

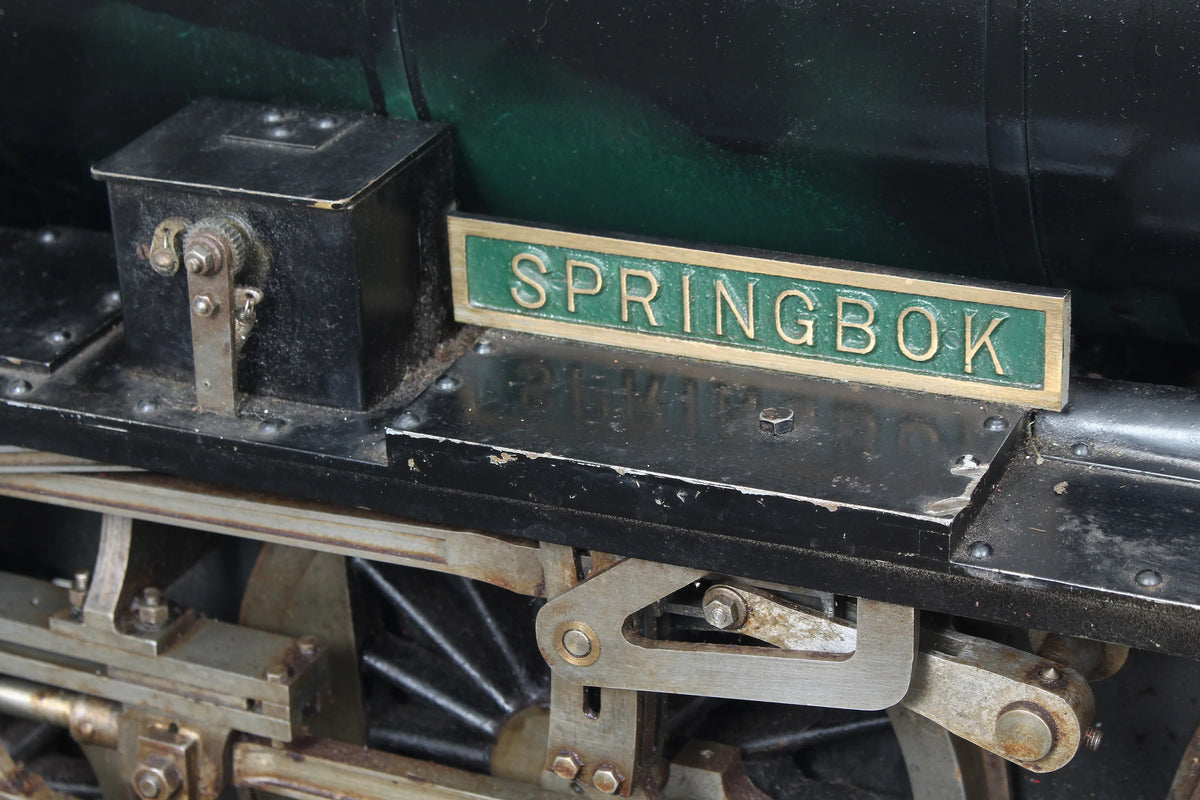

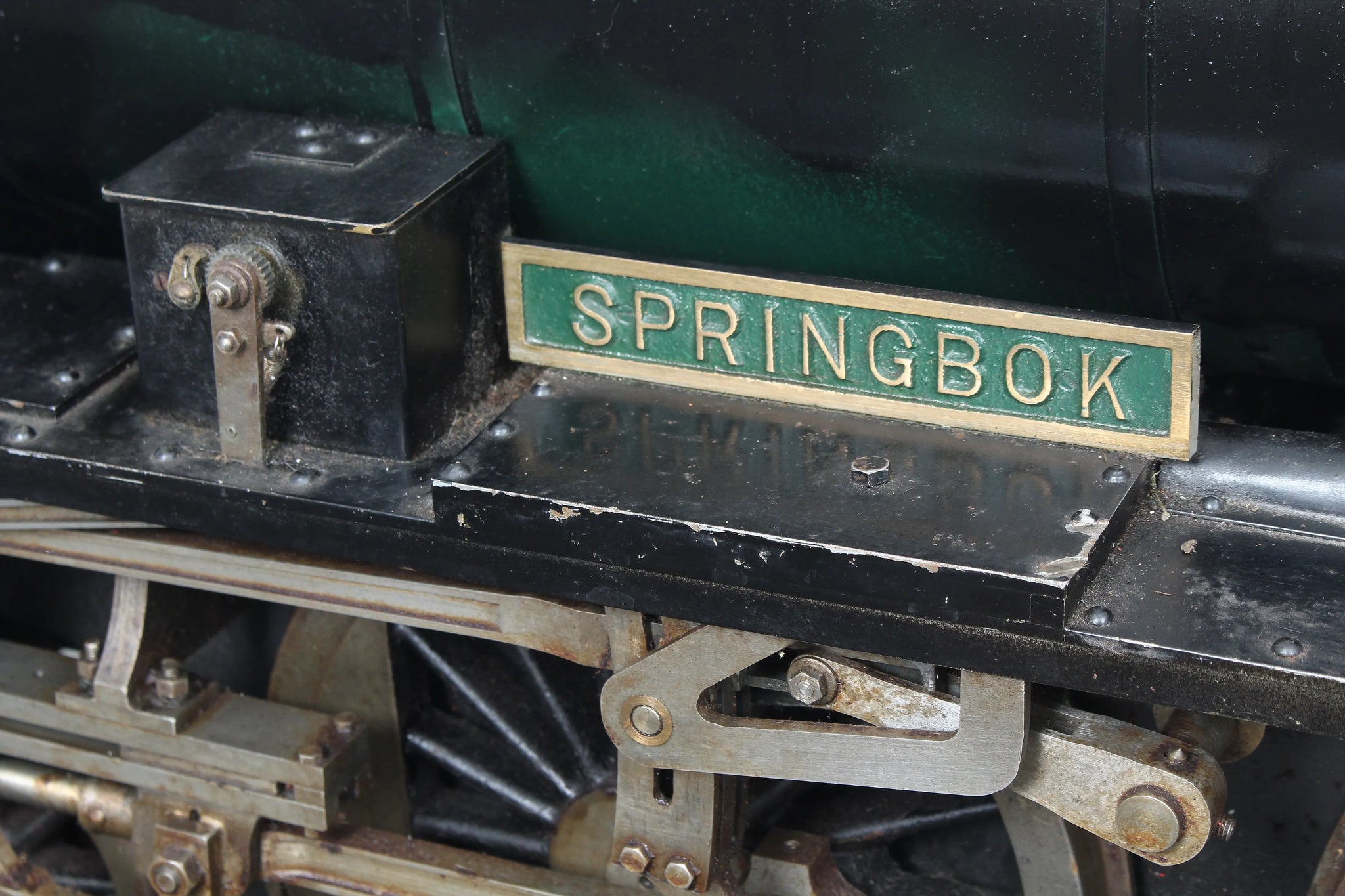

Possibly not the grottiest looking B1 we've ever seen, but it's got to be somewhere close. Unfortunate really, because underneath the dirt and horrible paintwork there's a decent engine with nicely made motionwork and valve gear, well-fitted and showing little sign of wear, a boiler so nicely made that only the lack of a builder's mark convinces us that it wasn't commercially built.

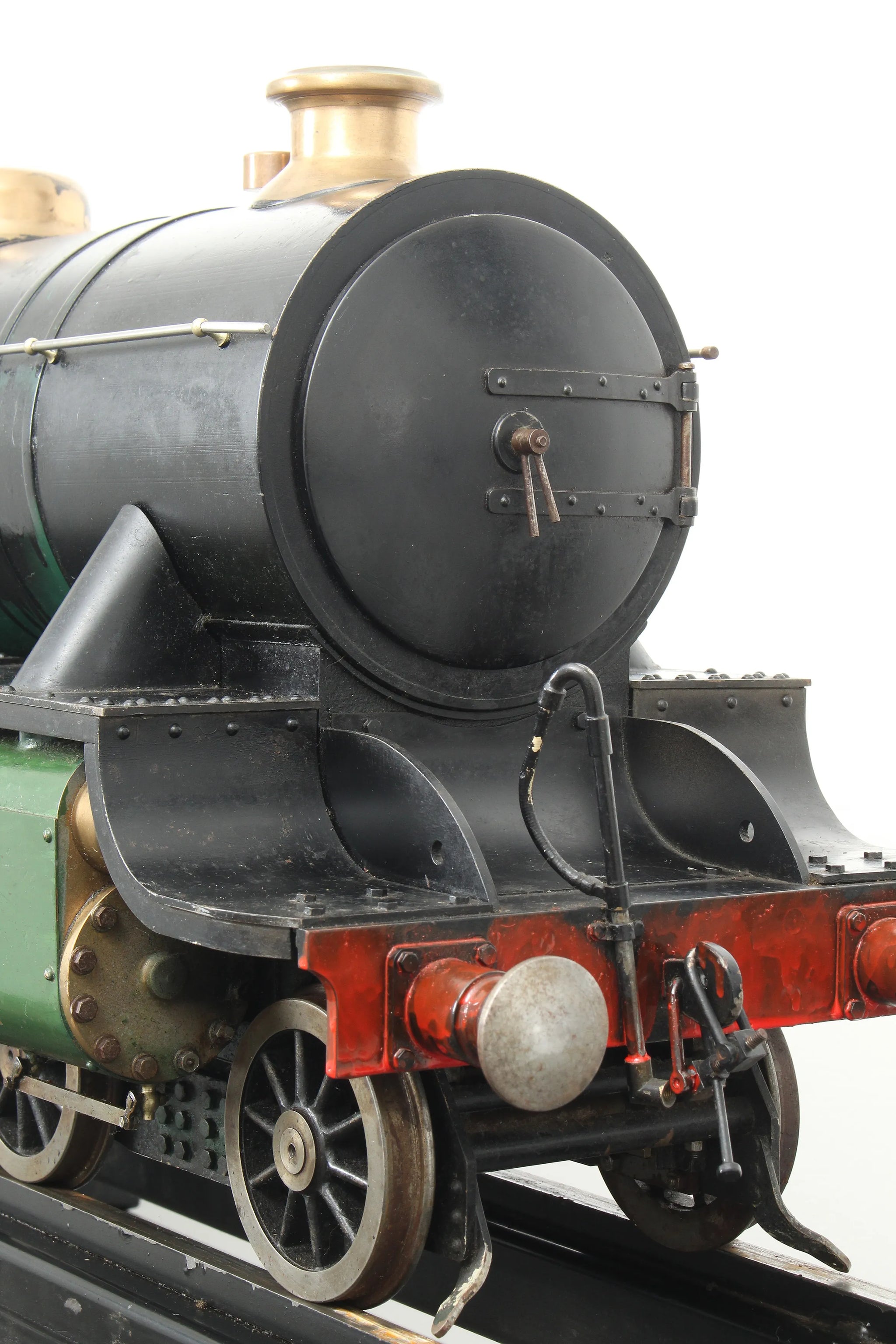

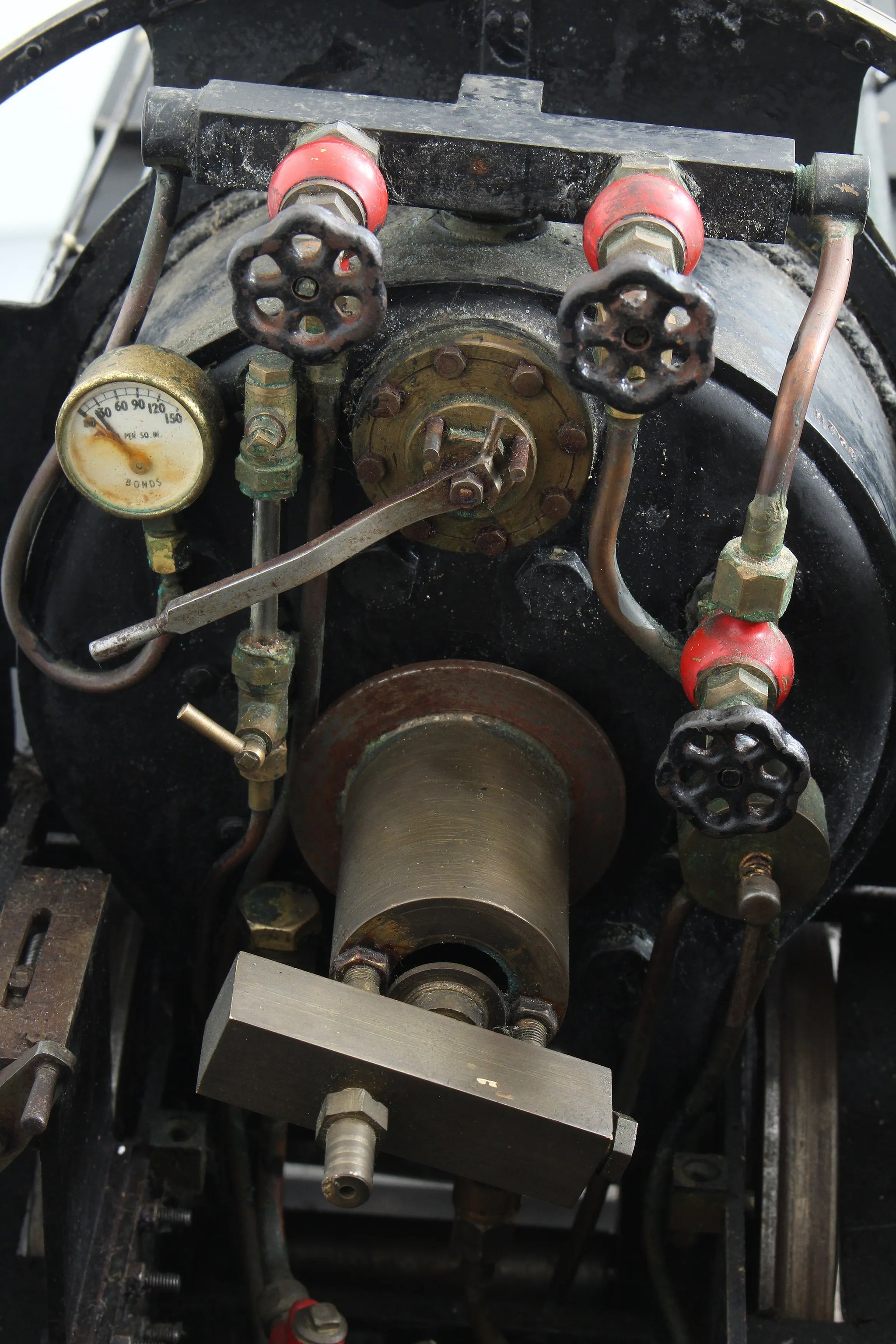

Although fitted with a grate, the locomotive appears to have been gas-fired from new, with a quickly detachable burner fitted in the firehole door. Firebox and smokebox are both clean, showing bright copper and silver solder rather than soot.

Boiler has some history, with commercial certificate for twice working pressure shell test back in 2014. We've hydraulic tested it in recent days and issued certificate for same - the boiler is in good condition.

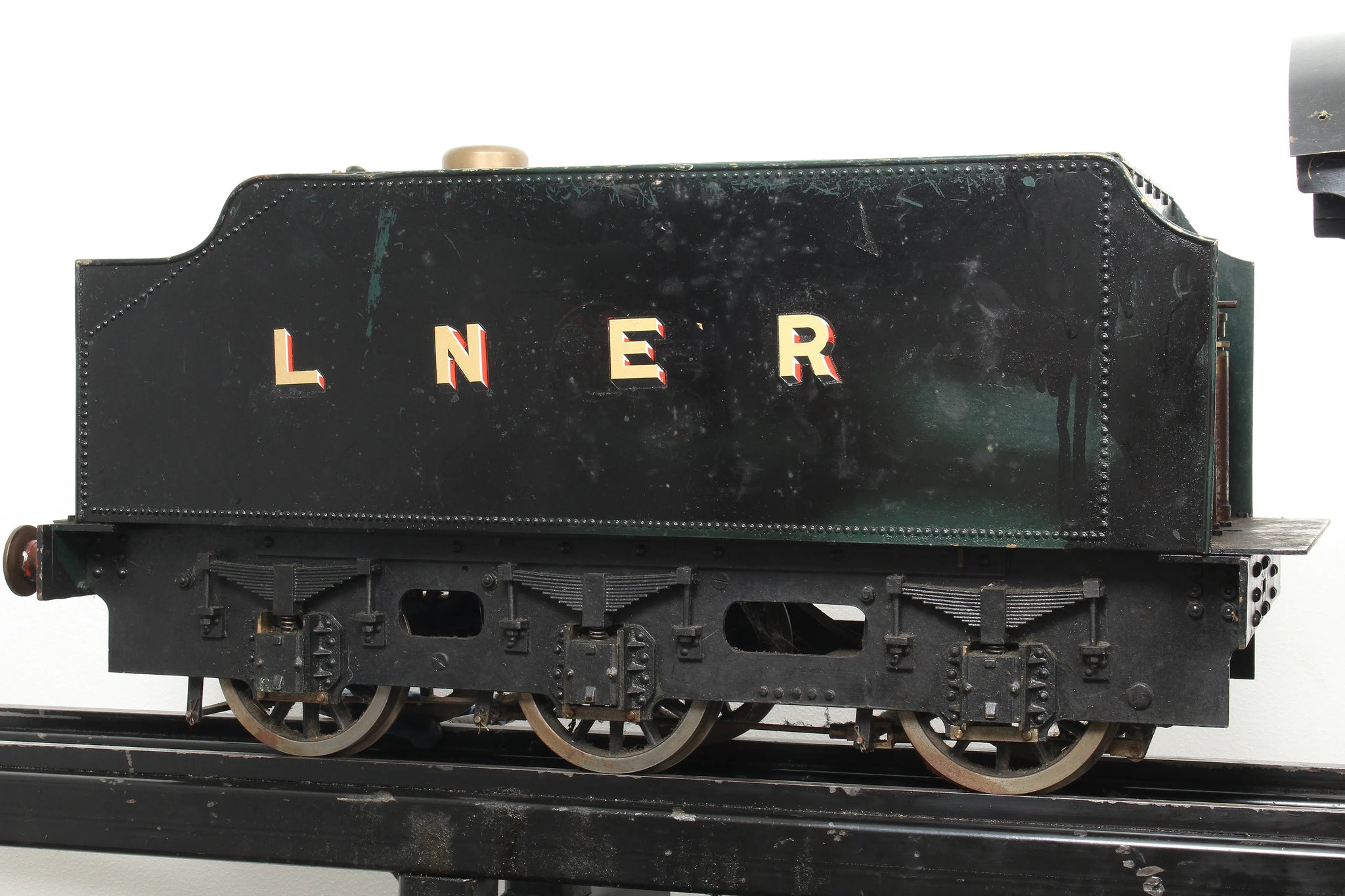

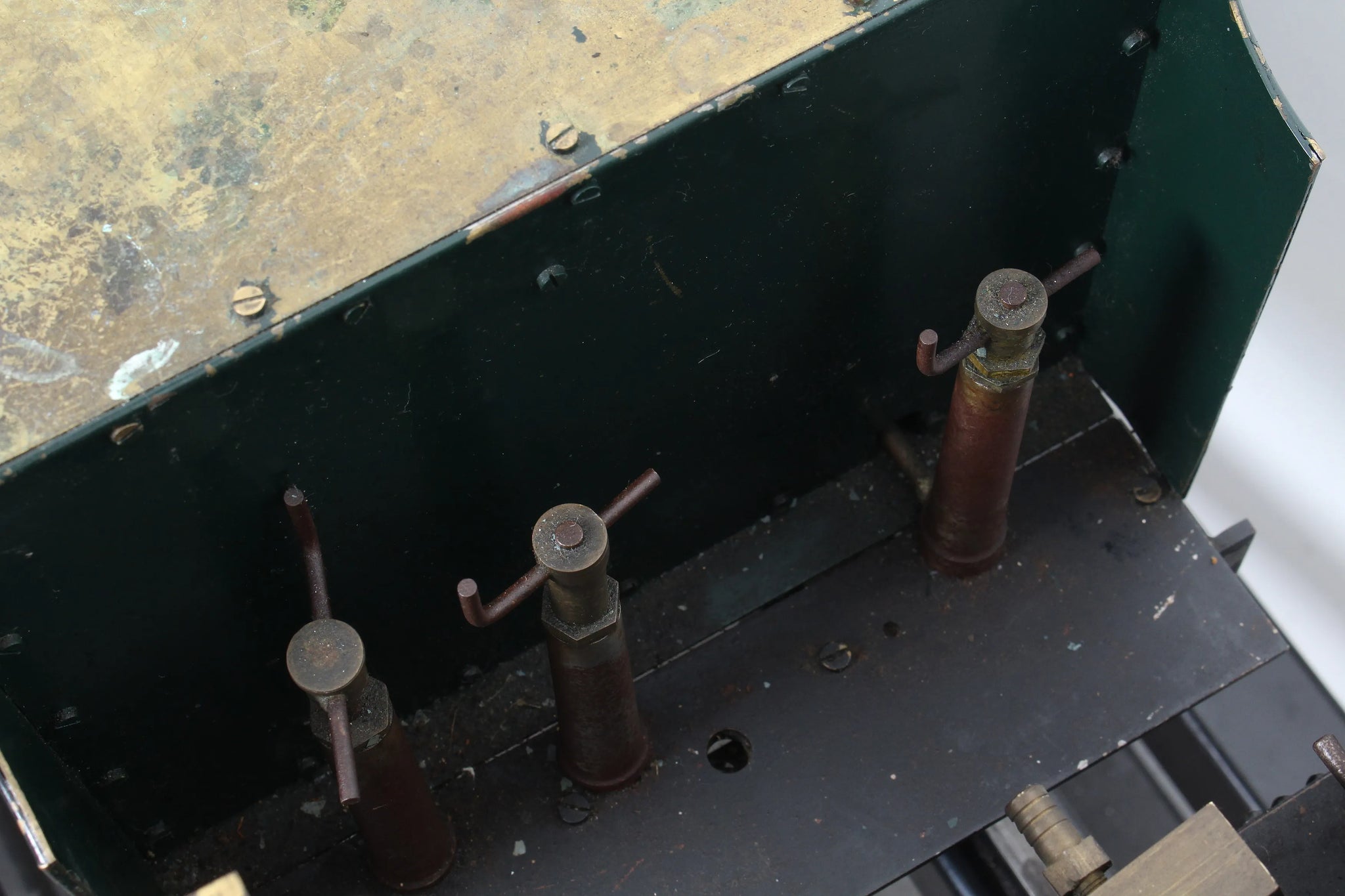

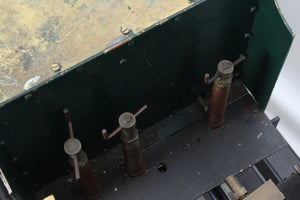

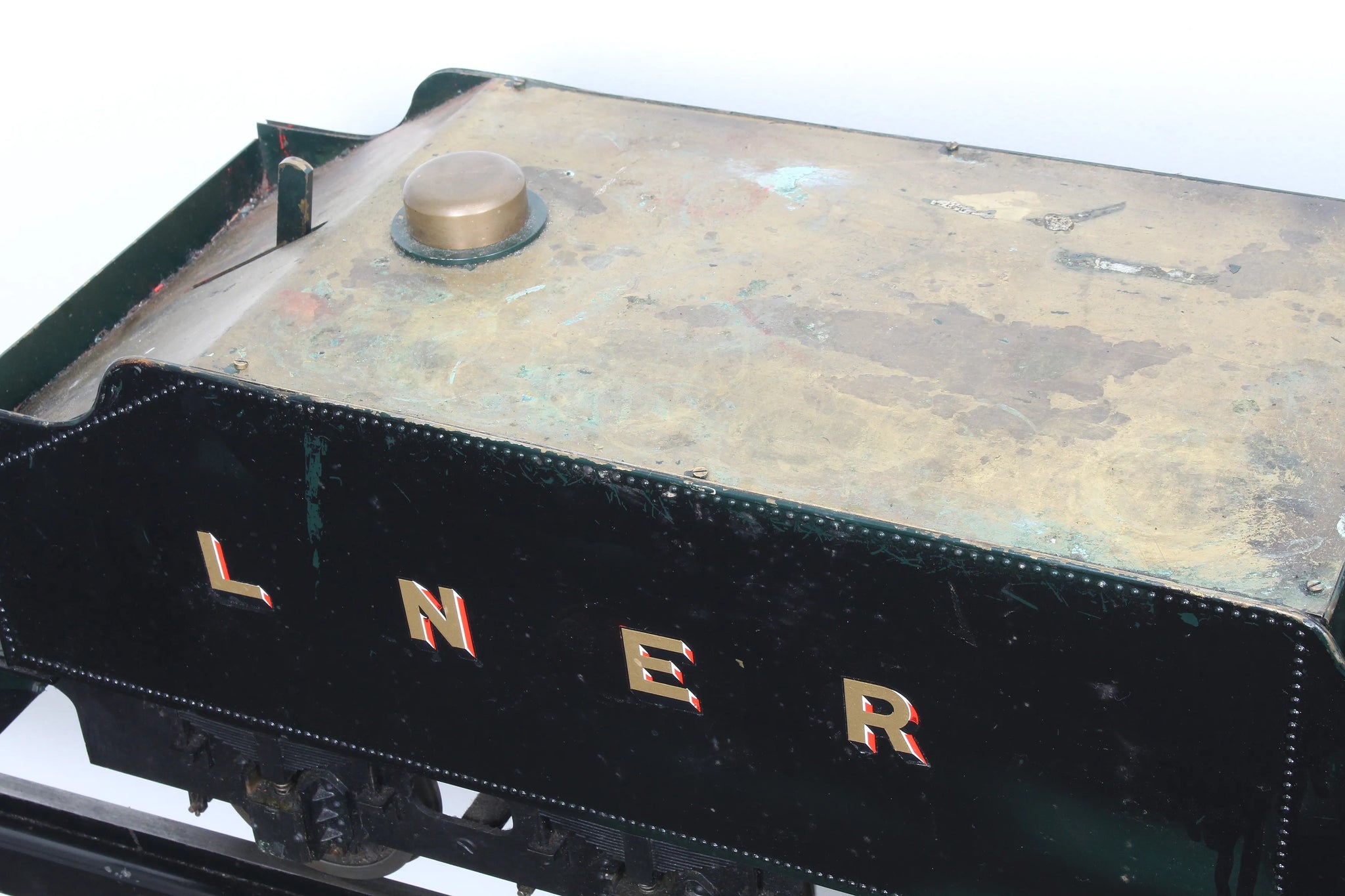

Locomotive is fitted with a steam brake, tender with mechanical screw down brake. It pushes along freely and runs on air.

We see this one as a cosmetic overhaul and recommission job rather than overhaul - it could be tackled as a running restoration, used at weekends and worked on between steamings.

Technical information

Stock code

8460

Gauge

5 inch

Length/inches

41 + 26

Width/inches

10

Height/inches

14.5

Wheel material

cast iron

Axlebox type

plain

Cylinder material

gunmetal

Valve type

piston

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical, twin ram

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

Boiler number

8460

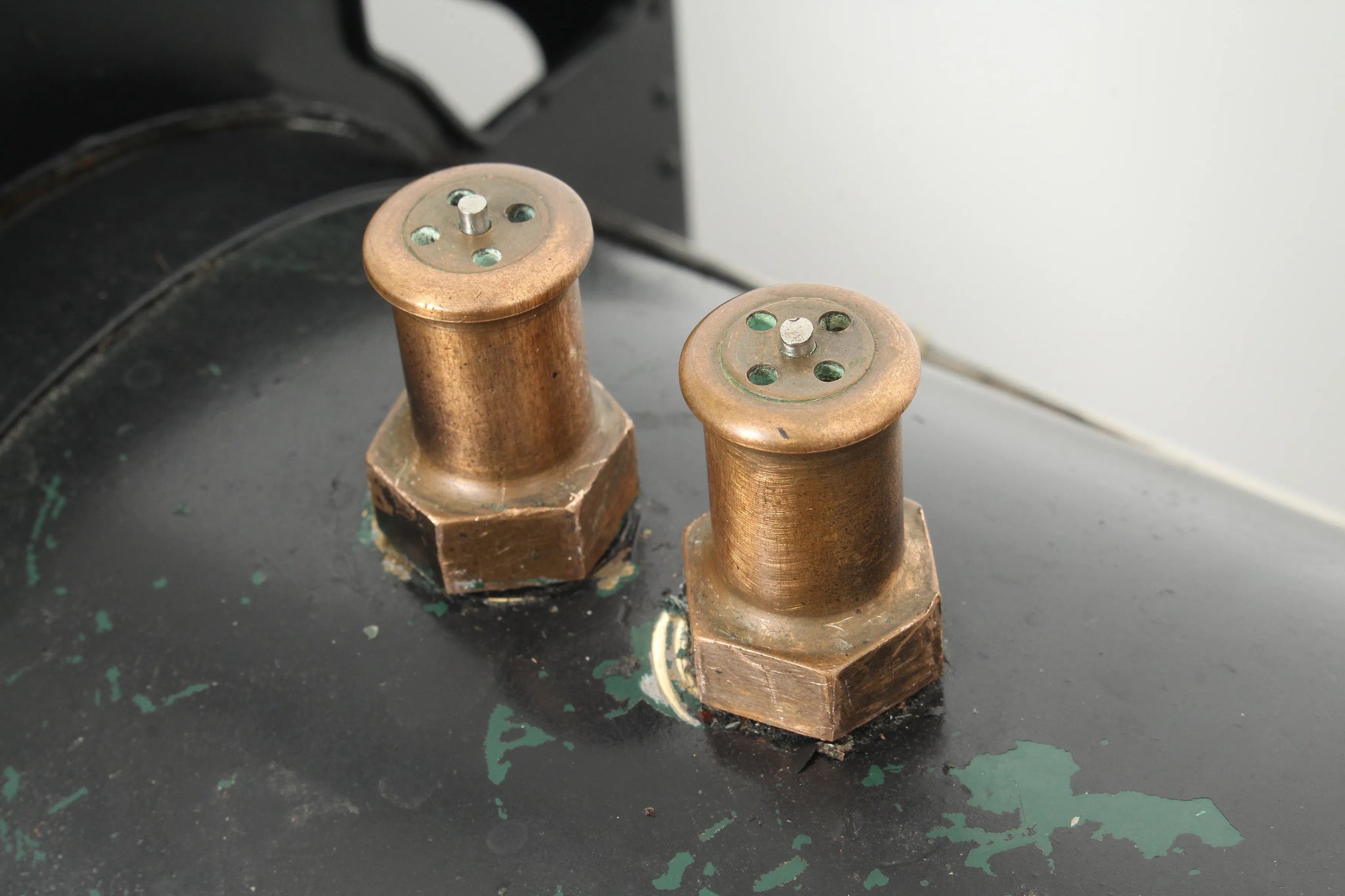

Safety valve type

spring

Safety valve

2

Fusible plug

yes

Whistle

no

Hand pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Apr-19

Hydraulic test valid to

14-Mar-23
