9121

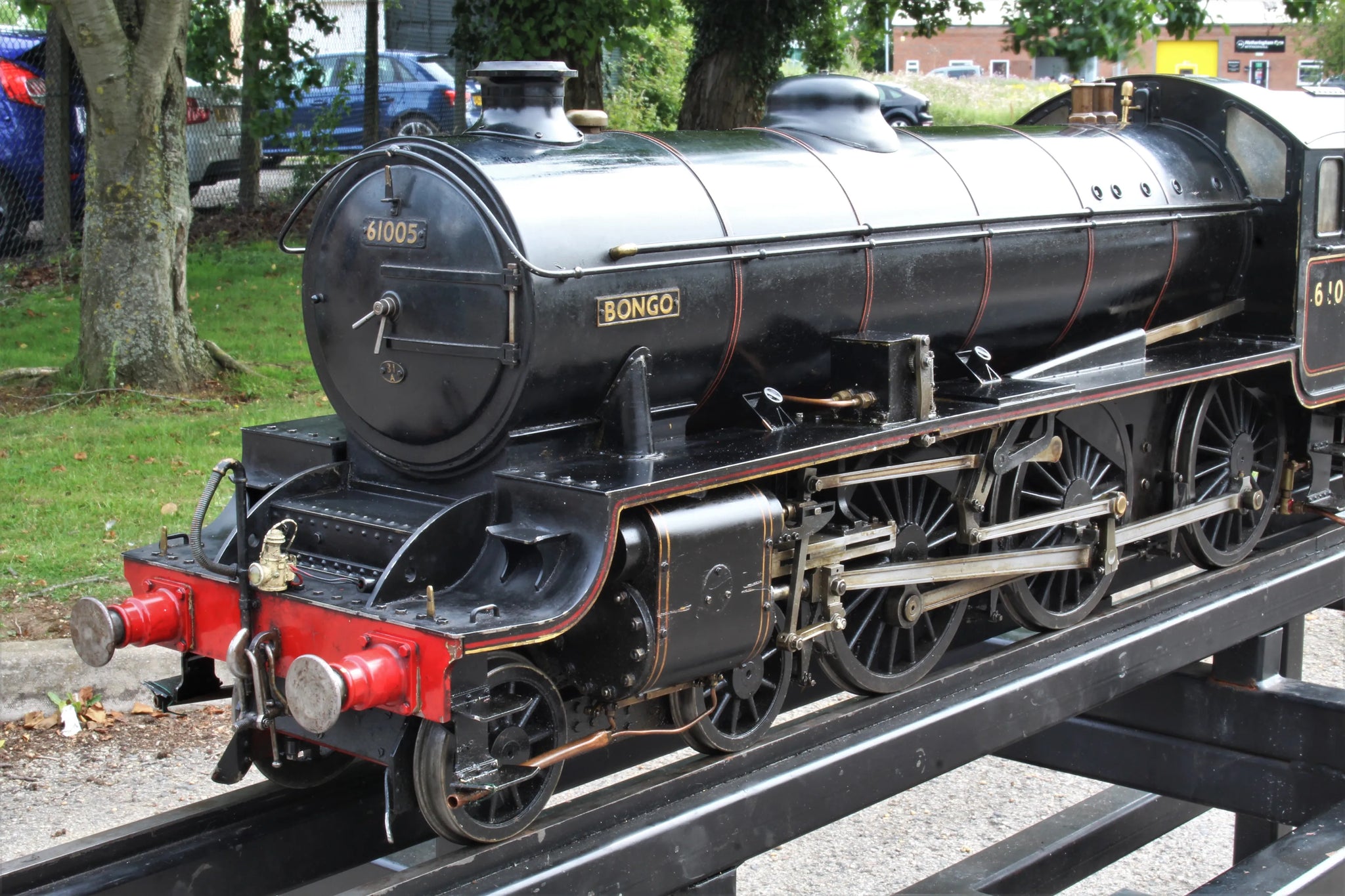

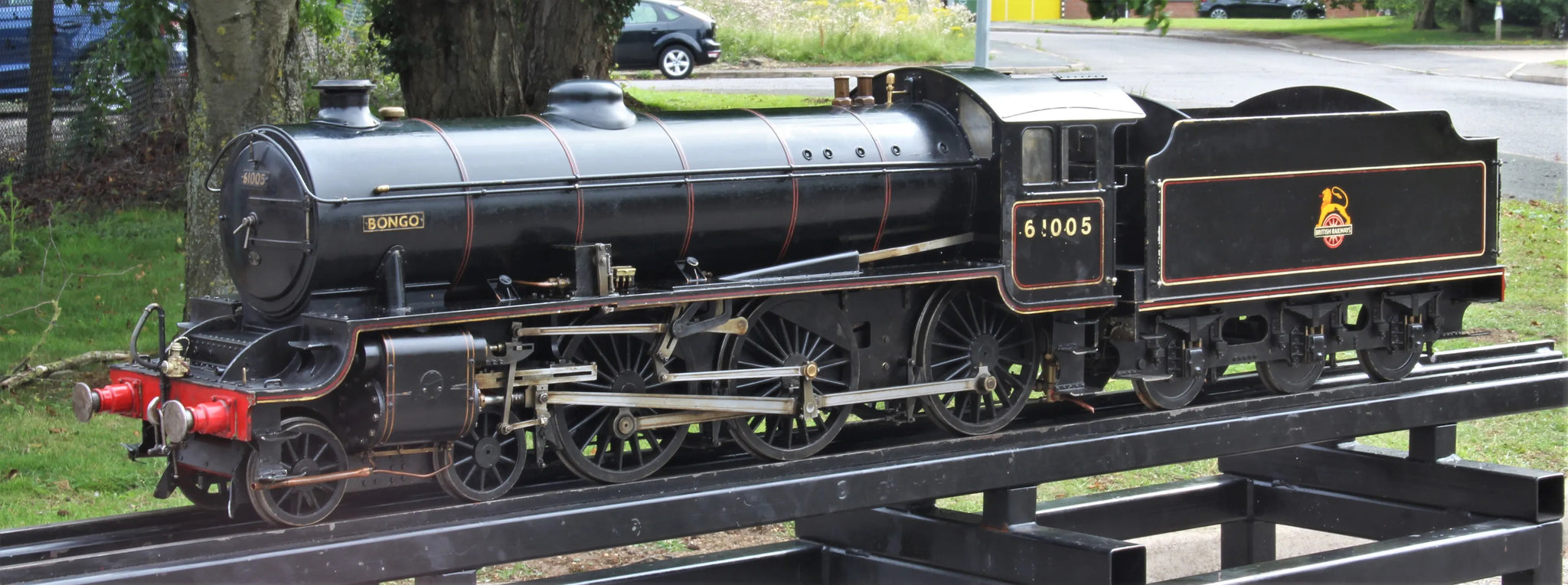

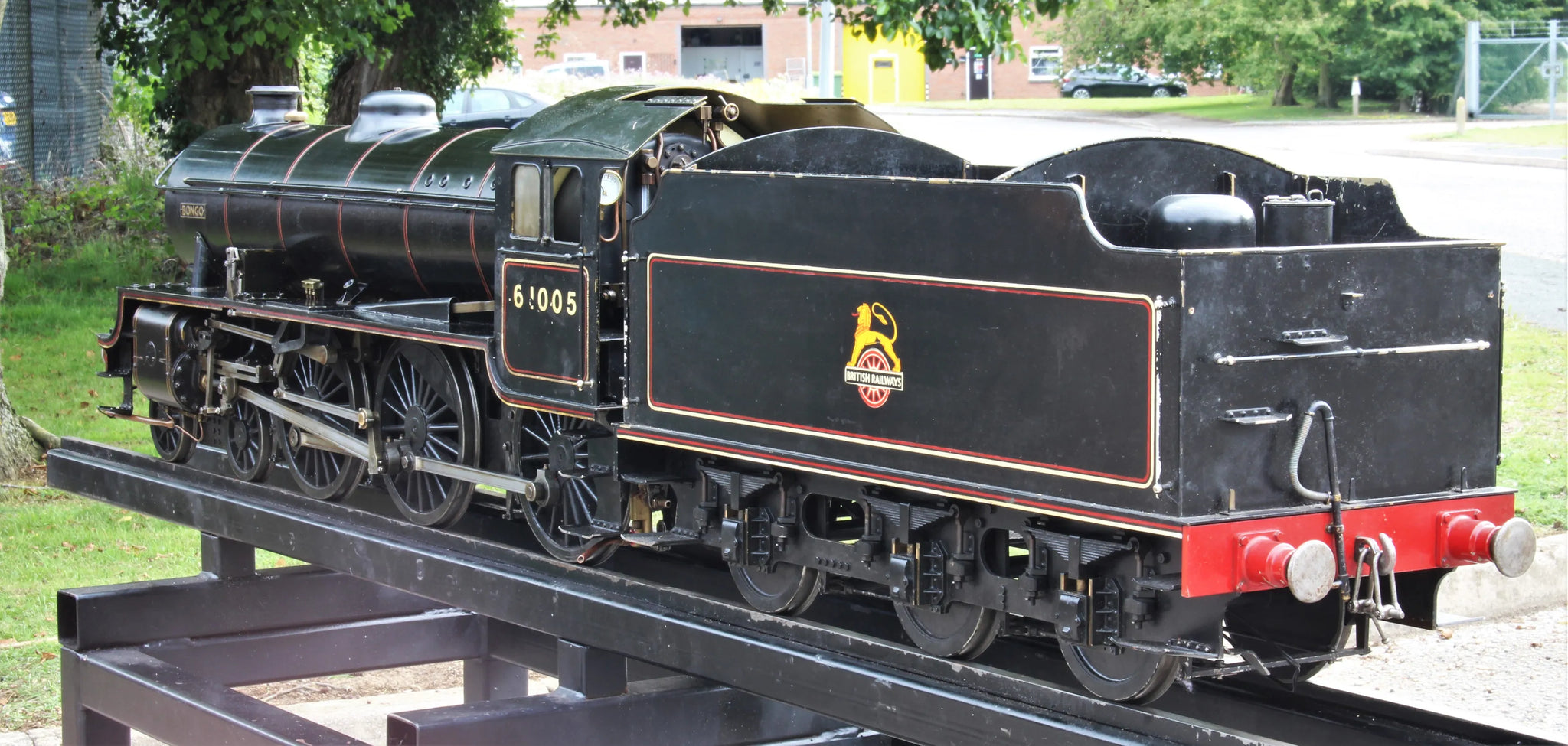

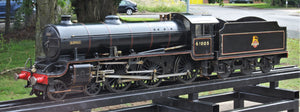

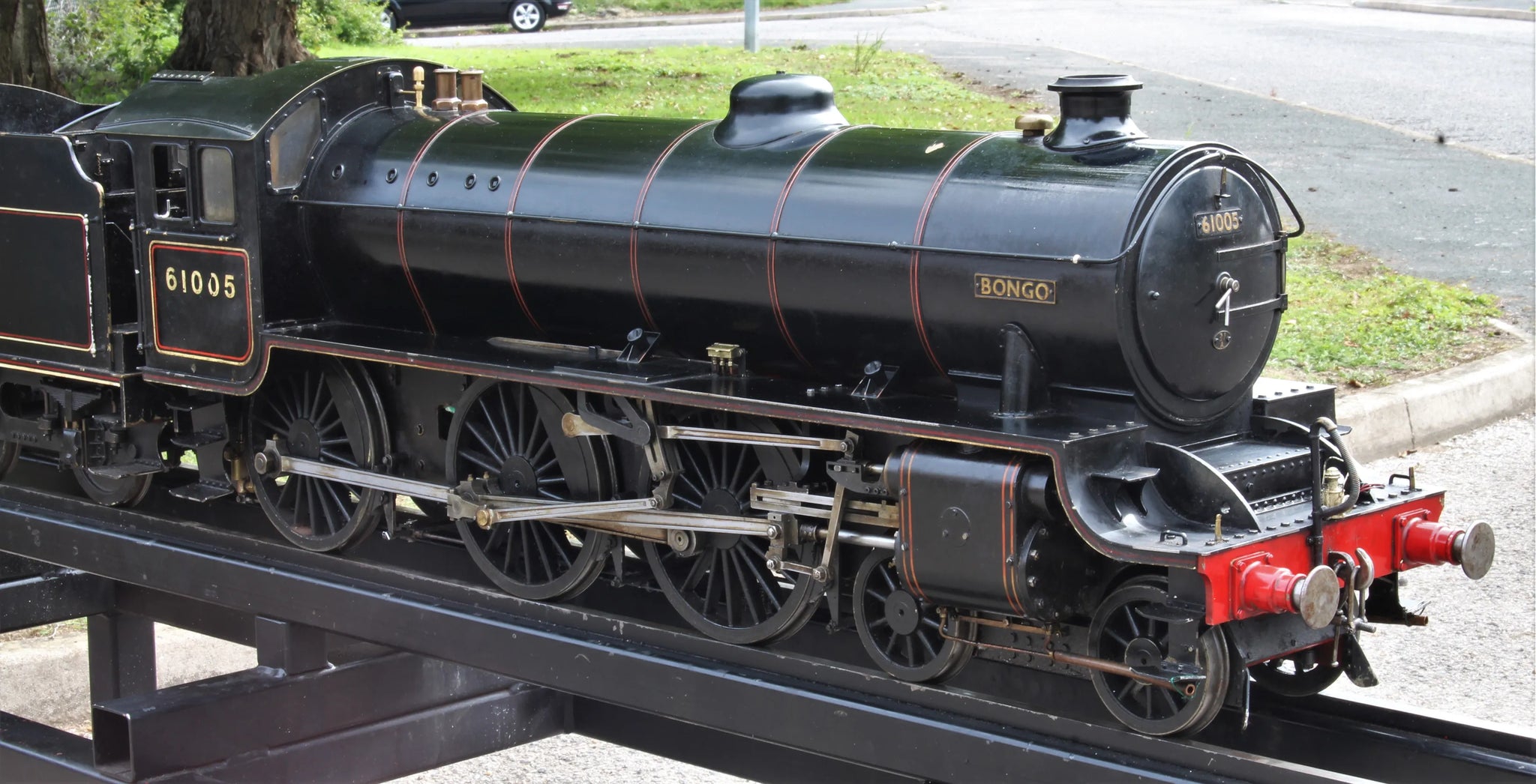

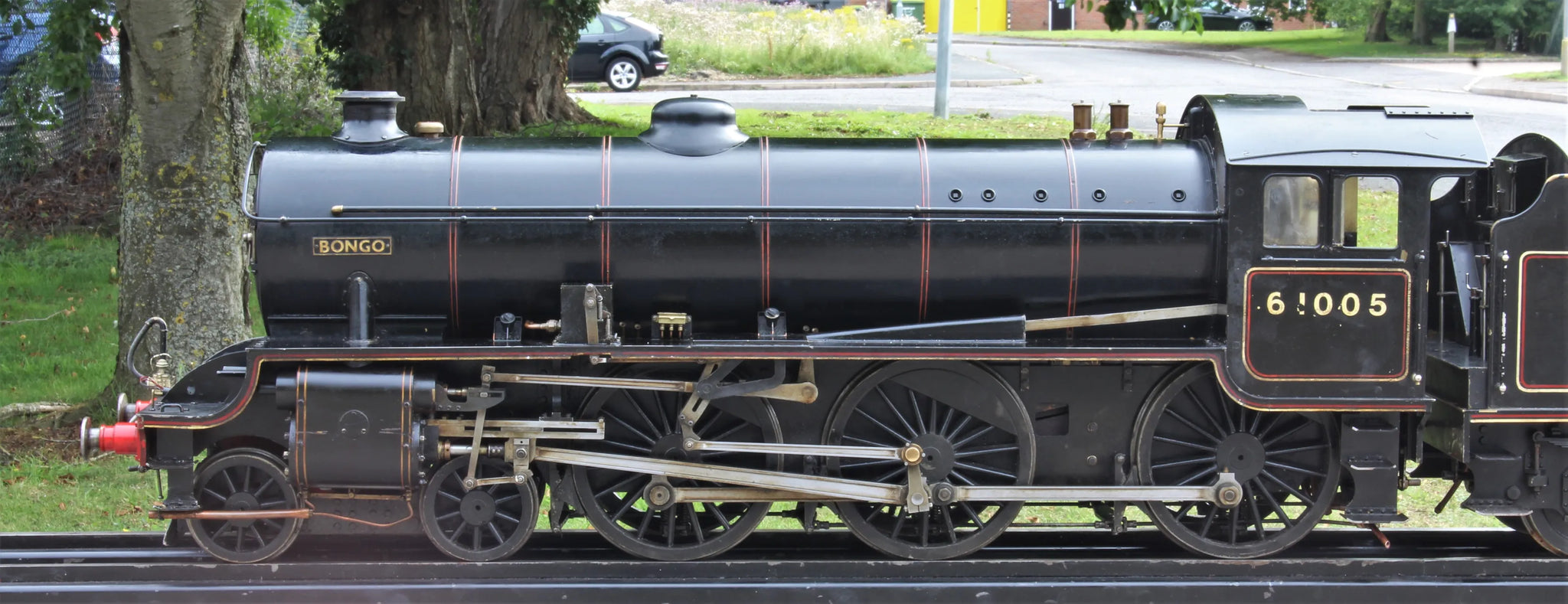

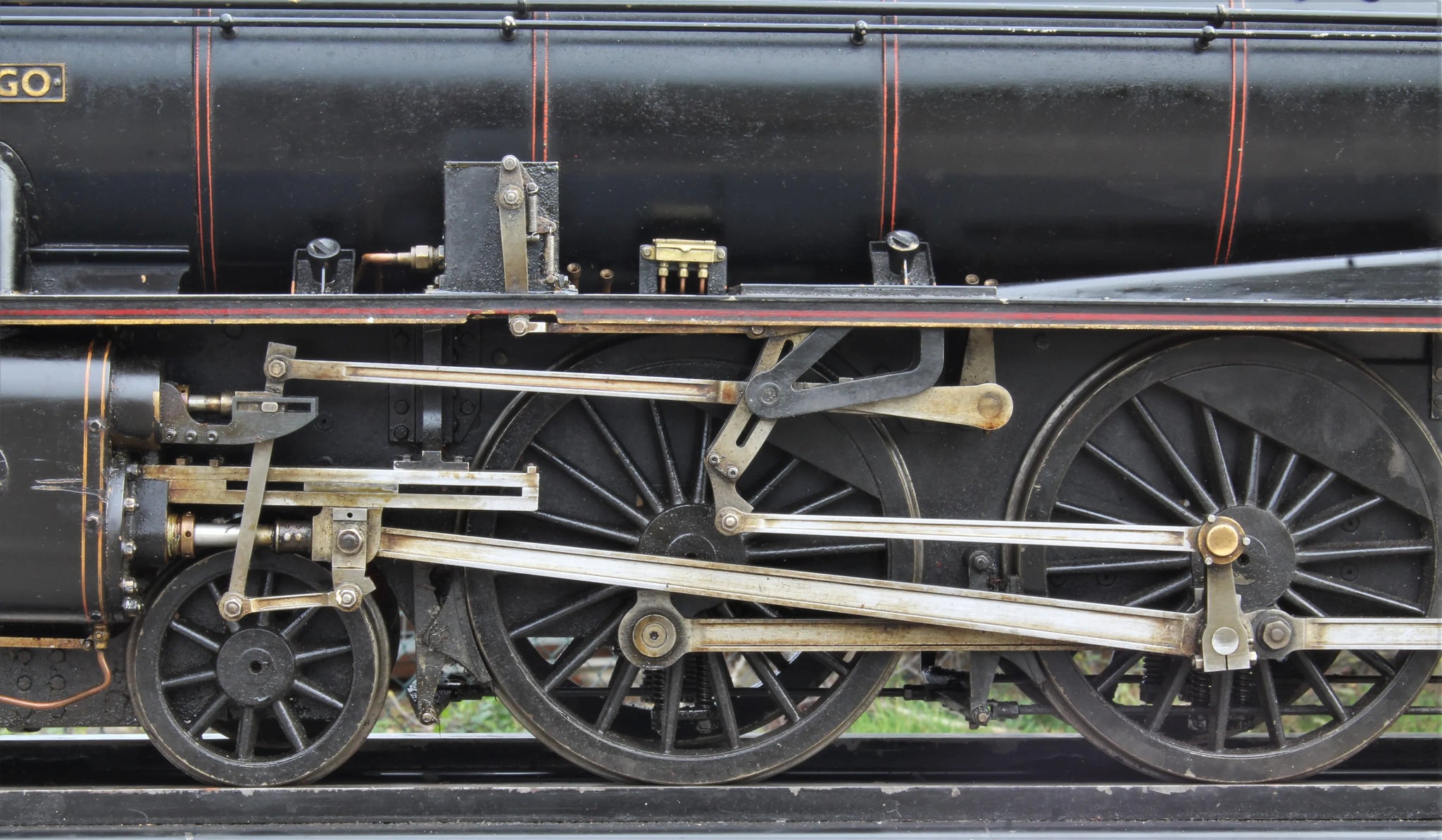

An older engine, well-built in the first place, with crisply machined motionwork and valve gear, neatly fluted.
Paintwork is tired, the engine needs a variety of jobs doing, including attention to a leaking regulator.
Stock code |
9121 |
Gauge |
5 inch |
Length/inches |
42 + 25 |
Width/inches |
12 |
Height/inches |
14 |
Wheel material |
cast iron |
Cylinder material |
gunmetal |
Valve type |
piston |
Valve gear |
Walschaerts |
Reverser type |
screw |

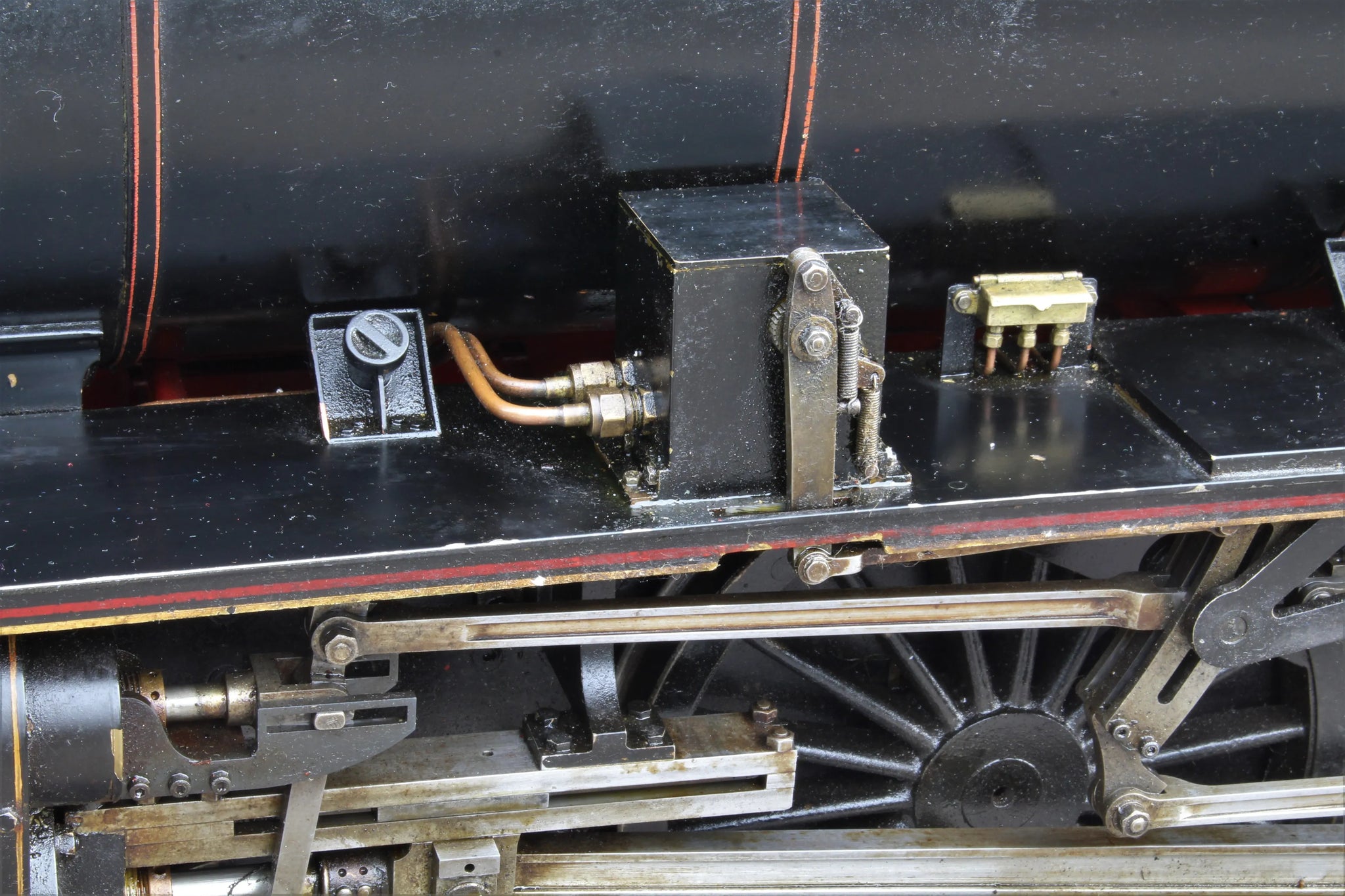

Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |

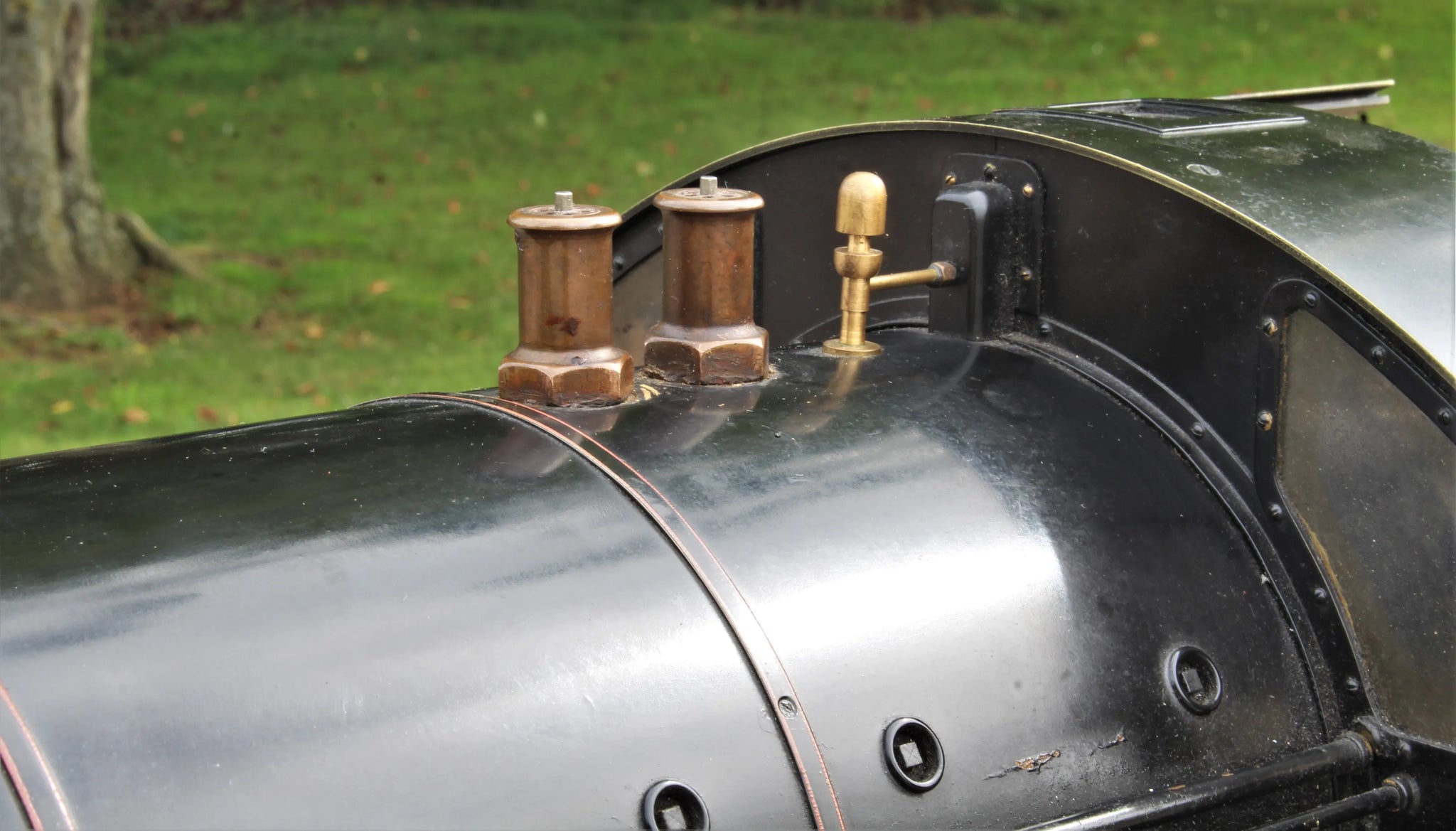

Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Injector |
1 |
Superheater type |
radiant |
Superheater |
4 |
Date out |
Feb-21 |
