Sold

10250

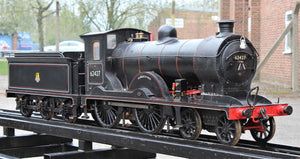

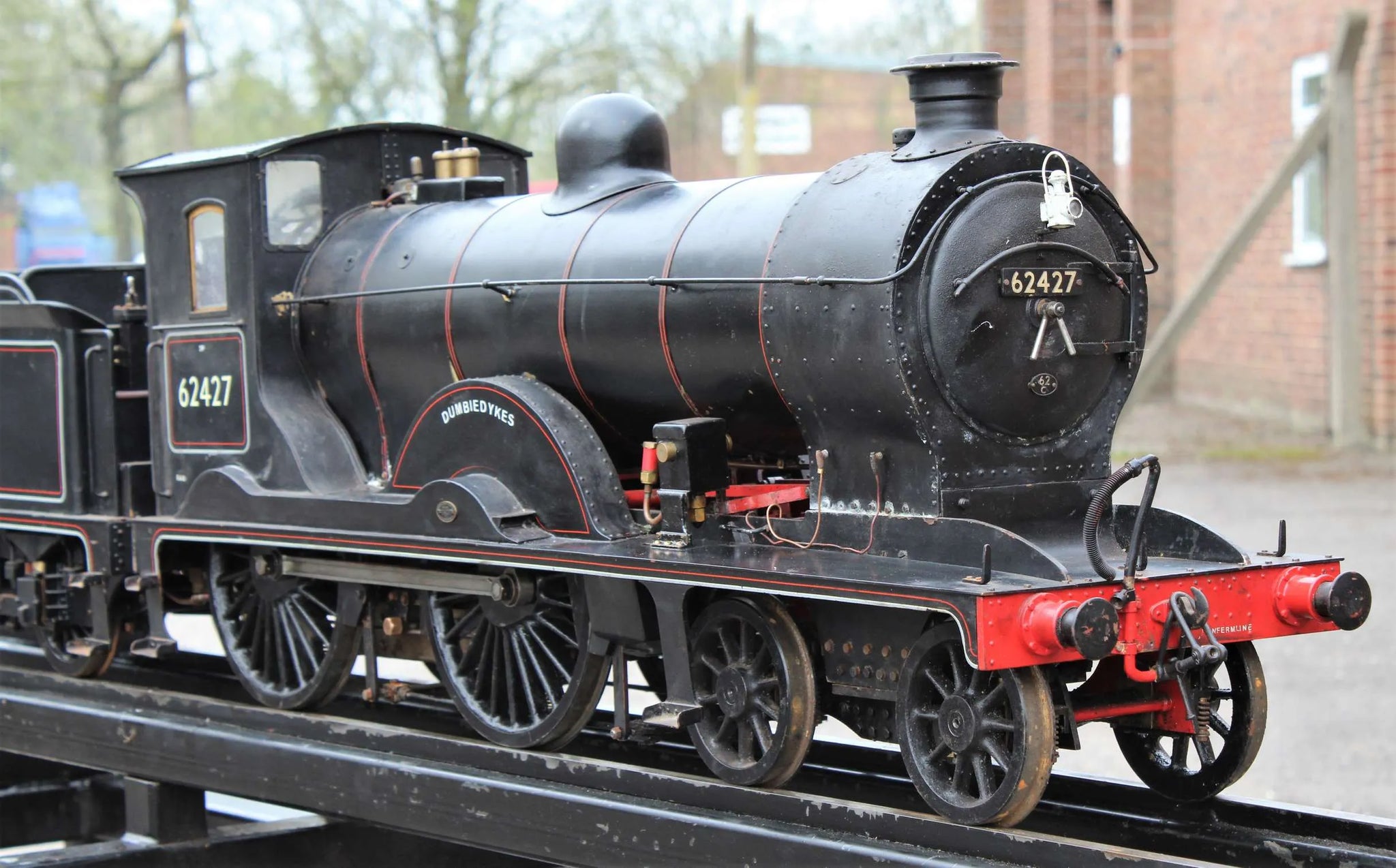

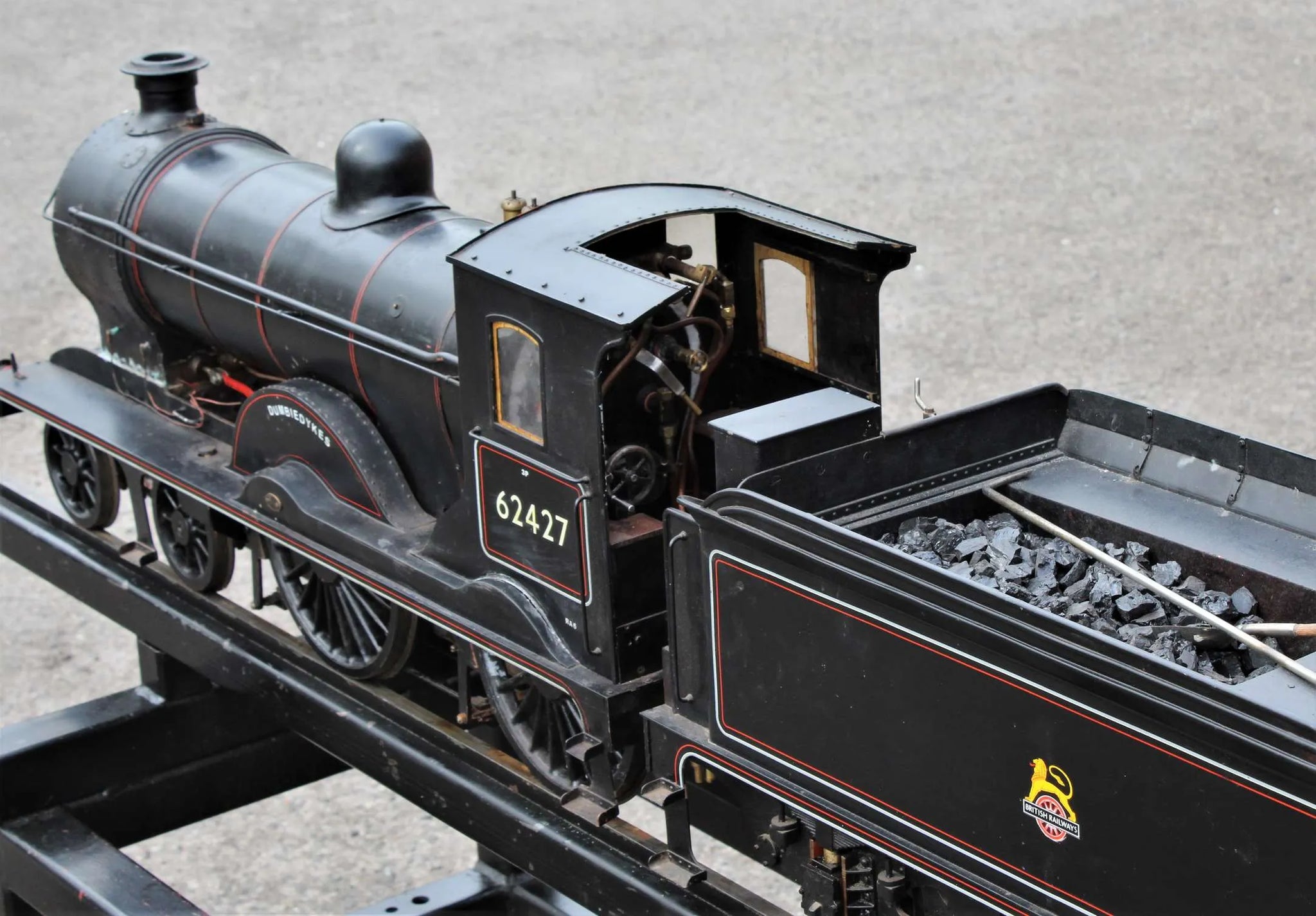

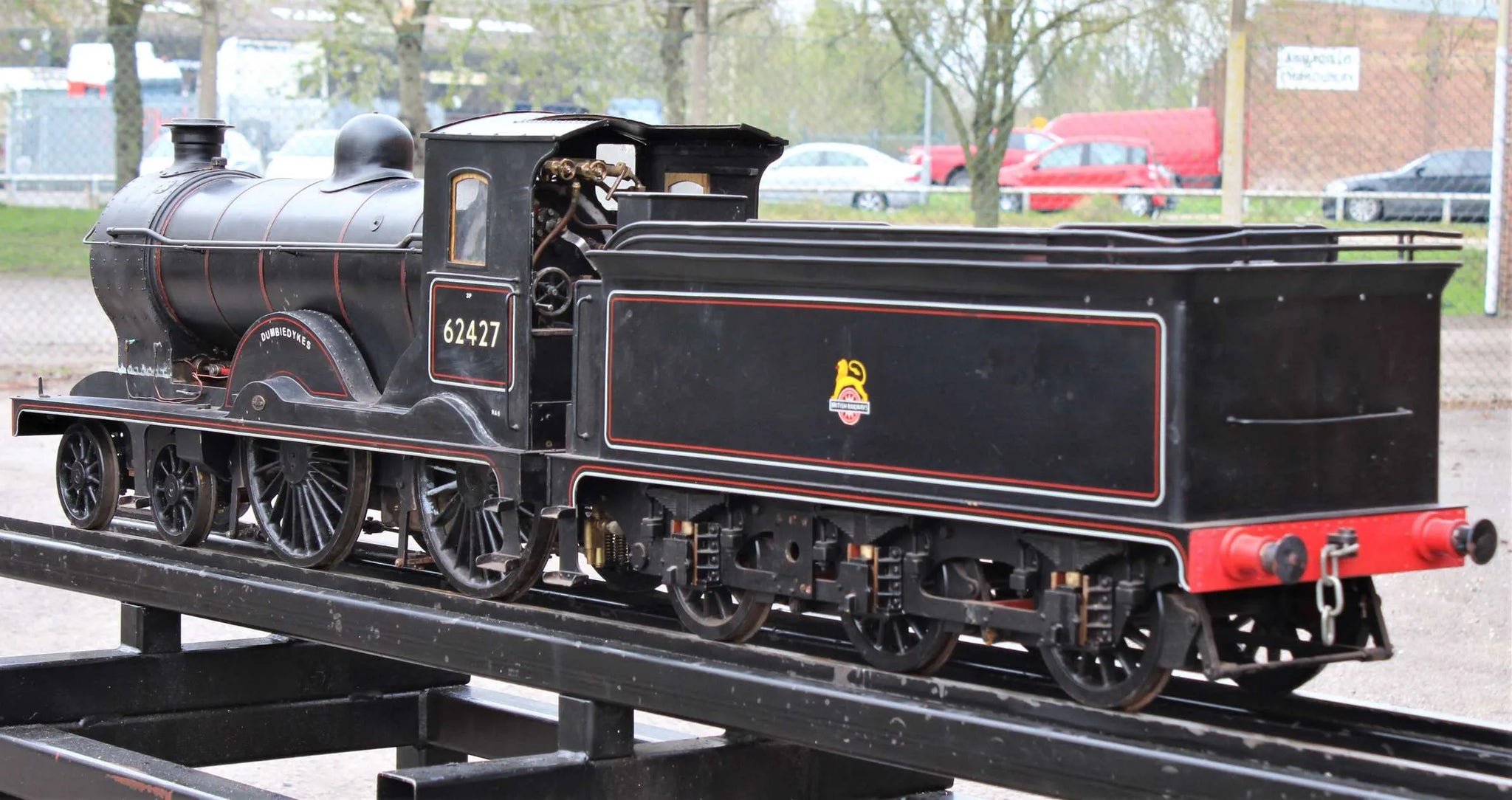

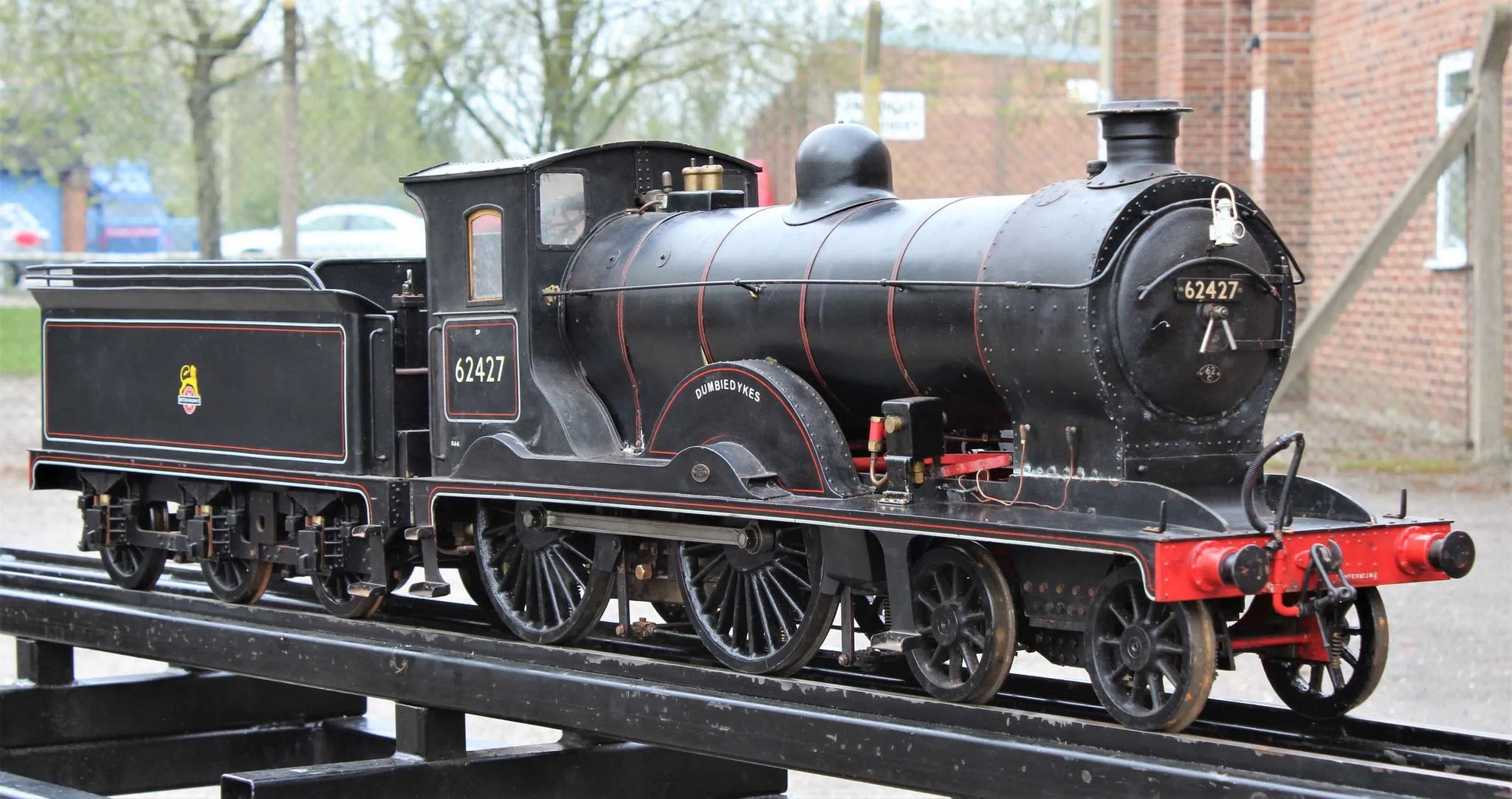

5 inch gauge LNER D30/2 4-4-0

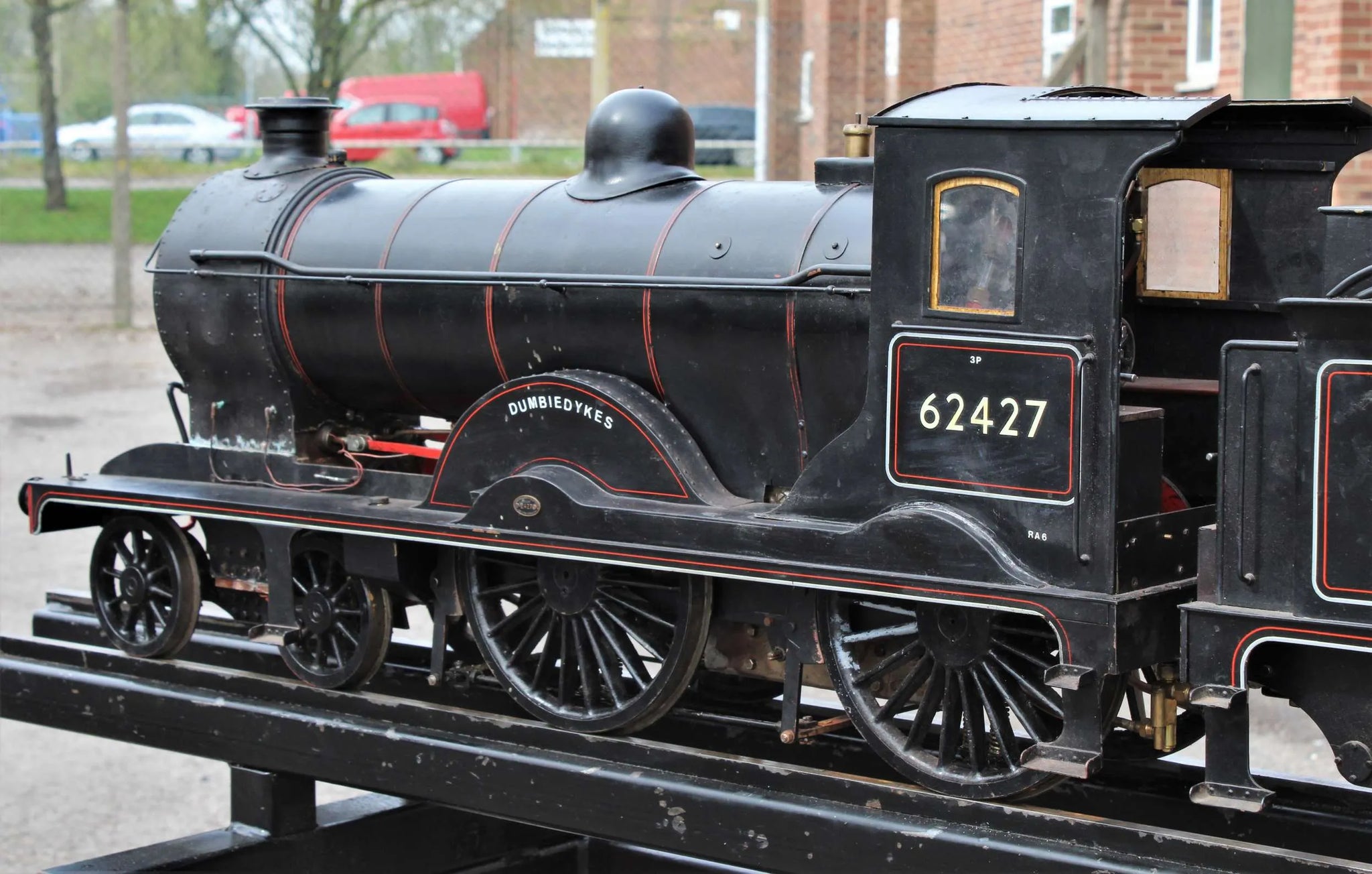

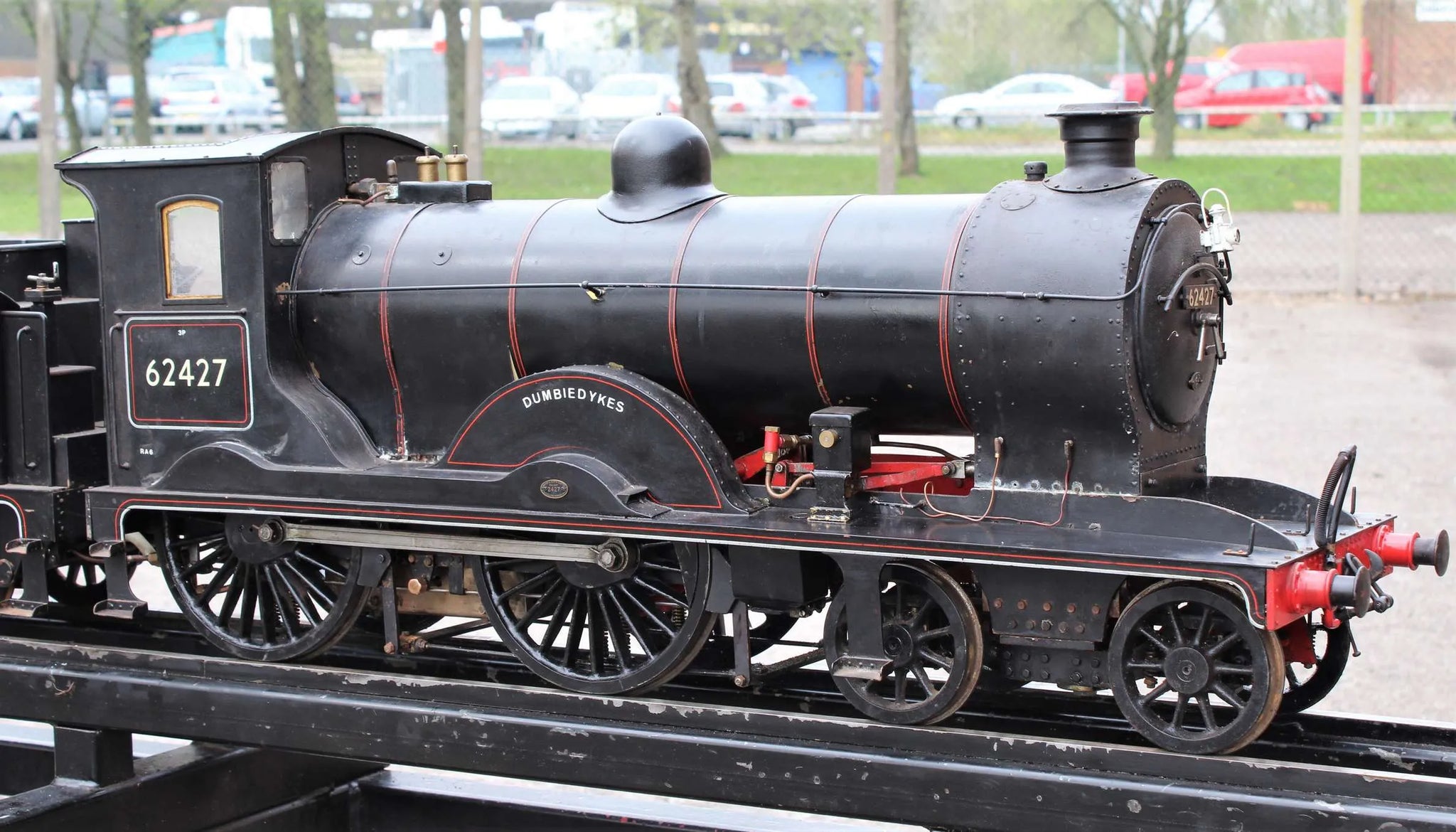

A 5 inch gauge LNER D30/2 4-4-0, a class of locomotives built between 1914 and 1920 by the North British Railway. A long-lived design, the last of the class - by then in British Railways ownership - was withdrawn in 1960, No.62427 "Dumbiedykes" was withdrawn the previous year, in 1959.

This one came to us with a part-built D11 from the same builder. We're told it has been unused since lockdown, however a chassis so stiff to turn over it borders on being seized, a leak from the wet header, and blow by past regulator, pistons and valves would tend to suggest a full overhaul rather than recommisioning is now required.

That said, a worthwhile project - it's a handsome design, not one we see modelled very often.

Technical information

Stock code

10250

Gauge

5 inch

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

2008

Boiler number

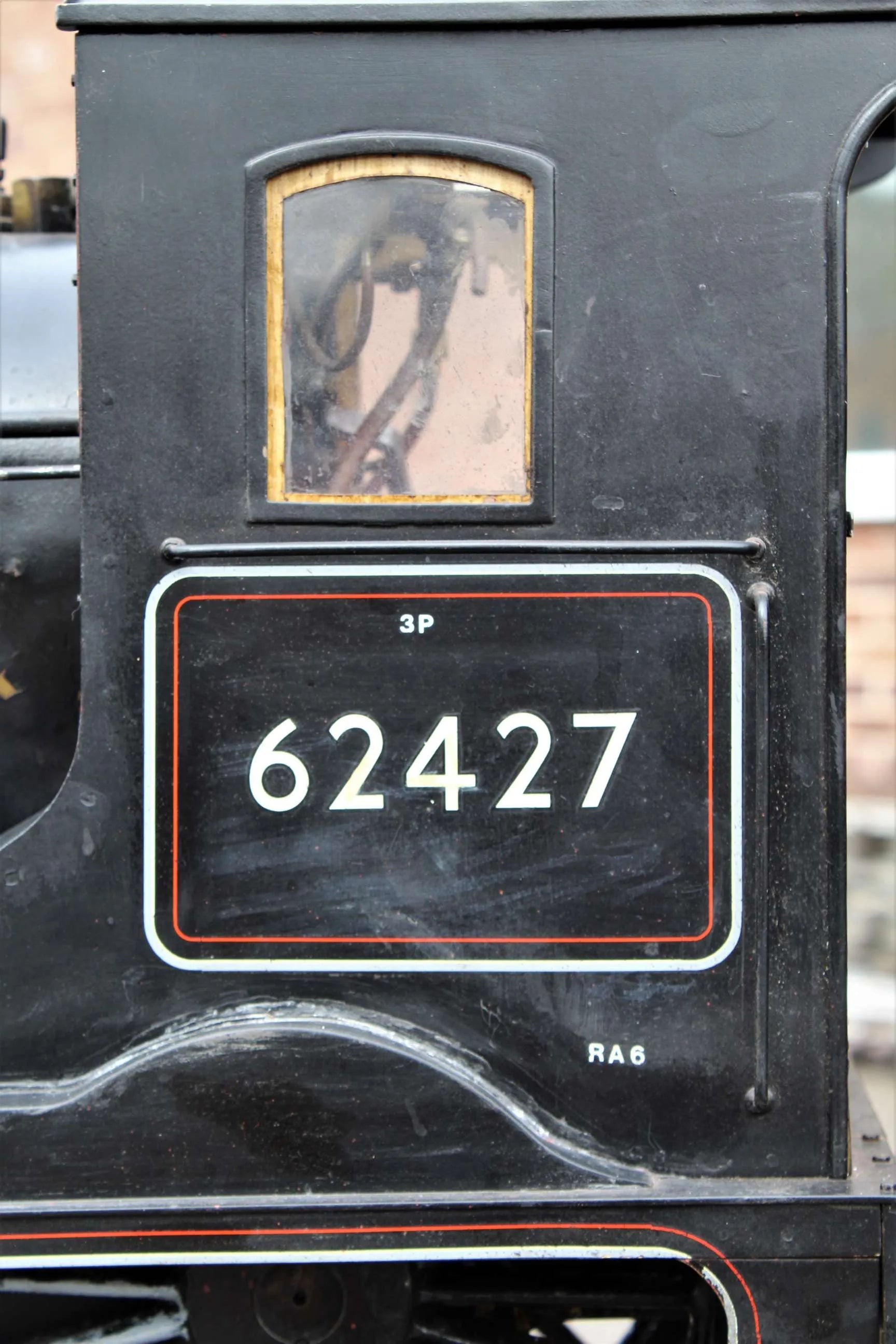

62427

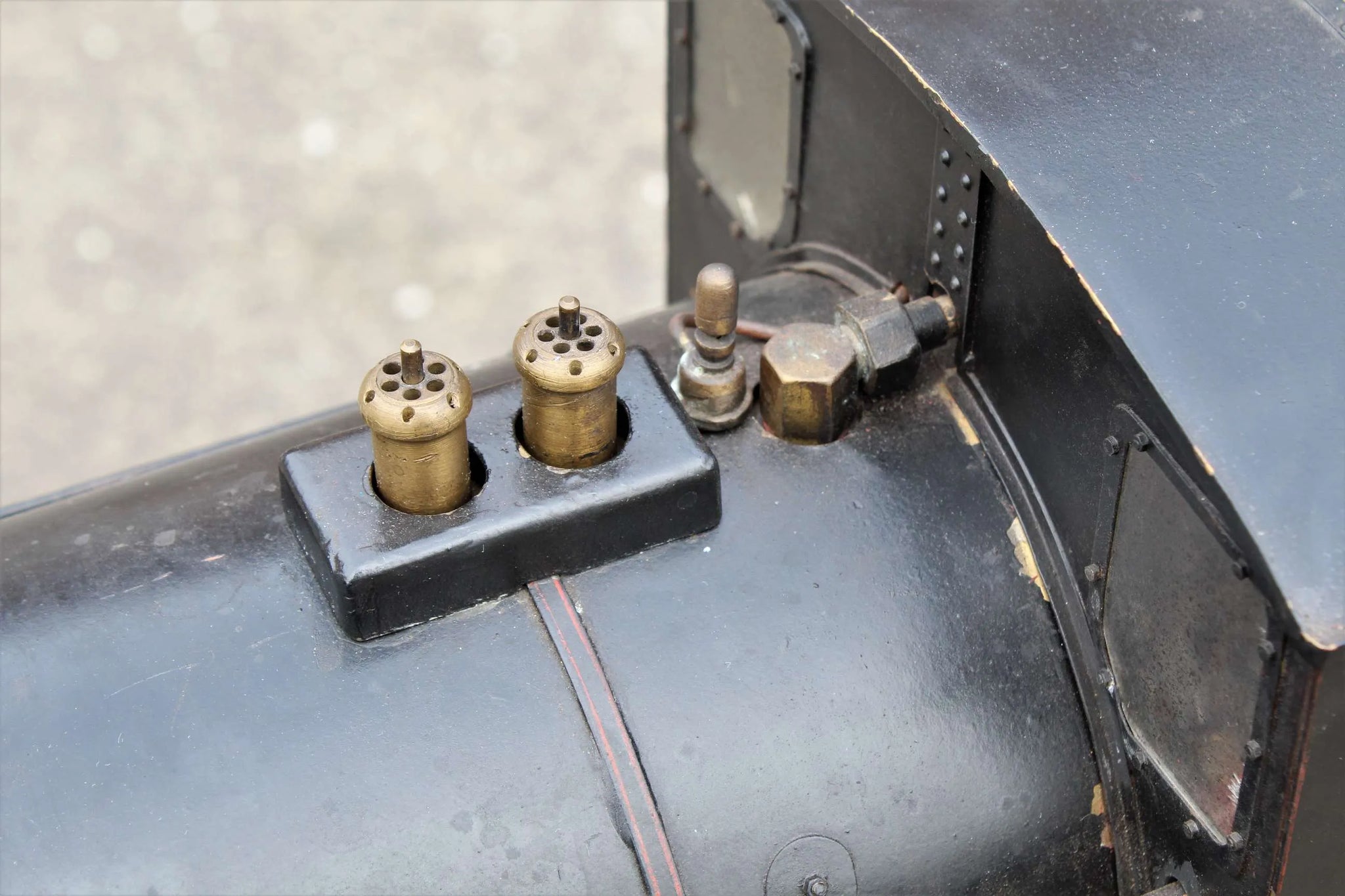

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Injector

2

Superheater type

flue tube

Superheater

4

Date out

Apr-22
