13102

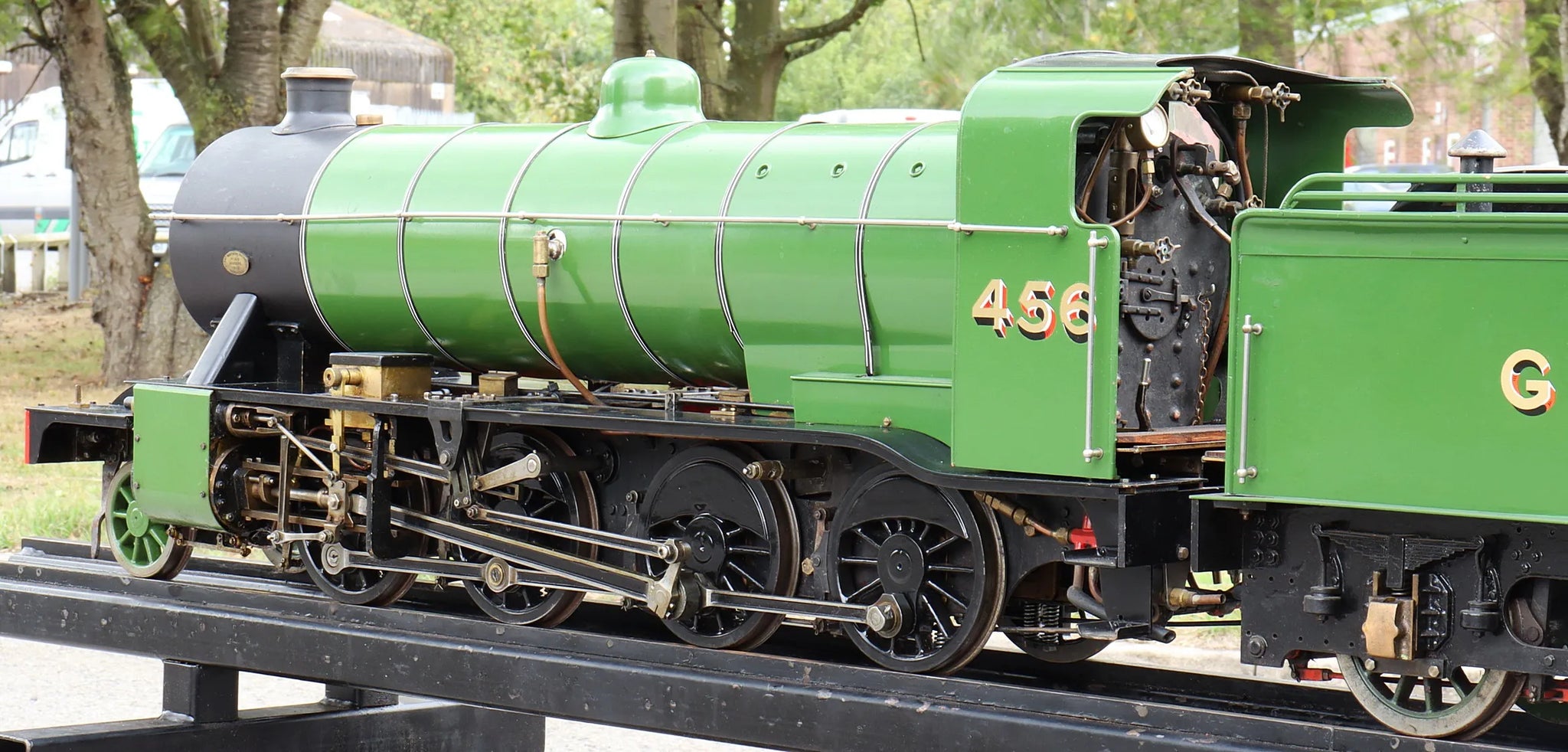

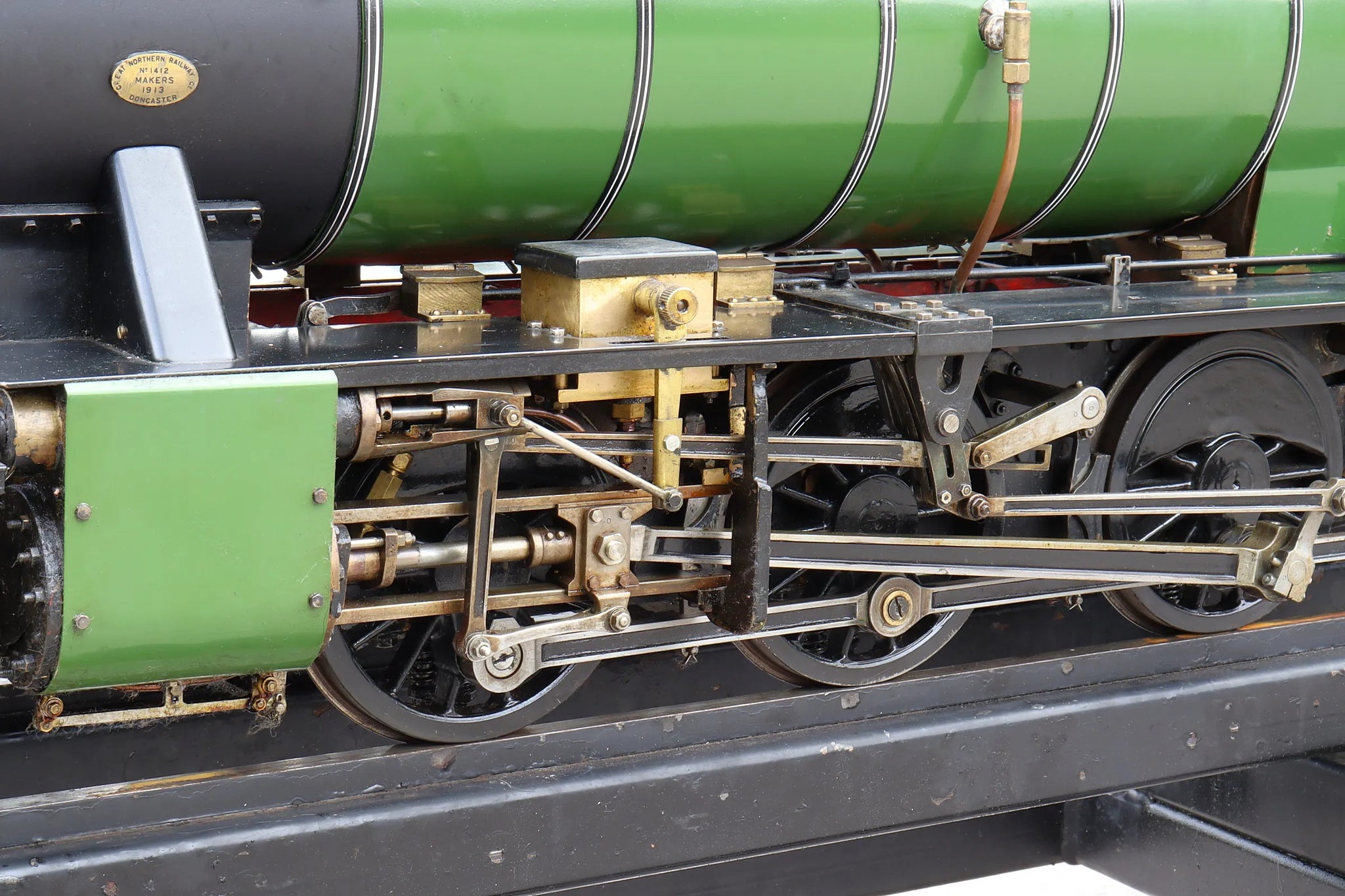

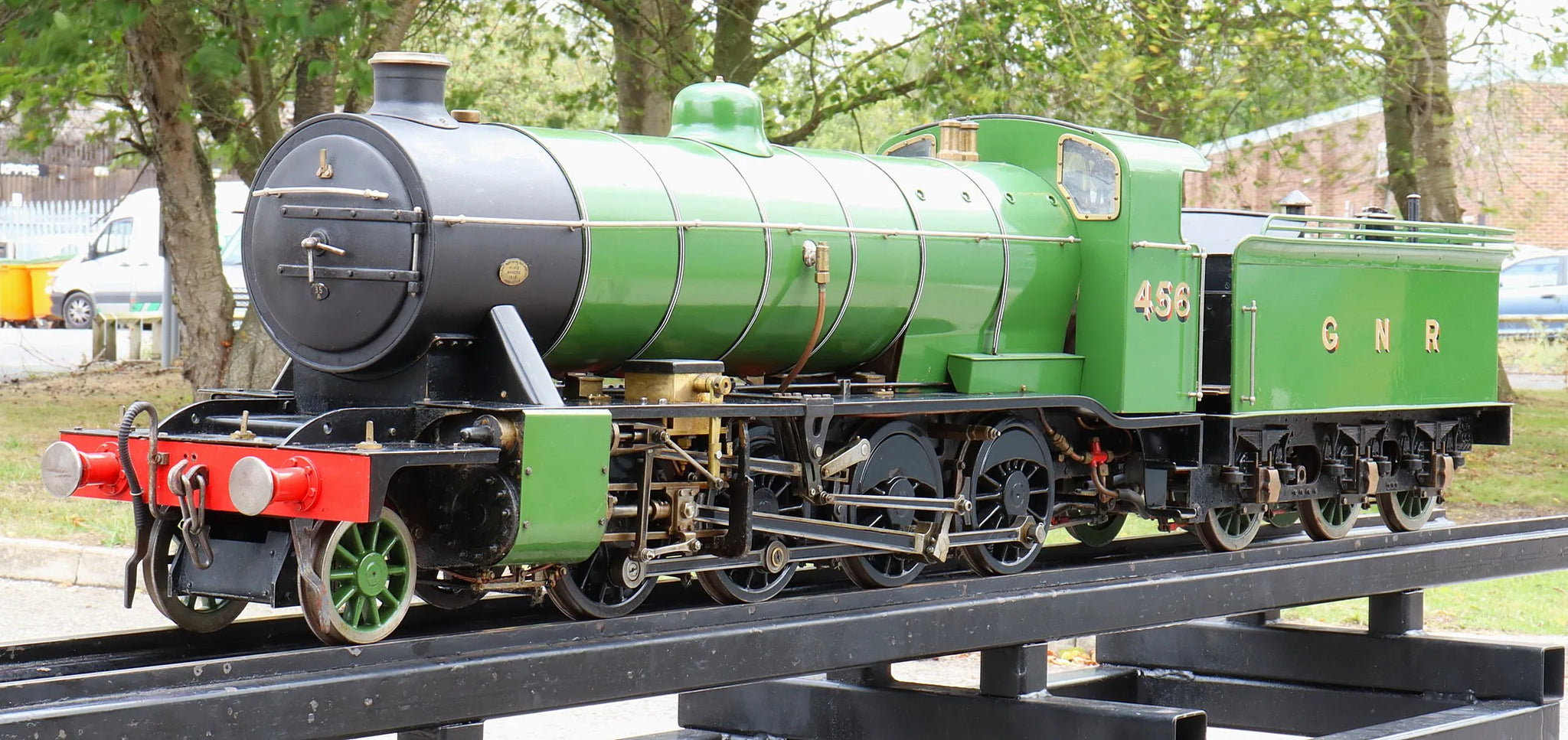

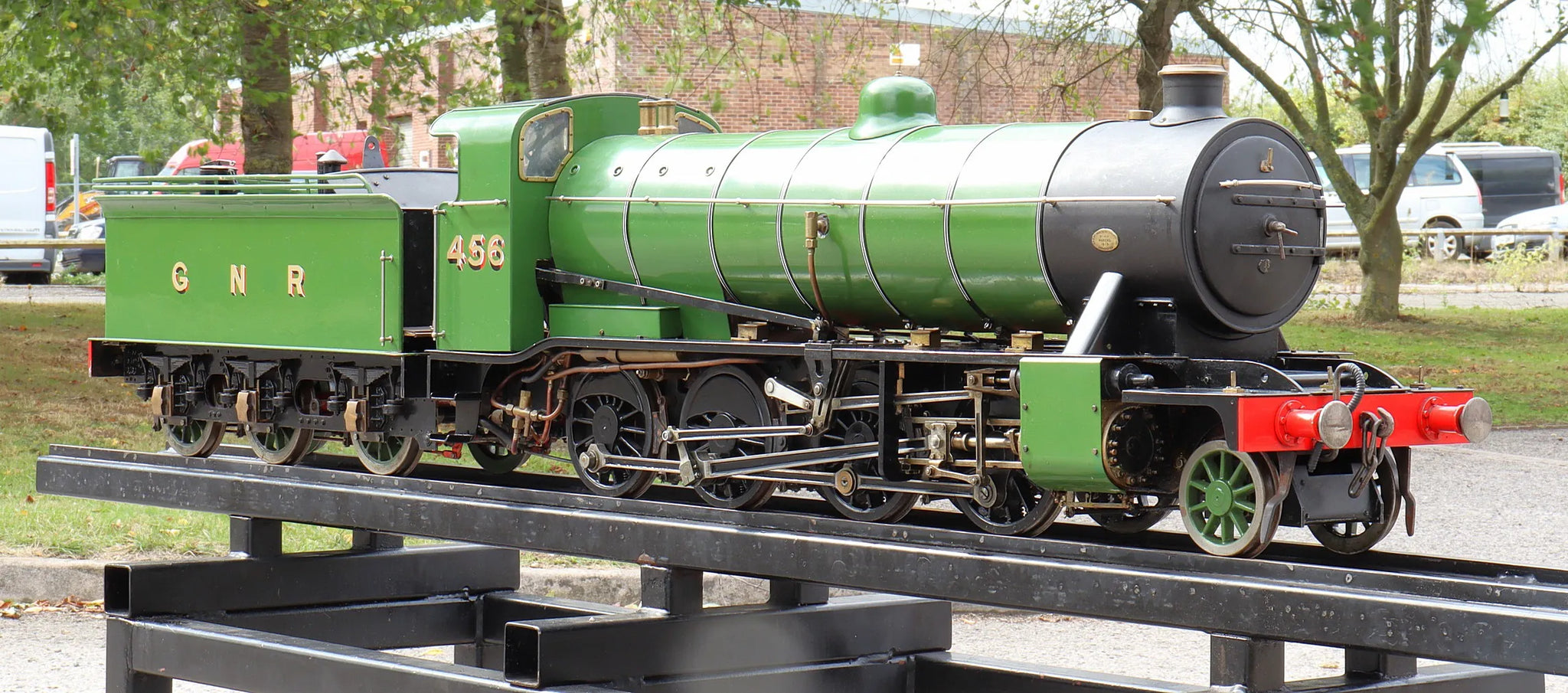

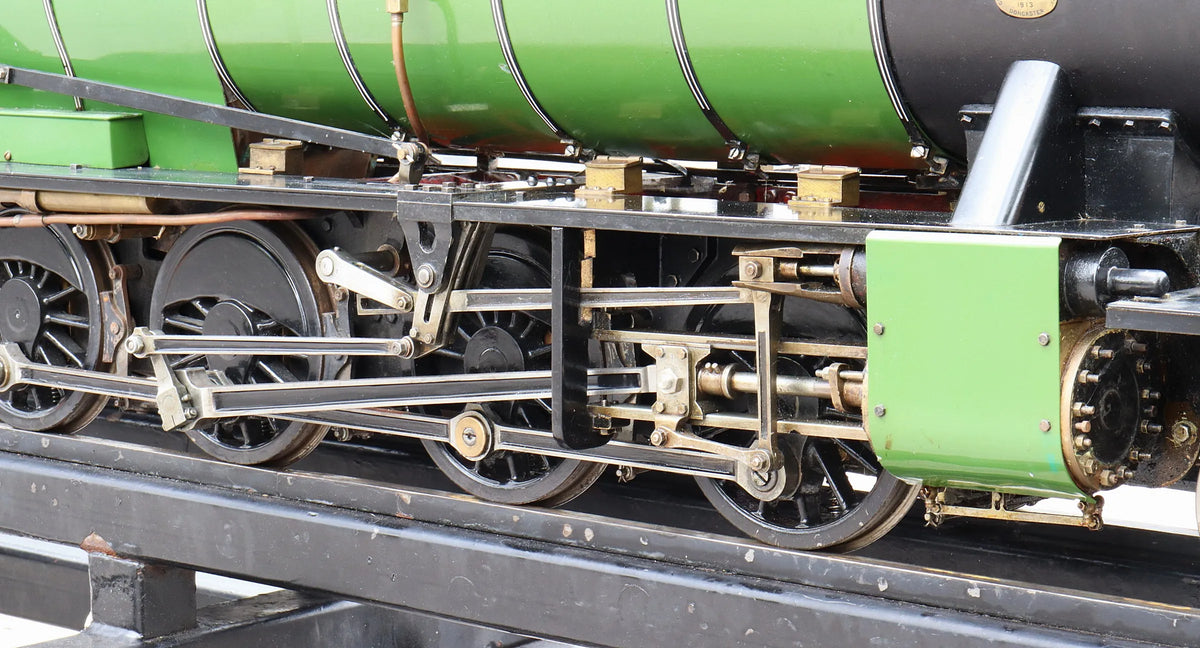

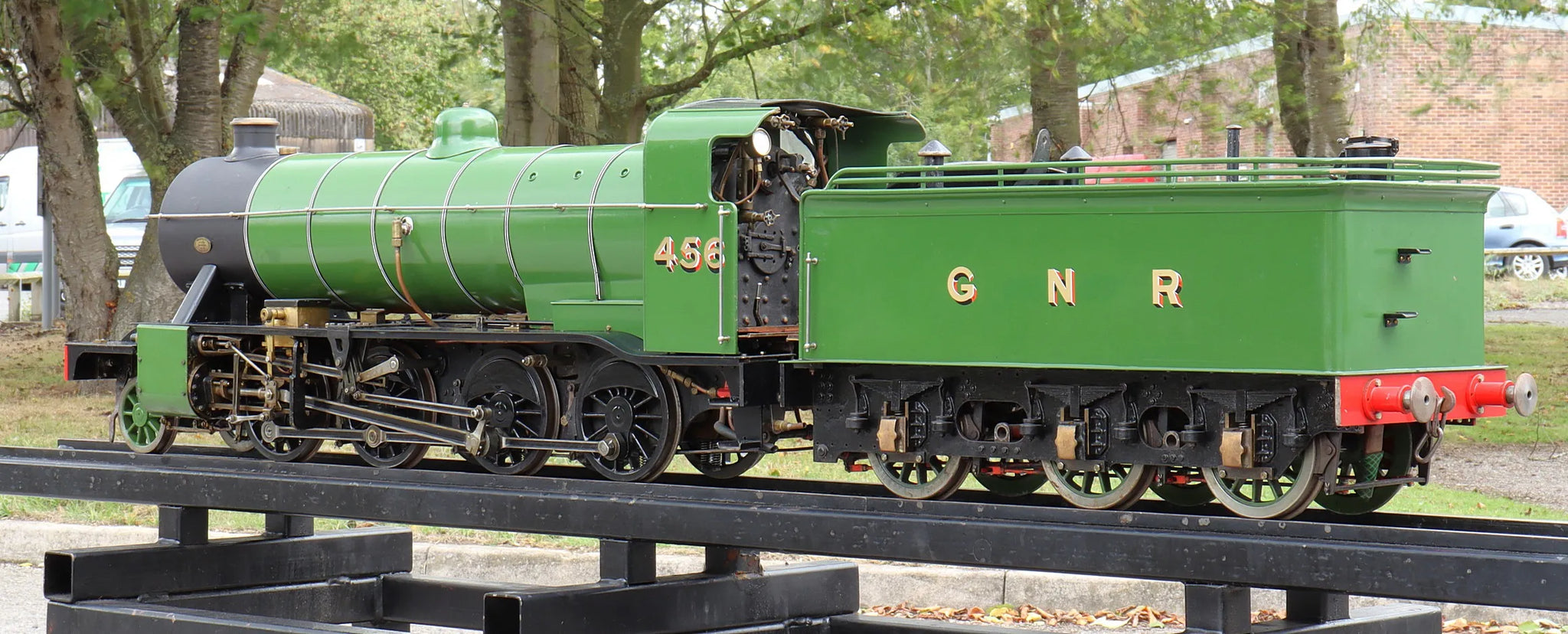

An older engine, it runs although with wear apparent between axleboxes and horns.

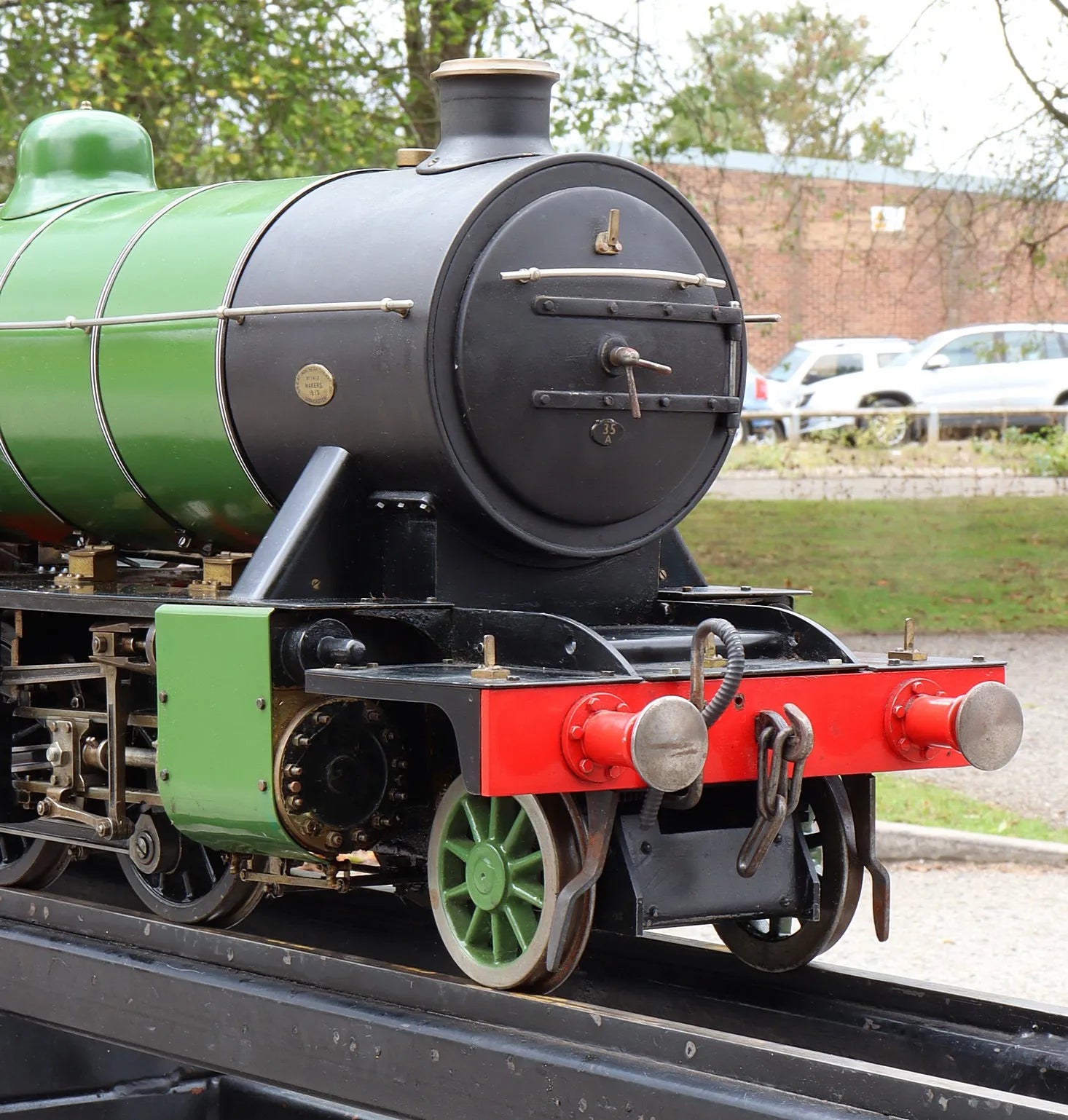

On hydraulic test the commercially-built boiler showed pinhole leaks on two tubes - one a superheater flue - at the smokebox end, with evidence of an old repair.
Stock code |
13102 |
Gauge |
5 inch |
Length/inches |
41 + 24 |
Width/inches |
10 |
Height/inches |
14 |
Weight/Kg |
97 |
Wheel material |
cast iron |
Axlebox type |
split bronze |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Walschaerts |
Reverser type |
screw |
Boiler maker |
Western Steam |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
100 |
CE/UKCA mark |
yes |
Year built |
2008 |
Boiler number |
WSME.5440808 |
Safety valve type |
pop |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Injector |
2 |
Date out |
Dec-25 |
