Sold

9059

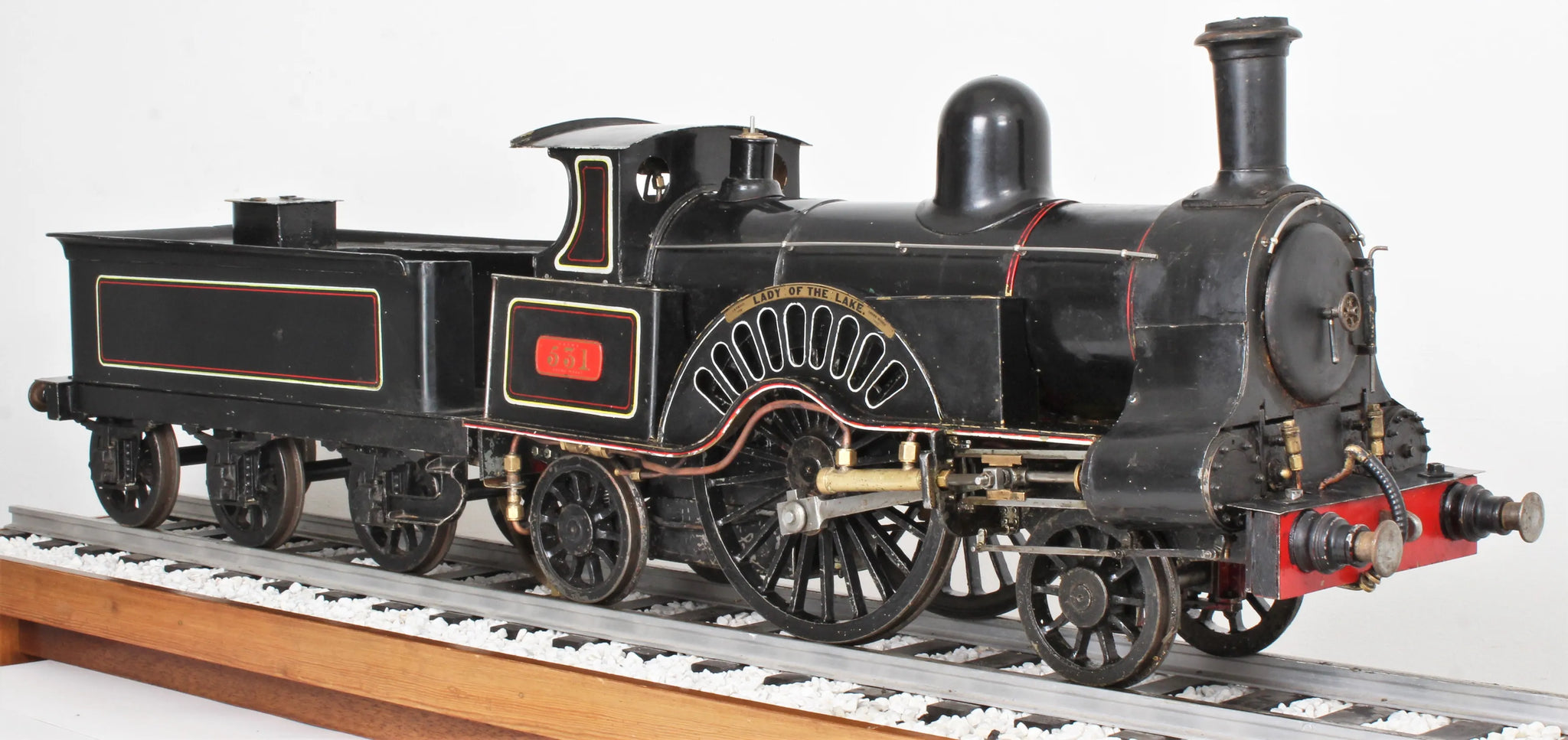

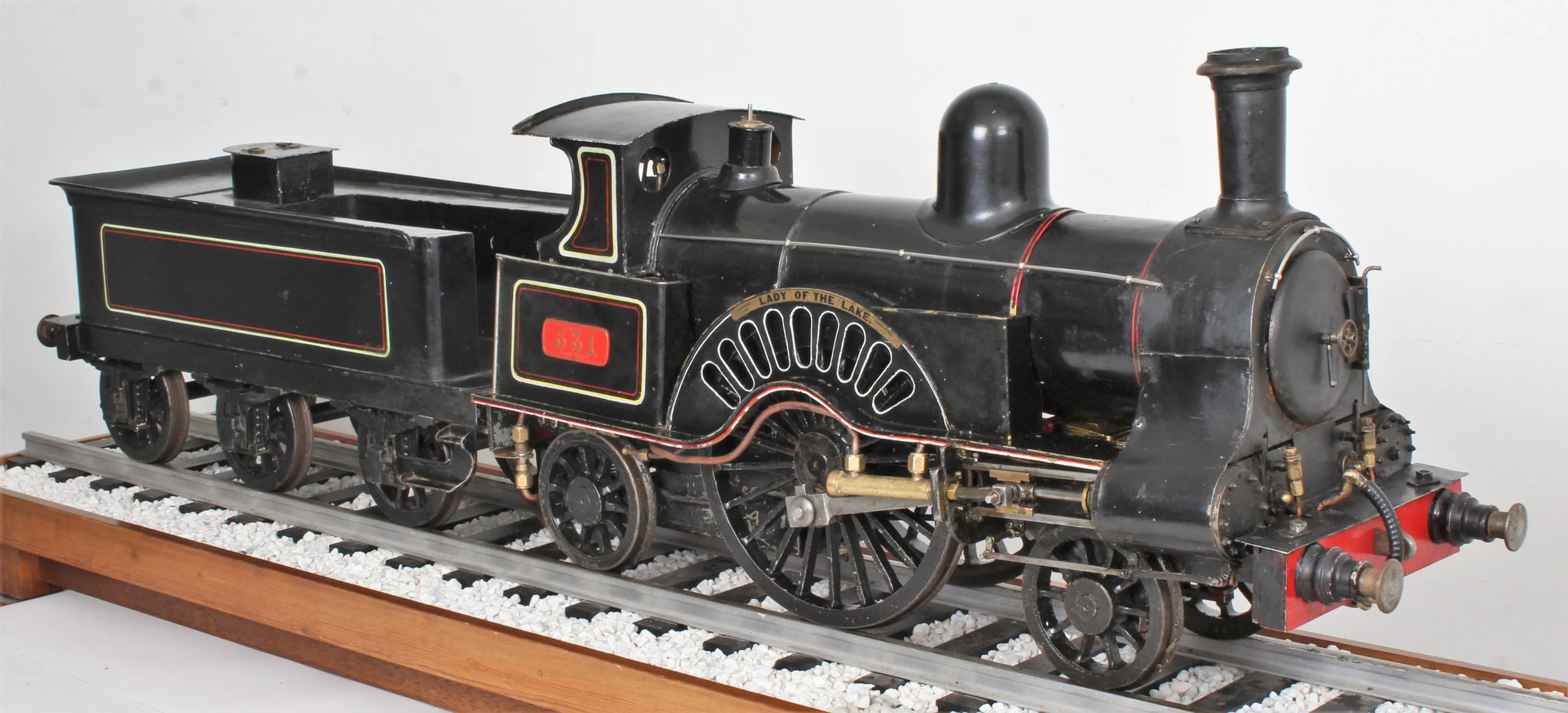

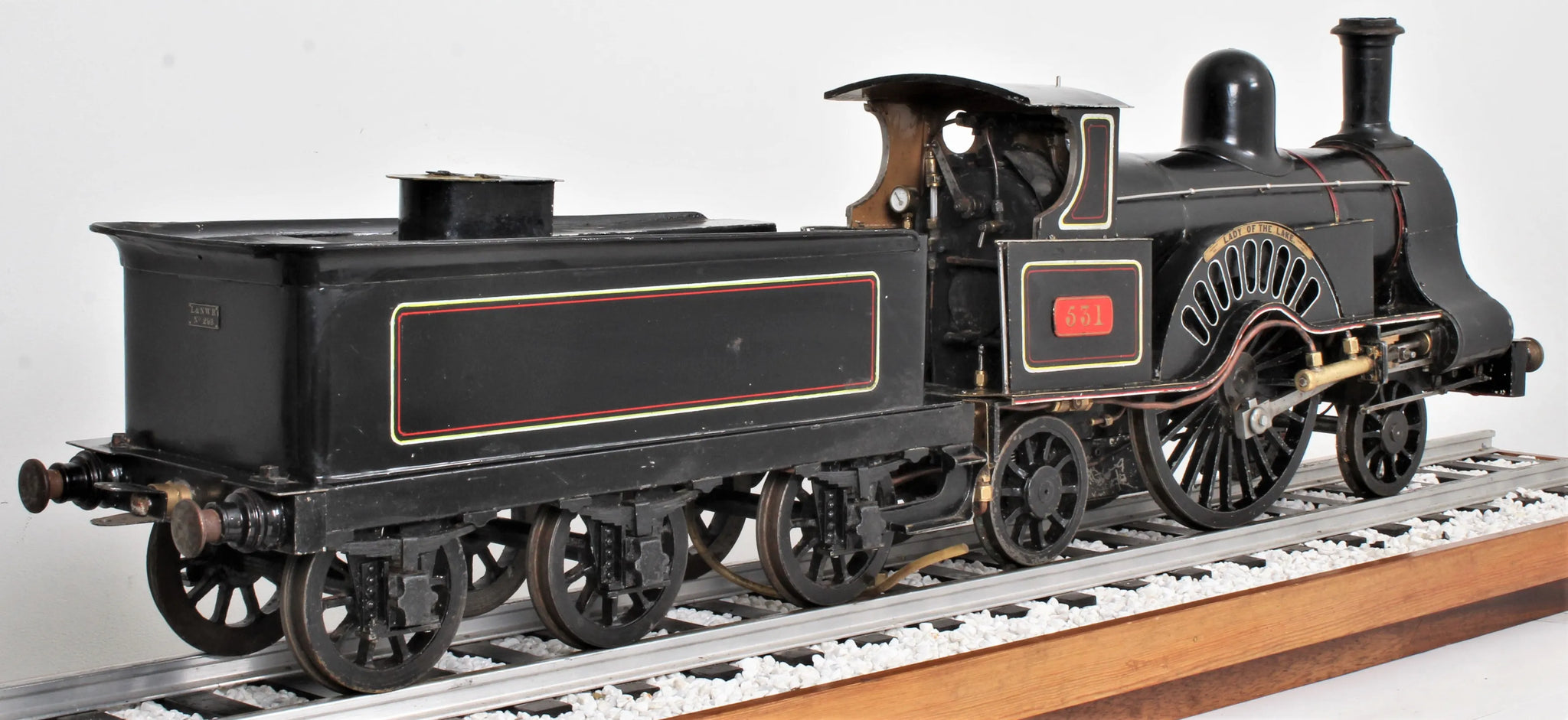

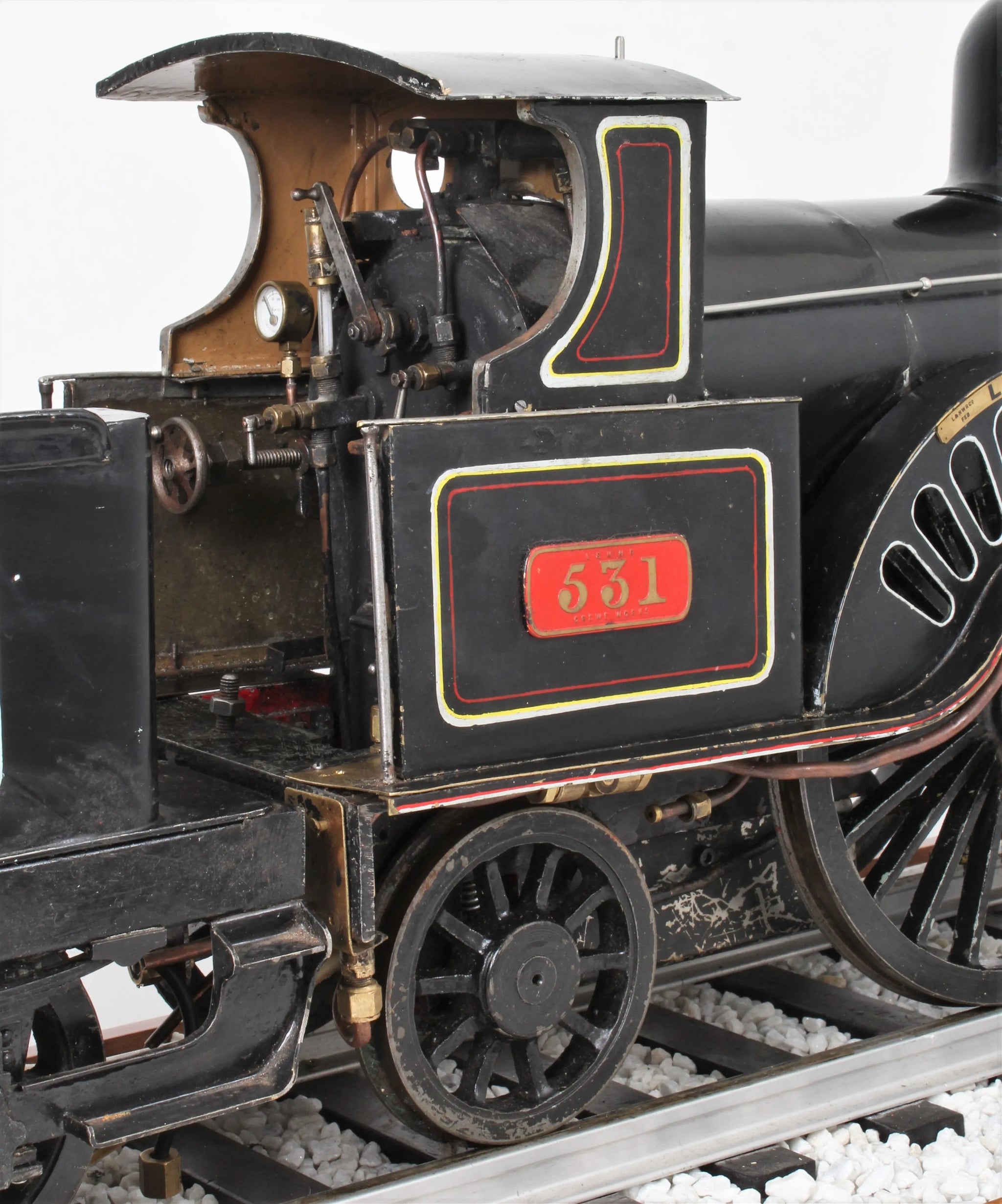

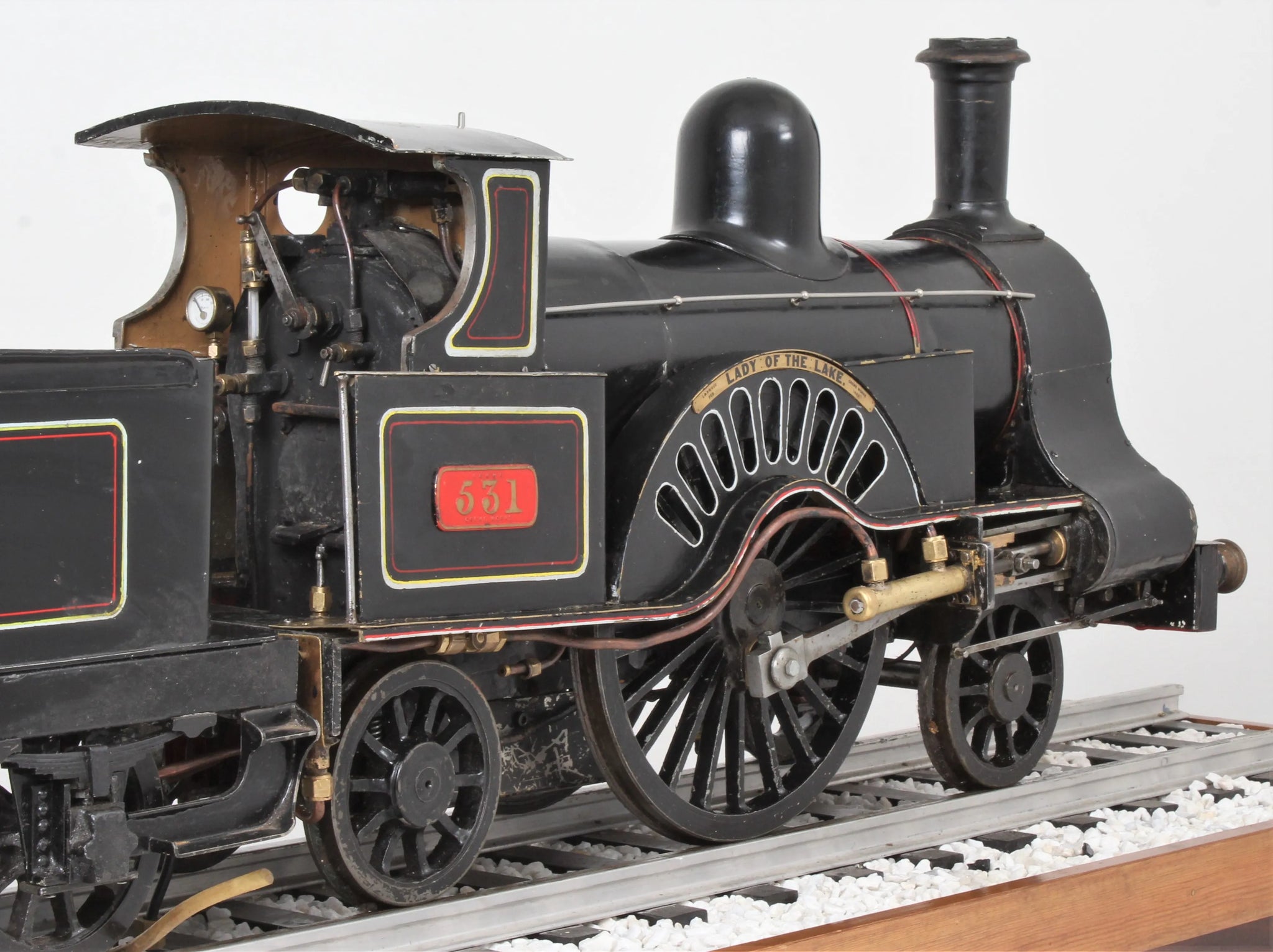

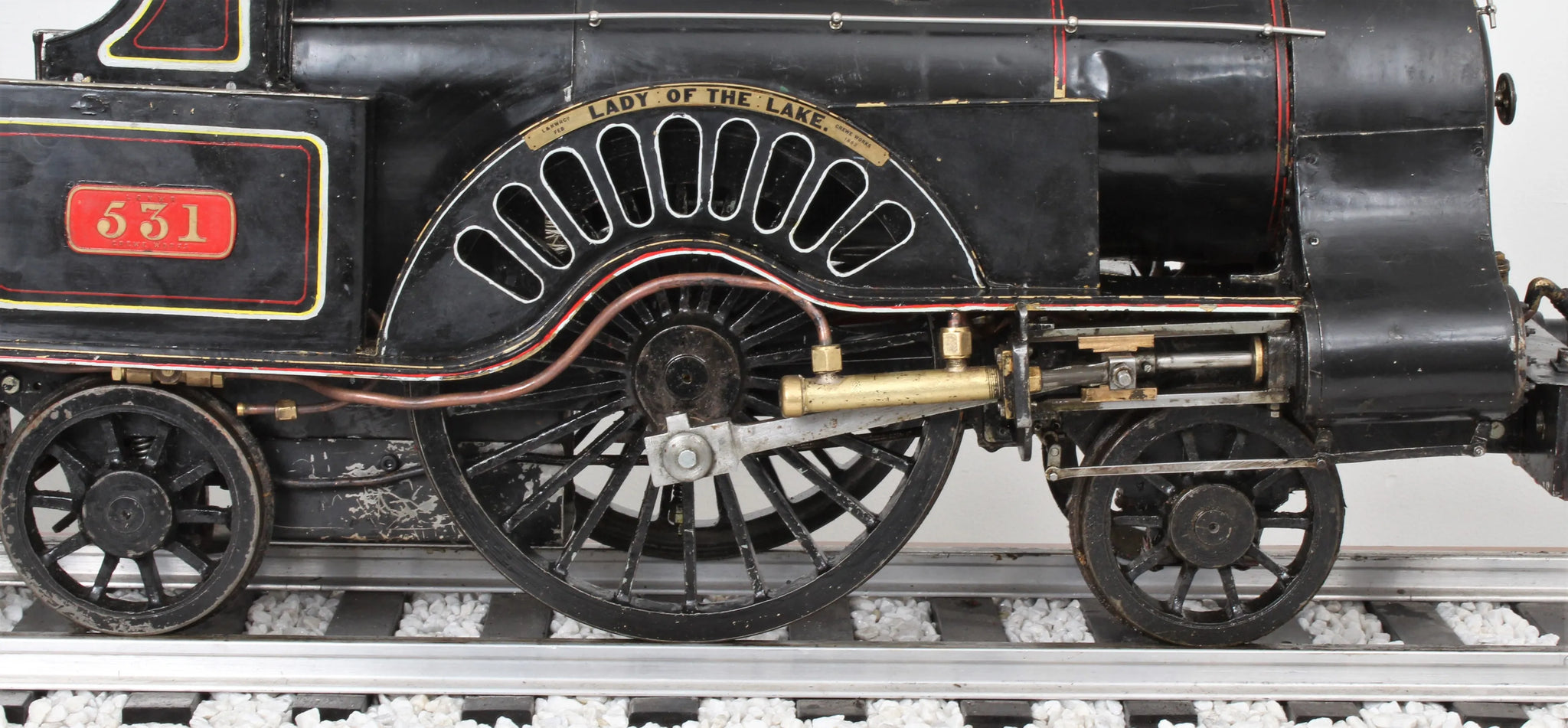

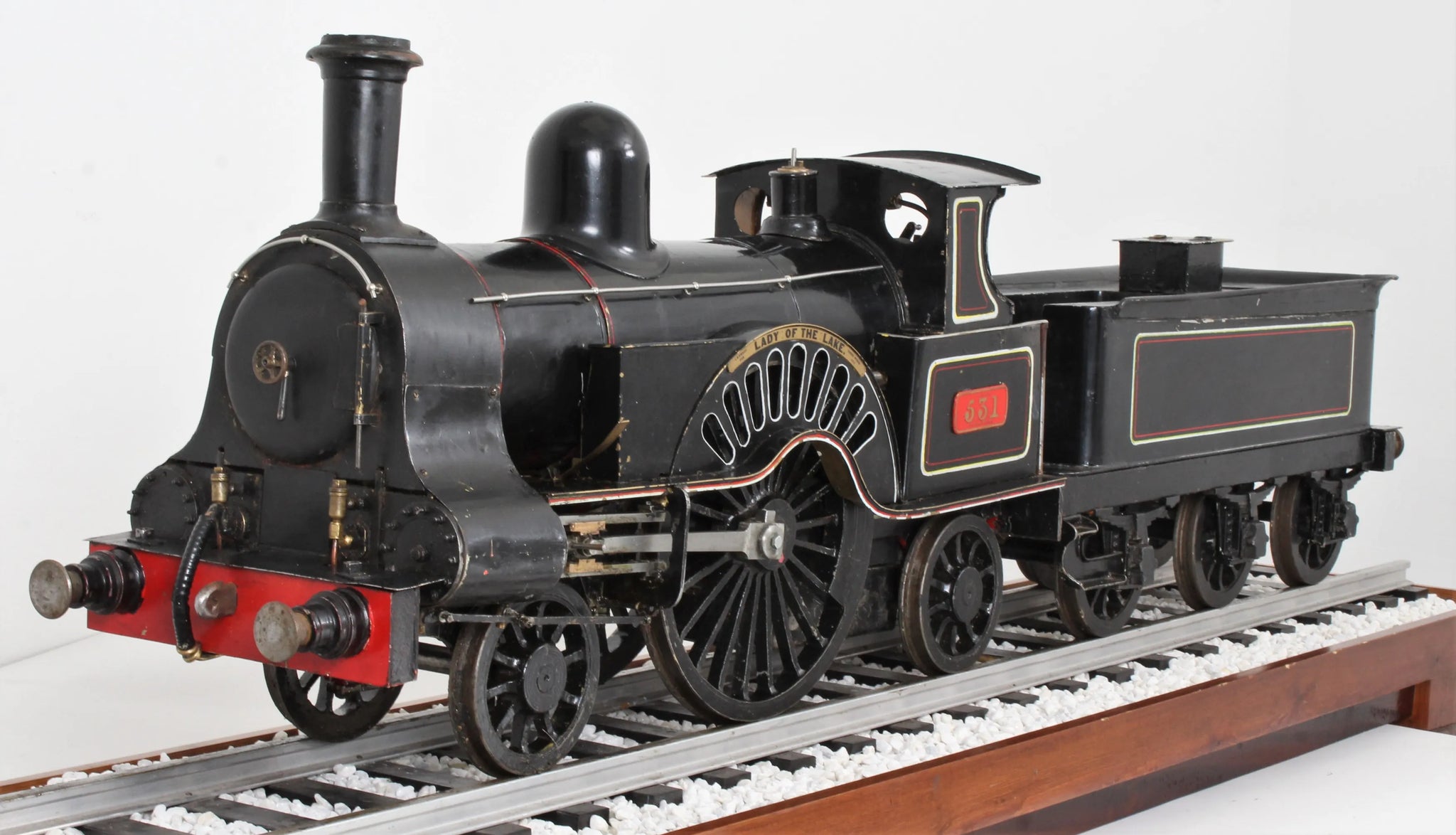

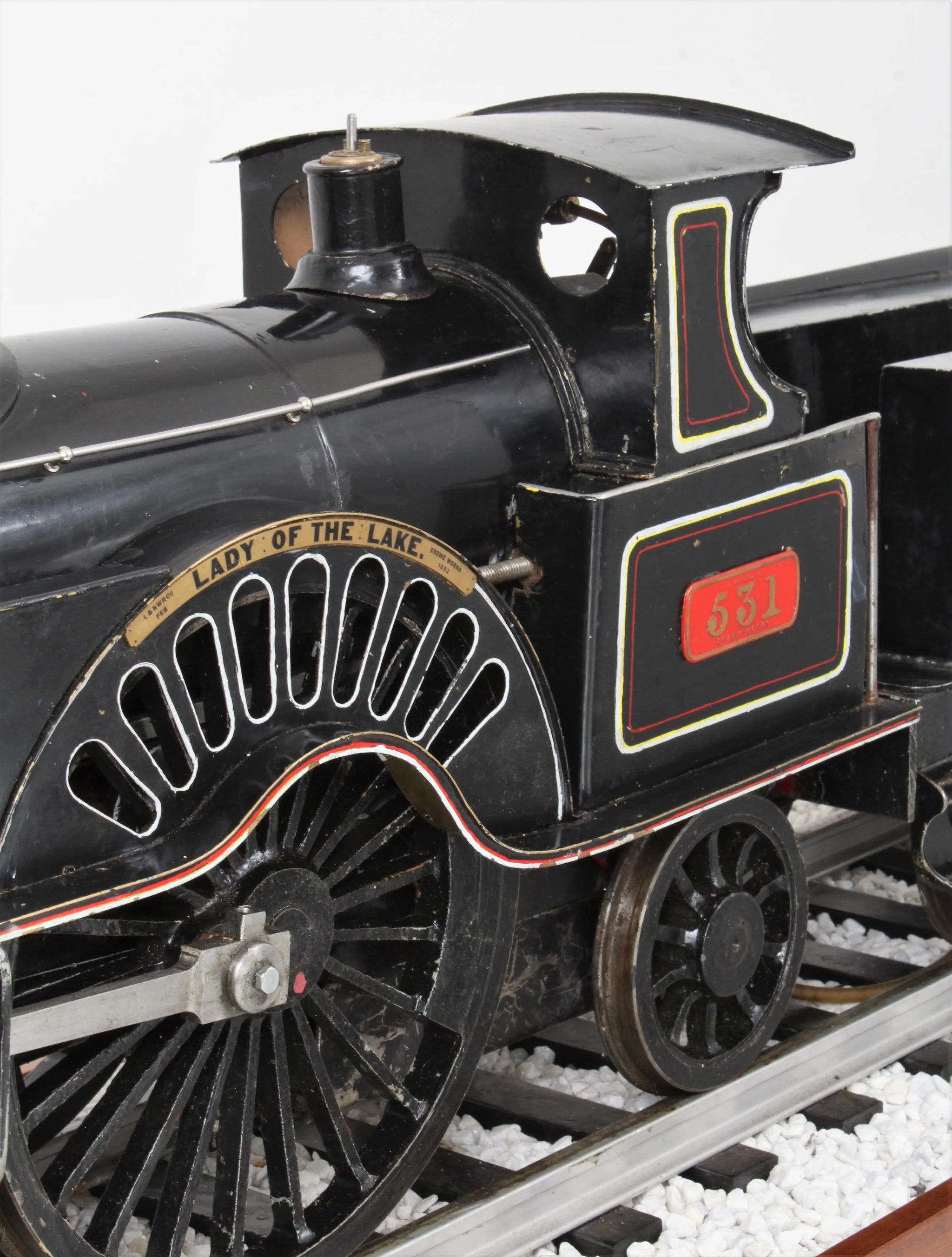

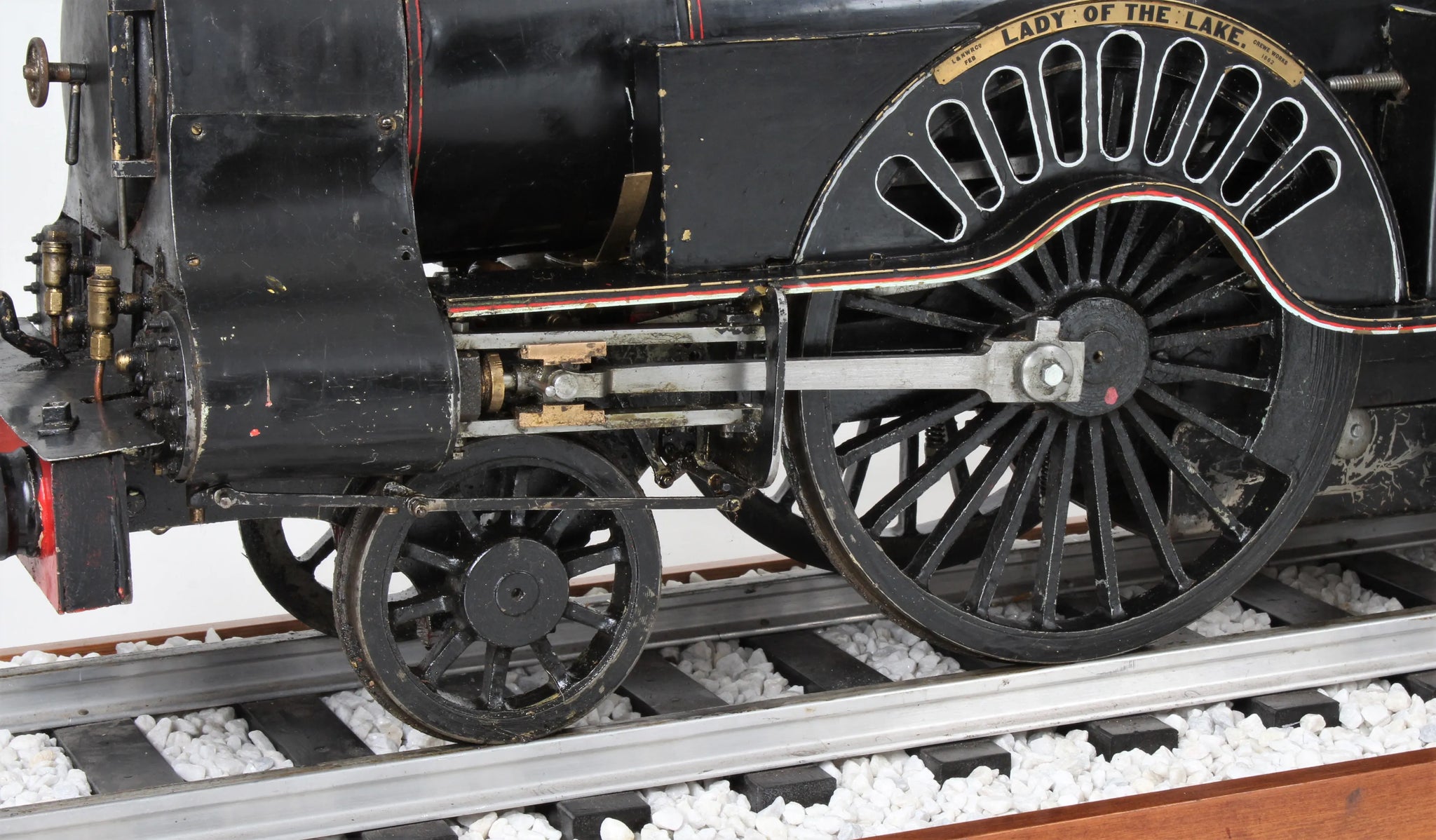

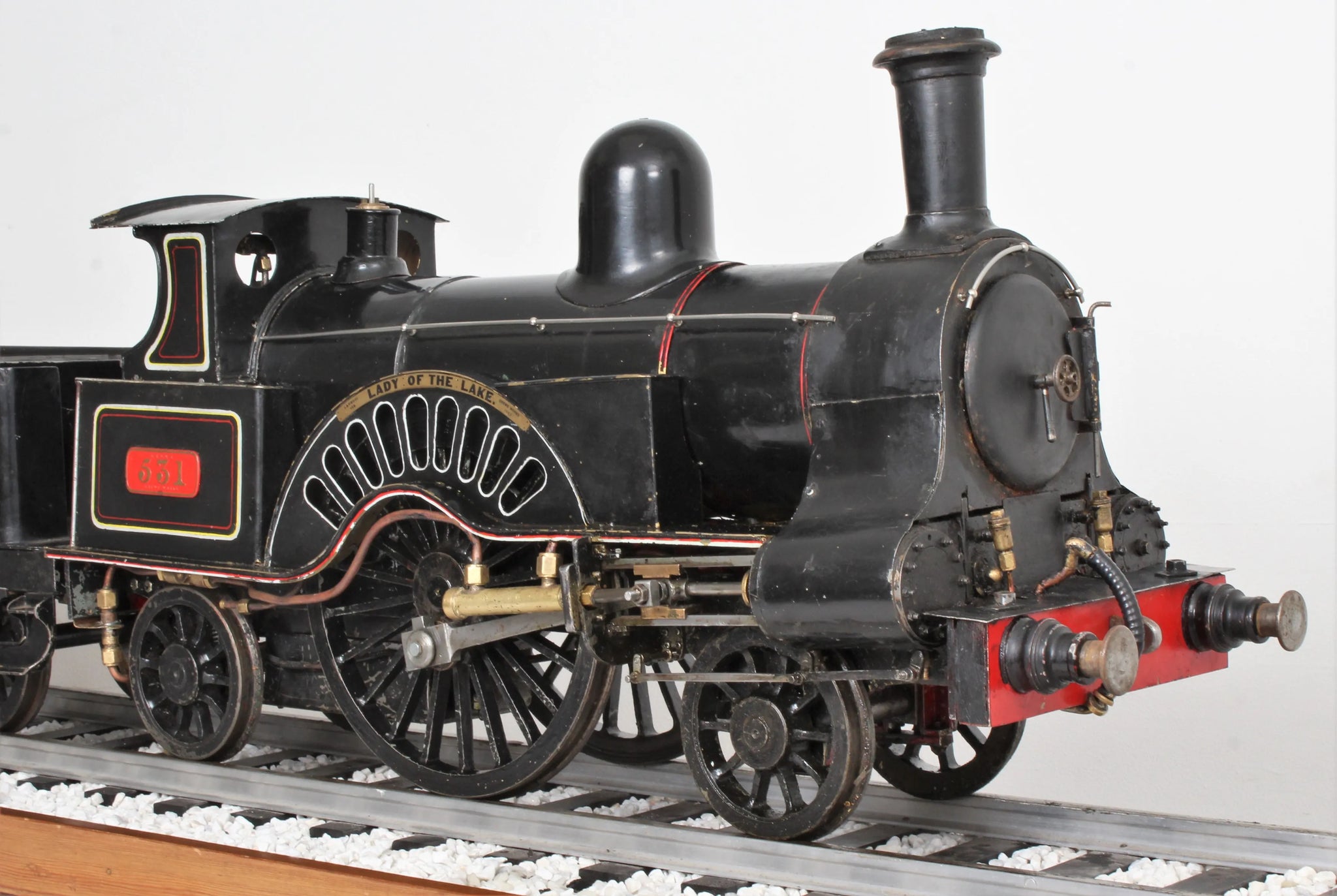

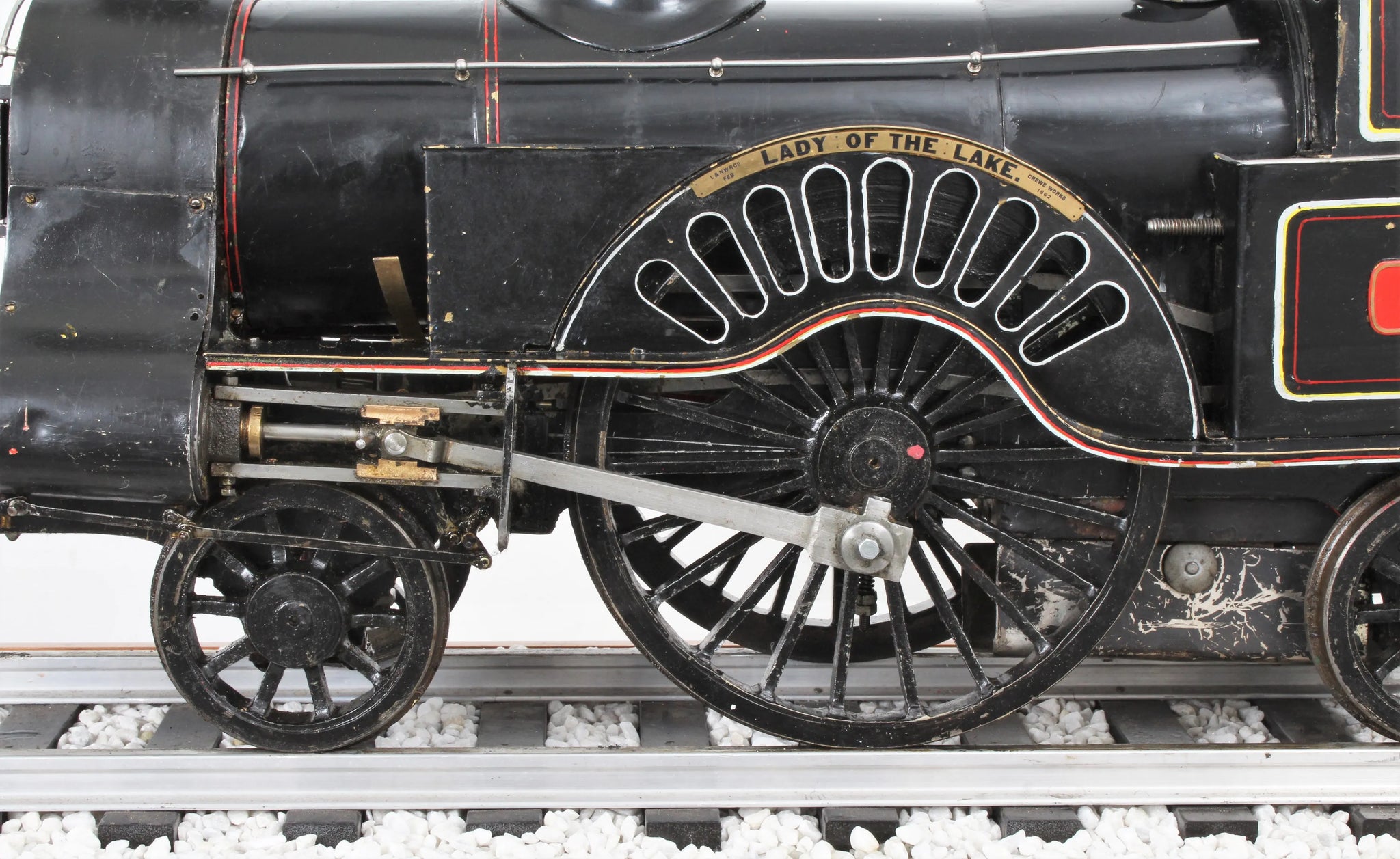

5 inch gauge LNWR Problem class "Lady of the Lake" 2-2-2

A 5 inch gauge "Problem" class 2-2-2, John Ramsbottom's 7ft 6in single wheel express locomotive designed for the London & North Western Railway.

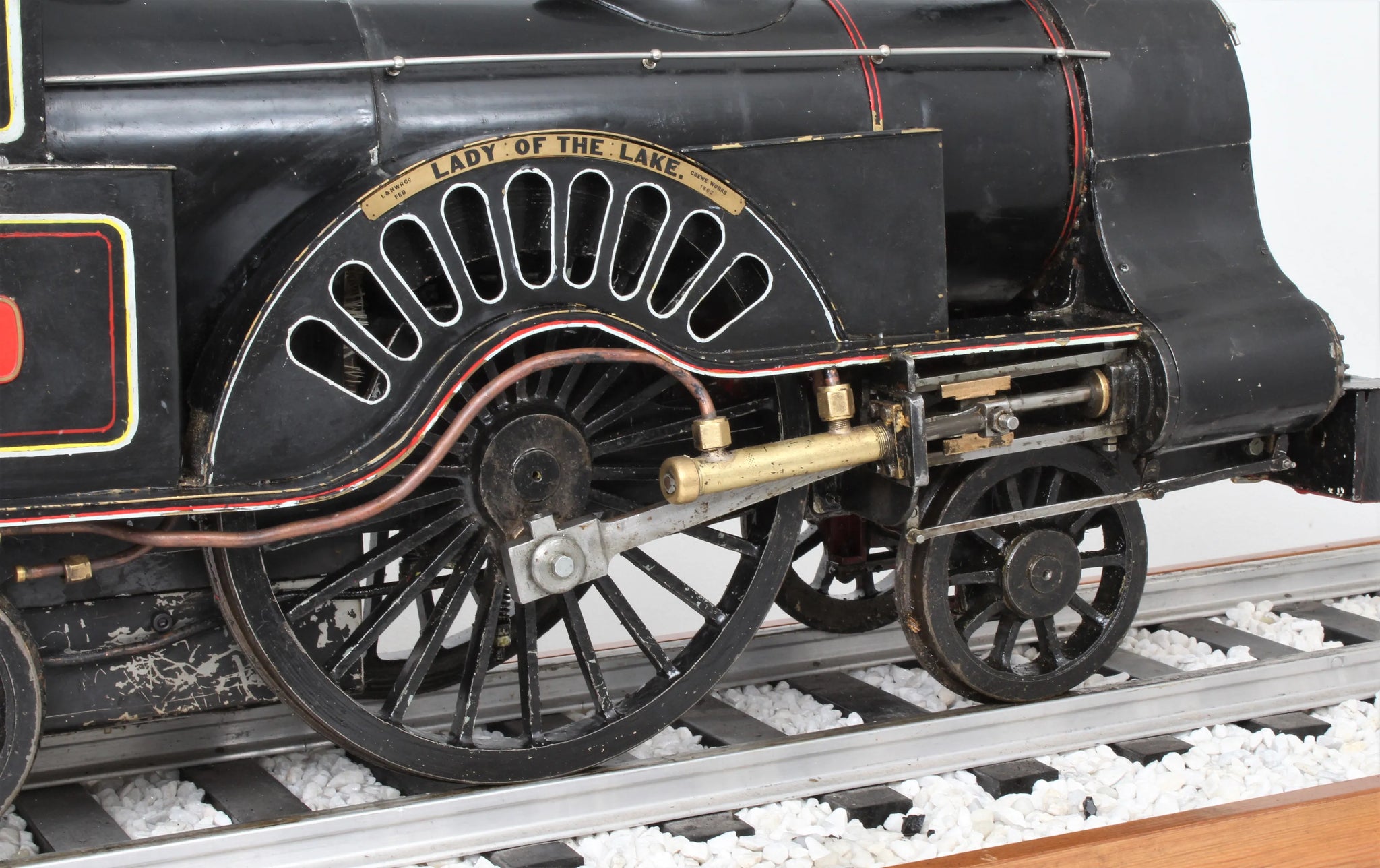

Class member "Lady of the Lake" was exhibited at the Great London Exposition of 1862, apparently attracting a great deal of attention.

The engines were originally fitted with Giffard injectors - these proved unsatisfactory in service and were replaced by crosshead pumps.

This engine is the work of a prolific builder, responsible for many engines over the years - we've sold several of them in the past. We have some documentation with it, including past club boiler certification.

I love the notion of naming a class of engines "Problem" - it's the sort of thing that wouldn't get past the first marketing meeting these days.

Technical information

Stock code

9059

Gauge

5 inch

Length/inches

27 1/2 + 23 1/2

Width/inches

8.5

Height/inches

15

Wheel material

cast iron

Axlebox type

plain

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler maker

N Booth

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

2007

Boiler number

N73-90-02

Safety valve type

spring

Safety valve

1

Fusible plug

no

Hand pump

1

Mechanical pump

1 x crosshead

Superheater type

radiant

Superheater

2

Date out

Mar-20
