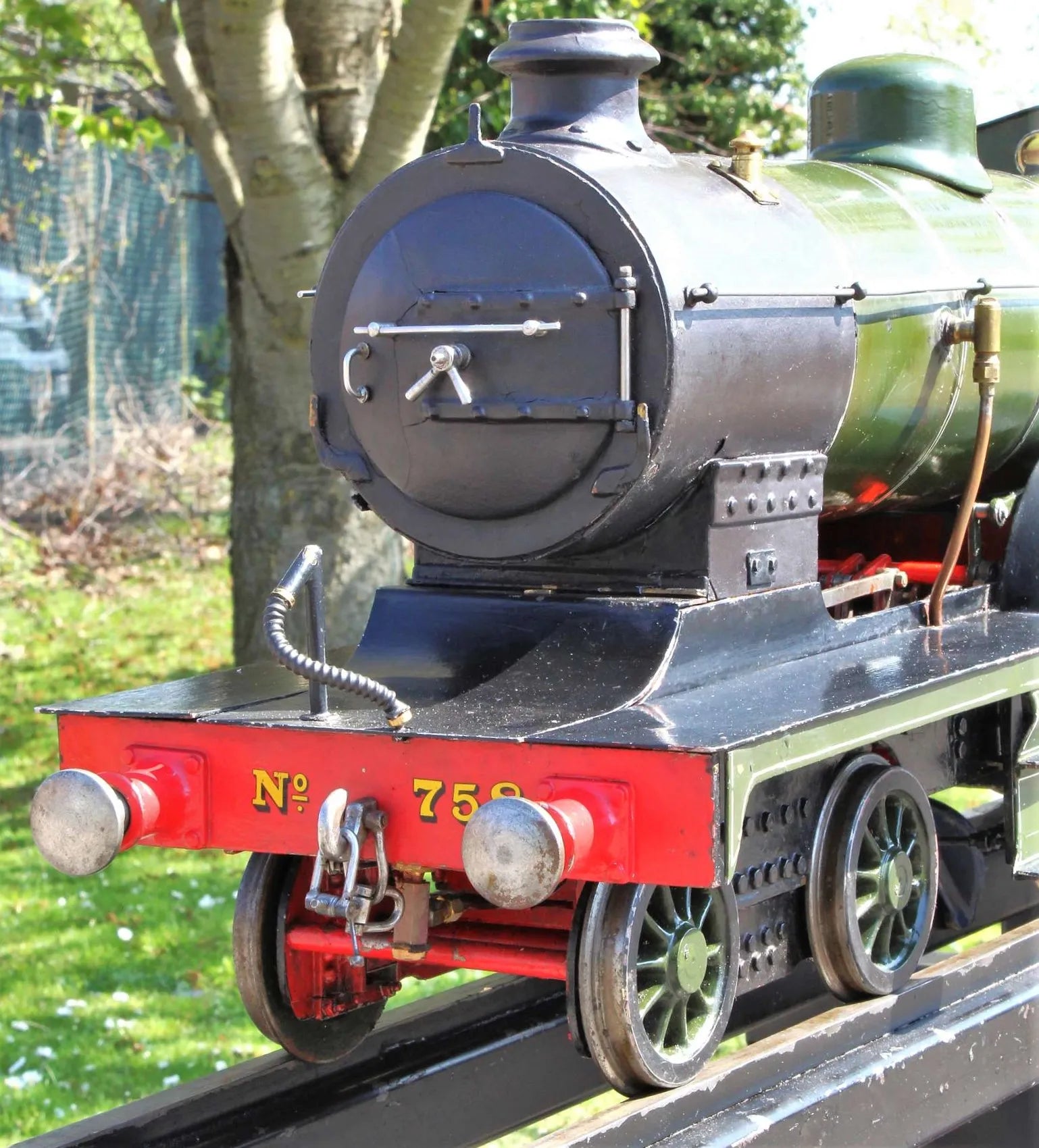

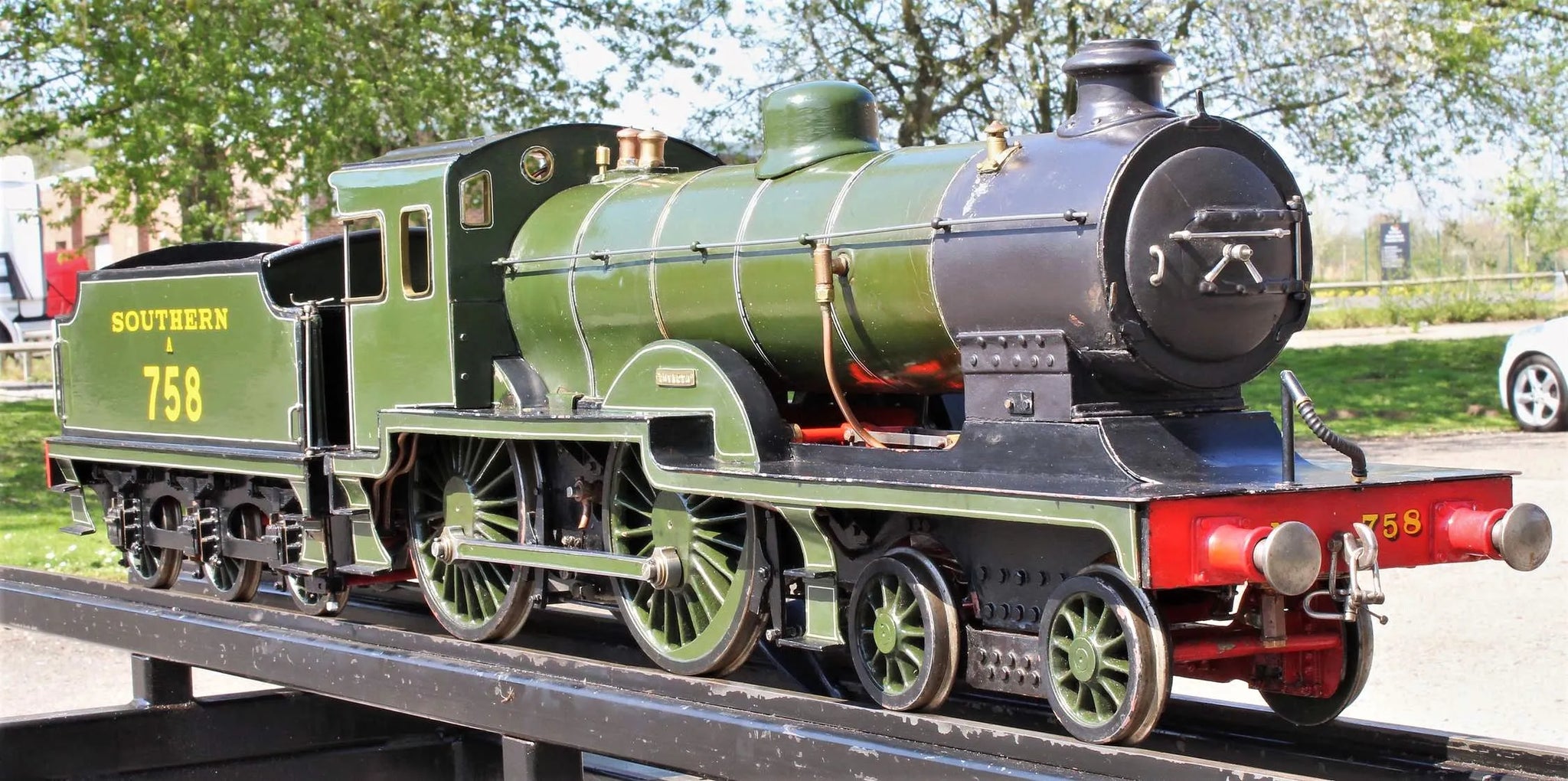

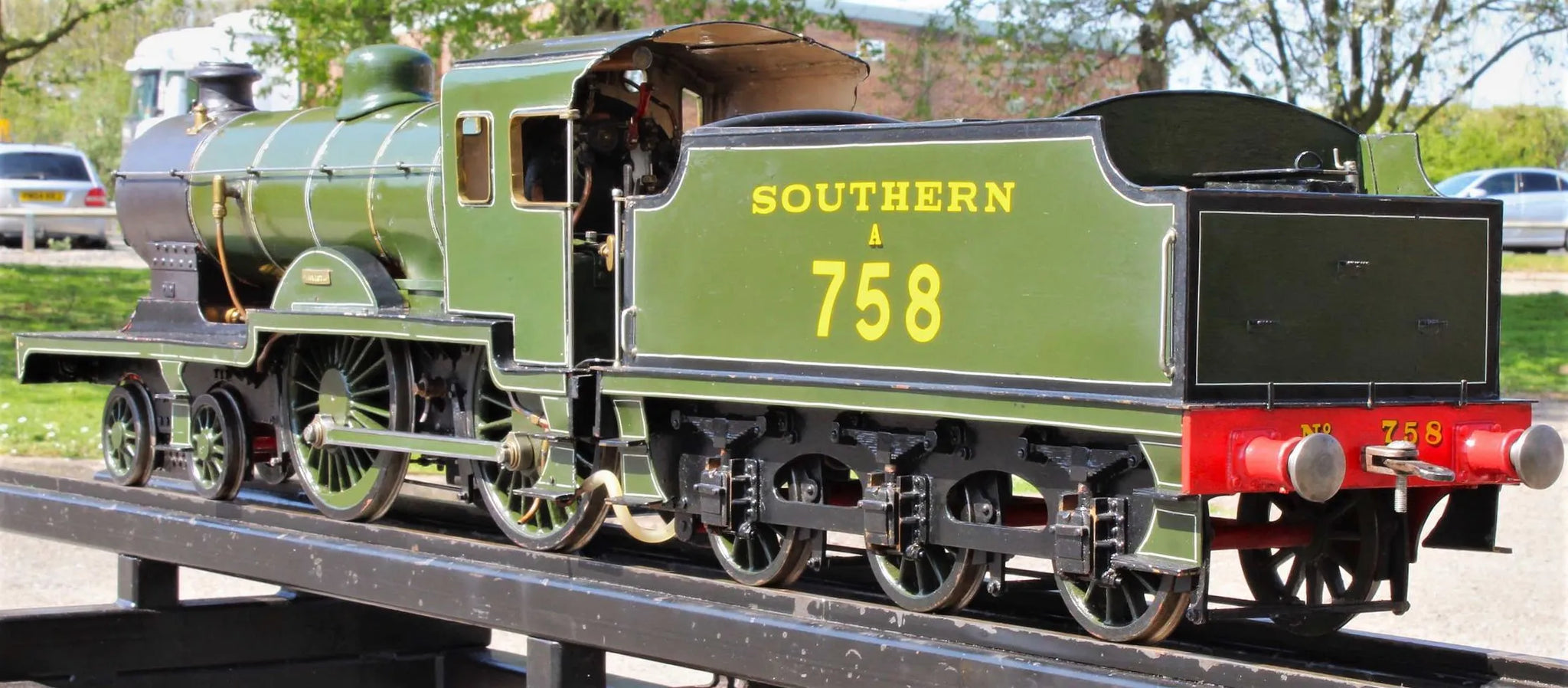

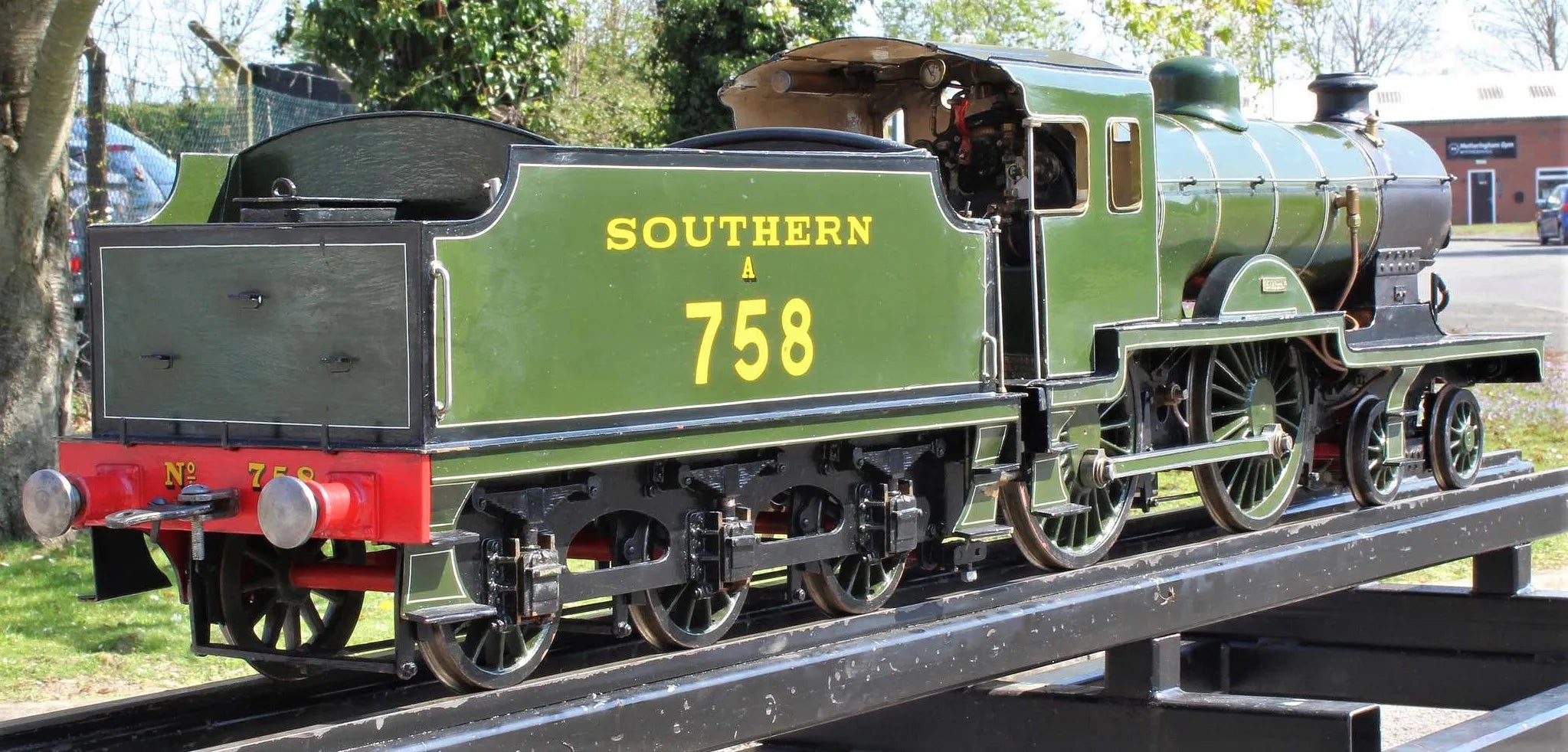

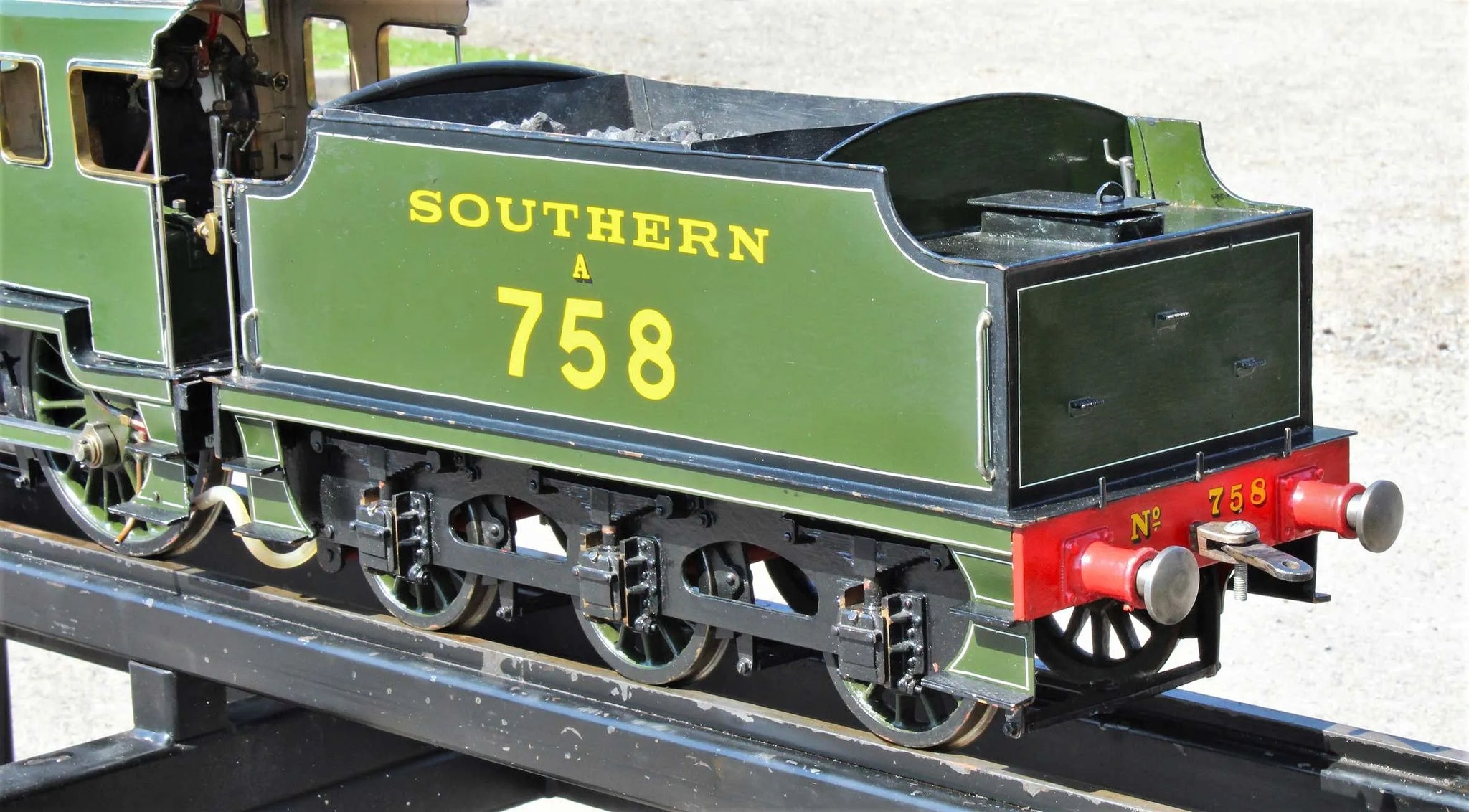

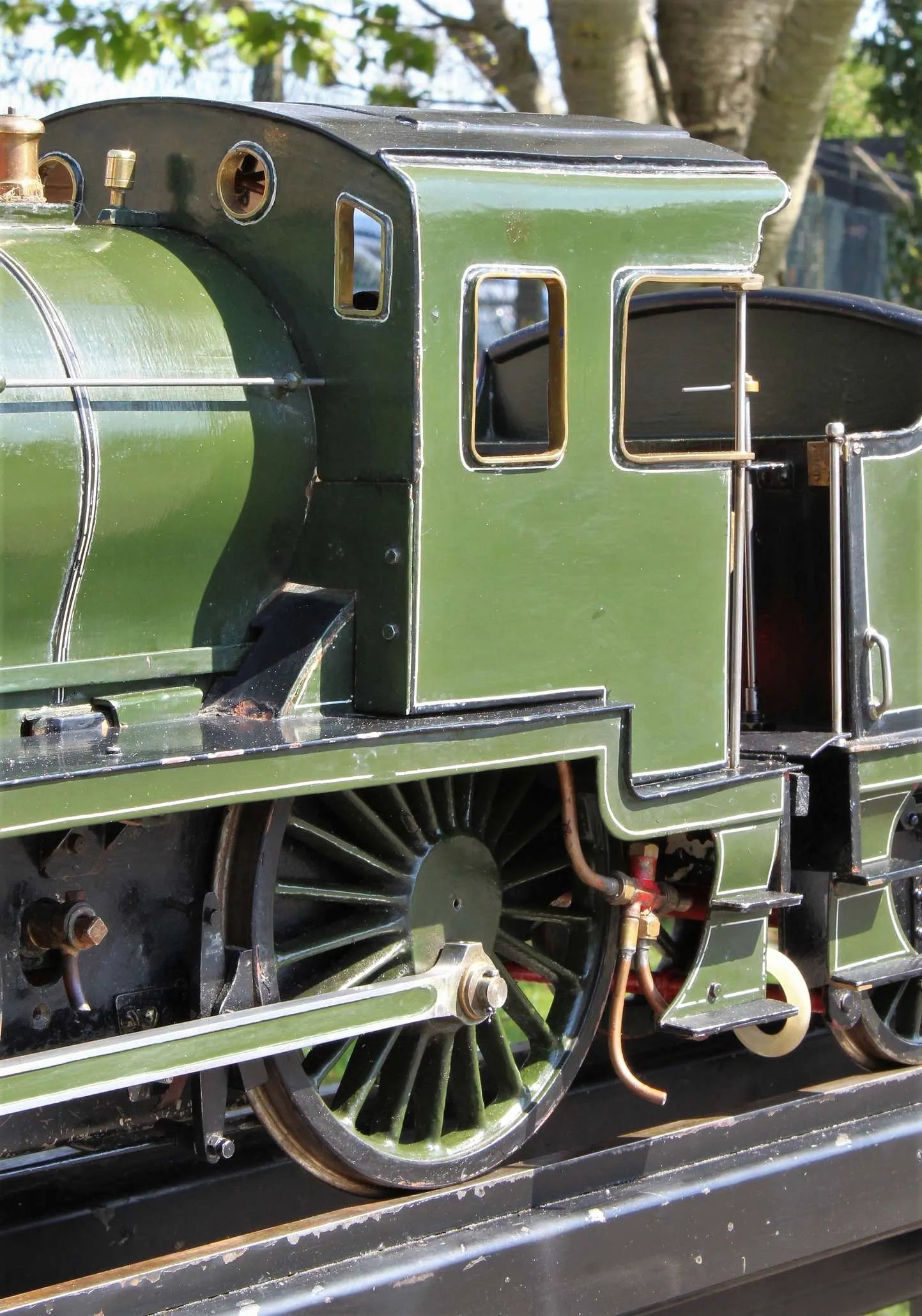

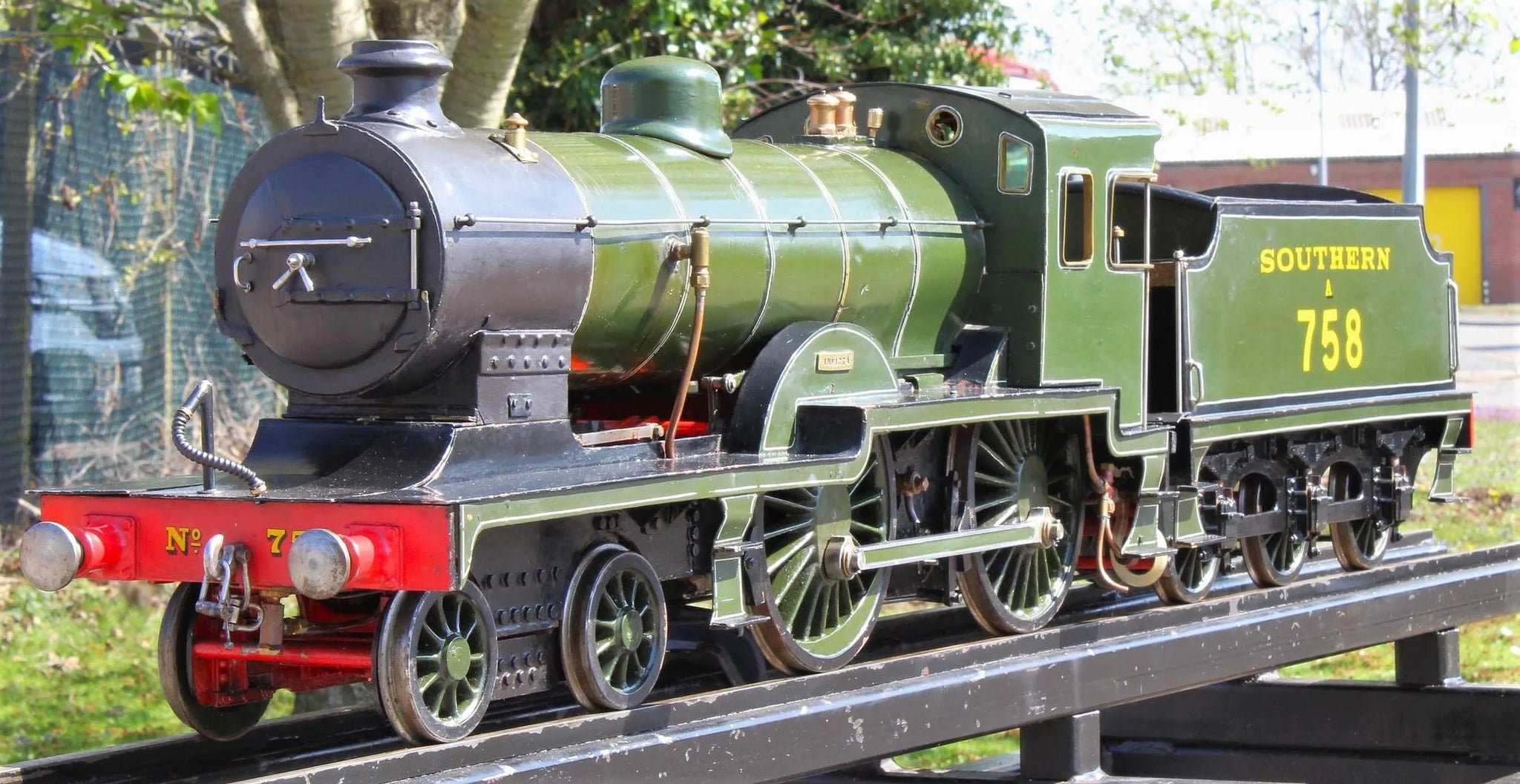

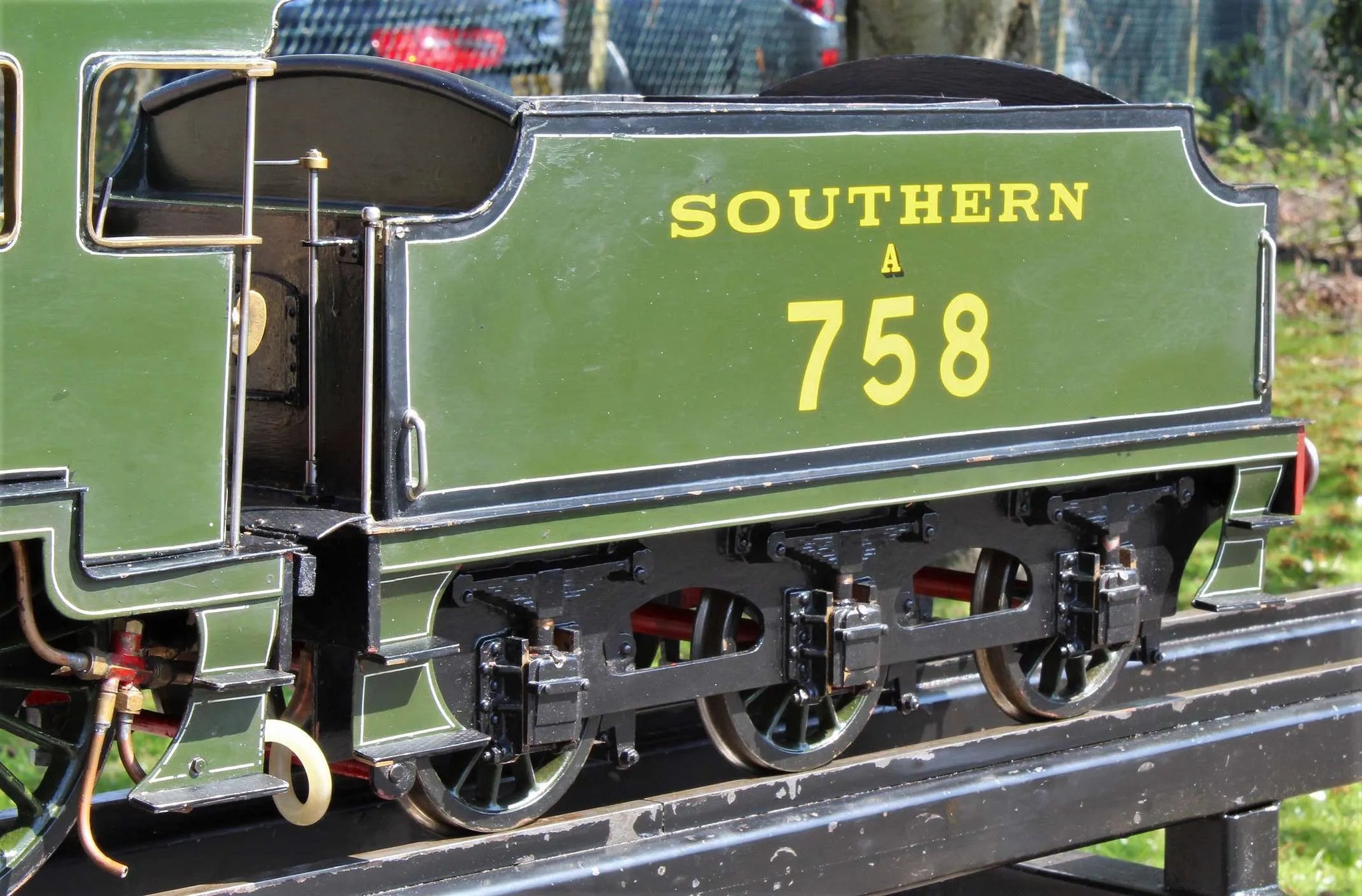

5 inch gauge "Maid of Kent" 4-4-0

A 5 inch gauge "Maid of Kent", built in 2008 it's come to us from the builder's son.

Run until a couple of years ago when the lockdown put the kibosh on club running, it has been stored indoors since.

The boiler has had recent hydraulic test with new certification issued; the engine runs on air, although the crank axle requires attention to a loose mainshaft - not a particularly difficult job once the wheelset is out and on the bench.

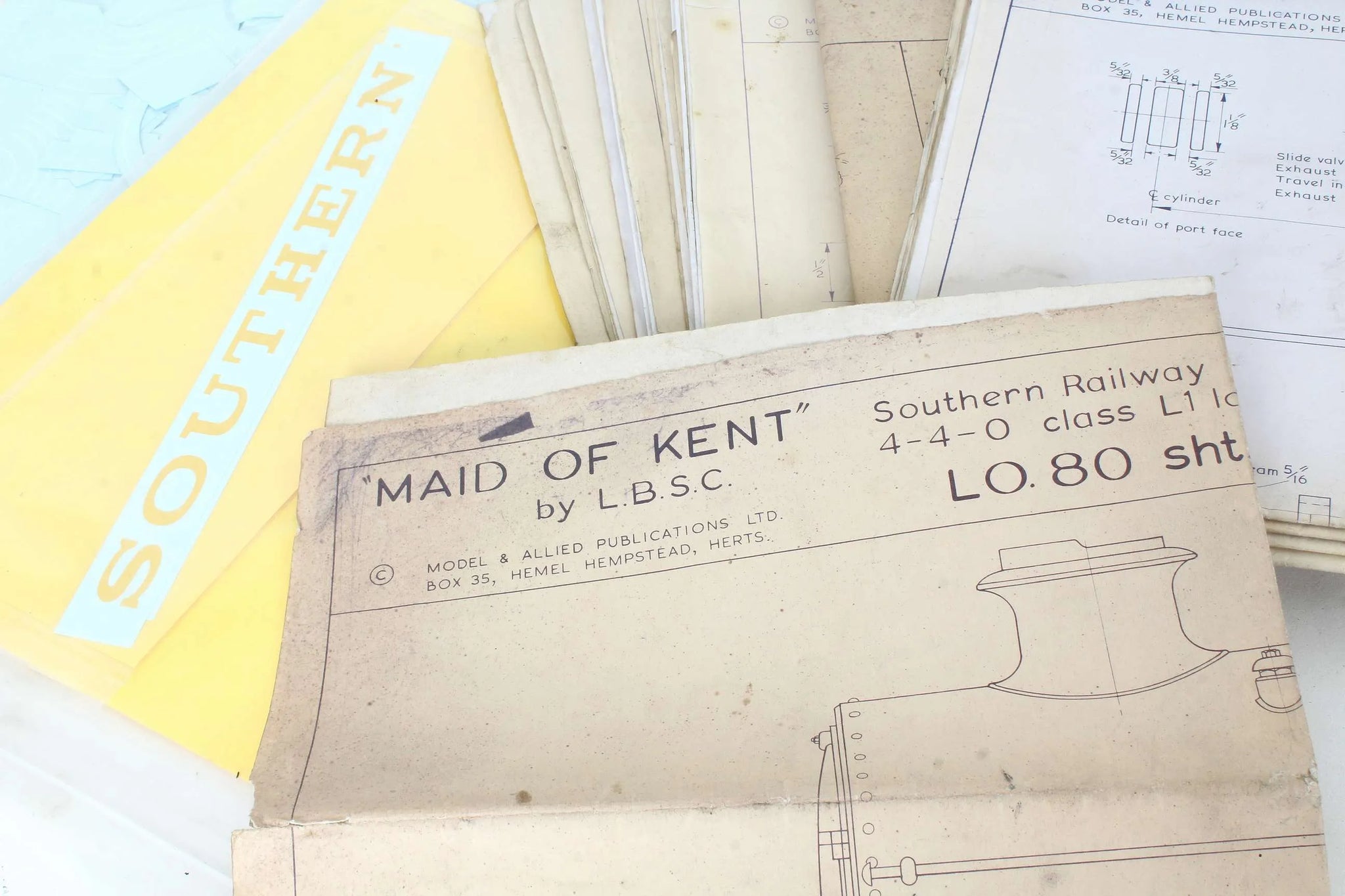

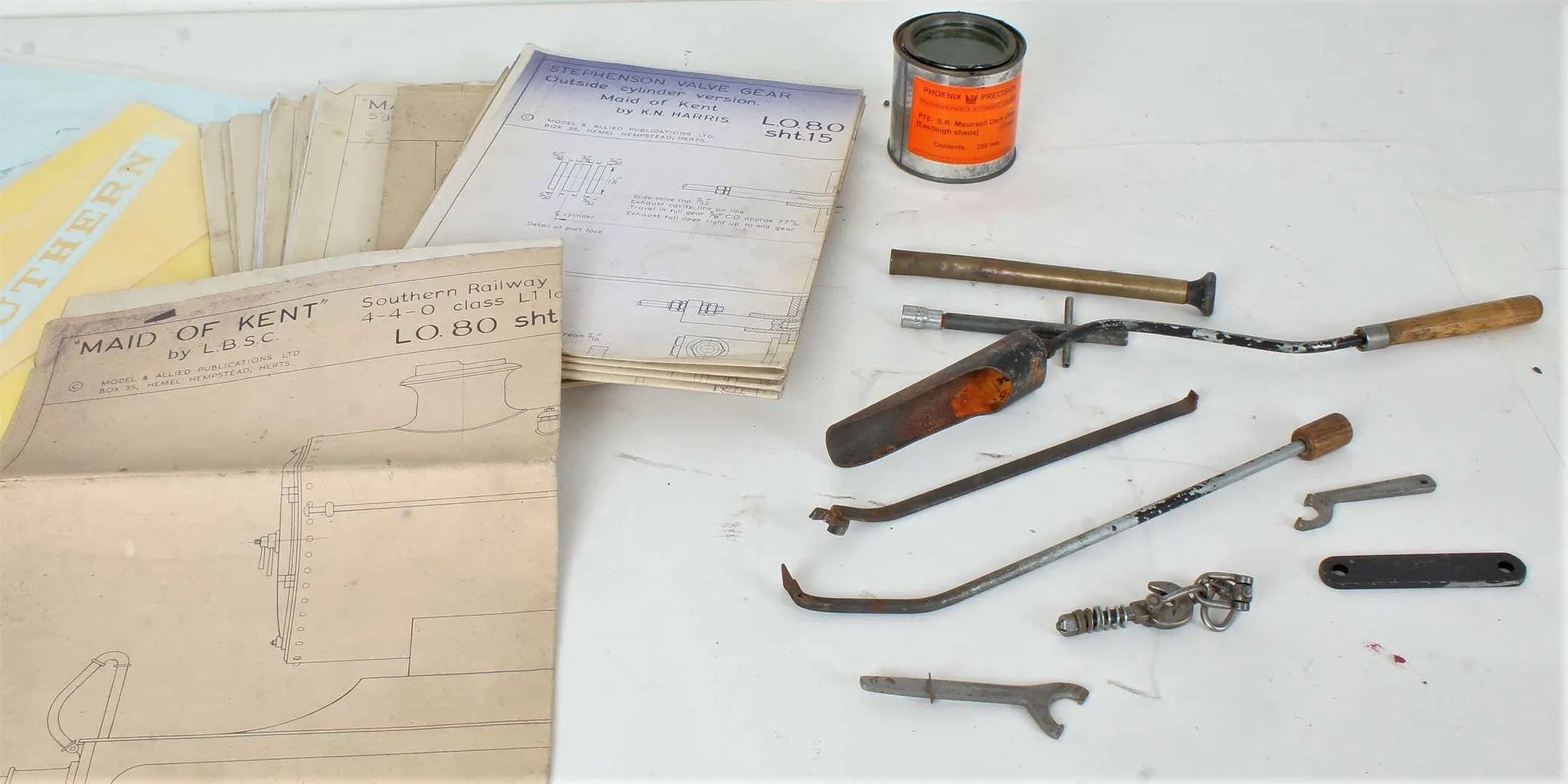

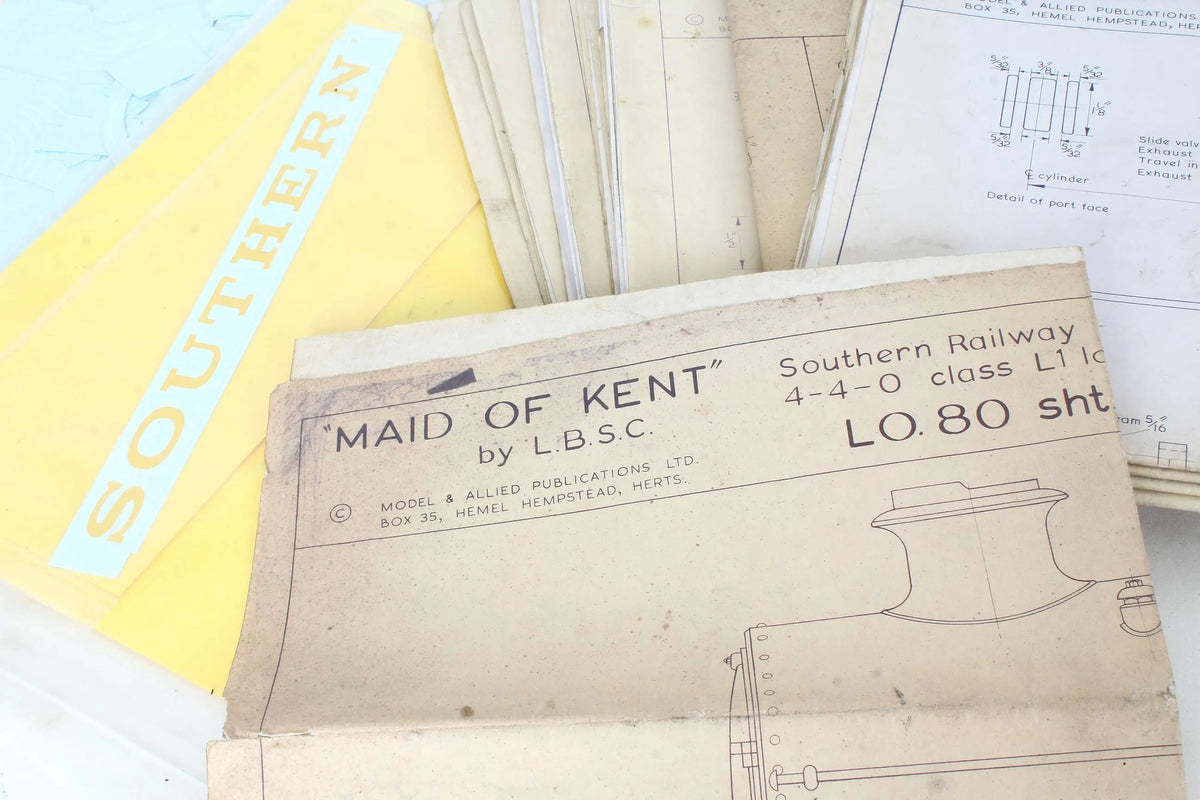

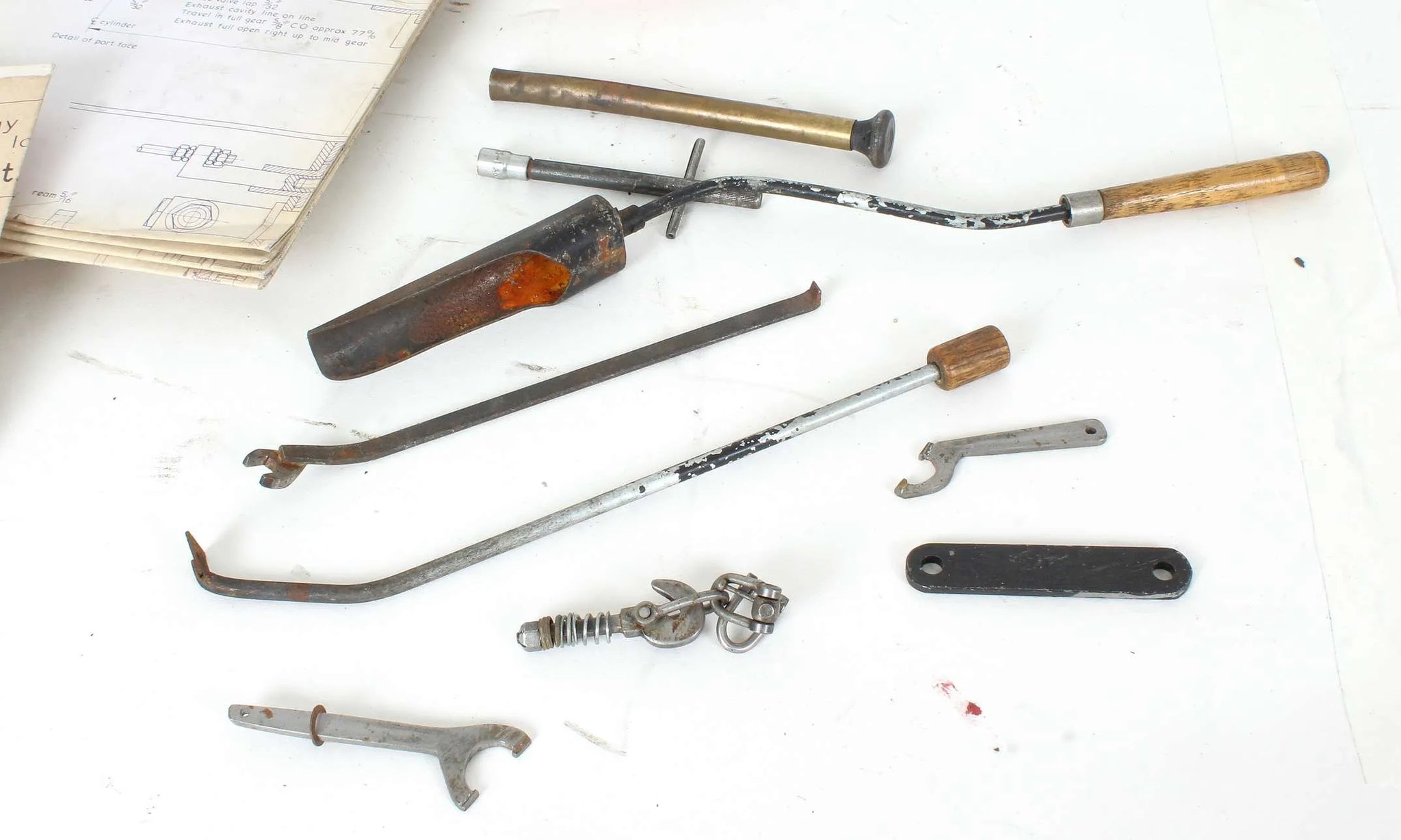

Complete with firing irons and drawings.

Technical information

Stock code

10433

Length/inches

37 + 23.5

Width/inches

9.5

Height/inches

15

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

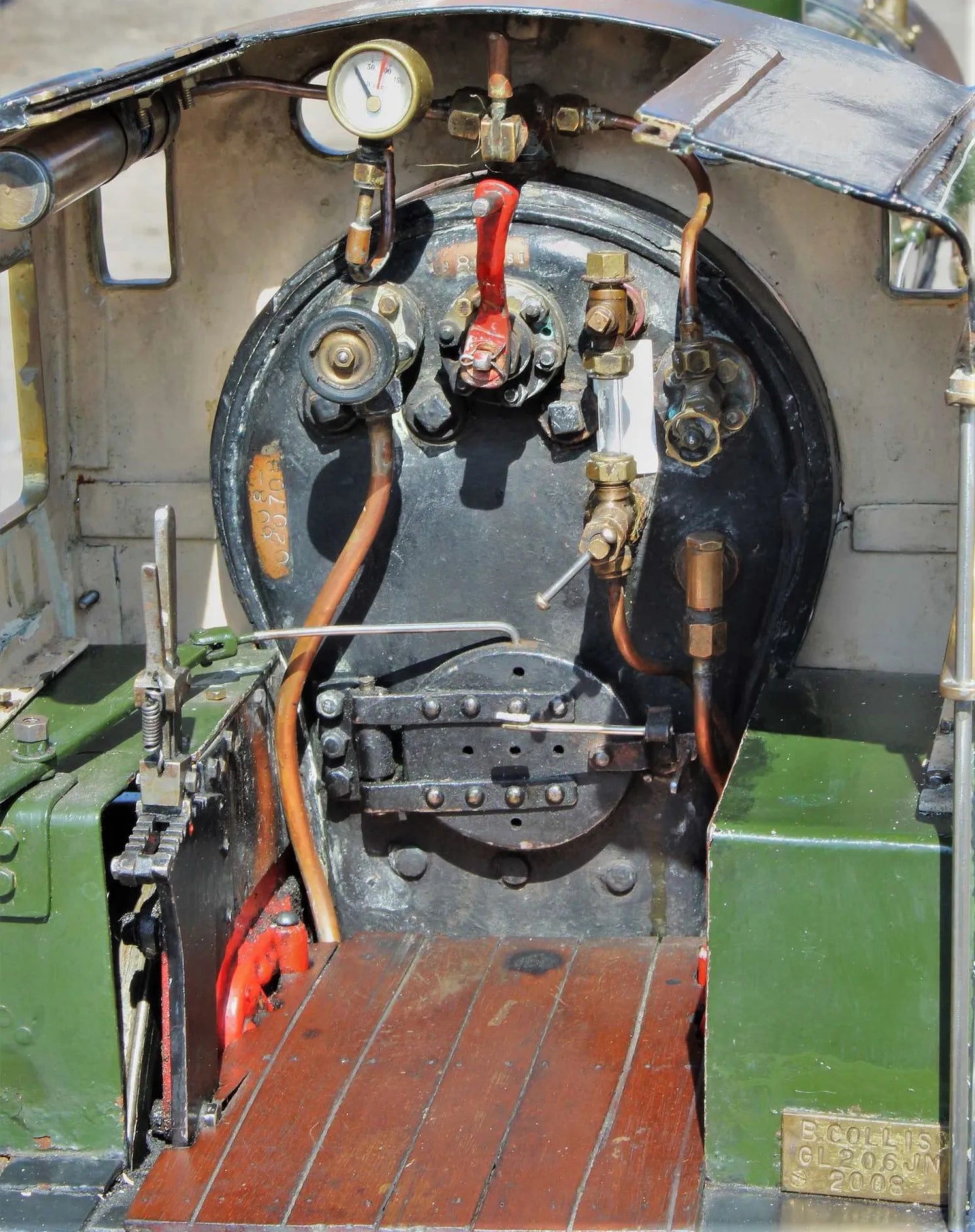

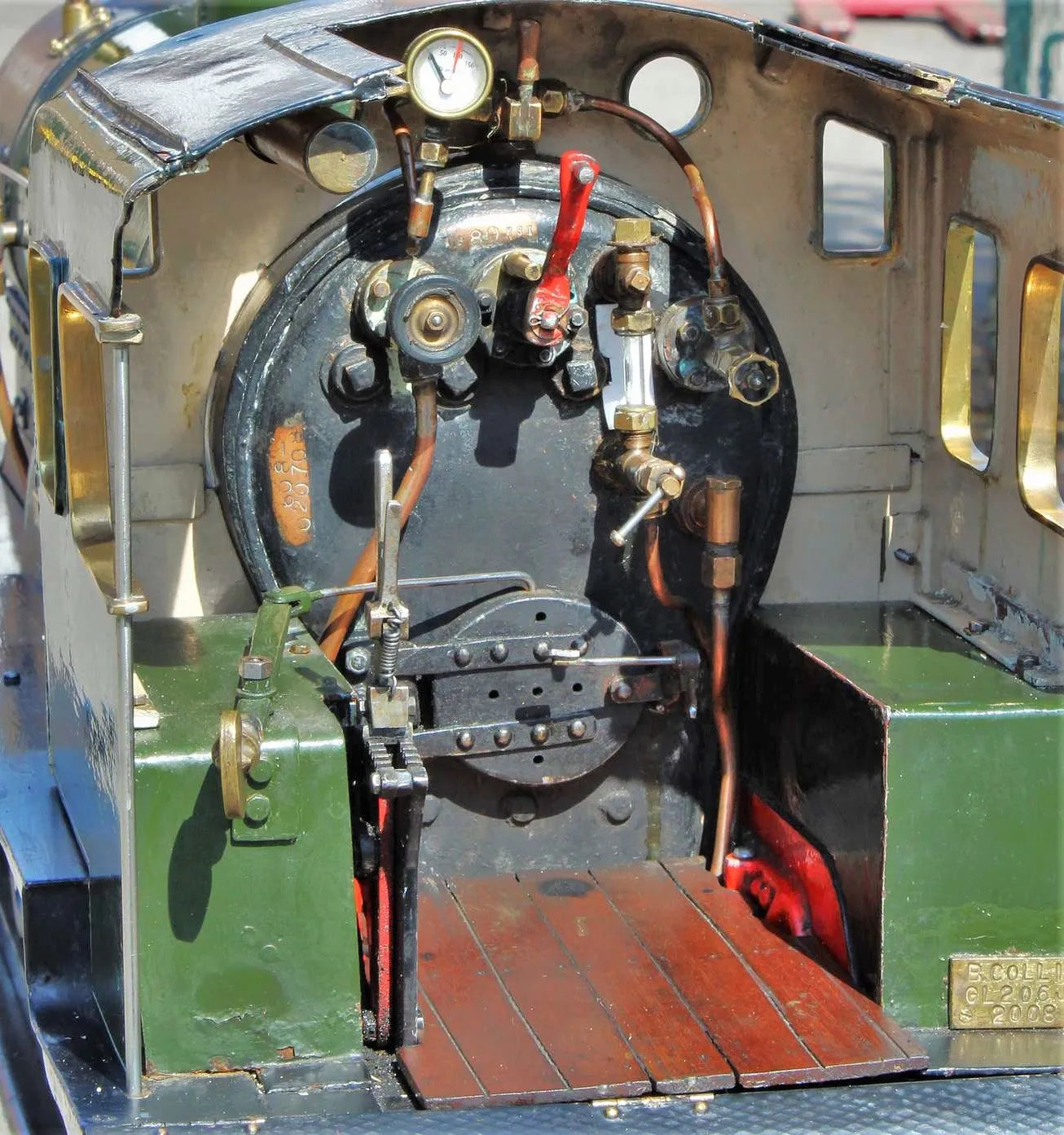

Boiler maker

B.Collis

Boiler type

locomotive

Boiler construction

silver soldered with nutted and calked firebox

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

2008

Boiler number

608.020708

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

May-22

Hydraulic test valid to

06-Apr-26
