10502

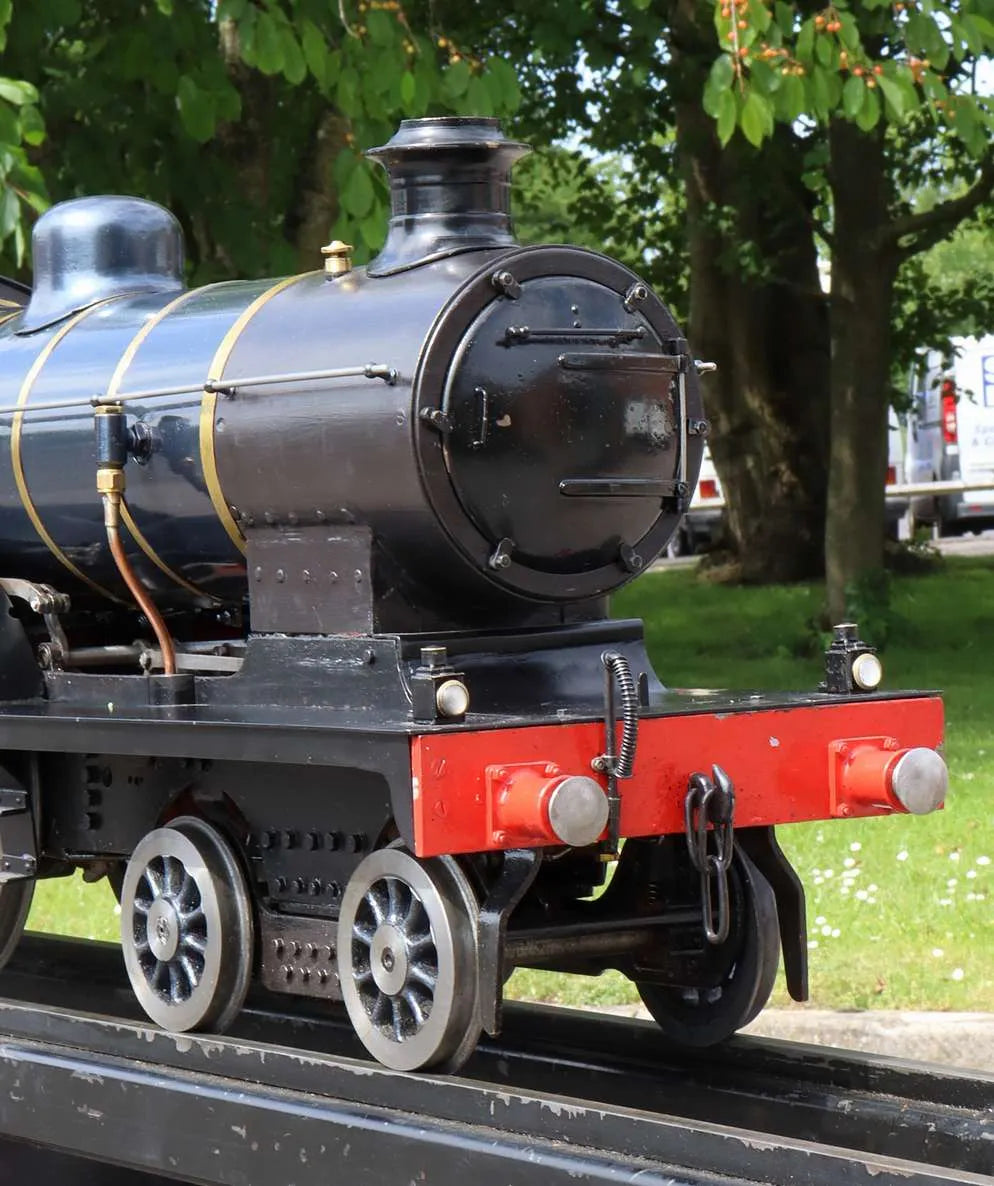

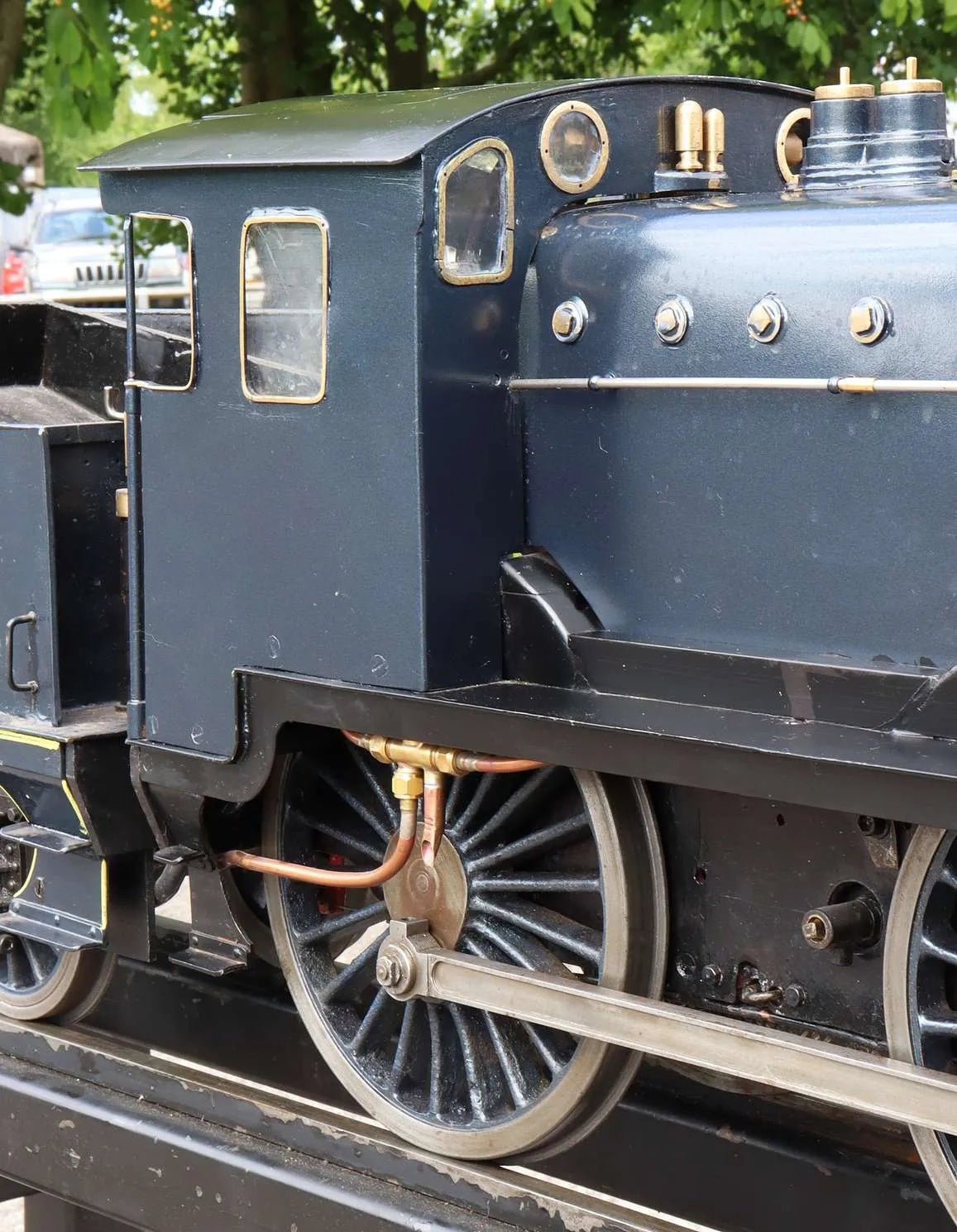

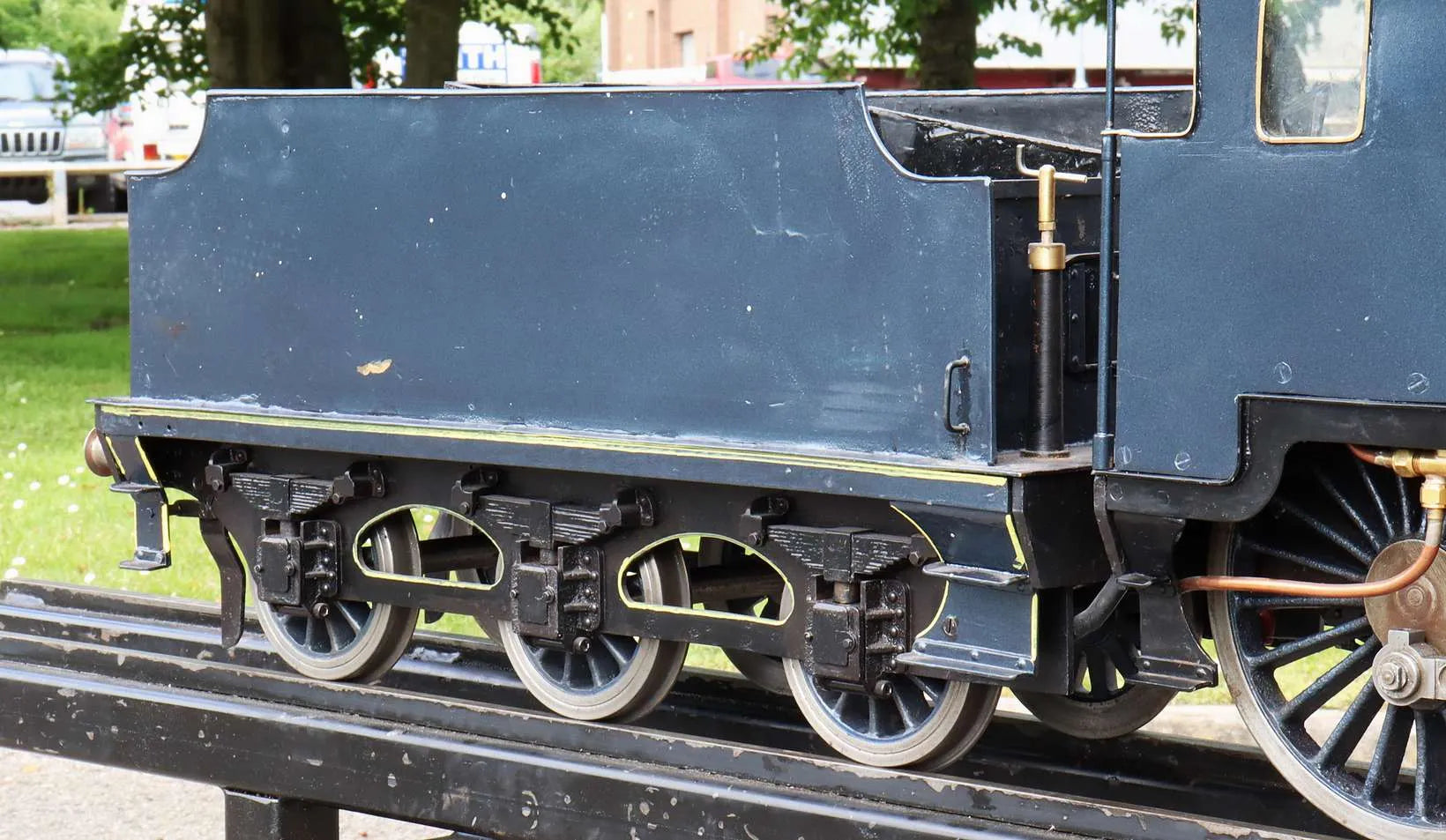

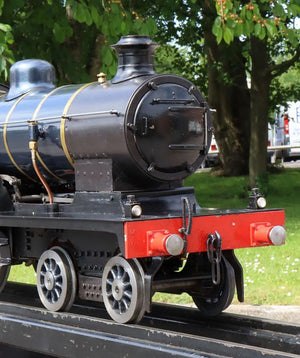

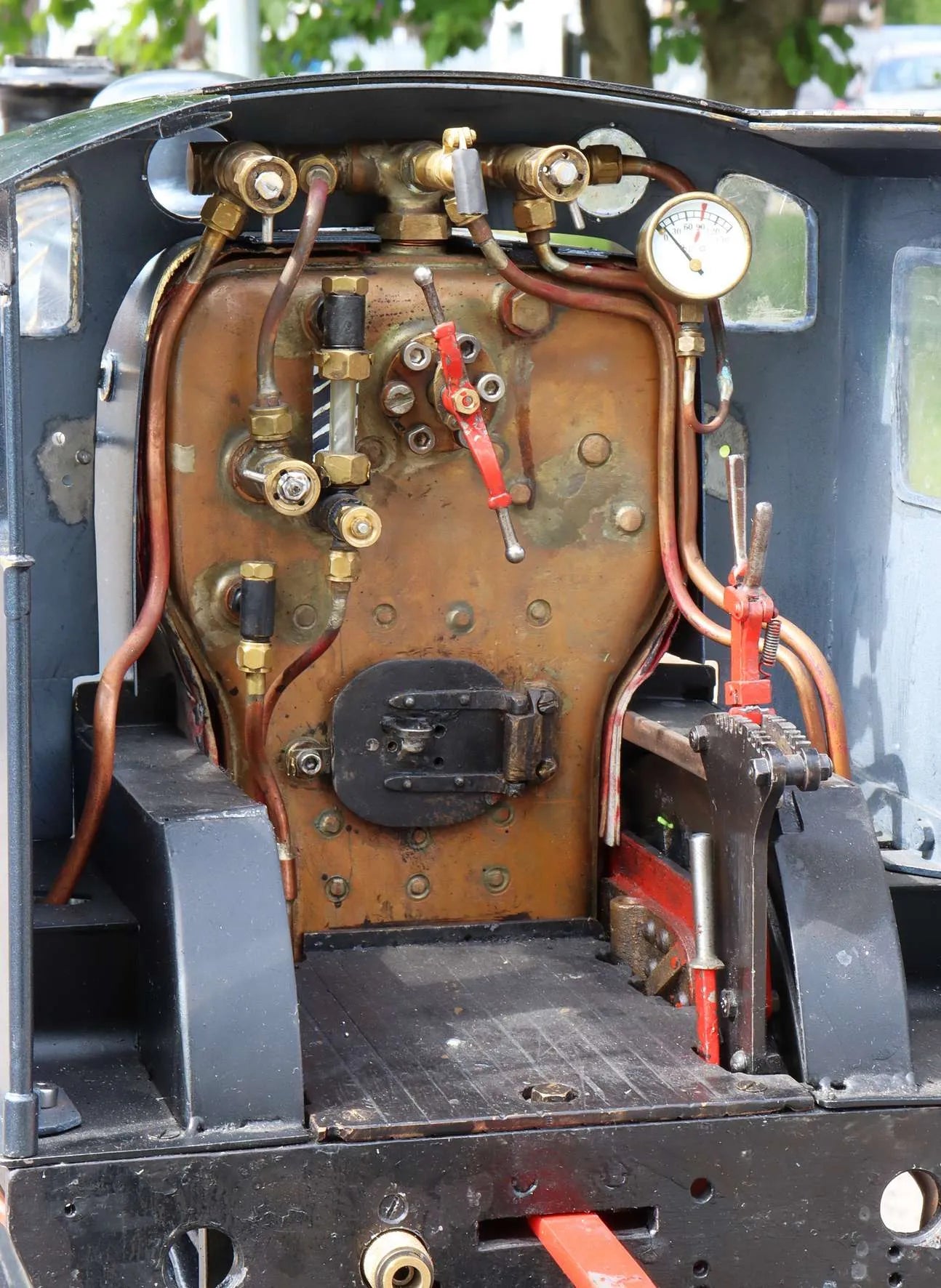

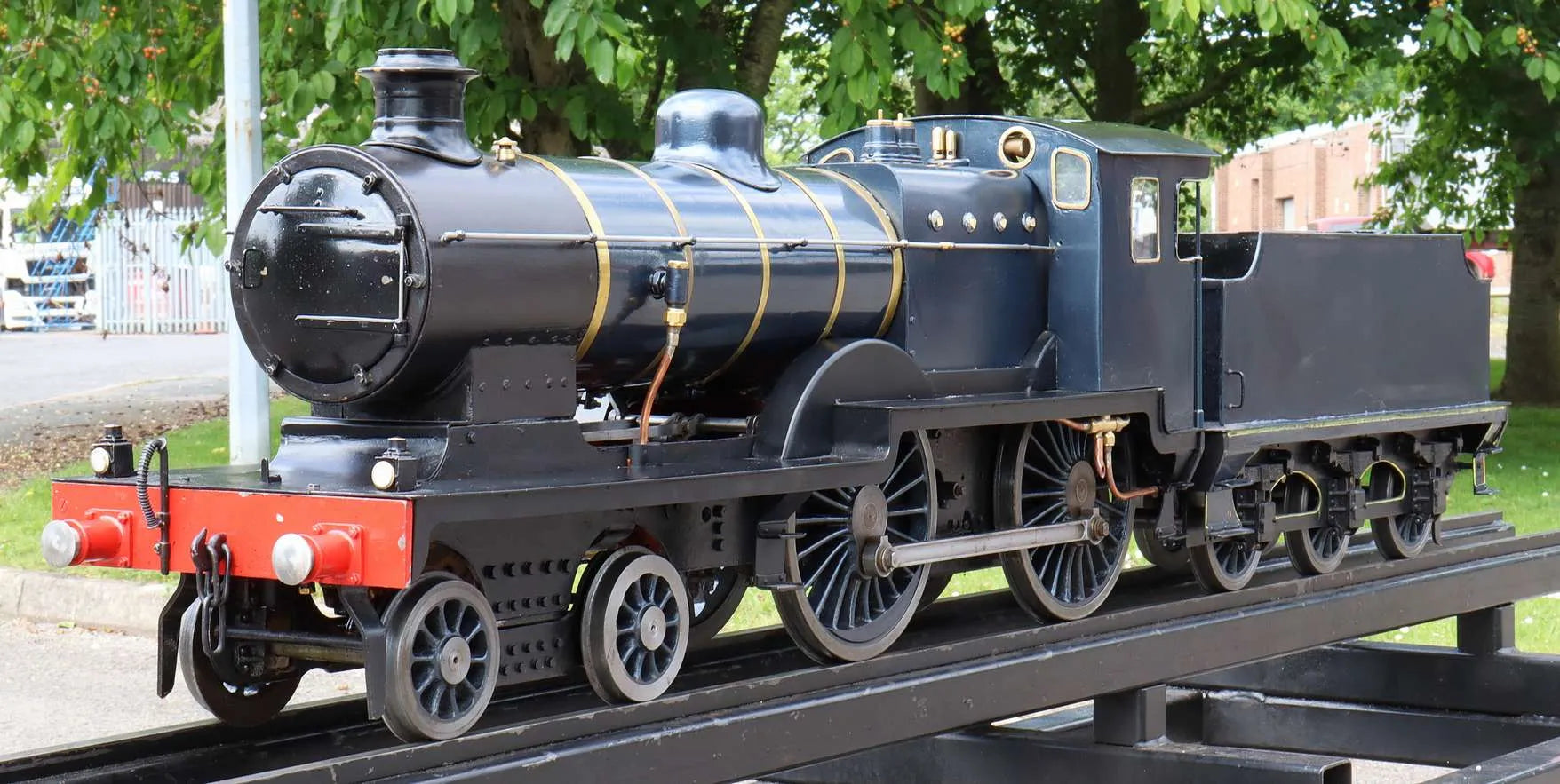

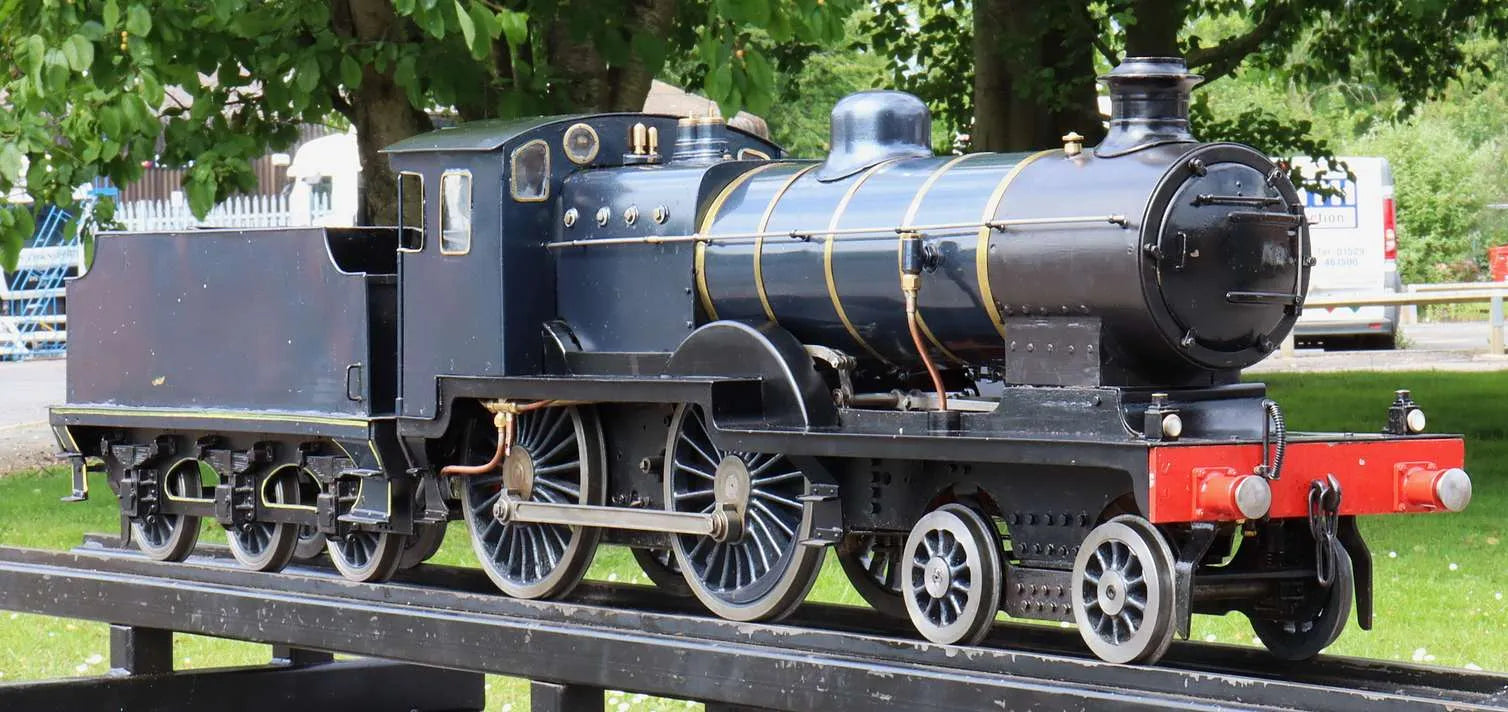

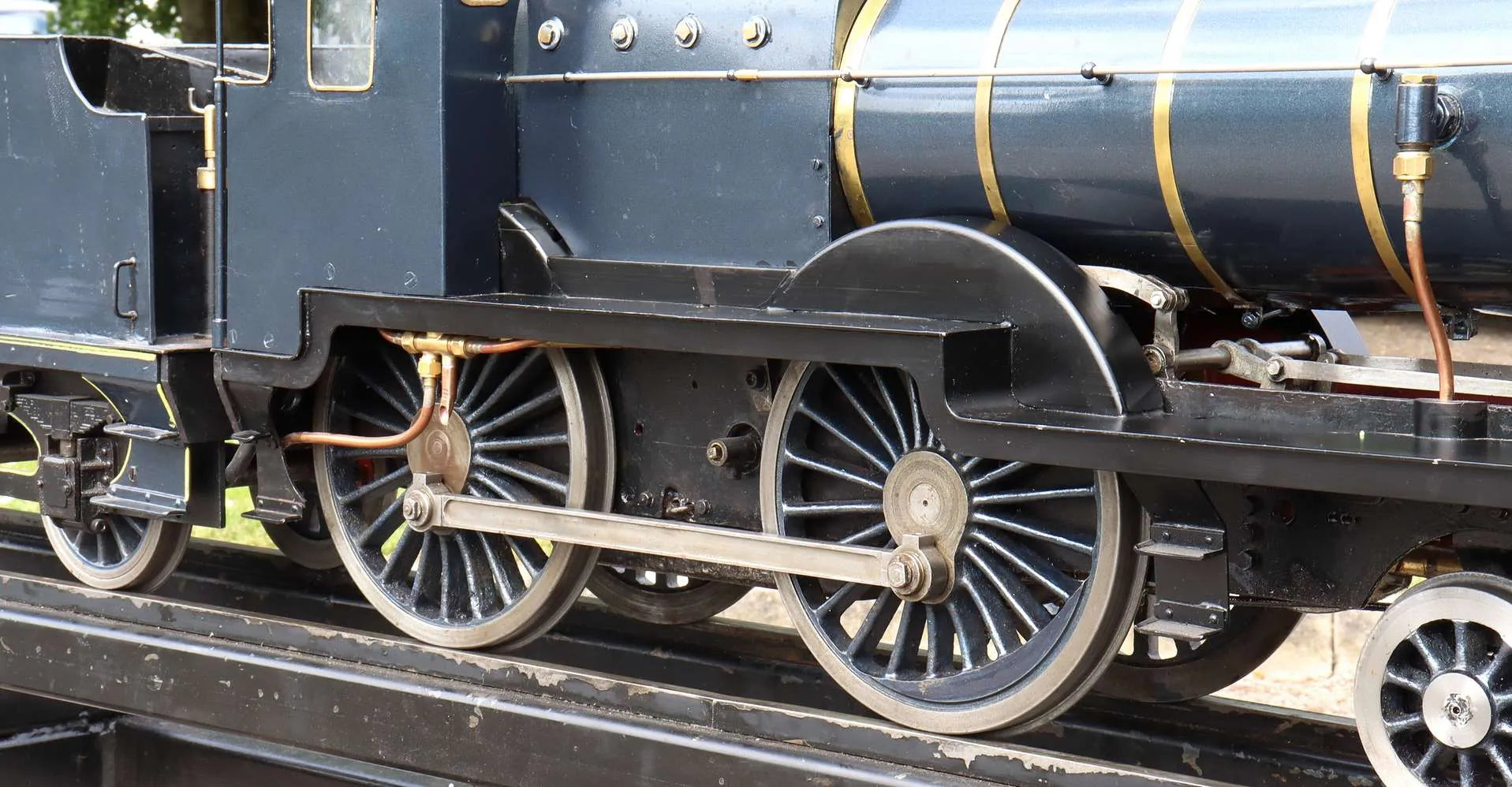

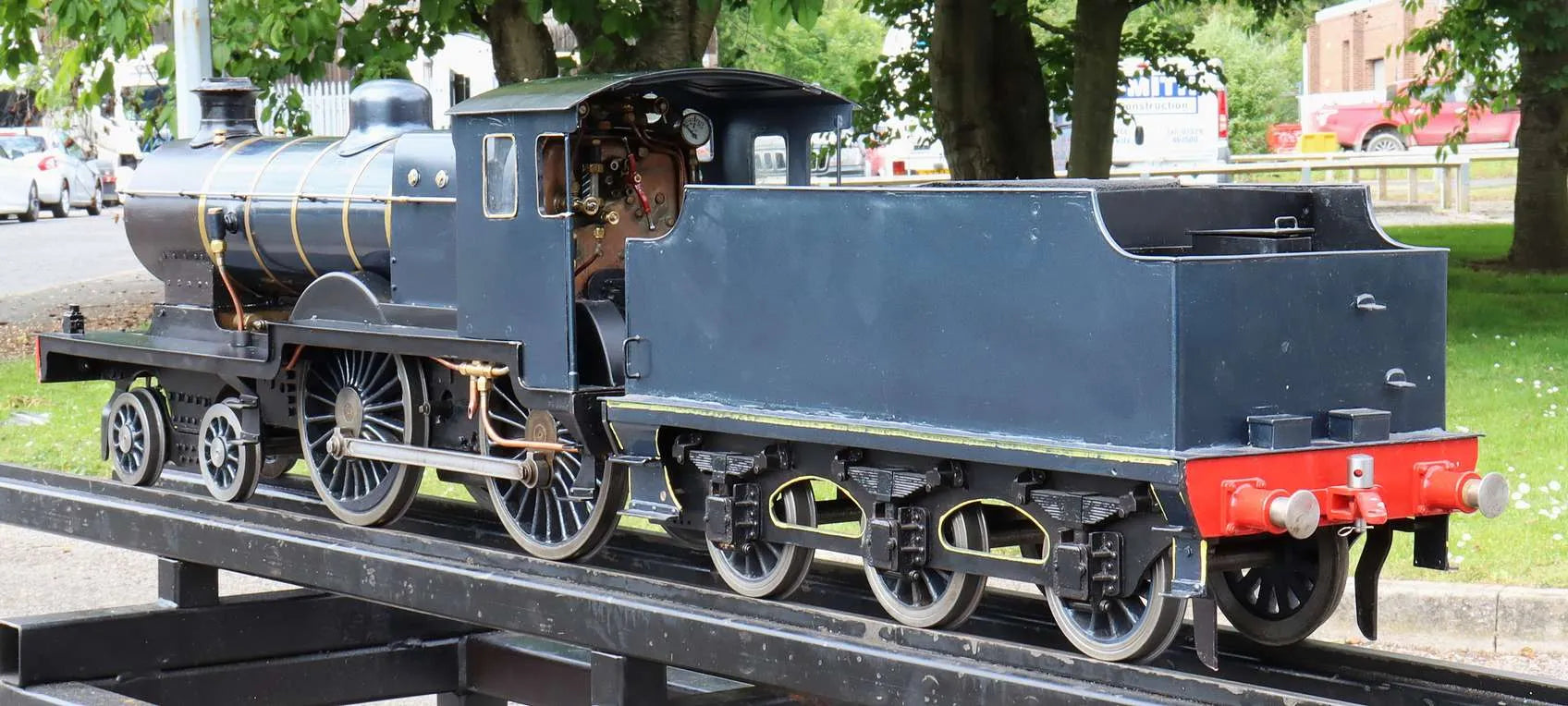

An older engine, it was fitted with new CE-marked boiler in 2021. It runs well on air in either direction; platework and paintwork are to an unexceptional standard.
Stock code |
10502 |
Gauge |
5 inch |
Length/inches |
36 + 24 |
Width/inches |
9.5 |
Height/inches |
13 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
GB Boiler Services |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
yes |
Year built |
2021 |
Boiler number |
GB921 |
Safety valve type |
pop |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
2 |
Superheater type |
flue tube |
Superheater |
4 |
Date out |
Sep-22 |
