11147

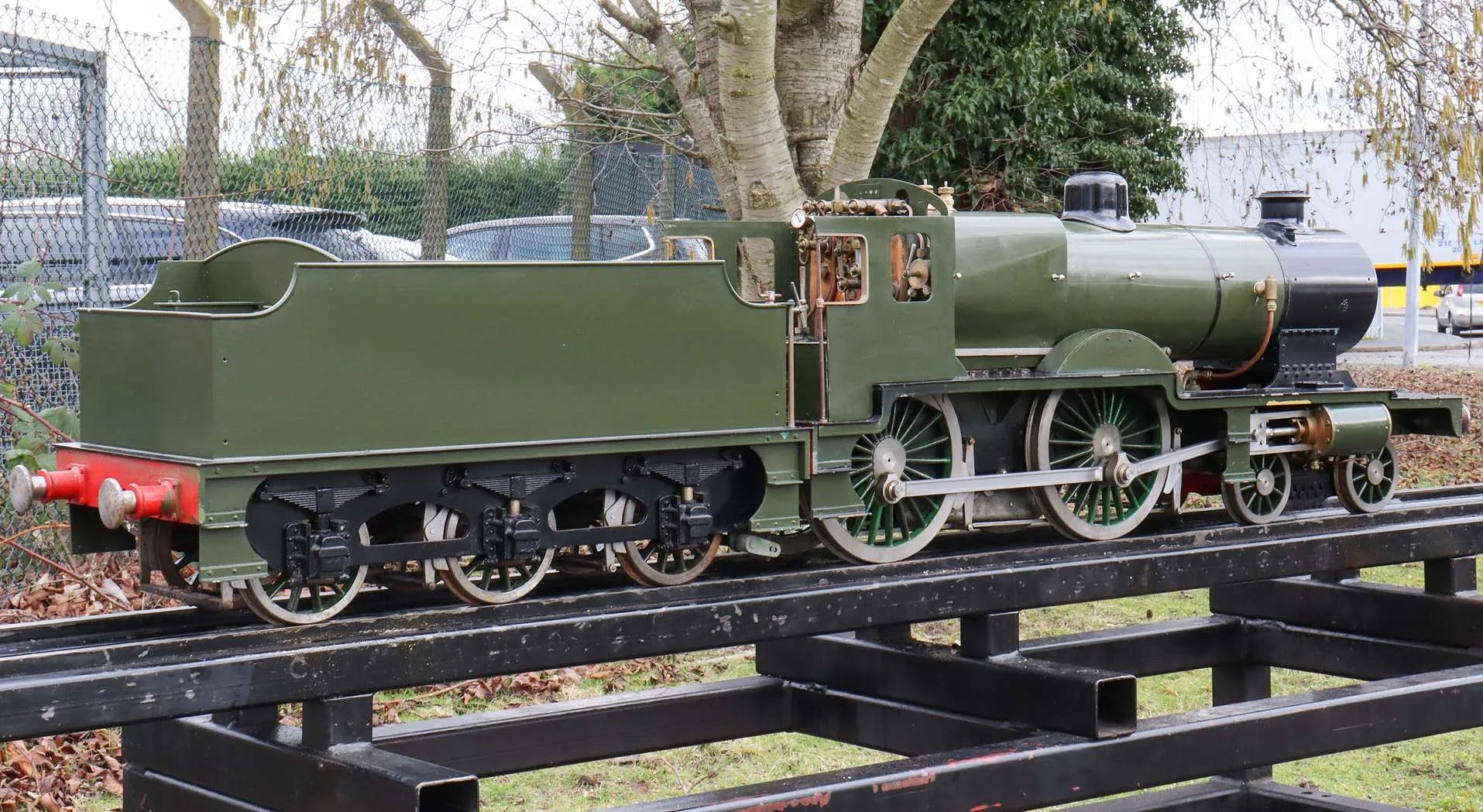

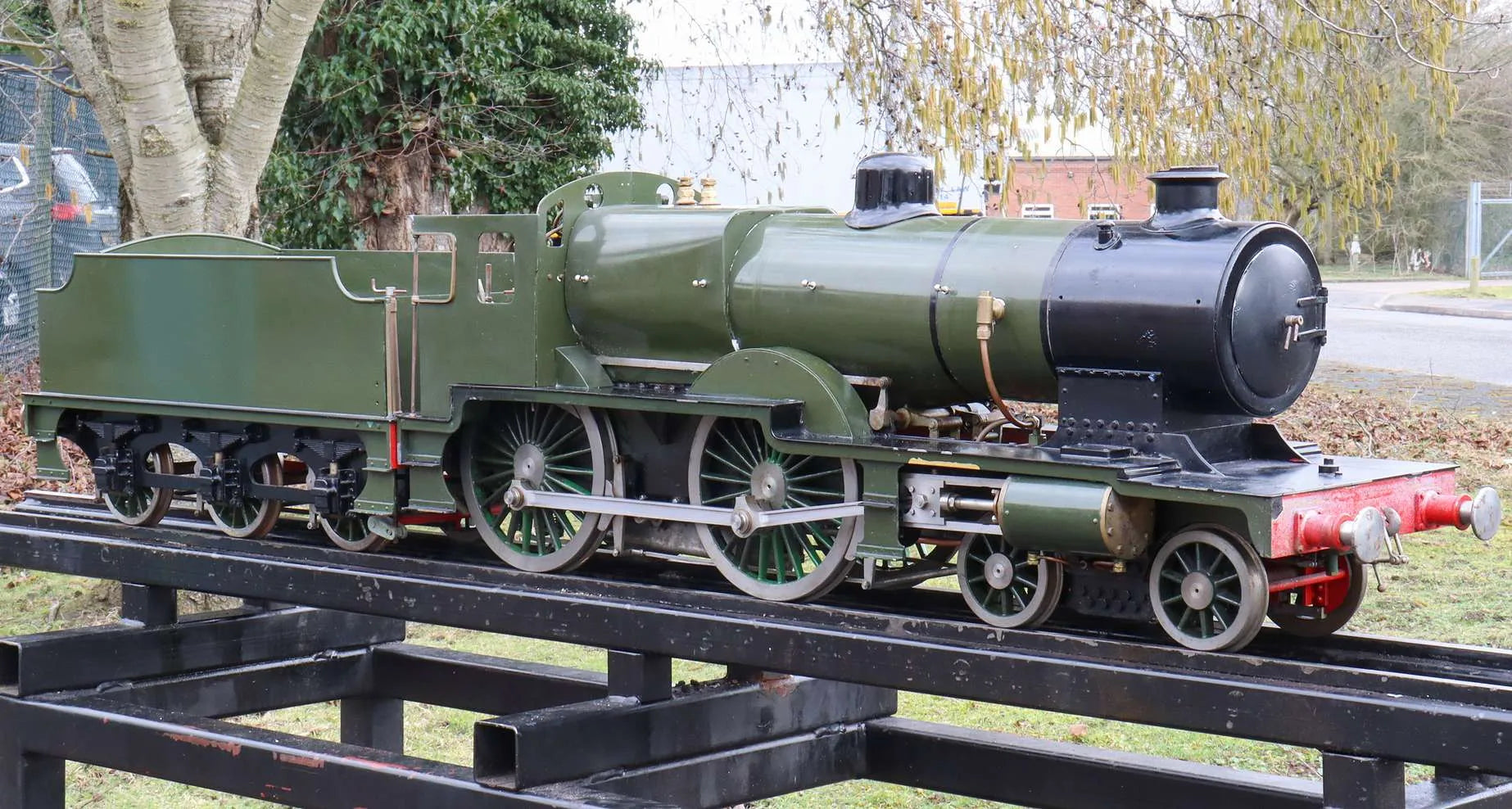

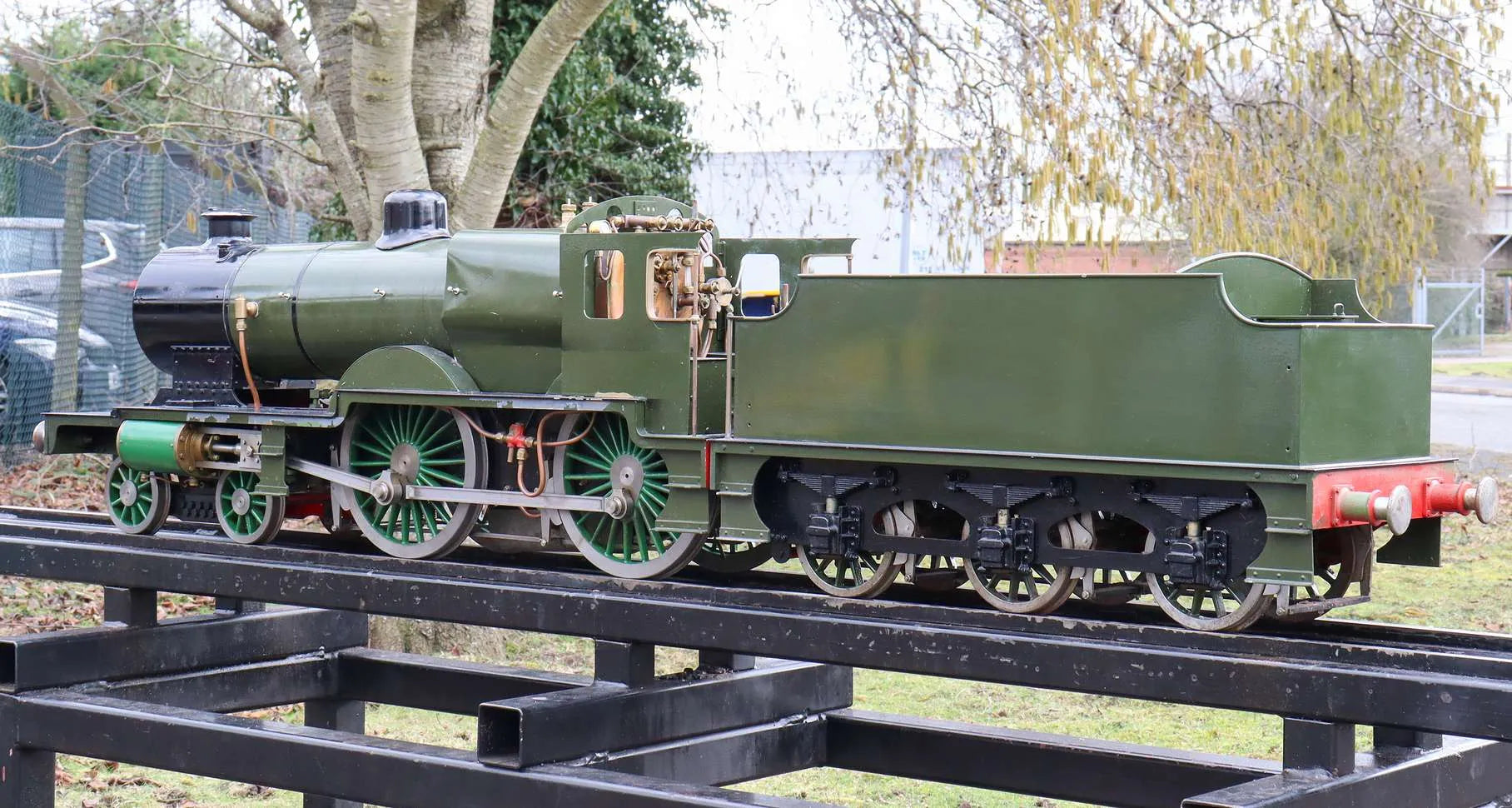

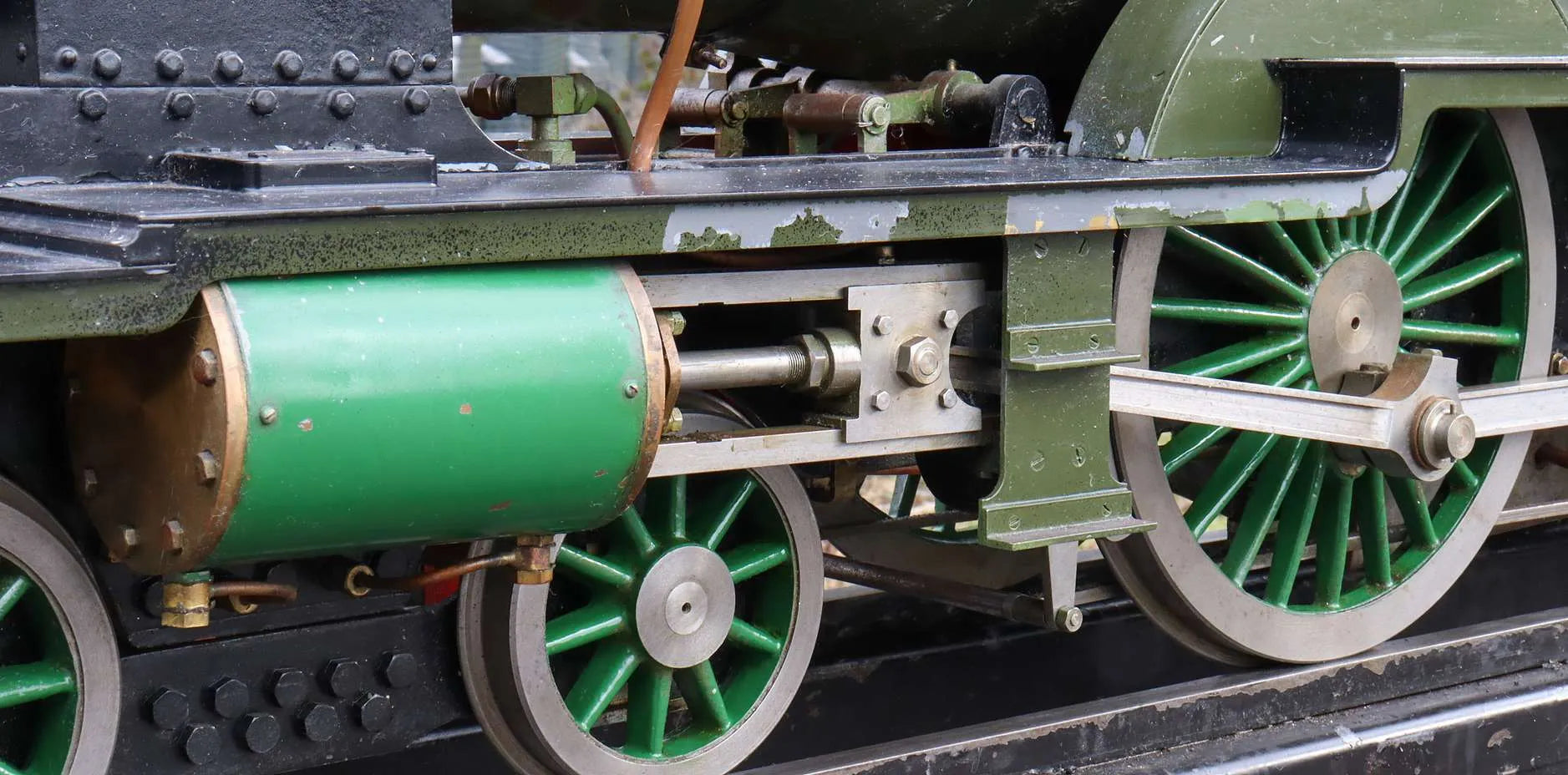

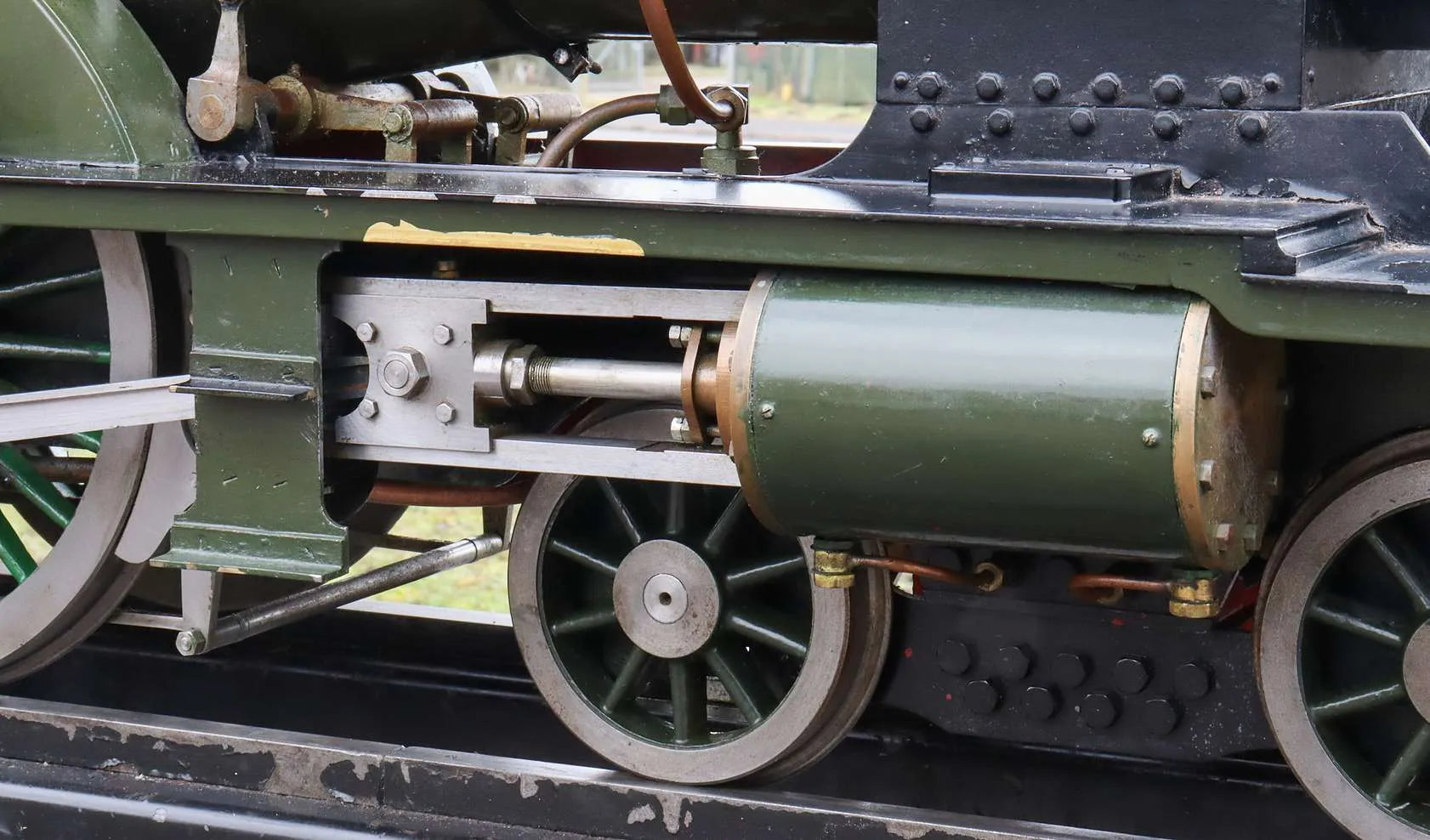

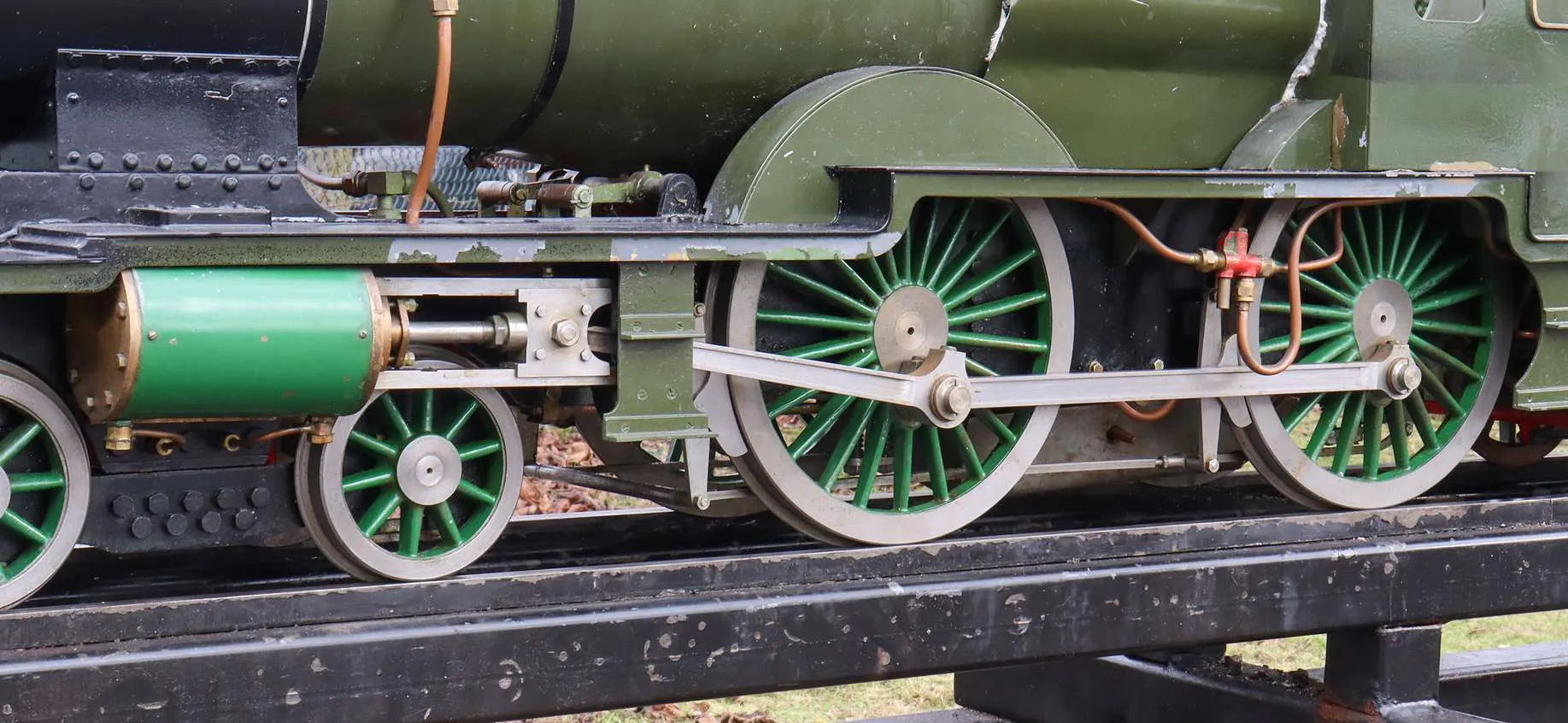

The boiler has had a hydraulic test with new certification issued, the chassis runs very nicely on air in both directions with crisp, even exhaust beats.

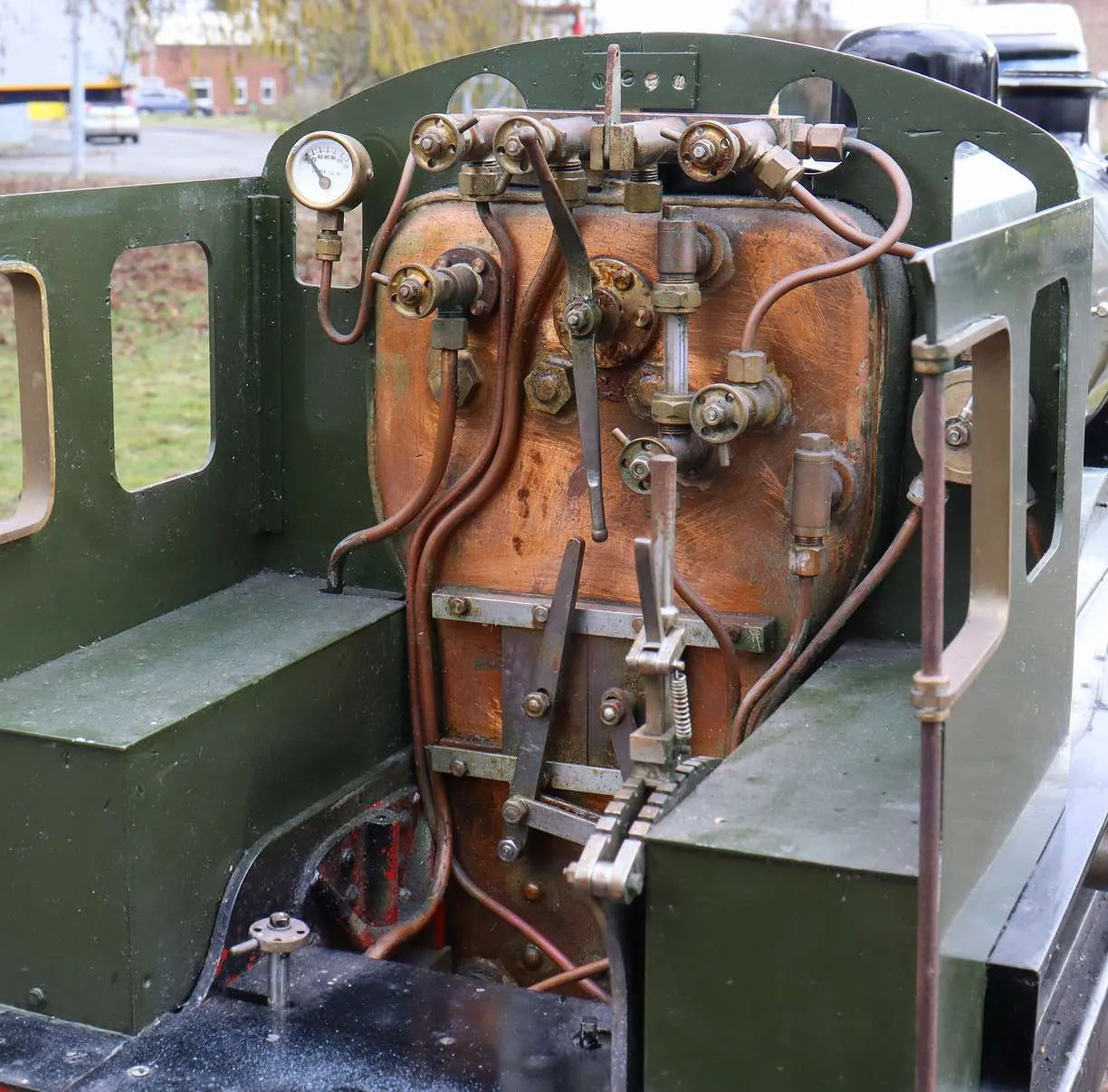

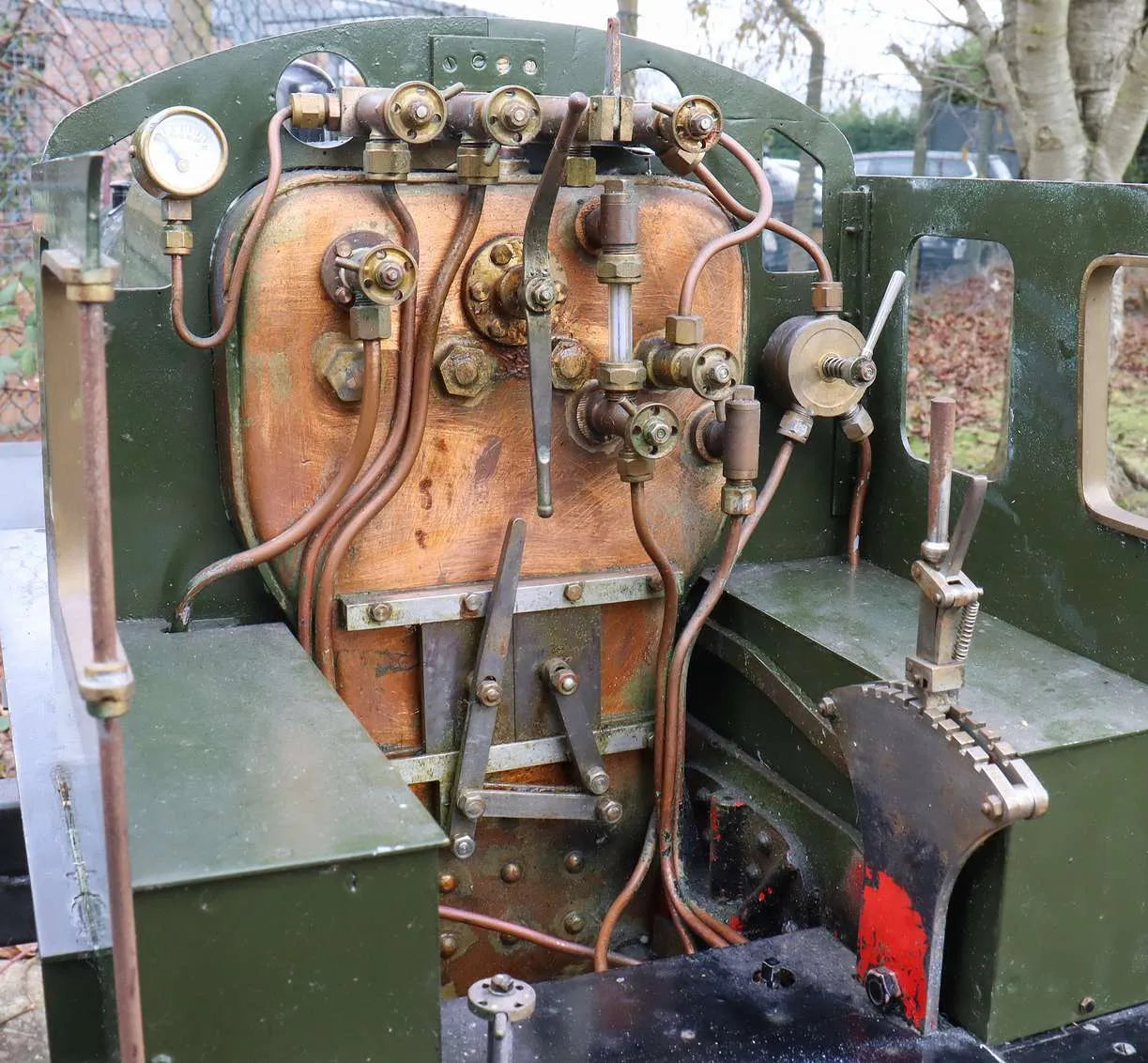

Work required to recommission will include replacement of the missing cab roof, stripping and reassembling of the boiler fittings - most of which leak - and a repaint.
Stock code |
11147 |
Length/inches |
37 + 24 |
Width/inches |
10 |
Height/inches |
14 |
Weight/Kg |
68 |
Wheel material |
cast iron |
Axlebox type |
split bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

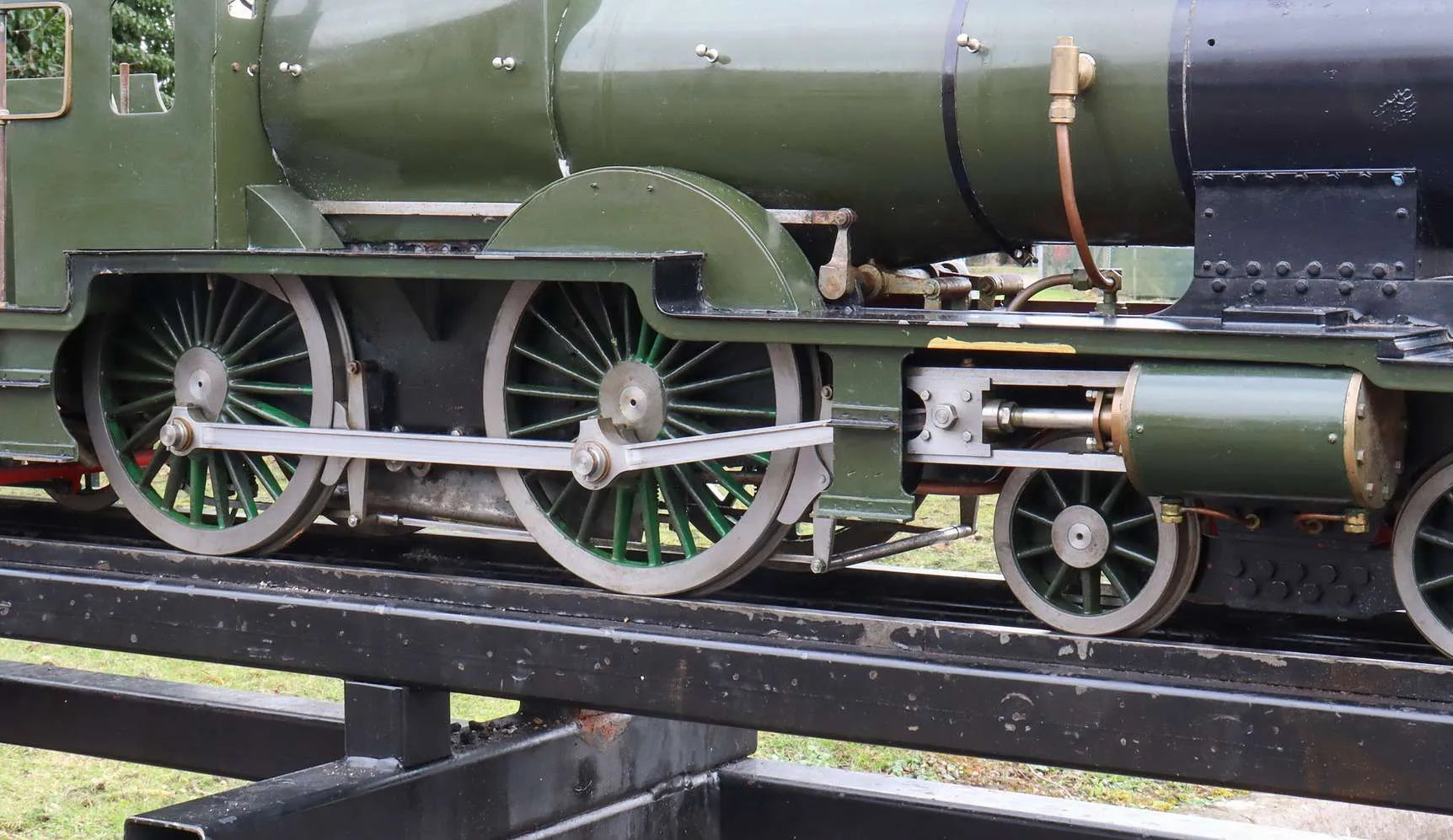

Valve gear |
Stephensons |
Reverser type |
pole |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Year built |
1971 |
Boiler number |
8677MK |

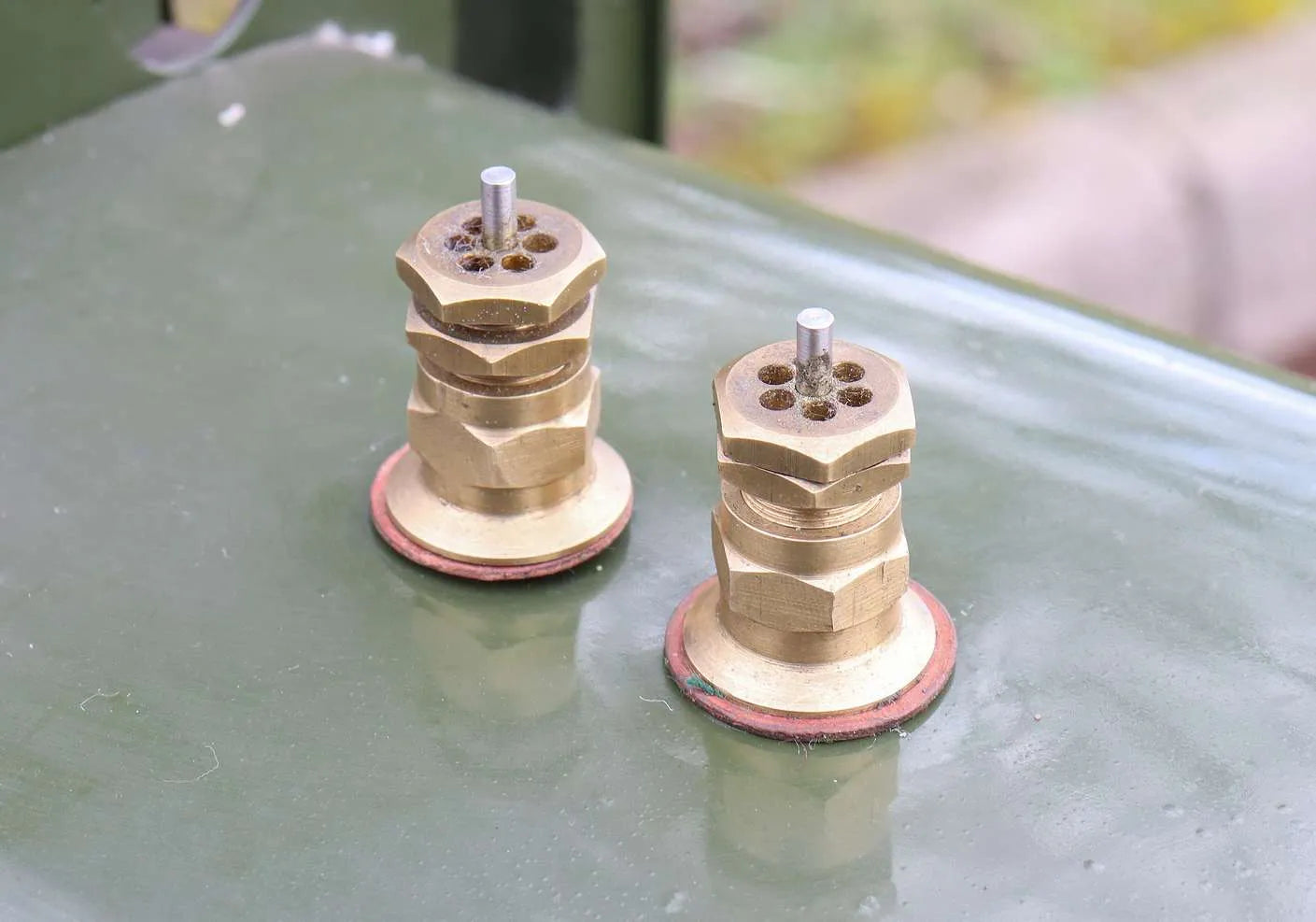

Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
4 |
Date out |
Mar-23 |
Hydraulic test valid to |
13-Feb-27 |
