12103

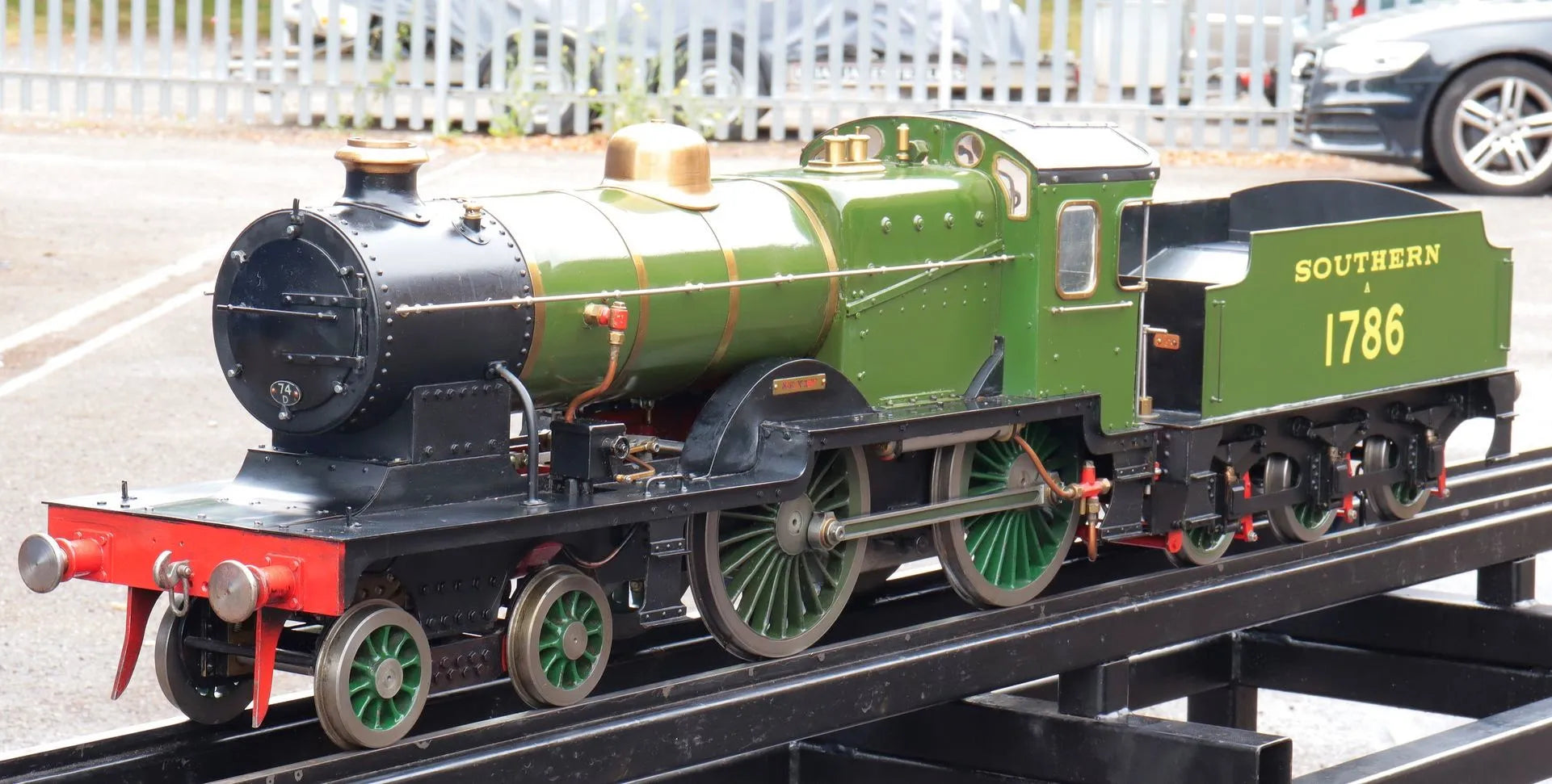

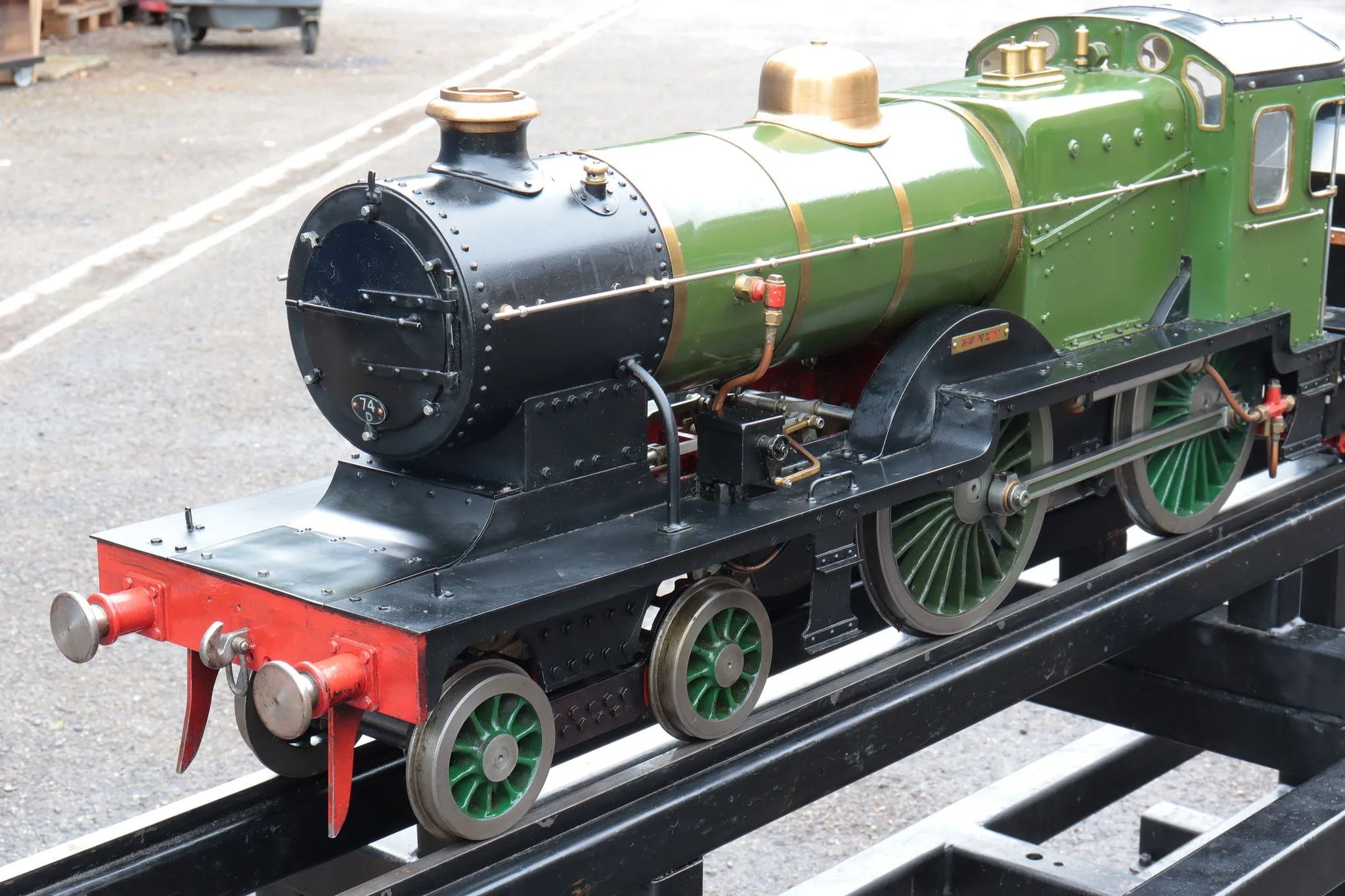

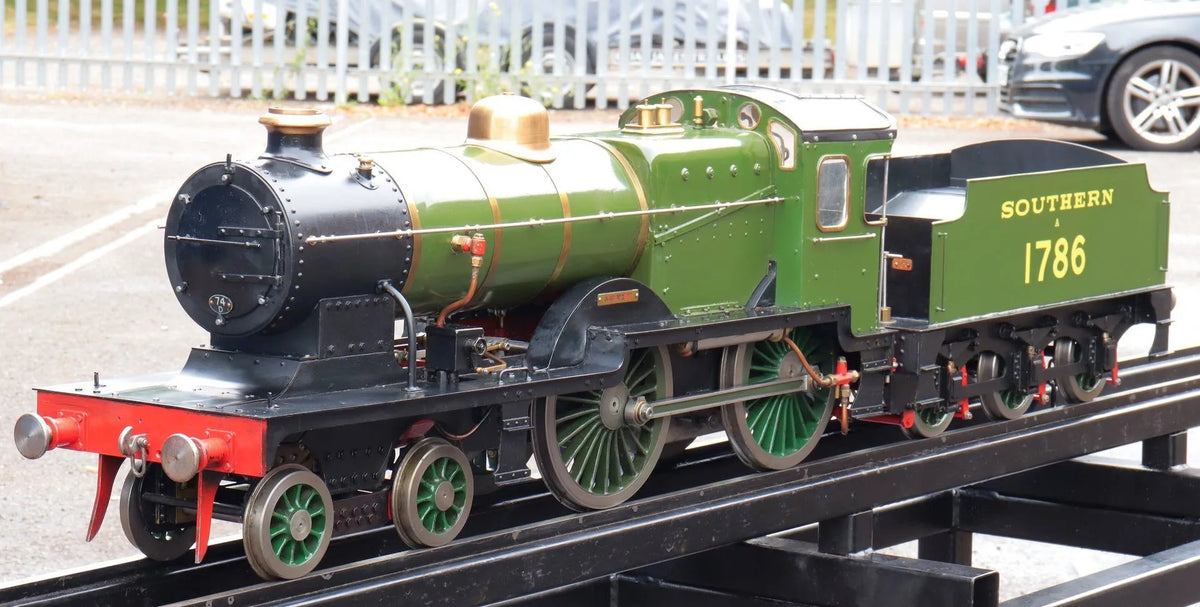

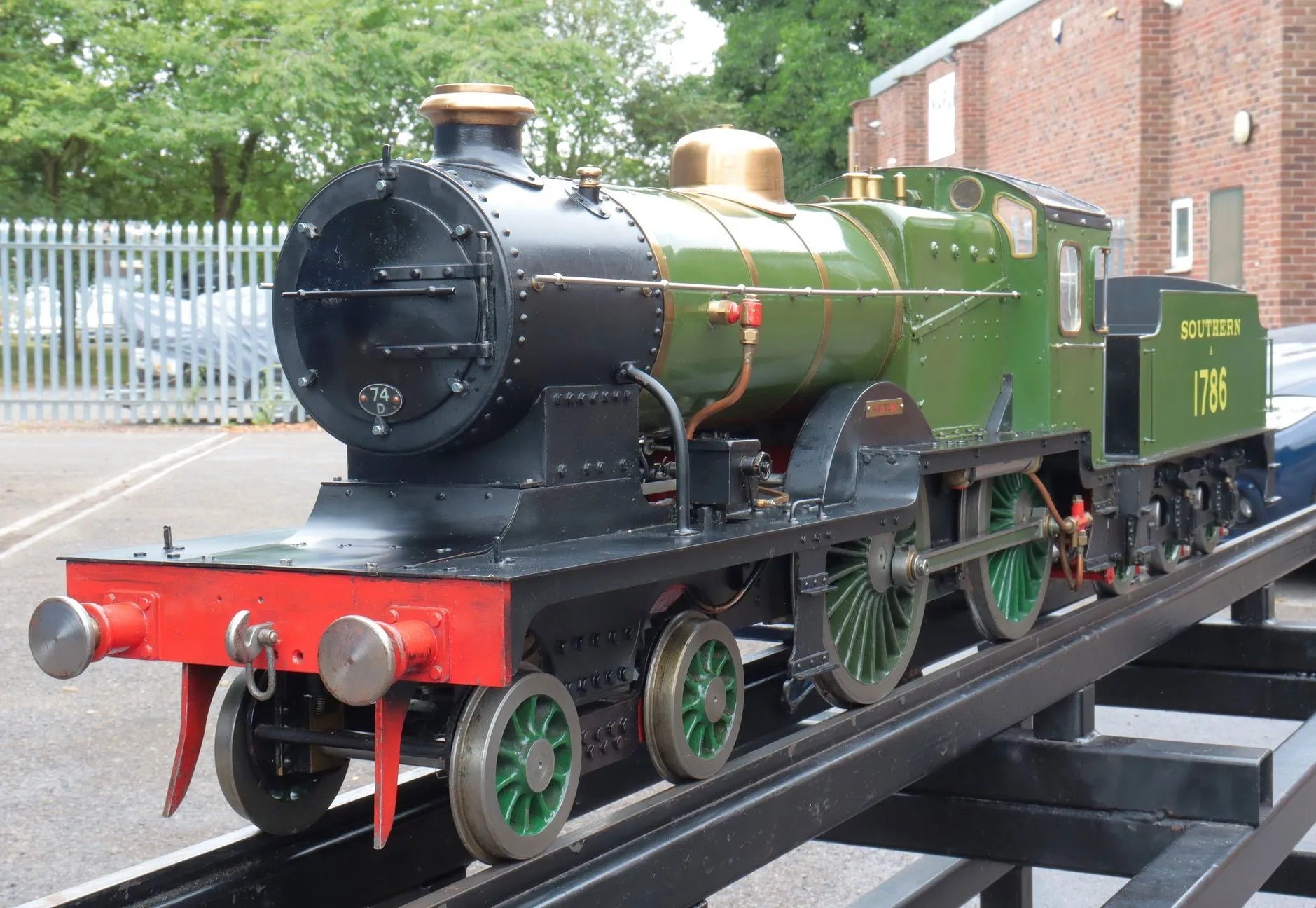

5 inch gauge "Maid of Kent" 4-4-0

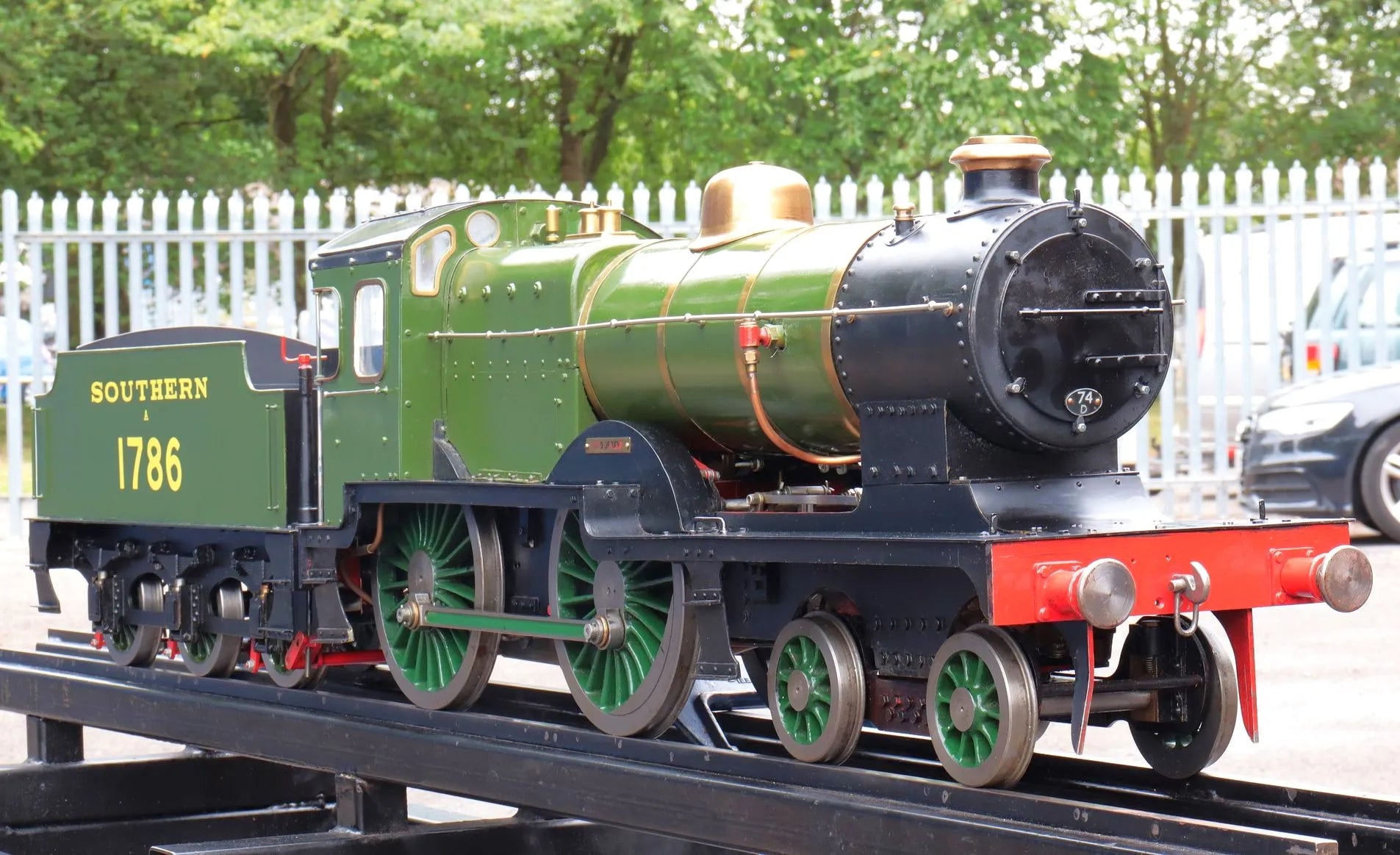

A 5 inch gauge Southern 4-4-0, built to LBSC's popular "Maid of Kent" design.

Completed in 1993, with a commercially built boiler supplied new in 1984 by the estimable Reg Chambers of Weymouth, the engine remains unsteamed, in ex-works condition.

The boiler has had a hydraulic test with new certification issued - unsurprisingly it's in excellent condition, we would warranty as sound.

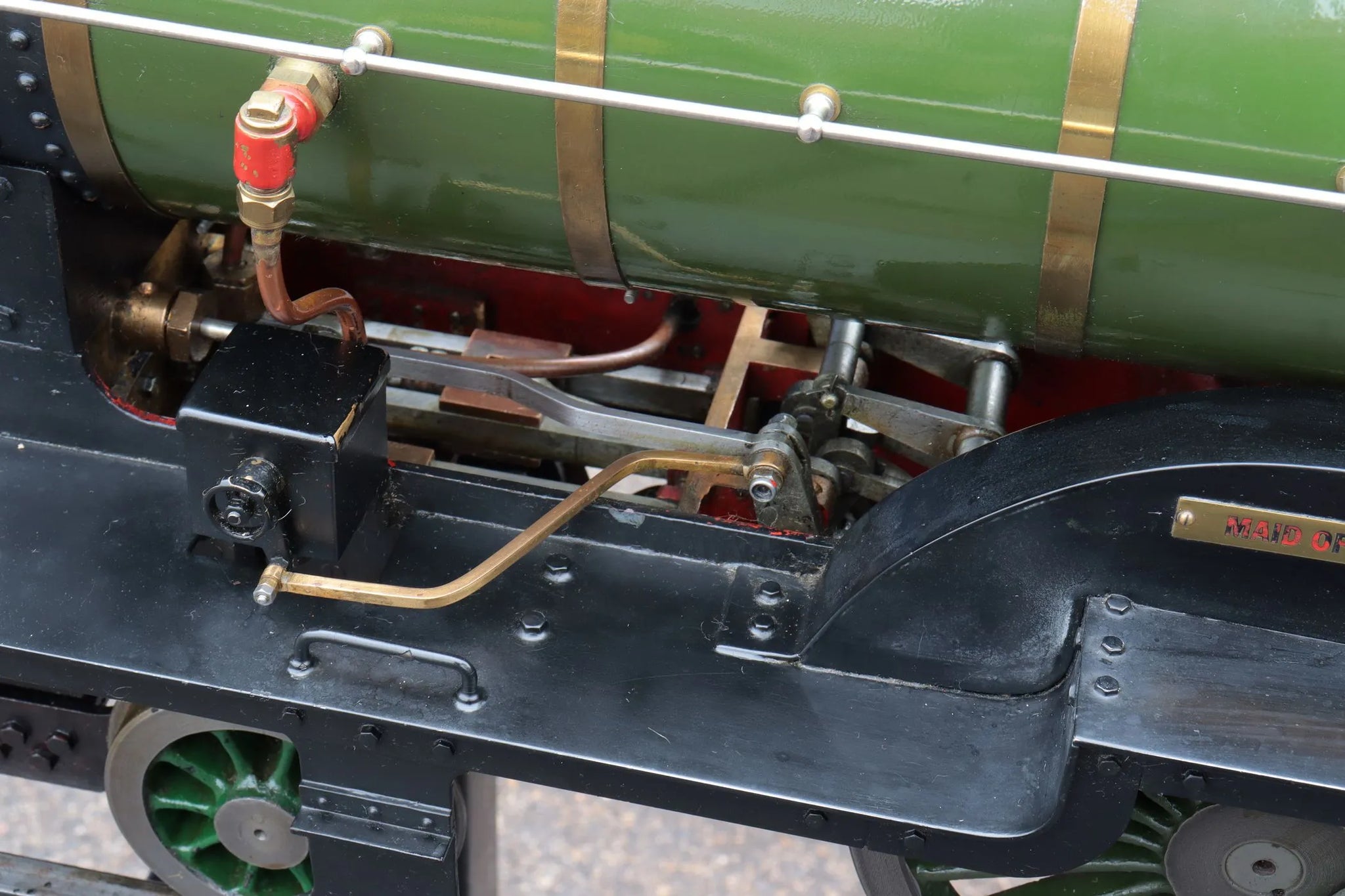

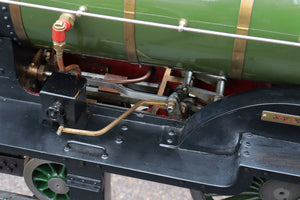

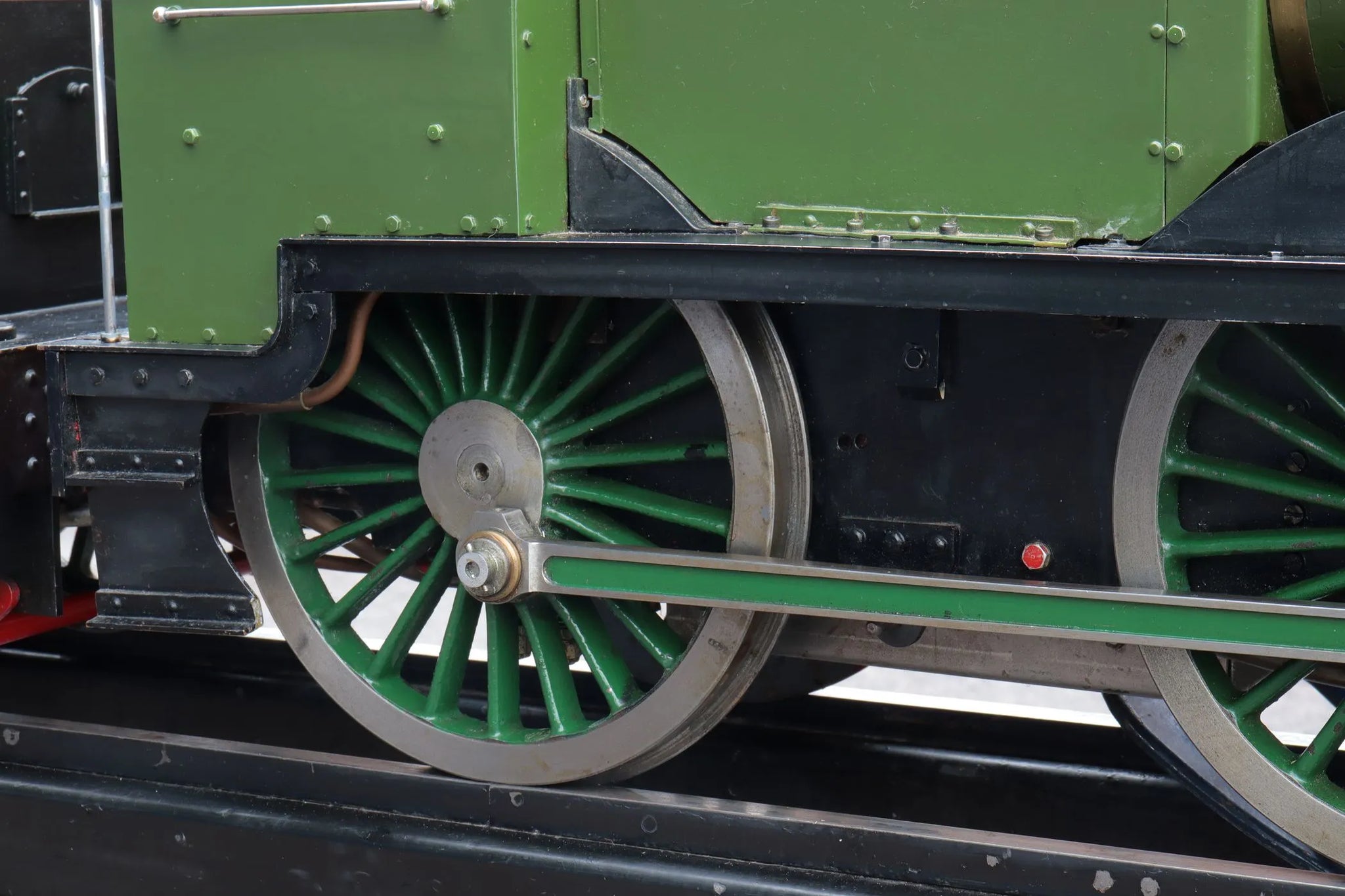

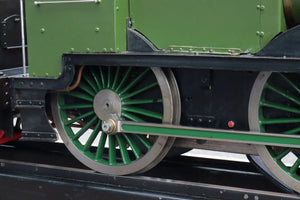

The chassis rolls freely but doesn't currently run on air, with leakage past the valves. Not totally surprising after having been stored, unused for thirty years, it will require the cylinders stripping to investigate.

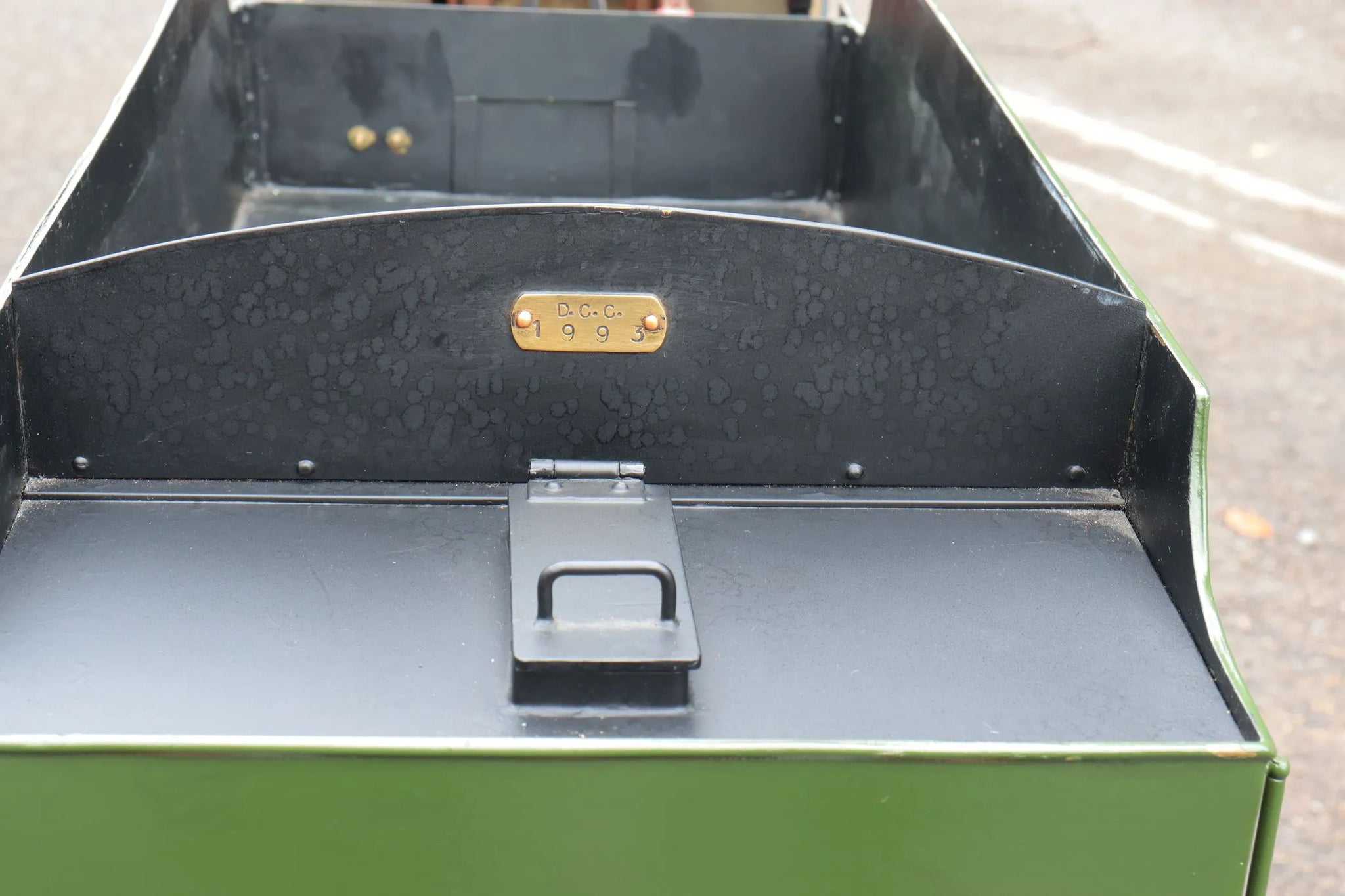

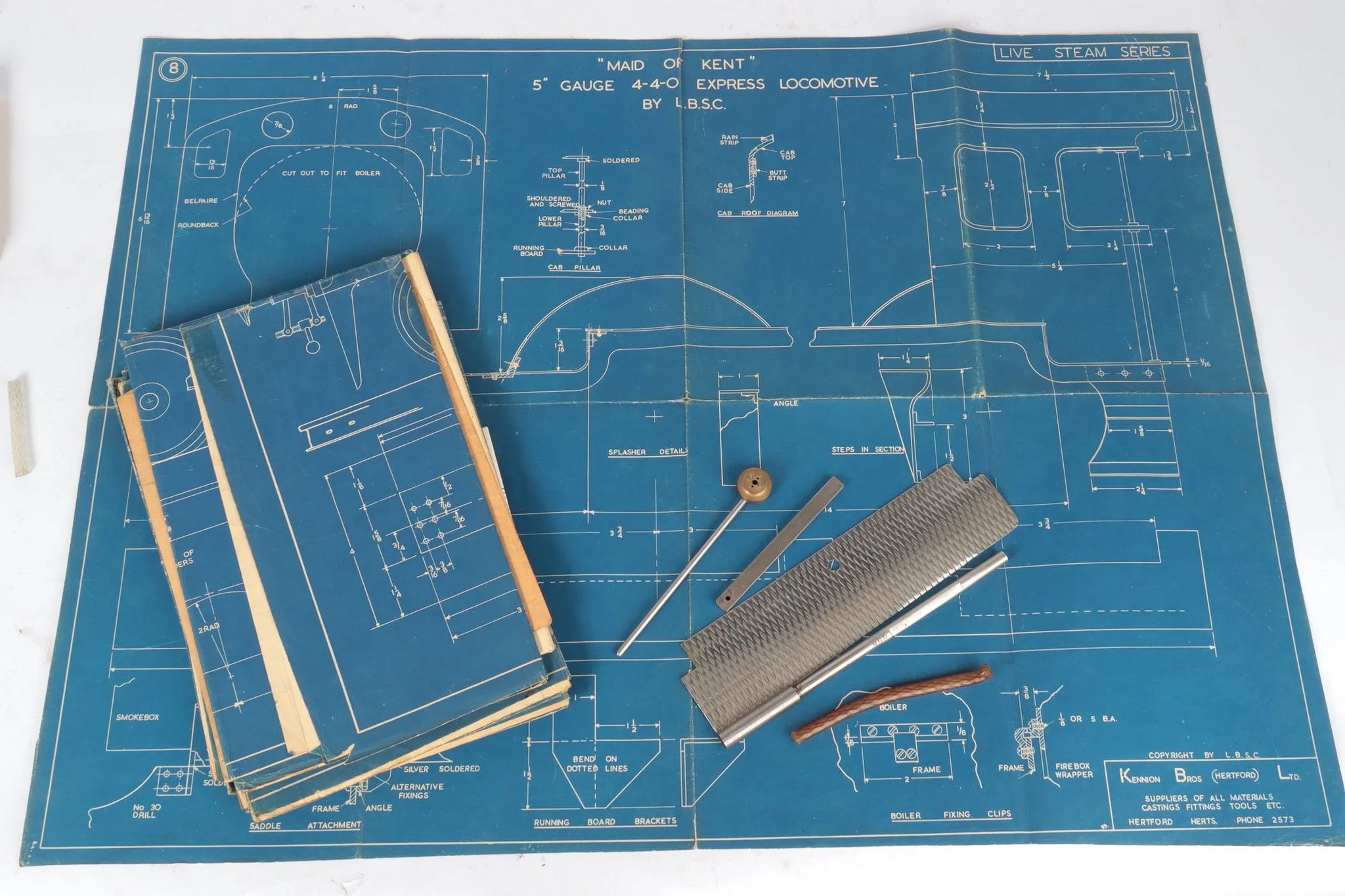

Complete with safety valve setting tool, drop plate to fit between locomotive and tender - and a set of proper blueprints! So much easier to read than the faded black on white drawings we so often see - why on earth did they go out of fashion?

Technical information

Stock code

12103

Gauge

5 inch

Length/inches

36+24

Width/inches

9.5

Height/inches

13.5

Weight/Kg

68

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Boiler maker

R Chambers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - pre-2002

Year built

1984

Boiler number

R 662

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Mar-25
