5 inch gauge Maid of Kent 4-4-0

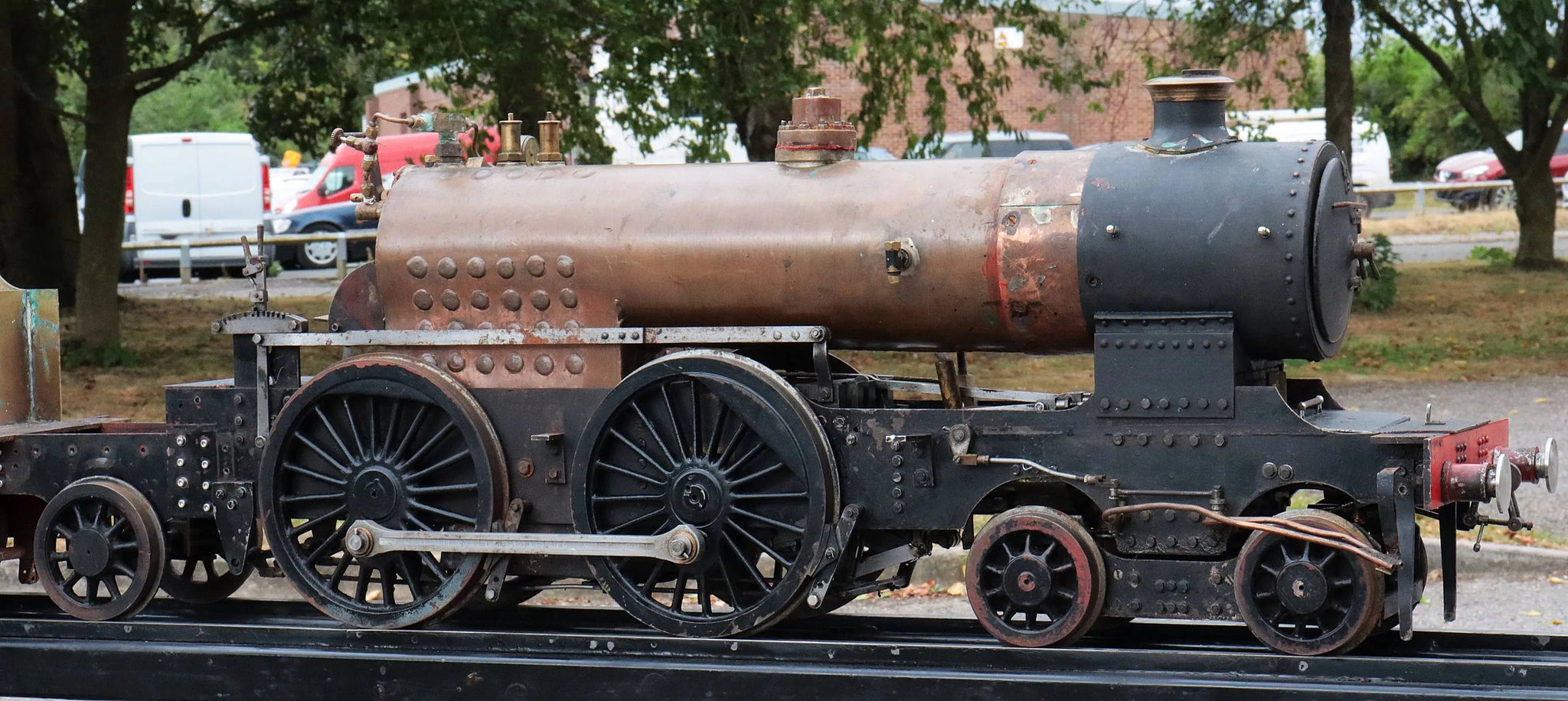

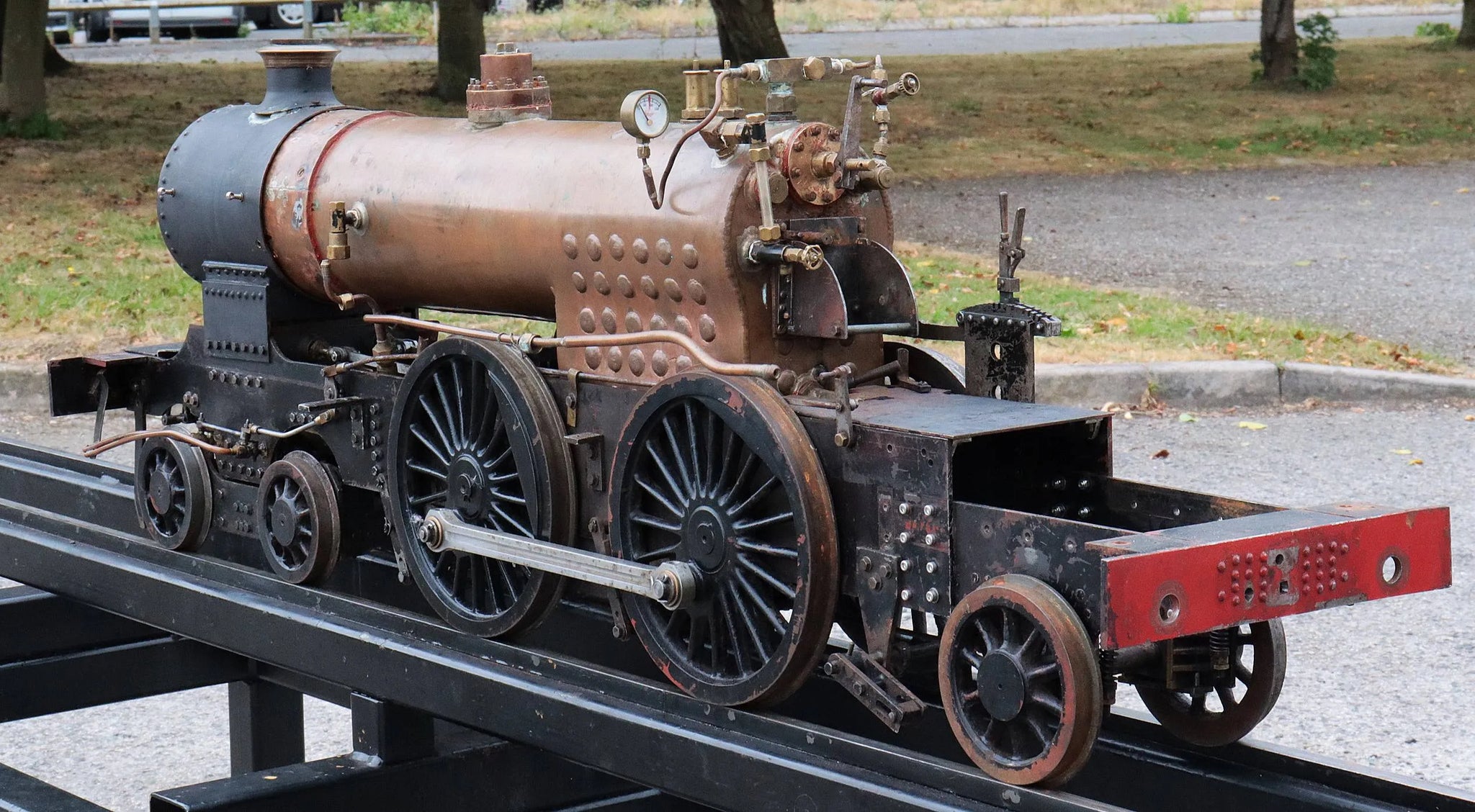

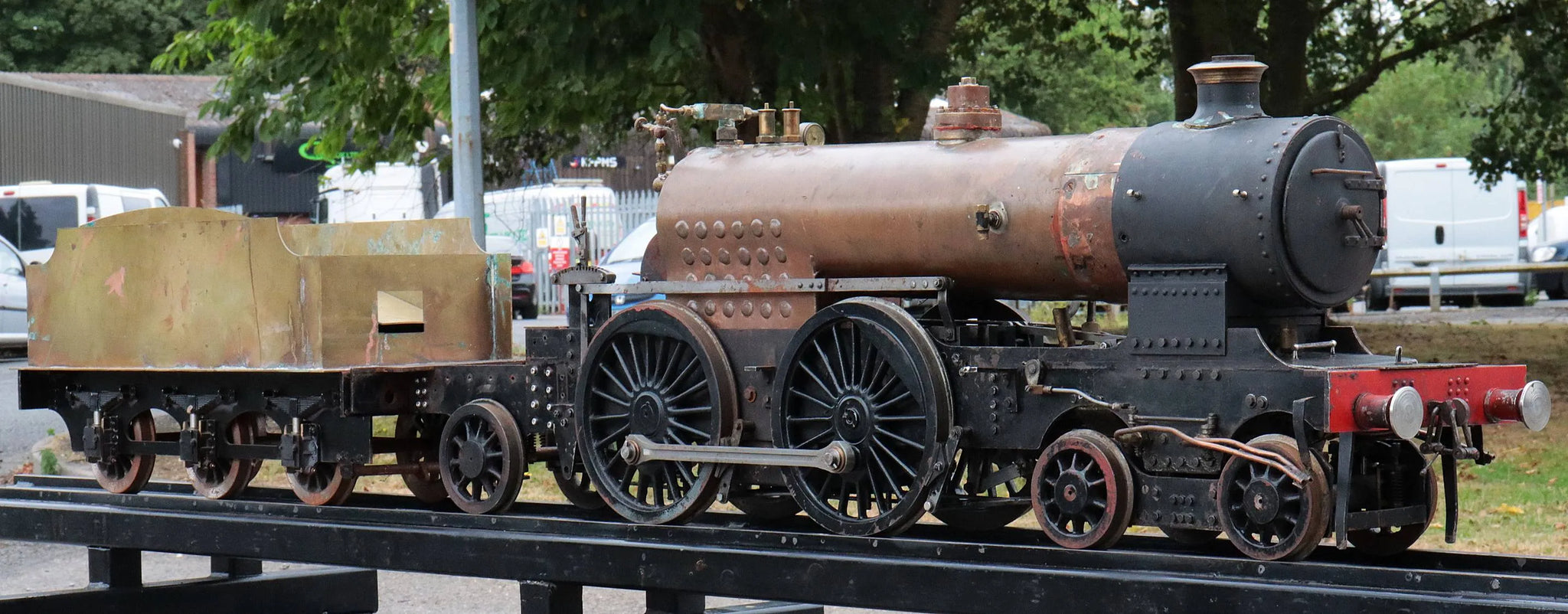

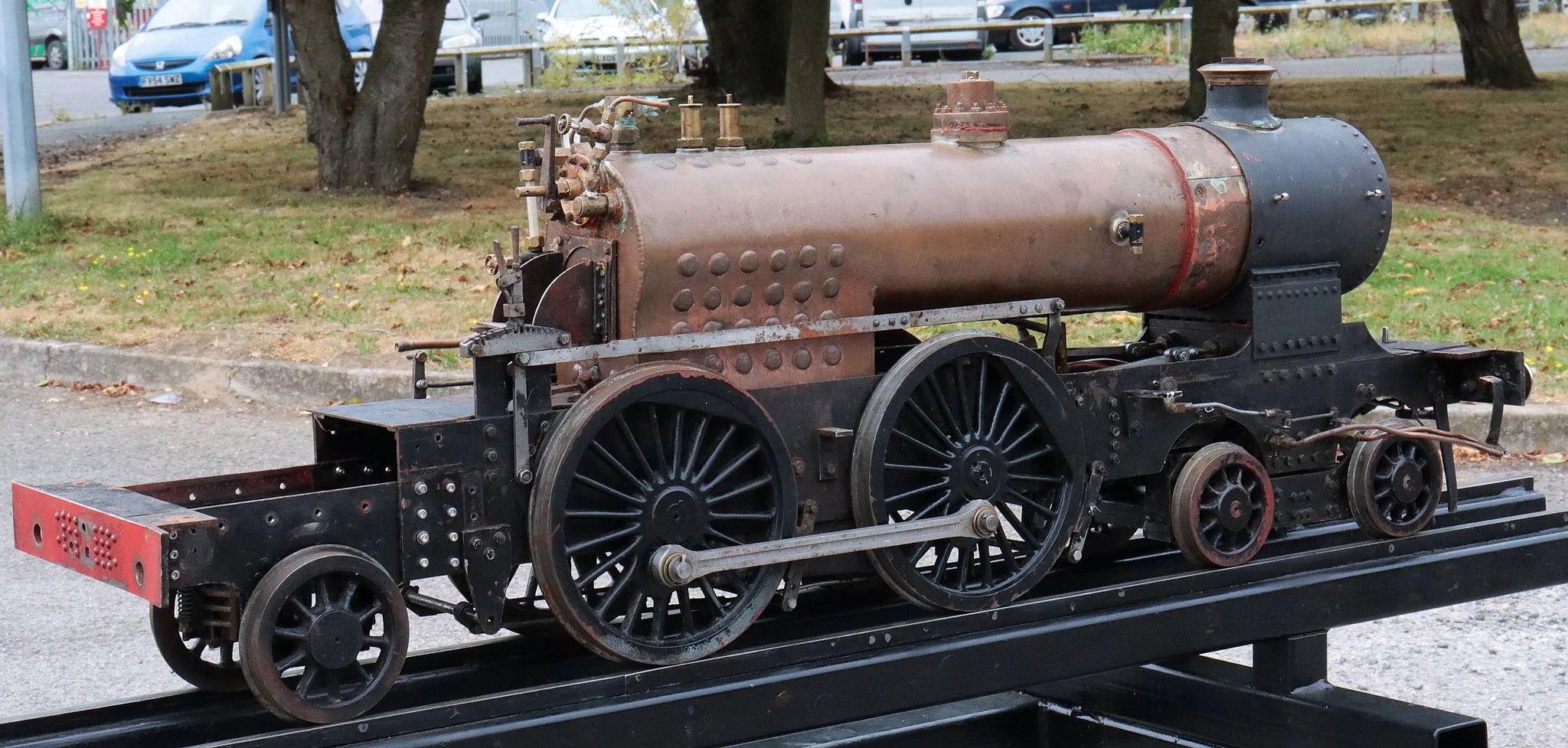

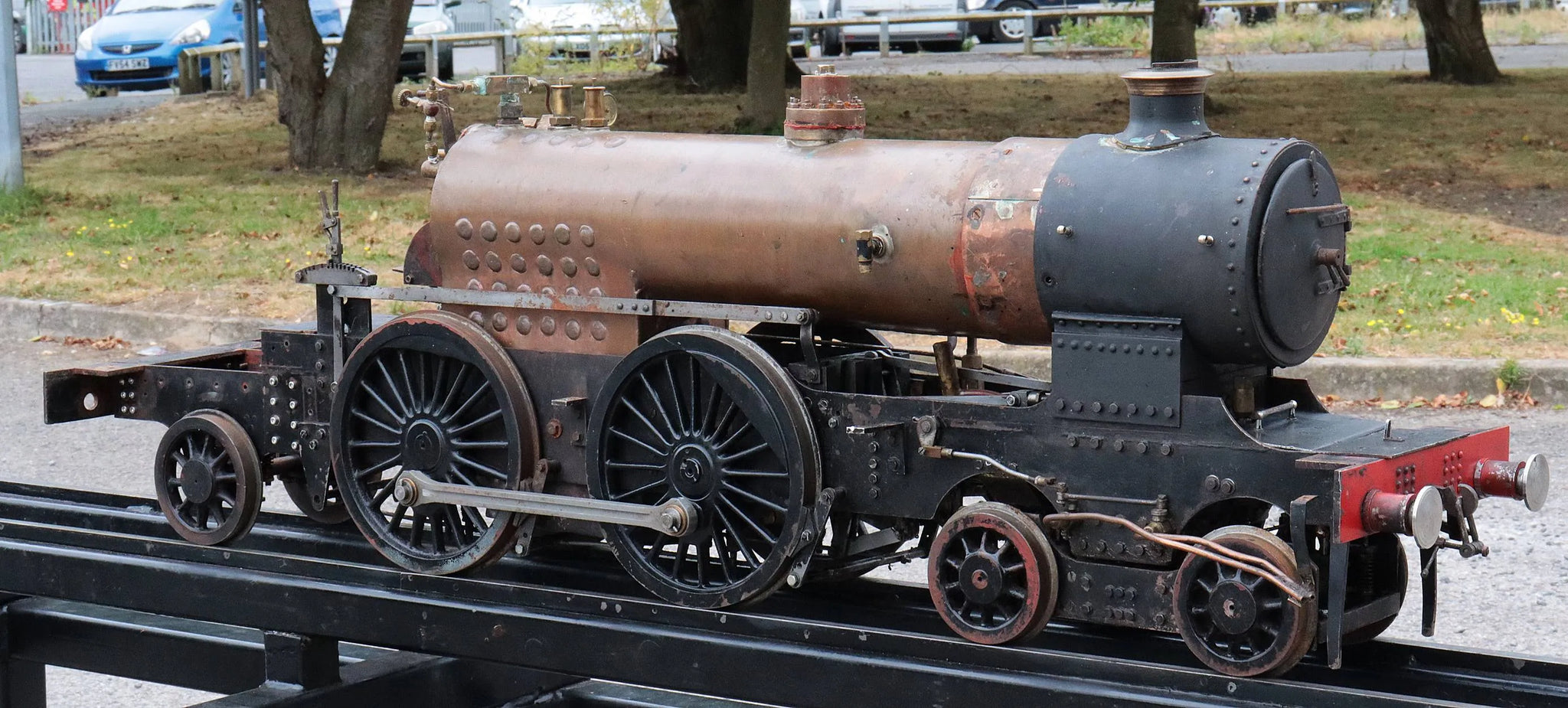

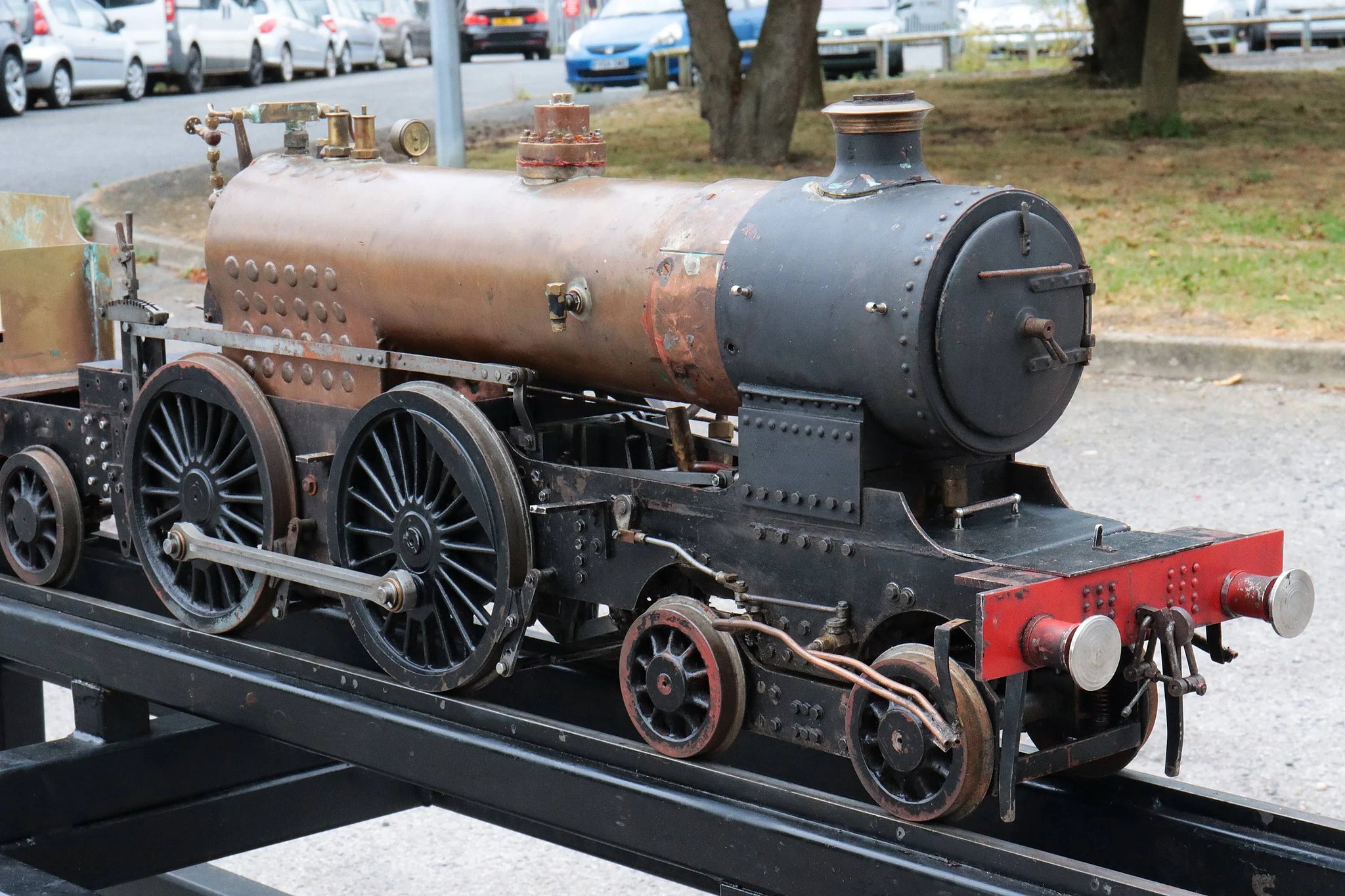

A 5 inch gauge 4-4-2, based on LBSC's "Maid of Kent" design but originally built as a tank locomotive.

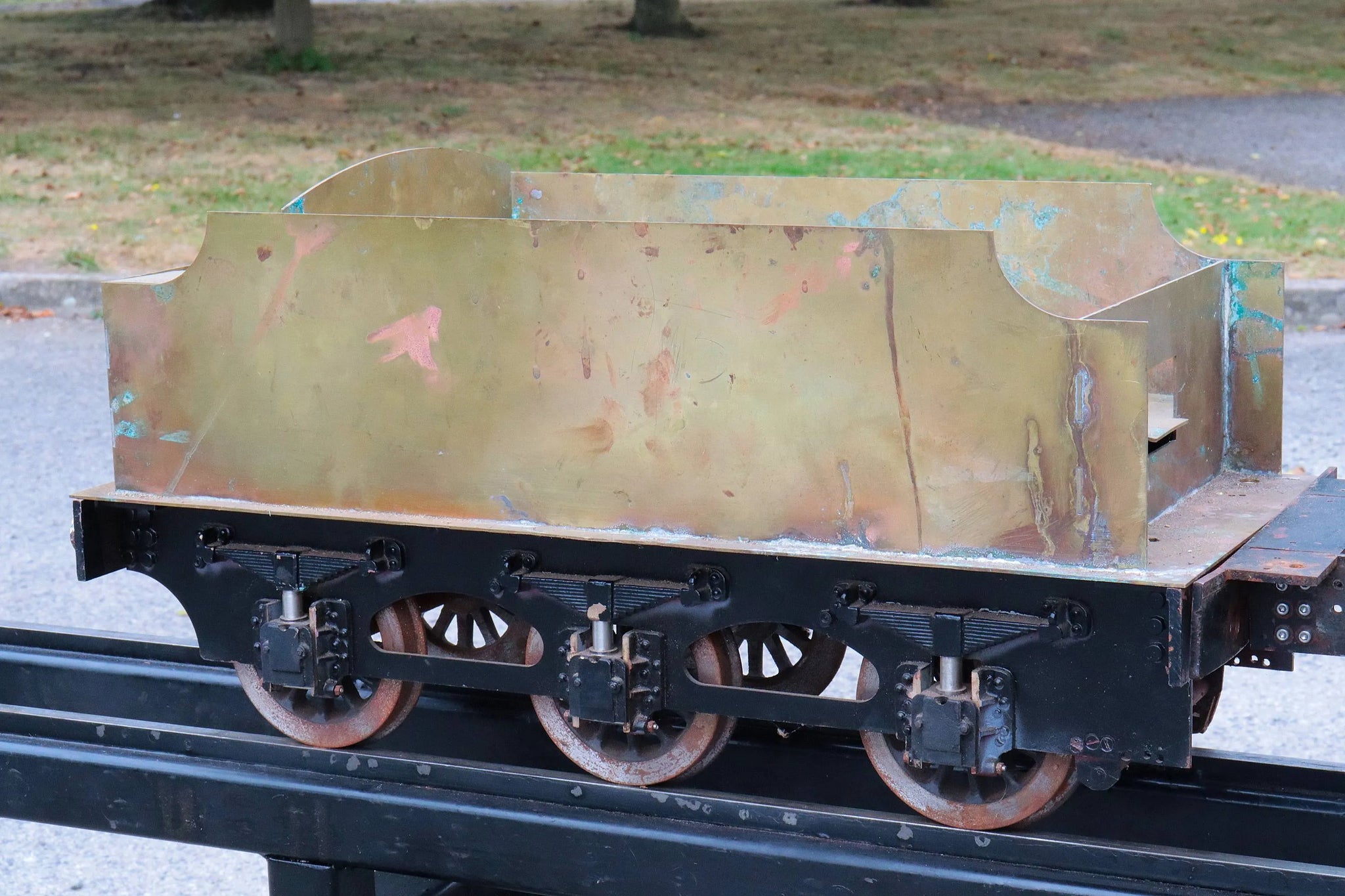

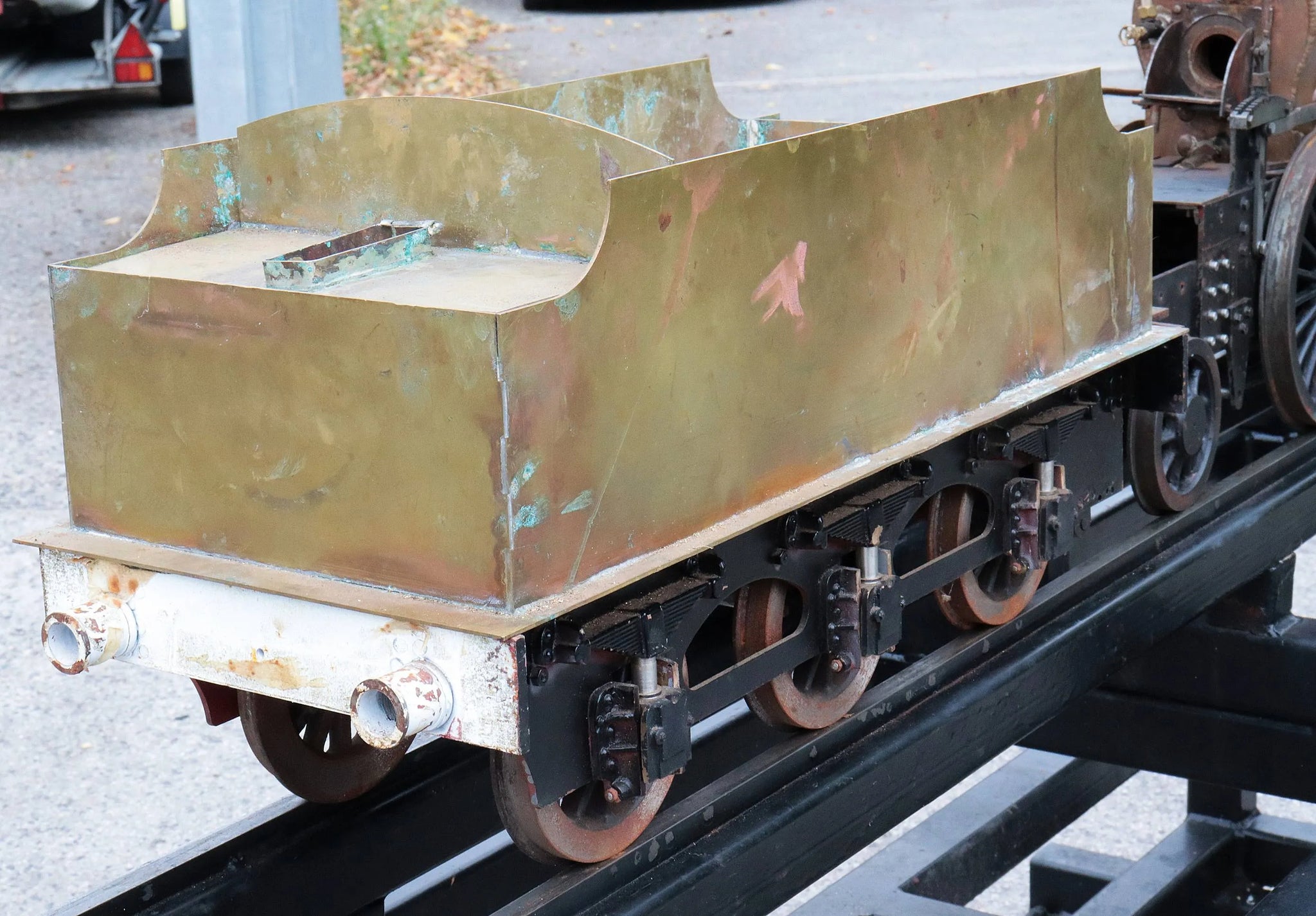

The last owner was in the process of turning it back into a tender engine, whilst leaving it as an Atlantic.

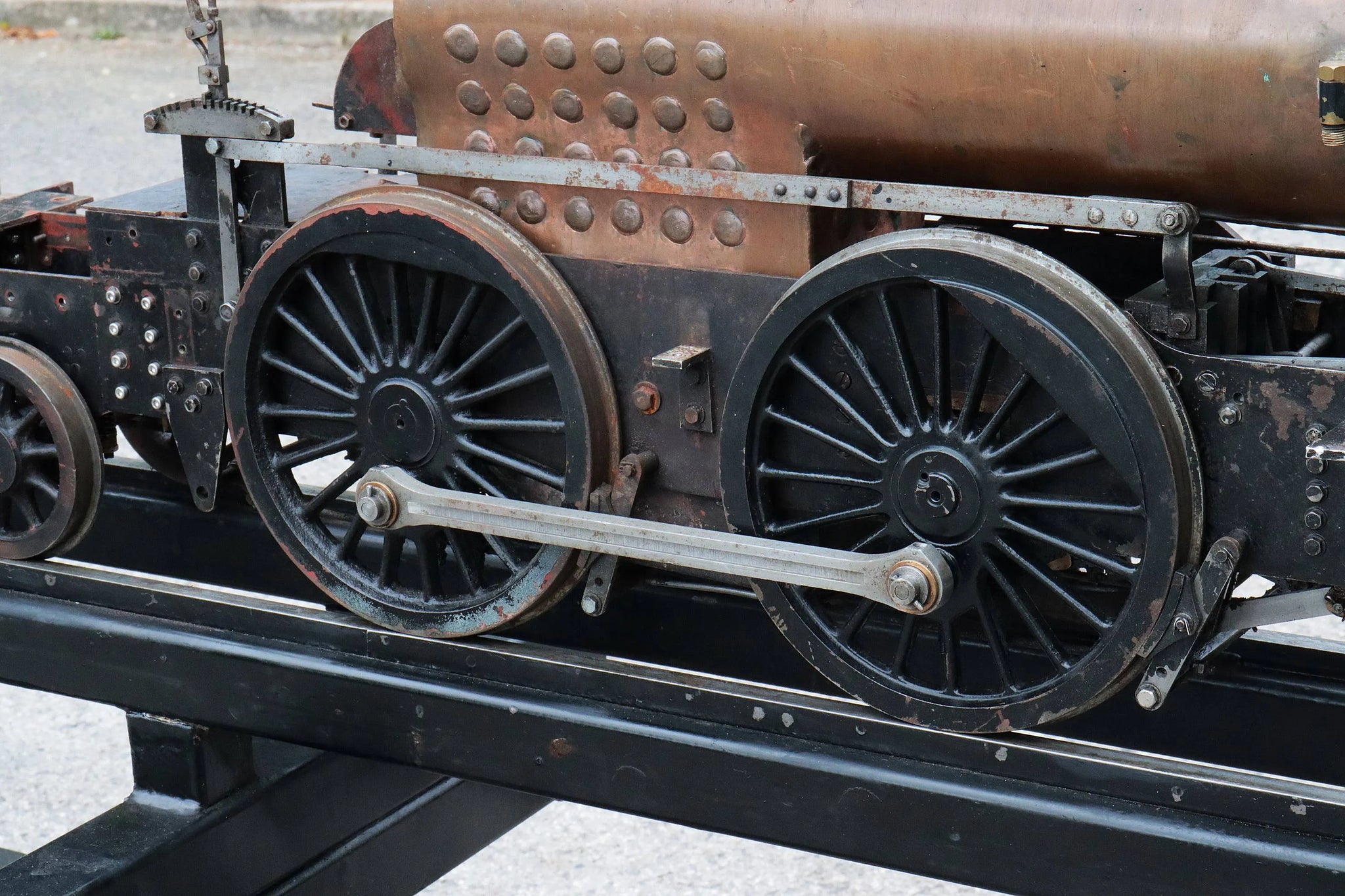

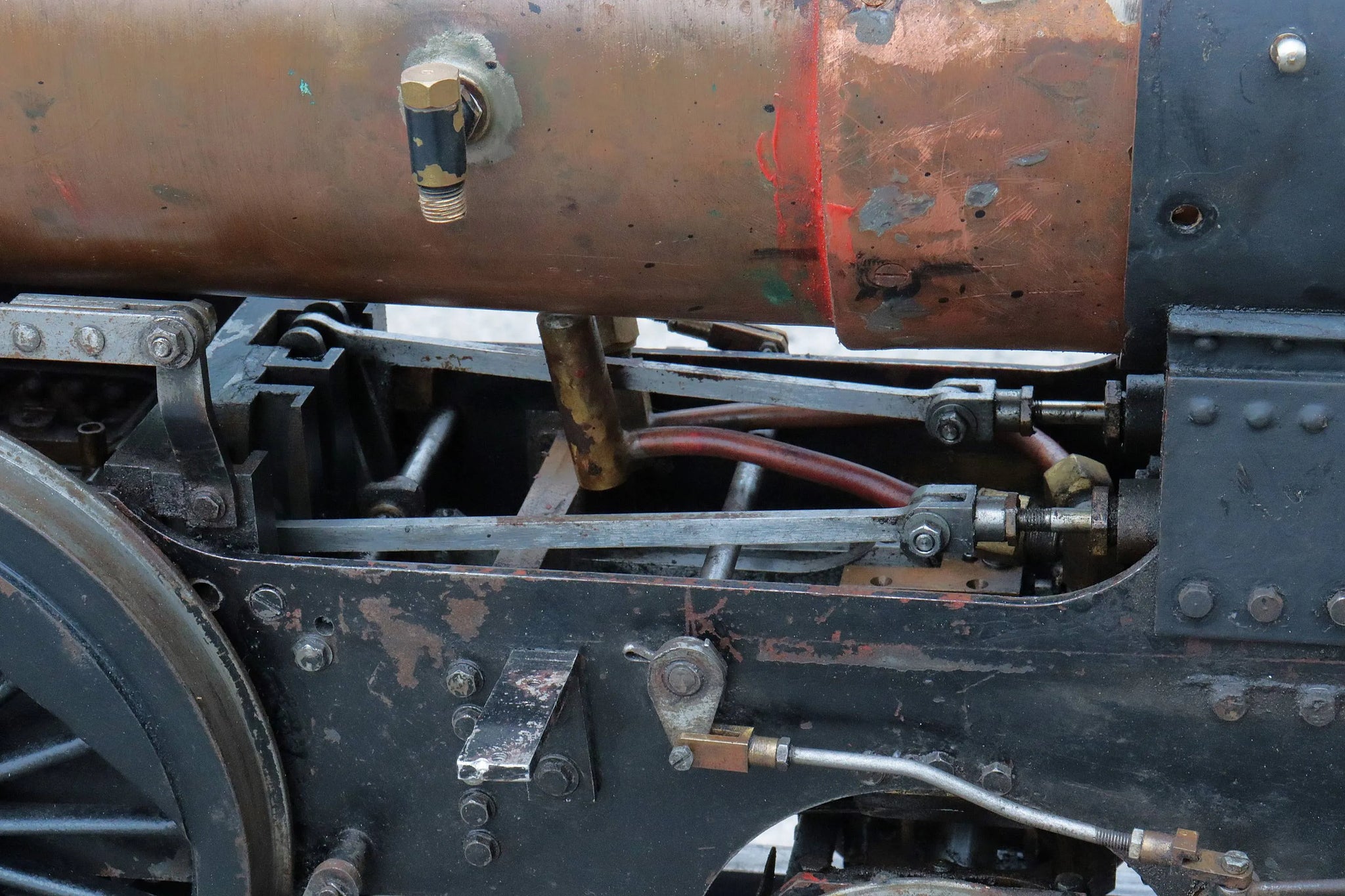

The chassis runs in both directions, with some blow by past pistons and valves. Fit and finish of motionwork and valve gear is better than first impression might suggest, fettling would improve it cosmetically.

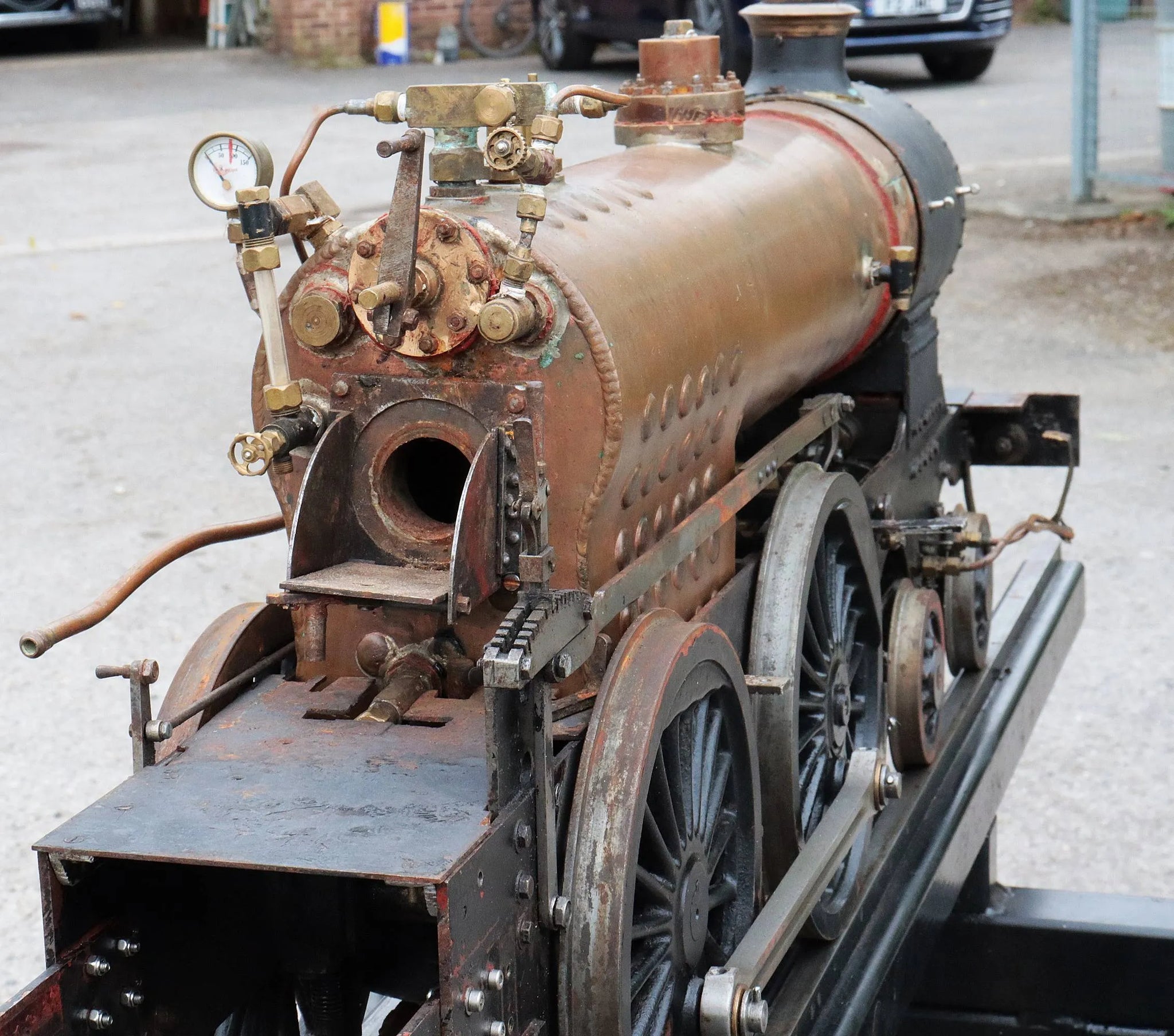

The boiler is a commercially-built, CE-marked job by Steam Technology, supplied in 2015 and unsteamed from new.

Technical information

Stock code

12171

Gauge

5 inch

Length/inches

43+24

Width/inches

9.5

Height/inches

13.5

Weight/Kg

70

Wheel material

cast iron

Valve type

slide

Valve gear

Joy

Reverser type

pole

Boiler maker

Steam Technology

Boiler type

locomotive

Boiler construction

TIG-welded/silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

yes

Year built

2015

Boiler number

ST1201

Safety valve type

spring

Safety valve

2

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

1

Date out

Sep-25
