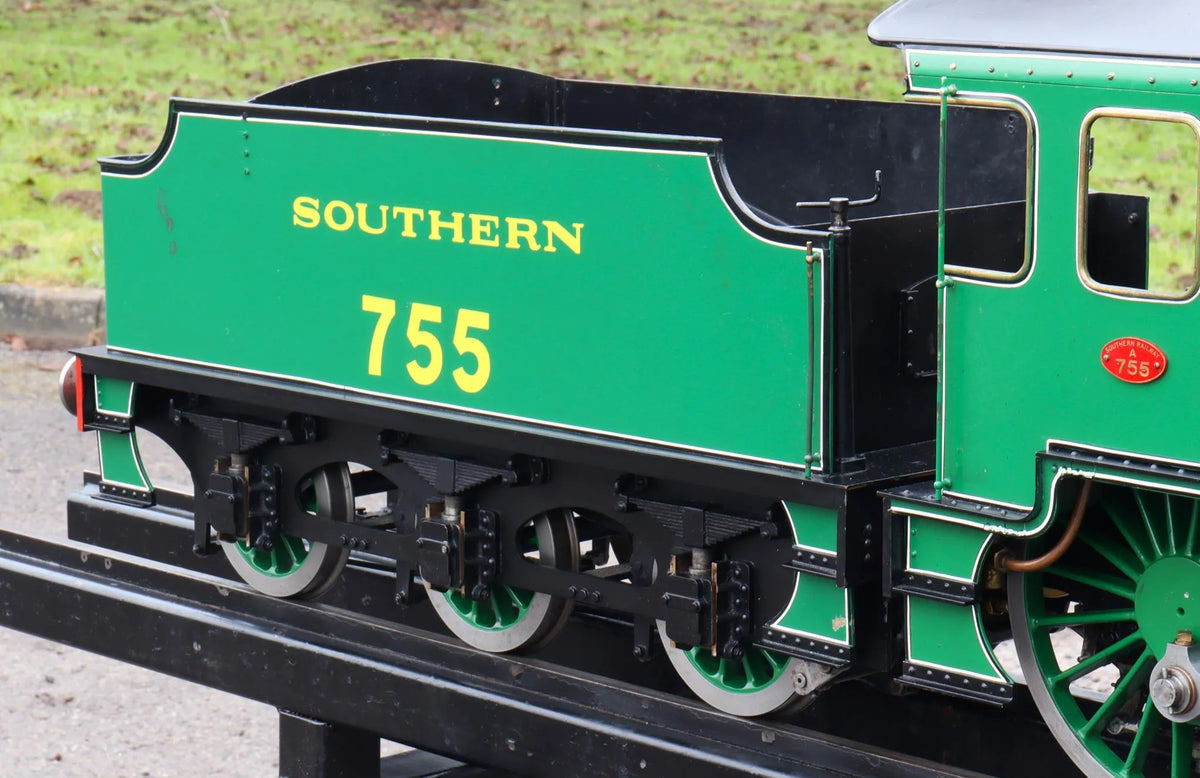

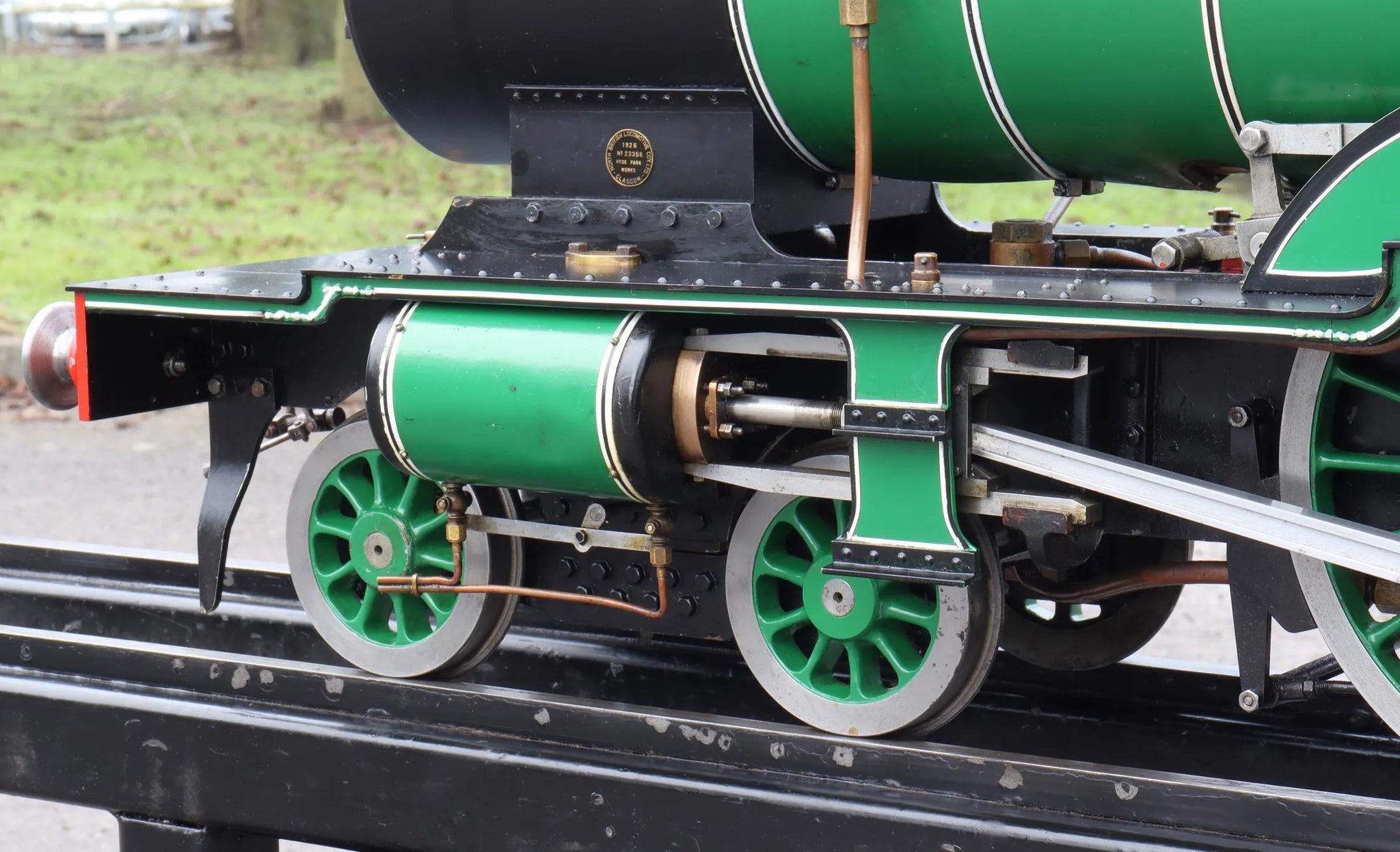

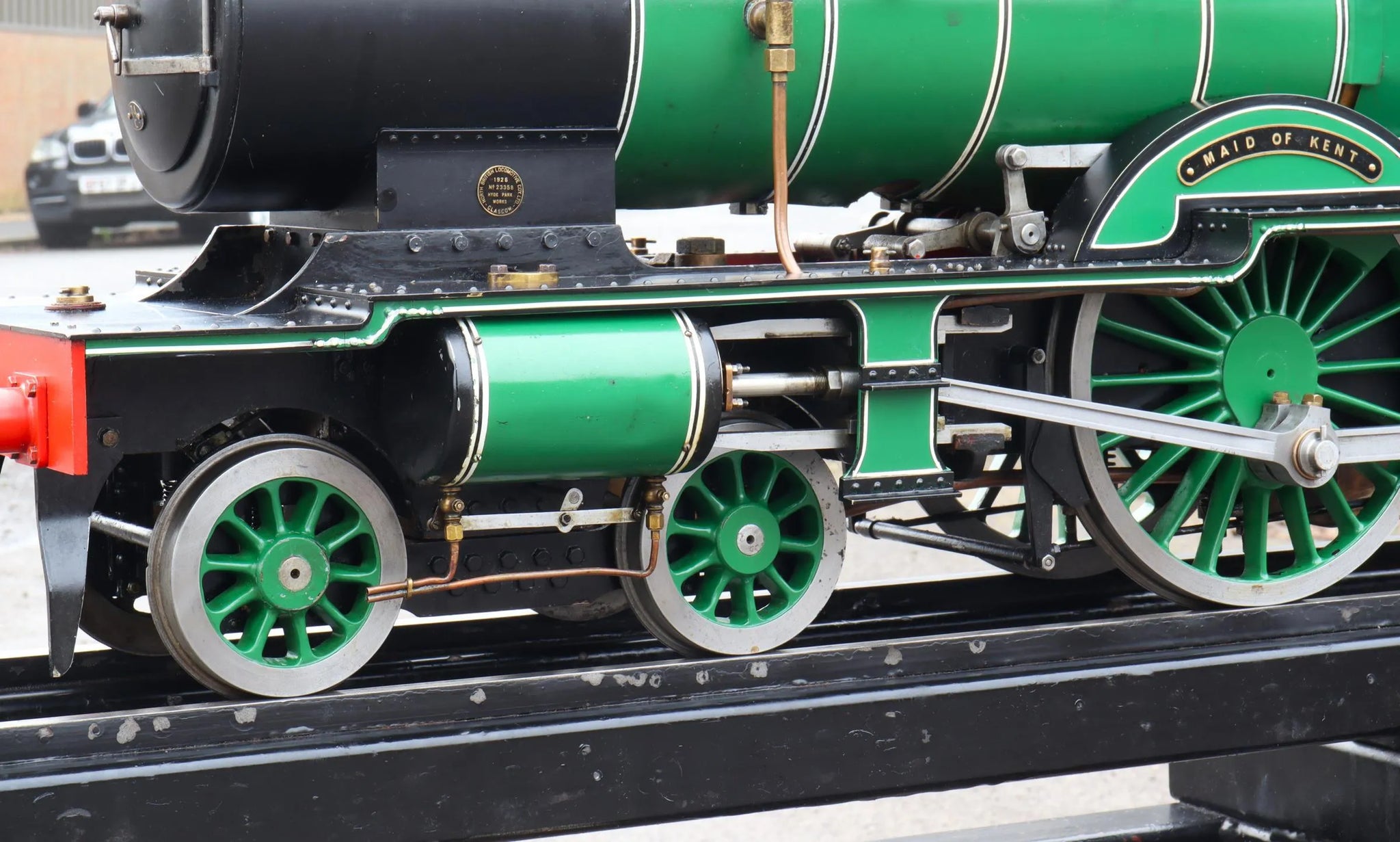

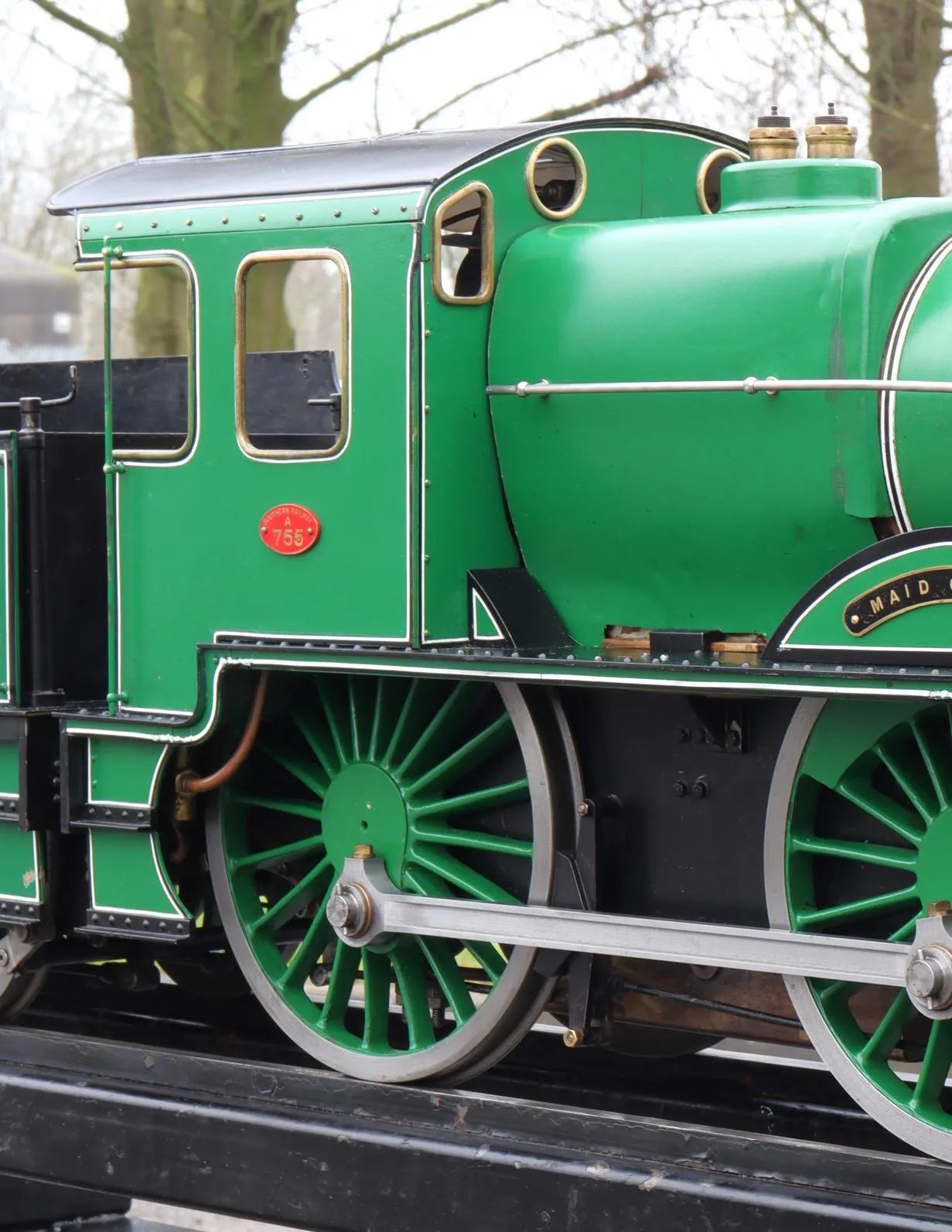

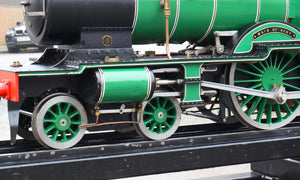

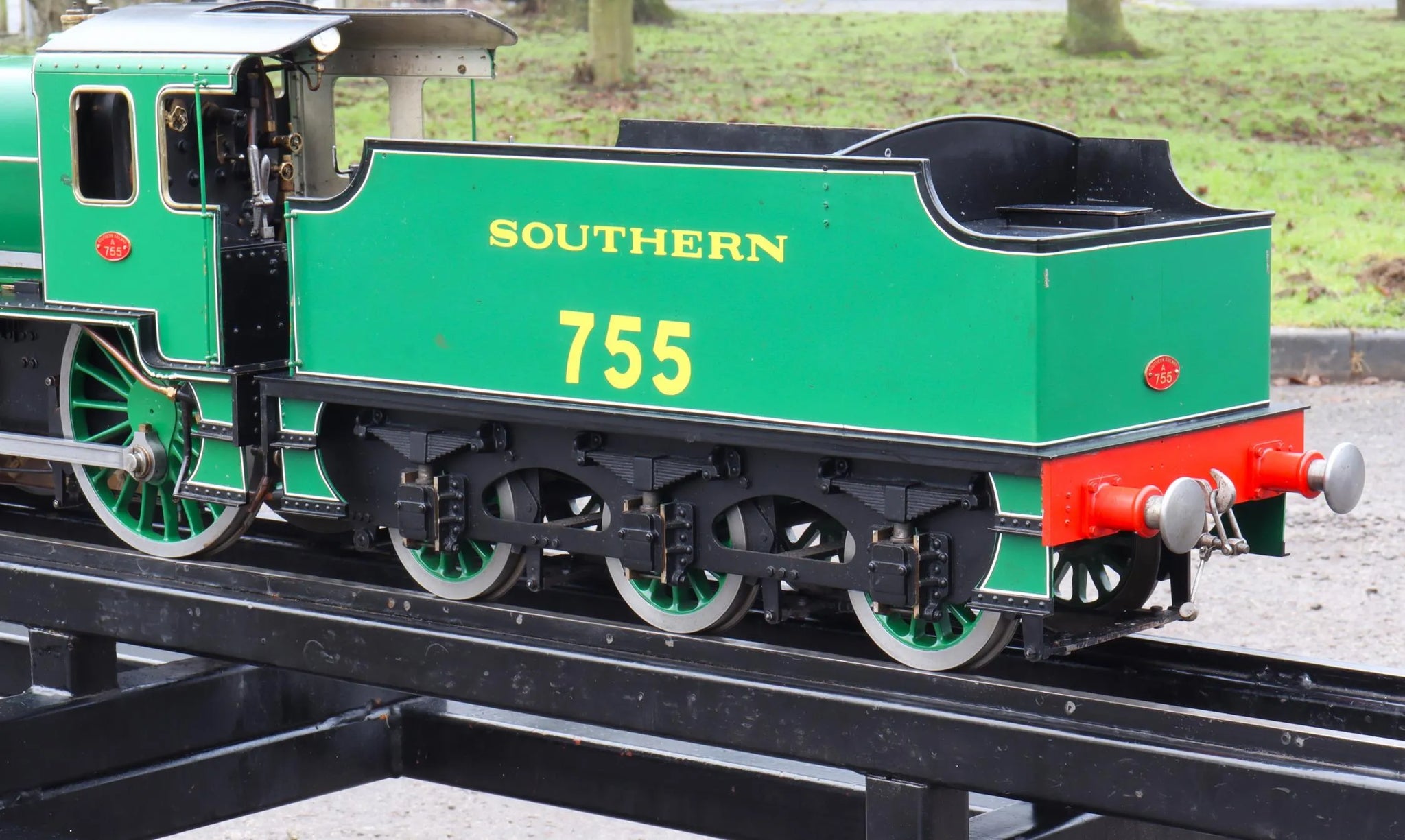

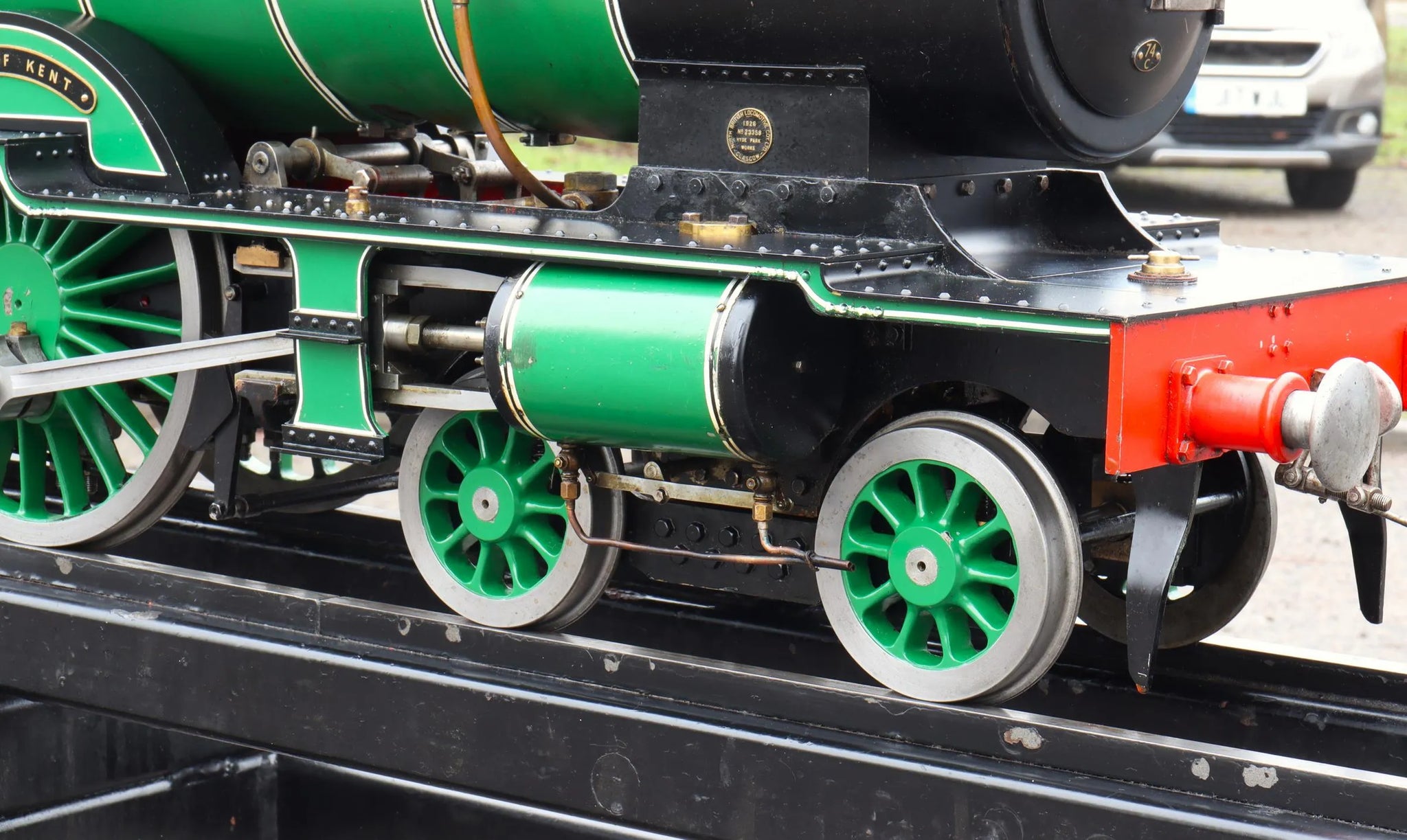

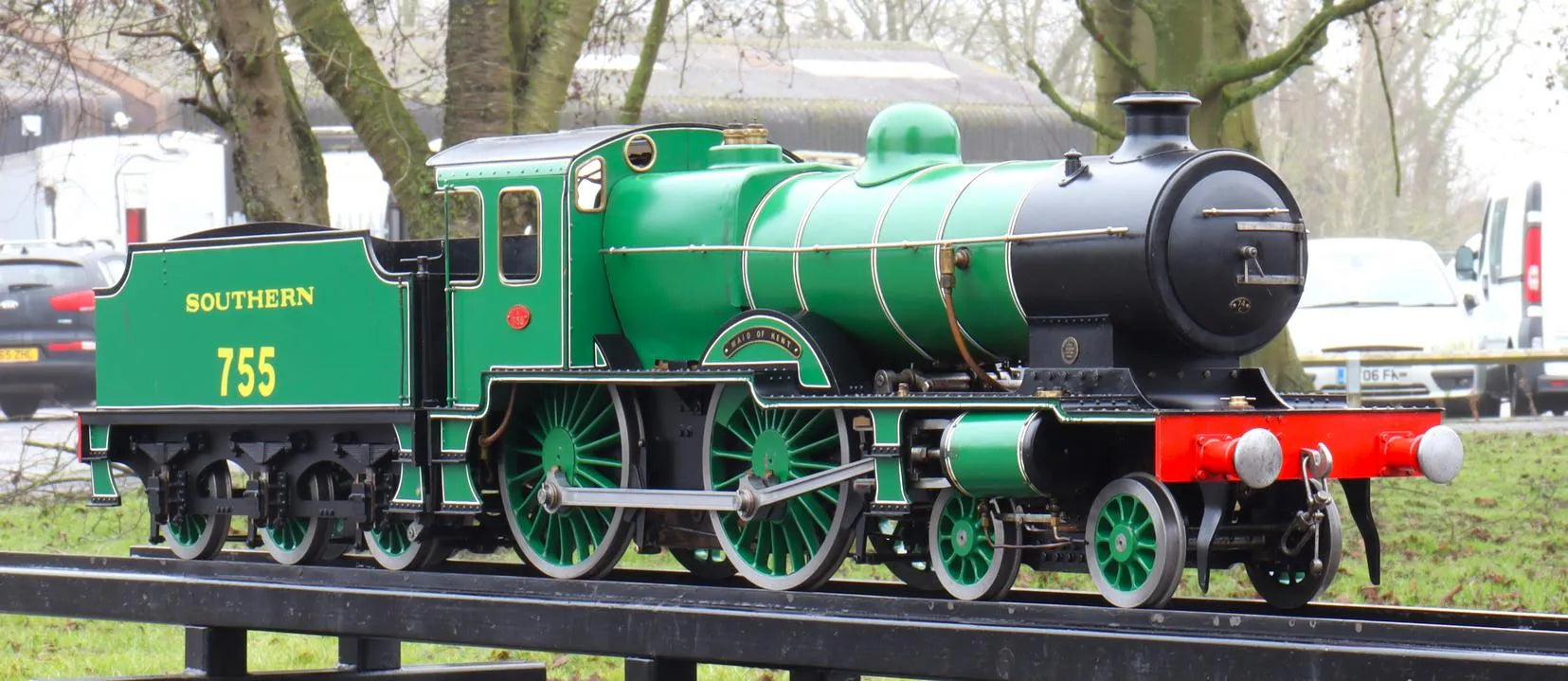

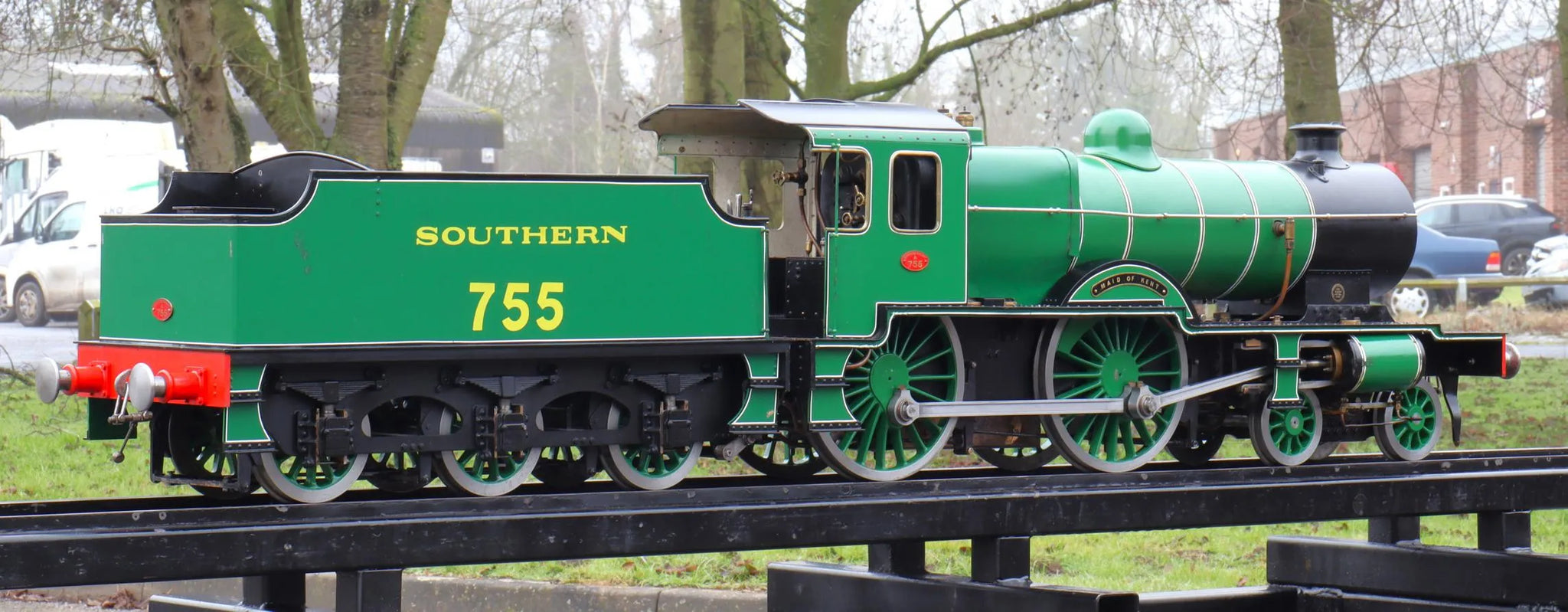

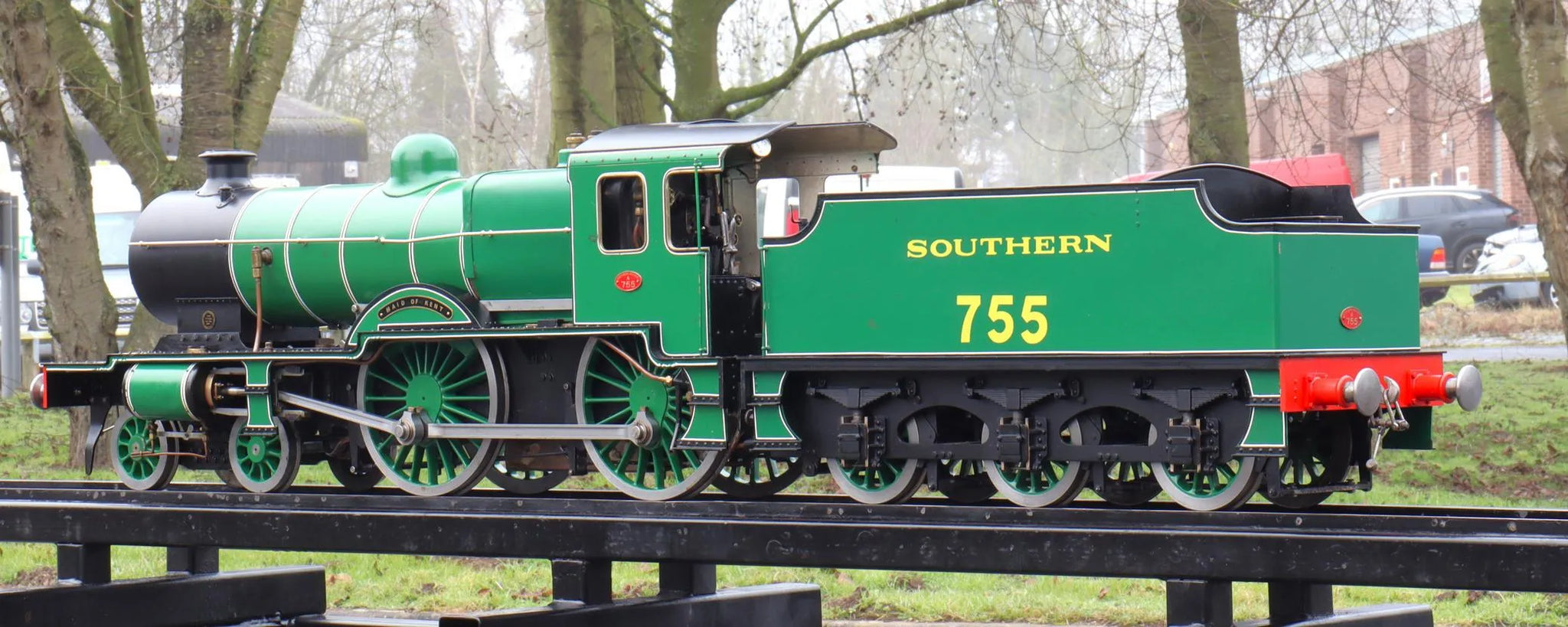

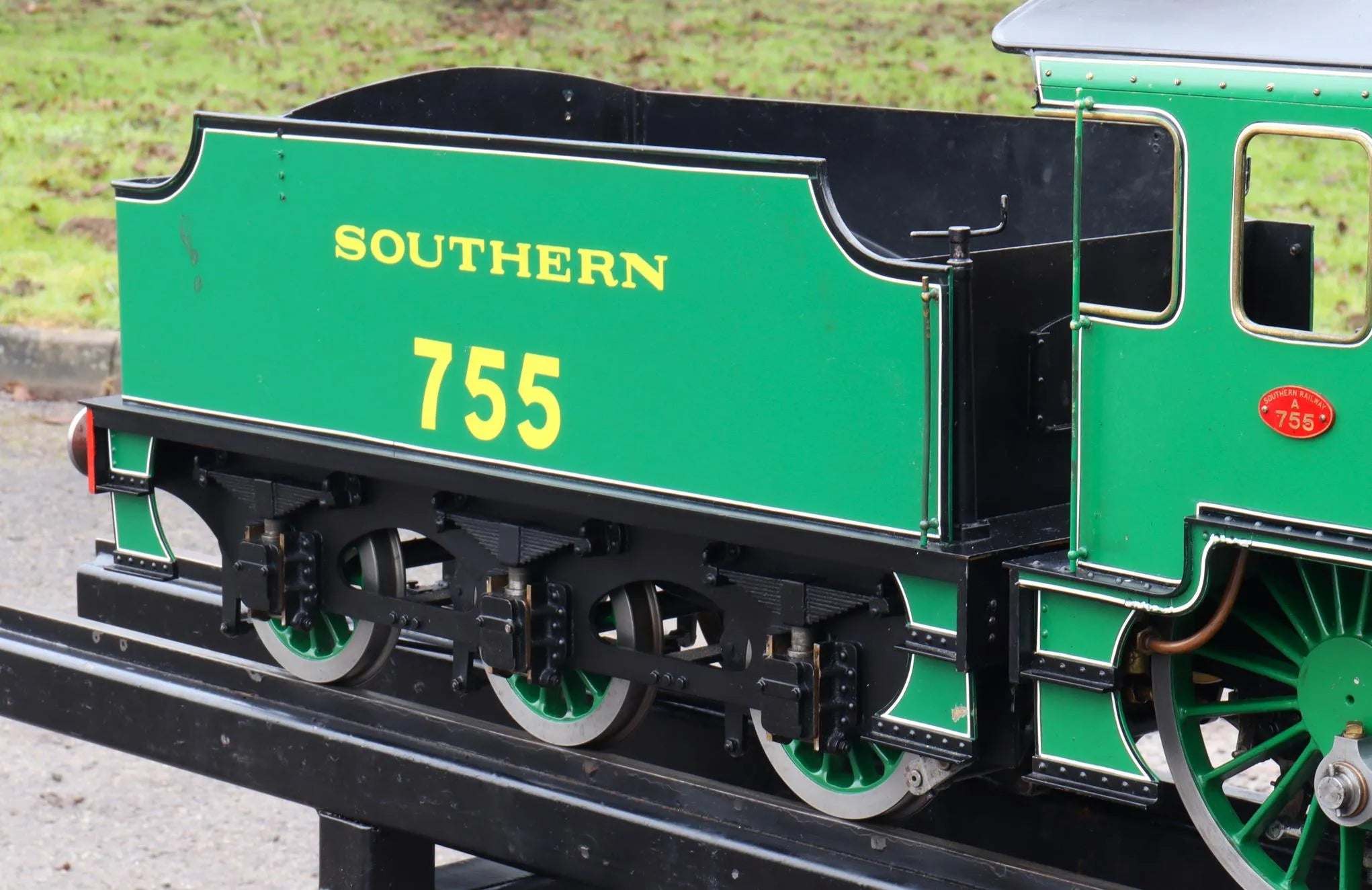

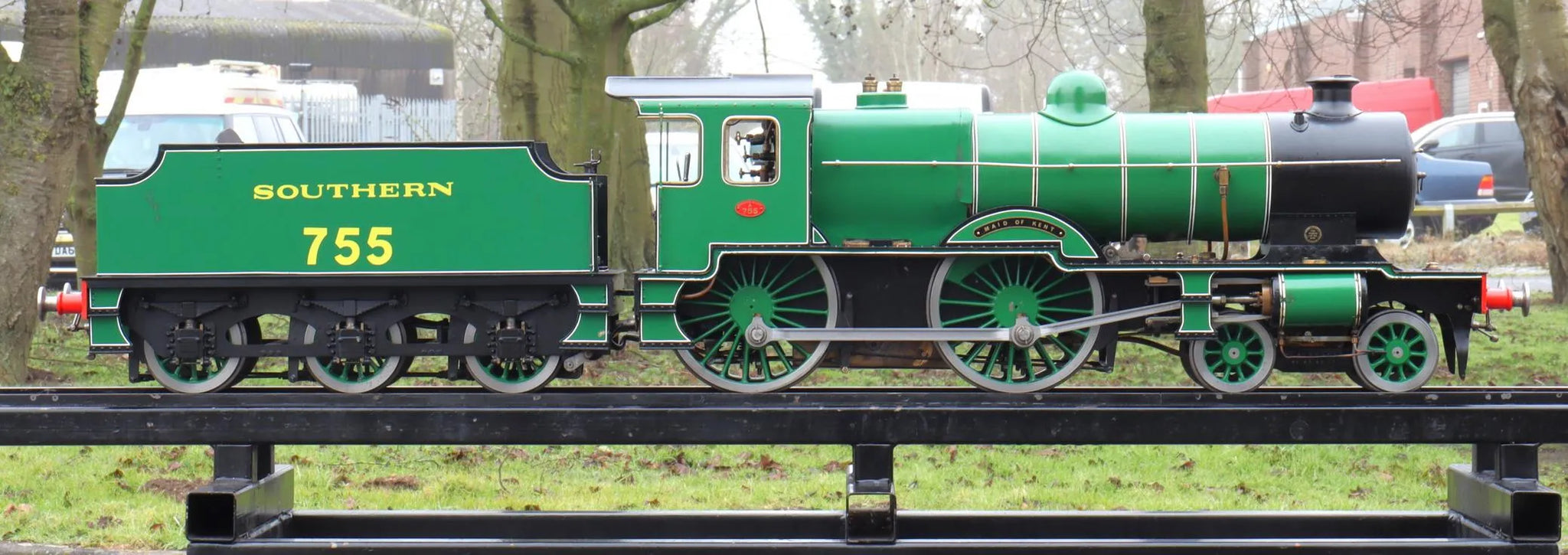

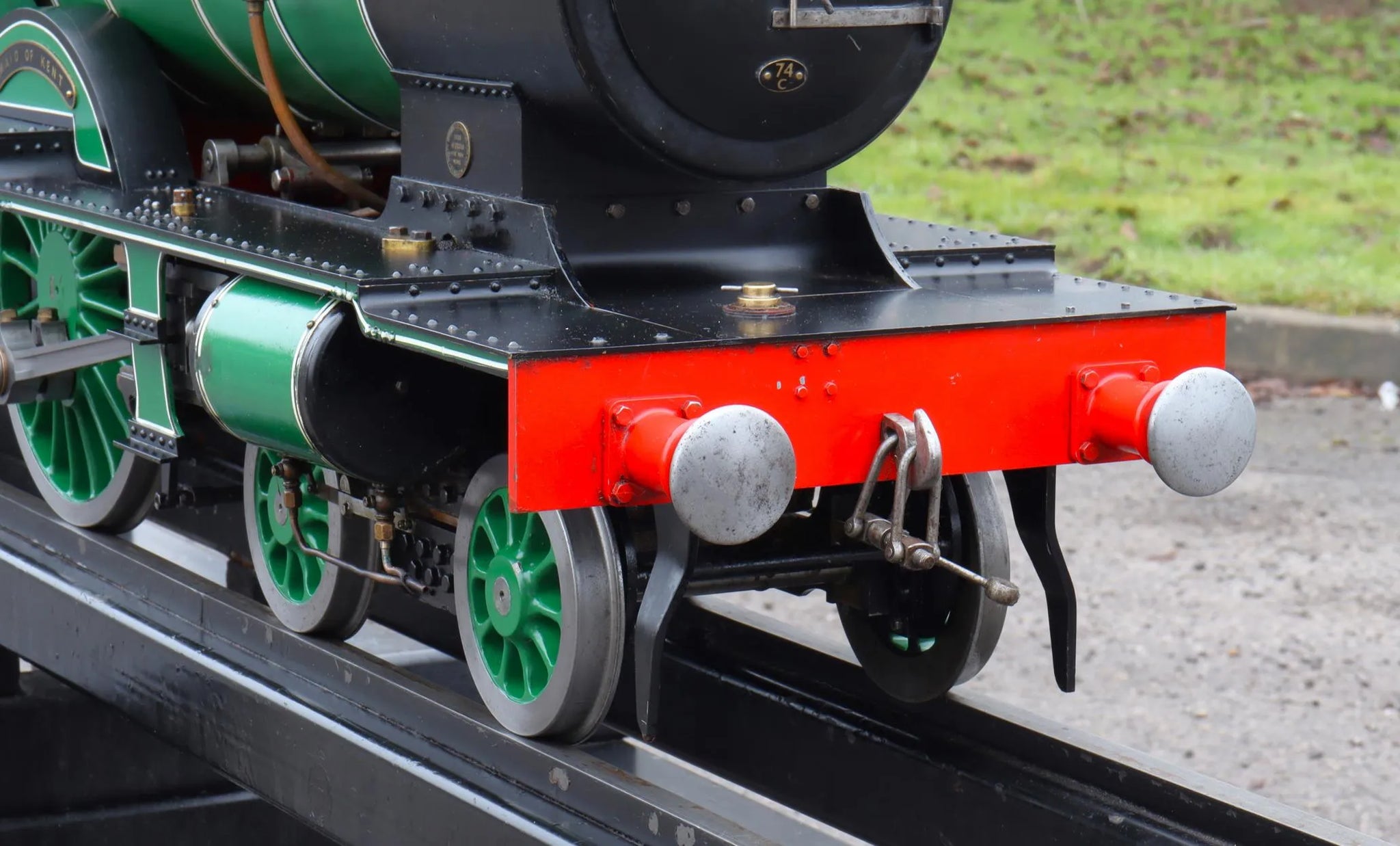

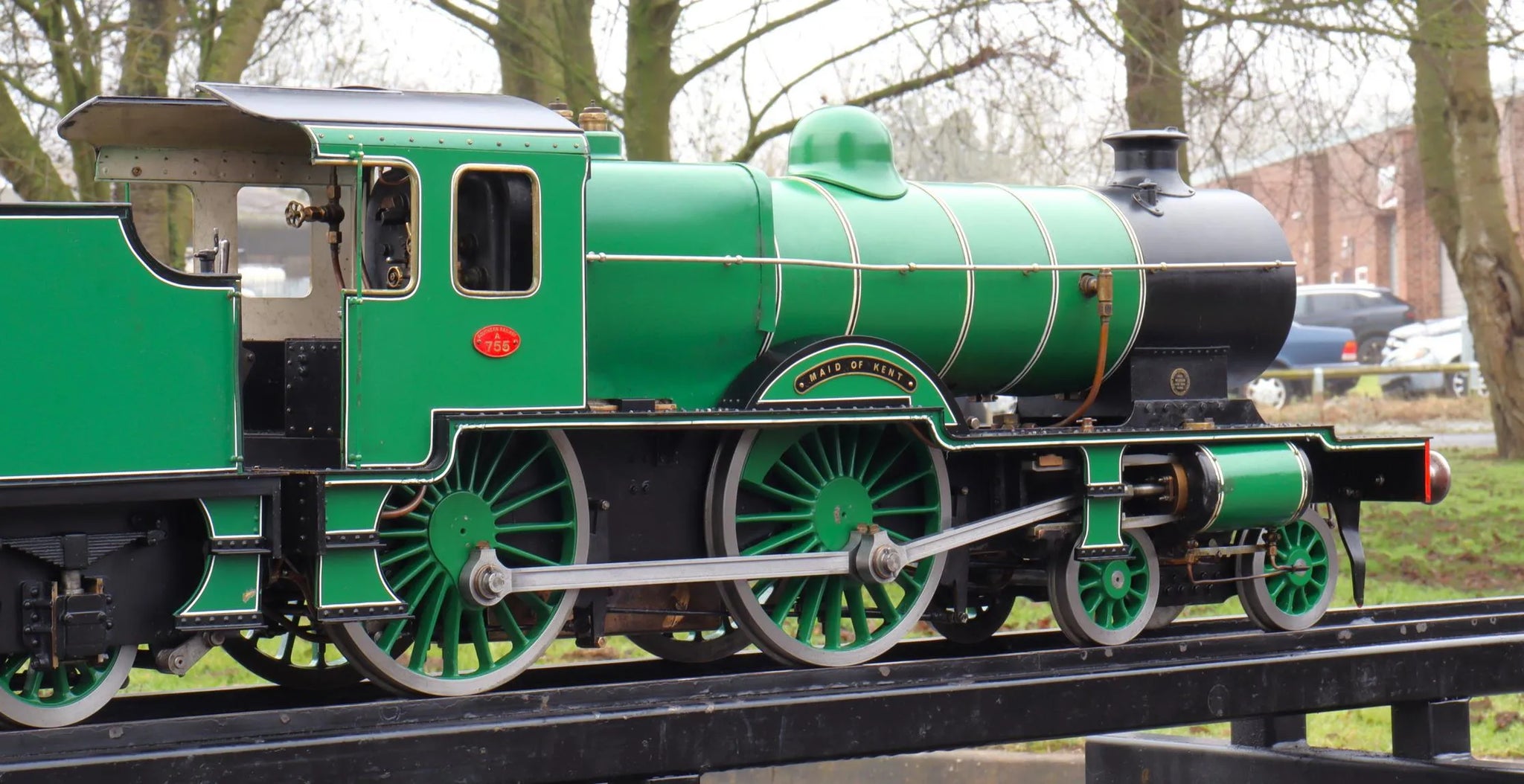

5 inch gauge Southern L1 4-4-0

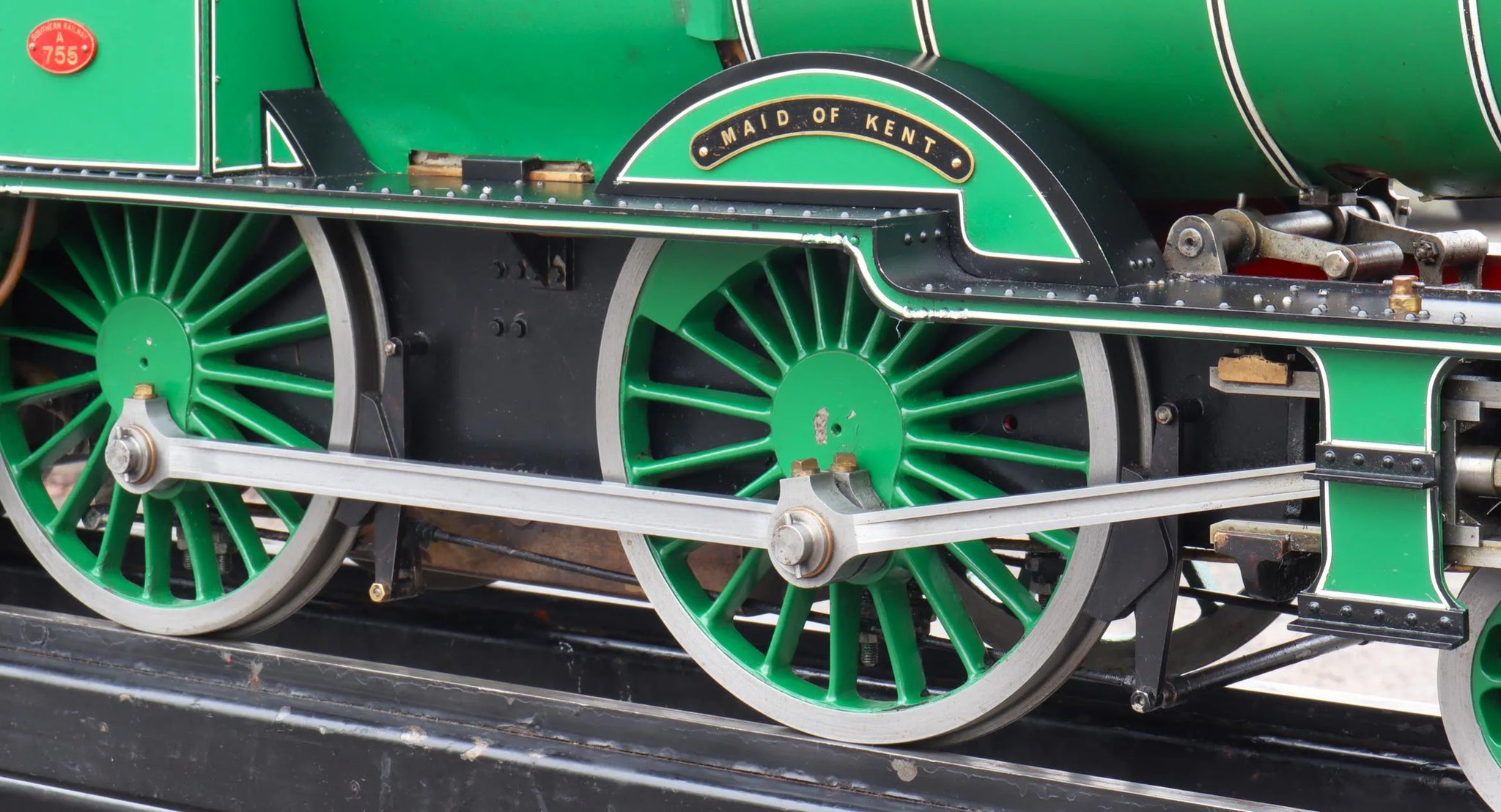

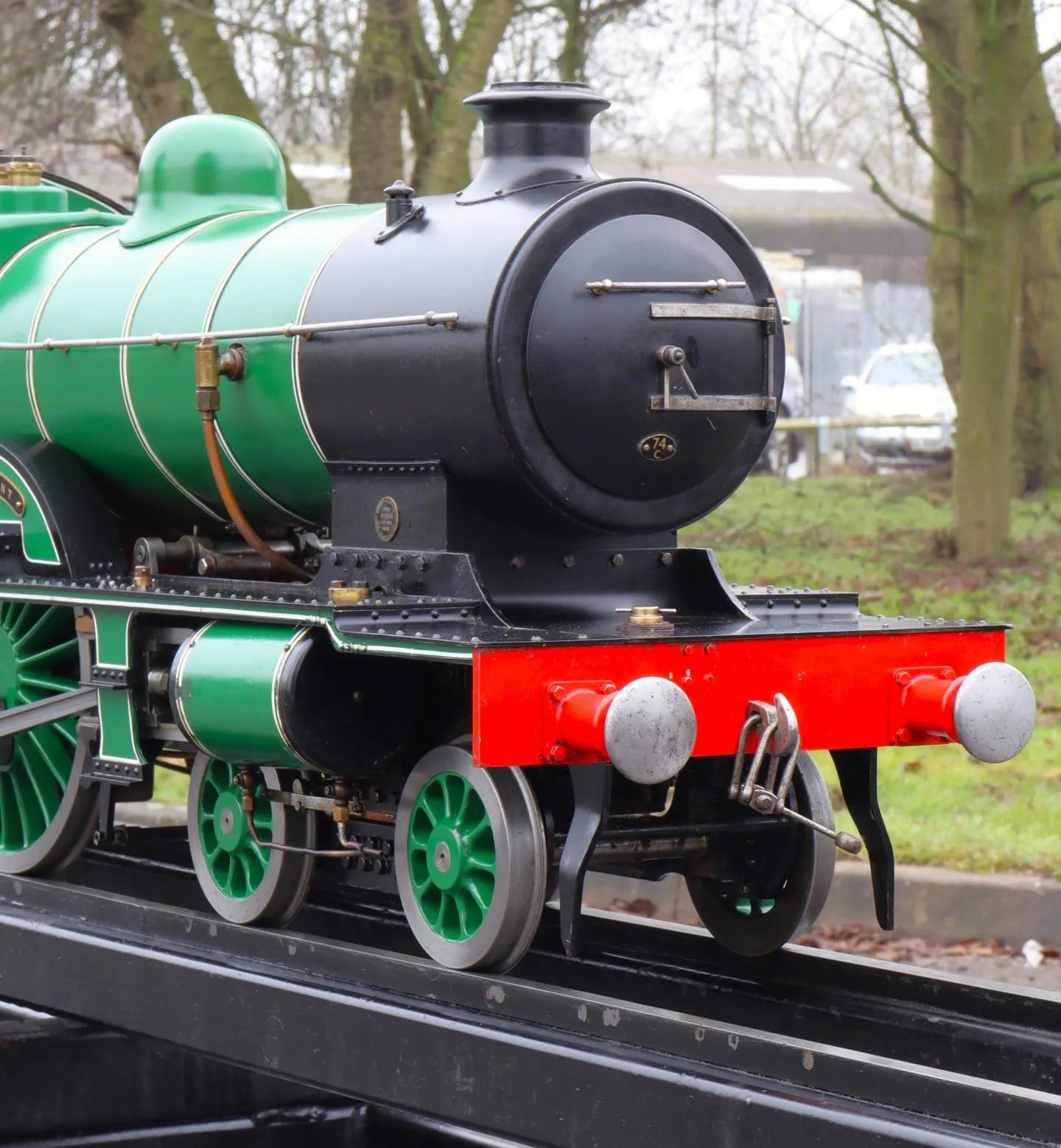

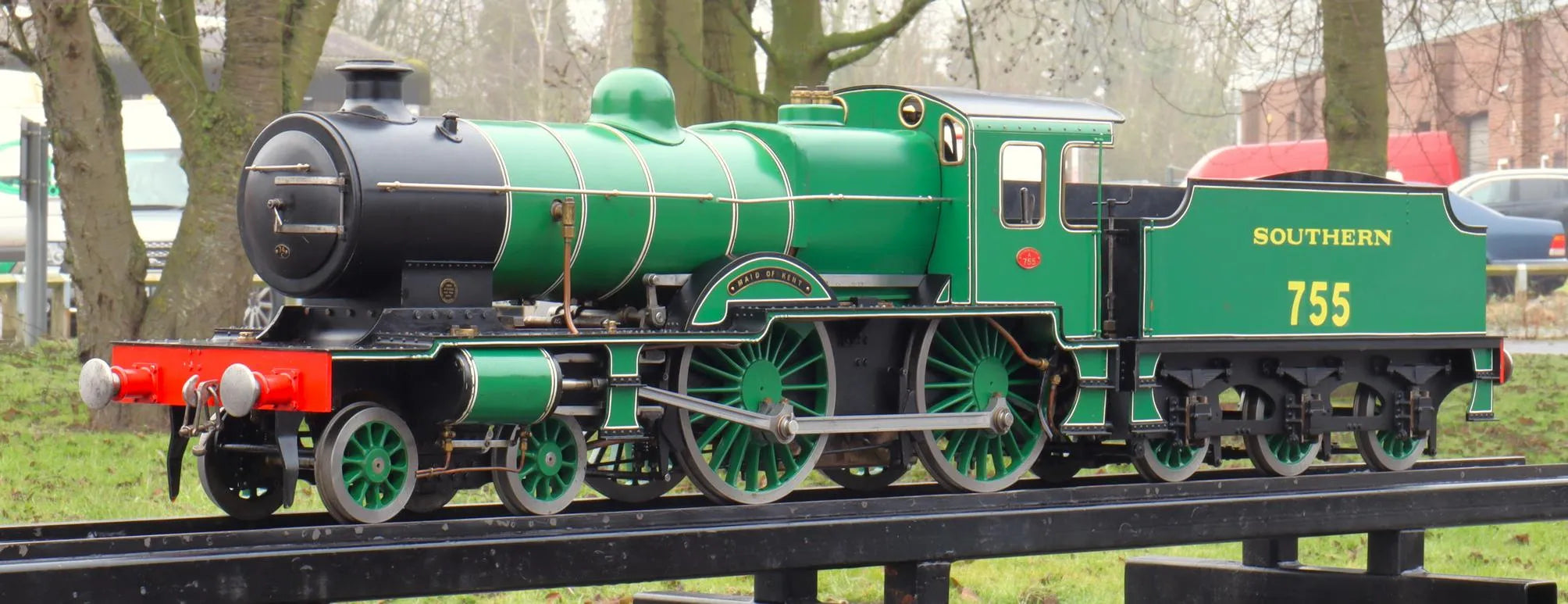

A 5 inch gauge Southern L1 4-4-0, built to LBSC's popular "Maid of Kent" design.

An exceptionally well-built locomotive, it's one of the nicest-running examples we've seen. Completed in 1960, a new CE-marked Southern Boiler Works boiler pressed to 100psi was fitted in 2014.

The boiler has had hydraulic and steam tests with new certification issued. We've fitted a pair of new safety valves and new injector, the original picking up slightly wet - we felt, given the quality of the rest of the engine, it deserved something that worked perfectly!

On test it proved free-steaming and ran superbly, notching up in either direction, the square, well-defined exhaust beats accentuated by the large driving wheels.

Supplied with12 months warranty and a starter kit including coal, oil and a set of firing irons. If required we would be more than happy to include half a day's training at our works on the firing, driving and disposal of the engine for a new owner.


Technical information

Stock code

12561

Gauge

5 inch

Length/inches

36+24

Width/inches

9.5

Height/inches

13

Weight/Kg

76

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

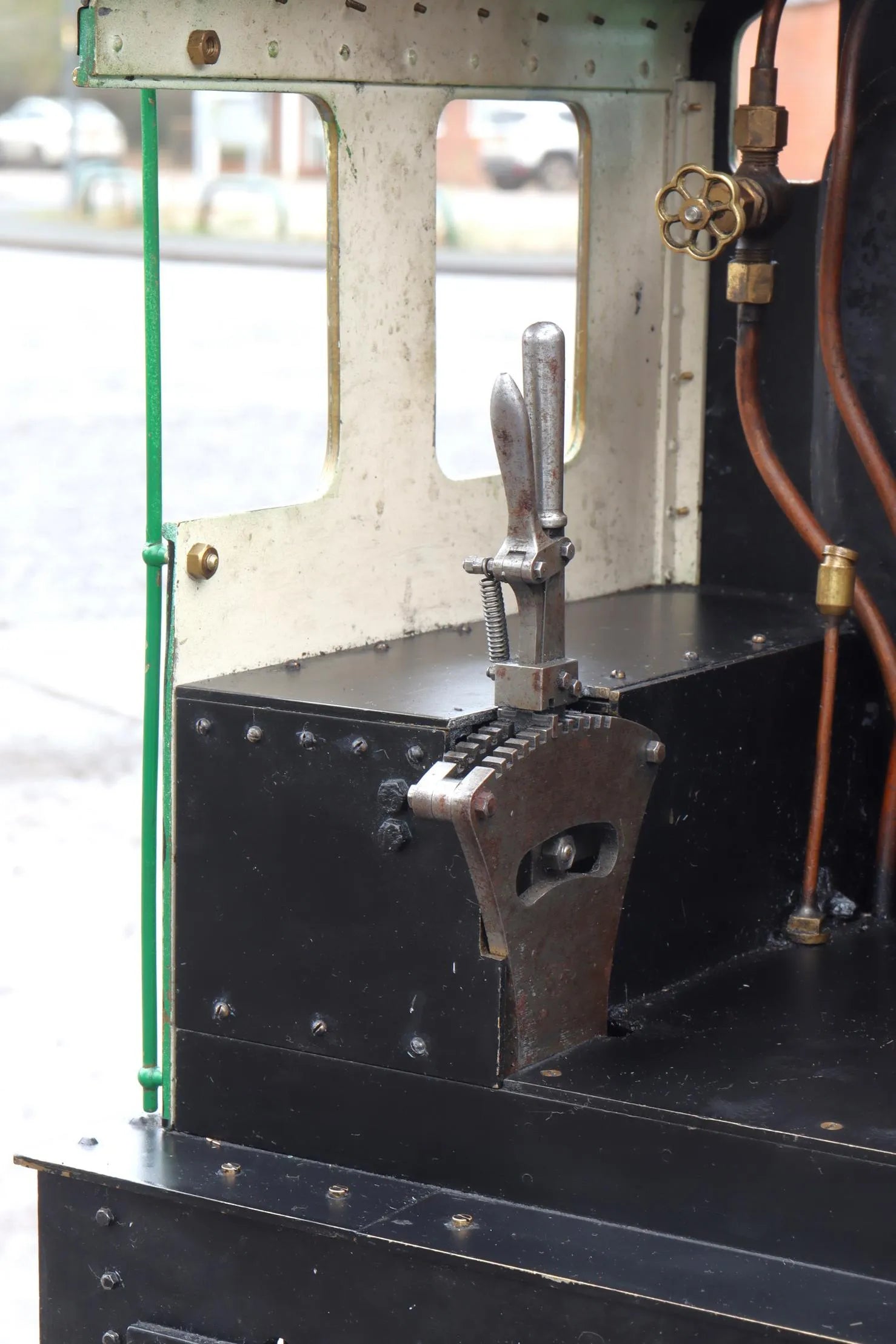

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Southern Boiler Works

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

yes

Year built

2014

Boiler number

5080, marked at bottom of backhead

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

radiant

Superheater

4

Date out

Jun-25

Hydraulic test valid to

17-Dec-28

Steam test valid to

15-Mar-26
