5 inch gauge "Maid of Kent" 4-4-0

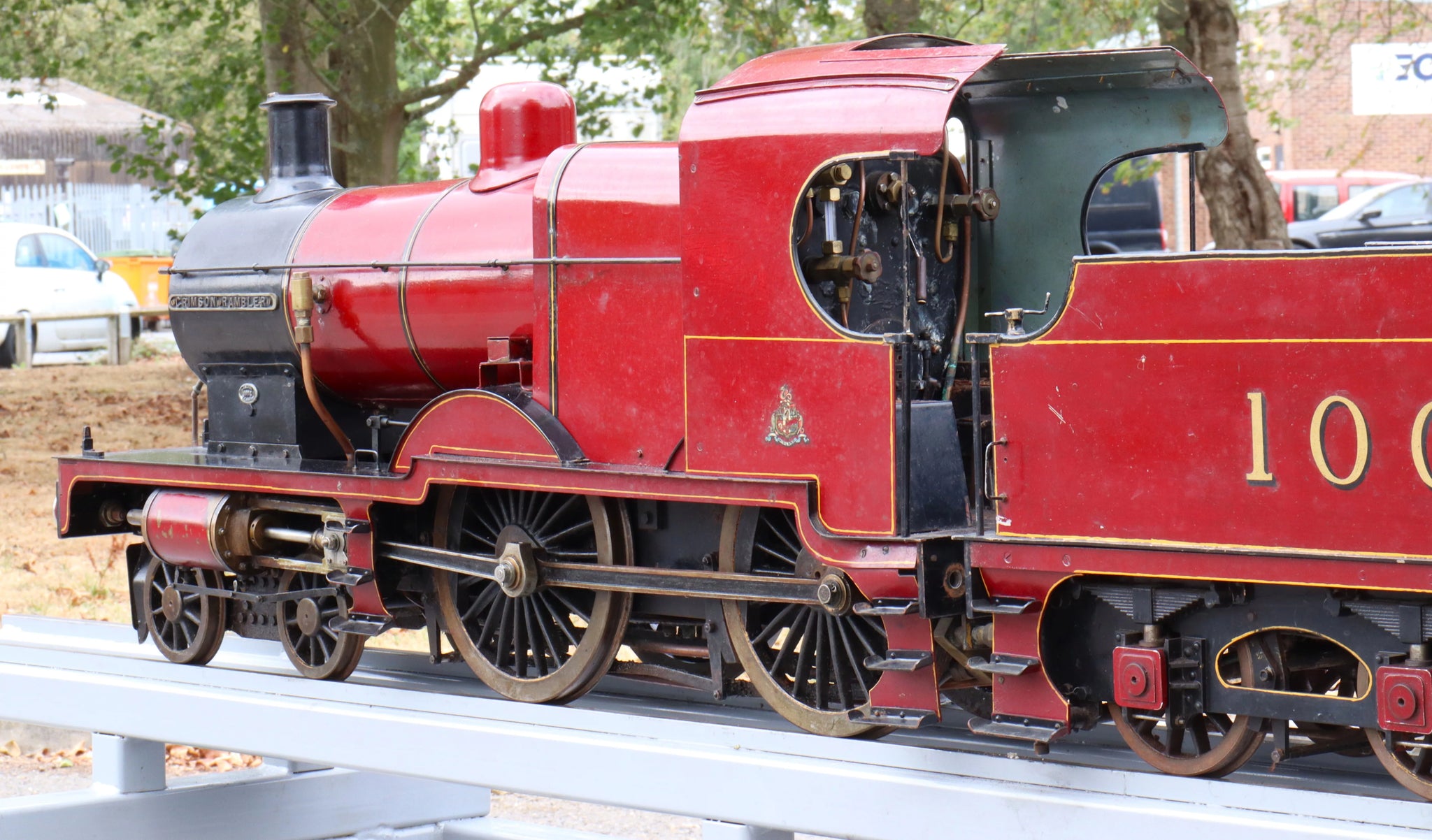

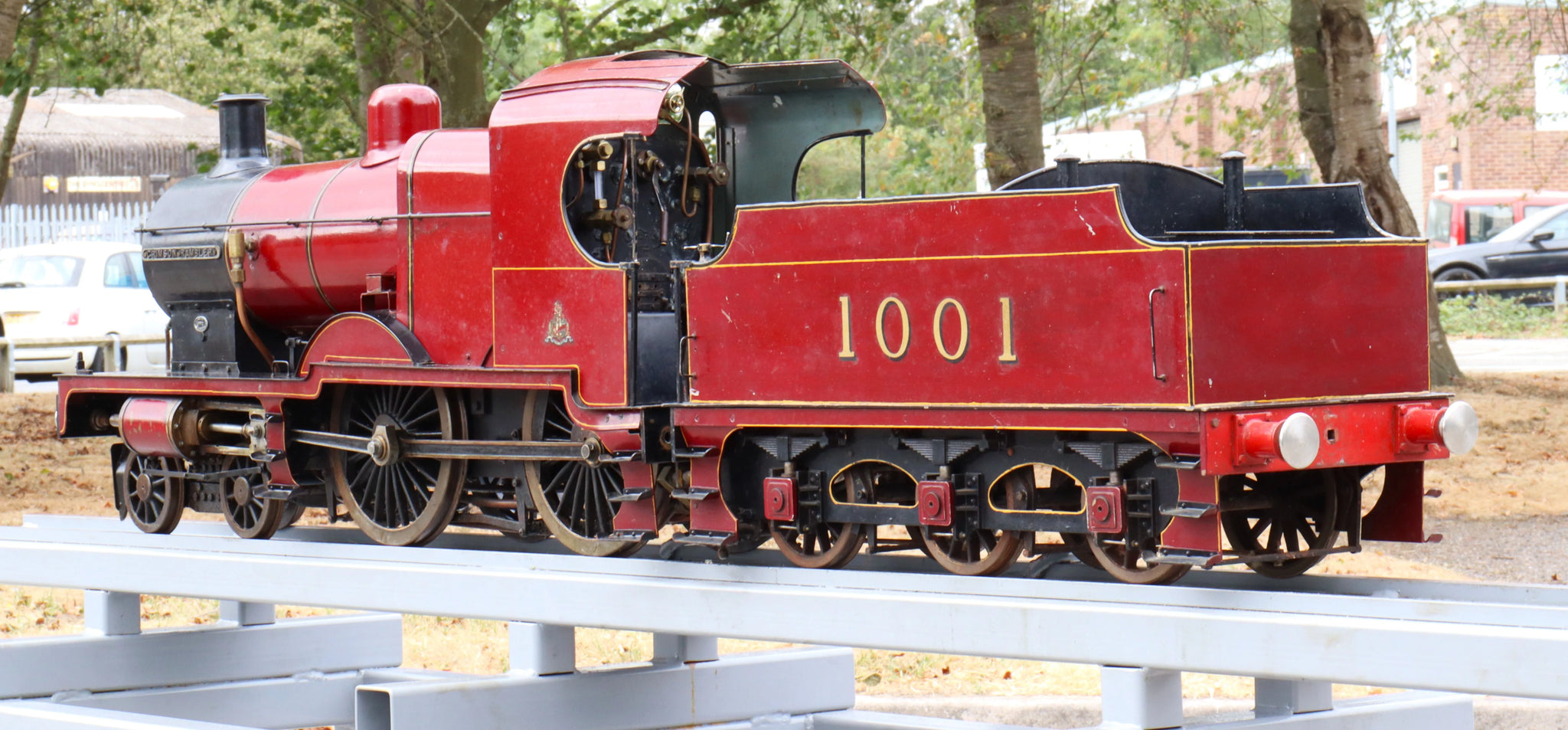

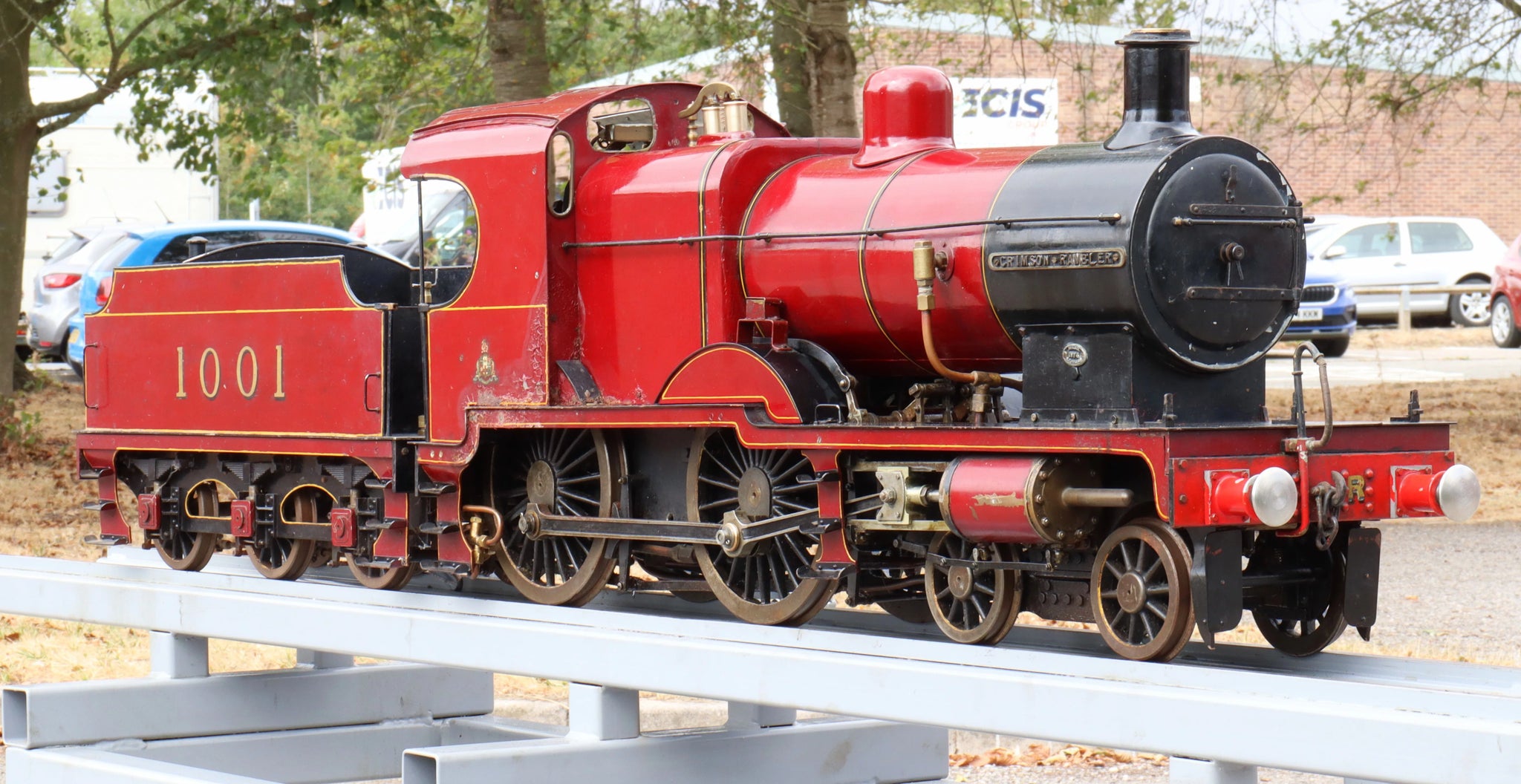

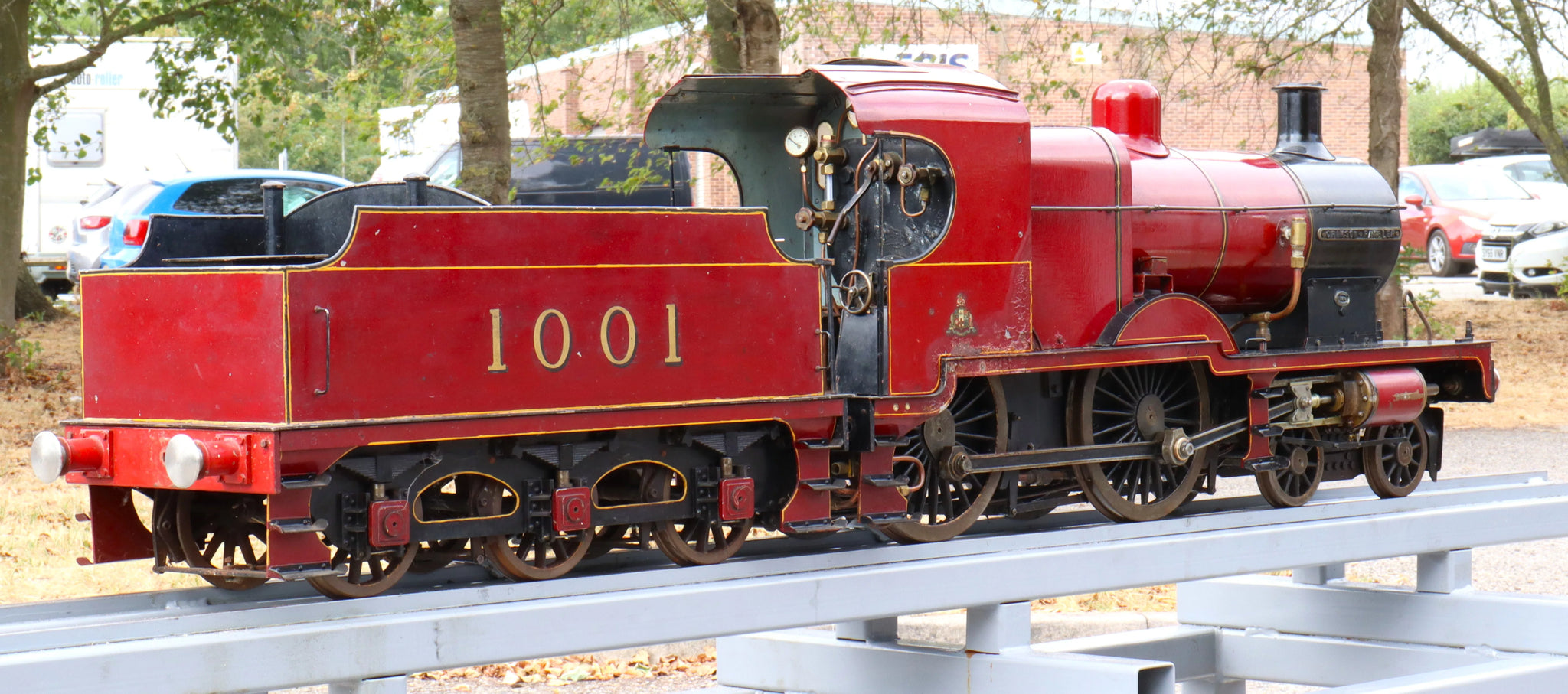

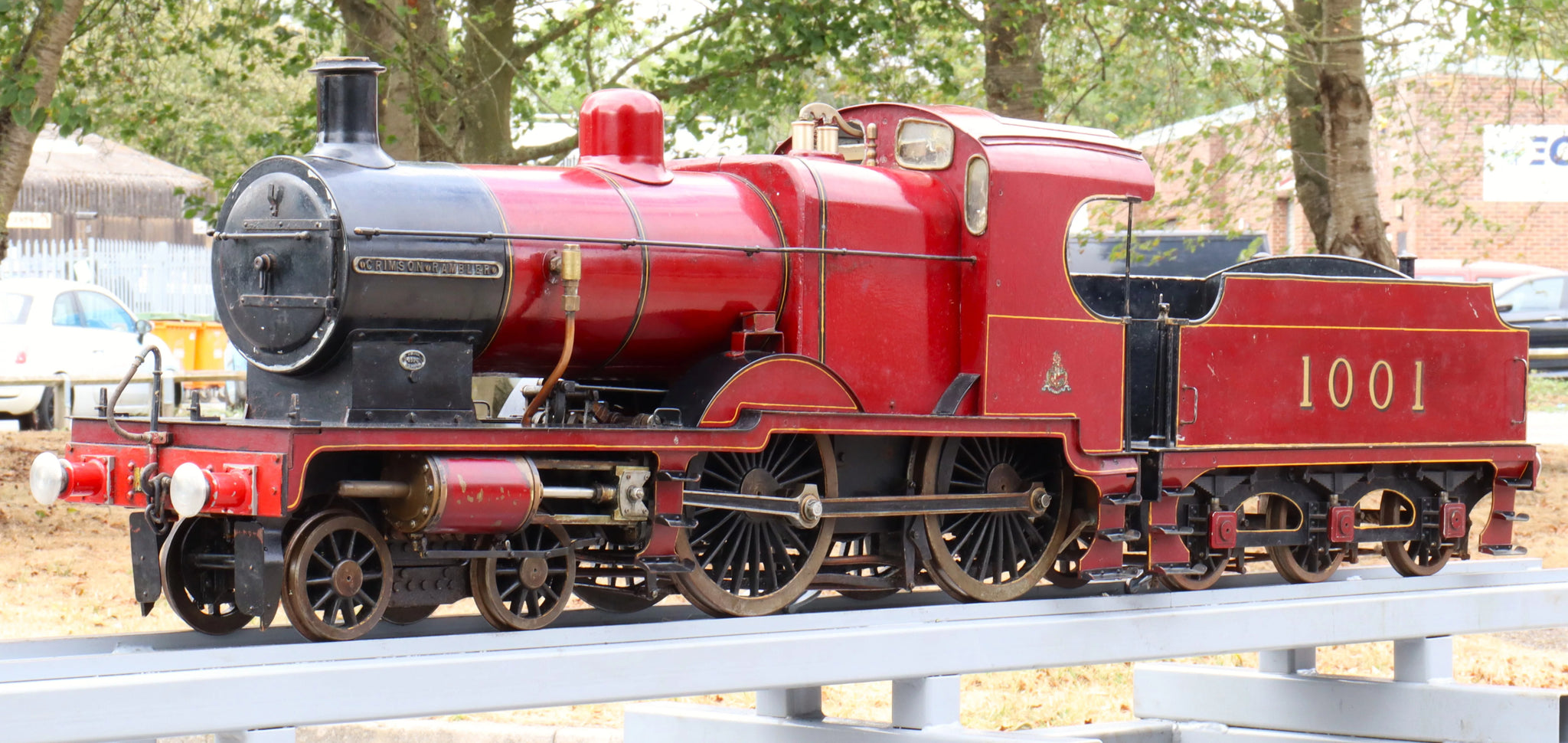

A 5 inch gauge "Maid of Kent" 4-4-0, in outside cylinder configuration.

Something of a barn find, it came to us with no boiler paperwork. We've undertaken a hydraulic test at 160spi and observed no signs of leaks or deflection, though it will require a cladding-off inspection before use.

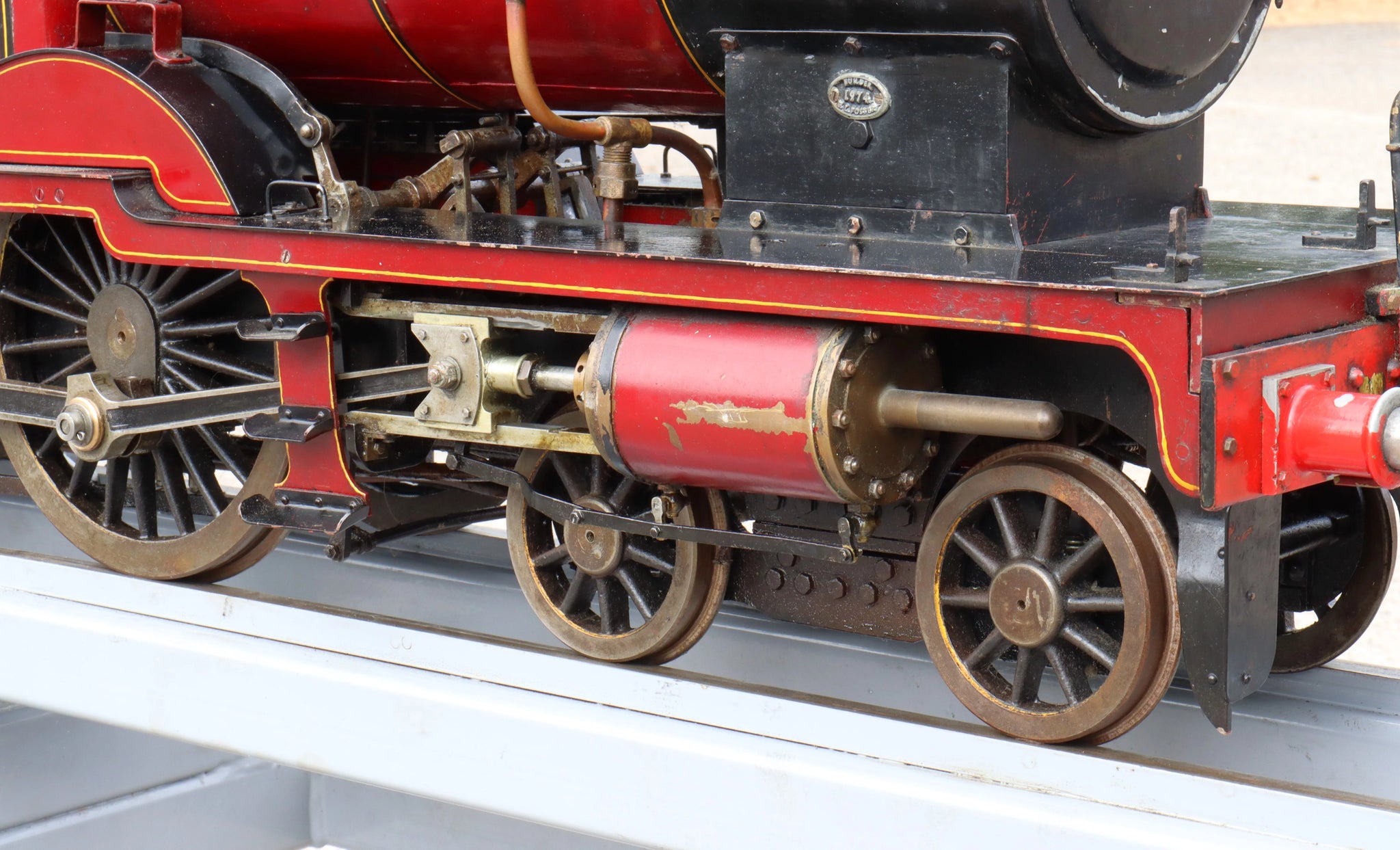

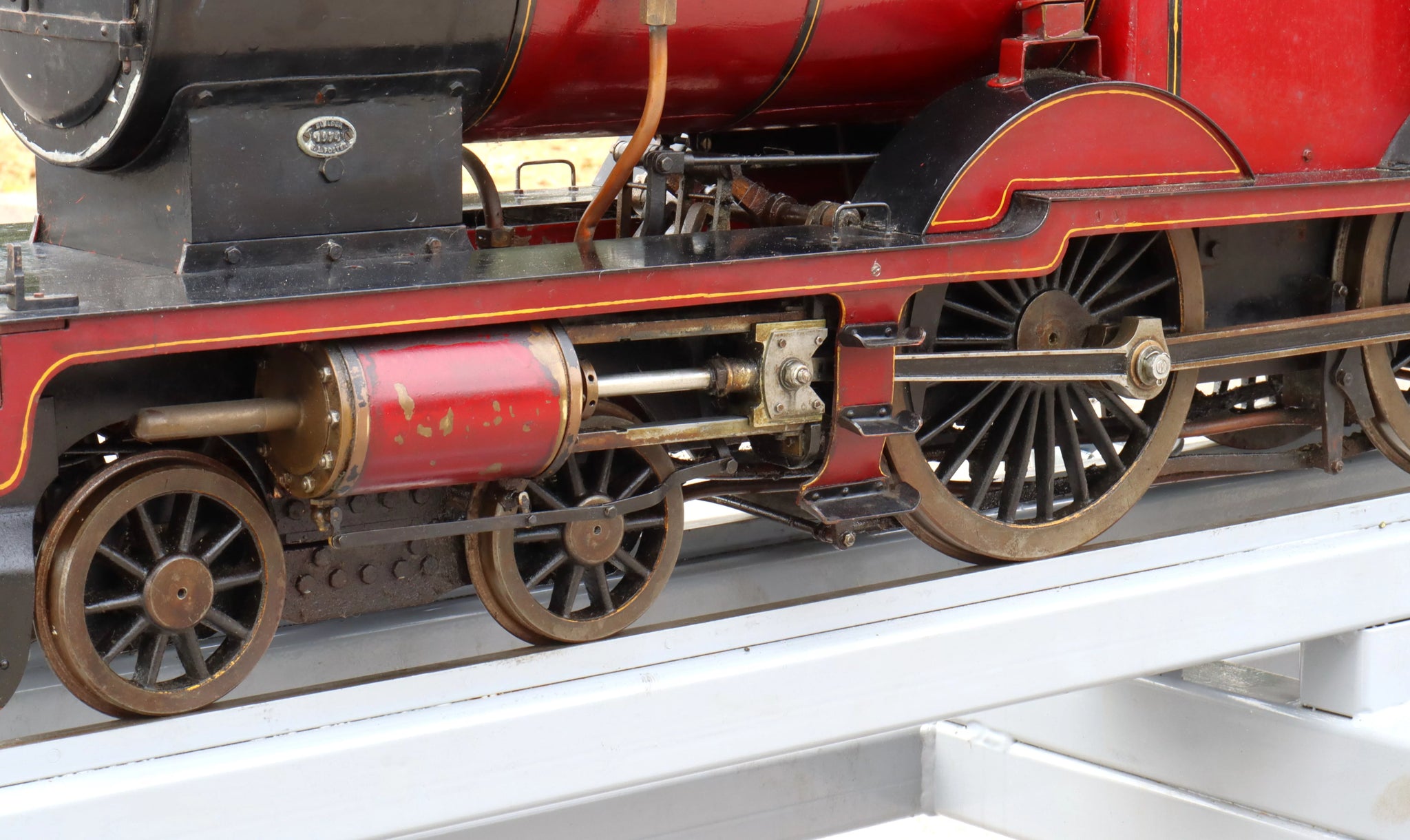

The chassis runs in both directions on compressed air, though both sets of drain cocks will require servicing.

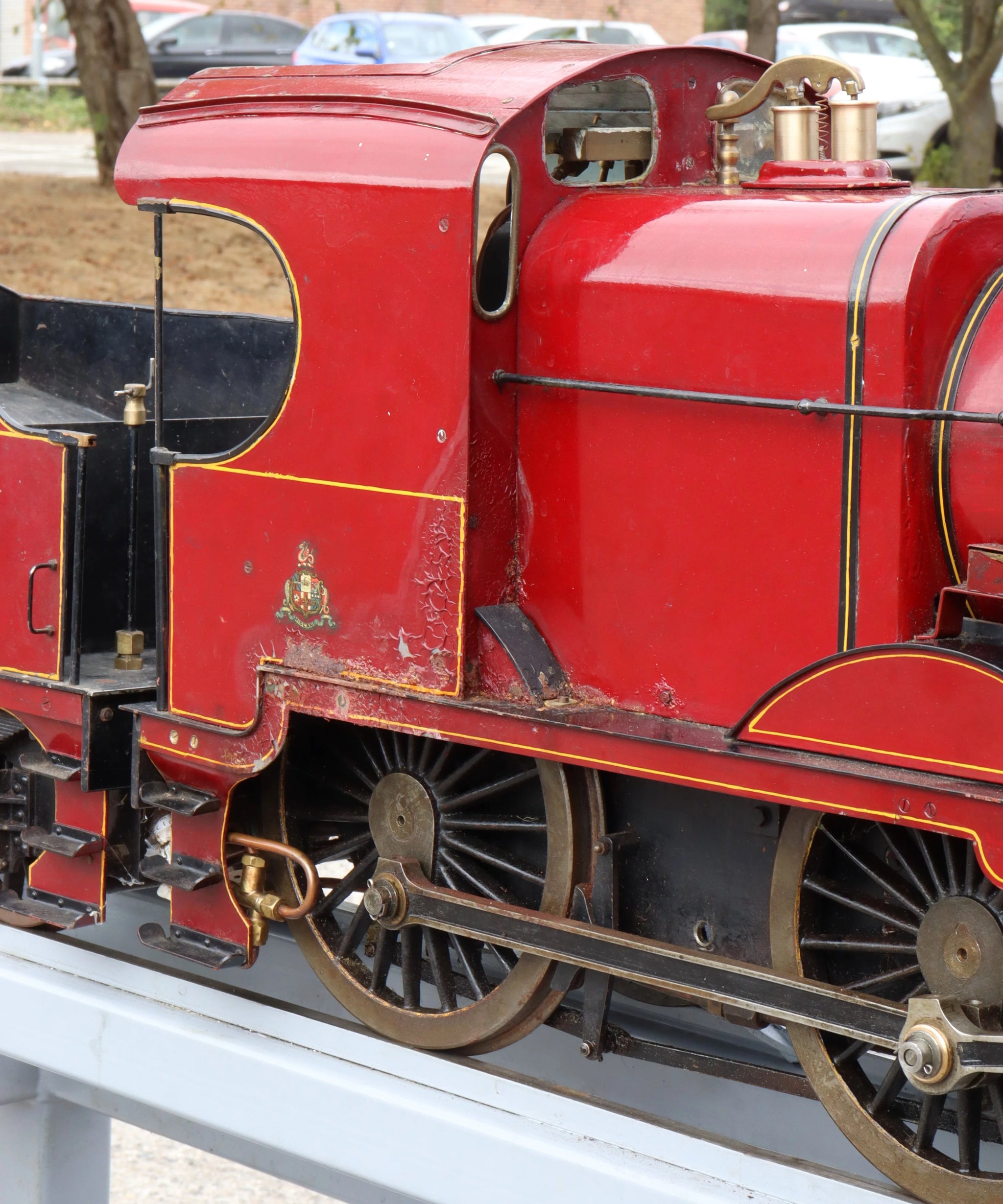

The paintwork has been well-applied and must have been pleasing when new - however, the RHS cab side has suffered badly in storage and will require repainting.

Missing its ashpan and grate, but otherwise complete.

Technical information

Stock code

13415

Gauge

5 inch

Length/inches

37 + 24

Width/inches

10

Height/inches

16

Weight/Kg

82

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler maker

unknown

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Year built

unknown

Safety valve type

spring

Safety valve

2

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4
