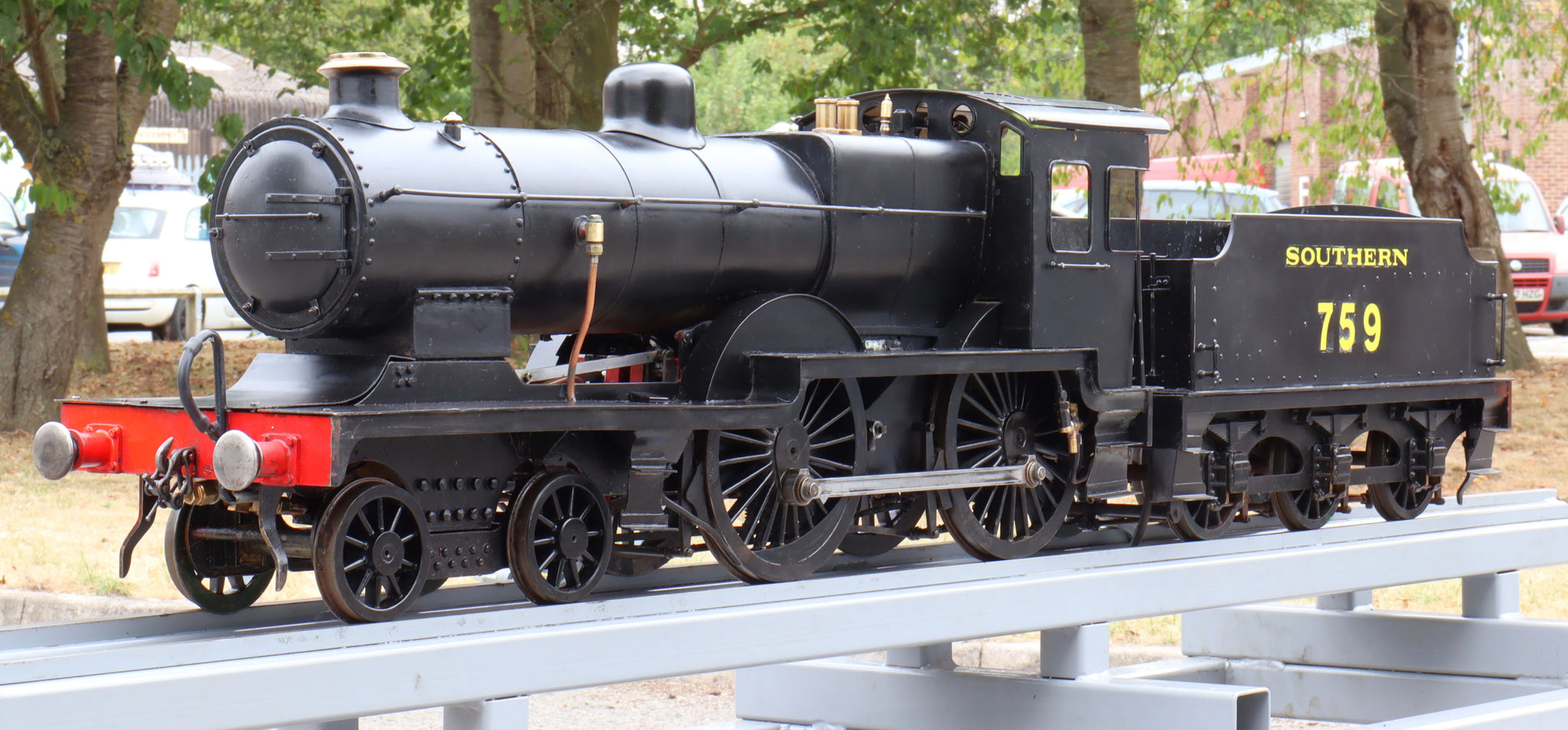

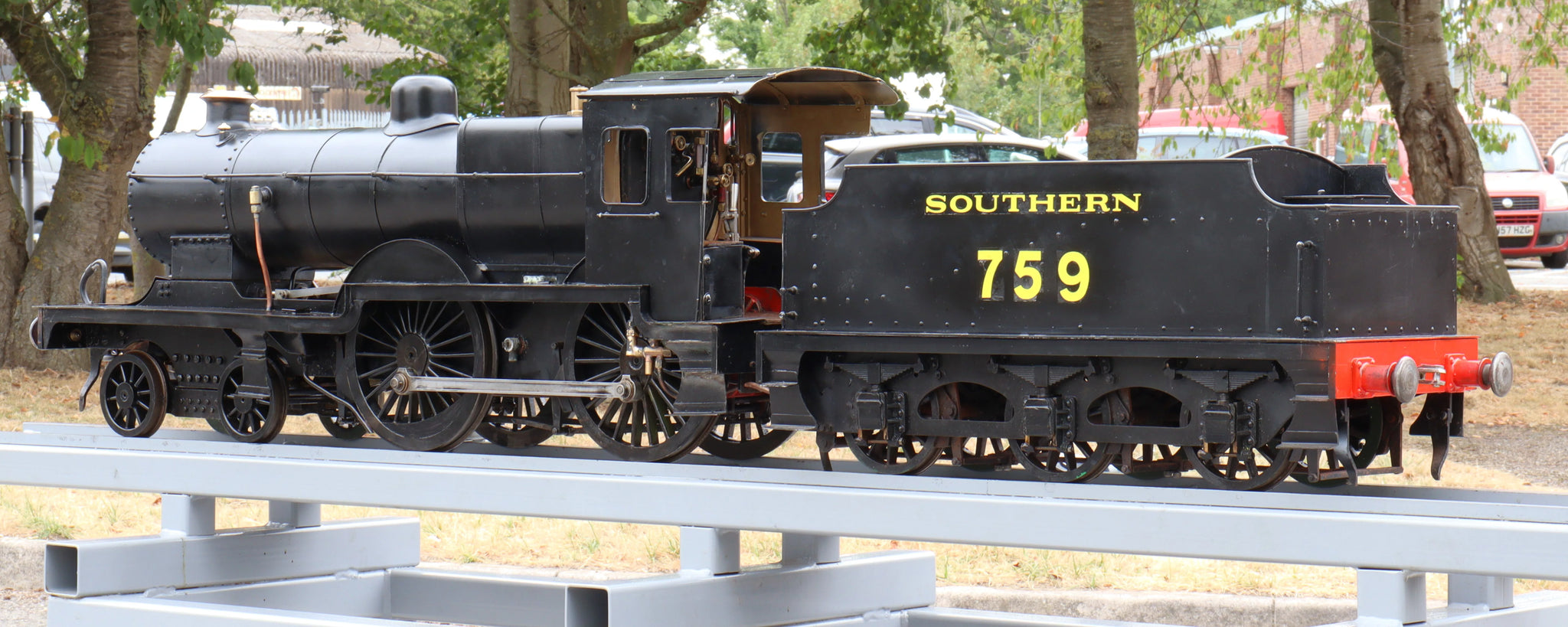

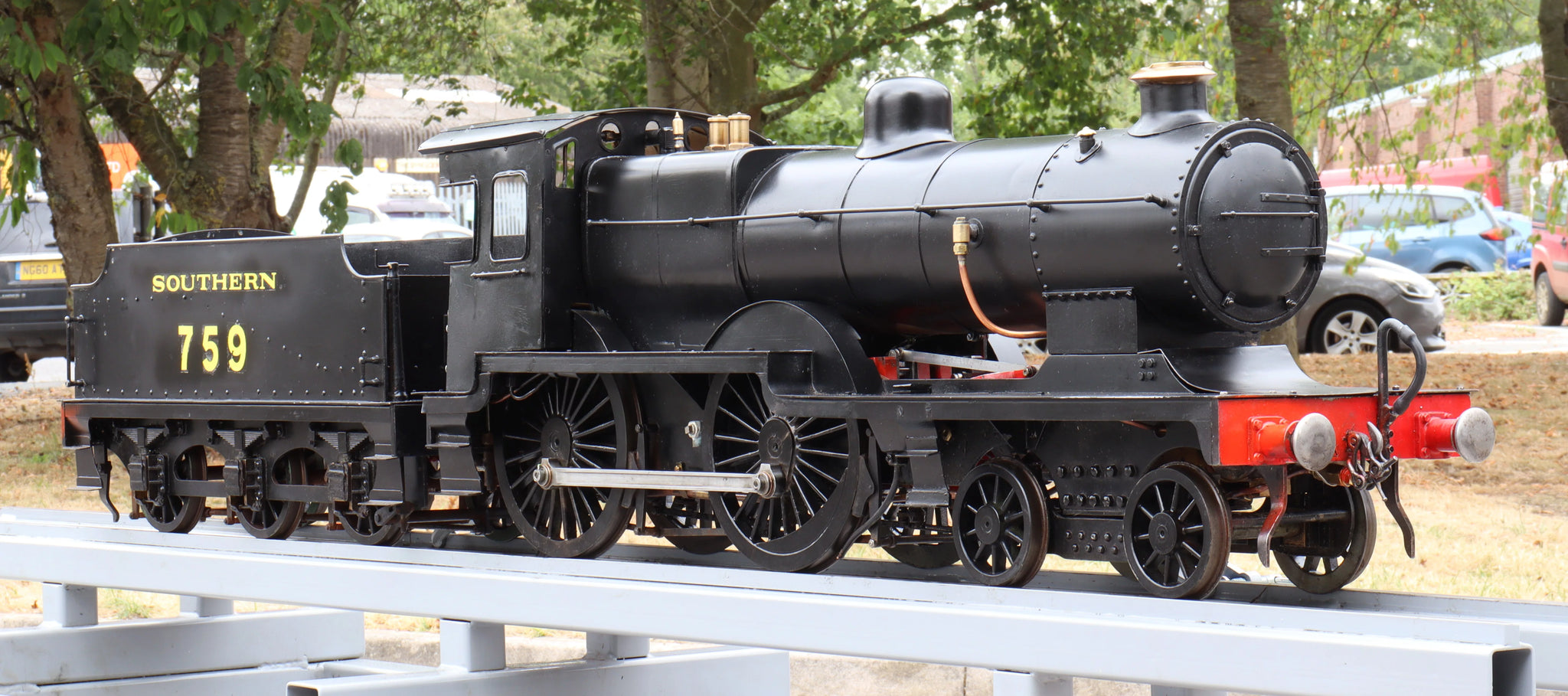

5 inch gauge "Maid of Kent" 4-4-0

A 5 inch gauge 4-4-0 to LBSC's popular "Maid of Kent" design, this one in our favourite variant of inside cylinders and Joy valve gear.

An older engine in running order - we found it steamed freely and ran well once underway - but now needing some basic servicing to bring it up to scratch. This could be done between runs, or as part of winter maintenance and includes:

  • service leaky regulator
  • repack glands
  • replace front cylinder cover gaskets
  • service/replace injector which proved unreliable

The commercially built CE marked boiler by Western Steam has club history, with current hydraulic and steam test certificates.

Technical information

Stock code

13417

Gauge

5 inch

Length/inches

40 + 23

Width/inches

10

Height/inches

14

Weight/Kg

72

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Joy

Reverser type

pole

Boiler maker

Western Steam

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

yes

Year built

2003

Boiler number

WSME.227.02.03.HV

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Hydraulic test valid to

23-Apr-2028

Steam test valid to

22-Jul-2027
