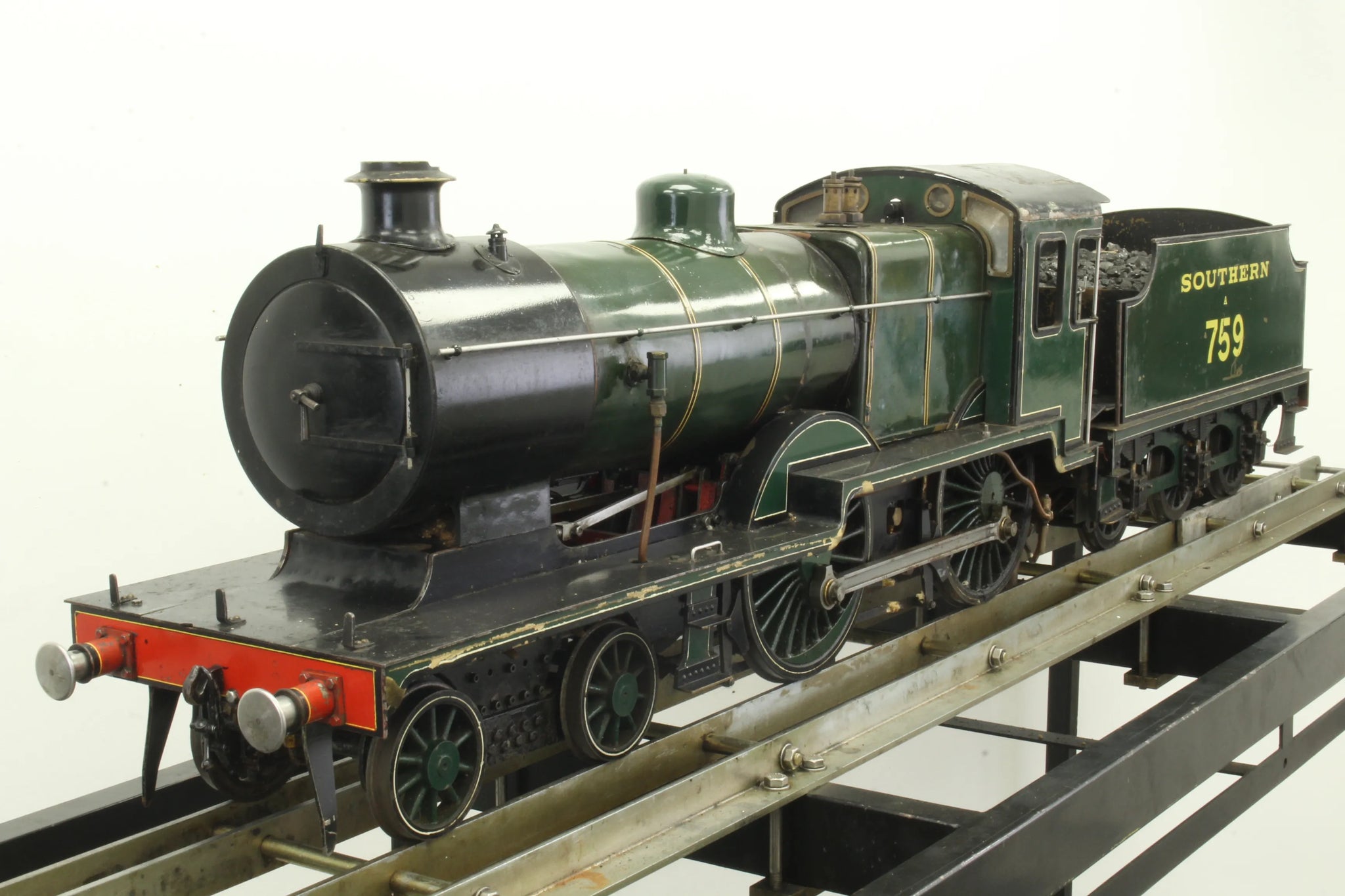

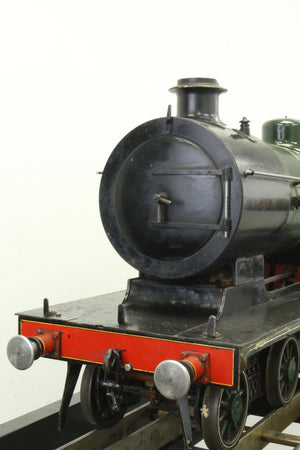

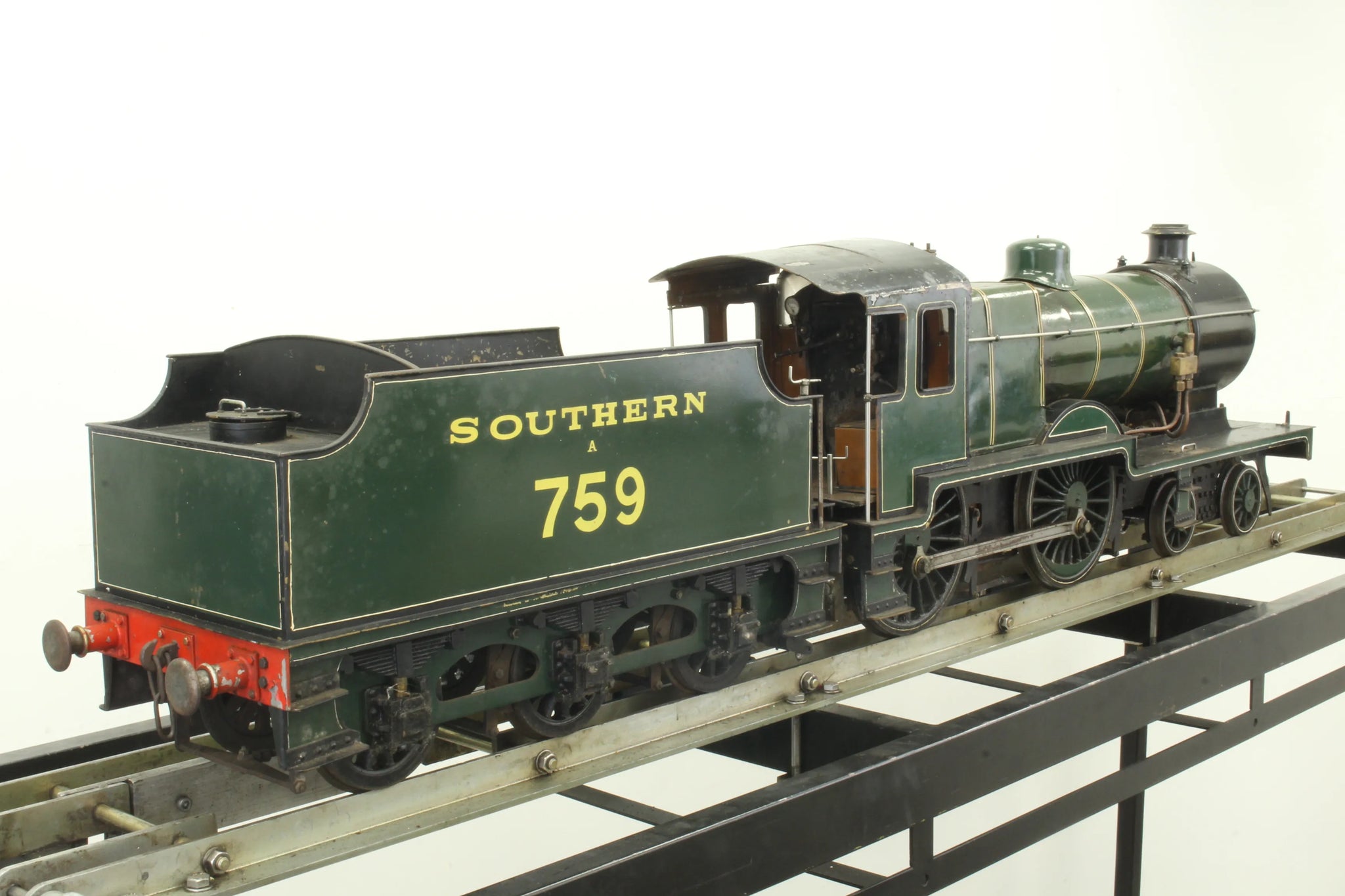

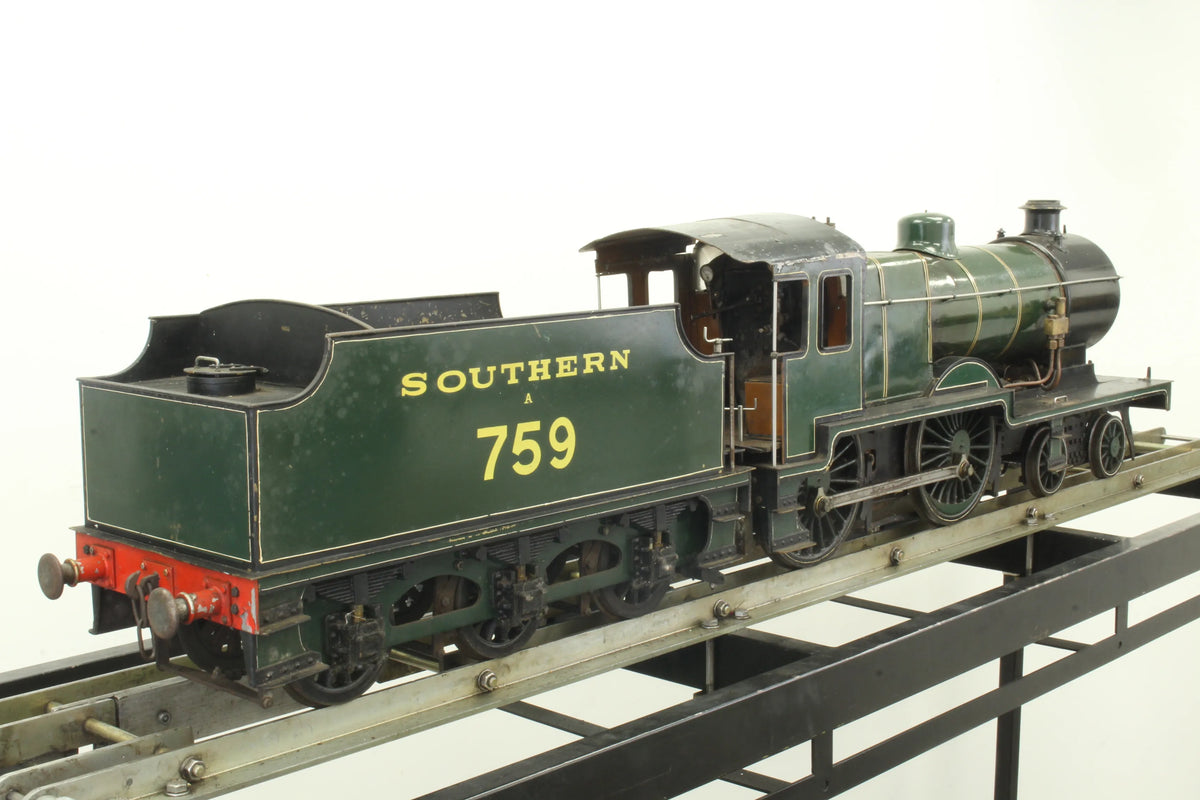

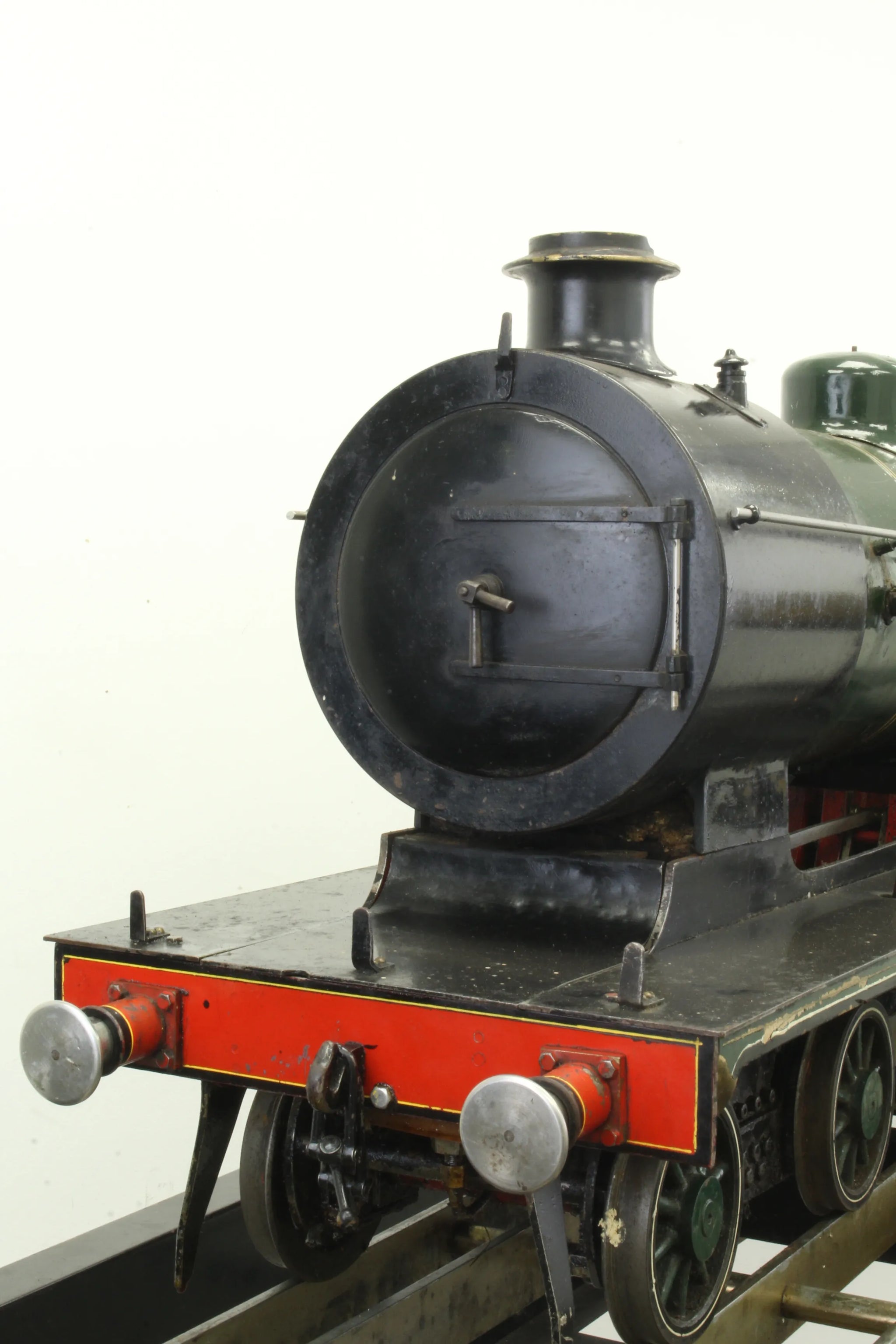

5 inch gauge "Maid of Kent" 4-4-0

A 5 inch gauge "Maid of Kent" - this one done us as a Southern L1 with inside cylinders and Joy gear.

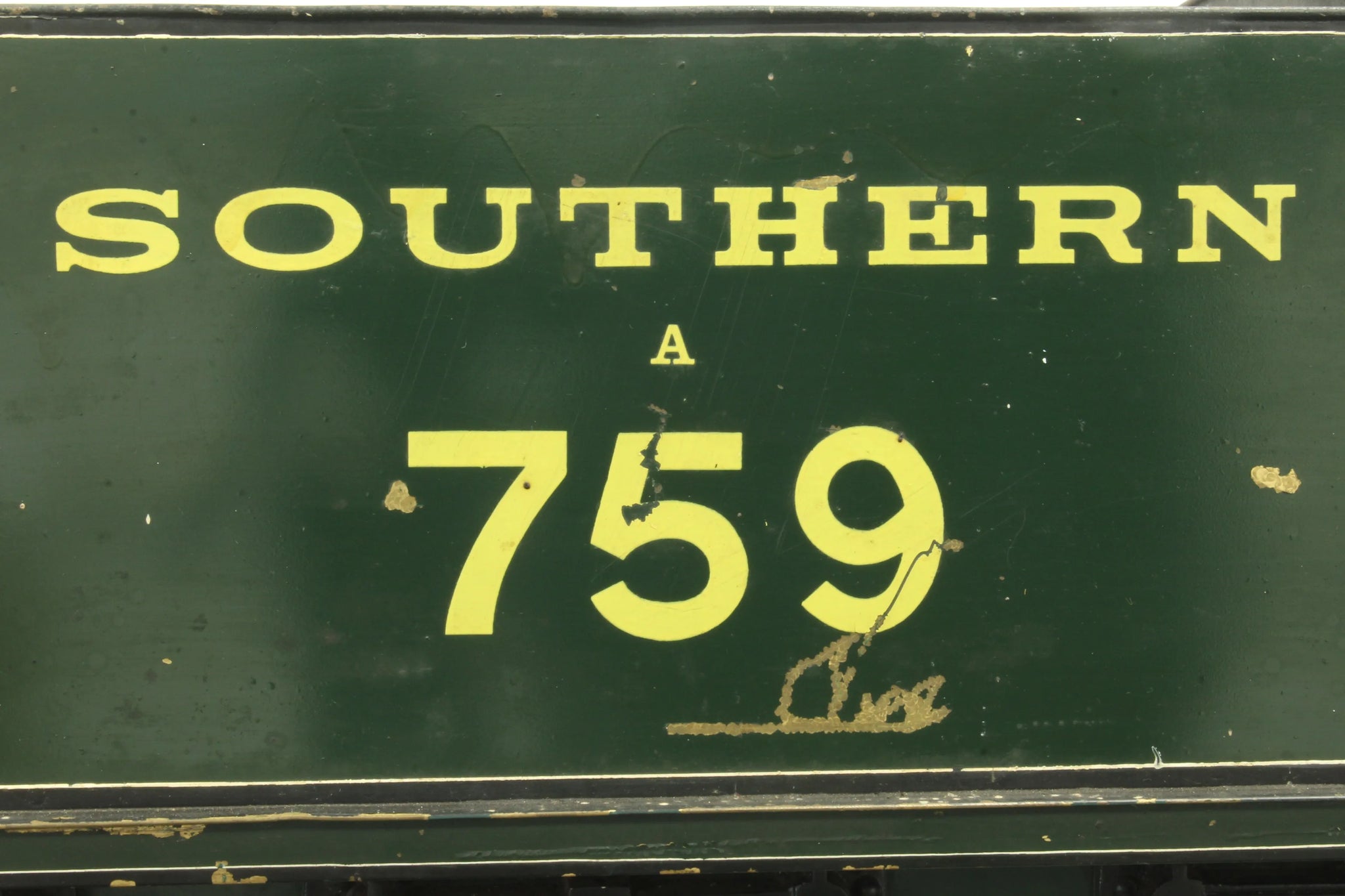

Same builder (and similar vintage) as the Great Eastern 2-4-0 we sold recently. It has similarly suffered in storage over the years, paintwork is shabby.

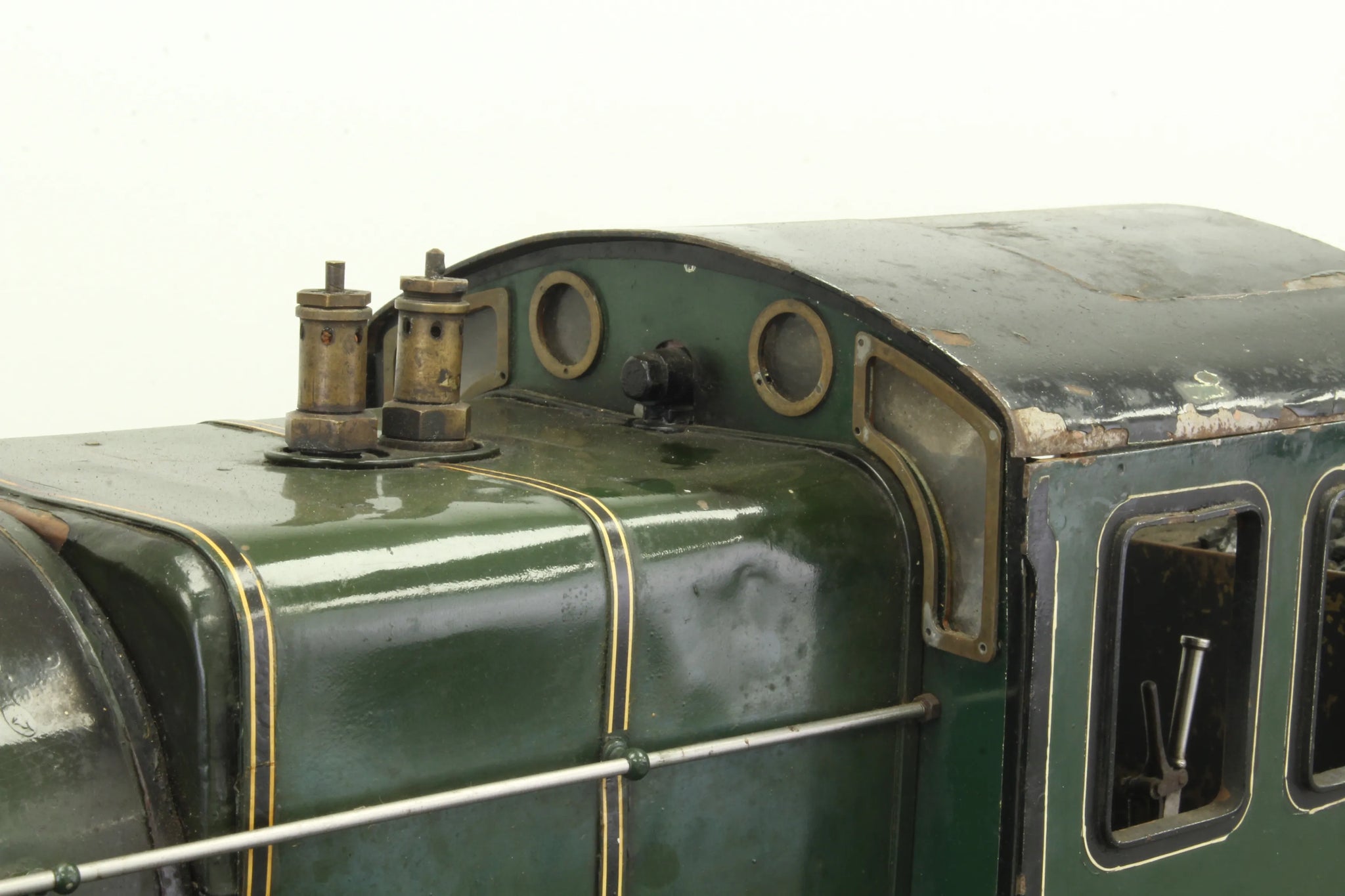

The commercially built boiler is by Chambers of Weymouth - structurally sound, although with one minor weep on a tube end which would take up under steam.

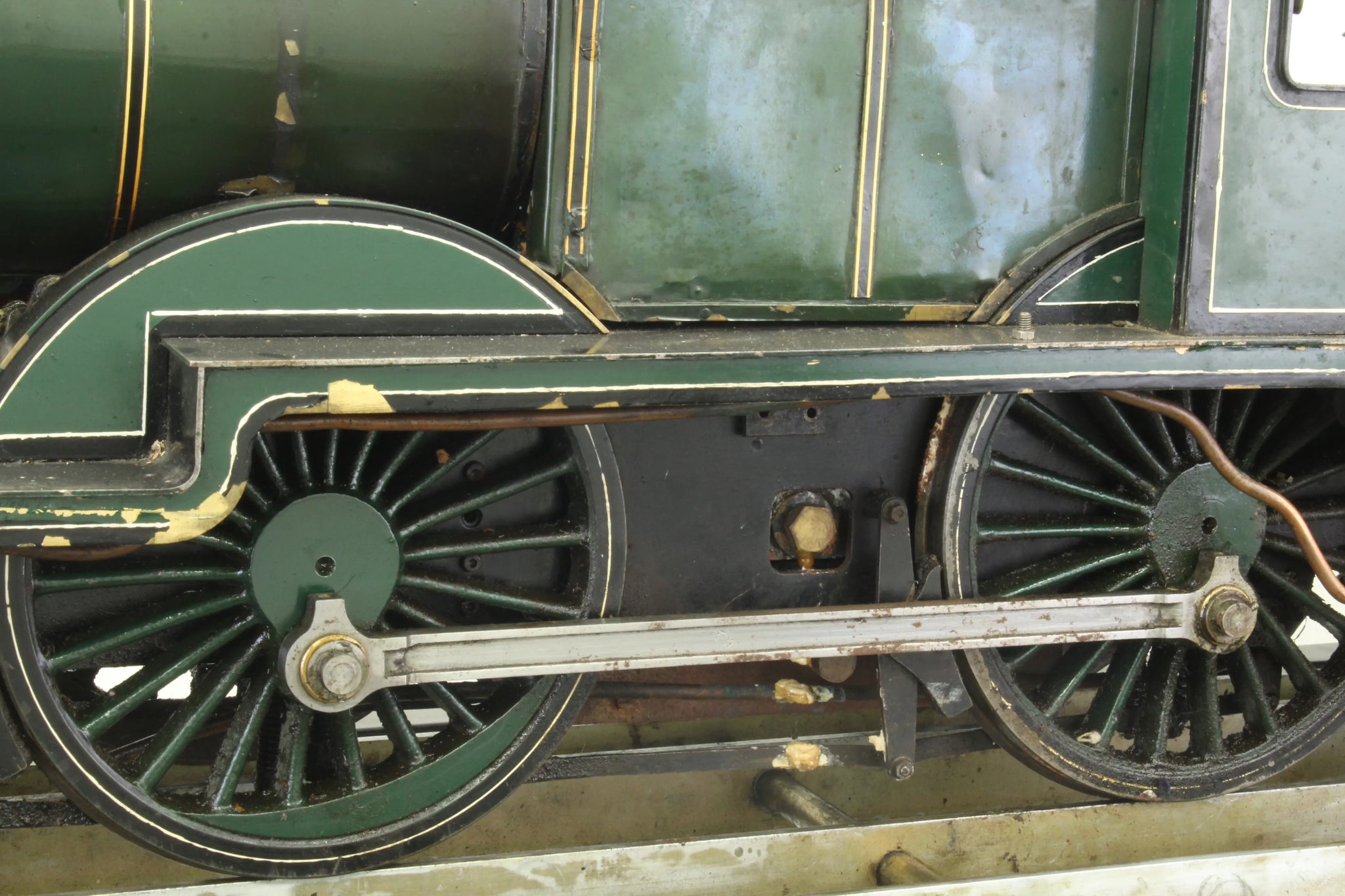

Mechanically it rolls freely and runs nicely on air in both directions.

Technical information

Stock code

8167

Gauge

5 inch

Length/inches

38 + 23

Width/inches

10

Height/inches

14

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Joy

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Chambers Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - pre-2002

Year built

1986

Boiler number

01/05/2022 00:00

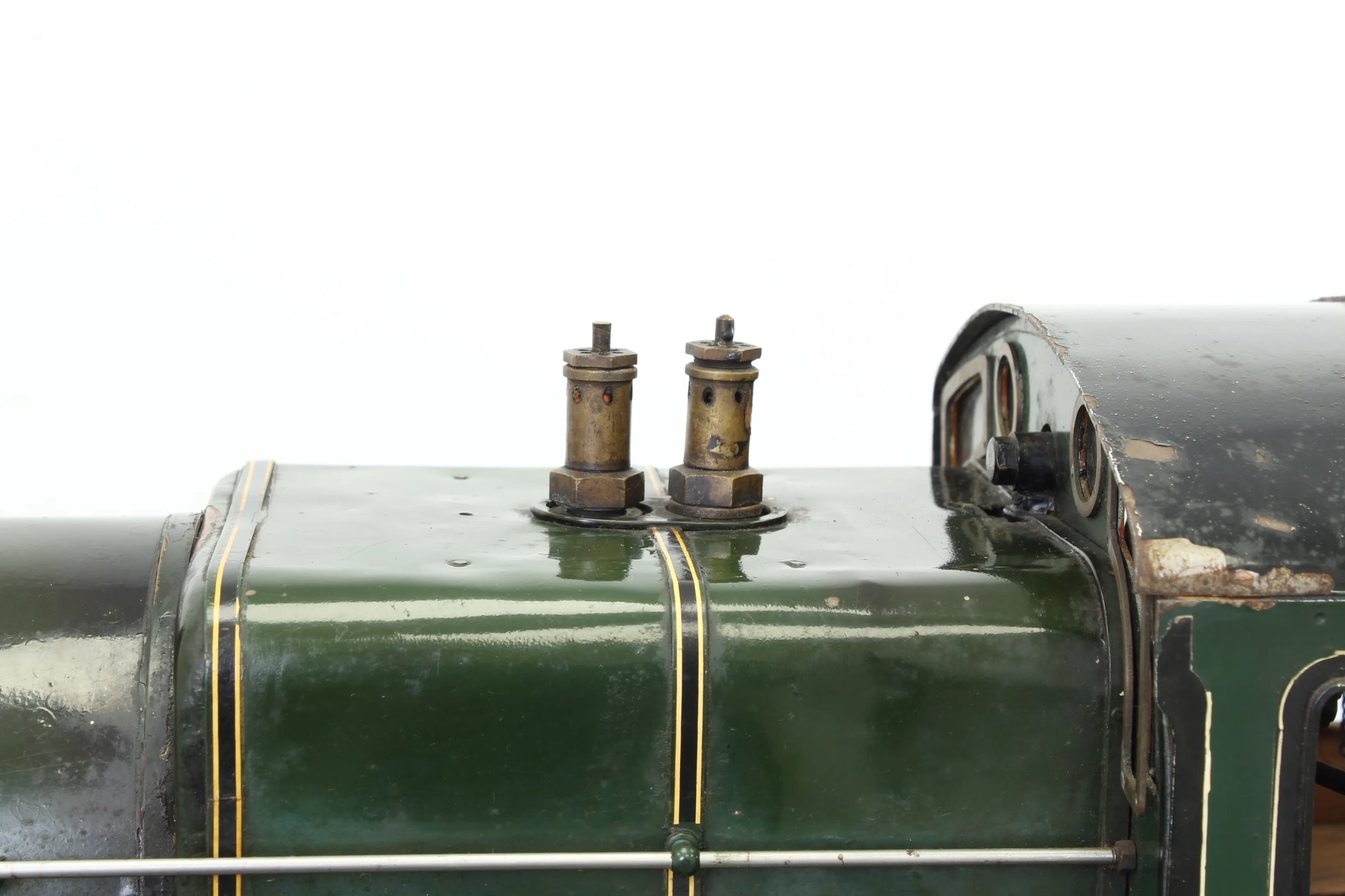

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Mechanical pump

1

Injector

1

Pack

Single half pallet

Date out

Jan-19
