5 inch gauge "Maid of Kent" 4-4-0

Sold

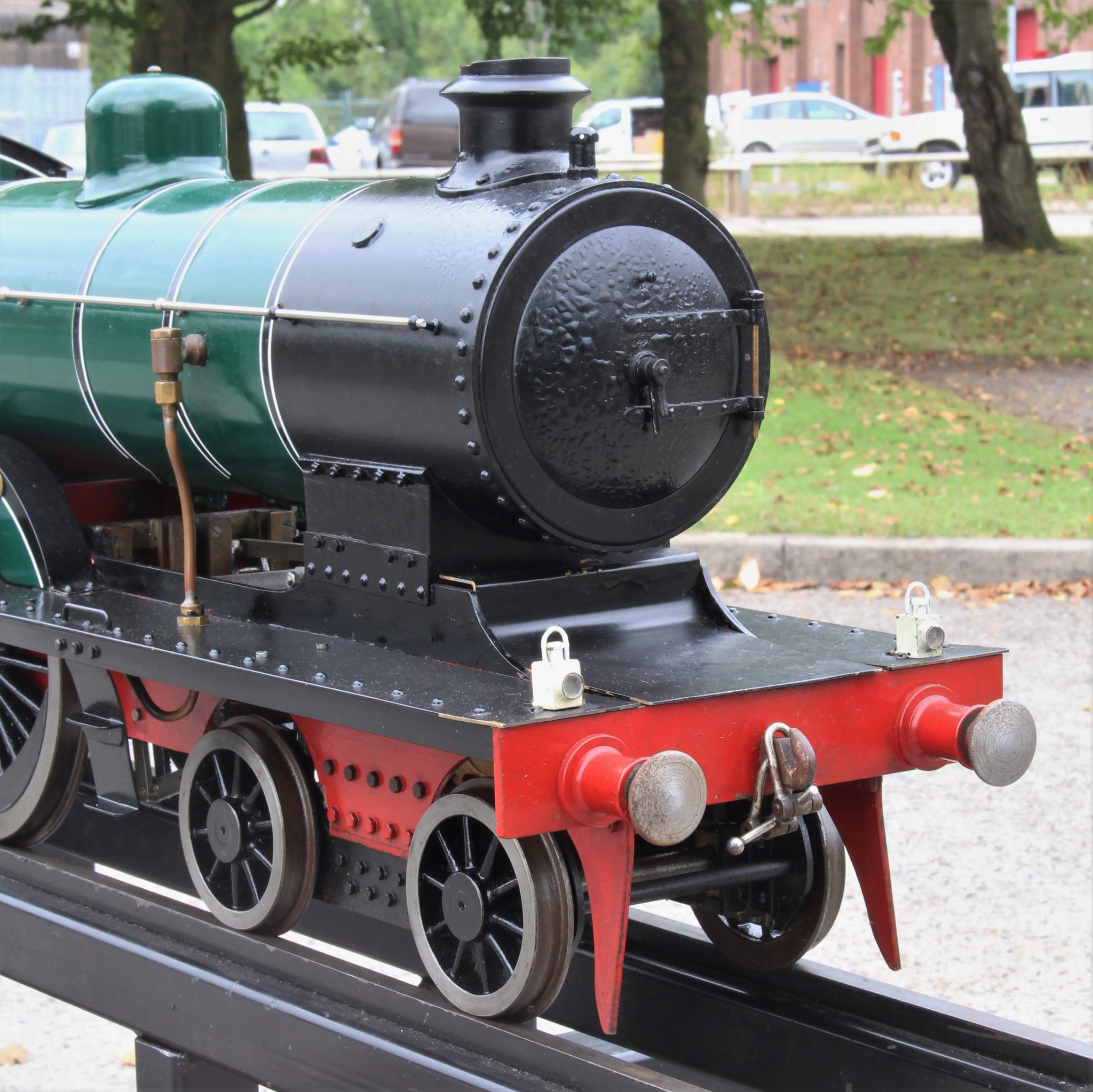

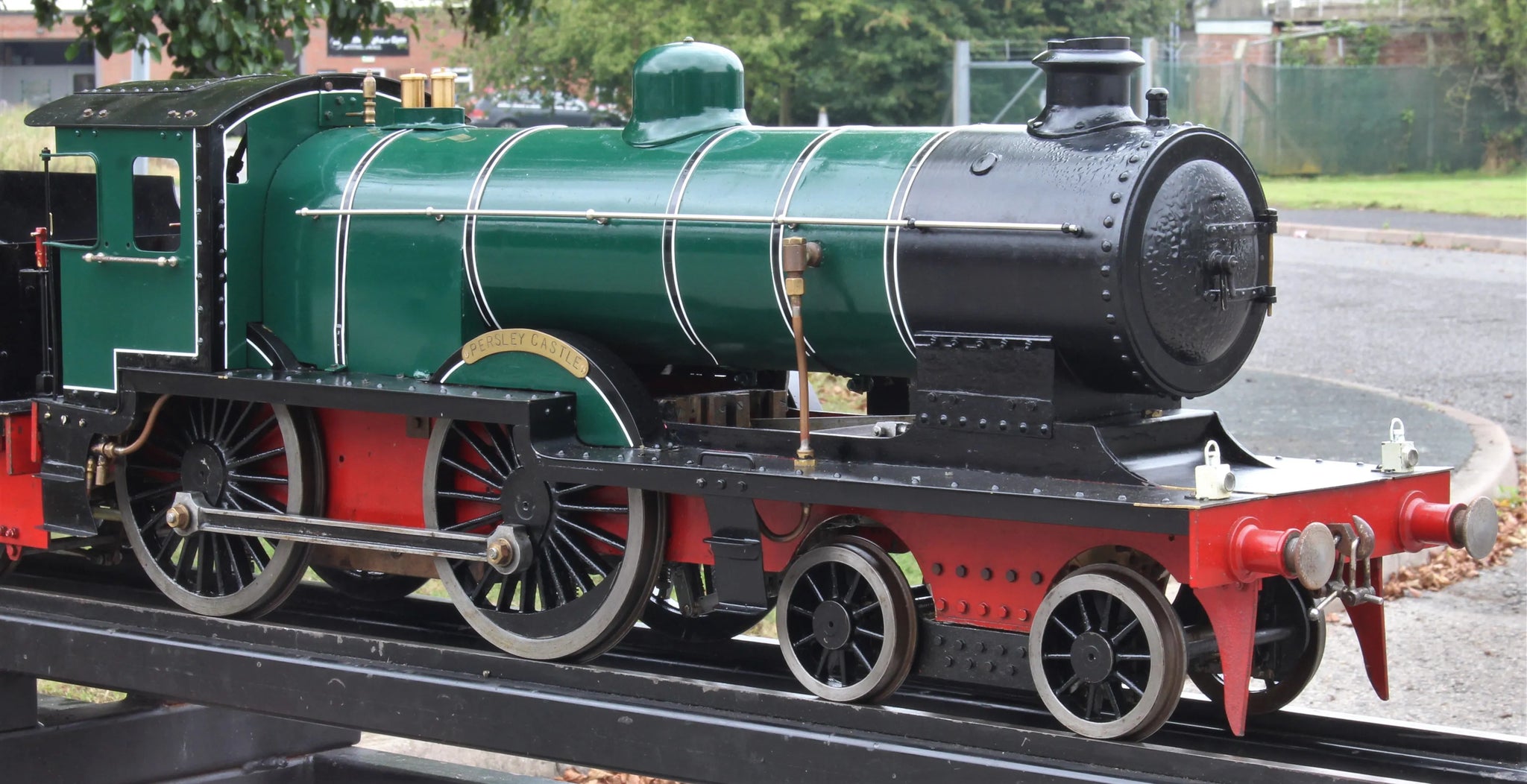

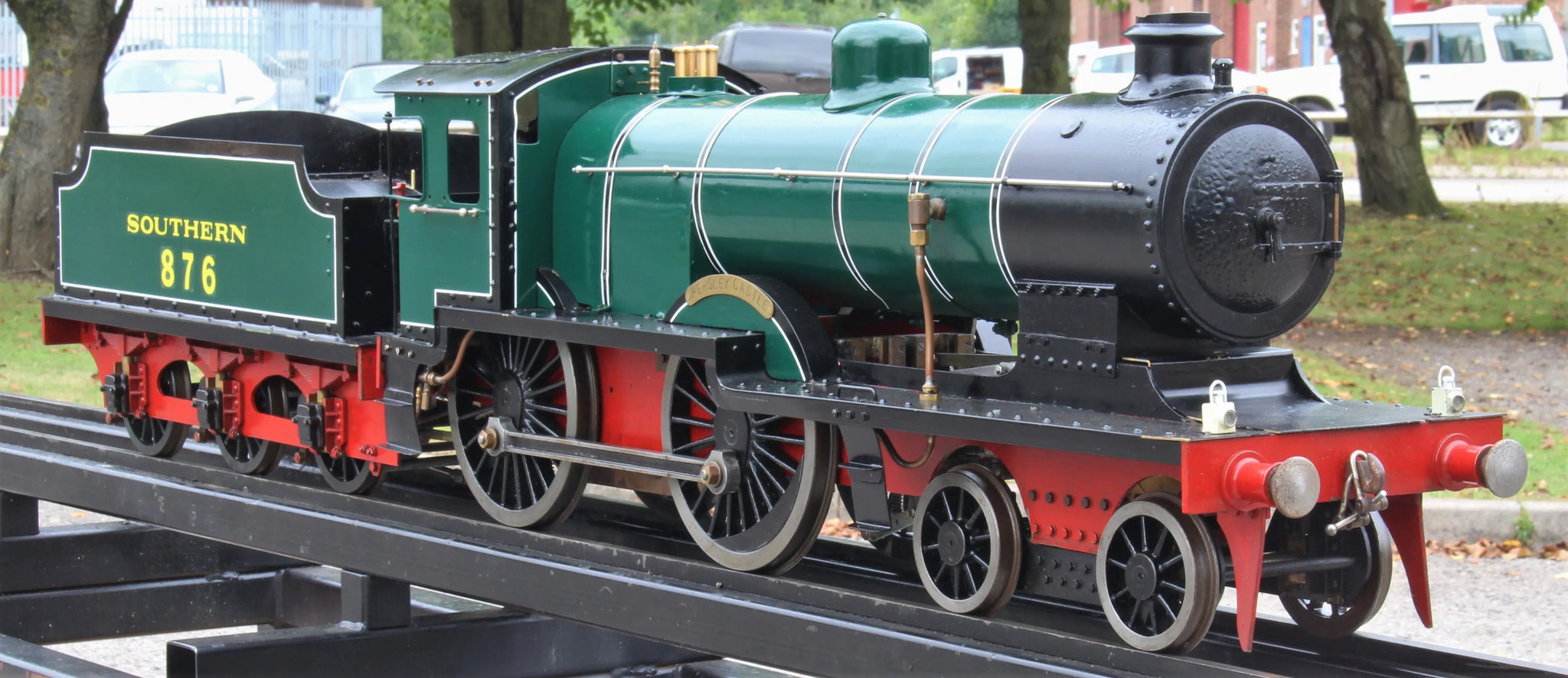

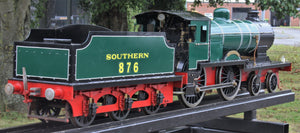

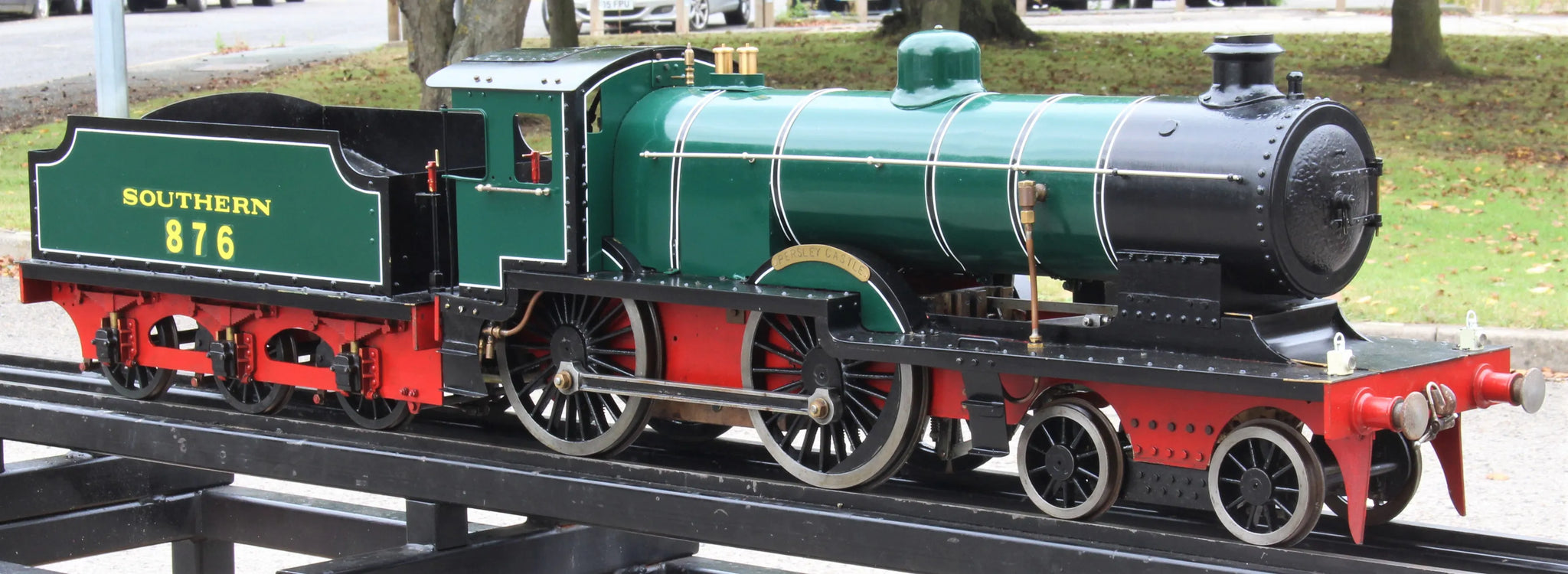

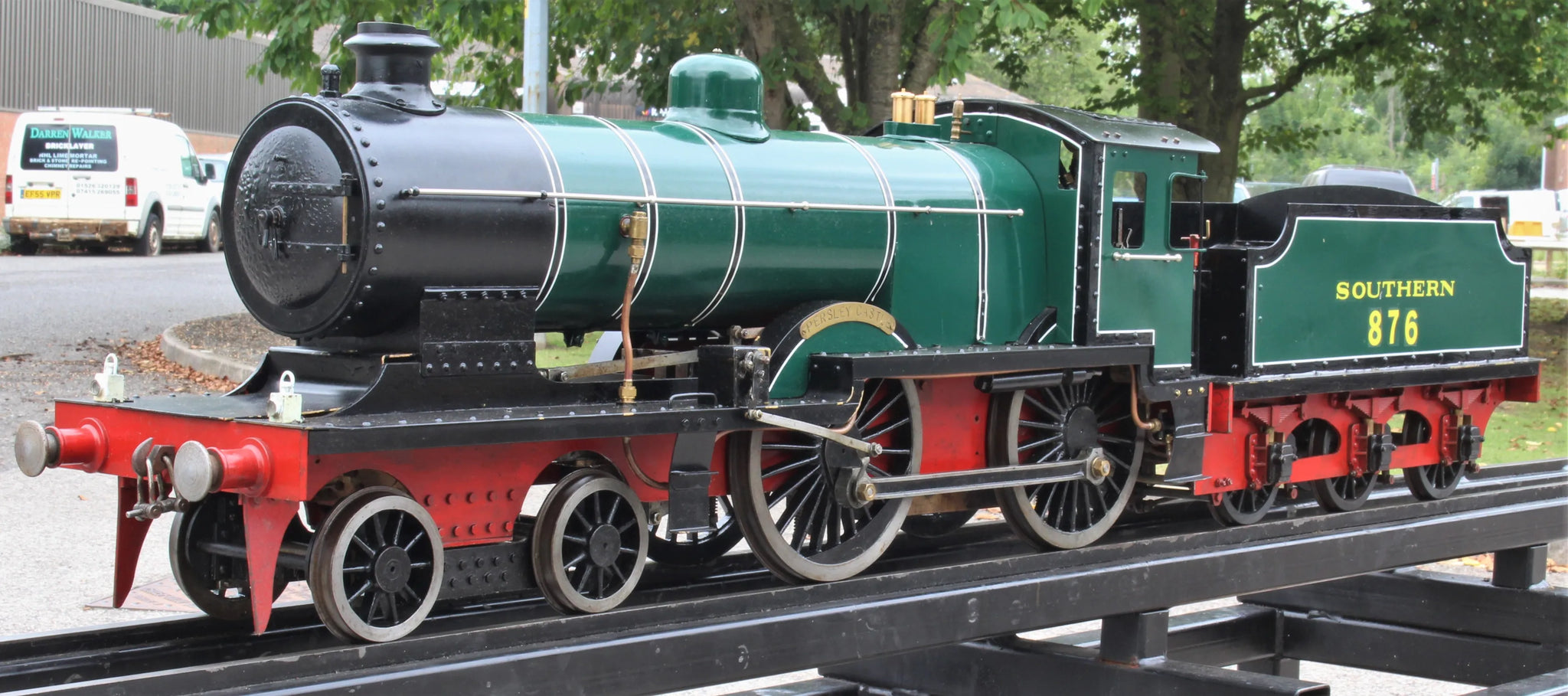

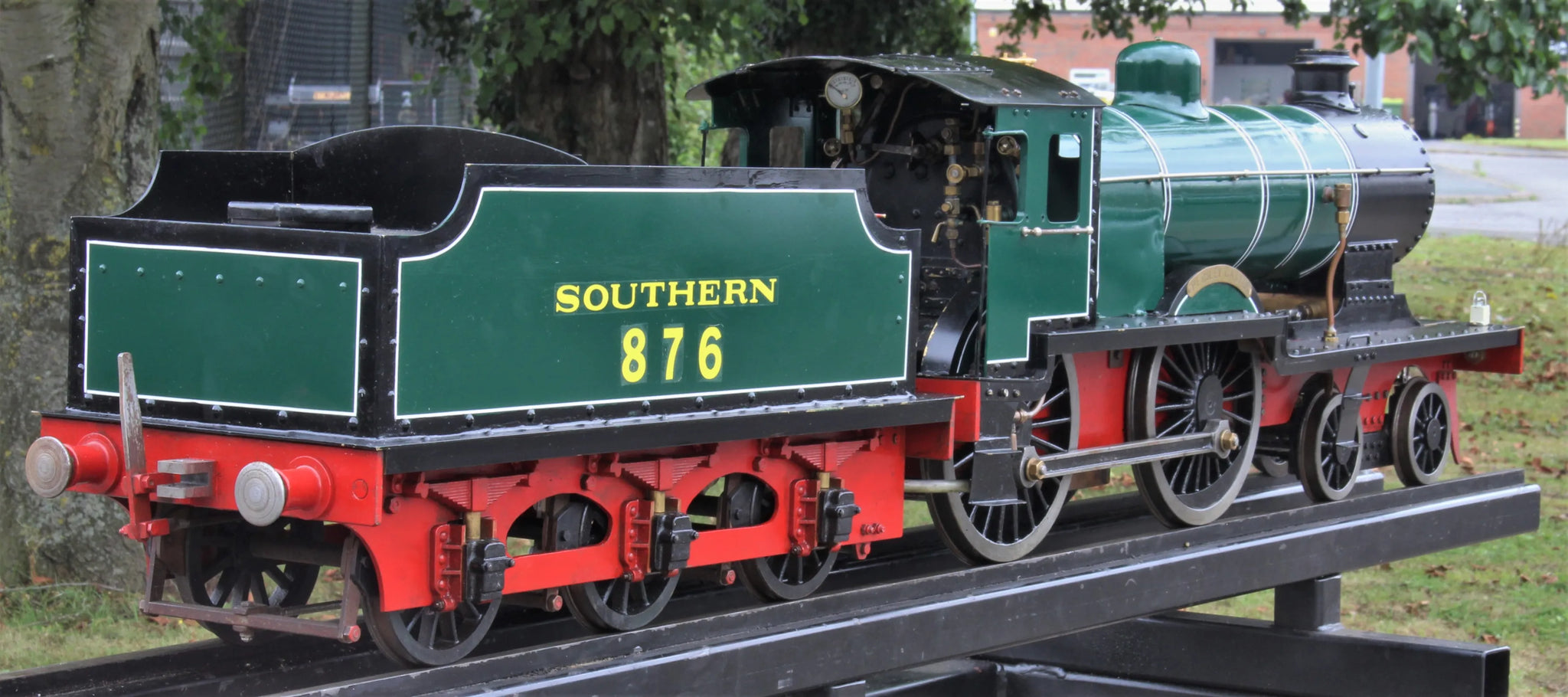

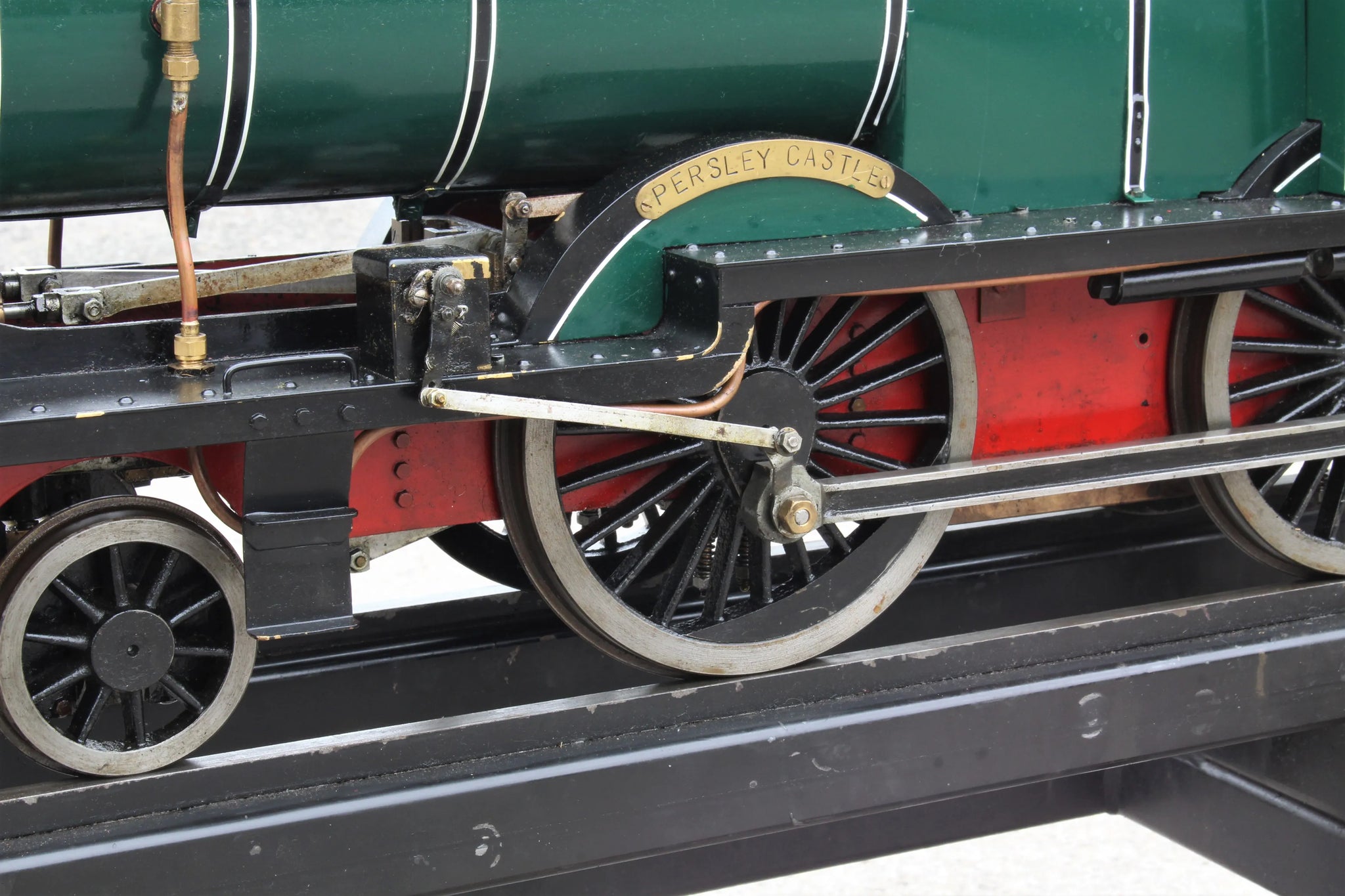

A well-made 5 inch gauge "Maid of Kent", in our book one of LBSC's best designs - this one the inside cylinder, Joy gear variant.

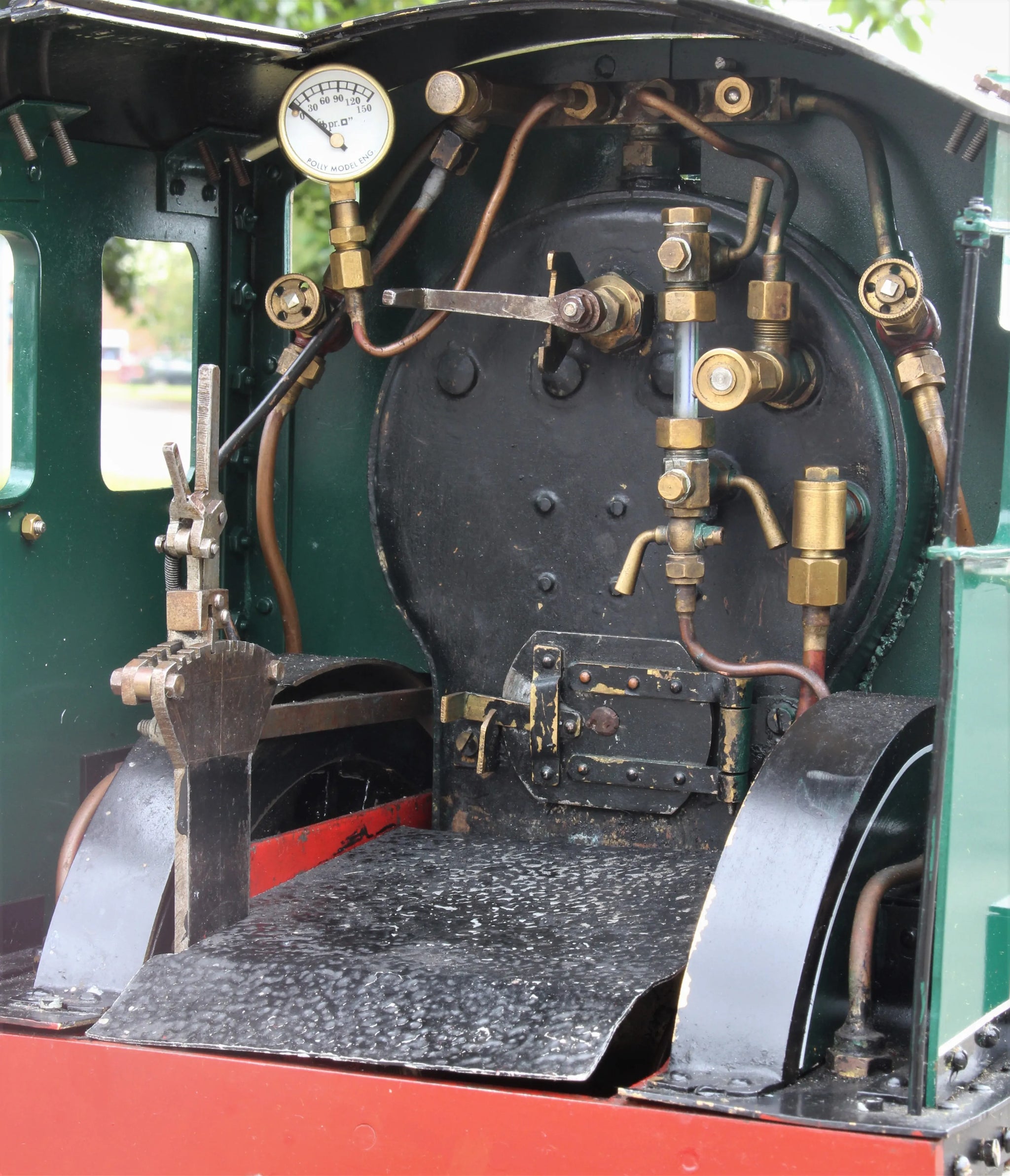

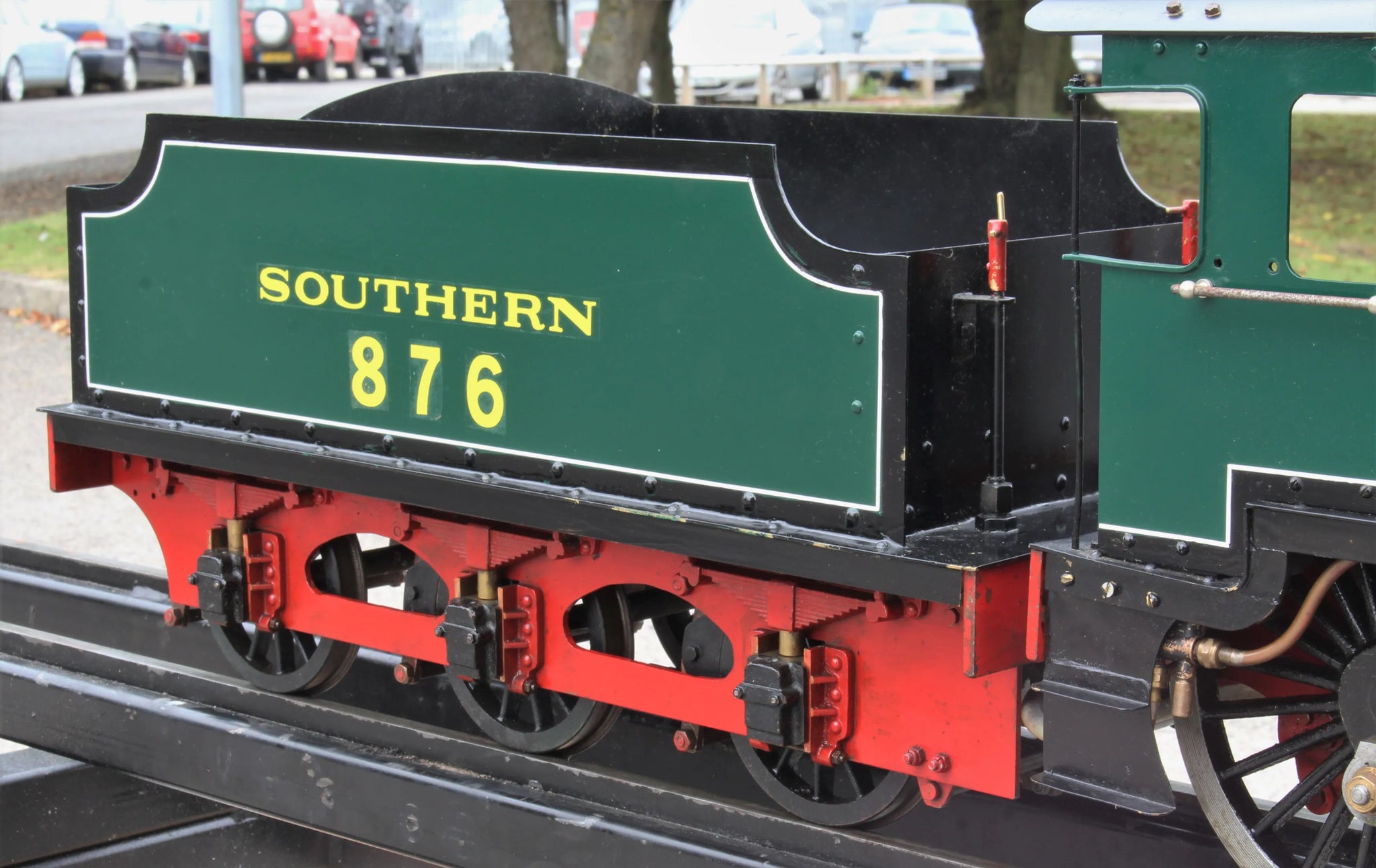

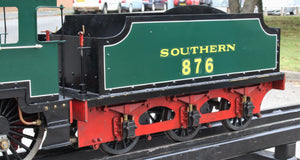

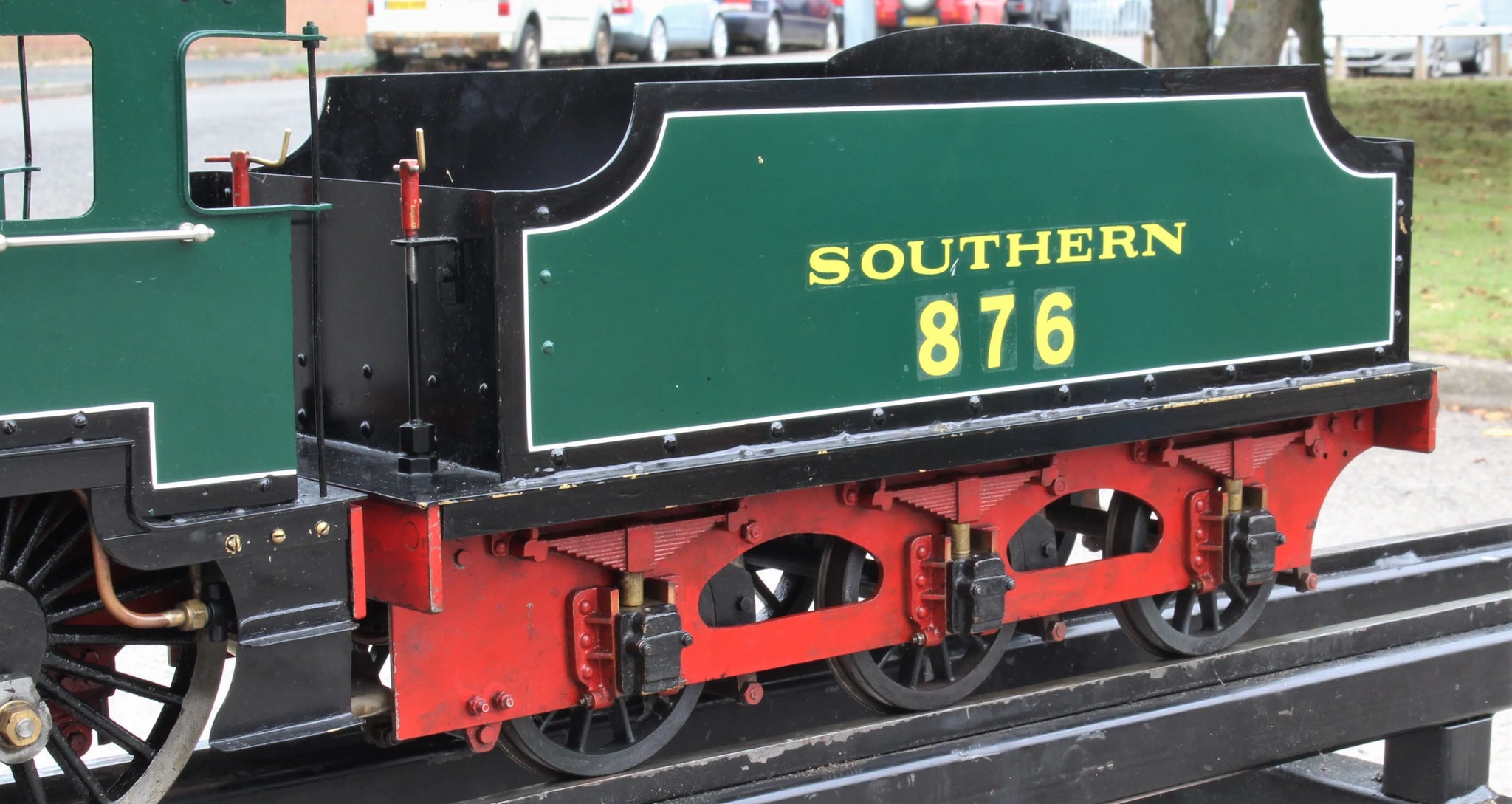

Boiler feed is by twin injectors with a hand pump in the tender.

A well-sorted engine, it runs very nicely; free-steaming, quiet and notching up running in either direction - there's some video of it here.

Type: Second hand

Tags: Locomotives

Technical information

Stock code	9014
Gauge	5 inch
Length/inches	36+23
Width/inches	10
Height/inches	15

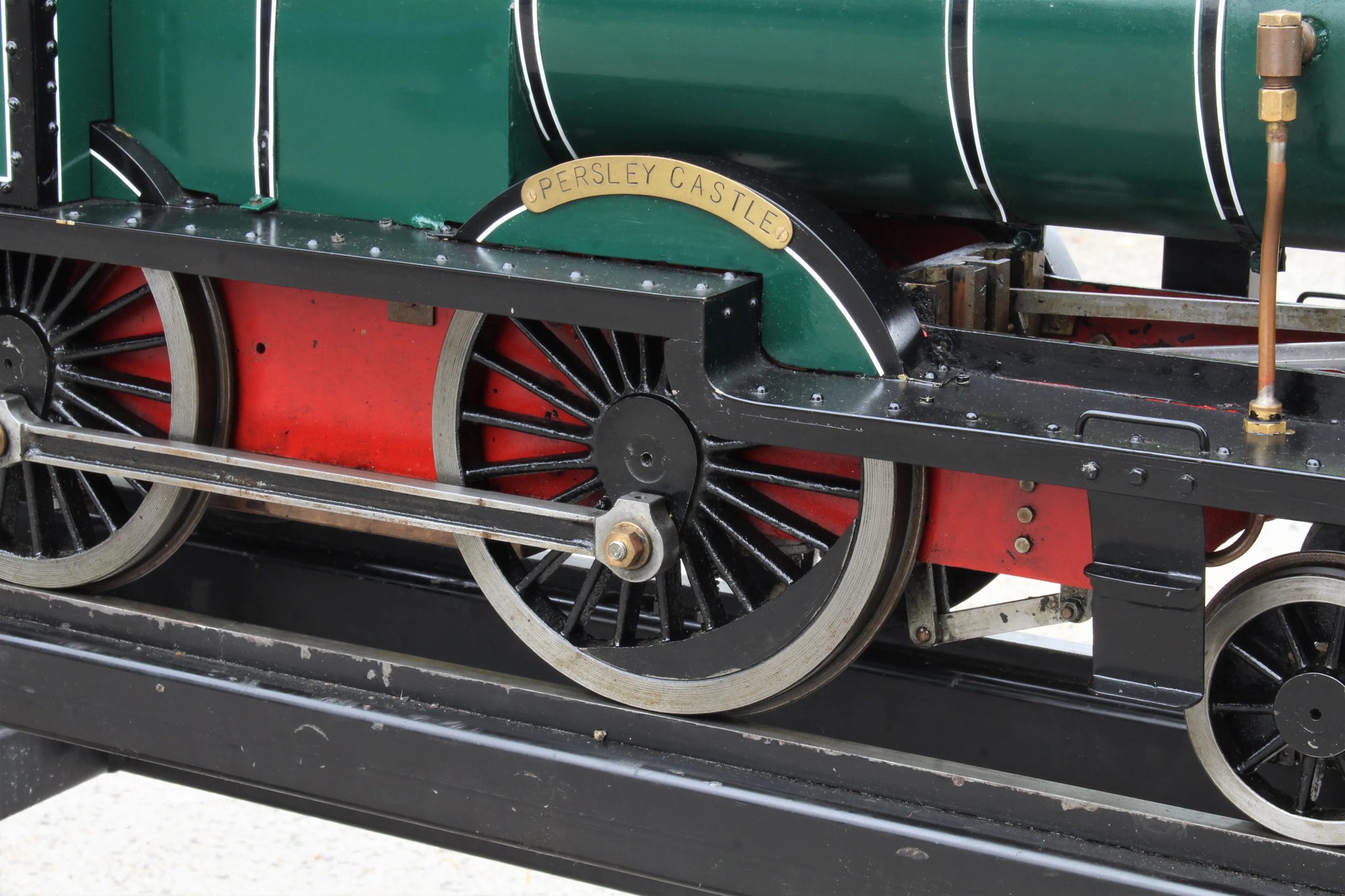

Wheel material	cast iron, 7 inch diameter

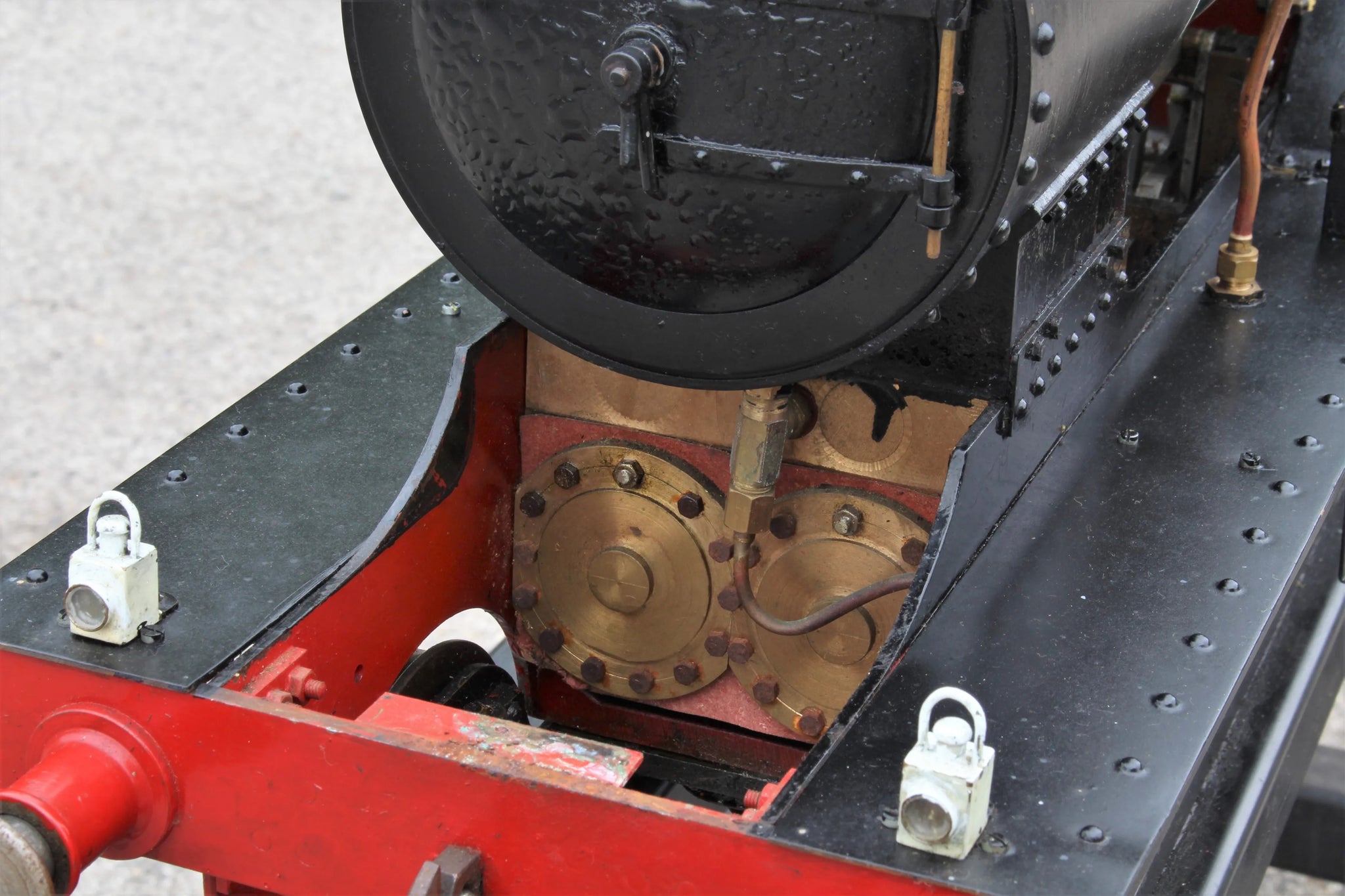

Cylinder material	gunmetal
Valve type	slide
Valve gear	Joy
Reverser type	pole
Boiler maker	R Chambers
Boiler type	locomotive
Boiler construction	silver soldered
Boiler material	copper
Working pressure	90
CE/UKCA mark	n/a pre-2002
Boiler number	RC779

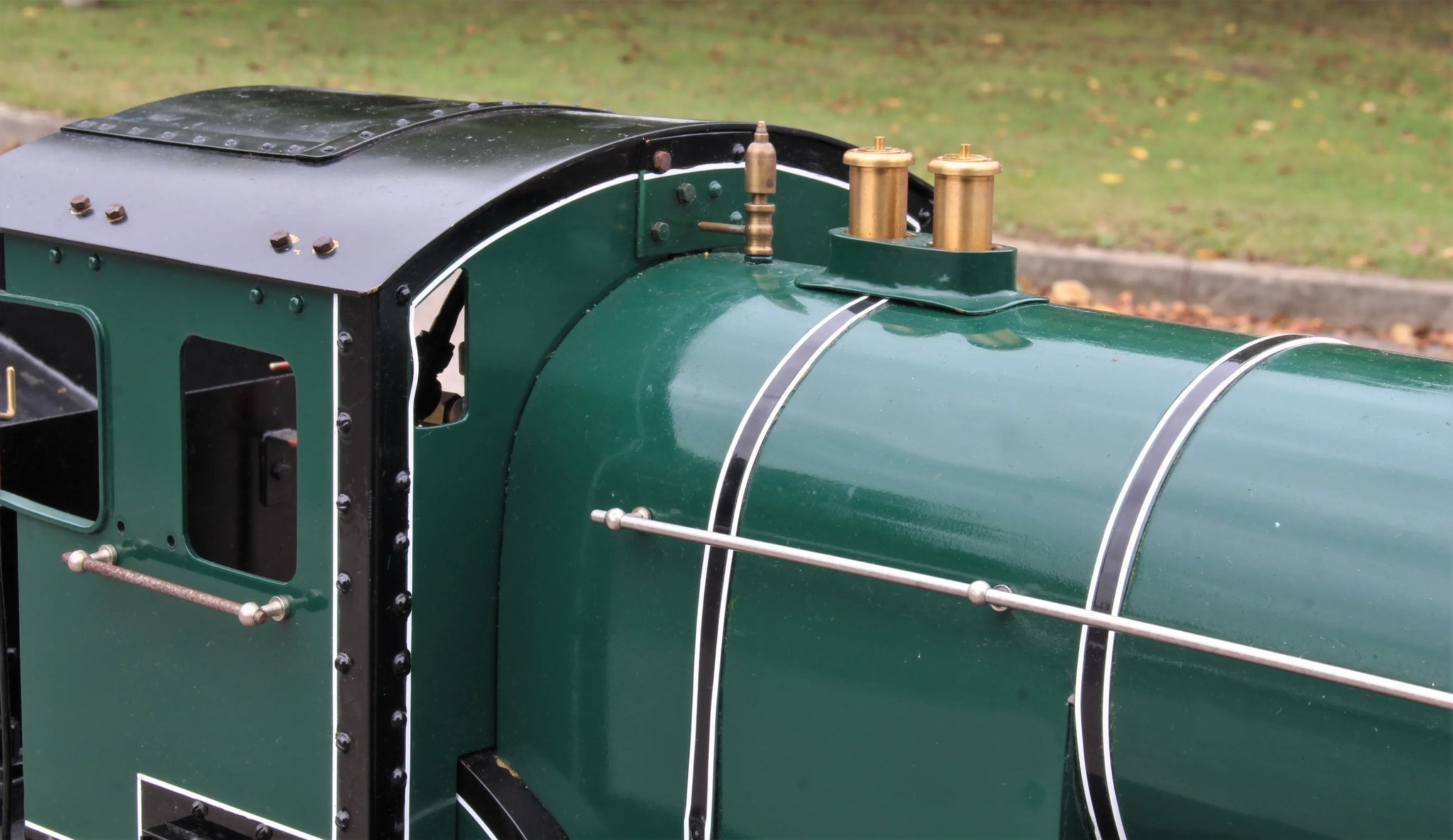

Safety valve type	spring
Safety valve	2
Whistle	yes
Hand pump	1

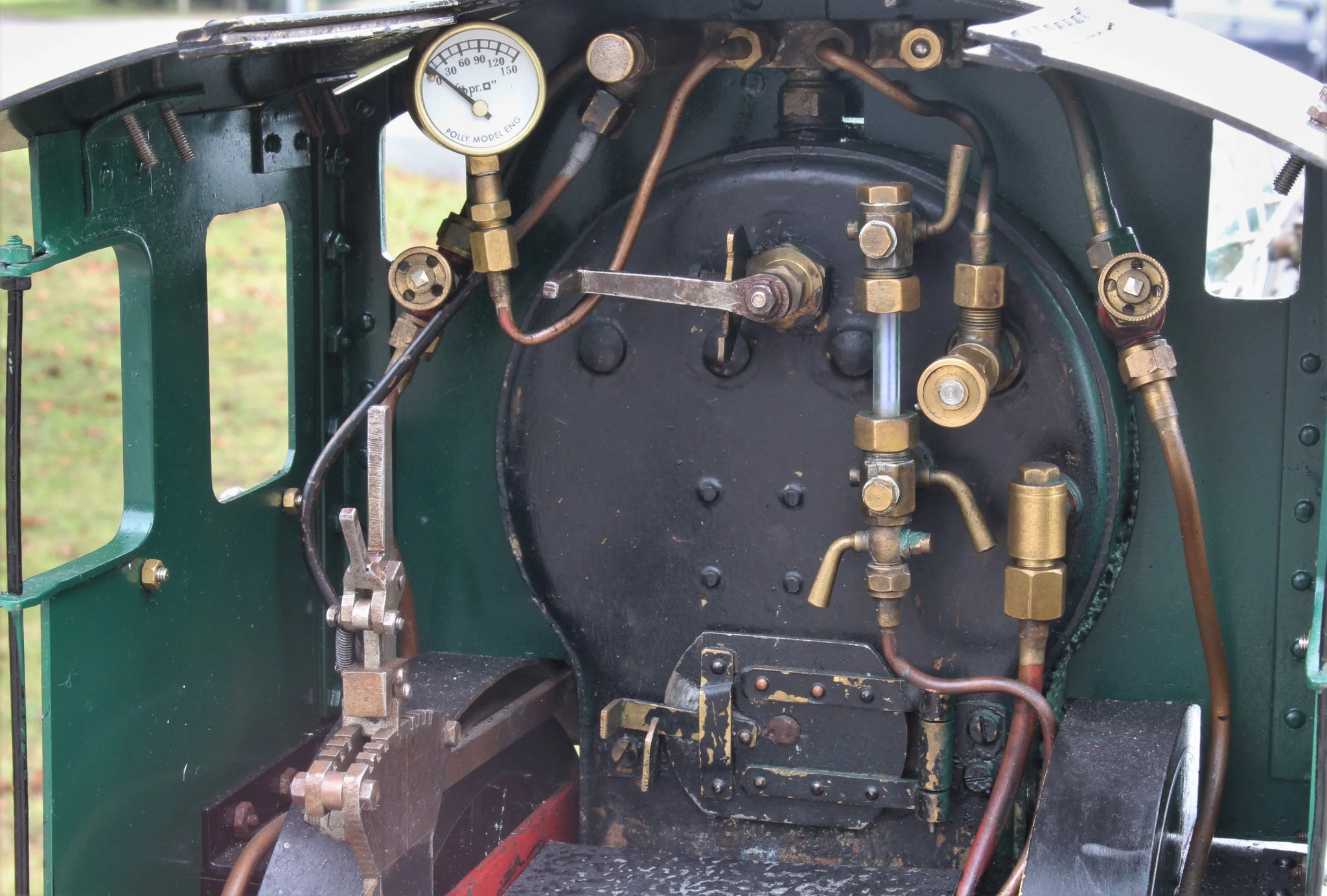

Injector	2
Date out	Sep-20
Hydraulic test valid to	23-Feb-24
Steam test valid to	04-Jul-21
