9126
Boiler appears to be the fifty year old original - silver soldered copper, it has has a couple of old plugged repairs on the foundation ring which remained watertight on hydraulic test.

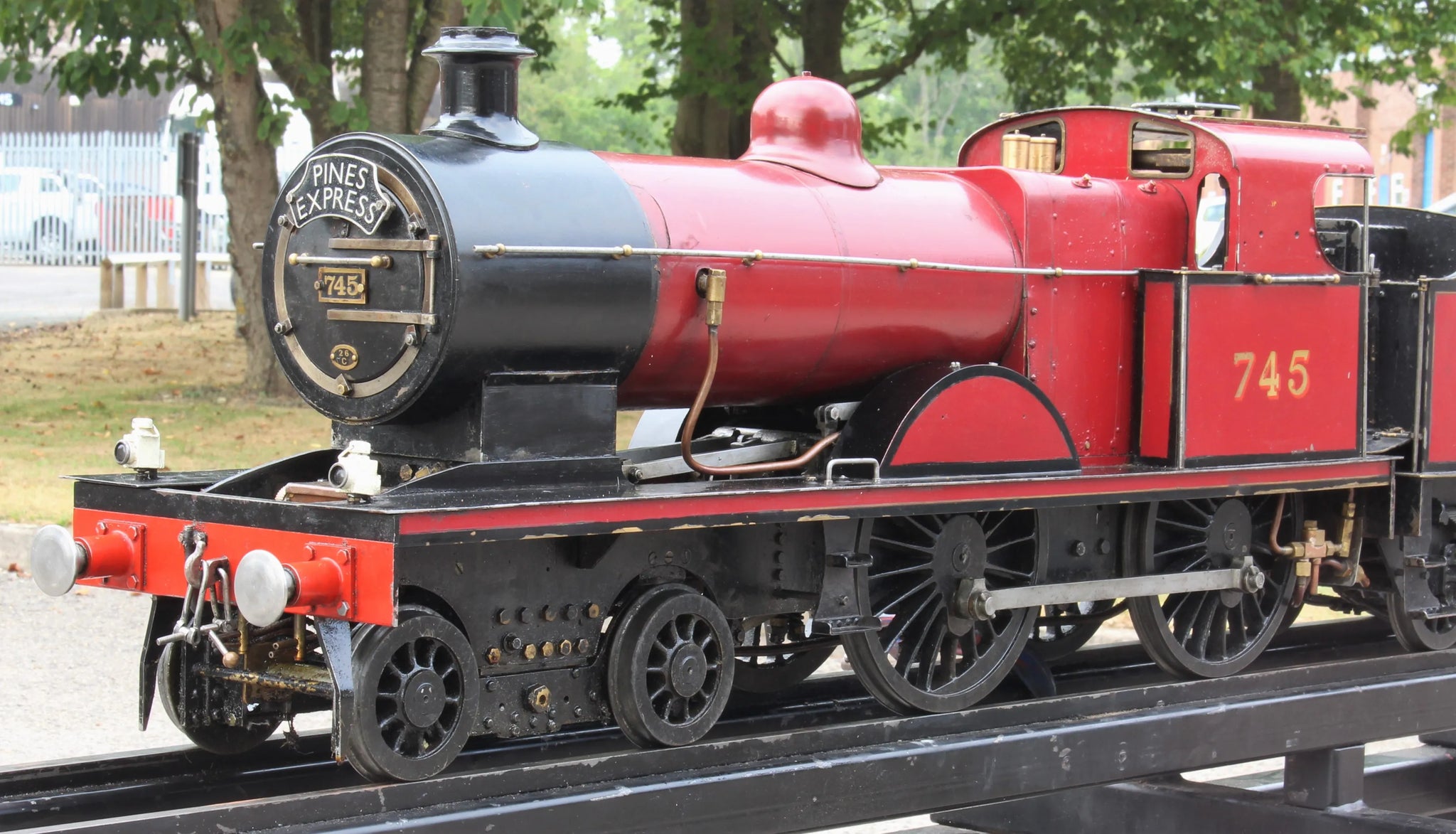

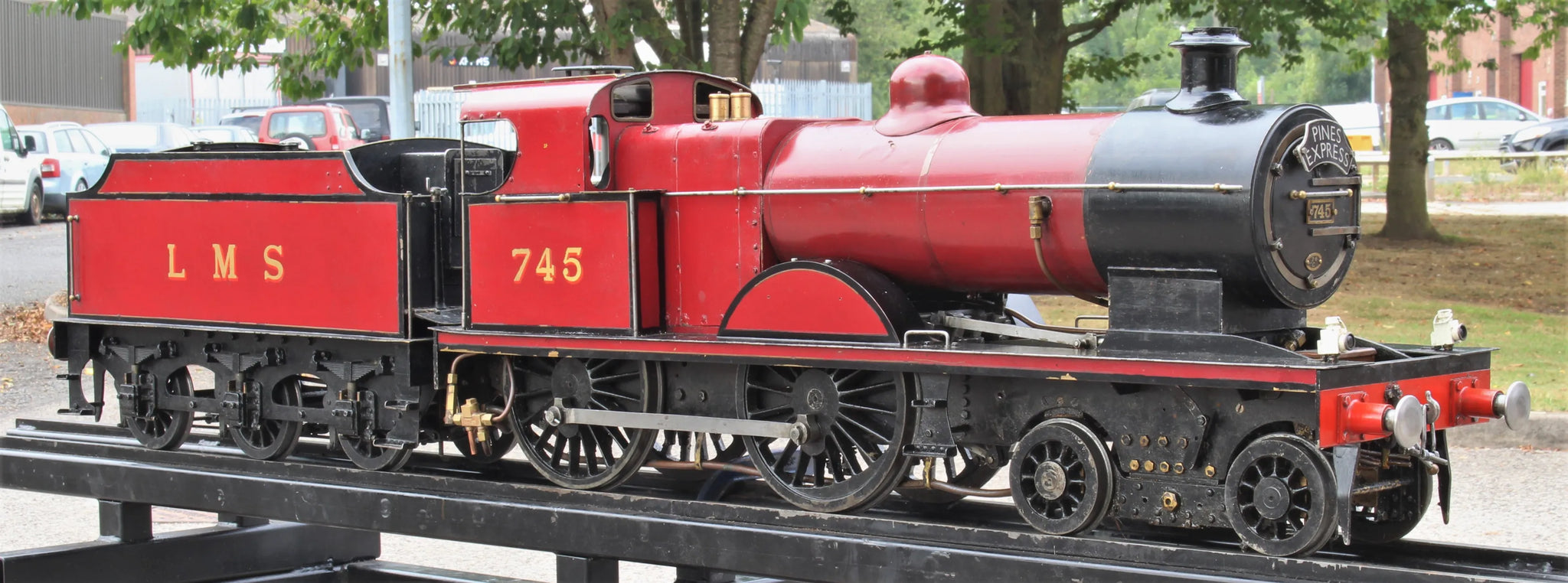

Cosmetically scruffy but complete.
Stock code |
9126 |
Gauge |
5 inch |
Length/inches |
37 + 24 |
Width/inches |
9 |
Height/inches |
14 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Valve type |
slide |
Valve gear |
Joy |
Reverser type |
screw |
Boiler maker |
N Pendlebury |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
75 |
Year built |
1967 |
Boiler number |
N4-75-58 |
Safety valve type |
spring |
Safety valve |
2 |
Hand pump |
yes |
Mechanical pump |
axle |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
4 |
Date out |
Dec-20 |
Hydraulic test valid to |
23-Jun-24 |
