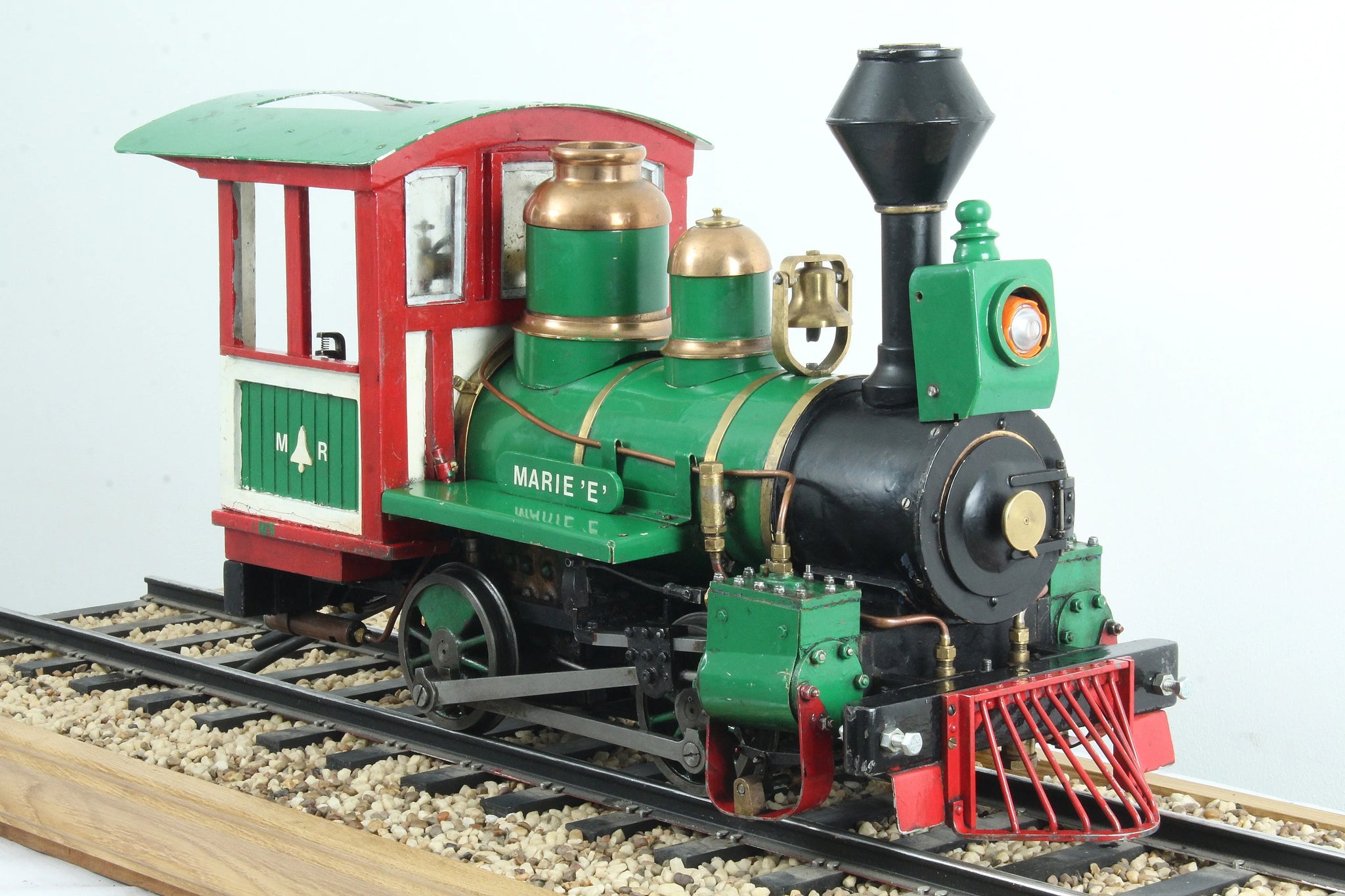

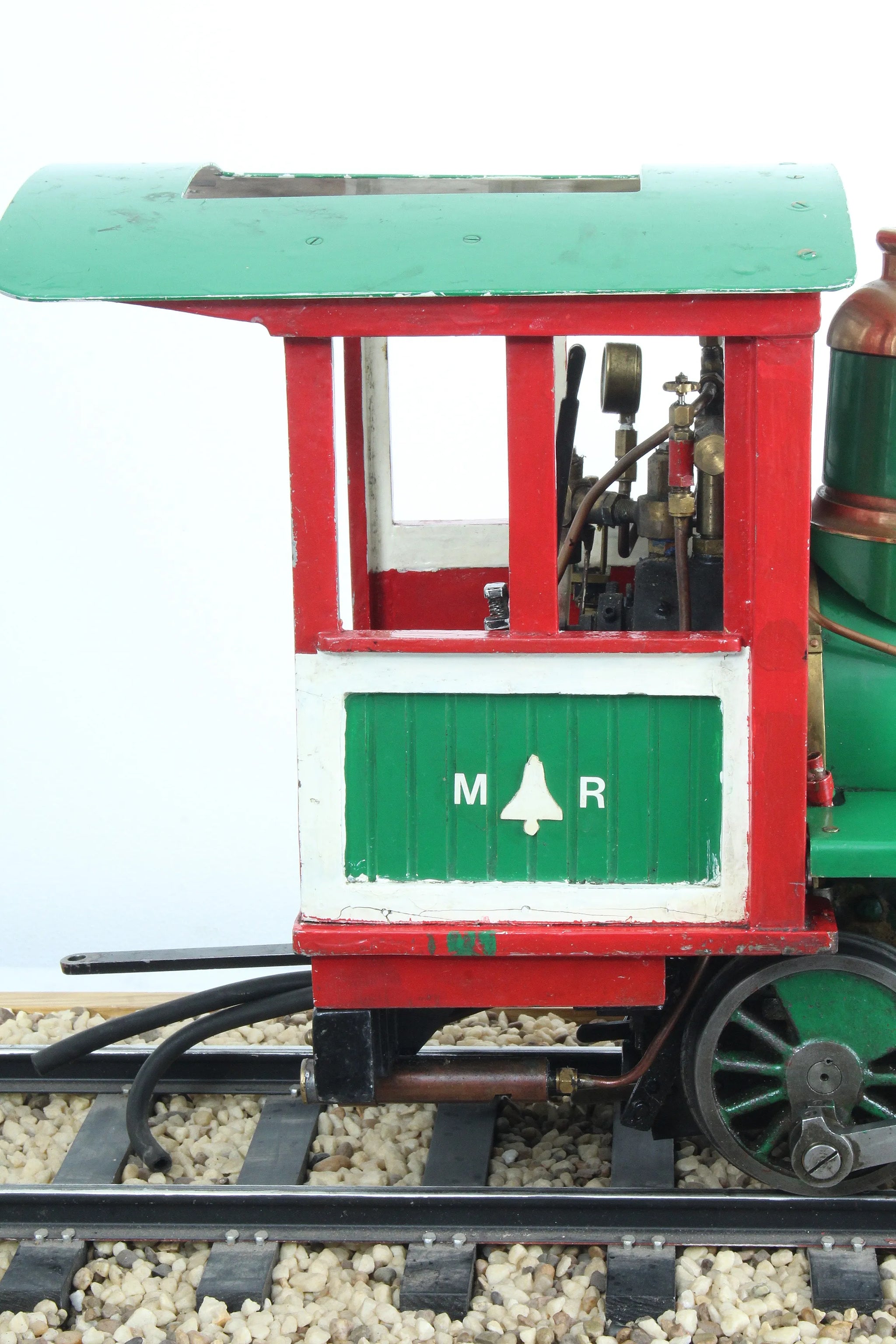

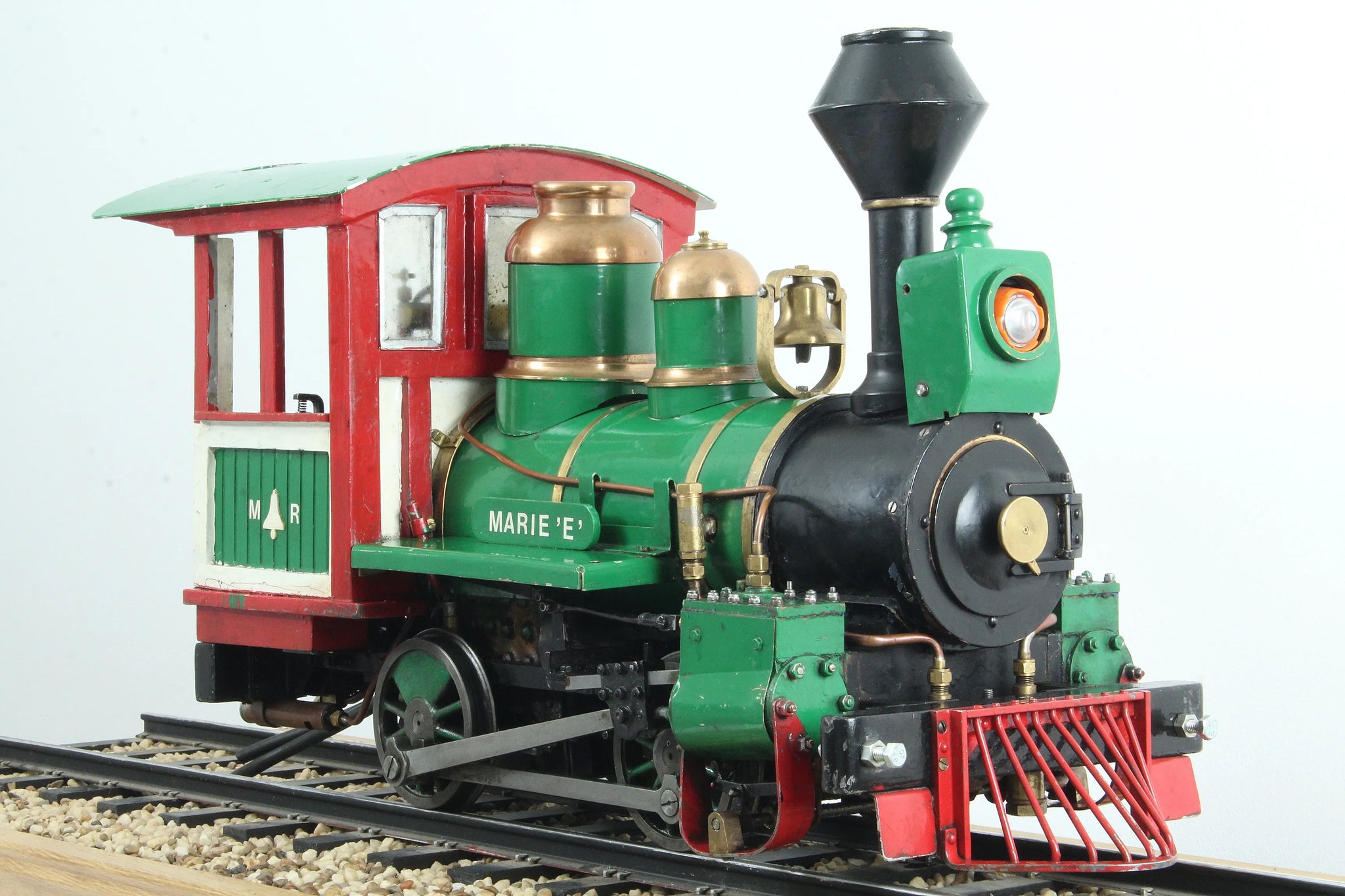

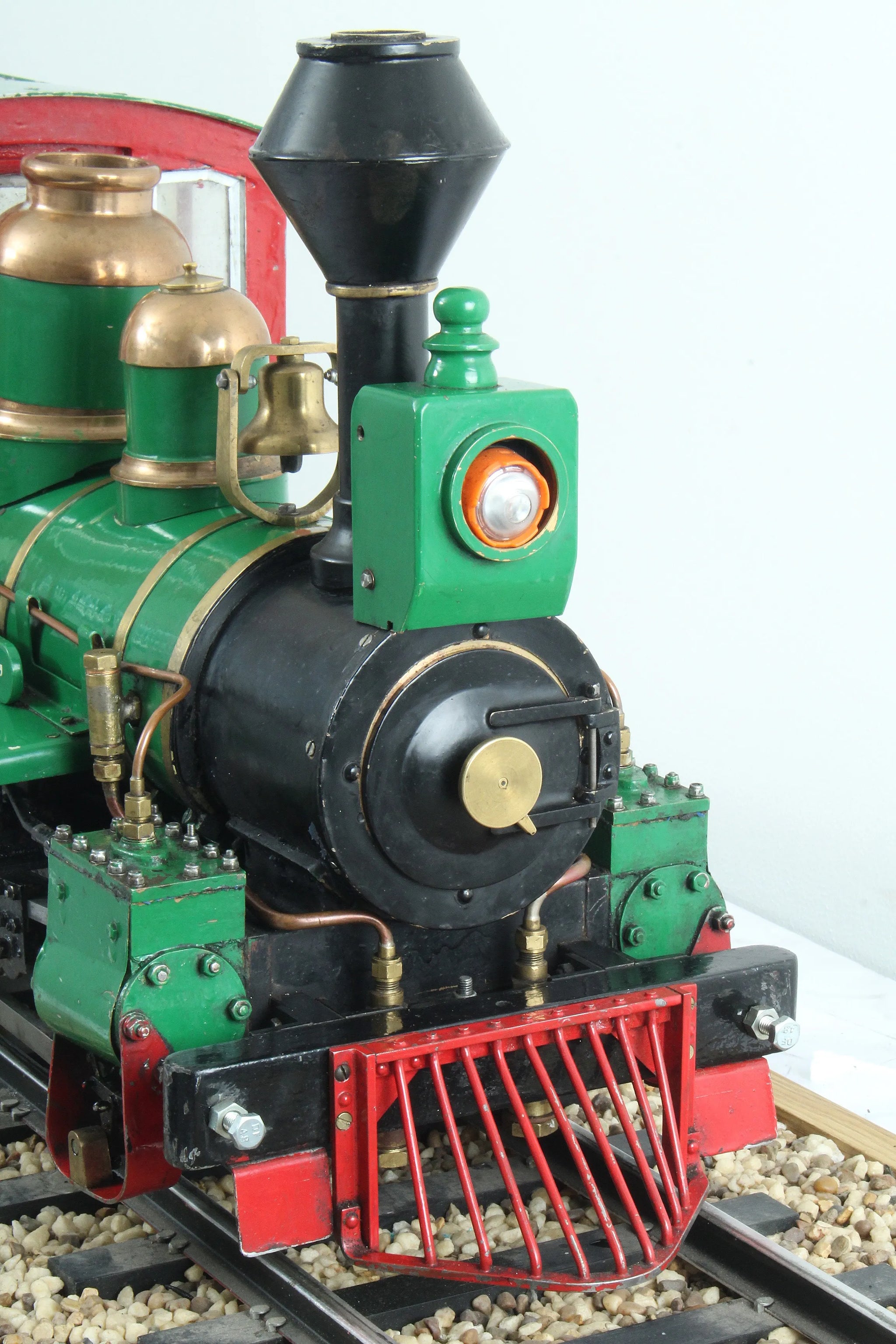

5 inch gauge "Marie E" with braked driving truck

A 5 inch gauge "Marie E", the work of a model engineer with an interest in Don Young's smaller locomotive designs for this gauge - we have his "Rail Motor" as well.

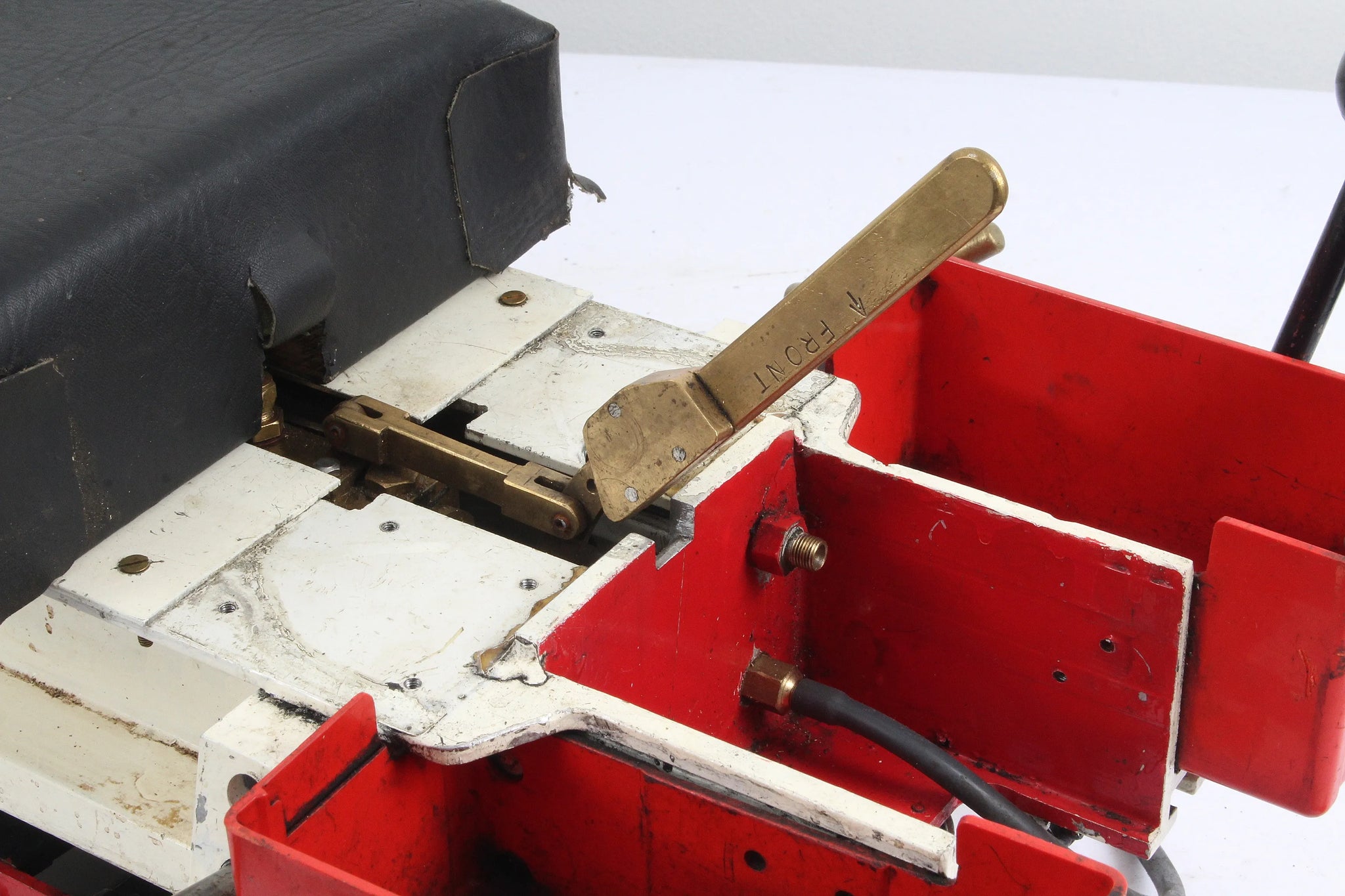

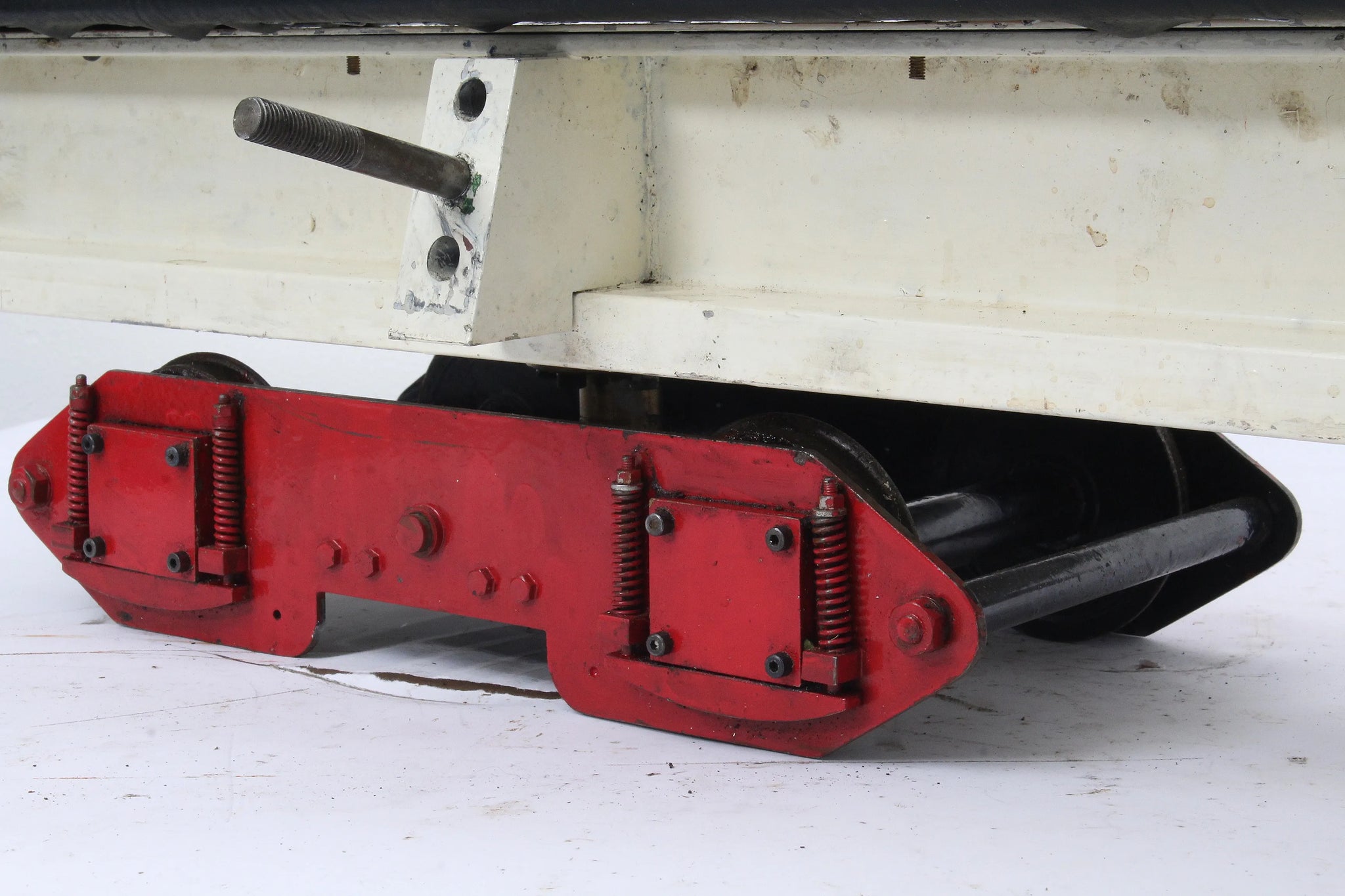

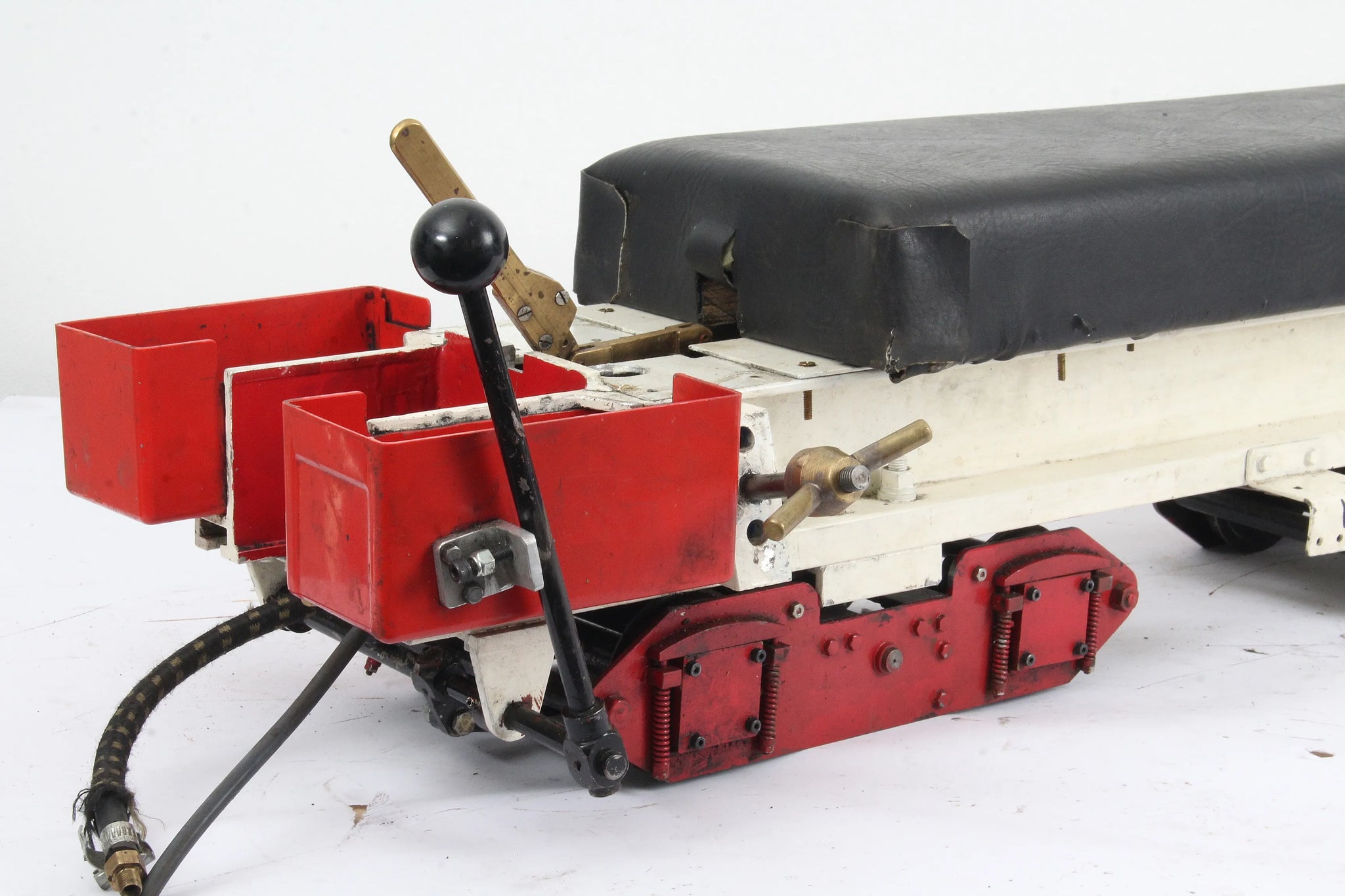

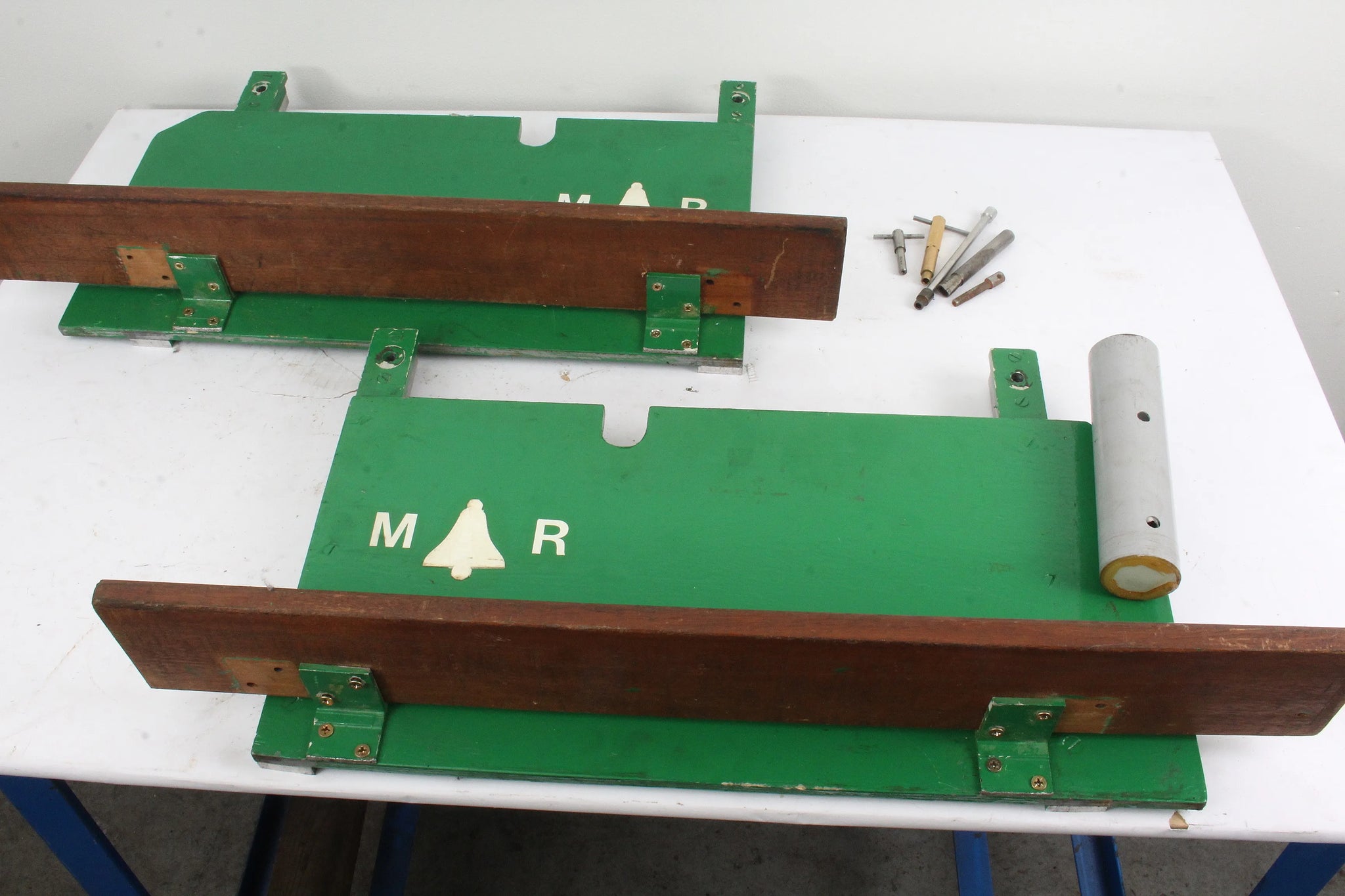

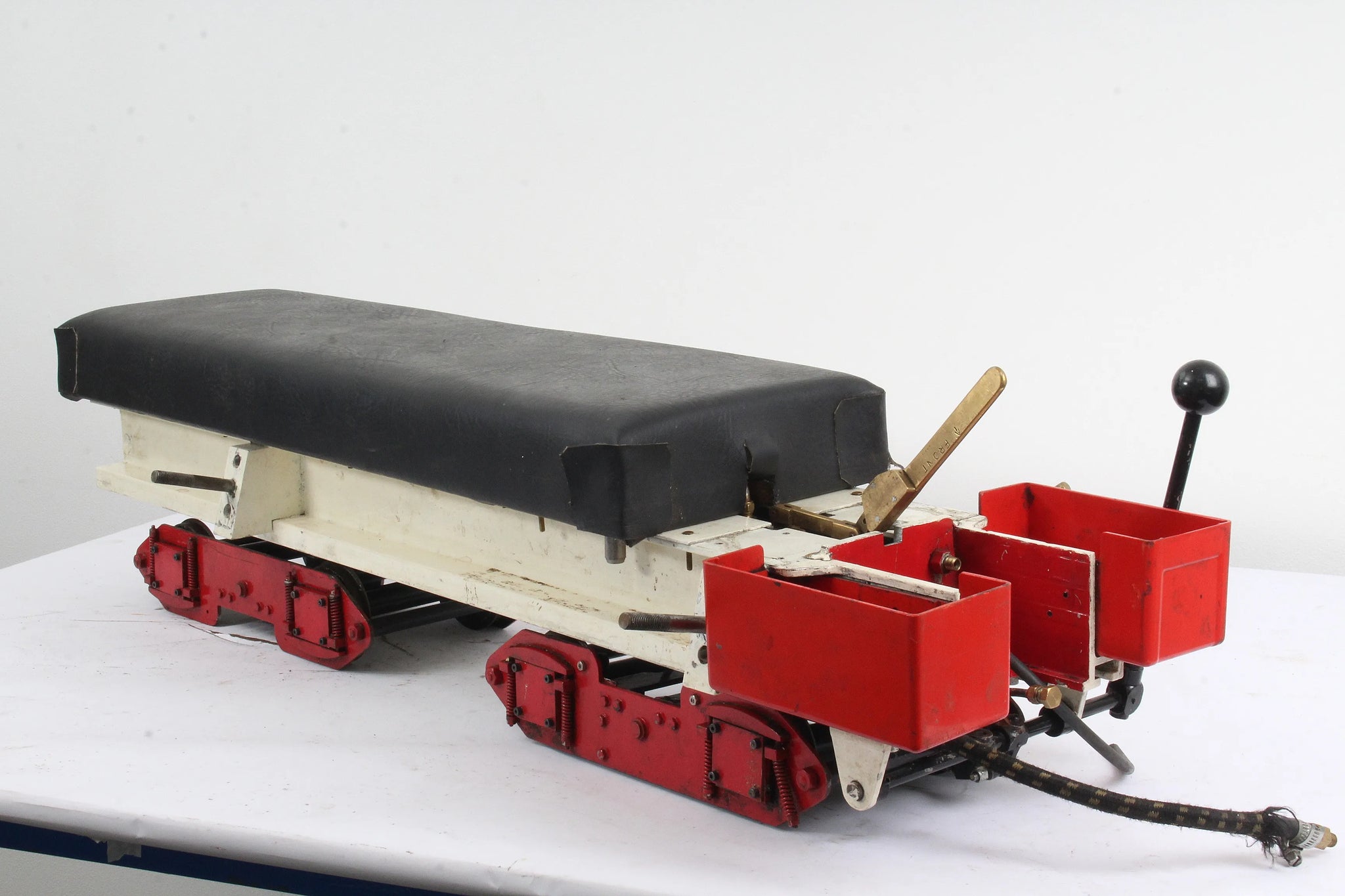

An older engine that has seen a good deal of club running, complete with a convertible raised/ground level braked bogie driving truck, incorporating a water tank and hand pump.

Paintwork is something of an acquired taste - it looks to have been done with three different pots of polyurethane and a lolly stick. Given the "running restoration" nature of the locomotive, a repaint probably needs to go on the job list.

The engine turns over freely, runs on air and boiler is warrantied sound - it's had a hydraulic test in recent weeks with certificate issued for same.

Technical information

Stock code

8177

Gauge

5 inch

Length/inches

24 + 14

Width/inches

10

Height/inches

19

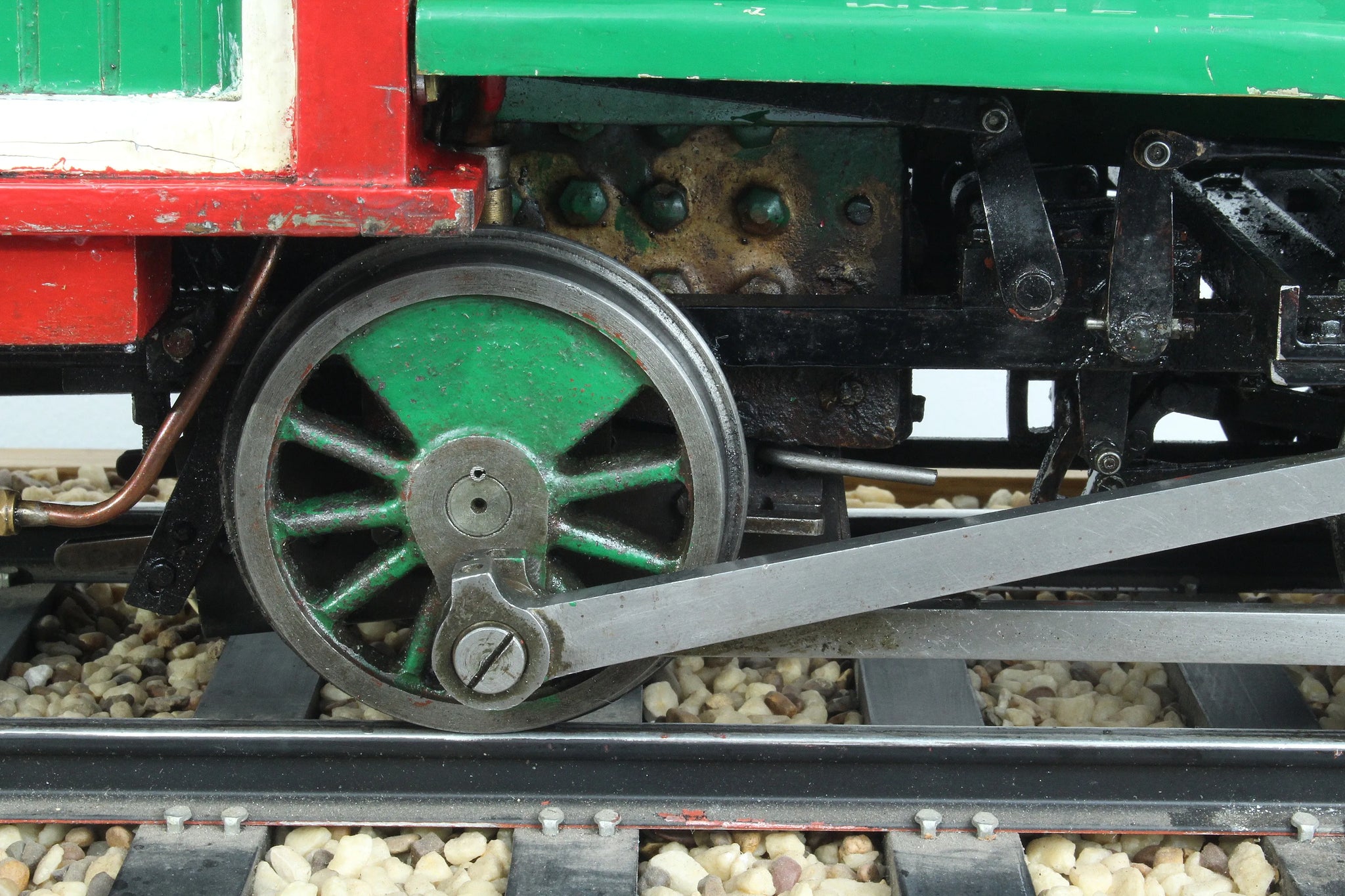

Wheel material

cast iron

Axlebox type

plain bearing

Valve type

slide

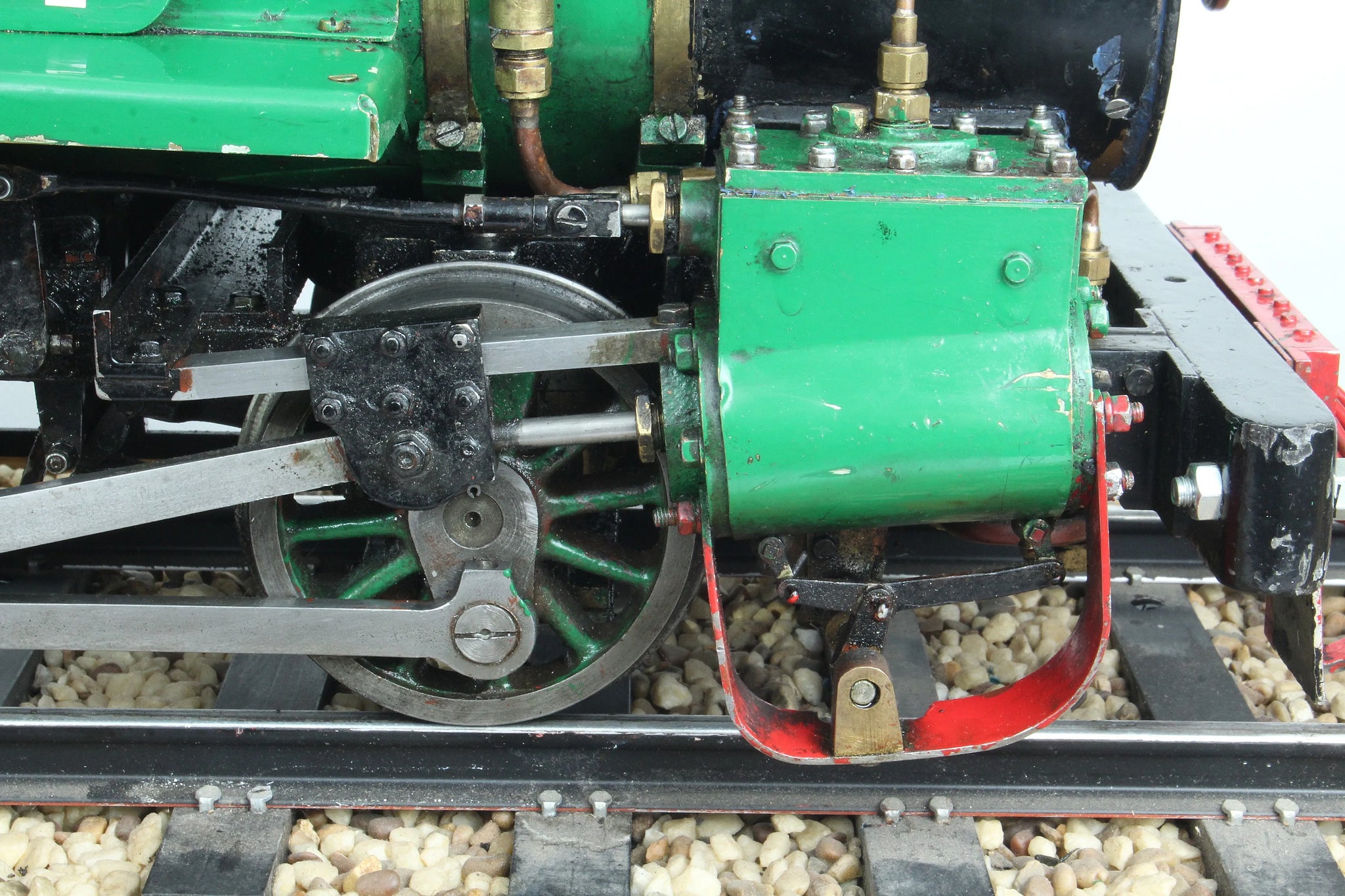

Valve gear

Stephensons

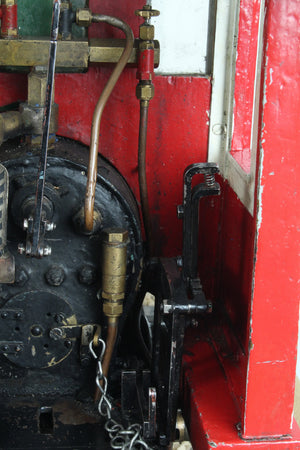

Reverser type

pole

Lubricator type

displacement with sight feed

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Boiler number

SF107816

Fusible plug

no

Whistle

yes

Date out

Mar-19

Hydraulic test valid to

20-Feb-23
