8181
The silver soldered boiler is by Western Steam, warrantied as sound it's had a hydraulic test with certification issued for same.

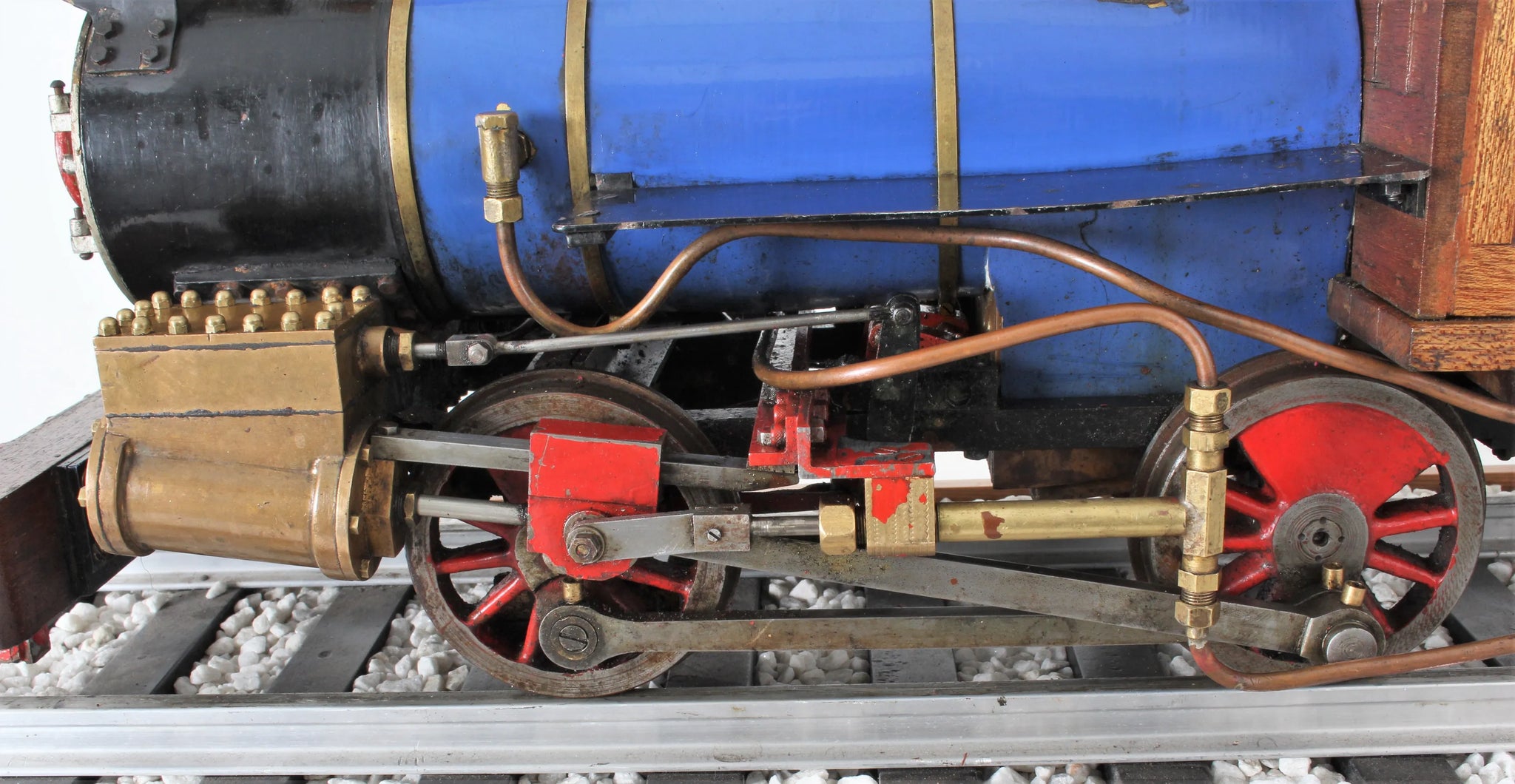

The engine runs on air, the regulator leaks and water pump pipework fouls on the connecting rod - it needs some judicious replumbing.
Stock code |
8181 |
Gauge |
5 inch |
Length/inches |
24+14 |
Width/inches |
10 |
Height/inches |
19 |
Wheel material |
cast iron |

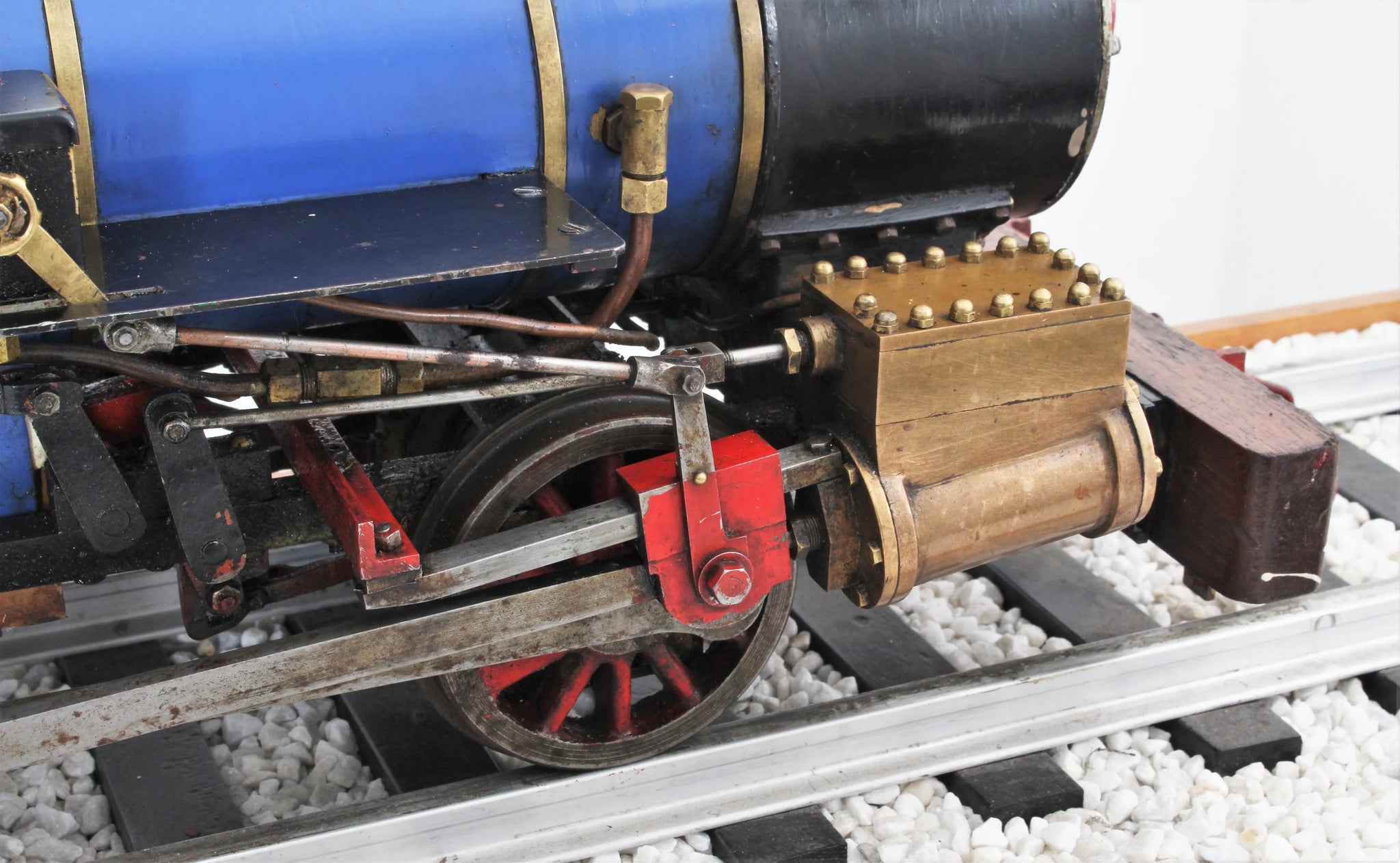

Cylinder material |
gunmetal |
Valve type |
slide |

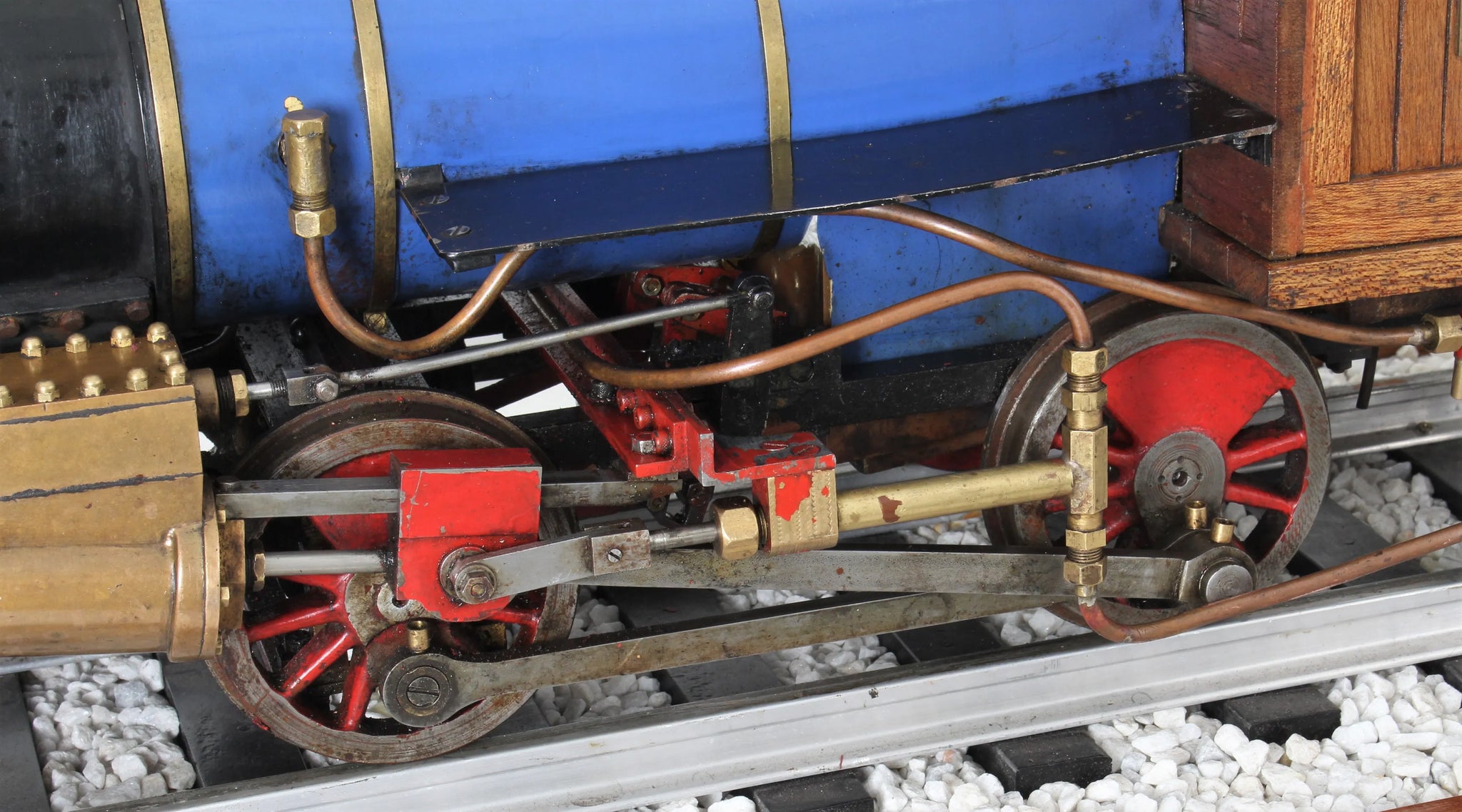

Valve gear |
Stephensons |
Boiler maker |
Western Steam |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a - pre-2002 |
Year built |
1992 |
Boiler number |
458 |

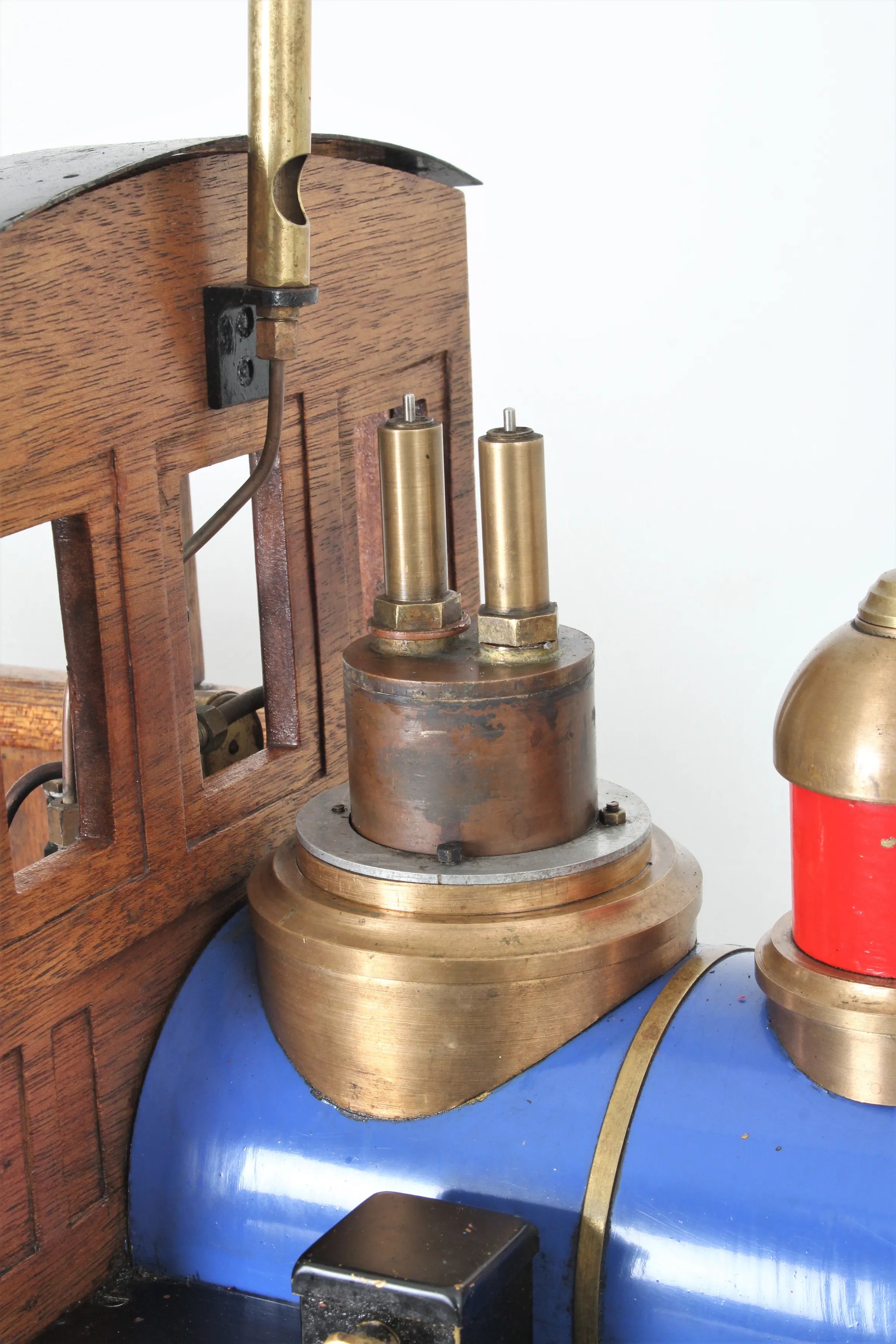

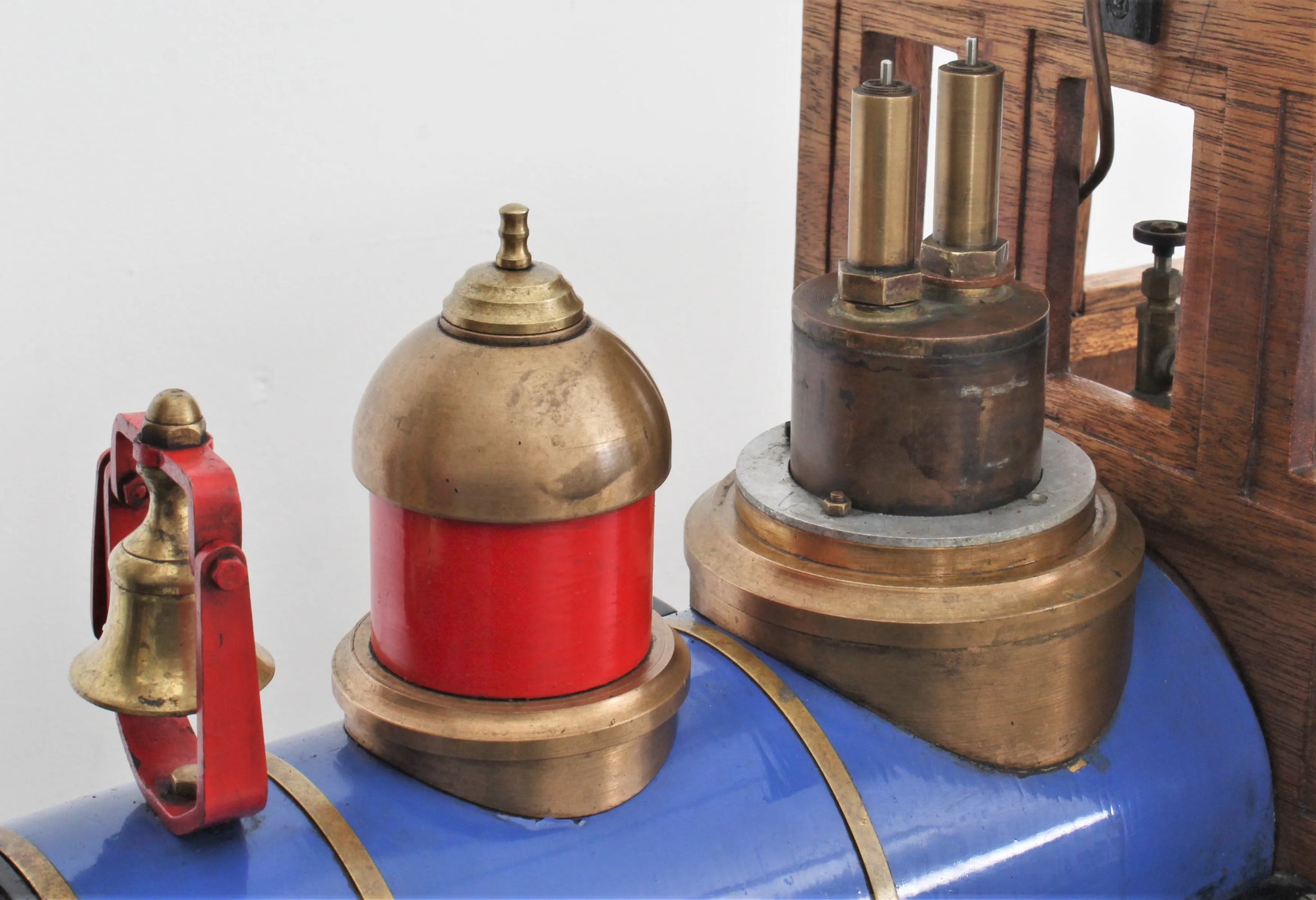

Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Mechanical pump |
1 x croshead |
Date out |
Mar-20 |
Hydraulic test valid to |
21-Feb-23 |
