7809

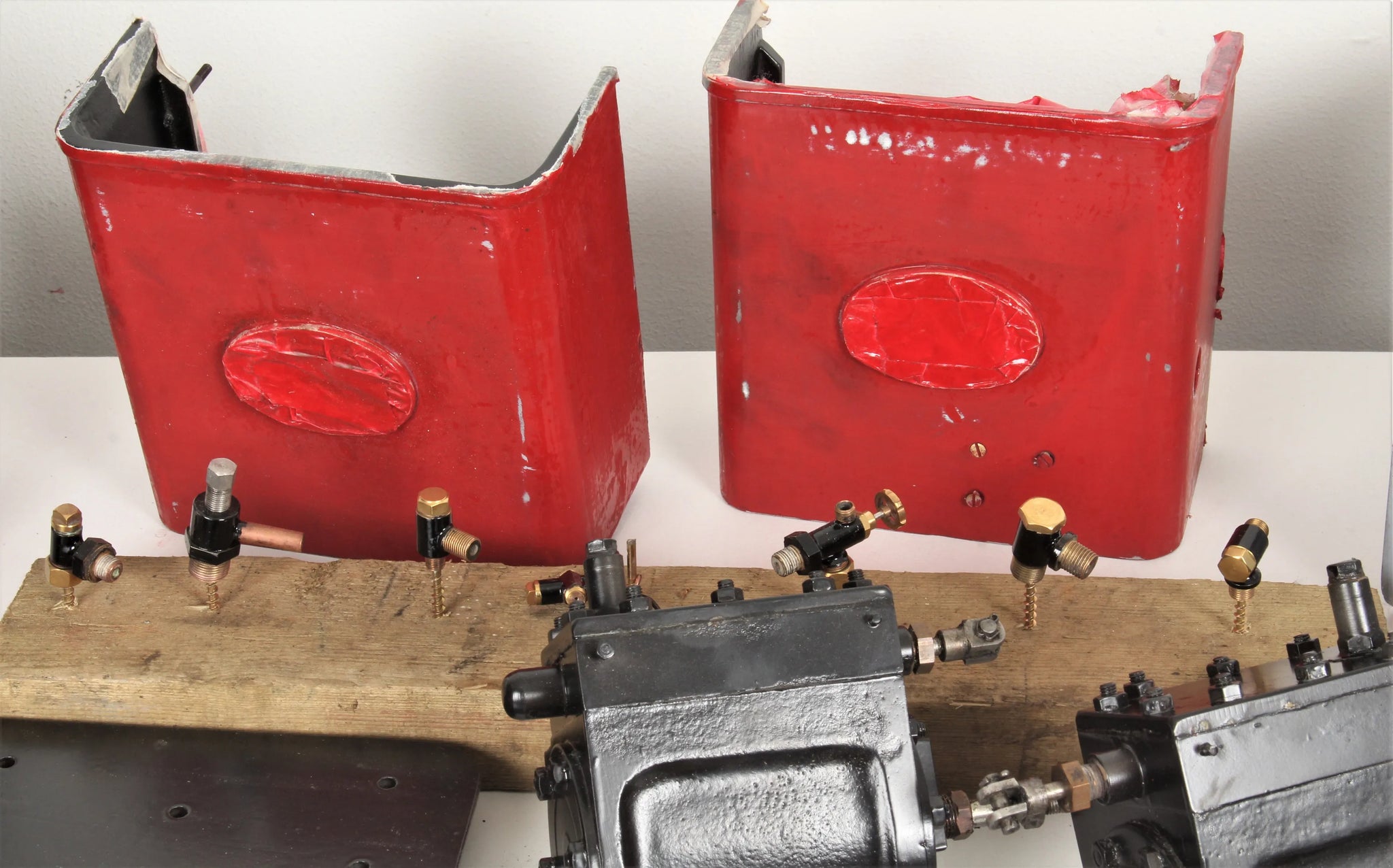

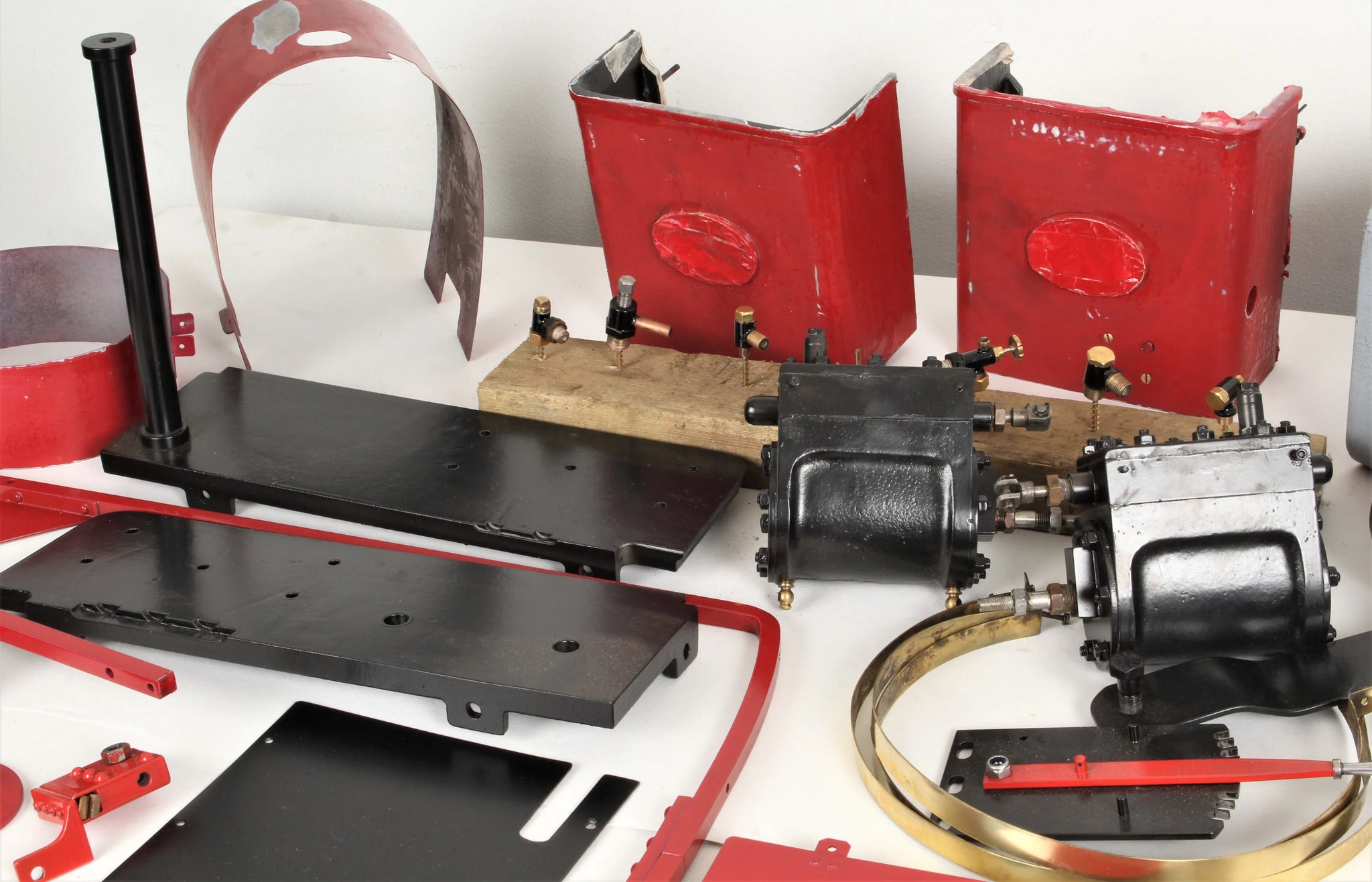

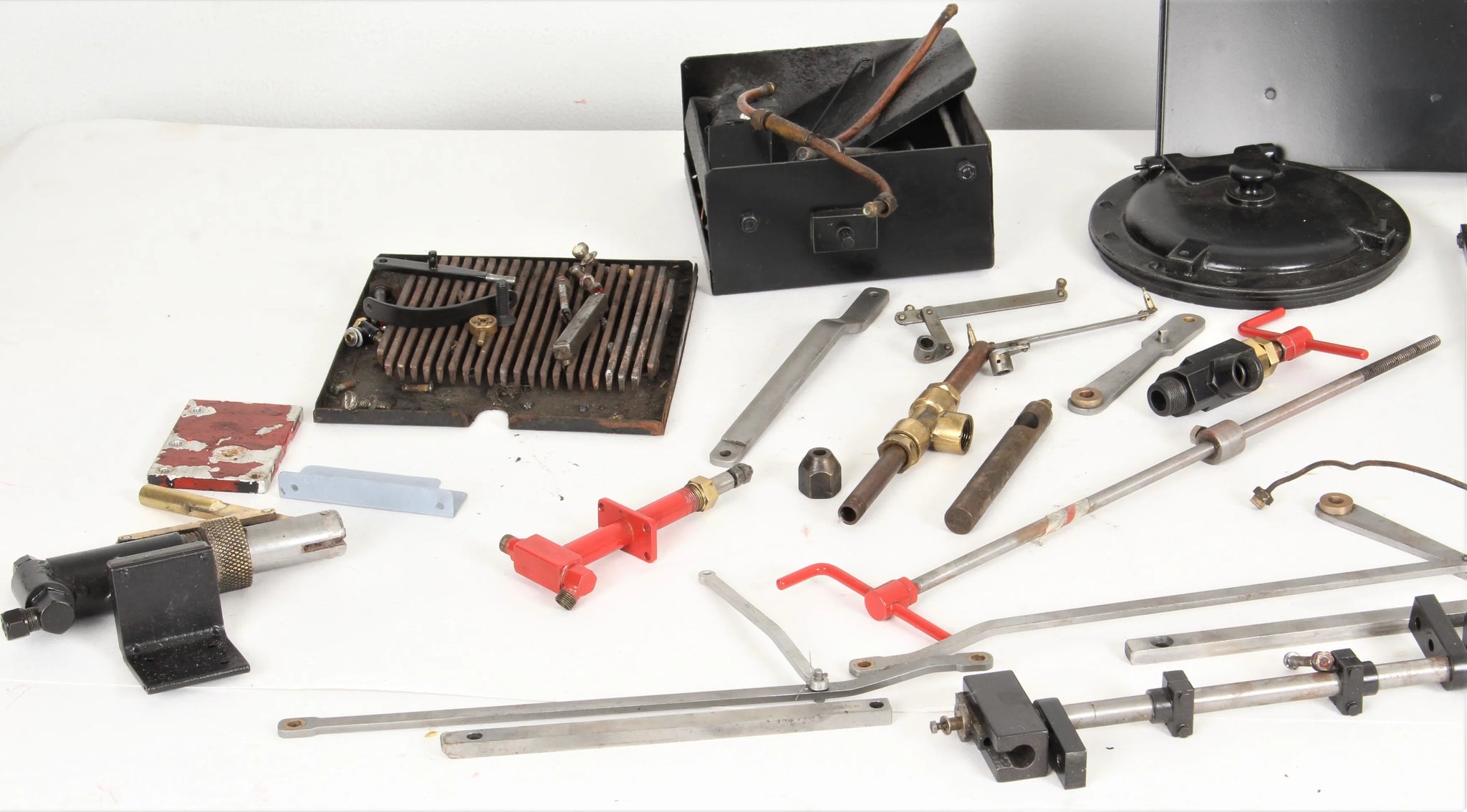

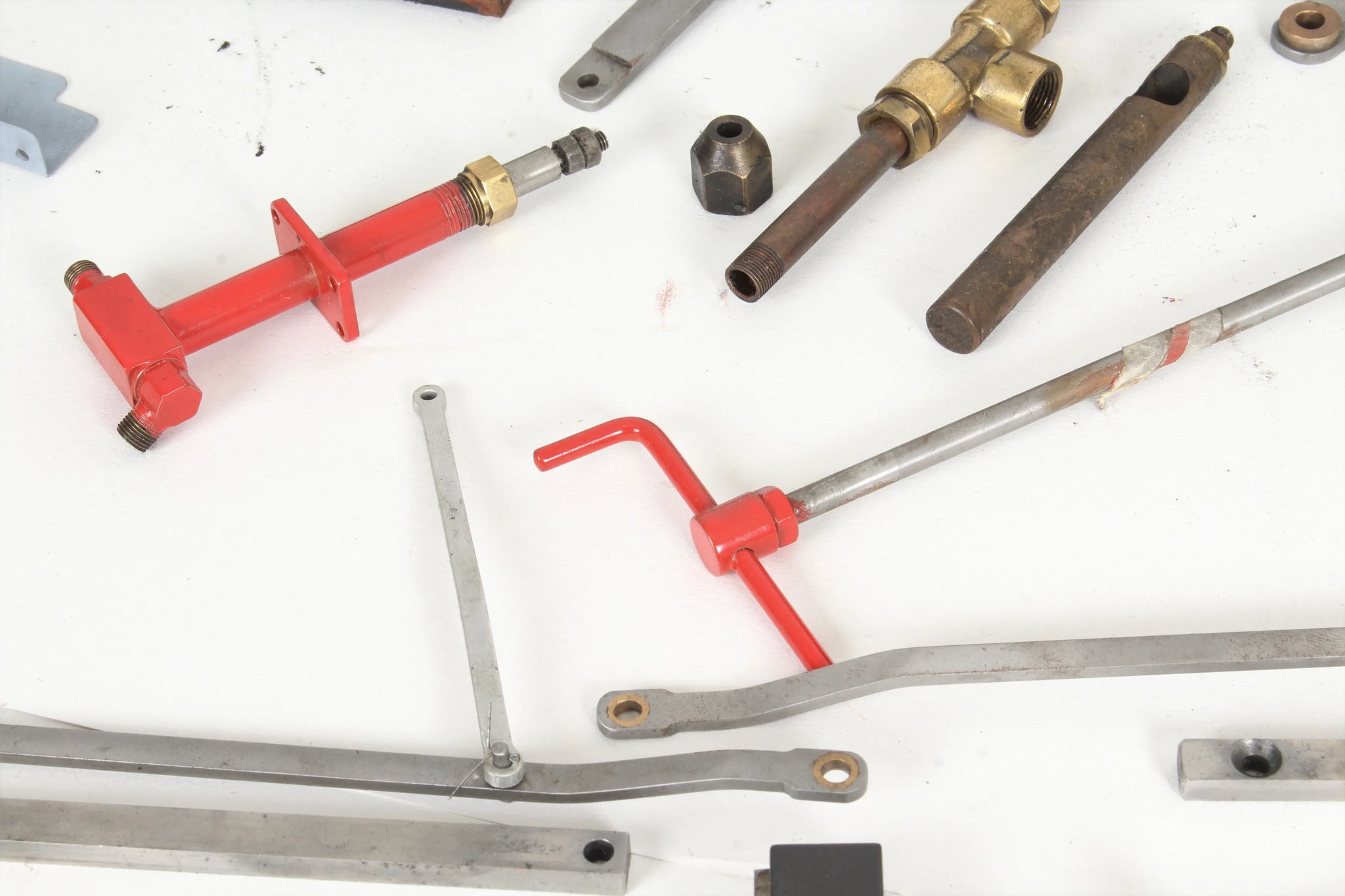

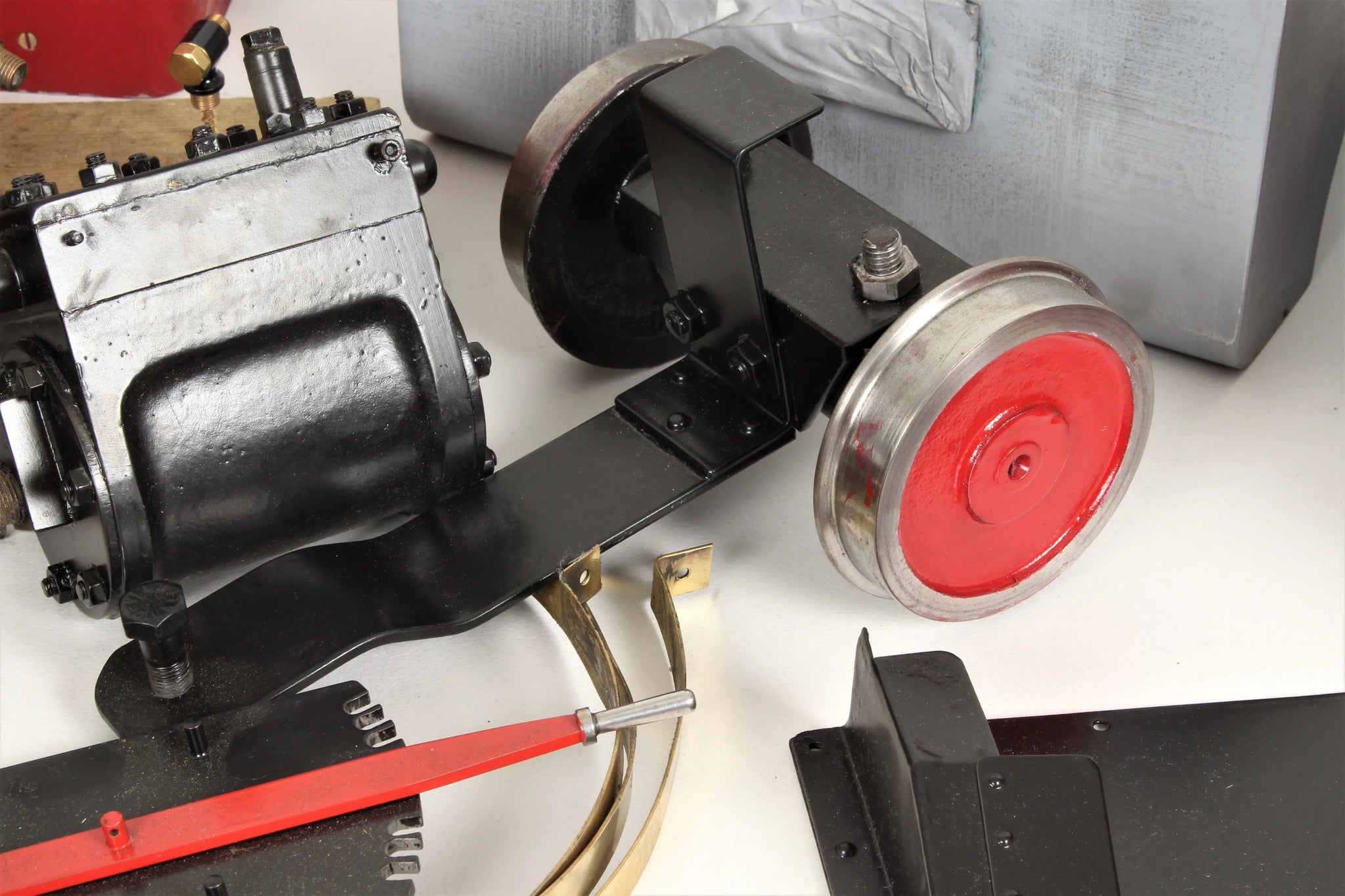

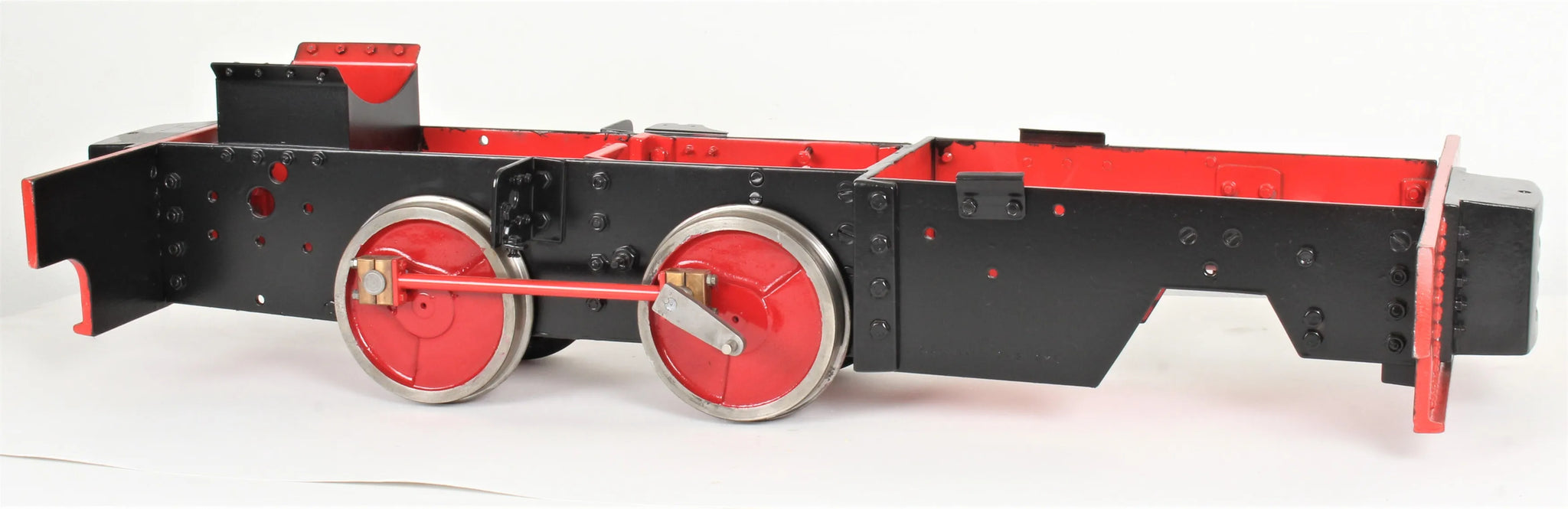

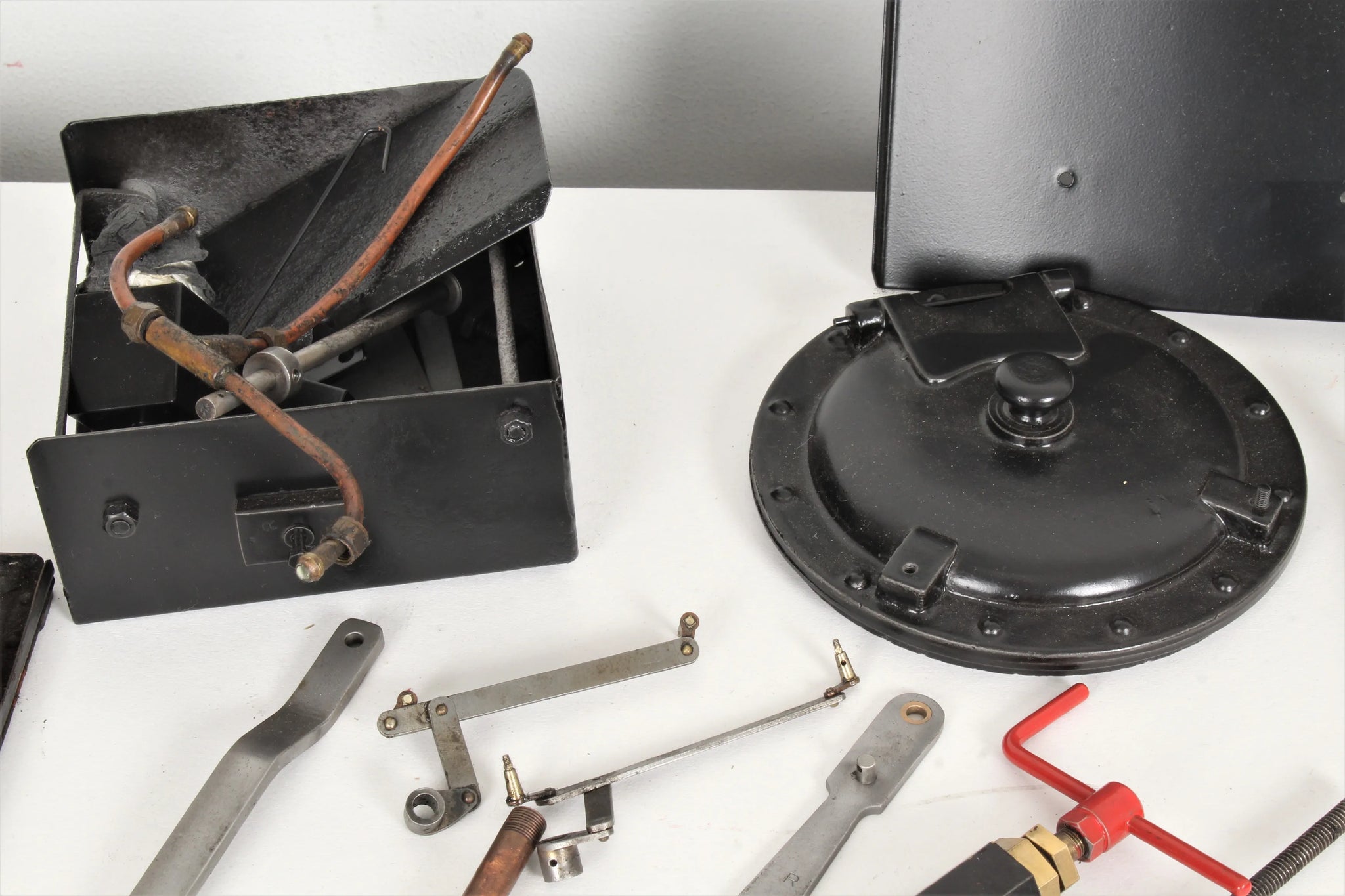

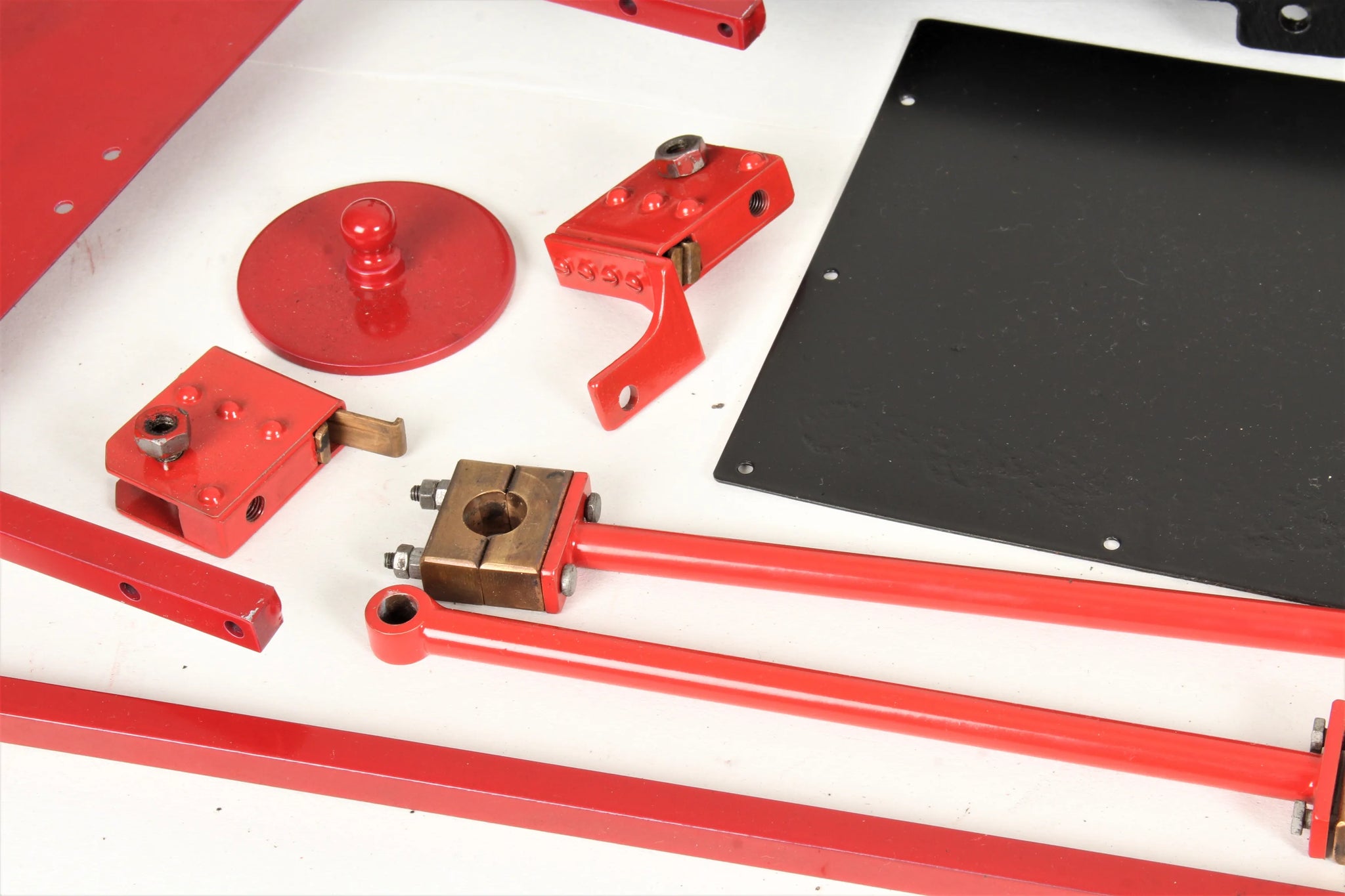

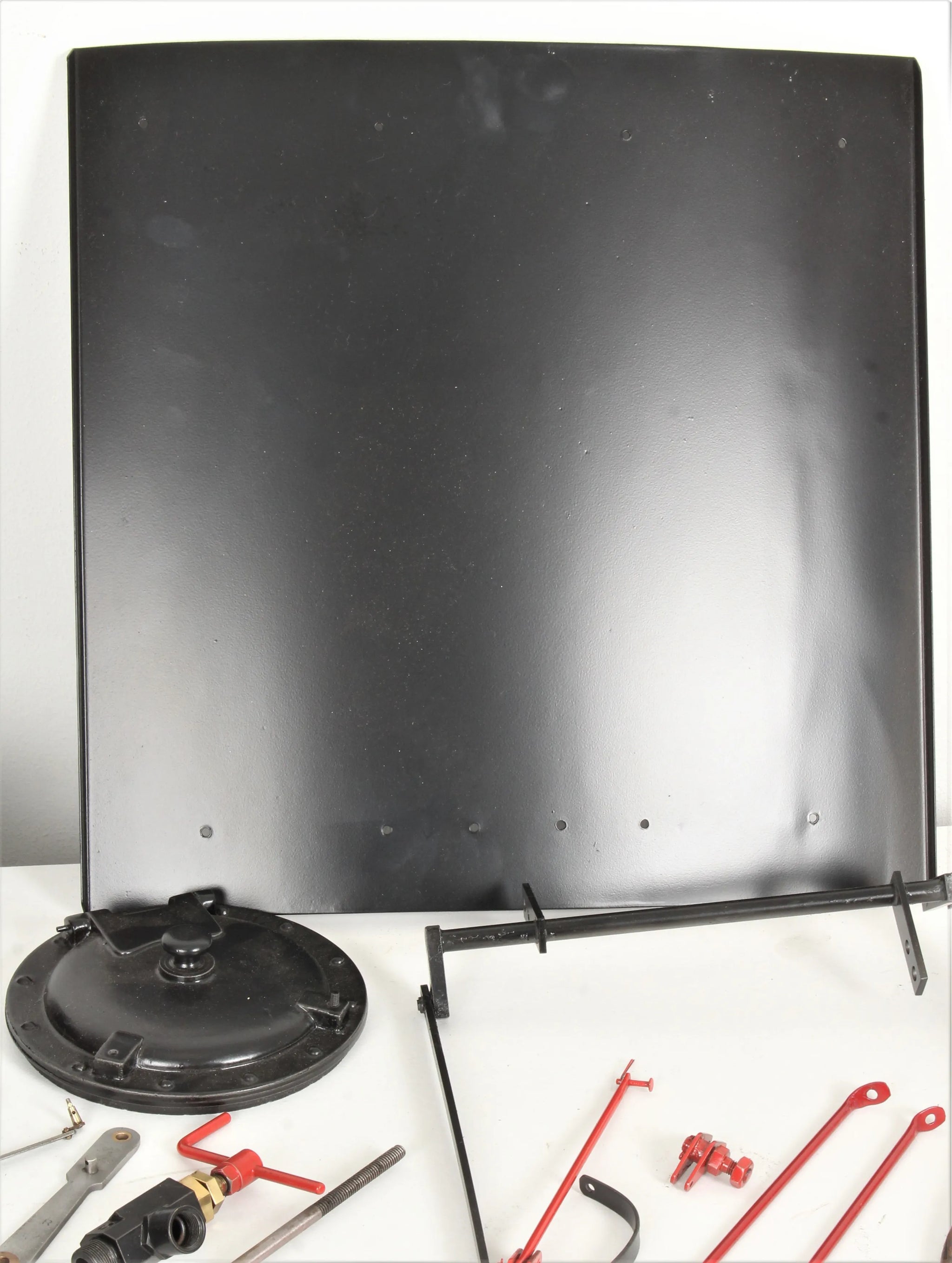

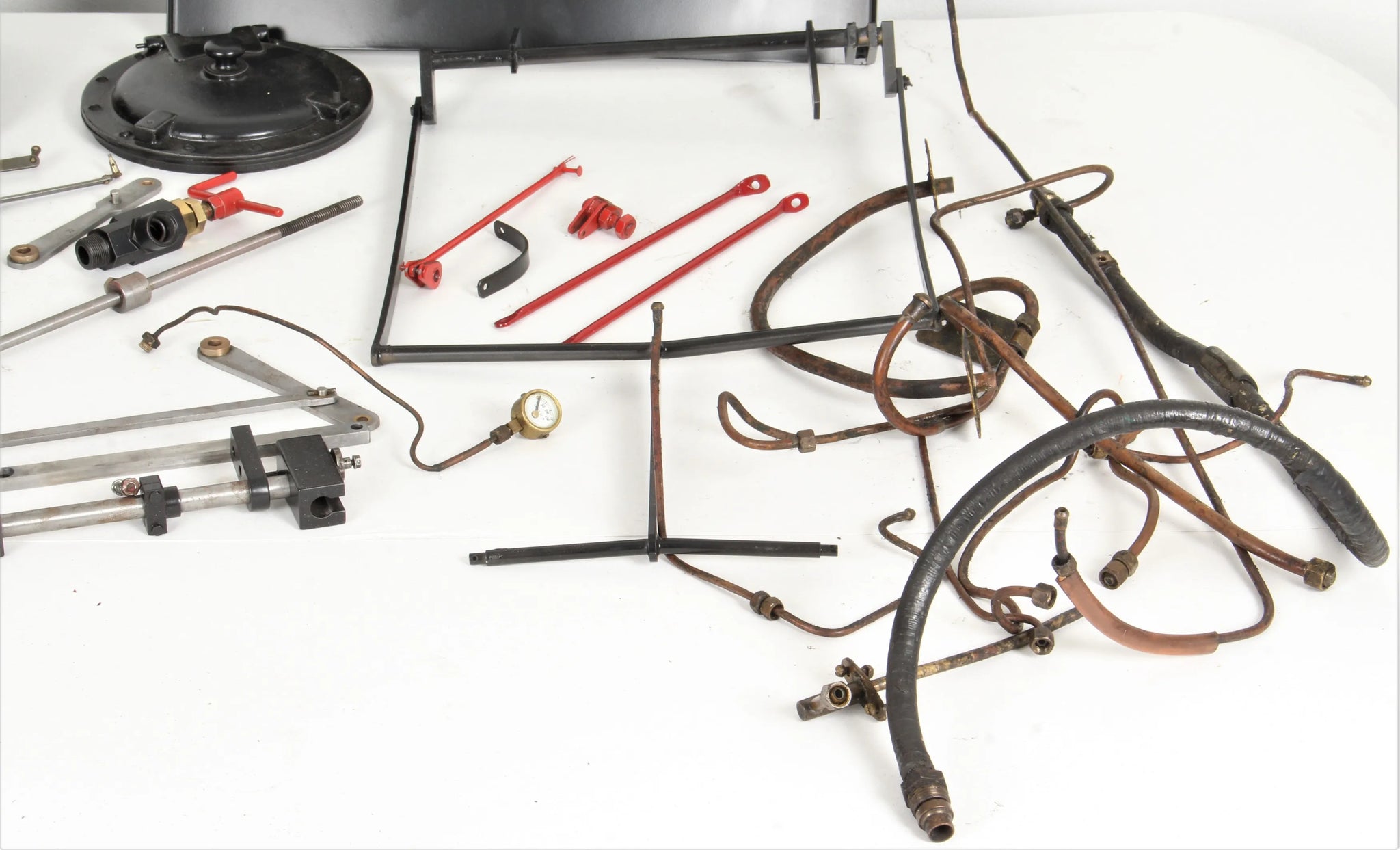

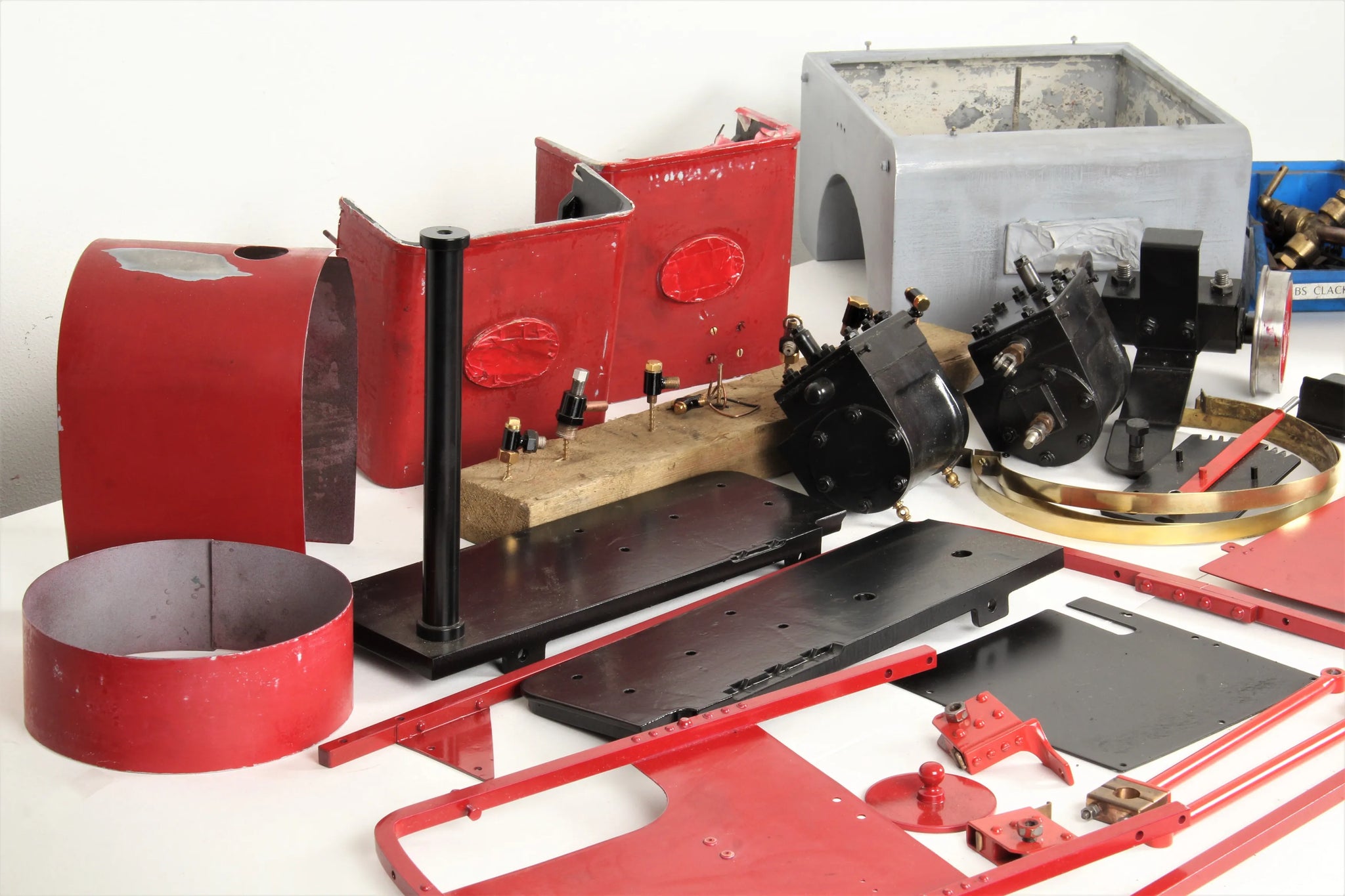

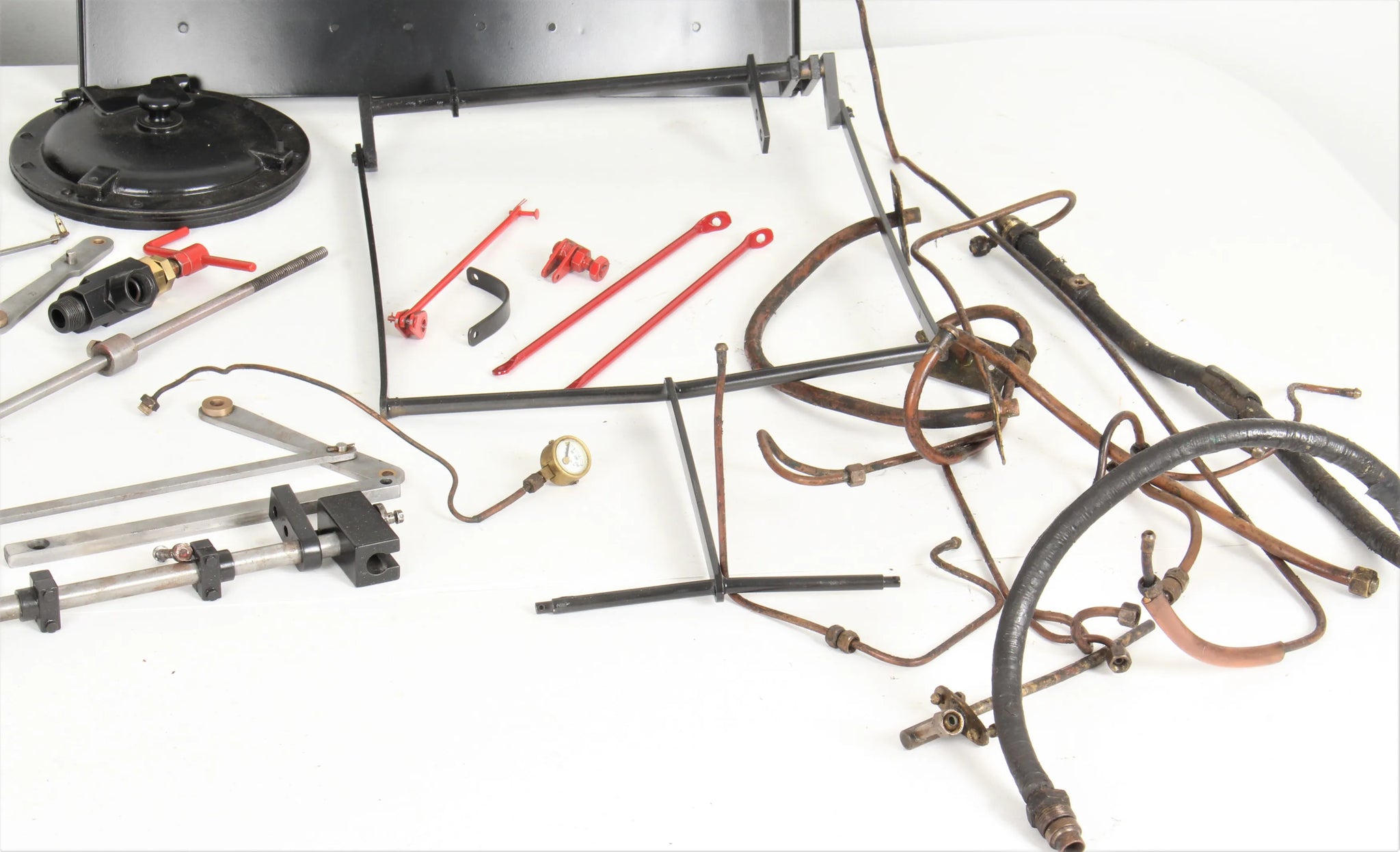

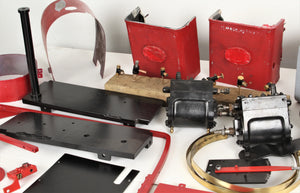

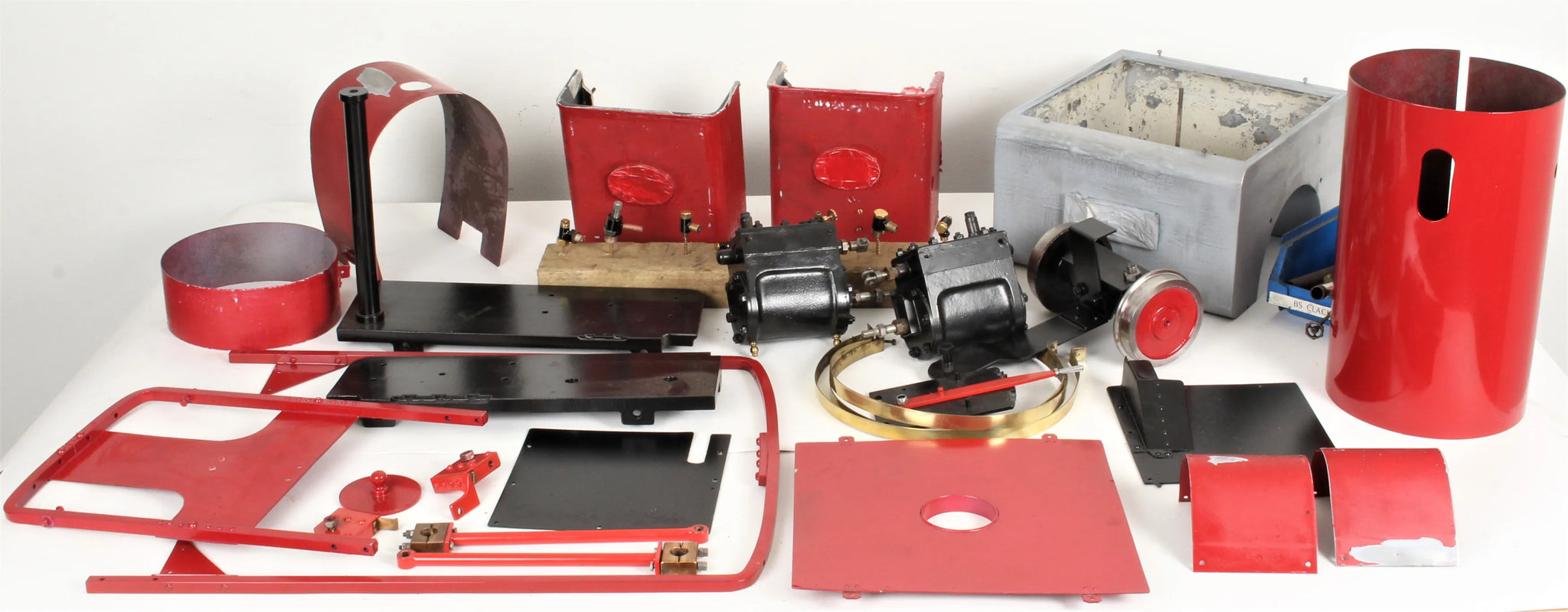

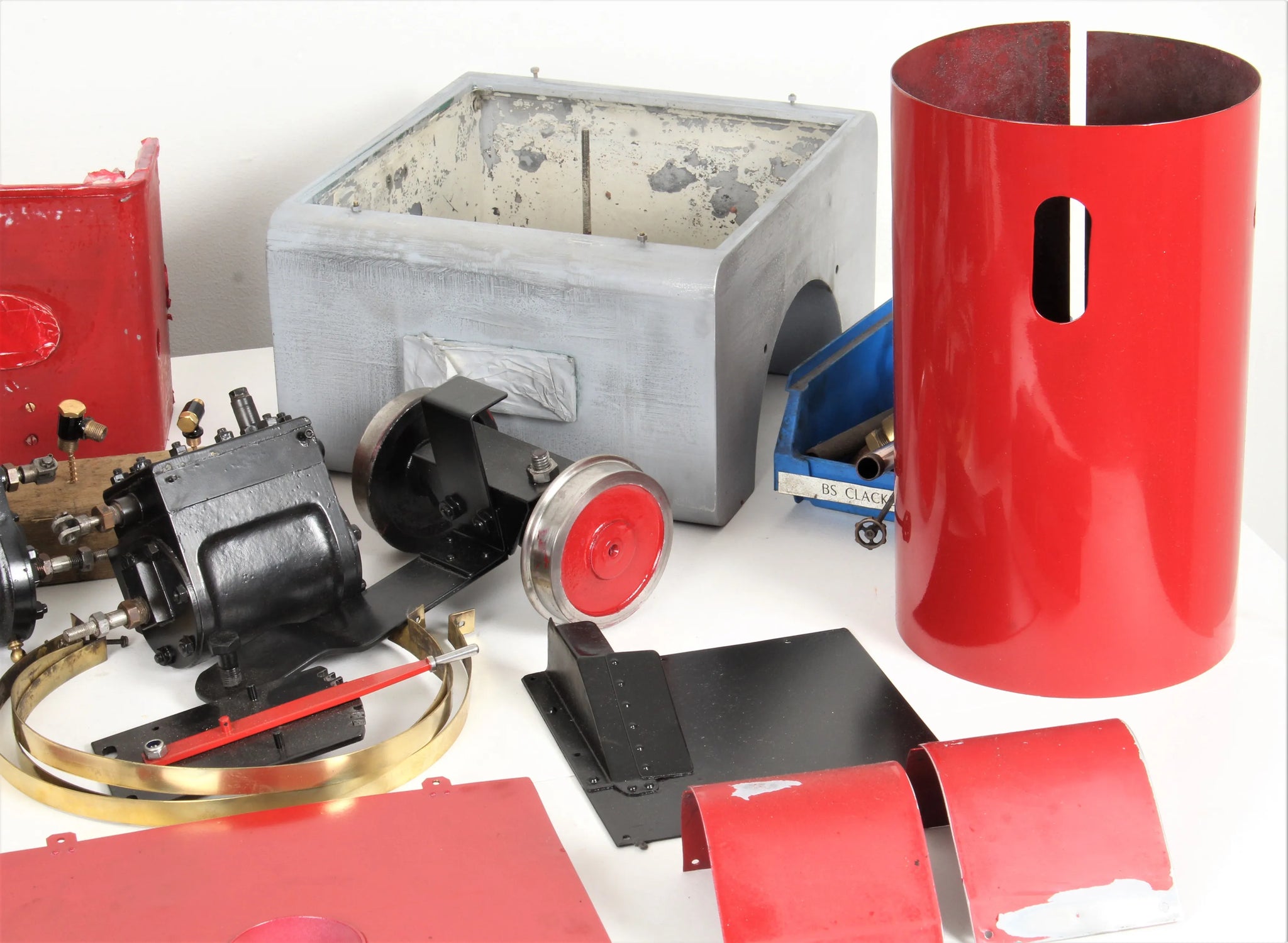

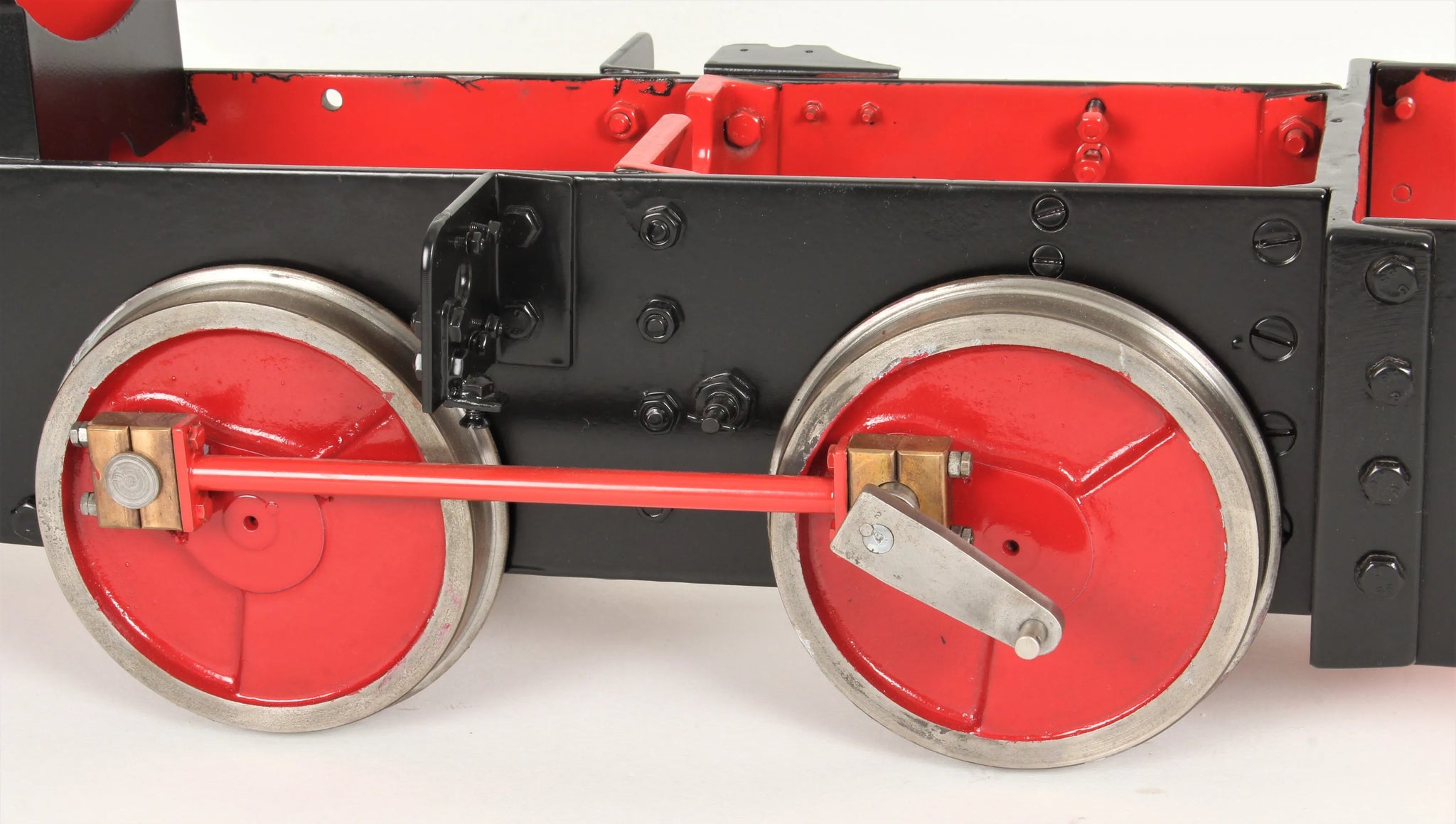

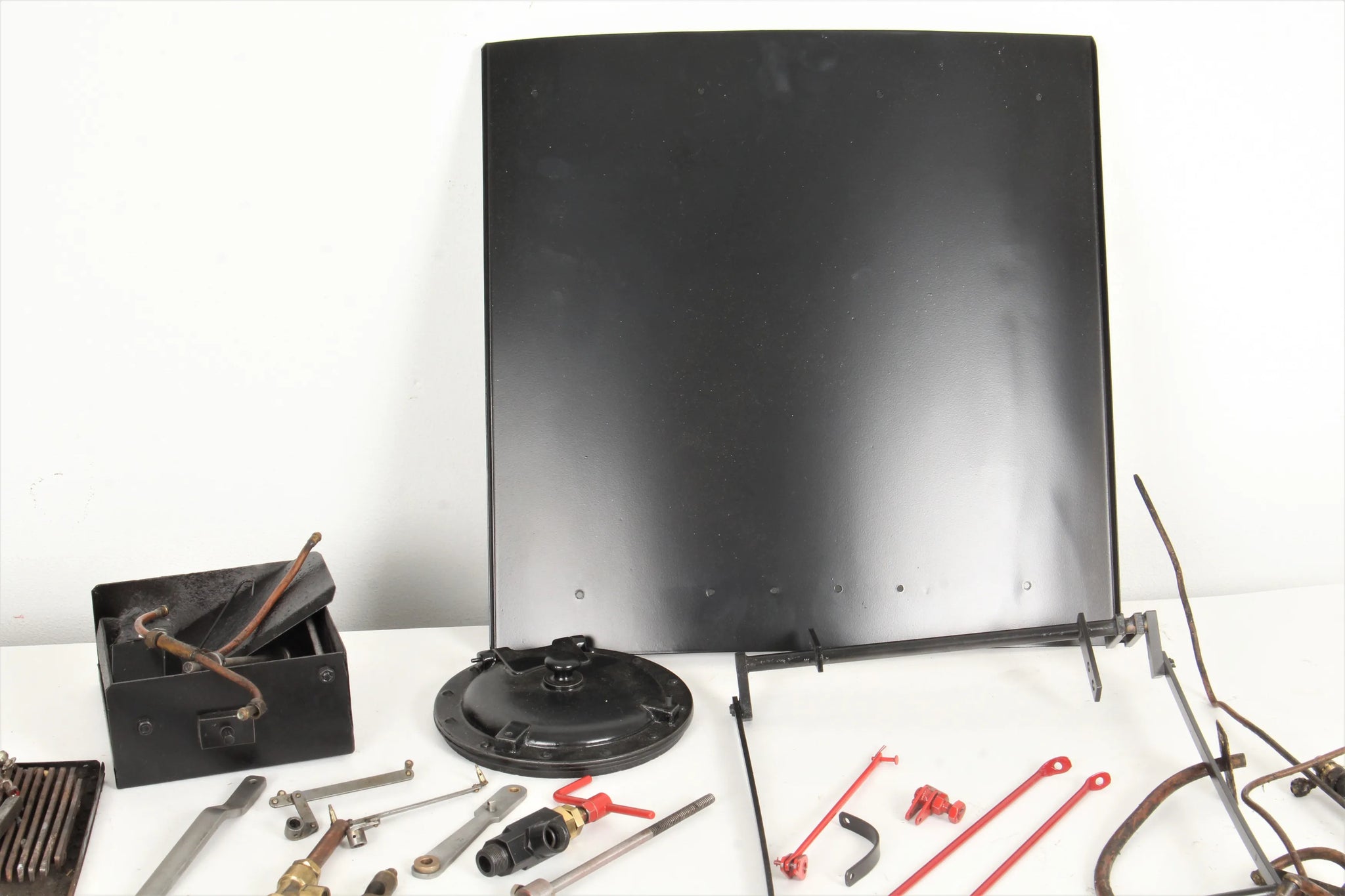

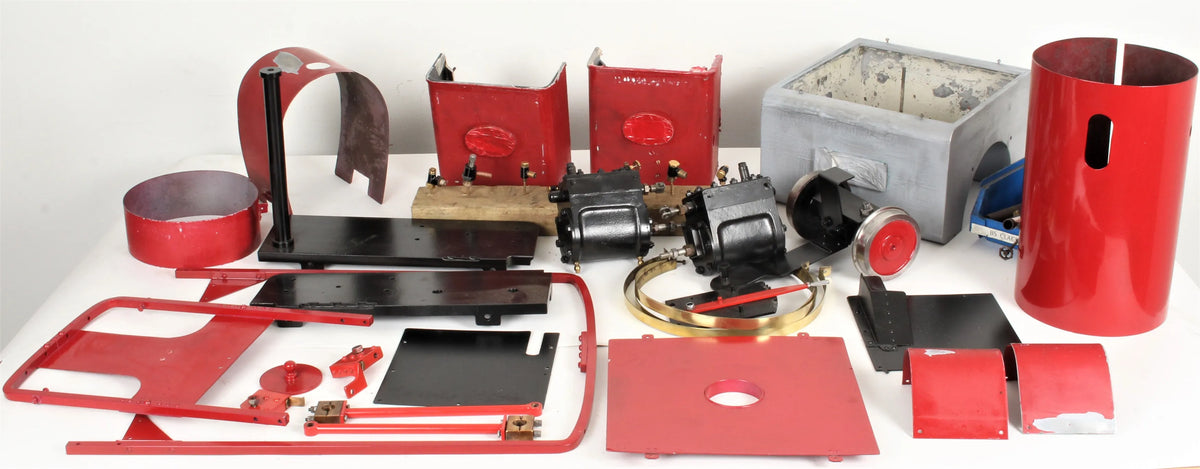

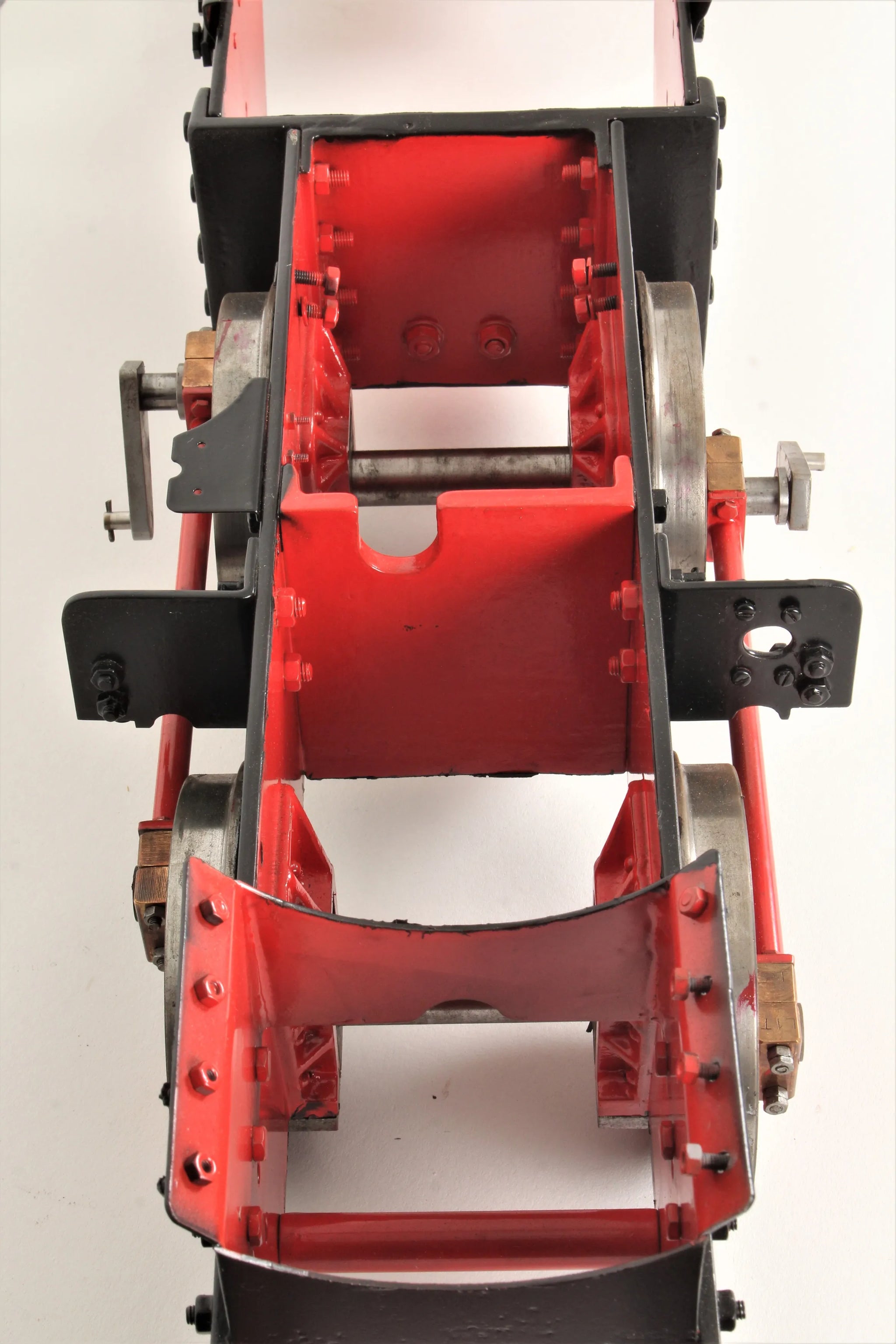

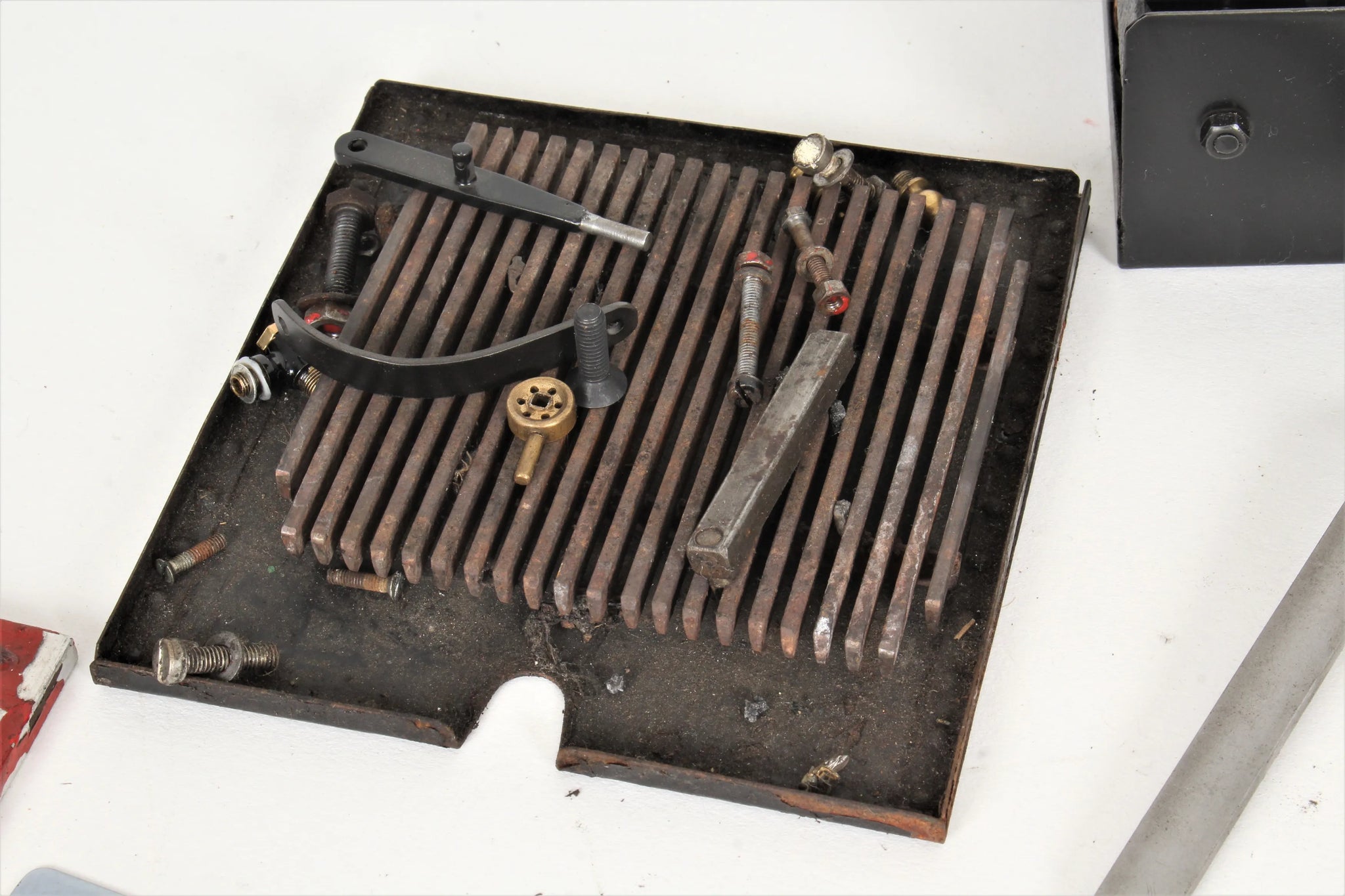

Dismantled for restoration, much work has already been done by way of cleaning and repainting - it now requires reassembly.
A large locomotive for the gauge, Maxitrak use the same parts for the 7 1/4 inch gauge version - both come in at 36 inches long and a hundredweight and a half dry.

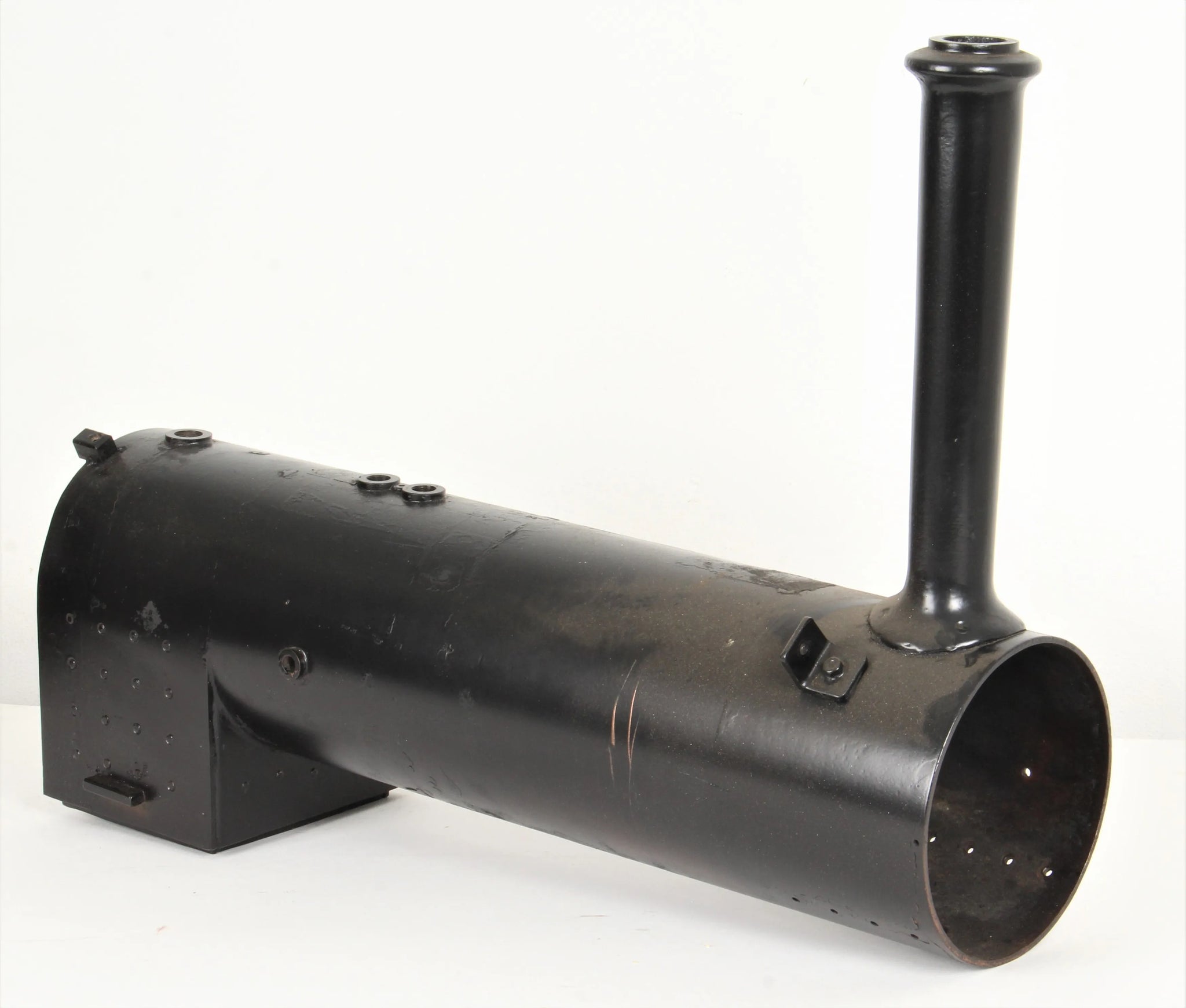

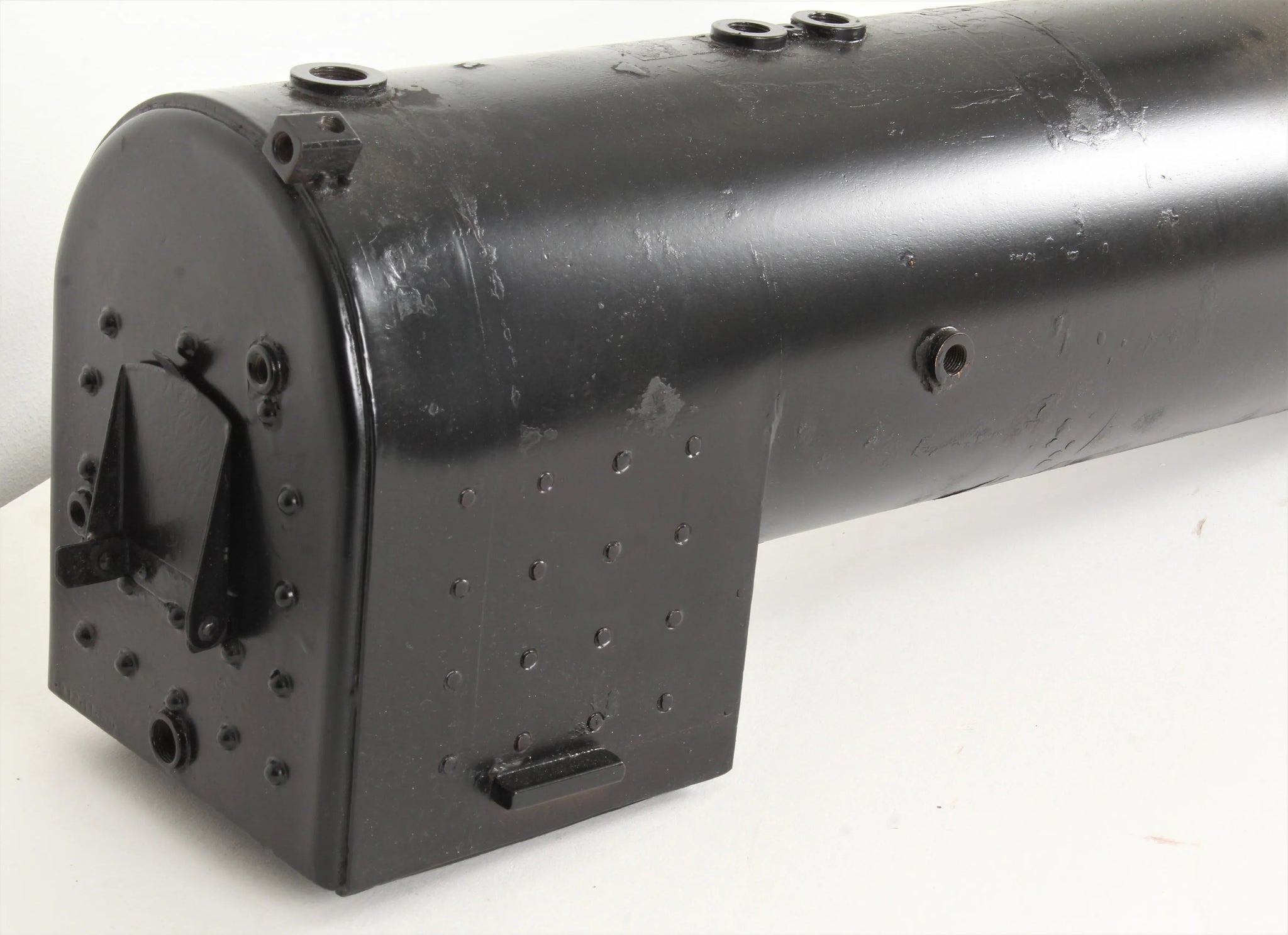

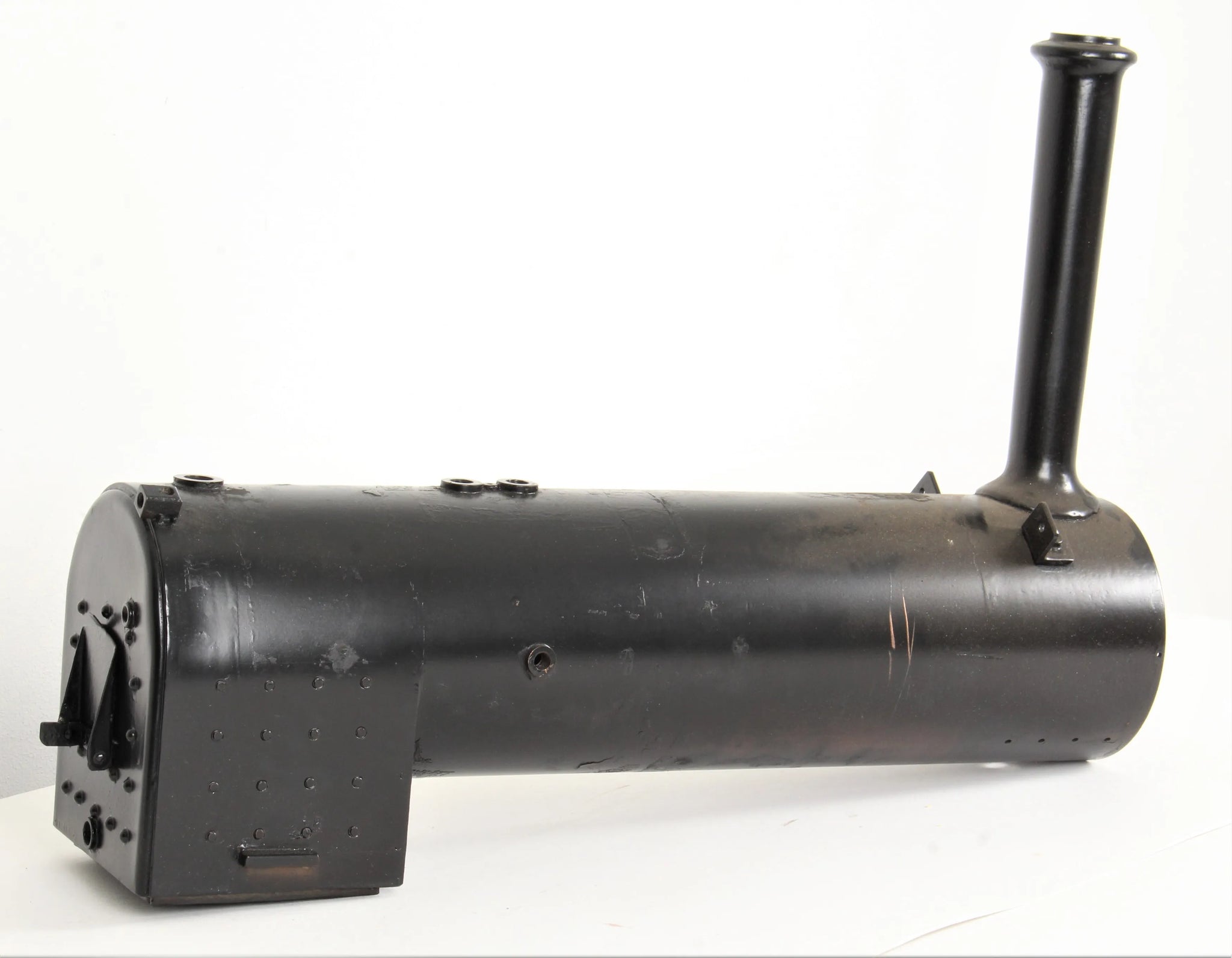

We've seen the engine running in the past and tested the boiler back in 2018. It hasn't been steamed since that time - there's a couple of years left on the hydraulic certificate, we will warranty the boiler as sound.
There are pictures of a good "Pearl" we sold back in 2017 in the archive if you need to remind yourself what it looks like when complete.
Stock code |
7809 |
Gauge |
5 inch |
Length/inches |
36 |
Width/inches |
15 |
Height/inches |
24 |
Weight/Kg |
76 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |

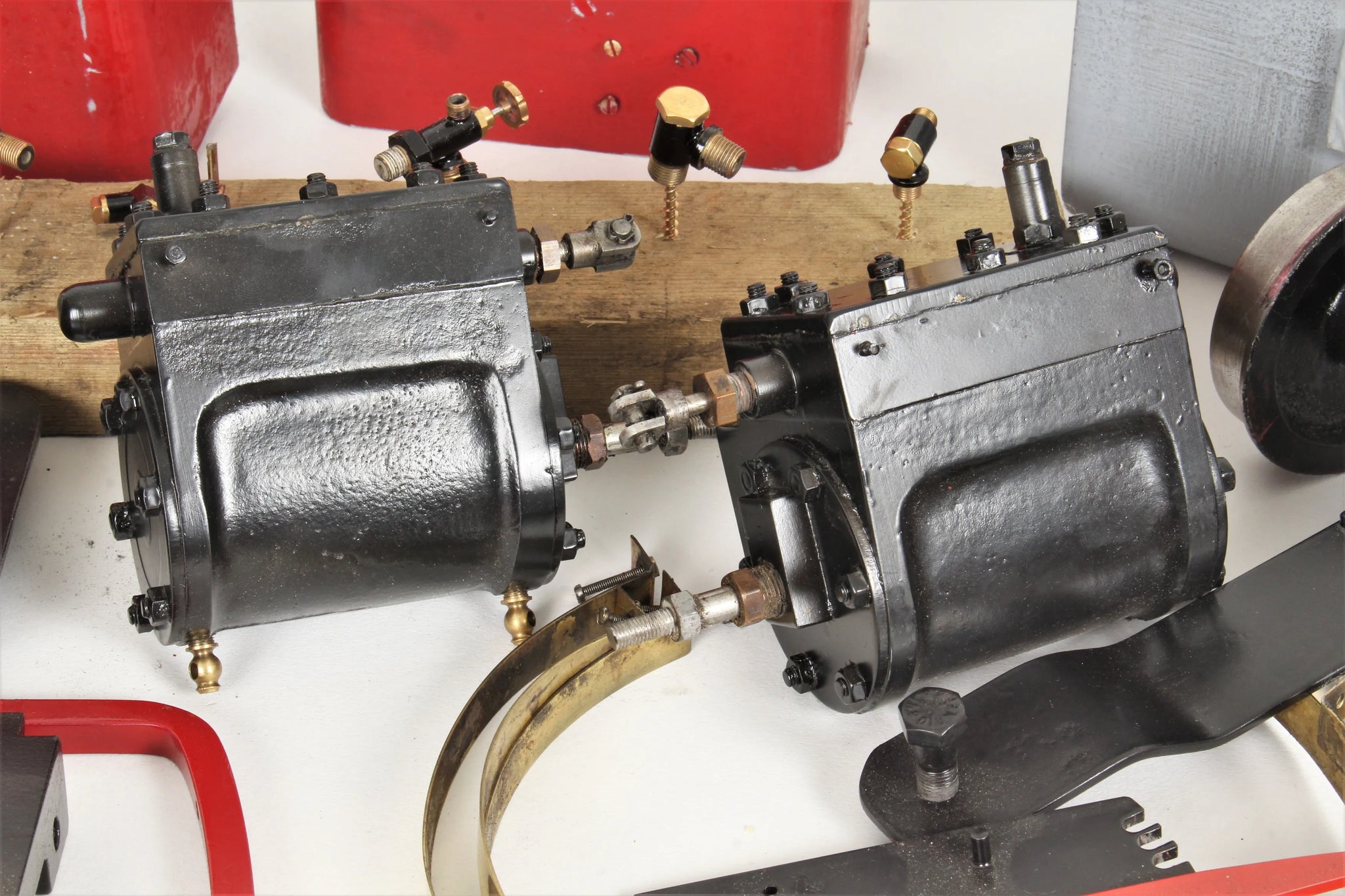

Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Hackworth |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
Maxitrak |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a pre-2002 |
Boiler number |
912.11.85 |
Safety valve type |
spring |
Safety valve |
1 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Minimum radius |
10 |
Date out |
Apr-20 |
Hydraulic test valid to |
10-Jul-22 |
