Sold

10416

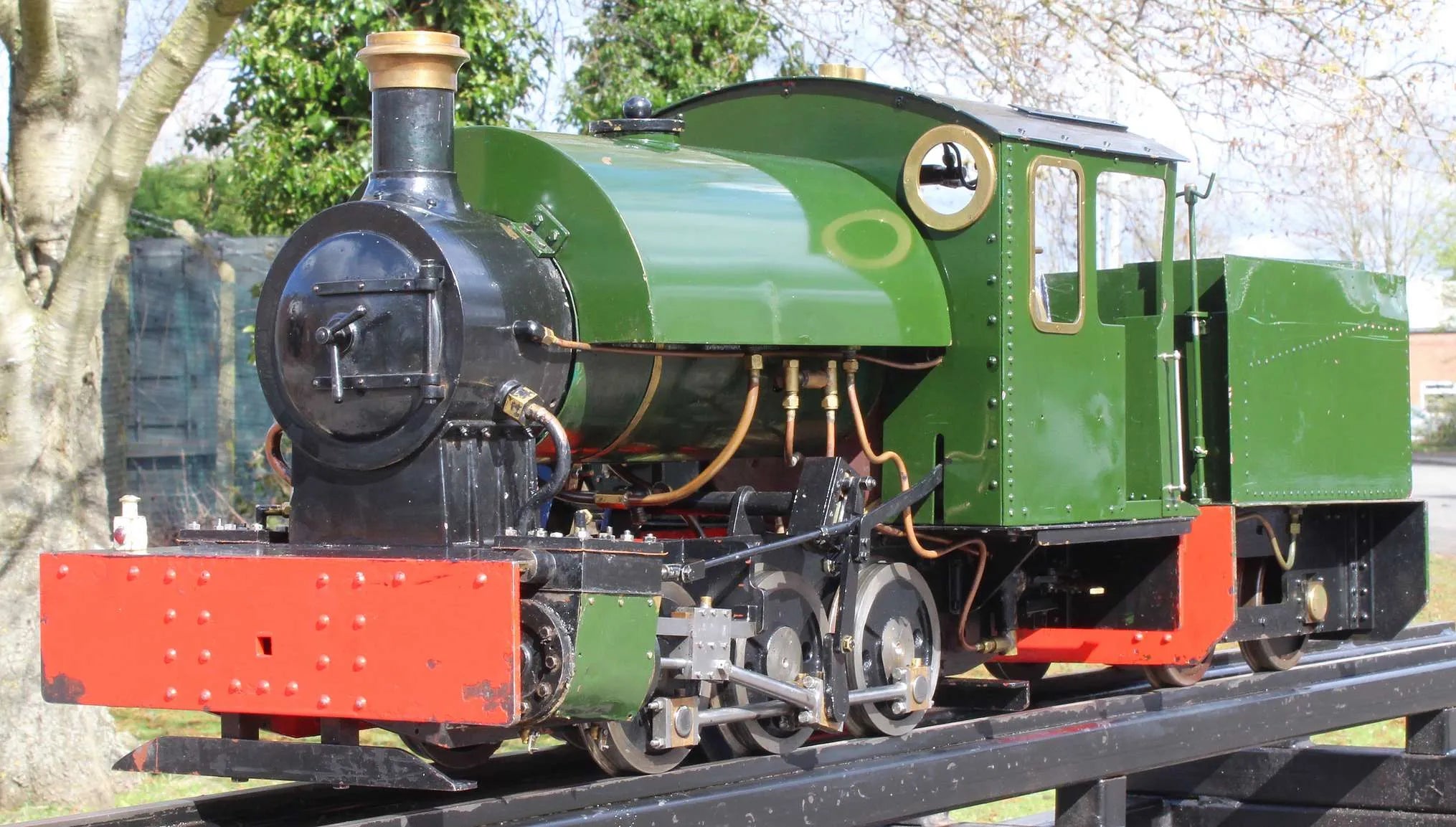

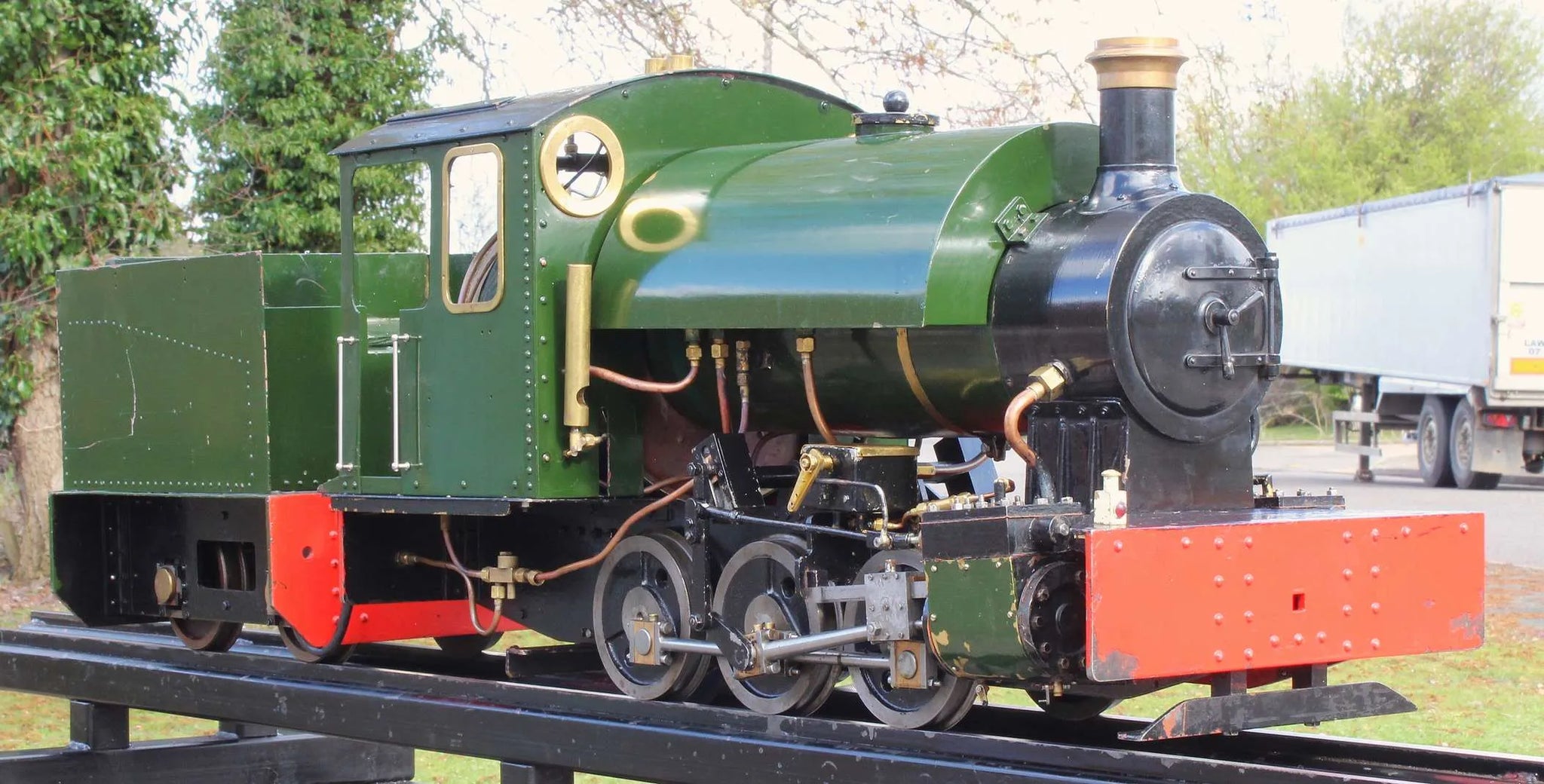

5 inch gauge "Metre Maid" 0-6-0ST

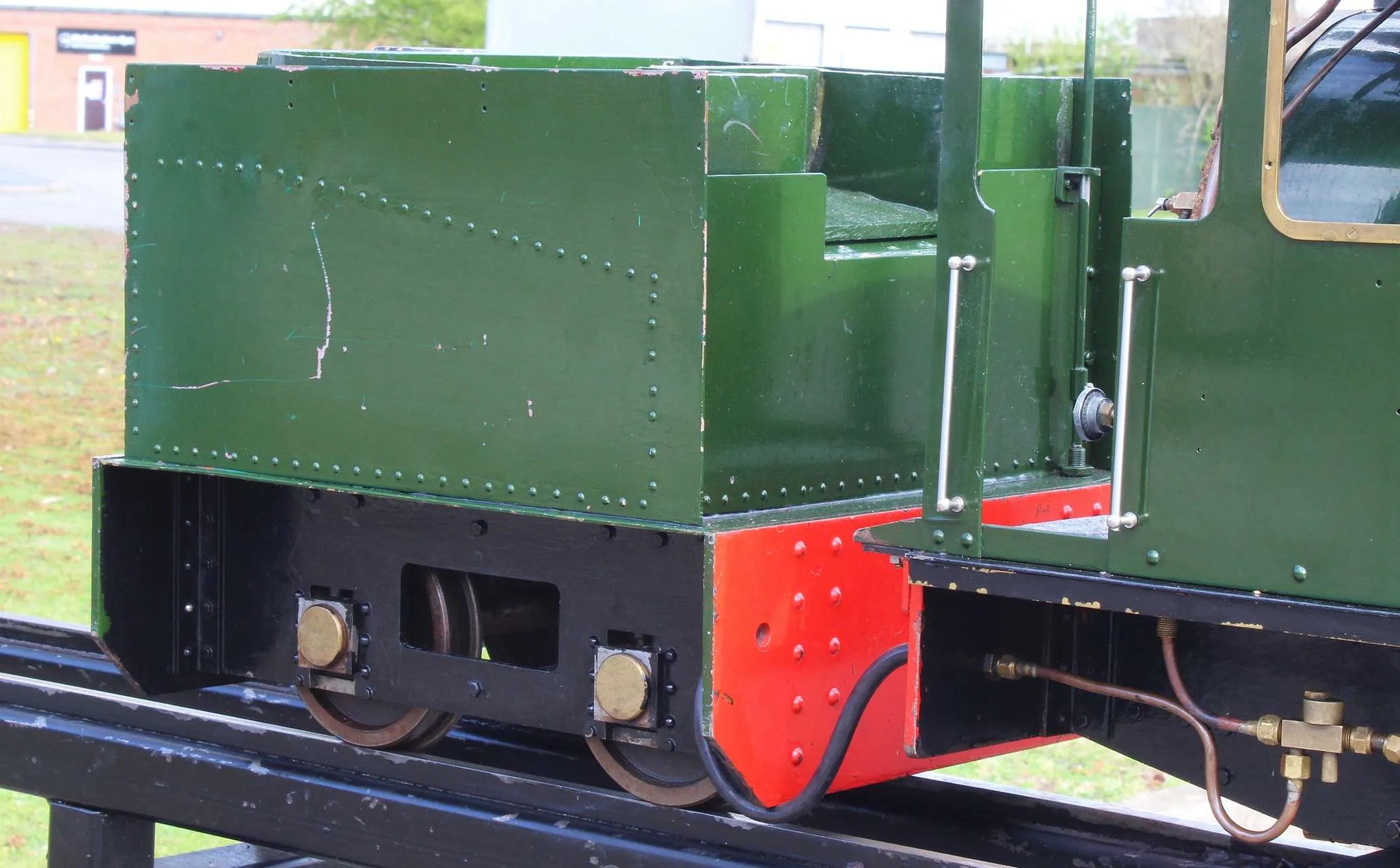

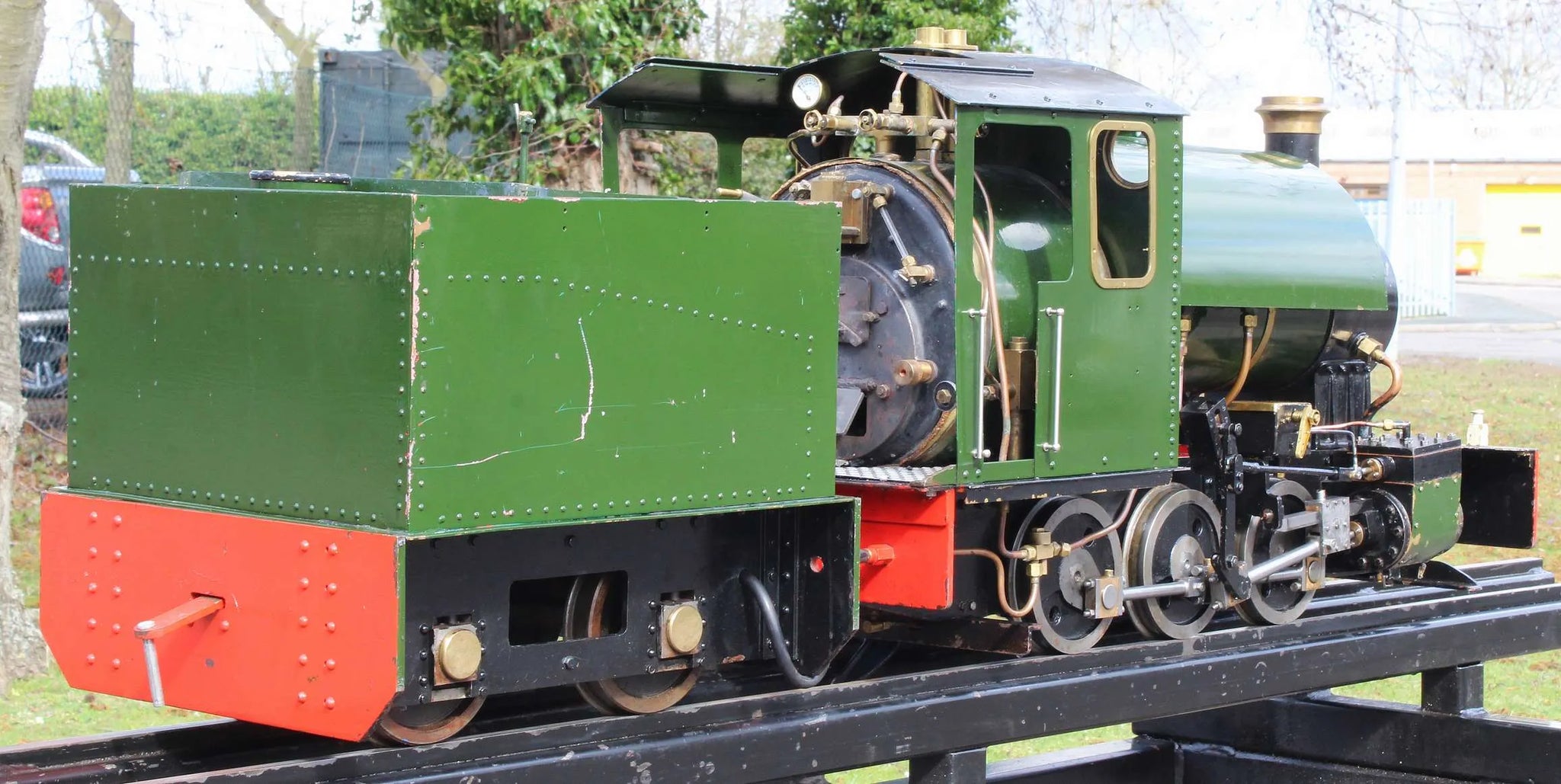

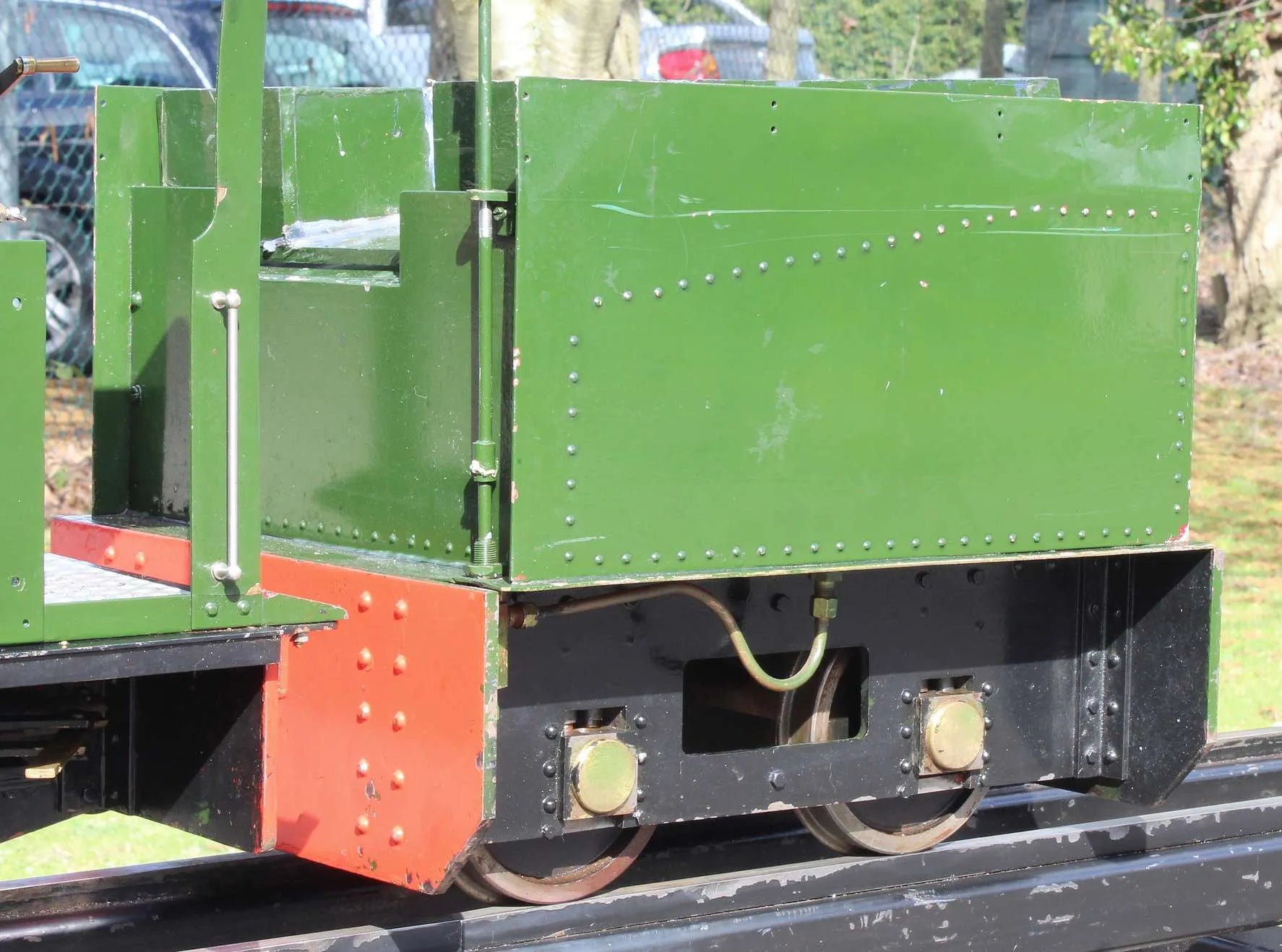

A 5 inch gauge "Metre Maid", 0-6-0 variant of the ever-popular "Sweet Pea" 0-4-0ST, complete with four-wheeled tender.

Fitted with with commercially built copper boiler by Cheddar, it has had recent hydraulic and steam tests with new certification issued.

In running order, it has a variety of jobs requiring attention which could be done whilst continuing to use the engine, including:

  • Service nearside water gauge which gives false reading
  • Check/adjust valve settings to improve reverse running
  • Repack pistons which blow by
  • Make/fit draincock linkage
  • Service/replace injector water valve on tender
On the positive side all water feeds work well, the pop-type safety valves are highly efficient.

Technical information

Stock code

10416

Gauge

5 inch

Length/inches

32

Width/inches

13

Height/inches

22

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

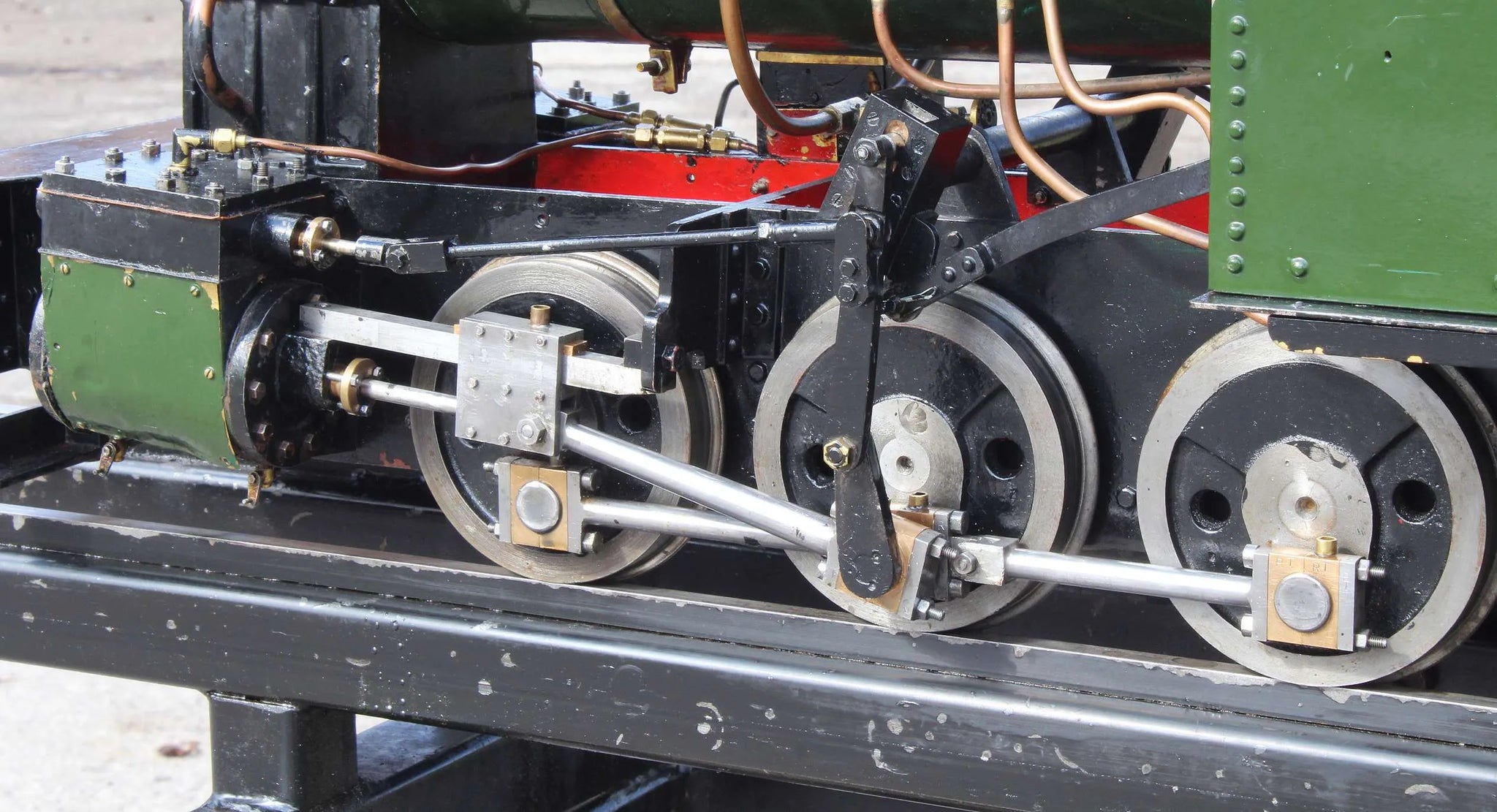

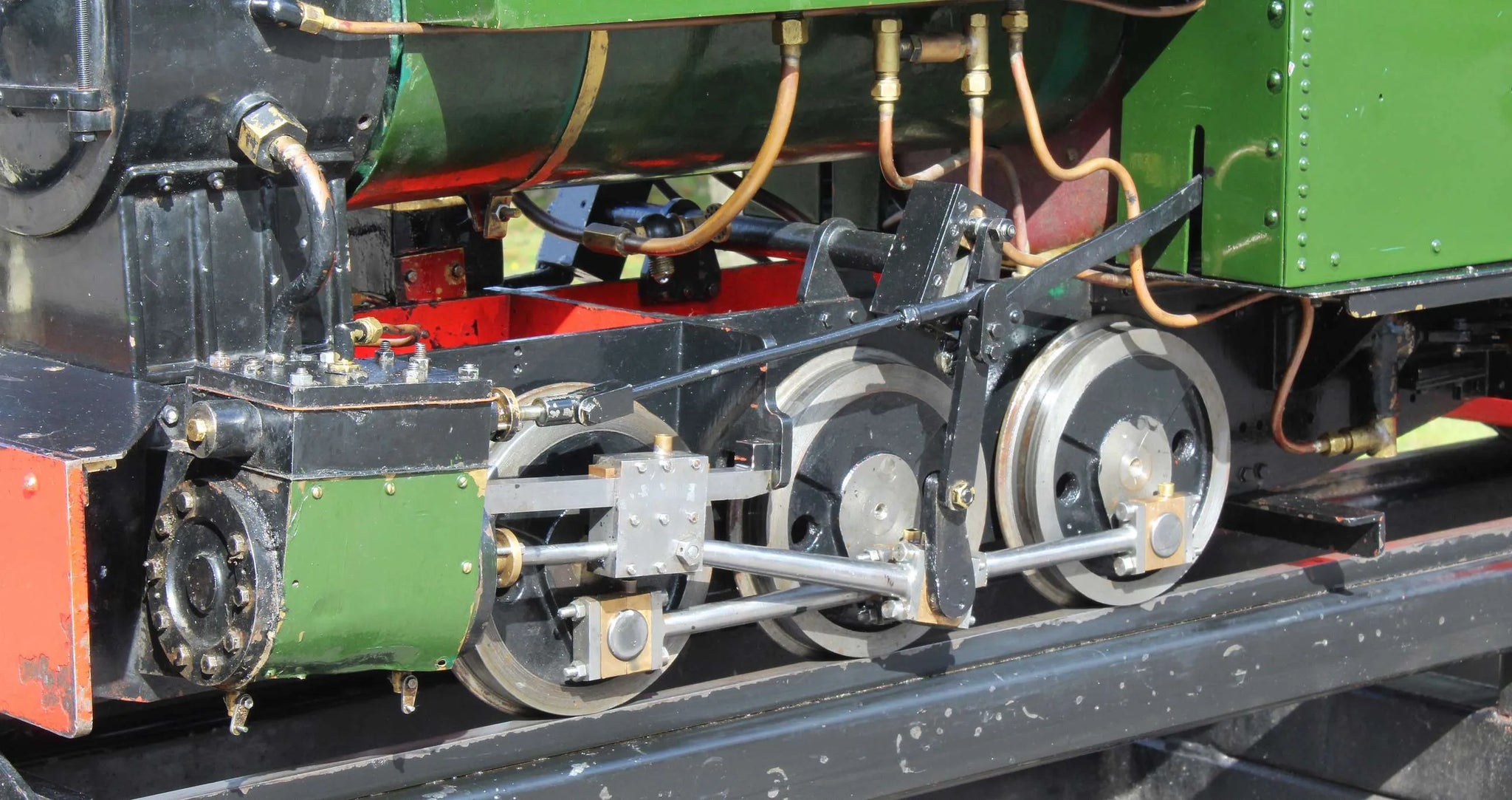

Valve gear

Hackworth

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Cheddar Boilers

Boiler type

marine

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - pre-2002

Year built

1983

Boiler number

538.11.83

Safety valve type

pop

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Jun-22

Hydraulic test valid to

04-Apr-26

Steam test valid to

04-Jun-23
