Sold

8639

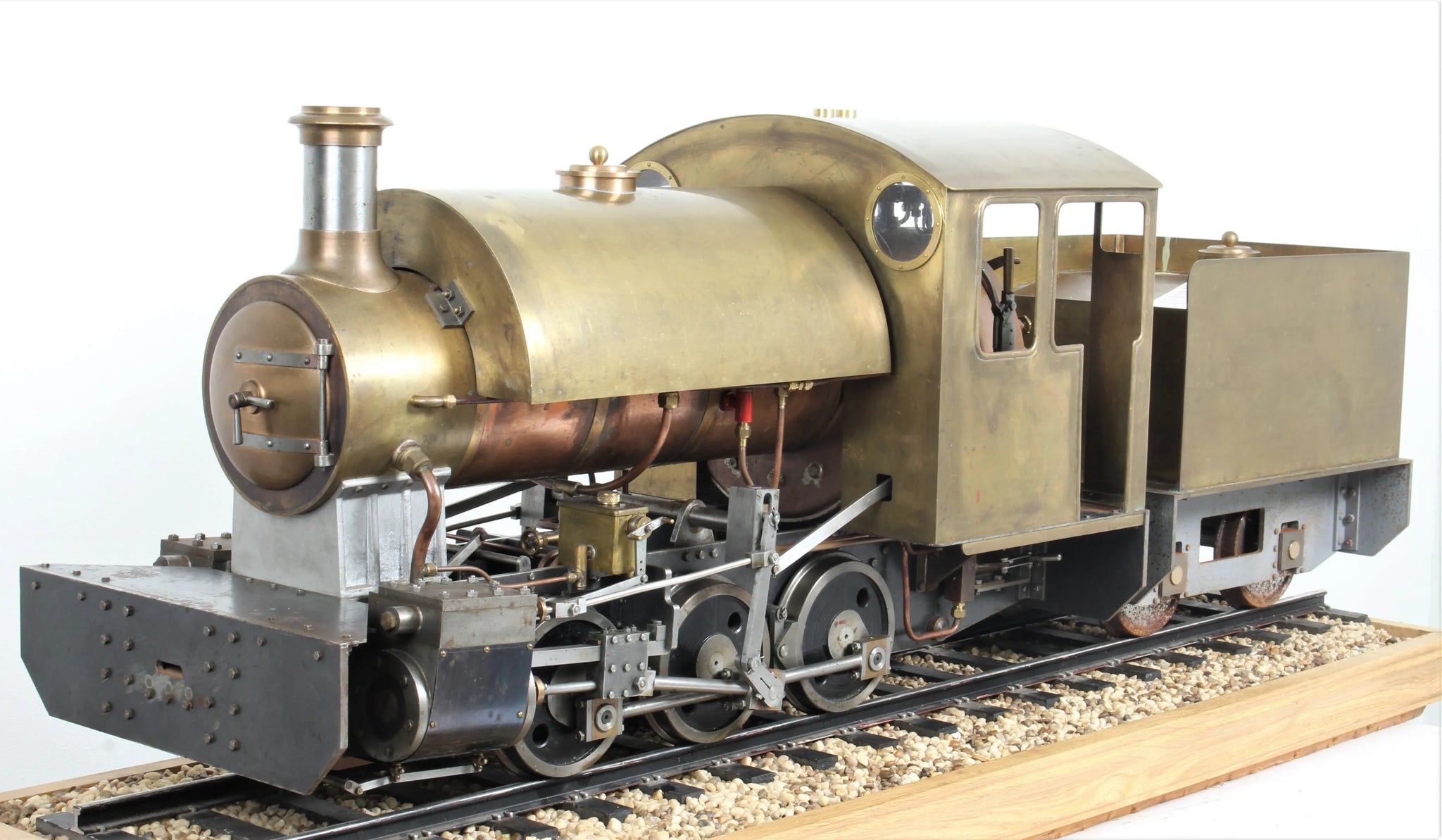

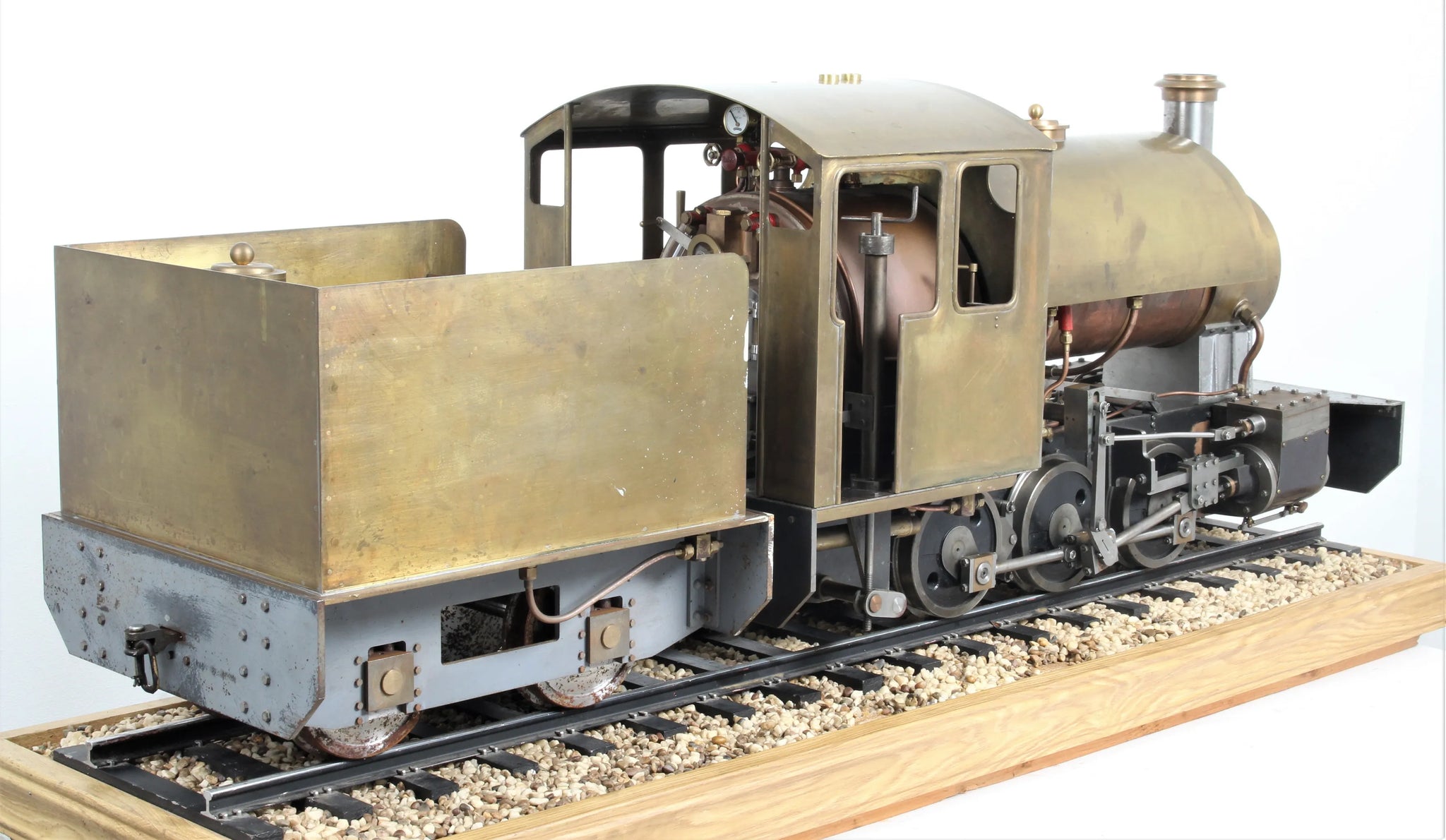

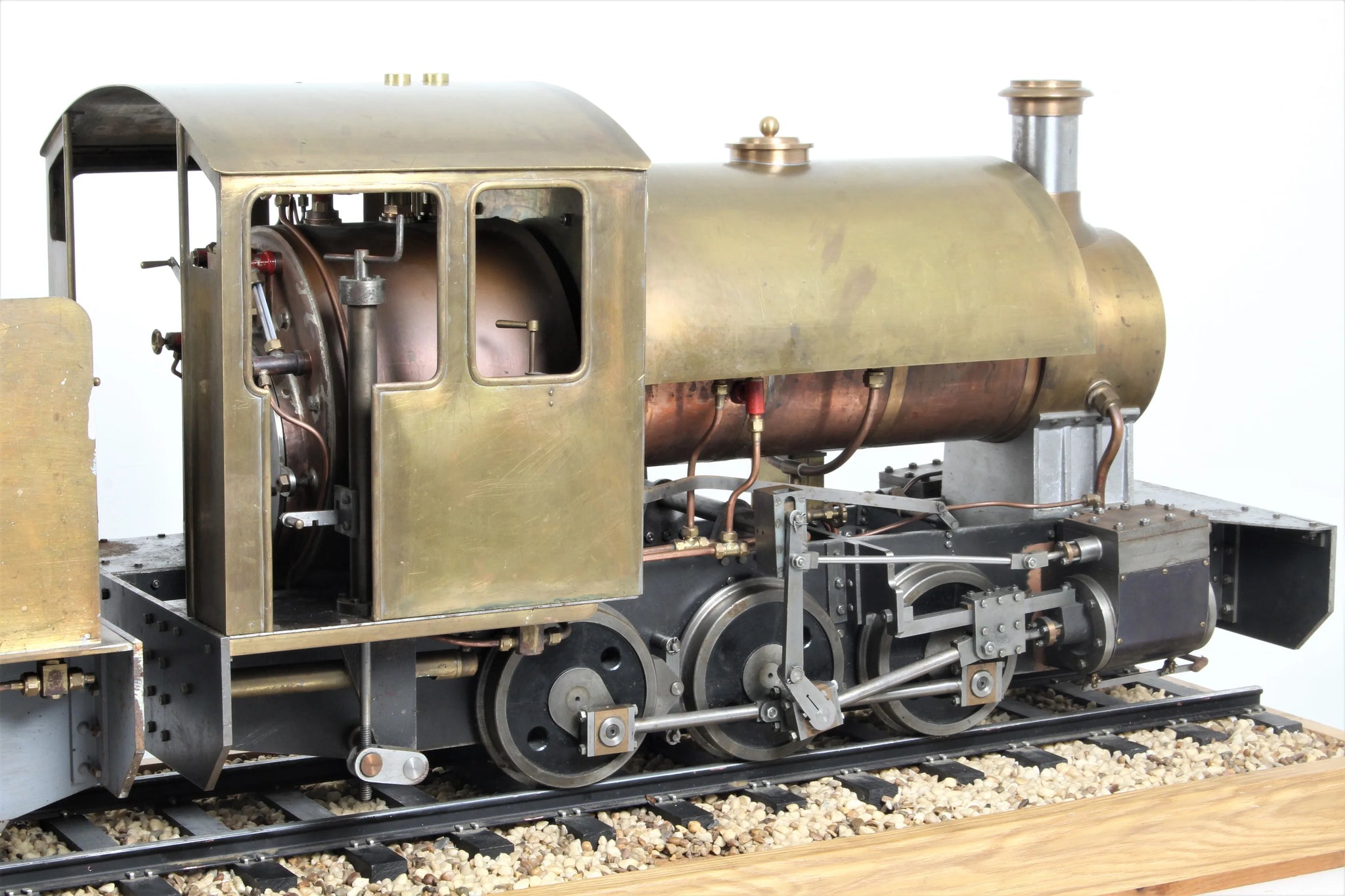

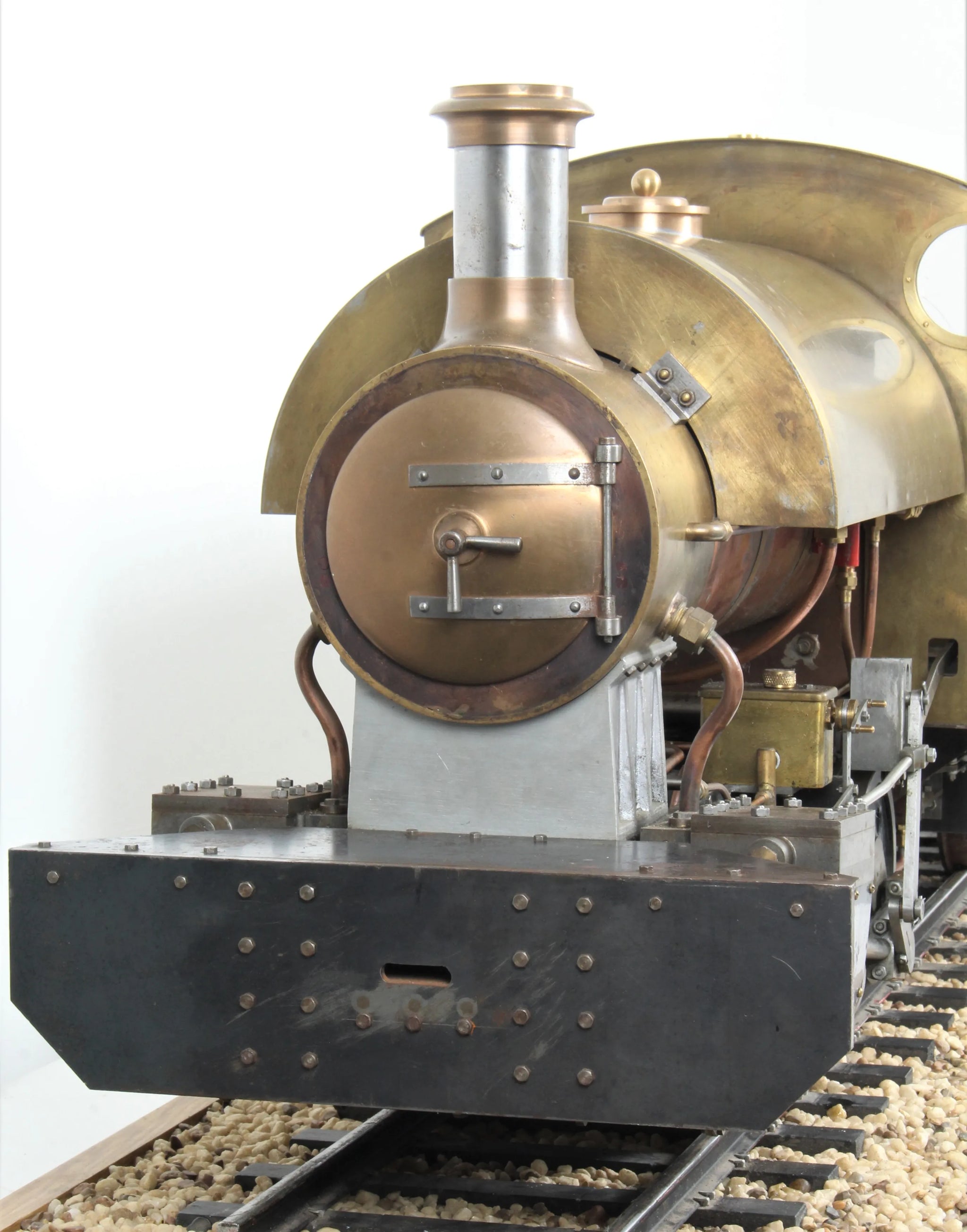

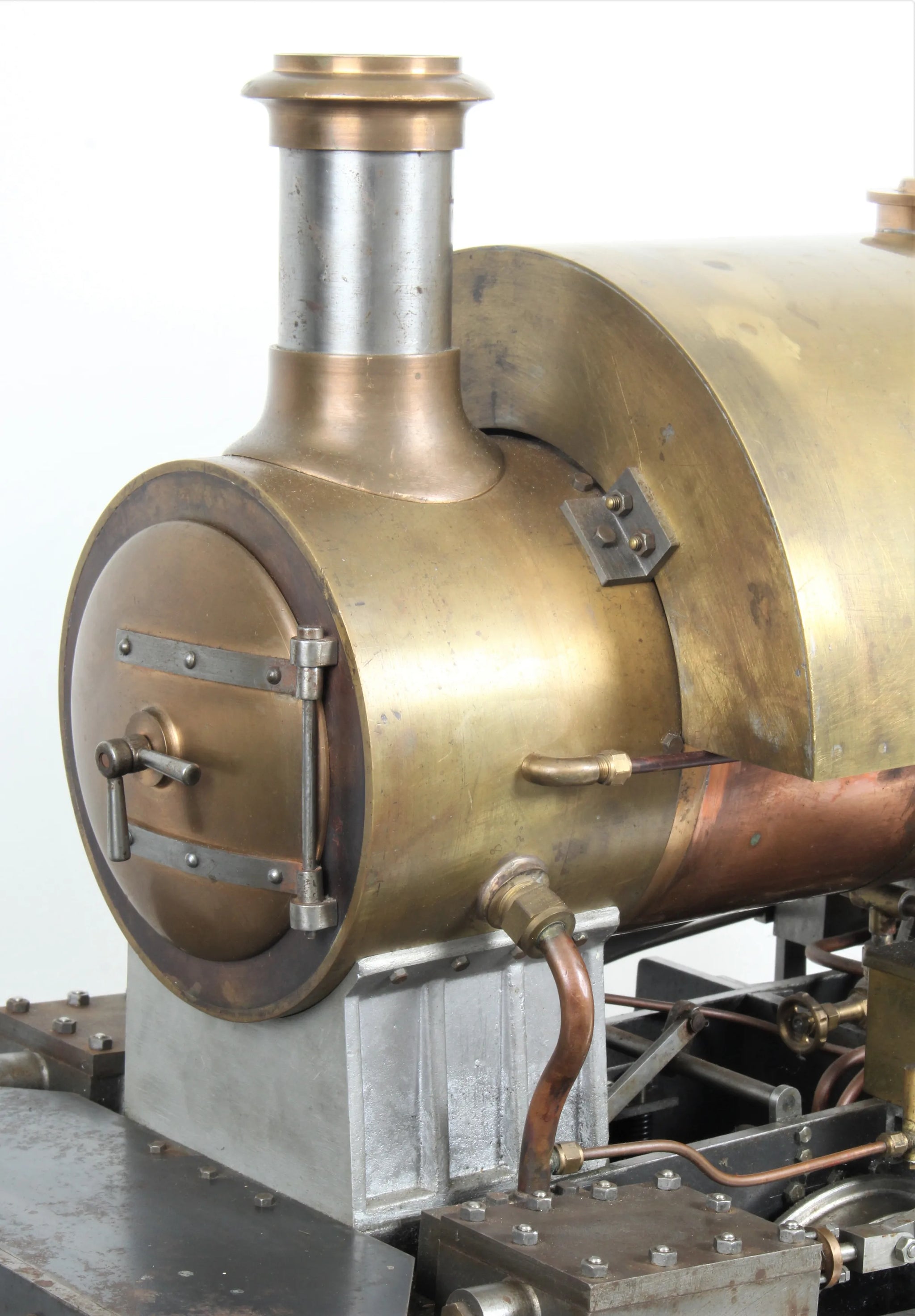

5 inch gauge "Metre Maid" 0-6-0ST

A finely made "Metre Maid", the 0-6-0 variant of "Sweet Pea", unpainted and unsteamed from new.

The work of a talented engineer, we have several of his engines including a 3 inch Burrell, 5 inch gauge Simplex and 3 1/2 inch gauge "Rob Roy" - all built to a similar standard.

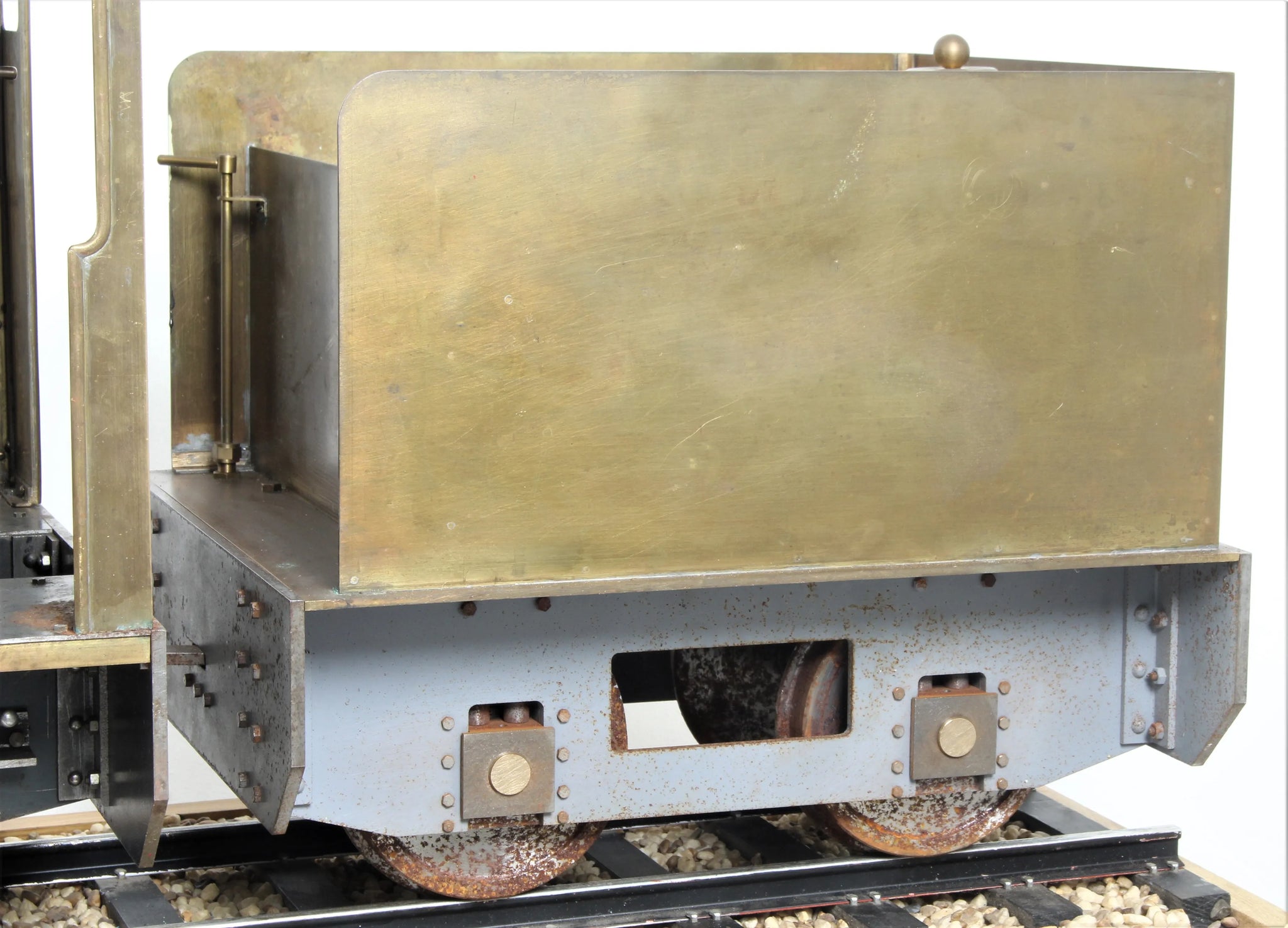

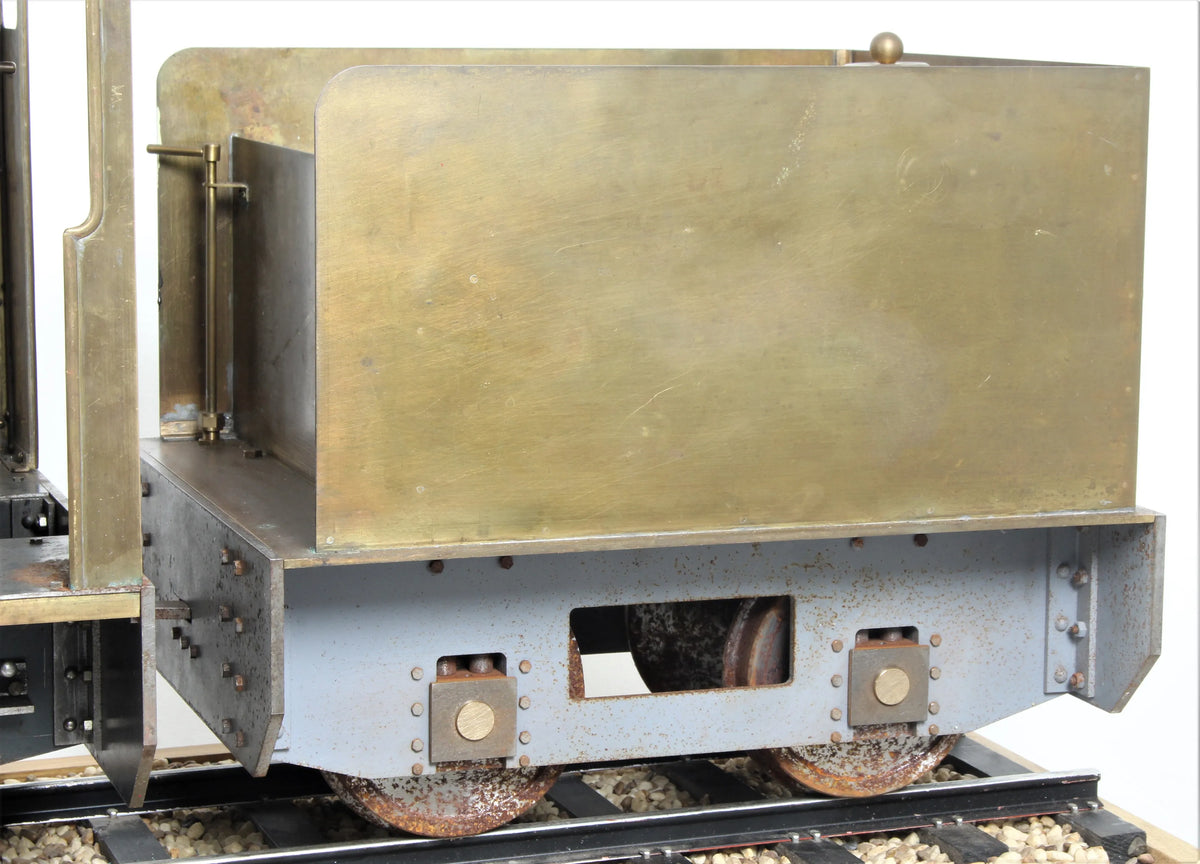

There is some light surface rust on the engine and tender wheels from storage, it's in otherwise as-new condition.

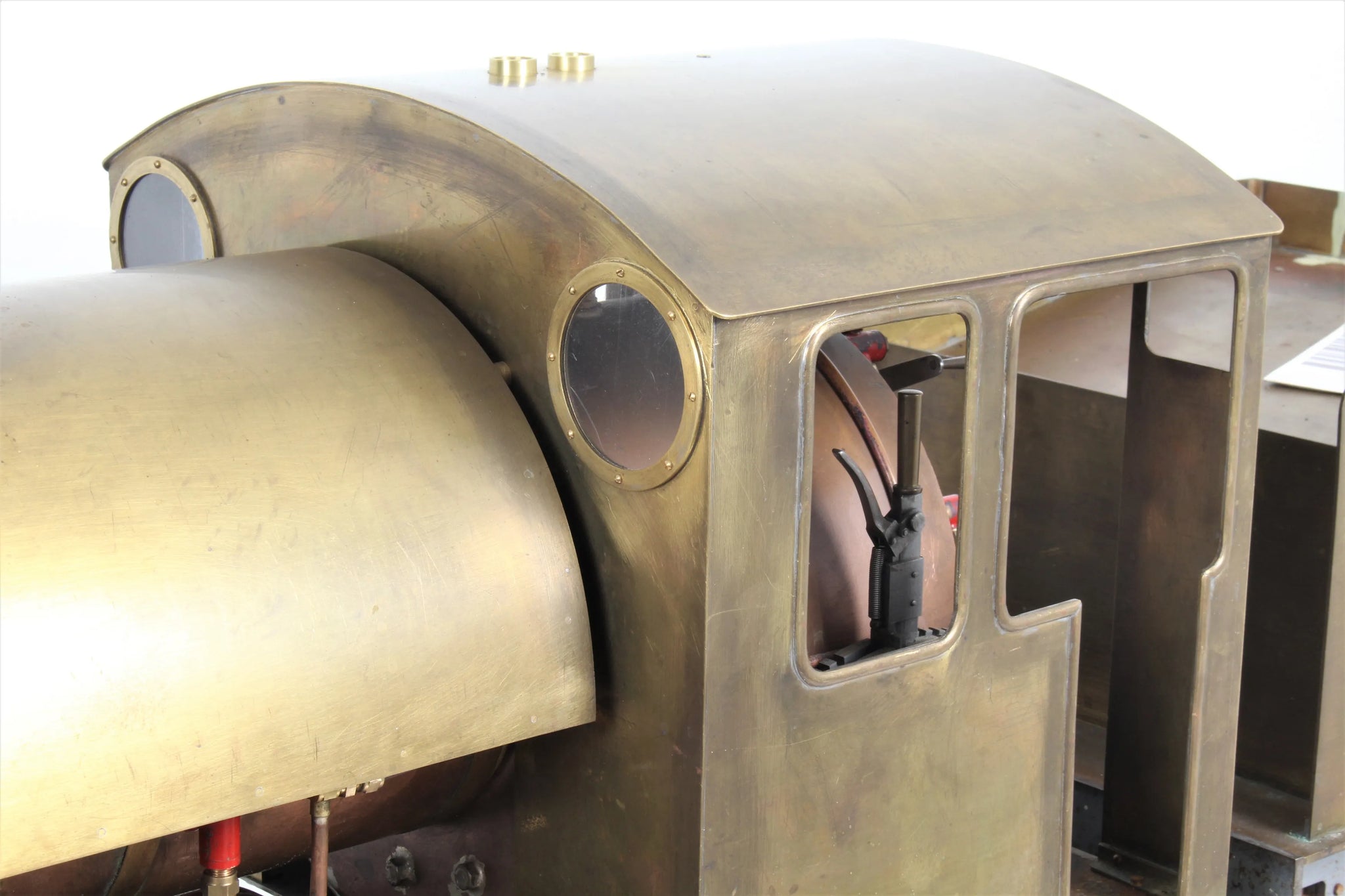

Fit and finish of machined components is to a high standard, platework has been crisply executed.

The copper boiler is silver soldered throughout, a finely made thing with neat flanging and good solder penetration. It's had a twice working pressure shell test at 180psi for 90psi working pressure, with certificate issued for same.

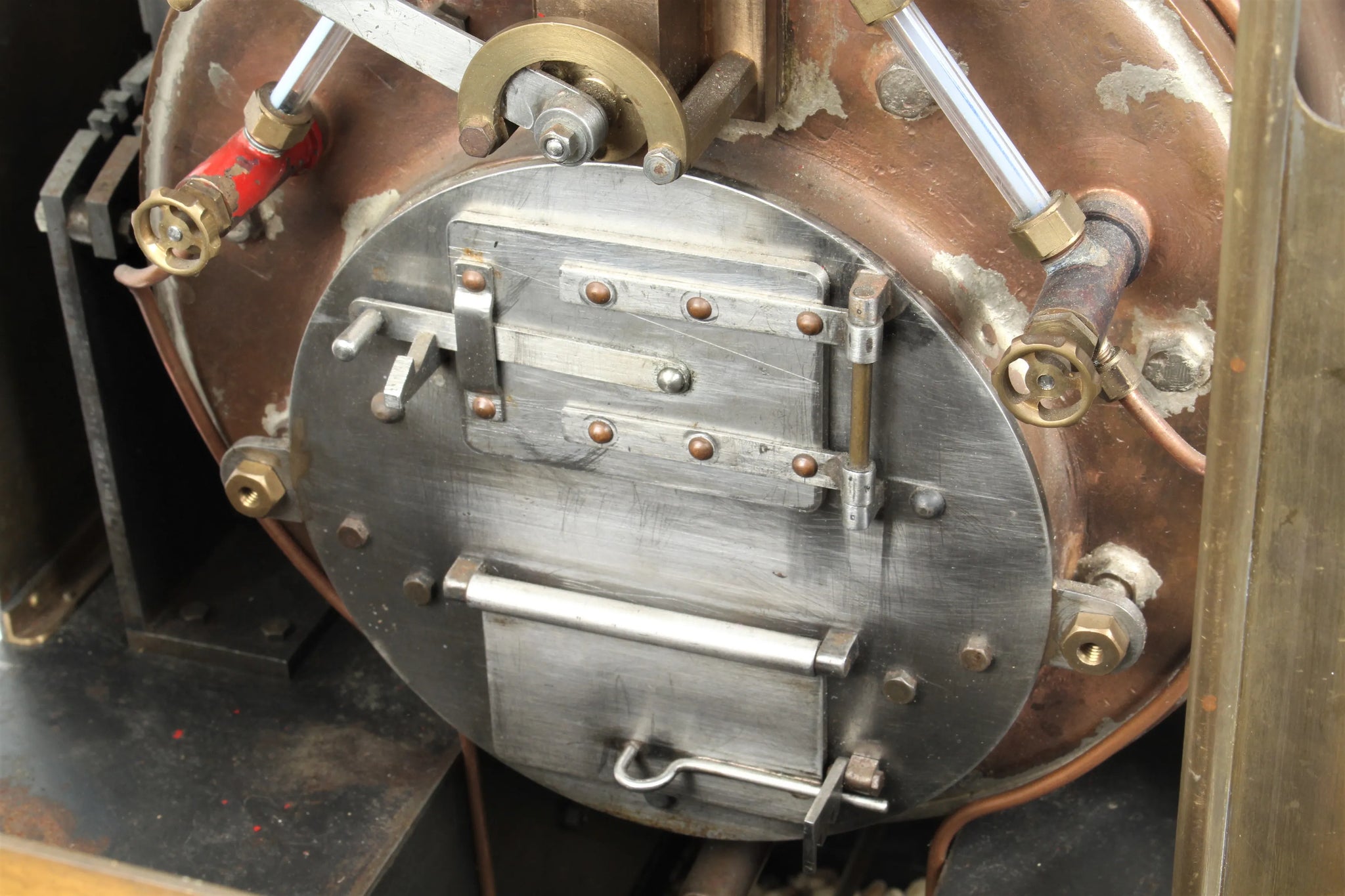

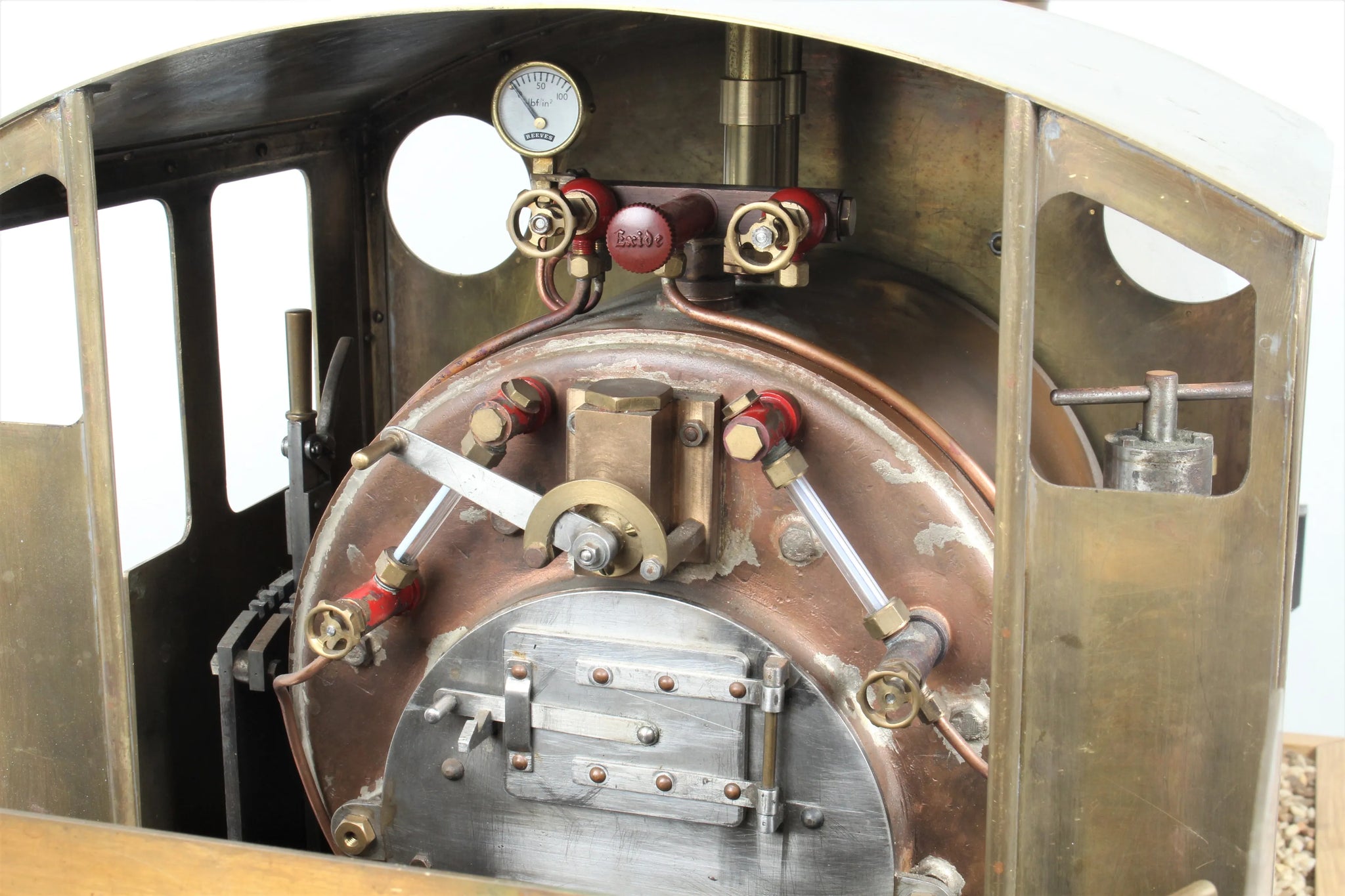

Grate and backhead assembly is all in stainless steel.

Technical information

Stock code

8639

Gauge

5 inch

Length/inches

31 + 15

Width/inches

13

Height/inches

17

Wheel material

cast iron

Axlebox type

plain bearing

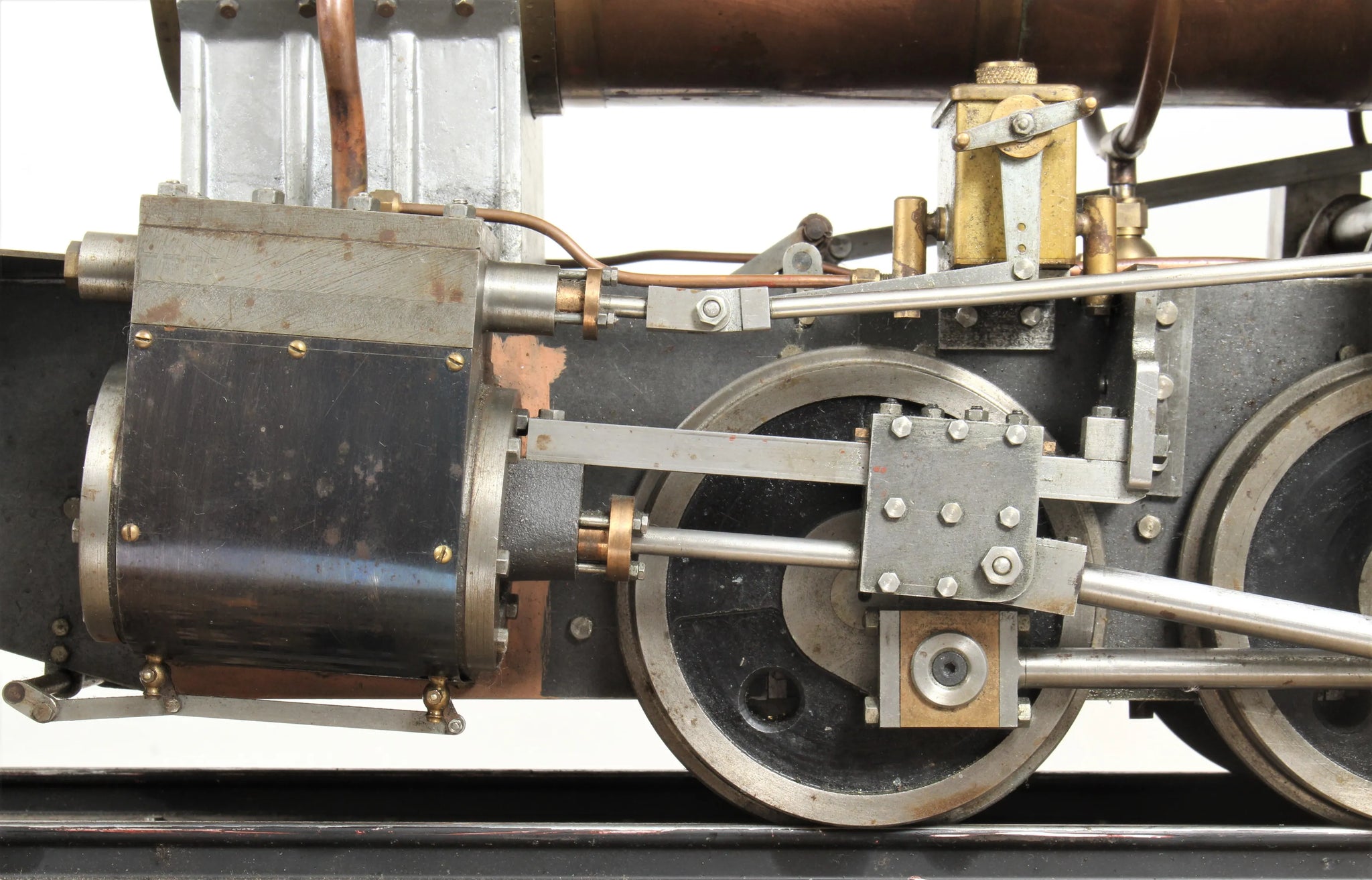

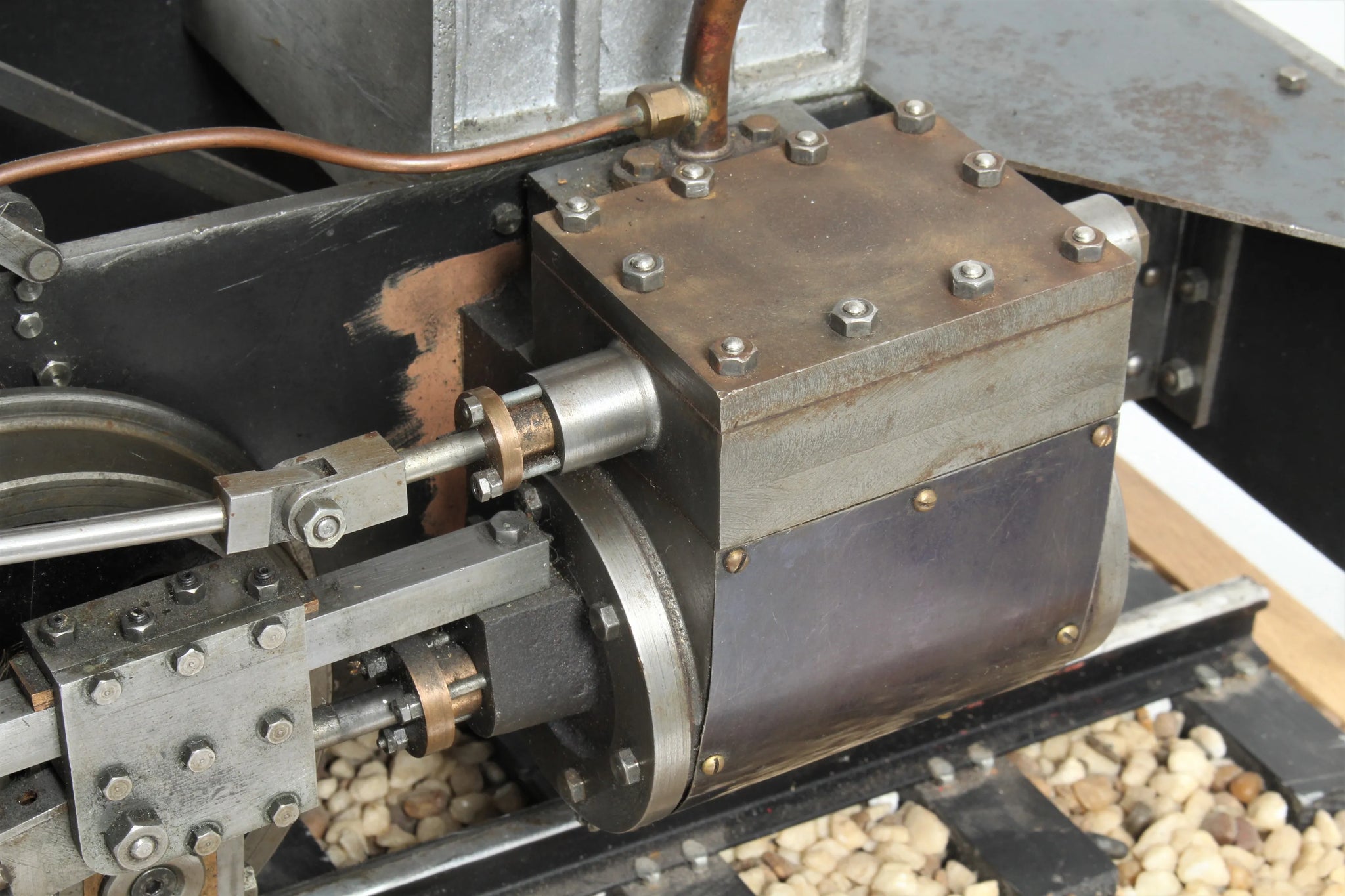

Cylinder material

cast iron

Valve type

slide

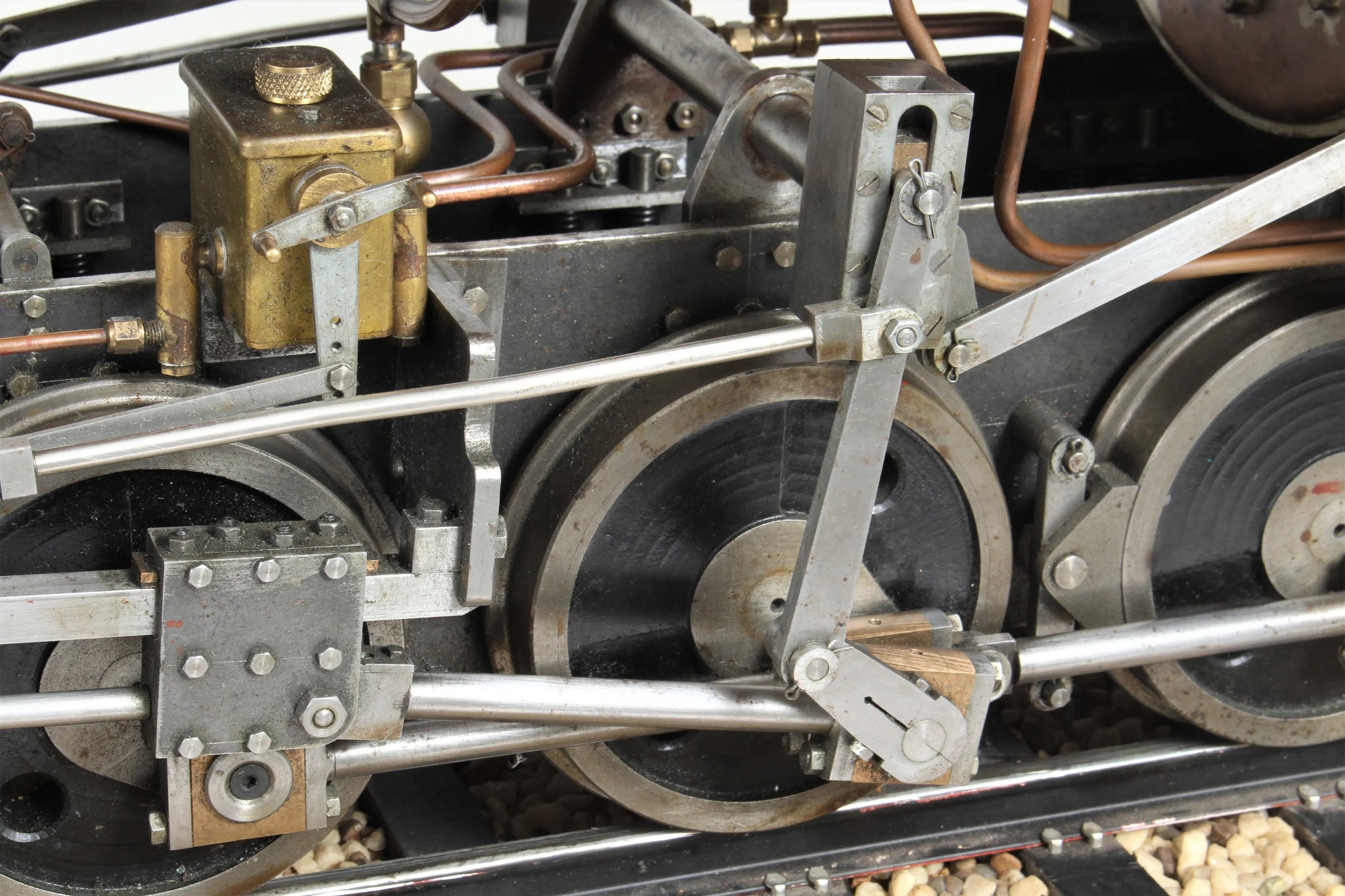

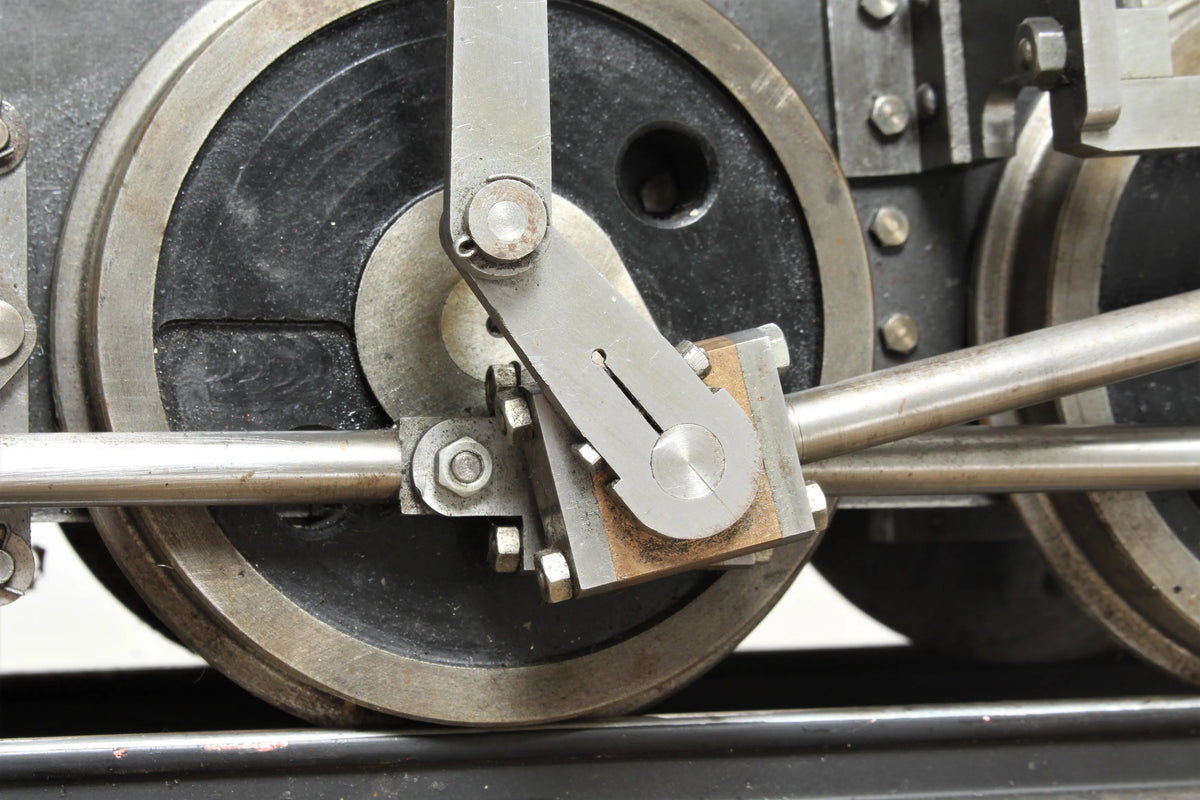

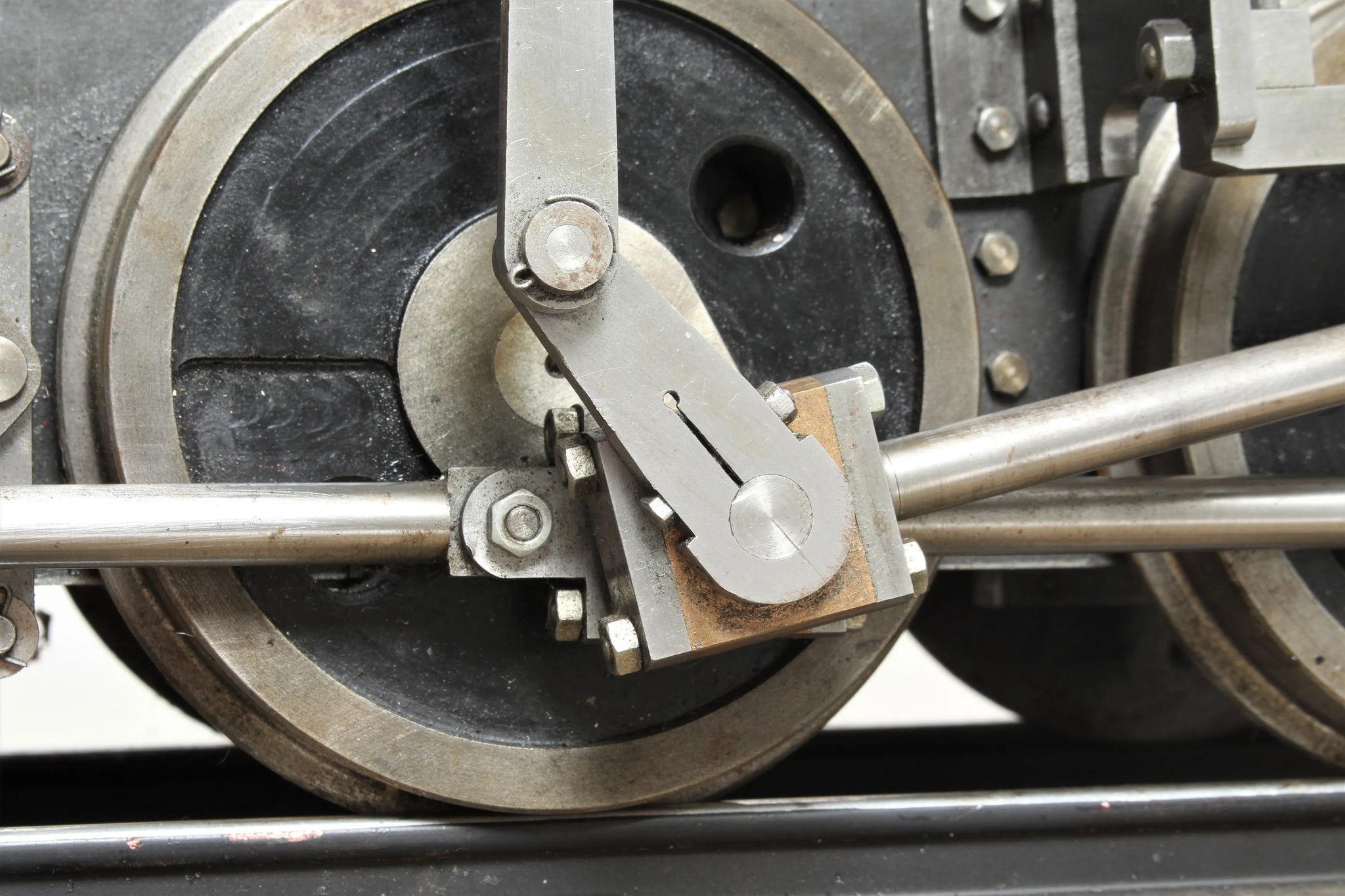

Valve gear

Hackworth

Reverser type

pole

Lubricator type

mechanical

Boiler type

marine

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

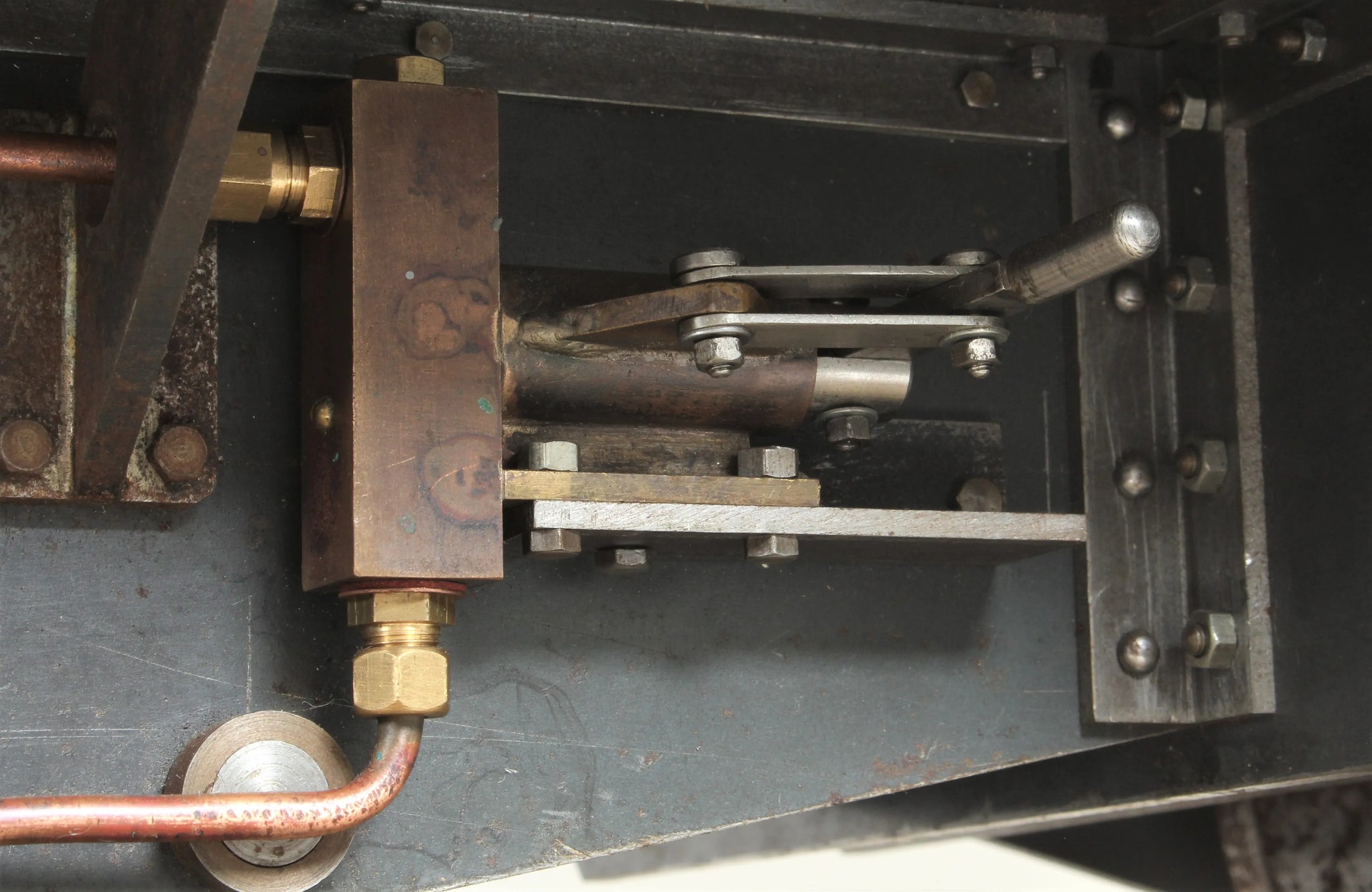

Mechanical pump

1 x axle

Date out

Jul-19

Hydraulic test valid to

02-Jul-23
