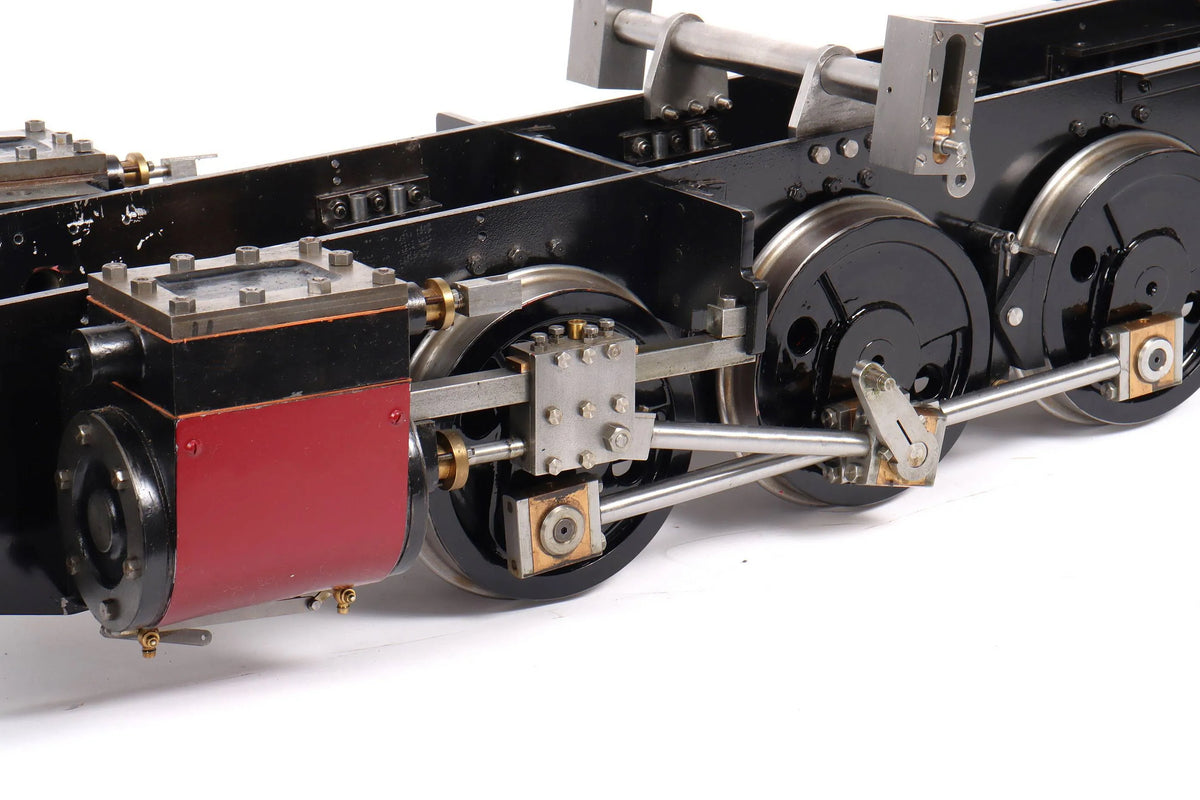

5 inch gauge "Metre Maid" 0-6-0T with CE-marked commercial boiler

A particularly well-built "Metre Maid", the 0-6-0ST variant of Jack Buckler's popular "Sweet Pea" design.

Work to date is to a high standard and comprises:

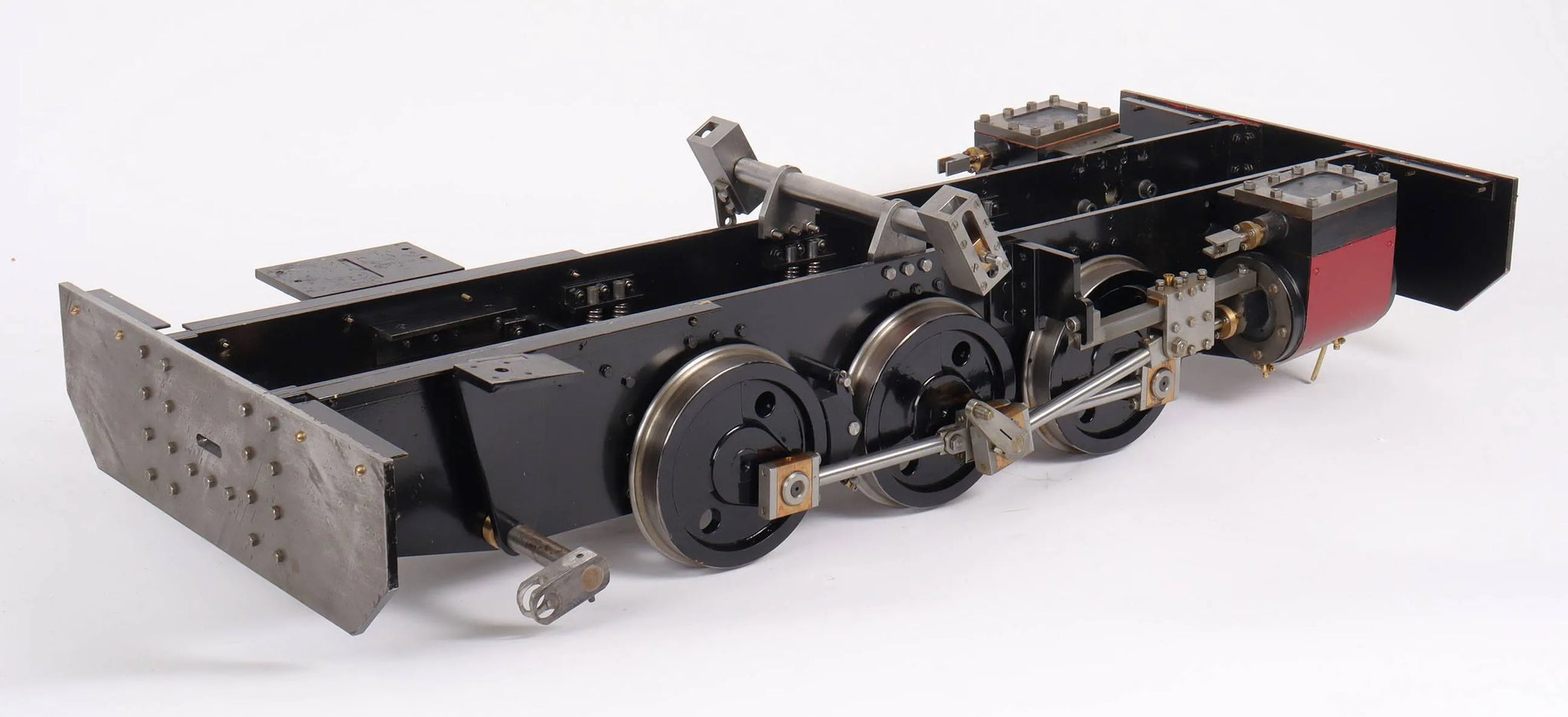

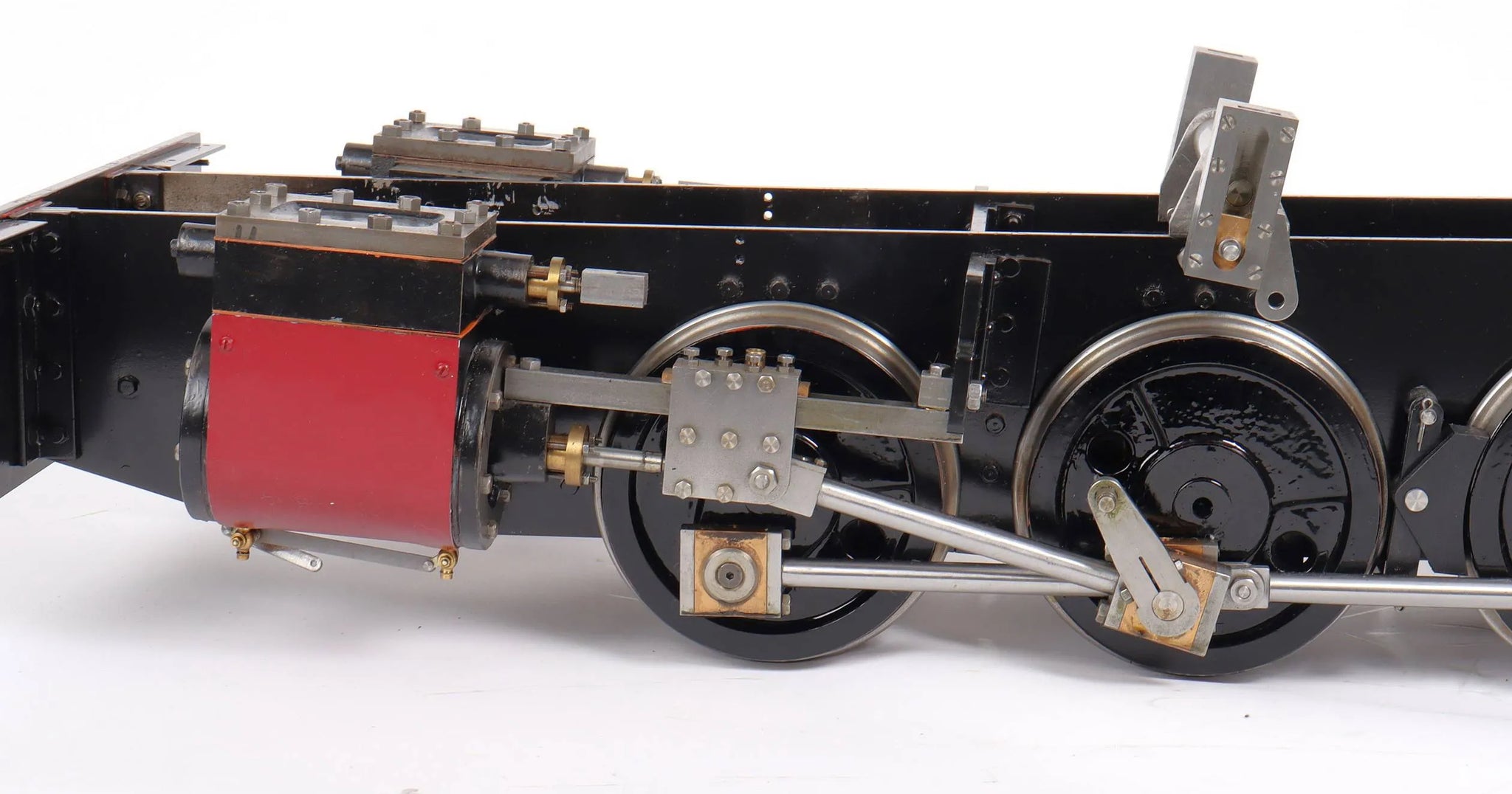

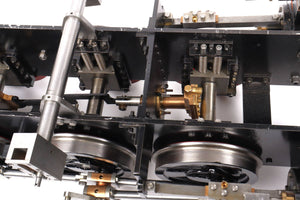

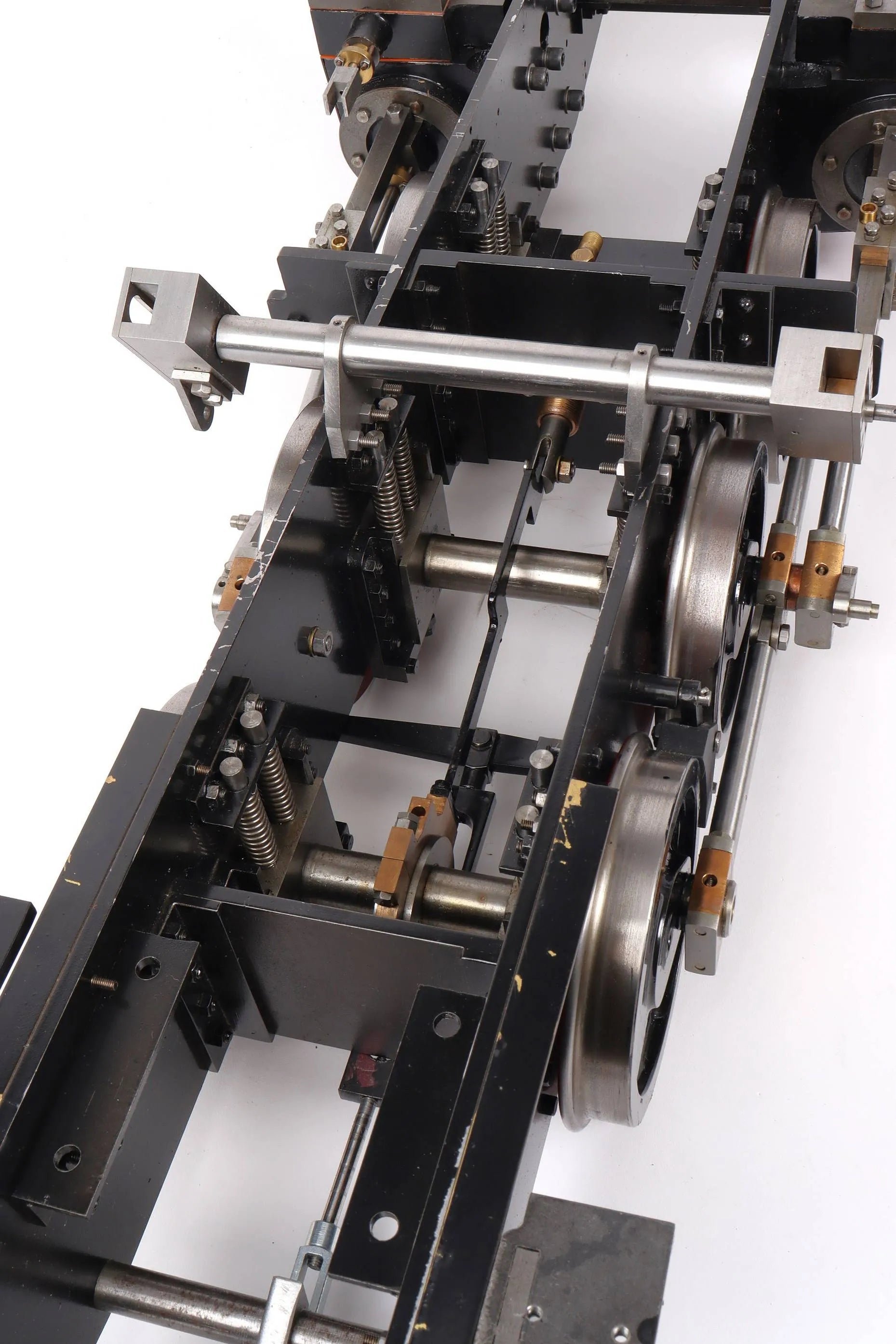

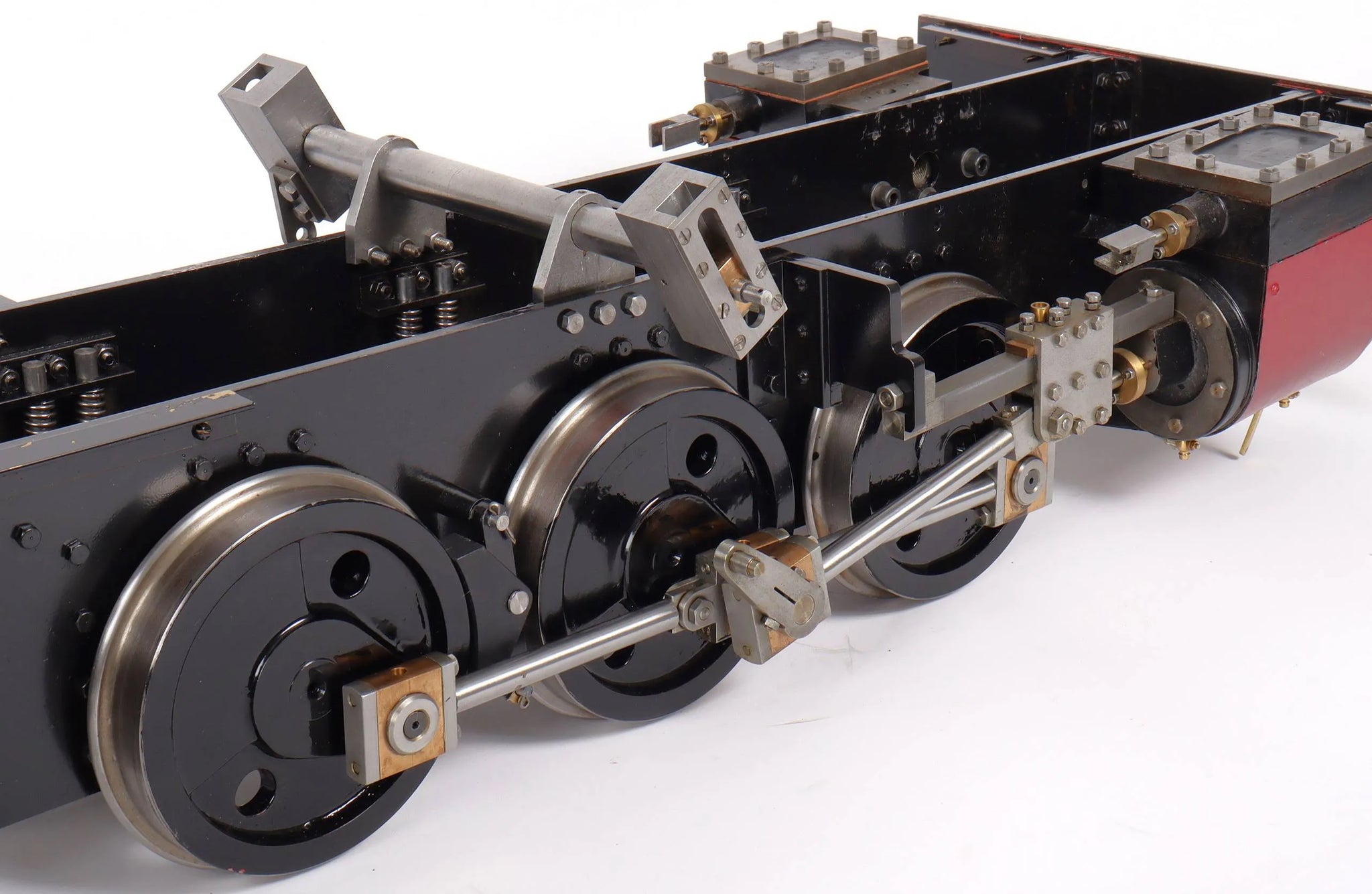

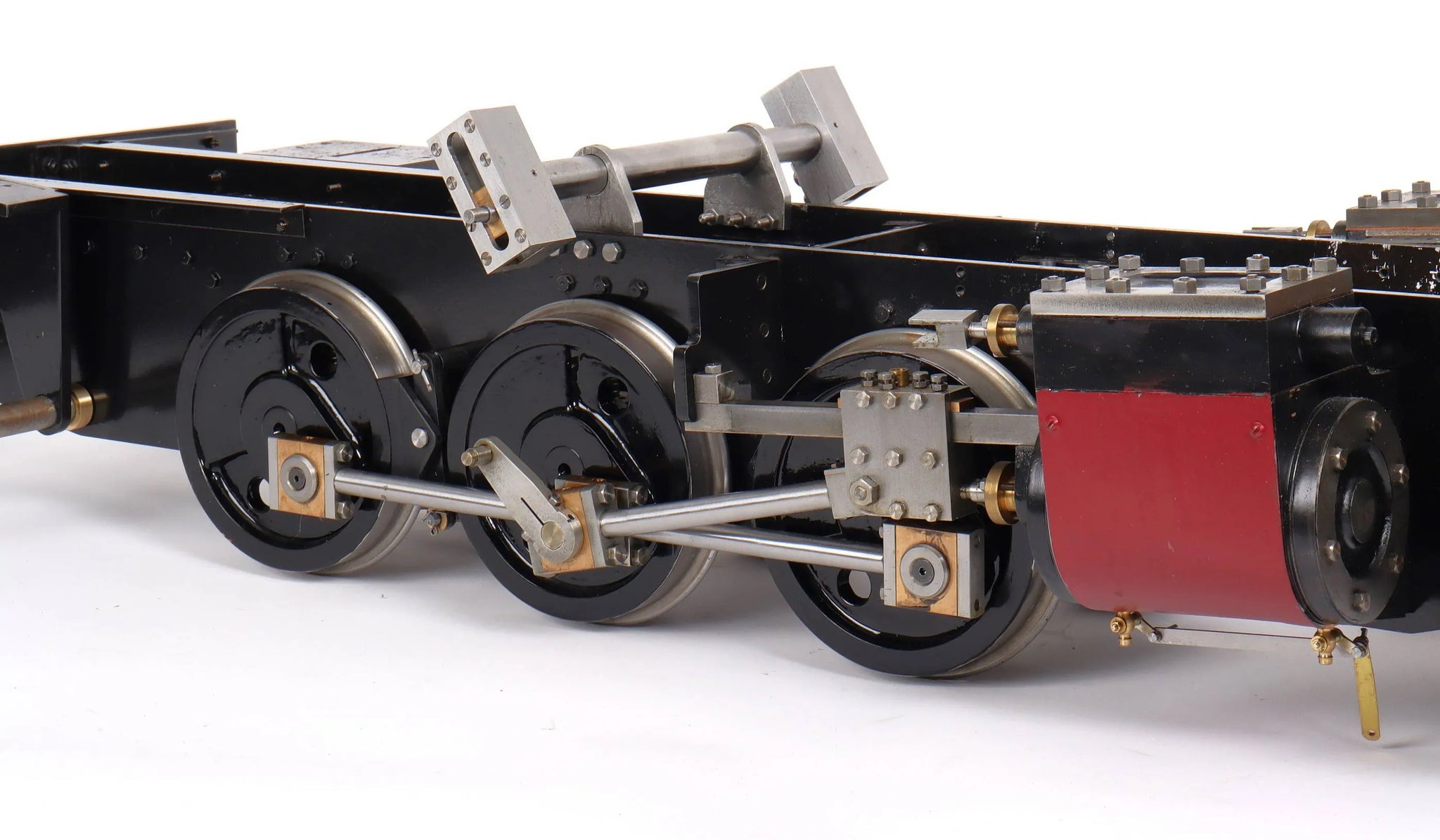

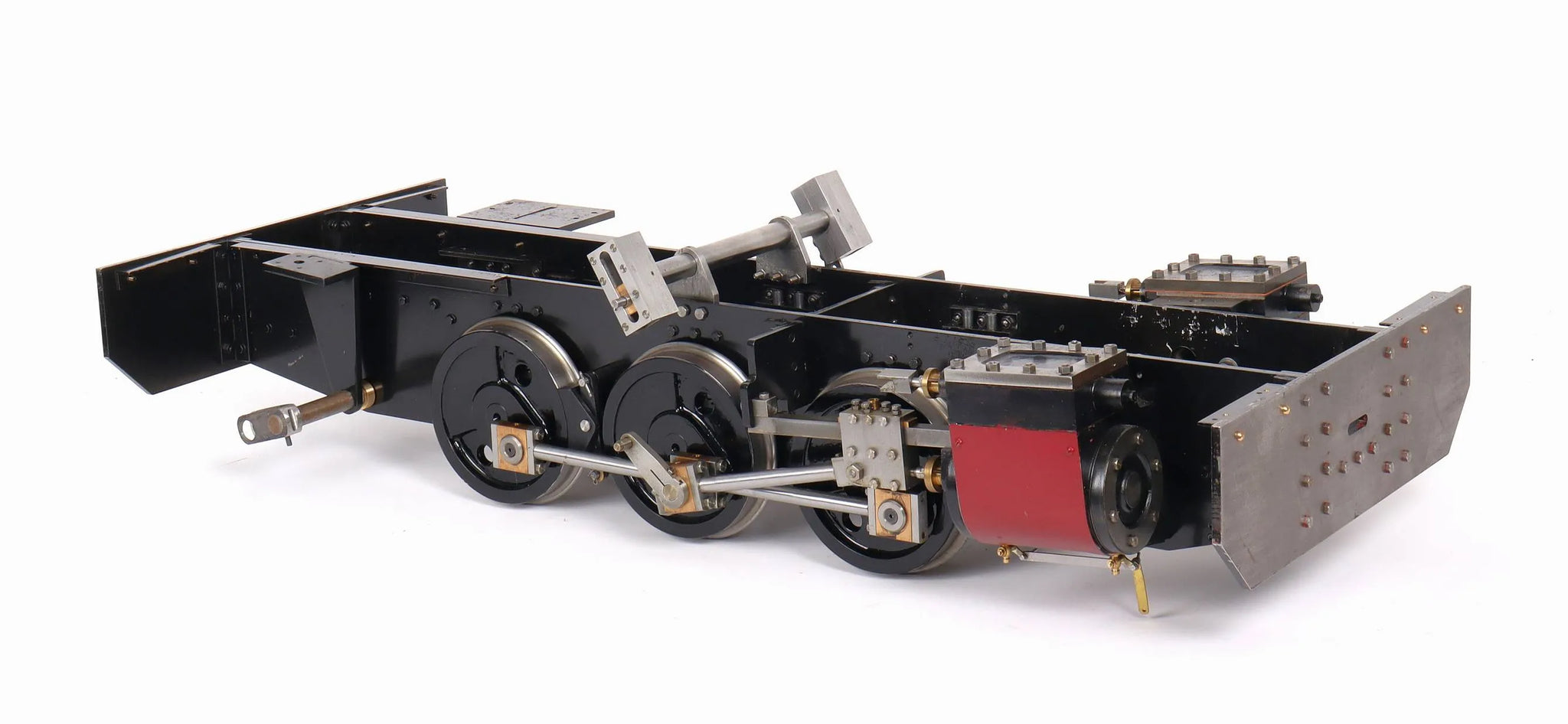

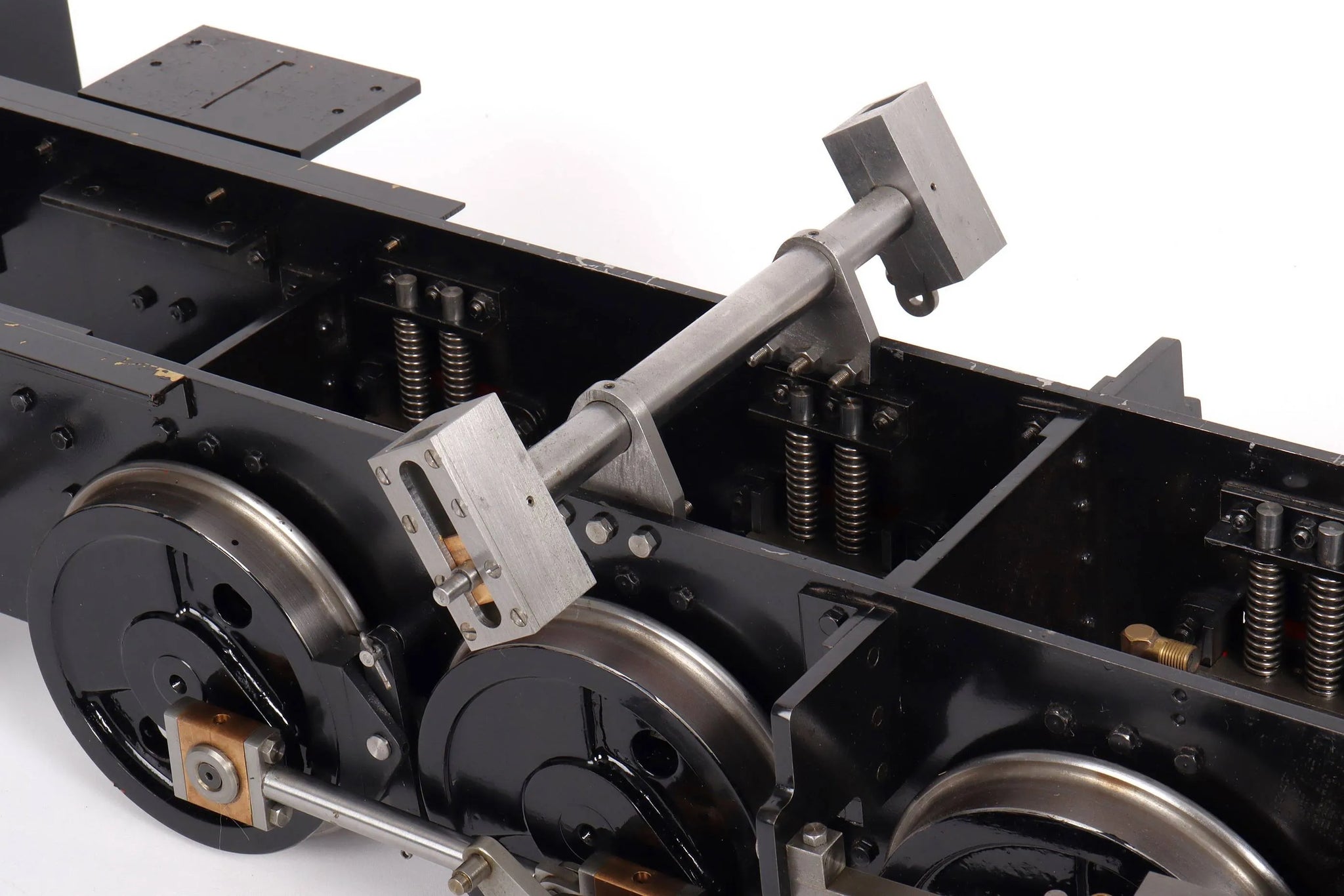

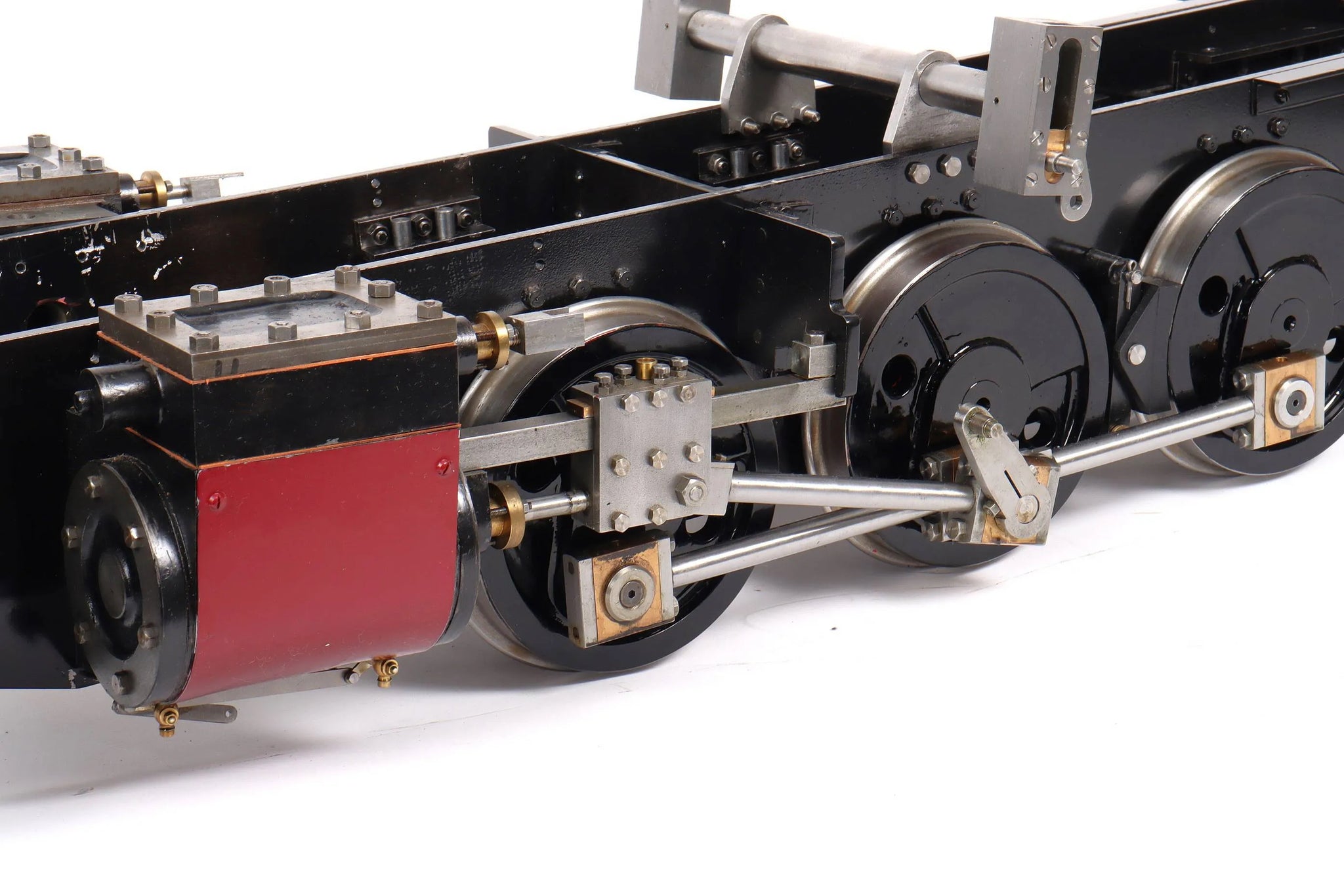

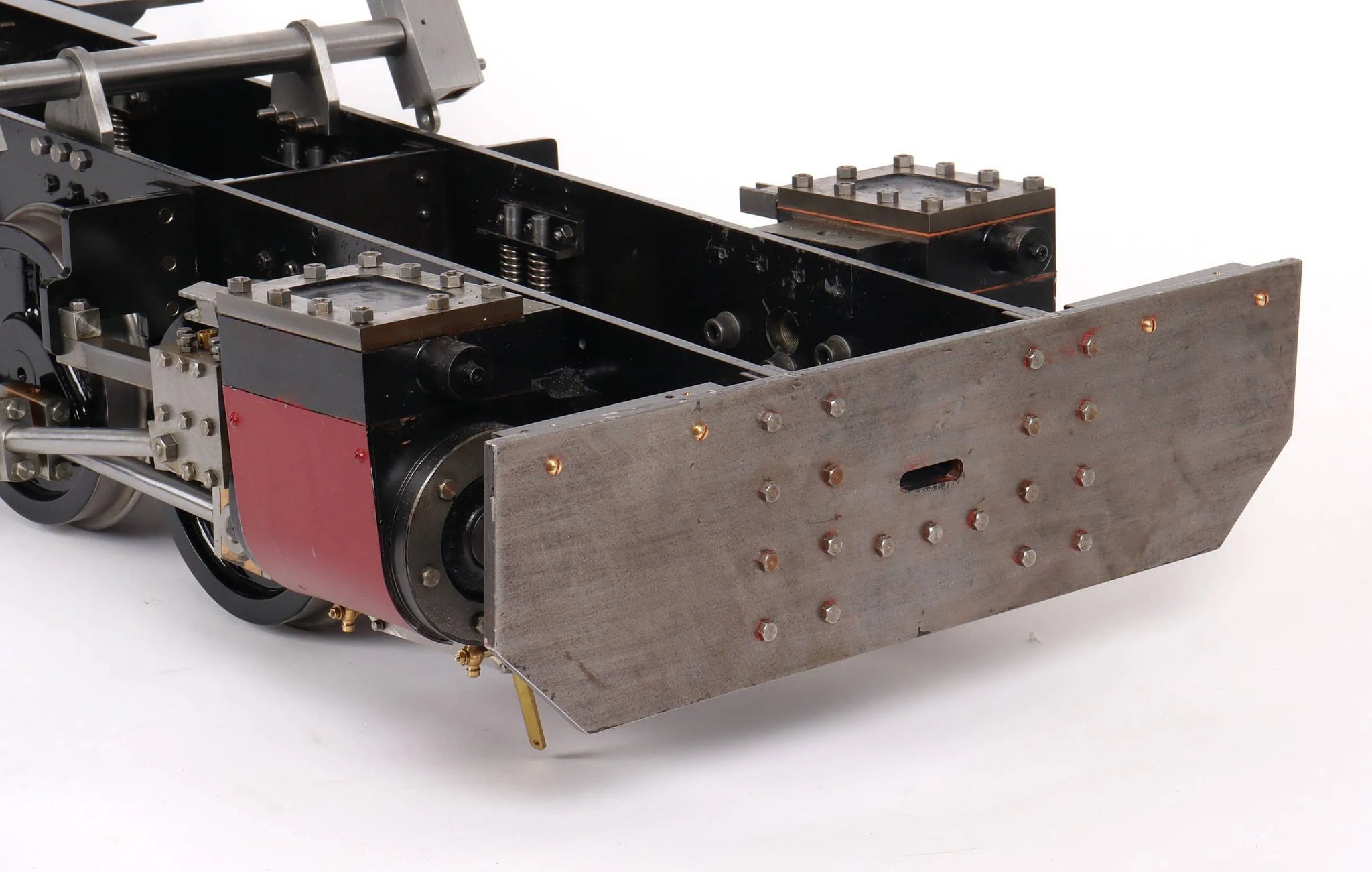

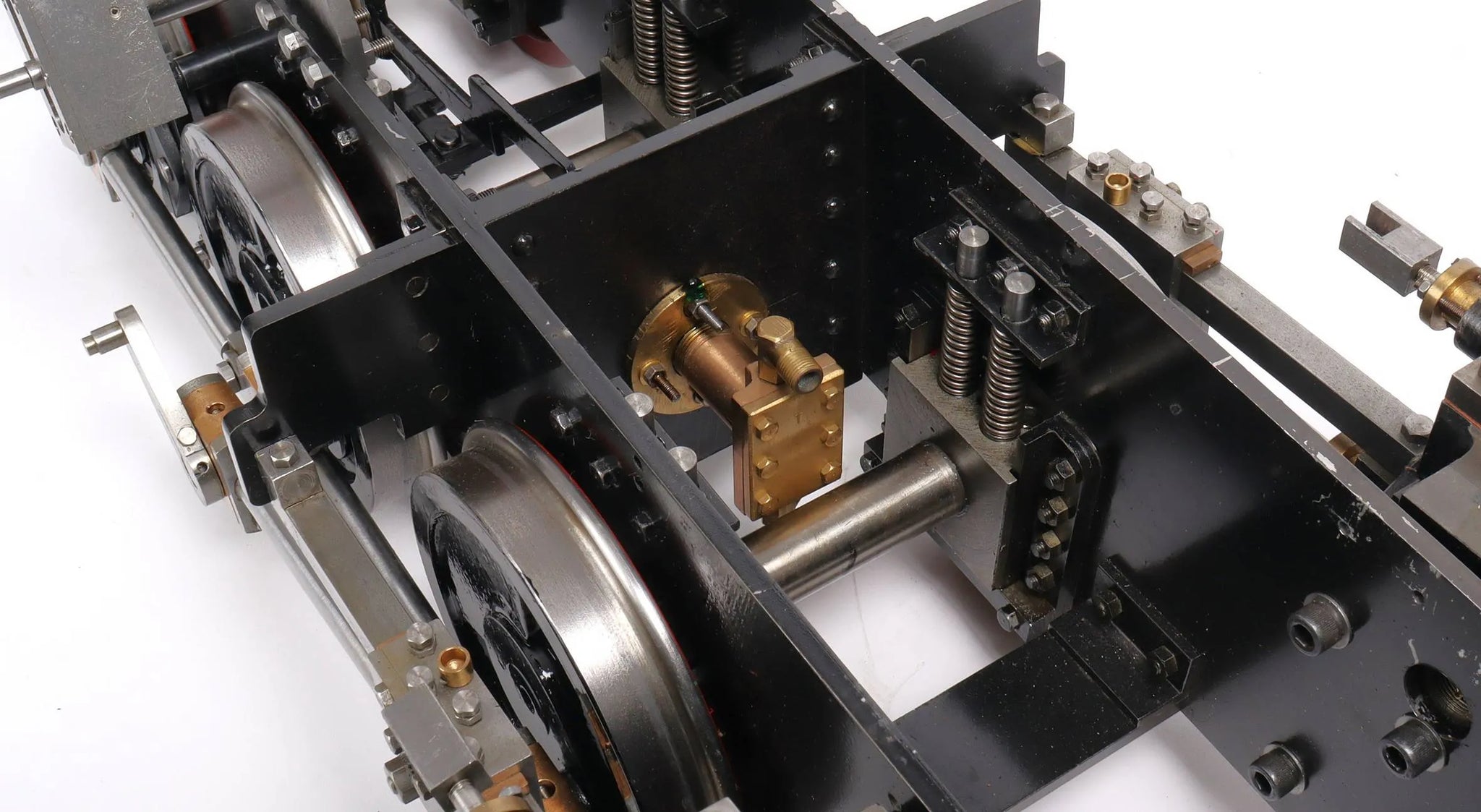

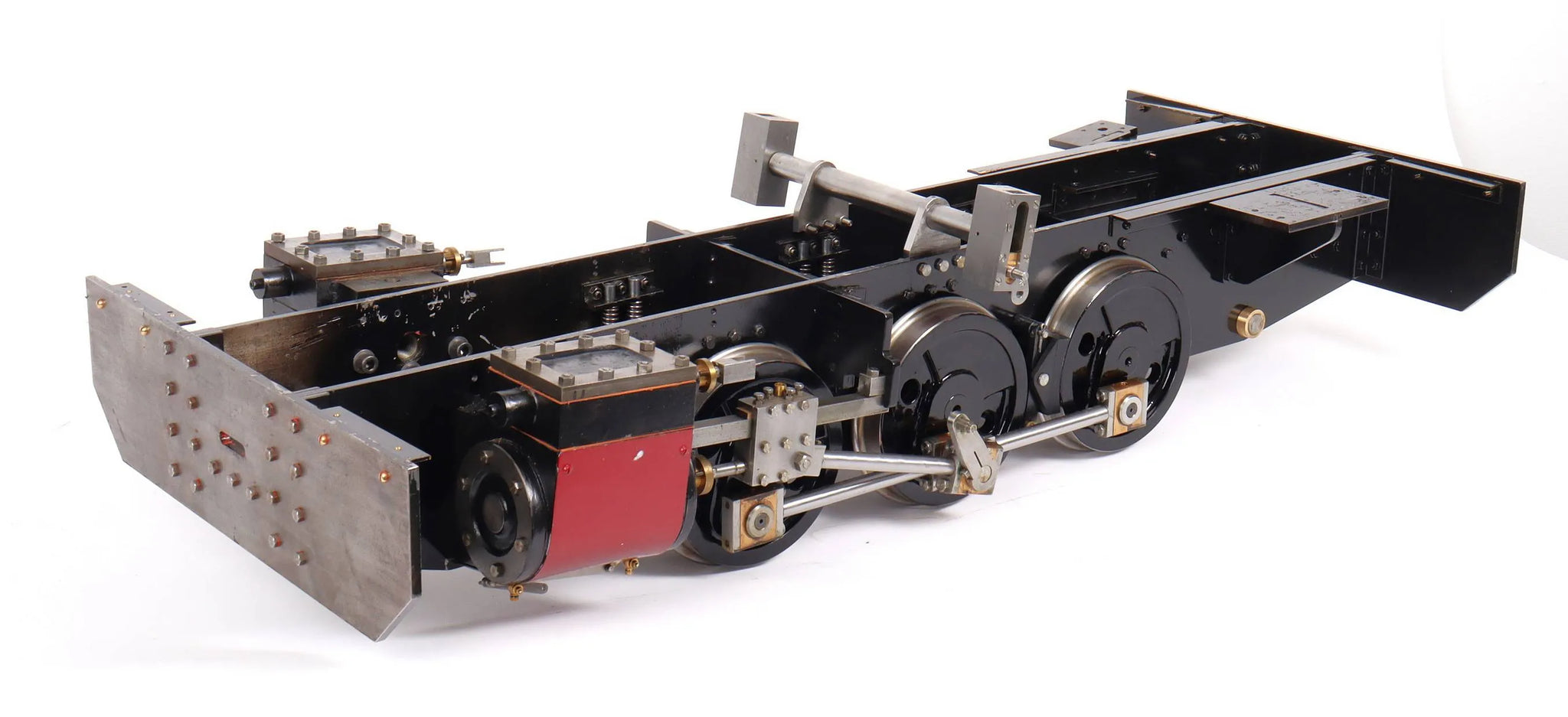

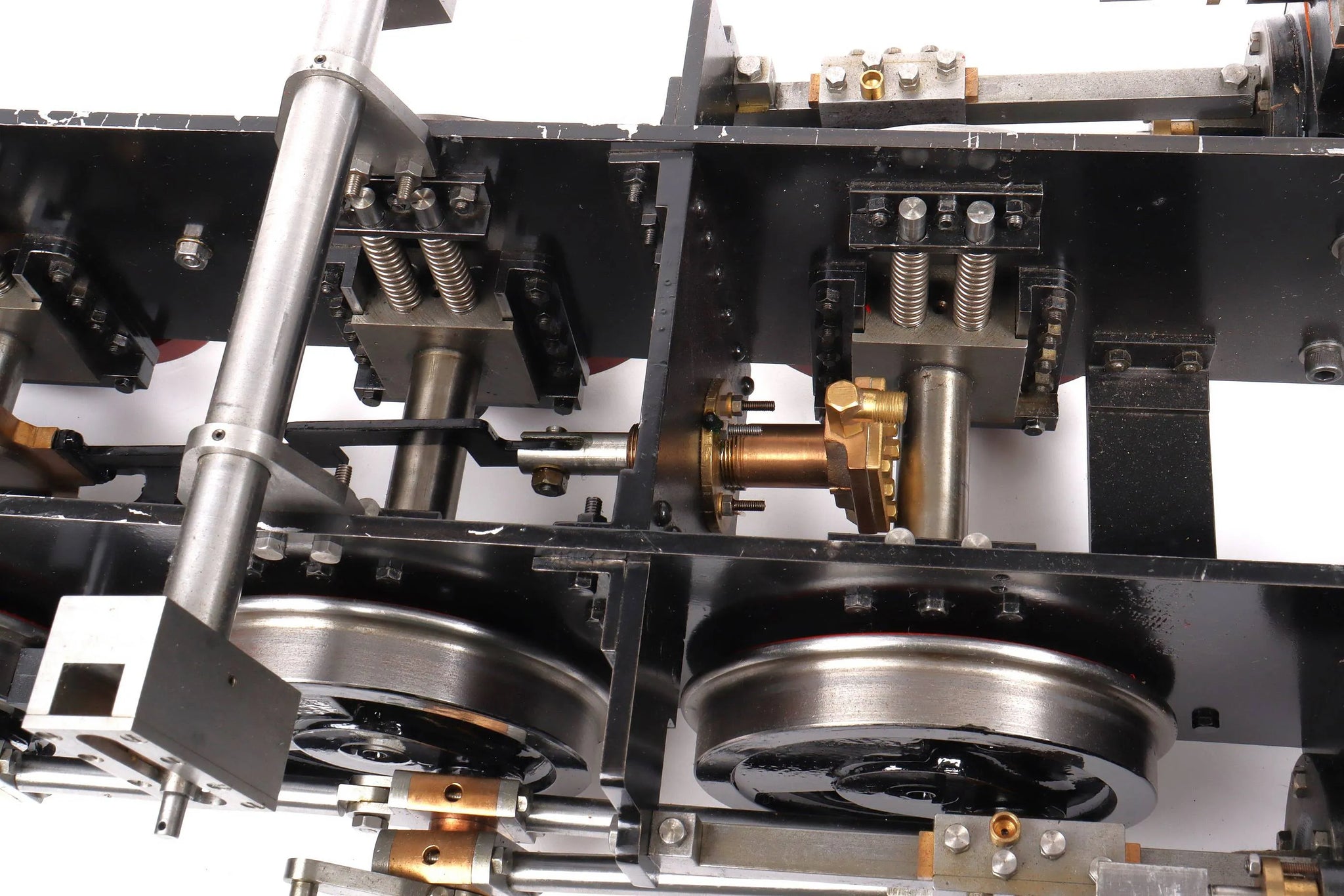

  • complete chassis with axle pump, valve gear and motionwork

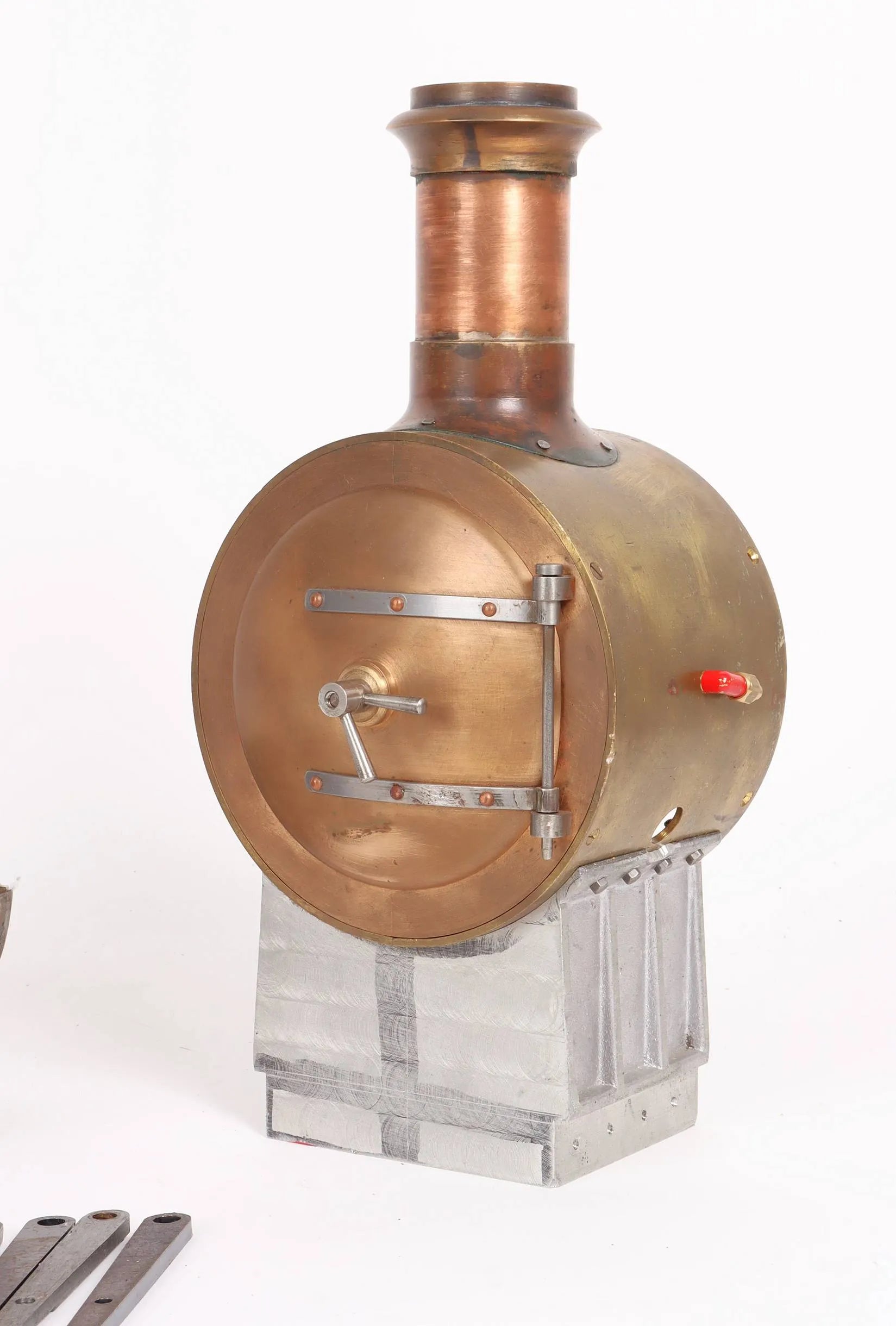

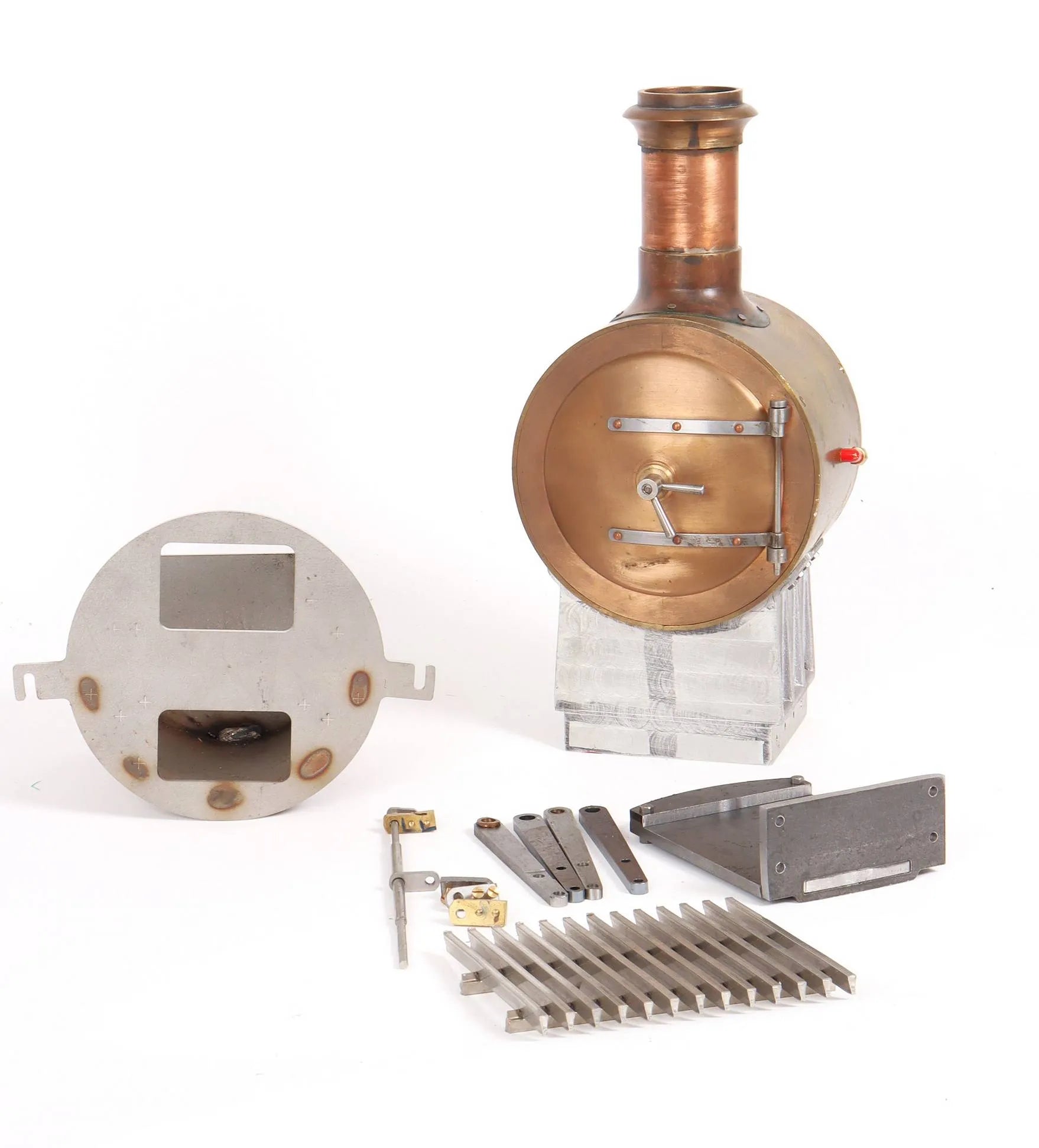

  • smokebox assembly complete with saddle

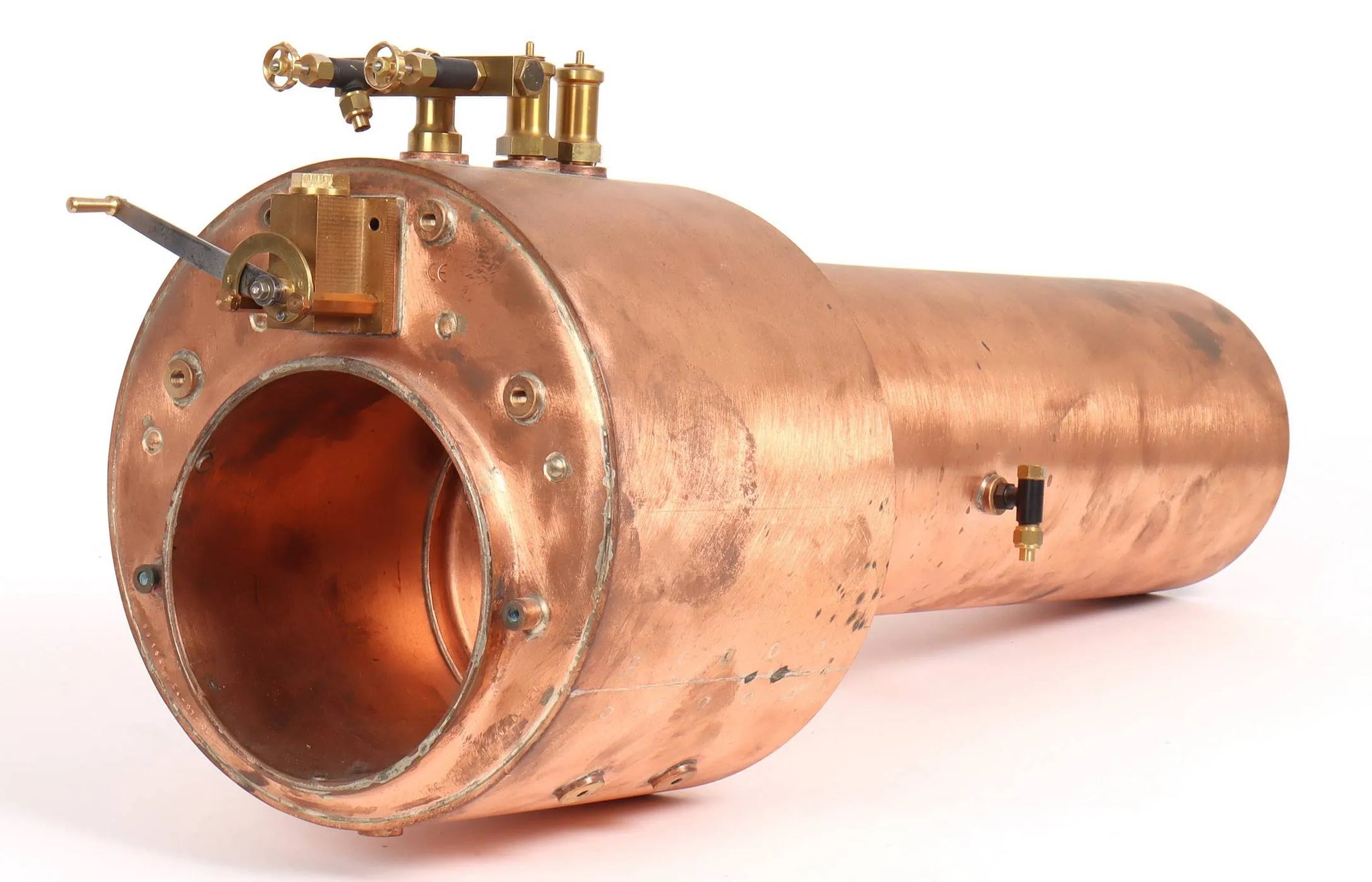

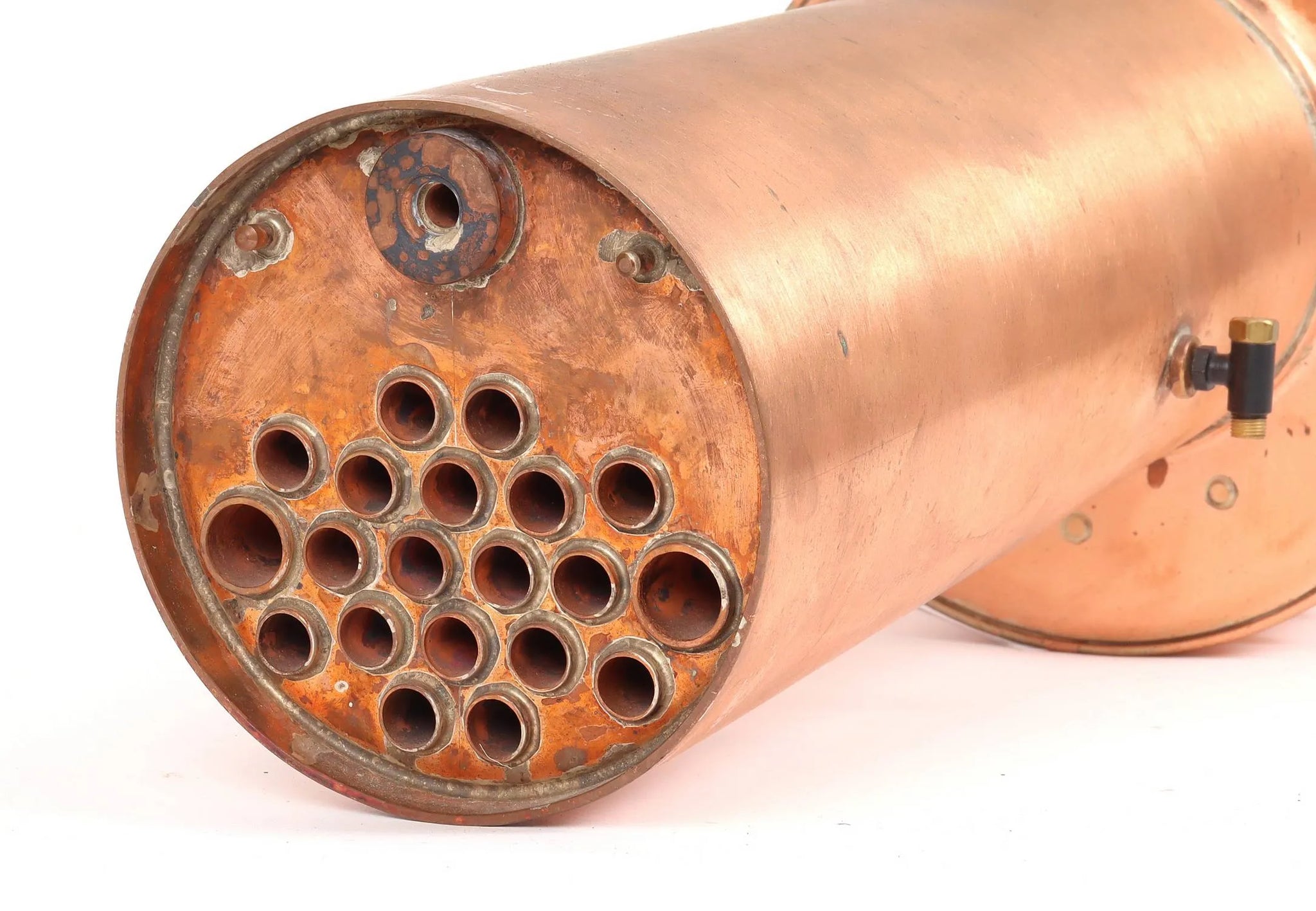

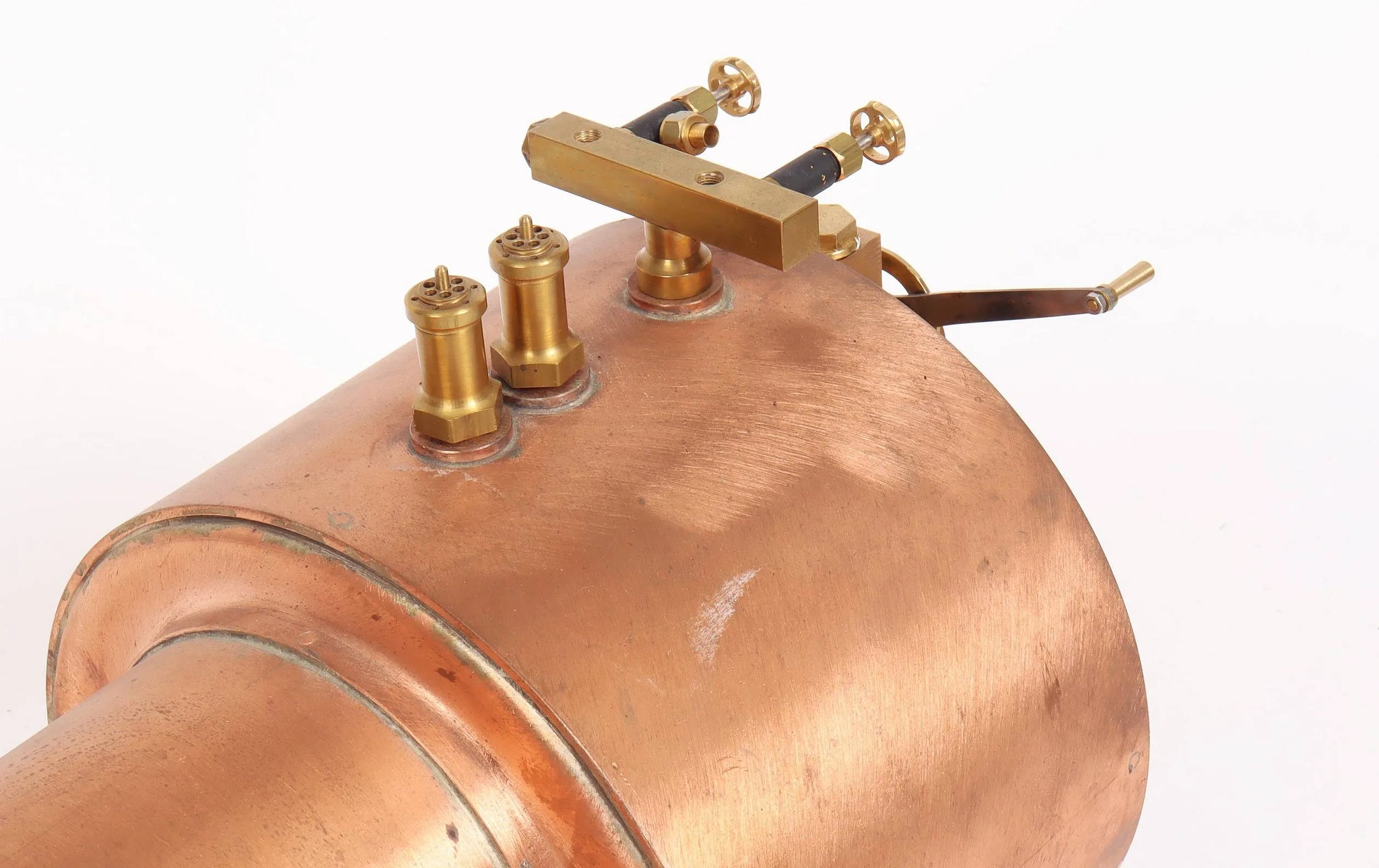

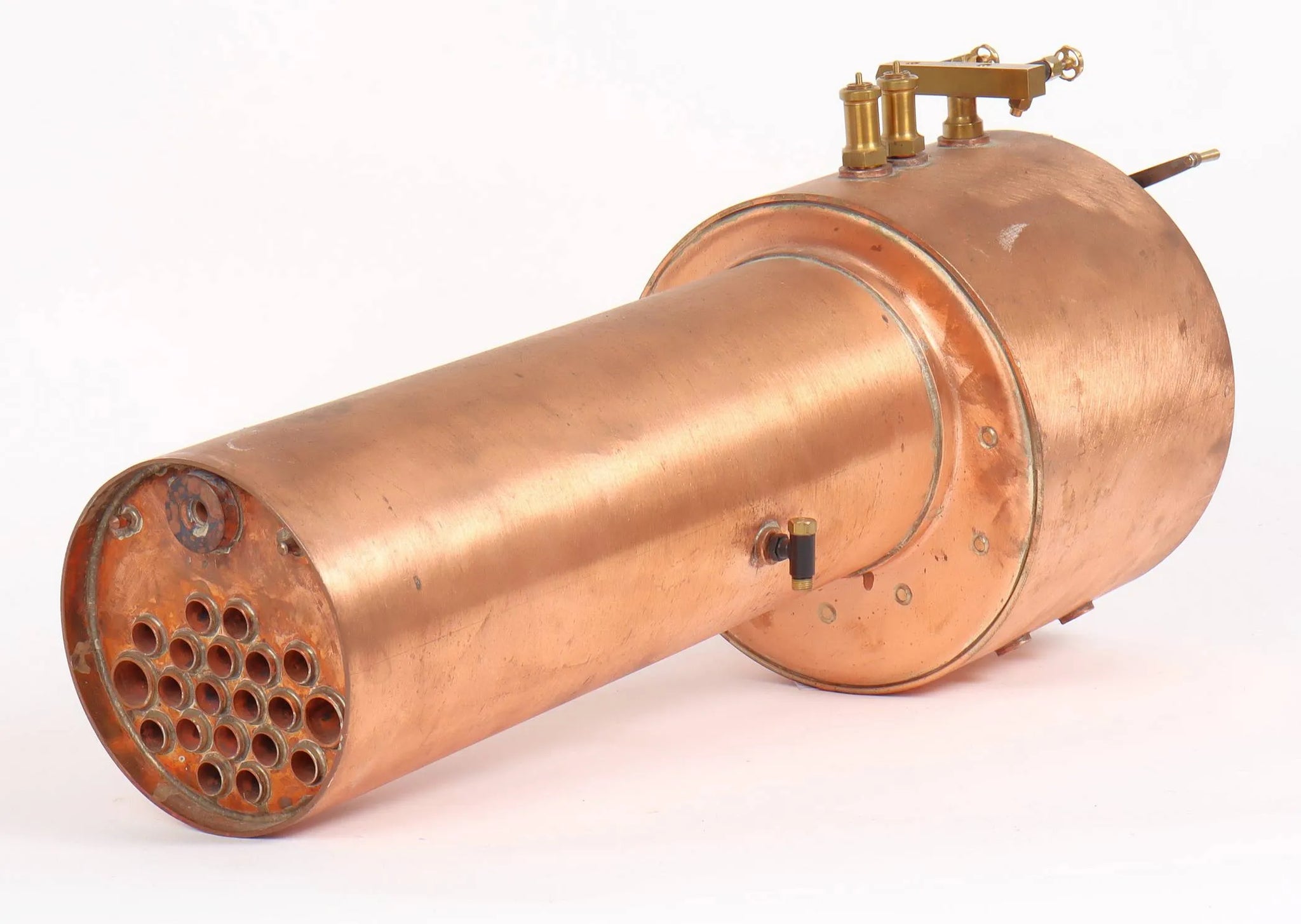

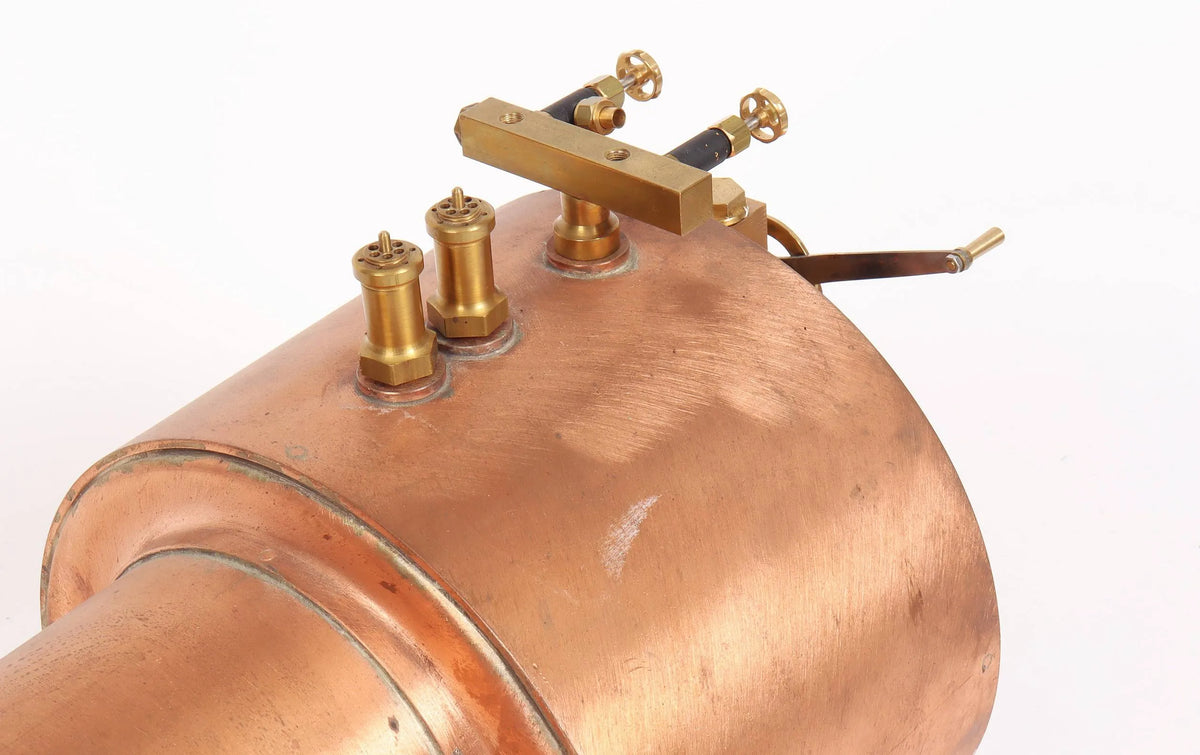

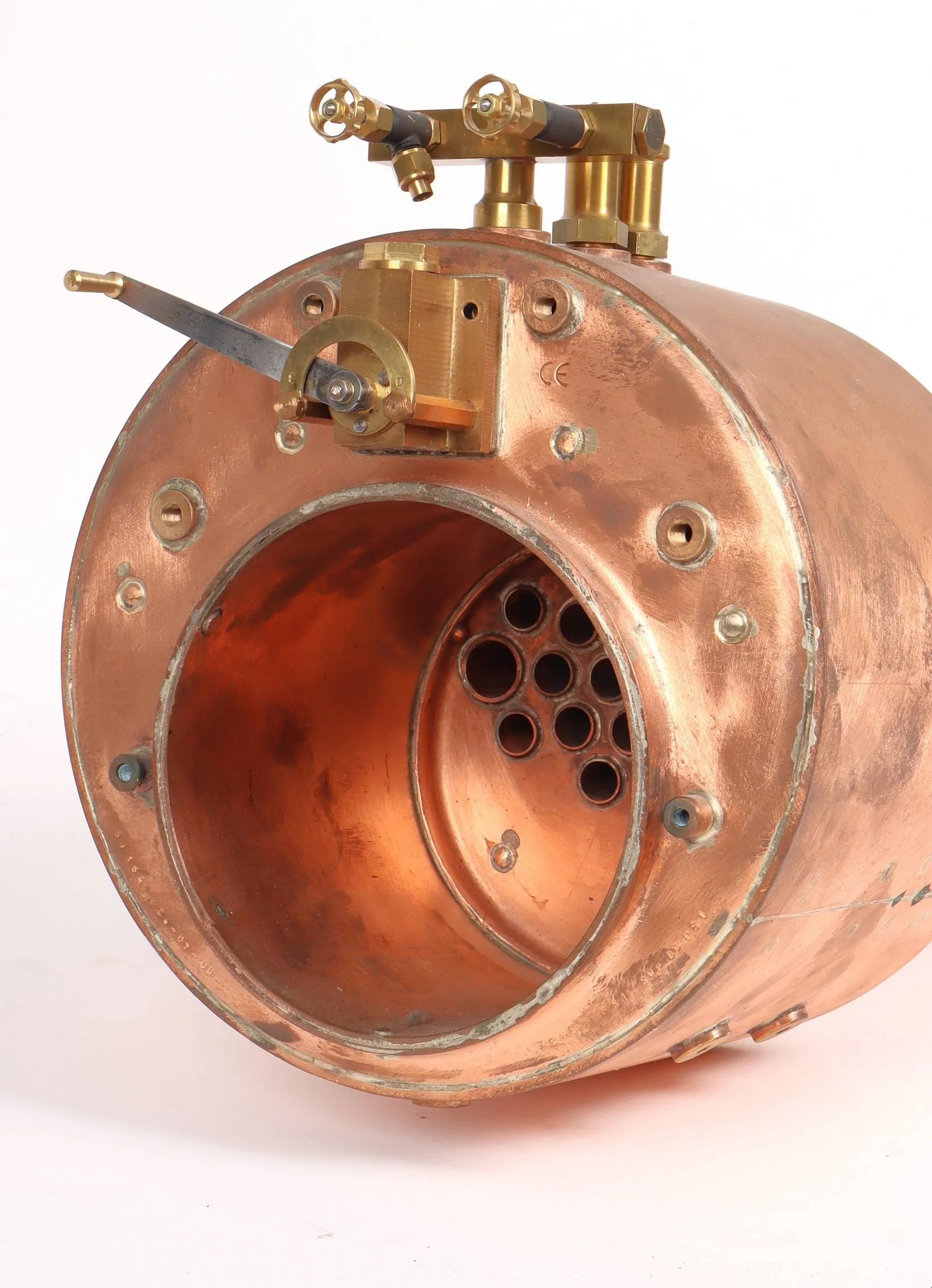

  • commercially-built CE-marked boiler supplied by Blackgates Engineering, complete with safety valves, regulator, clack valves and fountain with steam valves for blower and injector

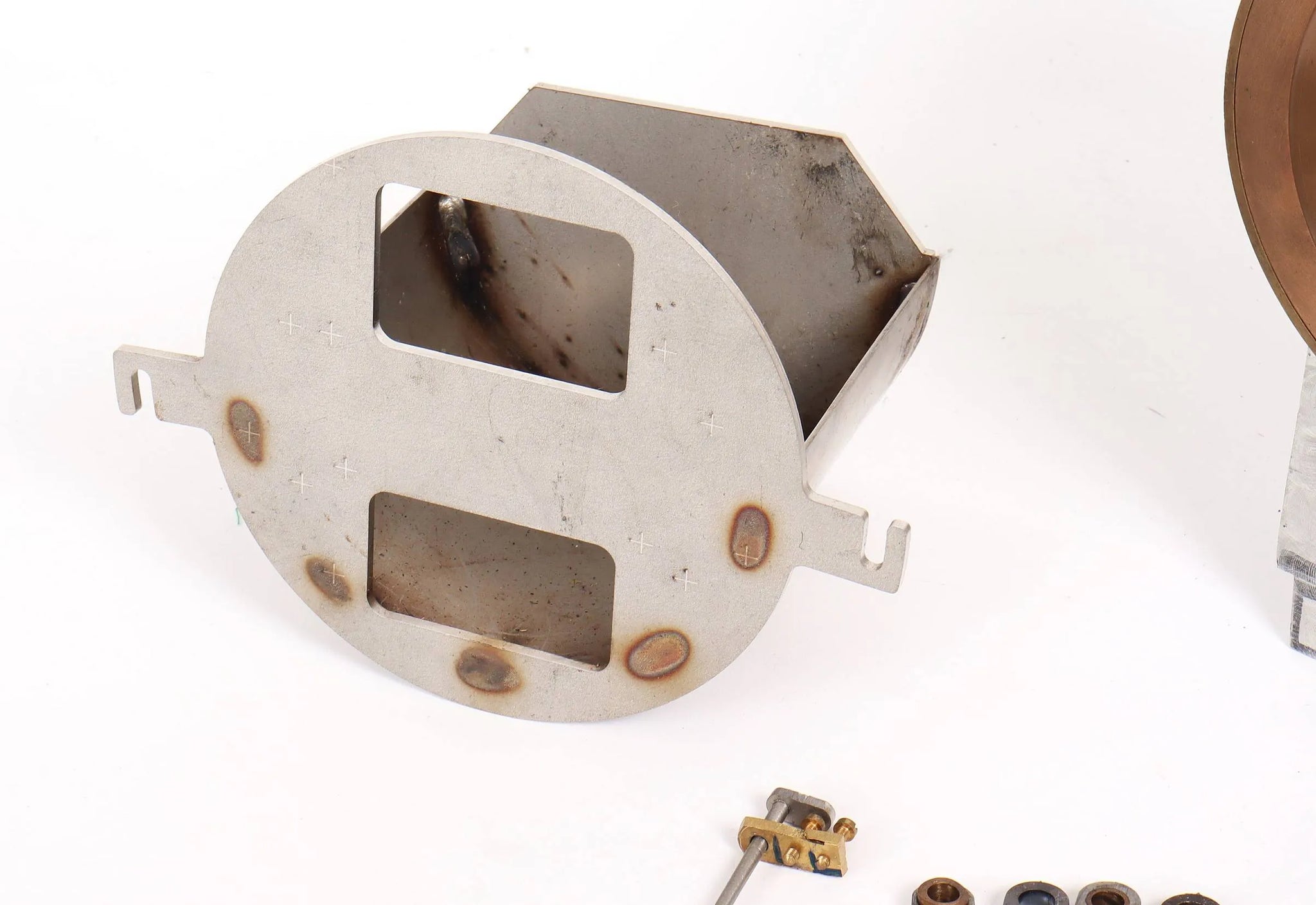

  • stainless steel backhead/grate/ashpan assembly

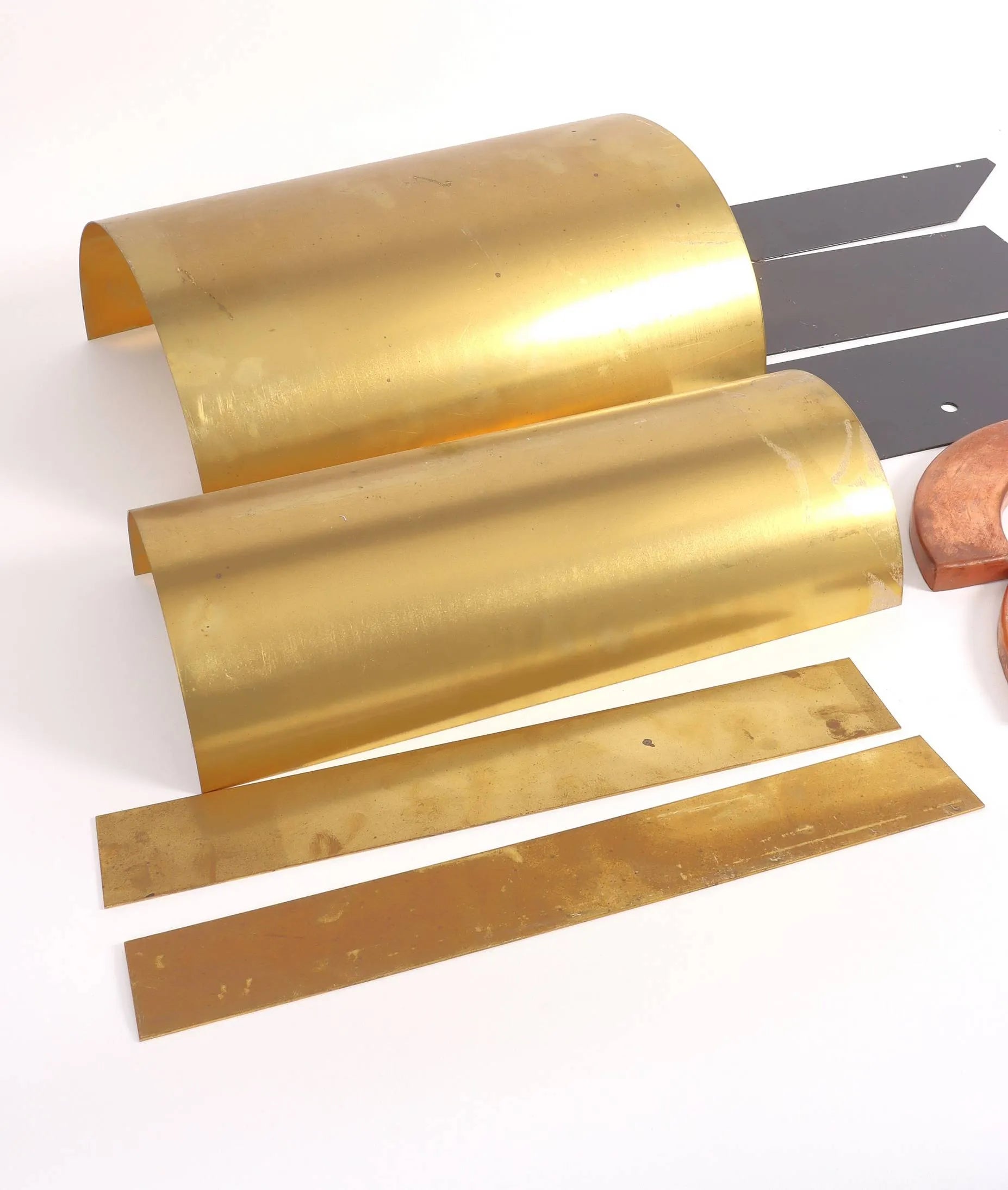

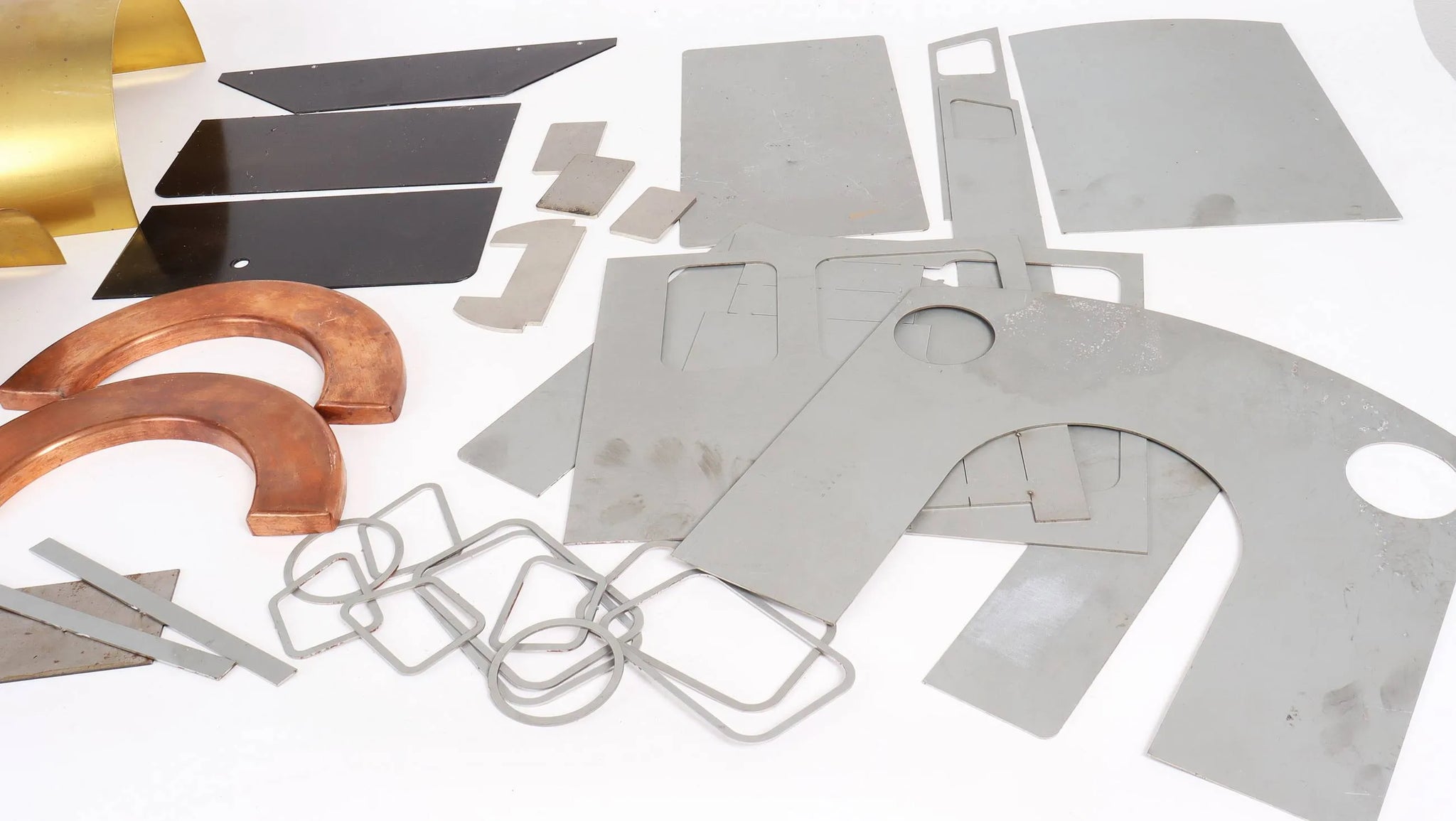

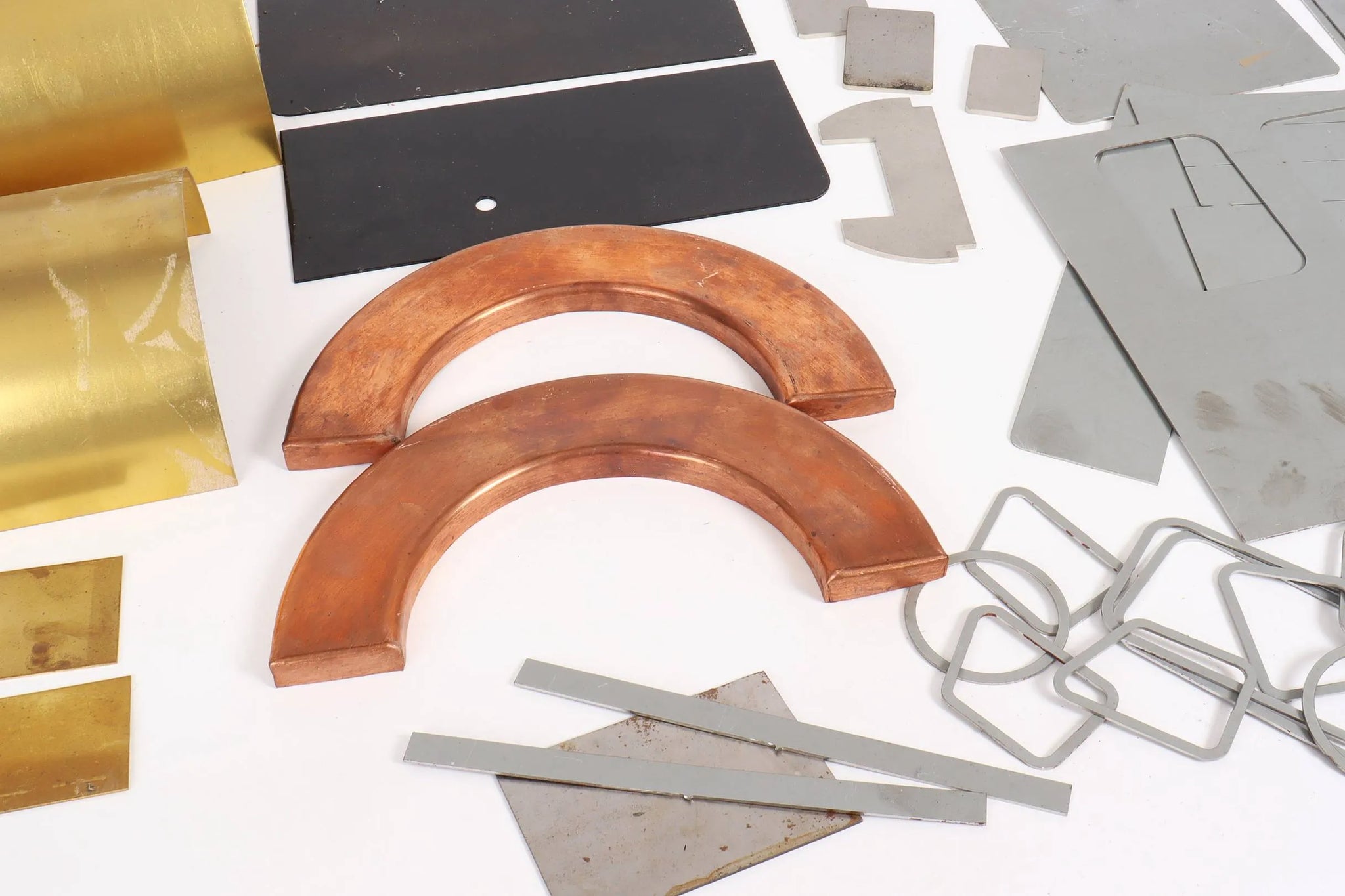

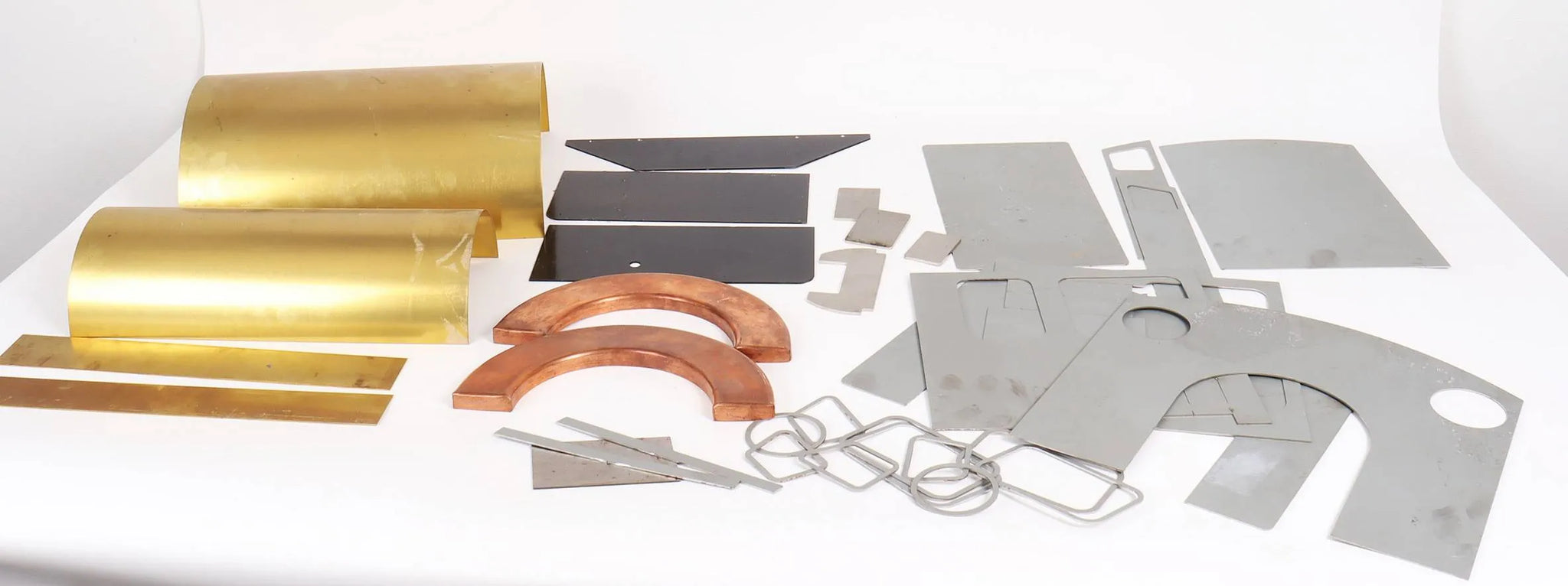

  • profiled and formed parts for cab, running boards and saddle tank

Technical information

Stock code

11594

Gauge

5 inch

Length/inches

30

Width/inches

12.5

Height/inches

7.5

Weight/Kg

56

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Hackworth

Boiler maker

Blackgates Engineering

Boiler type

marine

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

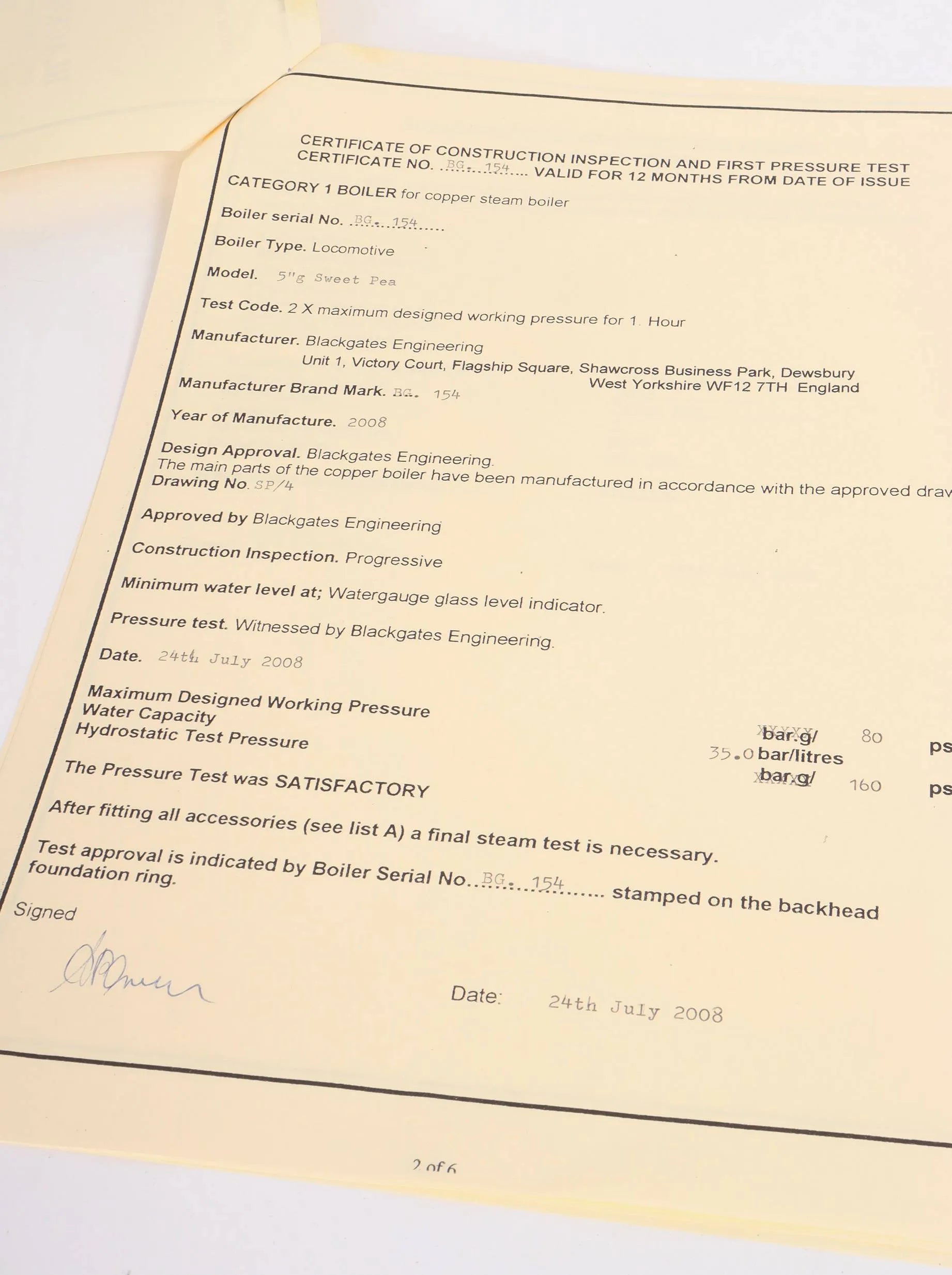

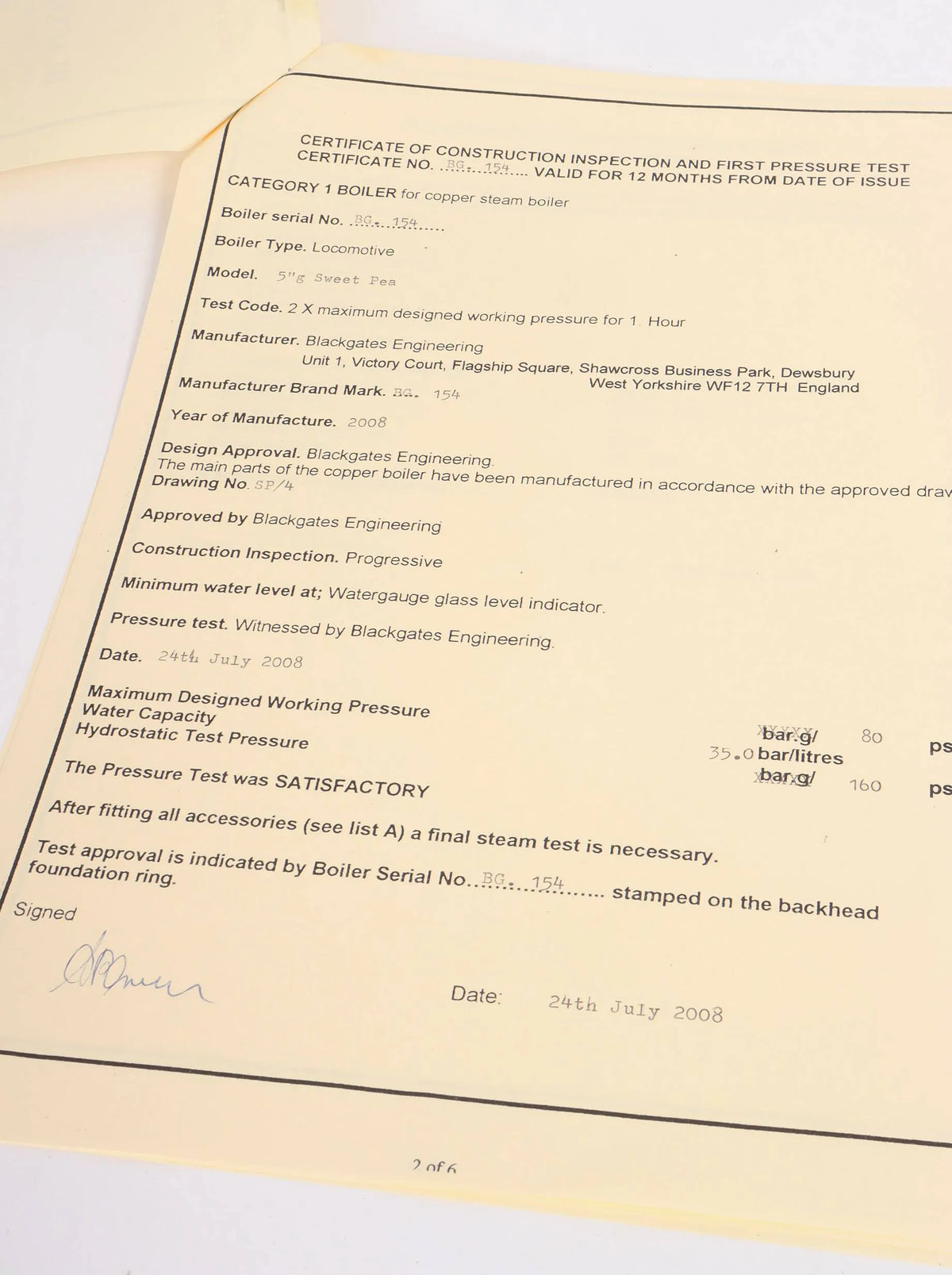

CE/UKCA mark

yes

Year built

2008

Boiler number

BG 154

Safety valve type

spring

Safety valve

2

Mechanical pump

1

Date out

Oct-23
