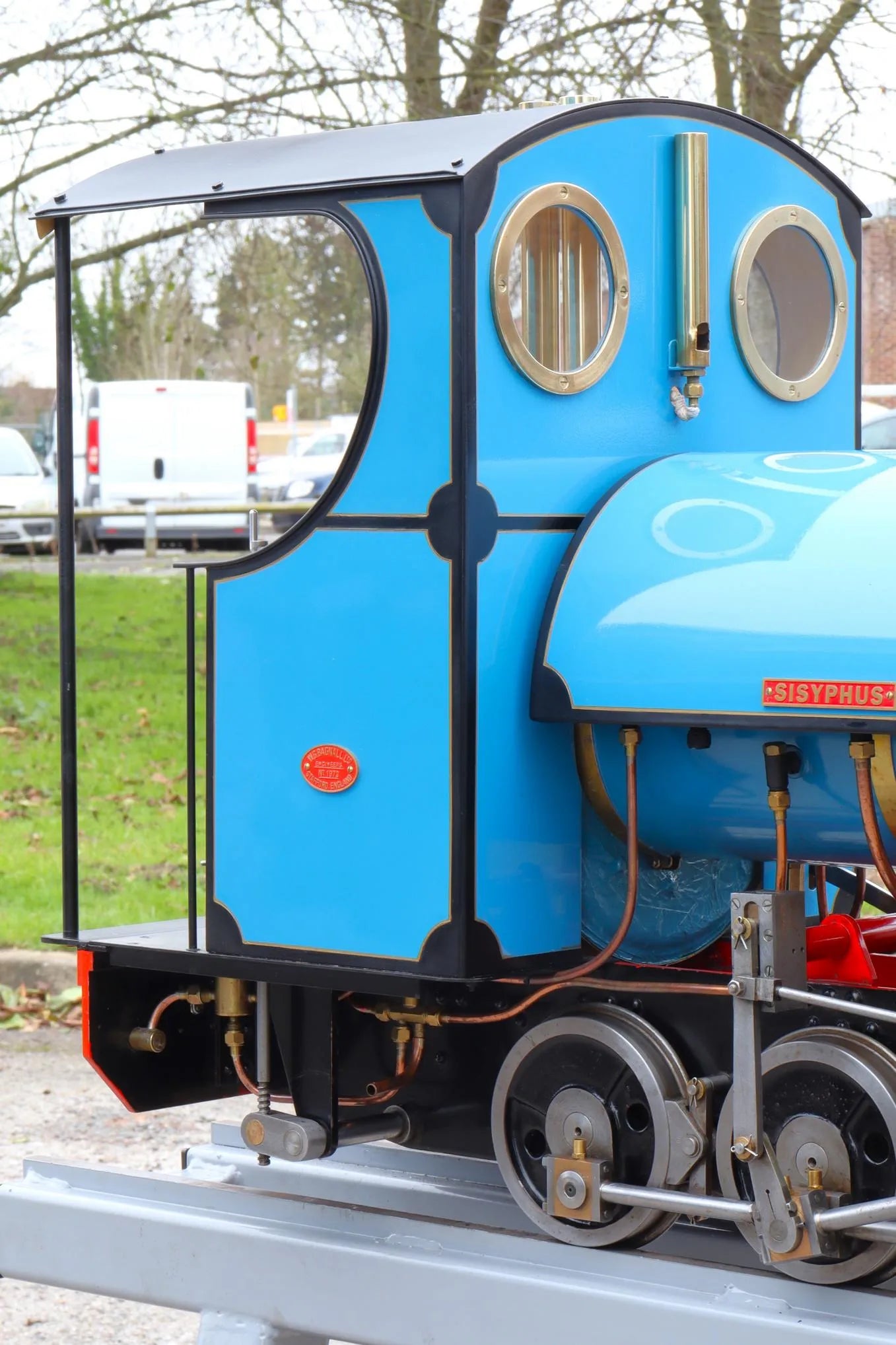

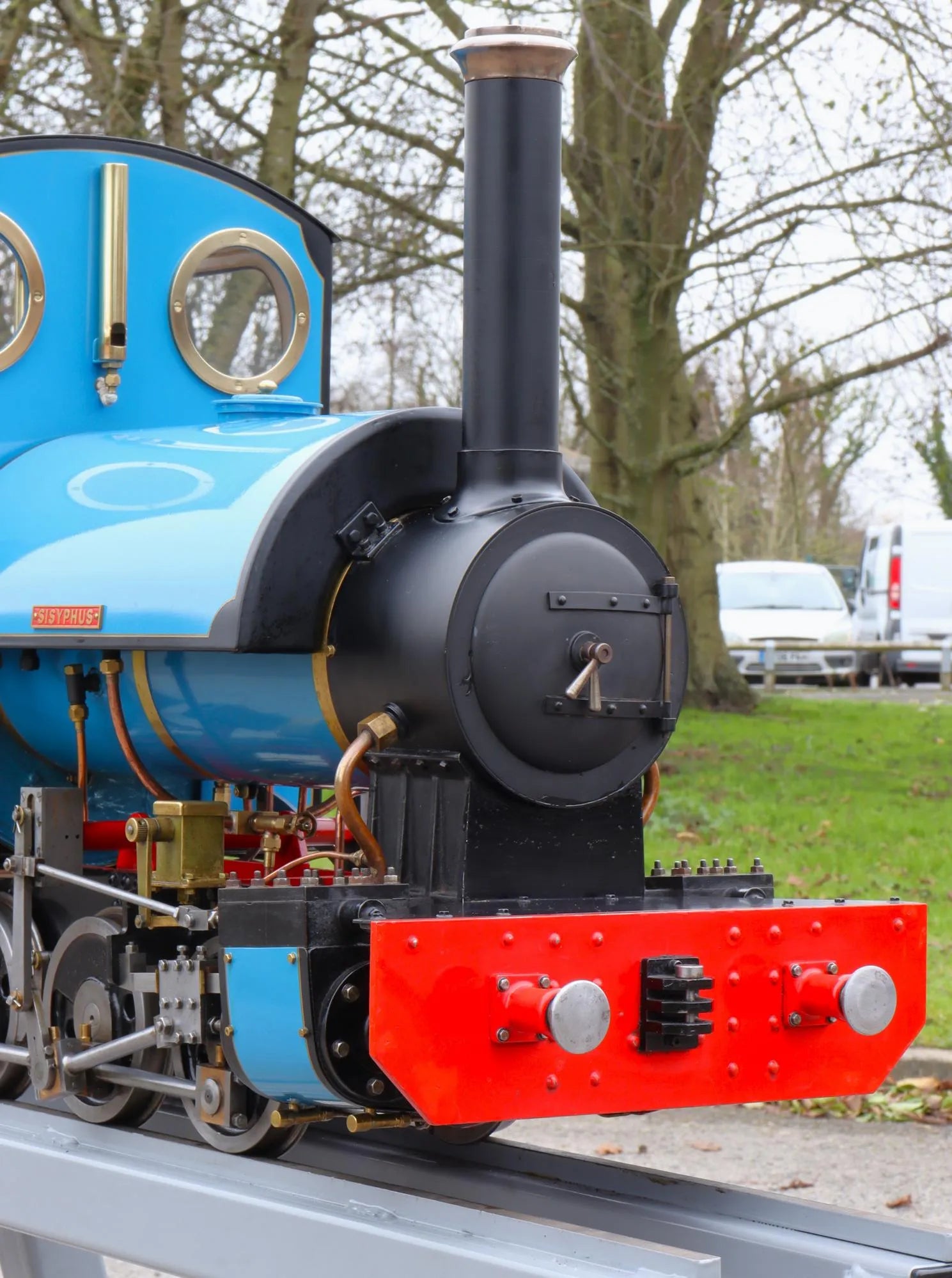

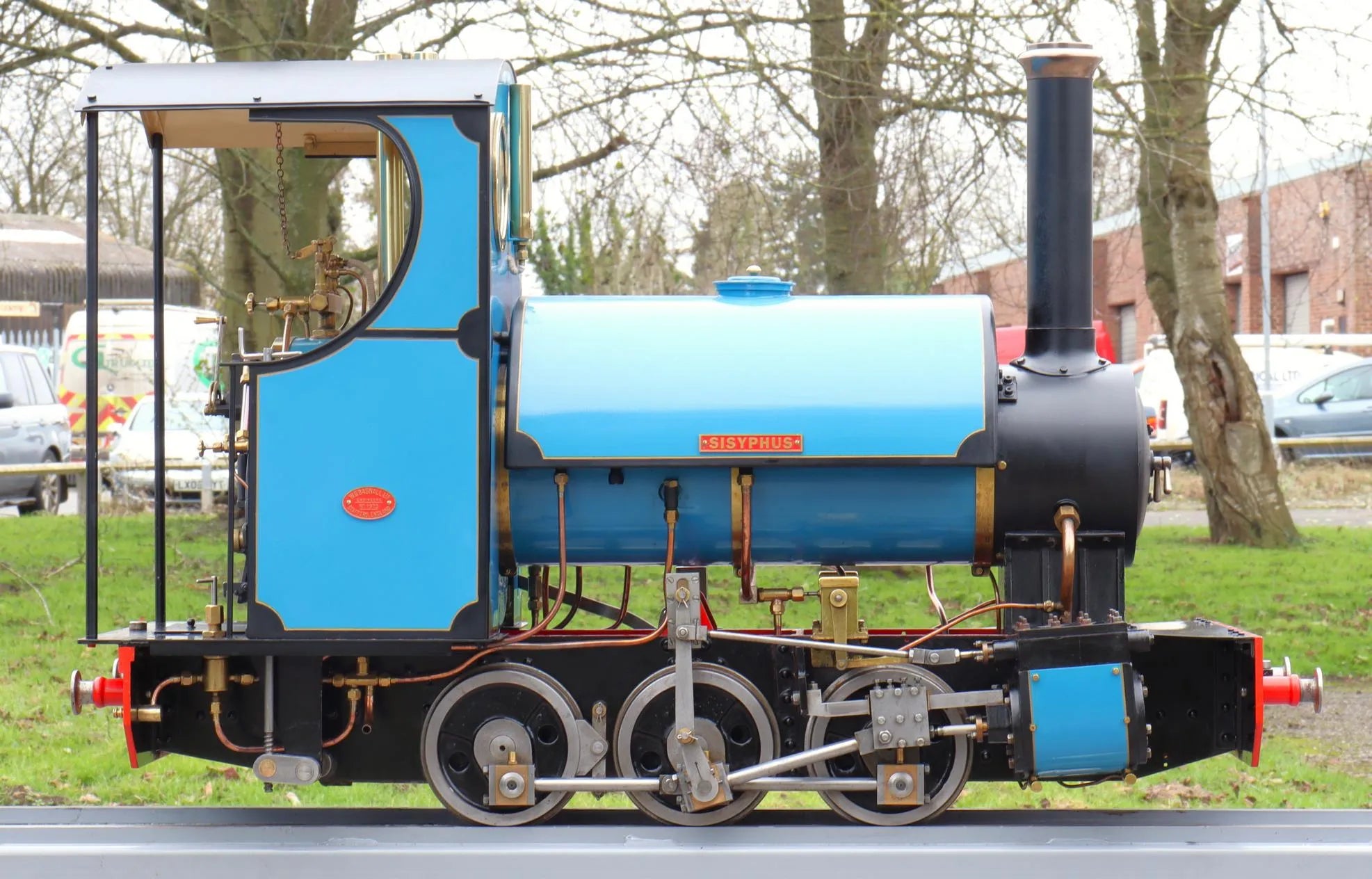

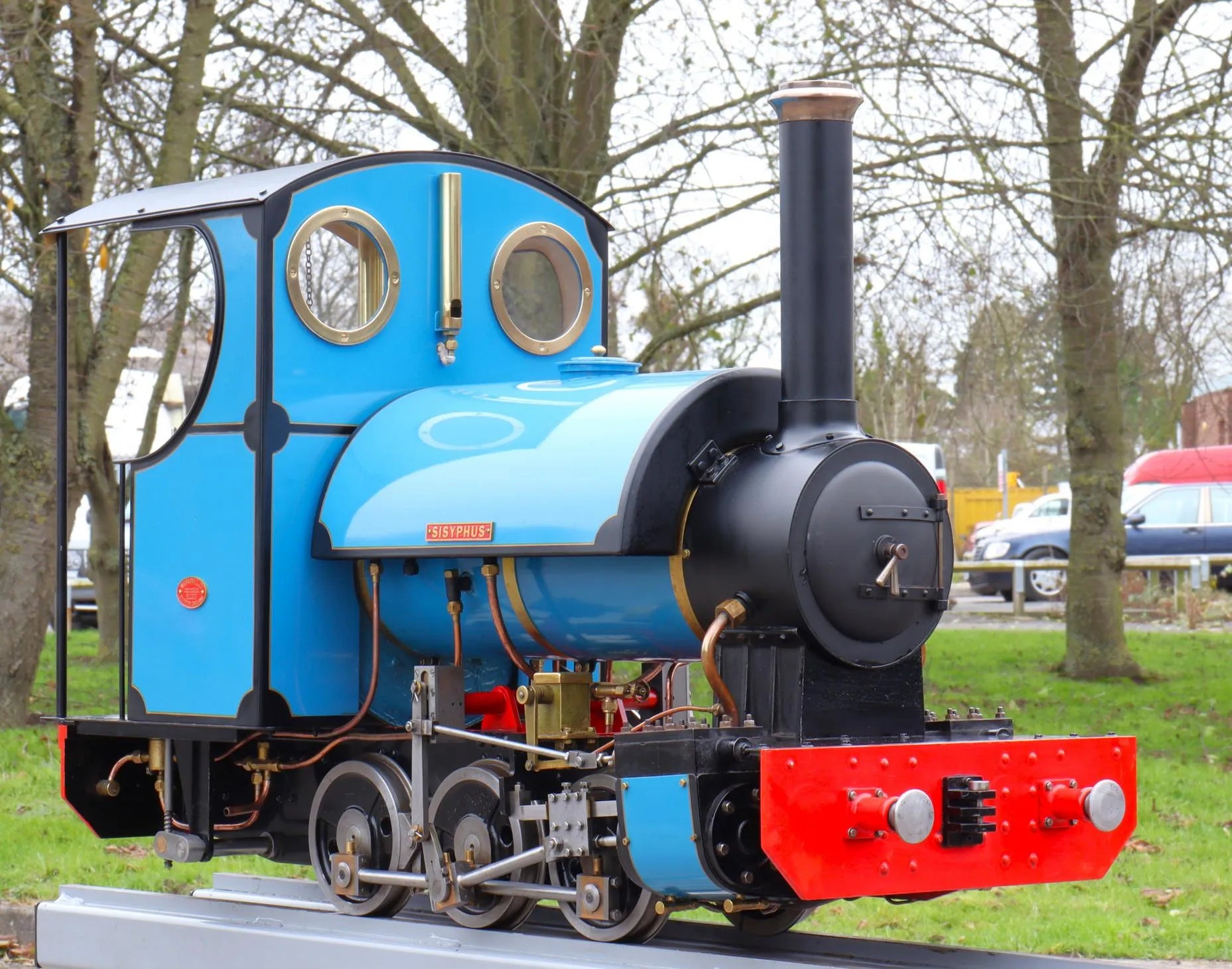

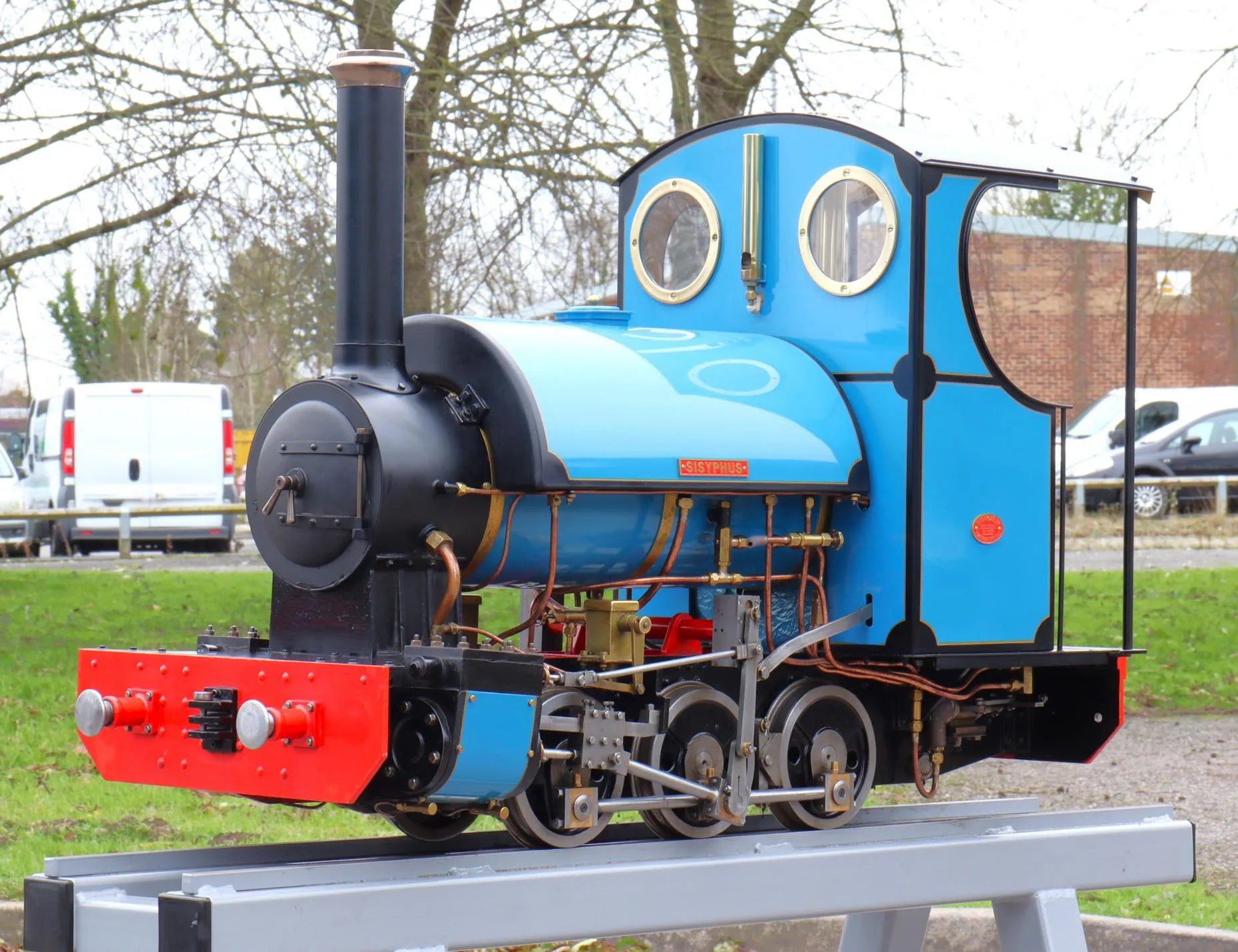

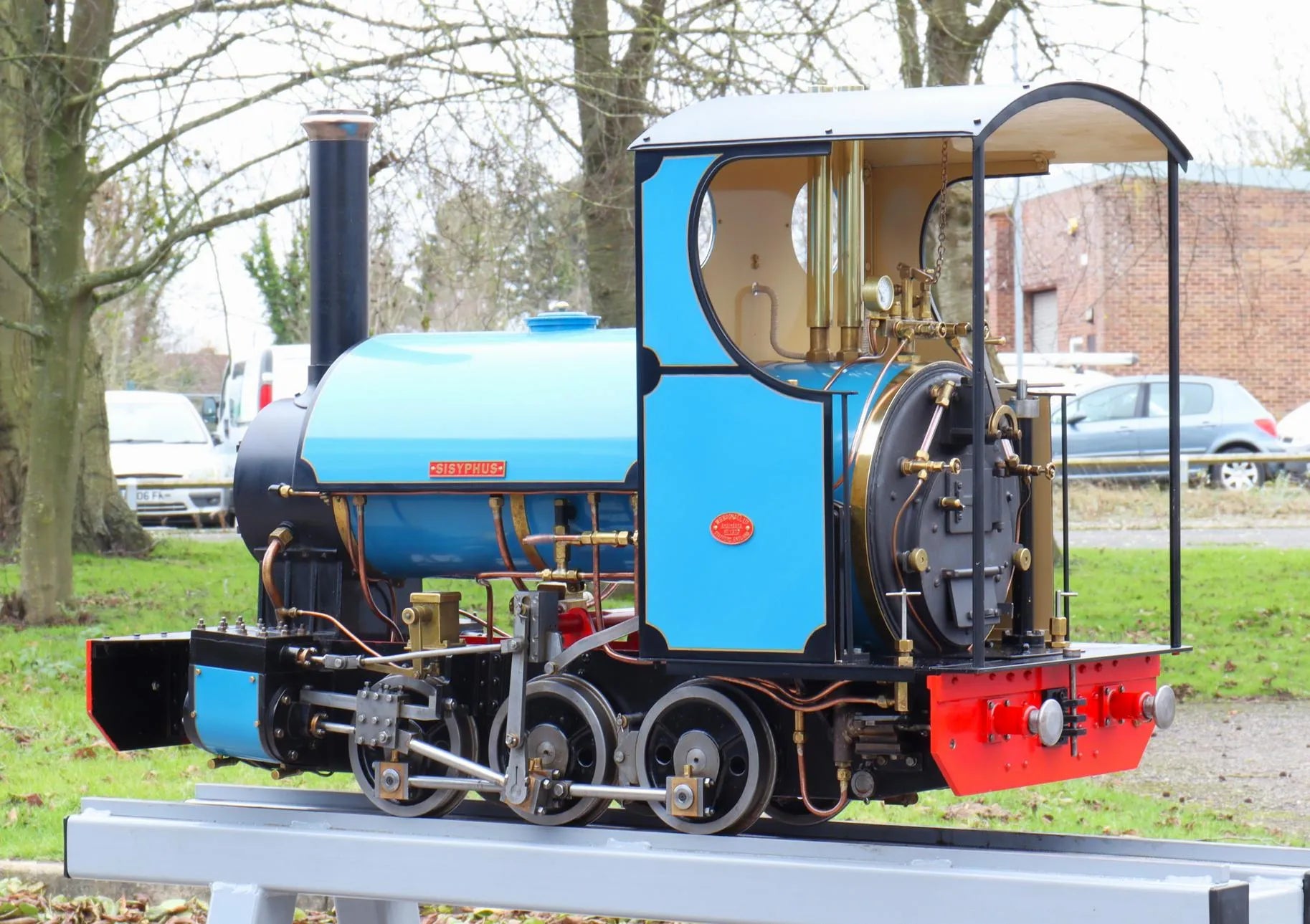

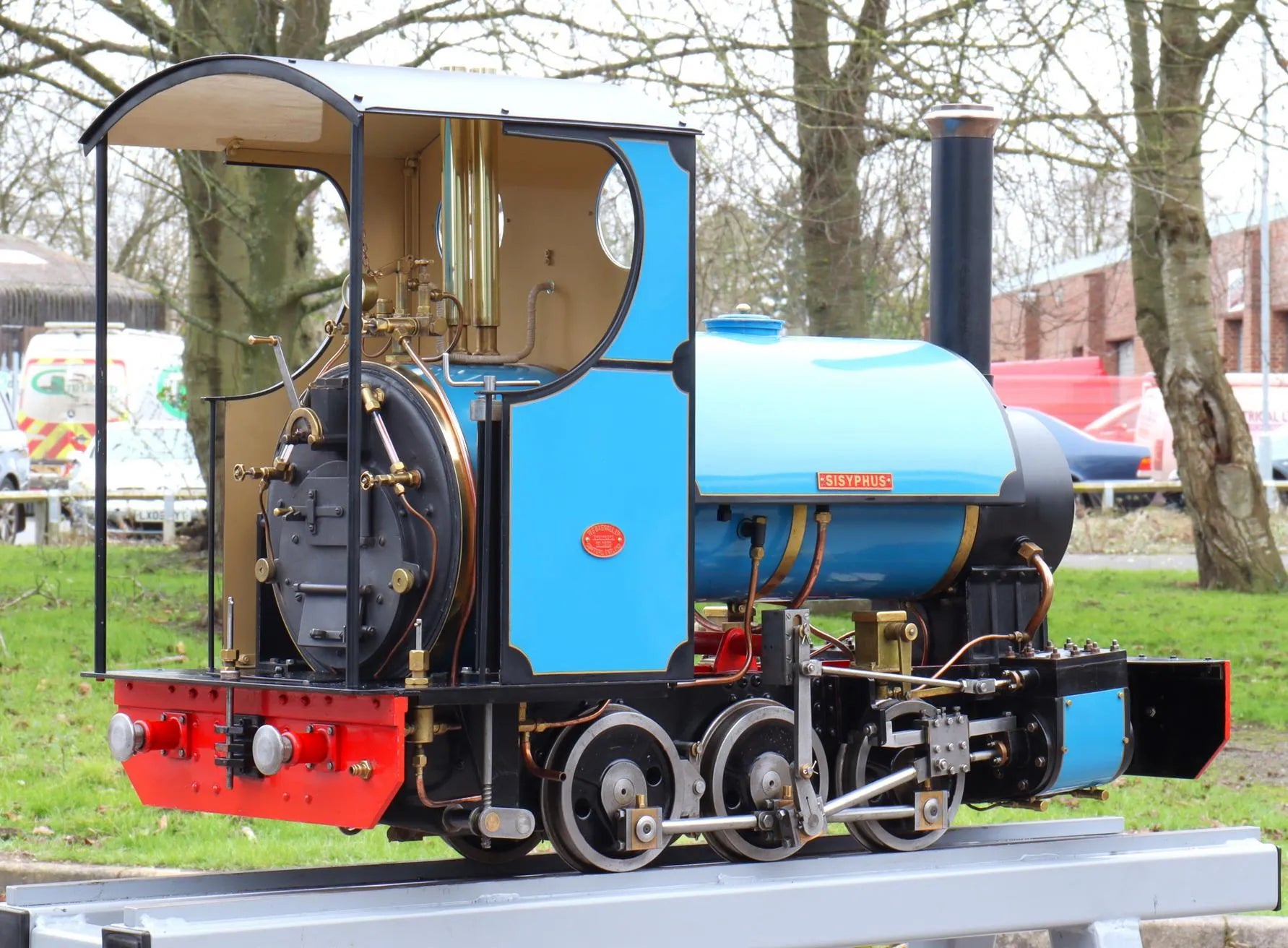

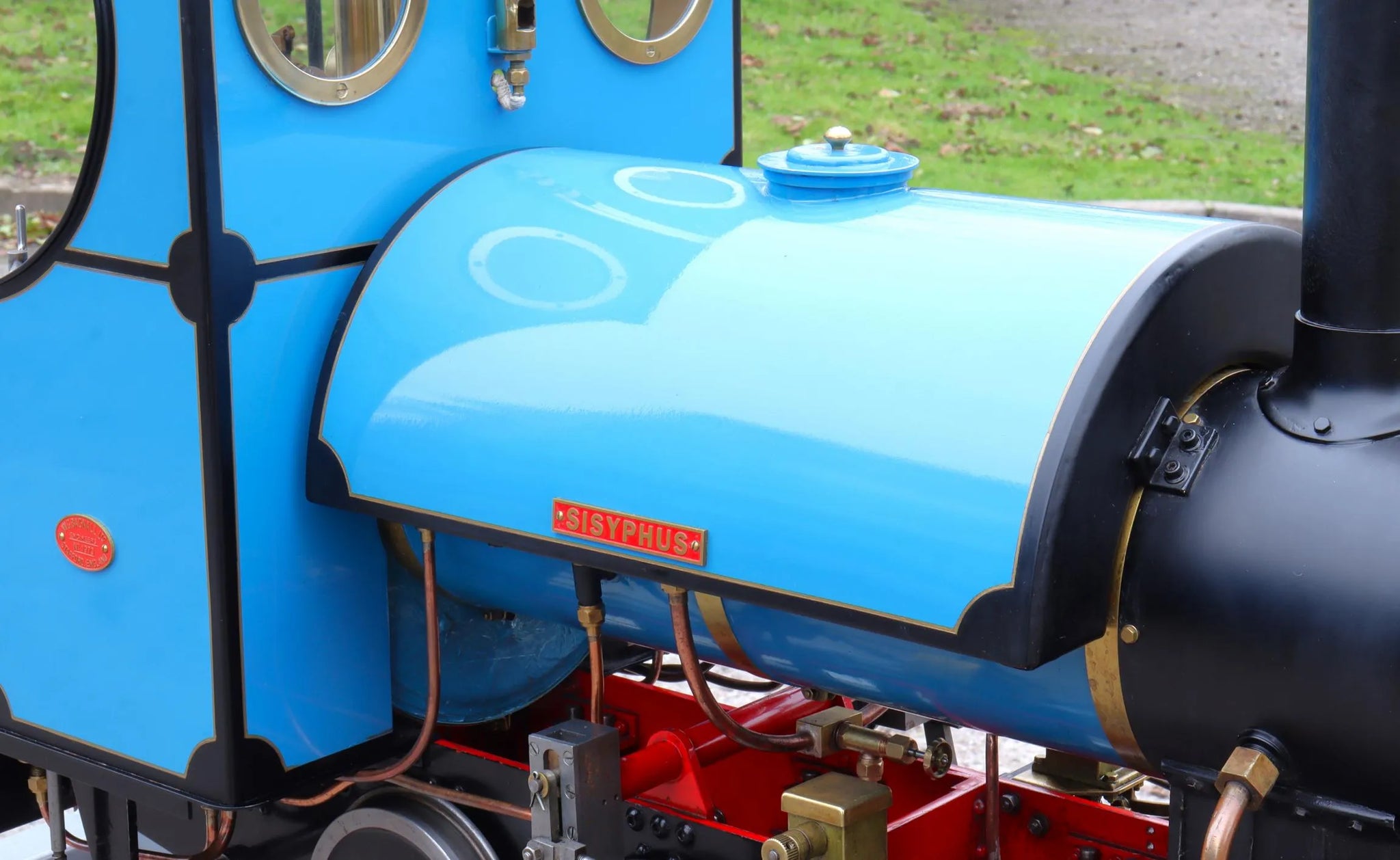

5 inch narrow gauge Metre Maid "Sisyphus" 0-6-0ST

A 5 inch narrow gauge 0-6-0ST "Sisyphus" to the "Metre Maid" design, the six-wheeled variant of "Sweet Pea".

A well made engine, this one impressed us with its performance on test. "Steams like a witch!" according to the workshop notes, it easily maintained pressure running on the rolling road, without need of the blower.

The injector - piped to take water from an external tank - hand and axle pumps all proved reliable, the steam-operated drain cocks work beautifully. The pop-type safety valves lifted freely at 80psi, with no tendency to accumulate.

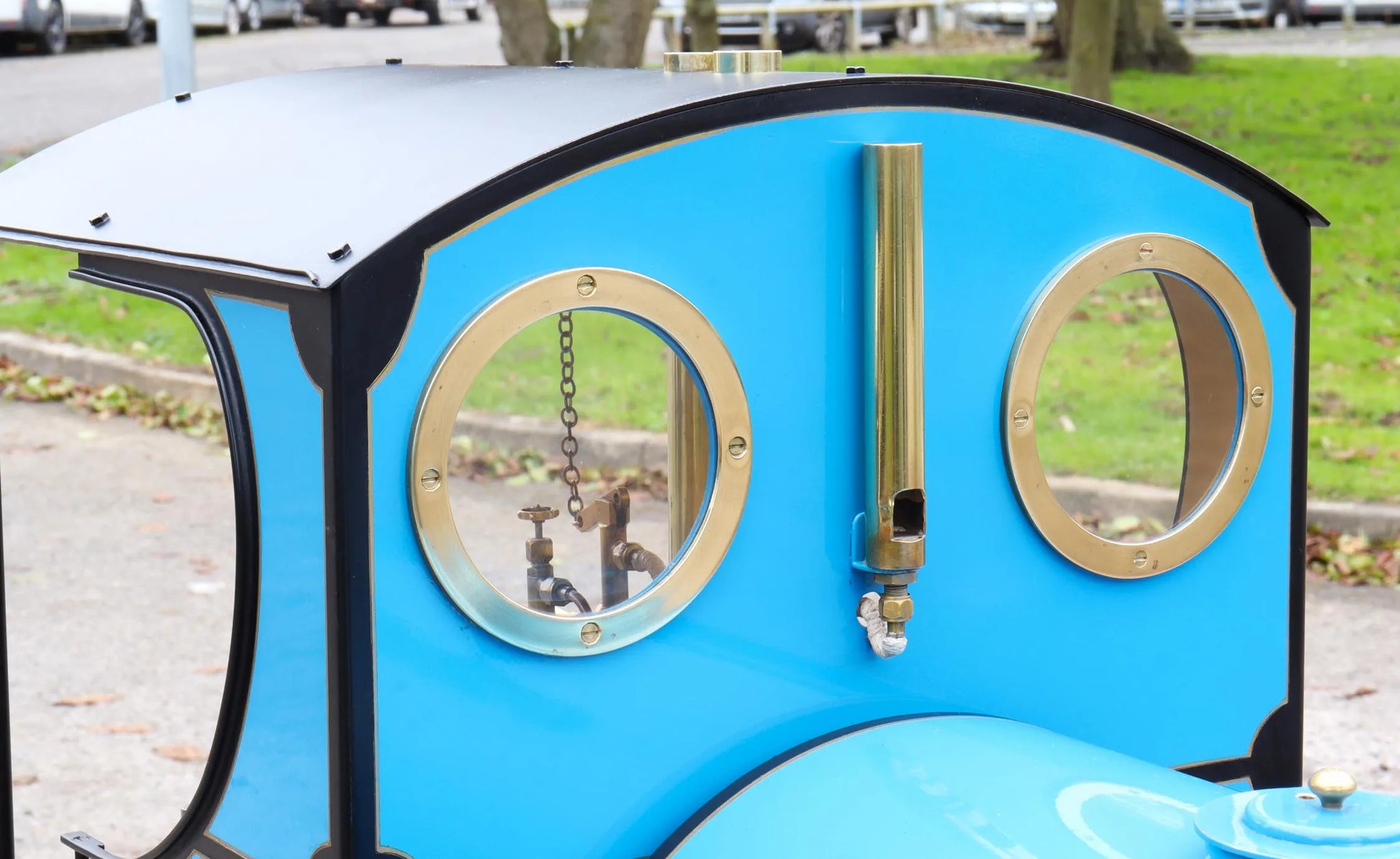

Paintwork has been well-executed in a typical narrow gauge livery and lining scheme - to our eyes attractive.

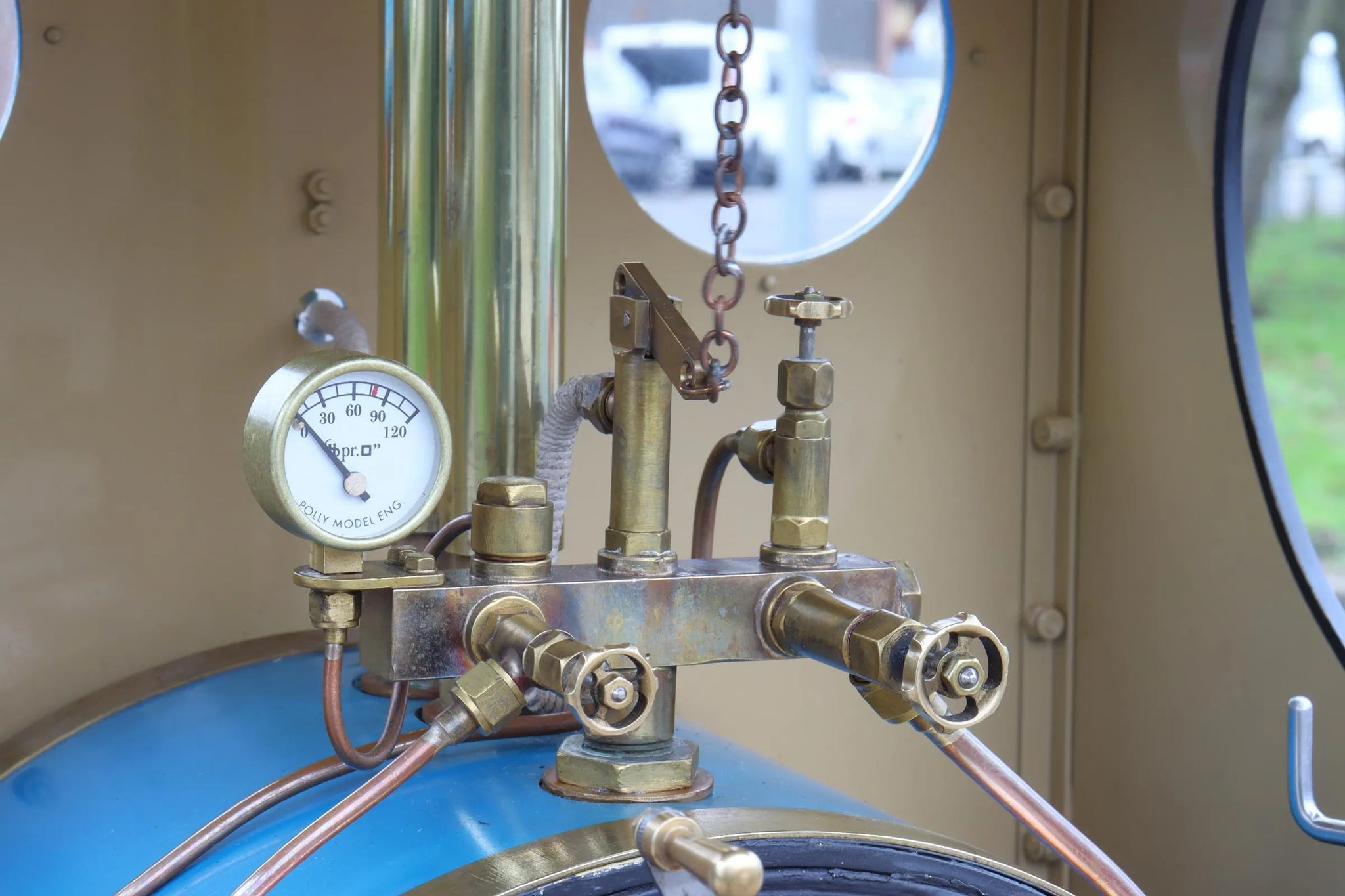

The boiler has had hydraulic and steam tests with new certification issued, with a new pressure gauge fitted at this time.

The engine is offered with full certification, 12 months warranty, set of firing irons and a starter kit of coal and oil.

Technical information

Stock code

12488

Gauge

5 inch

Length/inches

34

Width/inches

13

Height/inches

22

Weight/Kg

63

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

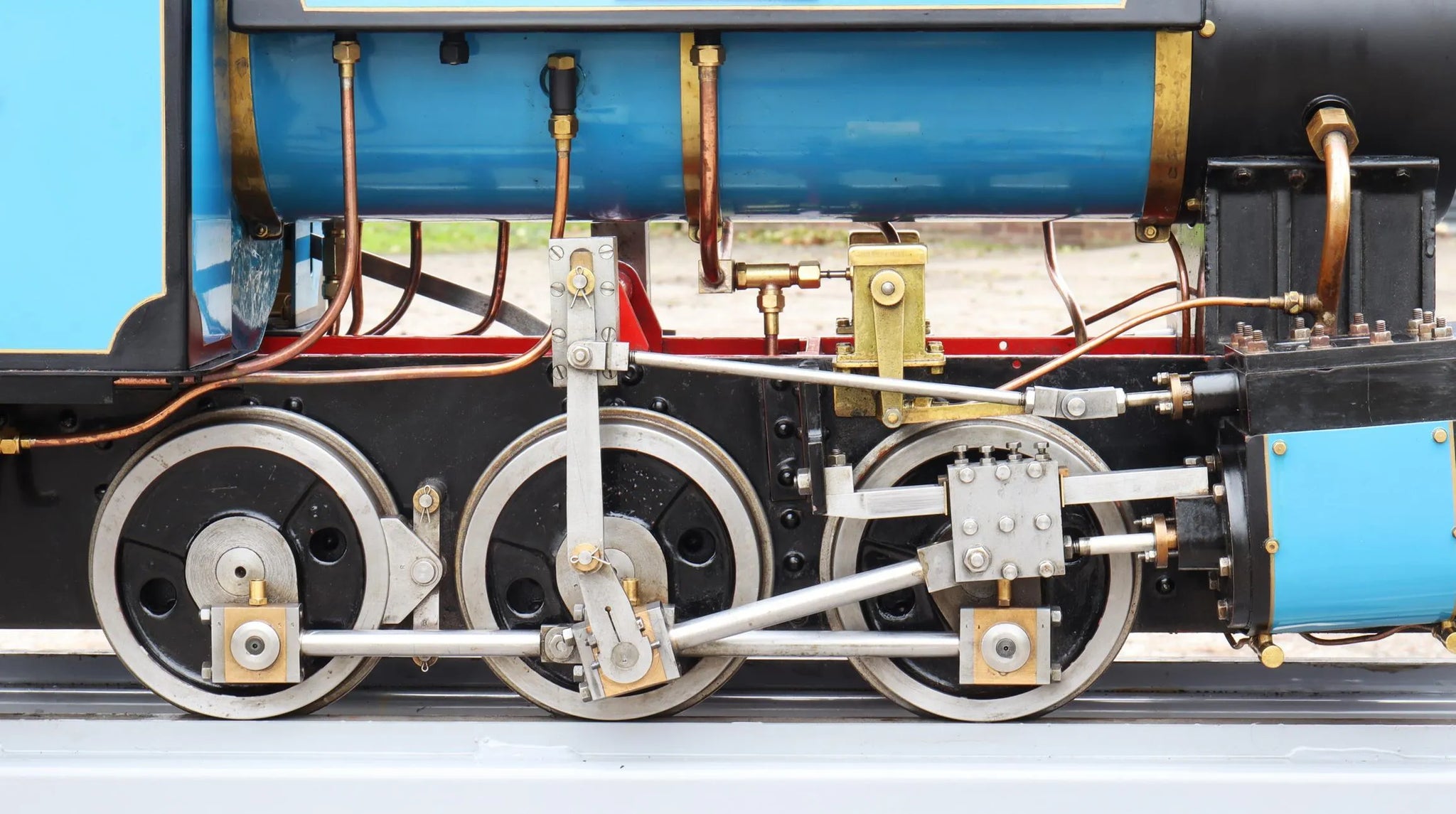

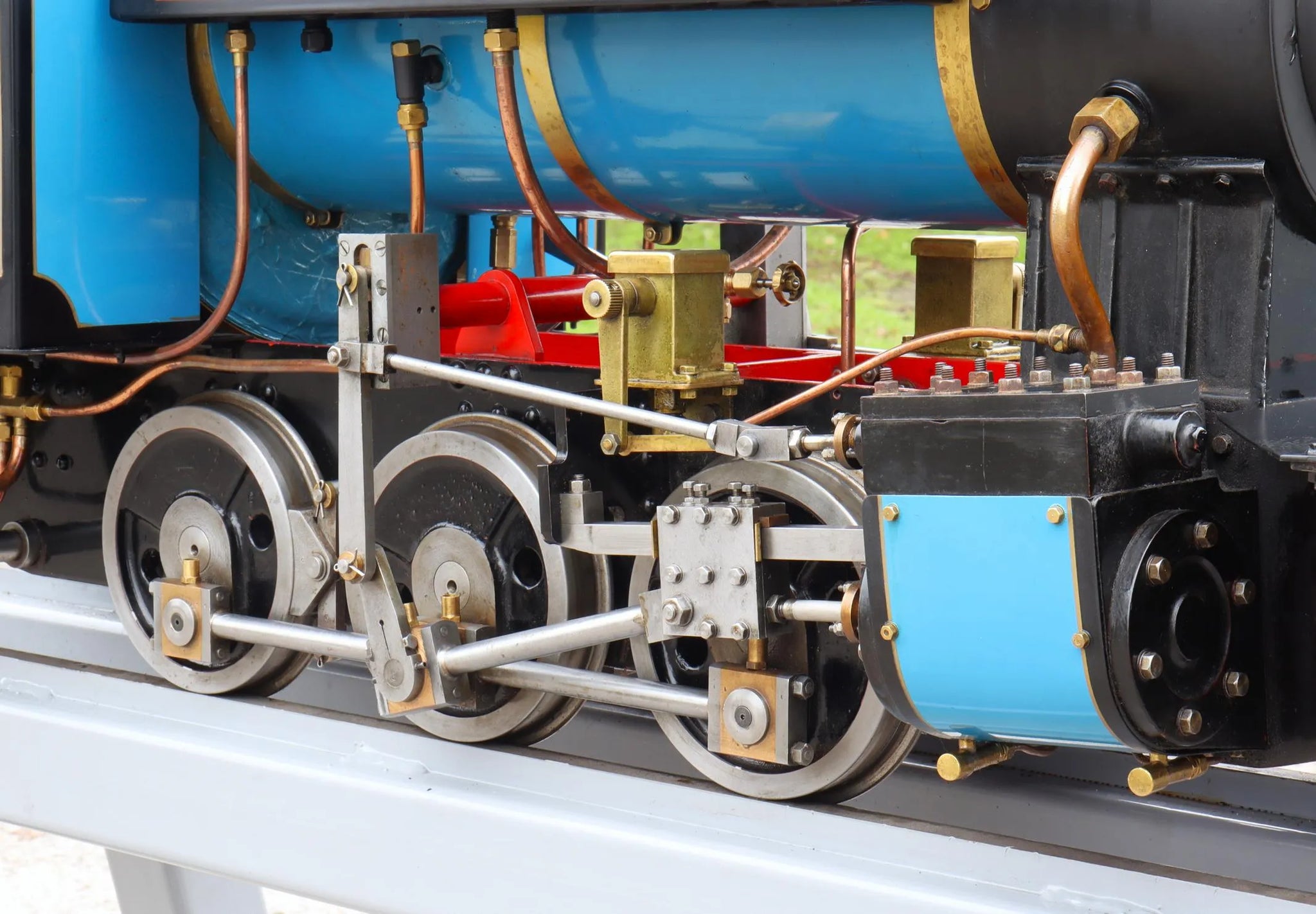

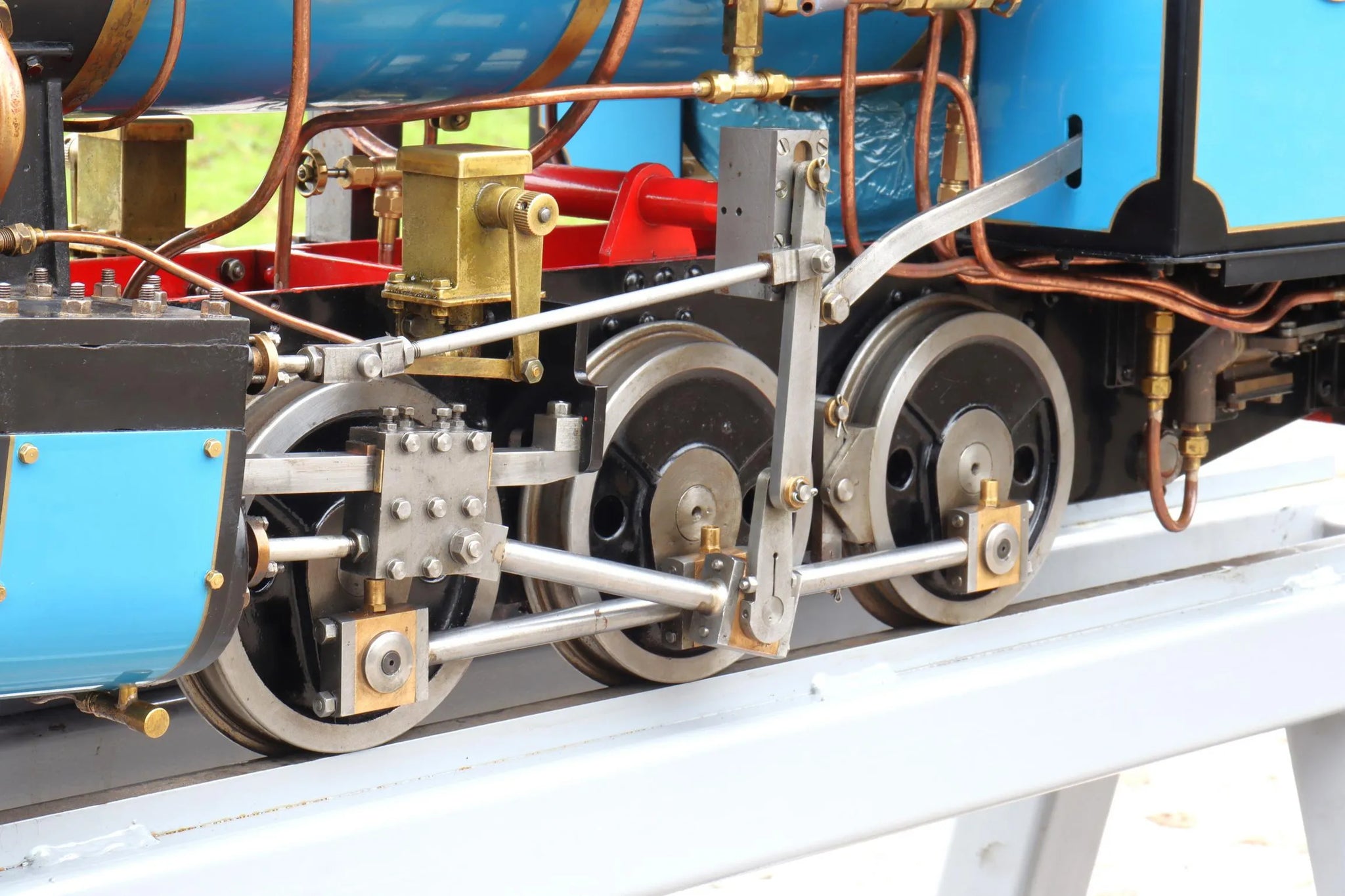

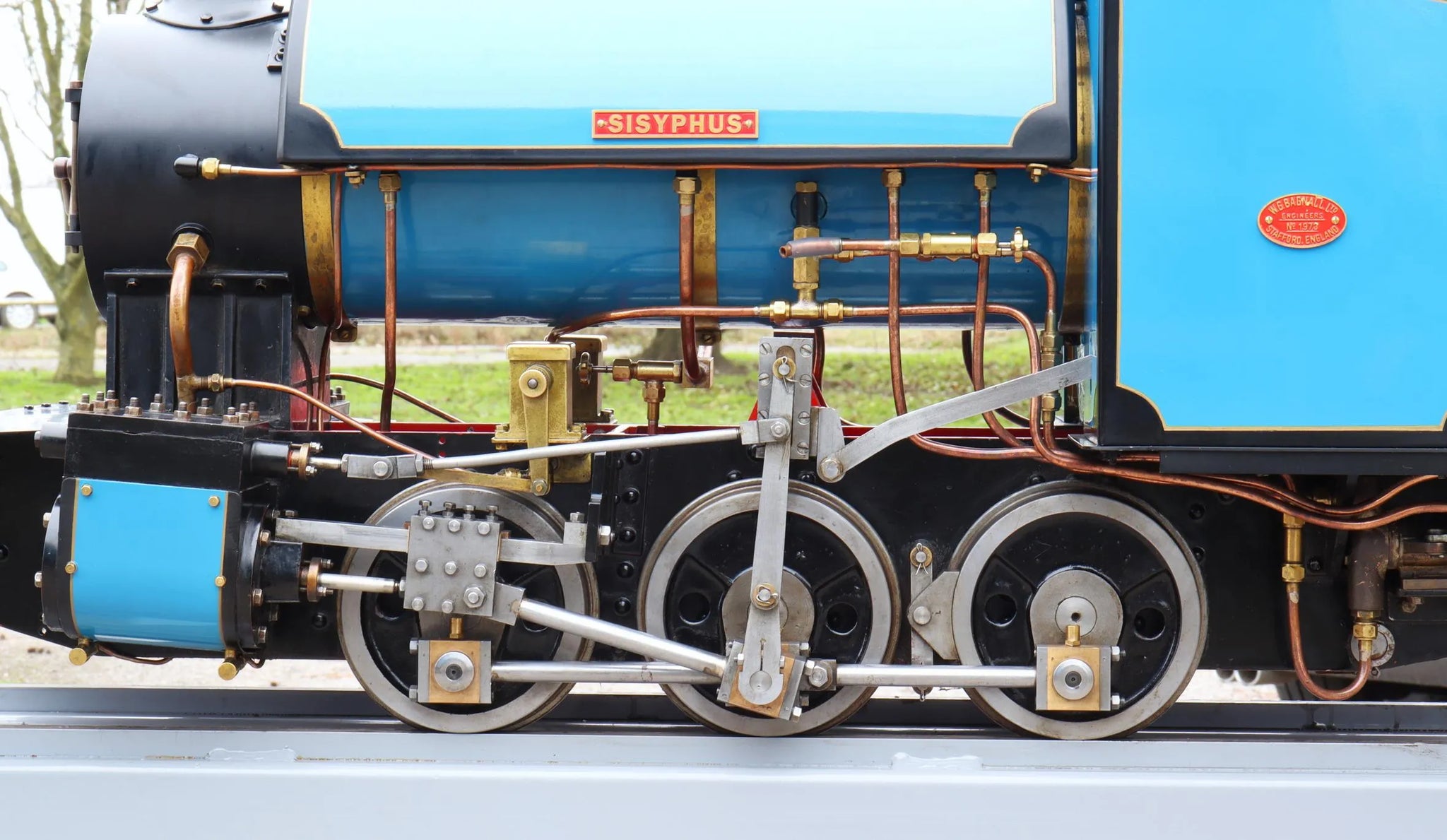

Valve gear

Hackworth

Reverser type

pole

Boiler type

marine

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

2009

Boiler number

N24-80-175

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

2

Date out

Mar-25

Hydraulic test valid to

13-Nov-28

Steam test valid to

27-Jan-26
