8083

5 inch gauge NY&HRR 4-4-0

We sold this engine back in 2012, it's recently come back in part exchange. Still in the same, excellent condition - it remains one of the nicest examples of this design I've seen. Words below and pictures opposite are from last time it was here - it's in the same condition now (if anything slightly more polished!)

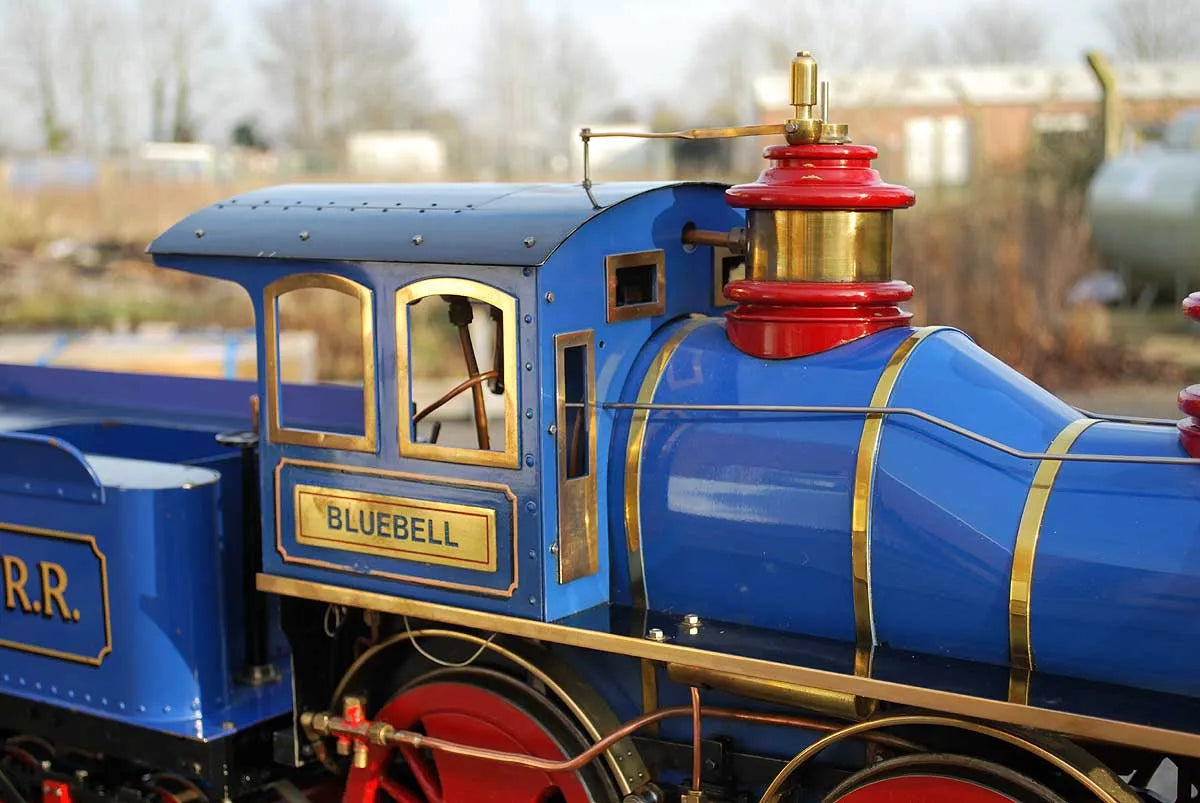

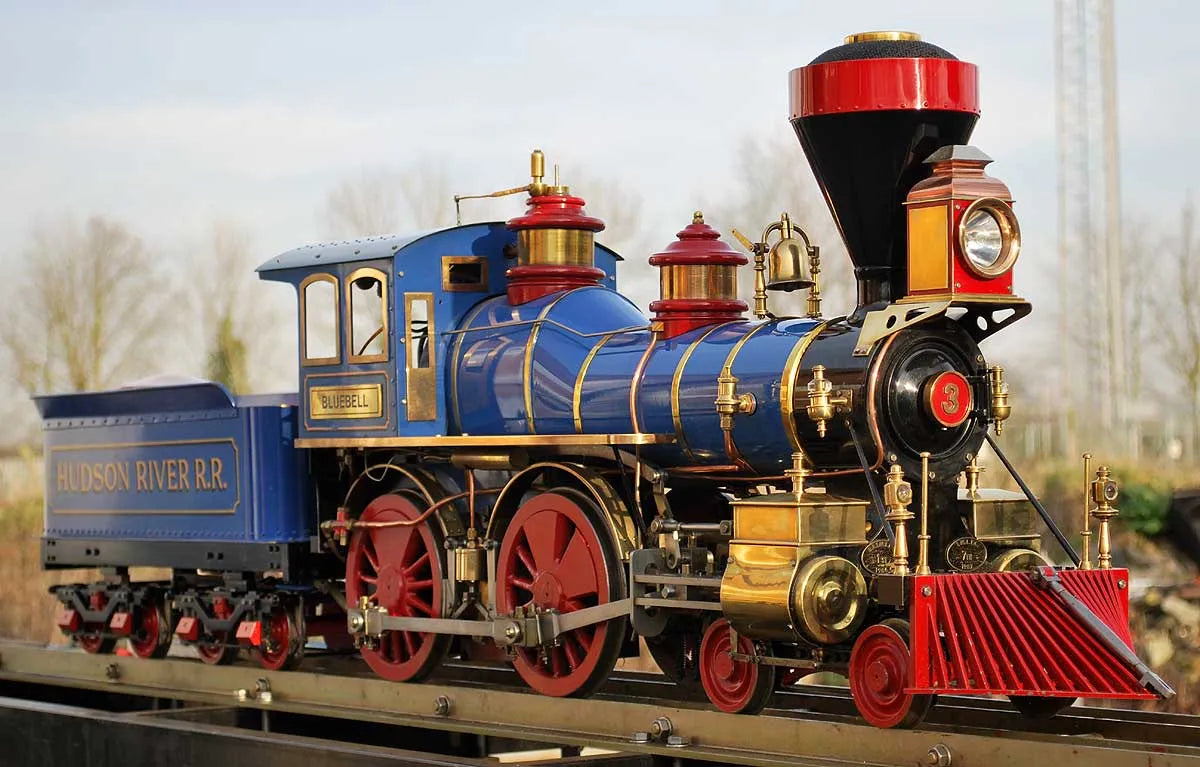

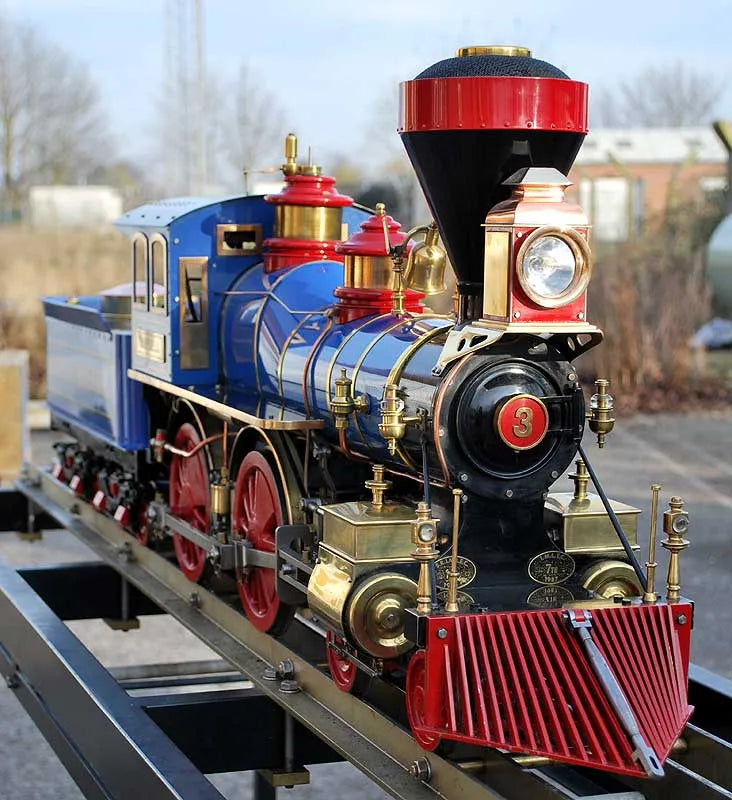

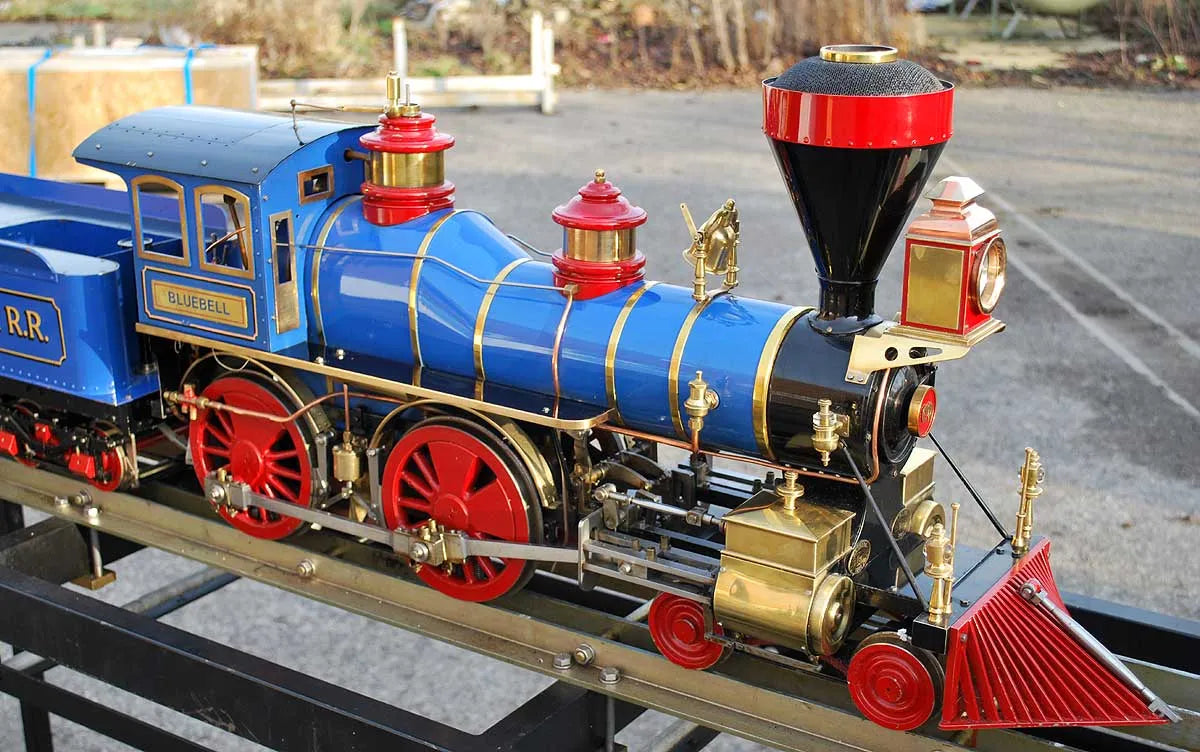

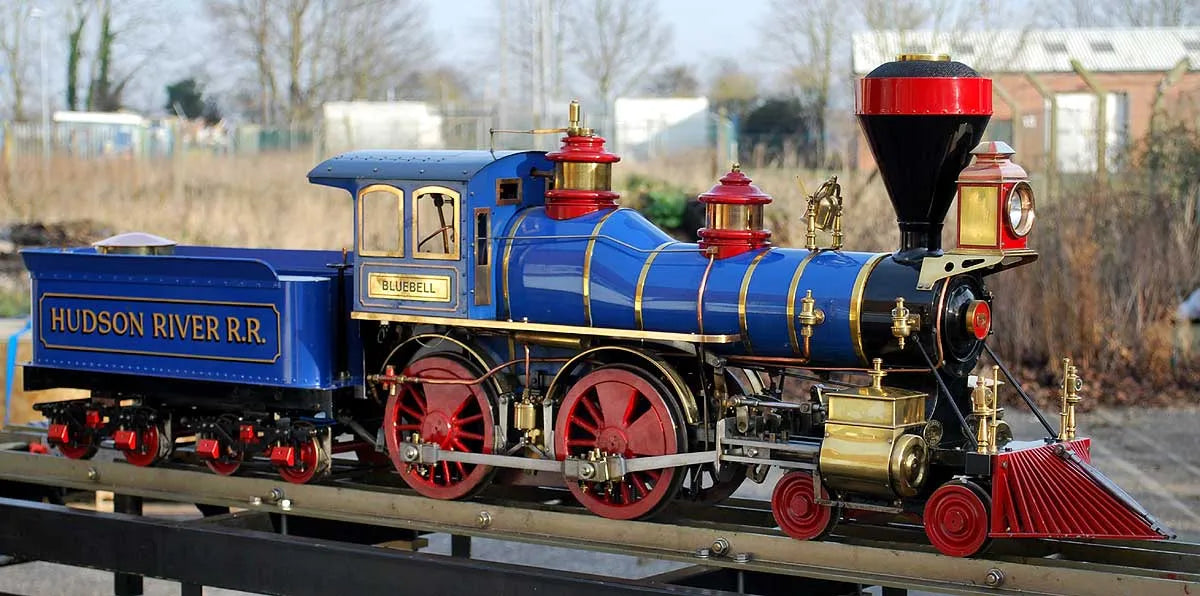

A beautifully-built 5 inch gauge NY&HRR 4-4-0 to John Clarkes well-regarded design, in fine mechanical order.

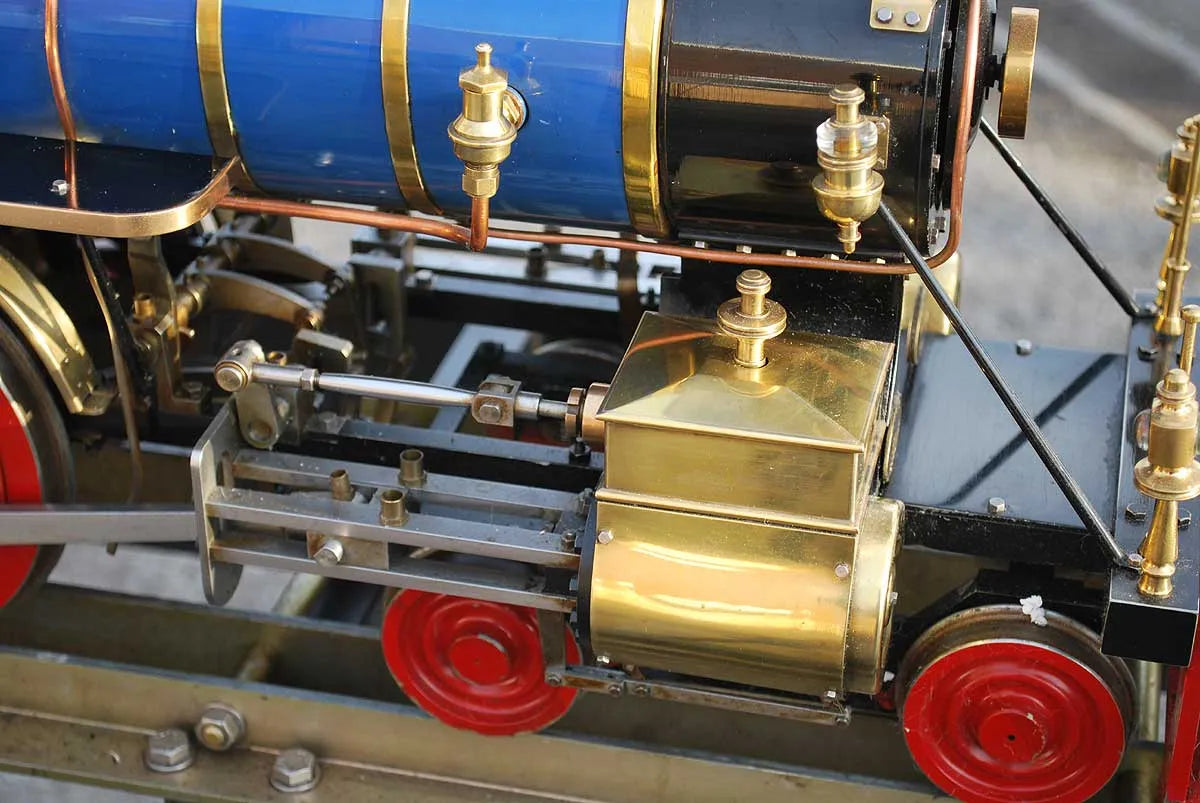

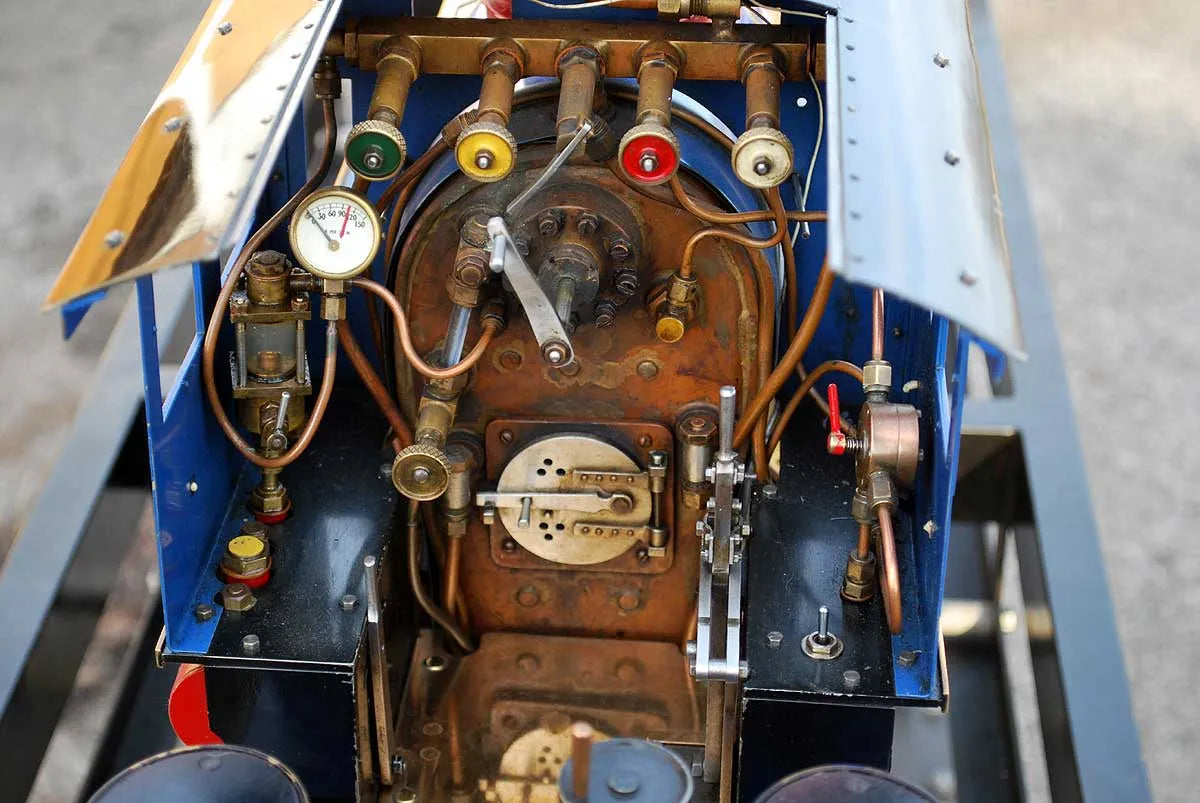

Silver soldered copper boiler with superheaters, 90 psi working pressure. Slide valves actuated by Stephensons gear with pole reverser in the cab, sight feed lubricator in cab.

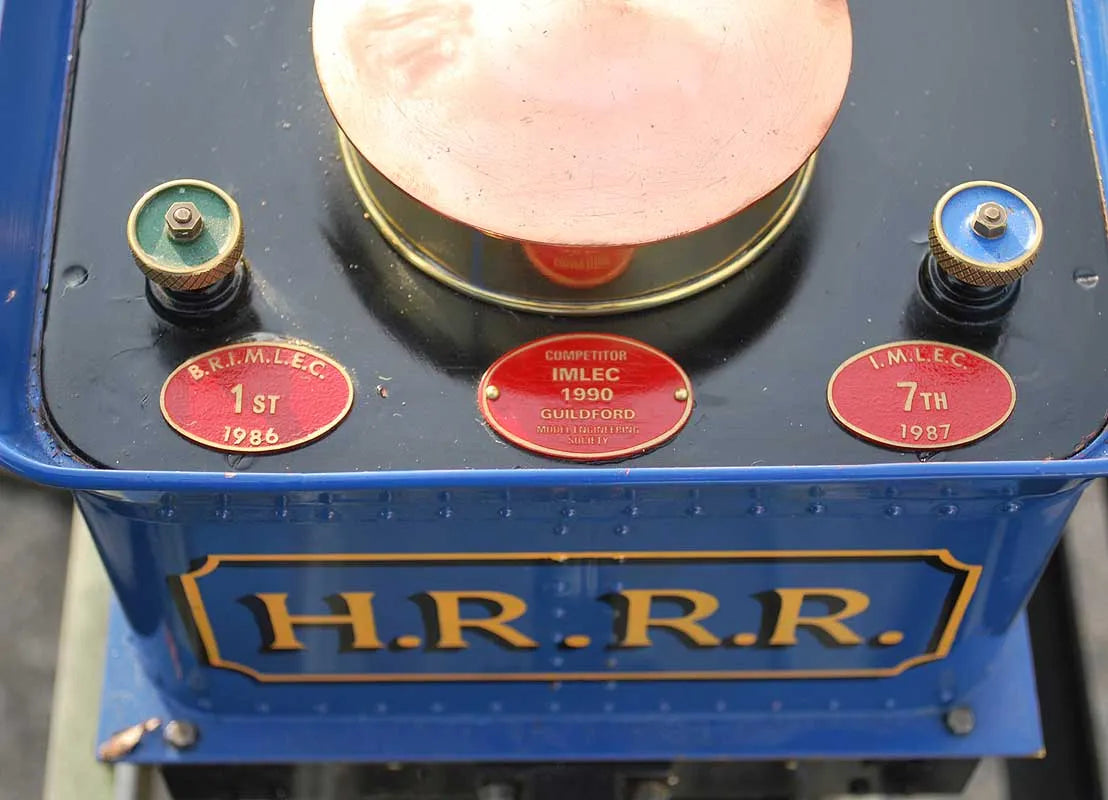

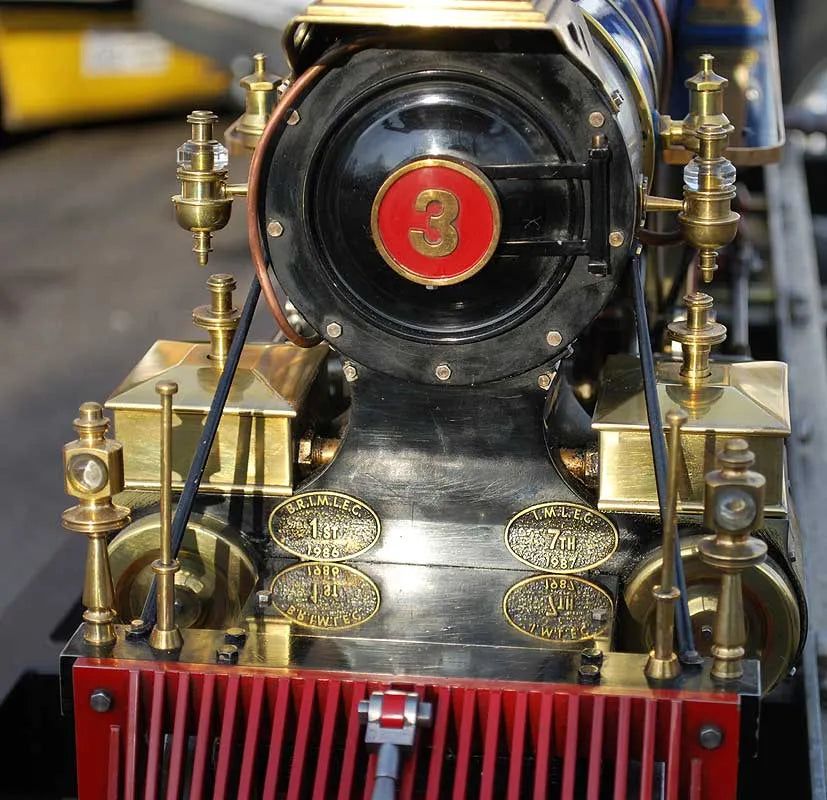

The engine has had success in efficiency competitions in the past, winning the Birmingham Clubs event and placing 7th in IMLEC, no mean feat for a 4-4-0 (albeit one seriously ballasted, such that the locomotive itself is a substantial two-man lift).

The engine is well-painted and nicely detailed its been sitting on a windowsill at the house for the last few months where its been much-admired, Mrs P has now decided that she'd like to look at a recently-arrived Royal Scot instead so this one is ready to go back on the track.

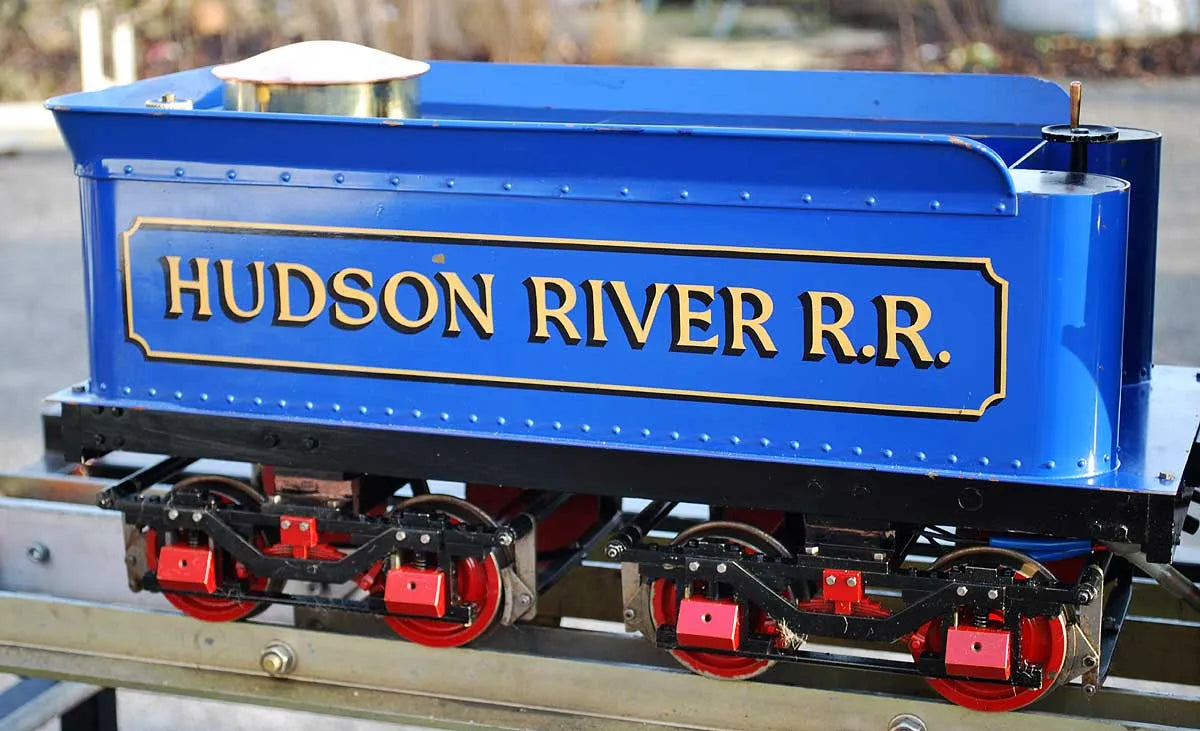

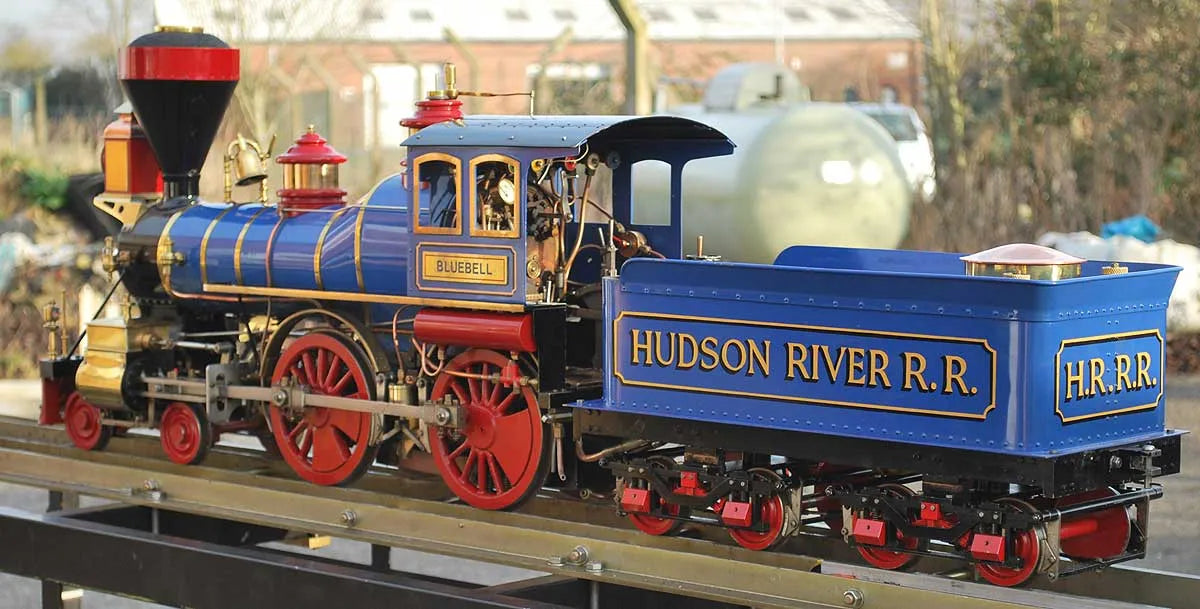

Complete with a pair of carrying crates for locomotive and tender.

Technical information

Stock code

8083

Gauge

5 inch

Length/inches

39 + 21

Weight/Kg

65

Wheel material

cast iron, 6 inch diameter

Axlebox type

plain bearing

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

displacement with sight feed

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - pre-2002

Year built

1985

Boiler number

N73-90-157

Safety valve type

spring

Safety valve

1

Injector

2

Superheater

yes

Date out

Jul-18

Hydraulic test valid to

19-Jun-22
