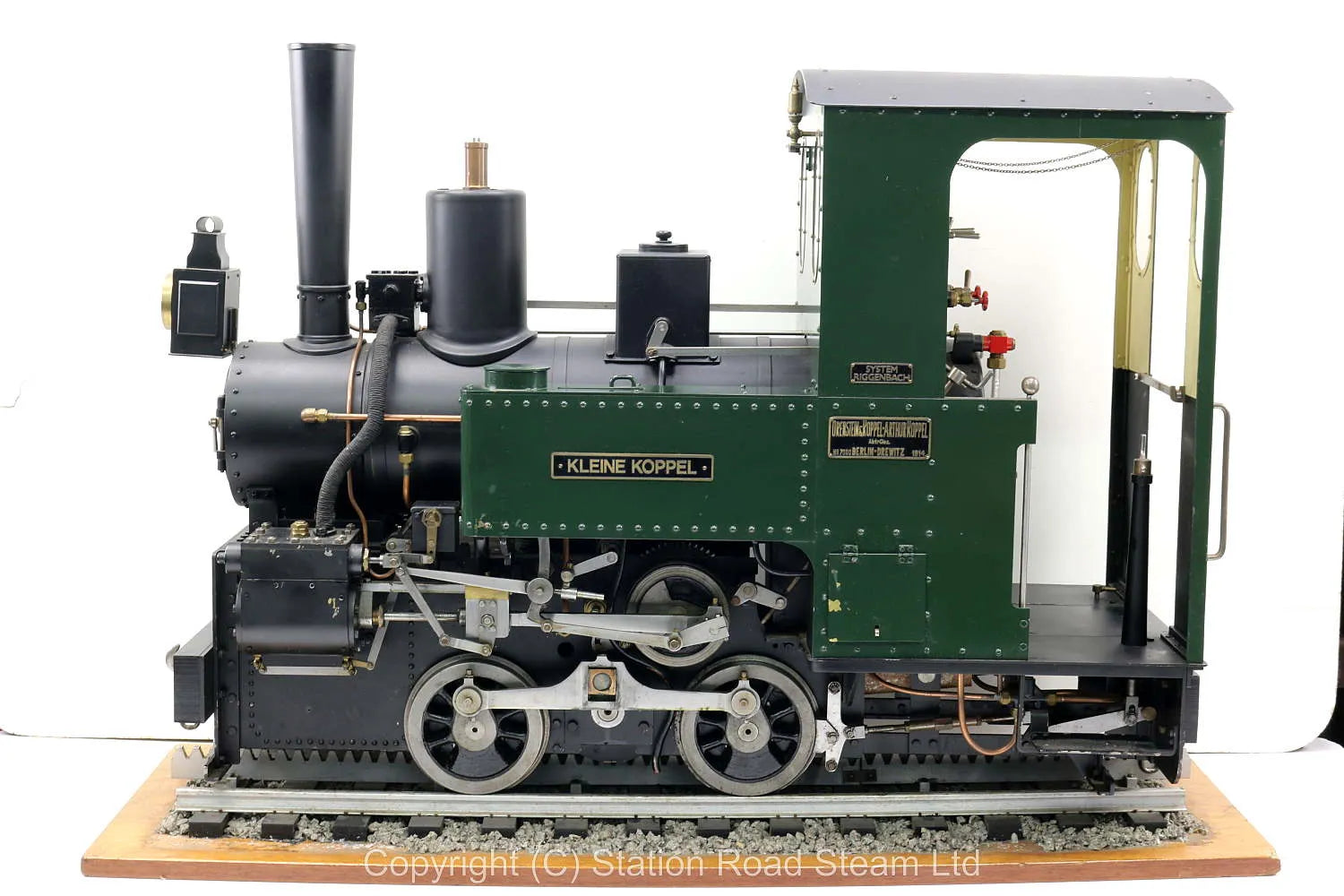

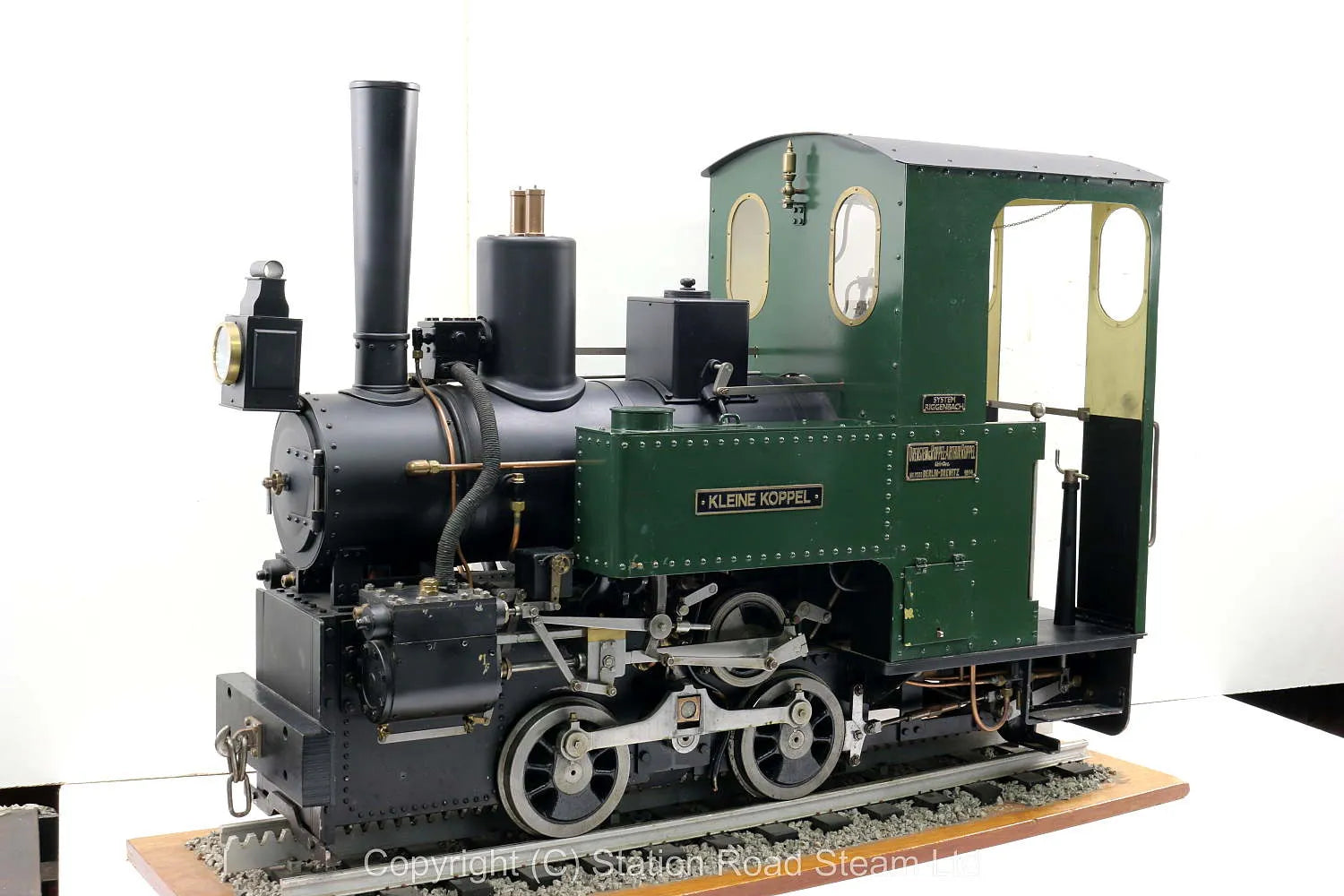

5 inch gauge Orenstein & Koppel 0-4-0 rack locomotive

I bought this engine at the Alexandra Palace show a year or two back. Scaled down from Ken Swan's super "Koppel" design for 7 1/4 inch gauge, this is a 5 inch gauge version - I believe the only one (which means I'll get about two dozen pictures of others in the email by Monday). I've always promised myself a 7 1/4 version when a really nice one comes along, in the meantime this one has been sitting beside my desk on the library windowsill at home. Enjoyed it, but now something else narrow gauge has come in which necessitates a move around - there's only so many engines Mrs P tolerates in the house at once (and, sad to relate, narrow gauge specimens in drab green don't excite her interest quite as much as they do mine).

Unsteamed from new, the silver soldered copper boiler has had a twice working pressure hydraulic test and the engine has been run on air - it goes better forwards than backwards (or vice versa, depending on which bit of a Koppel you're looking at).

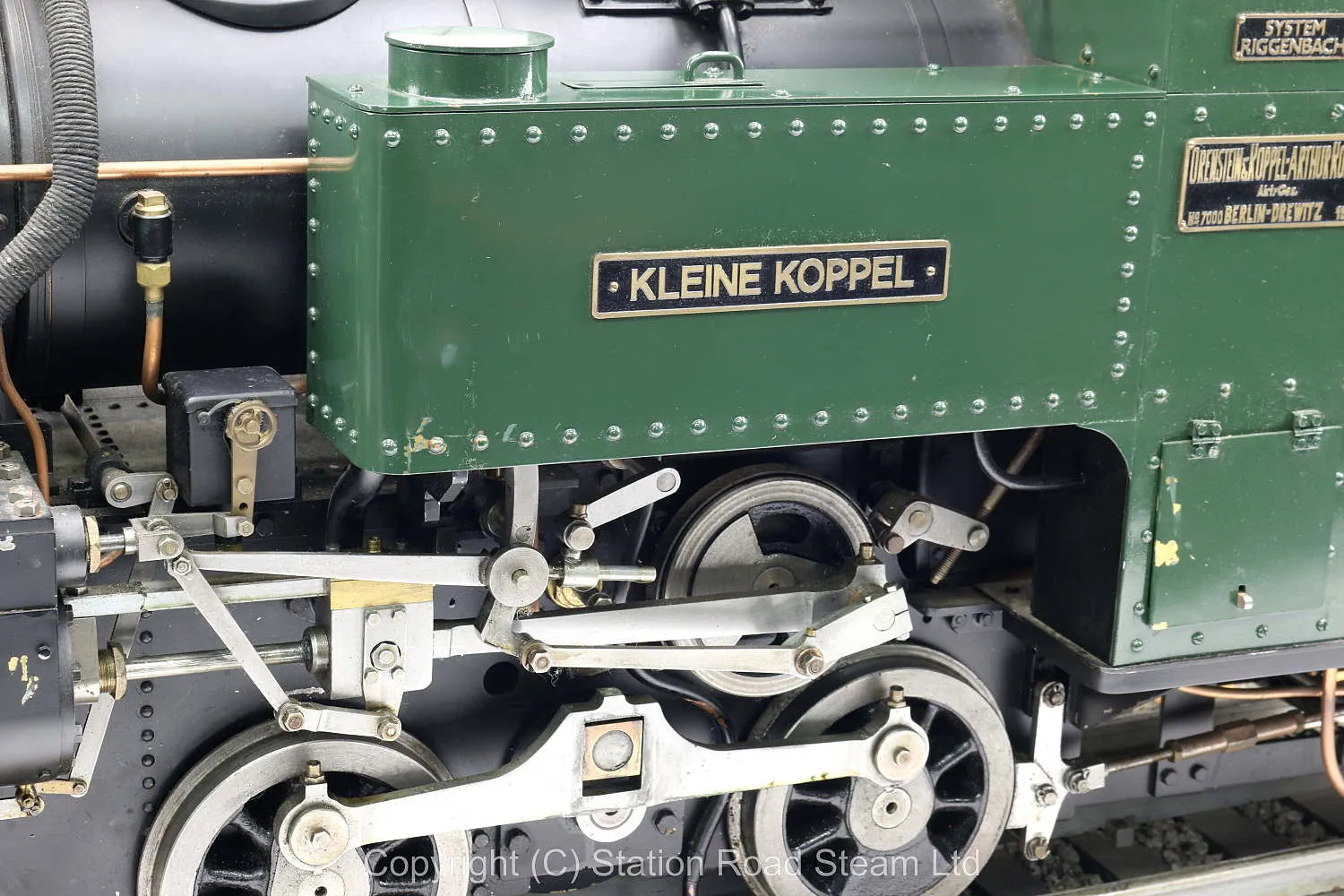

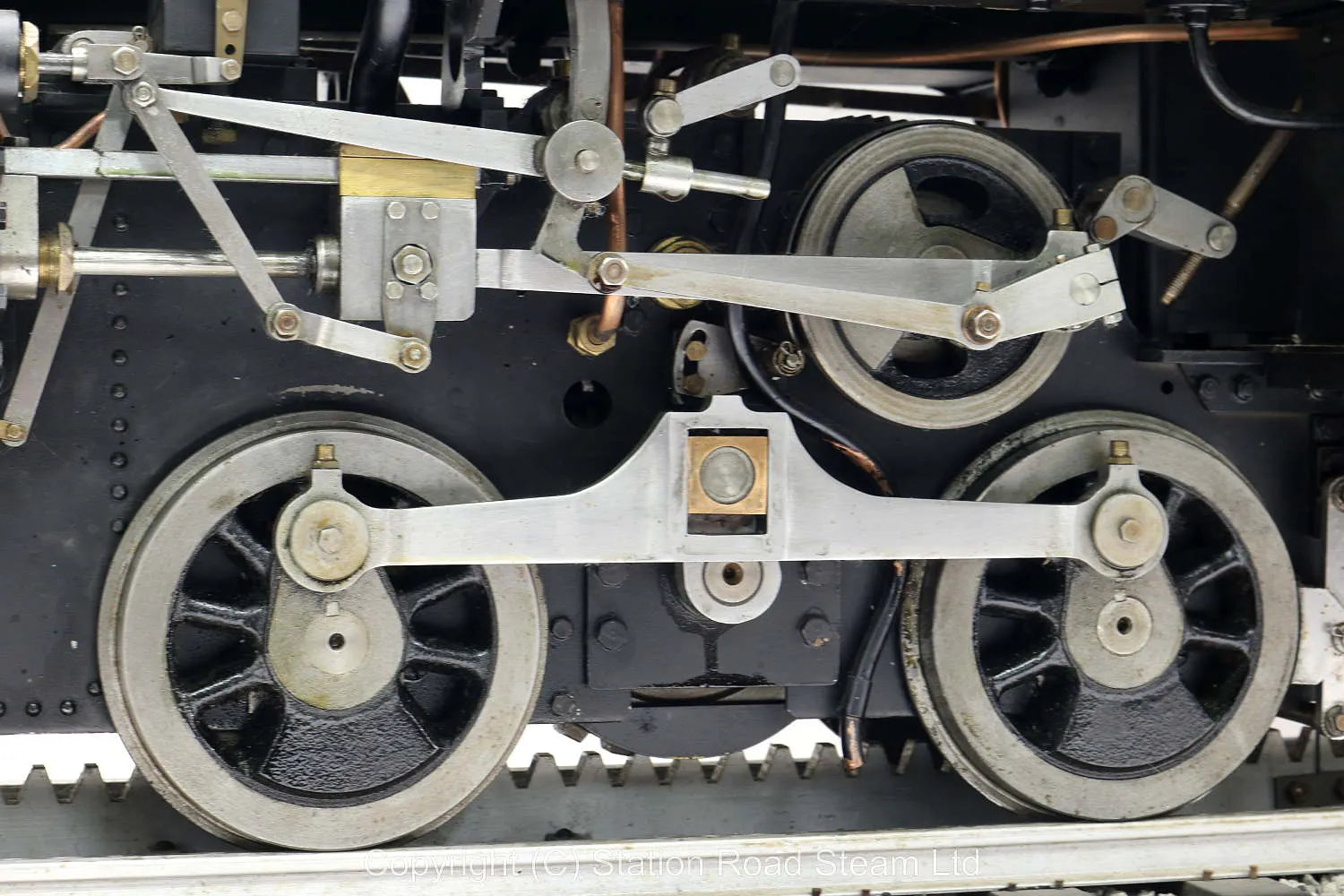

Just as fascinating as the larger version (and much easier to put on a windowsill) - if you're not familiar with the design, the countershaft runs in the opposite direction to the wheels, which looks mildly eccentric running to say the least. That said, one of my most memorable experiences last time I was at Beamish was a run up the rack railway there behind Ken's own Koppel which sounds like a motorboat racing up the hill with a driver and two passengers.

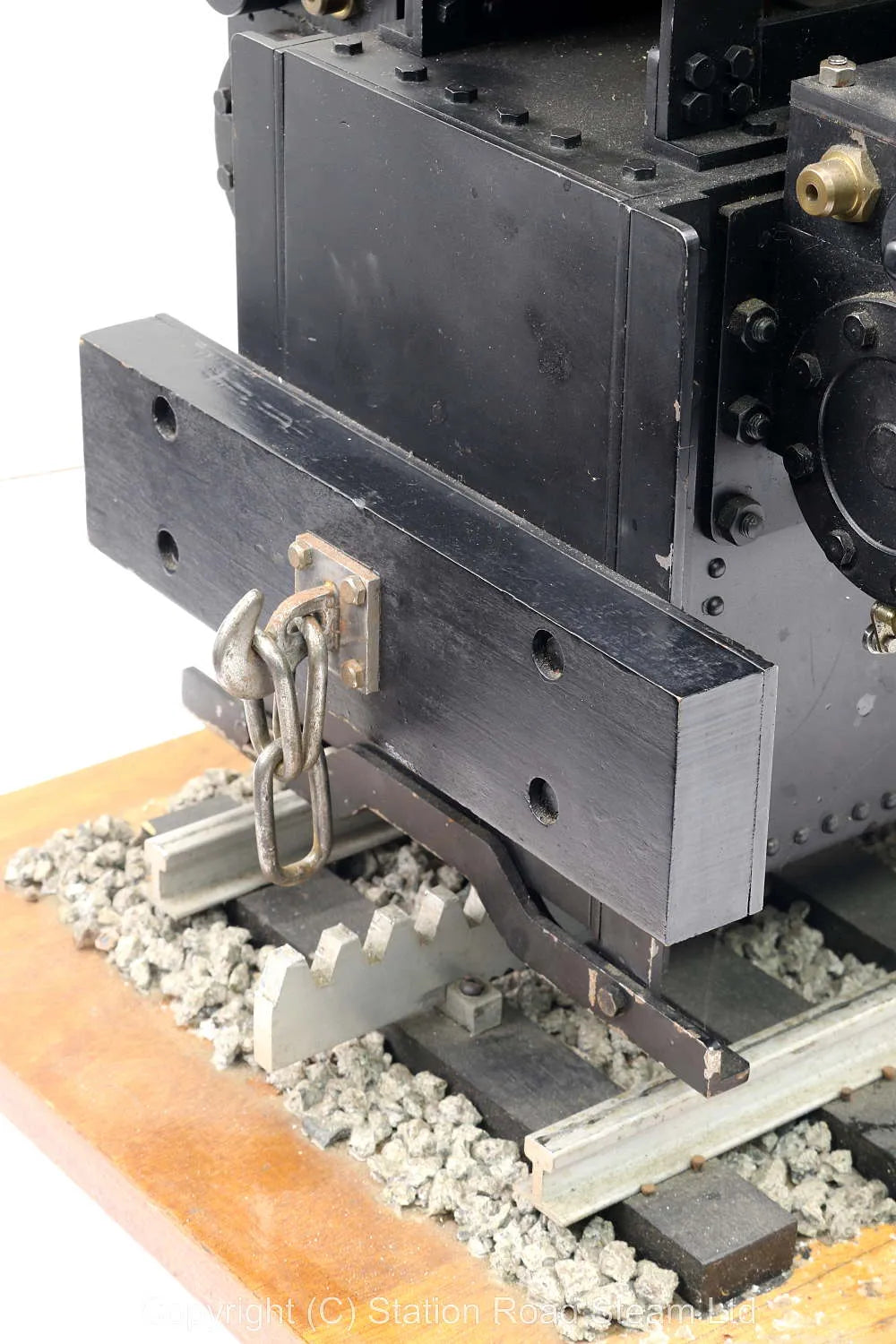

Complete with a length of display track - including rack.

Technical information

Stock code

6853

Gauge

5 inch

Cylinder material

cast iron

Valve type

slide

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Safety valve type

pop

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Pack

Single half pallet

Date out

Apr-18
