10070

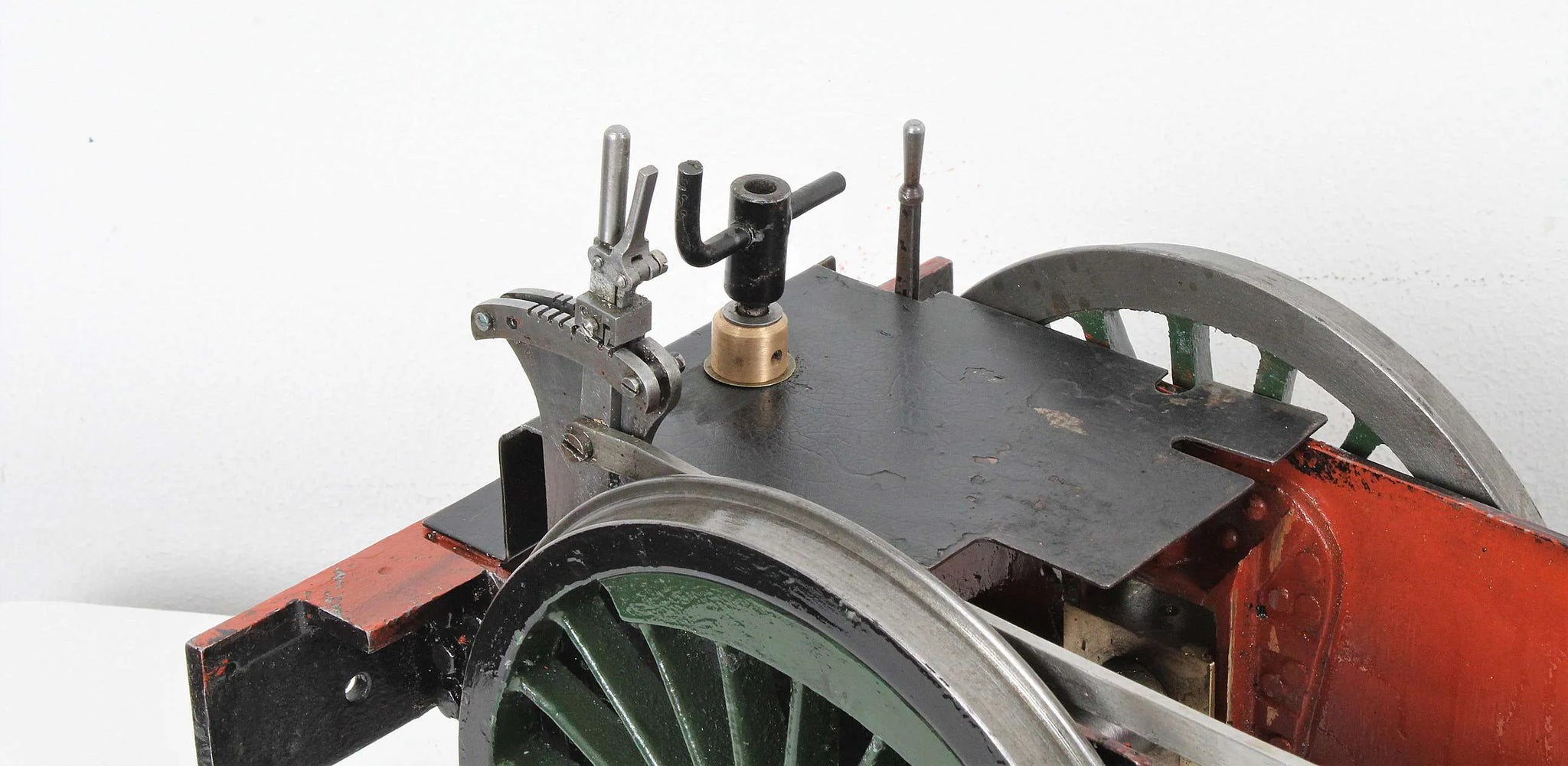

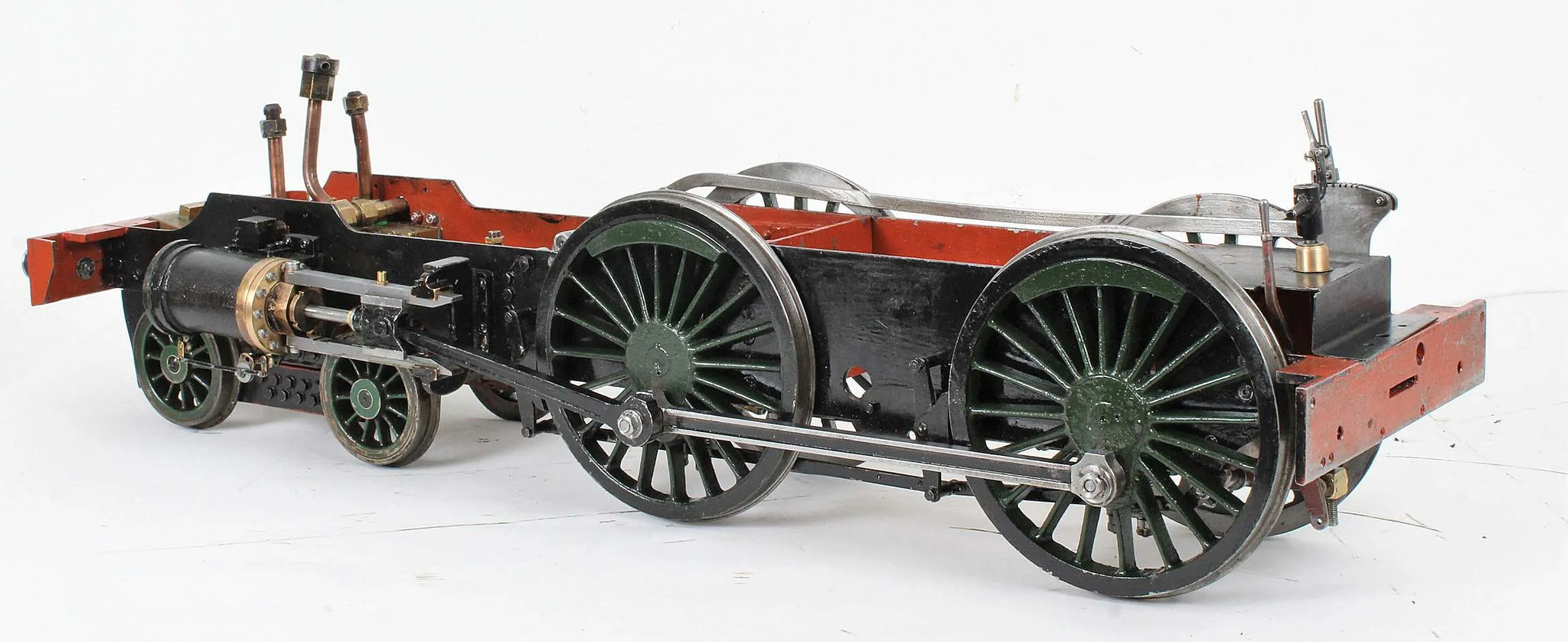

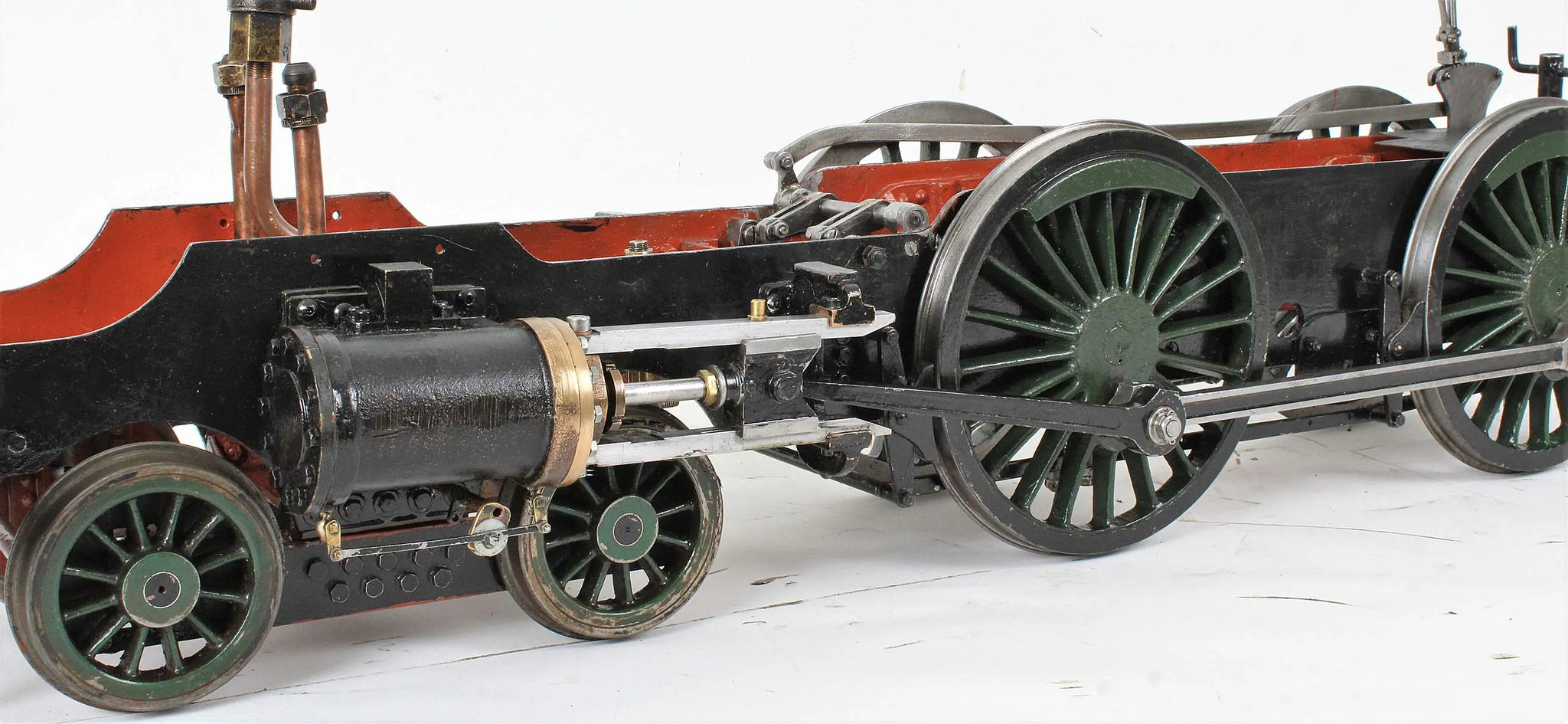

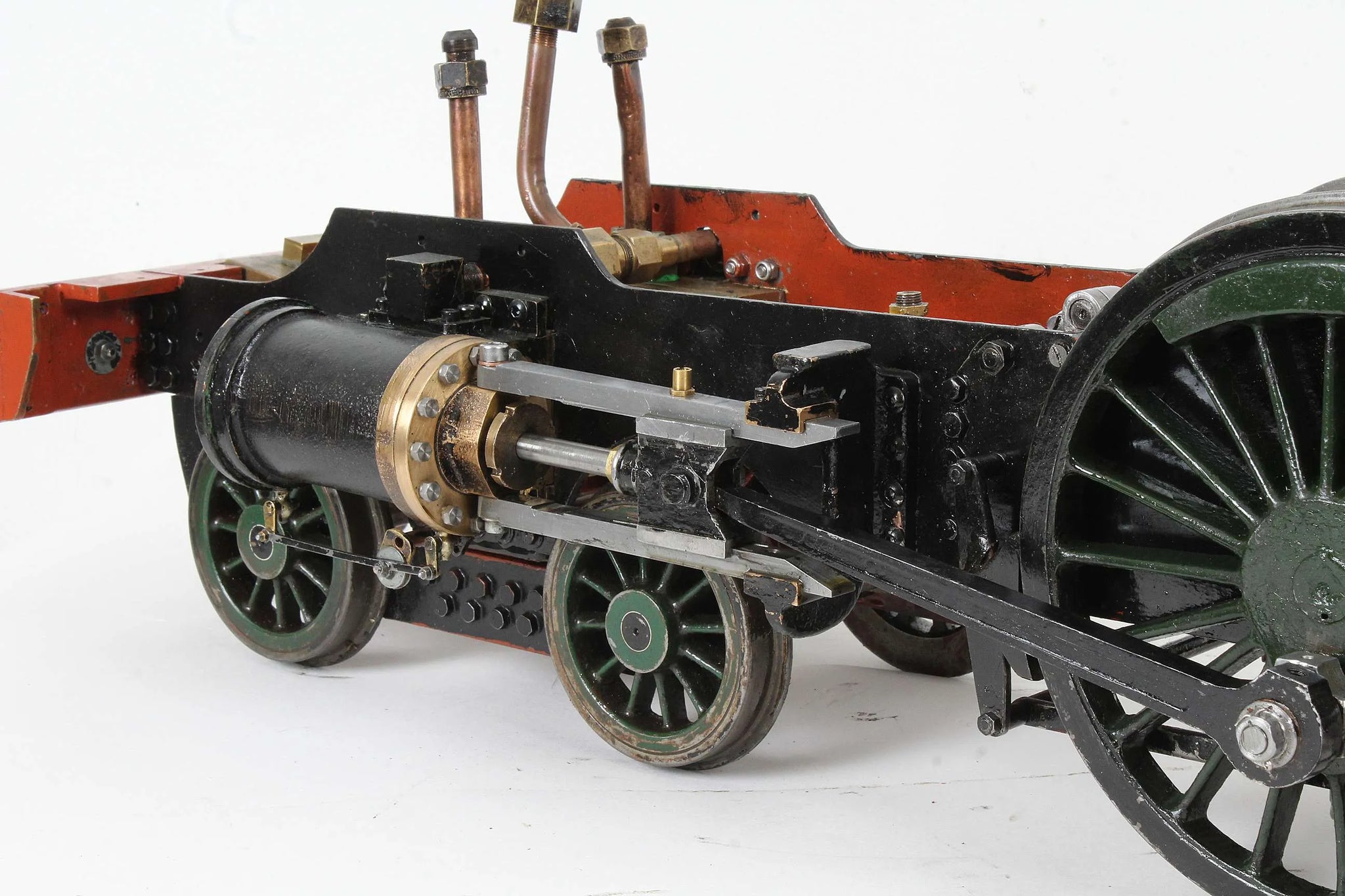

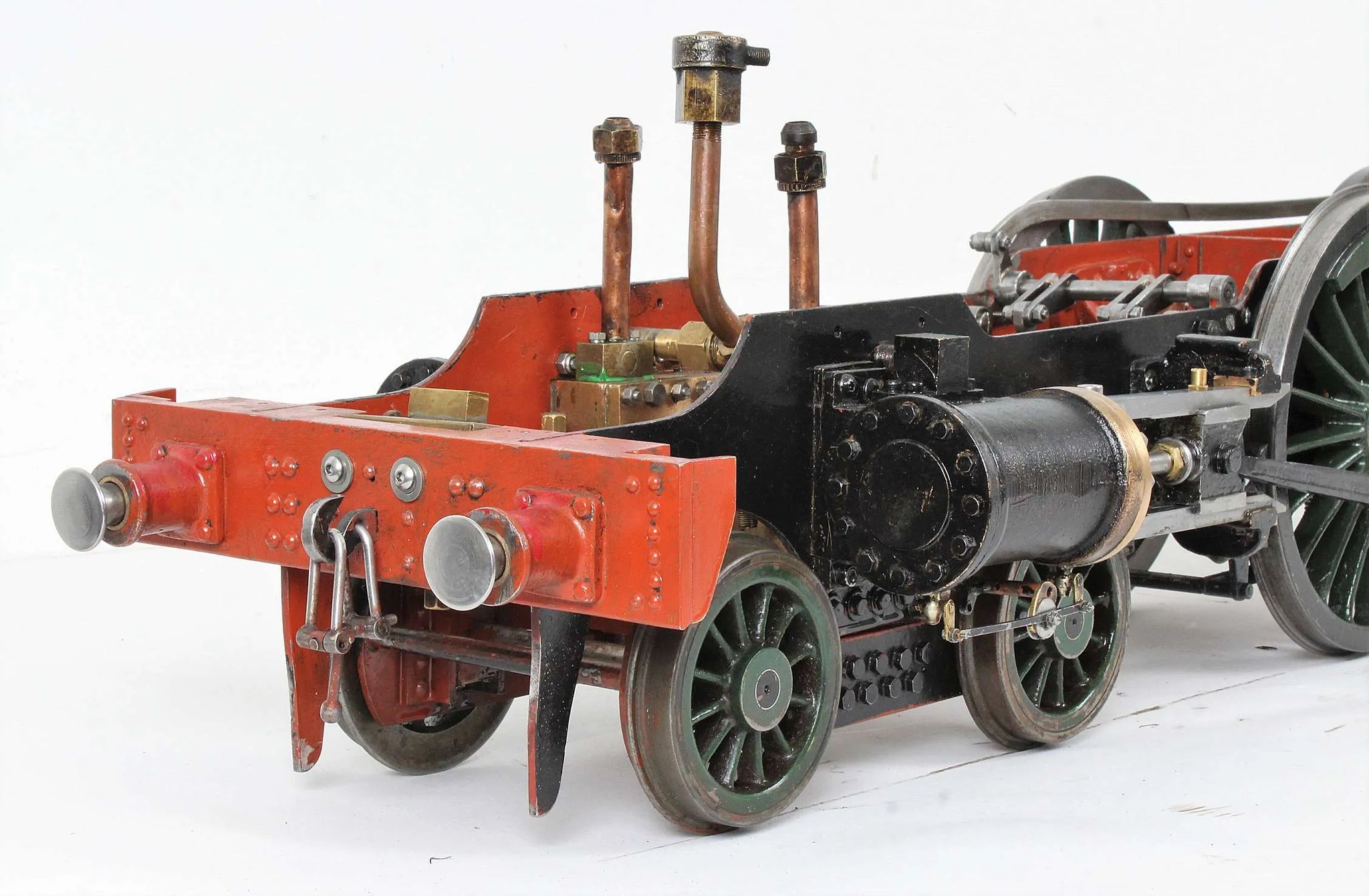

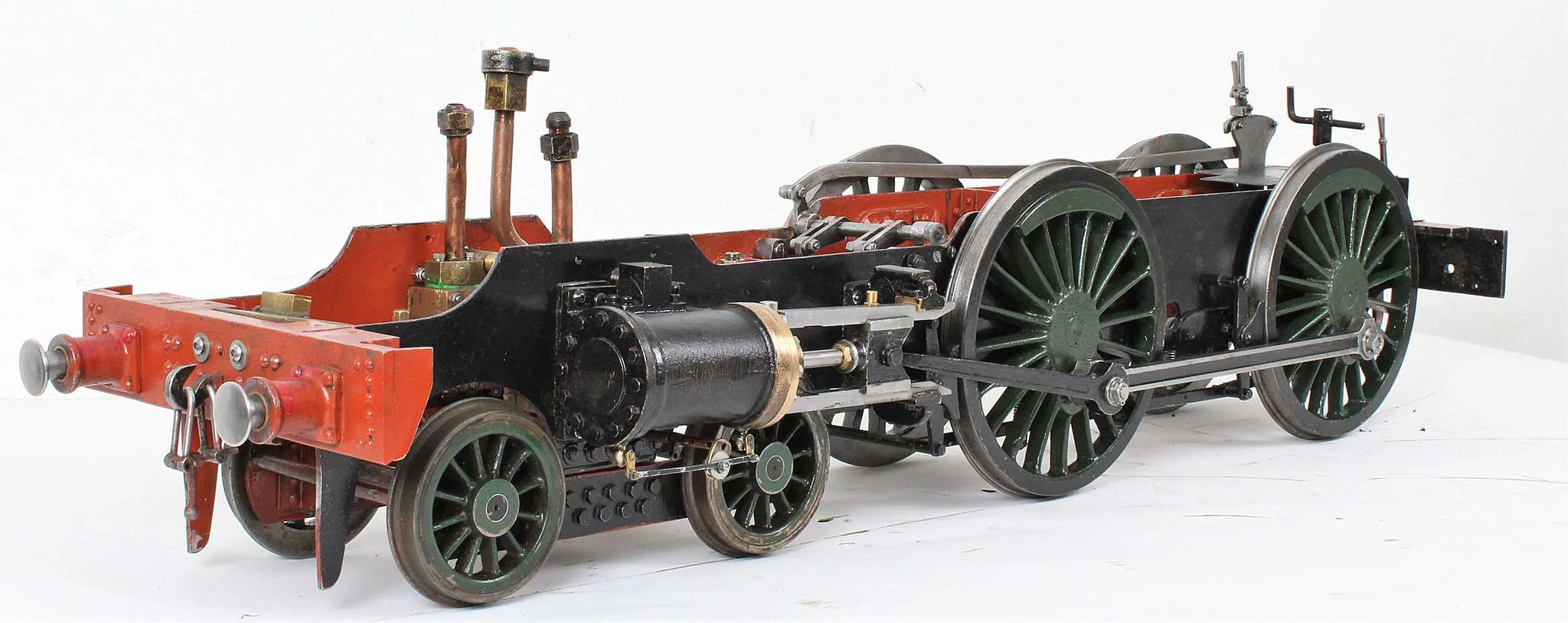

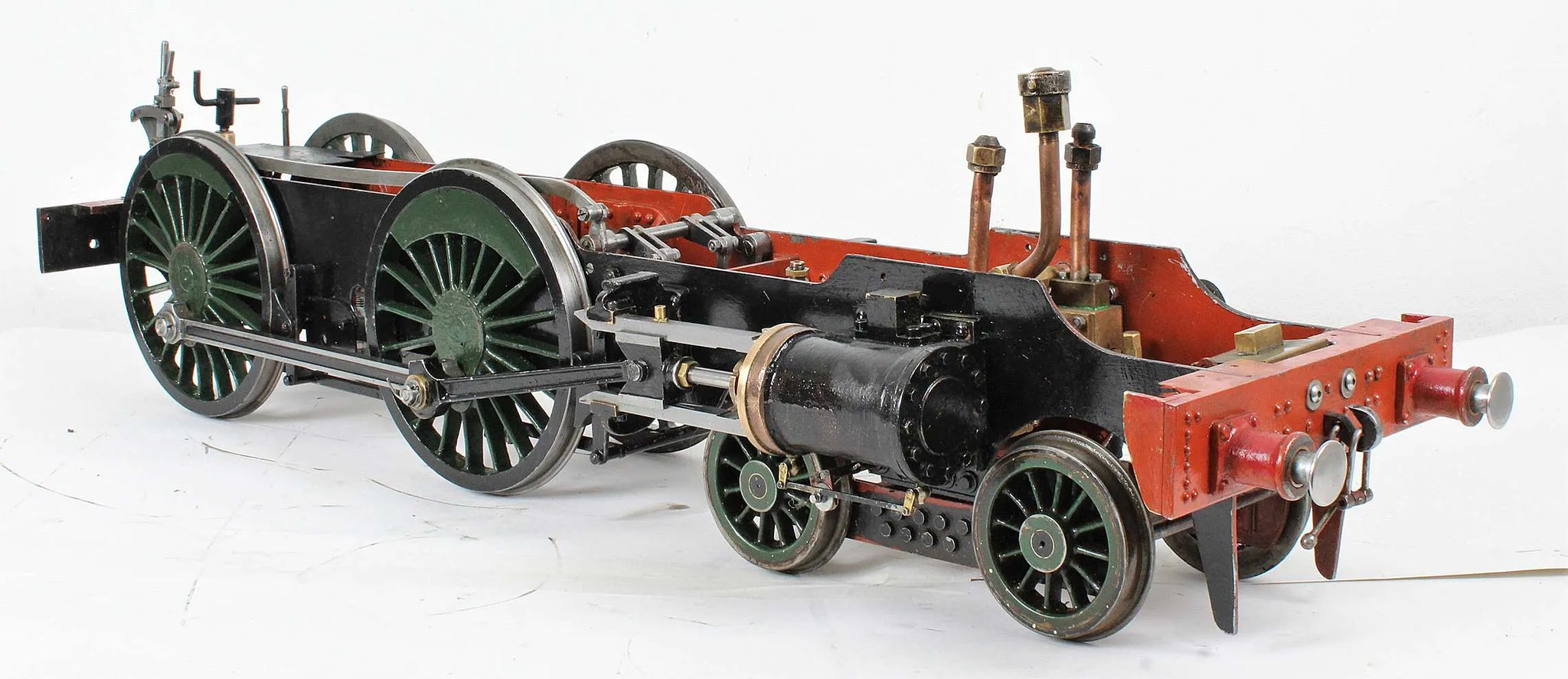

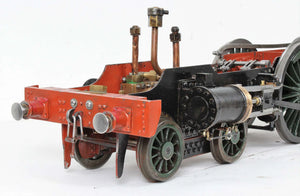

Stored under a bench for some years, the chassis is slightly stiff to turn over although runs on air - it need dismantling to clean and lubricate before reassembling.
Stock code |
10070 |
Gauge |
5 inch |
Length/inches |
36 1/2 + 23 |
Width/inches |
9 |
Height/inches |
9.5 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |

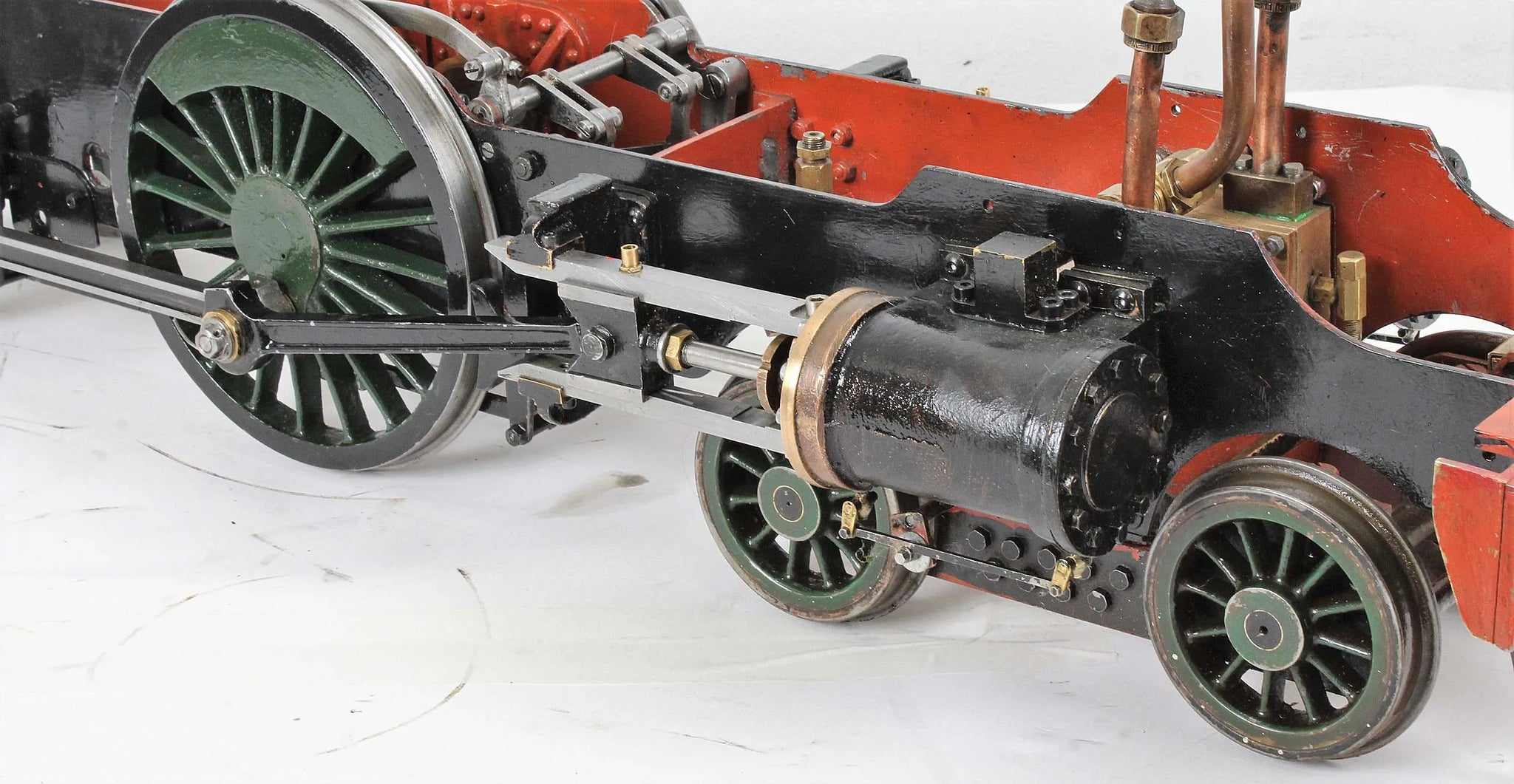

Cylinder material |
gunmetal |
Valve type |
slide |

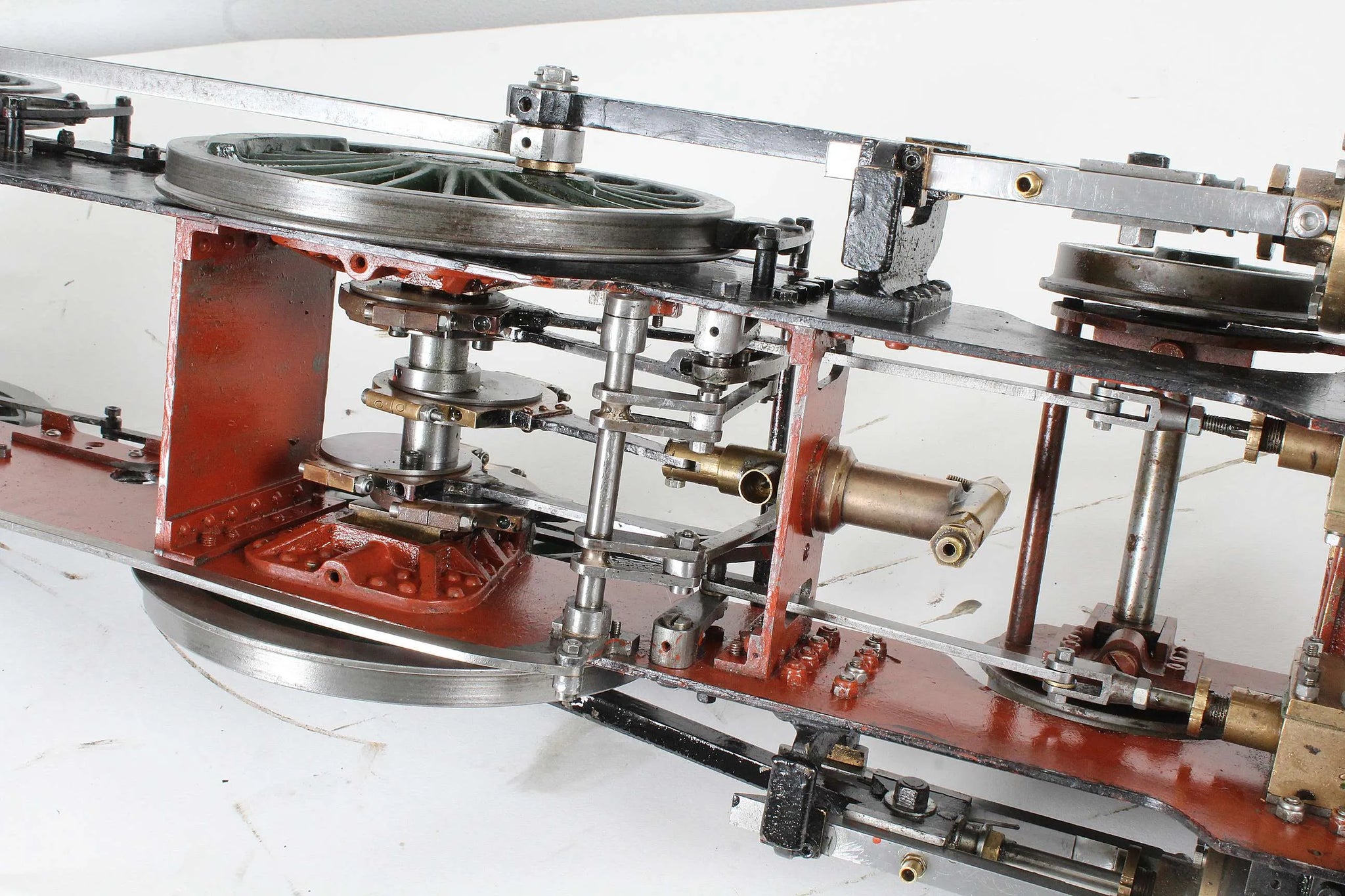

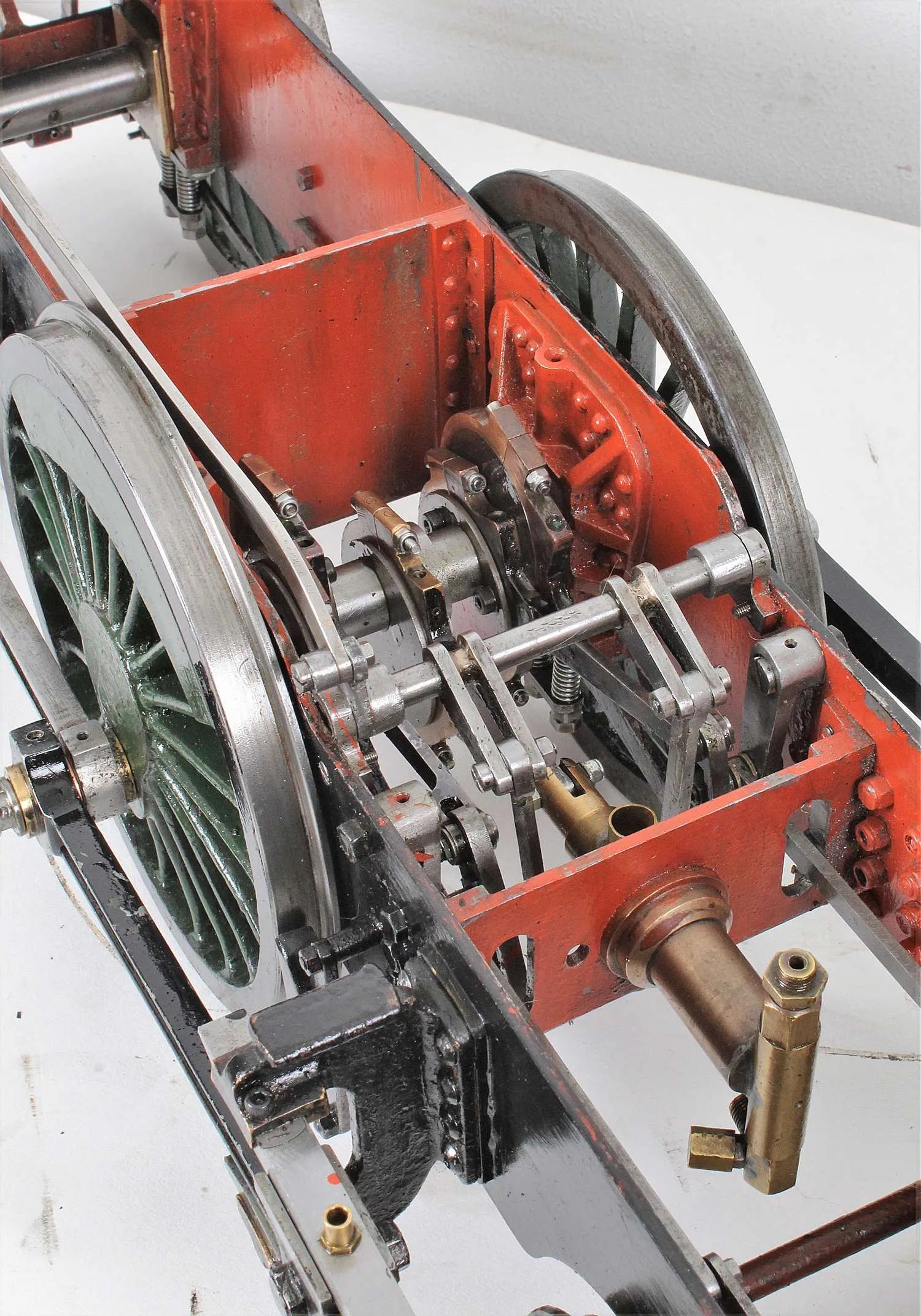

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |

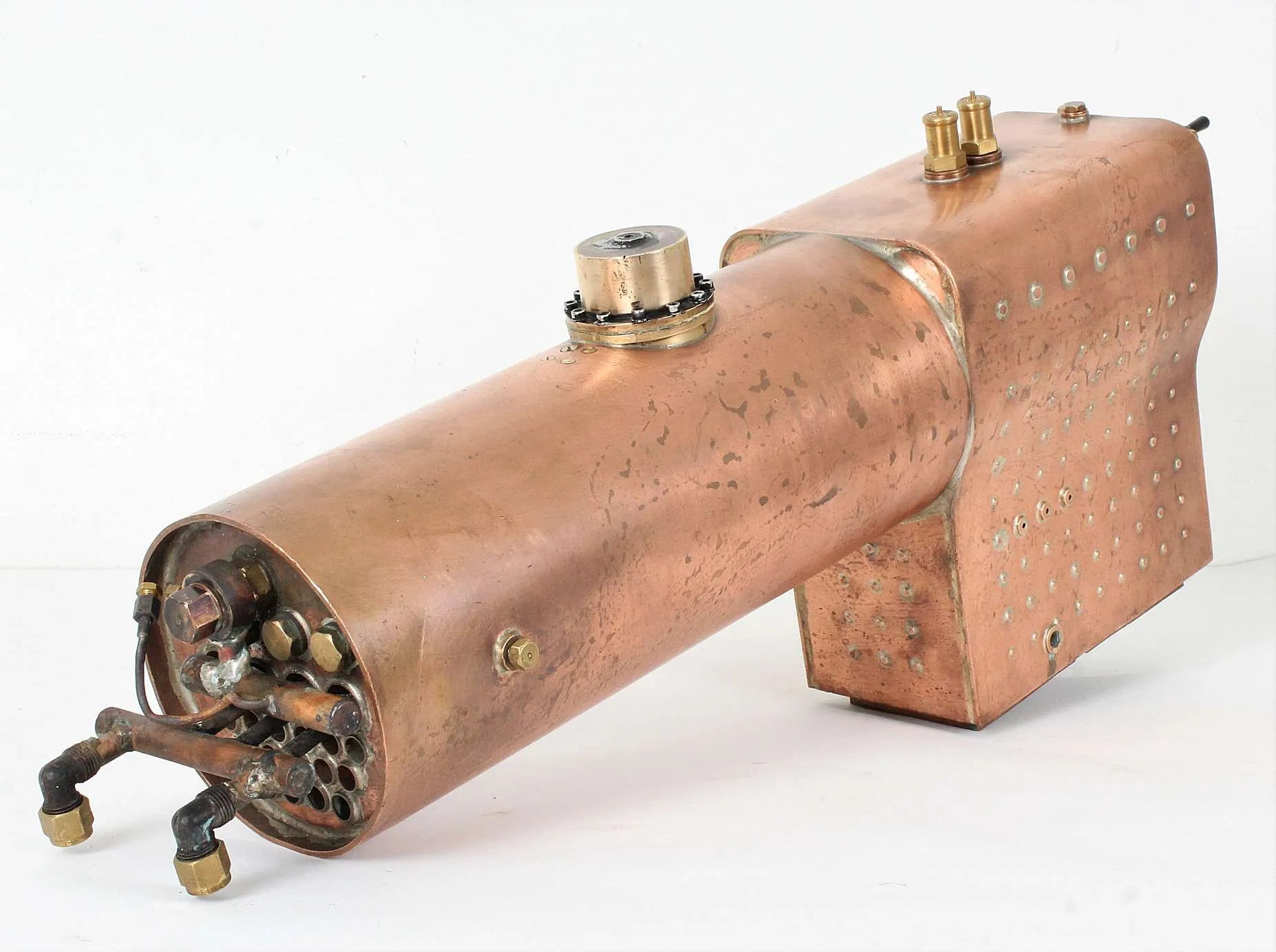

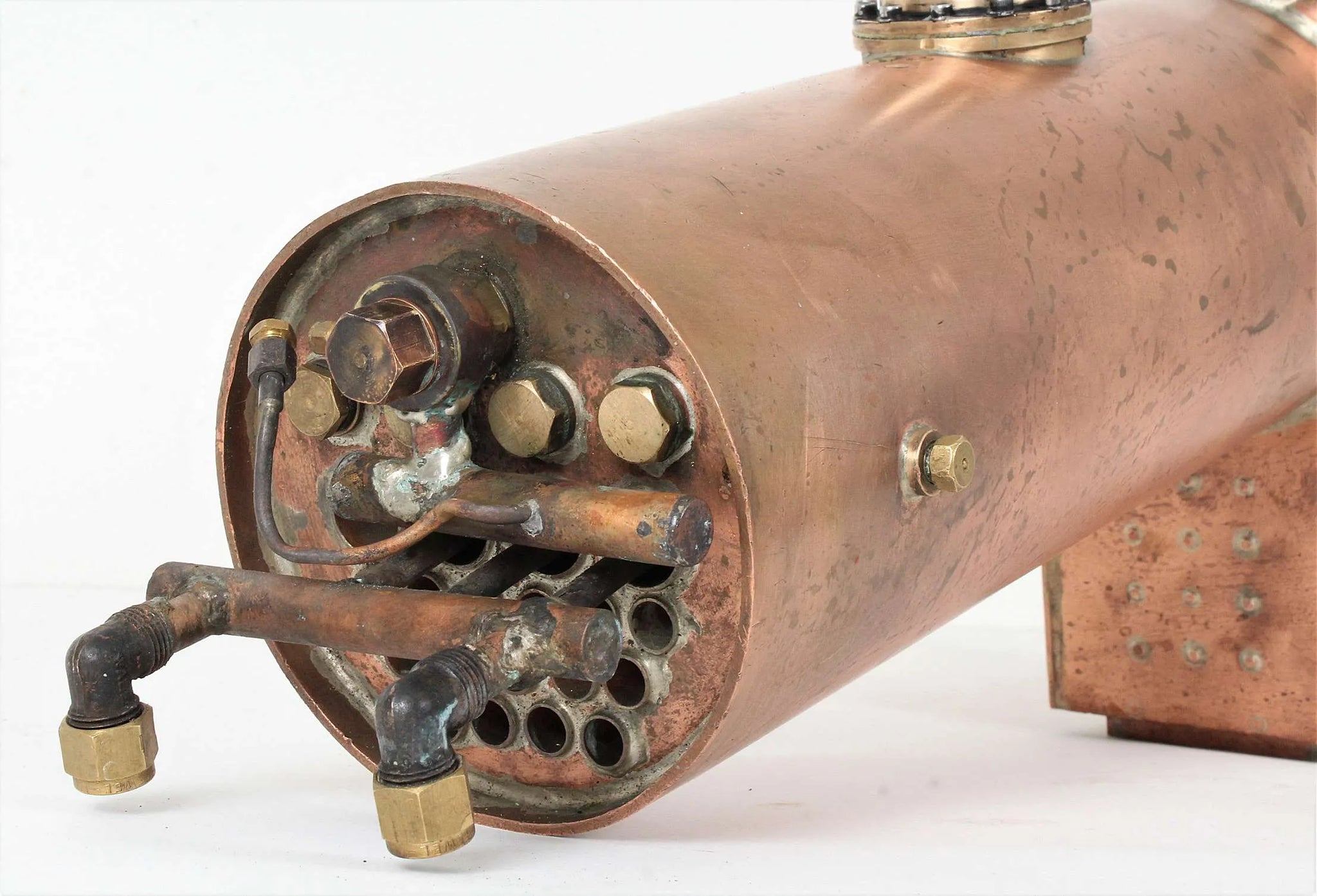

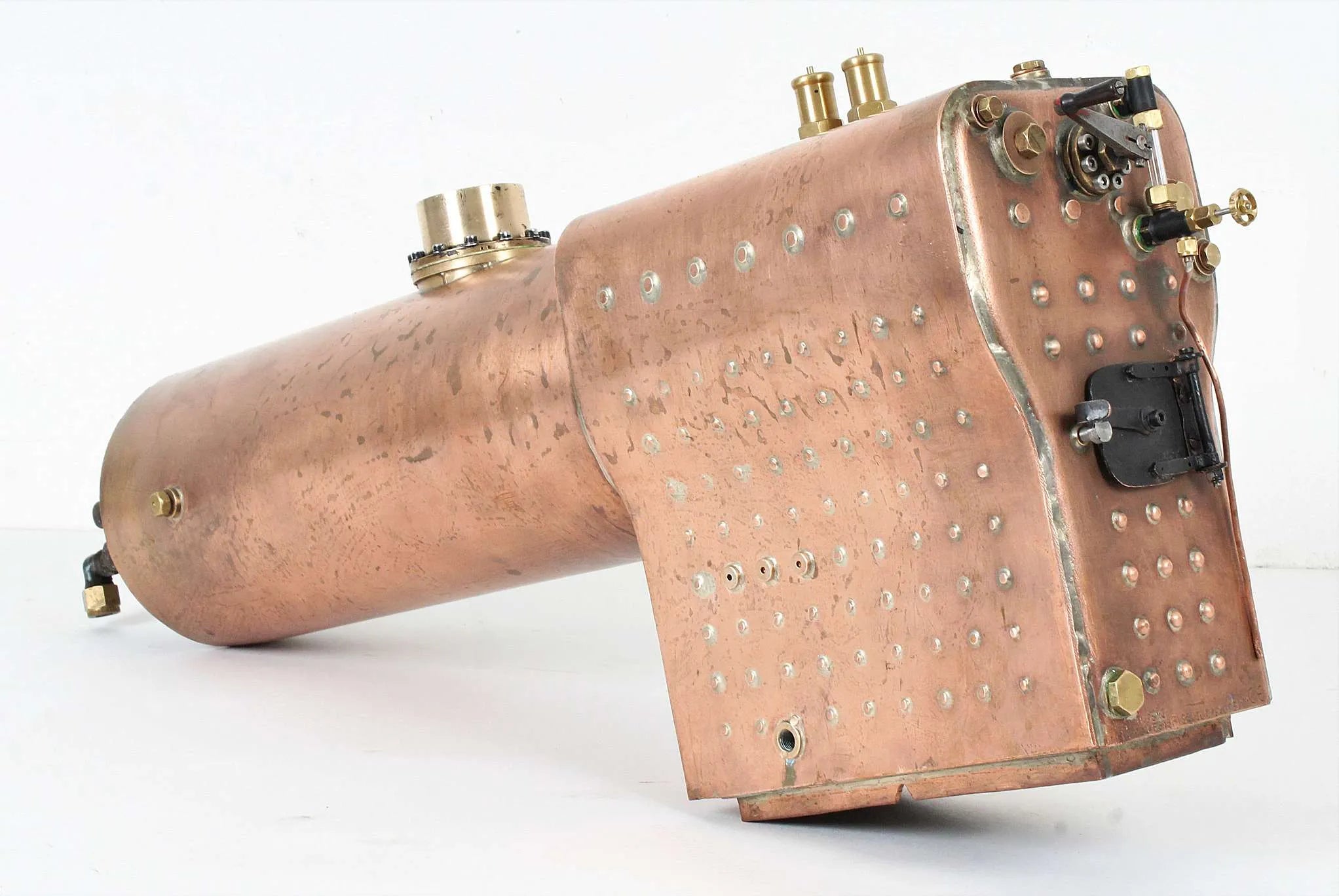

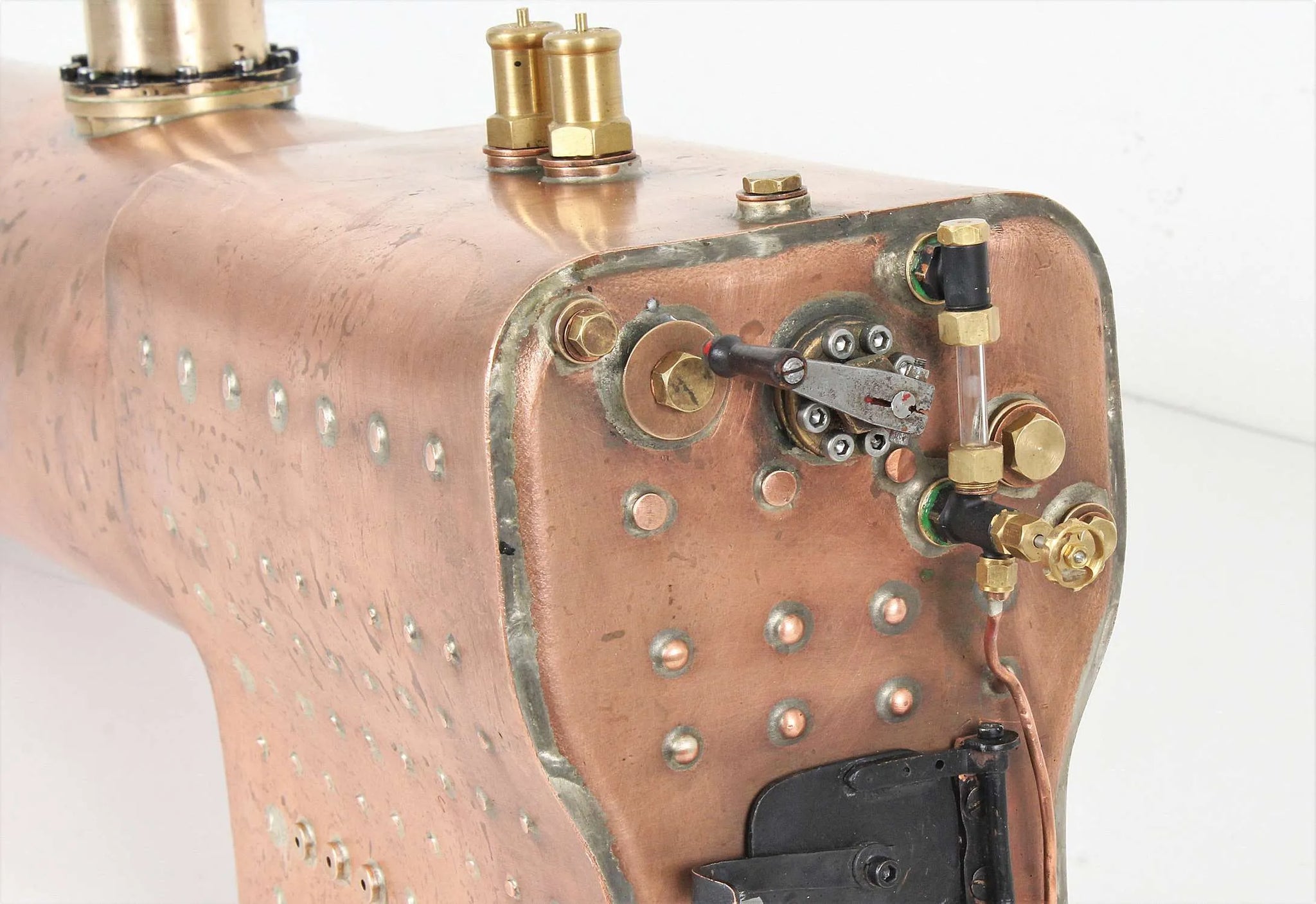

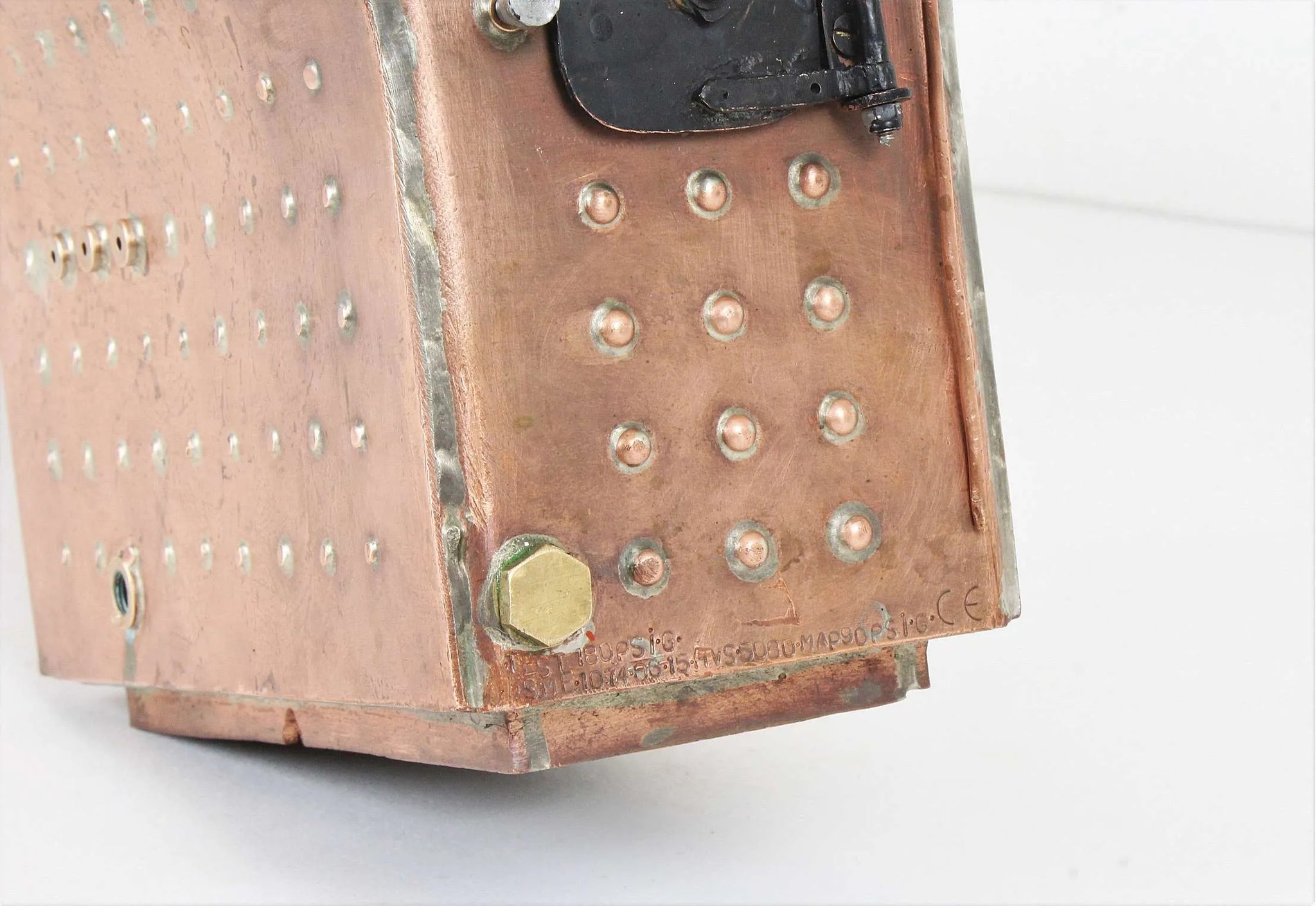

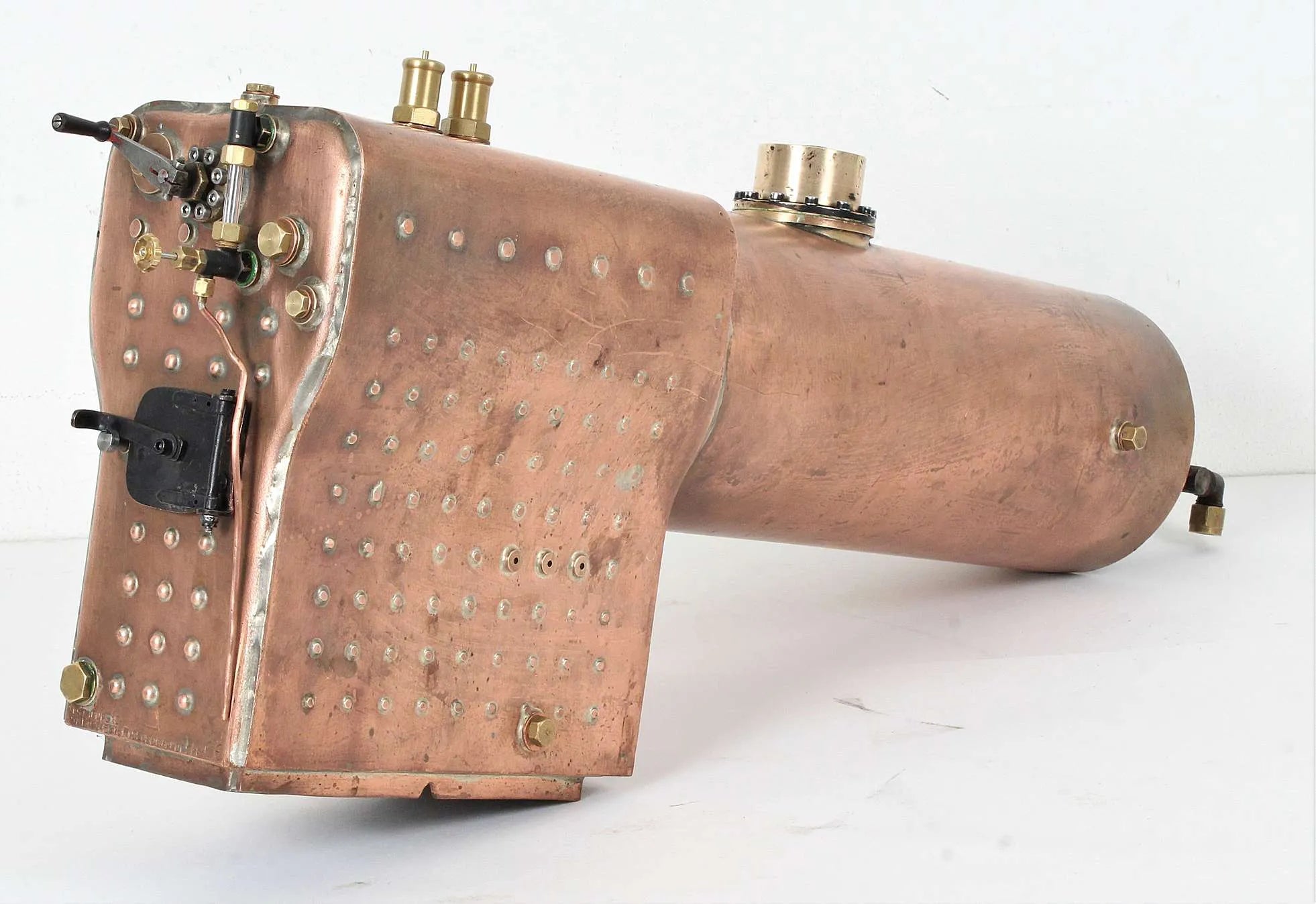

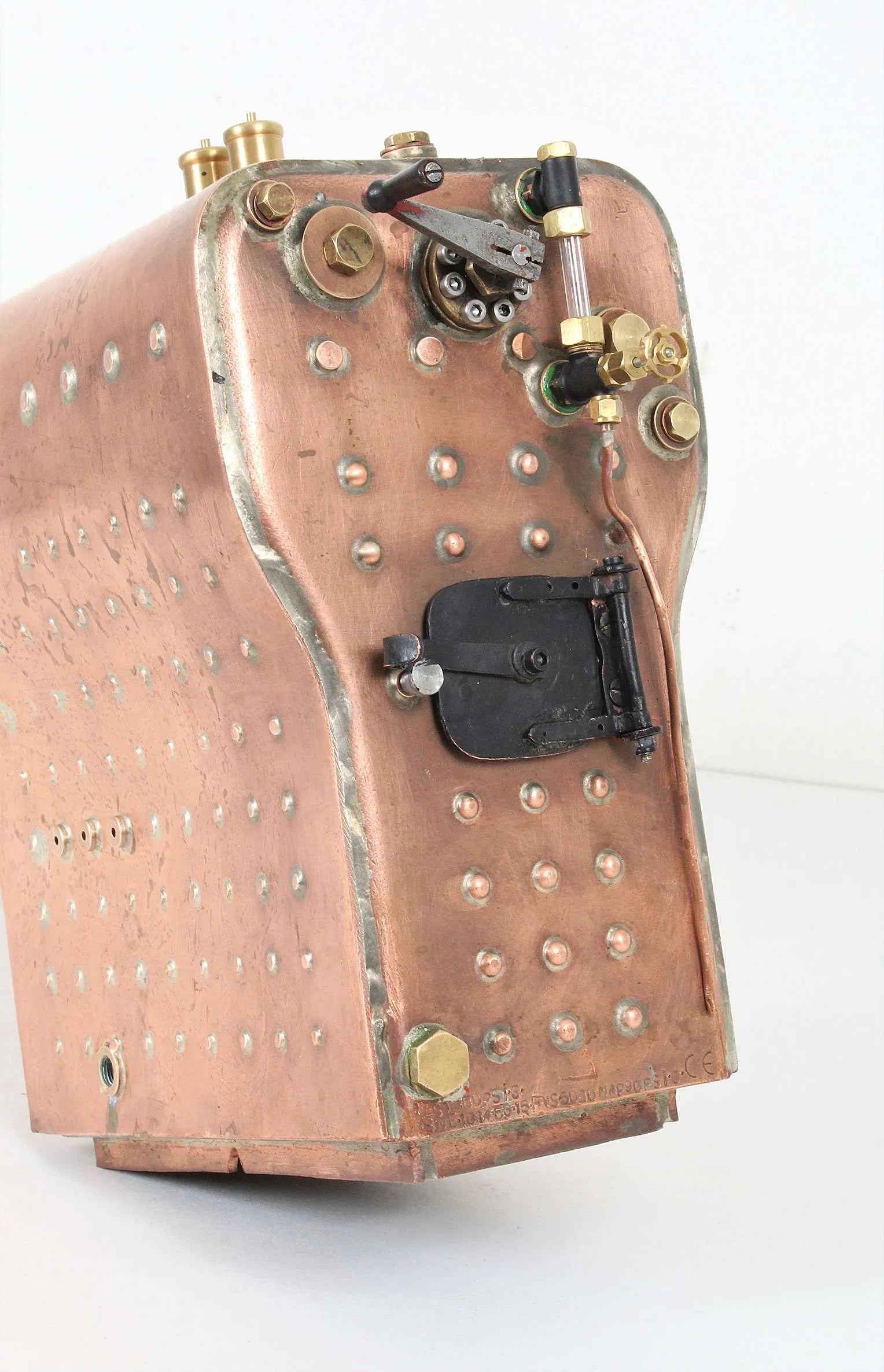

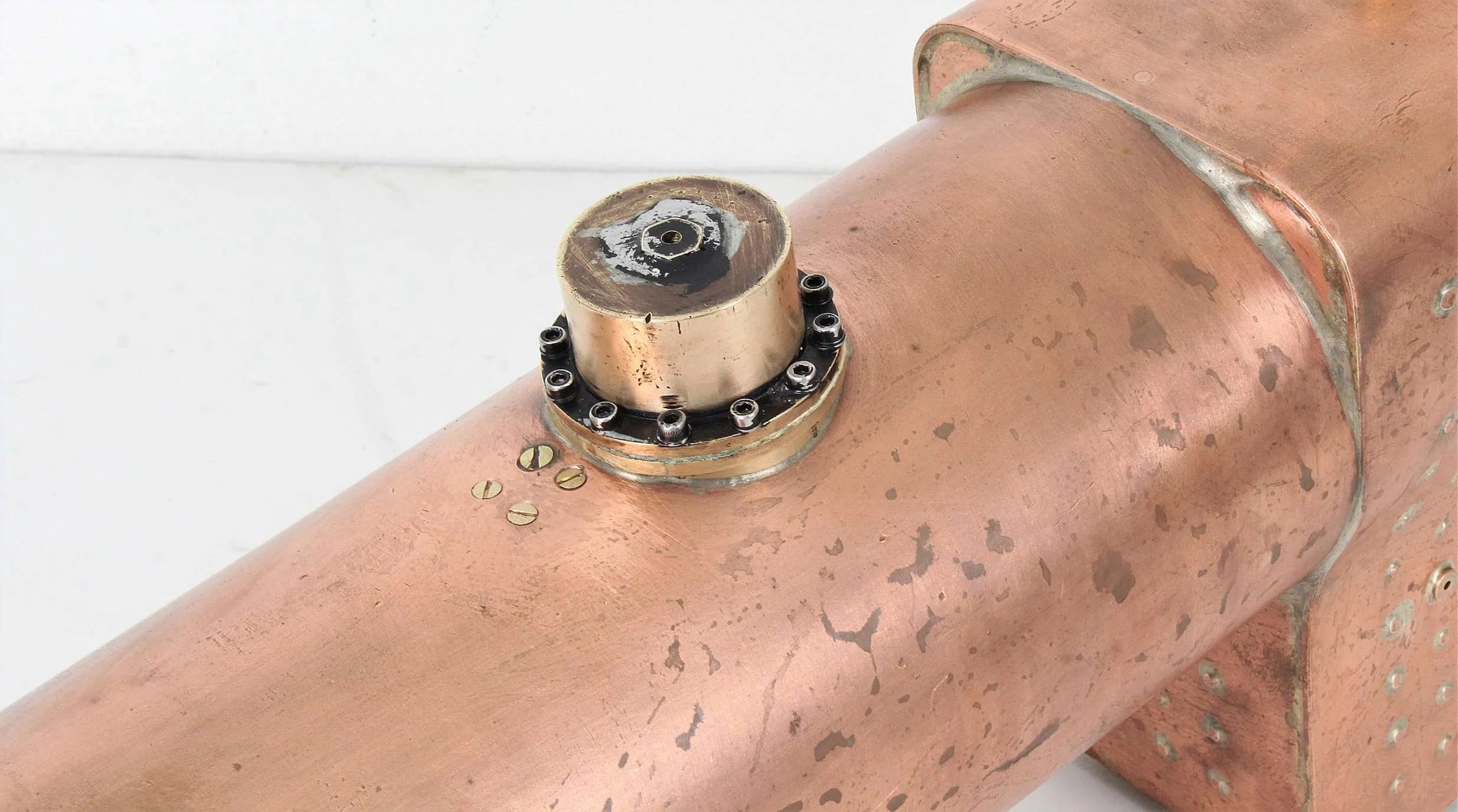

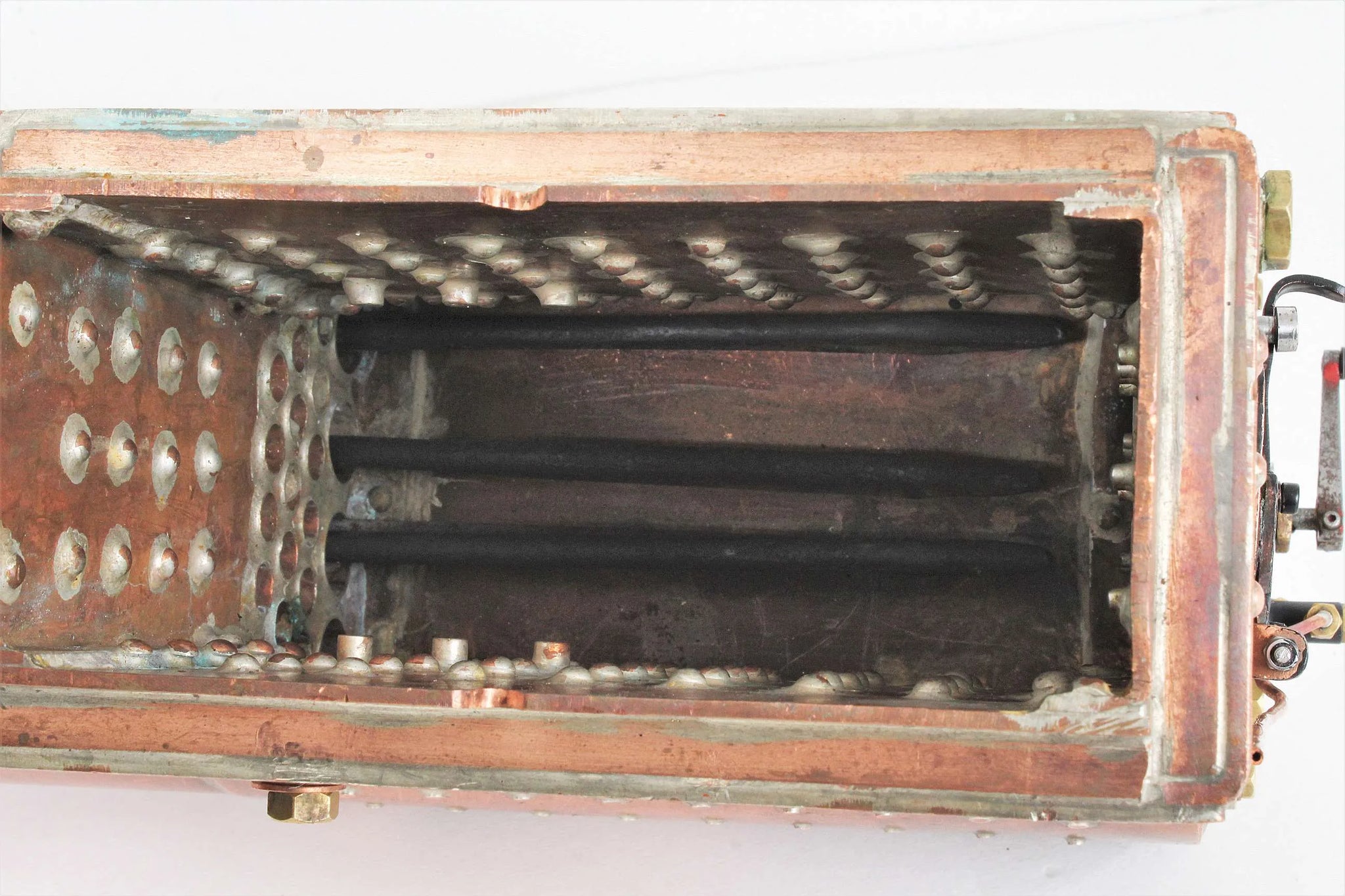

Boiler maker |
Western Steam |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
yes |
Boiler number |
WSME.1074.06.15 |
Safety valve type |
spring |
Safety valve |
2 |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater type |
radiant |
Superheater |
4 |
Date out |
Dec-21 |
