10206

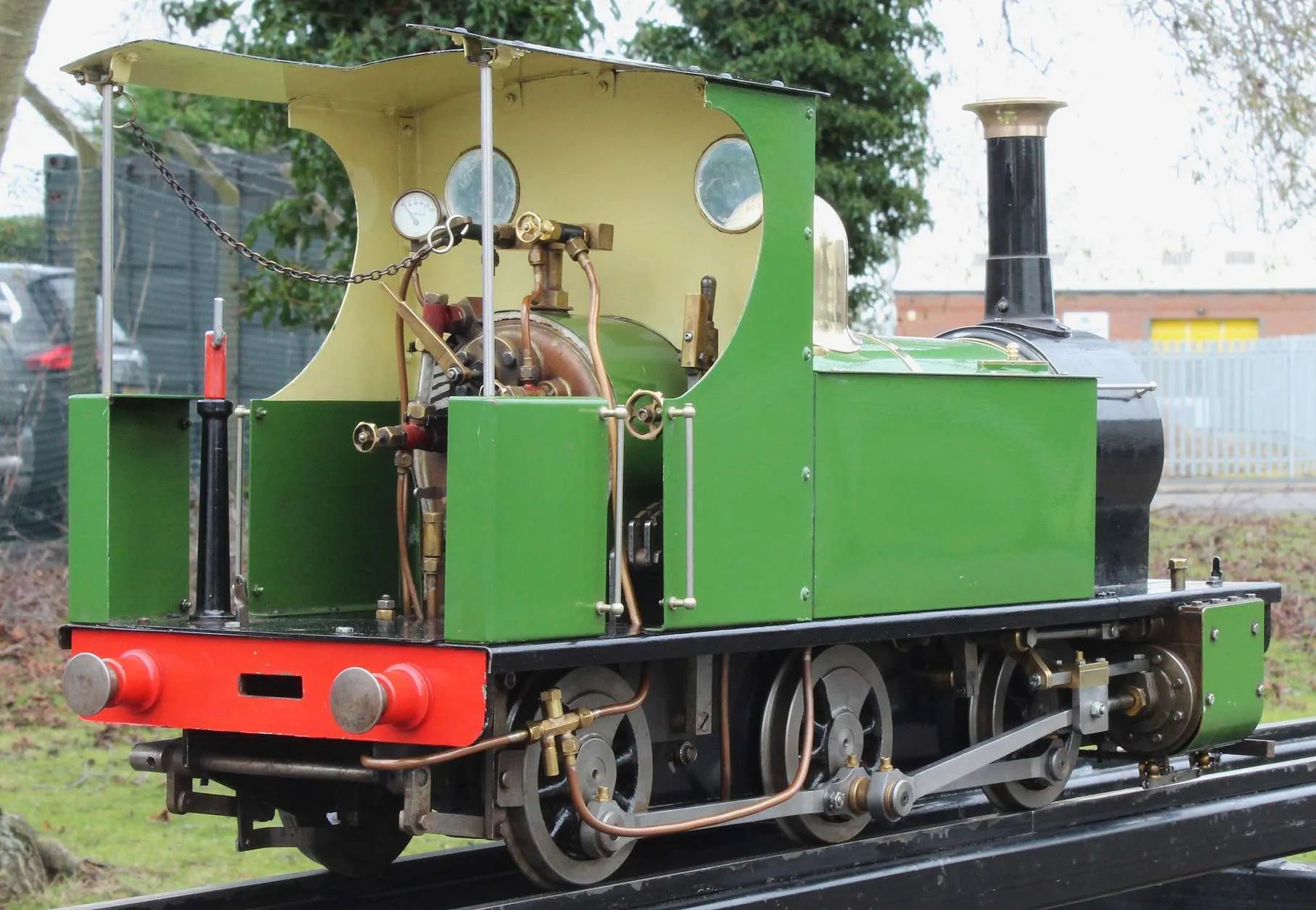

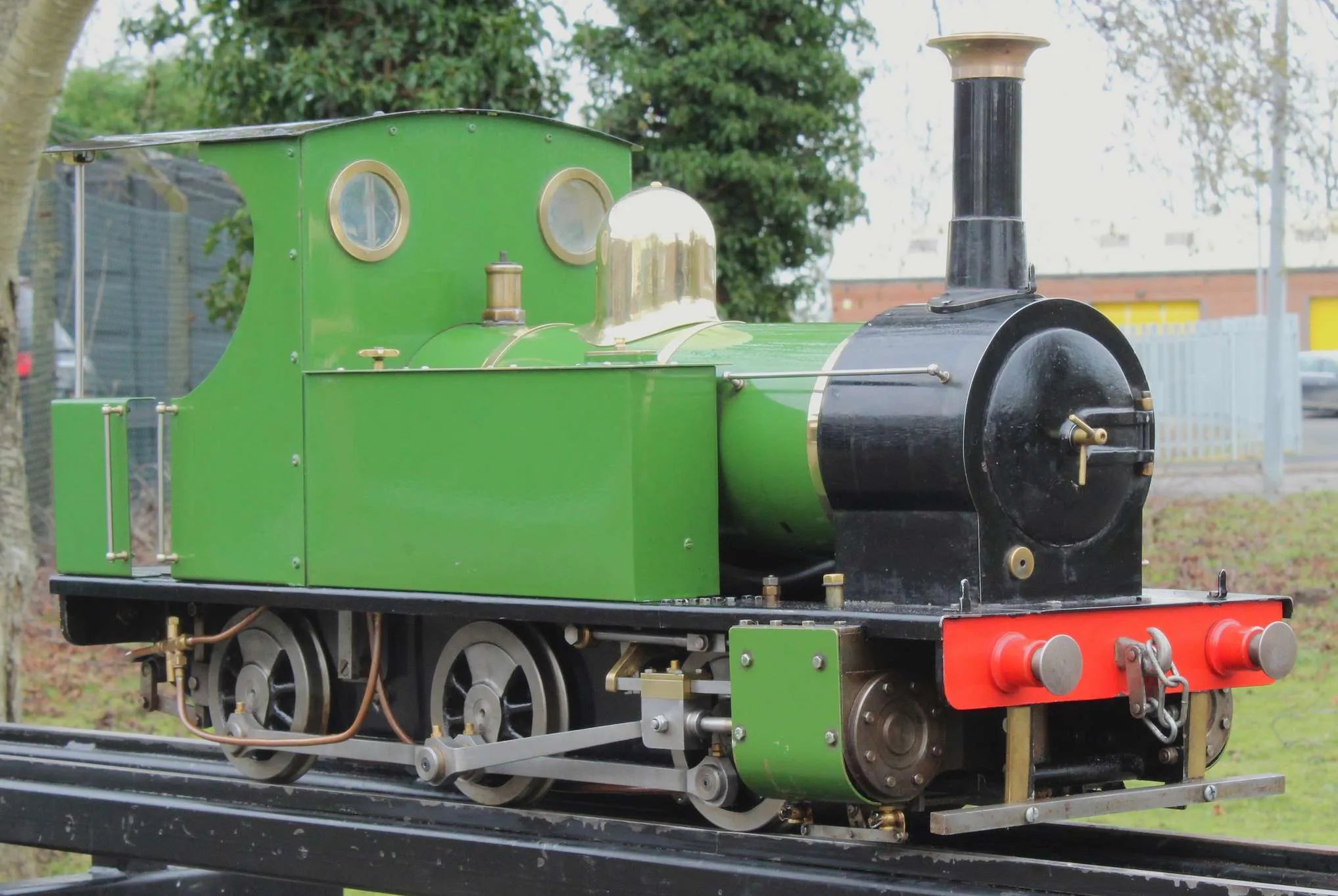

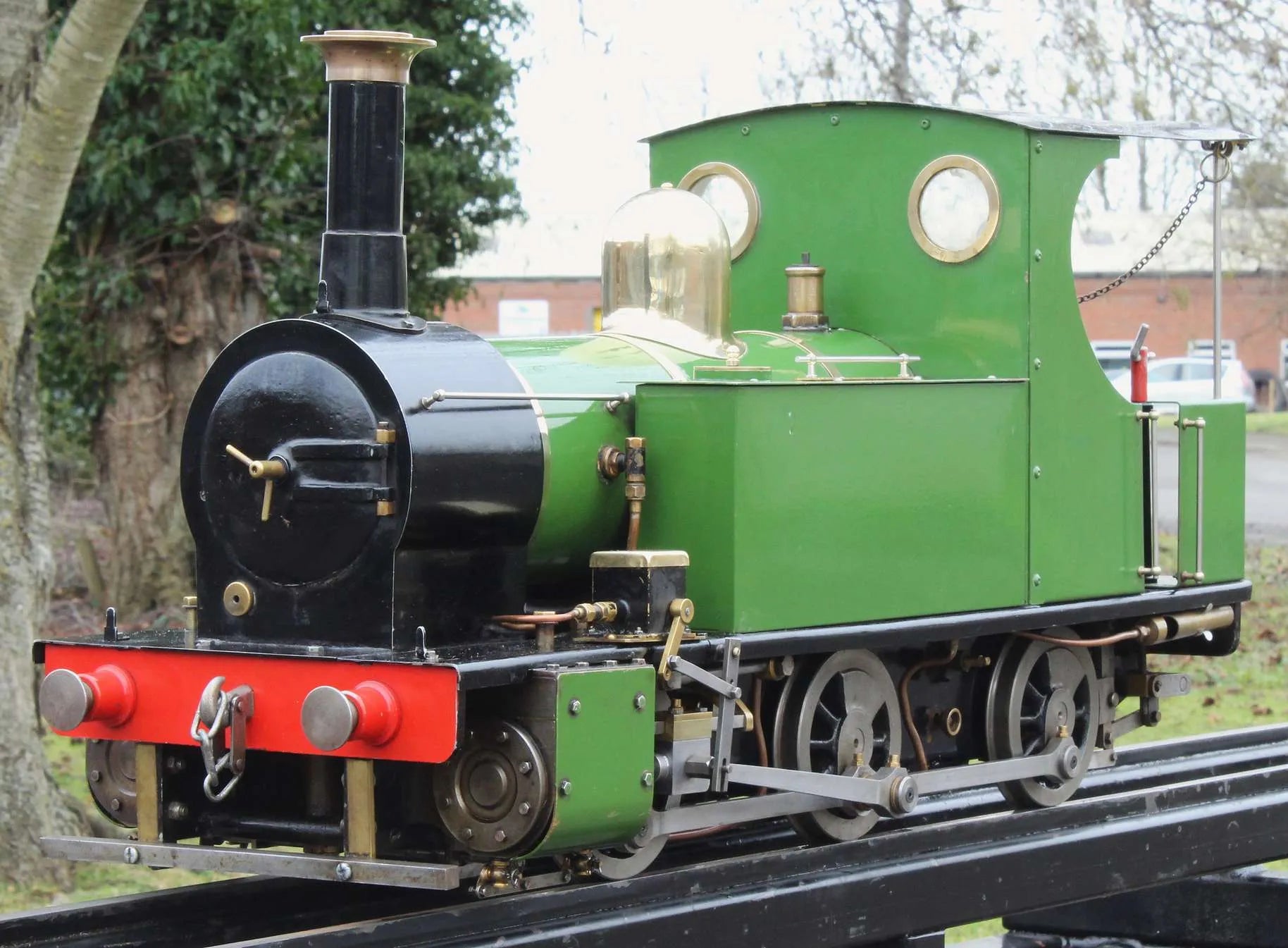

We've seen dozens of Pollys over the years and rate them highly. This one's no exception - in good mechanical order it runs well in both directions and steams freely; there's a video of it running in the yard here.
The engine has had recent hydraulic and steam tests with certification issued for same.
Stock code |
10206 |
Gauge |
5 inch |
Length/inches |
32 |
Width/inches |
11 |
Height/inches |
16 |
Weight/Kg |
50 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |

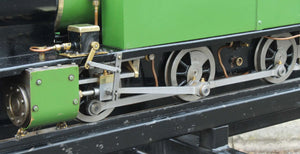

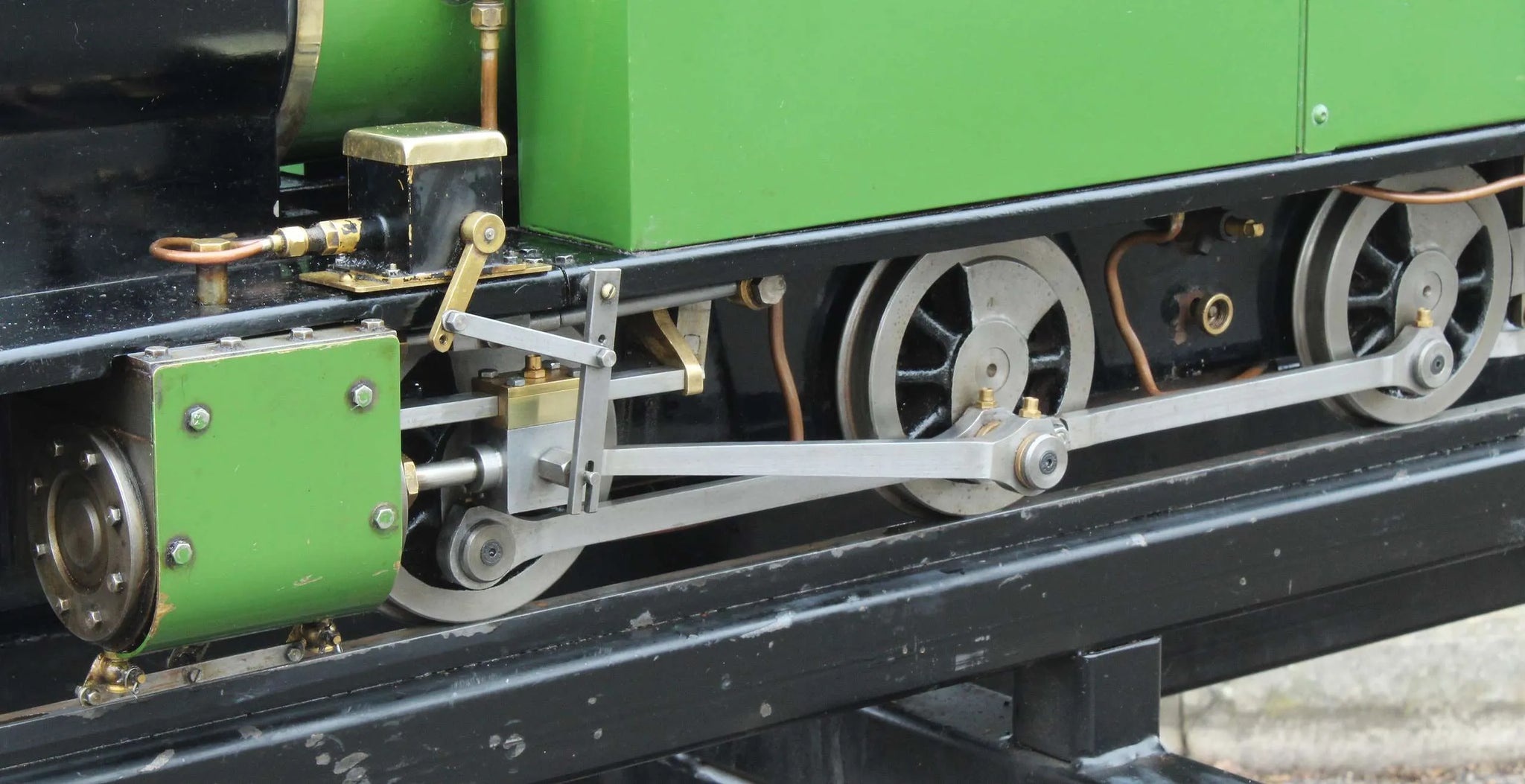

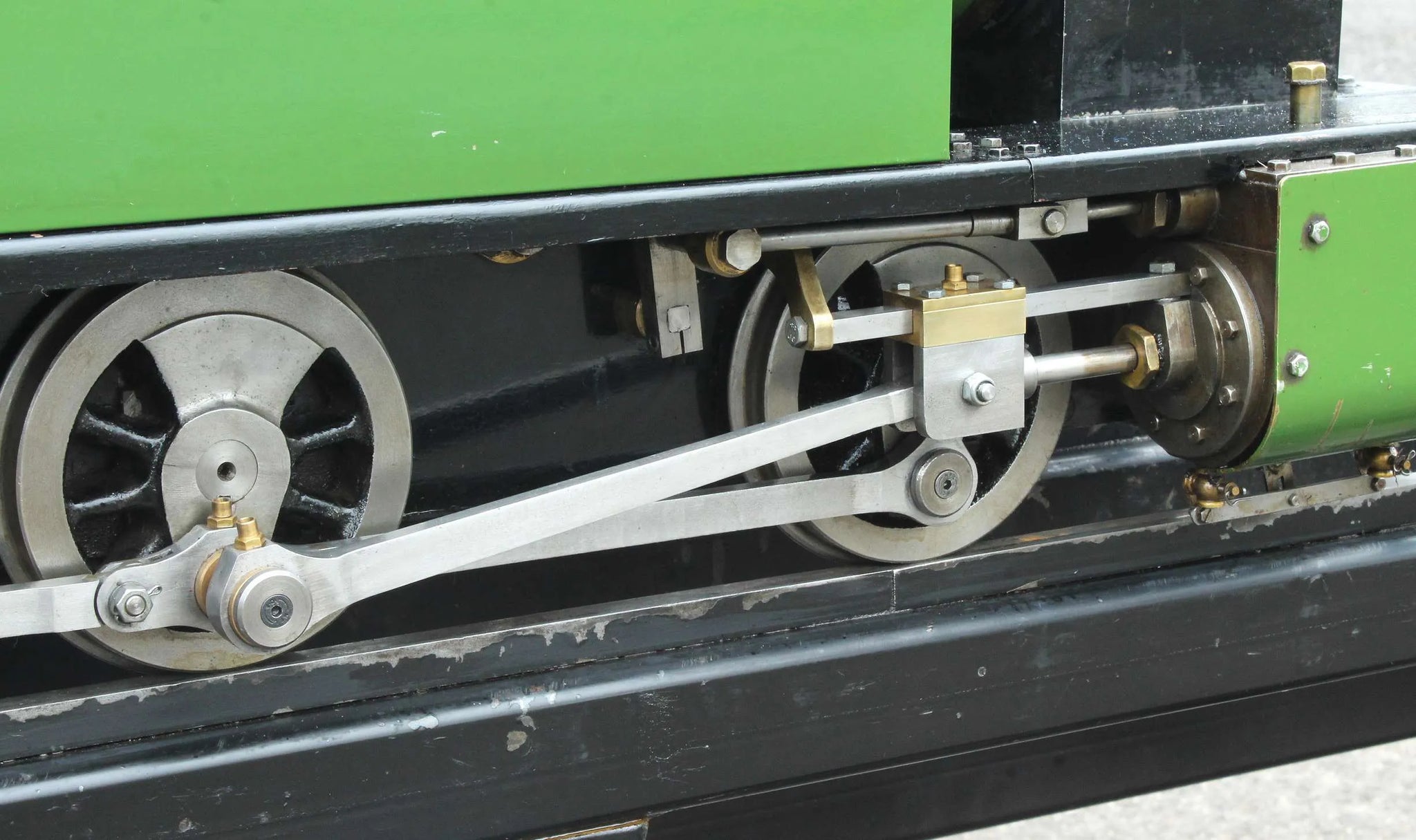

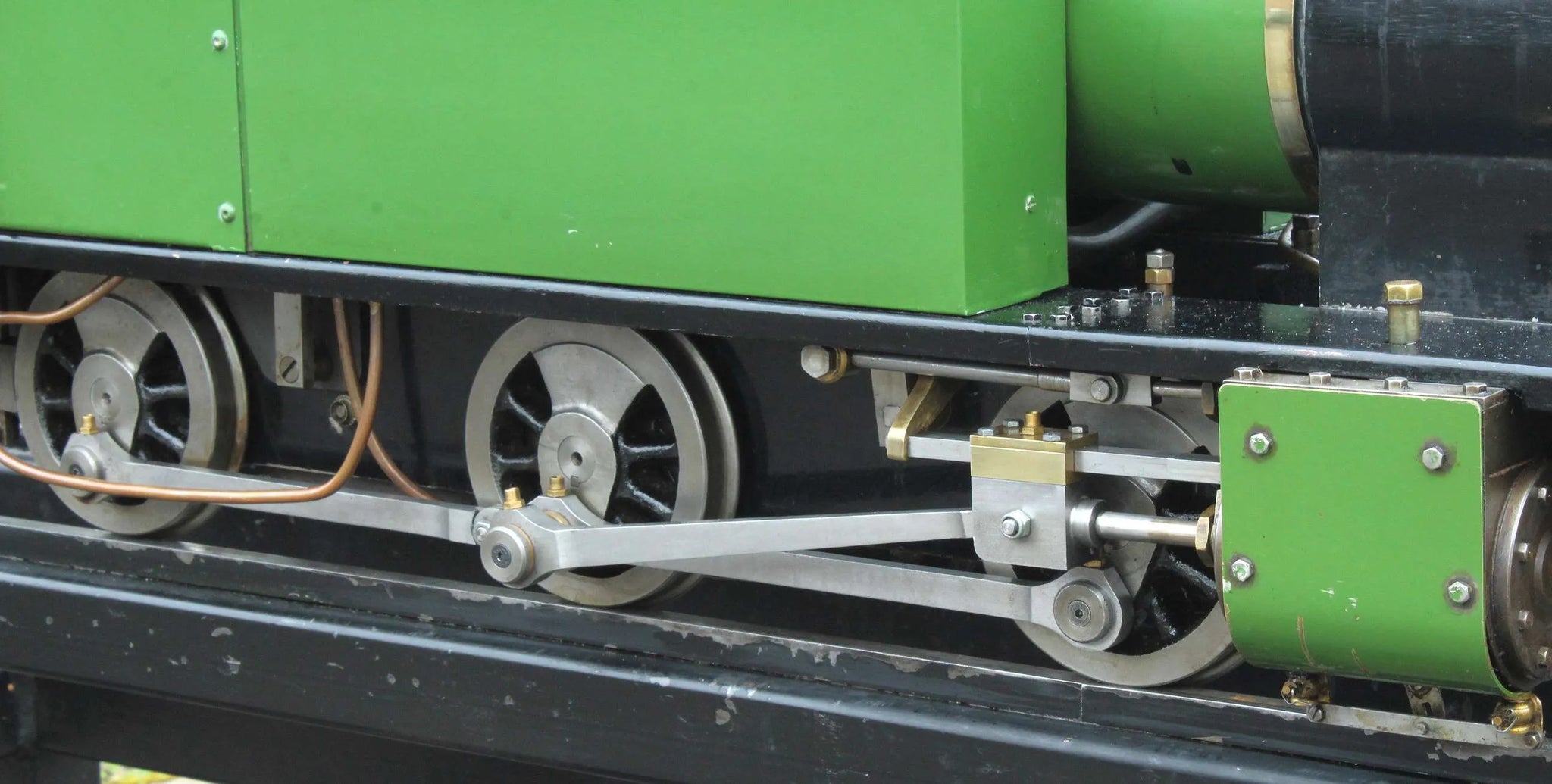

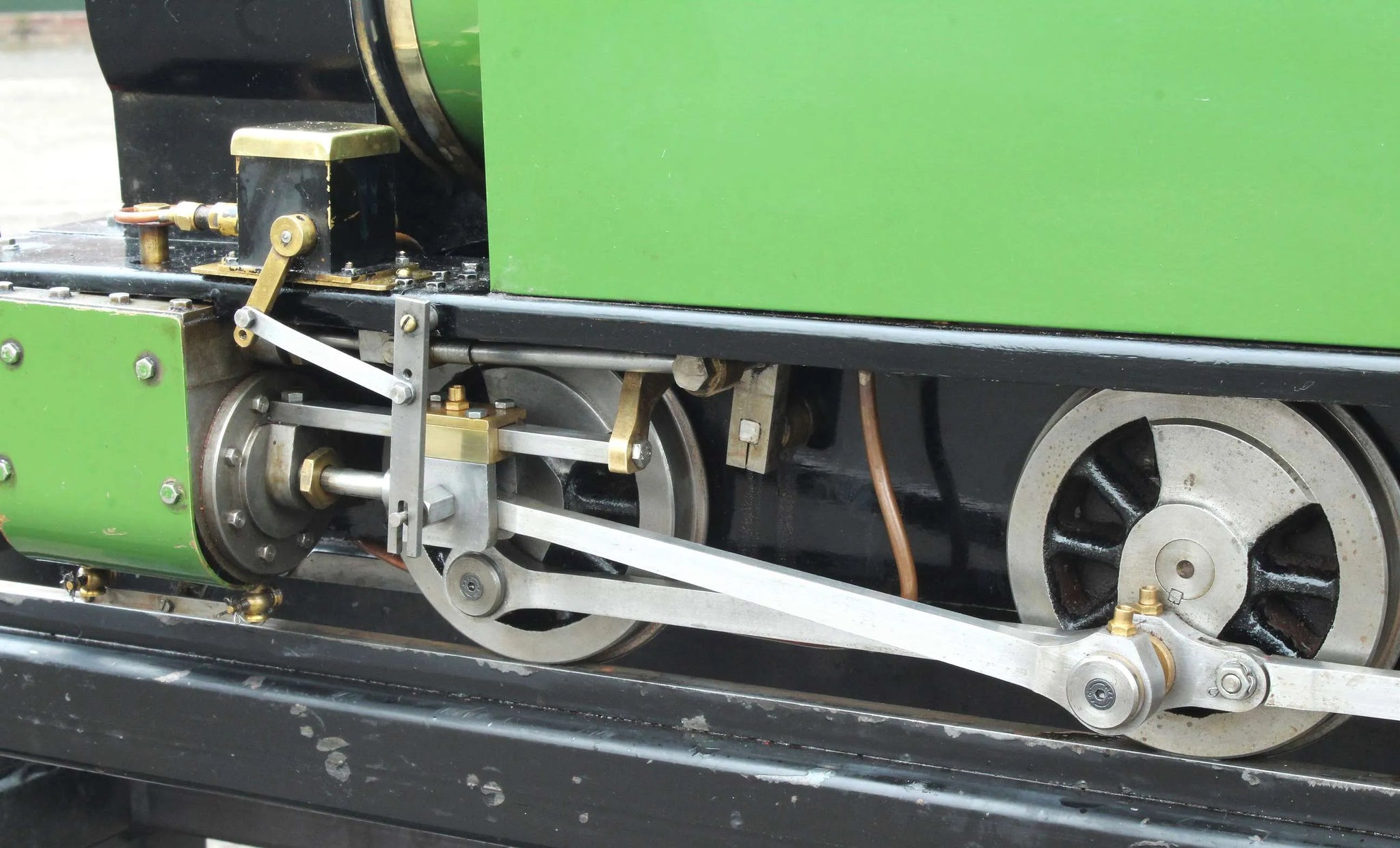

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
Priory Boilers |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
yes |
Year built |
2008 |
Boiler number |
PB770/88 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
yes |
Bore x stroke |
1 1/2 x 2 |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater |
1 |
Date out |
Mar-22 |
Hydraulic test valid to |
19-Jan-26 |
Steam test valid to |
01-Apr-23 |
