10692

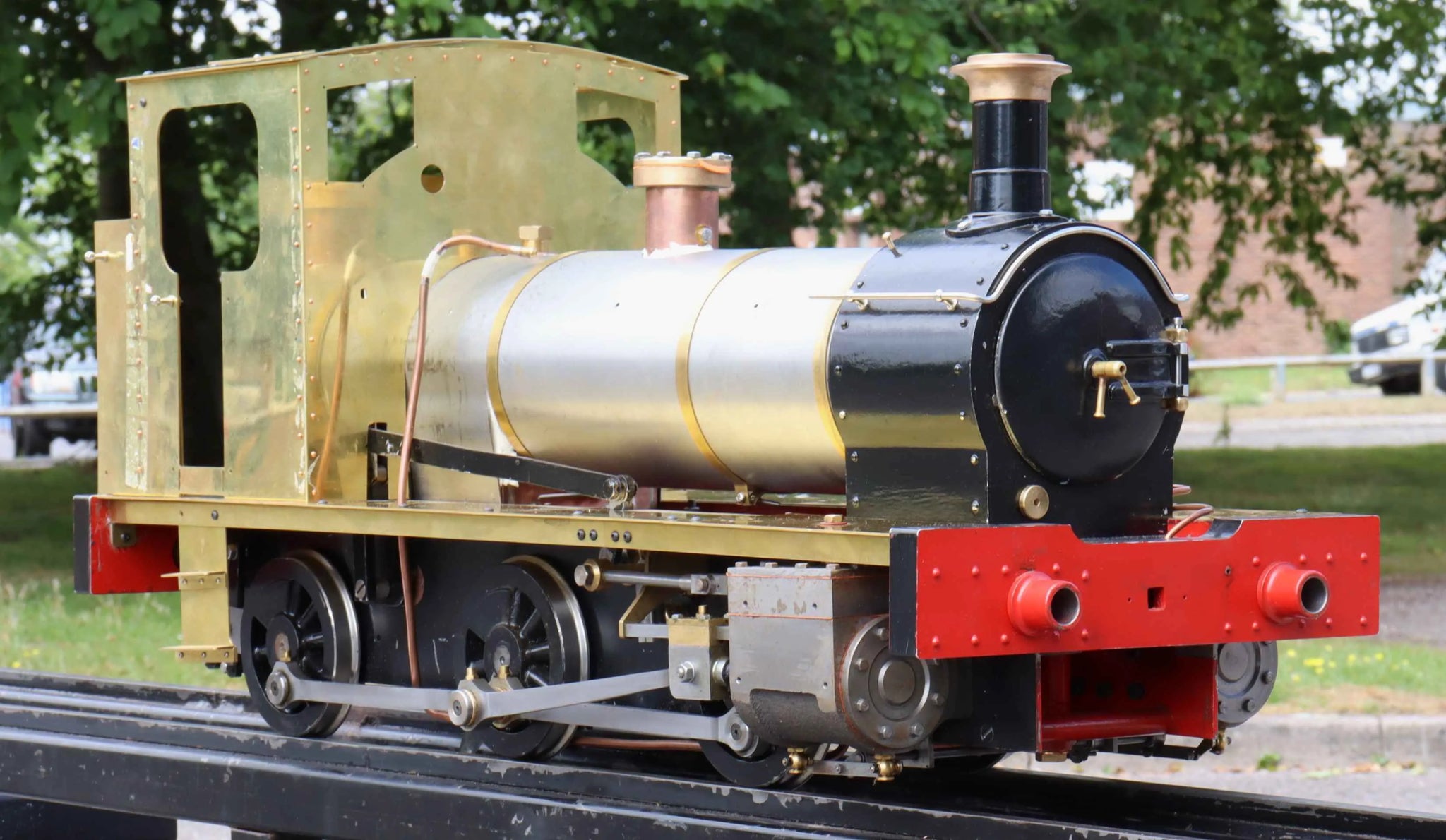

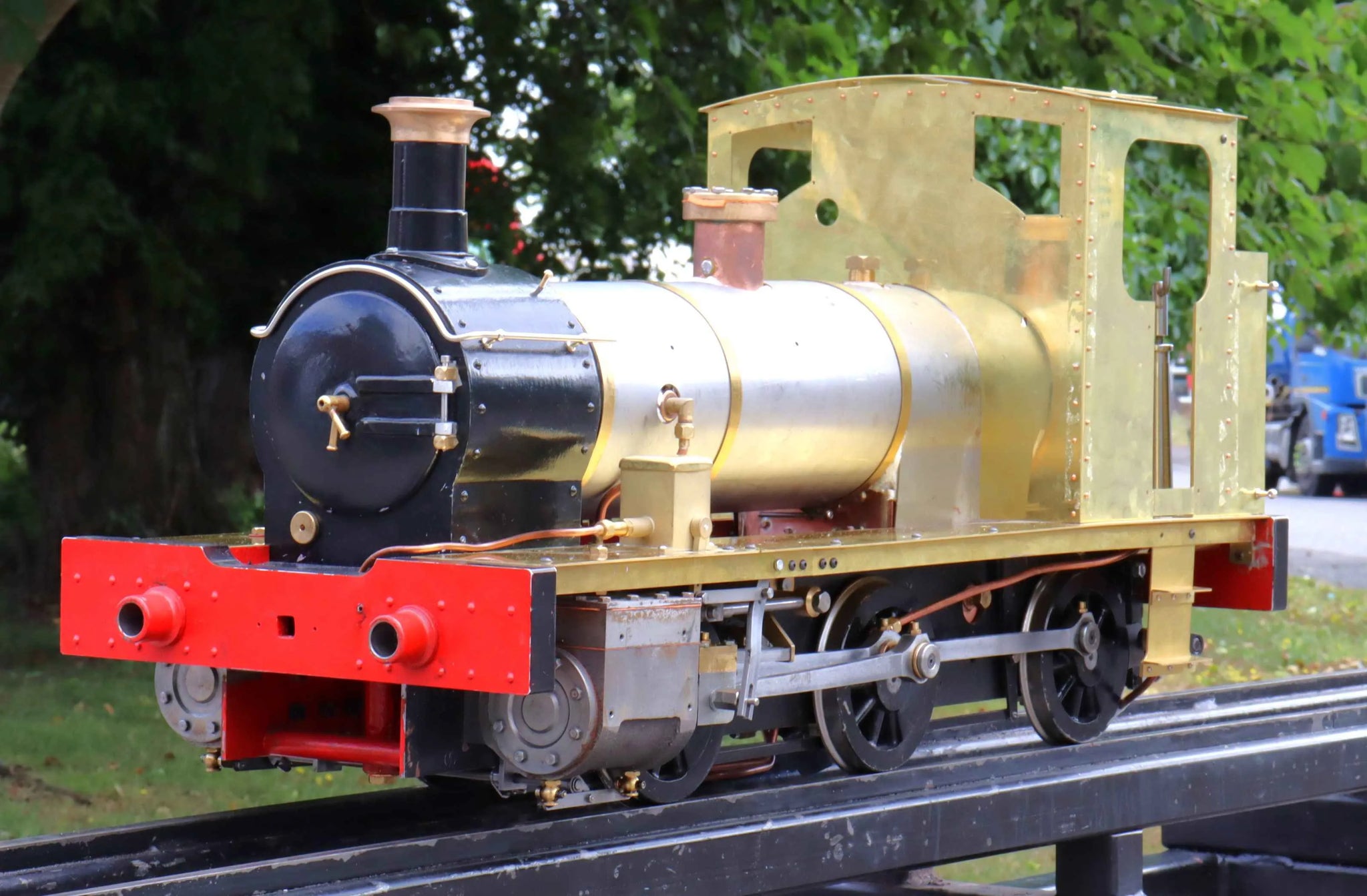

It's come to us from an experienced model engineer - we had his GWR 0-6-0PT "Pansy" last year - who, with advancing years, has been defeated by the size and weight of a 5 inch gauge engine.

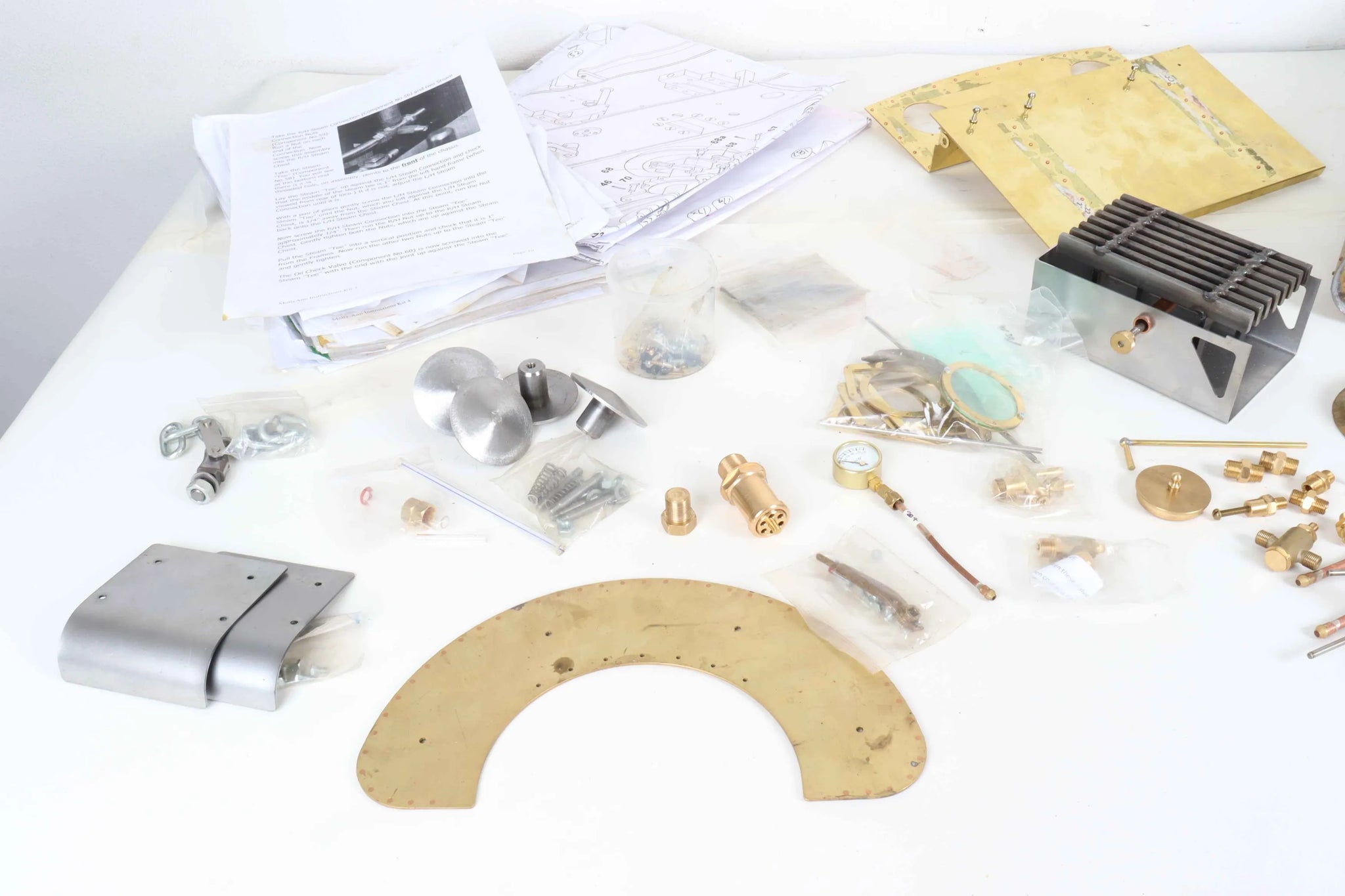

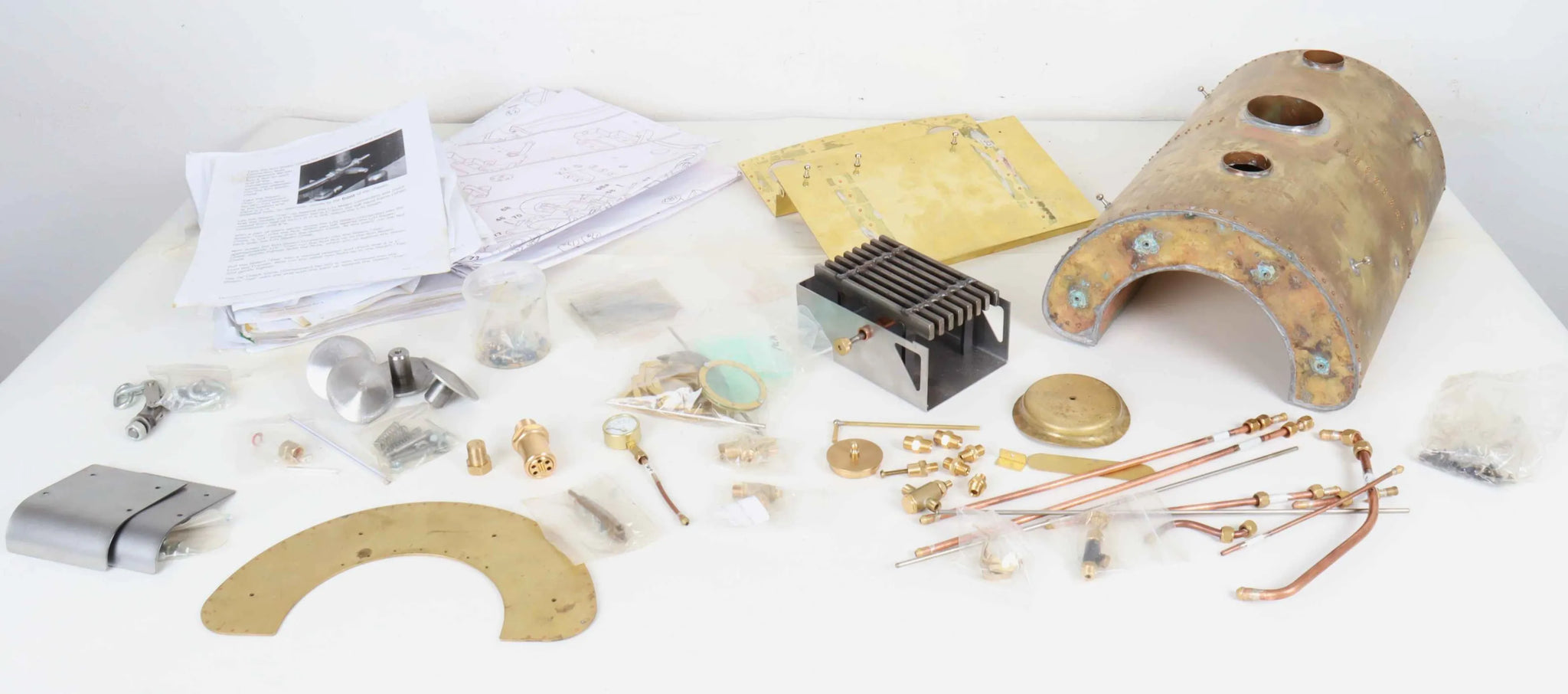

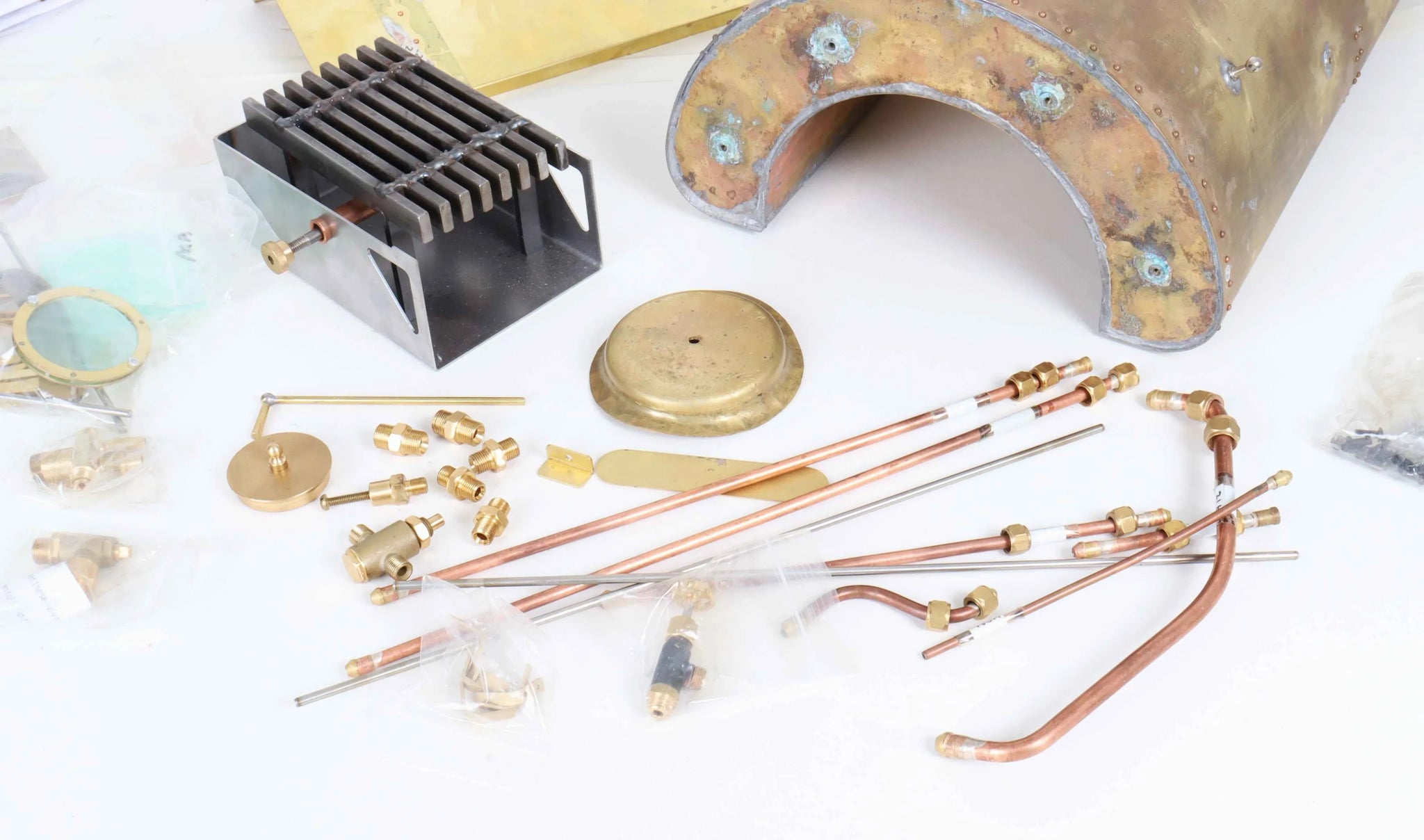

It's at an advanced stage of assembly, air-running, with parts to complete.
There is further information and a complete specification of the design on Polly's website here.
Stock code |
10692 |
Gauge |
5 inch |
Length/inches |
31.5 |
Width/inches |
12 |
Height/inches |
16 |
Weight/Kg |
44 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |

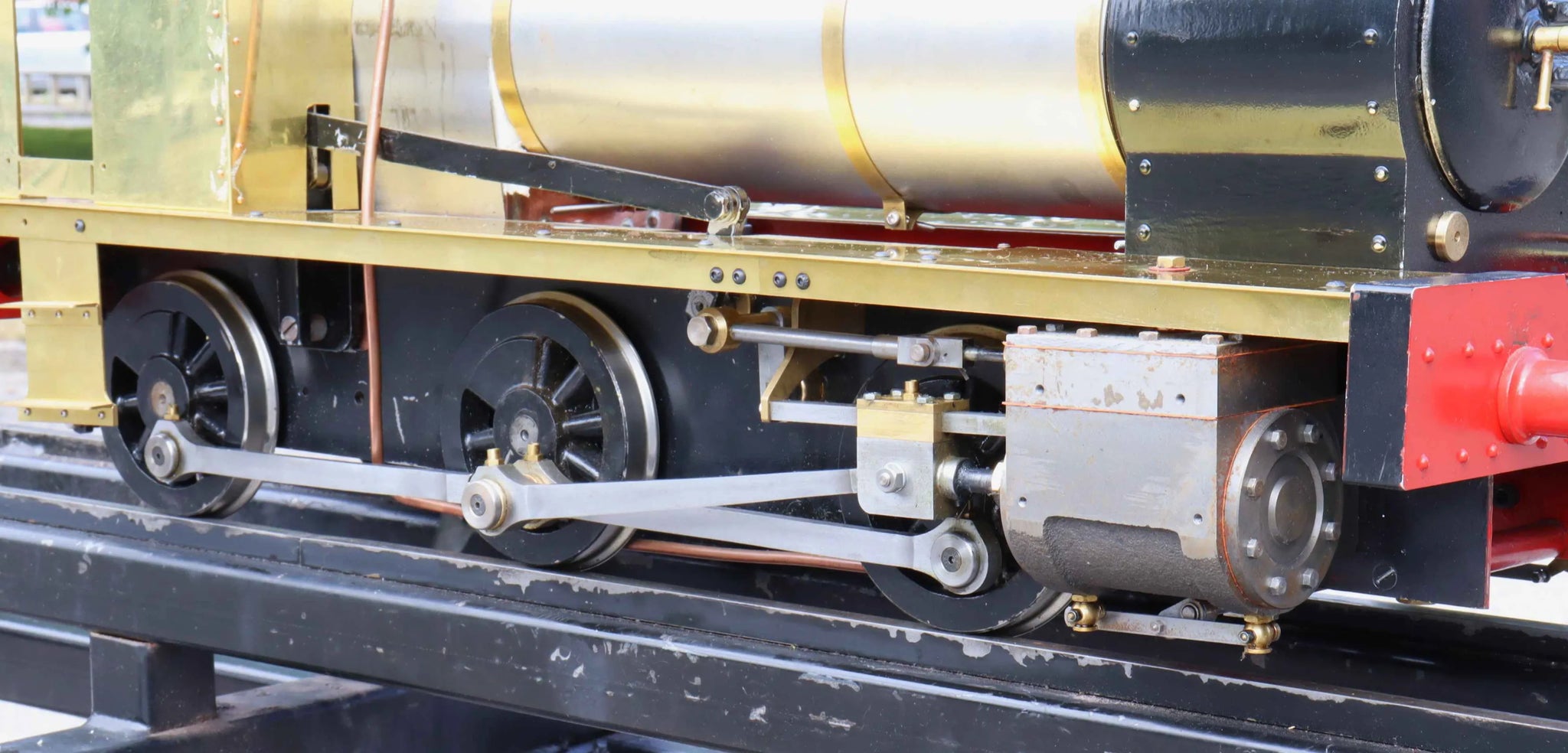

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |

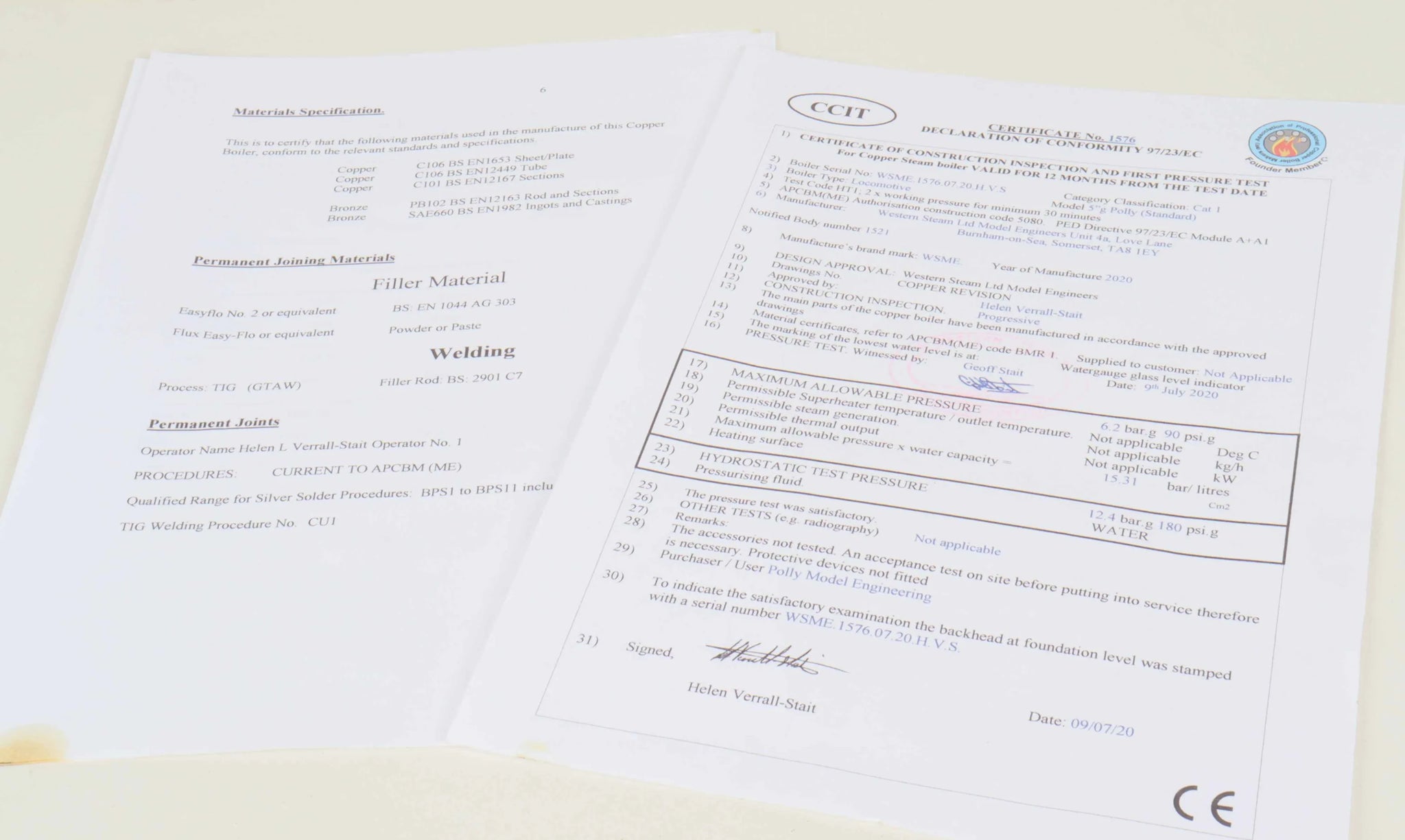

Boiler maker |
Western Steam |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
yes |
Year built |
2020 |

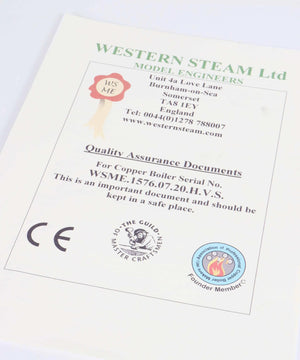

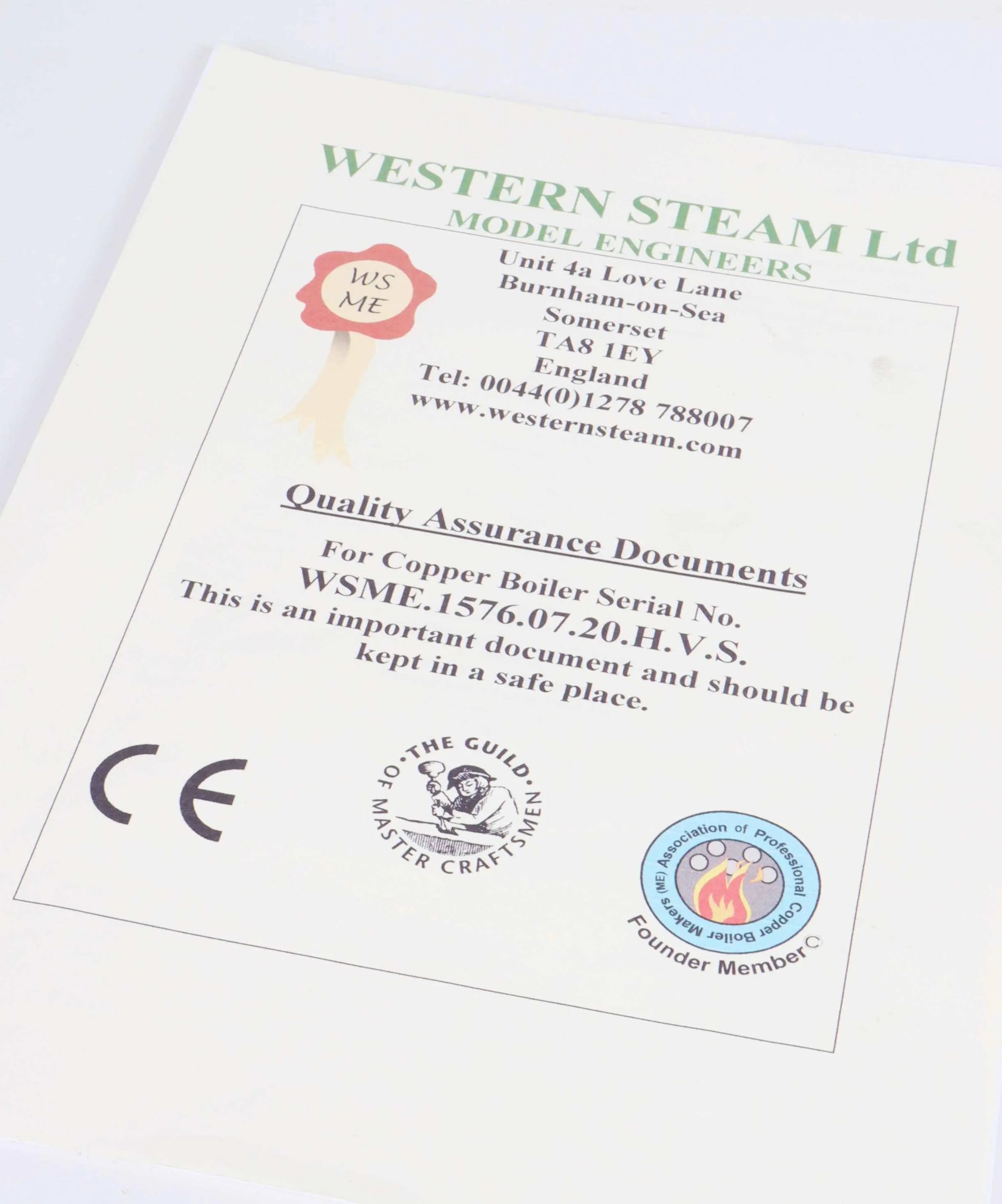

Boiler number |
WSME.1576.07.20.H.V.S |
Safety valve type |
pop |
Safety valve |
1 |
Fusible plug |
yes |
Whistle |
yes |
Injector |
1 |
Superheater type |
radiant |
Superheater |
1 |
Date out |
Aug-22 |
