Sold

11810

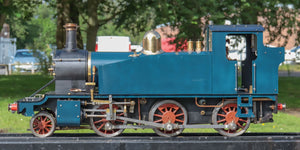

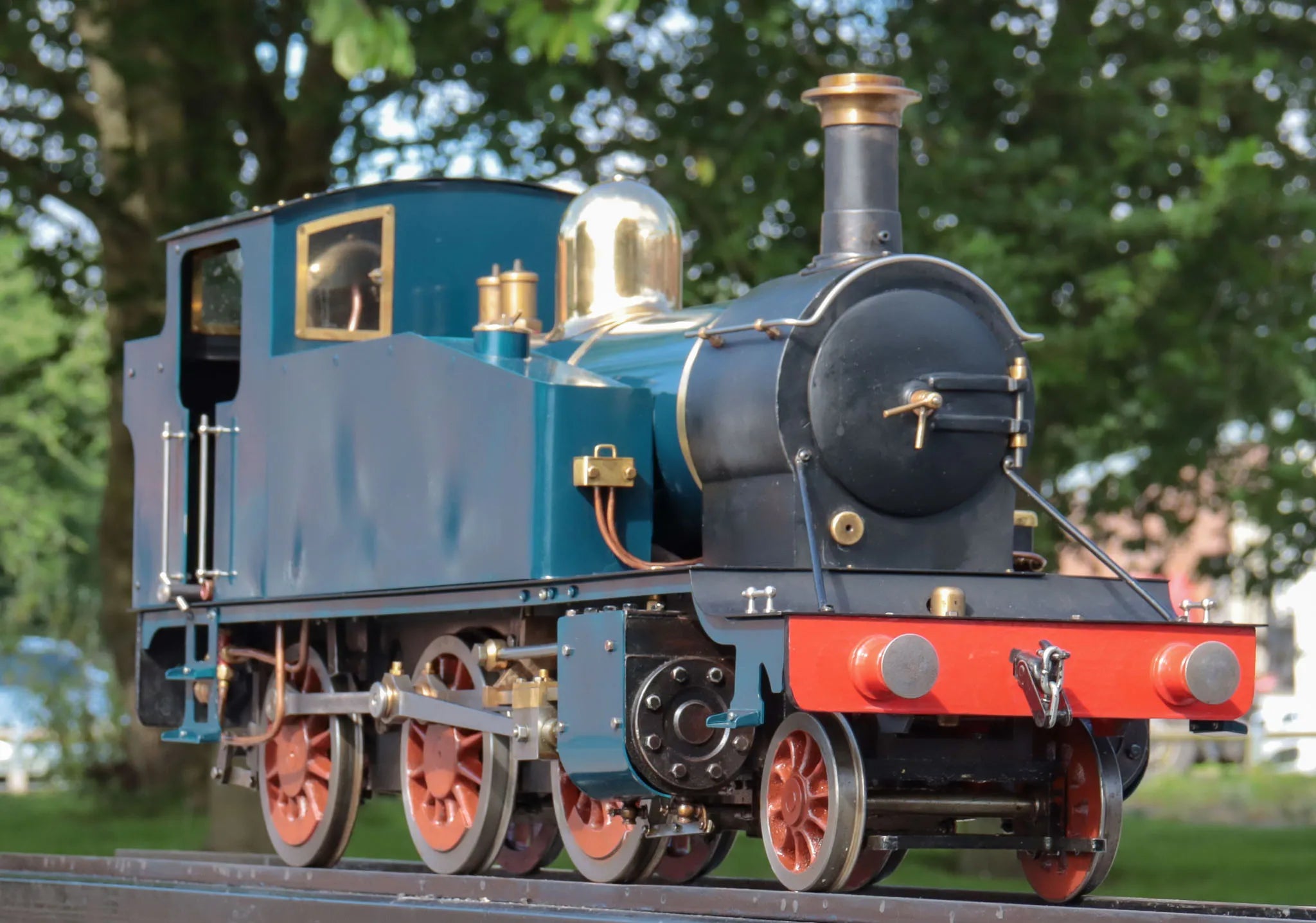

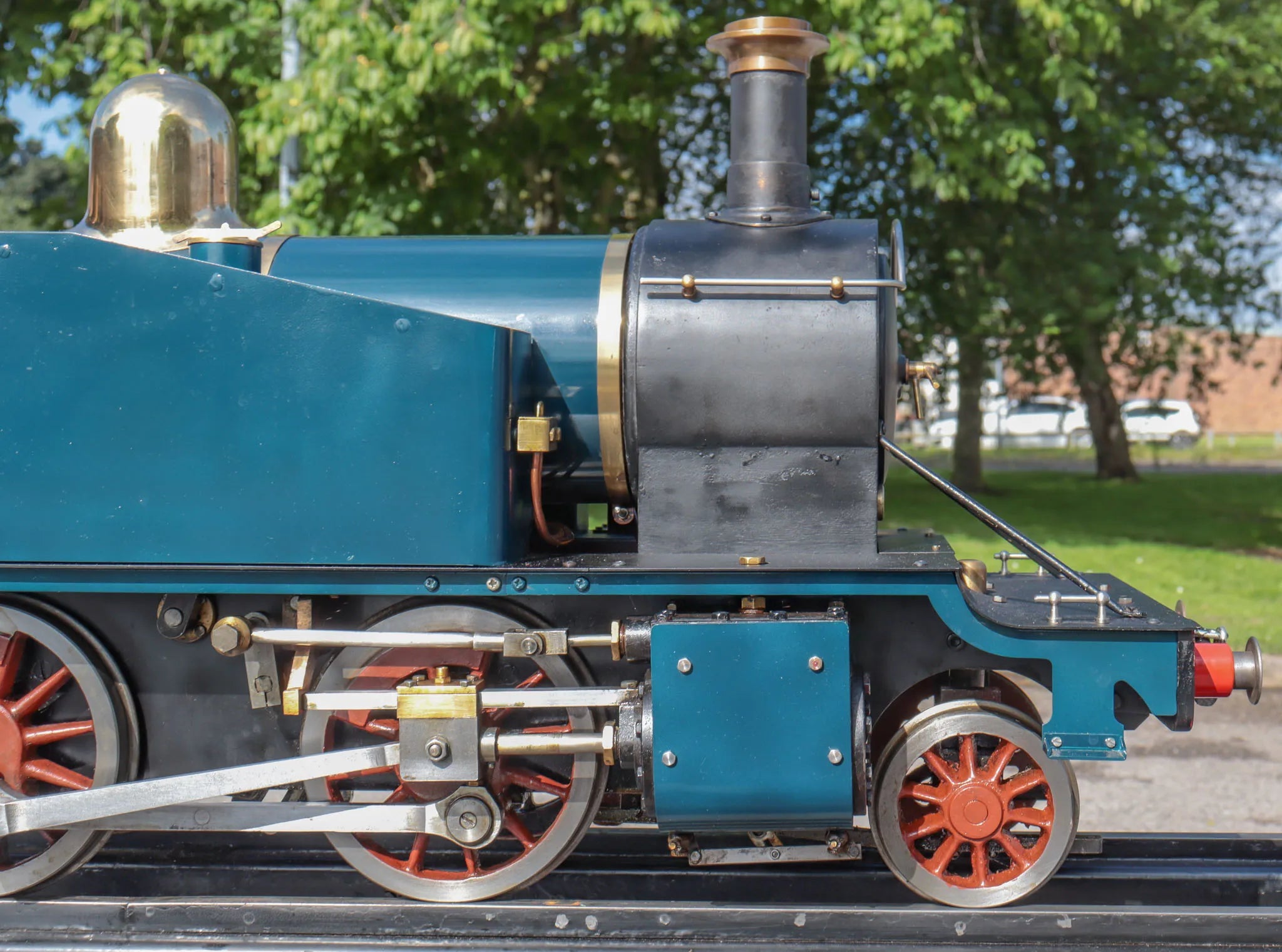

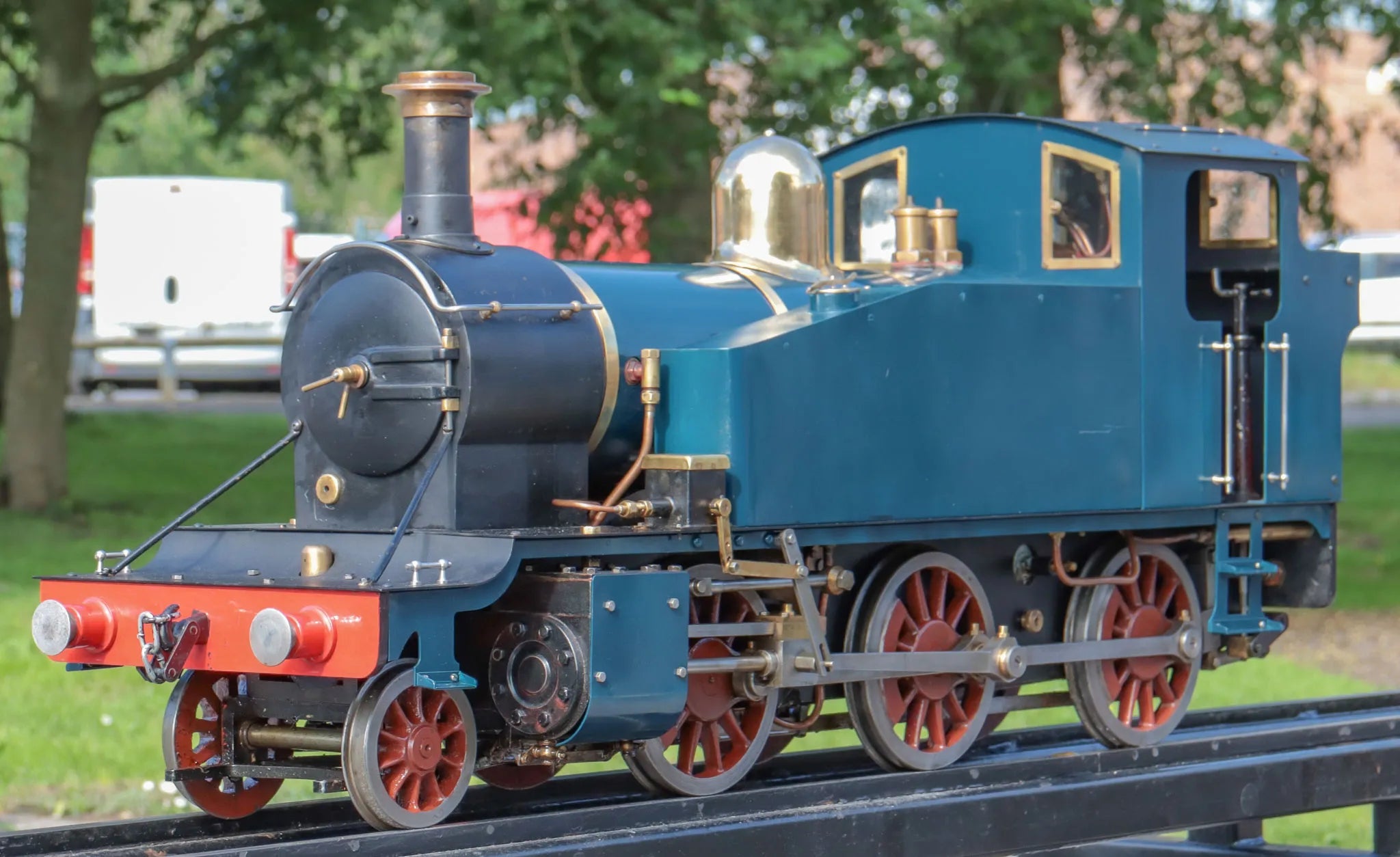

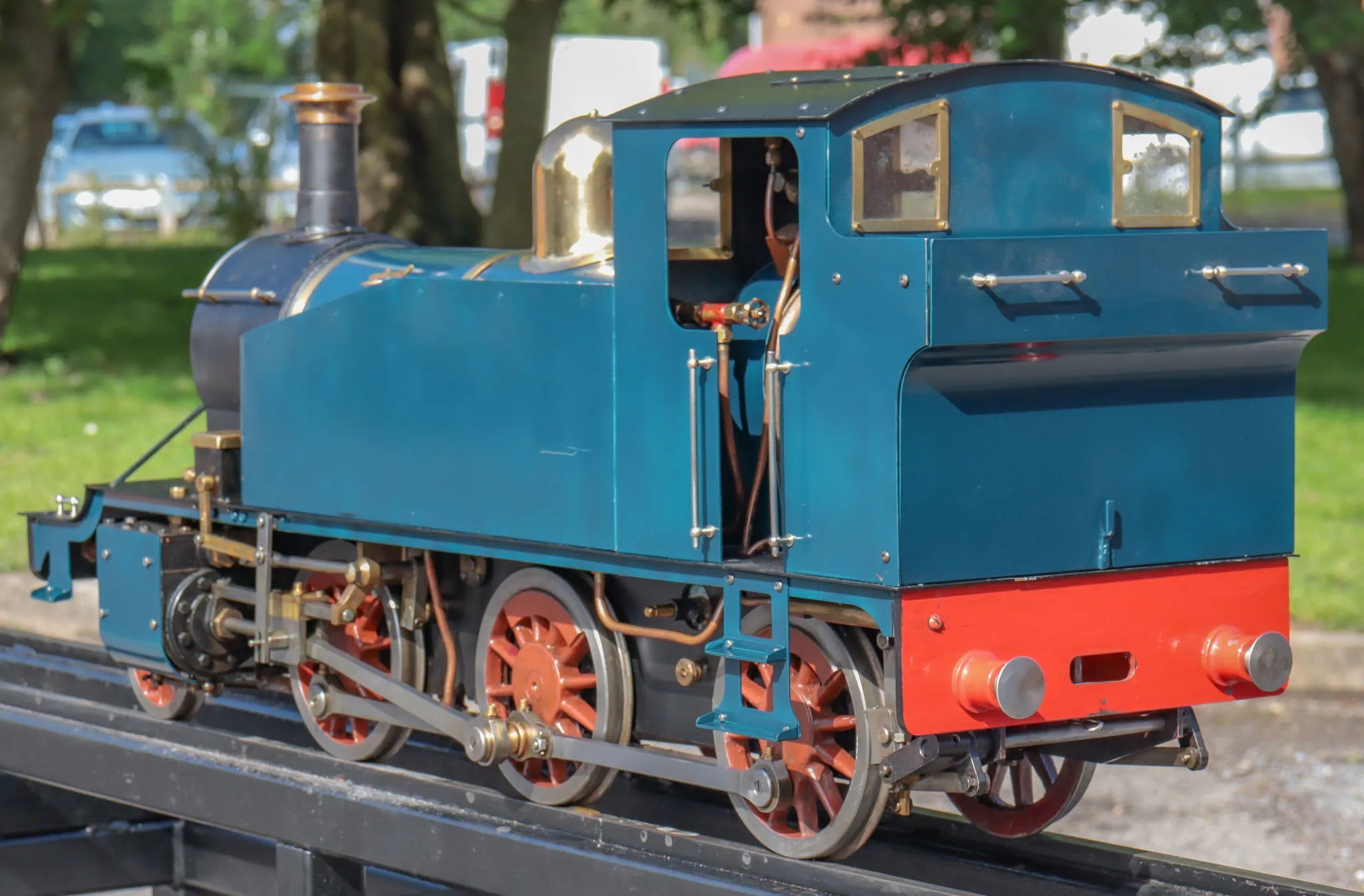

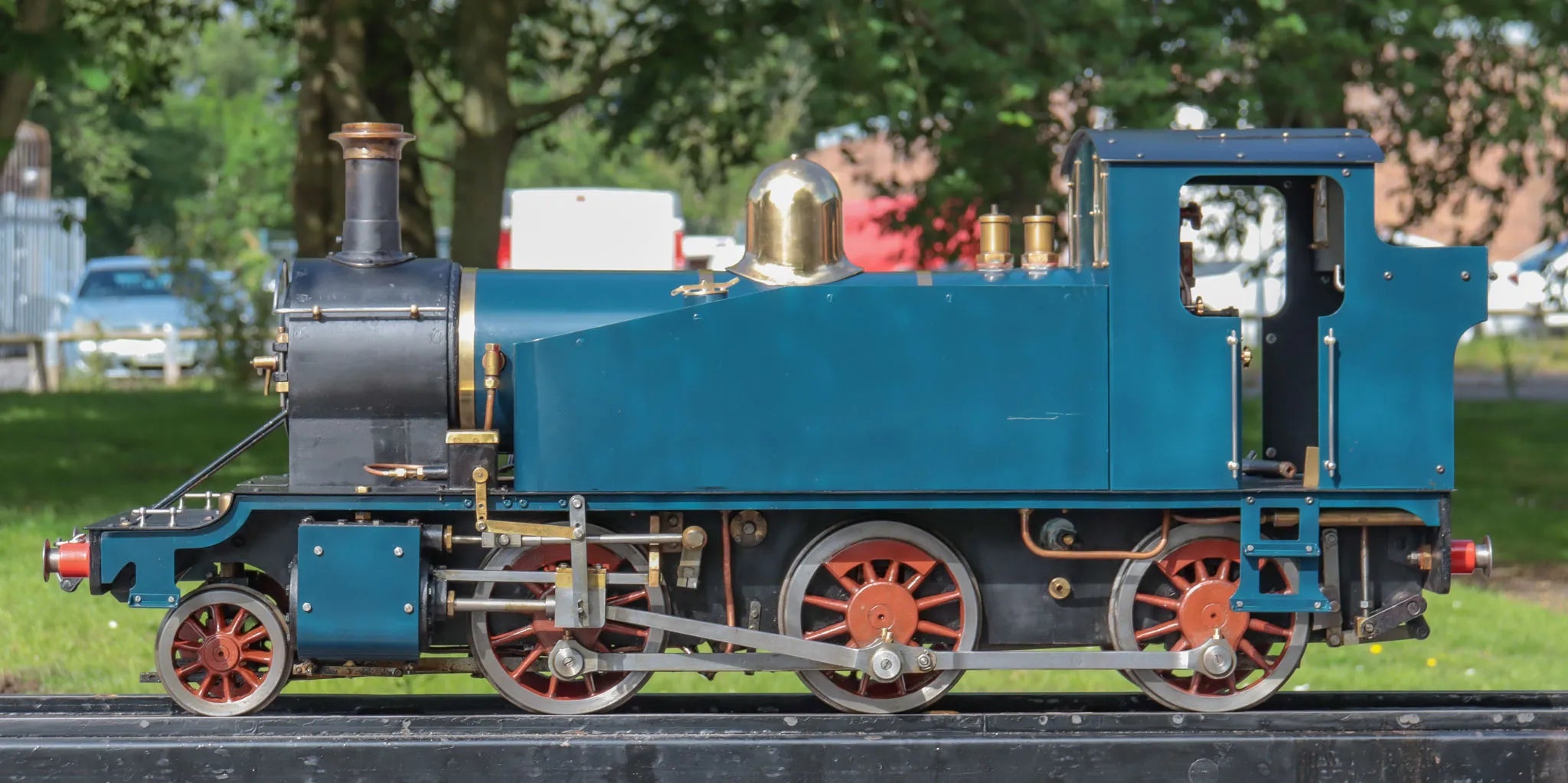

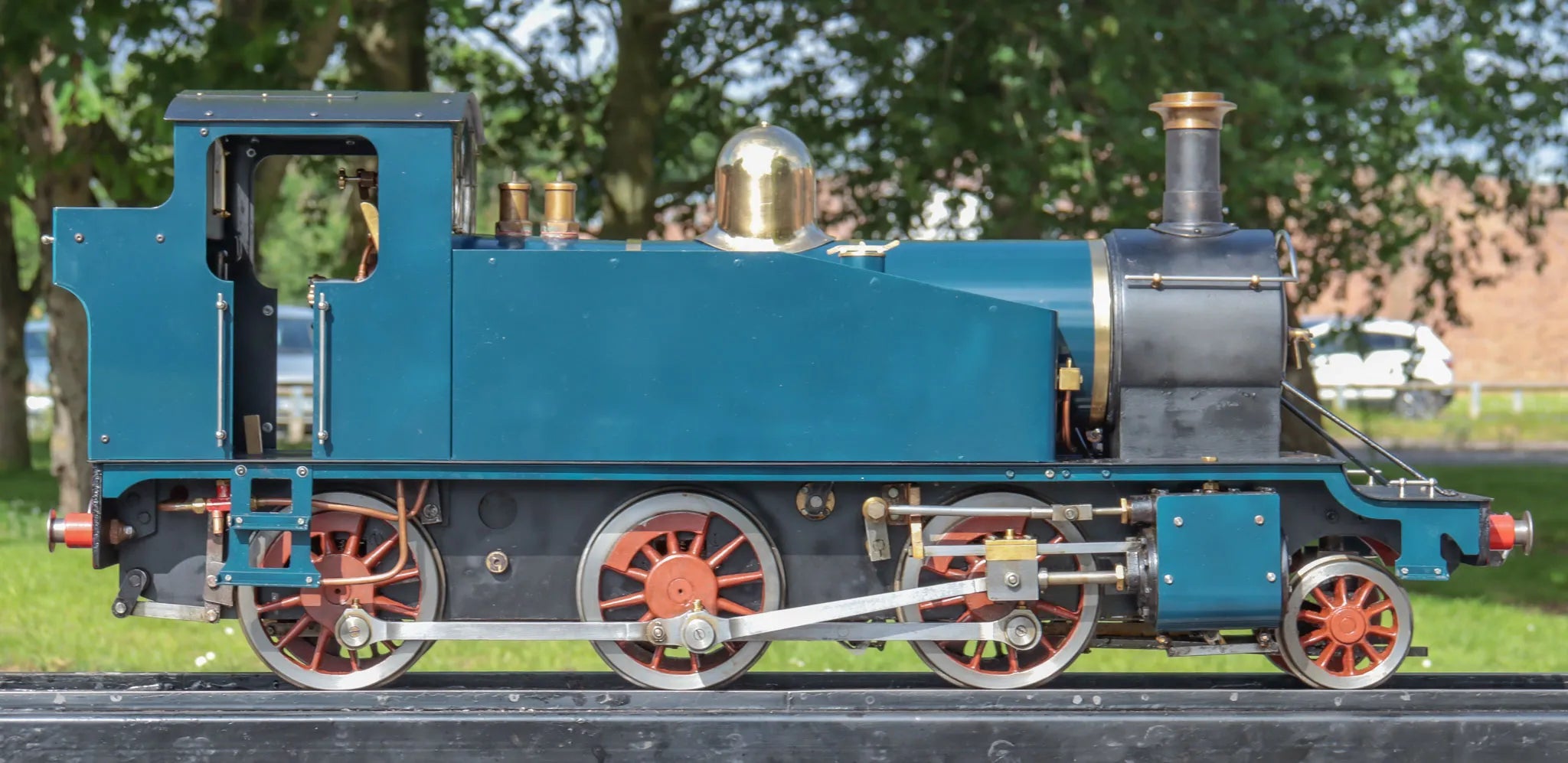

5 inch gauge Polly V 2-6-0T

A 5 inch gauge Polly V 2-6-0, one of the largest models in their range, its combination of power and adhesive weight ideal for club running or the larger garden railway.

The CE-marked boiler has had hydraulic and steam tests with new certification issued - particularly water-tight on hydraulic test, there was barely a drip from its fittings - we were impressed! The fusible plug has been removed, cleaned and inspected, the lubricator flushed out, serviced and tested.

A well-sorted engine which steams freely without need for the blower on the rolling road; it runs very well in either direction with crisp, even exhaust beats.

The paintwork remains presentable, with something of a patina of honest use about it - we'd leave it exactly the way it is!

Supplied with firing irons, a starter kit of coal and steam oil and 12 months warranty. If required, we would be pleased to include a half day's training in the firing, driving and maintenance of the engine.


Technical information

Stock code

11810

Gauge

5 inch

Length/inches

39

Width/inches

10

Height/inches

17

Weight/Kg

54

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

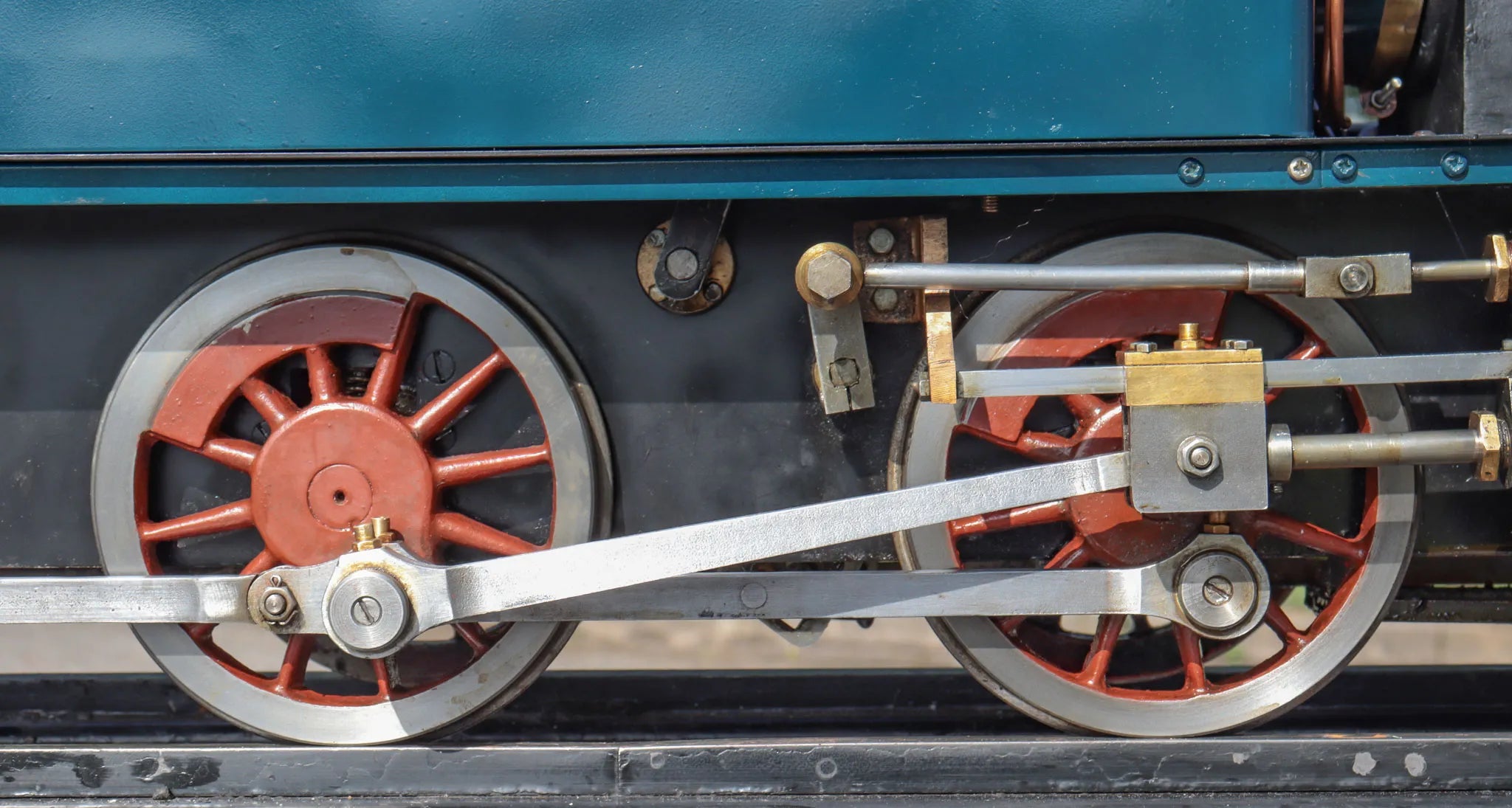

Valve gear

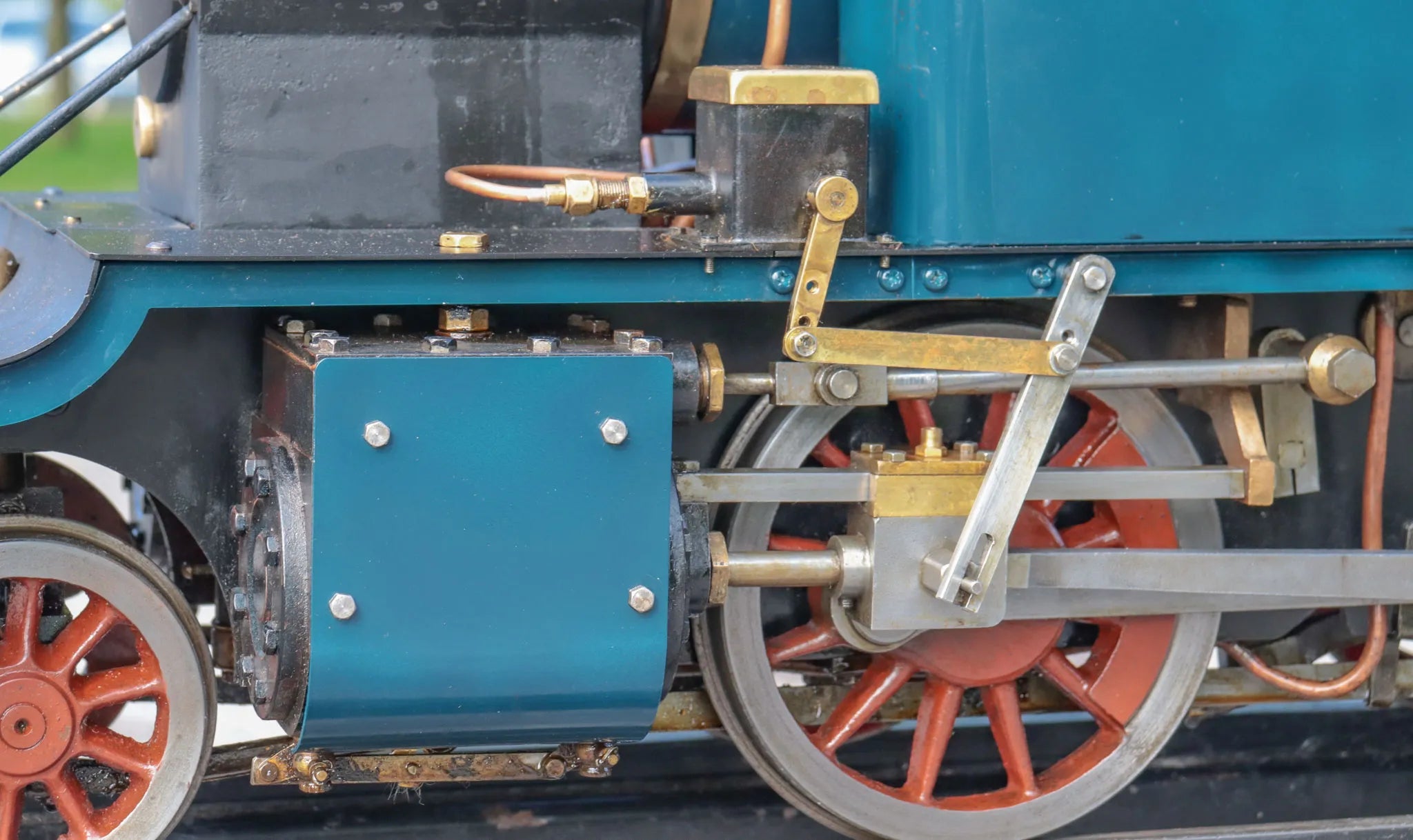

Stephensons

Reverser type

pole

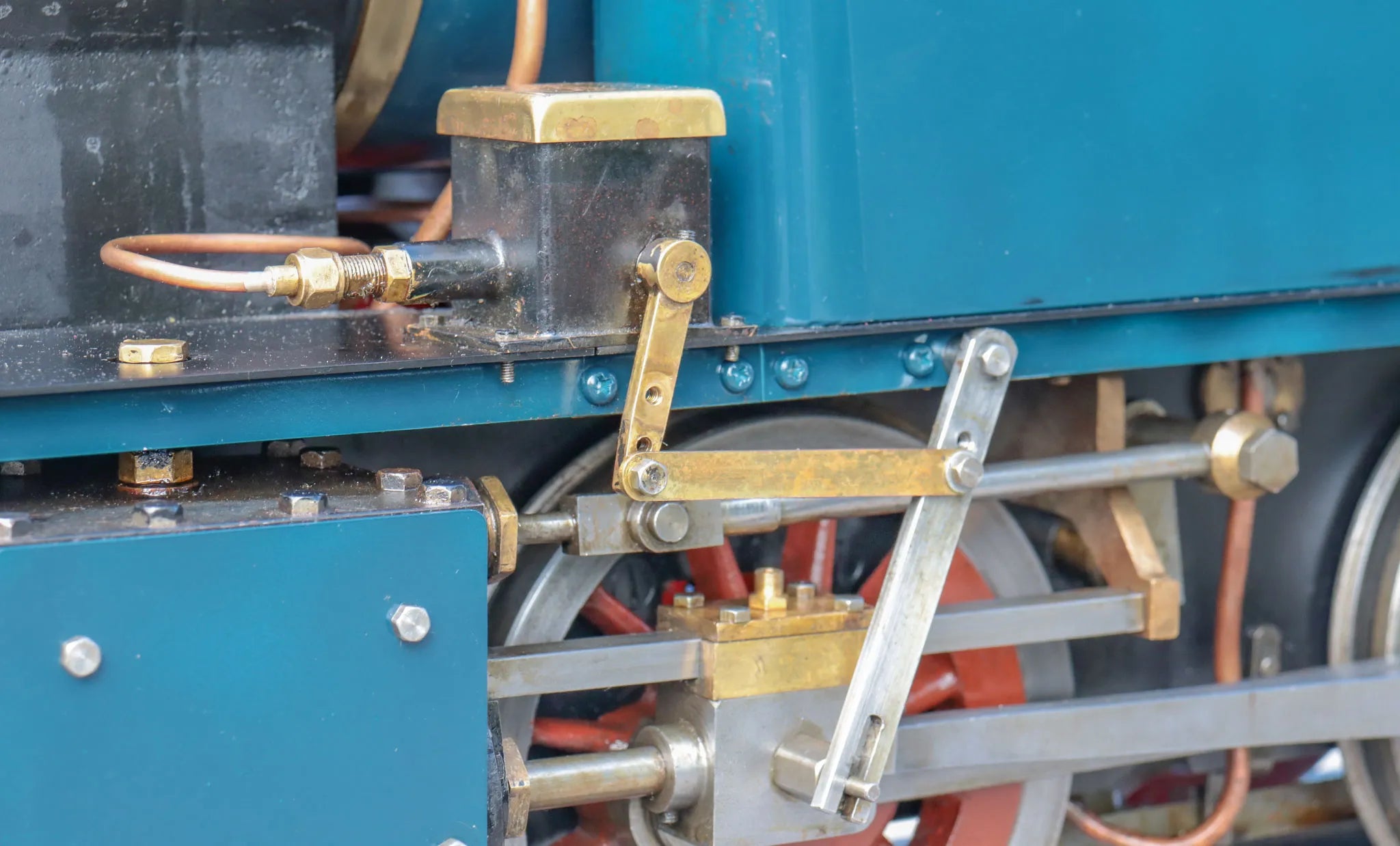

Lubricator type

mechanical

Boiler maker

Priory Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

yes

Year built

2004

Boiler number

PB654/04

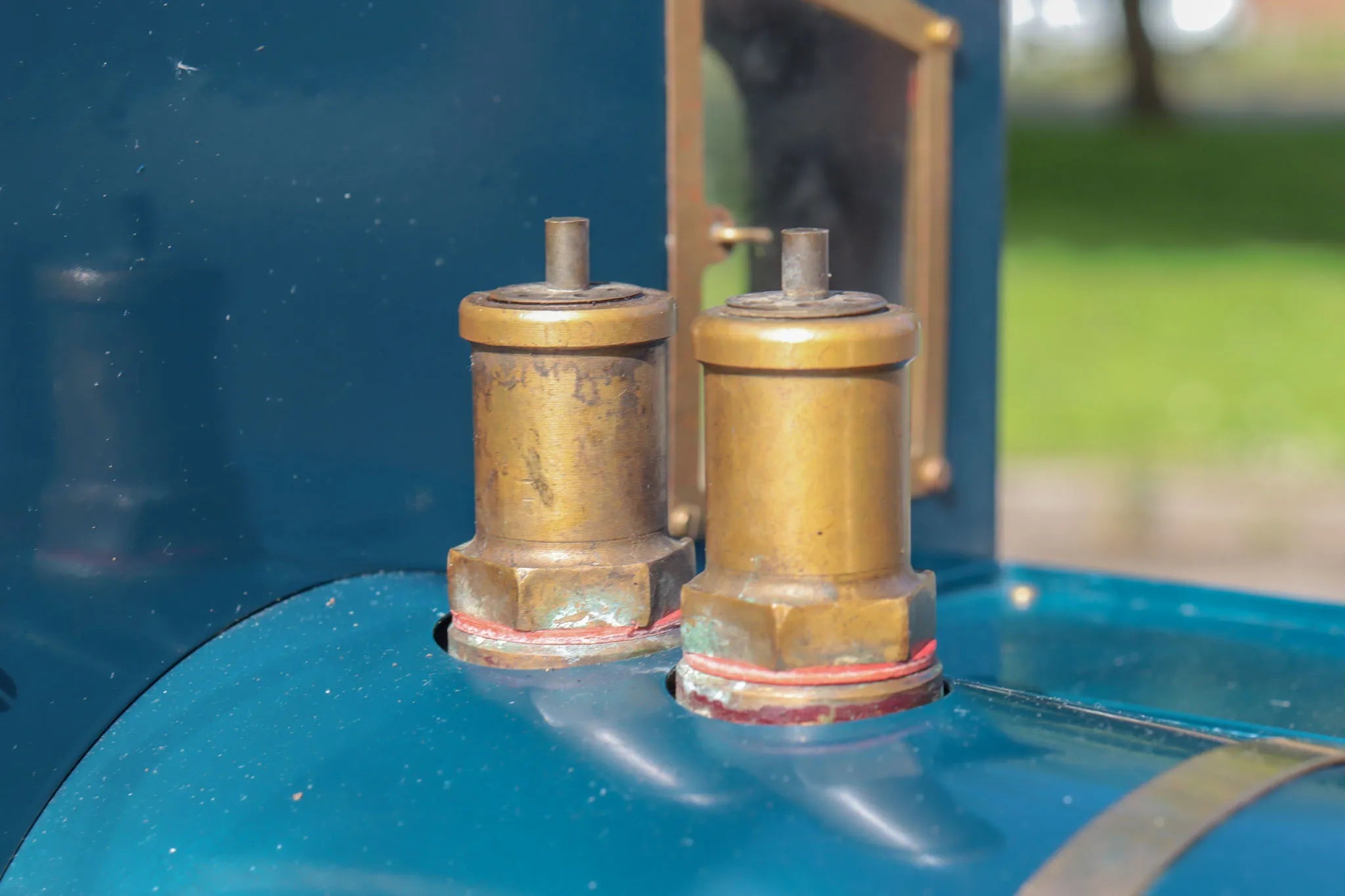

Safety valve type

pop

Safety valve

2

Fusible plug

yes

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

1

Date out

Jun-24

Hydraulic test valid to

18-Feb-28

Steam test valid to

22-Jul-25
