13399

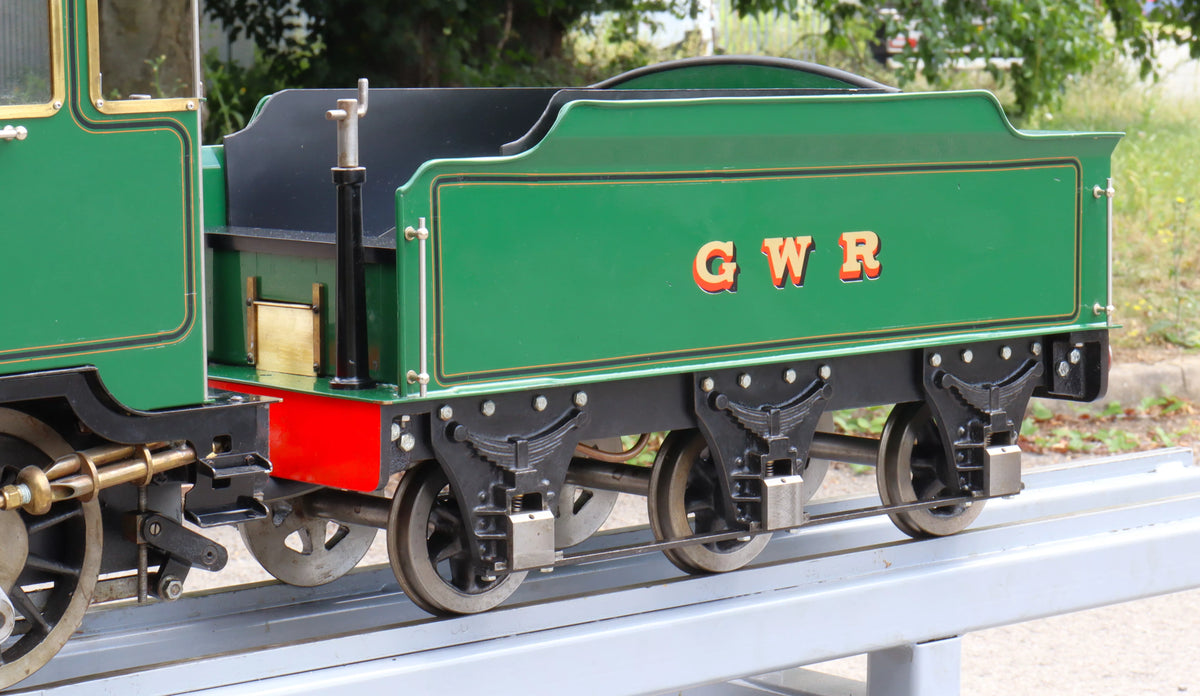

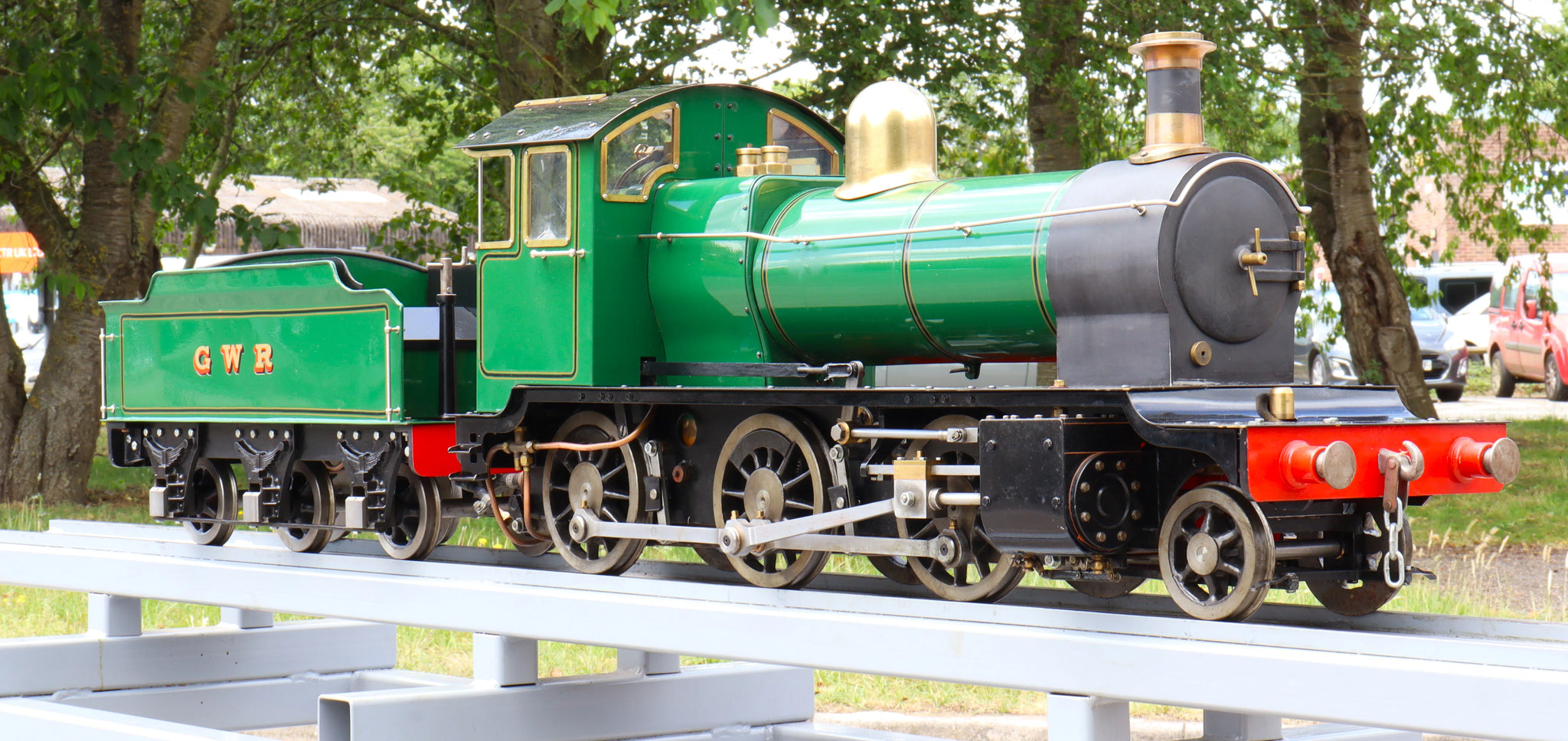

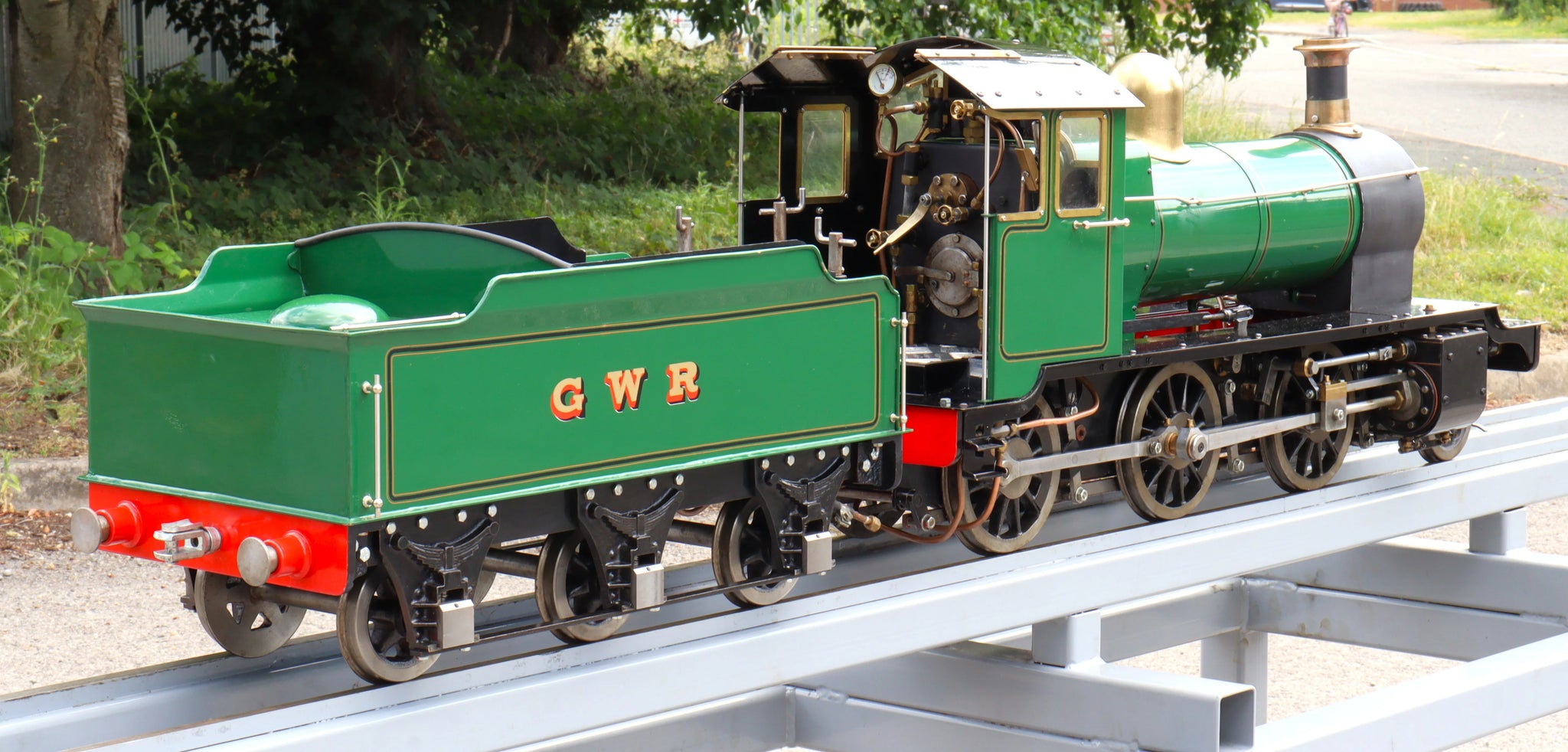

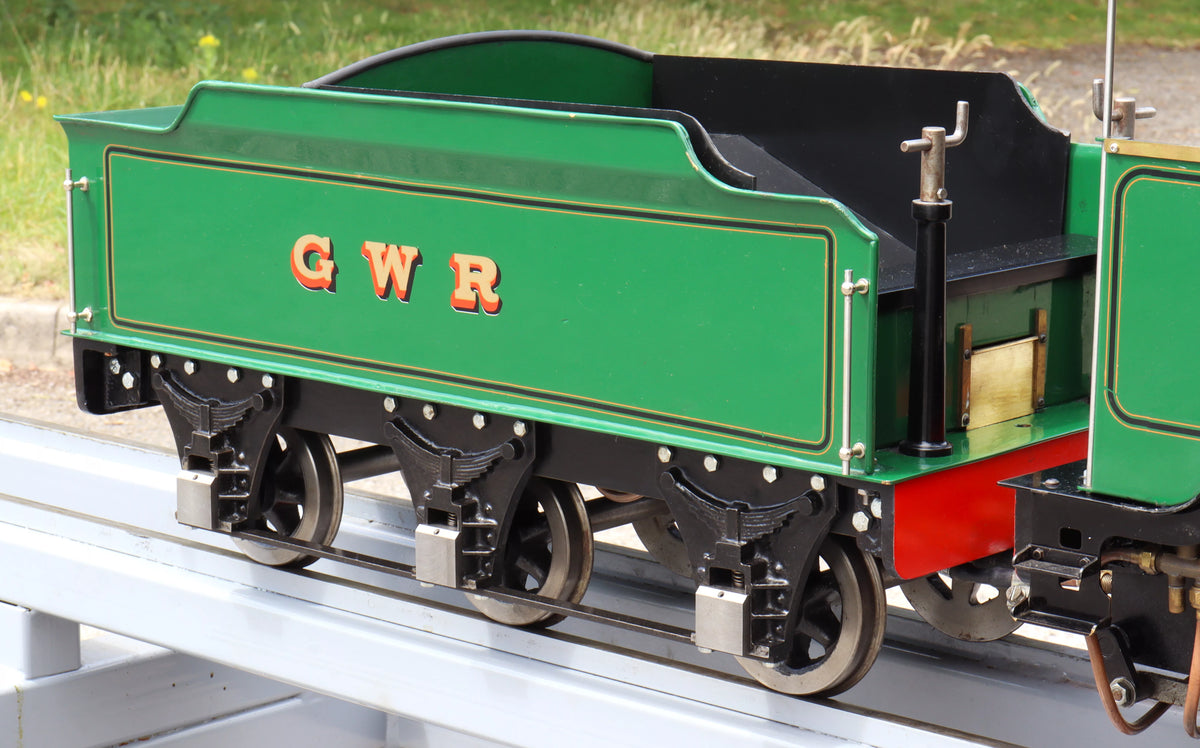

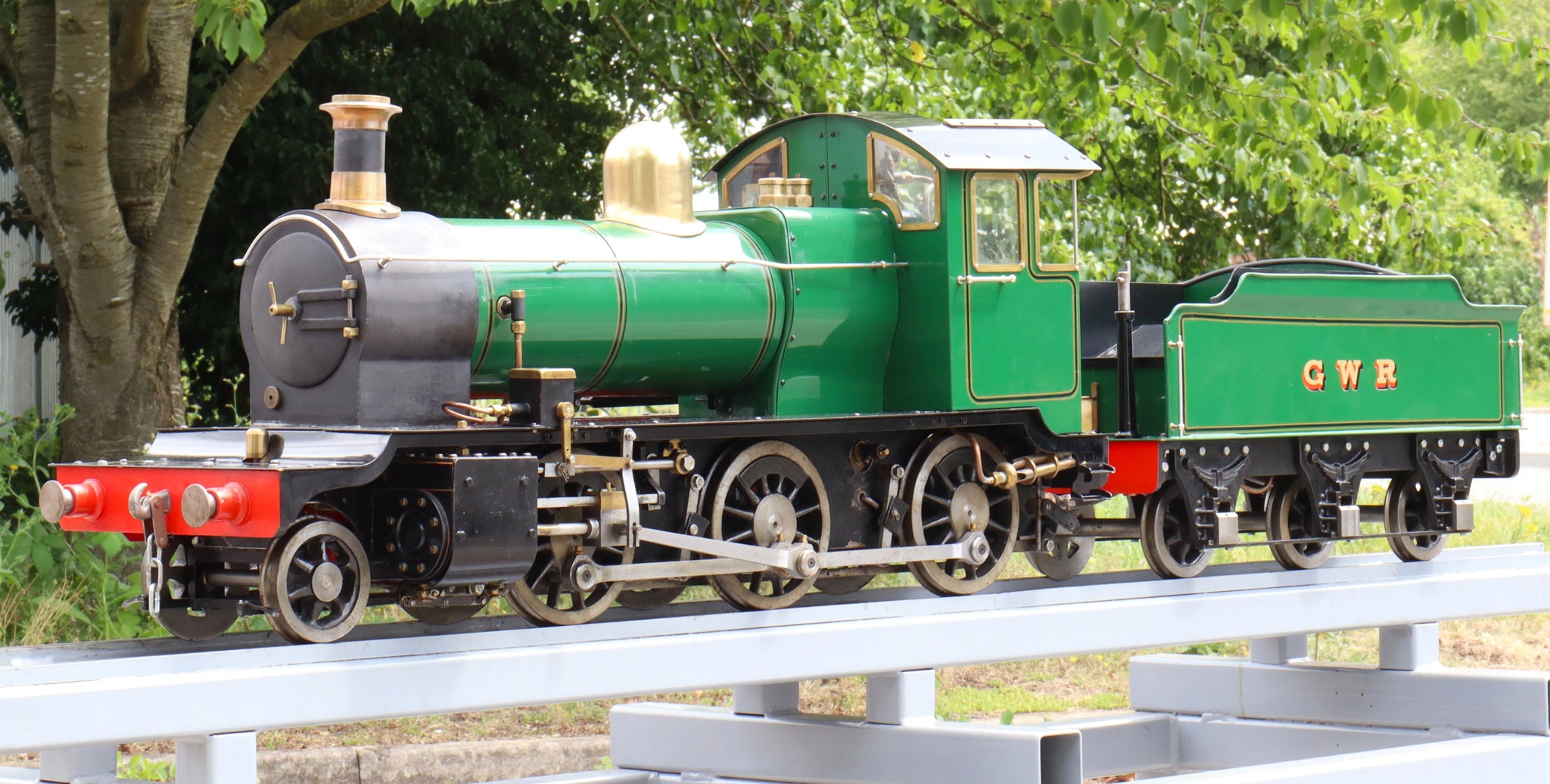

A 5 inch gauge narrow gauge "Polly VI" 2-6-0, one of the largest locomotives in the Polly range.
The engine has been serviced in our workshop, with a variety of minor jobs attended to. The CE-marked boiler has had hydraulic and steam tests, with new certification issued.
The engine is in good mechanical condition, the paintwork still presents very well.
On test it proved free-steaming and ran well in either direction - much as we've come to expect from these rugged, well-proven engines.
Stock code |
13399 |
Length/inches |
35 + 22 |
Width/inches |
11 |
Height/inches |
15 |
Weight/Kg |
67 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |

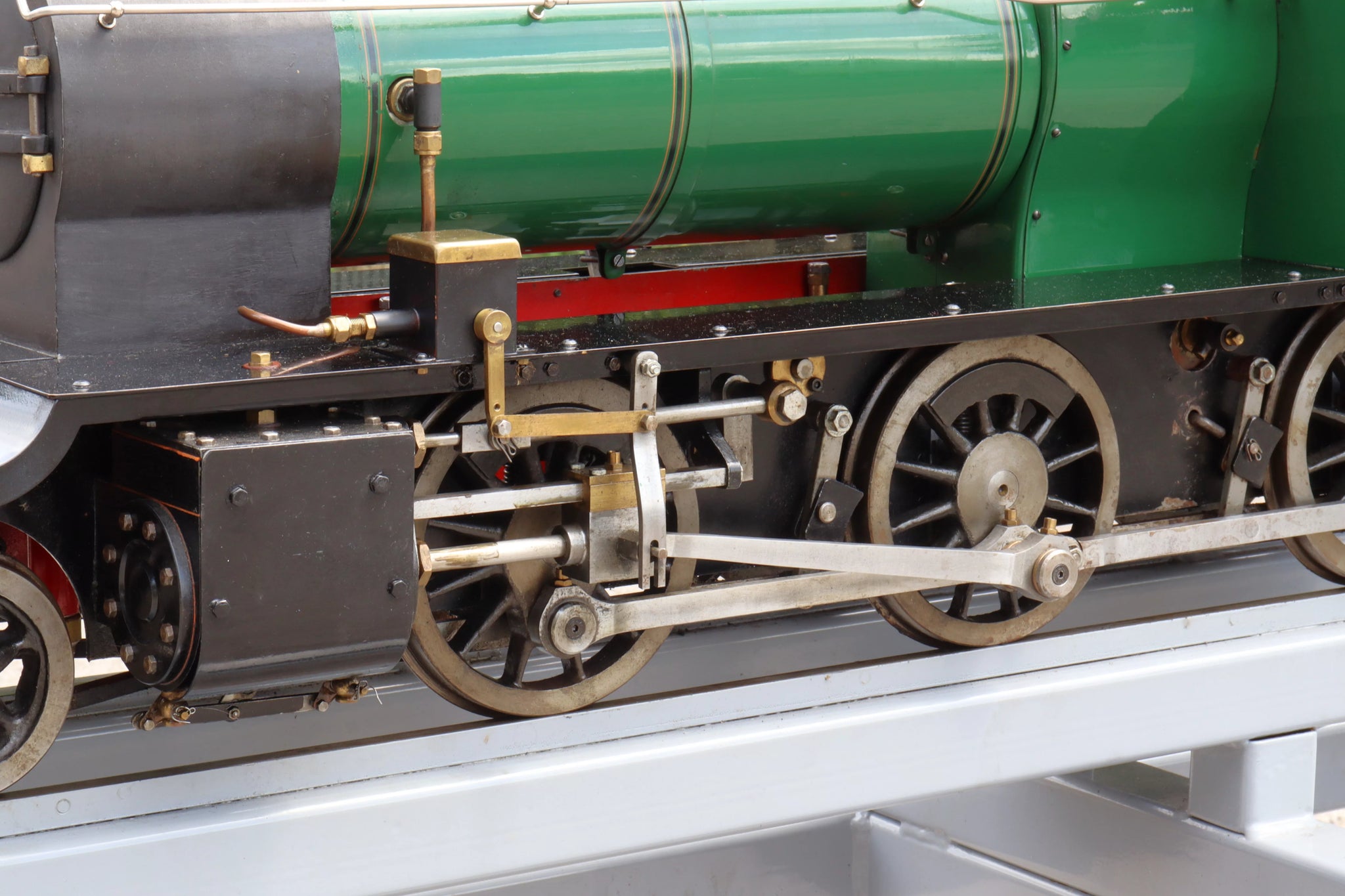

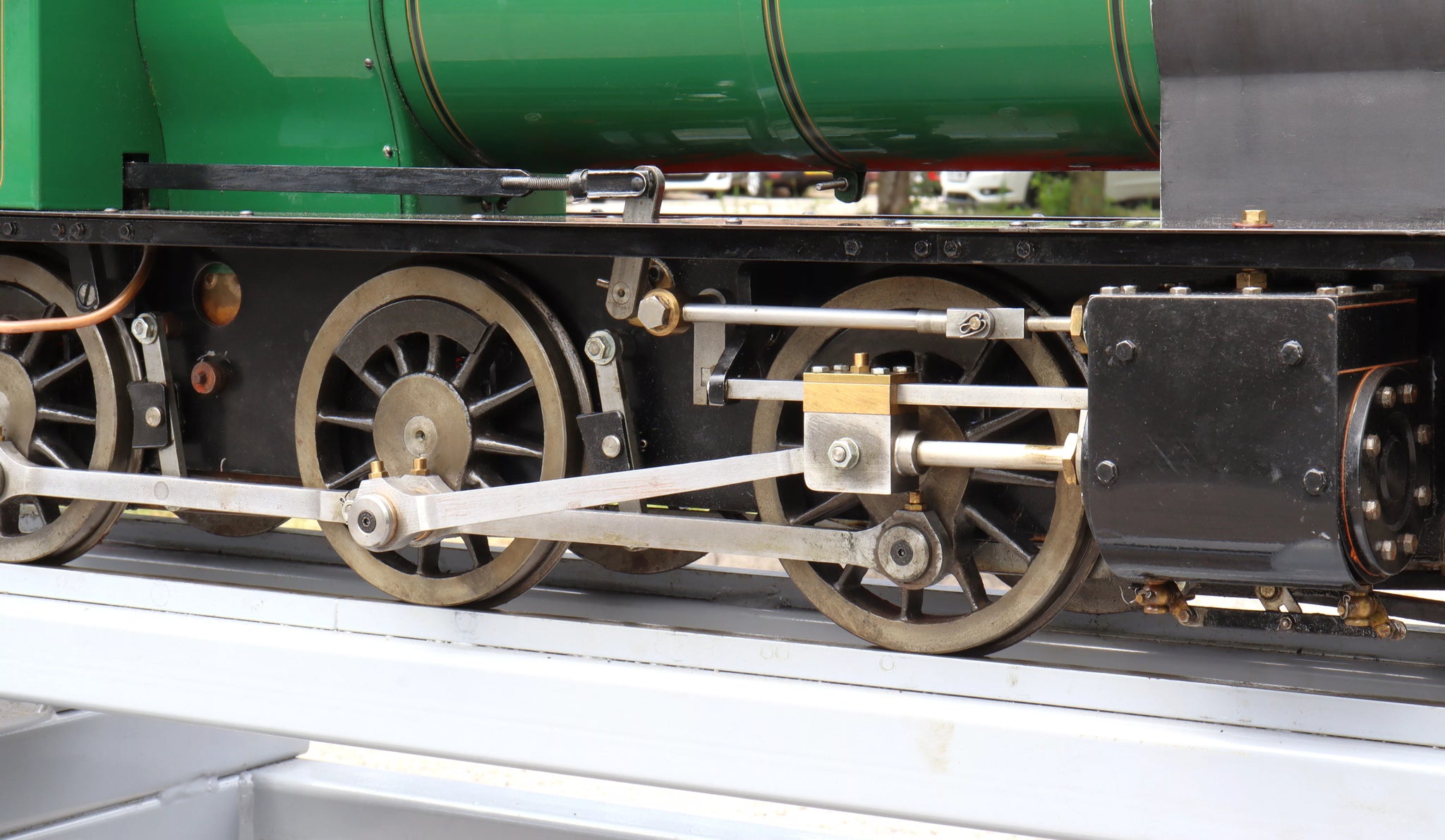

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
Brian Nicholls Model Engineering Services |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
yes |
Year built |
2012 |
Boiler number |
BN244 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
yes |
Whistle |
1 |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Hydraulic test valid to |
17-Jun-2030 |
Steam test valid to |
27-Sep-2027 |
