13362

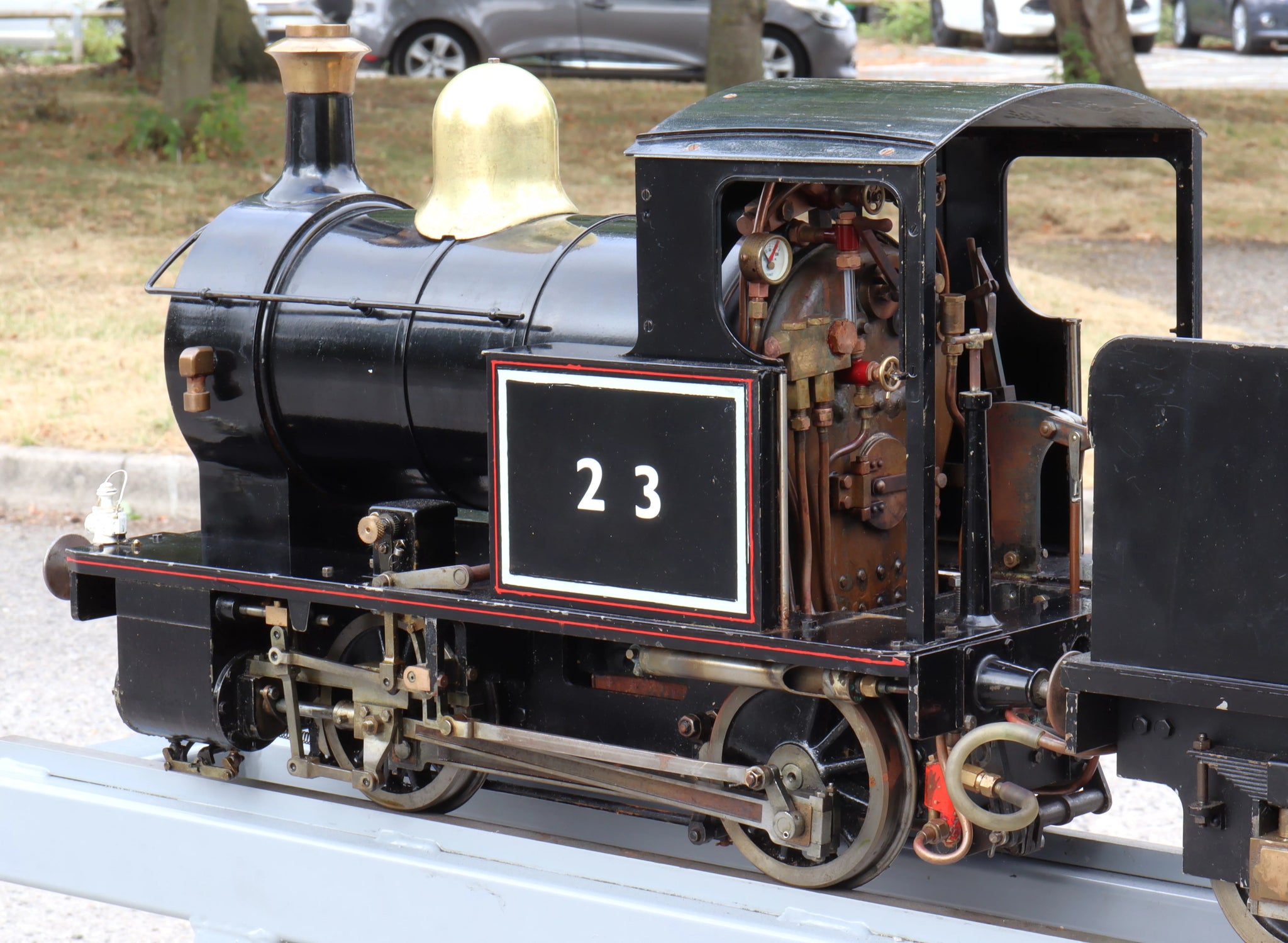

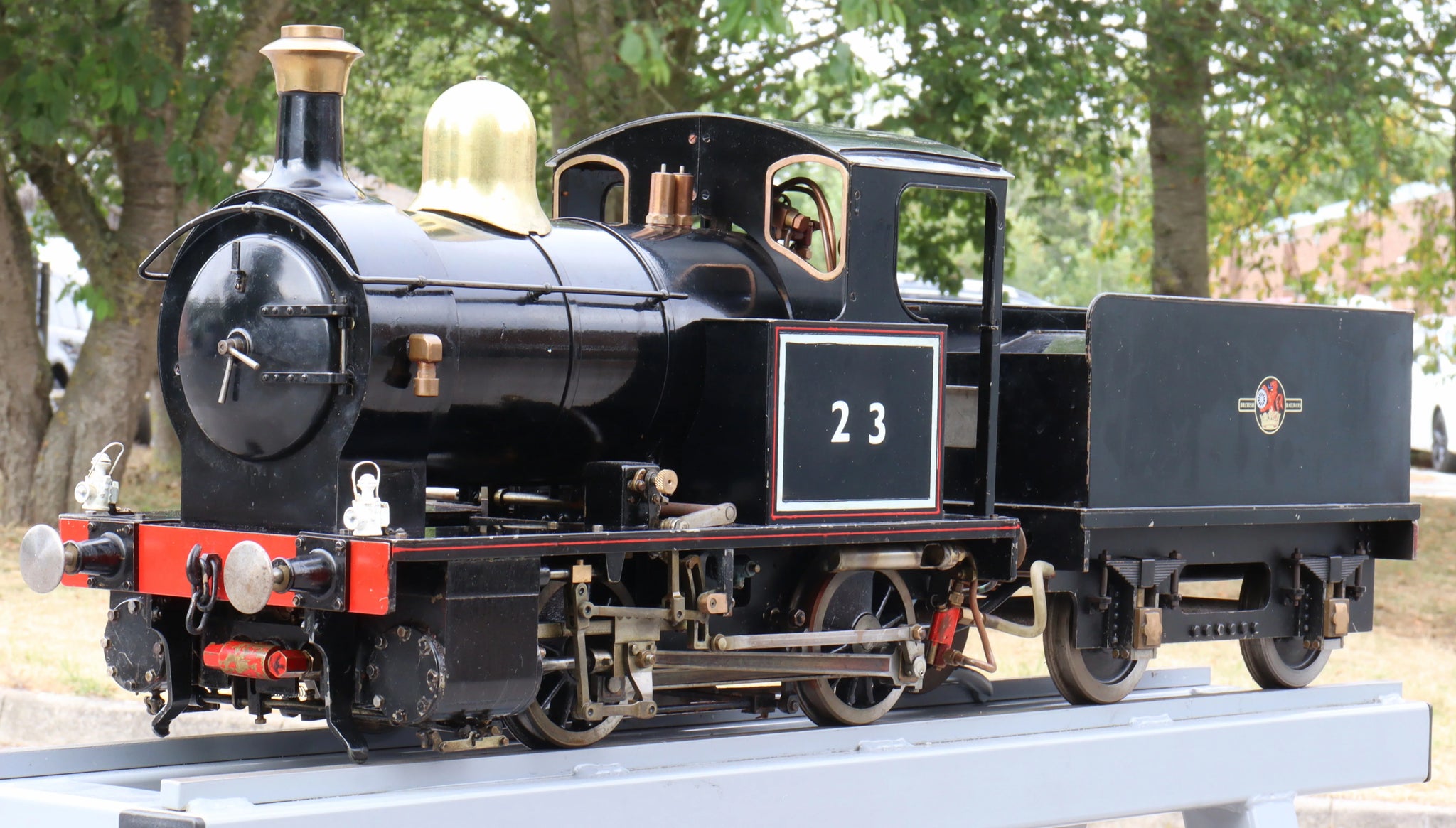

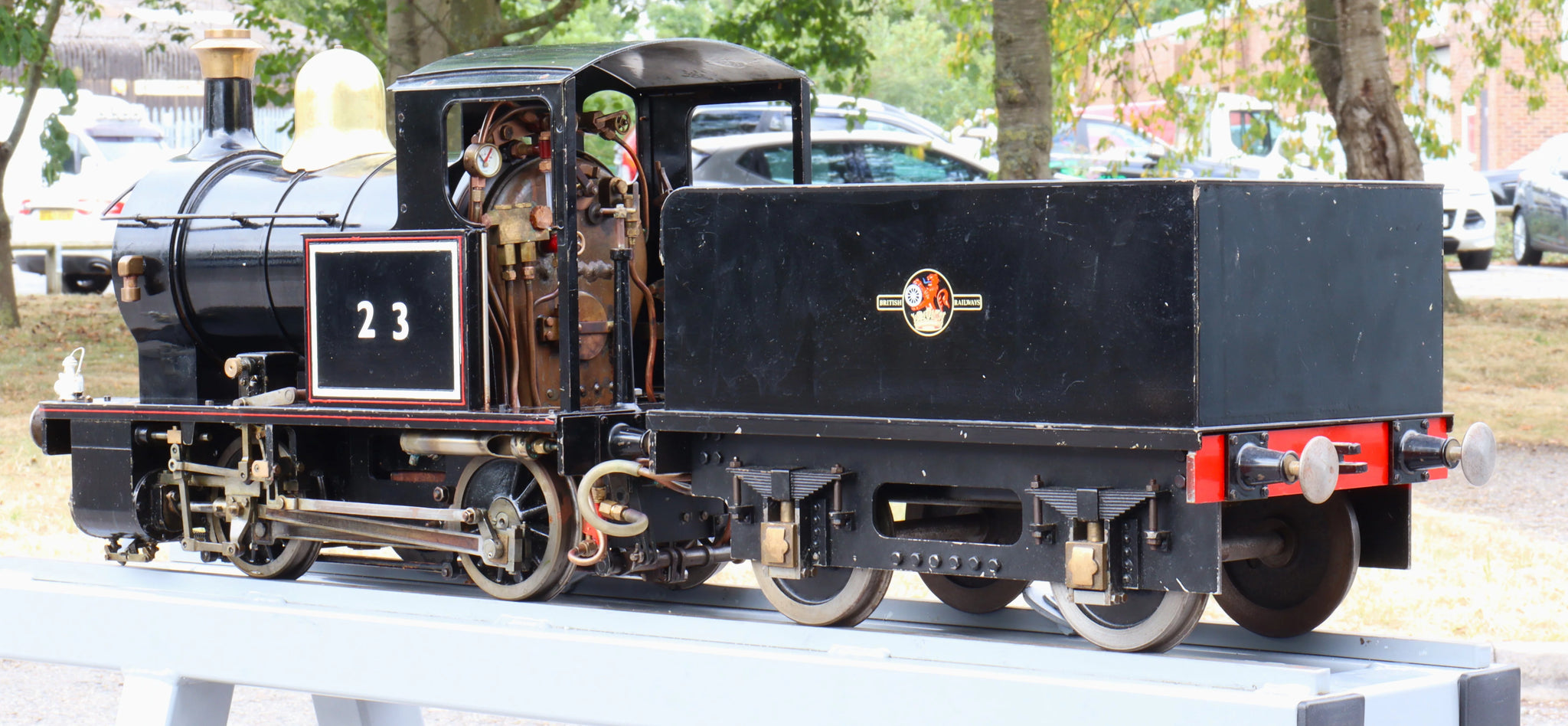

A 5 inch gauge Rail Motor 0-4-0 to the Don Young design.

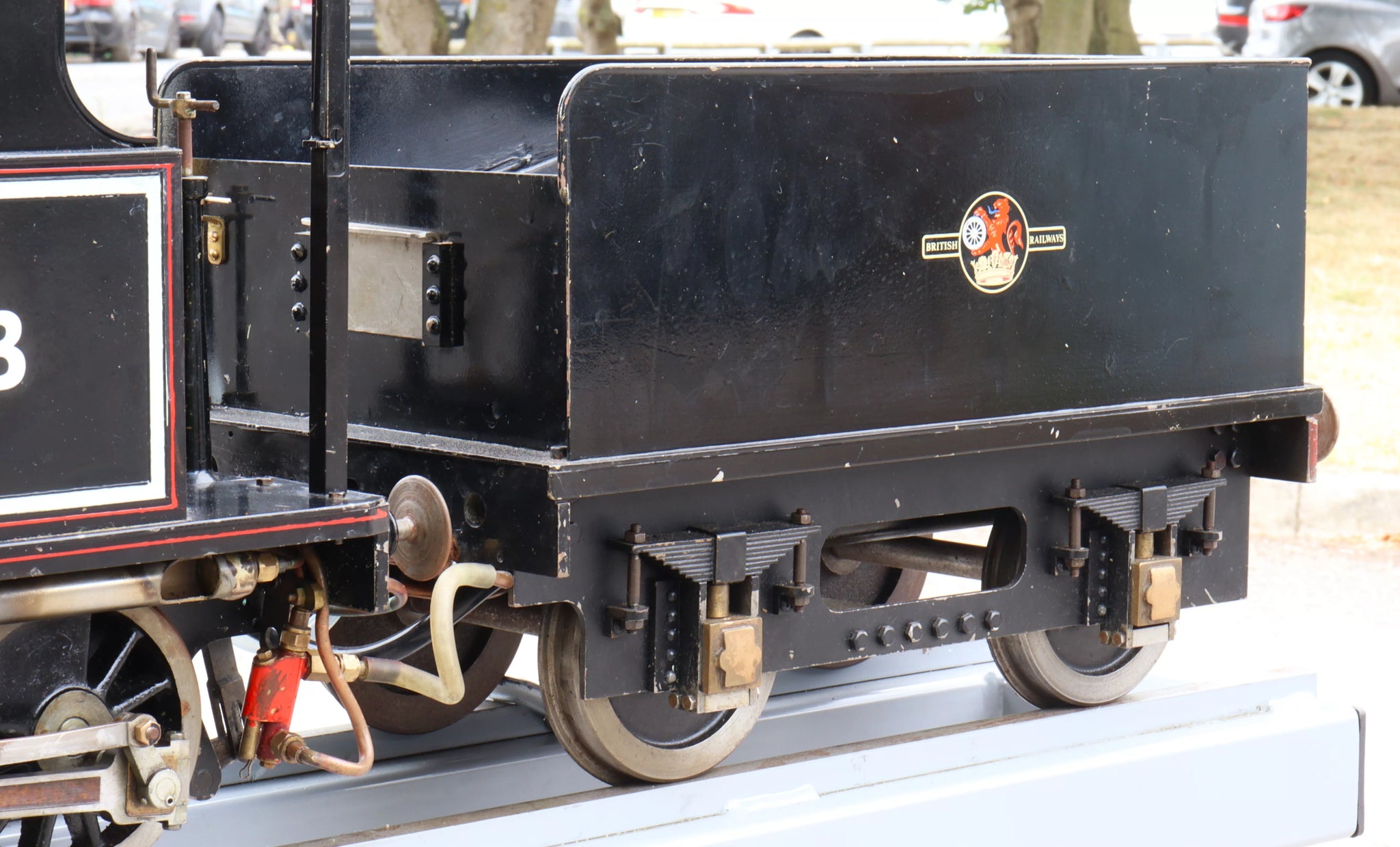

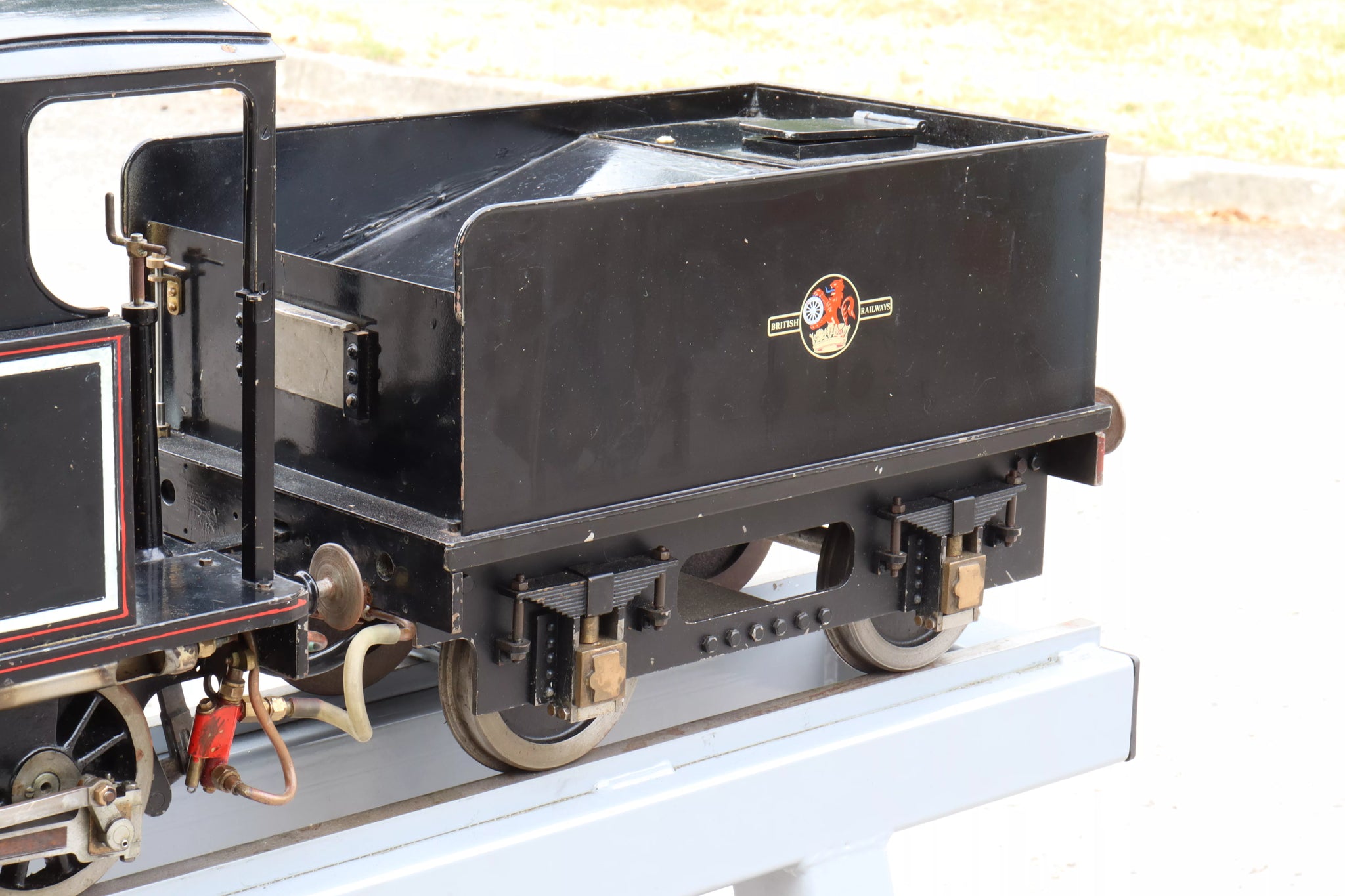

An older engine, attractively finished and complete with four wheel tender. It's had plenty of use over the years and now requires various jobs attending to, including replacing axlebox springs and refacing a leaking regulator.
The commercially built boiler has had a hydraulic test with new certification issued - we have some club history from 2007, apparently the last time it was tested.
The engine ran in desultory fashion on the rolling road, improved by running blocked up - new springs would improve matters.
Stock code |
13362 |
Length/inches |
21 + 16 |
Width/inches |
9 1/2 |
Height/inches |
13 1/2 |
Weight/Kg |
34 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |
Valve gear |

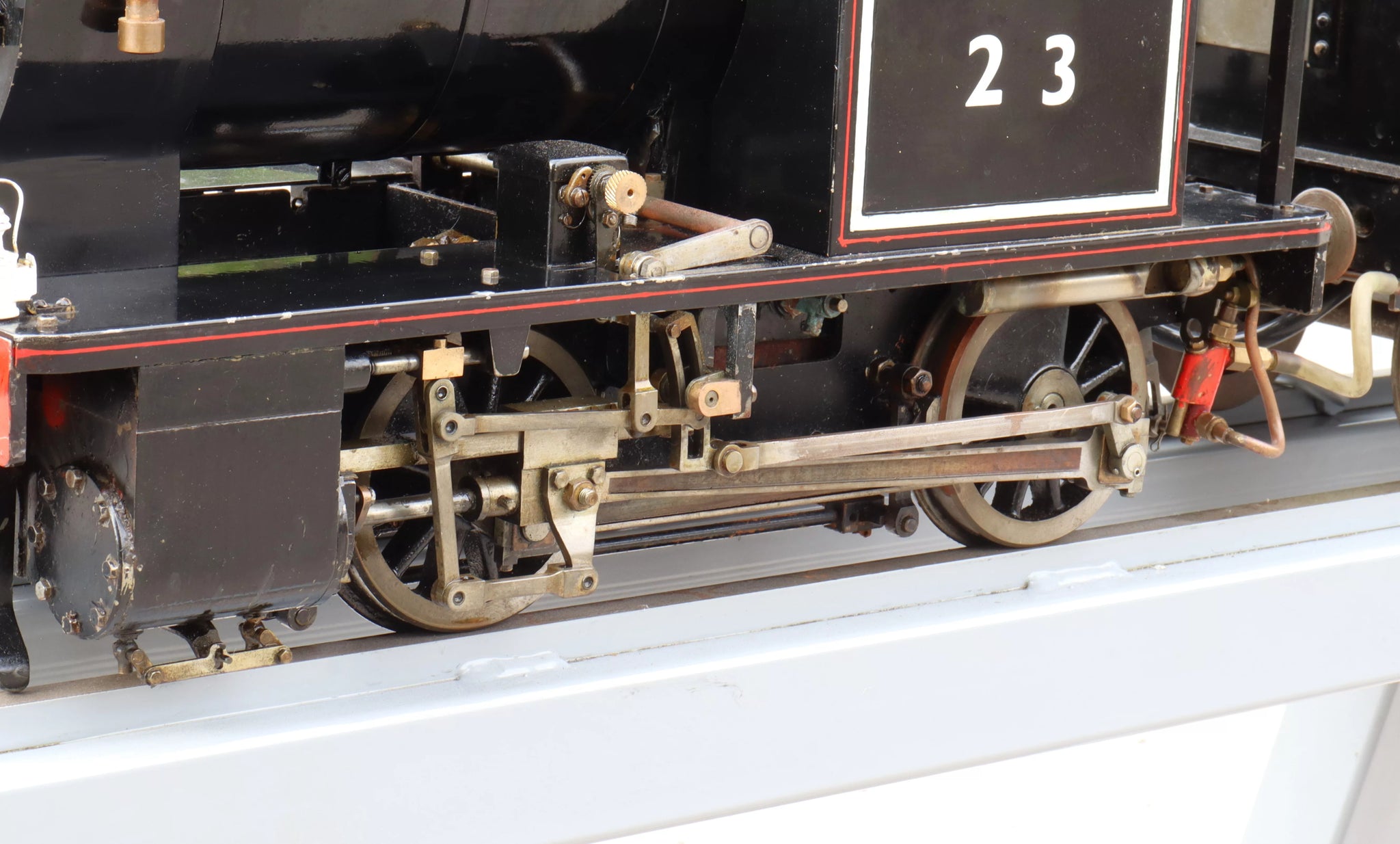

Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
A Kellett |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - pre-2002 |
Year built |
1982 |
Boiler number |
2818208 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
1 |
Hand pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Hydraulic test valid to |
27-Apr-30 |
